Identifying recombinants in human and primate immunodeficiency virus sequence alignments using quartet scanning
© Lemey et al; licensee BioMed Central Ltd. 2009
Received: 21 November 2008
Accepted: 27 April 2009
Published: 27 April 2009
Recombination has a profound impact on the evolution of viruses, but characterizing recombination patterns in molecular sequences remains a challenging endeavor. Despite its importance in molecular evolutionary studies, identifying the sequences that exhibit such patterns has received comparatively less attention in the recombination detection framework. Here, we extend a quartet-mapping based recombination detection method to enable identification of recombinant sequences without prior specifications of either query and reference sequences. Through simulations we evaluate different recombinant identification statistics and significance tests. We compare the quartet approach with triplet-based methods that employ additional heuristic tests to identify parental and recombinant sequences.
Analysis of phylogenetic simulations reveal that identifying the descendents of relatively old recombination events is a challenging task for all methods available, and that quartet scanning performs relatively well compared to the triplet based methods. The use of quartet scanning is further demonstrated by analyzing both well-established and putative HIV-1 recombinant strains. In agreement with recent findings, we provide evidence that the presumed circulating recombinant CRF02_AG is a 'pure' lineage, whereas the presumed parental lineage subtype G has a recombinant origin. We also demonstrate HIV-1 intrasubtype recombination, confirm the hybrid origin of SIV in chimpanzees and further disentangle the recombinant history of SIV lineages in a primate immunodeficiency virus data set.
Quartet scanning makes a valuable addition to triplet-based methods for identifying recombinant sequences without prior specifications of either query and reference sequences. The new method is available in the VisRD v.3.0 package http://www.cmp.uea.ac.uk/~vlm/visrd.
Investigating the molecular footprint of recombination in viral gene sequences is a multifaceted discipline. Such studies encompass statistical testing for the occurrence of recombination [e.g. [1, 2]], inferring the rate of recombination in a population, identifying parental and recombinant sequences [e.g. [3, 4]], and mapping breakpoints in mosaic genomes [e.g. [5, 6]]. Various recombination detection methods have been developed that generally focus on one or a subset of these tasks  or attempt to address increasing levels of complexity [e.g. ]. Most popular methods to investigate viral recombination patterns in a sequence alignment use a graphical sliding window approach to either scan the similarity of a query sequence against a set of parental (or reference) sequences, e.g. RIP  and SIMPLOT , or to compare the phylogenetic branching patterns of the query sequence relative to the parental sequences along the genome, e.g. BOOTSCAN . However, Martin et al. (2005) noted that the proper use of these methods often crucially depends on the prior identification of a suitable set of non-recombinant parental sequences (or 'pure' lineages), and, indeed, inclusion of recombinant reference sequences can result in flawed interpretation.
In HIV-1, for example, subtype G has been classified as a pure subtype for several years, but detailed analyses have recently shown that this strain most likely evolved following recombination between one lineage classifiable as the so-called circulating recombinant form CRF02_AG and another belonging to the 'pure' (i.e. non inter-subtype recombinant) lineage subtype J . CRF02_AG on the other hand, was found to be a 'pure' subtype and its classification as a circulating recombinant form (CRF) could be attributed to the inclusion of subtype G as a reference sequence in the analysis. In this case, the sampling history of subtypes and CRFs has caused a misinterpretation of the evolutionary history of HIV-1 group M: the parental subtype J complete genome was not available at the time subtype G was completely sequenced, so a recombinant pattern for subtype G could not be clearly established (although some ambiguous relationships with subtype A and CRF01_AE were noted) . Therefore, subtype G was assigned as a reference strain in the subsequent analysis of CRF02_AG, resulting in a misleading BOOTSCAN profile that suggested a mosaic genome for CRF02_AG .
The CRF02_AG example demonstrates that the 'query versus reference' approach will only be suitable to identify recombinants if valid reference sequences can be assigned. Such prior specification is essential for many methods, including dedicated HIV-1 methods and web servers [e.g. [13, 14]]. An additional shortcoming of graphical sliding window based methods, like BOOTSCAN, is that they commonly lack a formal test for recombination. Although bootstrap support values are well studied in phylogenetics, there exists no clear statistical basis to conclude significance evidence for recombination based on bootstrap variability across genome regions. In fact, by assessing significance conditional on reference sequences and crossover points that maximize the same test statistic, the BOOTSCAN approach falls into a sequential testing trap .
To avoid the problem of assigning appropriate reference sequences, exploratory methods have been proposed that consider every sequence as a potential recombinant or parent in a scanning procedure. RECSCAN, for example, is a modified BOOTSCAN algorithm that checks all combinations of three sequences (triplets) for changing nearest neighbor relationships. If different relationships are observed with bootstrap support above a user-specified value, a test of recombination is applied to the triplet . With appropriate multiple testing correction, a wide array of test approaches can be applied to all triplets to identify those combinations that show evidence for recombination, including also substitution distribution methods like maximum chi2 and GENECONV [2, 17]. None of these triplet exploration procedures, however, identify the mosaic sequence within a triplet that shows evidence for recombination. To tease apart recombinant from parental descendent sequences, Heath et al. (2006) proposed a series of additional heuristic tests that examine which sequence relationships change the most across a recombination breakpoint. A weighted consensus of these tests is eventually responsible for calling the recombinant sequence. Unfortunately, this weighting scheme is an arbitrary choice that is currently based on how accurately HIV-1 CRFs are identified as mosaic genomes. Given the problems concerning CRFs and subtype reference sequences discussed above, approaches that do not require empirical decisions would be a useful alternative for recombinant identification. Other methods have been proposed for recombinant identification , but accurate prior classification of sequences remains essential for their performance. Moreover, while the performance of different methods to detect the presence of recombination has been extensively evaluated [19, 20], no such efforts have been undertaken to investigate how well methods perform in teasing out recombinant sequences.
Here, we present an alternative approach to detect recombinants without prior identification of non-recombinant reference strains. We employ quartet-trees to rapidly scan for phylogenetic inhomogeneity along a sequence alignment and demonstrate how this information can also be employed to identify those sequences responsible for detectable recombination signals. Using simulated data sets we evaluate different quartet incongruence measures, different approaches to assess the significance of various recombination detection statistics, and compare their performance at identifying recombinant sequences with that of triplet-based methods. Finally, the usefulness of these methods in investigating recombination is demonstrated at different scales of primate immunodeficiency virus (PIV) evolution, including both HIV and SIV.
We describe the method developments in several subsections. The procedure we present here is an extension of a previously developed visual recombination detection (VisRD) method. We propose a scanning method that evaluates whether all combinations of four sequences (quartets) in a sequence alignment jointly provide evidence for recombination. When this is the case, we rank taxa or groups of taxa according to their contribution to this recombination signal. The method can be employed to sequentially prune putative recombinants until no significant recombination evidence can be found in the alignment. We start by briefly explaining the previously developed visual recombination detection method based on quartet scanning. Following the description of a novel quartet mapping approach based on a distance-based method, we present measures for phylogenetic inhomogeneity of quartets, ranking measures for taxa and groups of taxa, and a global test statistic for recombination. We then describe how null distributions can be obtained for this test statistic. In addition to the VisRD method, we briefly explain alternative triplet approaches used in our comparisons. We conclude the methods section by providing details on the simulated and empirical data used in this study.
Visual Recombination Detection
Distance-based quartet mapping

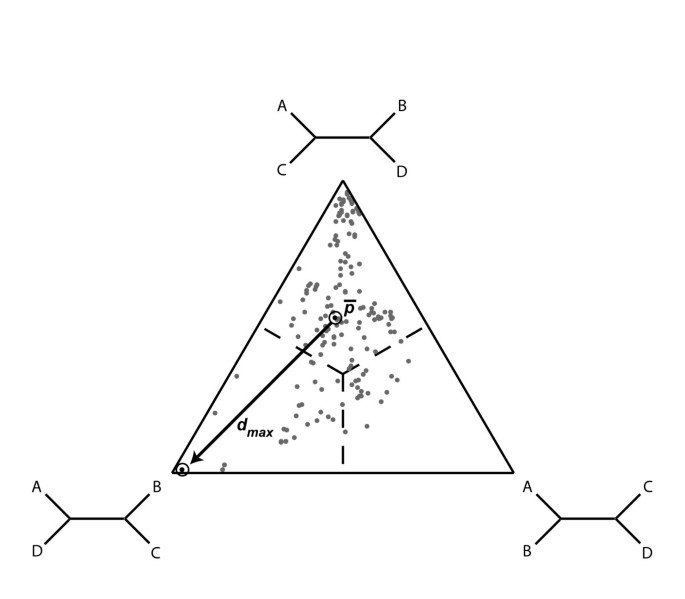

As indicated above, the quartet mapping approach used in VisRD is based on statistical geometry [22, 23]. Although this eases computation [compared to likelihood mapping, , for example], it does not take into account the complexities of nucleotide or amino acid substitution patterns. To address this shortcoming in the new version of VisRD, but still resort to fast quartet computation, we have implemented a distance-based minimum evolution (ME) approach to quartet-mapping. Briefly, branch lengths for each quartet topology are obtained using least-squares solutions , and the relative support for topology T i is given by , where ME is the sum of all positive branch lengths. For nucleotide sequences, the Jukes-Cantor, Kimura-two-parameter, Felsenstein '84 (F84) and Tamura-Nei substitution models were implemented.
For protein sequences, we implemented a protein distance estimator that uses a logarithmic correction of observed divergence based on the alignment score derived from empirical transition probability matrices . This estimator provides accurate and robust protein distances and can be easily adjusted to use any empirical log odds substitution matrix. In addition to the BLOSUM62 model, we also included HIV-specific matrices  and constructed a matrix specifically for analyses of more divergent PIV sequences. For the latter, we downloaded the available amino acid alignments for the Gag, Pol, Env and Nef proteins from the HIV database http://www.hiv.lanl.gov/, including 67, 86, 84 and 68 sequences respectively. Ambiguously aligned regions were deleted and phylogenetic trees were inferred using PhyML . The stochastic amino acid substitution model was inferred using a maximum likelihood phylogenetic approach that estimates the 190 evolutionary rates, defining the general time reversible model of amino-acid substitution, jointly from a set of sequence alignments. Finally, a similarity matrix with an expected sequence dissimilarity of 38% was generated as previously described using HyPhy [28, 30].
Nucleotide sequence alignments were analyzed using the F84 model and a sliding window with a window size of 500 bp and a step size of 40 bp. Amino acid sequence data was analyzed using the PIV log odds matrix, with a window size of 150 aa and a step size of 10 aa. Since nucleotide sequence alignments can include a number of ambiguous characters, particularly for a population of virus sequences, we also employed a random resolution of ambiguous sites to one of their possible states based on the nature of the ambiguity. For example, a site denoted with the IUBMB symbol 'M' could be either an 'A' or 'C' nucleotide; each is picked with equal probability when distances are computed using one of the above models.
Taxon ranking, group ranking and test statistics
Using the group rank (r g ), we can focus on recombinant events between pre-specified groups while alleviating some of the computational burden of the quartet scanning procedure. The mean taxon ranking and mean group ranking , which quantify the phylogenetic incongruence in the alignment, are then taken to be the average of these values taken over all taxa and all groups, respectively.
Alternatively, a rank for each quartet can be calculated based on the total distance covered by the trajectory for each quartet (dtot (q)) or the total distance from each point to the average position of all points in the trajectory (dav (q)). By again computing the average dtot or dav value taken over all n quartets q t that include t, and averaging over a group, we can obtain a taxon ranking and group ranking (substituting dmax by dtot and dav in (1) and (2) respectively).
The taxon and group ranking values (r t and r g ) are computed using all quartet trajectories (filtering is only considered in constructing the highway plot). The ranking values can be used to assess the contribution to phylogenetic inhomogeneity of individual taxa and groups respectively (i.e. they can be used to identify recombinant sequences), whereas the mean taxon and group ranking values ( and ) can be individually used as statistics for detecting recombination in a sequence alignment (see Significance). To identify all plausible recombinants in a sequence alignment using the quartet scanning procedure, we follow a sequential deletion procedure. When significant evidence of recombination is detected using or , the top-ranked sequence is considered as a putative recombinant and removed from the alignment. We repeat this until no significant evidence of recombination remains in the data set. Because the absolute values of d max , and hence r t and r g , are sensitive to the evolutionary models and topology evaluation criteria used, we report the ranking values as percentages of the highest ranking taxon or group.
We evaluate three different ways to generate a null distribution (absence of recombination) for the observed test statistics and derived from the taxon-ranking procedure: (i) Monte Carlo simulation (MC-simulation), (ii) permutation, and (iii) 'redistribution' of alignment columns. (i) For the MC-simulation procedure, maximum likelihood phylogenetic trees are reconstructed using PhyML , employing the general time-reversible substitution model (GTR) and gamma-distributed rate variation among sites. Because a null distribution needs to be generated under the hypothesis of 'no recombination', we simulate replicate data sets using Seq-Gen  down a single phylogeny reconstructed from the complete alignment. The same models and parameters were used as obtained by the maximum likelihood tree inference. (ii) Since taxon ranking is based on topological incongruence, we also use a permutation procedure that homogenizes any phylogenetic incongruence along the genome (under the null hypothesis of no recombination, the sliding window analysis should be invariant to permuting sites as all sites share the same history). This is achieved by random shuffling of the original alignment sites to produce replicate data sets. (iii) To accommodate varying phylogenetic signal along the genome, which is often observed in real data due to different degrees of conservation within the sequence, we also use a permutation procedure that mimics the variability distribution of the alignment columns ('redistribution'). Essentially, this procedure reshuffles alignment columns according to their Shannon entropy score . Replicate data sets are constructed by randomly drawing for each alignment position an alignment column with the same entropy score.
We use these three procedures to generate 100 replicate data sets each, so as to compute null distributions for our test statistics ( or ). A Monte Carlo p-value is then estimated by counting the proportion of times the or statistic on a replicate data set is larger than the value of or observed for the original alignment. If the null hypothesis is true, this proportion is expected to be 0.5. Such a p-value represents the probability of obtaining a result at least as extreme as observed for the original alignment in the absence of recombination.
RDP3 recombinant detection
The RDP3 software provides access to multiple recombination signal detection methods that can be used in conjunction with one another . The methods (CHIMAERA, Maximum chi2, RDP, RECSCAN and Geneconv, [2, 17, 20, 34]) in RDP3 search for recombination signals within sequence triplets sampled from an input alignment. When a recombination signal is detected, the member of the sequence triplet that is the recombinant is identified using a weighted consensus of a series of fifteen heuristic tests [mostly described in ]. These tests fall into four main categories: (i) Phylogenetic profile based (4 tests; [35, 36]); (ii) branch pruning and re-grafting based (2 tests; [35, 37, 38]); (iii) multiple recombination signal pattern analysis based (3 tests; ); and (iv) simple distance-based metrics (5 tests) that, for example, compare pair-wise genetic, and phylogenetic tree distances of different subsets of sequences within the alignment on opposite sides of the detected recombination breakpoint position. These latter tests collectively identify the recombinant by determining which sequence(s) within an alignment have relationships that change the most across a recombination breakpoint. The weighting scheme used in RDP3 to combine the results of all 15 tests into a single consensus score is based on how accurately the individual tests identified HIV-1M inter-subtype recombinants (circulating recombinant forms 1 through 16) from amongst a background of supposedly non-recombinant HIV-1M subtype sequences.

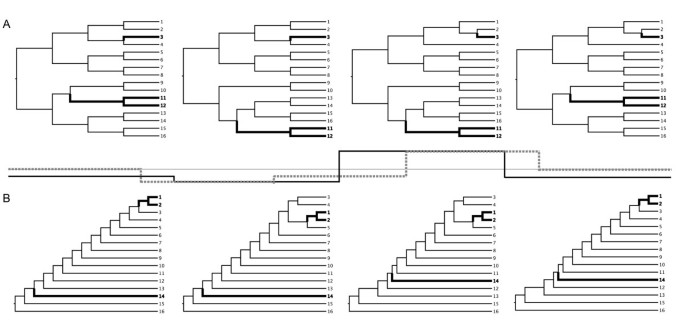

Two different simulation studies were undertaken: (i) to evaluate how accurately the methods detected specific recombinant sequences, and (ii) to evaluate the overall power of methods at detecting recombination signals within sequence alignments (irrespective of which sequences are responsible for these signals).
For (ii), to evaluate power and false positive rates in detection of recombination signals, we examined simulated data sets previously generated for comparing the performance of 14 recombination detection methods . These data sets are now often used to evaluate recombination detection power and false positives of new recombination detection programs [16, 39].
The HIV-1 group M alignments analyzed here were derived from a full genome alignment provided by the HIV database http://www.hiv.lanl.gov/ and manually edited using Se-Al http://tree.bio.ed.ac.uk/software/. The accession numbers of the included sequences are listed in Additional File 1. Two data sets were used in our analyses: a CRF03_AB data set (including 4 A's, 2 B's, 2 C's, 1 D, 2F's and 2 CRF03_AB's) and a larger CRF02_AG data set (including 4 A's, 4 B's, 4 C's, 4 D's, 4 F's, 4 G's, 2 H's, 2 J's, 2 K's and 4 CRF02_AG's). The HIV-1 group M alignments had nucleotide diversities ranging from 0.17 substitutions/site to 0.19 substitutions/site, which roughly corresponds to θ = 200 in the coalescent-based simulations. The SIV data set, previously analyzed for recombination by Bailes et al. (2003), includes protein sequences representative of eight major SIV clades. Their accession numbers are also listed in Additional File 1.
Bootstrapped phylogenetic trees were reconstructed using PhyML , as described above (see Significance) and network analyses were performed using the Neighbor-net method  implemented in SplitsTree . To represent robust network-like relationships, the Neighbor-nets only display the splits that were present in 75% of 1000 bootstrapped replicates. Intrasubtype recombination was analyzed using GARD method, available at http://www.datamonkey.org/GARD/. Tree topology tests were performed using Tree-Puzzle  and Consel .
We present the results of three main analysis sections: (i) simulations to evaluate the performance of different statistics and measures of significance for the quartet scanning method, and simulation studies to compare quartet scanning with other recombination detection methods in terms of both detecting recombination signals and identifying recombinant sequences; (ii) an analysis of HIV-1 group M inter- and intra-subtype recombination; and (iii) recombinant identification using amino acid data from more divergent PIV lineages.
Simulated data analysis

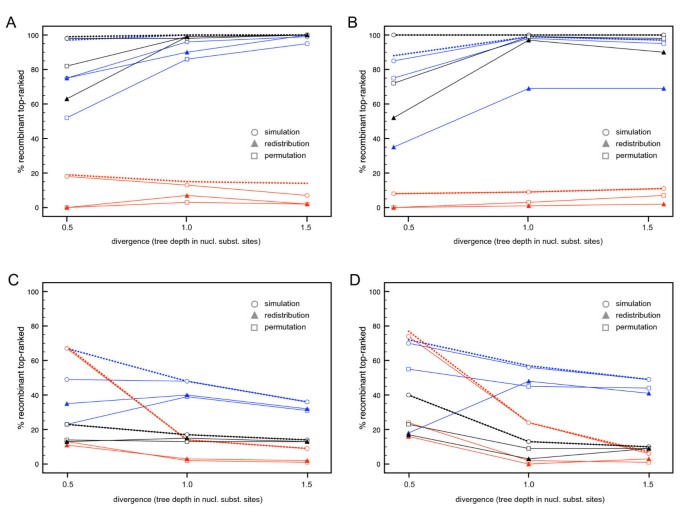

To assess the performance of the distance-based quartet scanning method as a statistical test for recombination signal, rather than a method for recombinant identification, we also reanalyzed nucleotide data simulated under varying levels of divergence and recombination originally presented in  and compared this with other methods (see Additional File 2 for a detailed presentation of the results). In general, these analyses revealed that the performance of our test is comparable to similar methods, like RECSCAN , but these are less powerful than the MAXIMUM CHI2 method , which has been reported as one of the most powerful nonparametric recombination detection methods.
HIV-1 intersubtype recombination
Group ranking based on quartet scanning of the CRF03_AB data set.
r g (%)
The CRF03_AB example indicates that the values allow us to test for the presence of recombination while taxon ranking itself indicates the most likely recombinants in the data set without assigning query and parental sequences a priori. Together, this represents an ideal approach to evaluate recombination patterns in cases where prior identification of non-recombinant reference strains is problematic, like CRF02_AG . To investigate the CRF02_AG issue and other putative recombination events in HIV-1 group M, we compiled a full genome data set that is more representative of HIV-1 group M diversity. Also for the analysis of this data set, we employed a grouping model for the different subtypes and CRFs. Although the value for the data set including CRF02_AG indicates the presence of recombination (permutation p < 0.01; using dmax), the taxon ranking does not suggest CRF02_AG sequences as most plausible mosaic genomes (Additional File 3, 1st column). In agreement with the recent analysis of Abecasis et al. (2007), the 'pure' subtype G sequences are proposed as the most likely recombinants while CRF02_AG and subtype J are suggested as parental lineages because they were ranked right below the putative recombinant. When the subtype G sequences were removed, recombination in the remaining data could not be excluded based on the permutation statistics (permutation p < 0.01). This time, subtype K was at the top of the taxon ranking (Additional File 3, 3rd column). It is interesting to note that a recombinant origin for subtype K has been proposed , but its designation was not changed since it was already an established subtype in the literature .
Having removed sub-subtype A1, A4 and A3, our recombination test was still significant (permutation p < 0.01) and subtype J was now at the top of the ranking (Additional File 3, 9th column). Although recombination has not been clearly suggested for this subtype, it does indeed cluster differently in each major gene tree of the HIV genome (Figure 6b: branching off after subtype H and CRF02_AG/A2 in gag, branching off after subtype H in pol and clustering with subtype C in env). Further removing of subtype J, there was still significant recombination signal (permutation p < 0.01), this time with subtype D heading the ranking (Additional File 3, 11th column). Without the grouping model, three subtype D sequences appeared to be the descendents of a recombinant lineage (Additional File 3, 13th column), which was also confirmed by the Neighbor-net analysis (Figure 6a). The final recombination signal was detected with subtype F heading the ranking, despite a stable clustering of this subtype in the major HIV genes encoding structural proteins (Figure 6b). Recombination remained detectable after deletion of subtype F using the MC-simulation approach, but given the more likely confounding effect of rate variation for MC-simulation and the increasing difficulty of correctly identifying 'deeper' recombinants (both cf. the simulation analysis), we did not explore further taxa deletion. A different order in putative recombinant deletion was suggested after identification of recombination in subtype G, K and subsubtypes A using dav as a test statistic, and subtype J was not suggested as a recombinant by this procedure (Additional File 4). The intrasubtype recombination detected in subtype A and D in both procedures was confirmed by GARD analysis (data not shown) .
We also employed our method to investigate a highly divergent HIV-1 variant from the Democratic Republic of Congo (DRC) [50, 51]. Although the DRC strain was positioned differently in phylogenetic trees of different genome regions (similar to subtype J in Figure 6b), it did not cluster with any of the know subtypes and hence it was suggested as a candidate for a new subtype . As reference strains, we included the sequence set for which no significant recombination could be detected (see above, including subtype A2, B, C, DUG114, H, and CRF02_AG). Our taxon-ranking procedure indicated that quartets containing this unclassified variant show the highest phylogenetic variability along the genome (Additional File 5), and this was associated with significant evidence for recombination in the alignment (permutation p < 0.01). To confirm alternative clustering patterns for this lineage and to demonstrate significant incongruence despite convincing bootstrap support values, we reconstructed phylogenies for the major genes (gag, pol and env) and performed tree topology tests (Additional file 6). The trees indicate different clustering for the DRC lineage in the three major genes, and despite low bootstrap support for the alternative clustering, tree topology tests consistently indicated significant incongruence. Finally, we also analyzed CRF01_AE sequences, for which only the subtype A lineage is available as closely related parental descendent. The taxon-ranking procedure still revealed significant recombinant signal and implicated this CRF as the lineage responsible for the incongruence (Additional File 7; permutation p < 0.01).
Recombination in primate immunodeficiency virus evolution
Recombination in more divergent simian immunodeficiency viruses (SIVs) was investigated for the amino acid data set of Bailes et al. (2003), which includes representatives of eight major SIV lineages for which full-length sequences were available at the that time . Because there are no equidistant SIV clades similar to HIV-1 group M subtypes, we did not apply the grouping model in this case. However, when sister taxa representing one of the eight major lineages were ranked as the top two sequences, we removed both taxa in the subsequent taxon-ranking test. The protein sequences were analyzed using a corrected distance measure based on an amino acid substitution matrix inferred from a larger PIV data set (see Methods), and significance was assessed using permutation. Additional File 8 summarizes the results using the dmax statistic, while the results using dav are provided in Additional File 9.
The ranking procedure provided evidence for recombination in the SIV sequences (p < 0.01). Moreover, in agreement with the findings of a hybrid origin of SIV in chimpanzees , SIVcpz was suggested as contributing the most to this recombination signal (Additional File 9, 1st column). However, recombination was also detected during subsequent deletion of several SIV lineages (SIVagm, SIVcol, SIVmnd/l'hoest, SIVsyk/SIVsm/HIV-2), leaving only a single quartet that did not deviate significantly from clonality (p = 0.43). There were some differences in the order by which SIVs were identified as recombinants using dav (see Additional File 9), but the final result was the same.
In this study, we have developed an extension of the visual recombination detection method to rank taxa or groups of taxa according to their contribution to phylogenetic inhomogeneity, and to test whether the overall phylogenetic incongruence has been significantly shaped by recombination. During a sequence alignment scan, phylogenetic inhomogeneity is quantified using a quartet mapping approach. Taxa or groups of taxa are subsequently scored using the average inhomogeneity of all the quartets they belong to. To assess whether significantly more inhomogeneity is observed than expected under a recombination-free scenario, we tested MC-simulation, permutation, and a redistribution approach.
Simulation analyses suggested that identifying recombinant sequences without prior specifications is a challenging problem. Only relatively recent recombinants were readily identified in symmetric trees in which recombination was rare. In asymmetric trees, correct recombination identification proved to be more difficult. Exploratory analyses using RDP3 indicated that this was also the case for the triplet-based methods (data not shown). However, the recent recombination event in the asymmetric trees occurred between somewhat more closely related parental strains, with a different mosaic structure, and involved two descendants of the same recombinant (Figure 3). Hence, symmetric and asymmetric tree simulations cannot be easily compared. Asymmetric topologies are generally more problematic in phylogenetic inference; more sequence data is required to recover such topologies and they are much more susceptible to substitution saturation than symmetrical ones . The latter may provide an explanation as to why increased sequence divergence did not result in increased power for recombination detection, as is the case for symmetric trees.
We found marked performance differences between different measures of quartet variability. The poor performance of the total path distance (d tot ) may be explained by the fact that the sliding window procedure follows the path between two regions supporting alternative topologies in the quartet-mapping triangle in a stepwise manner, with each step represented by different alignment windows. Steps covering similar distances could also be taken within a region supporting a particular topology, and thus lead to similar total distances in the absence of real topology changes. No matter how many steps need to be taken to the point most distant from the average position, the d max measure only considers how remote this point is from the average positions. The power of the maximum distance or the average distance from the mean position will depend on the mosaic pattern of the recombinant. d max may be more sensitive to a small region with a different evolutionary history, while d av may be more sensitive in case of multiple breakpoints.
The simulation setup was necessarily simplistic and we have not explored the variety of recombination scenarios that occur in reality. When recombination is frequent, for example, all the methods would be expected to suffer from an elevated failure rate . Also the sampling rates of recombinants relative to the parental descendent sequences will have a profound impact on the ability to identify mosaic sequences without prior reference specifications. When few representatives of the recombinant lineage are sampled and relatively closely related descendents of both parents are present, as is the case in our phylogenetic simulations, than the quartet variability should be attributed relatively easily to the recombinant sequences by averaging the d max measure over the quartets that contain these sequences. When, however, many sequences are included that share the same recombination history, more quartets will be composed of multiple recombinant sequences of the same type. These quartets may not generate strong phylogenetic inhomogeneity, and in the case of all four sequences representing the same recombinant, there should be no recombination signal detectable. Although sampling rate inequalities for pre-defined lineages may be controlled to some extent by the grouping constraint we proposed, it will no doubt adversely affect taxa ranking. This may also at least partly explain the poor performance for the asymmetric tree simulations. Here, the more recent recombinant event had two descendents, and frequently, a parental descendent sequence (sequence 3, 4 or 5 in Figure 3) was top ranked instead of one of the recombinants. This again highlights that the current simulations only offer a starting point for comparison of different methods and their relative ability to identify recombinant sequences, and more complexity needs to be explored in the future.
For the quartet scanning method, generating null distributions using MC-simulation was the most powerful procedure for identifying evidence of recombination, but it also suffered from a higher false positive rate in the presence of rate variation among genome regions. The simulated patterns of rate variation are within the range of rate variation that can be expected in HIV genomes. In this case, permutation still achieved good detection rates with far fewer false positives. This difference illustrates that the MC-simulation technique performs very well when the simulated evolution meets the assumptions in the parametric bootstrapping procedure. Under model misspecification, however, it may still be powerful but could also be particularly misleading. Although rate variation can be accommodated in the simulation procedure using a discrete gamma distribution, it assumes that rate variation is independent and identically distributed along the genome. This assumption will rarely be met for real data situations and it can have an important impact on comparative analyses of data partitions across the genome. The redistribution approach, which was designed to homogenize phylogenetic incongruence, but still mimic the pattern of rate variation present in the real data sets, was the least sensitive. Even when rate variation does not correlate with breakpoints, this approach does not easily lead to rejection of clonality. This indicates that permuting sites only with the same entropy score might be too stringent to efficiently homogenize recombination signal. In this respect, it is important to realize that a sequence alignment can include sites with many different entropy values, and the number of sites per entropy value will naturally show a large variation. For a typical simulated data set comprising 16 taxa (symmetric, tree depth = 0.1 substitutions per site, 4000 nucleotides), site patterns can break down in about 46 different site entropy values with, for example, a few patterns having unique entropy values and about 13% of patterns being single nucleotide polymorphisms that are represented by a single entropy value. Therefore, more efficient shuffling under more relaxed rate variation constraints may be achieved by binning site patterns based on their entropy value.
Taxon ranking based on quartet scanning is geared towards the detection of recombinant sequences. As a test for recombination signal, more powerful methods have been devised (see  for a comprehensive comparison and, for example, ), and we do not provide a formal test for breakpoint locations. Also for the latter, we refer to other developments (e.g.  and ). However, automated detection of recombinant lineages on its own is already a difficult problem to tackle. The quartet scanning approach performed well relative to various triplet-based methods in identifying recombinants simulated using a phylogenetic approach. However, more comprehensive simulations are needed for a better assessment of the powers and pitfalls in different situations. The essential difference between the quartet scanning approach and the various RDP3 methods does not lie in the use of quartets versus triplets, but how their information is further employed to identify the recombinants. While the quartet approach deduces a ranking for taxa or groups of taxa from the phylogenetic variability in all these quartets, additional tests are used by RDP3 to distinguish recombinants from parental strains in triplets that resulted in significant evidence for recombination. It is interesting to note that the weighting scheme used by RDP3 to combine the results of these tests into a single consensus score is currently based on how accurately the individual tests identified HIV-1M inter-subtype recombinants . Because of the CRF02_AG-subtype G classification artefact, a new weighting optimization might be required. Moreover, quartet scanning might make a useful addition to the tests employed by RDP3.
The quartet approach presented here has particular practical limitations. The number of quartets increases as a fourth order polynomial in the number of taxa, and although the group constraint can alleviate some of the computational burden, both memory requirements and speed of computation will become impractical for very large data sets. This will be a particular burden when many sequential deletions of recombinants are required and significance needs to be assessed each time using replicate data sets. Although these procedures can be automated and quartet information for a permutation alignment can be stored and reused, it would be very useful to be able to test every taxon or taxon group without having to rescan pruned data sets. Our experience with the current implementation leads us to conclude that 50 taxa is roughly the upper limit for this method in practice. There are obviously less triplets than quartets for any data set, and RDP3 does not evaluate evidence for recombination in triplets by analyzing replicate data sets, which makes them faster in computational practice.
In sliding window analyses, it is important to determine how much phylogenetic discordance can be expected from the stochastic nature of the substitution process in the absence of recombination. In BOOTSCAN analysis , a query sequence is generally inferred as a recombinant when a high bootstrap support is observed for clustering with different reference sequences in different gene regions. However, this criterion will not be adequate to assess variable clustering deeper in the phylogenetic trees. This is illustrated by the highly divergent HIV-1 variant from the DRC. Although phylogenetic inhomogeneity was originally noted for this strain, the absence of strong bootstrap support for the different clustering deeper in the tree led to the suggestion that it could be a new subtype . However, our test indicates that there is more phylogenetic inhomogeneity than expected by chance and thus classifies the DRC strain as a probable recombinant lineage. Significant phylogenetic incongruence between major genes was also confirmed by various tree topology tests.
Both subtype G in HIV-1 group M and SIVcpz in PIV are confirmatory examples, but the application of quartet scanning demonstrates how recombinants can be easily identified for cases that required in depth analysis to distinguish parental from recombinant lineages [11, 52]. The pervasive recombination in PIV lineages has also been suggested by exploratory bootscanning and network analyses . In addition to PIV recombination and HIV-1 intersubtype recombination, our test was also sensitive to intrasubtype recombination. Both in subtype A and D, we identified recombination signals that were supported by network and GARD analyses, and in both cases, the recombination signal did not stem from a single mosaic sequence but from a recombination event that was shared among several sequences.
Although we have identified recombinant genomes at different evolutionary scales in immunodeficiency virus evolution, it may prove a challenging endeavor to clearly delineate breakpoints for many of these recombinants. Similar to other sliding window analyses, breakpoints will be readily identified if viruses from two well-supported phylogenetic clusters recombined relatively recently. However, our method may also pick up recombinants in trees without well-supported groups (e.g. intrasubtype recombinants), ancestral recombinants that were generated before well-supported clades were established (which could be the case for the divergent DRC strain), or ancestral recombinants of lineages that have now diverged considerably (which is probably the case for several PIV lineages).
In conclusion, we have developed a recombination detection method that does not require a priori assignment of reference and query sequences, statistically evaluates the recombination signal in nucleotide and amino acid alignments, and identifies the most plausible recombinants. Taxon ranking and the associated statistical test complement the visual recombination detection method. Collectively, these developments comprise a powerful and versatile methodology that will make a useful addition to the array of recombination detection methods.
circulating recombinant form
primate immunodeficiency virus
simian immunodeficiency virus
visual recombination detectionl
Recombination detection program
Felsenstein '84 model of evolution
general time-reversible substitution model
