Analyzing miRNA co-expression networks to explore TF-miRNA regulation

BMC Bioinformatics200910:163

DOI: 10.1186/1471-2105-10-163

Received: 14 January 2009

Accepted: 28 May 2009

Published: 28 May 2009

Abstract

Background

Current microRNA (miRNA) research in progress has engendered rapid accumulation of expression data evolving from microarray experiments. Such experiments are generally performed over different tissues belonging to a specific species of metazoan. For disease diagnosis, microarray probes are also prepared with tissues taken from similar organs of different candidates of an organism. Expression data of miRNAs are frequently mapped to co-expression networks to study the functions of miRNAs, their regulation on genes and to explore the complex regulatory network that might exist between Transcription Factors (TFs), genes and miRNAs. These directions of research relating miRNAs are still not fully explored, and therefore, construction of reliable and compatible methods for mining miRNA co-expression networks has become an emerging area. This paper introduces a novel method for mining the miRNA co-expression networks in order to obtain co-expressed miRNAs under the hypothesis that these might be regulated by common TFs.

Results

Three co-expression networks, configured from one patient-specific, one tissue-specific and a stem cell-based miRNA expression data, are studied for analyzing the proposed methodology. A novel compactness measure is introduced. The results establish the statistical significance of the sets of miRNAs evolved and the efficacy of the self-pruning phase employed by the proposed method. All these datasets yield similar network patterns and produce coherent groups of miRNAs. The existence of common TFs, regulating these groups of miRNAs, is empirically tested. The results found are very promising. A novel visual validation method is also proposed that reflects the homogeneity as well as statistical properties of the grouped miRNAs. This visual validation method provides a promising and statistically significant graphical tool for expression analysis.

Conclusion

A heuristic mining methodology that resembles a clustering motivation is proposed in this paper. However, there remains a basic difference between the mining method and a clustering approach. The heuristic approach can produce priority modules (PM) from an miRNA co-expression network, by employing a self-pruning phase, which are analyzed for statistical and biological significance. The mining algorithm minimizes the space/time complexity of the analysis, and also handles noise in the data. In addition, the mining method reveals promising results in the unsupervised analysis of TF-miRNA regulation.

Background

Throughout the last decade, much research was devoted to unearth the functionality of microRNAs (miRNAs), which are small (21–23 nt), non-coding RNAs regulating mRNA stability and translation through the action of the RNA-induced silencing complex (RISC) [13]. Earlier investigations [2, 4] have discovered that miRNAs regulate a variety of key biological functions that includes insulin secretion, apoptosis, cell proliferation and differentiation, etc. More importantly, recent beliefs hypothesize that miRNAs are indirectly responsible, due to disorders in functionality, for a number of diseases as they can dysregulate post-transcriptional gene expression [5]. Emerging evidences suggest that miRNAs regulate brain development, dendritic spine morphology, and neurite outgrowth, i.e., certain processes that are hypothesized to be associated with schizophrenia neuropathology. Moreover, they also have influencing activities in regulating the diseases like Tourette's syndrome, Fragile × syndrome [2], several varieties of cancers [4] and many others [5].

Microarray profiling is a high-throughput experimentation that can be used to study the expressibility/repressibility measure of thousands of genes in parallel [6, 7]. In the recent past, microarray data has been studied extensively for gene expression analysis leading to many methodological works. But the field of analyzing miRNA microarrays is not well-explored. The expression profiles of miRNAs derived from microarray experiments are most of the times tissue-specific in nature. In addition, miRNAs are sometimes taken for expression profiling from common tissues (by locality) of different patients for the purpose of disease diagnosis. Not surprisingly, due to the short length of miRNAs, the purity, variance and dimension of the microarray datasets of miRNAs are smaller than those of the genes. Thus, developing efficient methods that could shed light into the underlying biological activity of miRNAs is imperative, without depending on the methods developed for gene expression data [79].

A natural approach in microarray study is mapping the simultaneous overexpression/underexpression of miRNA pairs into a co-expression network. These co-expression networks are analyzed to study the functional enrichment and regulatory activities of miRNAs [10, 11]. However, the most important (and ignored) target remains in preparing the blueprint of the complex regulatory network that hypothetically exists between transcription factors (TFs), genes and miRNAs. Some of the earlier studies advocated that the miRNAs targeting the same gene together with a TF might be regulated by the same TF [12]. By exercising on the established knowledge in TRANSFAC database and microRNA registry, an earlier study was done on TF and miRNA regulation relating to prostate cancer cells [13]. A recent study pursues the same hypothesis adding that there are TF-miRNA pairs that participate in a complex recurring network and exert regulatory effects on each other [3]. But, these previous analyzes either follow supervised learning based on the established results available in the databases like TargetScan [14] and PicTar [15] or lack exhaustive empirical study. There exists an impressive number of works on clustering miRNA co-expression networks with various motivations like identification of the set of miRNAs derived from common primary transcripts [10], co-expression analysis between neighboring miRNAs [11], study of diseases [4], co-expression analysis of miRNA with mRNA [16], etc. Again, these approaches do not target the construction of TF-miRNA regulatory networks. Moreover, they employ clustering tools commonly used for gene expression analysis though, as mentioned earlier, the scalability and the other characteristics of miRNA expression data are somewhat different.

This paper introduces a novel unsupervised mining method that can heuristically self-prune a co-expression network constructed from miRNA profiled microarray data. The iterative mining methodology produces a set of priority modules (PM s) from the dataset. The statistical (and hypothetically the biological) significance of the PM s decreases as they are generated by stepwise reduction. The results show that the transcription factor binding sites (TFBSs) of the grouped miRNAs in the 5' untranscribed region (UR) have large common portions establishing the existence of commonly regulating TFs. In a recent work having similar goal, clustering of miRNAs was done based on their commonalties in loci [3]. Evidently, their defined putative upstream region (<10 kb) will contain a large number of common TFs for the clustered miRNAs. This was a kind of supervised approach, and from this viewpoint the mining process discussed here is a novel one of its kind. A schizophrenia patient-specific, a tissue-specific and a stem cell-based microarray dataset are comprehensively analyzed. The studies show that these datasets are useful to explore common TFs which might regulate a module of miRNAs. Such TF-miRNA regulation information might in turn accelerate the reconstruction of TF-miRNA regulatory networks.

A network (in general, a weighted undirected network) is often defined by the triplet (N, A, W), where N denotes a finite set of nodes {n1, n2,..., n|N|} (cardinality of the set N is represented as |N|), https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq1_HTML.gif denotes a set of edges between the node pairs, and W: A → [0, ∞) is a weight function associated with the edges. Here, a network, https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq2_HTML.gif = (N, A, W), is referred to as an miRNA co-expression network if the node set (N) corresponds to a set of miRNAs and W : A → [0, 1] denotes a co-expression function mapped from each miRNA pair in A.

In general, miRNA co-expression networks can be thought of as fuzzy complete graphs [17] by excluding the arcs having a co-expression value of zero. This transformation occurs by the mapping of miRNAs to the vertices and co-expression values to the fuzzy membership values. Thus a module identified in a fuzzy complete graph will evidently denote a set of miRNAs by such transformation. A recent study proposes an O(n2 log n) algorithm for identifying the largest dense N-vertexlet (a set of vertices of cardinality N, https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq3_HTML.gif ), in a fuzzy scale-free graph [17]. The miRNA co-expression networks, being of this nature, could be mined step by step using a similar approach. For describing the proposed mining process that integrates this earlier work [17], the following theoretical details are given.

Definition 1 (Fuzzy Complete Graph) A fuzzy complete graph (FCG), = ( V , , Ω), is defined as a graph in which V denotes the set of vertices, denotes the set of fuzzy relations (v i , v j ) (v i ≠ v j , v i , v j V) and Ω is a fuzzy membership function defined over the set such that Ω: https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq5_HTML.gif → (0, 1].

Definition 2 (Association Density of a vertex) Given an FCG, = ( V , , Ω), the association density, of a vertex v i of is defined, with respect to a set of vertices (v i ), as the ratio of the sum of the fuzzy edge memberships between v i and each of the vertices belonging to and N. Thus, the association density of a vertex v i with respect to is computed as,
https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Equ1_HTML.gif
(1)

In Eqn. (1), https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq7_HTML.gif denotes the fuzzy membership value of the edge (v i , v j ). This density definition computes the degree of participation of a single vertex with respect to a set of vertices. By putting the constraint of a lower bound to this density factor for every vertex within a group of vertices, the association density of an N-vertexlet is now defined as follows.

Definition 3 (Association Density of an N-vertexlet) The association density of an N-vertexlet https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq3_HTML.gif is defined to be the minimum of the association density of every vertex belonging to the N-vertexlet with respect to the remaining (N-1)-vertexlet. So, the association density of an N-vertexlet https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq3_HTML.gif is given by,
https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Equ2_HTML.gif
(2)

Suppose, an arbitrary association density value δ is given. If the association density of an N-vertexlet, https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq3_HTML.gif , equals or exceeds δ, then https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq3_HTML.gif is called a dense N-vertexlet with respect to δ and is denoted as https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq3_HTML.gif (δ). The proposed method derives a set of modules comprising a set of vertices (corresponding to miRNAs here) which are equivalent to such dense N-vertexlets. Thus, the proposed method mines an FCG for identifying the dense N-vertexlets which are equivalent to finding modules in an miRNA co-expression network. Let an arbitrary FCG induced by the node set N', in an FCG https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq4_HTML.gif = (V, https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq5_HTML.gif , Ω), be denoted as https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq8_HTML.gif , where https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq9_HTML.gif and Ω N' are the edge set and the fuzzy membership function induced by the node set N' in https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq5_HTML.gif and Ω respectively. Then, a set of PM s in this FCG is defined as follows.

Definition 4 (Priority Modules) Given an FCG, = ( V , , Ω), mapped from an miRNA co-expression network, a set of k priority modules (PMs) { } ( ) is defined such that,
  1. 1.
    https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq12_HTML.gif
    ,

  2. 2.
    https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq13_HTML.gif
    ,

  3. 3.
    https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq14_HTML.gif
    .


The basic goal of this work is determining a significant set of PM s from the miRNA microarray profiled data for the unsupervised analysis of the TF-miRNA regulation.

Results and discussion

The experimentation has been carried out on three separate FCGs derived from a schizophrenia patient-specific microarray dataset [2], one tissue-specific microarray dataset [11] and another stem cell dataset [18] (details given in Additional file 1 section 1). Due to the noisy nature of microarray experiments, often microarray expression profiling contains missing values. Here, we use the Bayesian principal component analysis (BPCA), which is a good one according to a recent study [19], for the imputation of missing values present only in the tissue-specific dataset. Then, the FCGs have been constructed by computing the fuzzy membership values (Eqn. (6)) between every miRNA pair. These FCGs can be equivalently considered as co-expression networks to be explored. The histogram of the average fuzzy membership values of the miRNAs with respect to others (details in Additional file 1 section 2.2) computed in the case of all three FCGs are shown in Figures 1, 2 and 3. In all these histograms, the distribution of the number of miRNAs follow a long tail with the decrease in fuzzy membership values. They also indicate that only a small fragment of the miRNAs is statistically significant, within which the mean of the fuzzy membership shows higher value and nominal variance.
https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig1_HTML.jpg
Figure 1

Histogram of the column-specific FCG constructed from the schizophrenia dataset. The histogram of the column-specific fuzzy membership values as derived in the FCG constructed from the schizophrenia dataset. The average fuzzy membership values of all the miRNAs with respect to the other miRNAs are computed. Then the histogram is prepared by plotting the number of miRNAs against the average fuzzy membership value computed.

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig2_HTML.jpg
Figure 2

Histogram of the column-specific FCG constructed from the tissue-specific dataset. The histogram of the column-specific fuzzy membership values as derived in the FCG constructed from the tissue-specific dataset. The average fuzzy membership values of all the miRNAs with respect to the other miRNAs are computed. Then the histogram is prepared by plotting the number of miRNAs against the average fuzzy membership value computed.

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig3_HTML.jpg
Figure 3

Histogram of the column-specific FCG constructed from the stem cell dataset. The histogram of the column-specific fuzzy membership values as derived in the FCG constructed from the stem cell dataset. The average fuzzy membership values of all the miRNAs with respect to the other miRNAs are computed. Then the histogram is prepared by plotting the number of miRNAs against the average fuzzy membership value computed.

Again, the fuzzy membership values of the miRNAs, over all the tissues/patients, are computed for these datasets. These fuzzy membership values of the miRNAs for all the experiments, in the form of a histogram (shown in Additional file 1 section 2.2), reflect that a large number of miRNA pairs are highly co-expressed. The distributions of the miRNA sizes reflected in these histograms against the fuzzy membership values help to select the lower density threshold (δ lower ) and the density decay constant (ξ) employed by the proposed method. By studying the histograms, we selected δ lower = 0.95 and ξ = 0.005 (for smooth tail) for the schizophrenia dataset, δ lower = 0.99 and ξ = 0.001 (for sharp tail) for the tissue-specific dataset, and δ lower = 0.93 and ξ = 0.003 (for smooth tail) for the stem cell dataset.

After tuning the controlling parameters of the algorithm, we now mine these FCGs (representing miRNA co-expression networks) using the self-pruning method described in the algorithm provided in Table 1. The post-processing routine is iterated for 500 times. The module sizes found by the algorithm from all the three datasets are evenly distributed without containing tiny miRNA modules (single miRNA or an miRNA pair). The degraded density values derived at each time step along with the sizes of the PM s found from all the datasets are shown in Tables 2, 3, 4. It may be noted that the consecutive PM s generated by the algorithm will be in a decreasing order of statistical significance. Thus, the intra-cluster homogeneity [20] should be higher, or in effect the squared error (SE) should be smaller, for the PM s generated earlier. The SE value of any arbitrary PM, C, is computed as,
Table 1

An unsupervised algorithm for mining FCGs mapped from miRNA co-expression networks

Input: An FCG https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq4_HTML.gif = (V, https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq5_HTML.gif , Ω), a lower density threshold = δ lower and a density decay constant ξ.

Output: A set of k number of PM s { https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq10_HTML.gif }.

Formal steps:

1: Set t ← 0

2: Set δ t ← 1

3: while δ t δ lower do

4: Find the largest PM, https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq3_HTML.gif , from https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq4_HTML.gif with respect to the association density δ t

5: if https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq3_HTML.gif ɸ then

6: VV - https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq3_HTML.gif

7: https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq15_HTML.gif

8: end if

9: tt + 1

10: δ t δ t (1 - ξ)

11: end while

12: kt

Table 2

The PM s obtained by applying the mining method over the schizophrenia dataset

t

δ t

Module size

SE

ΣSE

SI C/V

0

1

-

-

-

-

...

...

-

-

-

-

3

0.9850

13

0.18

70.32

0.9966

4

0.9802

8

0.23

69.79

0.9953

5

0.9752

26

0.49

72.71

0.9913

6

0.9704

15

0.69

71.89

0.9857

7

0.9655

4

0.85

70.25

0.9758

8

0.9607

14

1.25

72.51

0.9729

9

0.9559

25

1.22

72.86

0.9786

10

0.9511

6

1.37

64.76

0.9904

The PM s obtained by applying the mining method over the schizophrenia dataset. The values of δ t and SI C/V are rounded off upto 4 decimal places.

Table 3

The PM s obtained by applying the mining method over the tissue-specific dataset

t

δ t

Module size

SE

ΣSE

SI C/V

0

1

14

3.68

1.31E6

1.0000

1

0.9990

20

26.72

1.36E6

1.0000

2

0.9980

29

139.19

1.44E6

0.9998

3

0.9970

16

489.49

1.32E6

0.9992

4

0.9950

17

1.42E3

1.33E6

0.9978

5

0.9940

3

1.47E3

1.23E6

0.9965

6

0.9920

9

3.75E3

1.27E6

0.9935

7

0.9900

10

5.87E3

1.28E6

0.9899

The PM s obtained by applying the mining method over the tissue-specific dataset. The values of δ t and SI C/V are rounded off upto 4 decimal places.

Table 4

The PM s obtained by applying the mining method over the stem cell dataset

t

δ t

Module size

SE

ΣSE

SI C/V

0

1

-

-

-

-

1

0.9970

4

4.23E5

7.26E9

0.9999

2

0.9940

20

2.0E6

7.4E9

0.9996

3

0.9910

16

4.37E6

7.38E9

0.9991

4

0.9881

10

8.53E6

7.33E9

0.9982

5

0.9851

14

1.13E7

7.37E9

0.9977

6

0.9821

17

1.73E7

7.41E9

0.9965

7

0.9733

24

4.04E7

7.52E9

0.9920

8

0.9646

8

6.31E7

7.38E9

0.9853

9

0.9617

14

6.78E7

7.43E9

0.9863

10

0.9588

15

8.0E7

7.43E9

0.9848

11

0.9531

20

1.17E8

7.56E9

0.9757

12

0.9417

12

1.68E8

7.54E9

0.9609

13

0.9304

7

2.53E8

7.58E9

0.9313

The PM s obtained by applying the mining method over the stem cell dataset. The values of δ t and SI C/V are rounded off upto 4 decimal places.

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Equ3_HTML.gif
(3)
Obviously, the value of SE ranges within [0, ∞). Higher the SE value, lower is the compactness of the PM. Again, the squared error of a solution with k modules (ΣSE) is computed as,
https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Equ4_HTML.gif
(4)
Here, the computation of ΣSE is done by assuming that each PM produces a separate 2-cluster solution. The first one is the PM, itself and the second cluster contains the background set of miRNAs. To show the decreasing compactness in the PM s, these two measures are used and the values computed for the three datasets are shown in the fourth and fifth columns in the Tables 2, 3, 4, respectively. As expected, the SE values of the PM s generally increase in the order of their derivation. Only for the schizophrenia dataset, for δ t = 0.9559, a decrease in SE may be noted. The value ΣSE derived for the priority modules with respect to the sizes of the PM s is shown in Figures 4, 5 and 6. Notably, there is a direct dependence of the ΣSE values on the PM sizes (a single exception (outlier) observed for the schizophrenia dataset and two exceptions (outliers) for the stem cell dataset). With the reduction in the size of the PM s, a larger compact set is introduced in the background module. Although this causes a decrease in the SE value of the PM, but the SE value of the background module increases. However, this increase must be relatively smaller than the decrease in the SE of the PM as the ΣSE value reduces with size (observed from Figures 4, 5 and 6).
https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig4_HTML.jpg

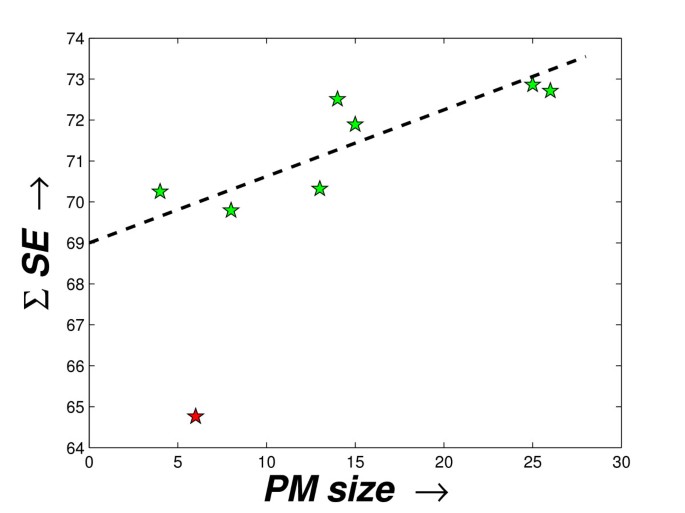

Figure 4

Sizes of the PM s vs. the Σ SE score of the modules produced for the schizophrenia dataset. The plot shows the sizes of the PM s vs. the ΣSE scores computed from these PM s as derived by the proposed method from the schizophrenia dataset.

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig5_HTML.jpg
Figure 5

Sizes of the PMs vs. the Σ SE score of the modules produced for the tissue-specific dataset. The plot shows the sizes of the PM s vs. the ΣSE scores computed from these PM s as derived by the proposed method from the tissue-specific dataset.

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig6_HTML.jpg
Figure 6

Sizes of the PMs vs. the Σ SE score of the modules produced for the stem cell dataset. The plot shows the sizes of the PM s vs. the ΣSE scores computed from these PM s as derived by the proposed method from the stem cell dataset.

Another important clustering index, the Silhouette Index [7, 21], is measured to verify the inter-cluster dissimilarity between the PM s found. Often, the Silhouette Index (SIC/V) is defined for a single cluster C with respect to a background set V [17]. Using this measure, the SIC/Vvalues have been computed (details in Additional file 1 section 2.3) for the PM s derived from all the datasets and are given in the last columns of the Tables 2, 3, 4. The value of SIC/Vranges within [-1,+1], with higher values indicating better mined modules. As expected, the values of SIC/Vof the PM s generally decrease in the order of their derivation. Some exceptions in this trend may be noted (from Table 2 and Table 4) for the schizophrenia and stem cell dataset for the last few PM s, as was also seen in the case of SE values. This might be due to the selection of lower density threshold (δ lower ) which is required to be tuned more tightly.

The sizes of the miRNA groups found are validated following a method of deriving the upper bound of a clique of a graph (see Additional file 1 section 2.4) introduced in [22]. The upper bound is found to be 119 by setting δ = 0.95, 121 by setting δ = 0.99, and 187 by setting δ = 0.93 for the schizophrenia dataset, tissue-specific and stem cell datasets, respectively. These are the expected sizes of the most compact miRNA modules present in the networks. From the pruning method we have used, the sizes of the significant set of miRNAs are found as 111 (~46%), 118 (~67%) and 181 (~41%). These are significantly similar to the upper bounds derived theoretically, and thus important.

The motivation of the current work may bias the importance of the mining method by suggesting that it is suitable only for the miRNA expression data or scalable up to their standard size (as miRNA expression datasets have lower dimensions than the gene expression datasets). But, this is not the case. The procedure is equally good for a gene expression dataset. The miRNA expression datasets are studied here to motivate our hypothesis on TF-miRNA regulation. However, for verifying the effectiveness of the proposed method a gene expression dataset was considered. This dataset consists of expression values of 6167 genes over 52 time points (details in Additional file 1 section 2.5). The results show that the proposed method is well applicable to this larger dataset indicating its scalability. Moreover, the discussion on the algorithmic complexity (see Additional file 1 section 2.5) highlight that it is polynomial in nature. In the following subsections, we include an exhaustive analysis for validating the PM s in the perspective of bioinformatics research incorporating visual, statistical and biological analysis.

Visual Validation

Expression profile plot is a well-known tool for visualizing expression data [6]. A standard expression data contains the expression values over some experiments/conditions (expression vector) for a set of genes/miRNAs. An expression profile plot shows the graphs of the degree of expression values in combination of all the expression vectors over the columns. Thus, a compact expression profile plot (set of the expression values spanning over a compact band) represents a coherent module. The expression profiles of the selected miRNAs in the PM s and the background set of miRNAs are plotted in Figures 7, 8 and 9. The proposed method iteratively prepares a few sets of significant miRNAs (PM s) from the miRNAs present in the microarray data by mining the constructed FCGs (co-expression networks). Thus, the residual part of the miRNAs, identified as unimportant ones, are kept as the background set. For all the three datasets, the significant fragment of the miRNAs selected by the proposed method spans a compact band of expression levels within the complete band of expression levels of all the miRNAs. More closer two expression levels denote a higher degree of co-expression between the corresponding miRNAs. In case of the schizophrenia dataset, we observe an additional band of selected miRNAs around the expression value 10. This is due to the inherent nature of the proposed mining tool of giving importance to the compactness within the PM s over the connectedness between them [20].
https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig7_HTML.jpg
Figure 7

Expression profile plot of the miRNAs selected and the background set of miRNAs for the schizophrenia dataset. Expression profile plot of the miRNAs selected in the PM s (black) by the proposed method and the background set of miRNAs (green) contained in the schizophrenia dataset.

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig8_HTML.jpg
Figure 8

Expression profile plot of the miRNAs selected and the background set of miRNAs for the tissue-specific dataset. Expression profile plot of the miRNAs selected in the PM s (black) by the proposed method and the background set of miRNAs (green) contained in the tissue-specific dataset.

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig9_HTML.jpg
Figure 9

Expression profile plot of the miRNAs selected and the background set of miRNAs for the stem cell dataset. Expression profile plot of the miRNAs selected in the PM s (black) by the proposed method and the background set of miRNAs (green) contained in the stem cell dataset.

Performing a rigorous survey, we observed some limitations of the conventional tools (expression profile plot [7], Eisen plot [6]) used for visualizing expression data. These tools are not statistically informative. In particular, the quantitative range of expression values are not observable, deviation in the data can not be expressed and the outliers can not be highlighted through these plots. A novel visual validation plot, referred to as quartile deviation plot (QDP), that can take care of these limitations, has been introduced in this study. The set of expression values of all the miRNAs for a specific experiment (spanning over a single column of the microarray data) is considered as an experiment-specific expression vector. A QDP combines, for each such experiment, the plots of lower quartile, median, and upper quartile values of these expression vectors. The maximum whisker length (in units of interquartile range) is taken as 1.5, which is a default one [23]. The QDPs for all the datasets explored are shown in Figures 10, 11, 12, 13, 14 and 15. Figures 10, 11 and 12 show the QDPs of the miRNAs mined as significant from the three datasets by the proposed method, whereas the Figures 13, 14, and 15 show the QDPs of all the miRNAs present in the datasets. The selected miRNAs, as can be seen from these figures, are relatively more coherent in nature as compared to the complete set. Again from these figures, we can effectively observe the expression pattern (boxplots), expression deviation (height of the boxplots), outliers (plus signs) and also the statistical details (mean values in the boxplots and the whiskers) pertaining the datasets. Thus, the newly proposed QDP tool demonstrates its effectiveness in computational biology.
https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig10_HTML.jpg
Figure 10

QDP of the selected set of miRNAs for the schizophrenia dataset. The Quartile Deviation Plot of the selected set of miRNAs explored by the mining method from the schizophrenia dataset.

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig11_HTML.jpg
Figure 11

QDP of the selected set of miRNAs for the tissue-specific dataset. The Quartile Deviation Plot of the selected set of miRNAs explored by the mining method from the tissue-specific dataset.

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig12_HTML.jpg
Figure 12

QDP of the selected set of miRNAs for the stem cell dataset. The Quartile Deviation Plot of the selected set of miRNAs explored by the mining method from the stem cell dataset.

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig13_HTML.jpg
Figure 13

QDP of the background set of miRNAs for the schizophrenia dataset. The Quartile Deviation Plot of the background set of miRNAs belonging to the schizophrenia dataset.

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig14_HTML.jpg
Figure 14

QDP of the background set of miRNAs for the tissue-specific dataset. The Quartile Deviation Plot of the background set of miRNAs belonging to the tissue-specific dataset.

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig15_HTML.jpg

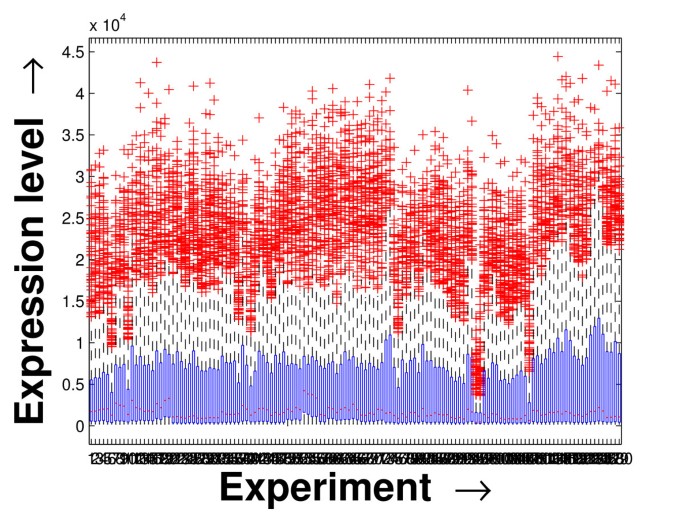

Figure 15

QDP of the background set of miRNAs for the stem cell dataset. The Quartile Deviation Plot of the background set of miRNAs belonging to the stem cell dataset.

To visually validate the degrading coherence within the PM s, the expression profile plots (see Additional file 1 section 2.6) and the QDPs of each of the clusters found from the datasets are prepared. Figures 16, 17, 18, 19, 20, 21, 22 and 23 show the plots for the schizophrenia dataset (the plots for the tissue-specific dataset is provided in Additional file 1 section 2.6). As expected, the PM s show decreasing order of coherence as they are evolved through the proposed methodology. Moreover, on examining the QDPs more closely, the actual width of the expression band of the PM s can be determined for the PM s gradually derived by the proposed algorithm.
https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig16_HTML.jpg

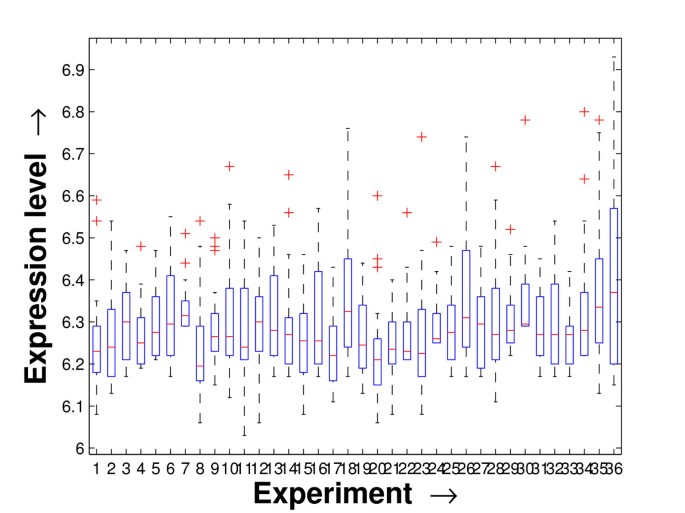

Figure 16

QDP of the PM 1 of size 13 found by the proposed method on schizophrenia dataset. The Quartile Deviation Plot of the PM 1 of size 13 found by the proposed heuristic mining method applied on the schizophrenia dataset.

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig17_HTML.jpg
Figure 17

QDP of the PM 2 of size 8 found by the proposed method on schizophrenia dataset. The Quartile Deviation Plot of the PM 2 of size 8 found by the proposed heuristic mining method applied on the schizophrenia dataset.

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig18_HTML.jpg
Figure 18

QDP of the PM 3 of size 26 found by the proposed method on schizophrenia dataset. The Quartile Deviation Plot of the PM 3 of size 26 found by the proposed heuristic mining method applied on the schizophrenia dataset.

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig19_HTML.jpg
Figure 19

QDP of the PM 4 of size 15 found by the proposed method on schizophrenia dataset. The Quartile Deviation Plot of the PM 4 of size 15 found by the proposed heuristic mining method applied on the schizophrenia dataset.

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig20_HTML.jpg
Figure 20

QDP of the PM 5 of size 4 found by the proposed method on schizophrenia dataset. The Quartile Deviation Plot of the PM 5 of size 4 found by the proposed heuristic mining method applied on the schizophrenia dataset.

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig21_HTML.jpg
Figure 21

QDP of the PM 6 of size 14 found by the proposed method on schizophrenia dataset. The Quartile Deviation Plot of the PM 6 of size 14 found by the proposed heuristic mining method applied on the schizophrenia dataset.

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig22_HTML.jpg

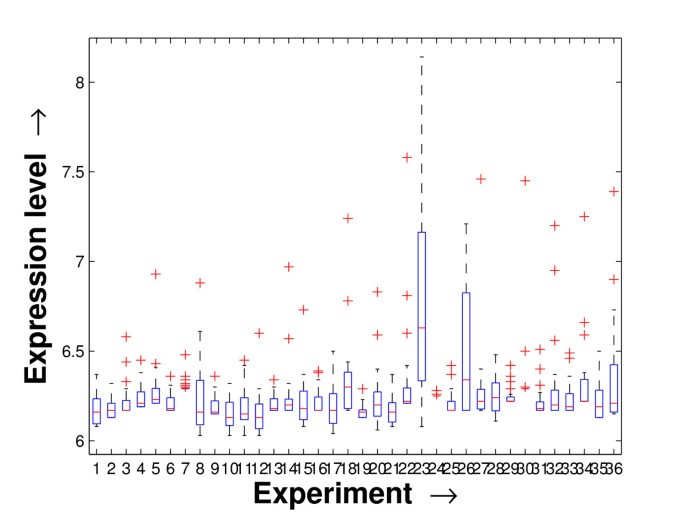

Figure 22

QDP of the PM 7 of size 25 found by the proposed method on schizophrenia dataset. The Quartile Deviation Plot of the PM 7 of size 25 found by the proposed heuristic mining method applied on the schizophrenia dataset.

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig23_HTML.jpg
Figure 23

QDP of the PM 8 of size 6 found by the proposed method on schizophrenia dataset. The Quartile Deviation Plot of the PM 8 of size 6 found by the proposed heuristic mining method applied on the schizophrenia dataset.

Statistical Validation

For the statistical analysis of the PM s, we have used a randomized model [3]. Here, a cluster matrix of size n × k (n denotes the number of miRNAs selected in the PM s and k is the number of PM s) is first constructed from the information available about the PM s. An element (i, j) in the cluster matrix is assigned a value "1", if miRNA i is found in the PM j, otherwise it is set to "0". Depending on the matrix, an r-randomized degree preserving model is derived by randomly swapping the edges r times for computing the co-occurrence of miRNA pairs by chance. Using the model, the p-values (details in Additional file 1 section 2.7) of the co-occurrence of all the miRNA pairs in the PM s are computed for all the three datasets. We obtained the values 6.4E-3, 2E-15 and <1E-3 for the schizophrenia, tissue-specific and stem cell datasets, respectively. This shows that the results obtained are not by chance and the PM s are statistically significant.

The method of finding PM s have a close resemblance with the clustering approaches applied to expression data [8, 20]. Despite the fact that their motivations differ, a clustering solution ordered in the descending degree of coherence within the clusters can be thought of as a set of PM s. So, we include here a comprehensive evaluation of the proposed method with some existing clustering methods in evolving the priority modules. For this purpose, some appreciated clustering methods viz., k-means, average linkage hierarchical (UPGMA) and complete linkage hierarchical clustering from MATLAB, DIANA and Fanny from the R package, Iclust [24] from the author's code, SOM from the standard codes, and SiMM-TS on request from the corresponding author are considered. The algorithm given in Table 1 is written in C language compatible with the gcc compiler in UNIX platform. The comparative results are described in Additional file 1 section 2.8. In Figures 24, 25 and 26, the distribution of the cluster sizes found by various methods are shown. The distribution of the PM s derived by the proposed one are found to be comparatively more even in nature.
https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig24_HTML.jpg
Figure 24

Distribution of the sizes of the modules identified by various methods from the schizophrenia dataset. The distribution of the sizes of the modules identified by various clustering algorithms and by the proposed one from the selected set of miRNAs identified from the schizophrenia dataset.

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig25_HTML.jpg
Figure 25

Distribution of the sizes of the modules identified by various methods from the tissue-specific dataset. The distribution of the sizes of the modules identified by various clustering algorithms and by the proposed one from the selected set of miRNAs identified from the tissue-specific dataset.

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Fig26_HTML.jpg
Figure 26

Distribution of the sizes of the modules identified by various methods from the stem cell dataset. The distribution of the sizes of the modules identified by various clustering algorithms and by the proposed one from the selected set of miRNAs identified from the stem cell dataset.

A current survey [20] classifies the cluster validation measures depending on the clustering criterion into the types – compactness, connectedness, separation, combinations, stability, preservation of distance, and specialized cases. The current work is motivated from the selection of PM s with decreasing compactness. Therefore, a novel internal validation measure to figure out the compactness of the clusters is used here. This compactness measure, the normalized squared error (ΣNSE), of a priority mining solution with k modules is computed as,
https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Equ5_HTML.gif
(5)
where |C i | denotes the number of data points in the cluster C i . The ΣNSE measure shown in Eqn. (5) normalizes the SE values of the clusters with respect to their sizes. This helps to reduce the biased contribution of tiny modules with high compactness in the coherence measure. A lower ΣNSE value denotes a higher compactness within the modules. By applying the clustering methods considered in this study on the significant modules found by the proposed method for all the three datasets we found some clusters. After ordering them in the descending order of coherence, we assume them to be PM s. After computing the ΣNSE values for all the methods to be compared (shown in Table 5), we found that the proposed one is evidently a good one in identifying PM s. The sizes of the PM s obtained from several approaches like UPGMA or DIANA seems to be irrelevant (modules found with a single miRNA) in the perspective of biology research. They largely fail to identify multiple strong modules and get stuck in finding one large module. Others are better in this sense, specially Fanny and the proposed one, to locate well-distributed coherent modules.
Table 5

Comparative ΣNSE values

Methods

Schizophrenia dataset

Tissue-specific dataset

Stem cell dataset

K-means

0.9

780.95

5.94E7

Average linkage (UPGMA)

0.81

2069.49

6.62E7

Complete linkage

0.7

1975.34

4.67E7

DIANA

0.71

2107.95

5.02E7

Fanny

0.67

1558.66

4.45E7

SOM

1.22

1126.4

2.46E8

Iclust

12.8

1470.83

1.19E8

SiMM-TS

23.71

1666.38

1.17E8

Proposed

0.64

763.31

4.55E7

ΣNSE values computed for different clustering solutions and for the solution derived by applying the proposed method.

Biological Validation

From a biological perspective, it may be expected that the miRNAs within a single PM are regulated by common TFs. To verify this hypothesis, an exhaustive biological investigation has been conducted. Since the complete information related to TF-miRNA regulation is not yet available, we relied on the established knowledge of the conserved TFBSs based on the UCSC hg18 genome assembly [25]. We have used the wgRNA table under the sno/miRNA track of this database (details in Additional file 1 section 2.8) pertaining to the information about the location of miRNAs in the chromosomes. Motivated from an earlier study [3], the region 10 kb upstream of the start of an miRNA sequence is defined as the putative regulatory region of the miRNA assumed to contain the regulatory binding sites. After defining the putative regulatory regions of the miRNAs found in the individual PM s, we identified the TFs, which are known to bind to this region, from the tfbsConsSites table under the TFBS Conserved track in the UCSC Table Browser [25]. In this way the list of the miRNA pairs, containing the TFBSs of common regulatory TFs in their putative upstream region, belonging to a single PM are accumulated for the study (provided in Additional files 2, 3 and 4 for the schizophrenia, tissue-specific and stem cell datasets, respectively).

All the consecutive PM s are exhaustively tested to examine their significance in providing TF-miRNA regulation information found from the three datasets. The number of the miRNAs that are possibly regulated by common TFs by binding to the region upstream of 5' end are given in Table 6 as obtained for all the PM s derived from the datasets. For all these datasets, we found very large number of TF-miRNA regulation information for the first few modules. Equivalently for all these datasets, the later modules are found to provide lesser information in this regard. Some of the results of Table 6 may emphasize that some of the initial (generated prior) modules are less important. But, reasonably these are very small modules and therefore cannot capture significant information. Again, such results suggest the appropriate selection of the controlling parameters δ and ξ for mining biologically more significant results. It may be noted that for PM 1 found from the schizophrenia dataset, TF information is available for only 20 of the 30 miRNAs. Of these, 16 miRNAs are found having common TFs in their putative 5' UR as per the established results collected from UCSC browser. Similarly, 30 and 42 miRNAs, from a total of 36 and 50 miRNAs, are found to have common such TFs from the total 60 and 57 miRNAs selected in PM 1 obtained from the tissue-specific and stem cell datasets, respectively. The TF V$AML1 01 is found to bind in the 10 kb 5' UR of a large set of 9 miRNAs (hsa-miR-140, hsa-miR-141, hsa-miR-144, hsa-miR-154, hsa-miR-19a, hsa-miR-432, hsa-miR-488, hsa-miR-496 and hsa-miR-503) which were selected in the most significant module identified from the schizophrenia dataset. Thus their chance of being commonly regulated becomes higher. On examining each such modules, the prioritywise descending ones are found to provide common TFs regulating smaller modules. In fact, none of priority modules generated starting from the fifth ones are found to explore commonly regulated miRNA modules of size higher than three in case of the schizophrenia dataset. Equally promising results are also obtained when the top PM s derived from the tissue-specific dataset [11] is analyzed yielding large number of common TFs. For the tissue-specific dataset, some of the TFs were found to possibily regulate upto 4 miRNAs even in the eighth priority module. But the sizes of such commonly regulated miRNA groups are found to be even more larger in the prior modules. We found the two TFs V$AML1 01 and V$FOXO3 01 binding within the 10 kb region of the 5' UR of at least 10 miRNAs for this dataset. Similar observasions are also obtained by examining the list of miRNA pairs having common TFs binding in their 5' UR obtained from the stem cell dataset. The results given in Table 6 for this dataset highlight the prominent significance of the PM s up to the third one. the rest of the modules contain minor miRNA groups that may provide week but important regulatory coherence. Thus, the results obtained from all the datasets resembles with the motivation of ordering biologically significant modules and extracting regulation information from them.
Table 6

Statistics of the miRNA pairs explored regulated by the common TFs

Priority modules

Schizophrenia dataset

Tissue-specific dataset

Stem cell dataset

PM 1

589

1074

1585

PM 2

51

235

148

PM 3

81

0

211

PM 4

260

291

2

PM 5

0

12

8

PM 6

13

40

30

PM 7

1

20

110

PM 8

24

64

13

PM 9

-

-

0

PM 10

-

-

0

PM 11

-

-

13

PM 12

-

-

0

PM 13

-

-

73

The number of the miRNA pairs present in the PM s found to be regulated by common TFs for all the three datasets.

Since computational analysis of miRNA regulation is still in a nascent stage, such information is biologically significant. The PM s provide information, in a compact form, about a set of miRNAs that might be regulated by common TFs. Interestingly, in many cases it has been observed that some miRNAs present in consecutive PM s (not in the same one) are associated with same TFs. This might indicate that these miRNAs should have been within a single PM, but got separated because of the choice of the density decay constant (ξ). Thus an exhaustive sensitivity analysis of the method on ξ needs to be carried out in future. Details are shown in Table 6. The assignment of optimal association density threshold (δ) value and the density decay constant (ξ) play an important role in the selection of significant module by the proposed mining methodology. This parameter, not tuned properly might cause the inclusion of irrelevant miRNAs in the significant module selected or might disrupt the comprehensiveness of this significant module.

Biological Insight

Biological findings are often biased by probabilistic events. Thus, it becomes important to justify that the findings are not received by chance. To show the biological importance of the information received on TF-miRNA regulation, statistical tests were performed. We have carried out the statistical evaluation of the results obtained for all the datasets. A total of 1019, 1736 and 2193 commonly regulated miRNA pairs are found in the modules received by applying the proposed mining technique on schizophrenia, tissue-specific and stem cell datasets, respectively. Now to verify the significance of this count, modularization solutions have been generated by randomization and the same count has been performed on them. On analyzing them, we received 578, 1027 and 865 commonly regulated miRNA pairs on an average over 10,000 randomized trial runs. The p-values computed are shown in Table 7 for the three datasets. Not a single one of the 10,000 randomized solutions, for all the datasets, are found to exceed the original result in terms of commonly regulated miRNA pair count. These low p-values justify the biological significance of the proposed method in predicting TF-miRNA regulation.
Table 7

Computed p-values of the occurrence of commonly regulated miRNA pairs found by the proposed method in the three datasets

Dataset

p-value

Schizophrenia

< 1E - 4

Tissue-specific

< 1E - 4

Stem cell

< 1E - 4

The p-values computed to statistically evaluate the occurrence of commonly regulated miRNA pairs found by the proposed method in the schizophrenia, tissue-specific and stem cell dataset.

A deeper in silico analysis of the PM s derived by the heuristic mining procedure sheds light on some important biological results hitherto unexplored. In a recent study [26], the molecular evolution of an miRNA cluster and its paralogs has been reconstructed. This cluster of miRNAs consists of hsa-miR-17, hsa-miR-18, hsa-miR-19a, hsa-miR-19b, hsa-miR-20, hsa-miR-25, hsa-miR-92, hsa-miR-93, hsa-miR-106a, and hsa-miR-106b. To study the co-expression similarity of this set of miRNAs, we investigated the PM s that contain these miRNAs from the results of the schizophrenia dataset. Most of these miRNAs are found in separate PM s or are pruned out, and therefore, are not co-expressed. Strikingly, although the hsa-miR-19a and hsa-miR-19b are known to be closely related mature sequences (generally represented as hsa-miR-Xa/b/...), yet they are not found in same PM s (or even close ones). This might be due to the reason that they are evolutionary clustered. In short, they are not found to be co-expressed although they are paralogs. Therefore, this indicates that the expression profiles might not be dependent on the evolutionary relationship of the miRNAs.

Conclusion

This paper introduces a novel unsupervised method of exploring commonly regulated modules of human miRNAs by targeting TFs. The method integrates a self-pruning subroutine to discard the portion of the microarray data that might be noisy or insignificant for the particular study. The method has a different motivation from a general clustering approach. It can produce priority-based modules pertaining biological significance. For validating the efficacy of the pruning methodology, a novel tool is devised for visualizing the expression data from a statistical perspective. The results show the generation of a set of PM s in the decreasing order of statistical significance. The coherence of these modules is validated with a novel compactness measure. Biologically, with respect to regulation by TFs, this ordering might not be important, even though these PM s are found to be effective in the exploration of TF-miRNA regulatory activity. By a deeper analysis, a large number of TFs are identified, which might be regulating multiple miRNAs common to a module. Supporting an earlier study [3], these results might be significant for reconstructing the complex regulatory network that hypothetically exists between TFs and miRNAs. The results also indicate that the miRNAs which are evolutionarily related may not be biologically corregulated.

Methods

To apply the proposed heuristic mining process, we initially construct an FCG from the microarray data. As this study integrates the concept of FCG, reflecting similarity measure within (0,1], there should be some normalized similarity measure as the fuzzy membership function. Here, a fuzzy membership function, based on the squared Euclidean distance, is used. A commonly used normalization method is performing the zero mean and unit normalization operation (see Additional file 1 section 2.1) on the entire dataset. However, with prior zero mean and unit normalization, the squared Euclidean distance metric coincides with the Pearson correlation coefficient. We employ a novel fuzzy membership function to compute the miRNA-miRNA membership value (relation) in the final FCG.

The proposed fuzzy membership function is based on normalized squared Euclidean similarity computation between two expression vectors ε1 and ε2. Suppose, two expression vectors, ε1 and ε2, represent the expression values of the two vertices v1 and v2 (or equivalently the miRNAs corresponding to v1 and v2), then the fuzzy membership value of the edge (v1, v2) is defined as,
https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_Equ6_HTML.gif
(6)

In Eqn. (6), ε1irepresents the i th element of the expression vector ε1 and NF denotes a normalization factor that is calculated as https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq16_HTML.gif .

The FCG to be explored is prepared using the aforesaid measure. Once the FCG is prepared they can be equivalently considered as a co-expression network. The proposed mining method produces a set of N-vertexlets (groups of miRNAs which we call PM s) by stepwise pruning of the constructed FCG until a stopping criterion is reached.

The proposed mining methodology is given in formal steps in Table 1. This complete process is followed by a post-processing technique. The basic algorithm efficiently groups the miRNAs in the descending order of coherence and prunes out the insignificant residual part. It takes an miRNA co-expression network (in the form of FCG) and the two controlling parameters a lower density threshold and a density decay constant as inputs. Staring from the zeroth time point (t = 0), at each iteration (time point) the algorithm discovers the largest PM (largest dense N-vertexlet) in the current co-expression network. This (step 4) is done by using an algorithm proposed in a recent work to identify largest N-vertexlets from a scale-free graph [17].

The process of identifying the largest PM works like this:
  1. 1.

    For every single vertex in the FCG a neighboring list of vertices is prepared. This contains the series of vertices in their descending order of fuzzy membership value with respect to the corresponding vertex.


  2. 2.

    The vertex having the maximum association density with respect to the remaining ones is selected as the seed vertex.


  3. 3.

    The seed vertex is expanded heuristically by weighted combination of the neighboring list until a threshold of association density (here δ t ) is reached.


  4. 4.

    The final expanded list provides the largest PM.



The selected largest PM obtained using the above subroutine is extracted from the original network and the association density is decayed. The decay of density does not occur linearly, rather, it is done inspired by an approach similar to simulated annealing associating a decay constant ξ. This decayed density and the residual network are taken as the current density and current network, respectively, in the subsequent iteration. The self-pruning is continued until the lower density threshold is reached and the left-out network is treated as the insignificant subpart of the original network. On completion of the iterations, the number of PM s is returned by the variable t. The output is produced in the form of a finite set of PM s. From the entire set of V miRNAs, https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq17_HTML.gif miRNAs are mined as significant part and the left portion is pruned out. Thus, it statistically integrates a noise-pruning characteristic to produce accurate results.

Subsequent to this mining procedure a post-processing routine is performed on the final set of PM s { https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-10-163/MediaObjects/12859_2009_Article_2893_IEq10_HTML.gif } produced as the output. These PM s are selected as a set of initialized modules and the centers of these modules are computed. With respect to all the miRNAs, the modules are reconstructed by associating each miRNA to a closer module center. Again, the module centers are computed for the reconstructed modules and the same process is iterated. This finally produces the modules of miRNAs of importance.

Supplementary materials along with the datasets are available at the webpage of the corresponding author: http://www.isical.ac.in/~malay_r/Supplementary.html.

Declarations

Acknowledgements

The authors wish to thank the anonymous reviewers for their valuable suggestions that greatly helped to improve the contents of this paper. Additionally, the first author gratefully acknowledges the financial support from the grant no.- DST/SJF/ET-02/2006-07 under the Swarnajayanti Fellowship scheme of the Department of Science and Technology, Government of India.

Authors’ Affiliations

(1)
Machine Intelligence Unit, Indian Statistical Institute

References

  1. Bartel DP: MicroRNAs: genomics, biogenesis, mechanism, and function. Cell 2004, 116(2):281–297. 10.1016/S0092-8674(04)00045-5View ArticlePubMedGoogle Scholar
  2. Perkins DO, Jeffries CD, Jarskog LF, Thomson JM, Woods K, Newman MA, Parker JS, Jin J, Hammond SM: microRNA expression in the prefrontal cortex of individuals with schizophrenia and schizoaffective disorder. Genome Biol 2007, 8(2):R27. 10.1186/gb-2007-8-2-r27PubMed CentralView ArticlePubMedGoogle Scholar
  3. Shalgi R, Lieber D, Oren M, Pilpel Y: Global and local architecture of the mammalian microRNA-transcription factor regulatory network. PLoS Comput Biol 2007, 3(7):e131. 10.1371/journal.pcbi.0030131PubMed CentralView ArticlePubMedGoogle Scholar
  4. Lu J, Getz G, Miska EA, Saavedra EA, Lamb J, Peck D, Cordero AS, Ebert BL, Mak RH, Ferrando AA, Downing JR, Jacks T, Horvitz HR, Golub TR: MicroRNA expression profiles classify human cancers. Nature 2005, 435: 834–838. 10.1038/nature03702View ArticlePubMedGoogle Scholar
  5. Brown D, Conrad R, Devroe E, Goldrick M, Keiger K, Labourier E, Moon I, Powers P, Shelton J, Shingara J: Methods and compositions involving microRNA. US Patent 20070161004 2007, A1.Google Scholar
  6. Eisen MB, Spellman PT, Brown PO, Botstein D: Cluster analysis and display of genome-wide expression patterns. Proc Natl Acad Sci USA 1998, 95: 14863–14868. 10.1073/pnas.95.25.14863PubMed CentralView ArticlePubMedGoogle Scholar
  7. Bandyopadhyay S, Mukhopadhyay A, Maulik U: An improved algorithm for clustering gene expression data. Bioinformatics 2007, 23(21):2859–2865. 10.1093/bioinformatics/btm418View ArticlePubMedGoogle Scholar
  8. Datta P, Datta S: Evaluation of clustering algorithms for gene expression data. BMC Bioinformatics 2006, 7: S17. 10.1186/1471-2105-7-S4-S17PubMed CentralView ArticlePubMedGoogle Scholar
  9. Chopra P, Kang J, Yang J, Cho H, Kim HS, Lee MG: Microarray data mining using landmark gene-guided clustering. BMC Bioinformatics 2008, 9: 92. 10.1186/1471-2105-9-92PubMed CentralView ArticlePubMedGoogle Scholar
  10. Sempere LF, Freemantle S, Pitha-Rowe I, Moss E, Dmitrovsky E, Ambros V: Expression profiling of mammalian microRNAs uncovers a subset of brain-expressed microRNAs with possible roles in murine and human neuronal differentiation. Genome Biol 2004, 5(3):R13. 10.1186/gb-2004-5-3-r13PubMed CentralView ArticlePubMedGoogle Scholar
  11. Baskerville S, Bartel DP: Microarray profiling of microRNAs reveals frequent coexpression with neighboring miRNAs and host genes. RNA 2005, 11: 241–247. 10.1261/rna.7240905PubMed CentralView ArticlePubMedGoogle Scholar
  12. Hornstein E, Shomron N: Canalization of development by microRNA. Nat Genet (Supplementary) 2006, S20-S24. 10.1038/ng1803Google Scholar
  13. Wang G, Wang Y, Feng W, Wang X, Yang JY, Zhao Y, Wang Y, Liu Y: Transcription factor and microRNA regulation in androgen-dependent and -independent prostate cancer cells. BMC Genomics 2008, 9(Suppl 2):S22. 10.1186/1471-2164-9-S2-S22PubMed CentralView ArticlePubMedGoogle Scholar
  14. Lewis BP, Burge CB, Bartel DP: Conserved seed pairing, often flanked by adenosines, indicates that thousands of human genes are microRNA targets. Cell 2005, 120: 15–20. 10.1016/j.cell.2004.12.035View ArticlePubMedGoogle Scholar
  15. Krek A, Grün D, Poy MN, Wolf R, Rosenberg L, Epstein EJ, MacMenamin P, da Piedade I, Gunsalus KC, Stoffel M, Rajewsky N: Combinatorial microRNA target predictions. Nat Genet 2005, 37(5):495–500. 10.1038/ng1536View ArticlePubMedGoogle Scholar
  16. Tian Z, Greene AS, Pietrusz JL, Matus IR, Liang M: MicroRNAtarget pairs in the rat kidney identified by microRNA microarray, proteomic, and bioinformatic analysis. Genome Res 2008, 18: 404–411. 10.1101/gr.6587008PubMed CentralView ArticlePubMedGoogle Scholar
  17. Bandyopadhyay S, Bhattacharyya M: Mining the Largest Dense N-vertexlet in a Fuzzy Scale-free Graph. In Technical Report No. MIU/TR-03/08. Machine Intelligence Unit, Indian Statistical Institute, Kolkata, India; 2008.Google Scholar
  18. Laurent LC, Chen J, Ulitsky I, Mueller F, Lu C, Shamir R, Fan J, Loring JF: Comprehensive MicroRNA Profiling Reveals a Unique Human Embryonic Stem Cell Signature Dominated by a Single Seed Sequence. Stem Cells 2008, 26: 1506–1516. 10.1634/stemcells.2007-1081View ArticlePubMedGoogle Scholar
  19. Brock GN, Shaffer JR, Blakesley RE, Lotz MJ, Tseng GC: Which missing value imputation method to use in expression profiles: a comparative study and two selection schemes. BMC Bioinformatics 2008, 9: 12.PubMed CentralView ArticlePubMedGoogle Scholar
  20. Handl J, Knowles J, Kell DB: Computational cluster validation in post-genomic data analysis. Bioinformatics 2005, 21(15):3201–3212. 10.1093/bioinformatics/bti517View ArticlePubMedGoogle Scholar
  21. Rousseeuw P: Silhouettes: a graphical aid to the interpretation and validation of cluster analysis. J Comput Appl Math 1987, 20: 53–65. 10.1016/0377-0427(87)90125-7View ArticleGoogle Scholar
  22. Amin AT, Hakimi SL: Upper bounds on the order of a clique of a graph. SIAM J Appl Math 1972, 22(4):569–573. 10.1137/0122052View ArticleGoogle Scholar
  23. McGill R, Tukey JW, Larsen WA: Variations of Box Plots. The American Statistician 1978, 32: 12–16. 10.2307/2683468Google Scholar
  24. Slonim N, Atwal GS, Tkačik G, Bialek W: Information-based clustering. Proc Natl Acad Sci USA 2005, 102(51):18297–18302. 10.1073/pnas.0507432102PubMed CentralView ArticlePubMedGoogle Scholar
  25. Karolchik D, Hinrichs AS, Furey TS, Roskin KM, Sugnet CW, Haussler D, Kent WJ: The UCSC Table Browser data retrieval tool. Nucleic Acids Res 2004, 32: D493-D496. 10.1093/nar/gkh103PubMed CentralView ArticlePubMedGoogle Scholar
  26. Tanzer A, Stadler PF: Molecular evolution of a microRNA cluster. J Mol Biol 2004, 339(2):327–335. 10.1016/j.jmb.2004.03.065View ArticlePubMedGoogle Scholar

Copyright

© Bandyopadhyay and Bhattacharyya; licensee BioMed Central Ltd. 2009

This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
