Functional classification of proteins based on projection of amino acid sequences: application for prediction of protein kinase substrates

  • Boris Sobolev1Email author,

    Affiliated with

    • Dmitry Filimonov1,

      Affiliated with

      • Alexey Lagunin1,

        Affiliated with

        • Alexey Zakharov1,

          Affiliated with

          • Olga Koborova1,

            Affiliated with

            • Alexander Kel2 and

              Affiliated with

              • Vladimir Poroikov1

                Affiliated with

                BMC Bioinformatics201011:313

                DOI: 10.1186/1471-2105-11-313

                Received: 26 October 2009

                Accepted: 10 June 2010

                Published: 10 June 2010

                Abstract

                Background

                The knowledge about proteins with specific interaction capacity to the protein partners is very important for the modeling of cell signaling networks. However, the experimentally-derived data are sufficiently not complete for the reconstruction of signaling pathways. This problem can be solved by the network enrichment with predicted protein interactions. The previously published in silico method PAAS was applied for prediction of interactions between protein kinases and their substrates.

                Results

                We used the method for recognition of the protein classes defined by the interaction with the same protein partners. 1021 protein kinase substrates classified by 45 kinases were extracted from the Phospho.ELM database and used as a training set. The reasonable accuracy of prediction calculated by leave-one-out cross validation procedure was observed in the majority of kinase-specificity classes. The random multiple splitting of the studied set onto the test and training set had also led to satisfactory results. The kinase substrate specificity for 186 proteins extracted from TRANSPATH® database was predicted by PAAS method. Several kinase-substrate interactions described in this database were correctly predicted. Using the previously developed ExPlain™ system for the reconstruction of signal transduction pathways, we showed that addition of the newly predicted interactions enabled us to find the possible path between signal trigger, TNF-alpha, and its target genes in the cell.

                Conclusions

                It was shown that the predictions of protein kinase substrates by PAAS were suitable for the enrichment of signaling pathway networks and identification of the novel signaling pathways. The on-line version of PAAS for prediction of protein kinase substrates is freely available at http://​www.​ibmc.​msk.​ru/​PAAS/​.

                Background

                The reconstruction of signal transduction networks is intensively applied in different fields of biomedicine, particularly, for identification of promising drug targets. Designed for biological network analysis databases support the effective integration of huge data obtained in large-scale experiments [1, 2]. However, the experimentally derived data has many gaps, which lead to difficulties in simulating the cell signaling pathways. This problem can be settled by the network enrichment with predicted interactions. In this study we propose to apply the previously published method PAAS (Projection of Amino Acid Sequences) [3, 4] for the enrichment of signal transduction networks through the recognition of proteins phosphorylated by certain kinases. We applied PAAS method to TRANSPATH® database to estimate its efficiency and to predict of the new interactions that could be used for the enrichment of signal transduction networks. The TRANSPATH® database is manually curated information resource providing both specific and general information on signal transduction that can has also the means for network analysis [5]. TRANSPATH® database is one of the most comprehensive collections of experimentally verified data on signal transduction in eukaryotic cells. Still, many signaling interactions in various cell types are not documented in TRANSPATH®. This gap of knowledge can hamper the analysis of signaling networks and the prediction of functionally important elements. We suppose that addition of interactions predicted by the algorithm presented here will be useful for filling up of these gaps.

                Several bioinformatics approaches were applied for prediction of the new functional characteristics of proteins with the aim of determination of new network nodes and edges [6]. Using the predictive tools one can significantly enrich the database and reconstruct more relevant models. It allows detection of promising drug targets.

                Several well known algorithms use the network context information based on the protein location in the network [6] and on the comparison of the networks constructed for different species [7]. Frequently, such context information is very sparse. The amino acid sequences of proteins can serve as an important informational source for increasing the reliability of predicted proteins that participate in signal transduction.

                The signaling network can be represented as a series of protein-protein interactions; therefore, the methods for prediction of the interacting protein pairs can also be used for the network enrichment. Some methods are based on the calculation of co-variation of positional substitutions in aligned sequences of interacting protein families [8]. In other methods, the members of the query pair are compared to the training set with the known protein interactions [9]. PIPE-like methods [10] calculate the similarity of short regions for the input sequence pair and the training sets and estimate the putative interactions based on the resulting matrix with the number of matches above the given threshold included. PPI-SP method is also based on the sequence comparison, but each input sequence pair is represented as vector of similarity scores calculated by the Smith-Waterman alignment [11]. The prediction of interacting pairs is performed by SVM algorithm.

                In the sequence-based method for prediction of protein-protein interactions the both members of each pair are compared with the sets of sequences of known interacting proteins. We used an original sequence-based method of protein classification PAAS [3, 4]. In this study the training set consisted of the known protein kinase substrates, classified according to the kinase types that can be considered as recognition of substrate specificity class using only the substrate sequences. PAAS method [3, 4] is particularly appropriate for the situation when the single kinase phosphorylates many different substrates and, therefore, participates in many pathways. So, the suggested method can be applied in wide area of signal transduction pathways.

                Generally, the proposed positional score is close to the measures used in other approaches - summation of weights of coincided positions (e.g. BLOSUM or PAM matrices) over the sliding window. All such methods require the shifting of sequences to each other. The more sophisticated local alignment procedure can also be considered as merging the local un-gapped similarities. Unlike other algorithms, in our approach the projection scores are assigned to each position of the query sequence. The maximal value of scores is calculated for all regions containing this position. It resembles the local alignment algorithm with more simple realization. The training sequences are projected onto the query sequence, and the summarized values obtained for all positions and all training set classes are the input to the classifier. This simple procedure does not require the large memory space. Unlike the methods based on the algorithmic alignment, PAAS algorithm does not contain the time-consuming steps.

                It was shown that PAAS provides high accuracy of the functional class prediction composed of homologous amino acid sequences revealing the global sequence similarity. The proteins interacting with the same protein partner can also be characterized by the global sequence similarity. However, in many cases the proteins reveal only the local similarity. We consider that the proposed approach can be useful for determination of the proteins in the interaction network.

                The proposed approach was applied for prediction of new interactions in protein phosphorylation networks. The interaction cascades between protein kinases and their substrates play a key role in cell cycle regulation, in the normal and tumor cells [12]. Protein phosphorylation (including substrate specificity of different protein kinase types, phosphorylated peptides and regions responsible for kinase-substrate binding) is well studied, providing a lot of information necessary for the evaluation and improvement of the method. The proteins included into the training set were classified according to the kinase's specificity, so that each class consisted of the proteins phosphorylated by the same kinase.

                The common approach for prediction of protein kinase substrates involves the recognition of specific regions in amino acid sequences. The data set of experimentally determined phosphorylated peptides is used to compose the sequence motifs surrounding the modified Thr, Ser or Tyr residues. However, the phosphorylation motifs are not sufficient for provision of strongly specific interaction of the kinase and its substrates. The additional regions located in the substrate proteins are responsible for the enzyme recruitment, i.e. for increasing the probability of binding between kinase and substrate [13].

                The algorithms based on the recognition of phosphorylation motifs and other interaction regions are used for searching of these motifs in the annotated sequences. The software like ScanSite [14], NetPhosK [15], PredPhospho [16] use the different mathematical approaches including Hidden Markov Models or Support Vector Machine. They provide the prediction of the substrates of certain kinases with high accuracy on the basis of sequence mapping [17]. In contrast to the above mentioned methods the data from the signal transduction networks frequently do not allow to make the sequence mapping. In this study we investigated the efficiency of our approach, if the amino acid sequences of training set were not mapped.

                At the first stage of this study, we validated PAAS method on the basis of the known kinase-substrate interactions. At the second stage, we applied the suggested approach for prediction of new interactions for the proteins stored in TRANSPATH® database. At the third stage, the predicted interactions were used for the enrichment of network. It helped us to reconstruct potential cell signaling cascades.

                Methods

                Sequence local similarity score

                In PAAS algorithm, the query amino acid sequence is described by the series of local similarity scores [3]. These values are defined by shifting the sequence D (retrieved from the training dataset) versus the query sequence Q (Figure 1). The score of similarity with the sequence D is calculated for each position i of sequence Q as follows:
                http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-11-313/MediaObjects/12859_2009_Article_3770_Fig1_HTML.jpg
                Figure 1

                Local similarity estimation. The diagonal corresponds to the shift value h providing the best match between the region of sequence Q and sequence D. A mn is the summarized similarity of superposed areas of sequences Q and D terminated at q m and d n+h , respectively. Thus, the score R i = A ih - A i-F, h , presents the highest similarity score being found for the selected region of sequence Q. Finally, the similarity score S i takes the maximal values from R i+j scores.

                http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-11-313/MediaObjects/12859_2009_Article_3770_Equa_HTML.gif

                where sim(q, d) is the similarity of superposed amino acid residues according to the given measure - e.g. the residue identity or substitution matrix; q x and d y are the residues in the indexed positions of Q and D, respectively; h is the current shift value; F is the value given by the parameter "frame"; R i is the score of maximal similarity of the sequence Q region (equal F in length and terminated at position i upright) with sequence D; S i is defined as maximal value of scores R i+j calculated for all regions, which include the position i.

                In this study, all sequence comparisons were performed by residue similarity measure on the basis of Blosum62 matrix [18].

                Prediction algorithm

                We used the algorithm described in detail in our previous publications [3, 4]. The query sequence Q is compared to each sequence of the training set. Thus, we obtained the local similarity scores for the sequence Q with all training sequences. These values were used as the input data for the classifier. Belonging of the query protein Q to class C is estimated by special statistic B Q (C) [3, 1922] calculated as follows:
                http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-11-313/MediaObjects/12859_2009_Article_3770_Equb_HTML.gif

                where N is a number of amino acid sequences in the training set; W k (C) and W k (¬C) are the weights of the k th training sequence in class C and its complement (in simplest case takes the value 0 or 1), S ik is a similarity score in position i of the query sequence with the k th training sequence, n is a number of amino acid residues in the sequence Q.

                The qualitative results of prediction ("belong or not belong") are calculated for each class of proteins. The prediction result is presented in PAAS by the list of classes with the probabilities of belonging to the particular class and its complement - P 1 and P 0, respectively. P 1 and P 0 are the functions of B-statistic for the query sequence. The list is arranged in descending order of P 1-P 0; thus, the more significant results are at the top of the list. The default cut-off is P 1 > P0.

                The relationships necessary for estimating the P 1 and P 0 probabilities, are determined by Leave-One-Out Cross-Validation (LOO CV) procedure as follows. One sequence is removed from the training set and is used as the query set. The B-statistic values are calculated for each class C of the training set. The procedure is repeated for each sequence of the training set. Using the calculated B-statistic values, smooth estimations of the distribution functions P 1 (B) and P 0 (B) are obtained for each class [19, 20]. Substituting the arguments for B Q (C) we can estimate the probability of the query protein belonging to the given class. This training procedure enables to save statistical model, which can be used for the estimation of new proteins.

                Evaluation of prediction accuracy

                LOO CV and multiple splitting of the initial data on the training and test sets with calculation of Invariant Accuracy of Prediction (IAP) criterion were used for the evaluation of prediction accuracy. IAP is calculated as the ratio between the number of correctly classified pairs and that of all possible pairs [20, 22]:
                http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-11-313/MediaObjects/12859_2009_Article_3770_Equc_HTML.gif

                Mathematically, IAP value is equal to the sample estimation of the probability when the classifier ranks of the randomly chosen member M for the given class C are higher than the randomly chosen member U of the class complement ¬C. Formally, IAP criterion coincides with the Area Under the ROC Curve (AUC), which is very popular for the accuracy evaluation [23], but calculation of the IAP criterion is more simple.

                Data on protein kinase substrates

                The substrates of different protein kinase types, phosphorylating the Ser/Thr and Tyr residues were studied. Phospho.ELM database [24] was chosen as the source of information with experimentally confirmed protein substrates of the known Ser/Thr and Tyr protein kinases. We selected the substrates of 45 protein kinase types: each class of kinase-specificity contained at least 10 proteins. The list of selected proteins (as designated in Phospho.ELM is presented in Table 1.
                Table 1

                Designations and descriptions of kinases whose substrates were included into the training set

                Kinase type

                Description

                Lmin

                Lmax

                ABL1

                Proto-oncogene tyrosine-protein kinase

                178

                1271

                ATM

                Ataxia telangiectasia mutated

                118

                3056

                AURORA_A

                Serine/threonine-protein kinase 6 (STK6)

                136

                1863

                AURORA_B

                Serine/threonine-protein kinase 12 (AURKB)

                136

                923

                CAM_KII_group

                Calcium/calmodulin-dependent protein kinase II

                52

                5037

                CAM_KII_alpha

                Calcium/calmodulin-dependent protein kinase II alpha

                52

                4967

                CDK1

                Cell division control protein 2 homolog (Cyclin-dependent kinase 1)

                107

                4684

                CDK2

                Cell division protein kinase 2

                119

                1971

                CDKgroup

                Cyclin-dependent kinases

                149

                1863

                CK1alpha

                Casein kinase 1, alpha

                140

                911

                CK1group

                Casein kinases 1

                195

                2843

                CK2group

                Casein kinase 2

                98

                2346

                DNA_PK

                DNA-dependent protein kinase catalytic subunit

                270

                4128

                EGFR

                Epidermal growth factor receptor (Receptor tyrosine-protein kinase ErbB-1)

                76

                1291

                ERK2

                Mitogen-activated protein kinase 1

                196

                2225

                ERK1

                Mitogen-activated protein kinase 3

                168

                2749

                FYN

                Proto-oncogene tyrosine-protein kinase Fyn

                164

                2758

                GSK3beta

                Glycogen synthase kinase 3 beta

                164

                2470

                GSKgroup

                Glycogen synthase kinases 3

                157

                1914

                INS_R

                Insulin receptor

                132

                1382

                JNK1

                c-Jun N-terminal kinase 1

                196

                1242

                JNK2

                c-Jun N-terminal kinase 2

                196

                1075

                LCK

                Lymphocyte-specific protein tyrosine kinase

                220

                2472

                LKB1

                Serine/threonine kinase 11 (LKB1)

                433

                1263

                LYN

                Tyrosine-protein kinase Lyn

                202

                1827

                MAPKAPK2

                mitogen-activated protein kinase-activated protein kinase 2

                168

                1807

                MAPKgroup

                P38, JNK and ERK

                136

                1914

                PAK1

                Serine/threonine-protein kinase PAK1

                89

                2647

                PDK-1

                3-phosphoinositide dependent protein kinase 1

                268

                1374

                PKAalpha

                Protein kinase, cAMP-dependent, catalytic, alpha

                52

                2749

                PKAgroup

                cAMP-dependent protein kinase

                30

                5037

                PKBgroup

                Protein kinases B

                130

                5890

                PKCalpha

                Protein kinase C, alpha type

                72

                2441

                PKCbeta

                Protein kinase C, beta 1

                149

                1531

                PKCdelta

                Protein kinase C, delta type

                187

                2414

                PKCgroup

                Protein kinase

                30

                2442

                PKCzeta

                Protein kinase C, zeta type

                147

                1242

                PKGgroup

                cGMP-dependent protein kinases

                90

                5037

                PLK1

                Polo like kinase 1

                163

                3418

                ROCKgroup

                Rho-associated, coiled-coil containing protein kinases

                309

                737

                RSKgroup

                Ribosomal protein S6 kinases

                198

                2647

                SGKgroup

                Serum/glucocorticoid regulated kinase

                341

                3144

                SRC

                Proto-oncogene tyrosine-protein kinase Src

                101

                4544

                SYK

                Tyrosine-protein kinase SYK (Spleen tyrosine kinase).

                113

                1290

                P38alpha

                mitogen-activated protein kinase 14

                168

                902

                Lmin and Lmax are the minimal and maximal values of the sequence length of proteins referred to the given class.

                The UniProt accession numbers of protein substrates were retrieved from Phospho.ELM and the corresponding sequences were included into the non-redundant dataset of 1021 proteins. The obtained training set contained the proteins of the following species: the major part (971) belonged to the mammals including 709 human proteins; the remaining sequences related to other vertebrata, fungi, viruses and insects. Thus, 45 intersecting kinase specificity classes were composed (each class contained at least 10 proteins). As can be seen from Table 1, the sequence length significantly varies within each class. The average number of kinase types per one substrate protein was 1.6. The distribution of the number of kinase types per substrate is shown in Figure 2.
                http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-11-313/MediaObjects/12859_2009_Article_3770_Fig2_HTML.jpg
                Figure 2

                Intersection of the kinase substrate classes.

                The certain classes were the subgroups of other classes (e.g. CDK1 and CDK2 are subclasses of CDKgroup). Sequence set of the class cannot completely cover the sets of subclasses that is typical for biological databases.

                External validation set

                For further prediction, we selected 186 proteins from the commercial version of TRANSPATH® database (release 2009.2) not included in the training set as a test set. It is known that the substrates of kinases are involved in various important processes, like carcinogenesis, inflammation, apoptosis, etc. Therefore, the prediction of the new interactions wherein the proteins from the test set could be involved is interesting for further investigations of the appropriate processes.

                Reconstruction of signal transduction pathways

                We applied the ExPlain™ software, version 2.4.1 [25], which can be used for the iterative building of the signal transduction cascades on the basis of full network from TRANSPATH® database and the shortest path algorithm. The microarray data published by Viemann et al. [26] were also used in the study.

                Microarray data

                We have analyzed the microarray gene expression data on TNF-alpha stimulation of primary human endothelial cells (HUVEC) taken from GEO (GSE2639) [26]. Gene expression profiles were measured by Affymetrix® GeneChip® Human Genome U133A array in HUVEC, stimulated for 5 hours with TNF, and in untreated HUVEC too. Four repeated experiments were used for each condition. We applied the criteria of at least two-fold change in gene expression and p-value < 0.01 revealed by t-test. The expression of 74 genes appeared to be significantly higher after TNF-alpha treatment.

                Results

                Leave-one-out cross-validation

                LOO CV procedure was performed for the set of 1021 amino acid sequences of protein kinase substrates assigned for 45 classes. The results obtained for different frame values are given in Table 2.
                Table 2

                IAP values obtained by LOO CV for the training set

                Kinase type

                Number of substrates

                Frame values



                10

                15

                20

                25

                30

                35

                40

                45

                ABL1

                32

                0.652

                0.665

                0.672

                0.661

                0.675

                0.685

                0.683

                0.664

                ATM

                30

                0.787

                0.780

                0.786

                0.779

                0.785

                0.781

                0.782

                0.786

                AURORA_A

                12

                0.747

                0.732

                0.743

                0.792

                0.784

                0.773

                0.769

                0.744

                AURORA_B

                14

                0.857

                0.840

                0.819

                0.858

                0.871

                0.879

                0.871

                0.876

                CAM_II_group

                40

                0.689

                0.708

                0.699

                0.707

                0.680

                0.692

                0.693

                0.703

                CAM_KII_alpha

                21

                0.616

                0.592

                0.591

                0.531

                0.532

                0.528

                0.519

                0.529

                CDK1

                69

                0.640

                0.645

                0.641

                0.648

                0.656

                0.657

                0.662

                0.658

                CDK2

                28

                0.767

                0.747

                0.754

                0.761

                0.753

                0.748

                0.730

                0.725

                CDKgroup

                47

                0.693

                0.715

                0.702

                0.682

                0.664

                0.663

                0.667

                0.670

                CK1alpha

                11

                0.578

                0.553

                0.575

                0.609

                0.625

                0.642

                0.594

                0.560

                CK1group

                18

                0.642

                0.644

                0.639

                0.637

                0.627

                0.630

                0.660

                0.662

                CK2group

                122

                0.745

                0.740

                0.735

                0.746

                0.742

                0.737

                0.742

                0.748

                DNA_PK

                11

                0.492

                0.506

                0.458

                0.508

                0.529

                0.563

                0.537

                0.545

                EGFR

                27

                0.840

                0.843

                0.883

                0.861

                0.893

                0.887

                0.891

                0.888

                ERK2

                71

                0.714

                0.700

                0.695

                0.697

                0.698

                0.700

                0.696

                0.702

                ERK1

                61

                0.655

                0.639

                0.634

                0.632

                0.632

                0.631

                0.622

                0.634

                FYN

                25

                0.687

                0.697

                0.695

                0.696

                0.651

                0.627

                0.619

                0.632

                GSK3beta

                26

                0.654

                0.661

                0.690

                0.688

                0.706

                0.718

                0.716

                0.725

                GSKgroup

                20

                0.650

                0.640

                0.664

                0.616

                0.589

                0.592

                0.557

                0.566

                INS_R

                13

                0.709

                0.641

                0.643

                0.685

                0.668

                0.632

                0.623

                0.569

                JNK1

                20

                0.762

                0.773

                0.754

                0.766

                0.783

                0.770

                0.777

                0.779

                JNK2

                10

                0.672

                0.631

                0.605

                0.653

                0.632

                0.599

                0.638

                0.655

                LCK

                29

                0.813

                0.820

                0.831

                0.824

                0.826

                0.834

                0.838

                0.835

                LKB1

                16

                0.996

                0.995

                0.994

                0.994

                0.993

                0.989

                0.990

                0.991

                LYN

                26

                0.751

                0.771

                0.743

                0.722

                0.705

                0.706

                0.711

                0.712

                MAPKAPK2

                17

                0.618

                0.637

                0.629

                0.641

                0.571

                0.542

                0.511

                0.522

                MAPKgroup

                36

                0.677

                0.664

                0.676

                0.676

                0.666

                0.668

                0.665

                0.669

                PAK1

                21

                0.500

                0.517

                0.570

                0.573

                0.569

                0.575

                0.576

                0.541

                PDK-1

                24

                0.957

                0.958

                0.956

                0.957

                0.955

                0.948

                0.949

                0.950

                PKAalpha

                22

                0.367

                0.356

                0.356

                0.409

                0.388

                0.424

                0.420

                0.398

                PKAgroup

                206

                0.658

                0.660

                0.669

                0.668

                0.672

                0.648

                0.646

                0.648

                PKBgroup

                63

                0.663

                0.676

                0.661

                0.655

                0.640

                0.630

                0.637

                0.637

                PKCalpha

                81

                0.663

                0.653

                0.656

                0.643

                0.646

                0.649

                0.656

                0.653

                PKCbeta

                10

                0.294

                0.376

                0.350

                0.364

                0.415

                0.475

                0.481

                0.427

                PKCdelta

                17

                0.418

                0.472

                0.449

                0.490

                0.489

                0.463

                0.479

                0.493

                PKCgroup

                145

                0.733

                0.744

                0.754

                0.757

                0.756

                0.724

                0.724

                0.725

                PKCzeta

                11

                0.643

                0.626

                0.668

                0.701

                0.736

                0.746

                0.743

                0.733

                PKGgroup

                10

                0.492

                0.505

                0.553

                0.551

                0.594

                0.606

                0.587

                0.548

                PLK1

                18

                0.678

                0.628

                0.670

                0.718

                0.731

                0.721

                0.688

                0.704

                ROCKgroup

                12

                0.828

                0.852

                0.862

                0.856

                0.866

                0.872

                0.880

                0.889

                RSKgroup

                18

                0.592

                0.592

                0.618

                0.658

                0.645

                0.626

                0.620

                0.640

                SGKgroup

                11

                0.738

                0.749

                0.699

                0.695

                0.699

                0.699

                0.699

                0.683

                SRC

                92

                0.731

                0.732

                0.740

                0.742

                0.742

                0.738

                0.746

                0.745

                SYK

                21

                0.741

                0.729

                0.752

                0.766

                0.775

                0.764

                0.744

                0.750

                P38alpha

                24

                0.726

                0.720

                0.723

                0.737

                0.741

                0.728

                0.705

                0.717

                Average



                0.678

                0.678

                0.681

                0.689

                0.689

                0.687

                0.683

                0.681

                Table 2 shows that the highest average accuracy was reached at the frame equal to 25 or 30 residues. Thirty eight classes of kinase specificity were recognized with the reasonable accuracy. Seven classes (in italics) were recognized with IAP values less 0.6.

                Validation with multiple splitting

                The procedure of multiple splitting of the initial data on the training and test sets (2/3 and 1/3, respectively) was applied for the estimation of the robustness of PAAS method. In this test we have used the total evaluation set of 1021 sequences, which represents the substrates of 45 kinase types. The subset of 907 human proteins was also used in the study. Twenty random divisions were made for each kinase type with the frame value = 25. The results are shown in Table 3.
                Table 3

                IAP values obtained by 20-fold multiple splitting

                Kinase type

                All species

                Human



                No

                LOO CV

                M

                SD

                No

                LOO CV

                M

                SD

                ABL1

                32

                0.661

                0.685

                0.072

                24

                0.600

                0.600

                0.106

                ATM

                30

                0.779

                0.751

                0.086

                29

                0.771

                0.762

                0.075

                AURORA_A

                12

                0.792

                0.777

                0.130

                -



                AURORA_B

                14

                0.858

                0.857

                0.114

                11

                0.808

                0.815

                0.115

                CAM_II_group

                40

                0.707

                0.657

                0.084

                19

                0.651

                0.681

                0.090

                CAM_KII_alpha

                21

                0.531

                0.515

                0.120

                16

                0.475

                0.494

                0.111

                CDK1

                69

                0.648

                0.641

                0.049

                62

                0.679

                0.653

                0.064

                CDK2

                28

                0.761

                0.740

                0.066

                21

                0.659

                0.666

                0.092

                CDKgroup

                47

                0.682

                0.653

                0.065

                30

                0.546

                0.534

                0.080

                CK1alpha

                11

                0.609

                0.595

                0.134

                10

                0.548

                0.535

                0.097

                CK1group

                18

                0.637

                0.622

                0.158

                10

                0.487

                0.508

                0.182

                CK2group

                122

                0.746

                0.734

                0.041

                87

                0.680

                0.670

                0.046

                DNA_PK

                11

                0.508

                0.466

                0.121

                -



                EGFR

                27

                0.861

                0.808

                0.090

                21

                0.723

                0.728

                0.092

                ERK1

                71

                0.697

                0.624

                0.048

                54

                0.621

                0.637

                0.054

                ERK2

                61

                0.632

                0.673

                0.038

                52

                0.662

                0.656

                0.048

                FYN

                25

                0.696

                0.726

                0.083

                19

                0.625

                0.664

                0.096

                GSK3beta

                26

                0.688

                0.671

                0.087

                20

                0.606

                0.588

                0.125

                GSKgroup

                20

                0.616

                0.599

                0.113

                13

                0.648

                0.620

                0.183

                INS_R

                13

                0.685

                0.583

                0.133

                -



                JNK1

                20

                0.766

                0.763

                0.093

                15

                0.786

                0.759

                0.121

                JNK2

                10

                0.653

                0.634

                0.125

                -



                LCK

                29

                0.824

                0.795

                0.058

                24

                0.787

                0.792

                0.072

                LKB1

                16

                0.994

                0.993

                0.003

                15

                0.995

                0.995

                0.005

                LYN

                26

                0.722

                0.745

                0.090

                20

                0.699

                0.691

                0.118

                MAPKAPK2

                17

                0.641

                0.652

                0.082

                15

                0.590

                0.596

                0.081

                MAPKgroup

                36

                0.676

                0.661

                0.063

                31

                0.625

                0.614

                0.089

                PAK1

                21

                0.573

                0.574

                0.098

                16

                0.527

                0.514

                0.092

                PDK-1

                24

                0.957

                0.956

                0.038

                19

                0.942

                0.933

                0.079

                PKAalpha

                22

                0.409

                0.466

                0.108

                -



                PKAgroup

                206

                0.668

                0.655

                0.028

                138

                0.595

                0.593

                0.037

                PKBgroup

                63

                0.655

                0.650

                0.051

                55

                0.625

                0.624

                0.038

                PKCalpha

                81

                0.643

                0.627

                0.054

                68

                0.648

                0.630

                0.053

                PKCbeta

                10

                0.364

                0.383

                0.155

                -



                PKCdelta

                17

                0.49

                0.507

                0.111

                16

                0.382

                0.439

                0.115

                PKCgroup

                145

                0.757

                0.755

                0.036

                84

                0.691

                0.656

                0.046

                PKCzeta

                11

                0.701

                0.670

                0.207

                10

                0.646

                0.584

                0.170

                PKGgroup

                10

                0.551

                0.642

                0.187

                -



                PLK1

                18

                0.718

                0.661

                0.163

                17

                0.699

                0.669

                0.119

                ROCKgroup

                12

                0.856

                0.839

                0.155

                -



                RSKgroup

                18

                0.658

                0.644

                0.095

                14

                0.471

                0.511

                0.146

                SGKgroup

                11

                0.695

                0.685

                0.182

                10

                0.600

                0.543

                0.159

                SRC

                92

                0.742

                0.717

                0.043

                65

                0.656

                0.627

                0.052

                SYK

                21

                0.766

                0.709

                0.158

                17

                0.689

                0.615

                0.179

                p38alpha

                24

                0.737

                0.700

                0.083

                23

                0.767

                0.786

                0.065

                Average



                0.689

                0.677

                0.096



                0.654

                0.648

                0.094

                The calculation was performed for the whole training set (1021 substrate proteins) and subset, including only human proteins (709). The numbers of the substrates in each class (No) are presented. IAP values were calculated by LOO CV procedure. The IAP values, averaged on 20 rounds of multiple splitting (M) and their standard deviations (SD), are presented. The kinase substrate classes containing less than 10 proteins (for human) are excluded.

                Average IAP values for LOO CV and multiple splitting are sufficiently close to each other proving the robustness of the approach.

                Prediction for proteins from TRANSPATH®

                The training set of 1021 substrates of kinases with the frame value = 25 was used for prediction of 186 proteins from the external validation set. All results, wherein P 1 value exceeded P 0 value, were considered as the putative substrates of kinases. 38 types of kinases from the training set with IAP value > 0.6 were selected for further investigation.

                With the threshold P 1 > P 0, 2656 kinase-substrate interactions for 38 selected types of kinases were predicted for the test set. We found 55 phosphorylation reactions related to 30 proteins from TRANSPATH® set (substrates) and to the studied kinase types. Table 4 displays 44 correctly predicted interactions mentioned in TRANSPATH® annotations. Thus, the prediction accuracy for the independent external test set was 80% (44 confirmed reactions of 55).
                Table 4

                The confirmation of TRANSPATH® interaction data with the PAAS prediction

                Substrate Accession No in UniProt

                Substrate Name in TRANSPATH® database

                Kinase type

                P1-P0

                IAP*

                O15169

                Axin

                CK1group

                -

                0.637

                O15169

                Axin

                GSK3beta

                0.844

                0.688

                O15169

                Axin

                Cdk*

                0.031

                0.682

                P24941

                Cdk2

                Lyn

                0.525

                0.722

                P17302

                Connexin-43

                Src

                0.754

                0.742

                P17302

                Connexin-43

                PKCgroup*

                0.863

                0.757

                P17302

                Connexin-43

                PKCalpha

                0.342

                0.643

                Q13158

                FADD

                PKCgroup*

                0.446

                0.757

                Q13158

                FADD

                CK1alpha

                -

                0.609

                P05230

                FGF-1

                CK2group

                -

                0.746

                P43694

                GATA-4

                ERK2

                0.915

                0.697

                P43694

                GATA-4

                GSK3beta

                0.688

                0.688

                Q16665

                HIF-1alpha

                ERK1

                0.038

                0.632

                Q16665

                HIF-1alpha

                ERK2

                -

                0.697

                Q01344

                IL-5Ralpha

                Lyn

                0.153

                0.722

                P17535

                JunD

                ERK2

                0.749

                0.697

                P17535

                JunD

                JNK2

                0.686

                0.653

                P17535

                JunD

                JNK1

                0.642

                0.766

                Q13233

                MEKK1

                ABL1l

                0.044

                0.661

                Q13233

                MEKK1

                PKCgroup

                -

                0.757

                Q13233

                MEKK1

                GSKgroup*

                0.371

                0.616

                O15151

                Mdm4

                CK1alpha

                0.183

                0.609

                O15151

                Mdm4

                ATM

                0.818

                0.779

                P27361

                ERK1

                Lck

                -

                0.824

                P27361

                ERK1

                MAPKgroup

                0.627

                0.824

                Q16539

                p38alpha

                p38aplha

                0.482

                0.737

                Q13469

                NF-AT1

                JNK1

                0.301

                0.766

                Q13469

                NF-AT1

                CK1group

                0.664

                0.637

                Q13469

                NF-AT1

                PKCzeta

                0.193

                0.701

                P16234

                PDGFRalpha

                ABL1

                0.305

                0.661

                P09619

                PDGFRbeta

                ABL1

                0.468

                0.661

                P53350

                Plk1

                Cdk1

                -

                0.648

                P53350

                Plk1

                PKAgroup

                -

                0.668

                P28749

                p107

                CDKgroup*

                0.636

                0.682

                Q13309

                Skp2

                Cdk2

                0.249

                0.761

                Q9Y6H5

                Synphilin-1

                GSK3Beta

                0.709

                0.688

                Q9Y6H5

                Synphilin-1

                CK2group

                0.429

                0.746

                Q93038

                DR3

                ERK2

                0.617

                0.697

                P10276

                RAR-alpha

                MAPKgroup*

                0.845

                0.676

                P10276

                RAR-alpha

                PKCgroup

                -

                0.757

                P23771

                GATA-3

                MAPKgroup*

                0.536

                0.676

                P29353

                Shc-1

                Src

                0.881

                0.742

                P29353

                Shc-1

                ABL1

                0.456

                0.661

                P29353

                Shc-1

                JNK1

                0.126

                0.766

                P29353

                Shc-1

                MAPKgroup

                0.028

                0.676

                P29353

                Shc-1

                Lyn

                0.013

                0.722

                P29353

                Shc-1

                RSKgroup

                -

                0.658

                P35228

                NOS2

                ERK1

                -

                0.632

                Q07812

                Bax

                PKBgroup*

                0.850

                0.655

                Q07812

                Bax

                JNK1

                0.619

                0.766

                Q07812

                Bax

                MAPKgroup

                0.124

                0.676

                Q13009

                Tiam-1

                PKCgroup

                0.315

                0.757

                P05771

                PKCgroup

                PDK-1

                0.521

                0.957

                P05129

                PKCgamma

                PDK-1

                0.456

                0.957

                P28482

                ERK2

                PDK-1

                0.690

                0.957

                *IAP values were calculated for the kinase type (specificity class) at training procedure.

                The scores obtained for the correctly predicted interactions varied from 0.013 to 0.915. It should be noted that several predictions were obtained for the superclass or subclass of the kinase type, which can be determined in TRANSPATH® entry (marked by asterisks).

                All the interactions predicted with P 1 > P 0 are given in the Additional file 1: Predicted kinase substrate interactions.

                Application of predicted interactions for the reconstruction of signal cascades

                Cytokines and other signal molecules bind to their receptors on the cell surface and trigger cascades of phosphorylation events inside the cell, leading to the activation or inactivation of transcription factors. Then, these specific regulatory proteins are relocated to the cell nucleus and bind to DNA sites switching on and off their target genes. Prediction of kinase-substrate interactions enriches the knowledge on potential phosphorylation cascades in cells and helps to understand the molecular mechanisms of regulation of important cellular functions in response to extracellular signals.

                The set of predicted 2656 kinase-substrate interactions was used for the enrichment of network analysis of signal transduction cascades in skin cells, whose activation is triggered by the cytokine TNF-alpha. Based on microarray data [26], we have previously analyzed 74 upregulated genes (FC > 2.0) in the cell line HUVEC upon stimulation by TNF-alpha. We have also identified the transcription factor binding sites in the promoters of these up-regulated genes [27]. We have identified the most significantly overrepresented binding sites for several transcription factor's families like (NF-kappa B, STAT, AP-1, IRF, MEF2, OCT and FOX) by comparison with the promoters of the genes, whose expression has not been changed.

                In order to reconstruct the TNF-alpha-triggered phosphorylation cascades leading to the activation of these transcription factors, we applied ExPlain™ to TRANSPATH®, before and after the enrichment by 2656 predicted kinase-substrate interactions.

                For any set, we run twice the algorithm in downstream direction, each time starting with TNF ligand. The algorithm was stopped at reaching TF entries in the network less than 6 steps downstream off TNF. We compared two resulting networks and found that the newly predicted kinase-substrate interactions helped us to reconstruct potential signal cascades that activate several transcription factors in response to TNF, which could not be identified otherwise (Figure 3). Among such factors, we paid special attention to MEF-2A and STAT6 factors, which are known to be activated by p38alpha [28] and Jak2 [29], respectively. PAAS predicted that these two kinases can potentially be activated by PDK-1 (Figure 3, dashed arrows). Notably, with the newly predicted kinase-substrate interactions ExPlain™ reconstructed the signal cascade from TNF ligands to MEF-2A and STAT6 transcription factors identified by promoter analysis. This was not possible using the interactions documented in TRANSPATH®. Remarkably, there are evidences in literature on immunoprecipitation experiments showing that PDK-1 may associate with Jak2 and modulate the activity of Stat pathways [30]. The patent data have also shown that the immunoprecipitation experiments demonstrate the interaction between p38 and PDK-1 [31]. Further direct experimental studies for evaluation and validation of these predictions are necessary.
                http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-11-313/MediaObjects/12859_2009_Article_3770_Fig3_HTML.jpg
                Figure 3

                Signal transduction cascade from TNF ligands to transcription factors reconstructed by ExPlain™ system. TNF ligand is depicted as orange triangle. Transcription factors (TFs, diamonds) are identified by promoter analysis of up-regulated genes upon TNF-alpha stimulation of HUVEC cell line. Dashed arrows represent the novel predicted kinase-substrate interactions helping to connect TNF ligands with TFs through cascades of phosphorylation events. All other arrows represent signal transduction interactions known in TRANSPATH®. The up-regulated molecules are red. The down-regulated molecules are green. Two underlined TFs can be reached from TNF ligands in less than 6 steps with the help of the novel kinase-substrate interactions only.

                The potential importance of MEF-2A and STAT6 transcription factors in activation of genes upon TNF treatment is demonstrated in Figure 4. We identified closely situated binding sites for these two factors in the promoters of genes characterizing extremely high fold change: VCAM1 (vascular cell adhesion molecule 1) (FC = 43.11), CCL20 (chemokine (C-C motif) ligand 20) (FC = 11.83) and TNFAIP3 (tumor necrosis factor, alpha-induced protein 3) (FC = 11.11). It is tempting to speculate that up-regulation of these genes upon TNF stimulation is triggered through the proposed here signal mechanism involving the phosphorylation of p38-alpha, Jak2 and other specific novel substrates by PDK-1 kinase.
                http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-11-313/MediaObjects/12859_2009_Article_3770_Fig4_HTML.jpg

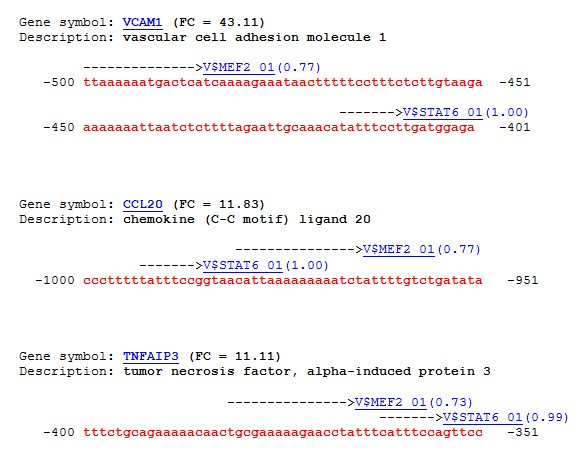

                Figure 4

                Binding sites for MEF-2A and STAT6 transcription factors. These binding sites are closely situated in promoters of three highly up-regulated genes upon TNF-alpha treatment. TF sites are found with ExPlain™ and position weight matrices (PWMs) from TRANSFAC® database. Sites are shown as arrows above the sequences of promoters. The names of PWMs are shown together with the obtained site score (shown in the brackets).

                Discussion

                The protein partner prediction is very important for the reconstruction of the cell cycle regulation network. This task is usually solved by the combination of functional characteristics and the search of specific sequence features. Significant sequence homology of the known kinase substrates and annotated protein should provide the most predictive ability. However, the large variety of proteins affected by the same kinases does not reveal the global sequence similarity.

                We retrieved the kinase substrate sequences from Phosho.ELM database, as it is the most comprehensive informational resource that provides easy mining of experimentally established data. Though Phospho.ELM database contains detailed information on phosphorylated regions in the substrate sequences, we have used only the sequences classified by the kinases phosphorylating these proteins. The local similarity approach makes possible the recognition of similar regions of local sequences. We have considered that PAAS method reveals relatively short functional determinants by multiple projections of the sequences from the training set into the annotated sequence. The test with multiple divisions of the training set showed satisfactory results. When we used only human proteins removing the orthologous proteins, the results remained reasonable. So, the elimination of very similar proteins had slightly changed the kinase substrate recognitions.

                The majority of existing methods for prediction of the kinase substrates is based on the recognition of the phosphorylation motifs. Corresponding sequence regions are experimentally determined. Collections of phosphorylated peptide sequences are used to construct Hidden Markov Models, Position Specific Scoring Matrices and other motif representations. Generally, the recognition properties of phosphorylation motifs are typically insufficient for the reproduction of substrate specificity [8]. The location of the kinase-docking motifs within the substrates and regulatory subunits (e.g. cyclines), substrate capturing non-catalytic interaction domain and other context information may significantly improve the prediction. The popular resource NetworKIN combines the consensus sequence motifs and protein-association networks. It increases the prediction accuracy up to 60-80% [32].

                Our approach enables one to make predictions based only on the sequences of proteins, without any context data. It does not require the preliminary processing of the input data when the functional motifs should be extracted from the whole sequence. So, we showed that PAAS method can recognize protein classes consolidated by the same partners. This situation can be considered as common. Classes like LKB1, PDK-1 and EGFR substrates were recognized with very high accuracy. It can be explained by close homology of sequences in the classes. However, the classes characterized by higher variability (such as the CK2 or PKC group), were classified with the appropriate accuracy. Several kinase-specificity classes were not predicted with the appropriate accuracy (IAP < 0.6) due to the kinase substrates variability.

                Prediction performed for the set retrieved from TRANSPATH® database showed the possibility of our method to detect the unknown partners of certain proteins, representing a part of the known network of cell signal transduction. The results of prediction were confirmed by several TRANSPATH® annotations.

                Reconstruction of signal pathways may be based on the prediction of interacting protein pairs. Shen et al., using SVM-based algorithm, have accurately predicted more than 80% of interacting pairs in the three networks including 16, 189 and 93 interacting pairs. These results can be used for composition of pathways [33]. In this work, the prediction of protein-protein interactions (PPI) is based on the comparison of query pair with the training set, presenting the known interacting pairs. Such approach is used in the majority of PPI methods [9] which showed the reasonable accuracy for the large training sets [10, 11]. Other authors predict the interacting proteins on the basis of interrelations of positions in the aligned sequence sets [8]. We applied the alternative approach when the proteins affected by the same kinase type are the class of kinase specificity. Thus, the prediction of kinase substrates is interpreted as classification task. It was done because significantly diverged proteins are affected by the same type of kinases presented with the small number of sequences.

                In order to estimate the efficiency of our approach with regard to signaling pathways, we enhanced ExPlain™ by enriching TRANSPATH-derived data with additional PAAS-predicted interactions. The enriched interaction set was used for reconstruction of the potential signal cascades activating several transcription factors in response to TNF signaling. This approach helped us in finding the novel paths between TNF and its target genes in the cell that could not be identified otherwise. Certainly, these predictions require the experimental validation, but our study has clearly demonstrated the complementarities of approaches used by ExPlain™ and PAAS.

                Conclusions

                PAAS method designed for the sequence-based recognition of functional protein classes may be used for the experimental data on the proteins participating in signal transduction. The on-line version of PAAS for prediction of protein kinase substrates is freely available at http://​www.​ibmc.​msk.​ru/​PAAS/​. Nevertheless the predicting results appeared to be very useful for the network enrichment and reconstruction of the signal pathways with protein-kinase substrate interactions by ExPlain™. We suggest that application of the proposed approach for the large-scale studies relative to other types of cell signal transduction should significantly help in the reconstruction of cell signaling pathways.

                Abbreviations

                PAAS:

                Projection of Amino Acid Sequences

                IAP:

                Invariant Accuracy of Prediction

                LOO CV:

                Leave-One-Out Cross-Validation

                Declarations

                Acknowledgements

                This work was supported by FP6 (grant "Net2Drug": LSHB-CT-2007-037590) and grant "SysCo": no. 37231) and the Russian Foundation for Basic Research (Grant N 09-04-01281). We thank BIOBASE GmbH for providing access to TRANSPATH® database and ExPlain™ system. We would like also to thank Institute of Systems Biology http://​www.​biouml.​org, whose support for the costs of publication we gratefully acknowledge.

                Authors’ Affiliations

                (1)
                Department of Bioinformatics, Institute of Biomedical Chemistry of the Russian Academy of Medical Sciences
                (2)
                Institute of Systems Biology

                References

                1. Nikolsky Y, Nikolskaya T, Bugrim A: Biological networks and analysis of experimental data in drug discovery. Drug Discov Today 2005, 10:653–662.PubMedView Article
                2. Campagna A, Serrano L, Kiel C: Shaping dots and lines: adding modularity into protein interaction networks using structural information. FEBS Lett 2008, 582:1231–1236.PubMedView Article
                3. Alexandrov K, Sobolev B, Filimonov D, Poroikov V: Recognition of protein function using the local similarity. J Bioinform Comput Biol 2008, 6:709–725.PubMedView Article
                4. Alexandrov K, Sobolev B, Filimonov D, Poroikov V: Functional annotation of the amino acid sequences using local similarity. VOGiS Herald 2009, 13:114–121. (Rus)
                5. Krull M, Pistor S, Voss N, Kel A, Reuter I, Kronenberg D, Michael H, Schwarzer K, Potapov A, Choi C, Kel-Margoulis O, Wingender E: TRANSPATH: an information resource for storing and visualizing signaling pathways and their pathological aberrations. Nucleic Acids Res 2006, (34 Database):D546–551.
                6. Skrabanek L, Saini HK, Bader GD, Enright AJ: Computational prediction of protein-protein interactions. Mol Biotechnol 2008, 38:1–17.PubMedView Article
                7. Sharan R, Ideker T: Modeling cellular machinery through biological network comparison. Nat Biotechnol 2006, 24:427–33.PubMedView Article
                8. Burger L, van Nimwegen E: Accurate prediction of protein-protein interactions from sequence alignments using a Bayesian method. Mol Syst Biol 2008, 4:165.PubMedView Article
                9. Pitre S, Alamgir M, Green JR, Dumontier M, Dehne F, Golshani A: Computational methods for predicting protein-protein interactions. Adv Biochem Eng Biotechnol 2008, 110:247–267.PubMed
                10. Pitre S, Dehne F, Chan A, Cheetham J, Duong A, Emili A, Gebbia M, Greenblatt J, Jessulat M, Krogan N, Luo X, Golshani A: PIPE: a protein-protein interaction prediction engine based on the re-occurring short polypeptide sequences between known interacting protein pairs. BMC Bioinformatics 2006, 7:365.PubMedView Article
                11. Zaki N, Lazarova-Molnar S, El-Hajj W, Campbell P: Protein-protein interaction based on pairwise similarity. BMC Bioinformatics 2009, 10:150.PubMedView Article
                12. Malumbres M, Barbacid M: Cell cycle kinases in cancer. Curr Opin Genet Dev 2007, 17:60–65.PubMedView Article
                13. Zhu G, Liu Y, Shaw S: Protein kinase specificity. A strategic collaboration between kinase peptide specificity and substrate recruitment. Cell Cycle 2005, 4:52–56.PubMedView Article
                14. Obenauer JC, Cantley LC, Yaffe MB: Scansite 2.0: Proteome-wide prediction of cell signaling interactions using short sequence motifs. Nucleic Acids Res 2003, 31:3635–3641.PubMedView Article
                15. Blom N, Sicheritz-Pontén T, Gupta R, Gammeltoft S, Brunak S: Prediction of post-translational glycosylation and phosphorylation of proteins from the amino acid sequence. Proteomics 2004, 4:1633–1649.PubMedView Article
                16. Kim JH, Lee J, Oh B, Kimm K, Koh I: Prediction of phosphorylation sites using SVMs. Bioinformatics 2004, 20:3179–3784.PubMedView Article
                17. Miller ML, Blom N: Kinase-specific prediction of protein phosphorylation sites. Methods Mol Biol 2009, 527:299–310.PubMedView Article
                18. Henikoff S, Henikoff JG, Pietrokovski S: Blocks+: a non-redundant database of protein alignment blocks derived from multiple compilations. Bioinformatics 1999, 15:471–479.PubMedView Article
                19. Filimonov D, Poroikov V: Prediction of biological activity spectra for organic compounds. Ross Khim Zh 2006, 50:66–75. (Rus)
                20. Filimonov DA, Poroikov VV: Probabilistic approach in activity prediction. In Chemoinformatics Approaches to Virtual Screening. Edited by: Varnek A, Tropsha A. Cambridge (UK): RSC Publishing; 2008:182–216.View Article
                21. Fomenko A, Filimonov D, Sobolev B, Poroikov V: Prediction of protein functional specificity without an alignment. OMICS 2006, 10:56–65.PubMedView Article
                22. Poroikov VV, Filimonov DA, Borodina YV, Lagunin AA, Kos A: Robustness of biological activity spectra predicting by computer program PASS for noncongeneric sets of chemical compounds. J Chem Inf Comput Sci 2000, 40:1349–1355.PubMed
                23. Fawcett T: An introduction to ROC analysis. Pattern Recogn Lett 2006, 27:861–874.View Article
                24. Phospho.ELM database [http://​phospho.​elm.​eu.​org/​]
                25. Kel A, Voss N, Valeev T, Stegmaier P, Kel-Margoulis O, Wingender E: ExPlain: finding upstream drug targets in disease gene regulatory networks. SAR QSAR Environ Res 2008, 19:481–494.PubMedView Article
                26. Viemann D, Goebeler M, Schmid S, Klimmek K, Sorg C, Ludwig S, Roth J: Transcriptional profiling of IKK2/NF-kappa B- and p38 MAP kinase-dependent gene expression in TNF-alpha-stimulated primary human endothelial cells. Blood 2004, 103:3365–3373.PubMedView Article
                27. Kel A, Voss N, Jauregui R, Kel-Margoulis O, Wingender E: Beyond microarrays: Finding key transcription factors controlling signal transduction pathways. BMC Bioinformatics 2006,7(Suppl 2):S13.PubMedView Article
                28. Yang SH, Galanis A, Sharrocks AD: Targeting of p38 mitogen-activated protein kinases to MEF2 transcription factors. Mol Cell Biol 1999, 19:4028–4038.PubMed
                29. Guiter C, Dusanter-Fourt I, Copie-Bergman C, Boulland ML, Le Gouvello S, Gaulard P, Leroy K, Castellano F: Constitutive STAT6 activation in primary mediastinal large B-cell lymphoma. Blood 2004, 104:543–549.PubMedView Article
                30. Yin Y, Kristipati ST, Yuan H, Kopelovich L, Glazer RI: Modulation of Stem Cell Antigen (Sca-1) Expression by the PDK1 and Stat Pathways. Proc Amer Assoc Cancer Res 2006., 47: Abstract #1016
                31. Kim S, Park B-J: Method for treating cancer using P38/JZV-1 and method for screening pharmaceutical composition for treating cancer. United States Patent, Patent number: US 7,196,068 B2 2007.
                32. Linding R, Jensen LJ, Ostheimer GJ, van Vugt MA, Jørgensen C, Miron IM, Diella F, Colwill K, Taylor L, Elder K, Metalnikov P, Nguyen V, Pasculescu A, Jin J, Park JG, Samson LD, Woodgett JR, Russell RB, Bork P, Yaffe MB, Pawson T: Systematic discovery of in vivo phosphorylation networks. Cell 2007, 129:1415–1426.PubMedView Article
                33. Shen J, Zhang J, Luo X, Zhu W, Yu K, Chen K, Li Y, Jiang H: Predicting protein-protein interactions based only on sequences information. Proc Natl Acad Sci USA 2007, 104:4337–4341.PubMedView Article

                Copyright

                © Sobolev et al. 2010

                This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://​creativecommons.​org/​licenses/​by/​2.​0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

                Advertisement
