Microarray data is frequently used to characterize the expression profile of a whole genome and to compare the characteristics of that genome under several conditions. Geneset analysis methods have been described previously to analyze the expression values of several genes related by known biological criteria (metabolic pathway, pathology signature, co-regulation by a common factor, etc.) at the same time and the cost of these methods allows for the use of more values to help discover the underlying biological mechanisms.

Results

As several methods assume different null hypotheses, we propose to reformulate the main question that biologists seek to answer. To determine which genesets are associated with expression values that differ between two experiments, we focused on three ad hoc criteria: expression levels, the direction of individual gene expression changes (up or down regulation), and correlations between genes. We introduce the FAERI methodology, tailored from a two-way ANOVA to examine these criteria. The significance of the results was evaluated according to the self-contained null hypothesis, using label sampling or by inferring the null distribution from normally distributed random data. Evaluations performed on simulated data revealed that FAERI outperforms currently available methods for each type of set tested. We then applied the FAERI method to analyze three real-world datasets on hypoxia response. FAERI was able to detect more genesets than other methodologies, and the genesets selected were coherent with current knowledge of cellular response to hypoxia. Moreover, the genesets selected by FAERI were confirmed when the analysis was repeated on two additional related datasets.

Conclusions

The expression values of genesets are associated with several biological effects. The underlying mathematical structure of the genesets allows for analysis of data from several genes at the same time. Focusing on expression levels, the direction of the expression changes, and correlations, we showed that two-step data reduction allowed us to significantly improve the performance of geneset analysis using a modified two-way ANOVA procedure, and to detect genesets that current methods fail to detect.

Background

Introduction

The major issue when studying datasets with many tests and few replicates in general and microarray datasets in particular is the decreased power of the analysis. Indeed, to reduce the risk of detecting false positives due to the lack of a sufficient number of replicates, statistical tests allow for higher threshold levels as the number of replicates decreases. This implies an unavoidable increase of the number of false negatives and, thereby, a decrease in power.

To compensate for this lack of information about expression data generated by microarrays, some authors have tried to work at the probe level, breaking down probesets into smaller components. Nonetheless, most researchers prefer to work at the probeset level where data can be analyzed in different layers (individual analysis, geneset analysis, coexpression studies, clustering) [1].

Among these methods, the analysis of genesets with regard to known or observed biological criteria holds high potential for fundamental as well as clinical research. For example, members of the same metabolic pathway can be studied simultaneously to assess modifications of the pathway under certain conditions, such as the action of a drug, or to diagnose a pathology, etc. [2]. This last application is common with genesets called "signatures", devised for certain pathologies based on coexpression [3] or clustering studies [4, 5]. The study of genesets involves two complementary tasks:

group discovery: empirical data is used to identify new criteria to discover new genesets. This task uses several different approaches such as data clustering [6–9] and the study of regulatory sequences [10–14],

geneset analysis: previously defined genesets are used to guide empirical data analysis, to determine whether the expression values of known genesets are correlated with the conditions compared in the experiments [15–17].

The research presented here focuses on statistical geneset analyses. Our initial motivation was to answer the seemingly trivial question (Q_{0}): "Which known genesets are associated with different expression profiles under the two conditions compared?". We discuss here the ability of current methods to provide an answer to this question.

This main question Q_{0} implies several hypotheses related to the nature/composition of genesets tested: the individual members (genes) may be expressed at various levels, over- or under-expressed or correlated (coordinated response of member genes).

To provide an answer to question Q_{0}, we present the FAERI methodology (Functional Analysis: Evaluation of Response Intensities), an ANOVA-2-like procedure tailored to detect genesets with differing expression profiles, regardless of the nature of the individual responses.

State of the art

Several geneset analysis methods have been published recently. Each available method provides an answer to question Q_{0}. The methods discussed below were selected to provide an overview of the main strategies followed by the authors, or due to their pioneering approach.

Over-representation analysis methods are not considered in this paper, as they focus on the top list obtained by individual analysis and aim to identify only those groups of genes that are represented by the most differentially expressed probesets. This approach thus facilitates the interpretation of individual analyses, by giving annotation clues about biological meaning. However, such methods require the ad hoc selection of an individual statistic, and the definition of an arbitrary threshold for the detection of individual genes, whatever the individual statistic used. Thus, over-representation analysis does not allow for the detection of genesets associated with subtle individual changes according to the individual statistic chosen [18–21]. For this reason, other authors describe improved ORA strategies. As an example, Yi and Stephens, in SLEPR, first select sample-level differentiated genes from each individual sample, before computing an enrichment score characterizing the geneset [22].

Table 1 contains several questions addressed by previously described methods.

Table 1

Formulation of the different questions asked by the different genesets analysis methods

Question

Formulation

Q_{0}

Which known genesets are associated with different expression profiles under the two conditions compared?

Q_{comp}

Which geneset definitions are associated with the biggest difference in expression profiles observed under each condition?

Q_{self}

Which genesets are associated with diverging expression profiles between conditions compared with random definitions of phenotype?

Q_{cor}

Which genesets are defined by members associated with correlated expression changes?

Q_{uni}

Which genesets are associated with an increase or decrease of all member expression values?

Q_{bidir}

Which genesets are defined by differentially expressed genes, regardless of the direction of the regulation?

Q_{int}

Which genesets are associated with variable individual expression changes?

Q_{u}^{c}

Which unidirectional groups have members that are associated with a correlated answer?

Question Q_{0} covers all the others; therefore, a method answering this question answers all the others.

More recent functional class scoring (FCS) methods can be classified based on their competitive or self-contained null hypothesis. Competitive methods sort the groups focusing on question Q_{comp} (Table 1) [23–28]. Such methods provide a list of genesets that are the most significantly associated with the phenotype compared with other geneset definitions. The definition of the null hypothesis of the competitive methods is theoretically associated with the gene-sampling strategy for significance evaluation (data permutations driven by random definition of equal sized genesets) [23, 29]. This statement, however, as shown by Effron and Tibshirani, does not take into account the pattern of correlations between genes, which is destroyed by gene-sampling [29]. Conversely, self-contained methods study question Q_{self} (Table 1). The significance of the results, for those methods, is evaluated by label sampling (data permutations driven by random definition of phenotypes for a given group definition). Each geneset score is thus evaluated against its putative range of geneset score values, maintaining the geneset definition [23, 28, 30–34].

The GSEA methodology and its derivatives make use of a hybrid strategy providing results that are harder to interpret. The null model used to develop the methods relies on the competitive approach, but is later evaluated by label sampling, thus mixing both strategies [24, 25, 27].

The second methodological difference between the methods concerns definition of the geneset score evaluated. Methods using two steps first compute an individual statistic that is then used in a second step to compute a geneset statistic [23–28, 33]. Conversely, global methods perform the analysis in a single step, evaluating geneset statistics from raw expression values associated with the group members (GlobalTest, GlobalAncova) [30, 31, 34]. SAMGS is a particular case of a global method where the final formulation of the statistic is similar to a two-step strategy using the SAM t-like individual statistic [30].

Questions studied by the methods

Current methods do not provide equivalent answers to question Q_{0}. Therefore, we propose to reformulate the hypothesis used with the available methods with respect to the biological properties of the sets (Table 1).

Table 2 provides a snapshot of several available analytical methods. These methods are compared based on the hypothesis tested (3^{rd} column), data used (4^{th} column), statistic used (5^{th} column) and significance evaluation procedure (6^{th} column). The other columns provide additional information.

Table 2

Comparison of the properties of several geneset differential expression analysis methods

The methods are grouped into categories. The upper and lower parts of the table list respectively the competitive and self-contained methods. The methods highlighted in bold rely on a two-step procedure. The methods in plain writing rely on a global analysis, which uses the expression data to compute the geneset statistic in one single step, based on multivariate models. Finally, ANOVA-2 and FAERI are shown in italics.

Question Q_{0} includes all of the other questions (Q_{cor}, Q_{uni}, Q_{bidir} and Q_{int}) related to the nature of the groups tested. Three criteria must be taken into account to describe the groups: expression levels (a), the direction of the expression change (b) and correlations between the group members (c).

(a)

It is important to study expression levels as highly expressed probesets may mask differences observed for probesets with lower expression levels. Two-step methods such as the SAMGS are not influenced by this criterion. For example, the Student t or SAMGS d statistics characterize expression differences, regardless of the individual expression levels [30]. Moreover, global methods that rely on the i.i.d. condition may be affected as expression levels vary between probesets, meaning that the probesets are not identically distributed.

(b)

Individual expression values may reveal up or down regulation of the genes depending on the conditions tested. One way to take the direction of expression changes into account and deliver results with no dependence on this criterion is to avoid studying mixed groups with a global null effect (50% over and 50% under expressed). Two-step methods may be adapted to use the absolute value of a unidirectional individual statistic (Student t [35]), or its squared value (SAMGS [30]). Alternatively, the geneset statistic may be defined to be representative of the directional subgroup associated with the biggest expression change (absmean), optionally with regard to the size of the directional subgroup (maxmean) [23]. Among global methods, the SAMGS and GlobalTest are independent of the direction as the null hypothesis is tested respectively on squared statistic (d^{
2
}) and expression change variability (τ^{
2
}) [30, 31].

(c)

Genes may be associated with correlated or variable expression changes. Question Q_{0} takes both possibilities into account. Two-step methods based on a sum or a mean, like the SAMGS, do not need further adaptation since they explicitly rely on the sum of individual pieces of information [5, 23, 28, 30]. The total difference is then evaluated independently of the variability of the individual differences. Among global methods, the GlobalTest is suited for the study of uncorrelated genesets as it assesses the variability of the individual answers. On the contrary, the GlobalTest is not intended to detect correlated groups since the variability of the individual answers in such sets is null (question Q_{u}^{C}, see Table 1) [31].

It appears that only two-step methods, as well as the SAMGS, may simultaneously provide an answer to the three criteria considered and thus evaluate more completely question Q_{0}.

Software packages developed thus far are not always able to fine-tune the appropriate combination of steps with regards to the criteria. Moreover, it is not systematic to take the direction of the answer into account or to rely on partial genesets (the maxmean statistic, for example, mainly takes the directional subgroup with the strongest expression change into account) [23, 28, 30, 33].

Global methods, on the other hand, ignore the possible bias associated with expression level. The SAMGS procedure involves a preliminary step of variance stabilization based on the SAM individual analysis method, which requires that the expression values of all probesets be estimated [30, 36–38].

Competitive procedures aim to identify groups with bigger differences and ignore groups associated with the phenotype but with a moderate answer compared to the others. The self-contained null hypothesis thus provides a more appropriate answer, where each set is evaluated according to its possible distribution range [23–28, 33].

Objectives

There are several possible strategies to evaluate question Q_{0} as completely as possible. Several methodologies may be selected to answer complementary questions. Gentleman et al. previously suggested to separately study sub-groups defined by the direction of expression changes and to define core sets of genes common to several genesets (thus avoiding that the same genes lead to the detection of several genesets). As a perspective of the GlobalAncova methodology, Mansmann and Meister proposed to study the interaction between the effect of the condition and group composition, to take the variability of the individual responses into account. The hypothesis associated with this test complements the unidirectional null hypothesis, but also provides a partial answer to question Q_{0} since it ignores unidirectional correlated groups (no interaction).

The work reported below proposes an alternative strategy to answer question Q_{0} based on a single self-contained test. To optimally analyze expression data, our model relies on a global strategy because two-step methods suffer from a loss of information (correlation) caused by the substitution of data with individual statistics. We introduce the FAERI method that was tailored from the 2-factor ANOVA procedure. Our aim was to group the information associated with individual differences into one single statistic taking direction, correlation and expression level into account and to combine the advantages of the GlobalTest (groups with a variable answer), GlobalAncova (unidirectional groups) and SAMGS (independence with expression level) models whilst avoiding their respective limitations.

Methods

Datasets

Hypoxia datasets

Bosco et al. (2006) described the E-MEXP-445 dataset, available in the ArrayExpress repository. The experiment compares samples extracted from human monocytes. RNA was hybridized on 6 Affymetrix HGU-133a microchips, among which 3 normoxia samples and 3 samples from cultures grown under hypoxic conditions [39].

Vengellur et al. (2005) studied cellular response to hypoxia on human Hep3b hepatocytes cell lines, considering 3 additional treatments known to mimic hypoxic conditions: cobalt chloride (100 μM), nickel chloride (100 μM), and DFO (100 μM). mRNA was extracted separately from two biological replicates, and cRNA was hybridized on Affymetrix GeneChip HG-U95Av1 microchips. We used part of this dataset to compare samples grown under normoxic and hypoxic conditions, and did not use the other samples (used by the authors to compare hypoxia with molecules that mimic hypoxic conditions). This dataset is available on GEO (GSE-1056) [40].

Kim et al. (2006) described the GSE-4086 dataset, available on GEO. The authors studied cellular response to hypoxia on human B lymphocytes (P493-6 cell line). Two biological replicates were used to extract mRNA from separate cultures. cRNA was hybridized on Affymetrix GeneChip HG-U133A microchips [41].

In the work reported here, the three hypoxia datasets were preprocessed using GCRMA to study the effect of hypoxia and compare the ability of each geneset analysis method to detect common pathways from several datasets featuring a limited number of replicates.

Xiao et al. (2008) report a study of osteoporosis using microarrays hybridized with 10 low and 10 high BMD samples (post-menopausal woman, aged 54-60). B-lymphocyte mRNAs were isolated from 70 ml of blood, and cRNA was hybridized on Affymetrix GeneChip HG-U133A microchips. This dataset is available both on GEO (GSE-7429) and ArrayExpress (E-GEOD-7429) [42]. We used this dataset, preprocessed with GCRMA, to illustrate the development of the FAERI methodology.

Introduction to FAERI

As several genes are associated with multiple probesets, a bias could be introduced during the analysis at the geneset-level. In the work reported below, we used only one probeset for each gene studied on the microchip, by selecting the probeset associated with the largest variability, to avoid giving too much weight to a gene due to the number of associated probesets. As a result of this selection, the words "probesets" and "genes" are synonyms in this text. The multiplicity of the probesets is not considered in this publication.

The analysis of variance or ANOVA relies on the study of the variability of the data with respect to one or more criteria to determine if that(those) criterion(a) is(are) responsible for the values observed. The simplest model, relying on a single criterion is equivalent to the Student t test [43]. When analyzing differential expression, a one-way ANOVA can evaluate the involvement of probesets under two or more conditions. The ANOVA with two classification criteria allows for study of the differential expression of a set of probesets (the first and second criteria respectively relate to the members of the geneset and to the definition of the experimental conditions compared).

The model that we chose to test the validity of this approach states that the expression data observed can be explained by dependence of the intensities measured on the probesets, the condition and the interdependence between those two parameters, since each probeset can potentially be associated with a different response under each of the tested conditions.

The mathematical representation of this model is given by Equation 1.

Where μ is the general mean, a_{i} is the contribution of factor a, b_{j} is the contribution of factor b, ab_{ij} is the contribution of the interaction of factors a and b and E_{(ij)k} is the residual contribution.

The comparison between the different criteria relies on the ratio of the mean squares associated with each criterion. The statistic computed for each criterion is evaluated by Fisher's F distribution using the appropriate number of degrees of freedom (equations 2 to 4).

Where F_{x} is the F score associated with factor x, MS_{x} is the mean square value associated with factor x, n_{x} is the number of levels for factor x.

It is important to note that when the effect of the interaction is significant, no decisions can be made for the other criteria. The study of the effect associated with the condition is close to the GlobalAncova method [31, 44]. The study of the interaction is similar to the GlobalTest methodology and to the perspectives formulated by Mansmann and Meister (GlobalAncova), since the genesets within which probesets present a different answer are biologically interesting [44]. We state that this test must be complemented with a test on the condition because it is impossible to detect unidirectional and correlated changes by studying the interaction alone. To circumvent this limitation, we present a strategy in the next section for analysis of the FAERI methodology designed to simultaneously answer all possible configurations in a single test. For more details on the procedures of the FAERI methodology, see the Additional File 1 (Section 1).

FAERI

Geneset analysis of differential expression is influenced by the direction of the expression changes of the members and by possible interactions between the probesets and the conditions [29, 31, 44–46].

Expression level

Probesets belonging to the same geneset can be expressed at various levels. From a biological point of view, a weakly expressed geneset might have a bigger impact on physiology than a strongly expressed one. We propose to standardize the data so that, in principle, all the probesets have the same potential for response under two conditions compared, based on a classical reduction of data producing Z values. The standardization is computed for each probeset using Equation 5 by pooling the data associated with both conditions and computing the observed mean and variance. The resulting reduced data is distributed around a mean value of 0 with a variance of 1. The information about the difference between the conditions is retained. At the end of this operation, the result of an individual analysis based on the Student t is unchanged. Note that this procedure renders data closer to the conditions of application of the ANOVA 2 (iid values).

Where X_{ij} is the expression value associated with the i^{th} probeset in the j^{th} microchip, M_{pool, i} and S_{pool, i} are the means and standard deviations computed for probeset i from all experiments (step 1). This procedure is repeated for each probeset in the dataset.

Direction of differential expression

Several probesets may be activated or repressed at the same time, but may also be associated with a variable expression change, depending on the biological context studied and the definition of the genesets. To provide a full answer to question Q_{0}, with no dependence on the direction of differential expression, two approaches can be proposed: up- and down-regulated probesets may be studied separately or simultaneously by computing a cumulative value for the absolute difference. The first solution consists of defining "activated" or "repressed" genesets to conduct a proper analysis. This approach relies on current knowledge that is incomplete, but is useful for diagnosis purposes to determine whether a patient has a pathology by analyzing signature genesets. The second solution is addressed by several methods by defining an individual statistic independent of the direction (absolute or squared value of the Student t statistic) [23, 37, 47, 48].

Using a multivariate procedure, we propose to study the absolute response of the genes by directional reduction of the data. This operation involves multiplying the expression values related to down-regulated genes by -1 (Equation 6). The down-regulated genes are identified empirically from the expression data studied.

Where D_{i} = M_{i}^{B} - M_{i}^{A}, the difference in means between conditions A and B for the i^{th} probeset, Z_{ij} = Z-score associated with the i^{th} probeset in the j^{th} microchip, and Z^{D}_{ij} the directionally reduced Z-score associated with the i^{th} probeset in the j^{th} microchip.

It may be interesting to consider the median instead of the mean to evaluate the direction of differential expression. However, the performances tests we conducted previously in individual expression analyses show a reduction in the performance of the Student t test when using the median as the estimator [49] on biological data (and on spike in datasets, data not shown).

After this 2-step reduction of the data, FAERI evaluates an F statistic as is done in the ANOVA-2 procedure (Equation 1). The FAERI F* statistic associated with the condition effect is representative of the differences found based on biological reasoning. Each gene provides information on its differential expression, independently of the direction of that difference, and the absolute value of the individual t statistic remains unchanged.

Null distribution

Due to the dependence on geneset size introduced by directional reduction, the significance of the results cannot be evaluated using Fisher's theoretical distribution, which is used by the ANOVA procedure. We will refer to the statistic computed using the FAERI methodology as F*. We tested two solutions to determine the null distribution of the FAERI F* statistic, relying either on permutations or the use of random data.

The permutation strategy associated with a self-contained null hypothesis relies on label sampling [23, 29]. Given the null hypothesis that no probeset is involved under the conditions compared, the permutations of the labels are performed independently for each probeset, independently of the correlation between the members of the geneset.

Due to the Z value reduction step, a second strategy may be used to evaluate the null distribution of the FAERI F* statistic. Indeed, as the null hypothesis states that there are no differences between the two conditions compared and as we postulate that individual expression values follow a normal distribution, Z standardization provides the possibility to establish the null distribution using random data from a normal distribution, and then apply the same 2-step reduction to compute the reference F*_{0} values. Under the null hypothesis, the F* statistic computed on reduced test data should follow the same distribution as the F*_{0} statistic computed from reduced random data. Conversely, if the expression values of the geneset differ between two conditions, the F* statistic distribution leads to higher values than the F*_{0} values computed from random data.

This possibility to compute a reference distribution based on random data frees the FAERI method from the limited number of available permutations. Moreover, for each experimental strategy (number of replicates) and each geneset size, the null distribution can be computed once and stored for future analysis.

Results and Discussion

The effects of two-step reduction

As presented in the introduction, we propose to take the level of individual expression into account, using a first-step reduction of the data. Figure 1 illustrates the results obtained when applying ANOVA-2 to the raw data and to the reduced data. In both cases, the effect of the condition factor was compared to the interaction between the condition and the probeset. Comparison of the p-values associated with the two effects, before and after standardization, shows that expression levels are an important criterion: a very large number of groups are significant for one of the two effects or for both when each probeset is considered on even ground. This suggests that a very large number of genesets are made up of members distributed at various expression levels and that the expression change of several weakly expressed probesets is masked by strongly expressed probesets when raw data is used.

In the second step of FAERI, we used a directional reduction to obtain a cumulated value of absolute expression changes in the genesets. We chose to use an empirical determination of the direction, easier to assess from the data than from prior incomplete knowledge. As the sign of the reduced values is not a feature of the biological mechanisms involved within genesets, the description of the mechanisms involved should be associated with individual analysis of the member genes based on raw data.

Figure 2 illustrates the distribution of the F* statistic with regards to the number of members, for each step of the FAERI analysis strategy. The upper part of the figure shows the results obtained with randomly generated data and the lower part shows results obtained with the biological dataset E-GEOD-7429. The statistics computed on real data are larger, which highlights the important biological variability. The Z reduction step considerably modifies the distribution of the F* values on the biological dataset, thus underscoring the effect associated with expression level as previously mentioned and observed in figure 1. This step thus has a major impact on the results of the analysis. Directional reduction leads to dependence on the number of members in the group. Random sampling of a small number of individual values leads to a bias associated with individual variability. On average, this bias is equally probable in both directions. Therefore, applying an ANOVA-2 analysis to such data reveals that the mean effect is null. After directional reduction of the data, the global effect of this bias is cumulated and added to the effect associated with the condition. Since this bias is cumulated, the F* statistic is dependent on geneset size and increases when the set has more members. This concern can be assessed quite easily as described in the "Materials and Methods" section of this paper, through suitable evaluation of the null distribution.

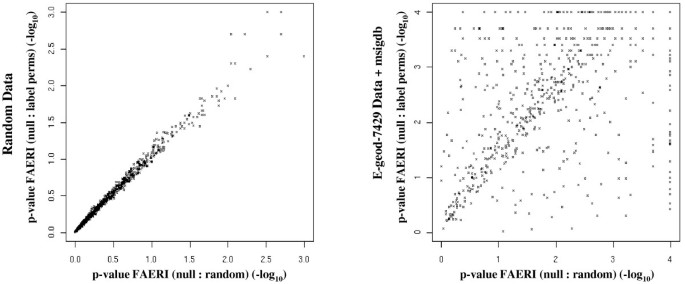

We tested two procedures to assess the significance of the F* statistic. Figure 3 shows that the computed p-value is independent of the number of members in the set, regardless of the procedure used. Figure 4 shows that the p-values evaluated using permutations or random data are perfectly correlated when simulated data is analyzed, but that a great number of genesets display different behavior when biological data is analyzed. This observation illustrates that the variability of biological data cannot be modeled by generating a null distribution from iid random data, as both procedures do not provide similar p-values when real-world data is analyzed. In biological samples, each gene may be expressed at a variable level of expression, with gene-specific variability. Furthermore, a correlation exists between genes, so that their distribution is not independent. The evaluation of permutations leads to a higher number of extreme values, as co-occurring expression changes are more likely to be observed using biological data.

Mansmann and Meister recommend assessing the significance from permutations instead of the Fisher distribution when analyzing microarray data with a multivariate procedure. Their GlobalAncova procedure evaluates the significance of the test using the label-sampling strategy instead of the classic Fisher distribution [34]. The GlobalAncova procedure does not include a Z-reduction step, and the iid requirement is not met due to gene-specific expression levels, gene-specific variability, and gene correlation patterns.

Performance evaluation

Performance evaluation on simulated data

Several authors have stressed the need to compare the performances of geneset analysis methods with regard to the correlation between geneset members [23, 29, 50]. To this end, Marit Ackermann et al. developed a simulation scenario focusing on 9 geneset definitions [51]. Each set is generated randomly by a multivariate normal distribution using the definition of a correlation/covariance matrix. Table 3 summarizes the parameters used to fine-tune the simulation of the sets, focusing on the correlation structure, direction of simulated differences, and proportion of members differentially simulated. Each set was simulated with 10 replicates for each condition and included 20 members.

Table 3

Definition of the series of measurements used to evaluate the performances of the geneset differential expression analysis methods

Difference of expression

Correlation

Diff. Expressed

Over-Expressed

Under-Expressed

Design

Set 1

0.75

0.6

20

20

0

Unidirectional

Set 2

0.75

0

20

20

0

Unidirectional

Set 3

0

0

0

0

0

H_{0}

Set 4

0.75

0.6

10

10

0

Unidirectional

Set 5

0.75

0

10

10

0

Unidirectional

Set 6

1

0.6

20

10

10

Bidirectional

Set 7

1

0

20

10

10

Bidirectional

Set 8

1

0.6

10

5

5

Bidirectional

Set 9

1

0

10

5

5

Bidirectional

We reproduced the simulation proposed by Ackerman et al. to assess the performances of ANOVA-2, FAERI and several geneset analysis methods currently available, to obtain a comprehensive understanding of the performances with regards to the mathematical structure of the data. Each set was simulated 100 times and Table 4 summarizes the detection rate associated with each set, when the selection threshold was set to 0.1, 0.01 and 0.001 for the p-values. Histograms of the p-values resulting from the analysis of set no. 3 with each method are also provided in the Additional File 1.

Table 4

Comparison of geneset differential expression analysis method performances, based on the simulation model proposed by M Ackerman

Cut-Off

a2.fixed

faeri.

fixed.null

faeri.

fixed.perms

GSA.

mean*

GSA.

absmean*

GSA.

maxmean*

Globaltest.

asymptotic

Globaltest.

gamma

Globaltest.

permutations

Gsea.

pval

Gsea.

fdr

Samgs.

pval

Samgs.

qval

0.001

Set3

0

0

0

0

0

0

0

0

0

0

0

0

1

H_{
0
}

0.01

Set3

1

0

0

0

0

0

0

0

0

0

0

0

2

0.1

Set3

3

3

3

12

0

0

2

5

3

2

1

2

27

0.001

Set2

100

96

97

15

25

12

54

96

95

69

20

91

94

100% DE

0.01

Set2

100

99

99

15

25

12

95

99

97

99

77

98

99

Uni

0.1

Set2

100

100

100

78

72

64

99

99

99

100

100

99

100

0.001

Set5

72

40

36

0

2

0

3

64

49

14

2

39

56

50% DE

0.01

Set5

89

75

78

0

2

0

42

89

84

42

25

81

84

0.1

Set5

100

94

94

7

17

3

93

99

98

93

84

96

99

0.001

Set1

86

62

60

1

2

2

1

10

8

2

0

7

13

100% DE

0.01

Set1

89

69

70

1

2

2

20

35

25

16

3

23

41

Uni+Cor

0.1

Set1

95

80

80

11

23

11

58

59

58

46

47

56

73

0.001

Set4

55

43

39

0

0

0

0

15

7

4

3

4

11

50% DE

0.01

Set4

65

52

54

0

0

0

18

30

24

13

14

23

43

0.1

Set4

81

65

65

1

13

1

56

60

57

43

47

56

73

0.001

Set7

0

100

100

1

67

40

100

100

100

1

0

100

100

100% DE

0.01

Set7

0

100

100

1

67

40

100

100

100

10

1

100

100

Bidir

0.1

Set7

6

100

100

22

98

82

100

100

100

69

32

100

100

0.001

Set9

0

84

82

0

7

2

32

95

93

0

0

86

93

50% DE

0.01

Set9

0

95

95

0

7

2

93

100

100

1

0

100

100

0.1

Set9

9

100

100

16

48

15

100

100

100

27

8

100

100

0.001

Set6

0

84

84

0

11

8

5

28

17

6

1

15

25

100% DE

0.01

Set6

0

88

89

0

11

8

39

50

43

17

8

43

61

Bidir+Cor

0.1

Set6

2

93

93

35

49

54

79

79

78

57

42

78

88

0.001

Set8

0

63

62

0

2

1

3

30

14

0

0

13

23

50% DE

0.01

Set8

0

75

76

0

2

1

36

50

42

3

0

40

58

0.1

Set8

3

86

86

28

27

12

75

78

75

31

15

76

85

Each set of measurements presented was generated 100 times. The measurements in the table show, for each method, the number of detections of the different sets of measurements defined. The upper part of the table presents the results for unidirectional genesets only (all members over expressed) and the lower part concerns groups with a simulated mixed answer (over and under expression). The data related to H_{0} shows the number of genesets detected by chance (false positives).

Comparison of the results illustrates the effect of correlations between members of the sets. For each method tested, the presence of intra-set correlations reduces the performance of the analysis. For the simplest simulated sets (unidirectional), ANOVA-2 provides the best results, followed by FAERI (sets 1, 2 and 4) and GlobalTest, as evaluated using a gamma distribution or permutations (set 5).

Moreover, the ANOVA-2 and FAERI procedures are both associated with higher performance compared to all other methods based on the simplest simulation scenario (sets 1, 2 and 4). Indeed, FAERI detects set 1 in 62% of the cases, with a threshold of 0.001 and no false positives (set 3: 0%). At this threshold, FAERI is able to detect roughly 5 times more genesets than the best performing method currently available (SAMGS with q-value: 13%). As a comparison, SAMGS and GlobalTest require a threshold that is 100 times higher to detect only 60% of set 1. Comparison of sets 4 and 5 highlights the method's abilities to detect genesets where half of the members are not differentially expressed. In this case, FAERI detects 43% of the genesets, compared to 15% when applying GlobalTest with a gamma distribution. The ANOVA-2 and FAERI procedures thus appear to be the most appropriate to analyze unidirectional genesets.

The lower part of Table 4 concerns sets simulated with mixed differences in two directions (sets 6, 7, 8 and 9). The behavior of the methods differs: the ANOVA-2 and GSA methodologies (using the mean as the geneset statistic), as well as GSEA, are not appropriate to analyze such sets. For each bidirectional set tested, the FAERI methodology performs best, with the exception of set 9 where SAMGS provides better results for a threshold below 0.05 (values were checked for this threshold, but not included in Table 4). The presence of a correlation between the members reduces the performance, as shown for the unidirectional scenarios.

To ease interpretation of method's performances with regard to the mathematical structure of the genesets analyzed, Table 5 presents the ranking of the methods for each type of set simulated, using a threshold of 0.01 for the p-values. The statistic used was accuracy [the ratio of true positives and true negatives over the number of groups tested: accuracy = (TP/TN)/(P+N)]. The scores above 75% are shown in bold.

Table 5

Characterization of each method's performances

a2.fixed

faeri.

fixed.null

faeri.

fixed.perms

GSA.

mean*

GSA.

absmean*

GSA.

maxmean*

Globaltest.

asymptotic

Globaltest.

gamma

Globaltest.

perm

Gsea.

pval

Gsea.

fdr

Samgs.

pval

100% uni

100%

99%

99%

57%

62%

56%

97%

99%

98%

99%

88%

99%

50% uni

94%

87%

89%

50%

51%

50%

71%

9'%

92%

71%

62%

90%

100%uni + cor

94%

84%

85%

50%

51%

51%

60%

67%

62%

58%

51%

61%

50%uni + cor

82%

76%

77%

50%

50%

50%

59%

65%

62%

56%

57%

61%

100% bidir

50%

100%

100%

50%

83%

70%

100%

100%

100%

55%

50%

100%

50% bidir

50%

97%

97%

50%

53%

51%

96%

100%

100%

50%

50%

100%

100% bidir + cor

50%

94%

94%

50%

55%

54%

69%

75%

71%

58%

54%

71%

50% bidir + cor

50%

87%

88%

50%

51%

50%

68%

75%

71%

51%

50%

70%

Mean

71%

90%

91%

51%

57%

54%

77%

84%

82%

62%

58%

81%

Rank

7

2

1

12

10

11

6

3

4

8

9

5

Comparison of the number of true positives and true negatives to the total number of tests (VP+VN)/(P+N). For information, we also computed the mean value for the 8 types of groups studied. The significance threshold to select groups was set at 0.01. The highlighted (in bold) values are relative to methods obtaining a score of more than 75%. The four global methods are more appropriate for geneset analysis and the two-step methods show poor performance. Among the global methods, only ANOVA-2 and FAERI happen to be suited for unidirectional correlated genesets. FAERI and SAMGS are the only methods adapted for the study of bidirectional correlated genesets. Across all genesets tested, the methods giving the best results were: FAERI (perms), FAERI (null), SAMGS (q-value), GlobaTest (gamma), GlobaTest (perms), SAMGS (p-value), GlobalTest (asymptotic). FAERI is the only method suited for the study of all types of genesets tested.

Table 5 reveals that the best performing methods, independently of the structure of the set, are all based on a "global" strategy. The ranking of the methods is consistent with the models considered by these methods:

ANOVA-2 is the most appropriate method for unidirectional groups;

GlobalTest, which uses a statistic representative of response variability, is suited for the study of both uni- and bidirectional non correlated genesets;

SAMGS, using an individual statistic, appears to be less appropriate for the analysis of correlated genesets, since this information is lost during the procedure;

FAERI, developed to detect sets independently of their mathematical structure, is appropriate for each type of set tested;

ANOVA-2 and FAERI provide an appropriate analysis of sets with correlated members, respectively using unidirectional and bidirectional definition of sets;

Methods making use of a two-step strategy provide lower performance levels (GSA and GSEA).

Real data: study of hypoxia

Analysis of a genuine biological dataset offers the opportunity to qualitatively evaluate the results and provide a biological validation of geneset analysis methods through comparison of the results with current biological knowledge. We chose to use three datasets related to response under hypoxic conditions. The definition of the genesets relies on the MSIGDB databank (version 2.5), published by the authors of the GSEA methodology [25]. MSIGDB consists of several libraries of genesets (categories). The analysis reported below focuses on the C2.kegg category.

Table 6 lists the genesets detected by FAERI, evaluated on permutations, from analysis of the E-MEXP-445 dataset, described by Bosco et al. [39]. The detection threshold was set to 0.05 for the p-values (significant genesets). Each geneset selected was characterized by the p-values computed for several methods currently available. The last two columns provide the p-values characterizing the same genesets when the analysis was performed on 2 other datasets related to the same topic (GSE-1056 and GSE-4086).

Table 6

List of genesets in the C2.KEGG category detected significantly by the FAERI.perms method (detection threshold of 0.05 for the p-values)

For each geneset, the p-values obtained by each method are listed. The values in plain text are not significant. The p-values of the significant (0.05) and highly significant (scientific notation) genesets are shown in bold. The two last columns give the p-values obtained for datasets GSE-1056 and GSE-4086 by FAERI.perms, to illustrate the coherence of the results presented.

Table 6 shows that currently available methods fail to detect the genesets selected by FAERI (permutations). Most of the genesets selected by FAERI are also detected by at least one other global method, the ANOVA-2 or the GlobalTest. The two-step GSA.maxmean method seems to also be able to detect a few of the same sets. GSEA, SAMGS, GSA.mean and GSA.absmean do not find any significant genesets. Finally, the p-values obtained for datasets GSE1056 and GSE4086 are mostly significant or highly significant, validating the relevance of these genesets with regard to the biological question studied.

This list can be split into 3 categories. First, genesets concerning several metabolic pathways suggest metabolic adaptations occur as a cellular response to oxygen deprivation. Second, several genesets address signaling pathways and are known to be involved in the hypoxic stress response. Genesets of the third category are related to pathologies, mostly involving cancers, for which a hypoxic environment has been observed [52–54]. These results illustrate the ability of FAERI to detect groups known to be involved in hypoxic responses or hypoxia-related pathologies, and to detect those groups independently in 3 datasets related to hypoxia. In particular, we should point out the strong coherence between genesets detected by FAERI on a small number of replicates (3*3), either within the top list or between top lists associated with the three datasets.

These observations should be followed-up by a characterization of the genesets detected by the other methods. Table 7 lists the genesets detected with high significance (p-value < = 0.01) by at least one geneset analysis method (excluding FAERI), and compares the p-values assigned to these genesets by each of the methods tested (including FAERI). We observe that GSA.mean, GlobalTest (permutation), GSEA and SAMGS do not find any geneset to be highly significant. The sets detected by GlobalTest.gamma are also detected as significant by its equivalent based on an asymptotic distribution. Several genesets detected and considered to be significant by FAERI are related to hypoxia (hsa00010, hsa00030, hsa00720, hsa04664, hsa05211). Overall, the p-values attributed by FAERI to all the genesets detected by other methods are small, which confirms the ability of the method to assign lower scores to genesets related to hypoxia and detected by the other methods. Other genesets can be considered to be related to hypoxia, even indirectly (Cysteine metabolism, for example). The nature of these genesets suggests however that their relationship with hypoxia is of lesser importance than genesets known to be involved in the hypoxic response (listed in Table 6). FAERI assign a higher p-value to such sets (hsa00053, hsa00071, hsa00272, hsa00340, hsa00512, hsa00521). When the significance threshold is set to 0.05, the same conclusions can be made: GSEA and SAMGS fail to detect any significant geneset. On the contrary, GlobalTest gives a much higher number of genesets, and this list is coherent with FAERI (permutations) (data not shown).

Table 7

List of the genesets of the C2.KEGG category detected with a highly significant threshold (0.01) by the other methods

Faeri.

fixed.null

Faeri.

fixed.perms

GSA.

mean

GSA.

absmean

GSA.

maxmean

Globaltest.

symptoti

Globaltest.

gamma

Globaltest.

permutations

Gsea.

pval

Gsea.

fdr

Samgs.

pval

Samgs.

qval

Hsa00010_glycolysis_and_neoglucogenesis

0.64

1.8E-03

0.96

0.95

0.98

0.020

7.8E-03

0.1

0.11

0.17

0.1

0.08

Hsa00030_pentose_phosphate_pathway

0.41

8.4E-03

0.95

0.9

0.97

0.024

8.8E-03

0.1

0.23

0.28

0.1

0.08

Hsa00052_galactose_metabolism

0.73

0.08

0.95

0.77

0.97

0.018

8.3E-03

0.1

0.11

0.13

0.1

0.08

Hsa00053_ascorbate_and_aldarate_metabolism

0.97

0.18

0.0E+00

0.72

0.06

0.16

0.16

0.3

0.11

0.42

0.19

0.08

Hsa00071_fatty_acid_metabolism

0.71

0.15

0.0E+00

0.52

0.045

0.2

0.18

0.5

0.11

0.3

0.49

0.08

Hsa00100_biosynthesis_of_steriods

0.94

4.0E-04

0.15

0.75

0.0E+00

0.14

0.1

0.3

0.11

0.32

0.1

0.08

Hsa00272_cysteine_metabolism

0.94

0.25

0.34

0.62

0.1

0.028

6.7E-03

0.1

0.21

0.46

0.19

0.08

Hsa00340_histidine_metabolism

1

0.17

0.0E+00

0.36

0.11

0.35

0.41

0.5

0.11

0.21

0.59

0.9

Hsa00500_starch_and_sucrose_metabolism

1

0.08

0.95

0.6

0.97

0.020

6.7E-03

0.1

0.11

0.18

0.1

0.08

Hsa00512_o_glycan_biosynthesis

0.2

0.22

0.0E+00

0.44

0.0E+00

0.36

0.42

0.5

0.64

0.71

0.1

0.08

Hsa00521_streptomycin_biosynthesis

0.94

0.1

0.95

0.96

0.97

0.016

8.7E-03

0.1

0.11

0.17

0.1

0.08

Hsa00640_propanoate_metabolism

0.92

0.06

0.15

0.6

0.0E+00

0.1

0.07

0.3

0.11

0.31

0.19

0.08

Hsa00720_reductive_carboxylate_pathway

1

0.031

0.1

0.75

0.0E+00

0.7

0.034

0.1

0.11

0.3

0.1

0.08

Hsa04664_fc_epsilon_ri_signaling_pathway

0.97

0.039

0.91

0.55

0.97

0.032

6.9E-03

0.1

0.11

0.25

0.1

0.08

Hsa0521_renal_cell_carcinoma

7.1E-03

0.017

0.91

0.55

0.97

0.036

9.9E-03

0.1

0.12

0.24

0.1

0.08

For each geneset, the p-values are given for each method we used.

As Table 6 illustrated a correlation between the results provided by FAERI on 3 related datasets, we compared each method's ability to discover common genesets from several related datasets. Table 8 lists the number of genesets detected by each method for each of the three datasets, as well as the number of common genesets between the datasets. The analysis was performed using the C2.kegg category, on the E-MEXP-445, GSE-1056 and GSE-4086 datasets. The thresholds were set to 0.01 and 0.05 for the p-values. The ANOVA-2 procedure, FAERI (permutations) and GlobalTest detected several genesets with a higher level of significance (lower p-value), while GSEA and SAMGS failed to detect any set, as mentioned previously. The GSE-4086 dataset contains only 4 (2vs2) replicates, and thus the analysis revealed a large rate of false positives. Therefore, we concentrated the analysis in Table 8 on datasets GSE-1056 and E-MEXP-445.

Table 8

Comparison of the number of groups detected in the C2.KEGG category and of the number of common detections in three datasets

0.010

A2.

fixed

Faeri.

fixed.null

Faeri.

fixed.perms

GSA.

mean*

GSA.

absmean*

GSA.

maxmean*

Globaltest.

asymptotic

Globaltest.

gamma

Globaltest.

permutations

Gsea.

pval

Gsea.

fdr

Samgs.

pval

Samgs.

qval

Emexp445

62

7

14

14

5

19

0

8

0

0

0

0

0

GSE-1056

36

9

51

5

0

8

1

15

0

0

0

0

0

GSE-4086

93

89

94

49

38

62

0

0

0

0

0

NA

NA

Emexp445-GSE-1056

5

0

6

1

0

0

0

1

0

0

0

0

0

Emexp445-GSE-4086

24

5

9

8

0

11

0

0

0

0

0

NA

NA

GSE-1056-GSE-4086

21

7

37

4

0

4

0

0

0

0

0

NA

NA

Emexp445-GSE-1056-GSE-4086

4

0

3

1

0

0

0

0

0

0

0

NA

NA

0.050

A2.

fixed

Faeri.

fixed.null

Faeri.

fixed.perms

GSA.

mean*

GSA.

absmean*

GSA.

maxmean*

Globaltest.

asymptotic

Globaltest.

gamma

Globaltest.

permutations

Gsea.

pval

Gsea.

fdr

Samgs.

pval

Samgs.

qval

Emexp445

62

18

42

14

5

23

26

45

0

0

0

0

0

GSE-1056

51

27

80

8

2

12

33

70

40

11

0

15

69

GSE-4086

119

119

142

49

38

62

32

185

0

0

0

NA

NA

Emexp445-GSE-1056

15

6

34

1

0

0

4

20

0

0

0

0

0

Emexp445-GSE-4086

48

14

37

8

0

13

13

44

0

0

0

NA

NA

GSE-1056-GSE-4086

31

23

71

4

1

6

7

69

0

0

0

NA

NA

Emexp445-GSE-1056-GSE-4086

13

4

31

1

0

0

2

20

0

0

0

NA

NA

The results are shown for each method, for significance thresholds of 0.05 and 0.01. The three datasets analyzed are E-MEXP-445, GSE-1056 and GSE-4086, and concern the same condition (oxygen deprivation). The first column contains the datasets analyzed. The first 3 rows of each table contain the top list obtained by each geneset analysis method. When several datasets are mentioned at the beginning of the row, the number of genesets in the other columns is the intersection of the results from different datasets

Setting a significance threshold of 1% for the p-values, the ranking of the methods detecting more genesets common to the two experiments is the following: FAERI.permutations (6 common genesets for at least 14 genesets detected), ANOVA-2 (5/35), GlobalTest.gamma (1/8) and GSA.mean (1/14). The other methods do not intersect. When the significance threshold is set to 5%, the ranking of the methods is the following: FAERI.permutations (34/42), GlobalTest.gamma (20/45), FAERI.null (6/18), ANOVA-2 (15/51), GlobalTest.asymptotic (4/26) and GSA.mean (1/8). The other methods do not intersect. These results suggest that the bidirectional genesets, detected by FAERI and GlobalTest, are an important part of the genesets simultaneously involved in both datasets, compared with the ANOVA-2 and GSA.mean procedures.

To quantify the abilities of the methods to provide the same result from different datasets, we propose to compute Pearson's coefficients of correlation on the ranks associated with the genesets analyzed, by pairwise comparison of the three datasets, for each method and each category of genesets defined (See Additional File 1, additional table 1).

For all the categories tested, the FAERI.permutations methodology is associated with a higher coefficient of correlation. Conversely, the ANOVA-2, GSEA and GSA.mean provide poorly correlated results. The coefficients of correlation obtained for the other methods are intermediary between these two extremes and depend on the geneset category.

Conclusion

Conclusions

Geneset differential expression analysis is a far more complex task than the individual analysis of expression changes. The diversity of the biological criteria involved and prior definition of the genesets has an impact on the mathematical properties of the expression subsets to be analyzed. Furthermore, the diversity of available analysis procedures, each based on specific strategies and null hypotheses, must address these properties. Thus, design of the analysis strategy is not that simple. Current methods involve over-representation analysis (ORA, not considered here), and functional class scoring (FCS). This last category of methods relies either on 2-step (post-hoc) or global strategies (using raw data).

In this paper, we address this question by considering the biological properties of genesets with regard to the underlying mathematical properties of the associated expression values. Focusing on expression levels, the direction of regulation and potential correlations between geneset members, we developed the FAERI methodology (Functional Analysis: Evaluation of Response Intensities). FAERI is a global methodology tailored from a 2-factor ANOVA procedure by a 2-step reduction of the data, and is evaluated with respect to the self-contained null-hypothesis (using label sampling or random data).

Evaluations performed on random data reveal the ability of each method to detect sets simulated according to 8 scenarios, relying on mathematical properties. The ANOVA-2 procedure performs best when analyzing unidirectional genesets and FAERI performs similarly. Both methods outperform each currently available method. When the definition of the sets involves members regulated in both directions, ANOVA-2 performance drops, as expected, and our proposed FAERI methodology outperforms all tested methods. Both methods provide an appropriate solution for the analysis of correlated data (exclusively on unidirectional genesets in the case of ANOVA-2). FAERI thus constitutes an improvement over all tested methods, and turns out to be the optimal method for testing question Q_{0} ("Which known genesets are associated with different expression profiles under the two conditions compared?").

A real-world example of analysis is reported for three datasets on cellular response to hypoxia. The results obtained from analysis of the E-MEXP-445 dataset illustrate that FAERI (evaluated using permutations) is able to detect relevant results when a strict cut-off is used, compared to the other methodologies. The genesets detected by FAERI are related to three categories, respectively metabolic perturbations, hypoxia signaling/response, and hypoxia-related pathologies. The results of other global methods confirm these results, and post-hoc methods fail to detect any significant genesets. The results provided by FAERI from analysis of the two additional datasets reveal its ability to detect the same sets using several related datasets. Focusing on the top list obtained with several datasets, we showed that FAERI not only detects more sets, but also presents a larger intersection of the results.

We proposed to score this last assessment on the whole list of sets by computing the Pearson correlation coefficient on the ranked list of genesets, for each method, using pairwise comparisons between the three datasets. Among all methods tested, FAERI provides the best correlated results between related datasets, regardless of the source of geneset definition used (each category of the MSIGDB databank was used for this purpose). FAERI thus outperforms all methods tested for its ability to attribute similar scores to each geneset from several datasets.

Several recommendations emerge from this work. First, we suggest that differential expression analyses of microarray data be studied first by performing a geneset analysis with FAERI, and then that the results be further characterized using either an individual analysis or mathematical characterization of the sets detected. This approach eases interpretation of the results with regard to the correlation and direction of probeset-specific expression changes encountered for each geneset. Alternatively, genesets can be first classified with regard to the mathematical properties of the geneset expression values, and then the data can be analyzed using distinct methodologies (for example, applying the ANOVA-2 procedure on unidirectional sets).

Perspectives

As a perspective for future work, we suggest to adapt FAERI so it would be able to test unequal sample datasets. Several adaptations to the ANOVA-2 procedure have been suggested to this end. To best adapt FAERI for this purpose, performance evaluations are required. Another interesting development would be to develop robust variants of FAERI based on the study of the impact of extreme values.

An additional comment may be formulated about the empirical definition of the direction from the difference in means, used in the second step of the FAERI procedure. Indeed, genes slightly differing in one direction may empirically seem to be involved in the opposite direction, as sampling a small number of replicates can lead to a smaller or larger distribution than the population. Thus, the directional reduction step may lead to an incorrect definition of the sign of the expression change with regards to the biological structure of the data. An alternative would be to characterize first the direction associated with each gene based on current knowledge of the biological processes. Similarly, another alternative adaptation of the procedure would be to determine which genes are associated with an expression change, and to use the directional reduction step only on those genes. However, the use of prior knowledge on the expression and directional changes for each gene would be associated with important biases: incorrect prior information would reduce the significance of the geneset analysis, and this bias is more probable for less-studied genesets/biological mechanisms. Thus, the evaluation of the null distribution with realistic background noise would be geneset specific, depending on the number of errors in the annotation. In the future, we also plan to develop a non-parametric equivalent to FAERI, by applying a rank-based multivariate analysis procedure after the 2-step reduction of data. At least three options may be considered for further developments: ranking expression values at the level of the probesets, at the level of the genesets, or at the level of the whole dataset.

The evaluation of significance may also lead to several adaptations. First, it would be interesting to add a third significance evaluation strategy based on simultaneous label sampling, where permutations would be performed without breaking the association with the cel file. Such a null distribution would provide an appropriate p-value for the evaluation of highly correlated genesets. However, the small number of available permutations would not allow for discrimination between genesets when the number of replicates is small. Both approaches introduce a bias during the p-value evaluation procedure: (i) the independent model assumes that the genes are not correlated, under-evaluating the p-value of co-occurring events; and (ii) the correlated model accordingly over-evaluates the p-value when the correlation between genes is not perfect. As the correlation pattern between genes is complex, the most appropriate p-value evaluation procedure should be somewhere in between the independent and correlated permutation models, with a geneset-specific balance between these two models.

Another interesting perspective for evaluation of the p-value would be to improve the model used to generate the null distribution from random data. By studying several datasets first using individual and geneset analyses, it would be possible to characterize the correlation between genes in several situations. Then the network of associations could be used to count the average number of connections, to catch patterns of association, etc. Using such a strategy, the evaluation of the null hypothesis would consist in generating random networks with similar patterns of association and similar distributions of connectivity, and to use these patterns using multivariate random data built from the simulated correlation matrices. As an extension of this model, it would also be possible to include a supplemental parameter during simulation of the null distribution: the correlation pattern between genes may differ between the two groups.

Performance evaluation of geneset analysis methods is not a trivial task, as each method is based on distinct null hypotheses. Previously published methods have been validated following several simulation schemes (using a limited number of scenarios) or running analyses on specific biological datasets (featuring more than 10 replicates for each tested condition). Nevertheless, those validations usually focused on the method developed by the authors, compared with only one method (usually GSEA), if any, and a limited number of genesets. Conversely, publication of individual analysis methods requires extensive validations on real-world, simulated and spike-in datasets. The validations reported here reproduce the simulation scheme used by Ackerman et al. (2009) as it represents the most comprehensive scenario we could find in the scientific literature (in a paper that compares the parameterization of current methods). The example analysis reported here was performed on small datasets (3 replicates associated with each condition), as this kind of dataset is far more frequent and more difficult to analyze. We hope that the validation strategy reported here will be reproduced by authors of future methodologies to compare their findings with current methods and to provide a comprehensive evaluation of their methods with regards to several biological scenarios and the underlying mathematical properties of the expression values.

In a previous work, we reported a new benchmarking strategy for individual expression analysis on real-world data involving several datasets [55]. In future work, this procedure will be tailored for a similar evaluation of geneset analysis methods with regard to the mathematical structure of the sets, as depicted in this paper on simulated data, and in agreement with the benchmarking study reported by Song et al. [56].

Availability

FAERI and the ANOVA-2 procedure were implemented using R language, and the source code is included in PEGASE, an R package we designed for differential expression analysis [49]. URL: (http://urbm-cluster.urbm.fundp.ac.be/phoenix)

Declarations

Acknowledgements

The authors wish to thank the DGTRE, FNRS-FRS Télévie, FRIA, GlaxoSmithKline Biologicals, Darlene Goldstein, Marcel Remon, Christophe Lambert, Jean-Louis Ruelle and the members of the BCF (SIB).

Authors’ Affiliations

(1)

Bioinformatics and Biostatistics Laboratory, Molecular Biology Research Unit (URBM), FUNDP University of Namur

(2)

Swiss Institute of Bioinformatics

References

Hatfield GW, Hung SP, Baldi P: Differential analysis of DNA microarray gene expression data.Mol Microbiol 2003, 47:871–877.PubMedView Article

Trajkovski I, Lavrac N, Tolar J: SEGS: search for enriched gene sets in microarray data.J Biomed Inform 2008, 41:588–601.PubMedView Article

Kim SY, Kim YS: A gene sets approach for identifying prognostic gene signatures for outcome prediction.BMC Genomics 2008, 9:177.PubMedView Article

Farmer P, Bonnefoi H, Becette V, Tubiana-Hulin M, Fumoleau P, Larsimont D, Macgrogan G, Bergh J, Cameron D, Goldstein D, et al.: Identification of molecular apocrine breast tumours by microarray analysis.Oncogene 2005, 24:4660–4671.PubMedView Article

Golub TR, Slonim DK, Tamayo P, Huard C, Gaasenbeek M, Mesirov JP, Coller H, Loh ML, Downing JR, Caligiuri MA, et al.: Molecular classification of cancer: class discovery and class prediction by gene expression monitoring.Science 1999, 286:531–537.PubMedView Article

Huber BR, Bulyk ML: Meta-analysis discovery of tissue-specific DNA sequence motifs from mammalian gene expression data.BMC Bioinformatics 2006, 7:229.PubMedView Article

Thomas RS, Rank DR, Penn SG, Zastrow GM, Hayes KR, Pande K, Glover E, Silander T, Craven MW, Reddy JK, et al.: Identification of toxicologically predictive gene sets using cDNA microarrays.Mol Pharmacol 2001, 60:1189–1194.PubMed

Brazma A, Jonassen I, Vilo J, Ukkonen E: Predicting gene regulatory elements in silico on a genomic scale.Genome Res 1998, 8:1202–1215.PubMed

Bucher P: Regulatory elements and expression profiles.Curr Opin Struct Biol 1999, 9:400–407.PubMedView Article

Bussemaker HJ, Li H, Siggia ED: Building a dictionary for genomes: identification of presumptive regulatory sites by statistical analysis.Proc Natl Acad Sci USA 2000, 97:10096–10100.PubMedView Article

Hughes JD, Estep PW, Tavazoie S, Church GM: Computational identification of cis-regulatory elements associated with groups of functionally related genes in Saccharomyces cerevisiae.J Mol Biol 2000, 296:1205–1214.PubMedView Article

Kim SY, Kim Y: Genome-wide prediction of transcriptional regulatory elements of human promoters using gene expression and promoter analysis data.BMC Bioinformatics 2006, 7:330.PubMedView Article

Al-Shahrour F, Diaz-Uriarte R, Dopazo J: Discovering molecular functions significantly related to phenotypes by combining gene expression data and biological information.Bioinformatics 2005, 21:2988–2993.PubMedView Article

Barry WT, Nobel AB, Wright FA: Significance analysis of functional categories in gene expression studies: a structured permutation approach.Bioinformatics 2005, 21:1943–1949.PubMedView Article

Zahn JM, Sonu R, Vogel H, Crane E, Mazan-Mamczarz K, Rabkin R, Davis RW, Becker KG, Owen AB, Kim SK: Transcriptional profiling of aging in human muscle reveals a common aging signature.PLoS Genet 2006, 2:e115.PubMedView Article

Cho RJ, Huang M, Campbell MJ, Dong H, Steinmetz L, Sapinoso L, Hampton G, Elledge SJ, Davis RW, Lockhart DJ: Transcriptional regulation and function during the human cell cycle.Nat Genet 2001, 27:48–54.PubMed

Draghici S, Khatri P, Bhavsar P, Shah A, Krawetz SA, Tainsky MA: Onto-Tools, the toolkit of the modern biologist: Onto-Express, Onto-Compare, Onto-Design and Onto-Translate.Nucleic Acids Res 2003, 31:3775–3781.PubMedView Article

Khatri P, Done B, Rao A, Done A, Draghici S: A semantic analysis of the annotations of the human genome.Bioinformatics 2005, 21:3416–3421.PubMedView Article

Man MZ, Wang X, Wang Y: POWER_SAGE: comparing statistical tests for SAGE experiments.Bioinformatics 2000, 16:953–959.PubMedView Article

Yi M, Stephens RM: SLEPR: a sample-level enrichment-based pathway ranking method -- seeking biological themes through pathway-level consistency.PLoS One 2008, 3:e3288.PubMedView Article

Efron B, Tibshirani R: On testing the significance of sets of genes.Ann Appl Stat 2007, 1:107–129.View Article

Keller A, Backes C, Lenhof HP: Computation of significance scores of unweighted Gene Set Enrichment Analyses.BMC Bioinformatics 2007, 8:290.PubMedView Article

Mootha VK, Lindgren CM, Eriksson KF, Subramanian A, Sihag S, Lehar J, Puigserver P, Carlsson E, Ridderstrale M, Laurila E, et al.: PGC-1alpha-responsive genes involved in oxidative phosphorylation are coordinately downregulated in human diabetes.Nat Genet 2003, 34:267–273.PubMedView Article

Pavlidis P, Qin J, Arango V, Mann JJ, Sibille E: Using the gene ontology for microarray data mining: a comparison of methods and application to age effects in human prefrontal cortex.Neurochem Res 2004, 29:1213–1222.PubMedView Article

Subramanian A, Tamayo P, Mootha VK, Mukherjee S, Ebert BL, Gillette MA, Paulovich A, Pomeroy SL, Golub TR, Lander ES, Mesirov JP: Gene set enrichment analysis: a knowledge-based approach for interpreting genome-wide expression profiles.Proc Natl Acad Sci USA 2005, 102:15545–15550.PubMedView Article

Tian L, Greenberg SA, Kong SW, Altschuler J, Kohane IS, Park PJ: Discovering statistically significant pathways in expression profiling studies.Proc Natl Acad Sci USA 2005, 102:13544–13549.PubMedView Article

Goeman JJ, Buhlmann P: Analyzing gene expression data in terms of gene sets: methodological issues.Bioinformatics 2007, 23:980–987.PubMedView Article

Dinu I, Potter JD, Mueller T, Liu Q, Adewale AJ, Jhangri GS, Einecke G, Famulski KS, Halloran P, Yasui Y: Improving gene set analysis of microarray data by SAM-GS.BMC Bioinformatics 2007, 8:242.PubMedView Article

Goeman JJ, van de Geer SA, de Kort F, van Houwelingen HC: A global test for groups of genes: testing association with a clinical outcome.Bioinformatics 2004, 20:93–99.PubMedView Article

Hummel M, Meister R, Mansmann U: GlobalANCOVA: exploration and assessment of gene group effects.Bioinformatics 2008, 24:78–85.PubMedView Article

Kim SY, Volsky DJ: PAGE: parametric analysis of gene set enrichment.BMC Bioinformatics 2005, 6:144.PubMedView Article

Mansmann U, Meister R: Testing differential gene expression in functional groups. Goeman's global test versus an ANCOVA approach.Methods Inf Med 2005, 44:449–453.PubMed

Student: The Probable Error of a Mean.Biometrika 1908, 1–25.

Larsson O, Wahlestedt C, Timmons JA: Considerations when using the significance analysis of microarrays (SAM) algorithm.BMC Bioinformatics 2005, 6:129.PubMedView Article

Tusher VG, Tibshirani R, Chu G: Significance analysis of microarrays applied to the ionizing radiation response.Proc Natl Acad Sci USA 2001, 98:5116–5121.PubMedView Article

Zhang S: A comprehensive evaluation of SAM, the SAM R-package and a simple modification to improve its performance.BMC Bioinformatics 2007, 8:230.PubMedView Article

Bosco MC, Puppo M, Santangelo C, Anfosso L, Pfeffer U, Fardin P, Battaglia F, Varesio L: Hypoxia modifies the transcriptome of primary human monocytes: modulation of novel immune-related genes and identification of CC-chemokine ligand 20 as a new hypoxia-inducible gene.J Immunol 2006, 177:1941–1955.PubMed

Vengellur A, Phillips JM, Hogenesch JB, LaPres JJ: Gene expression profiling of hypoxia signaling in human hepatocellular carcinoma cells.Physiol Genomics 2005, 22:308–318.PubMedView Article

Kim JW, Tchernyshyov I, Semenza GL, Dang CV: HIF-1-mediated expression of pyruvate dehydrogenase kinase: a metabolic switch required for cellular adaptation to hypoxia.Cell Metab 2006, 3:177–185.PubMedView Article

Xiao Y, Segal MR, Rabert D, Ahn AH, Anand P, Sangameswaran L, Hu D, Hunt CA: Assessment of differential gene expression in human peripheral nerve injury.BMC Genomics 2002, 3:28.PubMedView Article

Thomas JG, Olson JM, Tapscott SJ, Zhao LP: An efficient and robust statistical modeling approach to discover differentially expressed genes using genomic expression profiles.Genome Res 2001, 11:1227–1236.PubMedView Article

Breitling R, Amtmann A, Herzyk P: Graph-based iterative Group Analysis enhances microarray interpretation.BMC Bioinformatics 2004, 5:100.PubMedView Article

Liu Q, Dinu I, Adewale AJ, Potter JD, Yasui Y: Comparative evaluation of gene-set analysis methods.BMC Bioinformatics 2007, 8:431.PubMedView Article

Edelman E, Porrello A, Guinney J, Balakumaran B, Bild A, Febbo PG, Mukherjee S: Analysis of sample set enrichment scores: assaying the enrichment of sets of genes for individual samples in genome-wide expression profiles.Bioinformatics 2006, 22:e108–116.PubMedView Article

Pavlidis P, Furey TS, Liberto M, Haussler D, Grundy WN: Promoter region-based classification of genes.Pac Symp Biocomput2001:151–163.

Berger F, De Hertogh B, Bareke E, Pierre M, Gaigneaux A, Depiereux E: PHOENIX: a web-interface for (re)analysis of microarray data.Centr Eur J Biol 2009, 4:603–618.View Article

Lewin A, Grieve IC: Grouping Gene Ontology terms to improve the assessment of gene set enrichment in microarray data.BMC Bioinformatics 2006, 7:426.PubMedView Article

Ackermann M, Strimmer K: A general modular framework for gene set enrichment analysis.BMC Bioinformatics 2009, 10:47.PubMedView Article

Ke Q, Costa M: Hypoxia-inducible factor-1 (HIF-1).Mol Pharmacol 2006, 70:1469–1480.PubMedView Article

Ruan K, Song G, Ouyang G: Role of hypoxia in the hallmarks of human cancer.J Cell Biochem 2009, 107:1053–1062.PubMedView Article

Semenza GL: HIF-1: mediator of physiological and pathophysiological responses to hypoxia.J Appl Physiol 2000, 88:1474–1480.PubMed

De Hertogh B, De Meulder B, Berger F, Pierre M, Bareke E, Gaigneaux A, Depiereux E: A benchmark for statistical microarray data analysis that preserves actual biological and technical variance.BMC Bioinformatics 2009, 11:17.View Article

Song S, Black MA: Microarray-based gene set analysis: a comparison of current methods.BMC Bioinformatics 2008, 9:502.PubMedView Article

This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
