Exploring and linking biomedical resources through multidimensional semantic spaces

  • Rafael Berlanga1Email author,

    Affiliated with

    • Ernesto Jiménez-Ruiz2 and

      Affiliated with

      • Victoria Nebot1

        Affiliated with

        BMC Bioinformatics201213(Suppl 1):S6

        DOI: 10.1186/1471-2105-13-S1-S6

        Published: 25 January 2012

        Abstract

        Background

        The semantic integration of biomedical resources is still a challenging issue which is required for effective information processing and data analysis. The availability of comprehensive knowledge resources such as biomedical ontologies and integrated thesauri greatly facilitates this integration effort by means of semantic annotation, which allows disparate data formats and contents to be expressed under a common semantic space. In this paper, we propose a multidimensional representation for such a semantic space, where dimensions regard the different perspectives in biomedical research (e.g., population, disease, anatomy and protein/genes).

        Results

        This paper presents a novel method for building multidimensional semantic spaces from semantically annotated biomedical data collections. This method consists of two main processes: knowledge and data normalization. The former one arranges the concepts provided by a reference knowledge resource (e.g., biomedical ontologies and thesauri) into a set of hierarchical dimensions for analysis purposes. The latter one reduces the annotation set associated to each collection item into a set of points of the multidimensional space. Additionally, we have developed a visual tool, called 3D-Browser, which implements OLAP-like operators over the generated multidimensional space. The method and the tool have been tested and evaluated in the context of the Health-e-Child (HeC) project. Automatic semantic annotation was applied to tag three collections of abstracts taken from PubMed, one for each target disease of the project, the Uniprot database, and the HeC patient record database. We adopted the UMLS Meta-thesaurus 2010AA as the reference knowledge resource.

        Conclusions

        Current knowledge resources and semantic-aware technology make possible the integration of biomedical resources. Such an integration is performed through semantic annotation of the intended biomedical data resources. This paper shows how these annotations can be exploited for integration, exploration, and analysis tasks. Results over a real scenario demonstrate the viability and usefulness of the approach, as well as the quality of the generated multidimensional semantic spaces.

        Background

        The ever increasing volume of web resources as well as generated data from automated applications is challenging current approaches for biomedical information processing and analysis. One current trend is to build semantic spaces where biomedical data and knowledge resources can be mapped in order to ease their exploration and integration. Semantic spaces are usually defined in terms of widely accepted knowledge resources (e.g. thesauri and domain ontologies), and they are populated by applying (semi)automatic semantic annotation processes. This is the result of a decade of integration initiatives aimed at inter-linking and merging publicly available biomedical databases (see [1] for a recent review). Most of these initiatives have followed a warehousing approach, where existing data are loaded into a central store under a common schema (e.g., BioMART [2], EcoCyC [3], and Ondex [4]). Recently, with the emergence of the Web of Data [5], this integration effort is being performed in the context of the Semantic Web under standard formats like RDF [6] and OWL [7].

        Additionally to these integration projects, literature based discovery (LBD) [8] has aimed at inferring implicit knowledge by mining scientific papers. LBD approaches also take profit from knowledge resources in order to identify biomedical entities in the texts as well as their associations (see the recent reviews in [9], [10] and [11]).

        Visualization tools play a very relevant role in integration and LBD projects. This is because summarized visual information is required for analyzing the huge amount of data involved in these projects. In this context, visual inference has shown useful in many biomedical research projects [11]. The main visual representation adopted in these projects is the conceptual map, where entities (or concepts) and their asserted or inferred associations are visualized as a graph. Cytoscape [12] and Ondex [4] are the main representatives for integration projects, and Telemakus [13] and LitLinker [14] are examples of visualization tools for LBD.

        The main limitation of current visualization tools is that they have been developed as stand-alone applications, requiring all the data to be locally loaded and processed. This makes it unfeasible to deal with very large data collections as well as to visualize the information in portable small devices such as mobile phones and tablets. Clearly, a web-based architecture is more appropriate for performing visual analysis tasks over huge amounts of integrated data. However, as far as we know, there are no web-based interfaces providing rich and dynamic visualizations for analyzing biomedical data. Instead, web services are designed to provide discovered knowledge and biomedical data in plain formats (e.g., [1517]). Our approach proposes the use of On-Line Analytical Processing (OLAP) techniques [18] to integrate and visualize large collections of biomedical data from conventional web browsers. OLAP technology has shown very successful for analyzing summarized data from different perspectives (dimensions) and detail levels (categories). Part of this success is due to its simplicity in data structures and its efficiency performing data summaries. In a typical OLAP architecture, data are integrated and pre-processed in the back-end (e.g., a data warehouse), so that the amount of data users receive in the client side (e.g., a web browser) is dramatically reduced. Moreover, OLAP tools provide a series of operators that allow users to interact with the summarized information as well as to get more detailed information of those parts she wishes to explore. All these features overcome the previously mentioned limitations of current biomedical visualization tools. In this paper, we propose a novel method for building multidimensional semantic spaces from semantically annotated biomedical databases. The main aims of these semantic spaces are: to provide a summarized view of the data sources, to find interesting associations between concepts present in the collection, and to visualize the collection contents for exploration purposes. As in most of the reviewed visualization tools, conceptual maps have been also adopted in our approach to visualize the integrated data. However, our conceptual maps have three main distinctive features: (1) concepts are arranged into a set of pre-defined biomedical research perspectives, (2) the visualization is oriented to perform OLAP-based operations, and (3) the visualization is rendered in a 3D scenario. The first feature enables a more structured visualization, where associations (called bridges) must involve entities of different levels (e.g., Disease versus Protein). The second feature is related to the interactivity of the user with the visualized data. Finally, the latter feature allows a better use of the space to allocate as much data as possible. It must be pointed out that conceptual maps are dynamically built from the web browser according to the users requirements, by selecting the appropriate levels to be visualized. The current implementation of this method is publicly available in [19] for testing purposes.

        The paper is organized as follows. First, the Methods Section is devoted to introduce the methodological aspects of our approach. First, we describe the normalization formalism to represent both the knowledge resources and the target data collections, and the OLAP-like operators defined over the normalized representation (i.e., multidimensional space). Afterwards, in the Results Section, we describe some use examples to show the functionality of the implemented prototype, and the experiments carried out to evaluate the quality of the visualized data. Finally, we give some conclusions and future work.

        Methods

        OLAP (On-line Analytical Processing) [20] tools were introduced to ease information analysis and navigation from large amounts of transactional data. OLAP systems rely on multidimensional data models, which are based on the fact/dimension dichotomy. Data are represented as facts (i.e., subject of analysis), while dimensions contain a hierarchy of levels, which provide different granularities to aggregate the data. One fact and several dimensions to analyze it give rise to what is known as the data cube. Common operations include: slice, which performs a selection on one dimension of the given cube resulting in a sub-cube, dice, which performs a selection on two or more dimensions, drill-down, which navigates among levels of data ranging from the most summarized (up) to the most detailed (down), roll-up, which is the inverse of drill-down, pivot, which rotates the data to provide an alternative presentation, and drill-through, which accesses the detailed data that is involved in the summary.

        Since multidimensional models provide a friendly, easy-to-understand and intuitive visualization of data for non-expert end-users, we have borrowed the previous concepts and operations to apply them to the proposed conceptual maps.

        This section is devoted to present the necessary methods to generate and manage multidimensional semantic spaces.

        Overview of the architecture

        Unlike other visual integration approaches like Ondex [4], in our approach knowledge resources (KRs) are distinguished from data resources (DRs). KRs are well-structured databases consisting of concepts and their relationships (e.g., GO and UMLS), whereas DRs are any kind of biomedical database to be integrated under some reference KR. DRs are usually semi-structured and text-rich (e.g., PubMed abstracts, patient records, the OMIM database [21], Uniprot, and so on). For the sake of simplicity, we assume that a DR consists of a collection of uniquely identified items, whose contents can present arbitrary structures (e.g., relational, XML, plain text, etc.)

        Figure 1 summarizes the proposed method for generating browsable analytical semantic spaces. As a first step, the DRs and the reference KR must be normalized. KR normalization consists in organizing the KR concepts into a well-structured multidimensional schema, whereas DR normalization consists in representing the DR's items under this schema. Multidimensional schemas are set up in terms of a series of predefined dimensions which roughly represent semantic groups. For example, in systems biology, a semantic group can comprise entity types playing a specific role, for example Gene, mRNA, Polypeptide, Physiological_Function and Metabolite. In the biomedical domain, examples of dimensions are Population, Disease, Organ, Tissue, and so on.
        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_Fig1_HTML.jpg
        Figure 1

        Overview of the proposed method. Proposed method for integrating and normalizing data resources (DRs) and knowledge resources (KRs).

        DR normalization is performed in two steps: (1) semantic annotation of the DR collection items with concepts from the reference KR, and (2) normalization of each collection item to the multidimensional schema derived from the normalized KR. The subsequent sections are devoted to describe in detail these normalization processes as well as the generation of semantic bridges.

        Semantic annotation

        During the last years, we have witnessed a great interest in massively annotating biomedical scientific literature. Most of the current annotators rely on well-known lexical/ontological resources such as MeSH, Uniprot, UMLS and so on. These knowledge resources usually provide both the lexical variants for each inventoried concept and the concept taxonomies.

        In our work, the knowledge resource used for generating semantic annotations is called reference ontology, denoted with O. The lexical variants associated to each ontology concept c are denoted with lex(c), which is a list of strings. The taxonomic relations between two concepts a and b are represented as ab. A semantic annotation of a text chunk T is the task of identifying the most specific concepts in O such that they are more likely to represent the meaning of T.

        Most semantic annotation systems are dictionary look-up approaches, that is, they rely on the lexicon provided by the ontology in order to map text spans to concept lexical variants. Some popular annotation systems in the biomedical domain are Whatizit [22] and MetaMap [23], which rely on GO and UMLS resources respectively.

        It must be pointed out that MetaMap has been widely used in literature-based discovery to identify biomedical entities in the mined texts. However, this kind of tool does not scale well for very large collections. To overcome this limitation, annotations are restricted to a few entity types or to the MeSH controlled vocabulary. Another limitation of this tool is that it is not extensible with new concepts and lexical variants coming from other KRs.

        In our work we have adapted an annotation system called Concept Retrieval (CR) [24], which scales well over large collections as well as large KRs. Moreover, this system can easily include any kind of KR and deal with merged KR lexicons. This annotation system was tested in the two CALBC competitions [25, 26] over a collection of 864 thousand PubMed abstracts about immunology [27], which is annotated in less than 8 hours.

        The idea behind the CR system consists in ranking the lexical strings of the lexicon with respect to each target text chunk T by applying the following formula:
        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_Equa_HTML.gif
        Concept strings S i and text chunks T are represented as bags of words. The function idf(S) represents the amount of information contained in the concept string S, which is estimated as follows:
        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_Equb_HTML.gif

        In the current implementation we use the whole Wikipedia as the Background collection for estimating word probabilities. Finally, the function ambiguity(S) returns the number of concepts that have S as lexical variant. To sum up, the formula above promotes those strings with high information amount, long matches, and low ambiguity degree.

        The final annotation is generated by taking the top ranked concepts that cover as many words as possible from the text chunk T. As an example, Figure 2 shows the semantic annotations generated by the CR annotator.
        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_Fig2_HTML.jpg
        Figure 2

        Semantic annotation example. This figure presents an example of a semantically tagged text. Semantic annotations are expressed in IeXML format, where the cross-references to the reference ontology are included in the id attribute of the XML e tags. A cross-reference consists of three parts separated by the colon character: the source (e.g., UMLS), the concept identifier (e.g., C0007457), and the semantic type (e.g., T098). The bottom side of the figure shows the multidimensional fact generated from this tagged text.

        Knowledge resource normalization

        In order to build semantic spaces for analyzing document collections, the reference ontology O associated with the knowledge resource has to be normalized into a well-structured multidimensional schema. The main issue to be addressed in this process is to manage the highly irregular structures of the KR taxonomies. With this issue in mind, the KR normalization is performed as follows:

        • First a set of dimensions are defined, (D 1, ... D n ), which represent a partition of the concepts in the domain ontology. Each dimension D i represents a different semantic space (e.g. semantic types or vertical levels), and cannot share any common sub-concept with the other dimensions.

        • Each dimension D i can define a set of categories or levels http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_IEq1_HTML.gif , which forms in turn a partition over D i but with the following constraints: (1) there cannot be two concepts c and d in http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_IEq1_HTML.gif such that either cd or dc, and (2) all the concepts in http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_IEq1_HTML.gif have a common super-concept that belongs to D i . By imposing these constraints we ensure summarizability and good OLAP properties for the generated dimensions hierarchies.

        • In order to efficiently build the dimensions hierarchies from the reference ontology O with such constraints, we index the taxonomic relationships using intervals as presented in [28]. This way, every concept of O has associated two sets of intervals corresponding to its ancestors ( http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_IEq2_HTML.gif ) and descendants ( http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_IEq3_HTML.gif ) in the ontology. By using an interval's algebra over this representation, we are able to query about the taxonomic relationships between concepts as well as to compute common ancestors and descendants. For example, let c = ([4, 9]-, [9, 10]+) and d = ([7, 7]-, [3, 3]+, [6, 11]+) be two indexed concepts. We infer dc because [7, 7]- ⊆ [4, 9]-. Similarly, we can obtain common ancestors of c and d by intersecting the intervals of the ancestors space, ([9, 10]+) ∩ ([3, 3]+, [6, 11]+).

        In this way, we can automatically build each dimension D i with the ontology fragment obtained with the signature formed by all the concepts identified in the collection (through semantic annotation) and that belong to some semantic group representing the dimension. To obtain the categories of a dimension D i , we take into consideration the taxonomic relationships in the fragment and the previous restrictions over dimensions and their categories.

        Data resource normalization

        After semantic annotation, each item of the target collection http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_IEq4_HTML.gif has associated a list of concepts from the reference ontology O. However, these annotation sets are not suited for multidimensional analysis, and therefore a normalization process similar to that applied to the ontology must be performed. The main goal of this normalization is to represent the semantic annotations within the normalized multidimensional space described in the previous section. Thus, each item http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_IEq5_HTML.gif is represented as the multidimensional fact:
        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_Equc_HTML.gif

        where c i (0 ≤ in) is either a concept from the dimension D i or the null value.

        As a semantic annotator can tag more than one concept of the same dimension, the normalization process basically consists in selecting the most relevant concepts for each dimension. One issue to take into account in this process is the presence of ambiguous annotations, that is, when more than one concept is assigned to the same text chunk. We say that two concepts are in conflict when they are included in some ambiguous annotation. For example, the string "follow-up" is annotated with two concepts C1704685 (report) and C1522577 (activity), and therefore they are in conflict.

        The selection of relevant and right concepts for each document d is performed through a reduction process based on a concept affinity matrix M d of size N c × N c , where N c is the number of distinct concepts present in the annotations of d. The idea behind this matrix is to capture the affinity of the concepts associated to each item, so that the more similar a concept is with its neighbors the more relevant it is. The affinity matrix is calculated as the linear combination of the following matrices:
        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_Equd_HTML.gif

        These matrices are defined as follows:

        • M isa (i, j) = 1 iff c i c j in the reference ontology O, that is, two concepts are similar if one is a sub-concept of the other,

        • M anc (i, j) = |common_ancestors(c i , c j )|/γ, being γ a parameter that depends on the taxonomy depth, that is, the more ancestors two concepts share the more similar they are,

        • M R (i, j) = 1 iff ∃R(c i , c j ) ∈ O, that is, two concepts related to each other through some relation R are deemed similar,

        • http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_IEq6_HTML.gif , if c i and c j co-occur in a same sentence of the document d and they are not in conflict.

        The affinity matrix can be used in many ways to rank the annotation concepts of an item. For example, we can use any centrality-based algorithm to obtain the concept ranking. However, our aim is not only to get the concepts ranking but also to solve the ambiguities produced by the annotation system. For this reason, we require a classification framework able to perform both tasks. The chosen framework is that presented in [29], which is called regularization framework, and which models the classification as an optimization problem over graphs expressed in matrix notation as follows:
        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_Equ1_HTML.gif
        Here, R is the calculated vector representing the rank of concepts present in the annotations of the collection item d, denoted C d . This ranking is obtained by finding an optimal smoothed function that best fits a given vector Y, which is achieved by applying the laplacian operator over the affinity matrix M d as follows:
        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_Eque_HTML.gif
        The parameter α is directly related to the smoothness of the approximation function (we set it to α = 0.9). For disambiguation purposes, each ambiguous annotation AC d is associated to a vector Y where Y i = 0 if c i A and 1 otherwise. After computing R d with this vector, we can reject all the ambiguous concepts in A whose score is lower than the maximum in R d . Rejected concepts imply a reduction in the matrix M d , and we can apply again the disambiguation process until no more concepts are rejected. For ranking purposes, the vector Y consists of the frequencies of each concept within the item d. Once the rank R d is obtained, the normalization process selects the top-scored concepts of each dimension to represent the d's fact. As an example, Figure 2 shows the resulting fact for the example tagged text. Since collection items are mapped to a set of disjoint dimension concepts in the resulting conceptual map, the relevance of each concept can be measured in terms of the items that support it. The relevance of a concept cO can be calculated by aggregating the relevance of its sub-concepts w.r.t each specific collection. Formally,
        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_Equf_HTML.gif
        where Γ is an aggregation function (e.g., sum, avg, and so on) and score is the function that is evaluated against the collection. The simplest scoring function is the number of hits, namely:
        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_Equg_HTML.gif
        Alternatively, the scoring function can take into account the relevance of each concept in the items it appears. Thus, we can aggregate the relevance scores estimated to select concept facts as follows:
        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_Equh_HTML.gif

        Semantic bridges

        A semantic bridge is any interesting association between concepts of two different dimensions. Interesting associations can be derived from the facts extracted from the target data sources. Figure 3 illustrates the notion of semantic bridge by means of an example. Next, semantic bridges are formally introduced. Given two dimension levels http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_IEq7_HTML.gif and http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_IEq8_HTML.gif , belonging to dimensions D i and D j (ij) respectively, the following cube stores the aggregated contingency tables necessary for correlation analysis:
        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_Fig3_HTML.jpg
        Figure 3

        Graphical representation of a semantic bridge. D1, D2 and D3 are the dimension hierarchies. The normalization of each document doc i into a fact is represented by the document pointing to the selected concept of each dimension. The semantic bridge between c1 and c2 is derived from the associations found in doc1, doc2 and doc3. This setting indicates a strong association between concepts c1 and c2, which is supported by documents doc1, doc2 and doc3.

        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_Equi_HTML.gif
        Here n i,j measures the number of objects in the collection where c i and c j co-occur, n i is the number of objects where c i occurs, and n j is the number of objects where c j occurs. Notice that n i and n j are calculated in a similar way as concept relevance. The contingency table for each pair (c i , c j ) is calculated as shown in Table 1.
        Table 1

        Contingency table for scoring bridges



        c i

        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_IEq9_HTML.gif

        c j

        n i,j

        n j -n i,j

        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_IEq10_HTML.gif

        n i -n i,j

        N Col -n i -n j

        The contingency table accounts for the number of observations of present (i.e., c i and c j ) and/or absent (i.e., http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_IEq11_HTML.gif and http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_IEq10_HTML.gif ) concepts in facts.

        The measures n i,j , n i and n j are calculated as follows:
        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_Equj_HTML.gif
        Semantic bridges can be now calculated from contingency tables by defining a scoring function ϕ(c i , c j ). In this way, bridges will be those concept associations whose scores are greater than a specified threshold δ:
        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_Equk_HTML.gif
        In association analysis [30], scoring functions are used to measure the kind of correlation one can find between several items. Traditionally, the confidence of the rule c i c j has been used, which is defined as:
        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_Equl_HTML.gif
        However, this measure presents some limitations. For example, it is not able to distinguish between positive and negative correlations. Thus, other measures like the interest factor can be used instead:
        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_Equm_HTML.gif

        As in a collection we can find many kinds of correlations, we use a comprehensive set of well-known interestingness measures to find all the interesting bridges between two levels. Examples of these measures are log likelihood ratio, mutual information and F1-measure. More information about this kind of measures can be found in [30].

        One special kind of bridges are those that maximize some interestingness measure for each pair of concepts of the two compared levels. We call these bridges δ-maximum interesting pairs. These bridges will serve us for evaluating the quality of the generated bridges for different collections.

        From the implementation point of view, bridges can be either pre-calculated and stored in the back-end or generated on the fly. In the former case, the pre-calculation of all the bridges for all the level combinations can result in very large data sets. In the latter case, although it makes the browser slightly slower, the calculation is only performed when drilling-down a concept, which usually involves a few new concepts, and therefore it is efficient to calculate their bridges w.r.t. the visualized concepts.

        Operations over the conceptual map

        Our main aim is to build a browsable representation of the semantic spaces defined previously. For this purpose, we define the conceptual map as a sequence of different layers that correspond to different dimensions expressed at some detail level (category). In this map, concepts are visualized as balls, which are placed within their corresponding layer with a size proportional to their relevance w.r.t. the target collection. Concept bridges (or conceptual associations) are visualized as links between concepts of adjacent layers. Conceptual maps are built from the normalized conceptual representation described previously. Table 2 summarizes the main operations over conceptual maps.
        Table 2

        Operations over the conceptual map

        Operation

        Back-end action

        Client-side action

        drillDown (D i , c)

        Retrieve the children of c in dimension D i

        Visualization of direct sub-concepts of c and the bridges involved by them.

        contains (D i , c, kywds)

        Check if c has some sub-concept c' mathing kywds

        If true, the concept c is visualized with a different color.

        drillThrough (D i , c)

        Retrieve the ranking of items d annotated with c by rel(d, c) = R d [c]

        Visualization in a tab (one for each indexed collection) of the ranked list of objects with their metadata and cross-references.

        drillThrough (D i , b)

        Get the ranking of items d supporting the selected bridge b = (c 1, c 2) by rel(d, b) = rel(d, c 1) ·rel(d, c 2)

        Visualization in a tab of the ranked list of objects with their metadata and cross-references.

        conceptRemoval (D i , c)

        None

        Removal of c from D i and all its bridges.

        conceptSelection (D i , c)

        None

        Removal of all other concepts and their bridges in D i except for c.

        This table describes the main operations over a conceptual map and the actions they involve in both the back-end (e.g., database server) and the client-side (e.g., the browser).

        Results

        The work presented in this paper has been mainly developed in the context of the European Health-e-Child (HeC) integrated project [31, 32]. HeC aimed to develop an integrated health care platform to allow clinicians to access, analyze, evaluate, enhance and exchange integrated biomedical information focused on three pediatric domains: heart disorders, inflammatory disorders and brain tumors. The biomedical information sources covered six distinct levels of granularity, also called vertical levels, classified as molecular (e.g., genomic and proteomic data), cellular (e.g., results of blood tests), tissue (e.g., synovial fluid tests), organ (e.g., affected joints, heart description), individual (e.g., examinations, treatments), and population (e.g., epidemiological studies). To represent these levels and annotate data resources, we have selected the Unified Medical Language System Metathesaurus (UMLS) [33] as the reference knowledge resource, which constitutes the main multipurpose reference thesaurus for biomedical research.

        In this project, we developed a prototype, called 3D-Browser tool, which provides an interactive way to browse biomedical concepts as well as to access external information (e.g., PubMed abstracts) and HeC patient data related to these concepts. The developed prototype included the Uniprot database [34], PubMed abstracts related to the diseases studied in the project, and the HeC patient database [35]. Recently, the external web service SCAIView [36] was also integrated to provide alternative protein-disease associations mined from the literature [37].

        The tool requirements were guided and evaluated by the clinicians participating in the HeC project. Moreover, the 3D browser tool was fully integrated within the workflow of other HeC related tools such as the HeC Toolbar [38], allowing selected data from the 3D-Browser to be linked with real patient data. Apart from the usability tests performed within the HeC project, we are also concerned with measuring the quality of the visualized data. As our method mainly relies on an automatic annotation system, which can produce errors and ambiguities, we must evaluate how it affects the results shown to end-users. Next sections are devoted to show use cases within the HeC project, as well as the experiments carried out to measure the quality of the generated data.

        Prototype implementation and testing

        The current prototype of our method has been developed using AJAX (Asynchronous JavaScript and XML) technologies. Figure 4 shows an overall view of the 3D-Browser tool [19]. It consists of three main parts, namely: 1) the configuration of the conceptual map, which contains the selected vertical levels, and an optional free text query to locate concepts of interest in the conceptual map, 2) the conceptual map itself, which contains the biomedical concepts stratified in vertical levels according to the previous configuration, and 3) a series of tabs that present ranked lists of data items associated to the selected concept from the conceptual map. In the latter, each tab represents a different data collection (e.g., PubMed, Uniprot protein database, and HeC patient data). There is a special tab entitled "Tree" which contains all the possible levels that can be selected to configure and build the conceptual map. The levels are based on the UMLS semantic types [39, 40] which are grouped within the corresponding HeC vertical levels as in [41]. The layers of the conceptual map can be defined by selecting levels of the "Tree" tab or through a free text query. In the second case, only the most specific concepts satisfying the query are visualized in the conceptual map.
        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_Fig4_HTML.jpg
        Figure 4

        3D Knowledge Browser snapshot with its main visual components. This figure shows the main parts of the implemented 3D Knowledge Browser for building and exploring conceptual maps.

        The visual paradigm of the conceptual maps relies on the vertical integration vision proposed in HeC. That is, all the involved knowledge, data and information are organized into different disjoint vertical levels, each one representing a different perspective of the biomedical research. Figure 4 shows the stratified view of the conceptual map based on these vertical levels, in this case Individual.Disease and Organ. Within each level, biomedical concepts deemed relevant to both the clinician domain (e.g., rheumatology, cardiology and oncology) and the clinician information request are shown as balls in the conceptual map. The size of each ball is directly related to the concept relevance and its color indicates the operation that was performed over it, namely: green if it satisfies the free text query, red if it was expanded as a sub-concept, and blue if no action was taken on it.

        Semantic bridges are represented as 3D lines in the conceptual map. Semantic bridges can represent either discovered co-occurrences of concepts in some target data collection or well-known relationships between concepts stated in some knowledge resource (e.g., UMLS relations). Semantic bridges can help clinicians to select the context in which the required information must hold. For example, from the conceptual map in Figure 4 we can retrieve documents or patient unique identifiers about arthritis related to limb bones by clicking an existing bridge between the concepts Arthritis and Limb_Bone. Finally, semantic bridges have also associated a relevance index, which depends on the correlation measure we have chosen for their definition (e.g., support, mutual information, log-likelihood ratio, etc.) The relevance of each semantic bridge is indicated by both its color (from less to more relevant: blue, green and purple) and its thickness. Thus, the semantic bridge between Arthritis and Limb_Bone can be considered as a strong connection. Another interesting feature of the conceptual maps is the ability of browsing through the taxonomical hierarchies of the biomedical concepts (e.g., UMLS hierarchy). In the example of Figure 5, the user can expand the concepts Operation and Implantation (biggest balls in Figure 5(a)). The resulting concepts are red-colored (Figure 5(b)) and represent more specific concepts like Catheterisation, Surgical repair, Intubation, or Cardiovascular Operations.
        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_Fig5_HTML.jpg
        Figure 5

        Example of two expanded concepts: operation and implantation. This example shows the two snapshots of a conceptual map: (a) before expanding concepts and (b) after expanding two main concepts.

        In order to manage the elements of the conceptual map a series of operations are provided in the conceptual map tools panel (see left hand-side of Figure 4). These operations are split into two categories: operations to manage the whole conceptual map (rotate, zoom and shift) and concept-related operations. The operations to manage the concept visualization involve (1) the retrieval of the objects associated to the clicked concept, (2) the expansion of the clicked concept, (3) the removal of the concepts of a level with the exception of the clicked concept, and (4) the removal of the clicked concept.

        In the following paragraphs we show the functionalities of the prototype through several use examples based on some HeC clinician information requests.

        Example 1: surgical procedures and their results in the tetralogy of Fallot domain

        Clinicians are interested in knowing the relation between the different surgical techniques reported in the literature and the findings and results that are usually correlated to them. For this purpose, a conceptual map for the semantic levels Individual.Health_Procedures. and Individual.Finding is built as shown in Figure 6(a). We can restrict the view to only repair techniques. This can be done by specifying the keyword repair in the query input field. The resulting conceptual map is shown in the Figure 6(b). The map can be further refined in order to focus on some concrete concept, for example Repair Fallot Tetralogy, just showing the concepts and bridges affected by it (see Figure 6(c)). In this case, there is just one bridge that relates the surgical technique with the outcome Death. Figure 6(d) shows the documents that are retrieved by clicking this bridge. Notice that these abstracts likely report death causes related to TOF repair.
        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_Fig6_HTML.jpg
        Figure 6

        Interesting relationships between procedures and findings in the literature. This figure shows a sequence of actions over a conceptual map involving procedures and findings for the Tetralogy of Fallot (ToF) domain: (a) initial conceptual map built from ToF PubMed abstracts, (b) selection of nodes with the query "repair" (green balls), (c) reduction of the conceptual map to just one procedure concept, and (d) ranked list of documents retrieved for the found bridge.

        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_Fig7_HTML.jpg
        Figure 7

        Example of the @Swissprot tab. This example shows the use of the @Swissprot tab. Once a conceptual map is built for the query "epilepsy" (a), we can obtain a ranked list of Uniprot protein entries related to the clicked concept (b), in this case the concept attack epileptic.

        Example 2: finding potential proteins for brain tumour-related diseases

        In this use case, the clinician is interested in comparing the proteins related to a disease and its subtypes. Taking the brain tumour domain, the clinician specifies the concept query epilepsy without selecting any vertical level. As a result, she obtains the conceptual map of Figure 7(a) which contains the concepts attack epileptic, epilepsy intractable, epilepsy lobe temporal, epilepsy extratemporal and epilepsy focal. To retrieve the proteins related to these diseases, the tab @SwissProt is selected. For example in Figure 7(b) the related proteins to attack epileptic are shown. The user can then get much more information about these proteins by clicking the buttons NCBI and KEGG, which jump to the corresponding pages in Entrez Gene and KEGG sites respectively. Note that, the relevance of each protein entry is calculated with the frequency of the concept and its sub-concepts in the Uniprot description of the protein.

        Example 3: immunologic factors in juvenile idiopathic arthritis

        Juvenile idiopathic arthritis (JIA) is an autoimmune disease, that is, the immune system attacks its own cells and tissues. The cell-surface antigen HLA-B27 is well known to be associated with different kinds of JIA and it plays an important role in its classification. Moreover, male children with the HLA B27 antigen are at significantly higher risk of developing JIA. In this case, the clinician is interested in analyzing the relationships between the HLA-B27 and the different JIA subtypes, for this purpose the Disease or Syndrome and Immunological factor semantic levels are explored. As shown in the conceptual map of Figure 8, HLA-B27 plays a central role with most of the bridges associated to JIA-related diseases.
        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_Fig8_HTML.jpg
        Figure 8

        Exploring the immunologic factors of JIA-related diseases. This figure shows two snapshots for the conceptual map that relates diseases and immunologic factors in the JIA domain: (a) the initial conceptual map, and (b) after expanding the disease concept having the strongest relation to the HLA-B27 factor.

        Example 4: location of brain tumours

        This example is based on the work presented in [42], which consists in retrieving patient data according to the location of the brain tumours. Figure 9(a) shows the conceptual map that relates the vertical levels Organ and Disease. Green nodes represent the relevant concepts which involve cerebellum. By using the node removal facility of the 3D-Browser, we can easily focus on the cerebellum related nodes (see Figure 9(b)).
        http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-13-S1-S6/MediaObjects/12859_2012_5005_Fig9_HTML.jpg

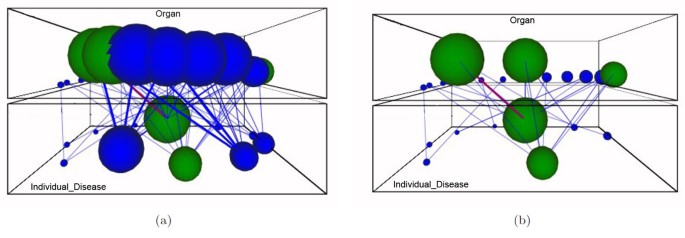

        Figure 9

        Exploring the organ-disease bridges for cerebellum tumors. This figure shows two snapshots for the conceptual map that relates organ and disease in the brain tumors domain: (a) the initial conceptual map with query "cerebellum", and (b) after removing non relevant concepts from the organ layer.

        Evaluation of the quality of conceptual maps

        Apart from the usability tests performed within the HeC project, we are also concerned with measuring the quality of the visualized data. As our method mainly relies on an automatic annotation system, which can produce errors and ambiguities, we must evaluate how it affects to the results shown to end-users. Data quality refers to the correctness of the system-generated multidimensional semantic spaces (MDSS) as well as the reduction achieved by the method. Wrong and ambiguous annotations can degrade the precision of the visualization by introducing misleading or noisy concepts in the conceptual maps, whereas a poor reduction of the annotation sets will introduce a lot of noise in them. Additionally, we must ensure that the reduction method captures the relevant concepts, disregarding the spurious ones.

        The experiments we carried out to measure data quality have been performed over three PubMed abstract collections, one per target disease of the HeC project, namely: juvenile idiopathic arthritis (JIA), tetralogy of Fallot (ToF), and pediatric astrocytomas (AC). We use as gold-standard the MeSH indexes provided by PubMed for each abstract. We can consider that MeSH-indexes constitute a multidimensional summary of each abstract, and that we can apply the usual assessment measures for comparing our method w.r.t. the gold-standard, namely: precision (P), recall (R) and F-score. However, before applying these measures, we need to harmonize the annotations provided by our system, which refer to UMLS, and those of the gold-standard, which refer to MeSH. As MeSH is fully included in UMLS, the harmonization just consists of aligning UMLS and MeSH concepts. We consider that a UMLS concept c umls is aligned to a MeSH concept c mesh if c mesh c mesh . Notice that many concepts in UMLS will be not aligned to the gold-standard, for they are not related with the MeSH taxonomy.

        Table 3 presents the assessment results for these three collections. We observe that the maximum recall is around 51%, which indicates that there is a notable divergence between the gold-standard and the system generated annotations for MDSS. It is worth mentioning that many MeSH annotations regard the full version of the document, and it is likely that the annotation is not mentioned in the abstract [43]. This is why F-scores are usually low. From the results of the JIA collection we can evaluate the quality of the reduction process presented in the Methods Section. Notice that despite reducing around 55% the number of annotations, the F-score increases in both JIA and AC collections whereas in ToF there is not statistical difference. This demonstrates that the reduction method is actually keeping the relevant part of the gold-standard annotations. Notice also from this table that the size of the annotation sets of each document is similar to those of the gold-standard.
        Table 3

        Method evaluation

        Domain

        Docs

        MeSH

        MDSS

        P

        R

        F

        L MeSH

        L mdss

        JIA (all annot.)

        7637

        5096

        16835

        0.308

        0.518

        0.386

        10.96

        30.44

        JIA (reduction)



        9719

        0.406

        0.383

        0.394



        11.28

        ToF (all annot.)

        7669

        3482

        13942

        0.281

        0.421

        0.337

        10.96

        26.92

        ToF (reduction)



        7928

        0.356

        0.314

        0.334



        9.77

        AC (all annot.)

        3663

        3116

        11898

        0.221

        0.477

        0.301

        15.37

        44.8

        AC (reduction)



        6573

        0.339

        0.302

        0.320

        15.37

        13.93

        Method Evaluation. MeSH and MDSS are the number of concepts in the gold-standard and the system-generated multidimensional spaces for the three domains: JIA, ToF and AC. P, R and F represent the precision, recall and F-score respectively. L MeSH and L MDSS are the average number of concepts associated to each item in the gold-standard and the MDSS respectively.

        In order to see the main differences between the gold-standard and MDSS representations, Table 4 reports the distribution of annotations across dimensions. From this table, we can also notice a notable divergence between both representations, specially for Chemical, Drug and Finding dimensions. This suggests that manual annotation has a great bias towards a few semantic types, which seem to be of special interest for PubMed users. In contrast, the concepts belonging to Finding are much more frequent in the abstracts than accounted by MeSH indexes.
        Table 4

        Distribution of semantic annotations

        Dimension

        JIA

        ToF

        AC



        MeSH

        MDSS

        MeSH

        MDSS

        MeSH

        MDSS

        Physiology

        2.0

        3.9

        1.9

        2.3

        2.8

        4.7

        ProteinGene

        17.8

        11.0

        12.1

        5.2

        24.0

        11.0

        Anatomy

        10.8

        10.8

        14.0

        13.4

        12.9

        13.9

        Drug

        9.2

        2.6

        9.0

        1.7

        8.4

        1.8

        Chemical

        24.2

        7.3

        18.7

        5.2

        24.4

        6.6

        Disease

        23.0

        15.3

        25.0

        19.7

        22.5

        17.0

        HealthProcedure

        13.8

        19.0

        17.2

        20.5

        13.6

        16.6

        Concepts

        4.8

        4.1

        4.8

        4.5

        4.8

        4.7

        Finding

        2.9

        15.7

        3.7

        18.6

        3.2

        14.3

        Population

        6.2

        6.9

        6.1

        6.2

        4.9

        6.7

        This table shows the distribution of the semantic annotations generated by our method (MDSS) and the gold-standard (MeSH) for the PubMed abstract collections in the three domains: JIA, ToF and AC.

        Quality of semantic bridges refers to the interestingness of the bridges generated from the multidimensional semantic spaces. Again, we use the MeSH indexes as gold-standard, and we compare the bridges generated with the gold-standard and those generated with our method. For this purpose, we have selected a few combinations of dimensions for each disease collection, which are related to the query examples of the previous section. Thus, for the JIA collection we have selected the levels Disease and ProteinGene. Tables 5 and 6 show the best scored bridges for MDSS and the gold-standard. Notice that except for three bridges, both sets are completely different. The main reason for these differences stems mainly from the different nature of the underlying annotation processes. For example, the immunologic factor IgG appears in 363 documents in the MeSH representation, whereas it only appears 12 times in MDSS. This is because the automatic semantic annotator finds more specific concepts involving IgG, like "IgG antigen", "serum IgG", and many others. Instead, MeSH-based annotation unifies all these concepts under "IgG". Additionally, as previously mentioned, some MeSH descriptors are not explicitly mentioned in the abstracts and consequently they are not regarded in the MDSS representation.
        Table 5

        MDSS-based bridges for JIA domain

        Disease

        ProteinGene

        Score

        S

        anemias

        erythropoietin

        coh = 0.500

        2

        psoriasis

        TNF human

        coh = 0.333

        2

        psoriasis

        fusion protein

        conf = 0.333

        3

        periodic syndrome

        TNF receptors

        coh = 1.000

        2

        systemic onset JIA

        receptors IL-6

        coh = 0.114

        8

        rickets celiac

        gluten

        coh = 0.500

        2

        tuberculous infections

        TNF blockers infliximab

        conf = 0.222

        2

        ACLS (*)

        lupus coagulation inhibitor

        f1 = 0.500

        2

        third disease

        vaccine rubella

        conf = 1.000

        3

        diseases autoimmune

        tyrosine phosphatases protein

        coh = 0.500

        2

        syndrome laron

        insulinlike growth factor

        conf = 1.000

        2

        disorder amyloid

        substance amyloid

        f1 = 0.141

        5

        osteoarthrosis oa

        proteoglycans

        f1 = 0.188

        3

        growth failure

        insulinlike growth factor

        conf = 0.667

        2

        thyromegaly

        substance amyloid

        conf = 0.600

        3

        syndrome macrophage activation

        perforin

        coh = 0.571

        4

        syndrome macrophage activation

        cyclosporine medication

        f1 = 0.311

        14

        uveitis

        factors antinuclear

        conf = 0.171

        19

        systemic JIA

        IL-1 receptor antagonist protein

        conf = 0.133

        2

        syndrome hemophagocytic

        perforin

        coh = 0.286

        2

        eye disease cataract

        factors antinuclear

        conf = 0.250

        15

        myasthenia gravis

        acetylcholine receptor

        coh = 1.000

        2

        Best δ-maximum scored bridges between the Disease and ProteinGene levels for the the JIA domain, using our reduction method (MDSS). Interestingness measures used are: cohesion (coh), confidence (conf) and f-measure (f1). The column S indicates the number of documents supporting each bridge.

        Table 6

        MeSH-based bridges for the JIA domain

        Disease

        ProteinGene

        Score

        S

        systemic rheumatoid arthritis

        rheumatoid factor

        coh = 0.290

        105

        systemic rheumatoid arthritis

        IgG

        coh = 0.262

        95

        essential anemia

        ferritins

        coh = 0.150

        3

        essential anemia

        hemoglobins

        coh = 0.150

        3

        recurrent polyserositis

        proteins cytoskeletal

        coh = 1.000

        3

        hyperhomocysteinemias

        l-homocysteine

        coh = 1.000

        2

        spondylitis rheumatoid

        leukocyte antigens human

        coh = 0.219

        49

        stills disease adult-onset

        receptors IL-6

        coh = 0.158

        3

        system lupus erythematosus

        autoimmune antibody

        coh = 0.206

        29

        disorder amyloid

        SAA protein

        coh = 0.828

        24

        disorder amyloid

        substance amyloid

        coh = 0.667

        14

        third disease

        vaccine rubella

        coh = 0.500

        2

        iron-deficiency anemias

        transferrin receptor

        coh = 0.750

        3

        infection

        interferon

        coh = 0.286

        2

        thyromegaly

        SAA protein

        coh = 0.500

        2

        myasthenia gravis

        acetylcholine receptor

        coh = 1.000

        2

        hyperimmunoglobulinemias

        IgD

        coh = 0.375

        3

        uveitis

        factors antinuclear

        coh = 0.184

        49

        thyroid insufficiency

        thyroxine

        coh = 1.000

        2

        thyroid insufficiency

        thyroglobulins

        f1 = 0.500

        2

        rickets celiac

        gliadin

        coh = 0.800

        4

        castleman's disease

        receptors IL-6

        coh = 0.833

        5

        castleman's disease

        IL-6

        coh = 0.833

        5

        Best δ-maximum scored bridges between the Disease and ProteinGene levels for the the JIA domain, using the gold-standard (MeSH). Interestingness measures used are: cohesion (coh), confidence (conf) and f-measure (f1). The column S indicates the number of documents supporting each bridge.

        For the ToF collection, we have selected the levels Disease and HealthProcedure, restricting them to the semantic types CongenitalAbonormality and Therapy respectively. Tables 7 and 8 show the best scored bridges for the MDSS and MeSH-based representations respectively. Notice that in this case, bridges indicate relations between abnormalities and surgical methods applied to them. For the MeSH representation, bridges always refer to "surgical procedures heart", but not to any specific technique. This is again due to the MeSH-based manual annotation of abstracts, which systematically selects this concept when an abstract talks about heart surgical procedures.
        Table 7

        MDSS-based bridges for the ToF domain

        Disease.CongenitalAbnormality

        HealthProcedure.Therapy

        Score

        S

        stricture pulmonary artery congenital

        procedure fontan

        coh = 0.250

        2

        stricture pulmonary artery congenital

        stent s biliary

        coh = 0.250

        3

        right ventricular dilatation

        replacement pulmonary valve

        conf = 0.231

        3

        major aortopulmonary collateral artery

        therapy embolization

        coh = 0.200

        3

        tetralogy fallots

        surgical repairs

        coh = 0.611

        251

        tetralogy fallots

        surgical treatment

        coh = 0.517

        733

        congenital pulmonary artery aneurysm

        pericardial shunt operation

        conf = 0.154

        2

        congenital pulmonary artery aneurysm

        arteriovenous shunt procedure

        coh = 0.154

        2

        single coronary artery

        anomalous coronary artery graft treatment

        coh = 0.167

        3

        syndrome alagille

        transplant liver

        coh = 1.000

        2

        peripheral pulmonary artery stenosis

        stent s biliary

        coh = 0.333

        2

        cross syndrome

        reperfusions

        coh = 0.400

        2

        infantile lobar emphysema

        lobectomy

        coh = 0.500

        2

        ventricular septal defect spontaneous closure

        surgical closure

        coh = 0.125

        5

        Best δ-maximum scored bridges between the CongenitalAbnormality and Therapy levels for the the ToF domain, using our reduction method (MDSS). Interestingness measures used are: cohesion (coh), confidence (conf) and f-measure (f1). The column S indicates the number of documents supporting each bridge.

        Table 8

        MeSH-based bridges for the ToF domain

        Disease.CongenitalAbnormality

        HealthProcedure.Therapy

        Score

        S

        tetralogy fallots

        surgical procedures heart

        coh = 0.837

        498

        vessels transposition great

        surgical procedures heart

        coh = 0.106

        63

        malformation heart

        surgical procedures heart

        coh = 0.329

        196

        vsd ventricular septal defect

        surgical procedures heart

        coh = 0.200

        119

        septal defects atrial

        surgical procedures heart

        coh = 0.108

        61

        Best δ-maximum scored bridges between the CongenitalAbnormality and Therapy levels for the the ToF domain, using the gold-standard (MeSH). Interestingness measures used are: cohesion (coh), confidence (conf) and f-measure (f1). The column S indicates the number of documents supporting each bridge.

        Finally, for the AC collection we have selected the dimensions Anatomy, restricted to cells, and Disease restricted to neoplastic processes. Tables 9 and 10 show the generated bridges. In this case, the MDSS method obtains a much richer set of bridges than those generated from the gold-standard.
        Table 9

        MDSS-based δ-maximum scored bridges for the AC domain

        Anatomy.Cell

        Disease.NeoplasticProcess

        Score

        S

        tumor cell

        pleomorphic xanthoastrocytoma

        coh = 0.125

        7

        human cell line

        small-cell glioblastoma

        coh = 1.000

        2

        tumour cells

        g-cell tumor

        coh = 0.333

        2

        oligodendroglial cell

        oligodendrogliomas

        conf = 0.190

        4

        neurons

        dysplasias

        coh = 1.000

        2

        multinucleate giant cell

        glioblastomas giant cell

        coh = 1.000

        2

        multinucleate giant cell

        subependymal giant cell astrocytoma

        coh = 0.130

        3

        multinucleate giant cell

        tuberous sclerosis syndrome

        conf = 0.217

        5

        multinucleate giant cell

        pleomorphic xanthoastrocytoma

        conf = 0.174

        4

        spindle cell

        subependymal giant cell astrocytoma

        coh = 0.400

        2

        tumour cell lines

        solid tumour childhood

        coh = 0.667

        2

        Best δ-maximum scored bridges between the Cell and NeoplasticProcess levels for the the AC domain, using our reduction method (MDSS). Interestingness measures used are: cohesion (coh), confidence (conf) and f-measure (f1). The column S indicates the number of documents supporting each bridge.

        Table 10

        MeSH-based δ-maximum scored bridges for the AC domain

        Anatomy.Cell

        Disease.NeoplasticProcess

        Score

        S

        neurons

        gangliogliomas

        coh = 0.160

        4

        cultured cells

        melanoma syndrome

        coh = 0.158

        3

        t-lymphocytes

        malignant adenomas

        coh = 0.286

        2

        tumour cell lines

        neoplasms experimental

        coh = 0.500

        2

        Best δ-maximum scored bridges between the Cell and NeoplasticProcess levels for the the AC domain, using the gold-standard (MeSH). Interestingness measures used are: cohesion (coh), confidence (conf) and f-measure (f1). The column S indicates the number of documents supporting each bridge.

        Concluding, our method generates interesting bridges comparable in quality to those generated from the gold-standard. It is worth mentioning that we have found very few errors due to the semantic annotation system. An example of error is shown in Table 5, where ACLS is not a disease. Finally, due to the significant divergence present in the MDSS and the gold-standard representations, bridges derived from them can vary greatly. Future work must pay attention to the impact of the used annotation method in both the resulting multidimensional space and its generated bridges.

        Conclusions

        Current knowledge resources and semantic-aware technology make possible the integration of biomedical resources. Such an integration is achieved through semantic annotation of the intended biomedical resources. This paper shows how these annotations can be exploited for integration, exploration, and analysis tasks.

        The presented approach relies on multidimensional semantic spaces and OLAP-style operators, which has been shown suitable for browsing biomedical information. We also show that the same knowledge resources that support the semantic annotations (i.e., thesauri and domain ontologies) provide the necessary elements to build the taxonomical dimensions that facilitate the exploration of the semantic spaces. The viability of the approach is finally demonstrated with the developed prototype (3D-Browser), which has been tested over a real scenario.

        As for the quality of the generated semantic spaces, we show that the conceptual representations of our approach are partially complementary to the representation given by MeSH descriptors. The normalization process defined to accommodate the semantic annotations into the given dimensions does not suffer from quality loss. The quality of discovered bridges is usually similar or, in some cases, better than those derived from the MeSH descriptors.

        As future work, it would be interesting to investigate probabilistic translation methods [44] for different conceptual representations, so that the quality of the semantic annotations can be further improved. For example, with these methods, some hidden concepts in the abstract that are captured by MeSH descriptions could be discovered by other annotation systems. Other future work will be focused on the discovery of interesting bridges using association rules algorithms. Recently, we have investigated in [45] the generation of rules from semantic annotations derived from patient record databases. These rules could be included in the proposed conceptual maps for exploring them as well as for comparing them to existing bridges. Finally, we will investigate how to include in our approach those semantic relationships that are being extracted from the literature, as those obtained with the DIDO tool [46].

        List of abbreviations

        AC:

        Astrocytoma

        AJAX:

        Asynchronous JavaScript and XML

        CALBC:

        Collaborative Annotation of a Large Biomedical Corpus

        CR:

        Concept Retrieval

        DR:

        Data resources

        GO:

        Gene Ontology

        HeC:

        Health-e-Child

        JIA:

        Juvenile Idiopathic Arthritis

        KEGG:

        Kyoto Encyclopedia of Genes and Genomes

        KR:

        Knowledge Resources

        LBD:

        Literature Based Discovery

        MDSS:

        Multidimensional Semantic Spaces

        MeSH:

        Medical Subject Headings

        NCBI:

        National Center for Biotechnology Information

        OLAP:

        OnLine Analytical Processing

        OMIM:

        On-line Mendelian Inheritance in Man

        OWL:

        Ontology Web Language

        RDF:

        Resource Description Framework

        TOF:

        Tetralogy of Fallot

        UMLS:

        Unified Medical Language System

        XML:

        eXtended Mark-up Language.

        Declarations

        Acknowledgements

        This work has been partially funded by the EU project Health-e-Child (IST 2004-027749) and the Spanish National Research Program (contract number TIN2008-01825/TIN). We would like to thank Alfonso Rios and David Manset (MAAT-G France) for their fruitful discussions within the HeC project about the browser and its implementation.

        This article has been published as part of BMC Bioinformatics Volume 13 Supplement 1, 2012: Semantic Web Applications and Tools for Life Sciences (SWAT4LS) 2010. The full contents of the supplement are available online at http://​www.​biomedcentral.​com/​bmcbioinformatic​s/​supplements/​13/​S1.

        Authors’ Affiliations

        (1)
        Departamento de Lenguajes y Sistemas Informáticos, Universitat Jaume I
        (2)
        Department of Computer Science, University of Oxford

        References

        1. Mesiti M, Jiménez-Ruiz E, Sanz I, Llavori RB, Perlasca P, Valentini G, Manset D: XML-based approaches for the integration of heterogeneous bio-molecular data. BMC Bioinformatics 2009,10(S-12):7.View Article
        2. Durinck S, Moreau Y, Kasprzyk A, Davis S, De Moor B, Brazma A, Huber W: BioMart and Bioconductor: a powerful link between biological databases and microarray data analysis. [http://​www.​ncbi.​nlm.​nih.​gov/​pubmed/​16082012] Bioinformatics 2005,21(16):3439–40.PubMedView Article
        3. Keseler IM, Collado-Vides J, Santos-Zavaleta A, Peralta-Gil M, Gama-Castro S, Muñiz-Rascado L, Bonavides-Martínez C, Paley SM, Krummenacker M, Altman T, Kaipa P, Spaulding A, Pacheco J, Latendresse M, Fulcher CA, Sarker M, Shearer AG, Mackie A, Paulsen IT, Gunsalus RP, Karp PD: EcoCyc: a comprehensive database of Escherichia coli biology. [http://​www.​ncbi.​nlm.​nih.​gov/​pmc/​articles/​PMC3013716/​] Nucleic Acids Research 2011, (39 Database):583–590.
        4. Köhler J, Baumbach J, Taubert J, Specht M, Skusa A, Rüegg A, Rawlings C, Verrier P, Philippi S: Graph-based analysis and visualization of experimental results with ONDEX. [http://​dx.​doi.​org/​10.​1093/​bioinformatics/​btl081] Bioinformatics 2006,22(11):1383–1390.PubMedView Article
        5. Bizer C: The Emerging Web of Linked Data. IEEE Intelligent Systems 2009,24(5):87–92.View Article
        6. Belleau F, Nolin M, Tourigny N, Rigault P, Morissette J: Bio2RDF: towards a mashup to build bioinformatics knowledge systems. Journal of Biomedical Informatics 2008,41(5):706–716.PubMedView Article
        7. Demir E, et al.: The BioPAX community standard for pathway data sharing. Nature Biotechnology 2010, 28:935–942.PubMedView Article
        8. Swanson DR: Medical literature as a potential source of new knowledge. [http://​view.​ncbi.​nlm.​nih.​gov/​pubmed/​2403828] Bulletin of the Medical Library Association 1990, 78:29–37.PubMed
        9. Spasic I, Ananiadou S, Mcnaught J: Text mining and ontologies in biomedicine: making sense of raw text. Briefings in Bioinformatics 2005, 6:239–251.PubMedView Article
        10. Jimeno-Yepes A, Berlanga-Llavori R, Rebholz-Schuhmann D: Exploitation of ontological resources for scientific literature analysis: searching genes and related diseases. [http://​www.​ncbi.​nlm.​nih.​gov/​pubmed/​19964204] IEEE Engineering in Medicine and Biology Society 2009, 1:7073–7078.View Article
        11. Andronis C, Sharma A, Virvilis V, Deftereos S, Persidis A: Literature mining, ontologies and information visualization for drug repurposing. Briefings in Bioinformatics 2011,12(4):357–368.PubMedView Article
        12. Shannon P, Markiel A, Ozier O, Baliga NS, Wang JT, Ramage D, Amin N, Schwikowski B, Ideker T: Cytoscape: a software environment for integrated models of biomolecular interaction networks. Genome research 2003,13(11):2498–2504.PubMedView Article
        13. Bichindaritz I, Akkineni S: Concept mining for indexing medical literature. [http://​www.​sciencedirect.​com/​science/​article/​pii/​S095219760600044​3] Engineering Applications of Artificial Intelligence 2006,19(4):411–417.View Article
        14. Pratt W, Yetisgen-Yildiz M: LitLinker: capturing connections across the biomedical literature. [http://​doi.​acm.​org/​10.​1145/​945645.​945662] Proceedings of the 2nd International Conference on Knowledge Capture K-CAP '03, Sanibel Island, FL, USA: ACM; 2003, 105–112.View Article
        15. Rebholz-Schuhmann D, Kirsch H, Arregui M, Gaudan S, Riethoven M, Stoehr P: EBIMed - text crunching to gather facts for proteins from Medline. Bioinformatics 2007,23(2):237–244.View Article
        16. Kim JJ, Pezik P, Rebholz-Schuhmann D: MedEvi: retrieving textual evidence of relations between biomedical concepts from Medline. Bioinformatics 2008,24(11):1410–1412.PubMedView Article
        17. Tsuruoka Y, Tsujii J, Ananiadou S: FACTA: a text search engine for finding associated biomedical concepts. [http://​bioinformatics.​oxfordjournals.​org/​content/​24/​21/​2559.​abstract] Bioinformatics 2008,24(21):2559–2560.PubMedView Article
        18. Chaudhuri S, Dayal U: An overview of data warehousing and OLAP technology. SIGMOD Record 1997, 26:65–74.View Article
        19. Berlanga R, Jimenez-Ruiz E, Nebot V: 3D-Browser technical reports and tool. [http://​krono.​act.​uji.​es/​Projects/​hec-3dbrowser] 2010.
        20. Codd EF, Codd SB, Salley CT: Providing OLAP (On-Line Analytical Processing) to User-Analysts: an IT Mandate. E. F. Codd and Associates 1993.
        21. McKusick VA: Mendelian Inheritance in Man and Its Online Version, OMIM. The American Journal of Human Genetics 2007,80(4):588–604.View Article
        22. Rebholz-Schuhmann D, Arregui M, Gaudan S, Kirsch H, Jimeno-Yepes A: Text processing through Web services: calling Whatizit. Bioinformatics 2008,24(2):296–298.PubMedView Article
        23. Aronson A: Effective mapping of Biomedical text to the UMLS Metathesaurus: the MetaMap program. [http://​www.​ncbi.​nlm.​nih.​gov/​pubmed/​11825149] Proc. of AMIA Symposium Whasington, DC, USA; 2001, 17–21.
        24. Berlanga R, Nebot V, Jimenez-Ruiz E: Semantic annotation of biomedical texts through concept retrieval. [http://​sinai.​ujaen.​es/​sepln/​ojs/​ojs-2.​3.​5/​index.​php/​pln/​article/​view/​810/​664] Procesamiento del Lenguaje Natural 2010, 45:247–250.
        25. CALBC challenge [http://​www.​ebi.​ac.​uk/​Rebholz-srv/​CALBC/​]
        26. Rebholz-Schuhmann D, et al.: Assessment of NER solutions against the first and second CALBC Silver Standard Corpus. [http://​www.​jbiomedsem.​com/​content/​2/​S5/​S11/​abstract] Journal of Biomedical Semantics (In Press) 2011.
        27. Rebholz-Schuhmann D, Jimeno-Yepes A, van Mulligen EM, Kang N, Kors JA, Milward D, Corbett P, Buyko E, Beisswanger E, Hahn U: CALBC Silver Standard Corpus. Journal of Bioinformatics and Computational Biology 2010, 8:163–179.PubMedView Article
        28. Nebot V, Berlanga R: Efficient retrieval of ontology fragments using an interval labeling scheme. Inf Sci 2009,179(24):4151–4173.View Article
        29. Zhou D, Schölkopf B, Hofmann T: Semi-supervised learning on directed graphs. Advances in Neural Information Processing Systems (NIPS) 2004, 17:1–8.
        30. Tan PN, Kumar V, Srivastava J: Selecting the right interestingness measure for association patterns. In Proc. of the 8th ACM SIGKDD International Conference on Knowledge Discovery and Data Mining. Edmonton, Alberta, Canada: ACM; 2002:32–41.View Article
        31. Skaburskas K, Estrella F, Shade J, Manset D, Revillard J, Rios A, Anjum A, Branson A, Bloodsworth P, Hauer T, McClatchey R, Rogulin D: Health-e-Child: a grid platform for european paediatrics. [http://​stacks.​iop.​org/​1742–6596/​119/​i=​8/​a=​082011] Journal of Physics: Conference Series 2008,119(8):082011.View Article
        32. Jimenez-Ruiz E, Berlanga R, Sanz I, McClatchey R, Danger R, Manset D, Paraire J, Rios A: The management and integration of biomedical knowledge: application in the Health-e-Child Project (Position Paper). [http://​dx.​doi.​org/​10.​1007/​11915072_​8] In In On the Move to Meaningful Internet Systems 2006: OTM 2006 Workshops, Volume 4278 of Lecture Notes in Computer Science Edited by: Meersman R, Tari Z, Herrero P. Springer Berlin/Heidelberg; 2006, 1062–1067.View Article
        33. Bodenreider O: The Unified Medical Language System (UMLS): integrating biomedical terminology. [http://​www.​ncbi.​nlm.​nih.​gov/​pmc/​articles/​PMC308795/​] Nucleic acids research 2004 (32 Database):
        34. Uniprot database [ftp://​ftp.​ebi.​ac.​uk/​pub/​databases/​uniprot/​knowledgebase/​]
        35. Berlanga R, Jiménez-Ruiz E, Rogulin D, Nebot V, Manset D, Branson A, Hauer T, McClatchey R, Rogulin D, Shamdasani J, et al.: Medical Data Integration and the Semantic Annotation of Medical Protocols. In Proc. of the 21th IEEE International Symposium on Computer-Based Medical Systems (CBMS). University of Jyväskylä, Finland; 2008:644–649.
        36. SCAIView [http://​www.​scai.​fraunhofer.​de/​en/​business-research-areas/​bioinformatics/​products/​scaiview.​html]
        37. Friedrich CM, Ebeling C, Manset D: Cross-project uptake of biomedical text mining results for candidate gene searches. ERCIM News 2010, 82:45–46.
        38. Branson A, Hauer T, McClatchey R, Rogulin D, Shamdasani J: A data model for integrating heterogeneous medical data in the Health-e-Child Project. In Proceedings of Health-Grid, Volume 138 of. Studies in Health Technology and Informatics, Chicago, USA; 2008:13–23.
        39. McCray A: UMLS Semantic Network. In Proc. of the 13th Annual Symposium on Computer Applications in Medical Care. Washington, DC, USA: IEEE Computer Society Press; 1989:503–507.
        40. Bodenreider O, McCray AT: Exploring semantic groups through visual approaches. Journal of Biomedical Informatics 2003,36(6):414–432.PubMedView Article
        41. Jimeno-Yepes A, Jimenez-Ruiz E, Lee V, Gaudan S, Berlanga R, Rebholz-Schuhmann D: Assessment of disease named entity recognition on a corpus of annotated sentences. [http://​www.​biomedcentral.​com/​1471–2105/​9/​S3/​S3] BMC Bioinformatics 2008,9(Suppl 3):S3.View Article
        42. Hauer T, Rogulin D, Zillner S, Branson A, Shamdasani J, Tsymbal A, Huber M, Solomonides T, McClatchey R: An architecture for semantic navigation and reasoning with patient data - experiences of the Health-e-Child Project. In Proc. of the 7th International Semantic Web Conference, ISWC 2008, Volume 5318 of Lecture Notes in Computer Science. Springer; 2008:737–750.
        43. Kostoff RN, Block JA, Stump JA, Pfeil KM: Information content in Medline record fields. International Journal of Medical Informatics 2004,73(6):515–527.PubMedView Article
        44. Berger A, Lafferty J: Information retrieval as statistical translation. In Proc. of the 22nd International Conference on Research and Development in Information Retrieval, SIGIR'99. University of California, Berkeley, USA: ACM; 1999:222–229.View Article
        45. Nebot V, Berlanga R: Finding association rules in Semantic Web Data. Knowledge-Based Systems 2012, 25:51–62.View Article
        46. Nebot V, Ye M, Albrecht M, Eom JH, Weikum G: DIDO: a disease-determinants ontology from web sources. In Proceedings of the 20th international conference companion on World wide web, www '11. Hyderabad, India: ACM; 2011:237–240.View Article

        Copyright

        © Berlanga et al. 2011

        This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://​creativecommons.​org/​licenses/​by/​2.​0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

        Advertisement
