TCC: an R package for comparing tag count data with robust normalization strategies

Abstract

Background

Differential expression analysis based on “next-generation” sequencing technologies is a fundamental means of studying RNA expression. We recently developed a multi-step normalization method (called TbT) for two-group RNA-seq data with replicates and demonstrated that the statistical methods available in four R packages (edgeR, DESeq, baySeq, and NBPSeq) together with TbT can produce a well-ranked gene list in which true differentially expressed genes (DEGs) are top-ranked and non-DEGs are bottom ranked. However, the advantages of the current TbT method come at the cost of a huge computation time. Moreover, the R packages did not have normalization methods based on such a multi-step strategy.

Results

TCC (an acronym for Tag Count Comparison) is an R package that provides a series of functions for differential expression analysis of tag count data. The package incorporates multi-step normalization methods, whose strategy is to remove potential DEGs before performing the data normalization. The normalization function based on this DEG elimination strategy (DEGES) includes (i) the original TbT method based on DEGES for two-group data with or without replicates, (ii) much faster methods for two-group data with or without replicates, and (iii) methods for multi-group comparison. TCC provides a simple unified interface to perform such analyses with combinations of functions provided by edgeR, DESeq, and baySeq. Additionally, a function for generating simulation data under various conditions and alternative DEGES procedures consisting of functions in the existing packages are provided. Bioinformatics scientists can use TCC to evaluate their methods, and biologists familiar with other R packages can easily learn what is done in TCC.

Conclusion

DEGES in TCC is essential for accurate normalization of tag count data, especially when up- and down-regulated DEGs in one of the samples are extremely biased in their number. TCC is useful for analyzing tag count data in various scenarios ranging from unbiased to extremely biased differential expression. TCC is available at http://www.iu.a.u-tokyo.ac.jp/~kadota/TCC/ and will appear in Bioconductor (http://bioconductor.org/) from ver. 2.13.

Background

High-throughput sequencing (HTS), also known as next-generation sequencing (NGS), is widely used to identify biological features such as RNA transcript expression and histone modification to be quantified as tag count data by RNA sequencing (RNA-seq) and chromatin immunoprecipitation sequencing (ChIP-seq) analyses [1, 2]. In particular, differential expression analysis based on tag count data has become a fundamental task for identifying differentially expressed genes or transcripts (DEGs). Such count-based technology covers a wide range of gene expression level [3-6]. Several R [7] packages have been developed for this purpose [8-14].

In general, the procedure for identifying DEGs from tag count data consists of two steps: data normalization and identification of DEGs (or gene ranking), and each R package has its own methods for these steps. For example, the R package edgeR[8] uses a global scaling method, the trimmed mean of M values (TMM) method [15], in the data normalization step and an exact test for the negative binomial (NB) distribution [16] in the identification step. The estimated normalization factors are used within the statistical model for differential analysis and gene lists ranked in ascending order of p-value (or the derivative) are produced. Naturally, a good normalization method combined with a DEG identification method, should produce well-ranked gene lists in which true DEGs are top ranked and non-DEGs are bottom ranked according to the confidence or degree of differential expression (DE). Recent studies have demonstrated that the normalization method has more impact than the DEG identification method on the gene list ranking [17, 18].

Note that the normalization strategies employed by most R packages assume that there is an approximately balanced proportion of DEGs between the compared samples (i.e., unbiased DE) [19]. However, a loss of function of histone modification enzymes will lead to a biased distribution of DEGs between compared conditions in the corresponding ChIP-seq analysis; i.e., there will be data with biased DE. As a result, methods assuming unbiased DE will not work well on data with biased DE. To normalize data that potentially has various scenarios (including unbiased and biased DE), we recently proposed a multi-step normalization procedure called TbT [17]. TbT consists of three steps: data normalization using TMM [15] (step 1), DEG identification by using an empirical Bayesian method implemented in the baySeq package [9] (step 2), and data normalization using TMM [15] after eliminating the estimated DEGs (step 3) comprising the TMM-baySeq-TMM pipeline. Different from conventional methods, our multi-step normalization strategy can eliminate the negative effect of potential DEGs before the normalization in step 3.

While the three-step TbT normalization method performed well on simulated and real two-group tag count data with replicates [17], it is practically possible to make different choices for the methods in each step. A more comprehensive study regarding better choices for the DEG elimination strategy (DEGES) is needed. To our knowledge, only the R package, TCC (from Tag Count Comparison), provides tools to perform multi-step normalization methods based on DEGES. Our work presented here enables differential expression analysis of tag count data without having to worry much about biased distributions of DEGs.

Implementation

The TCC package was developed in the R statistical environment. This is because R is widely used and the main functionalities in TCC consist of combinations of functions from the existing R/Bioconductor [20] packages (i.e., edgeR[8], DESeq[10], and baySeq[9]). Since the main purpose (identification of DEGs from tag count data) of these three packages is essentially the same as that of TCC and many users may be experienced in their use, we will illustrate the main functionalities of TCC by contrasting them with the corresponding functions in those packages (see Figure 1). While TCC employs Object Oriented Programming design utilizing the R5 reference class, it has interface functions that do not change the object passed as the argument in order to be compatible with the semantics of the standard R environment. Detailed documentation for this package is provided as a vignette:

vignette TCC
Figure 1
figure 1

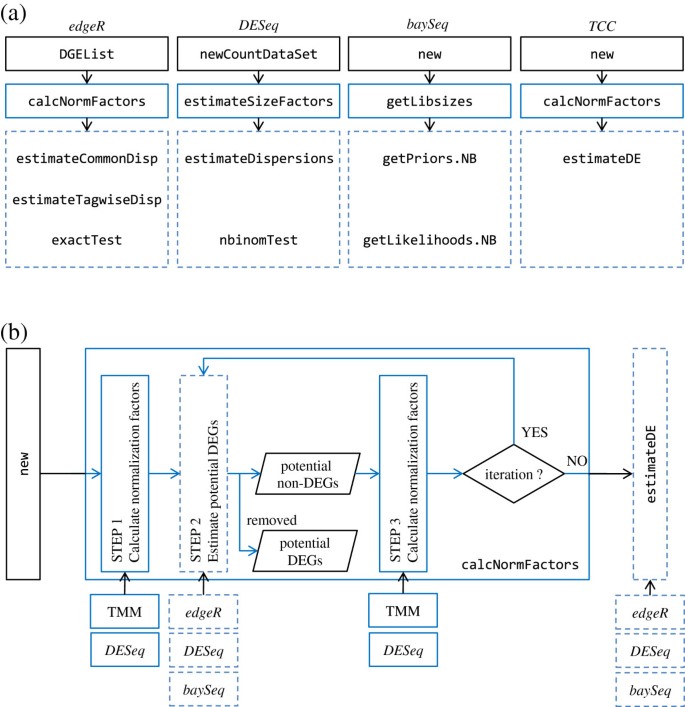

DEGES-based analysis pipelines in TCC. (a) Main functions for obtaining DE results from tag count data in individual packages (edgeR, DESeq, baySeq, and TCC). The analysis pipelines of the packages can be roughly divided into two steps after importing the input data (black squares): (i) calculating normalization factors (blue solid squares) and (ii) estimating degrees of DE for each gene (blue dashed squares). (b) Outline of the DEGES-based normalization methods implemented in TCC. The key concept of DEGES in our calcNormFactors function is to remove data flagged as potential DEGs in step 2 before calculating normalization factors in step 3. Note that steps 2 and 3 in DEGES can be repeatedly performed in order to obtain more robust normalization factors and the function accepts many iterations n (i.e., n = 0 ~ 100).

Preparations

Differential expression analysis between compared samples based on tag count data typically starts by preparing two objects: i) a count table matrix where each row indicates a gene, each column a sample, and each cell the number of counts (or reads) mapped to each gene in each sample and ii) a vector that indicates which group each sample belongs to. These data are stored in a TCC class object using the new function. Similar functions of other packages are the DGEList function in the edgeR package, the newCountDataSet function in the DESeq package, the new function in the baySeq package, and so on (see Figure 1a). Consider, for example, a matrix object hypoData consisting of 1,000 rows and six columns and a numeric vector group consisting of six elements, i.e., (1, 1, 1, 2, 2, 2). The first three samples in the matrix are from Group 1 (G1), and the others are from Group 2 (G2). The TCC class object is constructed as follows:

library TCC data hypoData group < c 1 , 1 , 1 , 2 , 2 , 2 tcc < new TCC , hypoData , group

Normalization

Normalization of two-group count data with replicates

When obtaining normalization factors from count data with replicates, users can select a total of six combinations (two normalization methods × three DEG identification methods) coupled with an virtually arbitrary number of iterations (n = 0, 1, 2, …, 100) in our DEGES-based normalization pipeline (Figure 1b). Here, we describe two representative choices (DEGES/TbT and iDEGES/edgeR).

DEGES/TbT

The TCC package provides robust normalization methods based on the DEGES recently proposed by Kadota et al. [17]. The original three-step normalization method (TbT) is performed by specifying the two major arguments (norm.method and test.method) as follows:

tcc < calcNormFactors ( tcc , norm . method = tmm , test . method = bayseq , iteration = 1 )

In relation to the other DEGES-based methods, we will call the method “DEGES/TbT” for convenience. As mentioned in ref. [17], the multi-step normalization can be repeated until the calculated normalization factors converge. The iterative version of the DEGES/TbT (iDEGES/TbT) can be described as a TMM-(baySeq-TMM) n pipeline with n > = 2. Accordingly, the TMM normalization method [15] and the DEGES/TbT can be described as pipelines with n = 0 and 1, respectively, and n can be specified by the iteration argument.

DEGES/edgeR

A major disadvantage of the TbT method is the long time it requires to calculate the normalization factors. This requirement is due to the empirical Bayesian method implemented in the baySeq package. To alleviate this problem, a choice of alternative methods should be provided for step 2. For instance, using the exact test [16] in edgeR in step 2 enables the DEGES normalization pipeline to be much faster and entirely composed of functions provided by the edgeR package. The three-step DEGES normalization pipeline (we will refer to this as the TMM-(edgeR-TMM) n pipeline with n = 1 or DEGES/edgeR, for convenience) can be performed by changing the test.method argument to “edger”.

The TbT pipeline automatically calculates the percentage of DEGs (PDEG) by virtue of its use of baySeq. In contrast, a reasonable threshold for defining potential DEGs should also be provided when using the exact test in edgeR (or the NB test in DESeq). Here, we define the threshold as an arbitrary false discovery rate (FDR) with a floor value for PDEG. The default is FDR < 0.1 (i.e., FDR = 0.1), and the default floor PDEG value is 5% (i.e., floorPDEG = 0.05); different choices are possible. For example, in the case of the default settings, x% (x > 5%) of the top-ranked potential DEGs are eliminated in step 2 if the percentage (= x%) of genes satisfying FDR < 0.1 is over 5%.

Although iDEGES/TbT would not be practical because of its long computation time, the iterative version of DEGES/edgeR (iDEGES/edgeR with n > = 2) is potentially superior to both non-iterative DEGES/edgeR and DEGES/TbT. A suggested choice of n = 3, consisting of seven steps, can be performed by changing the iteration argument (i.e., iteration = 3) as follows:

tcc < calcNormFactors tcc , norm . method = tmm , test . method = edger , FDR = 0.1 , floorPDEG = 0.05 , iteration = 3

The suggested number of iterations is determined from the results of iDEGES/TbT; it is a number at which the accuracies of DEG identifications corresponding to the calculated normalization factors converge [17]. The number of iterations for iDEGES/edgeR is determined in the same way (see the Results and discussion section).

Normalization of two-group count data without replicates

Most R packages are designed primarily for analyzing data including biological replications because the biological variability has to be accurately estimated to avoid spurious DE calls [21]. In fact, the functions for the DEG identification method implemented in edgeR (i.e., the exact test; ver. 3.0.4) do not allow one to perform an analysis without replicates, even though the TMM normalization method in the package can be used regardless of whether the data has replicates or not. Although the edgeR manual provides users with some ideas on how to perform the DE analysis, it is practically difficult to customize the analysis with DEGES to data without replicates.

However, there are still cases in which we have to perform DE analysis of tag count data without replicates. When obtaining normalization factors from two-group count data without replicates, users can select from a total of four combinations (two normalization methods × two DEG identification methods) and a virtually arbitrary number of iterations (n = 0, 1, 2, …, 100) in our DEGES-based normalization pipeline. That is, the calcNormFactors function with the norm.method = “deseq” or “tmm” and test.method = “deseq” or “bayseq” can be selected. A pipeline (iDEGES/DESeq; the DESeq-(DESeq-DESeq) n pipeline with n = 3) using functions in the DESeq package for analyzing two-group count data without replicates can be performed by changing the two arguments (norm.method and test.method) as follows:

tcc < calcNormFactors tcc , norm . method = deseq , test . method = deseq , FDR = 0.1 , floorPDEG = 0.05 , iteration = 3

Normalization of multi-group count data with replicates

Many R packages (including edgeR, DESeq, and baySeq) support DE analysis for multi-group tag count data. TCC provides DEGES-based normalization methods for such data by virtue of the three packages that are internally used in TCC. Similar to the analysis of two-group count data with replicates, users can select from a total of six combinations (two normalization methods × three DEG identification methods) and a virtually arbitrary number of iterations (n = 0, 1, 2, …, 100) when obtaining normalization factors from multi-group data with replicates.

Retrieving normalized data

The calculated normalization factors can be obtained from tcc$norm.factors. Similar functions are the calcNormFactors function in the edgeR package and the estimateSizeFactors function in the DESeq package, (Figure 1a). Note that the terminology used in DESeq (i.e., size factors) is different from that used in edgeR (i.e., effective library sizes) and ours. The effective library size in edgeR is calculated as the library size multiplied by the normalization factor. The size factors in the DESeq package are comparable to the normalized effective library sizes, wherein the summary statistics for the effective library sizes are adjusted to one. Our normalization factors, which can be obtained from tcc$norm.factors, have the same names as those in edgeR. Since biologists are often interested in such information [19], we provide the getNormalizedData function for retrieving the normalized data. The normalized data can directly be used as, for example, the input data of another package NOISeq[13].

Differential expression

The goal of the analysis would be to obtain a list of DEGs. To this end, we provide the estimateDE function. The function internally calls the corresponding functions implemented in three packages: exactTest in edgeR, nbinomTest in DESeq, and getLikelihoods.NB in baySeq (Figure 1). If the user wants to perform the DE method implemented in edgeR and to determine the genes having an FDR threshold of 10% as DEGs, one can do as follows:

tcc < estimateDE tcc , test . method = edger , FDR = 0.1

A similar analysis based on DE methods in DESeq or baySeq can be performed by changing the test.method parameter to “deseq” or “bayseq”. The results of the DE analysis are stored in the TCC class object. The summary statistics for the top-ranked genes can be retrieved by using the getResult function. In general, the identified DEGs at FDR < 0.1 should be up-regulated in either G1 or G2. The plot function generates an M-A plot, where “M” indicates the log-ratio (i.e., M = log2G2 - log2G1) and “A” indicates the log average read count (i.e., A = (log2G2 + log2G1)/2) based on the normalized count data.

Generation of simulation data

As demonstrated in our previous study [17], the DEGES-based normalization methods implemented in TCC theoretically outperform the other normalization methods when the numbers of DEGs between groups are biased. However, the validation of the biased DE in real data is very difficult in practice [19]. Thus, the performance of methods handling biased DE needs to be evaluated using simulation data. The simulateReadCounts function generates simulation data with various conditions. Currently, this function can generate simulation data analyzed in the TbT paper [17], thereby enabling further comparisons of our DEGES-based methods with methods developed by other researchers in the near future. For example, the hypoData object, a hypothetical count dataset in TCC, was generated by using this function with the following arguments:

tcc < simulateReadCounts Ngene = 1000 , PDEG = 0.2 , DEG . assign = c 0.9 , 0.1 , DEG . foldchange = c 4 , 4 , replicates = c 3 , 3

The simulation conditions for comparing two groups (G1 vs. G2) with biological replicates are as follows: (i) the number of genes is 1,000 (i.e., Ngene = 1000), (ii) the first 20% of genes are DEGs (PDEG = 0.2), (iii) the first 90% of the DEGs are up-regulated in G1 and the remaining 10% are up-regulated in G2 (DEG.assign = c(0.9, 0.1)), (iv) the levels of DE are four-fold in both groups (DEG.foldchange = c(4, 4)), and (v) there are a total of six samples (three biological replicates for G1 and three biological replicates for G2) (replicates = c(3, 3)). The empirical distribution of read counts is built from Arabidopsis data in NBPSeq[12].

The output of the simulateReadCounts function is stored in the TCC class object with information about the simulation conditions and is therefore ready-to-analyze. This function can generate several kinds of simulation data, such as those for comparing four groups (Groups 1-4) with replicates and those for comparing two groups without replicates. See the vignette for details.

Results and discussion

Accurate data normalization is essential for obtaining well-ranked gene lists from tag count data. Similar to other R packages such as edgeR, the TCC package has functionalities for DE analysis of tag count data. Of these functionalities, TCC provides multi-step normalization methods (including DEGES/TbT [17]) that internally use the functions implemented in edgeR, DESeq, and baySeq. Here, we demonstrate that the DEGES-based normalization methods are more effective than the methods implemented in the other packages. All analyses were performed using R (ver. 2.15.2) and Bioconductor [20]. Execution times were measured on a Linux system (CentOS release 6.2 (Final), Intel® Xeon® E5-4617 (2.9 GHz) 24 CPU, and 512 GB memory). The versions of major R libraries were TCC ver. 1.1.99, edgeR ver. 3.0.4, DESeq ver. 1.10.1, and baySeq ver. 1.12.0.

Following our previous study [17], we here demonstrate the performance of these methods by using the same evaluation metric, simulation framework, and real experimental datasets. We use the area under the receiver operating characteristic (ROC) curve (i.e., AUC) as a means of comparison. The simulation conditions are as follows: 5-25% of the genes are DEGs (PDEG = 5-25%), 50-90% of the DEGs are up-regulated in G1 compared to G2 (PG1 = 50-90%), and the levels of DE are four-fold in both groups. The count dataset consists of 70,619 unique small RNAs (sRNAs) and a total of four Arabidopsis thaliana leaf samples (i.e., two wild-type [WT1 and WT2] and two RNA-dependent RNA polymerase 6 (RDR6) knockout [KO1 and KO2] samples) [9]. This dataset was originally analyzed with baySeq. The data has 657 provisional true DE sRNAs (i.e., PDEG = 657 / 70,619 = 0.93%), and all of the sRNAs can be regarded as up-regulated in the wild-type (i.e., PG1 = 100%). This is because they uniquely match tasRNA, which is produced by RDR6, and they are down-regulated in RDR6 mutants. In addition to the RDR6 knockout dataset, we also analyze four other experimental datasets (called “sultan” [4], “gilad” [22], “maqc” [23], and “katz.mouse” [24]) obtained from the ReCount database [25]. The four datasets are used for evaluating the DEGES-based methods aimed at two-group count data with replicates.

Simulation data with replicates (sensitivity, specificity, and computation time)

We assessed the performance of a total of six normalization methods: (a) TMM, (b) DEGES/TbT, (c) DEGES/edgeR, (d) iDEGES/edgeR, (e) iDEGES/TDT (i.e., the TMM-(DESeq-TMM) n pipeline), and (f) iDEGES/DESeq. The ranked gene lists were obtained using the individual DEG identification methods in three packages (edgeR, DESeq, and baySeq), together with normalization factors calculated from each normalization method. Accordingly, a total of 18 combinations (six normalization methods × three DEG identification methods) were evaluated. Table 1 shows the average AUC values of 100 trials between the ranked gene lists and the truth for various simulation conditions (PDEG = 5-25% and PG1 = 50-90%). While the n iterations for the three iDEGES-based methods roughly require an n-fold computation time, the improvement due to increasing the number of iterations plateaued around n = 3 when performing iDEGES/TbT [17]. Therefore, we decided to show AUC values for the three iDEGES-based methods with n = 3.

Table 1 Average AUC values for simulation data with replicates

DEGES/edgeR performed comparably to TbT, whereas iDEGES/edgeR outperformed the others, irrespective of the choice of DEG identification method (edgeR, DESeq, and baySeq) after normalization. That is, iDEGES/edgeR followed by any DEG identification method YYY (termed the iDEGES/edgeR-YYY combination) performed the best among the six normalization methods. These results demonstrate that the alternative DEGES approaches (iDEGES/edgeR) implemented in TCC generally outperform the original DEGES approach (i.e., DEGES/TbT). In other words, the use of the exact test [16] implemented in edgeR is sufficient to determine the potential DEGs to be eliminated. Advantageous characteristics for the exact test also revealed themselves after performing any normalization method: Comparing the three DEG identification methods (edgeR, DESeq, and baySeq), we see that the XXX-edgeR have the highest AUC values. Overall, iDEGES/edgeR-edgeR performed the best. It should be noted that, however, the AUC values for the pipeline look very close to those of the original recommendation (i.e., DEGES/TbT-edgeR) [17], e.g., 90.30% for iDEGES/edgeR-edgeR and 90.27% for DEGES/TbT-edgeR under one simulation condition of PDEG = 25% and PG1 = 70%.

Although the AUC values for the individual combinations are under 0.0042% of the standard deviation (see “Sheet 1” in Additional file 1) and are statistically significant (p < 0.01; see Table 1), some researchers may think the current recommendation (iDEGES/edgeR-edgeR) does not look compelling. We do not argue the fact that iDEGES/edgeR performs comparably to DEGES/TbT (or DEGES/edgeR), regarding the absolute AUC values (i.e., sensitivity and specificity). We rather want to emphasize that iDEGES/edgeR outperforms DEGES/TbT in terms of computation time (Table 2). This table shows that iDEGES/edgeR takes roughly three-times longer than DEGES/edgeR but it is over 100 times faster than DEGES/TbT. In light of the absolute computation times (shorter than 10 seconds), iDEGES/edgeR finishes execution within one minute. Although the TMM normalization method has the shortest computation time, its AUC values are clearly lower than those of the others, especially when the PG1 value is displaced from 50%. An evaluation based on sensitivity and specificity should take precedence over one based on the computation time. These results show that iDEGES/edgeR is good for analyzing two-group tag count data with replicates because of its sensitivity, specificity, and practical computation time.

Table 2 Average computation times for obtaining normalization factors

Simulation data with replicates (effect of iteration)

Next, let us show the effect of iterations in the iDEGES approach to see whether the iteration can truly produce a convergent result or not. Table 3 summarizes the results under three simulation conditions (PG1 = 50, 70, and 90% with a fixed PDEG value of 20%). Of a total of 300 trials, iDEGES/edgeR yielded 251 convergent and 49 non-convergent (i.e., cyclic) results. We got similar results for the three other iDEGES methods (iDEGES/TbT, iDEGES/TDT, and iDEGES/DESeq), irrespective of the simulation conditions. These results clearly indicate that the iDEGES-based normalization methods do not always produce convergent normalization factors, contrary to previous expectations [17].

Table 3 Result of the iDEGES approach does not necessarily convergent

Of practical interest when using the iDEGES approach is the number of iterations required for obtaining a convergent result. We defined n as NC if the potential DEGs estimated at the (NC + 1)th iteration are the same as those in the (NC)th iteration. The distribution of NC values for the four iDEGES-based methods are given in Additional file 2. In our trials, the maximum NC value was 8 (see “Sheet 1” in Additional file 2). The distribution suggests that the iDEGES approach with n = 8 could be sufficient for obtaining convergent results under various simulation scenarios. However, the improvement had by iDEGES/edgeR with n > = 4 compared with that with n = 3 is actually negligible despite the requirement of additional computation time (see “Sheet 3” in Additional file 2). Therefore, the use of our iDEGES pipeline with n = 3 can be recommended for reducing useless computation time.

We observed that the number of iterations needed for obtaining convergent results (the Nc value) tends to increase when the degree of biased DE is high (PG1 > 50%): the average NC values for the iDEGES/edgeR under the three conditions of PG1 = 50, 70, and 90% were 2.17, 3.14, and 3.60, respectively (see “Sheet 1” in Additional file 2). This is reasonable because, in the case of the simulation with PG1 > > 50%, a relatively large number of n in the TMM-(edgeR-TMM) n pipeline is theoretically needed for obtaining accurate normalization factors and because, in the case of the simulation with PG1 = 50%, the theoretical PG1 value obtained from the potential DEGs in any iDEGES-based pipeline at n = 1 is 50% (i.e., no need to apply the iDEGES approach to such data).

Now, let us briefly discuss the non-convergent results. All the non-convergent results showed cyclic characteristics, that is, there exists a same set of potential DEGs estimated in both the ith and the (i + NP)th iterations within a trial (NP > = 2). We found that the most frequent NP value was 2 (see “Sheet 1” in Additional file 2). For example, iDEGES/edgeR yielded 83.7% (41/49) non-convergent results with NP = 2. This result indicates that two different sets of potential DEGs are alternately eliminated in the ith and (i + 1)th iterations. Note that different normalization methods do not seem to produce consistent results (convergent (C) or non-convergent (P)) within a trial. Under one simulation condition (PDEG = 20% and PG1 = 90%), for example, iDEGES/edgeR and iDEGES/TbT got 21 and 17 non-convergent results, respectively. Of these, only three trials (i.e., the 8th, 10th, and 61th) showed the same non-convergent results (see “Sheet 2” in Additional file 2).

We confirmed that the PDEG values (satisfying FDR < 0.1) originally estimated by three methods (iDEGES/edgeR, iDEGES/TDT, and iDEGES/DESeq) in every iteration in Table 3 were above the predefined floor value of 5%, indicating that the floor value of 5% for PDEG has no effect on whether the results converge or not. The iterative method can be viewed as a discrete dynamical system since the number of state is finite and determined by the combination of genes as potential DEGs. Oscillations in the trajectory are common phenomena in such dynamical systems. Thus, a method based on an optimality criterion should be developed to select the best point in the cycle after detecting an oscillation. Nevertheless, we observed an overall improvement regarding non-convergent results when more iterations were used.

Simulation data without replicates

TCC also provides DEGES-based methods for normalizing two-group data without replicates. As described previously, the DEG identification method (i.e., the exact test) in edgeR does not allow for an analysis without replicates. Accordingly, we evaluated a total of eight XXX-YYY combinations (XXX = DESeq, iDEGES/DESeq, iDEGES/TDT, and DEGES/TbT; YYY = DESeq and baySeq). Here, the DESeq-DESeq combination indicates the original procedure in DESeq. Different from the results for the data with replicates, iDEGES/DESeq (and iDEGES/TDT) performed better than DEGES/TbT in this case (see “Sheet 1” in Additional file 3). The same trend can be seen in the accuracies of the estimated DEGs: the accuracies calculated from baySeq (i.e., DEGES/TbT) were clearly inferior to those from DESeq, irrespective of the choice of normalization method (see “Sheet 2” in Additional file 3). The advantageous characteristics of the NB test in DESeq become apparent when we compare the two DEG identification methods (DESeq and baySeq) for any normalization method XXX: the XXX-DESeq combination outperforms the XXX-baySeq combination. These results indicate that the higher AUC values of the iDEGES/DESeq-DESeq are primarily by virtue of a well-ranked gene list produced from the NB test and that constructing a model based on bootstrap resampling employed in baySeq is difficult in a non-replicate situation.

We observed that the numbers of potential DEGs satisfying FDR < 0.1 in the iDEGES/DESeq were nearly zero (i.e., the estimated PDEG values were 0%) in all of the simulations, although the PDEG values were 5-25%. This is reasonable because any attempt to work without replicates will lead to conclusions of very limited reliability: DESeq employs a conservative approach to prevent spurious DE calls. Accordingly, a predefined floor PDEG value (= 5%) was used; i.e., 5% of the top-ranked genes were not used when calculating the normalization factors in the iDEGES/DESeq and iDEGES/TDT methods. These facts indicate that (i) iDEGES/DESeq performs almost as well as the original normalization method in DESeq when the floor PDEG value is decreased from the default (= 5%), (ii) the methods perform equally well when the floor PDEG value of 0% for iDEGES/DESeq is used, and (iii) iDEGES/DESeq (and iDEGES/TDT) with a floor value of x% tends to work better when analyzing simulation data with the same PDEG value. Note that we set the floor PDEG value to 5% in order to obtain certain differences between the iDEGES-based methods and the original DESeq, but we should consider the appropriate choice of the parameter in the future. Results of iterations in the iDEGES approach (i.e., convergent or non-convergent) when analyzing two-group data without replicates were given in Additional file 4.

Real data (ArabidopsisRDR6 knockout dataset)

Here, we describe the results for a real dataset with replicates, i.e., {WT1, WT2} vs. {KO1, KO2}. The experiment was originally reported in Ref. [9]. Following the evaluation scheme in Table 1, we calculated the AUC values by using the 18 combinations shown in Table 4. Consistent with the results shown in Table 1, we found that the XXX-edgeR combination (i.e., the use of the DEG identification method in edgeR after any normalization method) was the best, and consequently, we recommend using this combination to analyze two-group data with replicates. Although the iDEGES/edgeR-edgeR combination performed the best on simulation data with replicates (see Table 1), iDEGES/edgeR did not distinguish itself among the six XXX-edgeR combinations. Note also that the AUC value for iDEGES/edgeR with n = 3 (65.70%) was inferior to that for iDEGES/edgeR with n = 1 (i.e., DEGES/edgeR; 69.28%), suggesting that the iterative approach had a negative impact on this TMM-(edgeR-TMM) n pipeline.

Table 4 AUC values for an RDR6 knockout dataset

To see the effect of iteration, we investigated the changes in the AUC values for the four XXX-edgeR combinations (XXX = iDEGES/TbT, iDEGES/edgeR, iDEGES/TDT, and iDEGES/DESeq) when the default floor PDEG value (= 5%) was used (Figure 2a). The figure shows that the values from the iDEGES/edgeR pipeline (black lines) has a cyclic characteristics with NP = 7, and the cycle starts at the 7th iteration (i.e., NS = 7). In contrast, the AUC values from the other pipelines had convergent characteristics: Nc = 3 for iDEGES/TbT, 2 for iDEGES/DESeq, and 5 for iDEGES/TDT. Interestingly, the PDEG values estimated by iDEGES/edgeR, iDEGES/TDT, and iDEGES/DESeq were 0% in every iteration. Because of that, the floor PDEG value (5% default) was employed instead of the original values. Meanwhile, the estimated PDEG values for iDEGES/TbT were above 5% in every iteration (ranging from 6.09% to 6.18%). These results indicate that the floor value of 5% for PDEG has no effect on whether the results converge or not.

Figure 2
figure 2

Effect of iterations for an RDR6 knockout dataset. (a) AUC values for four XXX-edgeR combinations with different iteration numbers (n = 0 ~ 30) when using a default floor PDEG value (= 5%) are shown: XXX = iDEGES/TbT (red lines), iDEGES/edgeR (black lines) , iDEGES/TDT (blue lines) , and iDEGES/DESeq (light blue lines). The AUC values after convergence were 69.64% for iDEGES/TbT at the 3rd iteration and 64.88% for iDEGES/DESeq at the 2nd iteration. The maximum and minimum values among cycles for iDEGES/edgeR were 67.37% and 64.57%, respectively. Note that the AUC values for three pipelines (iDEGES/TbT, iDEGES/edgeR, and iDEGES/TDT) are the same (= 68.36%) when n = 0 because those pipelines correspond to XXX = TMM (i.e., the TMM-edgeR combination). The first cycle for the non-convergent (P) results is indicated by a brace. (b) AUC values when using a 10% floor PDEG value are shown. The NP values for iDEGES/TbT, iDEGES/edgeR, and iDEGES/TDT were 8, 3, and 3, respectively.

We observed that the compositions of the potential DE sRNAs were identical when the AUC values were the same (see, e.g., light blue line at n = 2 ~ 30). This was true even for cyclic results (e.g., the compositions obtained from iDEGES/edgeR at the 10th, 17th, and 24th iterations). The different AUC values, in turn, were due to the difference in the normalization factors at each iteration and the different compositions caused the next normalization factors to be different. We found that the relatively large difference in the AUC values among cycles for the non-convergent results (approximately 3% difference) were due to (i) the paucity of variations among the 657 provisional true DE sRNAs and (ii) their low expression levels. Of the 657 sRNAs, there were only 143 unique patterns of counts across the four samples (i.e., WT1, WT2, KO1, and KO2). For example, there were 91 DE sRNAs that had one tag count only in WT1, i.e., (1, 0, 0, 0) and 200 DE sRNAs that had one count only in WT2, i.e., (0, 1, 0, 0). These two count patterns occupied 44.3% of the 657 DE sRNAs. Such low-count DE sRNAs cannot be distinguished from other non-DE sRNAs if both patterns are identical. Indeed, we found that the positions for the low-count DE sRNAs in the ranked gene list varied from iteration to iteration.

Similar to the paucity of variations regarding the count vectors for the 657 DE sRNAs, we found that out of a total of 70,619 sRNAs, there were only 2,535 unique patterns of sRNA counts. This indicates that many sRNAs displayed the same degrees of DE, and therefore, their ranks (or the AUC values calculated based on the ranks) will vary if slight changes are made to the calculated normalization factors. Indeed, we observed considerably different changes in the AUC values when a higher floor PDEG value of 10% was used (Figure 2b); e.g., the results for iDEGES/TbT converged when a 5% floor was used, but they became cyclic when 10% was used (the red lines in the figure). We also found that iDEGES/ TbT, iDEGES/edgeR, and iDEGES/TDT performed about the same when a 10% floor was used. These results indicate that the large difference between AUC values in this dataset might be within the error range.

All results described above were obtained with the original raw count data, in accordance with the edgeR and baySeq design. However, we should note that the current procedure is different from one recommended in the TbT paper [17], where the data was scaled to counts per million (CPM) in each sample when the DEG identification method in baySeq (i.e., the empirical Bayesian method) was executed. This recommendation was derived from a comparison of uncertain AUC values between the raw count data and the CPM data of this dataset, and it is now questionable. Accordingly, all the procedures implemented in the current TCC are based on the original raw count data.

Real data (four ReCount datasets)

Lastly, let us show the results of four experimental datasets: three human RNA-seq datasets (called “sultan” [4], “gilad” [22], and “maqc” [23]) and one mouse dataset (“katz.mouse” [24]). These datasets were obtained from the ReCount database [25]. Different from the RDR6 dataset and simulated datasets, we do not know the true DEGs for the four datasets, indicating that we cannot calculate the AUC values. We therefore investigated the effect of iteration regarding the potential DEGs to be eliminated (i.e., convergent or non-convergent). Consistent with the RDR6 result, we observed several cyclic (P) characteristics for the ReCount datasets (see “Sheet 2” in Additional file 5).

It is important to evaluate the degree of impact for the cyclic results. In the gilad dataset, for example, we observed cyclic results for two DEGES pipelines: iDEGES/edgeR (NS = 3 and NP = 3) and iDEGES/TbT (NS = 3 and NP = 2). Figure 3 shows the results of hierarchical clustering applied to a total of 26 ranked gene lists (13 XXX-edgeR and 13 XXX-DESeq combinations). Two distinct clusters can be seen: each cluster (i) consists of 13 gene lists with the same DEG identification methods after performing different normalization methods (i.e., the XXX-edgeR cluster and the XXX-DESeq cluster) and (ii) has five cyclic results (denoted as “(iteration number) followed by combination name”; e.g., “(n = 4)iDEGES/TbT-edgeR”). It is clear that the five cyclic results are quite similar to the eight other results. We also got similar results for another dataset (see Additional file 6). These results suggest that cyclic results are not of concern in practice.

Figure 3
figure 3

Dendrogram of average-linkage hierarchical clustering for a gilad dataset. Dendrograms for a total of 26 ranked gene lists when using a default floor PDEG value setting (= 5%) are shown. The correlation coefficient is used as a similarity metric; the left-hand scale represents (1 - correlation coefficient). Each gene list is denoted as an “XXX-YYY” combination (the normalization method XXX followed by the DEG identification method YYY). Gene lists having iteration numbers on the left side correspond to cyclic results.

Conclusion

The R package TCC provides users with a robust and accurate framework to perform DE analysis of tag count data. TCC has an improved data normalization step, compared with existing packages such as edgeR. While the other normalization strategies assume that there is an approximately balanced proportion of DEGs between compared samples (i.e., unbiased DE), our multi-step DEGES-based normalization methods are designed to deal with various scenarios (including unbiased and biased DE situations): the internally used DEG identification method eliminates the effects of biases, if any, of potential DEGs. Our study demonstrated that the iDEGES/edgeR-edgeR combination can be recommended for analyzing two-group data with replicates (see Tables 1 and 2) and that the iDEGES/DESeq-DESeq can be recommended for analyzing two-group data without replicates (see Additional file 3). The success of these methods primarily owes to the high scalability of the normalization and DEG identification methods in the R packages used in TCC.

The functionality of TCC can be extended in many ways. First, the current study focuses on the analysis of two-group data, but some users may want to utilize the DEGES-based methods for data consisting of two or more groups. As can be seen in the vignette, some prototypes of DEGES-based pipelines for analyzing data in three or four groups have already been implemented. Evaluations such as these and further improvement are our next tasks. Second, the current approach of TCC is somewhat reminiscent of a microarray analysis of the count matrix for genes. We know that (i) one or more isoforms can be transcribed in a same gene region, (ii) those transcripts may have distinct expression levels, and (iii) it could lead to a DE result at the transcript level but a non-DE result at the gene level. To prevent this possible problem and fully utilize the resolution of RNA-seq data, advanced R packages (e.g., BitSeq[21] and DEXSeq[14]) have recently been developed. We believe that the use of those packages together with DEGES enables us to obtain a more reliable result, because the idea of DEGES can, of course, be applied to DE analysis at both gene-level and transcript-level resolutions.

Finally, the current DEGES-based normalization methods implemented in TCC only employ linear scaling normalization methods and statistical methods for identifying DEGs. This is because these scaling normalization methods do not change the shape of the original count distribution and the statistical methods for identifying DEGs in edgeR, DESeq, and baySeq assume the model. Technically speaking, we can construct many other pipelines consisting of, for example, a non-linear normalization method (e.g., quantile normalization [26]) and a DEG identification method originally developed for microarray analysis (e.g., WAD [27]). As we learned from the microarrays, there are suitable combinations of normalization methods and DEG identification methods [28]: we speculate that a non-linear normalization method would be incompatible with a statistical DE method. A critical evaluation of those pipelines will be of interest in the future and we will continue to offer up-to-date guidelines.

Availability and requirements

Project name: TCC

Project home page: TCC is available at http://www.iu.a.u-tokyo.ac.jp/~kadota/TCC/ and will appear in Bioconductor (http://bioconductor.org/) from ver. 2.13.

Operating systems: Platform independent

Programming language: R

Other requirements: requires the edgeR, DESeq, baySeq, and ROC packages

License: GPL-2

Any restrictions to use by non-academics: None

Acknowledgments

The authors thank Dr. TJ Hardcastle for providing the dataset used in the baySeq study. This study was supported by grants (KAKENHI 24500359 to KK and 22128008 to TN) from the Japanese Ministry of Education, Culture, Sports, Science and Technology (MEXT).

Abbreviations

DE:

Differential expression

DEG:

Differentially expressed gene

DEGES:

DEG elimination strategy

FDR:

False discovery rate

CPM:

Counts per million (normalization)

sRNA:

small RNA

tasRNA:

TAS locus-derived small RNA

TMM:

Trimmed mean of M values (method)

TbT:

the TMM-baySeq-TMM pipeline

TCC:

Tag count comparison.

References

  1. Schuster SC: Next-generation sequencing transforms today’s biology. Nat Methods. 2008, 5: 16-18.

    Article  CAS  PubMed  Google Scholar

  2. Mardis ER: The impact of next-generation sequencing technology on genetics. Trends Genet. 2008, 24 (3): 133-141. 10.1016/j.tig.2007.12.007.

    Article  CAS  PubMed  Google Scholar

  3. Mortazavi A, Williams BA, McCue K, Schaeffer L, Wold B: Mapping and quantifying mammalian transcriptomes by RNA-Seq. Nat Methods. 2008, 5 (7): 621-628. 10.1038/nmeth.1226.

    Article  CAS  PubMed  Google Scholar

  4. Sultan M, Schulz MH, Richard H, Magen A, Klingenhoff A, Scherf M, Seifert M, Borodina T, Soldatov A, Parkhomchuk D, Schmidt D, O’Keeffe S, Haas S, Vingron M, Lehrach H, Yaspo ML: A global view of gene activity and alternative splicing by deep sequencing of the human transcriptome. Science. 2008, 321 (5891): 956-960. 10.1126/science.1160342.

    Article  CAS  PubMed  Google Scholar

  5. Marioni JC, Mason CE, Mane SM, Stephens M, Gilad Y: RNA-seq: an assessment of technical reproducibility and comparison with gene expression arrays. Genome Res. 2008, 18 (9): 1509-1517. 10.1101/gr.079558.108.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  6. Asmann YW, Klee EW, Thompson EA, Perez EA, Middha S, Oberg AL, Therneau TM, Smith DI, Poland GA, Wieben ED, Kocher JP: 3′ tag digital gene expression profiling of human brain and universal reference RNA using Illumina Genome Analyzer. BMC Genomics. 2009, 10: 531-10.1186/1471-2164-10-531.

    Article  PubMed Central  PubMed  Google Scholar

  7. R Development Core Team: R: A Language and Environment For Statistical Computing. 2011, Vienna, Austria: R Foundation for Statistical computing

    Google Scholar

  8. Robinson MD, McCarthy DJ, Smyth GK: edgeR: a Bioconductor package for differential expression analysis of digital gene expression data. Bioinformatics. 2010, 26 (1): 139-140. 10.1093/bioinformatics/btp616.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  9. Hardcastle TJ, Kelly KA: baySeq: empirical Bayesian methods for identifying differential expression in sequence count data. BMC Bioinformatics. 2010, 11: 422-10.1186/1471-2105-11-422.

    Article  PubMed Central  PubMed  Google Scholar

  10. Anders S, Huber W: Differential expression analysis for sequence count data. Genome Biol. 2010, 11: R106-10.1186/gb-2010-11-10-r106.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  11. Wang L, Feng Z, Wang X, Wang X, Zhang X: DEGseq: an R package for identifying differentially expressed genes from RNA-seq data. Bioinformatics. 2010, 26 (1): 136-138. 10.1093/bioinformatics/btp612.

    Article  PubMed  Google Scholar

  12. Di Y, Schafer DW, Cumbie JS, Chang JH: The NBP negative binomial model for assessing differential gene expression from RNA-Seq. Stat Appl Genet Mol Biol. 2011, 10: art24-

    Google Scholar

  13. Tarazona S, Garcia-Alcalde F, Dopazo J, Ferrer A, Conesa A: Differential expression in RNA-seq: a matter of depth. Genome Res. 2011, 21 (12): 2213-2223. 10.1101/gr.124321.111.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  14. Anders S, Reyes A, Huber W: Detecting differential usage of exons from RNA-seq data. Genome Res. 2012, 22 (10): 2008-2017. 10.1101/gr.133744.111.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  15. Robinson MD, Oshlack A: A scaling normalization method for differential expression analysis of RNA-seq data. Genome Biol. 2010, 11: R25-10.1186/gb-2010-11-3-r25.

    Article  PubMed Central  PubMed  Google Scholar

  16. Robinson MD, Smyth GK: Small-sample estimation of negative binomial dispersion, with applications to SAGE data. Biostatistics. 2008, 9: 321-332.

    Article  PubMed  Google Scholar

  17. Kadota K, Nishiyama T, Shimizu K: A normalization strategy for comparing tag count data. Algorithms Mol Biol. 2012, 7: 5-10.1186/1748-7188-7-5.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  18. Garmire LX, Subramaniam S: Evaluation of normalization methods in mammalian microRNA-Seq data. RNA. 2012, 18: 1279-1288. 10.1261/rna.030916.111.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  19. Dillies MA, Rau A, Aubert J, Hennequet-Antier C, Jeanmougin M, Servant N, Keime C, Marot G, Castel D, Estelle J, Guernec G, Jagla B, Jouneau L, Laloë D, Le Gall C, Schaëffer B, Le Crom S, Guedj M, Jaffrézic F, on behalf of The French StatOmique Consortium: A comprehensive evaluation of normalization methods for Illumina high-throughput RNA sequencing data analysis. Brief Bioinform. 2012, 10.1093/bib/bbs046.

    Google Scholar

  20. Gentleman RC, Carey VJ, Bates DM, Bolstad B, Dettling M, Dudoit S, Ellis B, Gautier L, Ge Y, Gentry J, Hornik K, Hothorn T, Huber W, Iacus S, Irizarry R, Leisch F, Li C: Bioconductor: open software development for computational biology and bioinformatics. Genome Biol. 2004, 5: R80-10.1186/gb-2004-5-10-r80.

    Article  PubMed Central  PubMed  Google Scholar

  21. Glaus P, Honkela A, Rattray M: Identifying differentially expressed transcripts from RNA-seq data with biological variation. Bioinformatics. 2012, 28 (13): 1721-1728. 10.1093/bioinformatics/bts260.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  22. Blekhman R, Marioni JC, Zumbo P, Stephens M, Gilad Y: Sex-specific and lineage-specific alternative splicing in primates. Genome Res. 2010, 20 (2): 180-189. 10.1101/gr.099226.109.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  23. Bullard JH, Purdom E, Hansen KD, Dudoit S: Evaluation of statistical methods for normalization and differential expression in mRNA-Seq experiments. BMC Bioinformatics. 2010, 11: 94-10.1186/1471-2105-11-94.

    Article  PubMed Central  PubMed  Google Scholar

  24. Katz Y, Wang ET, Airoldi EM, Burge CB: Analysis and design of RNA sequencing experiments for identifying isoform regulation. Nat Methods. 2010, 7 (12): 1009-1015. 10.1038/nmeth.1528.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  25. Frazee AC, Langmead B, Leek JT: ReCount: A multi-expreriment resource of analysis-ready RNA-seq gene count datasets. BMC Bioinformatics. 2011, 12: 449-10.1186/1471-2105-12-449.

    Article  PubMed Central  PubMed  Google Scholar

  26. Bolstad BM, Irizarry RA, Astrand M, Speed TP: A comparison of normalization methods for high density oligonucleotide array data based on variance and bias. Bioinformatics. 2003, 19 (2): 185-193. 10.1093/bioinformatics/19.2.185.

    Article  CAS  PubMed  Google Scholar

  27. Kadota K, Nakai Y, Shimizu K: A weighted average difference method for detecting differentially expressed genes from microarray data. Algorithms Mol Biol. 2008, 3: 8-10.1186/1748-7188-3-8.

    Article  PubMed Central  PubMed  Google Scholar

  28. Kadota K, Nakai Y, Shimizu K: Ranking differentially expressed genes from Affymetrix gene expression data: methods with reproducibility, sensitivity, and specificity. Algorithms Mol Biol. 2009, 4: 7-10.1186/1748-7188-4-7.

    Article  PubMed Central  PubMed  Google Scholar

Download references

Author information

Authors and Affiliations

Authors

Corresponding author

Correspondence to Koji Kadota.

Additional information

Competing interests

The authors declare that they have no competing interests.

Authors’ contributions

JS improved the TCC package, performed the analysis, and drafted the paper. TN drafted, maintained the TCC package, and refined the paper. KS supervised the critical discussion and refined the paper. KK drafted the R scripts, refined the paper, and conducted this project. All the authors read and approved the final manuscript.

Electronic supplementary material

12859_2013_5974_MOESM1_ESM.xls

Additional file 1: Additional results for simulation data with replicates. Sheet 1: Standard deviations of AUC values in Table 1 are shown. Legends are the same as given in Table 1. Sheet 2: Estimated values for PDEG and accuracies of the potential DEGs are shown. Averages of 100 trials are shown. Values for (a) TMM do not exist because it does not estimate potential DEGs. Following the original TbT study, the PDEG value for DEGES/TbT was directly obtained from the posterior probability output of baySeq (i.e., a floor value for PDEG was set to 0%; floorPDEG = 0.00) and the accuracy was calculated on the basis of the estimated DEGs. The estimated PDEG values for the other DEGES-based methods were calculated as relative numbers of genes satisfying FDR < 0.1 (i.e., FDR = 0.1). The accuracy was calculated on the basis of the potential DEGs if the PDEG value was over 5% of the predefined floor PDEG value (i.e., floorPDEG = 0.05) and, otherwise, the accuracy of the 5% of top-ranked genes was calculated as the surrogate DEGs. (XLS 34 KB)

12859_2013_5974_MOESM2_ESM.xls

Additional file 2: Effect of iterations for simulation data with replicates. Details of the results in Table 3 are shown. Sheet 1: The NC and NP values are shown: (a) iDEGES/TbT, (b) iDEGES/edgeR, (c) iDEGES/TDT, and (d) iDEGES/DESeq. Sheet 2: Raw results (convergent (C) or non-convergent (P)) for each of the 100 trials are shown. The number to the right of the C (or P) indicates the NC (or NP) value. Sheet 3: Average AUC values (%) for the iDEGES/edgeR-edgeR. AUC values with n = 1-6 for (a) all trials, (b) trials only having convergent results, and (c) trials only having non-convergent results are shown. (XLS 78 KB)

12859_2013_5974_MOESM3_ESM.xls

Additional file 3: Results for simulation data without replicates. Results of four normalization methods (XXX = (a) DESeq, (b) iDEGES/DESeq, (c) iDEGES/TDT, and (d) DEGES/TbT) under each simulation condition are shown. Sheet 1: Average AUC values (%) of 100 trials and the standard deviations from the XXX-DESeq and the XXX-baySeq combinations are shown. Legends are the same as in Table 1. Sheet 2: Estimated values for PDEG and accuracies of the potential DEGs are shown. Averages of 100 trials are shown. Values for (a) DESeq do not exist because it does not estimate potential DEGs. Other legends are the same as in Additional file 1. Sheet 3: Average computation times (in seconds) of 100 trials for the four normalization methods are shown. (XLS 37 KB)

12859_2013_5974_MOESM4_ESM.xls

Additional file 4: Effect of iterations for simulation data without replicates. Sheet 1: Summary of convergent or non-convergent (cyclic) results of 100 trials for three iDEGES-based normalization methods: (a) iDEGES/DESeq, (b) iDEGES/TDT, and (c) iDEGES/TbT. Sheet 2: Raw results (convergent (C) or non-convergent (P)) for each of the 100 trials are shown. Sheet 3: Average AUC values (%) for the iDEGES/DESeq-DESeq. AUC values with n = 1-6 for (a) all trials, (b) trials only having convergent results, and (c) trials only having non-convergent results are shown. The characteristics of NP = 2 for non-convergent results can be seen. (XLS 45 KB)
