Volume 16 Supplement 13
Proceedings of the 12th Annual MCBIOS Conference
A heuristic approach to determine an appropriate number of topics in topic modeling
- Weizhong Zhao^{1, 2},
- James J Chen^{1},
- Roger Perkins^{1},
- Zhichao Liu^{1},
- Weigong Ge^{1},
- Yijun Ding^{1} and
- Wen Zou^{1}Email author
DOI: 10.1186/1471-2105-16-S13-S8
© Zhao et al. 2015
Published: 1 December 2015
Abstract
Background
Topic modelling is an active research field in machine learning. While mainly used to build models from unstructured textual data, it offers an effective means of data mining where samples represent documents, and different biological endpoints or omics data represent words. Latent Dirichlet Allocation (LDA) is the most commonly used topic modelling method across a wide number of technical fields. However, model development can be arduous and tedious, and requires burdensome and systematic sensitivity studies in order to find the best set of model parameters. Often, time-consuming subjective evaluations are needed to compare models. Currently, research has yielded no easy way to choose the proper number of topics in a model beyond a major iterative approach.
Methods and results
Based on analysis of variation of statistical perplexity during topic modelling, a heuristic approach is proposed in this study to estimate the most appropriate number of topics. Specifically, the rate of perplexity change (RPC) as a function of numbers of topics is proposed as a suitable selector. We test the stability and effectiveness of the proposed method for three markedly different types of grounded-truth datasets: Salmonella next generation sequencing, pharmacological side effects, and textual abstracts on computational biology and bioinformatics (TCBB) from PubMed.
Conclusion
The proposed RPC-based method is demonstrated to choose the best number of topics in three numerical experiments of widely different data types, and for databases of very different sizes. The work required was markedly less arduous than if full systematic sensitivity studies had been carried out with number of topics as a parameter. We understand that additional investigation is needed to substantiate the method's theoretical basis, and to establish its generalizability in terms of dataset characteristics.
Keywords
Rate of perplexity change (RPC) perplexity topic number latent Dirichlet allocation (LDA)Background
Topic models are Bayesian statistical models where unstructured data, normally a set of textual documents, are structured in accordance with latent themes called topics that have multinomial distributions on words. Given a collection of unstructured text documents, topic modeling assumes that there are a certain number of latent topics in the collection of documents (corpus) and that each document contains multiple topics in different proportions. Researchers have developed several topic models, including Latent Semantic Indexing (LSA) [1], Probabilistic Latent Semantic Analysis (PLSA) [2, 3], and Latent Dirichlet Allocation (LDA) [4]. Topic modeling has wide applications in various fields such as text mining [2–5], image retrieval [6], social network analysis [7] and bioinformatics analysis [8–11].
- (a)
Select a multinomial distribution φ_{ t } for topic t (t ∈{1,..., T}) from a Dirichlet distribution with parameter β.
- (b)
Select a multinomial distribution θ_{ d } for document d (d ∈{1,..., M}) from a Dirichlet distribution with parameter α.
- (c)For a word w_{ n } (n ∈{1,..., N_{ d } }) in document d,
- (i)
Select a topic z_{ n } from θ_{ d }.
- (ii)
Select a word w_{ n } from φ_{ zn }.
- (i)
Due to the coupling between θ and φ in the integrand in Eq. (1), exact inference in LDA is intractable. Various approximate algorithms such as variational inference [4, 6–8] or Markov chain Monte Carlo (MCMC) [5, 9, 11] are typically used for inference in LDA.
The effectiveness of LDA to segregate document collections into germane themes has been well demonstrated for document collections such as manually curated scientific literature where the "truth" within documents and the number of relevant themes are known a priori [10]; such sets of already structured documents are hereafter called truth sets. Difficulty arises, however, for unstructured document sets where document-wise content and number of relevant themes are not known a priori. That is, the best number of topics to enable the best topic model is unknown, while different numbers of topics will likely result in very different structuring of the corpus. An insufficient number of topics could render an LDA model that is too coarse to identify accurate classifiers. On the other hand, an excessive number of topics could result in a model that is too complex, making interpretation and subjective validation difficult [10]. We have been unable to identify any current efforts to develop a heuristic from which to evaluate an appropriate number of topics for a previously unseen and modelled, unstructured document set. Lacking such a heuristic to choose the number of topics, researchers have no recourse beyond an informed guess or time-consuming trial and error evaluation. For trial and error evaluation, an iterative approach is typical based on presenting different models with different numbers of topics, normally developed using cross-validation on held-out document sets, and selecting the number of topics for which the model is least perplexed by the test sets. Perplexity is a commonly used measurement in information theory to evaluate how well a statistical model describes a dataset, with lower perplexity denoting a better probabilistic model. Formally, for a test set of M documents, the perplexity is defined as $perplexity\left({D}_{test}\right)=\mathsf{\text{exp}}\left\{-\frac{{\sum}_{d=1}^{M}\mathsf{\text{log}}p\left({w}_{d}\right)}{{\sum}_{d=1}^{M}{N}_{d}}\right\}$[4]. Using the identified appropriate number of topics, LDA is performed on the whole dataset to obtain the topics for the corpus. We refer to this as the perplexity-based method.
Although the perplexity-based method may generate meaningful results in some cases, it is not stable and the results vary with the selected seeds even for the same dataset. In this study, we propose a new approach in which the rate of perplexity change (RPC) is calculated, and the change point of RPC is determined to be the most appropriate number of topics. The proposed approach is designated as RPC-based change point method (RPC is used hereafter). Three different types of datasets were applied to test the approach and the results validated the stability and effectiveness of the proposed method for selecting the best number of topics for LDA algorithms. The novel method was found to be unique, accurate, easy to use, and applicable to various kinds of datasets with different data types, and therefore, improving the accuracy and efficacy of topic model-based text mining and data mining.
Materials and methods
Datasets
In this study, three different types of datasets were utilized to test and evaluate the proposed approach. The first dataset is the whole genome sequences of 119 Salmonella enterica strains. The 119 Salmonella strains belong to Salmonella O antigen group B [12], including 75 S. Agona, 14 S. Heidelberg, 1 S. Paratyphi B, 2 S. Saintpaul, 2 S. Schwarzengrund, 1 S. Stanley, 22 S. Typhimurium, 1 S. Typhimurium var.5- and 1 S. 4,[5],12:i.
The second dataset was retrieved from the publicly available SIDER2 database (http://sideeffects.embl.de) [13]. The dataset includes 996 drugs with 4500 side effects filtered by MedDRA (Medical Dictionary for Regulatory Activities: http://www.meddra.org). The original dataset was represented by a 996 × 4500 drug-side effect matrix, where each entry is either 1 or 0, indicating presence or absence in the drug profile. In data preprocessing, each drug was considered as a document and each existing side effect term in a document was considered as a word in the vocabulary. The Anatomical Therapeutic Chemical (ATC) classification system (http://www.who.int/classifications/atcddd/en/) was applied to classify the 996 drugs in SIDER2 dataset according to their target organs or systems and their therapeutic, pharmacological and chemical properties. The ATC terms were utilized to evaluate the proposed method by calculating the k-means cluster purities.
We created the third dataset by retrieving the abstracts of papers published in the IEEE Transactions on Computational Biology and Bioinformatics (TCBB) from the PubMed database. The dataset was comprised of all the abstracts of 885 papers published in TCBB from 2004 to 2013. The dataset was preprocessed by tokenizing, removing stop words and stemming.
Developing the heuristic approach to determine the appropriate topic number
The LDA algorithm implemented in Mallet [14] was used in our study, where inference in Mallet was based on Gibbs sampling [5].
Method evaluation
Evaluation of method stability
The whole genome sequence dataset of 119 S. enterica strains was used to evaluate the stability of the proposed RPC-based change point method. The dataset was preprocessed and aligned with the multiple sequence alignment (MSA) algorithm MUSCLE [15]. Nucleotide differences among the sequences of 119 strains were taken to be single nucleotide polymorphisms (SNPs). Each resultant SNP and its corresponding coordinate location in the aligned sequence were encoded as a word.
where the distribution P is the normalized frequency of the derived appropriate topic numbers obtained in each of the approaches. The smaller the entropy value, the more stable the method.
Evaluation of method efficiency
Cluster analysis was conducted on the output of LDA models with various numbers of topics to evaluate the efficiency of the proposed method. For the sequence dataset of 119 Salmonella strains, leave-one-out (119-fold) cross validation was applied to calculate RPC values on the tested topic numbers 5, 10, plus increments of 10 up to 100. Hierarchical clustering algorithm and k-means algorithm with 10 clusters were conducted on the probabilities of obtained topics for all 119 strains. The purities of the resultant clusters were calculated based on the true labels (real serotypes of the strains). The average purities were considered as the final evaluation values for the LDA models with different number of topics. The running time of LDA models with different number of topics was compared to show the efficiencies of the proposed method.
Five-fold cross validation was applied on the SIDER2 dataset. Clustering analysis using the topic probabilities of the different drugs (documents) was conducted to comparatively evaluate the LDA models with different number of topics. Hierarchical clustering algorithm and k-means algorithm with two different settings of k (i.e., number of clusters) were used. Each cluster was labelled as the dominant ATC code among the drugs in the cluster and the ratio of the ATC code was calculated as purity of the cluster. The average purity of the obtained clusters by k-means method was used to evaluate LDA models with different numbers of topics. The running time of LDA models with different number of topics was also compared.
Five-fold cross validation was utilized to select the most appropriate number of topics for the TCBB dataset for the proposed method. The topic numbers 5, 10, and increments of ten up to 100 were used. A visual representation, word cloud, was created based on the distribution over words, and manually interpreted to evaluate the accuracies of the proposed method [17]. The word cloud generator (http://www.jasondavies.com/wordcloud) was used.
Results

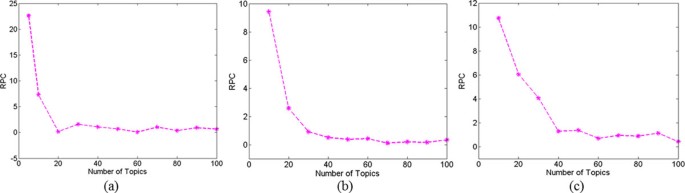

Development of RPC-based method
Evaluation of the proposed RPC-based method
Three different datasets were used in this study to evaluate the stability and efficiency of the approach proposed to choose a best number of topics in LDA topic modelling.
Comparison of method stabilities
Comparison of method efficiencies
LDA models were built for each of the three datasets for different numbers of topics, and of course including the selected appropriate numbers of topics. Each model's result provided matrices of topics, topic probability distributions across documents, and the word probability distributions across topics. The efficiencies of the proposed method were evaluated by data mining towards the derived LDA matrices from the three datasets.
Hierarchical clustering accuracy and running time of Salmonella sequence dataset
T* | 5 | 10 | 20 | 30 | 40 | 50 |
---|---|---|---|---|---|---|
Misclassified | 3 | 3 | 0 | 0 | 15 | 15 |
Time(ms) | 33,914 | 34,584 | 34,824 | 35,478 | 35,636 | 35,816 |
T | 60 | 70 | 80 | 90 | 100 | |
Misclassified | 15 | 15 | 15 | 15 | 15 | |
Time(ms) | 36,143 | 36,365 | 36,517 | 36,636 | 36,969 |
K-means clustering accuracy and running time of Salmonella sequence dataset
T | 5 | 10 | 20 | 30 | 40 | 50 |
---|---|---|---|---|---|---|
Purity** (k = 10) | 0.95 | 0.93 | 0.96 | 0.96 | 0.93 | 0.93 |
Time(ms) | 33,914 | 34,584 | 34,824 | 35,478 | 35,636 | 35,816 |
T | 60 | 70 | 80 | 90 | 100 | |
Purity (k = 10) | 0.93 | 0.93 | 0.93 | 0.93 | 0.93 | |
Time(ms) | 36,143 | 36,365 | 36,517 | 36,636 | 36,969 |
Hierarchical clustering accuracy and running time on SIDER2 dataset
T* | 5 | 10 | 20 | 30 | 40 | 50 |
---|---|---|---|---|---|---|
Misclassified | 443 | 411 | 362 | 355 | 285 | 205 |
Time (ms) | 43,378 | 45,233 | 48,252 | 49,278 | 50,493 | 51,443 |
T | 60 | 70 | 80 | 90 | 100 | |
Misclassified | 223 | 246 | 251 | 269 | 269 | |
Time (ms) | 52,526 | 52,577 | 54,298 | 54,468 | 54,608 |
K-means clustering accuracy and running time of SIDER2 dataset
T | 5 | 10 | 20 | 30 | 40 | 50 |
---|---|---|---|---|---|---|
Purity**(k = 20) | 0.41 | 0.44 | 0.53 | 0.53 | 0.53 | 0.58 |
Purity(k = 30) | 0.41 | 0.44 | 0.56 | 0.50 | 0.54 | 0.60 |
Time (ms) | 43,378 | 45,233 | 48,252 | 49,278 | 50,493 | 51,443 |
T | 60 | 70 | 80 | 90 | 100 | |
Purity (k = 20) | 0.59 | 0.55 | 0.57 | 0.56 | 0.54 | |
Purity(k = 30) | 0.59 | 0.57 | 0.57 | 0.56 | 0.56 | |
Time (ms) | 52,526 | 52,577 | 54,298 | 54,468 | 54,608 |
Abstracts with label T8 (Estimation models)
PMID* | Title | Probability of T8 |
---|---|---|
21519119 | Inferring the number of contributors to mixed DNA profiles | 0.642 |
21844637 | Exploiting the functional and taxonomic structure of genomic data by probabilistic topic modeling | 0.568 |
24384712 | Computing the joint distribution of tree shape and tree distance for gene tree inference and recombination detection | 0.511 |
24042552 | Computing the Joint Distribution of Tree Shape and Tree Distance for Gene Tree Inference and Recombination Detection | 0.474 |
21030742 | The Metropolized Partial Importance Sampling MCMC mixes slowly on minimum reversal rearrangement paths | 0.467 |
21116045 | On the distribution of the number of cycles in the breakpoint graph of a random signed permutation | 0.398 |
19407352 | Statistical alignment with a sequence evolution model allowing rate heterogeneity along the sequence | 0.365 |
17277422 | On the length of the longest exact position match in a random sequence | 0.352 |
20733238 | Identifiability of two-tree mixtures for group-based models | 0.308 |
22331862 | Faster mass spectrometry-based protein inference: junction trees are more efficient than sampling and marginalization by enumeration | 0.291 |
19179700 | The identifiability of covarion models in phylogenetics | 0.286 |
17048396 | A short proof that phylogenetic tree reconstruction by maximum likelihood is hard | 0.281 |
18670048 | Hadamard conjugation for the Kimura 3ST model: combinatorial proof using path sets | 0.267 |
21233528 | Semantics and ambiguity of stochastic RNA family models | 0.204 |
Discussion
Topic models can often provide highly effective means for text mining and knowledge discovery, especially in the big data era. They are also agnostic as to data type since, for example, biological samples can be considered documents, and gene, protein, biological pathways and many other independent variables can be considered words. There are a myriad of potential applications.
Topic modelling also has drawbacks. They require skill and experience to successfully apply. With all text mining approaches, validation can be difficult, tedious and subjective, where truth is not known a priori. Finally, determining the "best model" is an iterative process to determine the parameter values that yield the best outcome, among which is the number of topics.
Currently, a set reasonable guesses or perplexity minimization is mostly used to select an appropriate number of topics for LDA modelling. Both of these approaches are reasonable, but carry a high burden of time and work to carry out the needed sensitivity (parameter) studies. A systematic sensitivity study is further complicated by the variation in models with random seed sampling during the generative model building process.
The new heuristic approach developed in this study attempts to overcome these weaknesses on the selection of an appropriate number of topics in LDA modelling by offering a heuristic alternative to a full-blown sensitivity study. Rather than choosing among several numbers of topics over a potentially large range where perplexity fluctuates (middle stage M in Figure 6b), the quantity defined as the change-point of rate of perplexity change can be chosen as a putative best number of topics from a heuristic analysis.
We conjecture a theoretical justification for use of RPC-based method on the principle of change-point [18]. For a given series of random variables x_{1}, x_{2},..., x_{ T }, the change-point is distinguished as t if a distribution function F_{1}(x) shared by x_{1}, x_{2},..., x_{ t } is different with F_{2}(x) shared by x_{ t }, x_{t+1},..., x_{ T }. Applied on the RPC series with increasing candidate topic numbers T_{1}, T_{2},..., T_{ K }, the first number T_{ i } which satisfies RPC(T_{ i }) <RPC(T_{i+1}) is considered as the most appropriate topic number for the corresponding dataset.
The results confirm that the proposed RPC-based method is stable, accurate and effective for the three numerical experiments presented, each of which constitutes very different data types. In particular, LDA models using numbers of topics from RPC-based selection yielded the matrices for data mining datasets for genomic sequence, drug pharmacology, and textual documents, demonstrating some generalizability across data types. Choosing the best number of topics is an omnipresent concern in topic modelling, as well as other latent variable methodologies. The comparatively simple RPC-based heuristic we propose could simplify topic model development, generally, for many applications, and offer an easier means to use development time for better fine tuning of models.
Declarations
Acknowledgements
The findings and conclusions in this article have not been formally disseminated by the US Food and Drug Administration (FDA) and should not be construed to represent the FDA determination or policy. This work and the publication were funded by FDA. Dr. Weizhong Zhao acknowledges the support of a fellowship from the Oak Ridge Institute for Science and Education, administered through an interagency agreement between the U.S. Department of Energy and the U.S. Food and Drug Administration. Dr. Weizhong Zhao would also like to thank the support of National Natural Science Foundation of China (No. 61105052, 61202398, 61272295). We are grateful to Ms. Beth Juliar and Mr. Mackean Maisha for critical reading of this manuscript. We specially thank Dr. Ke Yu for his valuable discussions and suggestions.
This article has been published as part of BMC Bioinformatics Volume 16 Supplement 13, 2015: Proceedings of the 12th Annual MCBIOS Conference. The full contents of the supplement are available online at http://www.biomedcentral.com/bmcbioinformatics/supplements/16/S13.
References
Authors’ Affiliations
References
- Deerwester S, Dumais ST, Furnas GW, Landauer TK, Harshman R: Indexing by Latent Semantic Analysis. J Am Soc Inform Sci. 1990, 41 (6): 391-407. 10.1002/(SICI)1097-4571(199009)41:6<391::AID-ASI1>3.0.CO;2-9.View ArticleGoogle Scholar
- Hofmann T: Unsupervised learning by probabilistic latent semantic analysis. Machine Learning. 2001, 42 (1-2): 177-196.View ArticleGoogle Scholar
- Hofmann T: Probabilistic latent semantic indexing. Proceedings of the 22nd annual international ACM SIGIR conference on Research and development in information retrieval. 1999, 50-57.Google Scholar
- Blei DM, Ng AY, Jordan MI: Latent Dirichlet Allocation. Journal of Machine Learning Research. 2003, 3: 993-1022.Google Scholar
- Griffiths TL, Steyvers M: Finding scientific topics. Proc Natl Acad Sci U S A. 2004, 101 (Suppl 1): 5228-5235.View ArticlePubMedPubMed CentralGoogle Scholar
- Blei DM, Jordan MI: Modeling annotated data. Proceedings of the 26th annual international ACM SIGIR conference on Research and development in informaion retrieval. 2003, 127-134.View ArticleGoogle Scholar
- Airoldi EM, Blei DM, Fienberg SE, Xing EP: Mixed Membership Stochastic Blockmodels. J Mach Learn Res. 2008, 9: 1981-2014.PubMedPubMed CentralGoogle Scholar
- Rogers S, Girolami M, Campbell C, Breitling R: The latent process decomposition of cDNA microarray data sets. IEEE/ACM transactions on computational biology and bioinformatics. 2005, 2 (2): 143-156. 10.1109/TCBB.2005.29.View ArticlePubMedGoogle Scholar
- Shivashankar S, Srivathsan S, Ravindran B, Tendulkar AV: Multi-view methods for protein structure comparison using latent dirichlet allocation. Bioinformatics. 2011, 27 (13): i61-i68. 10.1093/bioinformatics/btr249.View ArticlePubMedPubMed CentralGoogle Scholar
- Zhao W, Zou W, Chen JJ: Topic modeling for cluster analysis of large biological and medical datasets. BMC Bioinformatics. 2014, 15 (Suppl 11): S11-10.1186/1471-2105-15-S11-S11.View ArticlePubMedPubMed CentralGoogle Scholar
- Coelho LP, Peng T, Murphy RF: Quantifying the distribution of probes between subcellular locations using unsupervised pattern unmixing. Bioinformatics. 2010, 26 (12): i7-i12. 10.1093/bioinformatics/btq220.View ArticlePubMedPubMed CentralGoogle Scholar
- Grimont PA, Weill FX: Antigenic formulae of the Salmonella serovars. Paris, France: WHO Collaborting Centre for Reference and Research on Salmonella. 2007, 9Google Scholar
- Kuhn M, Campillos M, Letunic I, Jensen LJ, Bork P: A side effect resource to capture phenotypic effects of drugs. Mol Syst Biol. 2010, 6: 343-View ArticlePubMedPubMed CentralGoogle Scholar
- McCallun AK: MALLET: A Machine Learning for Language Toolkit. 2002, [http://http://mallet.cs.umass.edu/]Google Scholar
- Edgar RC: MUSCLE: multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Res. 2004, 32 (5): 1792-1797. 10.1093/nar/gkh340.View ArticlePubMedPubMed CentralGoogle Scholar
- Shannon CE: A Mathematical Theory of Communication. At&T Tech J. 1948, 27 (3): 379-423.Google Scholar
- Halvey MJ, Keane MT: An Assessment of Tag Presentation Techniques. Proceedings of the 16th international conference on World Wide Web. 2007, 1313-1314.View ArticleGoogle Scholar
- Giraitis L, Leipus R, Surgailis D: The change-point problem for dependent observations. J Stat Plan Infer. 1996, 53 (3): 297-310. 10.1016/0378-3758(95)00148-4.View ArticleGoogle Scholar
