RiboaptDB: A Comprehensive Database of Ribozymes and Aptamers

BMC Bioinformatics20067(Suppl 2):S6

DOI: 10.1186/1471-2105-7-S2-S6

Published: 26 September 2006

Abstract

Background

Catalytic RNA molecules are called ribozymes. The aptamers are DNA or RNA molecules that have been selected from vast populations of random sequences, through a combinatorial approach known as SELEX. The selected oligo-nucleotide sequences (~200 bp in length) have the ability to recognize a broad range of specific ligands by forming binding pockets. These novel aptamer sequences can bind to nucleic acids, proteins or small organic and inorganic chemical compounds and have many potential uses in medicine and technology.

Results

The comprehensive sequence information on aptamers and ribozymes that have been generated by in vitro selection methods are included in this RiboaptDB database. Such types of unnatural data generated by in vitro methods are not available in the public 'natural' sequence databases such as GenBank and EMBL. The amount of sequence data generated by in vitro selection experiments has been accumulating exponentially. There are 370 artificial ribozyme sequences and 3842 aptamer sequences in the total 4212 sequences from 423 citations in this RiboaptDB. We included general search feature, and individual feature wise search, user submission form for new data through online and also local BLAST search.

Conclusion

This database, besides serving as a storehouse of sequences that may have diagnostic or therapeutic utility in medicine, provides valuable information for computational and theoretical biologists. The RiboaptDB is extremely useful for garnering information about in vitro selection experiments as a whole and for better understanding the distribution of functional nucleic acids in sequence space. The database is updated regularly and is publicly available at http://mfgn.usm.edu/ebl/riboapt/.

Background

Until about 25 years ago, all known enzymes were proteins. But then it was discovered that some RNA molecules also have enzymatic property; that is, catalyze covalent changes in the structure of substrates (most of which are also RNA molecules) [13]. Catalytic RNA molecules are called ribozymes. Since the discovery of ribozymes that exist in living organisms, there has been a lot of interest in the study of new synthetic ribozymes made in the laboratory. First Tang and Breaker [4] lab isolated self-cleaving RNAs originating from random-sequence RNAs by using in vitro selection method. A large number of self-cleaving RNAs have been produced that have good enzymatic activity [57]. Some of the synthetic ribozymes that were produced had novel structures, while some were similar to the naturally occurring hammerhead ribozyme [2, 8].

The aptamers are DNA or RNA molecules, possessing desirable affinity, selected by SELEX – Systemic Evolution of Ligands by Exponential enrichment method. This SELEX method is an in vitro iterative process that isolates binding aptamers from the random pool and amplifies each sequence by the polymerase chain reaction after each round of isolation [916]. The selected oligo-nucleotide sequences (~200 bp in length) have the ability to recognize specific ligands by forming binding pockets and can bind to nucleic acids, proteins or small organic, inorganic chemical compounds and even small organisms like viruses [1725].

Aptamers are a promising class of compounds, both for target validation and therapy. As designer drugs, they exhibit high specificity, high affinity, and modifiable bioavailability [2630]. The ability to generate inhibitors with such properties against a variety of target proteins will be invaluable as the human genome and proteome are deciphered [12, 3137].

The RiboaptDB is not only extremely useful both for identifying available aptamers and artificial ribozymes. It is also useful for acquiring information about in vitro selection experiments like the type of the nucleic acid, type of the target and conditions of the experiment as a whole and for better understanding the distribution of functional nucleic acids in the given sequence space. Like other types of sequences, the amount of sequences generated by in vitro selection experiments has been accumulating exponentially [10, 14]. The sheer number and diversity of selection experiments has risen to the point where it is now essential to gather all the sequence data into a comprehensive, continuously updated database. The general sequence databases like GenBank, EMBL and DDBJ do not maintain the complete collection of artificial nucleic acid sequences like aptamer and ribozyme. Another database, 'Aptamer database' also contains lot of information on this type of data but not regularly updating with new data [38, 39].

Construction and Content

Structure and implementation

The design of the RiboaptDB database schema follows the three level schema architecture as shown in the Figure 1. The database has been implemented using open source relational database MySQL [40] server version 4.1. The user-friendly web interface has been developed by using PHP language [41]. The web server is an open source Apache web server version 2.0. The figure 2 shows the Entity-Relationship (ER) schema of the database.
https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-7-S2-S6/MediaObjects/12859_2006_Article_1300_Fig1_HTML.jpg
Figure 1

Schematic illustration of three tier architecture of the RiboaptDB.

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-7-S2-S6/MediaObjects/12859_2006_Article_1300_Fig2_HTML.jpg
Figure 2

The schema and the dataflow of the RiboaptDB.

The "sequence" table is the key table in the database to which all other tables are related directly or indirectly. This table contains the sequence ID and relates directly with its child tables, "aptamer" and "ribozyme", which contains the corresponding sequence information. The other important tables in the database are "publication" and "experiment" which store the citation information like title, journal name, authors, pubmed ID and experiment details like template type and experiment conditions respectively. The target specific information, the target name and its category ('organic', 'inorganic', 'nucleic', 'peptide', 'protein' and 'other') obtained from the "target" table. If any information about non-canonical base pair is available, it can be retrieved through the "non-canonical" table.

Content

RiboaptDB is relatively small database but is, nonetheless, essentially complete. The data was sourced from a previous compilation and exhaustive searching of the primary literature. The current size of the database 4212 sequences from 423 citations.

In this, there are 370 artificial ribozyme sequences and 3842 aptamer sequences in the total 4212 sequences. The database is updated every month as new literature comes on aptamers and artificial ribozyme seqences. The intial collection of data is done through searching the NCBI-Pubmed for the literature with keywords like 'artificial ribozymes', 'ribozyme', 'aptamers', 'SELEX' etc. The usefulness of a database is governed by the accuracy of the data it contains. The data in this database is compiled manually from previous published, peer-reviewed articles, and verified.

Utility and Discussion

RiboaptDB provides users with an easy-to-use web interface with flexibility to select either ribozyme or aptamer sequences to browse the corresponding information. Beginning at the welcome page (Figure 3), the user can navigate via the top menu or the browse database tables on the side menu. A brief description about the navigation is given below.
https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-7-S2-S6/MediaObjects/12859_2006_Article_1300_Fig3_HTML.jpg

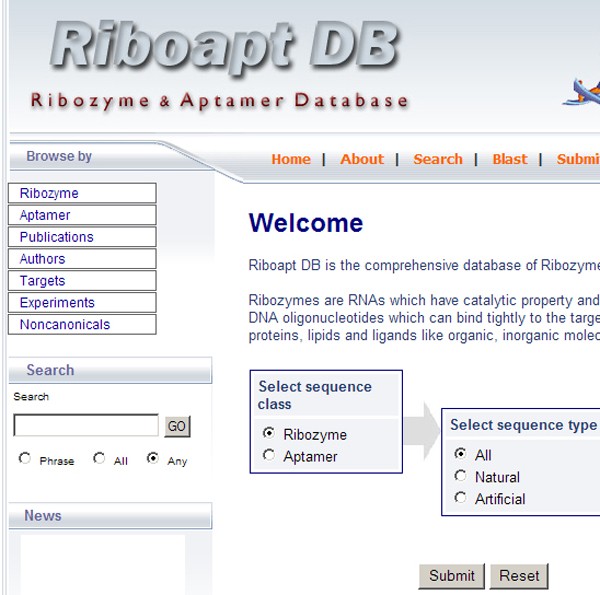

Figure 3

Screenshot of the homepage of the RiboaptDB, an user friendly interface for the database.

Search

The general complete search option provides an interface for a variety number of queries to the database. It can be used to search the database for sequence, experiment, target, author, publication and non-canonical along with either ribozyme or aptamer or both and also either natural or artificial type of sequences.

Local Blast

The local Blast option can be used to do blast search against the local archived data to perform sequence-similarity searches using the BLAST family of programs (Figure 4). This will useful to user to know the most similar sequences to the submitted sequences and also useful to know further information about its target and experiment details (Figure 5).
https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-7-S2-S6/MediaObjects/12859_2006_Article_1300_Fig4_HTML.jpg
Figure 4

Screenshot of the local BLAST page with default options.

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-7-S2-S6/MediaObjects/12859_2006_Article_1300_Fig5_HTML.jpg

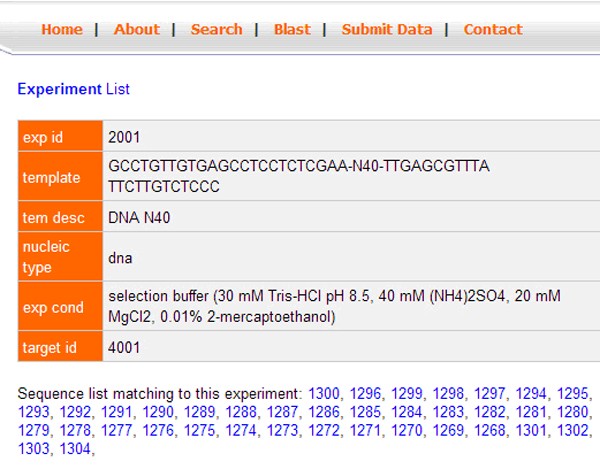

Figure 5

View of experiment details.

Submit data

It facilitates online sequence submission to the database. It allows users to fill in a form containing new sequence information along with user details (Figure 6). Related information can also be submitted through uploading a text file. The data which is then saved into a directory on the server side and an email is sent automatically to the curator who then checks the data to make sure there are no errors and then the information is loaded into the database automatically.
https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-7-S2-S6/MediaObjects/12859_2006_Article_1300_Fig6_HTML.jpg

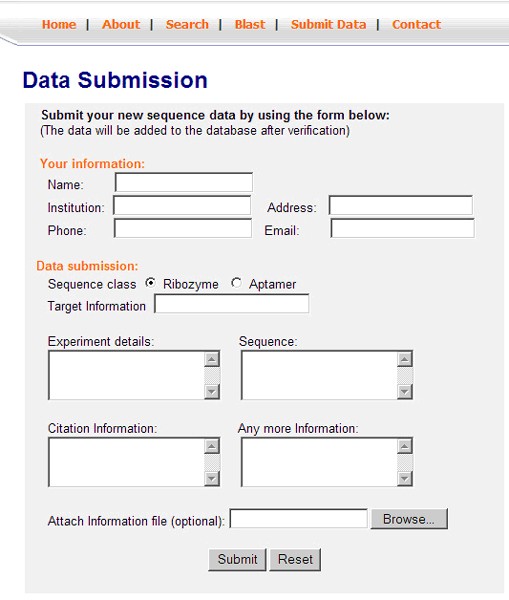

Figure 6

View of the data submission form by the user.

Alternate to the general search option on top menu, there is a search option on the side menu on the home page to search the whole database on a specific keyword. Also, specific table search is available on side menu of each related pages. The user can also retrieve the selected sequences into a text file for further studies.

The idea behind the combining of ribozymes and aptamers data into one database is, increasing the chance of generating ribozymes with modified and novel properties [26]. One example is combining both the 'target identification' of aptamer and 'catalytic activity' of ribozymes into a commercial 'riboswitch' application [4245].

Future Perspectives

RiboaptDB project is young. With respect to future work, the database needs to be maintained and developed regularly, ensuring our links to external databases remain up to date and newly published data is added. Initially, as with all databases, random errors will have occurred due to human error during the data accumulation or will be extant within the original experimental data. The database will be assessed for errors and inconsistencies, thus maintaining, as far as possible, the overall veracity of our data.

Conclusion

The goal of RiboaptDB constructors was the collection of all ribozyme and aptamer sequences that have appeared to date and their detailed and correct annotation. The ease of access to the data is of great importance and the bespoke search system and the inclusion of a BLAST search greatly facilitates this. The better the organisation of the data, the easier the work will be for researchers dealing with aptamers and ribozymes.

Availability and Requirements

RiboaptDB was created and is maintained in the Department of Biological Sciences at the University of Southern Mississippi. It is publicly available at the http://mfgn.usm.edu/ebl/riboapt/.

List of abbreviations

SELEX:

Systemic Evolution of Ligands by Exponential enrichment

BLAST:

Basic Local Alignment Search Tool

EMBL:

European Molecular Biology Laboratory

DDBJ:

DNA Data Bank of Japan

Declarations

Acknowledgements

This work was supported by Dean's Research Initiative award of the University of Southern Mississippi to Youping Deng and the Mississippi Functional Genomics Network (DHHS/NIH/NCRR Grant# 2P20RR016476-04).

Authors’ Affiliations

(1)
Department of Biological Sciences, University of Southern Mississippi

References

  1. Jaeger L: The New World of ribozymes. Curr Opin Struct Biol 1997, 7(3):324–335. 10.1016/S0959-440X(97)80047-4View ArticlePubMedGoogle Scholar
  2. Kumar PK, Ellington AD: Artificial evolution and natural ribozymes. Faseb J 1995, 9(12):1183–1195.PubMedGoogle Scholar
  3. Stull RA, Szoka FC Jr: Antigene, ribozyme and aptamer nucleic acid drugs: progress and prospects. Pharm Res 1995, 12(4):465–483. 10.1023/A:1016281324761View ArticlePubMedGoogle Scholar
  4. Tang J, Breaker RR: Rational design of allosteric ribozymes. Chem Biol 1997, 4(6):453–459. 10.1016/S1074-5521(97)90197-6View ArticlePubMedGoogle Scholar
  5. Murakami H, Suga H: [Artificial ribozymes: selection and application for nonnatural amino acid mutagenesis]. Tanpakushitsu Kakusan Koso 2003, 48(11 Suppl):1511–1518.PubMedGoogle Scholar
  6. Atkins D, Gerlach WL: Artificial ribozyme and antisense gene expression in Saccharomyces cerevisiae. Antisense Res Dev 1994, 4(2):109–117.PubMedGoogle Scholar
  7. Jaschke A: Artificial ribozymes and deoxyribozymes. Curr Opin Struct Biol 2001, 11(3):321–326. 10.1016/S0959-440X(00)00208-6View ArticlePubMedGoogle Scholar
  8. Joseph S, Berzal-Herranz A, Chowrira BM, Butcher SE, Burke JM: Substrate selection rules for the hairpin ribozyme determined by in vitro selection, mutation, and analysis of mismatched substrates. Genes Dev 1993, 7(1):130–138.View ArticlePubMedGoogle Scholar
  9. Brackett DM, Dieckmann T: Aptamer to Ribozyme: The Intrinsic Catalytic Potential of a Small RNA. Chembiochem 2006, 7(5):839–843. 10.1002/cbic.200500538View ArticlePubMedGoogle Scholar
  10. Nimjee SM, Rusconi CP, Sullenger BA: Aptamers: an emerging class of therapeutics. Annu Rev Med 2005, 56: 555–583. 10.1146/annurev.med.56.062904.144915View ArticlePubMedGoogle Scholar
  11. Sen D: Aptamer rivalry. Chem Biol 2002, 9(8):851–852. 10.1016/S1074-5521(02)00195-3View ArticlePubMedGoogle Scholar
  12. White RR, Sullenger BA, Rusconi CP: Developing aptamers into therapeutics. J Clin Invest 2000, 106(8):929–934.PubMed CentralView ArticlePubMedGoogle Scholar
  13. Brody EN, Gold L: Aptamers as therapeutic and diagnostic agents. J Biotechnol 2000, 74(1):5–13.PubMedGoogle Scholar
  14. Klug SJ, Famulok M: All you wanted to know about SELEX. Mol Biol Rep 1994, 20(2):97–107. 10.1007/BF00996358View ArticlePubMedGoogle Scholar
  15. Eaton BE: The joys of in vitro selection: chemically dressing oligonucleotides to satiate protein targets. Curr Opin Chem Biol 1997, 1(1):10–16. 10.1016/S1367-5931(97)80103-2View ArticlePubMedGoogle Scholar
  16. Stoltenburg R, Reinemann C, Strehlitz B: FluMag-SELEX as an advantageous method for DNA aptamer selection. Anal Bioanal Chem 2005, 383(1):83–91. 10.1007/s00216-005-3388-9View ArticlePubMedGoogle Scholar
  17. Huizenga DE, Szostak JW: A DNA aptamer that binds adenosine and ATP. Biochemistry 1995, 34(2):656–665. 10.1021/bi00002a033View ArticlePubMedGoogle Scholar
  18. Sazani PL, Larralde R, Szostak JW: A small aptamer with strong and specific recognition of the triphosphate of ATP. J Am Chem Soc 2004, 126(27):8370–8371. 10.1021/ja049171kView ArticlePubMedGoogle Scholar
  19. Sekiya S, Noda K, Nishikawa F, Yokoyama T, Kumar PK, Nishikawa S: Characterization and Application of a Novel RNA Aptamer against the Mouse Prion Protein. J Biochem (Tokyo) 2006, 139(3):383–390.View ArticleGoogle Scholar
  20. Hale SP, Schimmel P: Protein synthesis editing by a DNA aptamer. Proc Natl Acad Sci U S A 1996, 93(7):2755–2758. 10.1073/pnas.93.7.2755PubMed CentralView ArticlePubMedGoogle Scholar
  21. Yang Y, Kochoyan M, Burgstaller P, Westhof E, Famulok M: Structural basis of ligand discrimination by two related RNA aptamers resolved by NMR spectroscopy. Science 1996, 272(5266):1343–1347.View ArticlePubMedGoogle Scholar
  22. Mitani Y, Nakayama T, Harbers M, Hayashizaki Y: Aptamer-dependent full-length cDNA synthesis by overlap extension PCR. Biotechniques 2004, 37(1):128–129.Google Scholar
  23. Meyers LA, Lee JF, Cowperthwaite M, Ellington AD: The robustness of naturally and artificially selected nucleic acid secondary structures. J Mol Evol 2004, 58(6):681–691. 10.1007/s00239-004-2590-2View ArticlePubMedGoogle Scholar
  24. Kumar RM, Joyce GF: A modular, bifunctional RNA that integrates itself into a target RNA. Proc Natl Acad Sci U S A 2003, 100(17):9738–9743. 10.1073/pnas.1334190100PubMed CentralView ArticlePubMedGoogle Scholar
  25. Hamaguchi N, Ellington A, Stanton M: Aptamer beacons for the direct detection of proteins. Anal Biochem 2001, 294(2):126–131. 10.1006/abio.2001.5169View ArticlePubMedGoogle Scholar
  26. Burgstaller P, Jenne A, Blind M: Aptamers and aptazymes: accelerating small molecule drug discovery. Curr Opin Drug Discov Devel 2002, 5(5):690–700.PubMedGoogle Scholar
  27. Sanghvi YS, Schulte M: Therapeutic oligonucleotides: the state-of-the-art in purification technologies. Curr Opin Drug Discov Devel 2004, 7(6):765–776.PubMedGoogle Scholar
  28. Ogawa A, Tomita N, Kikuchi N, Sando S, Aoyama Y: Aptamer selection for the inhibition of cell adhesion with fibronectin as target. Bioorg Med Chem Lett 2004, 14(15):4001–4004. 10.1016/j.bmcl.2004.05.042View ArticlePubMedGoogle Scholar
  29. Becker RC, Rusconi C, Sullenger B: Nucleic acid aptamers in therapeutic anticoagulation. Technology, development and clinical application. Thromb Haemost 2005, 93(6):1014–1020.PubMedGoogle Scholar
  30. Gokulrangan G, Unruh JR, Holub DF, Ingram B, Johnson CK, Wilson GS: DNA aptamer-based bioanalysis of IgE by fluorescence anisotropy. Anal Chem 2005, 77(7):1963–1970. 10.1021/ac0483926View ArticlePubMedGoogle Scholar
  31. Lee JH, Canny MD, De Erkenez A, Krilleke D, Ng YS, Shima DT, Pardi A, Jucker F: A therapeutic aptamer inhibits angiogenesis by specifically targeting the heparin binding domain of VEGF165. Proc Natl Acad Sci U S A 2005, 102(52):18902–18907. 10.1073/pnas.0509069102PubMed CentralView ArticlePubMedGoogle Scholar
  32. Akiyama H, Kachi S, RL ES, Umeda N, Hackett SF, McCauley D, McCauley T, Zoltoski A, Epstein DM, Campochiaro PA: Intraocular injection of an aptamer that binds PDGF-B: A potential treatment for proliferative retinopathies. J Cell Physiol 2006, 207(2):407–412. 10.1002/jcp.20583View ArticlePubMedGoogle Scholar
  33. Yamamoto-Fujita R, Kumar PK: Aptamer-derived nucleic acid oligos: applications to develop nucleic acid chips to analyze proteins and small ligands. Anal Chem 2005, 77(17):5460–5466. 10.1021/ac050364fView ArticlePubMedGoogle Scholar
  34. Tombelli S, Minunni M, Luzi E, Mascini M: Aptamer-based biosensors for the detection of HIV-1 Tat protein. Bioelectrochemistry 2005, 67(2):135–141. 10.1016/j.bioelechem.2004.04.011View ArticlePubMedGoogle Scholar
  35. Stadtherr K, Wolf H, Lindner P: An aptamer-based protein biochip. Anal Chem 2005, 77(11):437–3443. 10.1021/ac0483421View ArticleGoogle Scholar
  36. Robertson MP, Ellington AD: Design and optimization of effector-activated ribozyme ligases. Nucleic Acids Res 2000, 28(8):1751–1759. 10.1093/nar/28.8.1751PubMed CentralView ArticlePubMedGoogle Scholar
  37. Patel DJ, Suri AK, Jiang F, Jiang L, Fan P, Kumar RA, Nonin S: Structure, recognition and adaptive binding in RNA aptamer complexes. J Mol Biol 1997, 272(5):645–664. 10.1006/jmbi.1997.1281View ArticlePubMedGoogle Scholar
  38. Lee JF, Hesselberth JR, Meyers LA, Ellington AD: Aptamer database. Nucleic Acids Res 2004, 32(Database issue):D95–100. 10.1093/nar/gkh094PubMed CentralView ArticlePubMedGoogle Scholar
  39. Ponomarenko JV, Orlova GV, Frolov AS, Gelfand MS, Ponomarenko MP: SELEX_DB: a database on in vitro selected oligomers adapted for recognizing natural sites and for analyzing both SNPs and site-directed mutagenesis data. Nucleic Acids Res 2002, 30(1):195–199. 10.1093/nar/30.1.195PubMed CentralView ArticlePubMedGoogle Scholar
  40. [http://www.mysql.com]
  41. [http://www.php.com]
  42. Shoji Y, Shimada J, Mizushima Y: Drug delivery system to control infectious diseases. Curr Pharm Des 2002, 8(6):455–465. 10.2174/1381612023395934View ArticlePubMedGoogle Scholar
  43. Silverman SK: Rube Goldberg goes (ribo)nuclear? Molecular switches and sensors made from RNA. Rna 2003, 9(4):377–383. 10.1261/rna.2200903PubMed CentralView ArticlePubMedGoogle Scholar
  44. Soukup GA, Breaker RR: Nucleic acid molecular switches. Trends Biotechnol 1999, 17(12):469–476. 10.1016/S0167-7799(99)01383-9View ArticlePubMedGoogle Scholar
  45. [http://www.archemix.com]
