Data integration is a crucial task in the biomedical domain and integrating data sources is one approach to integrating data. Data elements (DEs) in particular play an important role in data integration. We combine schema- and instance-based approaches to mapping DEs to terminological resources in order to facilitate data sources integration.
We extracted DEs from eleven disparate biomedical sources. We compared these DEs to concepts and/or terms in biomedical controlled vocabularies and to reference DEs. We also exploited DE values to disambiguate underspecified DEs and to identify additional mappings.
82.5% of the 474 DEs studied are mapped to entries of a terminological resource and 74.7% of the whole set can be associated with reference DEs. Only 6.6% of the DEs had values that could be semantically typed.
Our study suggests that the integration of biomedical sources can be achieved automatically with limited precision and largely facilitated by mapping DEs to terminological resources.
The interpretation of experimental data generally requires physicians and biologists to compare their clinical and biological data to already existing data sets and to reference knowledge bases. For example, starting from a gene involved in a pathological condition, users may want to obtain information about this disease (e.g., manifestations, genes involved) and about the gene (e.g., sequence, polymorphism, pathways). This kind of information is often present in electronic biomedical resources available through the Internet. However, collecting information manually is slow and error-prone, which is essentially incompatible with high-throughput analyses. The integration of biomedical resources has been proposed as a solution to facilitate access to multiple, heterogeneous resources [1, 2]. Most biomedical systems have been developed independently of each other and do not have a common structure or even a shared data dictionary. In practice, the major barriers to data sources integration are the heterogeneity of database schemas and the disparity of data elements across systems. Data elements (DEs) can be defined as a basic unit of information, also called attribute in database parlance, and which is built on standard structures having a unique meaning and distinct units or values, also called instances in databases . Examples of DEs in the biomedical domain include Gene Symbol and Pathology Name. The DEs extracted from various resources tend to be heterogeneous. In fact, each source has its own way of naming the DEs it uses. For instance, a DE for pathological conditions will be named Disorders in one source, but Disease in another. In these cases, lexical approaches to integrating DEs across data sources are therefore likely to perform suboptimally. Additionally, in some sources, DEs are ambiguous because they may acquire part of their meaning from the context. For example, the DE Name may refer to gene or protein names. In contrast, other sources use fully specified names for their DEs, e.g., Protein Name. The issue here is that Name in protein context cannot be mapped automatically to Protein Name (fully specified). Conversely, two DEs Name in gene and protein contexts respectively must not be mapped.
The following scenario illustrates how integrating DEs facilitates the integration of biomedical sources. We want to help a biologist interested in the interactions of a given protein to query distributed sources seamlessly. To this end, the query term interaction has to be mapped to DEs of distinct sources: to Interactions in HPRD , to Interactant in Entrez Gene , and to Ligand Interaction in PDB . From these resources, biologists can gain information about protein interactions in HRPD, find cross-references in Entrez Gene not only to the literature, but also to other specialized resources, such as BIND , and visualize chemical interactions in PDB.
The first objective of this study is to compare the DEs extracted from biomedical electronic resources to concepts and/or terms of biomedical controlled vocabularies on the one hand and to the DEs defined by the National Cancer Institute on the other. This approach should help resolve heterogeneity existing between DEs. Additionally, as some DEs are ambiguous or underspecified, we use the values associated with such DEs to identify indirect mappings to terminological resources. Our hypothesis is that we will be able to integrate DEs from heterogeneous sources by linking them to controlled terminologies, when they are not already present in reference DE repositories. The set of DEs under investigation was extracted from eleven biomedical data sources covering genes, proteins and diseases.
The general framework of our study is that of data source integration through schema matching. Integration issues have been largely studied over the past years, with a particular emphasis on mapping schemas of heterogeneous data sources. This process takes as input two sets of elements (attributes or DEs, values, etc) constituting two schemas and determines the relations (equivalence, subsumption, etc) existing between pairs of elements across schemas. Various approaches have been developed and categorized according to distinct criteria. A brief overview of these methods is presented below. For a detailed survey of such approaches, the interested reader is referred to [8, 9].
The main difference between these methods concerns the level at which they are applied. More precisely, some approaches are situated at schema level whereas others lie at instance level. Schema-based approaches only exploit information existing in the schema of the sources, while instance-based approaches exploit information situated at the instance level, i.e., the values associated with the DEs. At both schema and instance levels, two main groups of methods are used for the mapping: lexical and structural methods.
Lexical methods have been proposed to map DE labels by exploiting their morphology. For example, a short edit distance or a high proportion of common n-grams between two strings is indicative of lexical resemblance. Others consider DE labels as terms and use external resources to identify linguistic relations (e.g. synonymy) between them. With structural methods, the idea is for example to consider schemas as graphs and to apply classical approaches for comparing graphs, such as determining similarity between nodes sharing common ancestors and descendants .
The information available about schemas is sometimes insufficient or ambiguous, and it can be useful to exploit information situated at the instance level. Lexical methods can be used here too, for example, mapping instance values to external resources. In practice, external resources can help identify synonymy between values of attributes. Structural techniques can also be applied at this level where information can be obtained about constraints existing on attributes by identifying for example the range of their associated values in case of numerical data or recurring terms for textual data.
The different kinds of methods (lexical and structural) and levels at which they are applied (schema and instance) are generally more powerful when used in combination. The system GLUE  provides a semi-automatic method for mapping schemas of heterogeneous sources. It combines machine learning techniques applied at the instance level with structural methods situated at schema level and which exploit the neighbourhood of attributes to determine the best mappings existing between elements of two schemas. Also of interest,  focuses on an instance-based approach and uses a domain ontology to identify indirect mappings between attributes through external knowledge, as described above. This approach is automatic but the problem is that it requires a fully specified domain ontology (with concepts well-labelled and associated instances), which represents a significant limitation.
The methods used in our study are traditional in the sense that we mostly apply lexical approaches to schema- and instance-based approaches, also taking advantage of external resources. Rather than to propose new methods, the contribution of this paper is to evaluate the applicability of existing approaches to the automatic mapping of DEs from the perspective of integrating biomedical data sources in a high-throughput context.
Our test set consists of DEs extracted from eleven Web-accessible biomedical sources, selected to be representative of the different kinds of resources found in the biomedical domain. Some of them contain information about genes: GeneCards , Entrez Gene, Geneloc , Genew (the HGNC  database), and HGMD , others about proteins: Swiss-Prot , PDB, HPRD, Interpro  or diseases: OMIM . Our application is not targeted to a particular model organism so we also included MGI , which provides various kinds of information about mice.
In order to query the various data sources mentioned above, we first established a list of query terms, namely gene and disease names. To this end, we exploited a reference resource in the domain of medical genetics: the Genetics Home Reference  (GHR). GHR provides information about genetic conditions and genes involved in these conditions. Using the Web interface to GHR, a bioinformatician (FM) manually constituted a text file containing gene symbols (e.g. HFE) and associated disease names (e.g. hemochromatosis), if any. A sample of one hundred terms randomly extracted from this file constitutes the set of terms we used for querying DE sources.
We chose the Unified Medical Language System® (UMLS®) , a biomedical terminology integration system, because it provides a wide coverage of the biomedical domain, including terminologies for specialized clinical disciplines, the biomedical literature, and genome annotations. The UMLS consists of three major components. The UMLS Metathesaurus is assembled by integrating more than 100 sources vocabularies. It contains about 1.2 million concepts (clusters of synonymous terms) and more than 22 million relationships between these concepts. The UMLS Semantic Network is a limited network of 135 semantic types. Each Metathesaurus concept is assigned to at least one semantic type. Finally, the Lexical Resources comprise the SPECIALIST Lexicon and Lexical Tools . The UMLSKS Developer's API also provides various methods for identifying Metathesaurus concepts from input terms (exact and normalized match). Additionally, the MetaMap Transfer (MMTx) program maps text to concepts in the Metathesaurus with additional flexibility (approximate match) . The 2005AA version of the UMLS is used in this study.
The National Cancer Institute (NCI) has created a Cancer Data Standards Registry (caDSR)  as part of the caCORE, a common infrastructure for cancer informatics . Its main goal is to define a comprehensive set of standardized metadata descriptors for cancer research terminology used in information collection and analysis. Various NCI offices and partner organizations have developed the content of the caDSR by registration of DEs based on data standards, data collection forms, databases, clinical applications, data exchange formats, UML models, and vocabularies. Using the ISO/IEC 11179  model for metadata registration, information about names, definitions, permissible values, and semantic concepts for common data elements (CDEs) have been recorded. In this study, we used the version 220.127.116.11 of the NCI caDSR, which comprises some 13,000 CDEs.
Our method can be summarized as follows. Starting from the DEs automatically extracted from eleven Web resources, we first attempt to find a direct correspondence between our DEs and biomedical terms in the UMLS on the one hand and existing CDEs in the NCI caDSR on the other. Alternatively, we map the values corresponding to our DEs to the UMLS and expect to determine the type of the DE using the semantic types of the terms corresponding to the DE values. More formally, we first apply lexical methods in order to map DEs extracted from distinct sources to common vocabularies by exploiting the schema level. We then apply lexical methods at the instance level and we use external resources to enhance, filter and precise DE mappings.
Our approach to mapping DEs to UMLS concepts is as conservative as possible. We first attempt to find an exact match. If none is found, a match is attempted after normalization. In practice, this process makes the input and target terms potentially compatible by eliminating such inessential differences as inflection, case, underscore and hyphen variations, as well as word-order variation . These two steps are implemented by the corresponding methods of the UMLSKS API. Finally, an approximate match is attempted using MMTx (strict model). The mapping procedure is fully automated and stops as soon as a match is found. The output of the mapping consists of the list of Metathesaurus concepts corresponding to each DE, along with their semantic types.
The procedure used to map DEs to the caDSR is somewhat similar to the mapping to the UMLS. The major difference is that we used a local copy of the caDSR instead of the tools provided by the NCI. This gives us additional control over the mapping process. The caDSR repository consists in twelve fields. Half of them contain numbers and other data types unlikely to map to DEs, e.g. CDE identifiers such as "2178687". Four other fields are incomplete or contain information in natural language (such as a CDE definition "The name of the gene"), they are thus difficult to exploit. In practice, out of the twelve fields in a caDSR record, only two are of interest for our purpose: "Long Name" and "Preferred Name". The corresponding values of these two fields for the CDE "Gene Name" are "GeneName" and "Name", respectively. We rendered input terms and caDSR CDEs compatible by removing spaces in multi-word terms in order to match the naming conventions in the caDSR. We first try to map exactly each DE against the Preferred Names of the caDSR. In case of failure, we attempt an exact match to the Long Names of the caDSR CDEs. Additionally, we split each multi-word DE not yet mapped to the caDSR and attempt an exact match against the Preferred Names of the CDEs, followed by an approximate match. Finally, we attempt to map exactly the isolated words from DEs to the Long Names of the caDSR CDEs. This process is also fully automated and results in a list of DEs associated with the Long Name or Preferred Name of the mapped CDE(s).
The approaches presented in the previous section are efficient to associate DEs with lexically similar entries in the terminological resources, but they are limited to those cases where lexically similar terms exist on both sides. The alternative approach proposed here consists in mapping not the DEs, but the values associated with them to terminological resources. This indirect mapping is attempted for all DEs because the objective of the proposed approach is twofold: On the one hand, to identify mappings for those DEs for which no match in the UMLS or caDSR can be found; on the other, to filter out potential inappropriate mappings obtained through the UMLS or the caDSR. For instance, the DE Approved Name in Genew will be mapped to the DE Protein Name in SwissProt because they share the word "Name". This is incorrect because Approved Name actually refers to gene, not protein names. In practice, it is expected that the DEs will be found among the high-level categories characterizing their corresponding values. For example, values associated with the DE Approved Name include "tenascin XB", and "breast cancer 1, early onset" (see Fig. 1), categorized as Gene or Genome.
We first created a program to automatically query each source and recovered the values associated with each DE identified in this source. We extracted automatically up to 100 values corresponding to each DE by querying the sources for each biomedical term of the set constituted as described in the paragraph Acquiring DEs of subsection Data elements. For example, the values associated with Function include "protein binding" and "enzyme regulator activity". In some cases, no value could be extracted for a given DE in a given source.
We used the automated methods described in the paragraph Mapping to the UMLS Metathesaurus above for mapping DE values to UMLS concepts, with the difference that only exact and normalized matches were used here. For example, protein binding was mapped to the concept "Protein Binding" (C0033618), categorized by the semantic type Molecular Function.
When the previous process could not determine the type of a DE, we attempted to assign coarser predefined types. We first isolated DEs containing specific terms. For instance, when the terms "ID(s)" or "identifier" were found, the corresponding DE was typed as Identifier. Then, we analyzed the values characterwise and assigned the type Sequence to the DE when each of its non-empty values was a series of "A", "G", "C", and "T". Finally, the remaining DEs were typed as Integer or String according to their values. An example of the exploitation of DE values through heuristics is shown in Figure 2.b.
This indirect mapping associates a type with the DEs, which is often useful for disambiguating underspecified DEs and for filtering out potentially inappropriate mappings obtained by direct mapping to terminological resources. Additional mappings can also be identified by exploiting the type associated with DE values, when the DE itself cannot be found in existing terminological resources.
474 distinct DEs (548 tokens) were extracted from the eleven selected sources, of which 47 appear in more than one source (ignoring case differences). The most frequent DEs are Name and Symbol, which appear each in six different sources.
For both UMLS and caDSR, we obtained different kinds of mappings. Indeed, as a DE consists of a word or a set of words, the cardinality of the mappings is either 1-1 (one DE to one UMLS concept/caDSR CDE) or 1-n (one DE to many UMLS concepts/caDSR CDEs).
Mapping steps of data elements in the UMLS Metathesaurus
Number of mapped DEs/associated UMLS concepts
Molecular Weight Northern Blot
Molecular Weight (C0026385)
Northern Blot (C1148548)
cellular component molecular function
Approximate match (MMTx)
Symbol (C0679214) RNA,
Repartition of the data elements under UMLS semantic types
Number of mapped concepts
Example of data element
Example of proposed concepts
Body Part, Organ, or Organ Component
Biological process (C1184743)
site of expression
malignant neoplasms (C0006826)
Statistical sensitivity (C0036667)
immune system (C0020962)
Disease or Syndrome
disorders & mutations
Results of the direct mapping of data elements to the NCI caDSR
Examples of DEs mapped to CDE(s)
Exact match of DEs to PN
Correct : gene function to "GeneFunction"
Exact match of DEs to LN
Correct : Location to "MapLocation"
Not useful : Description to 23 CDEs (e.g. "ContextDescription" and "GeneAliasDescription")
Exact match of split DEs to PN
Partial : other accession ids to "other"
Approximate match of split DEs to PN
Not useful : Name to 218 CDEs (e.g. "ApprovedStatusName" and "OTHER_DZ_ITE_NAME")
Approximate match of split DEs to LN
Not useful : Component to 26 CDEs (e.g. "Protein Component" and "Blood Component Transfusion Date")
We analyzed the whole set of DEs. Interestingly, this method enables us to identify as distinct those lexically identical DEs whose associated value sets are different.
Overall, only 62 DEs (11.3% of all DEs in our set) could be characterized with datatypes more specific than String. 36 DEs were categorized by UMLS semantic types and three categories of proposed mappings were identified:
- Correct (11). An example is the DE Previous symbols, extracted from the source Genew. 90% of its 46 non-empty values were categorized by the semantic type Gene or Genome. We were thus able to determine that the Previous symbols DE in the context of the Genew source corresponds to previous gene symbols. Other examples include Function and Component, extracted from MGI, whose values are categorized by the semantic types Molecular Function and Cell Component, respectively.
- Ambiguous (21). For instance, the DE Name, extracted from the source Entrez Gene, is mapped to the semantic types Gene or Genome and Amino Acid, Peptide, or Protein, reflecting ambiguity in the UMLS. In other words, many values associated with the DE Name indeed correspond to both genes and proteins. For example, the value "BRCA1" maps (by exact match through synonyms) to both a protein name (BRCA1 Protein – C0259275) and a gene name (BRCA1 Gene – C0376571).
- Erroneous (4). Some terms were wrongly extracted from the sources. For example, Not applicable is extracted from the source GeneCards because it is present in many pages, but does not correspond to a DE.
The remaining DEs (26) were accurately assigned to the coarser types Integer, Identifier, and Sequence. Examples include:
- Integer: Molecular Weight, a DE extracted from SwissProt whose values include 207721 and 464456 (in Dalton) for BRCA1 and TNXB genes, respectively.
- Identifier: Accession Numbers, a DE extracted from Genew whose values include U14680 and X71923 (GenBank identifiers) for BRCA1 and TNXB genes, respectively.

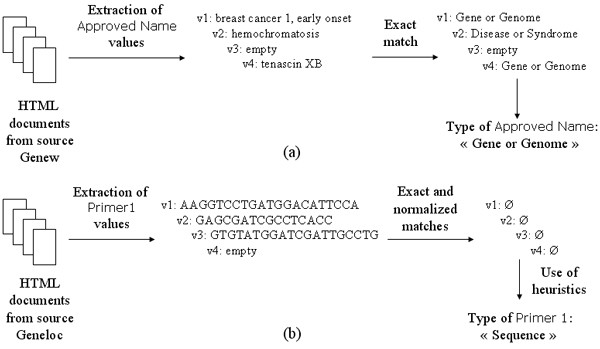

- Sequence: an illustration of Primer 1 extracted from GeneLoc is given in Figure 2.b.
Results of the indirect mapping through data element values and heuristics
Number of DEs having this type
Examples of typed DEs
Previous symbols (Gene or Genome)
We present here two examples illustrating the whole mapping process: results obtained by direct and indirect approaches are displayed. The two DEs we have chosen are From extracted from the source SwissProt and RT-PCR obtained from MGI.
The DE From is not found in the UMLS whereas the abbreviation RT-PCR maps unambiguously (by exact match through a synonym) to the concept "Reverse Transcriptase Polymerase Chain Reaction" (C0599161).
Both DEs are found through an approximate match to the field Preferred Name. The DE From results in eight CDEs, such as "ExternalReferenceExportedFromS". RT-PCR maps to three CDEs including RT-PCR_RESULT_PROC, which corresponds to the results obtained by the RT-PCR procedure. None of the mappings obtained through approximate match are accurate.
94 non empty values are retrieved from the DE From, including "Rattus norvegicus", "Zebrafish", and "Homo sapiens". Among those, 47.9% are categorized by Mammal and 11.7% by Fish (and 100% by the more general semantic type Organism), thus indicating that this DE refers to organisms. Therefore, we can identify an indirect mapping to the DEs Organism present in Entrez Gene and GeneCards.
The indirect mapping of RT-PCR requires the use of heuristics. The values of this DE are digits, which corresponds to the number of RT-PCRs realized on the gene whose information Web page is displayed on MGI Web site. The associated type is thus Integer.
Intuitively, mapping to a reference DE repository represents the best possible data integration approach. This intuition was confirmed in part by this study as illustrated by the following example. The DE Gene Name exists in the caDSR, where it is related to the more generic CDE "Gene". In our experience, however, beside a limited number of such mappings (only 10 are deemed correct), this approach was rather ineffective because most of our DEs could not be found in the caDSR. Moreover, the approximate matching often yielded too many candidates to be useful in an automated environment. In contrast, the mapping of DEs to the UMLS turned out to yield the majority of the mappings. The broad coverage provided by the UMLS Metathesaurus explains the large number of exact matches. Approximate matches, while useful for guiding the mapping, are of limited interest in an automated environment. For example, there is no exact or normalized match in the UMLS for the DE Gene Name and this DE is mapped to the two concepts "Gene" and "Name". The mapping to "Name" is too generic and would result in ambiguity with other DEs such as Protein Name. Analogously, Gene Name and Gene Symbol cannot be easily differentiated if the mapping to "Gene" is selected.
Because our method selects the semantic type common to most values for a given DE, it achieves a semantic typing of the DEs rather than a real mapping. In fact, the direct and indirect mappings of DEs are complementary. Direct mapping identifies a direct correspondence between DEs through existing terminological resources, whereas indirect mapping is useful for disambiguating mappings. As illustrated before, we were able to indicate that the DE Approved Name is to be understood in the context of genes (i.e., gene name) and that the DE From represents the organisms in which a protein is expressed. However, overall, only 6.6% of our DEs could be semantically typed by this method.
The purpose of semantic mining is to identify and characterize the relations among entities of interest in a given domain. Because biomedical knowledge is scattered across many heterogeneous databases, data integration is often used in semantic mining applications. Moreover, semantic mining techniques are usually applied in high-throughput environments, where manual data integration is impractical. Our results suggest that data integration can be achieved automatically with limited precision and largely facilitated by mapping DEs to terminological resources. Our approach exploits both schema and instance levels for aligning schema sources, which is not new in itself. However, this study illustrates concretely the benefit of automating the mapping process for biomedical sources integration, in contrast to integration systems that are designed and maintained mostly manually. The methods presented in this paper would support the partial automation of some tasks related to the conception and evolution of integration systems. Indeed, our approach contains the ingredients of a mediator-based system : information about sources (we extract DEs for that), a global schema (which can be represented using terminological resources, such as the UMLS), and finally mappings between elements of the global schema and source schemas (we present here methods for mapping DEs to entries of terminological resources).
In this exploratory study, the validity of the mappings was evaluated by one person only (FM). An independent evaluation would be required to confirm our results.
Among the DEs that failed to be mapped to the UMLS and caDSR are general terms such as Pathways, Ontologies, keywords, domain, and features. Mapping to general rather than specialized resources is expected to compensate for this limitation. We plan to add WordNet , the electronic lexical database of general English, to our list of target terminological resources. We would like to evaluate the potential benefit of using general lexical resources to increase the coverage of non-domain-specific DEs, even if we are aware that using such resources will likely result in increased ambiguity for some DEs.
The heuristics currently used for analyzing the DE values only identify a limited number of datatypes. Pattern detection could be used to enrich some datatypes with semantic information. For example, a pattern for identifying bibliographic references would allow us to relate the DEs Primary Citation in PDB and Publications in InterPro. Analogously, rules could be used to combine multiple direct mappings. For example, a composite concept "Gene name" could be created from the mapping of the DE Gene name to the two UMLS concepts "Gene" and "Name".
The aim of our study was to consider the integration of biomedical sources through the use of DEs. We extracted a set of DEs from disparate biomedical sources available on the Internet. We then demonstrated the benefit of using terminological resources to reconcile heterogeneous DEs. Terminological resources were useful from a lexical perspective, enabling to map DEs to a common vocabulary. In addition, from a semantic perspective, terminological resources supported the categorization of DE values, enabling us to disambiguate underspecified DEs.
