Volume 7 Supplement 5

APBioNet – Fifth International Conference on Bioinformatics (InCoB2006)

Open Access

Prediction of desmoglein-3 peptides reveals multiple shared T-cell epitopes in HLA DR4- and DR6- associated Pemphigus vulgaris

BMC Bioinformatics20067(Suppl 5):S7

DOI: 10.1186/1471-2105-7-S5-S7

Published: 18 December 2006

Abstract

Background

Pemphigus vulgaris (PV) is a severe autoimmune blistering skin disorder that is strongly associated with major histocompatibility complex class II alleles DRB1*0402 and DQB1*0503. The target antigen of PV, desmoglein 3 (Dsg3), is crucial for initiating T-cell response in early disease. Although a number of T-cell specificities within Dsg3 have been reported, the number is limited and the role of T-cells in the pathogenesis of PV remains poorly understood. We report here a structure-based model for the prediction of peptide binding to DRB1*0402 and DQB1*0503. The scoring functions were rigorously trained, tested and validated using experimentally verified peptide sequences.

Results

High predictivity is obtained for both DRB1*0402 (r2 = 0.90, s = 1.20 kJ/mol, q2 = 0.82, s press = 1.61 kJ/mol) and DQB1*0503 (r2 = 0.95, s = 1.20 kJ/mol, q2 = 0.75, s press = 2.15 kJ/mol) models, compared to experimental data. We investigated the binding patterns of Dsg3 peptides and illustrate the existence of multiple immunodominant epitopes that may be responsible for both disease initiation and propagation in PV. Further analysis reveals that DRB1*0402 and DQB1*0503 may share similar specificities by binding peptides at different binding registers, thus providing a molecular mechanism for the dual HLA association observed in PV.

Conclusion

Collectively, the results of this study provide interesting new insights into the pathology of PV. This is the first report illustrating high-level of cross-reactivity between both PV-implicated alleles, DRB1*0402 and DQB1*0503, as well as the existence of a potentially large number of T-cell epitopes throughout the entire Dsg3 extracellular domain (ECD) and transmembrane region. Our results reveal that DR4 and DR6 PV may initiate in the ECD and transmembrane region respectively, with implications for immunotherapeutic strategies for the treatment of this autoimmune disease.

Background

Pemphigus vulgaris (PV) is a severe autoimmune blistering skin disorder due to loss of integrity of normal intercellular attachments within the epidermis and mucosal epithelium. Strong association of PV to the major histocompatibility complex (MHC) class II alleles DRB1*0402 and DQB1*0503 have been reported in the literature [16] with over 95% of PV patients possessing one or both of these alleles [7, 8]. The molecular basis and immunological consequences of this dual HLA association has thus far not been elucidated. The target antigen of PV, desmoglein (Dsg) 3, is a 130-kDa transmembrane glycoprotein that belongs to the cadherin superfamily of cell adhesion molecules [9]. In the early stage of disease, patients demonstrate autoimmunity only to Dsg3 and develop mucosal blisters; while at the later stage, patients exhibit non-cross-reactive immunity to both Dsg3 and Dsg1 [10]. Despite several reports of T-cell specificities within Dsg3 [1116], the number is limited and the role of T-cells in the pathogenesis of PV remains poorly understood.

Bioinformatic tools are now commonly used in facilitating T-cell epitope discovery [1719]. Computational methods for predicting MHC-binding peptides include procedures based on sequence motifs [13, 16], quantitative matrices [2022], decision trees [23, 24], artificial neural networks [25, 26], hidden Markov models [27] and support vector machines [2830]. However, despite recent advances in sequence-based predictive techniques, effective models for DRB1*0402 and DQB1*0503 have been lacking, mainly due to the paucity of sufficient peptides as training data [31] as well as register-shifts (or positional differences between the core nonameric peptide in the binding groove) [31] and polymorphisms in the binding registers (A.A. Sinha, unpublished results). To date, few prediction techniques for MHC class II molecules have been developed using three-dimensional models as the dual issues of model quality and discrimination technique must be addressed [32].

Our strategy for prediction of T-cell epitopes involves the three-dimensional modeling of peptide/MHC complexes using a hybrid docking approach that integrates the strengths of Monte Carlo simulations and homology modeling [31, 33, 34]. In an earlier study, we have successfully discriminated disease-implicated from non-disease implicated and protective alleles in PV based on structural interaction rules [31]. A complementary scoring function has now been developed for effective identification of DRB1*0402 and DQB1*0503 epitopes. We investigated the T-cell epitope repertoire of the entire Dsg3 glycoprotein and show the existence of multiple extracellular and intracellular specificities within the Dsg3 self-antigen. Further analysis reveal that DRB1*0402 and DQB1*0503 share similar specificities by binding peptides at different core recognition regions. These data provide a molecular rationale for the association of PV to two distinct HLA molecules and impact our understanding of the mechanism of HLA mediated control of disease.

Results and Discussion

DRB1*0402 predictive model

The DRB1*0402 model shows excellent correlation with experimental binding affinities (r2 = 0.90, s = 1.20 kJ/mol, q2 = 0.82, s press = 1.61 kJ/mol). The accuracy of the prediction model was further evaluated using (i) peptides with experimental IC50 values obtained from biochemical studies and (ii) Dsg3 peptides with T-cell proliferation values obtained from functional studies.

Three threshold binding energy values (Table 1) that define levels of specificities suitable for practical applications [34] were used to evaluate the accuracy of the DRB1*0402 prediction model on the biochemical dataset (Test set 1) – LMH (low-, medium-, high-affinity binders; AROC = 0.93); MH (medium- and high-affinity binders; AROC = 0.86) and H (high-affinity binders only; AROC = 0.81). The results indicate that, overall, our DRB1*0402 peptide-binding models are highly accurate (AROC = 0.93). SP = 0.80 offers high-sensitivity predictions, whereas SP = 0.95 results in very few false positives but fewer true positives. The prediction results for our model were consistent with expected binding patterns of DRB1*0402 peptides and provided a sensitivity of 70% (SP = 0.95) for DRB1*0402-binding peptides.
Table 1

Prediction accuracy of the DRB1*0402 peptide-binding model.

Specificity (SP) Level

Group

Sensitivity (SE)

Binding Energy Threshold (kJ/mol)

SP = 0.80

LMH

0.78

-25.55



MH

0.81

-25.79



H

0.65

-26.64

SP = 0.90

LMH

0.75

-25.79



MH

0.52

-26.94



H

0.30

-28.83

SP = 0.95

LMH

0.70

-26.94



MH

0.42

-27.72



H

0.25

-30.57

Sensitivity (SE) values and binding energy thresholds for DRB1*0402 peptide-binding model at specificity (SP) levels 0.80, 0.90 and 0.95.

Next, the predictive performance of the DRB1*0402 model was tested on the functional dataset of 25 peptides (Test set 2) with experimental T-cell proliferation values/responses using the decision thresholds defined above. All experimental positives (Table 2) are predicted with binding energy values of -26.64 kJ/mol or less (high-affinity binders; SE = 0.65, SP = 0.80). Our simulation results indicate that DRB1*0402 can bind Dsg3 96–112 at threshold -26.64 kJ/mol (SE = 0.65, SP = 0.80) in contrast to previous qualitative study results [31], albeit at a binding energy (-27.09 kJ/mol) close to the threshold. Dsg3 512–526 (ranked #10), Dsg3 78–93 (ranked #12) and Dsg3 96–110 (ranked #19) are predicted binders (SE = 0.65, SP = 0.80) that did not stimulate T-cell responses in the relevant experiments [11, 13, 16]. Noteworthy, peptides Dsg3 78–93 [13] and Dsg3 96–110 [16] are fully contained within Dsg3 78–94 (ranked #11) and Dsg3 96–112 (ranked #22), both of which are experimental true positives identified in an independent study [11]. For Dsg3 78–93, the preferred binding register identified by our models is 79–87, which is shows a 5-residue shift in the binding register from the preferred core of 82–90 for Dsg3 78–94. There is no change in the binding register observed for Dsg3 96–110 and Dsg3 96–112. It is possible that variability in the binding register (#12) or flanking peptide residues (#19) lead to a change in T-cell stimulation.
Table 2

Predicted binding affinities of Dsg3 peptide sequences to DRB1*0402.

Rank

Peptide

Sequence

Predicted BE (kJ/mol)

References

1

Dsg3 342–358

SVKLSIAVKNKAEFHQS

-31.46

Veldman et al. (2004)

2#

Dsg3 342–356

SVKLSIAVKNKAEFH

-30.88

Moesta et al. (2002)

3

Dsg3 205–221

GTPMFLLSRNTGEVRTL

-30.44

Veldman et al. (2004)

4* #

Dsg3 846–860

LDSLGPKFKKLAEIS

-30.17

Moesta et al. (2002)

5

Dsg3 380–396

GIAFRPASKTFTVQKGI

-29.97

Riechers et al. (1999)

6@

Dsg3 67–81

RNPIAKITSDYQATQ

-29.94

Moesta et al. (2002)

7

Dsg3 786–800

MNFLDSYFSQKAFAC

-29.78

Moesta et al. (2002)

8

Dsg3 190–204

LNSKIAFKIVSQEPA

-29.74

Wucherpfennig et al. (1995)

9

Dsg3 189–205

HLNSKIAFKIVSQEPAG

-29.24

Veldman et al. (2004)

10*

Dsg3 512–526

SARTLNNRYTGPYTF

-29.21

Wucherpfennig et al. (1995)

11

Dsg3 78–94

QATQKITYRISGVGIDQ

-28.37

Veldman et al. (2004)

12*

Dsg3 78–93

QATQKITYRISGVGID

-28.30

Wucherpfennig et al. (1995)

13

Dsg3 191–205

NSKIAFKIVSQEPAG

-28.16

Moesta et al. (2002)

14

Dsg3 206–220

TPMFLLSRNTGEVRT

-28.02

Wucherpfennig et al. (1995)

15

Dsg3 210–226

LLSRNTGEVRTLTNSL

-27.98

Veldman et al. (2004)

16

Dsg3 251–265

CECNIKVKDVNDNFP

-27.88

Wucherpfennig et al. (1995)

17

Dsg3 250–266

QCECNIKVKDVNDNFPM

-27.68

Veldman et al. (2004)

18

Dsg3 483–499

VRVPDFNDNCPTAVLEK

-27.48

Veldman et al. (2004)

19* @

Dsg3 96–110

PFGIFVVDKNTGDIN

-27.47

Moesta et al. (2002)

20

Dsg3 762–776

QSGTMRTRHSTGGTN

-27.28

Wucherpfennig et al. (1995)

21

Dsg3 161–177

IFMGEIEENSASNSLVM

-27.09

Hertl et al. (1998)

22

Dsg3 96–112

PFGIFVVDKNTGDINIT

-27.09

Veldman et al. (2004)

23@

Dsg3 963–977

ERVICPISSVPGNLA

-26.87

Moesta et al. (2002)

24*

Dsg3 97–111

FGIFVVDKNTGDINI

-26.58

Wucherpfennig et al. (1995)

25@

Dsg3 810–824

NDCLLIYDNEGADAT

-24.00

Moesta et al. (2002)

Predicted binding affinities of Dsg3 peptide sequences to DRB1*0402. '#', '@', '*' indicate binding, non-binding and non-immunostimulatory in the relevant experiments respectively.

DQB1*0503 predictive model

The DQB1*0503 prediction model correlate well with experimental data (r2 = 0.95, s = 1.20 kJ/mol). The DQB1*0503 model outperforms the prediction models done by Rognan et al. (1999) on training datasets of 5 HLA-A*0204 (r2 = 0.85, s press = 2.40 kJ/mol) and 37 H2-Kk (r2 = 0.78, s press = 3.16 kJ/mol) peptide sequences and is consistent with our DRB1*0402 prediction model (r2 = 0.90, s = 1.20 kJ/mol, q2 = 0.82, s press = 1.61 kJ/mol) which is trained using the same number of data points. The cross-validation coefficient q2 and the standard error of prediction s press are stable, with q2 = 0.75 and s press = 2.15 kJ/mol. This iterative regression procedure validates the internal consistency of the scoring function in the current model, rendering it suitable for predictions on the test dataset obtained from functional studies.

The accuracy of the DQB1*0503 prediction model was assessed on a dataset of 6 (5 stimulatory and 1 non-stimulatory peptides) Dsg3 peptides with known T-cell proliferation values (Table 3). All DQB1*0503-specific Dsg3 stimulatory peptides can be effectively discriminated from the background at the prediction threshold -26.64 kJ/mol.
Table 3

Predicted binding affinities of Dsg3 peptide sequences to DQB1*0503.

Rank

Peptide

Sequence

Predicted BE (kJ/mol)

References

1

Dsg3 206–220

TPMFLLSRNTGEVRT

-30.53

Wucherpfennig et al. (1995)

2

Dsg3 189–205

HLNSKIAFKIVSQEPAG

-29.10

Veldman et al. (2004)

3

Dsg3 78–94

QATQKITYRISGVGIDQ

-27.14

Veldman et al. (2004)

4

Dsg3 190–204

LNSKIAFKIVSQEPA

-26.88

Wucherpfennig et al. (1995)

5

Dsg3 251–265

CECNIKVKDVNDNFP

-26.65

Wucherpfennig et al. (1995)

6*

Dsg3 762–786

QSGTMRTRHSTGGTNKDYADGAISM

-22.42

Wucherpfennig et al. (1995)

Predicted binding affinities of Dsg3 peptide sequences to DQB1*0503. '*' indicates non-immunostimulatory in the relevant experiments.

Disease progression in PV

A variety of studies have demonstrated that a limited set of epitopes may be present in early disease, and intra-molecular epitope spreading may occur during disease transition at the B-cell level [10]. Our data support the existence of multiple immunodominant T-cell epitopes that may be responsible for both disease initiation and propagation (Figure 1 and Figure 2). These findings are in line with T-cell proliferation data obtained from DR4 and DR6 PV patients [11, 13, 15, 16, 31]. Our analysis showed that the potential Dsg3 T-cell epitope repertoire is well distributed throughout all five extracellular domains (ECDs) (ECD1: Dsg3 50–158; ECD2: Dsg3 159–268; ECD3: Dsg3 269–383; ECD4: Dsg3 386–499; ECD5: Dsg3 500–615) [35]. A large number of DQB1*0503-specific Dsg3 peptides were predicted to exist within the transmembrane region (Dsg3 616–640; Figure 2). Noteworthy, 13 of these peptides were found among the top 20 predictions (Table 4), suggesting that disease initiation may begin at the transmembrane region for DR6 PV patients. Such an initiation step would not be unique to PV as other studies have revealed disease initiation at the transmembrane region [36, 37]. For DRB1*0402, 90% (18/20) of the top 20 predictions were predicted to exist within the ECDs, suggesting that disease initiation in DR4 and DR6 PV patients may be different. Although two DRB1*0402-specific intracellular peptides (Dsg3 762–786, Dsg3 786–800) have been reported [13, 16], and were correctly detected by our model (SP = 0.80, SE = 0.65), relatively few intracellular peptides from the region, Dsg3 641–999, are predicted by our methods. It remains to be determined what proportion of the predicted epitopes are actually generated via antigen processing events in vivo, or remain subdominant or "cryptic", such that they are not available for recognition during the initial immune response. It is likely that immune responses develop against secondary epitopes at later stages of disease progression, as a result of intramolecular epitope spreading, and it will be important to delineate the cascade of disease relevant epitopes in temporal sequence in future work.
https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-7-S5-S7/MediaObjects/12859_2006_Article_1357_Fig1_HTML.jpg

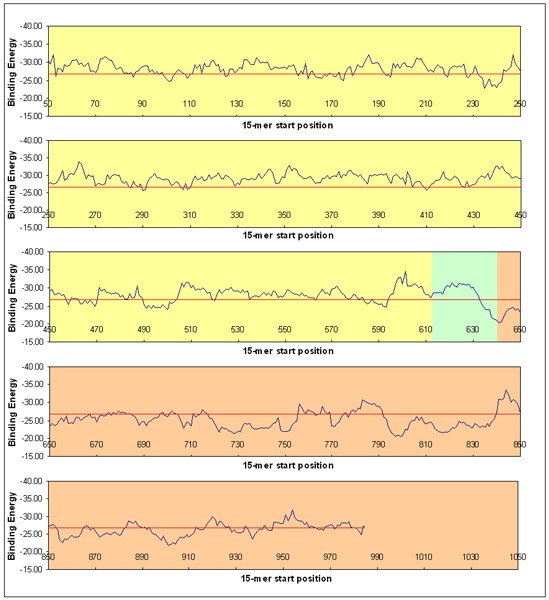

Figure 1

Predicted DRB1*0402-specific T-cell epitope repertoire within Dsg3. Location of predicted DRB1*0402-specific T-cell epitopes along the Dsg3 glycoprotein – extracellular domain (colored yellow; Dsg3 50–615), transmembrane region (colored green; Dsg3 616–640), and intracellular domain (colored pink; Dsg3 641–999). The red line indicates decision threshold -26.64 kJ/mol for high-affinity binders (SP = 0.80, SE = 0.65).

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-7-S5-S7/MediaObjects/12859_2006_Article_1357_Fig2_HTML.jpg

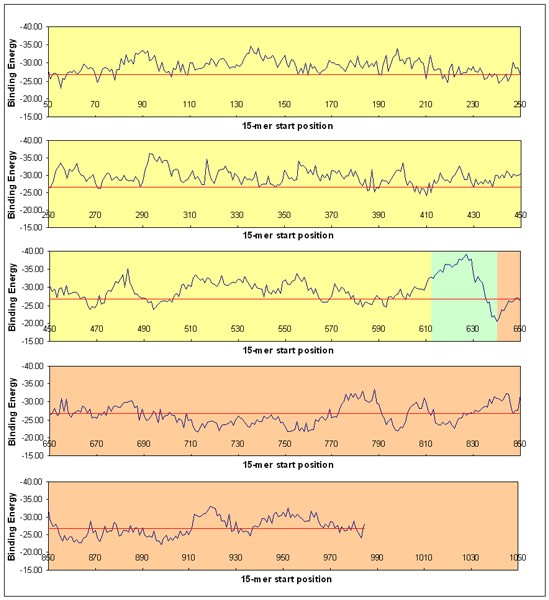

Figure 2

Predicted DQB1*0503-specific T-cell epitope repertoire within Dsg3. Location of predicted DQB1*0503-specific T-cell epitopes along the Dsg3 glycoprotein – extracellular domain (colored yellow; Dsg3 50–615), transmembrane region (colored green; Dsg3 616–640), and intracellular domain (colored pink; Dsg3 641–999). The red line indicates decision threshold -26.64 kJ/mol for high-affinity binders (SP = 0.80, SE = 0.65).

Table 4

Top 20 predicted Dsg3 peptide sequences binding to DQB1*0503 and DRB1*0402.

Rank

DQB1*0503

DRB1*0402



Peptide

Sequence

Predicted B.E. (kJ/mol)

Peptide

Sequence

Predicted B.E. (kJ/mol)

1

Dsg3 627–641

GLLLLLLAPLLLLT C

-39.23

Dsg3 601–615

TTSPGTRYGRP HSGR

-34.64

2

Dsg3 626–640

LGLLLLLLAPLLL LT

-38.43

Dsg3 263–277

NFPMFRDSQY SARIE

-33.86

3

Dsg3 624–638

LLLGLLLLLLAPL LL

-37.87

Dsg3 844–858

SFLDSLGPKF KKLAE

-33.46

4

Dsg3 629–643

LLLLLAPLLLLT CDC

-37.82

Dsg3 264–278

FPMFRDSQYS ARIEE

-33.22

5

Dsg3 625–639

LLGLLLLLLAPLL LL

-37.65

Dsg3 599–613

YPTTSPGTRY GRPHS

-33.10

6

Dsg3 628–642

LLLLLLAPLLLLT CD

-37.47

Dsg3 352–366

KAEFHQSVISRYRVQ

-32.88

7

Dsg3 620–634

AIGLLLLGLLLL LLA

-36.48

Dsg3 598–612

SYPTTSPGTR YGRPH

-32.76

8

Dsg3 623–637

LLLLGLLLLLLAPLL

-36.44

Dsg3 442–456

AEIKFVKNMNRDST F

-32.60

9

Dsg3 618–632

PAAIGLLLLGL LLLL

-36.36

Dsg3 440–454

KTAEIKFVKNMN RDS

-32.56

10

Dsg3 293–307

LDEEYTDNWLA VYFF

-36.28

Dsg3 439–453

SKTAEIKFVKNM NRD

-32.36

11

Dsg3 622–636

GLLLLGLLLLLLA PL

-36.23

Dsg3 52–66

VKFAKPCREGEDNS K

-32.13

12

Dsg3 619–633

AAIGLLLLGLL LLLL

-36.20

Dsg3 186–200

EPNHLNSKIAFK IVS

-32.10

13

Dsg3 294–308

DEEYTDNWLAV YFFT

-36.15

Dsg3 354–368

EFHQSVISRY RVQST

-32.10

14

Dsg3 621–635

IGLLLLGLLLLLLA P

-35.67

Dsg3 247–261

LSTQCECNIKVKDV N

-32.08

15

Dsg3 297–311

YTDNWLAVYFFTSGN

-35.28

Dsg3 262–276

DNFPMFRDSQYS ARI

-32.07

16

Dsg3 483–497

VRVPDFNDNCPTA VL

-35.17

Dsg3 845–859

FLDSLGPKFK KLAEI

-32.07

17

Dsg3 616–630

LGPAAIGLLLLGL LL

-34.86

Dsg3 954–968

LLTQNVIVTER VICP

-31.93

18

Dsg3 317–331

EIQTDPRTNEGILK V

-34.75

Dsg3 351–365

NKAEFHQSVISR YRV

-31.87

19

Dsg3 295–309

EEYTDNWLAVYF FTS

-34.67

Dsg3 344–358

KLSIAVKNKA EFHQS

-31.85

20

Dsg3 136–150

DVEKPLILTVKIL DI

-34.63

Dsg3 441–455

TAEIKFVKNMN RDST

-31.72

The nonameric core peptide in the binding groove is shown in bold, underlined text.

DRB1*0402 and DQB1*0503 cross reactivity

An in-depth analysis was performed to investigate the extent of overlap in the Dsg3 peptide-binding repertoires of DRB1*0402 and DQB1*0503. A panel of 936 15mer Dsg3 sequences were generated using an overlapping sliding window of size 15 across the entire Dsg3 glycoprotein and modeled into the binding grooves of both DRB1*0402 and DQB1*0503 (explained in detail in Peptide docking).

Both the DRB1*0402 and DQB1*0503 alleles are particularly efficient in binding Dsg3-derived peptides. Furthermore, a significant level of cross-reactivity was observed between DRB1*0402 and DQB1*0503. Of the 936 overlapping 15mer peptides generated from the entire Dsg3 glycoprotein investigated in this study, 539 (57%) were predicted high-affinity binders to both alleles at threshold -26.64 kJ/mol. The computer simulation results are shown in Figures 1 and 2. Noteworthy, three previously defined immunoreactive segments of the Dsg3 extracellular domains (Dsg3 145–192, 240–303 and 570–614) [38] were also predicted by our models at this specific threshold. Among the known Dsg3 peptides (Tables 2 and 3), only 2 (Dsg3 191–205 and 762–776) were predicted to bind DRB1*0402 alone, consistent with our earlier qualitative results from structural studies alone [31]. 18 (Dsg3 78–94, 96–112, 161–177, 189–205, 190–204, 205–221, 206–220, 210–226, 250–266, 251–265, 342–356, 342–358, 376–392, 380–396, 483–499, 786–800, 810–824, 963–977) were predicted to bind to both DRB1*0402 and DQB1*0503. These observations are of particular interest in that both DRB1*0402 and DQB1*0503 are strongly linked to PV [39, 40], indicating that common or overlapping dominant epitopes may be responsible for inducing disease in DR4 and DR6 patients respectively.

DRB1*0402 and DQB1*0503 peptide binding specificities

The basis for the high degree of cross-reactivities between DRB1*0402 and DQB1*0503 was subjected to further analysis. Our data support the existence of multiple binding registers within a candidate binding peptide that serve as recognition sites for DRB1*0402 and DQB1*0503, an observation previously noted for DQB1*0302 binding peptides [34]. Of 936 Dsg3 sequences, 614 were predicted high-affinity binders with 76% displaying 2 or more registers that can be docked into the binding groove of DRB1*0402 (Figure 3). Similar results are obtained for DQB1*0503, with 673 predicted high-affinity binders and 57% exhibiting 2 or more binding registers (Figure 3). DRB1*0402 and DQB1*0503 predicted consensus binding sequences number 539. A striking aspect of this analysis is that DRB1*0402 and DQB1*0503 were predicted to bind a large portion of these peptides (354/539 or 66%) at different binding registers. Noteworthy, this difference was detected in 70% (7/10) of Dsg3 peptides known to bind both DRB1*0402 and DQB1*0503 (Table 5). For example, the consensus binding peptide Dsg 205–221 showed ΔG values less than the decision threshold -26.64 kJ/mol, with the 211–219 and 212–220 registers being the preferred binding modes for DRB1*0402 and DQB1*0503 respectively. We propose that DRB1*0402 and DQB1*0503 share similar specificities by binding peptides at different binding registers.
https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-7-S5-S7/MediaObjects/12859_2006_Article_1357_Fig3_HTML.jpg
Figure 3

Predicted binding registers for Dsg3 peptides bound to DRB1*0402 and DQB1*0503. The frequency of Dsg3 peptides docked to DRB1*0402 (colored gray) and DQB1*0503 (colored white) is shown as a function of the number of predicted binding registers.

Table 5

Preferred binding registers of experimentally determined Dsg3 peptides for PV implicated alleles.

Peptide

Allele

Sequence

Peptide

Allele

Sequence

Dsg3 78–94

DRB1*0402

QATQKITYRIS GVGIDQ

Dsg3 250–266

DRB1*0402

QCECNIKVKDV NDNFPM



DQB1*0503

QATQKITYRISGV GIDQ



DQB1*0503

QCECNIKVKDVNDNFP M

Dsg3 96–112

DRB1*0402

PFGIFVVDKNTGD INIT

Dsg3 251–265

DRB1*0402

CECNIKVKDV NDNFP



DQB1*0503

PFGIFVVDKNTGDIN IT



DQB1*0503

CECNIKVKDVNDNFP

Dsg3 161–177

DRB1*0402

IFMGEIEENSASNSL VM

Dsg3 342–356

DRB1*0402

SVKLSIAVKNKAE FH

Dsg3 189–205

DRB1*0402

HLNSKIAFKI VSQEPAG

Dsg3 342–358

DRB1*0402

SVKLSIAVKNKA EFHQS



DQB1*0503

HLNSKIAFKI VSQEPAG



DQB1*0503

SVKLSIAVKNKAEF HQS

Dsg3 190–204

DRB1*0402

LNSKIAFKIVSQ EPA

Dsg3 376–392

DQB1*0503

NVREGIAFRPAS KTFTV



DQB1*0503

LNSKIAFKIVSQ EPA

Dsg3 380–396

DRB1*0402

GIAFRPASKTFT VQKGI

Dsg3 191–205

DRB1*0402

NSKIAFKIVSQEPA G

Dsg3 483–499

DRB1*0402

VRVPDFNDNCPTAV LEK

Dsg3 205–221

DRB1*0402

GTPMFLLSRNTGEVR TL

Dsg3 762–776

DRB1*0402

QSGTMRTRHSTGGT N



DQB1*0503

GTPMFLLSRNTGEVRT L

Dsg3 786–800

DRB1*0402

MNFLDSYFSQKAFAC

Dsg3 206–220

DRB1*0402

TPMFLLSRNTGE VRT

Dsg3 810–824

DRB1*0402

NDCLLIYDNEG ADAT



DQB1*0503

TPMFLLSRNTGEVR T

Dsg3 963–977

DRB1*0402

ERVICPISSVPGNLA

Dsg3 210–226

DRB1*0402

LLSRNTGEVRTL TNSL



Preferred binding registers of experimentally determined Dsg3 peptides for PV implicated alleles. Best fitting registers with lowest predicted binding energies are in bold, underlined text.

Conclusion

Although PV was first reported by Hippocrates in 400 B.C., few T-cell specificities within Dsg3 have been identified to date [1116], and the role of MHC and T-cells in the pathogenesis of PV still remains poorly understood. Collectively, the results of this study provide interesting new insights into the pathology of PV. This is the first report of high-level of cross-reactivity between both PV-implicated alleles, DRB1*0402 and DQB1*0503, as well as the existence of a potentially large number of T-cell epitopes throughout the entire Dsg3 ECD and transmembrane region. Our data strongly indicates that multiple initial epitopes may be responsible for both disease initiation and progression. In addition, our modelling results revealed that DR4 and DR6 PV may initiate at different regions of Dsg3. DR4 PV may initiate in the ECD while DR6 PV may begin at the transmembrane region. It remains to be determined what proportion of predicted DRB1*0402 and DQB1*0503 binders are capable of stimulating PV-implicated alleles and autoreactive T-cells. If experimental analysis reveals limited sets of predicted Dsg3 peptides capable of eliciting functional responses, control over autoreactivity may rest at the T-cell level, rather than the level of determinant selection by MHC molecules. This will have a direct impact in the design of immunotherapeutic strategies for the treatment of this autoimmune disease.

Methods

MHC sequence data were obtained from IMGT-HLA database [41]. To identify potential structural templates available in the Protein Data Bank (PDB) [42] for model building, a sequence similarity search was performed using PSI-BLAST [43] running on the servers at NCBI and the highest quality templates (with the best resolution, highest sequence similarity and minimal number of missing residues) were selected among the returned results. The crystal structures of DRB1*0401 (PDB code 1D5Z) and DQB1*0602 (PDB code 1UVQ) were selected as templates for DRB1*0402 (97.9% identity) and DQB1*0503 (93.0% identity) respectively.

Model building

The program MODELLER [44] was employed for comparative modeling of both DRB1*0402 and DQB1*0503. The models are constructed by optimally satisfying spatial constraints obtained from the alignment of the template structure with the target sequence and from the CHARMM-22 force field [45]. The structures were relaxed by conjugate gradient minimization, using the Internal Coordinate Mechanics (ICM) 3.0 package [46].

Experimental binding data

Two sets of data are used in this study: (i) peptides with experimental IC50 values from biochemical studies and (ii) peptides with experimental T-cell proliferation values/responses from functional studies.

Dataset I (Additional file 1: Table S1) comprises 59 DRB1*0402-specific peptides derived from biochemical studies (20 high-affinity, 11 medium-affinity and 13 low-affinity binders and 15 non-binders). Peptides are classified based on their experimental IC50 values (high-affinity binders: IC50 ≤ 500 nM, medium-affinity binders: 500 nM < IC50 ≤ 1500 nM, low-affinity binders: 1500 < IC50 ≤ 5000 nM and non-binders: 5000 < IC50).

Dataset II (Additional file 2: Table S2) consists of 25 DRB1*0402-specific Dsg3 peptides and 14 DQB1*0503-specific Dsg3 peptides with T-cell proliferation values/responses [1113].

Peptide docking

Overlapping 15-mer peptides are generated from the Dsg3 sequence. An overlapping sliding window of size nine is applied to each 15-mer peptide to generate all combinations of binding registers to be modeled into the binding grooves of DRB1*0402 and DQB1*0503. Docking was performed with the Empirical Conformational Energy Program for Peptides 3 force field parameters (ECEPP/3) [46] and MMFF partial charges [47] on a 4-CPU SGI Origin 3200 workstation using an extension of the protocol [33, 34]: (i) pseudo-Brownian rigid body docking of peptide fragments to the ends of the binding groove, (ii) central loop closure by satisfaction of spatial constraints, (iii) refinement of the backbone and side-chain atoms of the core recognition residues and receptor contact regions within 4.00Å radius [31, 33] and (iv) extension of flanking peptide residues by satisfaction of spatial constraints.

Empirical free energy functions

The scoring function presented in this study is based on the free energy potential in ICM3.0 package [47]. The binding free energy function is partitioned into three terms [34] expressed by the equation:

ΔG = αΔGH + βΔGS + γΔGEL + C.     (1)

ΔGH is the hydrophobic energy computed as the product of solvent accessible surface area (determined by rolling a sphere of 1.40Å radius along the surface of the molecule) by the surface tension. ΔGS refers to the entropic contribution from the protein side-chains computed from the maximal burial entropies for each type of amino acid and their relative accessibilities. ΔGEL denotes the electrostatic term composed of coulombic interactions between receptor and ligand and the desolvation of partial charges transferred from an aqueous medium to a protein core environment, and is determined by the numeric solution of the Poisson equation using an implementation of the boundary element algorithm [4850]. The constant term C accounts for entropy change in the system due to the decrease of free molecular concentration and the loss of rotational/translational degrees of freedom upon binding [51].

Training, testing and validation

Two computational models are trained in this study – one model for the prediction of peptide binding to DRB1*0402 and the other for DQB1*0503.

DRB1*0402-specific peptide data derived from biochemical studies with experimental IC50 values was divided into training and test sets. The training set comprised 8 (5 binding and 3 non-binding) Dsg3 sequences with experimentally determined binding registers (from Dataset I). Two external sets of test data were used: (i) Test set 1: 51 peptides with experimental IC50 values (20 high-affinity binders, 11 medium affinity binders, 9 low affinity binders and 11 non-binders) from biochemical studies, and (ii) Test set 2: all DRB1*0402-specific Dsg3 peptides from Dataset II, with known T-cell proliferation values.

DQB1*0503 prediction model was trained using Dsg3 peptide data from functional studies in the absence of relevant biochemical data. The training set comprised 8 (5 stimulatory and 3 non-stimulatory) sequences from Dataset II. For each peptide sequence, T-cell proliferation value [13] is mapped to a theoretical IC50 value in accordance with expected binding patterns of Dsg3 binding peptides (Sinha et al., personal communications). The performance of the prediction model was subsequently evaluated on an external set of 6 peptides with known T-cell proliferation values.

Coefficients (α, β, γ) and the constant term C in Equation 1 were derived using standard least-square multivariate regression analyses of the training set, followed by leave-one-out analysis to assess to quality of the scoring function [52]. For each model, the entire procedure is repeated 8 times to reduce noises in all computations, the results averaged and the observed error rate is used to estimate the expected error rate upon generalization to new data.

The optimal scoring function selected from each cross-validation analysis was further assessed using sensitivity (SE), specificity (SP) and receiver operating characteristic (ROC) analysis [34]. SE = TP/(TP+FN) and SP = TN/(TN+FP), indicate percentages of correctly predicted binders and non-binders, respectively. TP (true positives) represents experimental binders with at least one predicted binding register and TN (true negatives) for experimental non-binders with no predicted binding register. FN (false negatives) denotes experimental binders predicted as non-binders and FP (false positives) represents experimental non-binders predicted as binders. The accuracy of our predictions was assessed by ROC analysis where the ROC curve is generated by plotting SE as a function of (1-SP) for various classification thresholds. The area under the ROC curve (AROC) provides a measure of overall prediction accuracy, AROC <70% for poor, AROC>80% for good and AROC>90% for excellent predictions [34]. In this study, we assessed SE for three values of SP (80%, 90% and 95%) that are considered useful in practice. All regression and validation results, including correlation coefficient (r2), standard deviation (s), cross-validation coefficient (q2), standard error of prediction (spress), SE, SP, AROC, coefficients and constant terms in the scoring function, are recorded.

Declarations

Acknowledgements

This article has been published as part of BMC Bioinformatics Volume 7, Supplement 5, 2006: APBioNet – Fifth International Conference on Bioinformatics (InCoB2006). The full contents of the supplement are available online at http://www.biomedcentral.com/1471-2105/7?issue=S5.

Authors’ Affiliations

(1)
Department of Biochemistry, Yong Loo Lin School of Medicine, National University of Singapore
(2)
Institute for Infocomm Research
(3)
Center for Investigative Dermatology, Division of Dermatology and Cutaneous Sciences, College of Human Medicine, Michigan State University
(4)
Department of Chemistry and Biomolecular Sciences & Biotechnology Research Institute, Macquarie University

References

  1. Carcassi C, Cottoni F, Floris L, Vacca A, Mulargia M, Arras M, Boero R, La Nasa G, Ledda A, Pizzati A, Cerimele D, Contu L: HLA haplotypes and class II molecular alleles in Sardinian and Italian patients with pemphigus vulgaris. Tissue Antigens 1996, 48: 662–667.View ArticlePubMedGoogle Scholar
  2. Delgado JC, Hameed A, Yunis JJ, Bhol K, Rojas AI, Rehman SB, Khan AA, Ahmad M, Alper CA, Ahmed AR, Yunis EJ: Pemphigus vulgaris autoantibody response is linked to HLA-DQB1*0503 in Pakistani patients. Hum Immunol 1997, 57: 110–119. 10.1016/S0198-8859(97)00203-6View ArticlePubMedGoogle Scholar
  3. Loiseau P, Lecleach L, Prost C, Lepage V, Busson M, Bastuji-Garin S, Roujeau JC, Charron D: HLA class II polymorphism contributes to specify desmoglein derived peptides in pemphigus vulgaris and pemphigus foliaceus. J Autoimmun 2000, 15: 67–73. 10.1006/jaut.2000.0388View ArticlePubMedGoogle Scholar
  4. Miyagawa S, Higashimine I, Iida T, Yamashina Y, Fukumoto T, Shirai T: HLA-DRB1*04 and DRB1*14 alleles are associated with susceptibility to pemphigus among Japanese. J Invest Dermatol 1997, 109: 615–618. 10.1111/1523-1747.ep12337585View ArticlePubMedGoogle Scholar
  5. Miyagawa S, Amagai M, Iida T, Yamamoto Y, Nishikawa T, Shirai T: Late development of antidesmoglein 1 antibodies in pemphigus vulgaris: correlation with disease progression. Br J Dermatol 1999, 141: 1084–1087. 10.1046/j.1365-2133.1999.03209.xView ArticlePubMedGoogle Scholar
  6. Niizeki H, Inoko H, Narimatsu H, Takata H, Sonoda A, Tadakuma T, Ando A, Tsuji K, Hashimoto T, Nishikawa T: HLA class II antigens are associated with Japanese pemphigus patients. Hum Immunol 1991, 31: 246–50. 10.1016/0198-8859(91)90095-QView ArticlePubMedGoogle Scholar
  7. Sinha AA, Brautbar C, Szafer F, Friedmann A, Tzfoni E, Todd JA, Steinman L, McDevitt HO: A newly characterized HLA DQ beta allele associated with pemphigus vulgaris. Science 1988, 239: 1026–1029. 10.1126/science.2894075View ArticlePubMedGoogle Scholar
  8. Scharf SJ, Friedmann A, Brautbar C, Szafer F, Steinman L, Horn G, Gyllensten U, Erlich HA: HLA class II allelic variation and susceptibility to pemphigus vulgaris. Proc Natl Acad Sci U S A 1988, 85: 3504–3508. 10.1073/pnas.85.10.3504PubMed CentralView ArticlePubMedGoogle Scholar
  9. Amagai M, Klaus-Kovtun V, Stanley JR: Autoantibodies against a novel epithelial cadherin in pemphigus vulgaris, a disease of cell adhesion. Cell 1991, 67: 869–877. 10.1016/0092-8674(91)90360-BView ArticlePubMedGoogle Scholar
  10. Salato VK, Hacker-Foegen MK, Lazarova Z, Fairley JA, Lin MS: Role of intracellular epitope spreading in pemphigus vulgaris. Clin Immunol 2005, 116: 54–64. 10.1016/j.clim.2005.03.005View ArticlePubMedGoogle Scholar
  11. Veldman CM, Gebhard KL, Uter W, Wassmuth R, Grötzinger J, Schultz E, Hertl M: T cell recognition of desmoglein 3 peptides in patients with Pemphigus Vulgaris and healthy individuals. J Immunol 2004, 172: 3883–3892.View ArticlePubMedGoogle Scholar
  12. Hertl M, Amagai M, Sundaram H, Stanley J, Ishii K, Katz SI: Recognition of desmoglein 3 by autoreactive T cells in pemphigus vulgaris patients and normals. J Invest Dermatol 1998, 110: 62–66. 10.1046/j.1523-1747.1998.00086.xView ArticlePubMedGoogle Scholar
  13. Wucherpfennig KW, Yu B, Bhol K, Monos DS, Argyris E, Karr RW, Ahmed AR, Strominger JL: Structural basis for major histocompatibility complex (MHC)-linked susceptibility to autoimmunity: charged residues of a single MHC binding pocket confer selective presentation of self-peptides in pemphigus vulgaris. Proc Natl Acad Sci U S A 1995, 92: 11935–11939. 10.1073/pnas.92.25.11935PubMed CentralView ArticlePubMedGoogle Scholar
  14. Riechers R, Grotzinger J, Hertl M: HLA class II restriction of autoreactive T cell responses in pemphigus vulgaris: review of the literature and potential applications for the development of a specific immunotherapy. Autoimmunity 1999, 30: 183–196.View ArticlePubMedGoogle Scholar
  15. Chow S, Rizzo C, Ravitskiy L, Sinha AA: The role of T cells in cutaneous autoimmune disease. Autoimmunity 2005, 38: 303–317. 10.1080/08916930500124429View ArticlePubMedGoogle Scholar
  16. Moesta M, Stevanovic S, Rammensee H-G, Lin M-S, Sinha AA: Identification of intracellular T cell epitopes in pemphigus vulgaris. J Invest Dermatol 2002, 119: 319. 10.1046/j.1523-1747.2002.01815.xView ArticleGoogle Scholar
  17. Schirle M, Weinschenk T, Stevanovic S: Combining computer algorithms with experimental approaches permits the rapid and accurate identification of T cell epitopes from defined antigens. J Immunol Methods 2001, 257: 1–16. 10.1016/S0022-1759(01)00459-8View ArticlePubMedGoogle Scholar
  18. Yu K, Petrovsky N, Schonbach C, Koh JY, Brusic V: Methods for prediction of peptide binding to MHC molecules: a comparative study. Mol Med 2002, 8: 137–148.PubMed CentralPubMedGoogle Scholar
  19. Srinivasan KN, Zhang GL, Khan AM, August JT, Brusic V: Prediction of class I T-cell epitopes: evidence of presence of immunological hot spots inside antigens. Bioinformatics 2004, 20(Suppl 1):i297-i302. 10.1093/bioinformatics/bth943View ArticlePubMedGoogle Scholar
  20. Parker KC, Bednarek MA, Coligan JE: Scheme for ranking potential HLA-A2 binding peptides based on independent binding of individual peptide side-chains. J Immunol 1994, 152: 163–175.PubMedGoogle Scholar
  21. Davenport MP, Ho Shon IAP, Hill AVS: An empirical method for the prediction of T-cell epitopes. Immunogenetics 1995, 42: 392–397. 10.1007/BF00179401View ArticlePubMedGoogle Scholar
  22. Gulukota K, Sidney J, Sette A, DeLisi C: Two complementary methods for predicting peptides binding major histocompatibility complex molecules. J Mol Biol 1997, 267: 1258–1267. 10.1006/jmbi.1997.0937View ArticlePubMedGoogle Scholar
  23. Savoie CJ, Kamikawaji N, Sasazuki T, Kuhara S: Use of BONSAI decision trees for the identification of potential MHC class I peptide epitope motifs. Pac Symp Biocomput 1999.Google Scholar
  24. Segal MR, Cummings MP, Hubbard AE: Relating amino acid sequence to phenotype: analysis of peptide-binding data. Biometrics 2001, 57: 632–642. 10.1111/j.0006-341X.2001.00632.xView ArticlePubMedGoogle Scholar
  25. Brusic V, Rudy G, Harrison LC: Prediction of MHC binding peptides using artificial neural networks. In Complex Systems: Mechanism of Adaptation. Edited by: Stonier RJ, Yu XS. Amsterdam: IOS Press; 1994:253–260.Google Scholar
  26. Brusic V, Rudy G, Honeyman M, Hammer J, Harrison L: Prediction of MHC class II-binding peptides using an evolutionary algorithm and artificial neural network. Bioinformatics 1998, 14: 121–130. 10.1093/bioinformatics/14.2.121View ArticlePubMedGoogle Scholar
  27. Mamitsuka H: Predicting peptides that bind to MHC molecules using supervised learning of hidden Markov models. Proteins 1998, 33: 460–474. 10.1002/(SICI)1097-0134(19981201)33:4<460::AID-PROT2>3.0.CO;2-MView ArticlePubMedGoogle Scholar
  28. Dönnes P, Elofsson A: Prediction of MHC class I binding peptides, using SVMHC. BMC Bioinformatics 2002, 3: 25. 10.1186/1471-2105-3-25PubMed CentralView ArticlePubMedGoogle Scholar
  29. Bhasin M, Raghava GPS: SVM based method for predicting HLA-DRB1*0401 binding peptides in an antigen sequence. Bioinformatics 2004, 20: 421–423. 10.1093/bioinformatics/btg424View ArticlePubMedGoogle Scholar
  30. Bozic I, Zhang G, Brusic V: Predictive vaccinology: optimisation of predictions using support vector machine classifiers. IDEAL 2005, 375–381.Google Scholar
  31. Tong JC, Bramson J, Kanduc D, Chow S, Sinha AA, Ranganathan S: Modeling the bound conformation of pemphigus vulgaris-associated peptides to MHC class II DR and DQ alleles. Immunome Res 2006, 2: 1. 10.1186/1745-7580-2-1PubMed CentralView ArticlePubMedGoogle Scholar
  32. Ranganathan S, Tong JC, Tan TW: Structural Immunoinformatics: Understanding MHC-peptide binding. In Advances in Experimental Medicine Series – Immunoinformatics: Opportunities and Challenges of Bridging Immunology with Computer and Information Sciences. Edited by: Schoenbach C. Kluwer Plenum Press; accepted accepted
  33. Tong JC, Tan TW, Ranganathan S: Modeling the structure of bound peptide ligands to major histocompatibility complex. Protein Sci 2004, 13: 2523–2532. 10.1110/ps.04631204PubMed CentralView ArticlePubMedGoogle Scholar
  34. Tong JC, Zhang GL, Tan TW, August JT, Brusic V, Ranganathan S: Prediction of HLA-DQ3.2β ligands: Evidence of multiple registers in class II binding peptides. Bioinformatics 2006, 22: 1232–1238. 10.1093/bioinformatics/btl071View ArticlePubMedGoogle Scholar
  35. Amagai M, Hashimoto T, Shimizu N, Nishikawa T: Absorption of pathogenic autoantibodies by the extracellular domain of pemphigus vulgaris antigen (Dsg3) produced by baculovirus. J Clin Invest 1994, 94: 59–67.PubMed CentralView ArticlePubMedGoogle Scholar
  36. Akin C, Fumo G, Yavuz AS, Lipsky PE, Neckers L, Metcalfe DD: A novel form of mastocytosis associated with a transmembrane c-kit mutation and response to imatinib. Blood 2004, 103: 3222–3225. 10.1182/blood-2003-11-3816View ArticlePubMedGoogle Scholar
  37. Theophilos MB, Cox DW, Mercer JF: The toxic milk mouse is a murine model of Wilson disease. Hum Mol Genet 1996, 5: 1619–1624. 10.1093/hmg/5.10.1619View ArticlePubMedGoogle Scholar
  38. Lin MS, Swartz SJ, Lopez A, Ding X, Fernandez-Vina MA, Stastny P, Fairley JA, Diaz LA: Development and characterization of desmoglein-3 specific T cells from patients with pemphigus vulgaris. J Clin Invest 1997, 99: 31–40.PubMed CentralView ArticlePubMedGoogle Scholar
  39. Lee EY, Sinha AA: T cell targeted therapy for autoimmune disease. Autoimmunity 2005, 38: 577–596.View ArticlePubMedGoogle Scholar
  40. Sinha AA, Lopez MT, McDevitt HO: Autoimmune diseases: the failure of self-tolerance. Science 1990, 248: 1380–1388. 10.1126/science.1972595View ArticlePubMedGoogle Scholar
  41. Robinson J, Waller MJ, Parham P, de Groot N, Bontrop R, Kennedy LJ, Stoehr P, Marsh SG: IMGT/HLA and IMGT/MHC: sequence databases for the study of the major histocompatibility complex. Nucleic Acids Res 2003, 31: 311–314. 10.1093/nar/gkg070PubMed CentralView ArticlePubMedGoogle Scholar
  42. Berman HM, Westbrook J, Feng Z, Gilliland G, Bhat TN, Weissiq H, Shindyalov IN, Bourne PE: The Protein Data Bank. Nucleic Acids Res 2000, 28: 235–242. 10.1093/nar/28.1.235PubMed CentralView ArticlePubMedGoogle Scholar
  43. Altschul SF, Gish W, Miller W, Myers EW, Lipman DJ: Basic local alignment search tool. J Mol Biol 1990, 215: 403–410. 10.1006/jmbi.1990.9999View ArticlePubMedGoogle Scholar
  44. Sali A, Blundell TL: Comparative protein modelling by satisfaction of spatial restraints. J Mol Biol 1993, 234: 779–815. 10.1006/jmbi.1993.1626View ArticlePubMedGoogle Scholar
  45. MacKerell AD, Bashford D, Bellott M, Dunbrack RL, Evanseck JD, et al.: All-atom empirical potential for molecular modeling and dynamics studies of proteins. J Phys Chem 1998, B102: 3586–3617.View ArticleGoogle Scholar
  46. Abagyan R, Totrov M, Kuznetsov D: ICM – a new method for protein modeling and design: Applications to docking and structure prediction from the distorted native conformation. J Comput Chem 1994, 15: 488–506. 10.1002/jcc.540150503View ArticleGoogle Scholar
  47. Abagyan RA, Totrov M: Ab initio folding of peptides by the optimal-bias Monte Carlo minimization procedure. J Comput Phys 1999, 151: 402–421. 10.1006/jcph.1999.6233View ArticleGoogle Scholar
  48. Zauhar RJ, Morgan RS: A new method for computing the macromolecular electric potential. J Mol Biol 1985, 186: 815–820. 10.1016/0022-2836(85)90399-7View ArticlePubMedGoogle Scholar
  49. Bharadwaj A, Windemuth A, Sridharan S, Honig B, Nicholls A: The fast multipole boundary element method for molecular electrostatics: an optimal approach for large system. J Comput Chem 1995, 16: 898–910. 10.1002/jcc.540160707View ArticleGoogle Scholar
  50. Schapira M, Totrov M, Abagyan R: Prediction of the binding energy for small molecules, peptides and proteins. J Mol Recognit 1999, 12: 177–190. 10.1002/(SICI)1099-1352(199905/06)12:3<177::AID-JMR451>3.0.CO;2-ZView ArticlePubMedGoogle Scholar
  51. Janin J: Protein-protein recognition. Prog Biophys Mol Biol 1995, 64: 145–166. 10.1016/S0079-6107(96)00001-6View ArticlePubMedGoogle Scholar
  52. Rognan D, Lauemøller SL, Holm A, Buus S, Tschinke V: Predicting binding affinities of protein ligands from three-dimensional models: Application to Peptide Binding to Class I Major Histocompatibility Proteins. J Med Chem 1999, 42: 4650–4658. 10.1021/jm9910775View ArticlePubMedGoogle Scholar

Copyright

© Tong et al; licensee BioMed Central Ltd 2006

This article is published under license to BioMed Central Ltd. This is an open access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Advertisement
