BIOSMILE: A semantic role labeling system for biomedical verbs using a maximum-entropy model with automatically generated template features

  • Richard Tzong-Han Tsai1,

    Affiliated with

    • Wen-Chi Chou1,

      Affiliated with

      • Ying-Shan Su1, 2,

        Affiliated with

        • Yu-Chun Lin1,

          Affiliated with

          • Cheng-Lung Sung1,

            Affiliated with

            • Hong-Jie Dai1,

              Affiliated with

              • Irene Tzu-Hsuan Yeh1, 3,

                Affiliated with

                • Wei Ku1,

                  Affiliated with

                  • Ting-Yi Sung1Email author and

                    Affiliated with

                    • Wen-Lian Hsu1Email author

                      Affiliated with

                      BMC Bioinformatics20078:325

                      DOI: 10.1186/1471-2105-8-325

                      Received: 20 November 2006

                      Accepted: 01 September 2007

                      Published: 01 September 2007

                      Abstract

                      Background

                      Bioinformatics tools for automatic processing of biomedical literature are invaluable for both the design and interpretation of large-scale experiments. Many information extraction (IE) systems that incorporate natural language processing (NLP) techniques have thus been developed for use in the biomedical field. A key IE task in this field is the extraction of biomedical relations, such as protein-protein and gene-disease interactions. However, most biomedical relation extraction systems usually ignore adverbial and prepositional phrases and words identifying location, manner, timing, and condition, which are essential for describing biomedical relations. Semantic role labeling (SRL) is a natural language processing technique that identifies the semantic roles of these words or phrases in sentences and expresses them as predicate-argument structures. We construct a biomedical SRL system called BIOSMILE that uses a maximum entropy (ME) machine-learning model to extract biomedical relations. BIOSMILE is trained on BioProp, our semi-automatic, annotated biomedical proposition bank. Currently, we are focusing on 30 biomedical verbs that are frequently used or considered important for describing molecular events.

                      Results

                      To evaluate the performance of BIOSMILE, we conducted two experiments to (1) compare the performance of SRL systems trained on newswire and biomedical corpora; and (2) examine the effects of using biomedical-specific features. The experimental results show that using BioProp improves the F-score of the SRL system by 21.45% over an SRL system that uses a newswire corpus. It is noteworthy that adding automatically generated template features improves the overall F-score by a further 0.52%. Specifically, ArgM-LOC, ArgM-MNR, and Arg2 achieve statistically significant performance improvements of 3.33%, 2.27%, and 1.44%, respectively.

                      Conclusion

                      We demonstrate the necessity of using a biomedical proposition bank for training SRL systems in the biomedical domain. Besides the different characteristics of biomedical and newswire sentences, factors such as cross-domain framesets and verb usage variations also influence the performance of SRL systems. For argument classification, we find that NE (named entity) features indicating if the target node matches with NEs are not effective, since NEs may match with a node of the parsing tree that does not have semantic role labels in the training set. We therefore incorporate templates composed of specific words, NE types, and POS tags into the SRL system. As a result, the classification accuracy for adjunct arguments, which is especially important for biomedical SRL, is improved significantly.

                      Background

                      The volume of biomedical literature available on the World Wide Web has experienced unprecedented growth in recent years. Processing literature automatically by using bioinformatics tools can be invaluable for both the design and interpretation of large-scale experiments. For this reason, many information extraction (IE) systems that incorporate natural language processing (NLP) techniques have been developed for use in the biomedical field. A key IE task in this field is the extraction of relations between named entities, such as protein-protein and gene-disease interactions.

                      Many biomedical relation-extraction systems use either cooccurrence statistics or sentence-level methods for relation extraction. Cooccurrence-based approaches extract biomedical relations by first tagging biomedical names and verbs in a text using dictionaries, and then identify cooccurrences of specific names and verbs in phrases, sentences, paragraphs, or abstracts. A variety of statistical tests, such as pointwise mutual information (PMI), the chi-square (x 2), and the log-likelihood ratio (LLR) [1], have been used to decide whether a relation expressed by cooccurrences between a given pair really exists [26]. Sentence-level methods, on the other hand, usually consider only pairs of entities mentioned in the same sentence [79]. To detect and identify a relation, these systems generally use lexico-semantic clues inferred from the sentence context of the entity targets.

                      When extracting relations from complex natural language texts, both of the above approaches suffer from the same limitation in that they only consider the main relation targets and the verbs linking them. In other words, they frequently ignore phrases describing location, manner, timing, condition, and extent; however, in the biomedical field, these modifying phrases are especially important. Biological processes can be divided into temporal or spatial molecular events, for example activation of a specific protein in a specific cell or inhibition of a gene by a protein at a particular time. Having comprehensive information about when, where and how these events occur is essential for identifying the exact functions of proteins and the sequence of biochemical reactions. Detecting the extra modifying information in natural language texts requires semantic analysis tools.

                      Semantic role labelling (SRL), also called shallow semantic parsing [10], is a popular semantic analysis technique. In SRL, sentences are represented by one or more predicate-argument structures (PAS), also known as propositions [11]. Each PAS is composed of a predicate (e.g., a verb) and several arguments (e.g., noun phrases) that have different semantic roles, including main arguments such as an agent1 and a patient2, as well as adjunct arguments, such as time, manner, and location. Here, the term argument refers to a syntactic constituent of the sentence related to the predicate; and the term semantic role refers to the semantic relationship between a predicate (e.g., a verb) and an argument (e.g., a noun phrase) of a sentence. For example, in Figure 1, the sentence "IL4 and IL13 receptors activate STAT6, STAT3, and STAT5 proteins in the human B cells" describes a molecular activation process. It can be represented by a PAS in which "activate" is the predicate, "IL4 and IL13 receptors" comprise the agent, "STAT6, STAT3, and STAT5 proteins" comprise the patient, and "in the human B cells" is the location. Thus, the agent, patient, and location are the arguments of the predicate.
                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_Fig1_HTML.jpg
                      Figure 1

                      A parsing tree annotated with semantic roles.

                      Since SRL identifies the predicate and arguments of a PAS, it is also called predicate argument recognition [12]. In the natural language processing field, SRL has been implemented as a fully automatic process that can be operated by computer programs [13]. Given a sentence, the SRL task executes two steps: predicate identification and argument recognition. The first step can be achieved by using a part-of-speech (POS) tagger with some filtering rules. Then, the second step recognizes all arguments, including grouping words into arguments and classifying the arguments into semantic role categories. Some studies refer to these two sub-steps as argument identification and argument classification, respectively [14, 15]. In the second step, it is often difficult to determine the word boundaries and semantic roles of an argument as they depend on many factors, such as the argument's position, the predicate's voice (active or passive) and the sense (usage).

                      SRL has been applied to information extraction because it can transform different types of surface texts that describe events into PAS'. In the newswire domain, Morarescu et al. [16] showed that, by incorporating semantic role information into an IE system, the F-score of the system can be improved by 15% (from 67% to 82%). This finding motivated us to investigate whether SRL could also facilitate information extraction in the biomedical field. In fact, most of the top open-domain SRL systems use machine-learning-based approaches [1719]. However, at present, there is no large-scale machine-learning-based biomedical SRL system because of the lack of a sufficiently large annotated corpus for training.

                      In this paper, we propose an SRL system for the biomedical domain called BIOSMILE (BIOmedical SeMantIc roLe labEler). An annotated corpus and a PAS standard are essential for the construction of a biomedical SRL system. Considering our purpose is to train a machine learning SRL system, we use PropBank [20] and follow its annotation guidelines. Since PropBank must be annotated on a corpus containing full-parsing information (like a treebank, which is a collection of full parsing trees), we use the GENIA corpus, which includes 500 abstracts with full-parsing information. To evaluate SRL for use in the biomedical domain, we started with thirty verbs, which were selected because of their high frequency or important usage in describing molecular events. We employed a semi-automatic strategy using our previously created newswire SRL system SMILE (SeMantIc roLe labEler) [19] to tag a corpus derived from the GENIA corpus, and then asked human annotators with a background in molecular biology to verify the automatically tagged results. The resulting annotated corpus is called BioProp [21]. Lastly, we trained a biomedical version of SMILE on BioProp to construct an SRL system called BIOSMILE for the biomedical domain. To improve BIOSMILE's performance on adjunct arguments, which are phrases indicating the time, location, or manner of an event, we further exploit automatically generated patterns.

                      The corpus construction process is explained in the Background section, and the construction of our biomedical SRL system is described in the Methods section.

                      Corpus selection

                      To construct BioProp, a biomedical proposition bank, we adopted GENIA [22] as the underlying corpus. It is a collection of 2,000 MEDLINE abstracts selected from the search results for queries using the keywords "human", "blood cells", or "transcription factors". GENIA is often used as a biomedical text mining test bed [23]. In its officially released version, it is annotated with various levels of linguistic information, such as parts-of-speech, named entities, and conjunctions. In the summer of 2005, Tateisi [24] published full parsing information for the corpus that basically follows the Penn Treebank II (PTB) annotation scheme [25] encoded in XML. The GENIA corpus annotated with full parsing information is called GENIA Treebank (GTB). Currently, GTB is a beta version containing 500 abstracts.

                      Verb selection

                      As noted earlier, we chose thirty verbs because of their high frequency or important usage in describing molecular events. To select the verbs, we calculated the frequency of each verb based on its occurrence in GENIA, our underlying corpus, rather than in MEDLINE. It is noteworthy that some verbs that occur frequently in MEDLINE are rarely found in GENIA. Since we focus on molecular events, only sentences containing protein or gene names are used to calculate a verb's frequency. We listed verbs according to their frequency and removed generally used verbs such as is, have, show, use, do, and suggest. We then selected the verbs with highest frequencies and added some verbs of biological importance. The thirty verbs with their characteristics and frequency of occurrence in BioProp are listed in Table 1.
                      Table 1

                      The thirty selected verbs

                      Verb

                      Is the verb one of Top 30 frequent verbs in GENIA?

                      Is the usage different in the newswire and biomedical domains?

                      # of PAS's in BioProp

                      activate

                      Yes

                      Yes

                      145

                      affect

                      No

                      No

                      53

                      alter

                      No

                      No

                      27

                      associate

                      Yes

                      No

                      81

                      bind

                      Yes

                      Yes

                      189

                      block

                      No

                      No

                      56

                      decrease

                      No

                      No

                      41

                      differentiate

                      No

                      No

                      10

                      encode

                      Yes

                      Yes

                      75

                      enhance

                      Yes

                      No

                      37

                      express

                      Yes

                      Yes

                      186

                      increase

                      Yes

                      No

                      99

                      induce

                      Yes

                      No

                      263

                      inhibit

                      Yes

                      No

                      181

                      interact

                      No

                      Yes

                      34

                      mediate

                      Yes

                      No

                      103

                      modulate

                      No

                      Yes

                      22

                      mutate

                      No

                      Yes

                      5

                      phosphorylate

                      No

                      Yes

                      12

                      prevent

                      No

                      No

                      15

                      promote

                      No

                      Yes

                      13

                      reduce

                      No

                      No

                      38

                      regulate

                      Yes

                      No

                      116

                      repress

                      No

                      No

                      17

                      signal

                      No

                      No

                      7

                      stimulate

                      Yes

                      No

                      75

                      suppress

                      No

                      No

                      37

                      transactivate

                      No

                      Yes

                      21

                      transform

                      No

                      No

                      10

                      trigger

                      No

                      No

                      14

                      PAS standard – Proposition Bank

                      To build our SRL system, we followed the PropBank I [20] standard. PropBank I, with more than ten years of development history, has a large verb lexicon, and contains more annotated examples than other standards [26]. In PropBank I, a PAS is annotated on top of a Penn-style full parsing tree. Figure 1 illustrates such a tree with syntactic and semantic role information. The semantic roles Arg0, Arg1, and ArgM-LOC are annotated on top of the words or phrases labelled as noun phrase subjects (NP-SBJ), noun phrases (NP), and prepositional phrases (PP), respectively. A proposition bank is a collection of full parsing trees annotated with propositions or PAS'. The first annotated PropBank-style proposition bank was the Wall Street Journal (WSJ) newswire corpus, which has 24 sections. Before being annotated with propositions, it was annotated with Penn-style full parsing trees. Sections 2 to 21 are conventionally used as a training set, Section 24 is used as a development set, and Section 23 is used as a test set in several NLP tasks [27].

                      PropBank I inherits verb senses from VerbNet, but the semantic arguments of individual verbs in PropBank I are numbered from 0. For a specific verb, Arg0 is usually the argument corresponding to the agent [28], while Arg1 usually corresponds to the patient or theme. For higher-numbered arguments, however, there is no consistent generalization for their roles. In addition to the main arguments, ArgMs refer to adjunct arguments. Table 2 details all the semantic role categories of arguments and their descriptions. The possible set of roles for a distinct sense of a verb is called a roleset, which can be paired with a set of syntactic frames that show all the acceptable syntactic expressions of those roles. A roleset with its associated frames is called a frameset [20]. Verbs may have different rolesets and framesets for different senses, which are numbered .01, .02, etc. An example of the frameset is given by the verb activate shown below.
                      Table 2

                      Argument types and their descriptions

                      Type

                      Description

                      Arg0

                      agent

                      Arg1

                      direct object/theme/patient

                      Arg2–5

                      not fixed

                      ArgM-NEG

                      negation marker

                      ArgM-LOC

                      location

                      ArgM-TMP

                      time

                      ArgM-MNR

                      manner

                      ArgM-EXT

                      extent

                      ArgM-ADV

                      general-purpose

                      ArgM-PNC

                      purpose

                      ArgM-CAU

                      cause

                      ArgM-DIR

                      direction

                      ArgM-DIS

                      discourse connectives

                      ArgM-MOD

                      modal verb

                      ArgM-REC

                      reflexives and reciprocals

                      ArgM-PRD

                      marks of secondary predication

                      Frameset activate.01 "make active"

                      Arg0: Activator

                      Arg1: Thing activated

                      Arg2: Activated-from

                      Arg3: Attribute

                      Ex1: [Arg0 IL4 and IL13 receptors] activate [Arg1 STAT6, STAT3, and STAT5 proteins] [ArgM-LOC in the human B cells].

                      Ex2: [Arg1 The simian virus 40 early promoter] is [ArgM-DIS also] [ArgM-MNR synergistically] activated [Arg0 by the Z/c-myb combination].

                      Framesets of biomedical verbs

                      Basically, the annotation of BioProp is based on PropBank's framesets, which were originally designed for newswire texts. We further customize the framesets of biomedical verbs, since some of them may have different usages in biomedical texts. Table 1 indicates whether each verb has the same usage in the newswire and biomedical domains.

                      For verbs with the same usage in both domains, we adopt the newswire definitions and framesets. However, we need to make adjustments for other cases because some verbs have different usages and rarely appear in newswire texts. Thus, they are not defined in PropBank I. For example, "phosphorylate" is not defined in PropBank I, but it has been found increasingly in PubMed abstracts describing the experiment results of phosphorylated events [29]. Therefore, after analyzing every sentence in our corpus containing such verbs, we added the latter to our list and defined framesets for them. For verbs not found in PropBank I, but with similar usages to other verbs in the proposition bank, we borrowed the PropBank I definitions and framesets. For instance, "transactivate" is not found in PropBank I, but we can apply the frameset of "activate" to it.

                      Some verbs have unique biomedical meanings not defined in PropBank I; however, their usage is similar to verbs in Propbank I. In most cases, we borrow framesets from synonyms. For example, "modulate" is defined as "change, modify, esp. of music" in the PropBank I frame files. However, its usage is very similar to "regulate" in the biomedical domain. Thus, we can use the frameset of "regulate" for "modulate". Table 3 shows the framesets and corresponding examples of "modulate" in the newswire and biomedical domains, as well as those of "regulate" in PropBank I.
                      Table 3

                      Framesets and examples of "modulate" and "regulate"

                      Predicate

                      Frameset

                      Example

                      modulate (VerbNet)

                      Arg0: composer

                      Arg1: music

                      Arg2: from

                      Arg3: to

                      [Arg1 The chords]modulate, but there is little filigree, even though his fingers begin to wander over more of the keys.

                      regulate (VerbNet)

                      Arg0: regulator

                      Arg1: thing regulated

                      The battle focuses on [Arg0the state's certificate-of-need law], [R-Arg0which] regulates [Arg1investment in new medical technology].

                      modulate (BioProp)

                      Arg0: regulator

                      Arg1: thing regulated

                      [Arg0Cytomegalovirus] modulates [Arg1interleukin-6 gene expression].

                      Some other verbs have different primary senses in the newswire and biomedical domains. "Bind", for example, is common in the newswire domain and usually means "to tie" or "restrain with bonds". In the biomedical domain, however, its intransitive use, "attach or stick to", is far more common. A Google search for the phrase "glue binds to" only returns 21 results, while the same search replacing "glue" with "protein" yields 197,000 hits. For such verbs, we just select the appropriate alternative meanings and corresponding framesets.

                      Annotation of BioProp

                      Once the framesets for the verbs have been defined, we use a semi-automatic strategy to annotate BioProp. We used our newswire SRL system SMILE, which achieved an F-score of over 86% on Section 24 of PropBank I, to annotate the GENIA treebank automatically. Then, we asked three biologists to verify the automatically tagged results. One of the biologists has three years experience in biomedical text mining research, and he managed the task. The other two biologists received three months of linguistic training for this task. After annotating BioProp, we evaluated the performance of SMILE on BioProp. The F-score was approximately 65%, which is 20% lower than its performance on PropBank I. Even so, this semi-automatic approach substantially reduces the annotation effort.

                      Inter-annotator agreement

                      We performed a preliminary consistency test on 1,982 instances of biomedical propositions by having two of the biologists annotate the results, while the third checked the annotations for consistency. Following the procedure used to calculate the inner-annotator agreement of PropBank [20], we measured the agreement between the two annotations before the adjudication step using the kappa statistic [30]. Kappa is defined with respect to the probability of inter-annotator agreement, P(A), and the agreement expected by chance, P(E), as follows:
                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_Equa_HTML.gif
                      The inter-annotator agreement probability P(A) is the number of nodes that the annotators agree on the annotation divided by the total number of nodes considered. To calculate P(E), for each category c, let p 1c denote the probability of c annotated by annotator 1, and p 2c denote the probability annotated by annotator 2. Then P(E) is the summation of p 1c * p 2c over all categories c of the semantic role labels. However, the calculation of P(A) and P(E) is distinguished into two cases that correspond to role identification (role vs. non-role) and role classification, since the vast majority of arguments are located on a small number of nodes near the verb and we need to avoid inflating the kappa score artificially. For role identification, the denominator of P(A) and P(E) the total number of nodes considered, is given by the number of nodes in each parse tree multiplied by the number of predicates annotated in the sentence, and the numerator is given by the number of nodes that are labeled as arguments (without considering whether a correct argument is assigned). For the role classification kappa, we only consider nodes marked as arguments by both annotators, which yields the denominator of P(A) and P(E), and compute kappa over the choices of possible argument labels. Furthermore, for both role identification and role classification, we compute kappa to process ArgM labels in two ways. The first (denoted as "Including ArgM in Table 4) processes ArgM labels as arguments like any other type of argument, such that ArgM-TMP, ArgM-LOC and so on are considered as separate labels for the role classification kappa. In the second scenario (denoted as "Excluding ArgM in Table 4), we ignore ArgM labels, treating them as unlabeled nodes, and calculate the agreement for identification and classification of numbered arguments only.
                      Table 4

                      Inter-annotator agreement



                      P(A)

                      P(E)

                      Kappa score

                      Including ArgM

                      role identification

                      .97

                      .52

                      .94



                      role classification

                      .96

                      .18

                      .95



                      combined decision

                      .96

                      .18

                      .95

                      Excluding ArgM

                      role identification

                      .97

                      .26

                      .94



                      role classification

                      .99

                      .28

                      .98



                      combined decision

                      .99

                      .28

                      .98

                      The kappa statistics for the above decisions are shown in Table 4. Given the large number of obviously irrelevant nodes, agreement on role identification is very high (.97 for both treatments of ArgM). The kappas for the more difficult role classification task are also high, .95 for all types of ArgM and .98 for numbered arguments only.

                      Related work

                      Wattarujeekrit et al. [26] developed PASBio, which has become a standard for annotating predicate-argument structures in the biomedical domain. It contains analyzed PAS's for over 30 verbs and is publicly available. Using predicate argument structures to analyze molecular biology information, PASBio is specifically designed for annotating molecular events and defines a core argument as one that is important for completing the meaning of an event. If a locative argument appears in a specific molecular PAS with a frequency greater than 80%, it is considered necessary and is therefore a main argument. To describe molecular events in greater detail, PASBio places biomedical constraints on main arguments. For example, considering the verb "express" (see figure 2), its Arg1, which is defined as named entity being expressed, is limited to a gene or gene products.
                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_Fig2_HTML.jpg
                      Figure 2

                      Frameset and annotated example of express defined in PASBio.

                      Shah et al. [31] successfully applied PASBio in the construction of the LSAT system for extracting information about alternative transcripts from the same gene, while Cohen et al. [32] showed that the suitability of the PAS representational model of representation for biomedical text. They concluded that PAS representations work well for biomedical text. Kogan et al. [33] built a domain-specific set of PAS for the medical domain. Their work agrees a bit more with ours in terms of their assessment of the match between PropBank's representations and the biomedical domain.

                      Unlike PASBio, BioProp is not a standard for annotating the PAS' of biomedical verbs. The main goal of BioProp is to port the proposition bank to the biomedical domain for training a biomedical SRL system. Thus, BioProp follows PropBank guidelines and uses the latter's framesets with further customization for some biomedical verbs. Subsequently, we use PropBank I as our initial training corpus for the construction of BioProp, and then ask annotators to refine the automatically tagged results. This semi-automatic approach substantially reduces the annotation effort so that Bioprop can be used for training SRL systems in the biomedical domain.

                      Results and discussion

                      Datasets

                      We use PropBank I and BioProp, which are associated with the general English and biomedical domains, respectively, as the sources of our data. The PropBank I corpus contains 950,028 words, 39,892 sentences, and 18,737 PAS'. However, only 1,449 of the PAS use the 30 biomedical verbs on our list as their predicates. BioProp currently contains 1,982 PAS'. The numbers and ratios of each argument type in the PAS' of the selected 30 biomedical verbs in PropBank I and BioProp are listed in Tables 5 and 6, respectively.
                      Table 5

                      Distribution of argument types in PropBank I

                      Argument Type

                      Number

                      Ratio

                      Arg0

                      897

                      23.96%

                      Arg1

                      1440

                      38.46%

                      Arg2

                      361

                      9.64%

                      Arg3

                      133

                      3.55%

                      ArgM-NEG

                      55

                      1.47%

                      ArgM-LOC

                      58

                      1.55%

                      ArgM-TMP

                      207

                      5.53%

                      ArgM-MNR

                      122

                      3.26%

                      ArgM-EXT

                      7

                      0.19%

                      ArgM-ADV

                      122

                      3.26%

                      ArgM-PNC

                      21

                      0.56%

                      ArgM-CAU

                      29

                      0.77%

                      ArgM-DIR

                      1

                      0.03%

                      ArgM-DIS

                      86

                      2.30%

                      ArgM-MOD

                      204

                      5.45%

                      ArgM-REC

                      1

                      0.03%

                      Total

                      3744

                      100.00%

                      Table 6

                      Distribution of argument types in BioProp

                      Argument Type

                      Number

                      Ratio

                      Arg0

                      1355

                      25.03%

                      Arg1

                      1961

                      36.22%

                      Arg2

                      313

                      5.78%

                      Arg3

                      10

                      0.18%

                      ArgM-NEG

                      103

                      1.90%

                      ArgM-LOC

                      377

                      6.96%

                      ArgM-TMP

                      141

                      2.60%

                      ArgM-MNR

                      477

                      8.81%

                      ArgM-EXT

                      23

                      0.42%

                      ArgM-ADV

                      301

                      5.56%

                      ArgM-PNC

                      3

                      0.06%

                      ArgM-CAU

                      15

                      0.28%

                      ArgM-DIR

                      22

                      0.41%

                      ArgM-DIS

                      179

                      3.31%

                      ArgM-MOD

                      121

                      2.23%

                      ArgM-REC

                      6

                      0.11%

                      ArgM-PRD

                      7

                      0.13%

                      Total

                      5414

                      100.00%

                      SMILE and BIOSMILE

                      We use two SRL systems: SMILE [19] and BIOSMILE [34]. The main difference between them is that SMILE is trained on PropBank I, while BIOSMILE is trained on BioProp. In addition, BIOSMILE has additional biomedical-specific features. Details of the features and the statistical models used in the two systems will be introduced in the Methods section.

                      Experiment design

                      We design two experiments: one to compare the performance of SMILE and BIOSMILE on biomedical applications by testing them on BioProp, and the other to measure the effects of using biomedical-specific features on the system's performance.

                      Experiment 1: improvement by using biomedical proposition bank

                      Since SMILE and BIOSMILE are trained on the corpora of different domains, in this experiment, we examine the improvement in the performance of the SRL system trained on a biomedical proposition bank. Since the size of the training corpus affects the performance of an SRL system, we need to use corpora of the same size for training SMILE and BIOSMILE in order to accurately compare the effects of using newswire training data with those of using biomedical data. Because PropBank and BioProp are of different size, we use limited selections from both.

                      Before testing SMILE and BIOSMILE on BioProp, we train the two systems on different training sets of 30 randomly chosen sets from PropBank (g 1,.., g 30) and BioProp (w 1,.., w 30), respectively. Each set contains 1,000 PAS's. After the training process, we test both systems on 30 400-PAS test sets from BioProp (trained on g 1 and w 1 for use with test set 1, and trained on g 2 and w 2 for use with test set 2, etc.). We then sum the scores for g 1-g 30 and w 1-w 30, and calculate the averages for performance comparison. In Experiment 1, both SMILE and BIOSMILE use the baseline features illustrated in the Methods section. We denote the systems as SMILE and BIOSMILEBaseline, respectively.

                      Experiment 2: the effect of using biomedical-specific features

                      To improve the performance of SRL on biomedical literature, we add two domain specific features, NE features and argument-template features (denoted as BIOSMILENE and BIOSMILETemplate respectively) to BIOSMILE. This experiment tests the effectiveness of adding the features to BIOSMILEBaseline and uses the same datasets as BIOSMILEBaseline.

                      Bio-specific NE features are created for each of the following five primary named entity (NE) categories in the GENIA ontology3: protein, nucleotide, other organic compounds, source, and others. When a constituent (node on the full-parsing tree) matches an NE exactly, the corresponding NE feature is enabled.

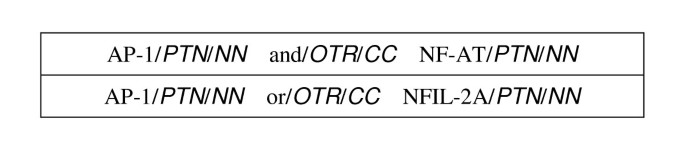

                      Additionally, we integrate argument-template features. Usually, each argument type has its own patterns. For example, in the biomedical domain, the regular expression "in * cell" is a locative argument pattern (ArgM-LOC). We automatically generate argument templates, which are composed of words, NEs, and POS's, to represent the patterns of each argument. These templates are generated by using the Smith and Waterman local alignment algorithm [35] to align all instances of a specific argument type. The template feature is enabled if a constituent matches a template exactly. NE features and argument template features are discussed further in the Methods section.

                      Evaluation metrics

                      The results are given as F-scores using the CoNLL-05 evaluation script and defined as F = (2PR)/(P + R), where P denotes the precision and R denotes the recall. The formulas for calculating precision and recall are as follows:
                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_Equb_HTML.gif

                      Results

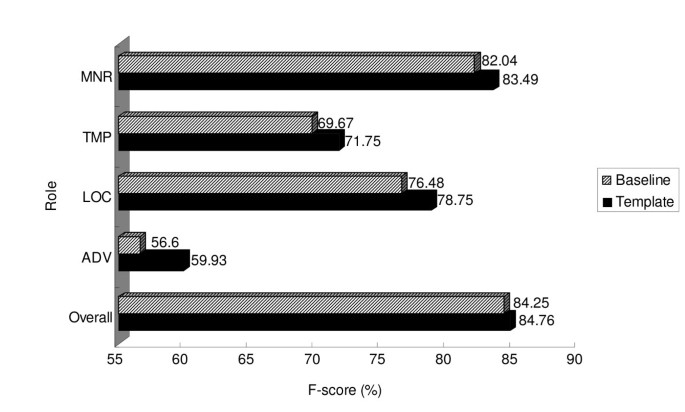

                      Table 7 shows all the configurations and the summarized results. The latter are reported as the mean precision ( http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq1_HTML.gif ), recall ( http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq2_HTML.gif ), and F-score ( http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq3_HTML.gif ) of thirty datasets. We examine the detailed statistics of all the experiments in Tables 8, 9, and 10. In the tables, as well as http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq1_HTML.gif , http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq2_HTML.gif , and http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq3_HTML.gif , we also list the sample standard deviation of the F-score ( http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq4_HTML.gif ) for each argument type. We apply a two-sample t test to examine whether one configuration is better than the other with statistical significance. The null hypothesis, which states that there is no difference between the two configurations, is given by
                      Table 7

                      Results of all configurations

                      System

                      Training

                      Test

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq1_HTML.gif (%)

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq2_HTML.gif (%)

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq3_HTML.gif (%)

                      SMILE

                      PropBank I

                      BioProp

                      74.95

                      54.05

                      62.80

                      BIOSMILEBaseline

                      BioProp

                      BioProp

                      87.03

                      81.65

                      84.25

                      BIOSMILENE

                      BioProp

                      BioProp

                      87.31

                      81.66

                      84.38

                      BIOSMILETemplate

                      BioProp

                      BioProp

                      87.56

                      82.15

                      84.76

                      Table 8

                      Comparison of performance on SMILE and BIOSMILEBaseline



                      SMILE

                      BIOSMILEBaseline



                      Type

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq1_HTML.gif (%)

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq2_HTML.gif (%)

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq3_HTML.gif (%)

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq4_HTML.gif (%)

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq1_HTML.gif (%)

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq2_HTML.gif (%)

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq3_HTML.gif (%)

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq4_HTML.gif (%)

                      ΔF (%)

                      t

                      F B >F S ? (t >1.96?)

                      Arg0

                      85.66

                      63.47

                      72.86

                      2.66

                      92.33

                      90.52

                      91.41

                      1.44

                      18.55

                      33.59

                      Y

                      Arg1

                      82.10

                      75.02

                      78.39

                      1.96

                      88.86

                      85.71

                      87.25

                      1.42

                      8.86

                      20.05

                      Y

                      Arg2

                      39.58

                      30.69

                      34.35

                      5.73

                      86.46

                      81.26

                      83.68

                      3.93

                      49.33

                      38.89

                      Y

                      ArgM-ADV

                      38.59

                      22.52

                      27.94

                      7.96

                      64.14

                      51.20

                      56.60

                      5.77

                      28.66

                      15.97

                      Y

                      ArgM-DIS

                      72.58

                      52.12

                      59.92

                      8.62

                      83.74

                      74.91

                      78.83

                      5.39

                      18.91

                      10.19

                      Y

                      ArgM-LOC

                      62.17

                      1.98

                      3.79

                      3.60

                      76.03

                      77.12

                      76.48

                      3.67

                      72.69

                      77.45

                      Y

                      ArgM-MNR

                      45.29

                      18.61

                      25.95

                      6.99

                      83.30

                      81.02

                      82.04

                      2.74

                      56.09

                      40.92

                      Y

                      ArgM-MOD

                      99.25

                      87.48

                      92.84

                      3.66

                      97.22

                      94.67

                      95.82

                      2.36

                      2.98

                      3.75

                      Y

                      ArgM-NEG

                      99.37

                      76.77

                      86.24

                      6.66

                      97.70

                      94.98

                      96.17

                      2.80

                      9.93

                      7.53

                      Y

                      ArgM-TMP

                      71.60

                      57.33

                      62.98

                      9.88

                      81.48

                      61.65

                      69.67

                      7.25

                      6.69

                      2.99

                      Y

                      Overall

                      74.95

                      54.05

                      62.80

                      1.95

                      87.03

                      81.65

                      84.25

                      1.33

                      21.45

                      49.82

                      Y

                      Table 9

                      Comparison of performance on BIOSMILEBaseline and BIOSMILENE



                      BIOSMILEBaseline

                      BIOSMILENE



                      Type

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq1_HTML.gif (%)

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq2_HTML.gif (%)

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq3_HTML.gif (%)

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq4_HTML.gif (%)

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq1_HTML.gif (%)

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq2_HTML.gif (%)

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq3_HTML.gif (%)

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq4_HTML.gif (%)

                      ΔF (%)

                      t

                      F N >F B ? (t >1.67?)

                      Arg0

                      92.33

                      90.52

                      91.41

                      1.44

                      92.29

                      90.46

                      91.35

                      1.53

                      -0.05

                      -0.14

                      N

                      Arg1

                      88.86

                      85.71

                      87.25

                      1.42

                      89.32

                      86.07

                      87.66

                      1.31

                      0.41

                      1.18

                      N

                      Arg2

                      86.46

                      81.26

                      83.68

                      3.93

                      86.78

                      81.07

                      83.73

                      4.39

                      0.05

                      0.05

                      N

                      ArgM-ADV

                      64.14

                      51.20

                      56.60

                      5.77

                      64.73

                      50.90

                      56.61

                      6.06

                      0.01

                      0.01

                      N

                      ArgM-DIS

                      83.74

                      74.91

                      78.83

                      5.39

                      84.14

                      74.71

                      78.81

                      5.66

                      -0.02

                      -0.01

                      N

                      ArgM-LOC

                      76.03

                      77.12

                      76.48

                      3.67

                      76.54

                      77.06

                      76.71

                      3.74

                      0.23

                      0.25

                      N

                      ArgM-MNR

                      83.30

                      81.02

                      82.04

                      2.74

                      83.05

                      81.20

                      82.02

                      2.79

                      -0.02

                      -0.03

                      N

                      ArgM-MOD

                      97.22

                      94.67

                      95.82

                      2.36

                      97.31

                      94.47

                      95.76

                      2.68

                      -0.05

                      -0.08

                      N

                      ArgM-NEG

                      97.70

                      94.98

                      96.17

                      2.80

                      97.45

                      94.97

                      96.03

                      2.91

                      -0.14

                      -0.19

                      N

                      ArgM-TMP

                      81.48

                      61.65

                      69.67

                      7.25

                      81.80

                      61.33

                      69.62

                      7.31

                      -0.05

                      -0.03

                      N

                      Overall

                      87.03

                      81.65

                      84.25

                      1.33

                      87.31

                      81.66

                      84.38

                      1.37

                      0.14

                      0.40

                      N

                      Table 10

                      Comparison of performance on BIOSMILEBaseline and BIOSMILETemplate



                      BIOSMILEBaseline

                      BIOSMILETemplate



                      Type

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq1_HTML.gif (%)

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq2_HTML.gif (%)

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq3_HTML.gif (%)

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq4_HTML.gif (%)

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq1_HTML.gif (%)

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq2_HTML.gif (%)

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq3_HTML.gif (%)

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq4_HTML.gif (%)

                      ΔF (%)

                      t

                      F T >F B ? (t >1.67?)

                      Arg0

                      92.33

                      90.52

                      91.41

                      1.44

                      92.35

                      90.48

                      91.40

                      1.52

                      -0.01

                      -0.02

                      N

                      Arg1

                      88.86

                      85.71

                      87.25

                      1.42

                      88.83

                      85.75

                      87.25

                      1.39

                      0.00

                      0.01

                      N

                      Arg2

                      86.46

                      81.26

                      83.68

                      3.93

                      86.45

                      81.63

                      83.87

                      3.93

                      0.19

                      0.19

                      N

                      ArgM-ADV

                      64.14

                      51.20

                      56.60

                      5.77

                      66.96

                      54.77

                      59.93

                      5.83

                      3.33

                      2.22

                      Y

                      ArgM-DIS

                      83.74

                      74.91

                      78.83

                      5.39

                      84.14

                      74.92

                      78.99

                      5.39

                      0.16

                      0.12

                      N

                      ArgM-LOC

                      76.03

                      77.12

                      76.48

                      3.67

                      79.65

                      78.07

                      78.75

                      3.21

                      2.27

                      2.55

                      Y

                      ArgM-MNR

                      83.30

                      81.02

                      82.04

                      2.74

                      84.15

                      83.02

                      83.49

                      2.69

                      1.44

                      2.06

                      Y

                      ArgM-MOD

                      97.22

                      94.67

                      95.82

                      2.36

                      97.55

                      94.67

                      96.00

                      2.39

                      0.18

                      0.29

                      N

                      ArgM-NEG

                      97.70

                      94.98

                      96.17

                      2.80

                      97.70

                      94.98

                      96.17

                      2.80

                      0.00

                      0.00

                      N

                      ArgM-TMP

                      81.48

                      61.65

                      69.67

                      7.25

                      83.90

                      63.33

                      71.75

                      6.32

                      2.08

                      1.18

                      N

                      Overall

                      87.03

                      81.65

                      84.25

                      1.33

                      87.56

                      82.15

                      84.76

                      1.35

                      0.52

                      1.50

                      N

                      H0: μ A = μ B,

                      where μ A is the true mean F-score of configuration A, μ B is the mean of configuration B, and the alternative hypothesis is

                      H1: μ A > μ B.

                      A two-sample t-test is applied since we assume the samples are independent. As the number of samples is large and the samples' standard deviations are known, the following two-sample t-statistic is appropriate in this case:
                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_Equc_HTML.gif

                      If the resulting t score is equal to or less than 1.67 with a degree of freedom of 29 and a statistical significance level of 95%, the null hypothesis is accepted; otherwise it is rejected. Even though we do not list all the argument types in Tables 8, 9, and 10 (because some argument types only have a few instances), we calculate the overall score by checking all argument types.

                      Experiment 1

                      Table 8 shows the results of Experiment 1. We find that BIOSMILE outperforms SMILE by 21.45% on the F-score when tested on BioProp. It also outperforms SMILE for all argument types with a statistically significant difference. Specifically, ArgM-LOC, ArgM-MNR, and Arg2 achieve the biggest performance improvement, followed by ArgM-ADV, ArgM-DIS, and Arg0.

                      Experiment 2

                      Table 9 compares the performance of BIOSMILEBaseline and BIOSMILENE. Initially, we expected that the NE features would improve the recognition of adjunct arguments (ArgM), such as ArgM-LOC. However, they failed to do so.

                      Argument template features, on the other hand, boost the system's performance. Table 10 compares the performance of argument templates on BIOSMILEBaseline and BIOSMILETemplate. The overall F-score is only improved slightly (0.52%). However, we achieve 3.33%, 2.27%, and 1.44% increases in the F-scores of ArgM-ADV, ArgM-LOC, and ArgM-MNR, respectively. These improvements are statistically significant. Although the increase in ArgM-TMP's F-score is not statistically significant, it is still appreciable. Figure 3 gives a clearer illustration of the improved performance of these argument types.
                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_Fig3_HTML.jpg
                      Figure 3

                      Performance improvement of template features overall and on several adjunct argument types.

                      Discussion

                      Experiment 1 demonstrates that BIOSMILEBaseline outperforms SMILE by more than 20%. Experiment 2 shows that NE features do not improve BIOSMILE's performance, but template features do. Next, we further analyze the results and discuss possible reasons for them.

                      The influence of sense change on the biomedical and newswire domains

                      According to the results of Experiment 1, verbs with different framesets in the newswire and biomedical domain exhibit larger differences in performance between SMILE and BIOSMILEBaseline. Table 11 details the average F-score difference between verbs with different framesets in both domains and verbs with the same framesets in both domains; the verb types are defined in the Background section (Verb Selection). These performance differences suggest that variations in cross-domain framesets and the usage of specific verbs influence SRL performance.
                      Table 11

                      Comparison of performance difference on verbs that have different framesets and the same framesets in Experiment 1

                      Verb Type

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_IEq5_HTML.gif - FSMILE

                      Different frame set

                      28.12%

                      The same set

                      18.42%

                      Why NE features are not effective

                      In the newswire domain, NE features have proven effective in improving SRL performance. However, the results of Experiment 2 show that we did not have the same success in the biomedical domain. Table 12 lists the five NE classes used and the number of NEs that occur in the main arguments. Though arguments frequently contain NEs, according to our findings, the converse does not hold. We find that most NEs match the NULL arguments, i.e., they match the nodes that are not labelled by BIOSMILE and, equivalently, do not correspond to the argument types of interest to us. Thus, trained on this data, a machine learning model would give so much weight to the NULL class that it would render all NE features ineffective for argument classification.
                      Table 12

                      Distribution of NEs in the main and NULL arguments



                      A0

                      A1

                      A2

                      NULL

                      Compound

                      97

                      7

                      0

                      2361

                      Space

                      46

                      48

                      0

                      5371

                      Protein

                      167

                      169

                      13

                      10651

                      Other

                      25

                      260

                      0

                      4860

                      Nucleotide

                      18

                      36

                      1

                      3753

                      Performance gained using template features

                      Only five argument types have a sufficient number of generated templates to be useful: ArgM-DIS, ArgM-MNR, ArgM-ADV, ArgM-TMP, and ArgM-LOC. We do not generate templates for arguments like ArgM-MOD and ArgM-NEG as they are usually composed of single words, such as "can" (ArgM-MOD) and "not" (ArgM-NEG). Baseline features, such as headword features, can generally recognize these arguments with a high degree of accuracy (F-scores of 95.82% for ArgM-MOD and 96.17% for ArgM-NEG). Templates for Arg0 and Arg1 are difficult to implement because a phrase pattern tagged as Arg0 may be tagged as Arg1 elsewhere, which results in all generated patterns being filtered out. Table 13 lists the performance improvement generated by template features on the five specified argument types, based on the improvement of the F-score over the baseline BIOSMILE. It also reports the number of templates, the number of instances, and the template density (# of templates/# of instances) for each type.
                      Table 13

                      Template feature statistics for the five argument types



                      F-score (%)



                      Argument Type

                      Baseline

                      Template

                      ΔF (%)

                      # of templates

                      # of instances

                      Template Density

                      ArgM-ADV

                      56.60

                      59.93

                      3.33

                      88

                      301

                      0.292359

                      ArgM-DIS

                      78.83

                      78.99

                      0.16

                      2

                      22

                      0.090909

                      ArgM-LOC

                      76.48

                      78.75

                      2.27

                      274

                      377

                      0.726790

                      ArgM-MNR

                      82.04

                      83.49

                      1.44

                      72

                      477

                      0.150943

                      ArgM-TMP

                      69.67

                      71.75

                      2.08

                      57

                      141

                      0.404255

                      Figures 4 and 5 further illustrate the positive logarithmic correlation between template density and F-score difference (ΔF) for each argument type. ΔF initially increases with template density, but then appears to taper off. Note that the R-squared between ΔF and the logarithmic template density is 0.5046. However, after removing ArgM-ADV from the data, the R-squared increases to 0.8562, as shown in Figure 5. There are two possible explanations for ArgM-ADV's exceptionally high ΔF. First, its baseline F-score value is the lowest (56.60%) among the five adjunct arguments. Thus, increasing its F-score would be the easiest among the five arguments. Second, its average length is the longest so that its templates longer and possibly more precise.
                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_Fig4_HTML.jpg
                      Figure 4

                      Relationship betweenΔF and template density.

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_Fig5_HTML.jpg
                      Figure 5

                      Relationship betweenΔF and template density after removing ArgM-ADV.

                      Here, we give an example to illustrate how template features recognize an ArgM-TMP. Table 14 shows the features of each word in the sentence: "NAC not only blocks the effect of TPCK, but also enhances mitogenesis and cytokine production (>2.5-fold in some cases) upon activation of unsuppressed T cells." The phrase "upon activation of unsuppressed T cells" matches the ArgM-TMP template "IN NN IN SRC SRC cells". Each template slot indicates the allowable real words, NE tags, or POS tags. (Please refer to the Named Entity Features section to find all the abbreviations of NE tags.) However, the baseline BIOSMILE can not recognize this phrase by itself (shown in column five). Turning template features on, however, correctly identifies the ArgM-TMP, as shown in column six.
                      Table 14

                      An example of using an ArgM-TMP template

                      Words

                      NE

                      POS

                      Predicate

                      BIOSMILEBaseline

                      BIOSMILETemplate

                      NAC

                      (PTN*)

                      NN

                      -

                      (Arg0*)

                      (Arg0*)

                      Not

                      *

                      RB

                      -

                      *

                      *

                      Only

                      *

                      RB

                      -

                      *

                      *

                      blocks

                      *

                      VBZ

                      -

                      *

                      *

                      The

                      *

                      DT

                      -

                      *

                      *

                      Effect

                      *

                      NN

                      -

                      *

                      *

                      Of

                      *

                      IN

                      -

                      *

                      *

                      TPCK

                      (OOC*)

                      NN

                      -

                      *

                      *

                      But

                      *

                      CC

                      -

                      *

                      *

                      enhances

                      *

                      VBZ

                      enhance

                      (V*)

                      (V*)

                      mitogenesis

                      *

                      NN

                      -

                      (Arg1*

                      (Arg1*

                      And

                      *

                      CC

                      -

                      *

                      *

                      cytokine

                      (OTR(PTN*)

                      NN

                      -

                      *

                      *

                      production

                      *)

                      NN

                      -

                      *)

                      *)

                      (

                      *

                      -LRB-

                      -

                      (ArgM-EXT*

                      (ArgM-EXT*

                      >

                      *

                      JJR

                      -

                      *

                      *

                      2.5-fold

                      *

                      RB

                      -

                      *

                      *

                      In

                      *

                      IN

                      -

                      *

                      *

                      some

                      *

                      DT

                      -

                      *

                      *

                      cases

                      *

                      NNS

                      -

                      *

                      *

                      )

                      *

                      -RRB-

                      -

                      *)

                      *)

                      upon

                      *

                      IN

                      -

                      *

                      (ArgM-TMP*

                      activation

                      *

                      NN

                      -

                      *

                      *

                      of

                      *

                      IN

                      -

                      *

                      *

                      unsuppressed

                      (SRC*

                      JJ

                      -

                      *

                      *

                      T

                      (SRC*

                      NN

                      -

                      *

                      *

                      cells

                      *))

                      NNS

                      -

                      *

                      *)



                      *



                      -

                      *

                      *

                      Conclusion

                      To improve the performance of SRL in the biomedical domain, we have developed BIOSMILE, a biomedical SRL system trained on a biomedical proposition bank called BioProp. The construction of BioProp is based on a semi-automatic strategy. Since our experiment results show that the differences in framesets and the usage variations of verbs in the biomedical and newswire proposition banks affect the performance of the underlying SRL systems, the necessity of training BIOSMILE on a biomedical proposition bank has been demonstrated. BIOSMILE is capable of processing the PAS' of thirty verbs selected according to their frequency and importance in describing molecular events. Incorporating automatically generated templates enhances the overall performance of argument classification, especially for locations, manners, and adverbs.

                      Finally, the following related issues remain to be addressed in our future work: (1) enhancing the system by adding more biomedical verbs to BioProp and integrating an automatic Penn-style parser into BIOSMILE; (2) applying BIOSMILE to other biomedical text mining systems, such as relation extraction and question answering systems; (3) examining the effectiveness of using BIOSMILE in other biomedical corpora; and (4) extracting biomedical relations expressed across sentences through SRL.

                      Methods

                      First, we briefly introduce the machine learning model and features used in SMILE and BIOSMILE. Then, we explain the specific biomedical features of BIOSMILE, which we discussed in the Results and Discussion sections, in more detail.

                      Formulation of semantic role labeling

                      Like POS tagging, chunking, and named entity recognition, SRL can be formulated as a sentence tagging problem. A sentence can be represented by a sequence of words, a sequence of phrases, or a parsing tree; the basic units of a sentence are words, phrases, and constituents (a node on a full parsing tree) arranged in the above representations, respectively. Hacioglu et al. [36] showed that tagging phrase-by-phrase (P-by-P) is better than word-by-word (W-by-W). However, Punyakanok et al. [15] showed that constituent-by-constituent (C-by-C, or node-by-node) tagging is better than P-by-P. Therefore, we adopt C-by-C tagging for SRL.

                      In the following subsections, we first describe the maximum entropy model used for argument classification, and then illustrate the basic features of our SMILE and BIOSMILE systems.

                      Maximum entropy model

                      The maximum entropy (ME) model is a flexible statistical framework that assigns an outcome for each instance based on the instance's history, which is made up of all the conditioning data that enables one to assign probabilities to the space of all outcomes. In SRL, a history can be viewed as all the information related to the current token that is derivable from the training corpus. ME computes the probability, p(o|h), for any o from the space of all possible outcomes, O, and for every h from the space of all possible histories, H.

                      The computation of p(o|h) in an ME depends on a set of binary features, which are useful for making predictions about the outcome. For instance, a node in the parsing tree that ends with "cell" is very likely to be an ArgM-LOC. Formally, we can represent this feature as follows:
                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_Equd_HTML.gif
                      Here, "current_node_ends_with_cell(h)" is a binary function that returns a true value if the current node in the history, h, ends with "cell". Given a set of features and a training corpus, the ME estimation process produces a model in which every feature f i has a weight α i . Like [25], we compute the conditional probability as follows:
                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_Eque_HTML.gif
                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_Equf_HTML.gif

                      The probability is calculated by multiplying the weights of the active features (i.e., those with f i (h,o) = 1); and α i is estimated by a procedure called Generalized Iterative Scaling (GIS) [37]. The ME estimation technique guarantees that, for every feature f i , the expected value of α i will equal the empirical expectation of α i in the training corpus. We use Zhang's MaxEnt toolkit and the L-BFGS [38] method of parameter estimation for our ME model.

                      Baseline features

                      Table 15 shows the features used in our baseline argument classification model. Their effectiveness has been shown previously in [13, 14, 17, 39]. Detailed descriptions of the features can be found in [19].
                      Table 15

                      The features used in the baseline argument classification model

                      BASIC FEATURES

                      Predicate – The predicate lemma

                      Path – The syntactic path through the parsing tree from the constituent being classified to the predicate

                      Constituent type

                      Position – Whether the phrase is located before or after the predicate

                      Voice – passive if the predicate has a POS tag VBN, and its chunk is not a VP, or it is preceded by a form of "to be" or "to get" within its chunk; otherwise, it is active

                      Head word – Calculated using the head word table described by Collins (1999)

                      Head POS – The POS of the Head Word

                      Sub-categorization – The phrase structure rule that expands the predicate's parent node in the parsing tree

                      First and last Word and their POS tags

                      Level – The level in the parsing tree

                      PREDICATE FEATURES

                      Predicate's verb class

                      Predicate POS tag

                      Predicate frequency

                      Predicate's context POS

                      Number of predicates

                      FULL PARSING FEATURES

                      Parent, left sibling, and right sibling paths, constituent types, positions, head words, and head POS tags

                      Head of Prepositional Phrase (PP) parent – If the parent is a PP, then the head of this PP is also used as a feature

                      COMBINATION FEATURES

                      Predicate distance combination

                      Predicate phrase type combination

                      Head word and predicate combination

                      Voice position combination

                      OTHERS

                      Syntactic frame of predicate/NP

                      Headword suffixes of lengths 2, 3, and 4

                      Number of words in the phrase

                      Context words & POS tags

                      Named entity features

                      In the English newswire domain, Surdeanu et al. [39] used NE features to indicate whether a constituent contains NEs of interest, such as personal names, organization names, location names, time expressions, and quantities of money. After adding these NE features to their system, the F-score improved by 2.12%. However, because NEs in the biomedical domain are quite different from English newswire NEs, we create specific biological NE features using the following five primary NE categories found in the GENIA ontology: protein, nucleotide, other organic compounds, source, and others. Table 16 lists the definitions of these five categories. When a constituent matches an NE exactly, the corresponding NE feature is enabled.
                      Table 16

                      Five NE categories in GENIA ontology

                      NE

                      Definition

                      Abbreviation

                      Protein

                      Proteins include protein groups, families, molecules, complexes, and substructures.

                      PTN

                      Nucleotide

                      A nucleic acid molecule or the compounds that consist of nucleic acids.

                      NUC

                      Other organic compounds

                      Organic compounds excluding proteins and nucleotides.

                      OOC

                      Source

                      Sources are biological locations where substances are found and their reactions take place.

                      SRC

                      Others

                      The terms that are not categorized as sources or substances can be marked.

                      OTR

                      Biomedical template features

                      Although a few NEs tend to belong almost exclusively to certain argument types (e.g., "...cell" tends to be mainly an ArgM-LOC), this information alone is not sufficient for argument-type classification for two reasons: 1) most NEs appear in a variety of argument types; and 2), many appear in more than one constituent (a node in a parsing tree) in the same sentence. Take the sentence "IL4 and IL13 receptors activate STAT6, STAT3, and STAT5 proteins in the human B cells" for example. The NE "the human B cells" is found in two constituents ("the human B cells" and "in the human B cells") as shown in Figure 1. Yet only "in the human B cells" is annotated as ArgM-LOC because here "human B cells" is preceded by the preposition "in" and the determiner "the", which matches the template–"IN the SRC". Templates composed of NEs, words, and POS tags can be helpful for identifying the argument type of a constituent. In this section, we first describe our template generation algorithm, and then explain how we use the generated templates to improve SRL performance.

                      Template generation (TG) and filtering

                      Our template generation (TG) algorithm, which extracts general patterns for all argument types using Smith and Waterman's local alignment algorithm [35], starts by pairing all arguments belonging to the same type according to their similarity. Closely matched pairs are then aligned word-by-word and a template satisfying the alignment result is created. Each slot in the template is given by the corresponding constraint information expressed in the form of a word (e.g. "the"), NE type, or POS. The preference of the constraint information is word > NE type > POS. If two aligned arguments have nothing in common for a given slot, the TG algorithm puts a wildcard in the position. Figure 6 shows a pair of aligned arguments, from which the TG algorithm generated the template "AP-1 CC PTN" (PTN: protein name) because, in the first position, both arguments have "AP-1"; in the second position, they have the same POS CC; and in the third position, they share a common NE type, PTN. The complete TG algorithm is described by pseudo code in Algorithm 1. The similarity function used to compare the similarity of two tokens in Smith and Waterman's algorithm is defined as:
                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_Fig6_HTML.jpg
                      Figure 6

                      An aligned argument pair.

                      http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-8-325/MediaObjects/12859_2006_Article_1697_Equg_HTML.gif

                      where x and y are tokens in arguments a i and a j , respectively. The similarity of two arguments is calculated by the Smith and Waterman algorithm based on this token-level similarity function.

                      Algorithm 1: Template generation

                      Input: A set of Arguments A = {a 1,..., a k },

                      Output: A set of templates T = {t 1,...,t k }.

                      1: T = {};

                      2: for each argument a i from a 1 to a n-1 do

                      3:    for each argument a j from a i to a n do

                      4:       if the similarity of a i and a j calculated by an alignment is above the threshold τ

                      5:       then generate a common template t for a i and a j ;

                      6:       TTt;

                      7:    end;

                      8: end;

                      After the templates have been generated, we filter out any template that matches at least two kinds of argument.

                      Applying generated templates

                      The generated templates may match with constituents exactly or partially. In our experience, exact matches are more useful for argument classification. For example, constituents that perfectly match the template "IN a * SRC" ('*' means wildcards) are overwhelmingly ArgM-LOCs. Therefore, we only accept exact template matches. In other words, if a constituent matches a template t exactly, then the feature corresponding to t will be enabled.

                      Declarations

                      Acknowledgements

                      This research was supported in part by the National Science Council under grant NSC95-3114-P-002-005-Y and the thematic program of Academia Sinica under grant AS94B003. We especially thank the BioNLP and BMC reviewers for their valuable comments, which helped us improve the quality of the paper.

                      Authors’ Affiliations

                      (1)
                      Institute of Information Science, Academia Sinica
                      (2)
                      Institute of Human Nutrition, Columbia University
                      (3)
                      Biological Sciences & Psychology, Mellon College of Sciences, Carnegie Mellon University

                      References

                      1. Manning CD, Schütze H: Foundations of Statistical Natural Language Processing. Cambridge, MA , MIT Press 1999.
                      2. Lee I, Date SV, Adai AT, Marcotte EM: A probabilistic functional network of yeast genes. Science 2004,306(5701):1555–1558.View ArticlePubMed
                      3. Ramani AK, Bunescu RC, Mooney RJ, Marcotte EM: Consolidating the set of know human proteinprotein interactions in preparation for large-scale mapping of the human interactome. Genome Biology 2005,6(5):r40.View ArticlePubMed
                      4. Wren JD: Extending the mutual information measure to rank inferred literature relationships. BMC Bioinformatics 2004.,5(145):
                      5. Chen H, Sharp BM: Content-rich biological network constructed by mining PubMed abstracts. BMC Bioinformatics 2004.,5(147):
                      6. Donaldson I, Martin J, Bruijn B, Wolting C, Lay V, Tuekam B, Zhang S, Baskin B, Bader GD, Michalickova K, Pawson T, Hogue CWV: PreBIND and Textomy - mining the biomedical literature for protein-protein interactions using a support vector machine. BMC Bioinformatics 2003.,4(11):
                      7. Ray S, Craven M: Representing sentence structure in hidden Markov models for information extraction. 2001.
                      8. Zhao S, Grishman R: Extracting relations with integrated information using kernel methods: Arbor, Michigan. 2005.
                      9. Bunescu RC, Mooney RJ: Subsequence kernels for relation extraction: Vancouver, BC. 2005.
                      10. Hacioglu K, Pradhan S, WayneWard, Martin JH, Jurafsky D: Shallow Semantic Parsing using Support Vector Machines. 2003.
                      11. Hörnig R, Rauh R, Strube G: EVENTS-II: Modeling event recognition . The cognitive psychology of knowledge (Edited by: Strube G, Wender KF). Amsterdam , Elsevier Science Publishers 1993, 113–138.View Article
                      12. Gildea D, Palmer M: The Necessity of Parsing for Predicate Argument Recognition. 2002.
                      13. Gildea D, Jurafsky D: Automatic labeling of semantic roles. Computational Linguistics 2002.,28(3):
                      14. Xue N, Palmer M: Calibrating Features for Semantic Role Labeling. 2004.
                      15. Punyakanok V, Roth D, Yih W, Zimak D: Semantic Role Labeling via Integer Linear Programming Inference. 2004.
                      16. Morarescu P, Bejan C, Harabagiu S: Shallow Semantics for Relation Extraction. 2005.
                      17. Pradhan S, Hacioglu K, Kruglery V, Ward W, Martin JH, Jurafsky D: Support Vector Learning for Semantic Argument Classification. Journal of Machine Learning 2004.
                      18. Punyakanok V, Roth D, Yih W: The Necessity of Syntactic Parsing for Semantic Role Labeling. 2005.
                      19. Tsai TH, Wu CW, Lin YC, Hsu WL: Exploiting Full Parsing Information to Label Semantic Roles Using an Ensemble of ME and SVM via Integer Linear Programming. 2005.
                      20. Palmer M, Gildea D, Kingsbury P: The Proposition Bank: An Annotated Corpus of Semantic Roles. Computational Linguistics 2005.,31(1):
                      21. Chou WC, Tsai RTH, Su YS, Ku W, Sung TY, Hsu WL: A Semi-Automatic Method for Annotating a Biomedical Proposition Bank. 2006.
                      22. Kim JD, Ohta T, Tateisi Y, Tsujii J: GENIA corpus--semantically annotated corpus for bio-textmining. Bioinformatics 2003, 19 Suppl 1:i180–2.View ArticlePubMed
                      23. Kim JD, Ohta T, Tsuruoka Y, Tateisi Y, Collier N: Introduction to the Bio-Entity Task at JNLPBA. 2004.
                      24. Tateisi Y, Yakushiji A, Ohta T, Tsujii J: Syntax Annotation for the GENIA corpus. 2005, Companion volume:pp. 222--227.
                      25. Bies A, Ferguson M, Katz K, MacIntyre R, Tredinnick V, Kim G, Marcinkiewicz MA, Schasberger B: Bracketing Guidelines for Treebank II Style Penn Treebank Project . 1995.
                      26. Wattarujeekrit T, Shah PK, Collier N: PASBio: predicate-argument structures for event extraction in molecular biology. BMC Bioinformatics 2004, 5:155.View ArticlePubMed
                      27. Carreras X, Màrquez L: Introduction to the CoNLL-2005 Shared Task: Semantic Role Labeling. 2005.
                      28. Dowty DR: Thematic proto-roles and argument selection. Language 1991,67(3):547–619.View Article
                      29. Yuan X, Hu ZZ, Wu HT, Torii M, Narayanaswamy M, Ravikumar KE, Vijay-Shanker K, Wu CH: An online literature mining tool for protein phosphorylation. Bioinformatics 2006,22(13):1668–1669.View ArticlePubMed
                      30. Siegel S, Castellan JN: Nonparametric statistics for the behavioral sciences. Boston, MA , McGraw Hill 1988.
                      31. Shah PK, Bork P: LSAT: learning about alternative transcripts in MEDLINE. BMC Bioinformatics 2006,22(7):857–865.
                      32. Cohen KB, Hunter L: Natural Language Processing and Systems Biology. Artificial Intelligence and Systems Biology (Edited by: Dubitzky W, Azuaje F). Springer 2005.
                      33. Kogan Y, Collier N, Pakhomov S, Krauthammer M: Towards semantic role labeling & IE in the medical literature. 2005, 410–414.
                      34. Tsai RTH, Chou WC, Lin YC, Ku W, Su YS, Sung TY, Hsu WL: BIOSMILE: Adapting Semantic Role Labeling for Biomedical Verbs: An Exponential Model Coupled with Automatically Generated Template Features: New York. 2006.
                      35. Smith TF, Waterman MS: Identification of common molecular subsequences. Journal of Molecular Biology 1981, 147:195–197.View ArticlePubMed
                      36. Hacioglu K, Pradhan S, Ward W, Martin JH, Jurafsky D: Semantic Role Labeling by Tagging Syntactic Chunks. 2004.
                      37. Darroch JN, Ratcliff D: Generalized Iterative Scaling for Log-Linear Models. The Annals of Mathematical Statistics 1972.
                      38. Nocedal J, Wright SJ: Numerical Optimization. Springer 1999.
                      39. Surdeanu M, Harabagiu SM, Williams J, Aarseth P: Using Predicate-Argument Structures for Information Extraction. 2003, 8–15.

                      Copyright

                      © Tsai et al. 2007

                      This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://​creativecommons.​org/​licenses/​by/​2.​0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
