Towards an automatic classification of protein structural domains based on structural similarity

  • Vichetra Sam1,

    Affiliated with

    • Chin-Hsien Tai2,

      Affiliated with

      • Jean Garnier1, 3,

        Affiliated with

        • Jean-Francois Gibrat3,

          Affiliated with

          • Byungkook Lee2 and

            Affiliated with

            • Peter J Munson1Email author

              Affiliated with

              BMC Bioinformatics20089:74

              DOI: 10.1186/1471-2105-9-74

              Received: 18 July 2007

              Accepted: 31 January 2008

              Published: 31 January 2008

              Abstract

              Background

              Formal classification of a large collection of protein structures aids the understanding of evolutionary relationships among them. Classifications involving manual steps, such as SCOP and CATH, face the challenge of increasing volume of available structures. Automatic methods such as FSSP or Dali Domain Dictionary, yield divergent classifications, for reasons not yet fully investigated. One possible reason is that the pairwise similarity scores used in automatic classification do not adequately reflect the judgments made in manual classification. Another possibility is the difference between manual and automatic classification procedures. We explore the degree to which these two factors might affect the final classification.

              Results

              We use DALI, SHEBA and VAST pairwise scores on the SCOP C class domains, to investigate a variety of hierarchical clustering procedures. The constructed dendrogram is cut in a variety of ways to produce a partition, which is compared to the SCOP fold classification.

              Ward's method dendrograms led to partitions closest to the SCOP fold classification. Dendrogram- or tree-cutting strategies fell into four categories according to the similarity of resulting partitions to the SCOP fold partition. Two strategies which optimize similarity to SCOP, gave an average of 72% true positives rate (TPR), at a 1% false positive rate. Cutting the largest size cluster at each step gave an average of 61% TPR which was one of the best strategies not making use of prior knowledge of SCOP. Cutting the longest branch at each step produced one of the worst strategies.

              We also developed a method to detect irreducible differences between the best possible automatic partitions and SCOP, regardless of the cutting strategy. These differences are substantial. Visual examination of hard-to-classify proteins confirms our previous finding, that global structural similarity of domains is not the only criterion used in the SCOP classification.

              Conclusion

              Different clustering procedures give rise to different levels of agreement between automatic and manual protein classifications. None of the tested procedures completely eliminates the divergence between automatic and manual protein classifications. Achieving full agreement between these two approaches would apparently require additional information.

              Background

              This work investigates a large number of different methods for producing an automatic classification of structural domains of proteins based on all-against-all pairwise structural similarity scores. We produce candidate classifications and compare them to the human expert-curated classification SCOP [1]. Perhaps the earliest attempt at automatic classification of protein structures was by Holm and Sander [2], who produced the FSSP database, consisting primarily of a tree obtained by applying hierarchical clustering using the pairwise structural similarity scores among a sequence representative set [3]. Later, Dietmann et al [4] refined FSSP by introducing the notion of domain [5]. More recent work by Gewehr et al. [6] and others [710], focused on the problem of assigning new, unclassified domains into their correct pre-established fold classes. Other authors [1115] compared a set of pairwise similarity measures computed by various structure comparison methods to the SCOP (or other) pre-existing classification, to investigate the causes of divergence between automatically determined pairwise structural similarity and expert-curated classification. In particular, the comparison between FSSP, SCOP and CATH, by Hadley and Jones [12], makes use of FSSP pairwise scores between protein chains which are present in all three databases, as FSSP does not use domain as the classification unit. Although these studies advanced the understanding of divergence between automatic similarity and expert-curated classification, improvement of automatic classification procedures was not their primary objective.

              Our earlier work [15] pointed to structural variations within SCOP folds as a main cause of divergence between automatic and expert-curated classifications. Intra-fold structural variation affects the measured structural similarity both within and between folds. The measured similarities are often not uniform among domains within a fold and the average similarity among domains within one fold can be different from that within another fold. We investigate different partitioning strategies in an attempt to accommodate such uneven similarity distributions. In particular, we investigate dendrogram cutting strategies as a potential means of isolating both tightly clustered, homogeneous folds and more heterogeneous ones, using a single procedure.

              One source of potential confusion in the literature is the failure to explicitly consider the fundamental difference between mathematical properties of a similarity score matrix compared to a classification or partition. Mathematically, each can be represented as an M by M matrix where M is the number of protein domains. Unlike a pairwise similarity score matrix which can be any square matrix, a "partition matrix" is made of 0 or 1 elements indicating when two domains are in the same (1) or different (0) clusters of the partition. The partition matrix can always be transformed into a block-diagonal form by sorting the rows and columns appropriately, reflecting a property related to the definition of a partition itself. A partition of a set of domains is comprised of non-overlapping clusters, meaning that if A and B are in the same cluster, while B and C are also in the same cluster, then A and C are necessarily in that same cluster, a type of transitivity here called the "partition constraint". This property may be absent in a pairwise similarity matrix.

              Building a classification by clustering based on pairwise similarity scores is essentially the same thing as transforming the pairwise similarity matrix into one which satisfies the partition constraint. Clearly, this process may force some domain pairs originally considered as dissimilar into the same cluster while other, similar pairs would be forced into different clusters. In many studies comparing the automatically determined pairwise similarities and a structural classification database [1115], the effect of the presence of the partition constraint was not explicitly considered. Some of the reported discrepancy between similarity scores and classifications may potentially result from the failure of the similarity scores to satisfy this constraint. In the present study, we eliminate this factor by first converting the pairwise similarity dataset into a partition (via clustering) and then comparing the two partitions.

              The derivation of a partition from a set of pairwise similarities is not a trivial process, but involves several distinct steps of computations, requiring careful analysis. Here, particular attention will be given to hierarchical clustering methods and dendrogram cutting strategies. We obtain a partition from pair-wise similarity scores by first transforming the similarity measure into a distance measure, applying various standard hierarchical clustering methods, obtaining a dendrogram, or binary cluster joining tree, and in the final step, applying a strategy which removes the root node and successively lower level nodes leaving behind a set of trees corresponding to the clusters in the partition. The pairwise similarity scores are provided by VAST [15, 16], SHEBA [17] and DALI [18, 19], three distinctive and efficient approaches for measuring structural similarity.

              Results

              Performance of hierarchical clustering as tree building methods

              We generated pairwise similarity scores between all pairs of domains in the SCOP C class using three different structure alignment methods, VAST, SHEBA and DALI, and using two different similarity metrics for each method, altogether yielding 6 similarity matrices. We used four different hierarchical clustering methods (Single, Average, Complete linkage and Ward method [20]) to build dendrograms. The dendrograms were cut using seven SCOP-independent strategies and three SCOP-dependent strategies. Finally, two different criteria for terminating the tree cutting process were investigated. We stopped the cutting either when a 1% false positive rate (FPR) was reached or when the number of clusters matched the number of folds in the SCOP C class, which is 94 for the current dataset. The true positive rate at 1% false positive rate (TPR01) and the number of clusters in each partition, resulting from these various partitioning approaches, using the 1% FPR termination criterion, are reported in Tables 1 and 2.
              Table 1

              TPR values at 1% FPR (TPR01) for Hierarchical Cluster Methods and Tree Cutting Strategies.

              Group#

              Tree Cutting Strategy

              Hierarchical Cluster Method

              VAST Nres

              VAST Pcli

              SHEBA Nres

              SHEBA Zscore

              DALI Nres

              DALI Zscore

              Average

              Range

              2

              Level

              Average

              28

              24

              23

              33

              28

              38

              29

              15

              2

              Level

              Complete

              28

              31

              29

              40

              39

              27

              32

              13

              2

              Level

              Single

              14

              10

              12

              21

              16

              8

              13

              13

              2

              Level

              Ward

              50

              48

              48

              54

              50

              49

              50

              6

              3

              Largest Size

              Average

              54

              50

              48

              59

              55

              41

              51

              18

              3

              Largest Size

              Complete

              44

              44

              43

              43

              50

              51

              46

              8

              3

              Largest Size

              Single

              29

              22

              27

              39

              34

              13

              27

              26

              3

              Largest Size

              Ward

              61

              59

              61

              58

              62

              65

              61

              7

              3

              Tree Completeness

              Ward

              57

              59

              61

              56

              56

              63

              58

              7

              3

              Highest tree

              Ward

              57

              61

              62

              56

              57

              63

              59

              7

              1

              Tree skewness

              Ward

              25

              15

              26

              22

              31

              21

              23

              10

              1

              Longest branch

              Ward

              29

              20

              26

              22

              27

              13

              23

              16

              2

              Maximum Entropy

              Ward

              45

              40

              43

              46

              58

              48

              46

              18

              1

              BestTPR

              Ward

              12

              13

              13

              10

              8

              16

              12

              8

              4

              Best ratio TPR &FPR

              Ward

              73

              72

              73

              71

              75

              75

              73

              4

              4

              MI

              Ward

              73

              71

              72

              71

              76

              76

              73

              5



              Direct pw§

              none

              50

              52

              60

              61

              52

              67

              57

              17

              §Direct pw is the direct pairwise comparison between pairwise similarity scores and SCOP folds in the C class, and does not involve clustering.

              # the group to which the strategy belongs.

              Table 2

              Number of Clusters for Hierarchical Cluster Methods and Tree Cutting Strategies at 1%FPR.

              Group

              Tree Cutting Strategy

              Hierarchical Cluster Method

              VAST Nres

              VAST Pcli

              SHEBA Nres

              SHEBA Zscore

              DALI Nres

              DALI Zscore

              2

              Level

              Average

              460

              573

              576

              402

              444

              389

              2

              Level

              Complete

              307

              250

              332

              195

              221

              396

              2

              Level

              Single

              810

              1023

              921

              686

              787

              1041

              2

              Level

              Ward

              110

              120

              138

              106

              113

              121

              3

              Largest Size

              Average

              183

              210

              222

              190

              169

              256

              3

              Largest Size

              Complete

              81

              84

              88

              94

              69

              82

              3

              Largest Size

              Single

              515

              658

              528

              420

              439

              792

              3

              Largest Size

              Ward

              71

              79

              81

              71

              67

              72

              3

              Tree Completeness

              Ward

              95

              89

              87

              88

              101

              96

              3

              Highest tree

              Ward

              88

              80

              84

              81

              92

              91

              1

              Tree skewness

              Ward

              603

              701

              603

              592

              606

              641

              1

              Longest node

              Ward

              409

              704

              627

              837

              646

              991

              2

              Maximum Entropy

              Ward

              143

              146

              109

              101

              81

              109

              1

              BestTPR

              Ward

              1121

              1112

              1054

              1106

              1185

              1029

              4

              Best ratio TPR &FPR

              Ward

              59

              65

              70

              61

              57

              63

              4

              MI

              Ward

              105

              76

              72

              68

              55

              77

              Trees generated by Ward's method result in better performance. The TPR01 values obtained for Ward's clustering method are, with one exception, always higher than for the Average, Complete or Single linkage method. The simplest, level cut strategy with Ward's method achieves an average TPR01 of 50% across all six structure comparison scores. Complete or Average linkage clustering constitute the next best alternatives to Ward's method, with average TPR01 across all similarity scores and structure comparison methods, of 32% and 29% respectively. Single linkage clustering shows uniformly the most divergence from SCOP. Not only does Ward's method achieve the highest average TPR01 value, but the values vary less across different similarity scores and structure comparison methods, than do those for Complete, Average and Single Linkage, suggesting that Ward's is more satisfactory for this application.

              With other tree cutting strategies the trend among various clustering methods is the same. For the largest size cut strategy, Ward's method gives an average TPR01 value of 61%, at least 10% better than for the three other clustering methods. Again, Complete and Average Linkage give similar average TPR01 values, while Single Linkage is very low in comparison. In view of the clearly superior results with Ward's method, we investigate tree cutting strategies using that method alone.

              Performance of tree cutting strategies

              In the following, the performance of tree-cutting strategies is analyzed. The 10 tested tree-cutting strategies fall into four groups according to their TPR01 values (Figure 1 and Table 1), and are represented by the longest branch cut (1), level cut (2), largest size cut (3) and mutual information cut (4) strategies. Figure 1 illustrates the comparative performance among these representative tree cutting strategies, for the VAST number of matched residues similarity score.
              http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-9-74/MediaObjects/12859_2007_Article_2059_Fig1_HTML.jpg
              Figure 1

              Receiver Operating Characteristic (ROC) curves for various tree cutting strategies, using the Ward's method clustering based on the VAST Nres similarity score. The true positive rate (TPR, Y axis) is plotted against the false positive rate (FPR, X axis). Black curves correspond to largest size cut (solid line), longest branch cut (dotted line) and level cut (dash-dot line) strategies, which use only of tree topology parameters. The red dotted curve corresponds to the MI cut strategy, which uses SCOP classification information directly, so is viewed only as an approximate upper bound to the SCOP-independent strategies. The Y-axis intercept for this curve is 0.45 and close to 0.0 for all SCOP-independent strategies. Only the portion of the curve for FPR values below 0.45 is shown. Between this FPR value and 0.63 relative positions of the curves do not vary. Above 0.63 FPR value all curve superpose to the MI cut curve.

              Among the four SCOP-independent tree cutting strategies shown, "largest size cut" achieves the best performance with its ROC curve dominating all other SCOP-independent ROC curves. Moreover, "largest size cut" ROC curve is the closest to that for Mutual Information cut, a strategy which attempts to maximize the agreement of the partition with SCOP at each step. Similar results (data not shown) were seen for SHEBA and DALI similarity scores.

              The longest branch cut group (Table 1, Group 1) contains the strategies of lowest performance, e.g. tree skewness strategy, as indicated by their respective mean TPR01 values. Longest branch cut strategy results in one of the lowest agreements with SCOP, in particular for FPR values below 30% (Figure 1). Above this FPR level, its performance becomes more acceptable relatively to the upper bound given by the mutual information cut. This strategy seems to make more sense when inter-cluster distance is high, i.e. for highest nodes of the tree. But it behaves much worse than others when the inter-cluster distance is reduced, as its ROC curve is closer to the main diagonal than the ROC for other strategies. In the lowest part of the tree, inter-cluster distances vary only slightly so that the longest branch criterion for choosing among the many possibilities, the next sub-tree to be cut might not be discriminative enough.

              Level cut and maximum entropy cut strategies form another group (Table 1, Group 2) characterized by middling performance. Their grouping is explained by the fact that these strategies perform comparably at low FPR values and their average TPR01 values are comparable. Higher variability among the TPR values for maximum entropy cut strategy is noted, however. Indeed, for VAST and SHEBA, level cut strategy is better than maximum entropy cut, as a rule, with DALI number of matched residues (Nres) score the only exception. The highest TPR01 for the maximum entropy cut strategy (58%) is obtained with the Nres metric, while the lowest value (40%) is obtained by VAST Pcli.

              The third, largest size cut strategy group (Table 1, Group 3) also includes the tree completeness cut, and highest tree cut strategies and corresponds to SCOP-independent strategies of highest performance, with average TPR01 values ranging from 58 to 61%. The tree height and tree completeness are closely related to the number of leaves, i.e. the size of the tree. These results indicate that of these three topological properties, the size is a better measure, for the purpose of creating partitions that agree with SCOP. This is true for partitions of small size (the large FPR values), but also when the number of clusters is large (the small FPR values).

              The fourth group (Table 1, Group 4) is made up of mutual information cut and Best TPR/FPR Ratio cut strategies, all of which make direct use of the SCOP fold partition and thus are not useful for an independent classification. The poor performance of the best TPR cut strategy (Table 1, Group 1) indicates that strategies which ignore the false positives will not generate SCOP-like partitions.

              The size of each partition is reported in Table 2, and shows a large variation in the number of clusters depending on the hierarchical clustering method. Single linkage always leads to partitions with a high number of clusters, in fact close to the total number of domains M, when FPR is kept low at 1%.

              Comparison of partitions

              The relative organization of automatically generated partitions can be understood by first finding a distance measure between two partitions and then displaying the partitions in a distance preserving graph. The distance between partitions (Eq. 8), computed as the total number of disagreements about whether or not a pair of domains is in the same cluster, is reported in the Table 3. In this exercise, partitions with exactly 94 clusters were compared, including the SCOP fold partition.
              Table 3

              Distance between partitions*, (Δ-distance in 1000s)

              Partition

              VNS

              SNS

              DNS

              VPS

              SZS

              DZS

              VNL

              SNL

              DNL

              VPL

              SZL

              DZL

              SCOP

              VNS

              0

              30

              24

              31

              30

              28

              27

              46

              37

              47

              41

              51

              65

              SNS

              30

              0

              24

              35

              25

              23

              44

              32

              38

              51

              38

              51

              65

              DNS

              24

              24

              0

              31

              21

              22

              39

              42

              25

              48

              37

              48

              66

              VPS

              31

              35

              31

              0

              37

              32

              43

              50

              43

              28

              47

              56

              71

              SZS

              30

              25

              21

              37

              0

              27

              42

              43

              37

              50

              28

              51

              69

              DZS

              28

              23

              22

              32

              27

              0

              44

              47

              36

              49

              42

              41

              63

              VNL

              27

              44

              39

              43

              42

              44

              0

              48

              37

              49

              37

              51

              75

              SNL

              46

              32

              42

              50

              43

              47

              48

              0

              41

              56

              47

              49

              84

              DNL

              37

              38

              25

              43

              37

              36

              37

              41

              0

              52

              39

              53

              73

              VPL

              47

              51

              48

              28

              50

              49

              49

              56

              52

              0

              54

              56

              83

              SZL

              41

              38

              37

              47

              28

              42

              37

              47

              39

              54

              0

              56

              70

              DZL

              51

              51

              48

              56

              51

              41

              51

              49

              53

              56

              56

              0

              91

              SCOP

              65

              65

              66

              71

              69

              63

              75

              84

              73

              83

              70

              91

              0

              *Partitions obtained from automatic methods, are identified by three letter code. The first letter in the name of each automatic partitions indicates the structures comparison method (V, S and D, for VAST, SHEBA and DALI respectively), the second letter, the score (N, P, and Z, for number of matched residues, Pcli and Zscore, respectively), and the third letter indicates the level cut (L) or largest size cut (S) strategies. SCOP corresponds to the C class fold partition of the manual classification SCOP.

              Average distances (Table 4) among partitions within a given comparison method (either VAST, SHEBA or DALI), are uniformly lower than distances between these latter and SCOP, by almost a factor two. Partitions from VAST tend to be slightly more heterogeneous than those from DALI or SHEBA. On average, automatic partitions from the three comparison methods are similarly distant from SCOP. Similarly, for a given cut strategy, the average distance among its partitions is consistently smaller than the distances from those automated partitions to SCOP (Table 4). Further, largest size cut partitions are half as distant among themselves as are those of level cut strategy. The pattern of distances confirm that the largest size cut partitions are much closer to the SCOP fold partition than level cut partitions, as also seen using the ROC curves.
              Table 4

              Δ-distance*, in 1000s, between partitions within each method and minimum Δ-distance from each method to SCOP

              Method

              Average Distance◊

              Maximum Distance◊

              Average Distance to SCOP

              Minimum Distance to SCOP

              1 VAST

              43

              56

              73

              65

              2 SHEBA

              35

              47

              72

              65

              3 DALI

              37

              53

              73

              63

              4 Size

              28

              37

              66

              63

              5 Level

              48

              59

              80

              70

              *Δ-distance as defined in Method, Eq. 8.

              ◊ Average or Maximum distance among partitions of a particular structural comparison program, or of a tree-cutting strategy. Average distance among SHEBA partitions for example, is obtained by averaging across all SHEBA similarity scores and tree cutting strategies. Average distance among largest size cut partitions for example, is obtained by averaging across all similarity scores of structure comparison programs VAST, SHEBA and DALI.

              Table 5 shows that every automatic partition is much closer to other automatic partitions, than to the SCOP fold partition. For example, the DALI Z-score level-cut partition (DZL) is at most 56,000 units from all other automated partitions, but 91,000 units from SCOP. The closest automated partition to SCOP is DALI Z-score, largest size cut (DZS), with a distance of 63,000 units, which in turn is no farther than 49,000 units from all other automated partitions. DZL is farthest from both SCOP and from at least one other automatic partition. Conversely, DALI Nres with Largest size-cut (DNS) is perhaps most representative of automated methods as it minimizes the maximum distance to other such methods.
              Table 5

              Distance between Automatic Partitions and SCOP fold Partition

              Automatic Partition

              Maximum Δ-distance to Others*

              Δ-distance to SCOP*

              FPR (%)

              TPR (%)

              VNS

              51

              65

              0.5

              53

              SNS

              51

              65

              0.7

              59

              DNS

              48

              66

              0.5

              54

              VPS

              56

              71

              0.8

              55

              SZS

              51

              69

              0.5

              51

              DZS

              49

              63

              0.6

              60

              VNL

              51

              75

              1.5

              54

              SNL

              56

              84

              1.6

              55

              DNL

              53

              73

              1.1

              56

              VPL

              56

              83

              1.6

              53

              SZL

              56

              70

              1.1

              56

              DZL

              56

              91

              1.9

              54

              Automatic partitions are identified by three letter code used in table 3.

              "Others" refers to other automatic partitions.

              *Δ-distance, as defined in Methods, in 1000s.

              FPR (%) – False Positive Rate (Methods, Eq. 4)

              TPR (%) – True Positive Rate (Methods, Eq. 6)

              A convenient, intuitive representation of the organization of these partitions is obtained using multi-dimensional scaling, a technique which embeds the 13 partitions into a low-dimension Euclidean space so that the pairwise distances are approximately preserved. Figure 2 represents the automatic and SCOP fold partitions in a 2-dimensional space. Automatic partitions are well-separated from the SCOP fold partition, which appears isolated. Largest size-cut partitions are generally closer to SCOP than are level-cut partitions, and are also less spread.
              http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-9-74/MediaObjects/12859_2007_Article_2059_Fig2_HTML.jpg
              Figure 2

              Classical multidimensional scaling (MDS) plot of various automatically generated partitions and the SCOP fold partition. The MDS plot approximately preserves distances, Δ, between partitions (see Methods). The X axis represents the projection of the location of each partition onto the first eigenvector (first principal component), while the Y axis is a projection onto the second eigenvector (second principal component). The X and Y axes of the plot are scaled to represent the distance, Δ, divided by 1000. Automatic partitions are obtained with Ward's method clustering, based on two different similarity score for each of the three methods VAST, SHEBA and DALI. Each partition is designated by an uppercase letter: A, VAST Pcli Level cut; B, VAST Nres Level cut; C, DALI Zscore Level cut; D, DALI Nres Level cut; E, SHEBA Zscore Level cut; F, SHEBA Nres Level cut; G, VAST Pcli Largest Size cut; H, VAST Nres Largest Size cut; I, DALI Zscore Largest Size cut; J, DALI Nres Largest Size cut; K, SHEBA Zscore Largest Size cut; L, SHEBA Nres Largest Size cut, and S, the expert-curated partition SCOP. Automatic partitions resulting from the same tree-cutting strategy, are grouped together within the same dotted area.

              Comparison of cluster size distributions

              In addition to the number of clusters in a partition, the distribution of cluster sizes may be of interest in selecting an appropriate classification. Figure 3 shows the cluster size distribution for six automatically generated partitions and for SCOP. For comparison, a partition of the same number of domains randomly assigned to 94 clusters with equal probability is shown. This distribution was approximated by a Poisson distribution with a mean value of 1330/94 ≅ 14.15.
              http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-9-74/MediaObjects/12859_2007_Article_2059_Fig3_HTML.jpg
              Figure 3

              Box plots of the cluster size distributions for six automatically generated partitions with 94 clusters and the SCOP partition of the C class. Each partition is associated with a box plot. A box plot summarizes the following statistics: median (line within the box), upper and lower quartiles (the upper and lower hinge of the box respectively), minimum and maximum data values (the ends of the vertical dash lines), and outliers (circles). For comparison, a "random" partition would have cluster size following approximately a Poisson distribution with intensity parameter equal to M/94 ~ = 14 domains per cluster. The partitions are labelled as explained in Figure 2. The SCOP partition and Random partitions are identified. All distributions necessarily have the same mean value, M/94, but show differing medians, interquartile ranges, tail lengths and maximal values. Both the SCOP and Random distributions show minimum values substantially above the automated partitions. The horizontal red dash line indicates the median value of SCOP fold partition.

              We observe first that all partitions, including SCOP, have lower median cluster size and greater spread of size than for random. There is evidently sufficient signal strength within the similarity score matrix to influence the size distribution. Second, the 75th percentiles for automated methods tend to be larger than for SCOP, while the SCOP distribution shows larger positive skewness, with a greater number of unusually large clusters. Third, there is some uniformity in the size distribution within tree cutting strategies, with largest size cut showing somewhat higher 75th percentiles and less skewness than do the level cut distributions. Level cut distributions are closer the SCOP distribution in terms of median, 75th percentile size and the larger number of outliers, than the largest size cut distributions.

              The largest SCOP fold (c.1), is in fact, split by all strategies and methods as none include a cluster with 182 domains. Largest size cut strategy intentionally eliminates outliers of large size, thereby creating more clusters of intermediate sizes, with greater spread (inter-quartile range) than for level cut. The level cut generates a few large size outliers but the clusters are smaller, typically. This is consistent with the observation made earlier that the level cut behaves like the maximum entropy cut at small FPR ranges. Using partitions of 94 clusters, we find FPR values higher than 1% for level cut strategy but lower than 1% for largest size cut strategy (Table 5), indicating that a trade-off must be made in matching the size distribution as well as maximizing the TPR in relationship to the SCOP partition.

              Identification of dispersed folds

              The spanning cluster of a SCOP fold is the smallest cluster in the dendrogram which spans or includes all domains in that fold. The excess span of that fold (see Methods) are the domains from other folds that are included in its spanning cluster. A homogeneous cluster is a cluster which includes only domains from a single SCOP fold. The size of the excess span and the size of the largest homogeneous cluster are given in Table 6 for each fold in SCOP C Class for three different dendrograms. These two measures allow comparison of each dendrogram to SCOP on a fold by fold basis, and can highlight regions of agreement or disagreement between the two systems. When the excess span is zero and the largest homogenous cluster is 100% of the fold size, the dendrogram and SCOP are in perfect agreement for that fold. A hypothetical tree-cutting strategy could potentially isolate this particular sub-tree to form a cluster exactly matching that fold.
              Table 6

              Excess Span and Largest Homogeneous Cluster Size for SCOP C Class folds.



              Excess Span Size§

              Largest Homog. Cluster (%) +

              Row

              fold

              SCOP fold description

              Ndom*

              Nfam #

              VAST

              SHEBA

              DALI

              INT◊

              VAST

              SHEBA

              DALI

              Nc $



              CONSISTENT FOLDS



              1

              c.100

              Thiamin pyrophosphokinase, catalytic domain

              2

              1

              0

              0

              0

              0

              100

              100

              100

              1

              2

              c.101

              Undecaprenyl diphosphate synthase

              2

              1

              0

              0

              0

              0

              100

              100

              100

              1

              3

              c.106

              SurE-like

              2

              1

              0

              0

              0

              0

              100

              100

              100

              1

              4

              c.109

              PEP carboxykinase N-terminal domain

              4

              1

              0

              0

              0

              0

              100

              100

              100

              1

              5

              c.114

              YchN-like

              2

              1

              0

              0

              0

              0

              100

              100

              100

              1

              6

              c.117

              Amidase signature (AS) enzymes

              3

              1

              0

              0

              0

              0

              100

              100

              100

              1

              7

              c.16

              Lumazine synthase

              3

              1

              0

              0

              0

              0

              100

              100

              100

              1

              8

              c.17

              Caspase-like

              3

              2

              0

              0

              0

              0

              100

              100

              100

              1

              9

              c.22

              Ribosomal protein L4

              2

              1

              0

              0

              0

              0

              100

              100

              100

              1

              10

              c.27

              Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

              3

              1

              0

              0

              0

              0

              100

              100

              100

              1

              11

              c.28

              Cryptochrome/photolyase, N-terminal domain

              4

              1

              0

              0

              0

              0

              100

              100

              100

              1

              12

              c.32

              Tubulin, GTPase domain

              2

              1

              0

              0

              0

              0

              100

              100

              100

              1

              13

              c.33

              Cysteine hydrolase

              3

              2

              0

              0

              0

              0

              100

              100

              100

              1

              14

              c.34

              DFP DNA/pantothenate metabolism flavoprotein

              2

              1

              0

              0

              0

              0

              100

              100

              100

              1

              15

              c.36

              Thiamin diphosphate-binding fold (THDP-binding)

              19

              4

              0

              0

              0

              0

              100

              100

              100

              1

              16

              c.39

              Nicotinate mononucleotide:5,6-dimethylbenzimidazole phosphoribosyltransferase (CobT)

              2

              1

              0

              0

              0

              0

              100

              100

              100

              1

              17

              c.42

              Arginase/deacetylase

              3

              2

              0

              0

              0

              0

              100

              100

              100

              1

              18

              c.43

              CoA-dependent acyltransferases

              7

              3

              0

              0

              0

              0

              100

              100

              100

              1

              19

              c.5

              MurCD N-terminal domain

              2

              1

              0

              0

              0

              0

              100

              100

              100

              1

              20

              c.50

              Leucine aminopeptidase (Aminopeptidase A), N-terminal domain

              2

              1

              0

              0

              0

              0

              100

              100

              100

              1

              21

              c.59

              MurD-like peptide ligases, peptide-binding domain

              5

              2

              0

              0

              0

              0

              100

              100

              100

              1

              22

              c.6

              Cellulases

              3

              1

              0

              0

              0

              0

              100

              100

              100

              1

              23

              c.62

              vWA-like

              8

              2

              0

              0

              0

              0

              100

              100

              100

              1

              24

              c.65

              Formyltransferase

              3

              1

              0

              0

              0

              0

              100

              100

              100

              1

              25

              c.67

              PLP-dependent transferases

              35

              6

              0

              0

              0

              0

              100

              100

              100

              1

              26

              c.68

              Nucleotide-diphospho-sugar transferases

              15

              12

              0

              0

              0

              0

              100

              100

              100

              1

              27

              c.7

              PFL-like glycyl radical enzymes

              4

              4

              0

              0

              0

              0

              100

              100

              100

              1

              28

              c.70

              Nucleoside hydrolase

              2

              1

              0

              0

              0

              0

              100

              100

              100

              1

              29

              c.71

              Dihydrofolate reductases

              8

              1

              0

              0

              0

              0

              100

              100

              100

              1

              30

              c.73

              Carbamate kinase-like

              2

              2

              0

              0

              0

              0

              100

              100

              100

              1

              31

              c.74

              AraD-like aldolase/epimerase

              3

              1

              0

              0

              0

              0

              100

              100

              100

              1

              32

              c.76

              Alkaline phosphatase-like

              6

              3

              0

              0

              0

              0

              100

              100

              100

              1

              33

              c.77

              Isocitrate/Isopropylmalate dehydrogenases

              4

              2

              0

              0

              0

              0

              100

              100

              100

              1

              34

              c.79

              Tryptophan synthase beta subunit-like PLP-dependent enzymes

              6

              1

              0

              0

              0

              0

              100

              100

              100

              1

              35

              c.81

              Formate dehydrogenase/DMSO reductase, domains 1–3

              5

              1

              0

              0

              0

              0

              100

              100

              100

              1

              36

              c.83

              Aconitase iron-sulfur domain

              2

              1

              0

              0

              0

              0

              100

              100

              100

              1

              37

              c.86

              Phosphoglycerate kinase

              2

              1

              0

              0

              0

              0

              100

              100

              100

              1

              38

              c.89

              Phosphofructokinase

              2

              1

              0

              0

              0

              0

              100

              100

              100

              1



              MODERATELY CONSISTENT FOLDS



              39

              c.25

              Ferredoxin reductase-like, C-terminal NADP-linked domain

              12

              5

              643

              0

              0

              0

              92

              100

              100

              1

              40

              c.61

              PRTase-like

              17

              2

              0

              0

              68

              0

              100

              100

              88

              1

              41

              c.82

              ALDH-like

              7

              2

              0

              954

              0

              0

              100

              86

              100

              1

              42

              c.87

              UDP-Glycosyltransferase/glycogen phosphorylase

              6

              6

              0

              937

              0

              0

              100

              83

              100

              1

              43

              c.116

              alpha/beta knot

              5

              3

              3

              0

              0

              0

              80

              100

              100

              1

              44

              c.41

              Subtilisin-like

              4

              2

              0

              0

              1056

              0

              100

              100

              75

              1

              45

              c.98

              MurF and HprK N-domain-like

              4

              2

              8

              0

              0

              0

              75

              100

              100

              1

              46

              c.46

              Rhodanese/Cell cycle control phosphatase

              7

              3

              130

              54

              0

              0

              86

              86

              100

              1

              47

              c.57

              Molybdenum cofactor biosynthesis proteins

              3

              2

              1056

              0

              0

              0

              67

              100

              100

              1

              48

              c.93

              Periplasmic binding protein-like I

              13

              1

              3

              0

              0

              0

              62

              100

              100

              1

              49

              c.45

              (Phosphotyrosine protein) phosphatases II

              12

              2

              0

              0

              267

              0

              100

              100

              58

              1

              50

              c.107

              DHH phosphoesterases

              2

              2

              0

              0

              1058

              0

              100

              100

              50

              1

              51

              c.18

              DNA glycosylase

              2

              2

              1057

              0

              0

              0

              50

              100

              100

              1

              52

              c.108

              HAD-like

              11

              10

              1048

              932

              0

              0

              55

              91

              100

              1

              53

              c.10

              Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)

              18

              10

              304

              0

              0

              0

              44

              100

              100

              1

              54

              c.48

              TK C-terminal domain-like

              5

              3

              50

              0

              47

              0

              60

              100

              80

              1

              55

              c.14

              ClpP/crotonase

              11

              3

              240

              335

              0

              0

              73

              64

              100

              1

              56

              c.24

              Methylglyoxal synthase-like

              3

              3

              450

              0

              27

              0

              67

              100

              67

              1

              57

              c.8

              The "swivelling" beta/beta/alpha domain

              10

              8

              0

              28

              4

              0

              100

              80

              40

              1

              58

              c.63

              CoA transferase

              5

              2

              0

              1

              1

              0

              100

              60

              60

              1

              59

              c.55

              Ribonuclease H-like motif

              53

              19

              400

              362

              0

              0

              94

              21

              100

              1

              60

              c.91

              PEP carboxykinase-like

              4

              2

              449

              0

              80

              0

              50

              100

              50

              1

              61

              c.95

              Thiolase-like

              13

              2

              4

              0

              4

              0

              46

              100

              46

              1



              DISPERSED FOLDS



              62

              c.47

              Thioredoxin fold

              51

              13

              1

              1

              1

              0

              45

              82

              82

              2

              63

              c.12

              Ribosomal proteins L15p and L18e

              2

              1

              1

              3

              1

              0

              50

              50

              50

              2

              64

              c.31

              DHS-like NAD/FAD-binding domain

              10

              5

              4

              3

              4

              3

              70

              70

              70

              2

              65

              c.1

              TIM beta/alpha-barrel

              182

              70

              3

              1148

              1148

              3

              53

              43

              62

              6

              66

              c.15

              BRCT domain

              7

              4

              130

              12

              4

              2

              71

              86

              86

              2

              67

              c.13

              SpoIIaa-like

              3

              2

              10

              4

              7

              3

              67

              67

              67

              2

              68

              c.30

              PreATP-grasp domain

              11

              5

              4

              6

              7

              3

              64

              36

              45

              3

              69

              c.51

              Anticodon-binding domain-like

              13

              6

              6

              35

              7

              0

              54

              69

              77

              2

              70

              c.3

              FAD/NAD(P)-binding domain

              46

              5

              7

              1015

              1014

              7

              41

              41

              41

              8

              71

              c.84

              Phosphoglucomutase, first 3 domains

              6

              1

              10

              94

              266

              10

              67

              67

              67

              2

              72

              c.4

              Nucleotide-binding domain

              7

              3

              46

              18

              14

              14

              57

              29

              29

              3

              73

              c.9

              Barstar-like

              2

              2

              18

              413

              593

              17

              50

              50

              50

              2

              74

              c.19

              FabD/lysophospholipase-like

              3

              2

              1056

              940

              40

              40

              67

              67

              67

              2

              75

              c.53

              Resolvase-like

              9

              3

              444

              44

              65

              16

              44

              44

              44

              3

              76

              c.97

              Cytidine deaminase-like

              4

              2

              45

              411

              139

              28

              75

              75

              75

              2

              77

              c.44

              Phosphotyrosine protein phosphatases I-like

              3

              2

              52

              57

              120

              46

              67

              67

              67

              2

              78

              c.58

              Aminoacid dehydrogenase-like, N-terminal domain

              11

              5

              72

              404

              59

              32

              55

              55

              55

              3

              79

              c.49

              Pyruvate kinase C-terminal domain-like

              6

              2

              237

              94

              182

              61

              67

              67

              67

              2

              80

              c.52

              Restriction endonuclease-like

              23

              21

              1036

              216

              141

              128

              91

              57

              91

              3

              81

              c.72

              Ribokinase-like

              15

              7

              185

              372

              165

              151

              67

              67

              67

              2

              82

              c.80

              SIS domain

              6

              3

              198

              420

              1054

              23

              67

              67

              67

              2

              83

              c.92

              Chelatase-like

              11

              5

              311

              932

              221

              200

              36

              36

              36

              3

              84

              c.60

              Phosphoglycerate mutase-like

              7

              4

              446

              415

              280

              237

              57

              57

              57

              2

              85

              c.26

              Adenine nucleotide alpha hydrolase-like

              42

              11

              1017

              913

              460

              459

              29

              29

              29

              7

              86

              c.94

              Periplasmic binding protein-like II

              25

              2

              654

              970

              592

              511

              96

              84

              88

              2

              87

              c.66

              S-adenosyl-L-methionine-dependent methyltransferases

              35

              23

              620

              908

              1025

              602

              23

              80

              83

              3

              88

              c.78

              ATC-like

              12

              2

              643

              931

              1048

              625

              42

              33

              58

              3

              89

              c.35

              Phosphosugar isomerase

              3

              2

              652

              940

              1057

              634

              67

              67

              67

              2

              90

              c.37

              P-loop containing nucleotide triphosphate hydrolases

              122

              20

              937

              821

              938

              814

              25

              40

              28

              9

              91

              c.23

              Flavodoxin-like

              65

              31

              1045

              878

              1046

              873

              14

              18

              18

              18

              92

              c.56

              Phosphorylase/hydrolase-like

              24

              11

              1035

              919

              1036

              912

              75

              83

              75

              4

              93

              c.2

              NAD(P)-binding Rossmann-fold domains

              99

              10

              960

              928

              961

              921

              24

              32

              32

              9

              94

              c.69

              alpha/beta-Hydrolases

              51

              26

              1059

              1064

              1060

              1059

              35

              96

              35

              2

              Ward Hierarchical Cluster Tree generated using Nres metric for VAST, SHEBA and DALI.

              *Ndom, the number of domains in the fold.

              #Nfam, the number of families in the fold.

              §Excess Span Size is Span less Ndom; Span is the number of domains contained in the smallest cluster containing all domains of the fold.

              ◊ INT is the size of the intersection of the excess spans for VAST, SHEBA and DALI.

              +Largest Homog. Cluster is the ratio of the size of the largest homogeneous cluster of the fold to the size of the fold itself, expressed as percent.

              $Nc is the minimum number of homogeneous clusters in the fold, across VAST, SHEBA and DALI.

              Table is sorted in ascending order of minimum excess span size, then in the ascending order of INT, and then by the average Largest Homog. Cluster Size value for the three methods in the descending order.

              The first 38 folds reported in Table 6 are in perfect agreement with dendrograms of all three structure comparison methods VAST, SHEBA and DALI. Together they comprise 187 of 1330 domains in the C-class. The next 23 folds (Table 6, rows 39–61, comprising 227 domains) agree perfectly with the dendrogram of at least one structure comparison method. Thus 61 out of 94 SCOP folds in the C class are consistent with the dendrogram built from at least one pairwise structural similarity measure.

              Structure comparison methods differ in the consistency of their associated dendrogram with the SCOP folds. Dendrogram derived from each similarity score method disagree with SCOP for various folds. Forty-eight folds (comprising 1080 domains) disagree for the VAST tree, 41(1026 domains) for the SHEBA tree, and 43 (991 domains) for the DALI tree, according to this criterion.

              We consider a fold to be highly dispersed if it disagreed with trees of all three structure comparison methods. There are 33 such folds (comprising 916 domains) and they are reported in Table 6, row 62–94. None of these 33 folds could be obtained as a homogeneous cluster, thus each contributes to the loss of agreement between any automatic partition and the SCOP fold partition. For these 33 folds, the intersection of their excess span was computed, and reported in Table 4, column labelled INT. INT is a measure of the disagreement with SCOP that remains even if all three dendrograms were combined. Thirty-one out of 33 folds give rise to a positive INT, meaning that same domains contributed to their dispersion within trees. These 31 folds therefore contribute to the remaining distance between the automatic and expert-curated partitions, regardless of tree cutting strategy or structure comparison method used.

              Dispersion caused by low structural similarity within folds

              To examine such dispersed folds in detail, we select two examples. Figure 4 schematically represents the situation of fold c.58 within each dendrogram. Instead of forming one homogeneous cluster including all domains of the fold, c.58 consists of mainly two homogeneous clusters set far apart in the tree. Between these two homogeneous clusters, domains from other C class folds intervene, in particular from c.78. Thus, one homogeneous cluster of fold c.58 is considered more similar to domains from fold c.78 than to other domains from fold c.58, and this situation pertains to all three structure comparison methods.
              http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-9-74/MediaObjects/12859_2007_Article_2059_Fig4_HTML.jpg
              Figure 4

              Schematic of dispersion of fold c.58. Nodes labelled c.58 represent two of the homogeneous clusters of fold c.58. Node labelled c.78 is one homogeneous cluster of fold c.78. Relative join positions reflected from the complete Ward's method dendrograms, based on clustering the Nres similarity scores.

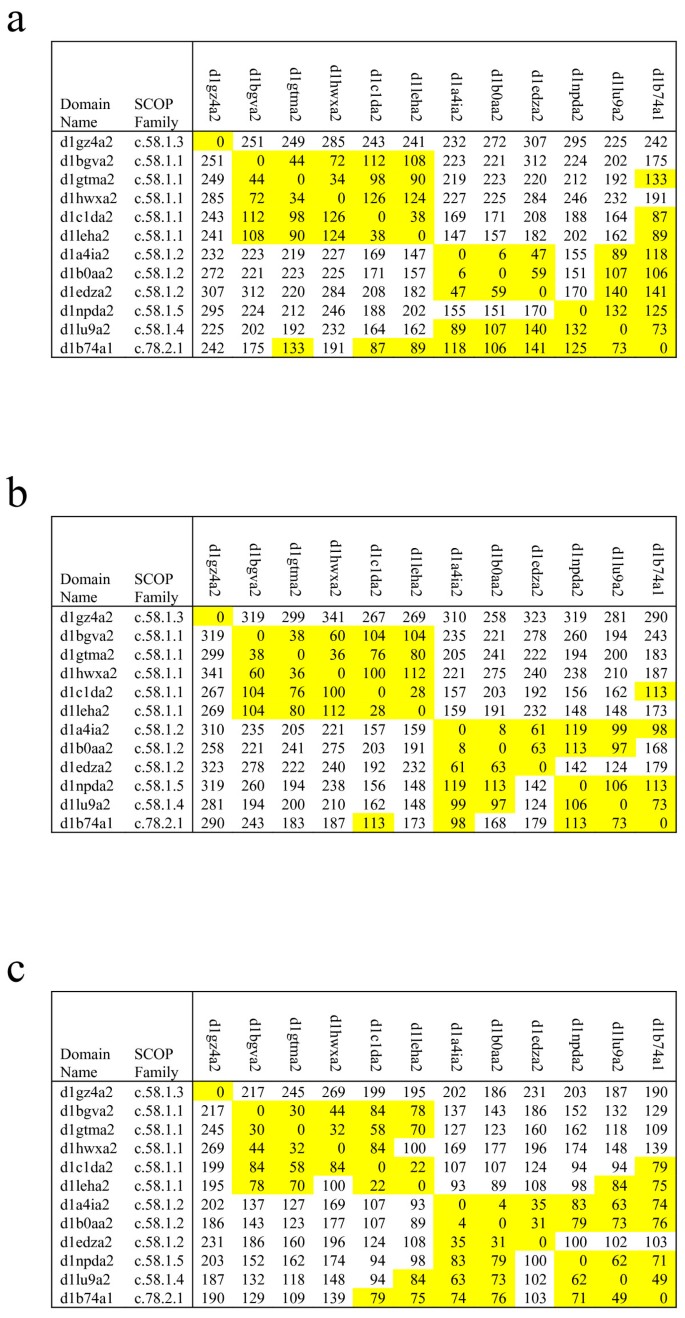

              Figure 5a, b and 5c presents the matrices of pairwise distances between all domains within folds c.58, for VAST, SHEBA and DALI, respectively. Coding the distances by color makes obvious why fold c.58 is split into mainly two homogeneous clusters by all three dendrograms. Figure 5a, b and 5c also include domain d1b74a1 from fold c.78, which is highly similar to domains of fold c.58. Indeed, many of the pairwise distances involving d1b74a1 (coded yellow), are small enough that it would fit into any cluster of fold c.58. This pattern of high distance between homogeneous clusters of c.58 and low distance of a fold c.78 domain to members of c.58 explains why no clustering method and no tree-cutting strategy is likely to perfectly identify fold c.58.
              http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-9-74/MediaObjects/12859_2007_Article_2059_Fig5_HTML.jpg
              Figure 5

              Matrices of pairwise distances among domains of folds c.58 and c.78. Pairwise distances between domains were obtained from the pairwise similarity scores number of matched residues, according to Eq(1) and symmetrized as specified in Methods. The yellow color corresponds to pairwise distances smaller than141, 119 and 88 for VAST matrix (a), SHEBA matrix (b) and DALI matrix(c) respectively. The white color corresponds to pairwise distances higher than 141, 129 and 88 for (a), (b) and (c) respectively.

              This pattern of structural similarity measures is further analyzed based on structural superposition of domains. Figure 6 (a) and 6 (b) superpose domain pairs from the same homogeneous cluster, and show the degree of structural similarity typical within cluster. The structural superposition of the domains from different homogeneous clusters of c.58 is shown in Figure 6 (c). The low similarity observed here is mainly due to the difference of the N terminal features, with the 3 layer a/b/a feature typical of this fold present in both domains. Figure 6 (d) is the structural superposition of a domain from c.58 with one from c.78. Again, the strands and helices making the 3 layer a/b/a feature are well aligned.
              http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-9-74/MediaObjects/12859_2007_Article_2059_Fig6_HTML.jpg
              Figure 6

              Superposition of c.58 and c.78 domain pairs, by DALI alignment. Panel (a): one intra-cluster, cluster 1, pair of c.58, d1edza2 (146 residues, red) and d1b0aa2 (121 residues, blue), 118 residues aligned, RMSD = 2.7Å, and Zscore = 14.4. Panel (b): another intra-cluster, cluster 2, pair of c.58, d1c1da2 (148 residues, yellow) and d1leha2 (134 residues, magenta), 130 residues aligned, RMSD = 1.4Å and Zscore = 21.3. Panel (c): inter-cluster pair of c.58, between cluster 1 and cluster 2, d1b0aa2 (blue) and d1c1da2 (yellow), 81 residues aligned, RMSD = 4.7Å and Zscore = 4.5. Panel (d): inter-fold domain pair between d1b74a1 (c.78, 105 residues, green) and d1b0aa2 (c.58, 121 residue, blue), 75 residues aligned, RMSD = 3.3Å, Zscore = 6.2. Both c.58 and c.78 folds are characterized by having a core of 3 layers a/b/a with a parallel beta-sheet of 4 strands, ordered 2134. Under hierarchical clustering, fold c.58 is comprised of two homogeneous clusters (Figure 4).

              In Figure 6, the structural superposition (d) of domains from different folds produces even a better alignment than the superposition (c) of domains from two different clusters within the same c.58 fold. The disagreement between automatic and expert-curated classification, arises directly from the low similarity within fold c.58, and the substantial similarity to domains of another fold. It becomes impossible to merge the two distinct homogeneous clusters of fold c.58 without including domains from c.78 as well.

              As another example, we select fold c.1, one of the largest in the dataset, and a highly dispersed fold. The intersection of spanning clusters for this fold includes three domains from the single fold c.6, Cellulases, which are partial barrels. Fold c.6 is found to be easily identifiable by all three similarity methods (Table 6, row 22). Figure 7 shows two TIM barrel fold structures and one Cellulases structure. TIM barrel structures are easily recognizable and are not likely to be confounded with any other folds by the human expert. The typical TIM barrel structure d1clxa_ (Figure 7 a) appears to be more similar to the Cellulases structure d1dysa_ (Figure 7 b), than to another TIM barrel, d1a4ma_ (Figure 7 c), by all three structure comparison methods. TIM barrel structure (c) has 8 strands although two of them are much longer and two are much shorter than the rest making the barrel somewhat distorted, compared to the typical TIM barrel structure (a). The lower similarity between a typical TIM barrel domain and another member of that fold, compared to the similarity of a c.6 domain to the typical TIM barrel, means that automated clustering methods cannot separate these two folds perfectly. The structural distinctions between the two folds are evidently too subtle to be detected by these structure comparison methods.
              http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-9-74/MediaObjects/12859_2007_Article_2059_Fig7_HTML.jpg
              Figure 7

              Structures from TIM barrel fold c.1 and its variant fold c.6. Panel (a): d1clxa_, a typical TIM Barrel domain belonging to family c.1.8.3 with 345 residues. Panel (b): d1dysa_ c.6.1.1 with 345 residues. Panel (c): d1a4ma_, also a TIM Barrel, belonging to family c.1.9.1 with 349 residues. These domains belong to three different homogeneous clusters, by all three programs. The pairwise distances by VAST, SHEBA and DALI, between structures (a) and (c) are (334*, 440, 318), between (b) and (a) are (236, 350, 256), and between (b) and (c) are (420, 500, 344). The pairwise number of matched residues (Nres) by VAST, SHEBA and DALI between structures (a) and (c) are (180*, 127, 188), between (a) and (b) are (227, 170, 217) and between (b) and (c) are (137, 97, 175). *This corresponds to the best alignment of the two non symmetric pairwise alignments produced by VAST.

              Discussion

              There are two approaches for comparing results from automatic structure comparison methods to an expert-curated reference classification such as SCOP. One can either directly compare the pairwise structural similarity measures to a similar measure derived from the reference partition, or produce a partition from the pairwise structural similarity score and compare it to the reference partition. We adopted the latter approach in this study, as we expected that enforcing partitioning constraints would introduce a new element that is not present in the pairwise similarity measures alone.

              We explored a variety of methods for obtaining automatic partitions from pairwise structural similarity measures computed by VAST, SHEBA and DALI. Specifically, four different hierarchical clustering methods were used to construct dendrograms or binary trees, which were then cut into sub-trees by ten different tree-cutting strategies, to produce partitions. The results show that the combination of Ward's method with the largest size cut strategy has best agreement with SCOP among all combinations of clustering methods and tree-cutting strategies explored so far.

              Trees generated by Ward's method result in partitions agreeing better with SCOP folds, than those generated by Single, Complete or Average linkage, regardless of the tree cutting strategy applied. Clusters formed by Ward's method tend to be highly concentrated around a mean, as they are formed so that the variance within the cluster is minimized. This suggests that SCOP folds are constructed based on the cohesiveness of the group as a whole rather than on similarity of individual pairs. This may be a more appropriate view of folds than as complete sub-graphs where every structure is related to every other structure as suggested by Complete linkage clustering. Although Average linkage produces clusters which are organized around a constructed mean, it does not minimize the variance around this mean, in contrast to Ward's method. Its lower performance relative to Ward's method strengthens the view of folds as structurally cohesive groups of domains. The mediocre results obtained by Single linkage emphasize even more the suitability of the notion of structural cohesiveness in modelling folds. Indeed Single linkage folds can be seen as minimum spanning trees, which do not necessarily require structural cohesiveness.

              Largest size tree cutting strategy and those associated with it, such as highest tree cut and tree completeness cut, achieve much better agreement with SCOP, than other SCOP independent strategies. In particular they out-perform the "standard" level cut strategy. This is an unexpected result and suggests that the fold size was perhaps an implicit criterion, among others, in the formation of SCOP folds and that large groups of protein structures were split even when their internal similarity was higher than the internal similarity of smaller sized group of proteins. The small spread of the sizes of SCOP folds shown in Figure 3 supports this notion. On the other hand, a highly structurally distinctive fold such as TIM barrel (c.1) which is highly populated relative to the majority of folds and easily, visually recognizable, form an exceptionally large cluster.

              The best combination of hierarchical clustering and SCOP independent tree cutting strategy e.g. Ward's method with either largest size, tree completeness or highest tree cut, resulted in an average TPR01 values (61%, 58% and 59% respectively) that are only slightly above the average agreement of 57% achieved by comparing pairwise similarities directly, without clustering, to SCOP folds partition, using the same set of SCOP C class domains. This suggests the idea that the persistent discrepancy between automatically determined similarity and SCOP is most likely not due to the partitioning constraint, even though all possible partitioning strategies, such as most recently developed clustering techniques in [21, 22] for example, have not been examined. Figure 2 provides additional evidence supporting this view. It shows that automatic partitions produced by introducing partitioning constraints into pairwise structural similarity measures, cluster together in the space of partitions, far away from the expert-curated classification SCOP implying that automatic structure comparison methods agree well with each other, and that there might be irreducible differences between them and SCOP.

              Automatic methods VAST, SHEBA and DALI obtained 71%–76% TPR01 using the combination of Ward's method and the MI cut strategy which maximizes the agreement with SCOP. This is higher than the maximum 65% and 67% obtained by the largest size cut and the direct pairwise comparison scheme, respectively, on the same set of the SCOP C class protein domains. As the MI cut strategy proceeds with prior knowledge of SCOP folds information, this range of agreement is close to the maximum obtainable between automatic classification and manually curated SCOP dataset, regardless of the partitioning procedure. The inherent level of disagreement can be seen from the number of SCOP folds for which the spanning cluster exceeds the size of the fold, in Table 6.

              Examination of two such folds corroborates the findings of our previous paper [15] that some SCOP folds includes structural variation causing measured similarity between members of the same fold to fall below that between members of related, but different folds. Indeed, the distance matrix in Figure 5 shows that fold c.58 displays this pattern, due to low similarity among domains from its distinct homogeneous clusters, and a high similarity with domains from a different fold c.78. The superpositions in Figure 6 (a), (b) and 6 (c), indicate that in all cases, be it intra or inter-cluster, all three structure comparison methods aligned the structural feature defining the fold, and yet intra-cluster structural similarity is higher than inter-cluster structural similarity. Regarding the TIM barrel fold, a detailed study by Nagano et al. [23] also characterized the fold as highly diverse, although using the CATH [24] database. Thus, structural variation within folds, shown in [15] as the main cause of divergence between automatic and expert-curated classifications, does not disappear even after satisfying the partitioning constraint. This strengthens our previous findings and emphasizes the importance of properly handling the structural variation in order to reduce the gap between automatic and expert-curated partitions. We also have underlined some relationships between distinct folds. The domains which correspond to the excess span of a dispersed fold could be seen as evidence suggestive of a evolutionary relationship among folds, as discussed by Lupas et al [25]. Domains from fold c.6, which are excess span of TIM barrel fold, are actually variants of TIM barrels.

              Finally, in the light of this analysis, we think that future improvements to automatic protein structures classification would likely come by explicitly identifying common structural cores. Pairwise similarity scores alone appear to be limited in that regard, so techniques involving multiple structural alignment will likely be needed.

              Conclusion

              The level of agreement between manual and automatic classifications varies with clustering methods and tree partitioning strategies. However, the best agreement reaches similar upper bound than when structural pairwise similarity is compared directly to the manual classification. Therefore divergence between automatic and manual classifications is not eliminated by the introduction of partitioning constraints.

              Our observations are based on SCOP C class, but are likely valid for other classes as well, as C class domains contain both types of secondary structure elements, alpha helix and beta strand, and are the most difficult to classify due to higher confusion among them compared to the all alpha or all beta classes [15]. Our exploration of potential classification procedures of proteins based on structural similarity is complementary to the analysis done in our previous paper [15]. The modular structure of the proteins has been accounted for by using a database of structural domains defined in SCOP although this domain parsing may be at variance with other domain parsing such as that in CATH [24], or those based on amino acid sequences in CDD[26], ProDOM [27] or Pfam [28]. We did not address this issue here. Notwithstanding efforts made in this present work, there is still a discrepancy between the results of the automatic structure comparison methods and the SCOP classification. Based on the maximum attainable TPR of about 76%, roughly one quarter of the C class domains are not classified by SCOP according to measured global structural similarity. As we previously suggested, the main reason is that global structure similarity cannot entirely account for the characteristic local structural features on which the SCOP classification is based. Future research should be aimed at finding algorithms able to automatically extract such evolutionarily conserved, common local structural features of domains. As observed by Chothia and Lesk [29], in proteins having low sequence identity and the same biochemical function, only about half of secondary structures are conserved. The remaining challenge is to identify the conserved half!

              Methods

              We consider a set E of M = 1330 domains in the C class selected from the set of SCOP domains with less than 40% pairwise sequence identity in ASTRAL [30] version 1.63. Their associated N = 94 folds constitute a partition, i.e. a collection of disjoint folds or subsets http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-9-74/MediaObjects/12859_2007_Article_2059_IEq1_HTML.gif of E whose union is E.

              Our objective is to compare this fold partition, an expert-curated classification, with a partition of the same set E of domains, obtained automatically as follows.

              First, all M 2 = 1,768,900 pairs of domains drawn from this set E were compared by VAST, SHEBA and DALI. The calculations were made using the high-performance computational capabilities of the Biowulf PC/Linux cluster at the National Institutes of Health, Bethesda, MD [31].

              Data resulting from the computation were used to produce matrices of similarity scores [S qt ], where S qt is either the Nres (Number of Matched Residues) between domains q and t, or the Zscore for SHEBA and DALI and the Pcli score for VAST.

              Second, these similarity matrices were transformed into distance matrices and symmetrized by replacing the upper diagonal values with the lower diagonal values. There exists many ways of obtaining a pseudo-distance measure from a similarity measure [32], even though the triangular inequality is not always guaranteed. We choose a simple approach which guarantees that self-distance is zero and all distances are non-negative. With similarity defined as the number of matched residues, the distance satisfies the triangular inequality. For domains q and t within E, and similarity measure S qt , the distance D qt is defined as follow:

              D qt = S qq + S tt - 2 S qt (1)

              These matrices of pairwise distances were then entered into hierarchical clustering algorithms to obtain dendrograms or binary trees. We considered Matlab implementation [33] of four representative hierarchical clustering methods [20]: Single, Average, Complete linkage and Ward's method.

              Tree cutting algorithm

              A dendrogram resulting from a hierarchical clustering is a binary tree, where each node is associated with an inter-cluster distance defined by the joining distance between its left and right children. The inter-cluster distance for the leaves of the tree is defined to be zero. To obtain a partition from a dendrogram, one ordinarily chooses a level, i.e. an inter-cluster distance value, falling within the dendrogram, then removes or "cuts" all the join-nodes above the chosen level, leaving behind a set of trees whose roots or join-nodes fall below that specified level. Here, we generalize this approach and find partitions made up of a set of sub-trees which join with root nodes at various levels, by introducing a panel of tree cutting criteria making use of a variety of tree characteristics, in addition to the inter-cluster distance. Our recursive algorithm starts with the original tree. When its root is cut or deleted, two trees remain, representing the two clusters in the growing current partition. Depending on the number of clusters desired and various topological features of each of the remaining trees, one tree is selected and its root is cut, leaving behind two smaller trees, each again representing a cluster in the refined partition. The procedure is terminated when the desired stopping criterion is reached.

              More formally the tree cutting algorithm starts from the initial partition consisting of one cluster containing all elements of E. Given a partition http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-9-74/MediaObjects/12859_2007_Article_2059_IEq2_HTML.gif of size |K| > 1, a partition of size |K| + 1 is obtained from K by splitting one of the clusters K i into 2 distinct clusters. The splitting of a cluster is represented by removing the root node of its associated tree.

              At the initial step of this process, there is no choice, but cutting the root node of the tree. Further partitioning involves a choice of which cluster to split. A tree cutting strategy determines this choice. We present below several strategies which have been developed here and used in this analysis. We consider three different ways of stopping the tree partitioning process. First, the partitioning process stops when no further partition can be obtained, corresponding to the situation where all clusters of the partition are singletons. Second, the partitioning process stops when a partition with a given number of clusters is obtained. We will be mainly interested by partitions of size 94 clusters corresponding to the number of SCOP C class folds in the dataset. Third the partitioning process stops based on reaching < = 1% FPR (see below) when comparing the automatic partition with SCOP.

              Tree cutting strategies independent of SCOP

              We define seven SCOP independent tree cutting strategies. Such a strategy determines the next sub-tree to cut, without using a prior knowledge of SCOP fold partition. They all have been implemented for this analysis.

              Level cut

              The strategy proceeds by descending inter-cluster distance, starting at the level of the root node. At a given step of the tree cutting strategy, resulting trees are available candidates for further cutting. The level of the next cut is determined by the tree whose node has the highest inter-cluster distance among all candidates. An illustration of the level cut is given in Figure 8.
              http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-9-74/MediaObjects/12859_2007_Article_2059_Fig8_HTML.jpg
              Figure 8

              Schematic of cutting strategies and spanning clusters. Leaves of the binary tree, e.g. domains, are numbered 1 to 12. In the figure, it is assumed that four clusters (1,2,3), (7, 8, 9) and (12) are from one particular fold and the three clusters (4, 5, 6), (10) and (11) contain all 5 domains of another fold. Horizontal line A – A represents the level cut, which produces a partition of 7 clusters but which splits the cluster (1,2,3) into two clusters, (1,2) and (3). Oblique line B – B is an allowable cut which produces a partition of 6 clusters and does not split (1,2) from (3). The node n1 represents the spanning cluster of the fold having domains 4, 5, 6, 10 and 11. The span, or size, of this spanning cluster is nine, and its excess span, or number of included domains not in this fold, is four. The node labelled n2, spanning three domains, namely 4, 5, and 6, represents the largest homogeneous cluster of this fold. For this fold, the relative size of the largest homogeneous cluster is 3/5, e.g. the size of the largest homogeneous cluster divided by the size of the associated fold.

              Largest size cut

              At a given step of the tree cutting strategy, resulting trees are available candidates for cutting. The candidate tree which contains the largest number of domains or leaves, is cut. This strategy counts the exact number of domains in the subtree evaluated for cutting.

              Highest tree cut

              The topological height h(K i ) of the node K i is the number of intermediate nodes along the longest path from K i to the leaves. The leaves are of topological height zero. For each cluster K i , the topological height of its associated sub-tree is computed. The tree with the topologically highest root node is cut.

              Tree completeness cut

              Given the height h(K i ) of the sub-tree with root node K i , the number of nodes in this sub-tree if it were complete would be 2h(Ki)+1-1. If the sub-tree is not complete, its actual number of nodes, including the root and the leaves, is less than 2h(Ki)+1-1. Tree completeness is defined as the ratio of the actual number of nodes of the sub-tree, and the number of nodes if it were complete. The smaller the ratio, the less complete is the tree. The tree with the smallest ratio (least complete) is cut.

              Tree skewness cut

              Given a tree, its skewness is defined as the ratio of the number of nodes in its left and right children. The ratio is defined such that the number of nodes of the smallest child, left or right, is divided by the number of nodes of the largest child. The tree of greatest skewness is chosen for cutting.

              Longest branch cut

              The branch length of a tree is the difference between the intercluster distance of the root node and the smaller of the inter-cluster distances of its two children. The tree with the longest branch value is cut.

              Maximum entropy cut

              The entropy H(K) of an entire partition K is defined by[34]:
              http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-9-74/MediaObjects/12859_2007_Article_2059_Equ1_HTML.gif
              (2)

              where http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-9-74/MediaObjects/12859_2007_Article_2059_IEq3_HTML.gif , the probability of the cluster K i , is ratio of the number of domains within K i to the total number M of domains being partitioned. The tree which would result in the greatest increase in entropy value for the current partition is chosen for cutting.

              Tree cutting strategies which refer to SCOP

              We define here three tree cutting strategies which use the prior knowledge of SCOP fold partition to determine the next sub-tree to cut:

              Mutual Information (MI) cut

              The mutual information I(K:F) between a partition K resulting from the cutting of a binary tree and the SCOP fold partition F, is defined as follow:
              http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-9-74/MediaObjects/12859_2007_Article_2059_Equ2_HTML.gif
              (3)

              with P i as defined for entropy, and http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-9-74/MediaObjects/12859_2007_Article_2059_IEq4_HTML.gif is ratio of the number of domains in common to cluster K i and fold F j to M. Cutting a particular tree results in a new partition, as well as a new value of I(K:F). The tree which would result in the greatest increase of the mutual information is cut.

              Best TPR/FPR Ratio cut

              TPR and FPR values (defined below) refer to the SCOP fold partition. The tree whose cutting would results in the greatest TPR/FPR ratio, is cut.

              Best TPR cut

              The tree which would result in the greatest TPR value is cut.

              ROC curves for comparing partitions

              The ROC curves are constructed using the definition of true and false positive rates introduced in [15], but with the notion of membership in a cluster replacing the notion of similarity cutoff value. The following definitions reflect this variation.

              The true positive rate between two partitions is defined as
              http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-9-74/MediaObjects/12859_2007_Article_2059_Equ3_HTML.gif
              (5)
              where TPR j is defined by:
              http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-9-74/MediaObjects/12859_2007_Article_2059_Equ4_HTML.gif
              (5)

              where n jk is the number of domains common to cluster k and SCOP fold j, and n j is the number of domains in fold j.

              The false positive rate between partitions is defined as follow:
              http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-9-74/MediaObjects/12859_2007_Article_2059_Equ5_HTML.gif
              (6)
              where
              http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-9-74/MediaObjects/12859_2007_Article_2059_Equ6_HTML.gif
              (7)

              when i and j referring to SCOP folds i and j.

              Distance between partitions

              Given two partitions K and P, we define the distance between these two partitions as follow:
              http://static-content.springer.com/image/art%3A10.1186%2F1471-2105-9-74/MediaObjects/12859_2007_Article_2059_Equ7_HTML.gif
              (8)

              where K and P are binary incidence matrices of the two partitions whose elements take on the value 1 when the domains i and j are in the same cluster, and 0 otherwise.

              Multidimensional scaling (MDS) plot

              We use classical multidimensional scaling to plot a set of points in Euclidean space, such that each point represents a partition and the Euclidean distance between two points in the plot approximates the value of the Δ-distance between partitions they represent. Thirteen partitions are represented in the plot, including the expert-curated fold partition SCOP. Automatic partitions were chosen to have as many clusters as folds in the C class, by requiring the partitioning algorithm to stop when a partition of size 94 clusters is reached. The computation of pairwise Δ-distance between the 13 partitions resulted in a 13 by 13 matrix (see Table 3) which is then used as input to the classical MDS procedure in Matlab [35]. A two dimensional plot of the 13 partitions is obtained by projecting the points onto the two X and Y axes where the X axis is the eigenvector corresponding to the largest positive eigenvalue, and the Y axis the eigenvector corresponding to the second largest eigenvalue.

              Measure of fold dispersion

              We define a measure of the dispersion of a SCOP fold within a binary tree, based on two metrics: the size of the excess span of the fold, and the size of the largest homogeneous cluster of the fold. The spanning cluster of a SCOP fold is the smallest cluster in the tree including all its domains. Proceeding upward from the leaves (domains) of that fold and stopping at the first (lowest) node common to all its leaves, we find the spanning cluster of the fold. The size of this spanning cluster, i.e. the number of leaves or domains it includes, is always greater or equal to the size of the associated fold. The set theoretic difference between the spanning cluster and the associated fold, is called excess span. The intersection of spanning clusters from distinct trees formed using distinct methods, identifies domains which might reasonably be considered as similar to domains in that fold. The size of the intersection less the members of that fold is a measure of how much larger the fold should be if it were to include all reasonably similar domains.

              A homogeneous cluster is one containing domains of only one fold. Folds may be comprised of more than one homogeneous cluster. The size of the largest homogeneous cluster as a fraction of the size of a fold measures the fraction of the fold which can be easily recognized by the similarity measure and clustering algorithm. Figure 8 illustrates the notion of homogeneous and spanning clusters for a schematic binary tree.

              Declarations

              Acknowledgements

              Molecular graphics images were produced using the UCSF Chimera package [36] from the Resource for Biocomputing, Visualization, and Informatics at the University of California, San Francisco (supported by NIH P41 RR-01081).

              This research was supported in part by the Intramural Research Program of the NIH, Center for Information Technology and the National Cancer Institute.

              Authors’ Affiliations

              (1)
              Mathematical and Statistical Computing Laboratory, DCB, CIT, NIH, DHHS
              (2)
              Laboratory of Molecular Biology, CCR, NCI, NIH, DHHS
              (3)
              Laboratoire de Mathematique Informatique et Genome, INRA

              References

              1. Murzin AG, Brenner SE, Hubbard T, Chothia C: SCOP: a structural classification of proteins database for investigation of sequences and structures. Journal of Molecular Biology 1995, 247:536–540.PubMed
              2. Holm L, Sander C: The FSSP database: fold classification based on structure-structure alignment of proteins. Nucleic Acids Research 1996, 24:206–209.View ArticlePubMed
              3. Hobohm U, Scharf M, Schneider , Sander C: Selection of representative protein data sets. Protein Science 1992, 1:409–417.View ArticlePubMed
              4. Dietmann S, Park J, Notredame C, heger A, Lappe M, Holm L: A fully automatic evolutionary classification of protein folds: Dali Domain Dictionary version 3. Nucleic Acids Research 2001, 29:55–57.View ArticlePubMed
              5. Holm L, Sander C: Parser for protein folding units. PROTEINS: Structure, Function and Genetics 1994, 19:256–268.View Article
              6. Gewehr JE, Hintermair V, Zimmer R: AutoSCOP: automated prediction of SCOP classifications using unique pattern-class mappings. Bioinformatics 2007, 23:1203–1210.View ArticlePubMed
              7. Kim YJ, Patel JM: A framework for protein structure classification and identification of novel protein structures. BMC Bioinformatics 2006.,7(456):
              8. Cheek S, Qi Y, Krishna SS, Kinch LN, Grishin NV: SCOPmap: Automated assignment of protein structures to evolutionary superfamilies. BMC Bioinformatics 2004., 5:
              9. Rogen P, Fain B: Automatic classification of protein structure by using Gauss integral. Proceedinf of national Academy of Science USA 2003, 100:119–124.View Article
              10. Getz G, Vendruscolo M, Sachs D, Domany E: Automated Assignment of SCOP and CATH Protein Structure Classifications from FSSP. Proteins: Structure, Function and Genetics 2002, 46:405–415.View Article
              11. Gerstein M, Levitt M: Comprehensive assessment of automatic structural alignment against a manual standard, the SCOP classification of proteins. Protein Science 1998, 7:445–456.View ArticlePubMed
              12. Hadley C, Jones D: A systematic comparison of protein structure classifications: SCOP, CATH and FSSP. Structures 1999, 7:1099–1112.View Article
              13. Harrison A, Pearl F, Mott R, Thornton J, Orengo C: Quantifying the similarities within fold space. Journal of Molecular Biology 2002, 323:909–926.View ArticlePubMed
              14. Kolodny R, Koehl P, Levitt M: Comprehensive evaluation of protein structure alignment methods: scoring by geometric measures. Journal of Molecular Biology 2005, 346:1173–1188.View ArticlePubMed
              15. Sam V, Tai CH, Garnier J, Gibrat JF, Lee B, Munson PJ: ROC and confusion analysis of structure comparison methods identify the main causes of divergence from manual protein classification. BMC Bioinformatics 2006.
              16. Gibrat JF, Madej T, Bryant SS: Surprising similarities in structure comparison. Current Opinion in Structural Biology 1996, 6:377–385.View ArticlePubMed
              17. Jung J, Lee B: Protein structure alignment using environmental profiles. Protein Engineering 2000, 13:535–543.View ArticlePubMed
              18. Holm L, Sander C: Mapping the protein universe. Science 1996, 273:595–602.View ArticlePubMed
              19. Holm L, Park J: DaliLite workbench for structure comparison. Bioinformatics 2000, 16:566–567.View ArticlePubMed
              20. Jain AK, Dubes RC: Algorithms for clustering data. Prentice Hall Advance Reference Series 1988.
              21. Frey B, Dueck D: Clustering by passing messages between data points. Science 2007, 315:972–976.View ArticlePubMed
              22. Slonim N, Atwal GS, Gasper, Bialek W: Information-based clustering. PNAS 2005, 102:18297–18302.View ArticlePubMed
              23. Nagano N, Orengo CA, Thornton JM: One fold with many functions: the evolutionary relationships between TIM barrel families based on their sequences, structures and functions. Journal of Molecular Biology 2002, 321:741–765.View ArticlePubMed
              24. Orengo C, Michie AD, Jones S, Jones DT, Swindells MB, Thornton JM: CATH-a hierarchic classification of protein domains structures. Structures 1997, 5:1093–1108.View Article
              25. Lupas AN, Ponting CP, Russell RB: On the evolution of protein Folds: are similar motifs in different protein Folds the result of convergence, insertion, or Relics of an ancient peptide world? Journal of Structural Biology 2001, 134:191–203.View ArticlePubMed
              26. Marchler-Bauer A, Anderson JB, Cherukuri PF, DeWeese-Scott C, Ly G, Gwadz M, He S, Hurwitz DI, Jackson JD, Ke Z, Lanczycki CJ, Liebert CA, Liu C, Lu F, Marchler GH, Mullokandov M, Shoemaker BA, Simonyan V, JS JSS, Thiessen PA, Yamashita RA, Yin JJ, Zhang D, Bryant SH: CDD: a Conserved Domain Database for protein classification. Nucleic Acids Research 2005, 33:D19–26.View Article
              27. Sonnhammer ELL, Kahn D: Modular arrangement of proteins as inferred from analysis of homology. Protein Science 1994, 3:482–492.View ArticlePubMed
              28. Sonnhammer ELL, Eddy SR, Durbin R: Pfam: a comprehensive database of protein domain families based on seed alignments. PROTEINS: Structure, Function and Genetics 1997, 28:405–420.View Article
              29. Chothia C, Lesk AM: The relation between the divergence of sequence and structure in proteins. The EMBO journal 1986, 5:823–826.PubMed
              30. Chandonia JM, Hon G, Walker NS, Conte LL, Koehl P, Levitt M, Brenner SE: The ASTRAL compendium in 2004. Nucleic Acids Research 2004, 32:D189-D192.View ArticlePubMed
              31. Biowulf cluster[http://​biowulf.​nih.​gov/​]
              32. Cox TF, Cox MAA: Multidimensional Scaling. Chapman & Hall/CRC 2001.
              33. MATLAB: Statistics toolbox, Linkage. 2006., R2006a:
              34. Shannon CE: A mathematical theory of communication. The Bell System Technical Journal 1948, 27:379–423, 623–656, July, October.
              35. MATLAB: Statistics toolbox, Classical Multidimensional Scaling. 2006., R2006a:
              36. Pettersen EF, Goddard TD, Huang CC, Couch GS, Greenblatt DM, Meng EC, Ferrin TE: UCSF Chimera - A Visualization System for Exploratory Research and Analysis. Journal of Computational Chemistry 2004, 25:1605–1612.View ArticlePubMed

              Copyright

              © Sam et al. 2008

              This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://​creativecommons.​org/​licenses/​by/​2.​0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

              Advertisement
