LW-FQZip 2: a parallelized reference-based compression of FASTQ files

  • Zhi-An Huang1,
  • Zhenkun Wen1,
  • Qingjin Deng1,
  • Ying Chu1,
  • Yiwen Sun2 and
  • Zexuan Zhu1Email author
Contributed equally
BMC BioinformaticsBMC series – open, inclusive and trusted201718:179

DOI: 10.1186/s12859-017-1588-x

Received: 7 August 2016

Accepted: 9 March 2017

Published: 20 March 2017

Abstract

Background

The rapid progress of high-throughput DNA sequencing techniques has dramatically reduced the costs of whole genome sequencing, which leads to revolutionary advances in gene industry. The explosively increasing volume of raw data outpaces the decreasing disk cost and the storage of huge sequencing data has become a bottleneck of downstream analyses. Data compression is considered as a solution to reduce the dependency on storage. Efficient sequencing data compression methods are highly demanded.

Results

In this article, we present a lossless reference-based compression method namely LW-FQZip 2 targeted at FASTQ files. LW-FQZip 2 is improved from LW-FQZip 1 by introducing more efficient coding scheme and parallelism. Particularly, LW-FQZip 2 is equipped with a light-weight mapping model, bitwise prediction by partial matching model, arithmetic coding, and multi-threading parallelism. LW-FQZip 2 is evaluated on both short-read and long-read data generated from various sequencing platforms. The experimental results show that LW-FQZip 2 is able to obtain promising compression ratios at reasonable time and memory space costs.

Conclusions

The competence enables LW-FQZip 2 to serve as a candidate tool for archival or space-sensitive applications of high-throughput DNA sequencing data. LW-FQZip 2 is freely available at http://csse.szu.edu.cn/staff/zhuzx/LWFQZip2 and https://github.com/Zhuzxlab/LW-FQZip2.

Keywords

High-throughput sequencing Sequencing data compression Reference- based compression Sequence alignment

Background

The rapid progress of high-throughput DNA sequencing techniques has dramatically reduced the costs of whole genome sequencing, which leads to revolutionary advances in gene industry [1, 2]. Genome studies have produced tremendous volume of data that poses great challenges to storage and transfer. Data compression becomes necessary as a silver-bullet solution to ease the dilemma [36]. Nevertheless, the popular generic compression tools, such as gzip (http://www.gzip.org/) and bzip2 (http://www.bzip.org), cannot obtain satisfactory performance on high-throughput DNA sequencing data, because they do not utilize the biological characteristics of the data like repeat fragments and palindromes. Efficient compression methods oriented to high-throughput DNA sequencing data are highly demanded.

Many specialized compression methods have been proposed for sequencing data in raw FASTQ format [711], sequencing reads (DNA nucleotides only) [1215] and/or aligned SAM/BAM format [16]. Depending on whether extra reference genomes are required, these compression methods normally can be classified into reference-based and reference-free methods.

Reference-based methods align the targeted sequences to some external reference sequence(s) for identifying the similarity between them. The variances of the alignment are encoded instead of the original targeted sequences. Reference-based methods generally obtain better compression ratios with more time consumption by involving a sequence alignment pre-processing. Representative state-of-the-art reference-based methods include CRAM [17], Quip [11], and DeeZ [18]. CRAM [17], working with BAM-based input, records the variances of reads and a reference genome with Huffman coding. Quip [11] with ‘-r’ option compresses SAM/BAM data in a standard reference-based scheme and employs highly optimized statistical models for various SAM fields, thus leading to compromising compression rate. It is also applicable to reference-based FASTQ compression in ‘-a’ mode where a de novo assembly procedure is introduced to construct references in the target data rather than using existing references. DeeZ [18] lowers the cost of representing common differences among the reads’ mapping results by implicitly assembling the underlying donor genome in order to encode these variants only once.

Reference-free methods compress the raw sequencing data, mainly in FASTQ format, directly based on their natural statistics. For example, FQZcomp [8] uses an order-k context model to predict the nucleotide sequences in FASTQ format followed by arithmetic coding based compression. DSRC [10] partitions input FASTQ data into blocks enabling independent compression of them using LZ77 and Huffman encoding schemes. DSRC 2 [19] is an improvement of DSRC by introducing threaded parallelism and more efficient coding scheme. LFQC [20] preforms data transformation to the four fields of the sequencing records in an FASTQ file separately, followed by regular data compressor namely zpaq and lpaq8. LEON [21] first builds a reference as a probabilistic de Bruijn graph based on bloom filter, and then records the reads and quality scores as mapped paths in the graph using arithmetic encoding. SCALCE [22] reorganizes reads in an FASTQ file that share common ‘core’ substrings into groups, and then compacts the groups using gzip or LZ77-like tools. SeqDB [23] coordinates sequences bases and their corresponding quality scores into 2D byte arrays and compresses them with an existing multithreaded compressor Blosc. Quip [11], in addition to the reference-based compression mode, also provides reference-free compression using arithmetic coding based on high order Markov chains. Instead of exploiting the redundancy of homologous sequences, reference-free methods put more effort into predictive model and coding scheme, which tends to improve the time efficiency by sacrificing compression ratio to some degree [24].

This work focus on long-term archiving and space-sensitive scenarios, where superior compression ratio is pursued and reference-based methods are more favourable. In our previous work [25], we have proposed a self-contained reference-based method, namely LW-FQZip 1, to compress high-throughput DNA sequencing data in raw FASTQ format. LW-FQZip 1 introduces a light-weight mapping model to efficiently align short reads against the reference sequence based on a k-mer indexing strategy. The light-weight mapping model distinguishes LW-FQZip 1 from other reference-based methods for not relying on any external alignment software. Nevertheless, LW-FQZip 1 is far from satisfactory in terms of compression efficiency.

LW-FQZip 2 is an improved version of LW-FQZip 1 by introducing parallelism and more efficient coding schemes. Especially, LW-FQZip 2 is equipped with light-weight mapping model, bitwise prediction by partial matching (PPM), arithmetic coding, and multi-threading parallelism. It can support various FASTQ files generated from the most well-known high-throughput sequencing platforms and obtain superior compression ratios at reasonable time and memory space costs.

Implementation

The general framework of LW-FQZip 2 is shown in Fig. 1. Firstly, LW-FQZip 2 splits an input FASTQ file into three data streams (i.e., metadata, nucleotide sequences, and quality scores) and then the nucleotide sequences (also known as reads) are divided into equal-sized sub-blocks which are simultaneously fed to the light-weight mapping model implemented with multi-threading. After the sequence mapping, the matching results (i.e., the mapped position, palindrome flag, match length, and match type) and mismatch values are recorded in different intermediate files. Secondly, the metadata and quality scores are simultaneously proceeded by abridging the consecutive repeats with incremental encoding and run-length-limited encoding, respectively. Finally, the intermediate files generated from the metadata, nucleotide sequences, and quality scores streams are compacted with a combination of bitwise order-32 PPM model and arithmetic coder in parallel, except that the intermediate file storing mismatch values is compressed by a distinct bitwise order-28 arithmetic coder. In best compression ratio mode, i.e., LW-FQZip 2 with a ‘–g’ option selected, the quality scores and mismatch values are compacted using the zpaq tool (http://mattmahoney.net/dc/zpaq.html) and the other intermediate files encoded with lpaq9m (http://mattmahoney.net/dc/text.html#1440). LW-FQZip 2 is available at http://csse.szu.edu.cn/staff/zhuzx/LWFQZip2 and https://github.com/Zhuzxlab/LW-FQZip2. The pseudo-code of LW-FQZip 2 is provided in Algorithm 1, Additional file 1. The key components of LW-FQZip 2 are described as follows.

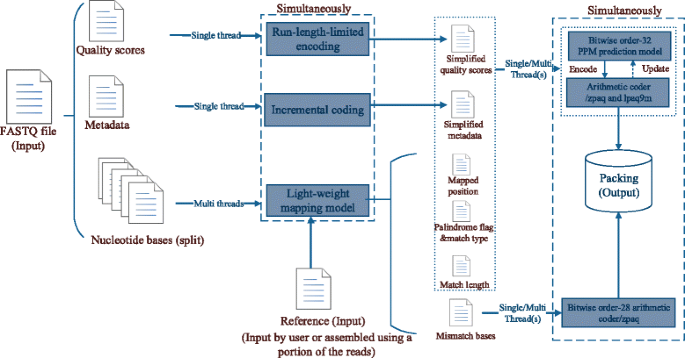

Fig. 1

The general framework of LW-FQZip 2. Firstly, the input FASTQ file is split into three data streams of metadata, bases, and quality scores. Secondly, the quality scores and metadata are compacted with run-length-limited encoding and incremental encoding, respectively. The nucleotide bases are partitioned and mapped to an external reference sequence based on the light-weight mapping model. Finally, the processed intermediate files from the three streams are compressed with arithmetic coder and/or other specific coding schemes

Compression of metadata and quality scores

In LW-FQZip 2, the metadata are pre-processed with incremental encoding, with which the variances of one metadata to its previous neighbour is stored rather than the original data. The quality scores are pre-processed with run-length-limited encoding. More details of the incremental encoding and run-length-limited encoding are available in [25].

After pre-processing, the processed data can be compressed with lpaq9m (if ‘-g’ option is selected) or a combination of PPM model and arithmetic coder. In the latter case, a binary tree is established to store the predictive context information. The pre-processed metadata and quality scores are transformed into binary streams to train an order-32 PPM model, i.e., prediction based on a 4-byte context (higher order can improve the compression ratios by promoting the predictive accuracy but it consumes more memory space and running time. A trade-off order 32 is adopted in this study). The binary quality scores are matched against the predicted results per bit by producing ‘0’ or ‘1’, and then the context prediction model is updated accordingly. Finally, the prediction results are recorded using arithmetic coder or zpaq (if ‘-g’ option is selected). The pseudo-code of the compression with PPM prediction model and arithmetic coding/zpaq is provided in Algorithm 2, Additional file 1.

Reference-based compression of nucleotide sequences using light-weight mapping model

The target nucleotide sequences are mapped to an external reference sequence based on the light-weight mapping model [25] and the mapping results are recorded instead of the original sequences.

To make this article self-contained, the light-weight mapping model is briefly introduced in this subsection. The mapping model is designed to implement fast alignment by indexing the k-mer substrings within the reference. A hash table I R is firstly established to save all positions of k-mer substrings in the reference with some predefined prefix, e.g., ‘CG’. On mapping a read of nucleotide bases X to the reference, the model identifies all k-mer substring included in I R and selects the valuable k-mer substrings served as seeds, where some restrictions are predefined to eliminate the low-quality k-mer substrings (e.g., minimum seed length L, mismatch tolerance rate e). Based on the selected seeds, multiple local alignments are performed to identify the maximum matches. The mapping results of X including the mapped position, palindrome flag, match length, match type and mismatch values are recorded in some intermediate files. If no k-mer substring in X is identified in I R , the palindrome of X undergoes the same mapping procedure. In the case neither X nor its palindrome is mapped to the reference, the plain X is output for encoding directly.

To improve the matching rate, the unmapped parts of reads are further partitioned into shorter segments and realigned against the reference where palindrome match is considered. The mismatched nucleotide bases are composed exclusively of four characters (i.e., {‘A’, ‘C’, ‘G’, ‘T’}), which are much easier to encode than quality scores. Therefore, a simpler yet efficient model based on the bitwise order-28 arithmetic coder (http://cs.fit.edu/~mmahoney/compression/text.html#2212) or zpaq is adopted. If no proper reference is available, LW-FQZip 2 also provides an option ‘-a’ to generate a reference by assembling a portion of reads that contain the predefined prefix.

Blocking and multithreading

Parallelism is introduced to LW-FQZip 2 to improve the computational efficiency using the Pthreads library. In the mapping procedure, the input FASTQ file is partitioned into b (empirically set to 10 in this study) equal-sized blocks. Accordingly, b threads are simultaneously executed with each running a light-weight mapping model for a corresponding block. Afterward, a new single thread is created to collect the mapping results of the previous b threads and dispatch the results into different intermediate files. After the three data streams, i.e., metadata, quality scores, and nucleotide sequences are properly processed, multiple threads are created to compress the six intermediate files with the corresponding encoding schemes as shown in Fig. 1.

In summary, LW-FQZip 2 improves LW-FQZip 1 by introducing multi-threading for the time-consuming read mapping and using more efficient encoding schemes based on PPM model, arithmetic coders, lpaq9m and/or zpaq. The implementation details of LW-FQZip 2 are provided in the Additional file 1.

Results and discussion

LW-FQZip 2 is verified using ten representative real-world FASTQ files (five short-read data and five long-read data) on a platform running 64-bit Red Hat 4.4.7-16 with four 8-core Intel(R) Xeon(R) E7-8837 CPUs (@2.67GHz with Hyper-Threading Technology). These data sets, generated from various well-known high-throughput DNA sequencing platforms, were downloaded from the Sequence Read Archive of the National Centre for Biotechnology Information (NCBI) [26]. Details of these data sets are provided in Table 1.
Table 1

The ten real-world FASTQ data sets used for performance evaluation



Datasets

Platforms

Species

Read length (bp)

Size (MB)

GC content

Long-read

SRR2916693

454GS

Pseudomonas moraviensis

67-1201

425

58.8%

SRR2994368

Illumina Miseq

Escherichia coli

70-502

4688

49.7%

SRR3211986

Pacbio RS

Homo sapiens

2-62746

1759

39.6%

ERR739513

MinION

Phage

5-246140

871

47.9%

SRR3190692

Illumina MiSeq

Escherichia coli

70-602

11379

52.3%

Short-read

ERR385912

Illumina Hiseq 2000

Escherichia coli

51

641

43.5%

ERR386131

Ion Torrent PGM

Capsicum baccatum

151

1371

50.5%

SRR034509

Illumina Analyzer II

Escherichia coli

101

5247

52.6%

ERR174310

Illumina Hiseq 2000

Homo sapiens

202

105122

N.A.

ERR194147

Illumina Hiseq 2000

Homo sapiens

101

202631

40.3%

Note: The long-read data sets have variable-length reads, while the short-read data sets have fixed-length reads

LW-FQZip 2 is compared with the other state-of-the-art lossless FASTQ compressors namely Quip [11], DSRC 2 [19], FQZcomp [8], CRAM [17], LFQC [20], LEON [21] and SCALCE [22]. The general-purpose compression tools, i.e., gzip and bzip2, as well as the original LW-FQZip 1 are also included in the comparison as baselines. All compared methods are configured to obtain the best compression ratio (the parameter settings of all methods and the software version information are provided in the Additional file 1). LW-FQZip 2 is evaluated on two modes, i.e., the normal mode (‘LW-FQZip 2’, using arithmetic coders to compress the intermediate files) and the best compression ratio mode (‘LW-FQZip 2 (−g)’, using lpaq9m and zpaq to compress the intermediate files). Quip is also executed in two modes, i.e., the reference-based compression (‘quip -r’) and the assembly-based compression (‘quip -a’, a reference is assembled with a portion of reads, and then a reference-based compression is conducted using the generated reference). Quip, CRAM, and LW-FQZip 1 fall within reference-based scheme. The other methods are reference-free methods.

The performance of the methods is evaluated in terms of compression ratio, speed, and memory consumption. The compression ratios of all compared methods on the ten FASTQ data sets are tabulated in Table 2. The average compression and decompression speeds of all methods are plotted in Fig. 2. The memory sizes consumed by the compared methods on each data set are reported in Table 3. More details of the data sets and experimental studies are provided in Additional file 1: Tables S1-S13. The average CPU utilization and version information of all compared methods are provided in Additional file 1: Tables S14 and S17, respectively.
Table 2

The compression ratios of the compared methods on ten test data sets



LW-FQZip 2

LW-FQZip 2 (−g)

LW-FQZip 1

Quip (−a)

Quip (−r)

DSRC 2

CRAM

FQZcomp

LFQC

LEON

SCALCE

bzip 2

gzip

Long-read

SRR2916693

16.7%

15.3%

18.1%

20.9%

20.5%

20.2%

21.9%

21.6%

12.7%

19.5%

17.2%a

24.2%

29.6%

SRR2994368

17.3%

16.0%

17.9%

20.1%

N/A

23.2%

26.4%

N/A

N/A

23.1%

17.3%a

28.5%

34.2%

SRR3211986

33.3%

32.3%

N/A

33.3%

N/A

N/A

33.9%

N/A

32.3%

N/A

33.4%a

36.4%

42.6%

ERR739513

35.2%

34.8%

N/A

N/A

N/A

N/A

35.6%

N/A

34.9%

N/A

N/A

39.7%

45.4%

SRR3190692

12.7%

11.7%

13.2%

16.5%

N/A

20.3%

22.3%

N/A

N/A

18.1%

12.7%a

24.4%

29.5%

Short-read

ERR385912

6.4%

5.0%

6.6%

7.2%

N/A

7.8%

N/A

N/A

5.8%

7.0%

6.6%a

13.9%

17.9%

ERR386131

16.5%

16.0%

18.7%

17.7%

16.6%

16.8%

25.5%

24.6%

15.5%

N/A

16.6%a

21.5%

26.0%

SRR034509

23.7%

22.7%

25.0%

25.1%

24.9%

26.1%

27.4%

26.1%

23.7%

27.9%

24.5%a

31.5%

36.9%

ERR174310

21.0%

20.1%

N/A

20.0%

N/A

20.2%

N/A

N/A

N/A

25.3%

19.6%a

26.2%

31.7%

ERR194147

20.1%

14.3%

N/A

20.0%

N/A

20.3%

N/A

N/A

N/A

20.3%

15.4%a

19.7%

23.6%

Compressed Ratio: the compressed file size divided by the original file size; ‘N/A’: the program cannot work on the data, some error occur in program, such as loses fidelity after decompression or decompression failed; ‘a’: the read order is changed after decompression; The best results are highlighted in bold

Fig. 2

The average compression and decompression speeds of the compared methods on ten test data sets. The compression speed is calculated as the original file size divided by the compression time. The decompression speed is calculated as the original file size divided by the decompression time

Table 3

The memory usage (MB) of the compared methods on ten test data sets



LW-

FQZip 2

LW-

FQZip 2 (−g)

LW-

FQZip 1

Quip

(−a)

Quip

(−r)

DSRC 2

CRAM

FQZcomp

LFQC

SCALCE

LEON

bzip 2

gzip

SRR2916693

compression

1605

4420

459

759

391

582

784

312

3965

1380

1722

7.6

1.6

decompression

1598

4127

37

756

389

601

620

314

3932

1050

696

4.8

1.5

SRR2994368

compression

1582

14158

1048

2801

389

6175

1355

N/A

N/A

4073

5435

7.6

1.6

decompression

1579

13154

69

2198

387

7234

652

N/A

N/A

1050

2623

4.8

1.5

SRR3211986

compression

1190

12935

N/A

1098

N/A

N/A

5777

N/A

4768

2158

N/A

7.6

1.6

decompression

1528

5657

N/A

1109

N/A

N/A

2381

N/A

4320

1035

N/A

4.8

1.5

ERR739513

compression

1283

11511

N/A

N/A

N/A

N/A

3694

N/A

5108

N/A

N/A

7.6

1.6

decompression

1403

11079

N/A

N/A

N/A

N/A

1455

N/A

4748

N/A

N/A

4.8

1.5

SRR3190692

compression

1726

14560

1058

3552

391

14157

1363

N/A

N/A

5219

6776

7.6

1.6

decompression

1725

13329

69

2898

386

14794

661

N/A

N/A

1055

3217

4.8

1.5

ERR385912

compression

1603

2793

410

772

389

911

N/A

N/A

3140

1422

1717

7.6

1.6

decompression

1603

2655

69

770

392

908

N/A

N/A

3060

1040

504

4.8

1.5

ERR386131

compression

1691

12443

1033

771

389

1844

1318

322

5175

1961

N/A

7.6

1.6

decompression

1721

12165

39

768

384

1950

651

319

4835

1049

N/A

4.8

1.5

SRR034509

compression

1748

14670

1073

1531

383

6683

1351

324

5352

4151

4139

7.6

1.6

decompression

1752

7042

71

1218

391

7736

653

309

4859

1050

1799

4.8

1.5

ERR174310

compression

1886

16270

N/A

5333

N/A

5558

N/A

N/A

N/A

5333

7797

7.6

1.6

decompression

1865

11239

N/A

1156

N/A

18487

N/A

N/A

N/A

1045

5106

4.8

1.5

ERR194147

compression

1953

17771

N/A

782

N/A

20271

N/A

N/A

N/A

5380

7192

7.6

1.6

decompression

1963

13908

N/A

780

N/A

24284

N/A

N/A

N/A

1057

5322

4.8

1.5

Note: The best results are highlighted in bold

From Table 2, it is shown that LW-FQZip 2 and LW-FQZip 2 (−g) successfully work on all test data sets. LW-FQZip 2 (−g) tends to obtain superior compression ratios to the other methods especially on long-read data. DSRC 2, Quip, FQZcomp, LEON, SCALCE and LW-FQZip 1 suffer from some issues like incompatibility and fidelity-loss on the long-read data generated from Pacbio RS and MinION platforms. LW-FQZip 1, CRAM, FQZcomp and LFQC also fail on some short-read data sets of large size. LFQC obtains comparable compression ratios to LW-FQZip 2 and LW-FQZip 2 (−g) in the data sets it works out. We made an extra comparison analysis between LW-FQZip 2, LW-FQZip (−g) and LFQC in terms of compression ratio, memory usage, and time consumption in a radar chart in Fig. 3. The results show that LW-FQZip (−g) and LFQC attain slightly better compression ratios than LW-FQZip 2 at the cost of memory usage and time consumption, respectively. Nevertheless, LW-FQZip 2 achieves better compromise over all metrics than the other two methods.
Fig. 3

Comparison between LW-FQZip 2, LW-FQZip 2 (−g) and LFQC in a radar chart in terms of average compression ratio, compression time, decompression time, compression memory usage, and decompression usage. In each criterion, the results of the three methods are normalized to the range of [0, 1] and a smaller value, i.e., closer to the centroid, indicates a better performance

In terms of compression and decompression speeds, LW-FQZip 2 outperforms other reference-based methods as shown in Fig. 2. It is worth highlighting that LW-FQZip 2 outperforms LW-FQZip 1 in terms of compatibility, compression ratio, and speed, which suggests a substantial improvement of LW-FQZip 2 to LW-FQZip 1. As expected, reference-free methods tend to be faster than reference-based methods. Among the reference-free methods, DSRC 2 compresses the fastest with compromising compression ratio by taking full advantage of multithreading. Quip and LEON manage to obtain some trade-offs between the three evaluation criteria. SCALCE is a very efficient tool by introducing a boosting scheme based on locally consistent parsing (LCP) technique to sort the reads, which enables SCALCE to compress similar reads together and attain competitive compression ratios at high speed.

We also try to adopt the LCP technique in our method as the framework shown in Additional file 1: Figure S2. In this attempt, the successfully mapped reads are still compressed with the original LW-FQZip 2, whereas the unmapped reads undergo the LCP boosting and gzip compression. LCP is applied to only a small portion of the reads, yet the results shown in Additional file 1: Table S21, suggest that LCP can improve the compression ratio. Indeed, re-sorting the reads according to their similarity is really an efficient option to improve the compression ratio, especially for archiving-oriented applications. However, since the order of the reads is changed, it inevitably imposes extra cost if random access of the archive is the concern in the downstream analysis. LW-FQZip 2 is designed to preserve the original read order to facilitate the implementation of random access in the future extension of this tool.

The compared methods are also tested on the benchmark data sets suggested by the MPEG working group on genomic compression (https://github.com/sfu-compbio/compression-benchmark/blob/master/samples.md). The results are presented in Additional file 1: Tables S18-S20, where the proposed method shows consistent efficiency.

The experimental results suggest that all specialized methods outperform the general-purpose tools in terms of compression ratio but use more memory space. The reference-based methods tend to be slower than the reference-free methods, due to the extra running time involved in the sequence alignment preprocessing. Different methods are designed with different strengths and can be used for different purposes. There is no single method dominates other methods in all criteria.

The effect of palindrome handling is investigated in the Additional file 1: Tables S15 and S16. With palindrome handling more reads can be mapped to the reference at a higher speed (the mapping is stopped once the first match is identified), thus the compression ratio and speed are improved slightly, while the extra memory consumption is eligible.

The effect of thread number is studied in Additional file 1: Figure S1. The compression speed is affected not only by the number of threads but also the disk I/O speed. As a result, the compression might not be speeded up proportionally as the number of threads increases (as shown in Additional file 1: Figure S1). Using faster disk system like solid state disk (SSD) can help to speed up both compression and decompression (see in the Additional file 1: Table S22).

Conclusions

This article presents a specialized compression tool LW-FQZip 2 for FASTQ files. LW-FQZip 2 shows superior compression ratios and compatibility with reasonable (de) compression speed and memory space consumption. It could serve as a candidate tool for archival or storage space-sensitive applications of sequencing data.

The emerging long-read technologies, e.g., Single Molecule Real Time (SMRT) sequencing [27] and Nanopore sequencing [28], produce much longer DNA sequences, reportedly providing a more complete picture of genome structure. They are deemed to be a complementary solution to overcome the shortages of short-read sequencing. The exponentially increasing long-read sequencing data poses new great challenges to the existing specialized compression methods. LW-FQZip 2 shows good compatibility to long-read sequencing data. The current work is hoped to provide insights into the storage problems of new sequencing data. More efficient alignment models for long-read data will be developed in the future work.

Abbreviations

PPM:

Prediction by partial matching

LCP:

Locally consistent parsing

NCBI:

National Centre for Biotechnology Information

SMRT:

Single molecule real time

SSD:

Solid state disk

Declarations

Acknowledgements

We would like to thank the Editor and the reviewers for their precious comments on this work which helped improve the quality of this paper.

Funding

This work was supported in part by the National Natural Science Foundation of China (61471246, 61575125, and 61572328), Guangdong Foundation of Outstanding Young Teachers in Higher Education Institutions (Yq2013141 and Yq2015141), Guangdong Special Support Program of Top-notch Young Professionals (2014TQ01X273 and 2015TQ01R453), Guangdong Province Ordinary University Characteristic Innovation Project (2015KTSCX122), Shenzhen Scientific Research and Development Funding Program (ZYC201105170243A, JCYJ20150324141711587, CXZZ20140902102350474, JCYJ20150630105452814, CXZZ20140902160818443, CXZZ20150813151056544, and JCYJ20160331114551175), and China-UK Visual Information Processing Lab Foundation. The funding body played no role in the design or conclusions of the study.

Availability of data and materials

Project name: LW-FQZip 2

Project website: http://csse.szu.edu.cn/staff/zhuzx/LWFQZip2 and https://github.com/Zhuzxlab/LW-FQZip2

Operating systems: Linux or MacOS

Programming language: C/C++

Other requirements: GCC compiler and the archiving tool ‘tar’

License: The MIT License

Any restrictions to use by non-academics: For commercial use, please contact the authors. All datasets are downloaded from SRA of NCBI. All data supporting the conclusions of this article are included within the article and its additional files.

Author’s contributions

ZH & ZZ conceived the algorithm, developed the program, and wrote the manuscript. ZW and YS helped with manuscript editing, designed and performed experiments. QD&YC prepared the data sets, carried out analyses and helped with program design. All authors read and approved the final manuscript.

Competing interests

The authors declare that they have no competing interests.

Consent for publication

Not applicable.

Ethics approval and consent to participate

Not applicable.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
College of Computer Science and Software Engineering, Shenzhen University
(2)
School of Medicine, Shenzhen University

References

  1. van Dijk EL, Auger H, Jaszczyszyn Y, Thermes C. Ten years of next-generation sequencing technology. Trends Genet. 2014;30(9):418–26.View ArticlePubMedGoogle Scholar
  2. Kozanitis C, Heiberg A, Varghese G, Bafna V. Using genome query language to uncover genetic variation. Bioinformatics. 2014;30(1):1–8.View ArticlePubMedGoogle Scholar
  3. Zhu Z, Zhang Y, Ji Z, He S, Yang X. High-throughput DNA sequence data compression. Brief Bioinform. 2015;16(1):1–15.View ArticlePubMedGoogle Scholar
  4. Numanagic I, Bonfield JK, Hach F. Comparison of high-throughput sequencing data compression tools. Nat Methods. 2016;13(12):1005–8.View ArticlePubMedGoogle Scholar
  5. Hosseini M, Pratas D, Pinho AJ. A survey on data compression methods for biological sequences. Information. 2016;7(4):56.View ArticleGoogle Scholar
  6. Zhu Z, Li L, Zhang Y, Yang Y, Yang X. CompMap: a reference-based compression program to speed up read mapping to related reference sequences. Bioinformatics. 2015;31(3):426–8.View ArticlePubMedGoogle Scholar
  7. Zhang, Y, Patel K, Endrawis T, Bowers A, Sun Y. A FASTQ compressor based on integer-mapped k-mer indexing for biologist. Gene. 2016;579(1):75-81.
  8. Bonfield JK, Mahoney MV. Compression of FASTQ and SAM format sequencing data. PLoS ONE. 2013;8(3):e59190.View ArticlePubMedPubMed CentralGoogle Scholar
  9. Tembe W, Lowey J, Suh E. G-SQZ: compact encoding of genomic sequence and quality data. Bioinformatics. 2010;26(17):2192–4.View ArticlePubMedGoogle Scholar
  10. Deorowicz S, Grabowski S. Compression of DNA sequence reads in FASTQ format. Bioinformatics. 2011;27(6):860–2.View ArticlePubMedGoogle Scholar
  11. Jones DC, Ruzzo WL, Peng X, Katze MG. Compression of next-generation sequencing reads aided by highly efficient de novo assembly. Nucleic Acids Res. 2012;40(22):e171.View ArticlePubMedPubMed CentralGoogle Scholar
  12. Grabowski S, Deorowicz S, Roguski L. Disk-based compression of data from genome sequencing. Bioinformatics. 2015;31(9):1389–95.View ArticlePubMedGoogle Scholar
  13. Janin L, Schulz-Trieglaff O, Cox AJ. BEETL-fastq: a searchable compressed archive for DNA reads. Bioinformatics. 2014;30(19):2796–801.View ArticlePubMedGoogle Scholar
  14. Patro R, Kingsford C. Data-dependent bucketing improves reference-free compression of sequencing reads. Bioinformatics. 2015;31(17):2770–7.View ArticlePubMedPubMed CentralGoogle Scholar
  15. Rozov R, Shamir R, Halperin E. Fast lossless compression via cascading Bloom filters. BMC Bioinformatics. 2014;15 Suppl 9:S7.View ArticlePubMedPubMed CentralGoogle Scholar
  16. Li H, Handsaker B, Wysoker A, Fennell T, Ruan J, Homer N, Marth G, Abecasis G, Durbin R. The sequence alignment/map format and SAMtools. Bioinformatics. 2009;25(16):2078–9.View ArticlePubMedPubMed CentralGoogle Scholar
  17. Fritz MH-Y, Leinonen R, Cochrane G, Birney E. Efficient storage of high throughput DNA sequencing data using reference-based compression. Genome Res. 2011;21(5):734–40.View ArticleGoogle Scholar
  18. Hach F, Numanagic I, Sahinalp SC. DeeZ: reference-based compression by local assembly. Nat Methods. 2014;11(11):1082–4.View ArticlePubMedGoogle Scholar
  19. Roguski L, Deorowicz S. DSRC 2--Industry-oriented compression of FASTQ files. Bioinformatics. 2014;30(15):2213–5.View ArticlePubMedGoogle Scholar
  20. Nicolae M, Pathak S, Rajasekaran S. LFQC: a lossless compression algorithm for FASTQ files. Bioinformatics. 2015;31(20):3276–81.View ArticlePubMedPubMed CentralGoogle Scholar
  21. Benoit G, Lemaitre C, Lavenier D, Drezen E, Dayris T, Uricaru R, Rizk G. Reference-free compression of high throughput sequencing data with a probabilistic de Bruijn graph. BMC Bioinformatics. 2015;16:288.View ArticlePubMedPubMed CentralGoogle Scholar
  22. Hach F, Numanagic I, Alkan C, Sahinalp SC. SCALCE: boosting sequence compression algorithms using locally consistent encoding. Bioinformatics. 2012;28(23):3051–7.View ArticlePubMedPubMed CentralGoogle Scholar
  23. Howison M. High-throughput compression of FASTQ data with SeqDB. IEEE/ACM Trans Comput Biol Bioinform. 2013;10(1):213–8.View ArticlePubMedGoogle Scholar
  24. Kahn SD. On the future of genomic data. Science. 2011;331(6018):728–9.View ArticlePubMedGoogle Scholar
  25. Zhang Y, Li L, Yang Y, Yang X, He S, Zhu Z. Light-weight reference-based compression of FASTQ data. BMC Bioinformatics. 2015;16:188.View ArticlePubMedPubMed CentralGoogle Scholar
  26. Leinonen R, Sugawara H, Shumway M. The sequence read archive. Nucleic Acids Res. 2010;39(suppl_1):D19-D21.
  27. Flusberg BA, Webster DR, Lee JH, Travers KJ, Olivares EC, Clark TA, Korlach J, Turner SW. Direct detection of DNA methylation during single-molecule, real-time sequencing. Nat Methods. 2010;7(6):461–5.View ArticlePubMedPubMed CentralGoogle Scholar
  28. Branton D, Deamer DW, Marziali A, Bayley H, Benner SA, Butler T, Di Ventra M, Garaj S, Hibbs A, Huang X. The potential and challenges of nanopore sequencing. Nat Biotechnol. 2008;26(10):1146–53.View ArticlePubMedPubMed CentralGoogle Scholar

Copyright

© The Author(s). 2017
