Transposable elements (TEs) are mobile sequences found in nearly all eukaryotic genomes. They have the ability to move and replicate within a genome, often influencing genome evolution and gene expression. The identification of TEs is an important part of every genome project. The number of sequenced genomes is rapidly rising, and the need to identify TEs within them is also growing. The ability to do this automatically and effectively in a manner similar to the methods used for genes is of increasing importance. There exist many difficulties in identifying TEs, including their tendency to degrade over time and that many do not adhere to a conserved structure. In this work, we describe a homology-based approach for the automatic identification of high-quality consensus TEs, aimed for use in the analysis of newly sequenced genomes.
We describe a homology-based approach for the automatic identification of TEs in genomes. Our modular approach is dependent on a thorough and high-quality library of representative TEs. The implementation of the approach, named TESeeker, is BLAST-based, but also makes use of the CAP3 assembly program and the ClustalW2 multiple sequence alignment tool, as well as numerous BioPerl scripts. We apply our approach to newly sequenced genomes and successfully identify consensus TEs that are up to 99% identical to manually annotated TEs.
While TEs are known to be a major force in the evolution of genomes, the automatic identification of TEs in genomes is far from mature. In particular, there is a lack of automated homology-based approaches that produce high-quality TEs. Our approach is able to generate high-quality consensus TE sequences automatically, requiring the user to only provide a few basic parameters. This approach is intentionally modular, allowing researchers to use components separately or iteratively. Our approach is most effective for TEs with intact reading frames. The implementation, TESeeker, is available for download as a virtual appliance, while the library of representative TEs is available as a separate download.
Transposable elements (TEs) are a type of repetitive sequence that have been found in nearly all eukaryotic genomes. First discovered and analyzed by McClintock in the 1950s , TEs have the ability to move and replicate within a genome. Due to their mobile and replicative nature, TEs often occupy large portions of genomes. TEs are estimated to represent 47% of the yellow-fever mosquito genome, Aedes aegypti , 35% of the frog genome, Xenopus tropicalis , and 45% of the human genome, Homo sapiens . This prevalence of TEs poses a major difficulty in sequence assembly, as repeat regions are prone to misassembly [5, 6]. TEs can impact host genomes in a number of ways. They are believed to play a major role in genome evolution [7–9], as they can insert themselves into, mutate, and move genes, thereby influencing gene expression, causing gene variation, and transferring genetic material [10–13].

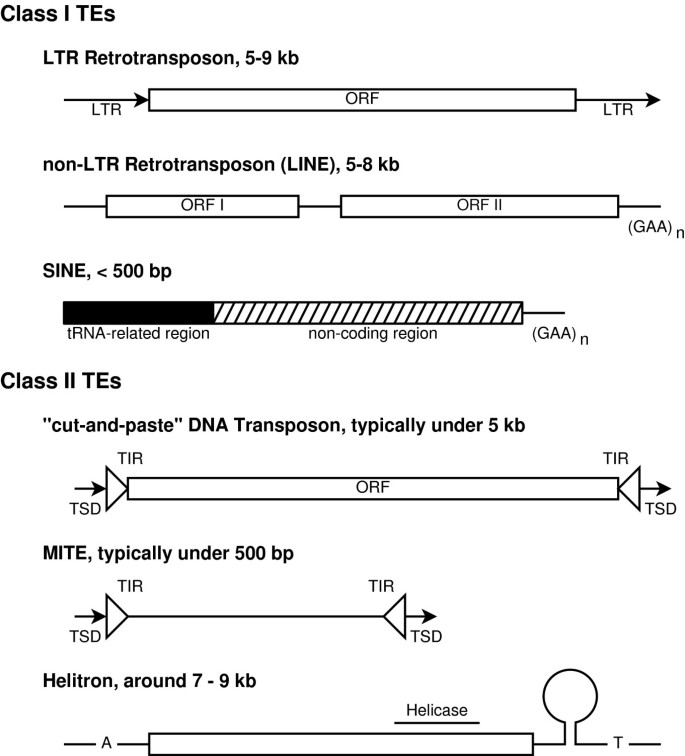

There are several difficulties with TE identification. TEs do not adhere to a universal structure; rather, some families of TEs follow specific structures. An example would be the TIR-transposase-TIR general structure of a Class II transposon, such as in the mariner element. Complicating matters, the structure of TEs can degrade over time. For example, TEs may preferentially insert themselves in similar regions of the genome, or even within one another, leading to many nested and fragmented copies. While autonomous, or active, TEs possess intact reading frames which serve as mechanisms for transposition, the majority of TEs are non-autonomous. Non-autonomous TEs can often still be transposed, using the transcription machinery of other elements in their class. For these reasons, a general approach cannot be used to identify all TEs. Instead, several approaches are used with varying levels of effectiveness.
The automatic identification of TEs is not as robust or mature as analogous methods currently used for genes . Bergman and Quesneville  describe many TE discovery methods and classify existing TE discovery techniques into de novo, structure-based, comparative genomic, and homology-based discovery methods. Saha et al. and Lerat more recently reviewed approaches to identify TEs [17, 18] and classify identification techniques into analogous groups: ab initio, signature-based, and library-based techniques. We next describe the approaches according to the Bergman and Quesneville classification.
De novo TE discovery approaches look for similar sequences found at multiple positions within a genome. Once identified, the sequences are typically clustered, filtered, and characterized. While computationally expensive, this approach can identify novel TEs and is most effective in discovering TEs with high prevalence. De novo techniques are typically not effective in identifying degraded TEs. Example de novo tools include PILER and RECON.
Structure-based approaches, such as LTR_STRUC, work well to identify complete TEs that comply to a conserved structure. In this case, LTR_STRUC is effective at finding retrotransposons with LTRs at each end of the element. Structure-based methods are less useful when searching for degraded TEs or for TEs without a conserved structural characteristic, such as LTRs or TIRs.
A comparative genomic discovery method described by Caspi and Pachter  uses multiple sequence alignments of closely related genomes to detect large changes between the genomes. The idea is that differences in the genomes, called insertion regions, could be TEs or caused by TEs. Such differences are analyzed and classified. This approach is useful when related genomes are readily available and can identify new families of TEs. Common ancestral TEs will not be identified by this approach.
Homology-based approaches utilize known TEs as a means to discover TEs in genomes. This is typically done by manually seeding alignment programs, such as BLAST , and then carefully analyzing the results. Biedler and Tu  reference a suite of TE-related programs to identify and characterize TEs that are homology-based and Quesneville, et al. offer the BLASTER suite of tools  to detect TEs. Although there are few homology-based tools and despite the fact that they struggle in identifying TEs unrelated to known elements, they are normally most accurate in identifying known TEs as well as detecting degraded TEs. Existing homology-based approaches also sometimes utilize hidden Markov models (HMMs) , which are effective for closely related genomes, but struggle with distantly related species, as the models tend to capture more irrelevant data when searching for diverse sequences. Additionally, homology-based approaches currently available are the fewest in number  and least automated. Moreover, many are not geared to output high-quality consensus sequences.
In this paper, we describe a fast, easy-to-use, and automated homology-based approach to discover high-quality putative TEs, implemented as TESeeker. This approach is aimed to be used in the analysis of TEs in novel genomes.
Our modular homology-based approach relies on a thorough and high-quality library of representative TEs, organized by family. When strong information is available, amino acid coding regions, reverse transcriptases for Class I TEs and transposases for Class II TEs, are the preferred components of the library. Nucleotide sequences can also be used, but such sequences do not allow for as much nucleotide variance during the search. Sequences for our library were chosen manually from TEfam, , NCBI , Repbase , and the literature. Sequences with intact amino acid coding regions were preferentially chosen and a wide variety of related sequences was assembled for each family. Currently, the library consists of 475 representative coding regions from a variety of (largely arthropod) organisms and covers the major TE families. For Class I elements, the library consists of 227 LTR amino acid sequences representing the cer1, copia, csrn1, Cyclops, gypsy, mag, mdg1, mdg3, osvaldo, Pao/Bel, and Ty3 families as well as 49 non-LTR amino acid sequences representing the CR1, I, Jockey, L1, L2, LOA, Loner, Outcast, R1, R4, and RTE families. The library consists of 199 amino acid sequences for Class II elements, namely the gambol, hAT, mariner, p, piggyBac, pogo, and Tc1 families. Further details on the provided library are available within the FASTA files and online . Because the library consists of sequences in the FASTA format, researchers can easily modify the library or create their own library for use in the approach.

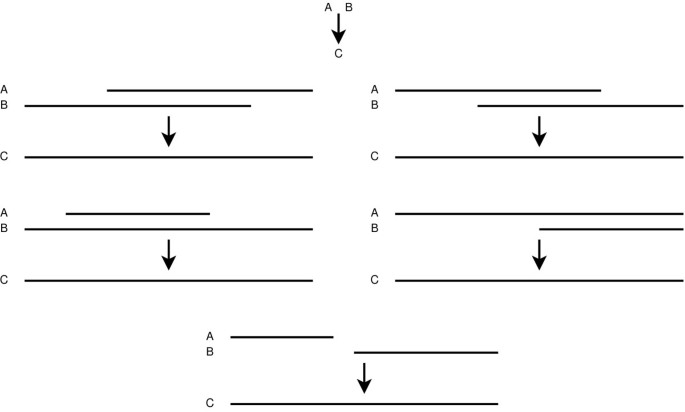

The approach begins with BLAST searches against the genome using representative TEs for the chosen family. Resulting BLAST hits are combined if they overlap or are very close together, and are then extracted from the genome. We next assemble with CAP3 in an attempt to gain a viable representation of the coding sequence. We use the CAP3 results to do another BLAST search against the genome and process the hits in the same manner. However, when extracting the sequences from the genome, we add flanking regions. The length of the flanking region is dependent on the type of TE and is utilized to enable us to capture the entire TE. These results are then aligned and a consensus is generated. We use the consensus to perform a final BLAST search, again combining, extracting, and assembling the sequences. CAP3 then produces the high-quality, full-length consensus TE. We next describe the approach in more detail.
At this point, we have a set of possible coding sequences, both complete and partial, many of which are copies or partial copies of one another. To consolidate and improve our results, we assemble the sequences with the CAP3 assembly program . CAP3 produces a set of consensus sequences generated from multiple sequences, called contigs, as well as sequences that did not assemble with other sequences, called singlets. CAP3 also generates accompanying quality scores for the contig sequences. We use the quality scores to trim the sequences such that the highest quality sequence remains. To do this, we iterate through a contig, keeping track of the cumulative sum of quality scores for a given number of consecutive nucleotides, called the sliding window, which is 20 bp by default. When the average value of a nucleotide in this sliding window exceeds a threshold, 18 by default, we consider the corresponding sequence to be high-quality. If the average value drops below the threshold, the sequence is ignored. Once we have read the entire sequence, there will likely be gaps in the sequence where there is little commonality. In these cases, we only keep the low-quality regions if they are of short length and have adjacent high-quality sequences. These results are then reassembled in CAP3, trimmed, and considered the best potential complete coding region. In the case that CAP3 produces only singlet sequences, we perform the aforementioned analysis with them. We then extend the sequence to encompass the entire TE. Pseudocode for the steps described in this section of our approach is shown in Algorithm 1.
Once the putative coding region has been identified, we create a consensus for the complete TE. We perform a blastn search with each contig from the previous (CAP3) step attempting to find the instances of the TE within the genome. We again process these hits as before and extract them from the genome, but this time we also extract flanking regions on either side of the viable hits in an attempt to capture the entire TE. This extracted set of instances can then be used to generate a consensus sequence.
The extracted near full-length sequences from the previous step are inherently very similar on a nucleotide-by-nucleotide basis. To generate a consensus from this set of sequences, we perform a multiple sequence alignment with ClustalW2 . A consensus sequence is generated as follows from the multiple sequence alignment. We record counts for each nucleotide at each position in the alignment file. If a gap is encountered, counts for each nucleotide are incremented. If the percentage for any nucleotide at a given position exceeds a given threshold, 49% by default, that nucleotide is used for that position in the consensus. We now have a consensus sequence for the TE that is the most likely sequence to occur in the genome and we need to verify that it is complete.
To validate and improve the consensus sequence, we look for similar copies of it in the genome with a blastn search. We again process the BLAST hits as previously described and extract them from the genome, generally adding short flanking sequences. The resulting extracted sequences are again iteratively examined with CAP3 and trimmed. CAP3 produces a sequence which represents the best estimate for a consensus putative TE in the novel genome. Further inspection on the putative TE is advisable, both in terms of validity and classification. Once validated, this TE can be utilized to calculate the density of its particular family within the genome and to find individual instances.
Our approach is implemented as TESeeker and was purposely designed to be modular, while relying upon common bioinformatics tools, namely BLAST, CAP3, and ClustalW2, as well as BioPerl . TESeeker is released as a VirtualBox  virtual appliance. The local web browser interface to TESeeker offers the main gateway to the core TESeeker functionality; however, TESeeker can also be run through the command line. A researcher needs to only provide basic parameters, such as TE family, host genome, closeness to combine, flank length, CAP3 window size, and the CAP3 quality score threshold for consensus generation. Suggested starting parameters include combining BLAST hits within 50 bp, a CAP3 window size of 20 bp, a combine distance of 50 bp, and a CAP3 quality score threshold of 18. These parameters were determined through extensive testing on arthropod genomes. Further details on suggested parameters, as well as means to perform a sample run are provided within the virtual appliance. While not parallelized, researchers can easily run multiple instances of TESeeker while varying parameters and TE families, offering scalability.
This approach was developed over the course of several TE detection projects on several arthropod genomes [35, 36], but was not originally automated. DNASTAR SeqMan II  was used in place of CAP3 and ClustalW2. DNASTAR SeqMan II produced viable results, but it required extensive interaction from a researcher. Sequences had to be manually examined and trimmed in the program, a process which took considerable time and required a trained researcher. This manual approach produced results that we consider a high-quality annotation of TEs. We used these results to partially validate TESeeker against the Pediculus humanus humanus genome, described later. We also evaluated our approach against published results from the Anopheles gambiae PEST genome, as well as a number of other genomes. We utilized our library of representative coding regions for validation. Except when we used TESeeker to reconstruct an element from its amino acid coding region, we removed all sequences in the library that originated from the genome in question.
The body louse, Pediculus humanus humanus, is the primary vector of typhus and several other diseases . It is the smallest presently sequenced insect genome at roughly 110 Mb. TESeeker was able to identify all Class I and Class II TEs, with the exception of MITEs, reported in Kirkness et al. . Unlike many other arthropod genomes, only 1% of the P. humanus humanus genome is made up of TEs.
Pediculus humanus humanus Results
TESeeker correctly identified all previously reported TEs in P. humanus humanus. Running TESeeker with suggested parameters for a mariner Class II element in P. humanus humanus produced a consensus TE that was 99% identical to the manually annotated element. Additionally, the ends were well-trimmed. The alignment for this comparison can be found in Additional file 1. Modifying the parameters to account for differences in TE characteristics, TESeeker identified the Class I TEs as well. We detected the Dong-like TE, flanked by its TSDs almost perfectly. We also correctly detected the ty3/gypsy TE, with 60 bp of extra sequence on either end, as well as the Hope-like TE. Our approach's ability to discover TEs of varying families, across classes, in a genome with so few TEs demonstrates its utility. Partial or degraded copies within P. humanus humanus were found through BLAST searches using the full-length consensus sequences as queries.
Anopheles gambiae serves as the main vector of malaria . The PEST strain is roughly 273 Mb and has been extensively studied. Class II P elements within the genome have been especially closely examined. Sarkar et al. originally identified 6 distinct P elements . More recently, Oliveira de Carvalho et al. identified 4 additional P elements , while Quesneville et al. described 9 clades that are at least 30% divergent at the nucleotide level . In all, previous research has described 12 clades of P elements in A. gambiae that are more than 30% divergent at the nucleotide level.
TESeeker detected 11 out of the 12 P elements within A. gambiae, as well as an additional 2 partial hits that showed strong similarity to P element transposase, but that were more than 30% divergent at the nucleotide level. The lone element that TESeeker missed, AgaP14, is most divergent from the other elements, which may explain its absence and which also suggests our library does not fully represent the P element family. Additionally, TESeeker produced consensus sequences with TIRs on every element where they had been previously reported.
Searches for additional Class II TE families were also successful. In particular, we identified 10 of the 13 piggyBac elements, with TIRs when present, described in Sarkar et al. . Again, the elements TESeeker missed were most divergent from the other sequences. TESeeker did especially well with mariner elements. TESeeker identified each of the 5 elements at TEfam, each with complete TIRs and 4 with the expected TSDs.
Further testing was performed on Class I TEs available on TEfam. To validate the ability of our approach to reconstruct a full-length TE from a given coding region, we populated our library with coding regions from Class I TEs. For 18 of the 19 full-length non-LTR elements on TEfam with amino acid coding regions available and also with full-length copies present in the genome, TESeeker successfully reproduced the full-length element. Parameters for the CAP3 window quality often needed to be relaxed, as some sequences present in TEfam are not abundant in the genome. Results from TESeeker were typically slightly longer on both ends, due to relaxed parameters. The single element TESeeker did not produce in its entirety, Loner, was still over 90% reconstructed with more than 80% identity to the TEfam element. Additional file 2 provides ClustalX alignments for one member of each non-LTR family from TEfam against TESeeker-produced full-length elements. TESeeker was also able to reconstruct over 99% of the composite Pao/Bel LTR element from TEfam with 98% identity. In addition to the TEs found in TEfam, TESeeker produced many additional singlet and contig sequences because of the relaxed parameters. While extensive validation was not performed on these sequences, many appear to have intact coding regions and are potentially TEs present in the genome but not in the TEfam database.
TESeeker was also validated on select elements in a variety of organisms. Of particular note, we detected a previously unreported putative mariner element in the well-studied Drosophila melanogaster genome. The 1061 bp element has TIRs 26 bp in length, with 3 mismatches, but with no apparent TSDs. A single full-length copy, as well as a small number of partial hits, exist within the genome. Its transposase has a high homology to related insects, such as Chymomyza amoena and Cladodiopsis seyrigi. Searches for this element in existing TE annotations for D. melanogaster produced no hits. Please refer to Additional file 3 for an annotated version of this putative element.
Additionally, TESeeker was used to search for mariner elements in the human (Homo sapiens), frog (Xenopus tropicalis), and chicken (Gallus gallus) genomes. Mariner elements are known to exist in the human, frog, and chicken genomes, which were found using TESeeker.
Our approach offers many advantages to researchers. First, TESeeker allows for the fast and accurate detection of TEs. As demonstrated in several genomes, across multiple TE families, TESeeker effectively identifies TEs. In addition to TE identification, our approach offers opportunities to reexamine and validate previous research. Second, TESeeker is very easy to use; we provide TESeeker as a virtual appliance, completely configured. Researchers need only provide a few parameters to begin searching. Parameters are easily modified and multiple iterations of the approach can be run simultaneously. Third, TESeeker is general. While we primarily evaluated our approach on TEs in arthropod genomes, the parameters can be adjusted to allow for the effective detection of a variety of TE families in any genome, including genomes that contain only degraded TEs. Less stringent parameters will be more effective in detecting such degraded TEs, but will also increase the number of false positives. As mentioned previously, we have utilized various stages of this approach to identify non-LTR and LTR TEs in a number of genome projects. Last, our approach eases the burden on expert annotators, decreasing genome annotation time.
While robust, this approach has several limitations. First, results are highly dependent on the quality of the sequences in the library and whether the novel genome contains TEs with homology to those in the library. The library must contain a thorough representation of TEs for a given family, preferably amino acid coding regions. The provided library has performed well, but extensive testing has not been performed on LTR elements. Additionally, this approach is not designed to detect TEs without a coding region, such as SINEs or MITEs. Second, the approach is most effective for TEs that exist in multiple copies throughout the genome. While TESeeker has been shown to find TEs that have only a single full-length instance, the quality of its output and the extra effort required by the researcher to alter the parameters can be time-consuming. Last, results from TESeeker must be closely examined. An ongoing issue with TEs concerns their classification. If a search is seeded with mariner sequences, it may produce consensus TEs that are not true mariners, but are rather mariner-like TEs. For this manuscript, TEs were classified through manual examination of their amino acid coding regions.
The number of sequenced genomes is rapidly increasing and the necessity to annotate them effectively and quickly is more important than ever. TEs are an important evolutionary force present in the majority of these genomes. While there are mature, effective, and automated gene identification systems, the tools available for TEs are not as robust. Particularly, current homology-based approaches are typically very interactive, requiring numerous user decisions and the manual start of separate tools.
The approach described herein successfully identifies TEs in novel genomes in an automated and user-friendly package, offering researchers the ability to quickly produce high-quality consensus TEs. TESeeker was developed and refined over the course of several TE identification projects and works best to detect TEs with homology to known TEs. We are able to generate high-quality putative TEs as well as characterize the prevalence of TEs in many genomes. We provide TESeeker as a web-based tool within a virtual appliance, while also providing our representative TE library. While its local web interface automates the underlying logic, each step can be manually started through the command line, offering additional flexibility. Our approach's ability to automatically analyze a genome alleviates the exhaustive, error-prone, and time-consuming task of manually inspecting and manipulating results. The performance of TESeeker varies, but is largely dependent on the length of the TE family and its abundance in the genome.
Due to the nature of TEs, there will likely never be an all-encompassing approach for their detection. Instead, existing approaches will be improved and used in conjunction with other approaches. With TESeeker, several improvements could be implemented. First, incorporating the ability to detect structural characteristics in TEs, such as LTRs and TIRs, would allow us to more correctly trim our results. Second, the ability for TESeeker to automatically determine the length of the required flanking sequence based on family characteristics would require less expertise on the part of the researcher. This would be especially useful when coupled with classification techniques that could be applied to the results from TESeeker. Third, TESeeker could utilize additional tools to detect TEs without coding regions, such as MITEs or SINEs. Fourth, as mentioned previously, the results of TESeeker will only be as good as the sequences in the library. Namely, TESeeker will not find TEs without homology to those within the library. Therefore, we will provide updates to the library online. Last, we could implement a cross-validation routine which would learn the optimal parameter settings for a given family, further easing the burden on the researcher.
TESeeker is available as a VirtualBox virtual appliance running 32-bit Ubuntu 10.04 LTS with all scripts and tools configured. Documentation and the representative library are available as separate downloads. Please see Additional file 4 for the complete user manual, which also features an example search walkthrough.
Project name: TESeeker
Project home page: http://repository.library.nd.edu/view/27/teseeker
Operating systems: Windows, OS X, Linux, Solaris
Programming languages: Perl, bash
Other requirements: VirtualBox
License: GNU General Public License (GPL) v3
Any restrictions to use by non-academics: none
P = IDENTIFYPUTATIVESEQUENCES (Q, S, evalue, distance)
Let Q be the set of representative TEs
Let S be the genome
Let P be the set of putative hits
Let evalue be the maximum e-value of a potential hit
Let distance be the maximum distance between potential hits
// Search genome and sort hits according to location
for allq ∈ Qdo
H q ← BLAST(q, S)
H q ← sort(H q , position)
// Combine overlapping hits
for allq ∈ Qdo
for all h ∈ H q do
if h ≤ evalue then
for all i ∈ H q do
if i ≤ evalue then
if abs(h.location - i.location) ≤ distance then
h ← (h + i)
// Extract putative TEs from genome
for allq ∈ Qdo
for all h ∈ H q do
P q ← extract(h, S)
// Assemble consensus TEs
for allp ∈ P q do
p ← trim(CAP3(p))
This project was supported in part by NIAID/NIH contracts HHSN272200900039C and HHSN266200400039C for "VectorBase: A Bioinformatics Resource Center for Invertebrate Vectors of Human Pathogens" [44–46]. LTR reverse transcriptases within the representative library were chosen with the assistance of Jose Manuel C. Tubío. Computational resources supported in part by the Notre Dame Center for Research Computing .
