A linear memory algorithm for Baum-Welch training

Contributed equally
BMC Bioinformatics20056:231

DOI: 10.1186/1471-2105-6-231

Received: 24 June 2005

Accepted: 19 September 2005

Published: 19 September 2005

Abstract

Background:

Baum-Welch training is an expectation-maximisation algorithm for training the emission and transition probabilities of hidden Markov models in a fully automated way. It can be employed as long as a training set of annotated sequences is known, and provides a rigorous way to derive parameter values which are guaranteed to be at least locally optimal. For complex hidden Markov models such as pair hidden Markov models and very long training sequences, even the most efficient algorithms for Baum-Welch training are currently too memory-consuming. This has so far effectively prevented the automatic parameter training of hidden Markov models that are currently used for biological sequence analyses.

Results:

We introduce the first linear space algorithm for Baum-Welch training. For a hidden Markov model with M states, T free transition and E free emission parameters, and an input sequence of length L, our new algorithm requires O(M) memory and O(LMT max (T + E)) time for one Baum-Welch iteration, where T max is the maximum number of states that any state is connected to. The most memory efficient algorithm until now was the checkpointing algorithm with O(log(L)M) memory and O(log(L)LMT max ) time requirement. Our novel algorithm thus renders the memory requirement completely independent of the length of the training sequences. More generally, for an n-hidden Markov model and n input sequences of length L, the memory requirement of O(log(L)Ln-1M) is reduced to O(Ln-1M) memory while the running time is changed from O(log(L)L n MT max + L n (T + E)) to O(L n MT max (T + E)).

An added advantage of our new algorithm is that a reduced time requirement can be traded for an increased memory requirement and vice versa, such that for any c {1, ..., (T + E)}, a time requirement of L n MT max c incurs a memory requirement of Ln-1M(T + E - c).

Conclusion

For the large class of hidden Markov models used for example in gene prediction, whose number of states does not scale with the length of the input sequence, our novel algorithm can thus be both faster and more memory-efficient than any of the existing algorithms.

Background

Hidden Markov Models (HMMs) are widely used in Bioinformatics [1], for example, in protein sequence alignment, protein family annotation [2, 3] and gene-finding [4, 5].

When an HMM consisting of M states is used to annotate an input sequence, its predictions crucially depend on its set of emission probabilities ε and transition probabilities https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq1_HTML.gif . This is for example the case for the state path with the highest overall probability, the so-called optimal state path or Viterbi path [6], which is often reported as the predicted annotation of the input sequence.

When a new HMM is designed, it is usually quite easy to define its states and the transitions between them as these typically closely reflect the underlying problem. However, it can be quite difficult to assign values to its emission probabilities ε and transition probabilities https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq1_HTML.gif . Ideally, they should be set up such that the model's predictions would perfectly reproduce the known annotation of a large and diverse set of input sequences.

The question is thus how to derive the best set of transition and emission probabilities from a given training set of annotated sequences. Two main scenarios have to be distinguished [1]:
  1. (1)

    If we know the optimal state paths that correspond to the known annotation of the training sequences, the transition and emission probabilities can simply be set to the respective count frequencies within these optimal state paths, i.e. to their maximum likelihood estimators. If the training set is small or not diverse enough, pseudo-counts have to be added to avoid over-fitting.


  2. (2)

    If we do not know the optimal state paths of the training sequences, either because their annotation is unknown or because their annotation does not unambiguously define a state path in the HMM, we can employ an expectation maximisation (EM) algorithm [7] such as the Baum-Welch algorithm [8] to derive the emission and transition probabilities in an iterative procedure which increases the overall log likelihood of the model in each iteration and which is guaranteed to converge at least to a local maximum. As in case (1), pseudo-counts or Dirichlet priors can be added to avoid over-fitting when the training set is small or not diverse enough.



Methods and results

Baum-Welch training

The Baum-Welch algorithm defines an iterative procedure in which the emission and transition probabilities in iteration n + 1 are set to the number of times each transition and emission is expected to be used when analysing the training sequences with the set of emission and transition probabilities derived in the previous iteration n.

Let https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq2_HTML.gif T i , j n denote the transition probability for going from state i to state j in iteration n, https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq3_HTML.gif E i n ( y ) the emission probability for emitting letter y in state i in iteration n, P(X) the probability of sequence X, and x k the k th letter in input sequence X which has length L. We also define X k as the sequence of letters from the beginning of sequence X up to sequence position k, (x1, ...x k ). X k is defined as the sequence of letters from sequence position k + 1 to the end of the sequence, (xk+1, ...x L ).

For a given set of training sequences, S, the expectation maximisation update for transition probability https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq2_HTML.gif T i , j n , https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq4_HTML.gif T i , j n + 1 can then be written as

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq5_HTML.gif T i , j n + 1 = X S t i , j n ( X ) / P ( X ) j X S t i , j n , ( X ) / P ( X ) where t i , j n ( X ) : = k = 1 L f n ( X k , i ) T i , j n E j n ( x k + 1 ) b n ( X k + 1 , j ) ( 1 )

The superfix n on the quantities on the right hand side indicates that they are based on the transition probabilities https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq2_HTML.gif T i , j n and emission probabilities https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq6_HTML.gif E i n ( x k + 1 ) of iteration n. f(X k , i): = P(x1, ...x k , s(x k ) = i) is the so-called forward probability of the sequence up to and including sequence position k, requiring that sequence letter x k is read by state i. It is equal to the sum of probabilities of all state paths that finish in state i at sequence position k. The probability of sequence X, P(X), is therefore equal to f(X L , End). b(X k , i): = P(xk+1, ...x L |s(x k ) = i) is the so-called backward probability of the sequence from sequence position k + 1 to the end, given that the letter at sequence position k, x k , is read by state i. It is equal to the sum of probabilities of all state paths that start in state i at sequence position k.

For a given set of training sequences, S, the expectation maximisation update for emission probability https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq3_HTML.gif E i n ( y ) , https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq7_HTML.gif E i n + 1 ( y ) , is

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq8_HTML.gif E i n + 1 ( y ) = X S e i n ( y , X ) / P ( X ) y ' X S e i n ( y ' , X ) / P ( X ) where e i n ( y , X ) : = k = 1 L δ x k , y f n ( X k , i ) b n ( X k , i ) ( 2 )

δ is the usual delta function with https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq9_HTML.gif δ x k , y = 1 if x k = y and https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq9_HTML.gif δ x k , y = 0 if x k y. As before, the superfix n on the quantities on the right hand side indicates that they are calculated using the transition probabilities https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq2_HTML.gif T i , j n and emission probabilities https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq6_HTML.gif E i n ( x k + 1 ) of iteration n.

The forward and backward probabilities f n (X k , i) and b n (X k , i) can be calculated using the forward and backward algorithms [1] which are introduced in the following section.

Baum-Welch training using the forward and backward algorithm

The forward algorithm proposes a procedure for calculating the forward probabilities f(X k , i) in an iterative way. f(X k , i) is the sum of probabilities of all state paths that finish in state i at sequence position k.

The recursion starts with the initialisation

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq10_HTML.gif f ( X 0 , i ) = { 1 i = S t a r t 0 i S t a r t

where Start is the number of the start state in the HMM. The recursion proceeds towards higher sequence positions

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq11_HTML.gif f ( X k + 1 , i ) = j = 1 M f ( X k , j ) T j , i E i ( x k + 1 )

and terminates with

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq12_HTML.gif P ( X ) = P ( X L ) = f ( X L , E n d ) = j = 1 M f ( X L , j ) T j , E n d

where End is the number of the end state in the HMM. The recursion can be implemented as a dynamic programming procedure which works its way through a two-dimensional matrix, starting at the start of the sequence in the Start state and finishing at the end of the sequence in the End state of the HMM.

The backward algorithm calculates the backward probabilities b(X k , i) in a similar iterative way. b(X k , i) is the sum of probabilities of all state paths that start in state i at sequence position k. Opposed to the forward algorithm the backward algorithm starts at the end of the sequence in the End state and finishes at the start of the sequence in the Start state of the HMM.

The backward algorithm starts with the initialisation

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq13_HTML.gif b ( X L , i ) = { 1 i = E n d 0 i E n d

and continues towards lower sequence positions with the recursion

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq14_HTML.gif b ( X k , i ) = j = 1 M E i ( x k ) T i , j b ( X k + 1 , j )

and terminates with

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq15_HTML.gif P ( X ) = b ( X 1 , S t a r t ) = j = 1 M T S t a r t , j b ( X 1 , j )

As can be seen in the recursion steps of the forward and backward algorithms described above, the calculation of f(Xk+1, i) requires at most T max previously calculated elements f(X k , j) for j {1, ..M}. T max is the maximum number of states that any state of the model is connected to. Likewise, the calculation of b(X k , i) refers to at most T max elements b(Xk+1, j) for j {1, ..M}.

In order to continue the calculation of the forward and backward values f(X k , i) and b(X k , i) for all states i {1, ..M} along the entire sequence, we thus only have to memorise M elements.

Baum-Welch training using the checkpointing algorithm

Unit now, the checkpointing algorithm [1113] was the most efficient way to perform Baum-Welch training. The basic idea of the checkpointing algorithm is to perform the forward and backward algorithm by memorising the forward and backward values only in https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq16_HTML.gif O ( L ) columns along the sequence dimension of the dynamic programming table. The checkpointing algorithm starts with the forward algorithm, retaining only the forward values in https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq16_HTML.gif O ( L ) columns. These columns partition the dynamic programming table into https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq16_HTML.gif O ( L ) separate fields. The checkpointing algorithm then invokes the backward algorithm which memorises the backward values in a strip of length https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq16_HTML.gif O ( L ) as it moves along the sequence. When the backward calculation reaches the boundary of one field, the pre-calculated forward values of the neighbouring checkpointing column are used to calculate the corresponding forward values for that field. The forward and backward values of that field are then available at the same time and are used to calculate the corresponding values for the EM update.

The checkpointing algorithm can be further refined by using embedded checkpoints. With an embedding level of k, the forward values in https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq17_HTML.gif O ( L 1 k ) columns of the initial calculation are memorised, thus defining https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq18_HTML.gif O ( L / L 1 k ) = O ( L k 1 k ) long fields. When the memory-sparse calculation of the backward values reaches the field in question, the forward algorithm is invoked again to calculate the forward values for https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq17_HTML.gif O ( L 1 k ) additional columns within that field. This procedure is iterated k times within the thus emerging fields. In the end, for each of the https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq17_HTML.gif O ( L 1 k ) -long k-sub-fields, the forward and backward values are simultaneously available and are used to calculate the corresponding values for the EM update. The time complexity of this algorithm for one Baum-Welch iteration and a given training sequence of length L is O(kLMT max + L(T + E)), since k forward and 1 backward algorithms have to be invoked, and the memory complexity is https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq19_HTML.gif O ( k L 1 k M ) . For k = log(L), this amounts to a time requirement of O(log(L)LMT max + L(T + E)) and a memory requirement of O(log(L)M), since https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq20_HTML.gif L 1 log ( L ) = e.

Baum-Welch training using the new algorithm

It is not trivial to see that the quantities https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq4_HTML.gif T i , j n + 1 and https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq7_HTML.gif E i n + 1 ( y ) of Equations 1 and 2 can be calculated in an even more memory-sparse way as both, the forward and the corresponding backward probabilities are needed at the same time in order to calculate the terms https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq21_HTML.gif f n ( X k , i ) T i , j n E i n ( x k + 1 ) b n ( X k + 1 , j ) in https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_Equ1_HTML.gif t i , j n ( X ) and https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq22_HTML.gif δ x k , y f n ( X k , i ) b n ( X k , i ) in https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq23_HTML.gif e i n ( y , X ) of Equations 1 and 2. A calculation of these quantities for each sequence position using a memory-sparse implementation (that would memorise only M values at a time) both for the forward and backward algorithm would require L-times more time, i.e. significantly more time. Also, an algorithm along the lines of the Hirschberg algorithm [9, 10] cannot be applied as we cannot halve the dynamic programming table after the first recursion.

We here propose a new algorithm to calculate the quantities https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq4_HTML.gif T i , j n + 1 and https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq7_HTML.gif E i n + 1 ( y ) which are required for Baum-Welch training. Our algorithm requires O(M) memory and O(LMT max (T + E)) time rather than O(log(L)M) memory and O(log(L{LMT max + L(T + E)) time.

The trick for coming up with a memory efficient algorithm is to realise that

  • https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_Equ1_HTML.gif
    (1)
    t i , j n ( X ) and https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq23_HTML.gif e i n ( y , X ) in Equations 1 and 2 can be interpreted as a weighted sum of probabilities of state paths that satisfy certain constraints and that
  • the weight of each state path is equal to the number of times that the constraint is fulfilled.

For example, https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_Equ1_HTML.gif t i , j n ( X ) in the numerator in Equation 1 is the weighted sum of probabilities of state paths for sequence X that contain at least one ij transition, and the weight of each such state path in the sum is the number of times this transition occurs in the state path.

We now show how https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_Equ1_HTML.gif t i , j n ( X ) in Equation 1 can be calculated in O(M) memory and O(LMT max ) time. As the superfix n is only there to remind us that the calculation of https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_Equ1_HTML.gif t i , j n ( X ) is based on the transition and emission probabilities of iteration n and as this index does not change in the calculation of https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq24_HTML.gif t i , j n , we discard it for simplicity sake in the following.

Let ti, j(X k , l) denote the weighted sum of probabilities of state paths that finish in state l at sequence position k of sequence X and that contain at least one ij transition, where the weight for each state path is equal to its number of ij transitions.

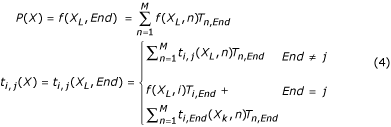

Theorem 1: The following algorithm calculates ti, j(X) in O(M) memory and O(LMT max ) time. ti, j(X) is the weighted sum of probabilities of all state paths for sequence X that have at least one ij transition, where the weight for each state path is equal to its number of ij transitions.

The algorithm starts with the initialisation

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq25_HTML.gif f ( X 0 , m ) = { 1 m = S t a r t 0 m S t a r t t i , j ( X 0 , m ) = 0

and proceeds via the following recursion

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq26_HTML.gif f ( X k + 1 , m ) = n = 1 M f ( X k , n ) T n , m E m ( x k + 1 ) t i , j ( X k + 1 , m ) = { n = 1 M t i , j ( X k , n ) T n , m E m ( x k + 1 ) m j f ( X k , i ) T i , m E m ( x k + 1 ) + m = j n = 1 M t i , j ( X k , n ) T n , m E m ( x k + 1 ) ( 3 )

and finishes with

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq27_HTML.gif P ( X ) = f ( X L , E n d ) = n = 1 M f ( X L , n ) T n , E n d t i , j ( X ) = t i , j ( X L , E n d ) = { n = 1 M t i , j ( X L , n ) T n , E n d f ( X L , i ) T i , E n d + n = 1 M t i , E n d ( X k , n ) T n , E n d E n d j E n d = j ( 4 )

Proof:
  1. (1)

    It is obvious that the recursion requires only O(M) memory as the calculation of all f(Xk+1, m) values with m {1, ..M} requires only access to the M previous f(X k , n) values with n {1, ..M}. Likewise, the calculations of all ti, j(Xk+1, m) values with m {1, ..M} refer only to M elements ti, j(X k , n) with n {1, ..M}. We therefore have to remember only a thin "slice" of ti, jand f values at sequence position k in order to be able to calculate the ti, jand f values for the next sequence position k + 1. The time requirement to calculate ti, jis O(LMT max ): for every sequence position and for every state in the HMM, we have to sum at most T max terms in order to calculate the backward and forward terms.


  2. (2)

    The f(X k , m) values are identical to the previously defined forward probabilities and are calculated in the same way as in the forward algorithm.


  3. (3)

    We now prove by induction that ti, j(X k , l) is equal to the weighted sum of probabilities of state paths that have at least one ij transition and that finish at sequence position k in state l, the weight of each state path being equal to its number of ij transitions.


Initialisation step (sequence position k = 0): ti, j(X0, m) = 0 is true as the sum of probabilities of state paths that finish in state m at sequence position 0 and that have at least one ij transition is zero. Induction step kk + 1: We now show that if Equation 3 is true for sequence position k, it is also true for k + 1. We have to distinguish two cases:
  1. (i)

    case m = j:



https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq28_HTML.gif t i , j ( X k + 1 , m ) = f ( X k , i ) T i , j E j ( x k + 1 ) + ( 5 )

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq29_HTML.gif n = 1 M t i , j ( X k , n ) T n , j E j ( X k + 1 ) ( 6 )

The first term, see right hand side of 5, is the sum of probabilities of state paths that finish at sequence position k + 1 and whose last transition is from ij. The second term, see 6, is the sum of probabilities of state paths that finish at sequence position k + 1 and that already have at least one ij transition. Note that the term in 6 also contains a contribution for n = i. This ensures that the weight of those state path that already have at least one ij transition is correctly increased by 1. The sum, ti, j(Xk+1, m), is therefore the weighted sum of probabilities of state paths that finish in sequence position k + 1 and contain at least one ij transition. Each state path's weight in the sum is equal to its number of ij transitions.
  1. (ii)

    case mj:



https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq30_HTML.gif n = 1 M t i , j ( X k , n ) T n , j E j ( X k + 1 ) ( 6 )

The expression on the right hand side is the weighted sum of probabilities of state paths that finish in sequence position k + 1 and contain at least one ij transition.

We have therefore shown that if Equation 3 is true for sequence position k, it is also true for sequence position k + 1. This concludes the proof of theorem 1.     □

It is easy to show that e i (y, X) in Equation 2 can also be calculated in O(M) memory and O(LMT max ) time in a similar way as ti, j(X). Let e i (y, X k , l) denote the weighted sum of probabilities of state paths that finish at sequence position k in state l and for which state i reads letter y at least once, the weight of each state path being equal to the number of times state i reads letter y. As in the calculation of ti, j(X) we again omit the superfix n as the calculation of e i (y, X) is again entirely based on the transition and emission probabilities of iteration n.

Theorem 2: e i (y, X) can be calculated in O(M) memory and O(LMT max ) time using the following algorithm. e i (y, X) is the weighted sum of probabilities of state paths for sequence X that read letter y in state i at least once, the weight of each state path being equal to the number of times letter y is read by state i.

Initialisation step:

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq31_HTML.gif f ( X 0 , m ) = { 1 m = S t a r t 0 m S t a r t e i ( y , X 0 , m ) = 0

Recursion:

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq32_HTML.gif f ( X k + 1 , m ) = n = 1 M f ( X k , n ) T n , m E m ( x k + 1 ) e i ( y , X k + 1 , m ) = { n = 1 M e i ( y , X k , n ) T n , m E m ( x k + 1 ) i f m i or x k + 1 y f ( X k , i ) T i , m E m ( x k + 1 ) + n = 1 M e i ( y , X k , n ) T n , m E m ( x k + 1 ) i f m = i a n d x k + 1 = y

Termination step:

https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_IEq33_HTML.gif P ( X ) = f ( X L , E n d ) = n + 1 M f ( X L , n ) T n , E n d ( 7 ) e i ( y , X ) = e i ( y , X L , E n d ) = n + 1 M e i ( y , X L , n ) T n , E n d

Proof: The proof is strictly analogous to the proof of theorem 1.

The above theorems have shown that ti, j(X) and e i (y, X) can each be calculated in O(M) memory and O(LMT max ) time. As there are T transition parameters and E emission parameters to be calculated in each Baum-Welch iteration, and as these T + E values can be calculated independently, the time and memory requirements for each iteration and a set of training sequences whose sum of sequence lengths is L using our new algorithm are

  • O(M) memory and O(LMT max (T + E)) time, if all parameter estimates are calculated consecutively

  • O(M(T + E)) memory and O(LMT max ) time, if all parameter estimates are calculated in parallel

  • more generally, O(Mc) memory and O(LMT max (T + E - c)) time for any c {1,..., (T + E)}, if c of T + E parameters are to be calculated in parallel

Note that the calculation of P(X) is a by-product of each ti, j(X) and each e i (y, X) calculation, see Equations 4 and 7, and that T is equal to the number of free transition parameters in the HMM which is usually smaller than the number of transitions probabilities. Likewise, E is the number of free emission parameters in the HMM which may differ from the number of emission probabilities when the probabilities are parametrised.

Discussion and Conclusion

We propose the first linear-memory algorithm for Baum-Welch training. For a hidden Markov model with M states, T free transition and E free emission parameters, and an input sequence of length L, our new algorithm requires O(M) memory and O(LMT max (T + E)) time for one Baum-Welch iteration as opposed to O(log(L)M) memory and O(log(L)LMT max + L(T + E)) time using the checkpointing algorithm [1113], where T max is the maximum number of states that any state is connected to. Our algorithm can be generalised to pair-HMMs and, more generally, n-HMMs that analyse n input sequences at a time in a straightforward way. In the n-HMM case, our algorithm reduces the memory and time requirements from O(log(L)Ln-1M) memory and O(log(L)L n MT max + L n (T + E)) time to O(Ln-1M) memory and O(L n MT max (T + E))) time. An added advantage of our new algorithm is that a reduced time requirement can be traded for an increased memory requirement and vice versa, such that for any c {1,..., (T + E)}, a time requirement of L n MT max c incurs a memory requirement of Ln-1M(T + E - c). For HMMs, our novel algorithm renders the memory requirement completely independent of the sequence length. Generally, for n-HMMs and all T + E parameters being estimated consecutively, our novel algorithm reduces the memory requirement by a factor log(L) and the time requirement by a factor log(L)/(T +E) + 1/(MT max ). For all hidden Markov models whose number of states does not depend on the length of the input sequence, this thus amounts to a significantly reduced memory requirement and – in cases where the number of free parameters and states of the model (i.e. T + E) is smaller than the logarithm of sequence lengths – even to a reduced time requirement.

For example, for an HMM that is used to predict human genes, the training sequences have a mean length of at least 2.7·104 bp which is the average length of a human gene [14]. Using our new algorithm, the memory requirement for Baum-Welch training is reduced by a factor of about 28 ≈ e* In (2.7·104) with respect to the most memory-sparse version of the checkpointing algorithm.

Our new algorithm makes use of the fact that the numerators and denominators of Equations 1 and 2 can be decomposed in a smart way that allows a very memory-sparse calculation. This calculation requires only one uni-directional scan along the sequence rather than one or more bi-directional scans, see Figure 1. This property gives our algorithm the added advantage that it is easier to implement as it does not require programming techniques like recursive functions or checkpoints.
https://static-content.springer.com/image/art%3A10.1186%2F1471-2105-6-231/MediaObjects/12859_2005_Article_556_Fig1_HTML.jpg
Figure 1

Pictorial description of the new algorithm for pair-HMMs. This figure shows a pictorial description of the differences between the forward-backward algorithm (a) and our new algorithm (b) for the Baum-Welch training of a pair-HMM. Each large rectangle corresponds to the projection of the three-dimensional dynamic programming matrix (spanned by the two input sequences X and Y and the states of the HMM) onto the sequence plane. (a) shows how the numerator in Equation 1 is calculated at the pair of sequence positions indicated by the black square using the standard forward and backward algorithm. (b) shows how our algorithm simultaneously calculates a strip of forward values f(X k , Y q , m) and a strip of ti, j(X k Y q , m) values at sequence position k in sequence X in order to estimate ti, jin Equation 1.

Baum-Welch training is only guaranteed to converge to a local optimum. Other optimisation techniques have been developed in order to find better optima. One of the most successful methods is simulated annealing (SA) [1, 15]. SA is essentially a Markov chain Monte Carlo (MCMC) in which the target distribution is sequentially changed such that the distribution gets eventually trapped in a local optimum. One can give proposal steps a higher probability as they are approaching locally better points. This can increase the performance of the MCMC method, especially in higher dimensional spaces [16]. One could base the candidate distribution on the expectations such that proposals are more likely to be made near the EM updates (calculated with our algorithm). There is no need to update all the parameters in one MCMC step, modifying a random subset of parameters yields also an irreducible chain. The last feature makes SA significantly faster than Baum-Welch updates as we need to calculate expectations only for a few parameters using SA. In that way, our algorithm could be used for highly efficient parameter training: using our algorithm to calculate the EM updates in only linear space and using SA instead of the Baum-Welch algorithm for fast parameter space exploration.

Typical biological sequence analyses these days often involve complicated hidden Markov models such as pair-HMMs or long input sequences and we hope that our novel algorithm will make Baum-Welch parameter training an appealing and practicable option.

Other commonly employed methods in computer science and Bioinformatics are stochastic context free grammars (SCFGs) which need O(L2 M) memory to analyse an input sequence of length L with a grammar having M non-terminal symbols [1]. For a special type of SCFGs, known as covariance models in Bioinformatics, M is comparable to L, hence the memory requirement is O(L3). This has recently been reduced to O(L2 log(L)) using a divide-and-conquer technique [17], which is the SCFG analogue of the Hirschberg algorithm for HMMs [9]. However, as the states of SCFGs can generally impose long-range correlations between any pair of sequence positions, it seems that our algorithm cannot be applied to SCFGs in the general case.

Notes

Declarations

Acknowledgements

The authors would like to thank one referee for the excellent comments. I.M. is supported by a Békésy György postdoctoral fellowship. Both authors wish to thank Nick Goldman for inviting I.M. to Cambridge.

Authors’ Affiliations

(1)
MTA-ELTE Theoretical Biology and Ecology Group, Pázmány Péter sétány 1/c
(2)
European Bioinformatics Institute, Wellcome Trust Genome Campus

References

  1. Durbin R, Eddy S, Krogh A, Mitchison G: Biological sequence analysis. Cambridge University Press; 1998.View ArticleGoogle Scholar
  2. Krogh A, Brown M, Mian IS, Sjölander K, Haussler D: Hidden Markov models in biology: Applications to protein modelling. J Mol Biol 1994, 235: 1501–1531. 10.1006/jmbi.1994.1104View ArticlePubMedGoogle Scholar
  3. Eddy S: HMMER: Profile hidden Markov models for biological sequence analysis.2001. [http://hmmer.wustl.edu/]Google Scholar
  4. Meyer IM, Durbin R: Comparative ab initio prediction of gene structures using pair HMMs. Bioinformatics 2002, 18(10):1309–1318. 10.1093/bioinformatics/18.10.1309View ArticlePubMedGoogle Scholar
  5. Meyer IM, Durbin R: Gene structure conservation aids similarity based gene prediction. Nucleic Acids Research 2004, 32(2):776–783. 10.1093/nar/gkh211PubMed CentralView ArticlePubMedGoogle Scholar
  6. Viterbi A: Error bounds for convolutional codes and an assymptotically optimum decoding algorithm. IEEE Trans Infor Theor 1967, 260–269. 10.1109/TIT.1967.1054010Google Scholar
  7. Dempster AP, Laird NM, Rubin DB: Maximum likelihood from incomplete data via the EM algorithm. J Roy Stat Soc B 1977, 39: 1–38.Google Scholar
  8. Baum LE: An equality and associated maximization technique in statistical estimation for probabilistic functions of Markov processes. Inequalities 1972, 3: 1–8.Google Scholar
  9. Hirschberg DS: A linear space algorithm for computing maximal common subsequences. Commun ACM 1975, 18: 341–343. 10.1145/360825.360861View ArticleGoogle Scholar
  10. Myers EW, Miller W: Optimal alignments in linear space. CABIOS 1988, 4: 11–17.PubMedGoogle Scholar
  11. Grice JA, Hughey R, Speck D: Reduced space sequence alignment. CABIOS 1997, 13: 45–53.PubMedGoogle Scholar
  12. Tarnas C, Hughey R: Reduced space hidden Markov model training. Bioinformatics 1998, 14(5):4001–406. 10.1093/bioinformatics/14.5.401View ArticleGoogle Scholar
  13. Wheeler R, Hughey R: Optimizing reduced-space sequence analysis. Bioinformatics 2000, 16(12):1082–1090. 10.1093/bioinformatics/16.12.1082View ArticlePubMedGoogle Scholar
  14. International Human Genome Sequencing Consortium: Initial sequencing and analysis of the human genome. Nature 2001, 409: 860–921. 10.1038/35057062View ArticleGoogle Scholar
  15. Kirkpatrick S, Gelatt CD Jr, Vecchi MP: Optimization by Simulated Annealing. Science 1983, 220: 671–680.View ArticlePubMedGoogle Scholar
  16. Roberts GO, Rosenthal JS: Optimal scaling of discrete approximations to Langevin diffusions. J R Statist Soc B 1998, 60: 255–268. 10.1111/1467-9868.00123View ArticleGoogle Scholar
  17. Eddy S: A memory-efficient dynamic programming algorithm for optimal alignment of a sequence to an RNA secondary structure. BMC Bioinformatics 2002, 3: 18. 10.1186/1471-2105-3-18PubMed CentralView ArticlePubMedGoogle Scholar

Copyright

© Miklós and Meyer; licensee BioMed Central Ltd. 2005

This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
