Correlation networks are increasingly being used in bioinformatics applications. For example, weighted gene co-expression network analysis is a systems biology method for describing the correlation patterns among genes across microarray samples. Weighted correlation network analysis (WGCNA) can be used for finding clusters (modules) of highly correlated genes, for summarizing such clusters using the module eigengene or an intramodular hub gene, for relating modules to one another and to external sample traits (using eigengene network methodology), and for calculating module membership measures. Correlation networks facilitate network based gene screening methods that can be used to identify candidate biomarkers or therapeutic targets. These methods have been successfully applied in various biological contexts, e.g. cancer, mouse genetics, yeast genetics, and analysis of brain imaging data. While parts of the correlation network methodology have been described in separate publications, there is a need to provide a user-friendly, comprehensive, and consistent software implementation and an accompanying tutorial.
The WGCNA R software package is a comprehensive collection of R functions for performing various aspects of weighted correlation network analysis. The package includes functions for network construction, module detection, gene selection, calculations of topological properties, data simulation, visualization, and interfacing with external software. Along with the R package we also present R software tutorials. While the methods development was motivated by gene expression data, the underlying data mining approach can be applied to a variety of different settings.
The WGCNA package provides R functions for weighted correlation network analysis, e.g. co-expression network analysis of gene expression data. The R package along with its source code and additional material are freely available at http://www.genetics.ucla.edu/labs/horvath/CoexpressionNetwork/Rpackages/WGCNA.
We refer to the i-th row x i as the i-th node profile across m sample measurements.
Sometimes a quantitative measure (referred to as sample trait) is provided for the columns of X. For example, T = (T 1, . . ., T m ) could measure survival time or it could be a binary indicator variable (disease status). Abstractly speaking, we define a sample trait T as a vector with m components that correspond to the columns of the data matrix X. A sample trait can be used to define a node significance measure. For example, a trait-based node significance measure can be defined as the absolute value of the correlation between the i-th node profile x i and the sample trait T:
GS i = |cor(x i , T)|. (2)
Alternatively, a correlation test p-value  or a regression-based p-value for assessing the statistical significance between x i and the sample trait T can be used to define a p-value based node significance measure, for example by defining
GS i = -log p i . (3)
The rationale behind correlation network methodology is to use network language to describe the pairwise relationships (correlations) between the rows of X (Equation 1). Although other statistical techniques exist for analyzing correlation matrices, network language is particularly intuitive to biologists and allows for simple social network analogies. Correlation networks can be used to address many analysis goals including the following. First, correlation networks can be used to find clusters (modules) of interconnected nodes. Thus, a network module is a set of rows of X (Equation 1) which are closely connected according to a suitably defined measure of interconnectedness.
A second analysis goal is to summarize the node profiles of a given module by a representative, e.g. a highly connected hub node, which is centrally located in the module. Focusing the analysis on module or their representatives amounts to a network-based data reduction method. Relating modules instead of nodes to a sample trait can alleviate the multiple testing problem.
A third analysis goal is to identify 'significant' modules. Toward this end, a node significance measure can be used to identify modules with high average node significance (referred to as module significance).
A fourth analysis goal is to annotate all network nodes with respect to how close they are to the identified modules. This can be accomplished by defining a fuzzy measure of module memberships that generalizes the binary module membership indicator to a quantitative measure. Fuzzy measures of module membership can be used to identify nodes that lie intermediate between and close to two or more modules.
A fifth analysis goal is to define the network neighborhood of a given seed set of nodes. Intuitively speaking, a neighborhood is composed of nodes that are highly connected to a given set of nodes. Thus, neighborhood analysis facilitates a guilt-by-association screening strategy for finding nodes that interact with a given set of interesting nodes.
A sixth analysis goal is to screen for nodes based on node screening criteria which can be based on a node significance measure, on module membership information, on network topological properties (e.g. high connectivity), etc.
A seventh analysis goal is to contrast one network with another network. This differential network analysis can be used to identify changes in connectivity patterns or module structure between different conditions. An eighth analysis goal is to find shared modules between two or more networks (consensus module analysis). Since by definition consensus modules are building blocks in multiple networks, they may represent fundamental structural properties of the network.
The above incomplete enumeration of analysis goals shows that correlation networks can be used as a data exploratory technique (similar to cluster analysis, factor analysis, or other dimensional reduction techniques) and as a screening method. For example, correlation networks can be used to screen for modules and intramodular hubs that relate to a sample trait. Correlation networks allow one to generate testable hypotheses that should be validated in independent data or in designed validation experiments.
Glossary of WGCNA Terminology.
We define co-expression networks as undirected, weighted gene networks. The nodes of such a network correspond to gene expression profiles, and edges between genes are determined by the pairwise correlations between gene expressions. By raising the absolute value of the correlation to a power β ≥ 1 (soft thresholding), the weighted gene co-expression network construction emphasizes high correlations at the expense of low correlations. Specifically, a ij = |cor(x i , x j )| β represents the adjacency of an unsigned network. Optionally, the user can also specify a signed co-expression network where the adjacency is defined as a ij = |(1 + cor(x i , x j ))/2| β .
Modules are clusters of highly interconnected genes. In an unsigned co-expression network, modules correspond to clusters of genes with high absolute correlations. In a signed network, modules correspond to positively correlated genes.
For each gene, the connectivity (also known as degree) is defined as the sum of connection strengths with the other network genes: k i = ∑u≠i a ui . In co-expression networks, the connectivity measures how correlated a gene is with all other network genes.
Intramodular connectivity k IM
Intramodular connectivity measures how connected, or co-expressed, a given gene is with respect to the genes of a particular module. The intramodular connectivity may be interpreted as a measure of module membership.
Module eigengene E
The module eigengene E is defined as the first principal component of a given module. It can be considered a representative of the gene expression profiles in a module.
When a microarray sample trait y is available (e.g. case control status or body weight), one can correlate the module eigengenes with this outcome. The correlation coefficient is referred to as eigengene significance.
Module Membership, also known as eigengene-based connectivity k ME
For each gene, we define a "fuzzy" measure of module membership by correlating its gene expression profile with the module eigengene of a given module. For example, MM blue (i) = = cor(x i , E blue ) measures how correlated gene i is to the blue module eigengene. MM blue (i) measures the membership of the i-th gene with respect to the blue module. If MM blue (i) is close to 0, the i-th gene is not part of the blue module. On the other hand, if MM blue (i) is close to 1 or -1, it is highly connected to the blue module genes. The sign of module membership encodes whether the gene has a positive or a negative relationship with the blue module eigengene. The module membership measure can be defined for all input genes (irrespective of their original module membership). It turns out that the module membership measure is highly related to the intramodular connectivity k IM . Highly connected intramodular hub genes tend to have high module membership values to the respective module.
This loosely defined term is used as an abbreviation of "highly connected gene." By definition, genes inside co-expression modules tend to have high connectivity.
Gene significance GS
To incorporate external information into the co-expression network, we make use of gene significance measures. Abstractly speaking, the higher the absolute value of GS i , the more biologically significant is the i-th gene. For example, GS i could encode pathway membership (e.g. 1 if the gene is a known apoptosis gene and 0 otherwise), knockout essentiality, or the correlation with an external microarray sample trait. A gene significance measure could also be defined by minus log of a p-value. The only requirement is that gene significance of 0 indicates that the gene is not significant with regard to the biological question of interest. The gene significance can take on positive or negative values.
Module significance is determined as the average absolute gene significance measure for all genes in a given module. When gene significance is defined as the correlation of gene expression profiles with an external trait y, this measure tends to be highly related to the correlation between the module eigengene and y.

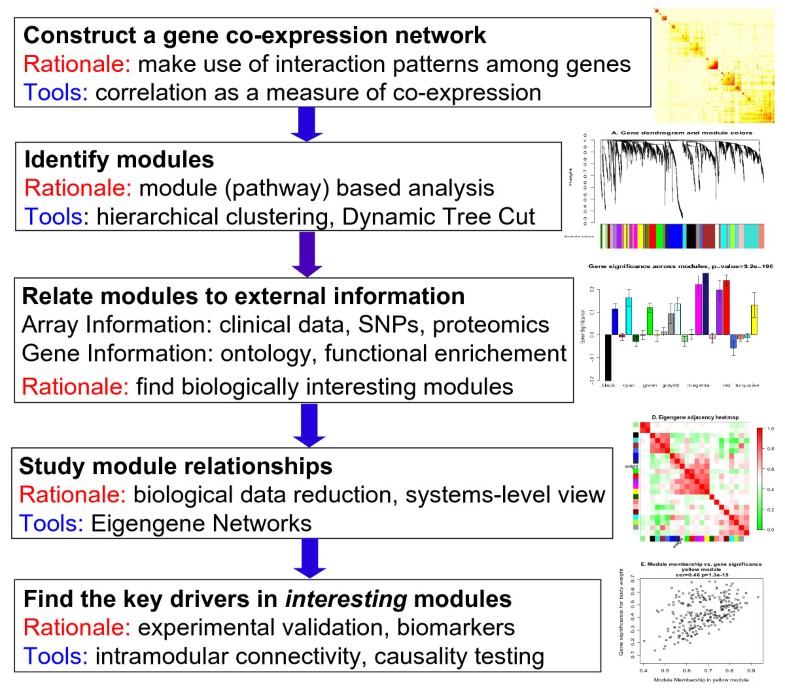

The WGCNA package contains a comprehensive set of functions for performing a correlation network analysis of large, high-dimensional data sets. Functions in the WGCNA package can be divided into the following categories: 1. network construction; 2. module detection; 3. module and gene selection; 4. calculations of topological properties; 5. data simulation; 6. visualization; 7. interfacing with external software packages. An exhaustive list of implemented functions together with detailed descriptions is provided in the R package manual posted on our web site. Here we briefly outline the main functionality of the package and highlight new contributions.
A network is fully specified by its adjacency matrix a ij , a symmetric n × n matrix with entries in [0, 1] whose component a ij encodes the network connection strength between nodes i and j. To calculate the adjacency matrix, an intermediate quantity called the co-expression similarity s ij is first defined. The default method defines the co-expression similarity s ij as the absolute value of the correlation coefficient between the profiles of nodes i and j:
s ij = |cor(x i , x j )|.
The WGCNA package also implements alternative co-expression measures, e.g. more robust measures of correlation (the biweight midcorrelation  or the Spearman correlation). A signed co-expression measure can be defined to keep track of the sign of the co-expression information. For convenience, we define the co-expression similarity measure such that it takes on values in [0, 1].
Using a thresholding procedure, the co-expression similarity is transformed into the adjacency. An unweighted network adjacency a ij between gene expression profiles x i and x j can be defined by hard thresholding the co-expression similarity s ij as
Once the network has been constructed, module detection is often a logical next step. Modules are defined as clusters of densely interconnected genes. Several measures of network interconnectedness are described in . As default, we we use the topological overlap measure [5, 25–27] since it has worked well in several applications. WGCNA identifies gene modules using unsupervised clustering, i.e. without the use of a priori defined gene sets. The user has a choice of several module detection methods. The default method is hierarchical clustering using the standard R function hclust ; branches of the hierarchical clustering dendrogram correspond to modules and can be identified using one of a number of available branch cutting methods, for example the constant-height cut or two Dynamic Branch Cut methods .

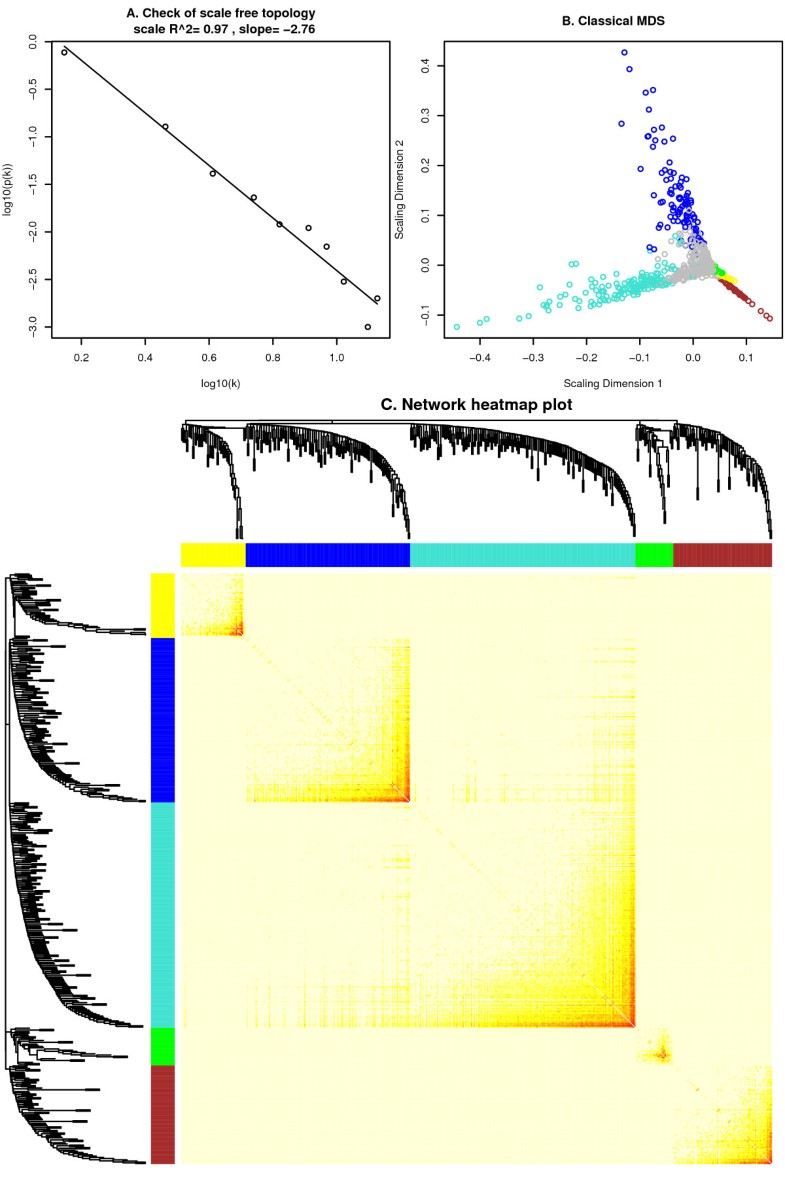

In Figure 2C we show a network heatmap plot (interconnectivity plot) of a gene network together with the corresponding hierarchical clustering dendrograms and the resulting modules. Figure 2B provides an alternate visualization of the module structure via a multi-dimensional scaling plot (standard R function cmdscale).
One drawback of hierarchical clustering is that it can be difficult to determine how many (if any) clusters are present in the data set. Although the height and shape parameters of the Dynamic Tree Cut method provide improved exibility for branch cutting and module detection, it remains an open research question how to choose optimal cutting parameters or how to estimate the number of clusters in the data set . While our default parameter values have worked well in several applications, in practice we recommend to carry out a cluster stability/robustness analysis. A co-expression module may reflect a true biological signal (e.g. a pathway) or it may reflect noise (e.g. a technical artifacts, tissue contamination, or a false positive). To test whether the identified modules are biologically meaningful, gene ontology information (functional enrichment analysis) can be used. Toward this end, we provide an R tutorial that describes how to interface the WGCNA package with relevant external software packages and databases.
Several options have been implemented for summarizing the gene expression profiles of a given module. For example, the function moduleEigengenes represents the module expressions of the q-th module by the module eigengene E (q), defined as the first principal component of the expression matrix. The eigengene E can be thought of as a weighted average expression profile. Eigengene calculation incorporates imputation of missing values implemented in the package impute [31, 32]. Alternatively, the user can use the intramodular connectivity measure to define the most highly connected intramodular hub gene as the module representative. One can show that intramodular hub genes are highly correlated with the module eigengene .
where x i is the profile of node i and E (q) is the module eigengene of module q. The module membership measure lies in [-1, 1] and specifies how close node i is to module q, q = 1, . . ., Q. The larger | |, the more similar node i is to the eigengene of the q-th module. In some publications [14, 15], is referred to as signed module eigengene (ME) based connectivity measure K ME . This is the reason why we named the corresponding R function signedKME.
Many microarray gene expression measurements report expression levels of tens of thousands of distinct genes (or probes). Building and analyzing a full network among such a large number of nodes can be computationally challenging because of memory size and processor speed limitations. The WGCNA package contains several improvements that address this challenge. The function blockwiseModules is designed to handle network construction and module detection in large data sets. The function first pre-clusters nodes into large clusters, referred to as blocks, using a variant of k-means clustering (function projectiveKMeans). Next, hierarchical clustering is applied to each block and modules are defined as branches of the resulting dendrogram. To synthesize the module detection results across blocks, an automatic module merging step (function mergeCloseModules) is performed that merges modules whose eigengenes are highly correlated. The time and memory savings of the block-wise approach are substantial: a standard, single-block network analysis of n nodes requires O(n 2) memory and O(n 3) calculations, while the block-wise approach with block size n b requires only O( ) memory and O(n ) calculations, making an analysis of say 50 000 genes in blocks of 7 000 feasible on a standard computer.
When dealing with multiple adjacency matrices representing different networks, it can be interesting to find consensus modules, defined as modules that are present in all or most networks . Intuitively, two nodes should be connected in a consensus network only if all of the input networks agree on that connection. This naturally suggest to define the consensus network similarity between two nodes as the minimum of the input network similarities. In certain cases it may be useful to replace minimum by a suitable quantile (e.g. the first quartile) since the resulting measure may be more robust. Consensus module detection can be performed step-by-step for maximum control and exibility, or in one step using the function blockwiseConsensusModule that calculates consensus modules across given data sets in a block-wise manner analogous to the block-wise module detection in a single data set.
Many topological properties of networks can be succinctly described using network concepts, also known as network statistics or indices [11, 33]. Network concepts include whole network connectivity (degree), intramodular connectivity, topological overlap, the clustering coefficient, density etc. Differential analysis of network concepts such as intramodular connectivity may reveal regulatory changes in gene expressions [15, 18]. The WGCNA package implements several functions, such as softConnectivity, intramodularConnectivity, TOMSimilarity, clusterCoef, networkConcepts, for computing these network concepts. Basic R functions can be used to create summary statistics of these concepts and for testing their differences across networks.
In unweighted networks, ClusterCoef i equals 1 if and only if all neighbors of gene i are also linked to each other. For weighted networks, 0 ≤ a ij ≤ 1 implies that 0 ≤ ClusterCoef i ≤ 1 . The mean clustering coefficient has been used to measure the extent of module structure present in a network [26, 34].
Simple yet sufficiently realistic simulated data is often important for evaluation of novel data mining methods. The WGCNA package includes simulation functions simulateDatExpr, simulateMultiExpr, simulateDatExpr5Modules that result in expression data sets with a customizable modular (cluster) structure. The user can choose the modular structure by specifying a set of seed eigengenes, one for each module, around which each module is built. Module genes are simulated to exhibit progressively lower correlations with the seed which leads to genes with progressively lower intramodular connectivity. The user can specify module sizes and the number of background genes, i.e. genes outside of the modules. The seed eigengenes can be simulated to reflect dependence relationships between the modules (function simulateEigengeneNetwork).

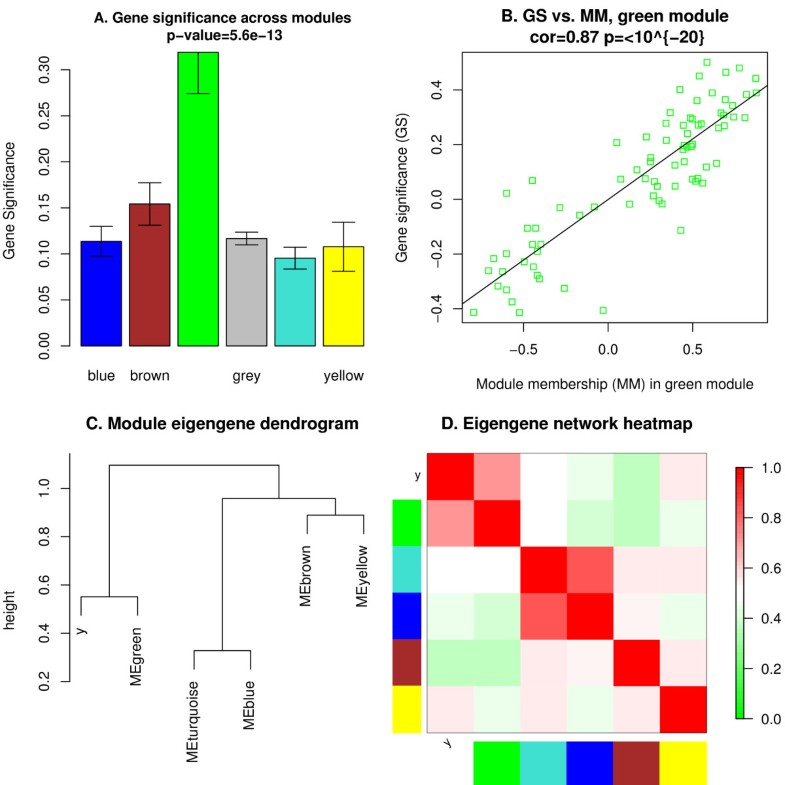

Module structure and network connections in the expression data can be visualized in several different ways. For example, the co-expression module structure can be visualized by heatmap plots of gene-gene connectivity that can be produced using the function TOMplot. Examples are presented in Figures 2C and 4B. An alternative is a multi-dimensional scaling plot; an example is presented in Figure 2B. Relationships among modules can be summarized by a hierarchical clustering dendrogram of their eigengenes, or by a heatmap plot of the corresponding eigengene network (function labeledHeatmap), illustrated in Figures 3C, D, and 4C, D. The package includes several additional functions designed to aid the user in visualizing input data and results. These functions rely on basic plotting functions provided in R and the packages sma  and fields .
To enhance the integration of WGCNA results with other network visualization packages and gene ontology analysis software, we have created several R functions and corresponding tutorials. For example, our R functions exportNetworkToVisANT and exportNetworkToCytoscape allow the user to export networks in a format suitable for VisANT  and Cytoscape , respectively.
Our online R tutorials also show how to interface WGCNA results with gene ontology packages available directly in R, e.g. GOSim . Many gene ontology based functional enrichment analysis software programs such as David , AmiGO , Webgestalt  simply take lists of gene identifiers as input. Ingenuity Pathway Analysis allows the user to input gene expression data or gene identifiers.
As an example of the type of analysis one can perform with WGCNA, we describe a network analysis of liver expression data from female mice. The data and biological findings of this analysis have been described in . Briefly, mRNA levels in female mouse livers were measured by microarrays with over 23,000 probe sets. In addition to the expression data, multiple physiological and metabolic traits were measured. For computational reasons, the original analysis presented in  was restricted to 3600 most connected genes, and for simplicity we will work with the same set of genes (although we note that the presented package is capable of handling all genes as well). While we do use the same data, the module detection methods are slightly different and the results are similar but not the same. The code used to perform this analysis is part of the tutorials posted on our webpage.
The network and the 18 identified modules are depicted in Figures 4A, B. To understand the physiologic significance of the modules, we correlated the 18 module eigengenes with physiological traits such as body weight, cholesterol level, insulin level. The full module-trait correlation table is presented in the accompanying tutorial.
In the following, we will only consider mouse body weight as sample trait. The module eigengenes of the following three modules were highly correlated with body weight: brown (409 genes, correlation with weight r = 0.59, correlation p-value p = 5 × 10-14), red (221 genes, r = 0.51, p = 3 × 10-10), and salmon (91 genes, r = 0.43, p = 2 × 10-7).
We used the online software David  to determine whether the three body weight related modules were significantly enriched with regard to known gene ontologies. The brown module is significantly enriched in categories "glycoprotein" (p = 2 × 10-24, Benjamini corrected) and "signal" (p = 1 × 10-22). The red module is enriched in "cell cycle" (p = 9 × 10-24) and "chromosome" (p = 5 × 10-20). The salmon module is most significantly enriched in the category "lipid synthesis" (p = 1 × 10-16). Overall, the high enrichment scores suggest that these modules are indeed biologically meaningful.
To study the relationships between modules, we correlate their eigengenes. In general, relationships between modules can be studied by using correlation networks between eigengenes (i.e. the nodes correspond to eigengenes). In these meta-networks between modules, the adjacency between modules reflects the correlation between the module eigengenes, and modules of eigengenes are referred to as meta-modules . A sample trait such as body weight can be incorporated as an additional node of the eigengene network. The adjacency between the sample trait and an eigengene is sometimes referred to as the eigengene significance . Figures 4C, D depict the eigengene network using a dendrogram (hierarchical cluster tree) and a heatmap plot. We find that eigengenes may exhibit highly significant correlations, e.g. the red and brown modules are highly correlated. Groups of correlated eigengenes corresponds to meta-modules and are recognizable as branches of the eigengene dendrogram, and as reddish squares along the diagonal of the heatmap plot. Figures 4C indicates that there are four meta-modules (branches). Body weight falls within the meta-module grouping together the blue, brown, red, salmon, and yellow modules. In practice, it is difficult to determine whether the modules underlying a meta-module are truly distinct or whether they should be merged. Sometimes gene ontology information can provide some clues.
It is interesting to find centrally located intramodular hub genes in the body weight related modules since their expression profile represents that of the entire module . To find intramodular hub genes, one can use the module membership measure K, Equation 6. Figure 4E shows a scatterplot between the body weight based gene significance measure GS i , Equation 2 and module membership in the brown module.
The high correlation between gene significance and module membership implies that hubgenes in the brown module also tend to be highly correlated with body weight. This suggests that both gene significance and module membership (intramodular connectivity) can be combined in a systems biologic screening method for finding body weight related genes . Figure 4F shows a Visant plot among the most connected genes in the brown module. This brief description illustrates how WGCNA can lead to testable hypotheses that require validation in independent data sets. A tutorial underlying this example and Figure 4 can be found on our webpage.
We provide a comprehensive set of online tutorials that guide the user through major steps of correlation network analysis. The tutorials provide R code the user can copy-and-paste into an R session, along with comments and explanations of both the input and output. The code is organized into short sections, each of which addresses a particular task. In particular, the tutorials cover the following topics: correlation network construction, step-by-step and automatic module detection, consensus module detection, eigengene network analysis, differential network analysis, interfacing with external software packages, and data simulation. The tutorials use both simulated and real gene expression data sets.
The WGCNA package complements other network related packages for R, such as the general network structures in Bioconductor , gene network enrichment analysis , functional analysis of gene co-expression networks , and others. While most of the existing packages focus only on unweighted networks, WGCNA implements methods for both weighted and unweighted correlation networks. WGCNA can be used as a data exploratory tool or as a gene screening (ranking) method. For example, WGCNA can be used to explore the module (cluster) structure in a network, to measure the relationships between genes and modules (module membership information), to explore the relationships among modules (eigengene networks), and to rank-order genes or modules (e.g. with regard to their relationship with a sample trait). WGCNA can be used to generate testable hypotheses for validation in independent data sets. For example, WGCNA may suggest that a module (e.g. a putative pathway) is associated with a disease outcome. Since correlation networks are based on correlations between quantitative variables, one can use a correlation test p-value  or a regression-based p-value for assessing the statistical significance between pairs of variables. For example, it is straightforward to attach a significance level to the fuzzy module membership measures . The relationship between standard microarray data mining techniques and gene co-expression network analysis is discussed in .
Users should be aware of the limitations of the methods implemented in the WGCNA package. First, WGCNA assumes that the microarray data have been properly pre-processed and normalized. To normalize the expression data, several R functions have been implemented in the Bioconductor packages . Although all normalization methods are mathematically compatible with WGCNA, we recommend to use the biologically most meaningful normalization method with respect to the application under consideration. Second, similar to most other data mining methods, the results of WGCNA can be biased or invalid when dealing with technical artefacts, tissue contaminations, or poor experimental design. Third, although several co-expression module detection methods are implemented, the package does not provide means to determine which method is best. While the default hierarchical clustering methods have performed well in several real data applications, it would be desirable to compare these and other methods on multiple real benchmark data sets. Fourth, this package is limited to undirected networks. Methods for orienting edges and constructing directed networks have been presented in the literature, for example in [46–48].
The WGCNA R package provides a comprehensive set of functions for performing weighted correlation network analysis. The WGCNA package can also be used to describe the correlation structure between gene expression profiles, image data, genetic marker data, proteomics data, and other high-dimensional data.
Project name: WGCNA R package
Operating system(s): Platform independent
Programming language: R
Licence: GNU GPL 3
