Volume 18 Supplement 3
Improving prediction of burial state of residues by exploiting correlation among residues
© The Author(s) 2017
Published: 14 March 2017
Residues in a protein might be buried inside or exposed to the solvent surrounding the protein. The buried residues usually form hydrophobic cores to maintain the structural integrity of proteins while the exposed residues are tightly related to protein functions. Thus, the accurate prediction of solvent accessibility of residues will greatly facilitate our understanding of both structure and functionalities of proteins. Most of the state-of-the-art prediction approaches consider the burial state of each residue independently, thus neglecting the correlations among residues.
In this study, we present a high-order conditional random field model that considers burial states of all residues in a protein simultaneously. Our approach exploits not only the correlation among adjacent residues but also the correlation among long-range residues. Experimental results showed that by exploiting the correlation among residues, our approach outperformed the state-of-the-art approaches in prediction accuracy. In-depth case studies also showed that by using the high-order statistical model, the errors committed by the bidirectional recurrent neural network and chain conditional random field models were successfully corrected.
Our methods enable the accurate prediction of residue burial states, which should greatly facilitate protein structure prediction and evaluation.
KeywordsProtein structure Burial states of residue Conditional random field Residue correlation
According to their solvent accessible area, protein residues can be categorized into two classes, i.e., buried and exposed . Buried residues commonly form hydrophobic cores, maintaining the conformation and structural integrity of proteins. In contrast, exposed residues tend to appear on the surface of proteins and partly determine protein functions through interactions with other proteins or ligands. Thus, the solvent accessibility of residues is one of the driving forces of protein folding. In addition, solvent accessibility is an important global feature of residues that is complementary to the other local features; it can also be easily predicted compared with other global features such as contact map [2–4].
An accurate prediction of solvent accessibility can provide important structural information for the study of protein evolution, structure, and function . Most of the existing prediction approaches employ the following strategy. First, a fixed-length window is opened around the residue of interest and a feature vector is computed based on the sequence information within this window. The most widely-used features include residue types , position specific scoring matrix (PSSM) [7–9], and predicted secondary structure (SS) . In addition, the real solvent accessibility of the residue of interest is computed using the dictionary of protein secondary structure (DSSP) as burial state labels . Second, these feature vectors along with burial state labels are inputted into a machine learning model such as artificial neural network (ANN) [5, 8, 12–21], support vector machine (SVM) [9, 10, 20, 22–24], deep learning model , conditional neural field (CNF) , and random forest (RF)  for training. Finally, the trained model is used for predicting solvent accessibility of protein residue in a testing set. Among these approaches, bidirectional recurrent neural network (BRNN) shows excellent performance and has been widely used in softwares such as SCRATCH  and ACCpro .

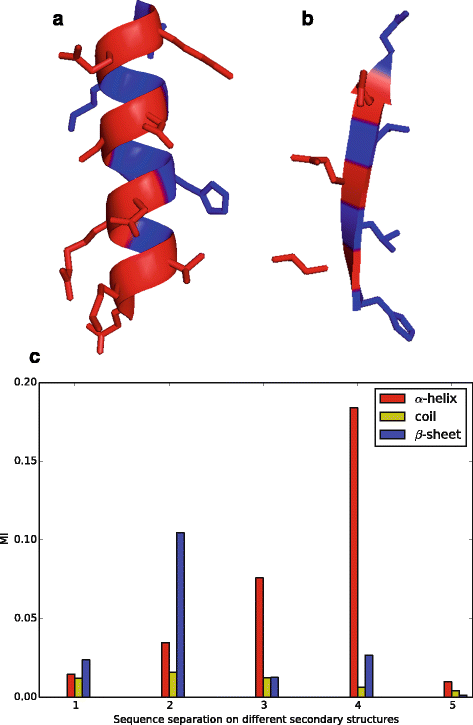

In this study, we present a high-order conditional random field (CRF) model to explicitly exploit the correlations among all residues rather than consider each residue individually. This statistical model includes a collection of doublet terms to describe correlations among adjacent residues and long-distance residue pairs as well. To investigate the effect of correlations, we compared our approach with the state-of-the-art models that neglect correlations. In addition, we also investigated the effect of different features for prediction accuracy. Experimental results on two benchmark datasets showed that our approach has higher accuracy than the existing methods.
Results and discussion
We tested our approach on two benchmark datasets, i.e., i) training and validation data collected from SCOP70 and ii) independent testing data collected from PDB25. A filtering pre-processing was performed to guarantee no overlapping between these two datasets.
Training and validation dataset
The training dataset was constructed based on SCOP70 with filtering procedure. In particular, the proteins with chain-breaks or less than 50 residues were excluded. Besides, membrane proteins were also excluded. As a result, a total of 2349 proteins, including 505 α proteins, 552 β dataset, 706 α/β, and 586 α+β, were obtained after filtering. Five-fold cross-validation (5-CV) was used for our evaluation, i.e., these proteins were randomly divided into five subsets with equal size: four subsets were selected as training set, and one subset was selected as validation dataset.
Independent testing dataset
The testing data was constructed based on PDB25. To avoid overlap with the training data set, only newly-released proteins were selected (released after Aug. 1st, 2015). In addition, the overlapped proteins with the training set were excluded. As a result, we obtained a testing dataset containing 755 protein chains with lengths ranging from 50 to 1000 residues.
Calculation of solvent accessibility
In our study, solvent accessibility was calculated using DSSP , and relative solvent accessibility (RSA) was calculated by dividing solvent accessibility by the maximum solvent accessibility . The calculated RSA was further divided into two states, namely buried state and exposed state, using the exposure threshold of 0.25 .
Analysis of prediction performance
Comparison of prediction performance with state-of-the-art approaches
Prediction accuracy of ACRF and BRNN on the four datasets α,β,α/β,α+β
Besides the BRNN model, we also compared ACRF only with the newly-released proteins using the state-of-the-art prediction tool ACCpro on the testing dataset. On this testing dataset, the prediction accuracies of these two tools are 0.768 and 0.765, respectively. When limited to short proteins with less than 300 residues, the prediction accuracies are 0.769 and 0.760, respectively. In addition, the logistic regression model shows a prediction accuracy of 0.755. These results suggest that ACRF has the best performance in RSA prediction, particularly for proteins with shorter sequences.
Analyses of the effects of features on prediction accuracy
As the ACRF model consists of a variety of features, it is interesting to investigate the effects of different features, including residue types, SS, sequence conservation (SC), contact numbers (CN), and high order terms, on prediction accuracy. Therefore, we evaluated ACRF without the SS, SC, and CN features. The effects of these features are summarized as below.
Effects of residue types
It should be noticed that for the residue Y, the prediction accuracy is usually low. A reasonable explanation might be the special structure of Y — it has a hydrophobic benzene ring but a polar hydroxyl group on the benzene ring. This special structure leads to various RSAs of Y in different proteins. In addition, although residue C usually shows significant preference for low average RSA, the average RSA of C is close to the exposure threshold 0.25 in the α dataset, making it difficult to predict.
Effects of secondary structures
However, the effects of SS information on prediction accuracy change with protein types. For β strands, ACRF achieves a prediction accuracy of 86% in the α/β dataset and 76% in the α dataset. Similarly, for coils, the prediction accuracy is 82% in the α dataset, which is higher than the accuracy of 78% in the α/β dataset (Fig. 4 b).
Effects of sequence conservation and contact number
Interestingly, Fig. 5 b shows that for residues with too high or too low SC, the prediction accuracy is usually low, whereas for residues with medium SC, the prediction accuracy reaches its maximum. In contrast, ACRF shows higher prediction accuracy for residues with significantly larger or smaller CN (Fig. 6 b).
In this study, we present a high-order CRF model for predicting the burial states of protein residues. The novelty of the model is that it can explicitly explore the correlation of burial states among residues. In addition, a variety of features, including SC and CN, were incorporated into the model. Experimental results on two benchmark datasets show that our approach outperforms the logistic regression approach and state-of-the-art neural network model. This will greatly facilitate the studies on protein structure, evolution, and functions.
In this section, we first describe the high-order CRF model with an emphasis on the feature terms to represent correlations. Then we present the procedures for parameter training and inferring, followed by features used in this model.
High-order CRF model
CRF is a widely-used discriminant model for classification . One of the CRF models, chain CRF, uses singlet and one-order doublet feature functions only; thus, chain CRF is can only consider the correlation among adjacent residues. In order to describe the correlation among long-distance residues, we added high-order terms into the chain CRF model to construct a high-order CRF model. More specifically, a four-order term was designed to describe the correlation among residue pairs A i −A i+4 and A i −A i+3 on α-helices, and a two-order term was designed to capture the correlation among residue pairs A i −A i+2 on β-strands. Here, A i −A i+d denotes a pair of residues with a sequence separation of d amino acids. Since on coil regions, no strong correlation among long-range residue pairs was observed, a one-order term is sufficient for describing the correlation among adjacent residues.
where (X m ,Y m ) denote the m-th protein in the training set. X m consists of the feature set, which is the input to the model, and Y m denotes the calculated burial state labels.
It should be noticed that the calculation of gradient depends on the partition function Z(X m ); however, the direct computation of Z(X m ) takes exponential time. Here, we employed the forward-backward technique  to efficiently calculate the partition function.
The conditional probability p(Y i =y 0|X) is calculated according to the SS type of the i-th residue as follows.
Our high-order CRF model consists of two types of features, namely, singlet features and doublet features.
Amino acid-related features: These features include residue types, sequence distance to the residue of interest , N terminal and C terminal residues , tendency related to the physicochemical properties [10, 30, 31], probabilities of being disordered , and probabilities of being a binding site .
SC features: We used the sequence profile generated by running PSI-BLAST  with three iterations and E-value 0.001 (20×N features). In addition, SC of each residue was calculated by comparing the sequence profile against background distribution .
CN information: These features include CN predicted using AcconPred  (1×N features), and contact potentials of position pairs  (40×N features). For a certain residue, its CN denotes the number of residues with spatial distance less than 8 Å and sequence separation of at least 5 amino acids.
A total of nine doublet features were used, including three four-order features, three three-order features, and three two-order features. Among them, four-order features and three-order features are used on α-helices and two-order features are used on β-strands. Each doublet feature consists of mutual information, cosine similarity, and contact map  calculated based on sequence profiles.
Bidirectional recurrent neural network
Conditional random field
Relative solvent area
This article has been published as part of BMC Bioinformatics Volume 18 Supplement 3, 2017. Selected articles from the 15th Asia Pacific Bioinformatics Conference (APBC 2017): bioinformatics. The full contents of the supplement are available online https://bmcbioinformatics.biomedcentral.com/articles/supplements/volume-18-supplement-3.
Research reported in this manuscript and the publication costs for this manuscript were supported by the National Basic Research Program of China (2012CB316502) and the National Natural Science Foundation of China under grants 11175224, 11121403, 31270834, 61272318, and 31671369.
Availability of data and materials
The datasets generated and/or analysed during the current study, together with a web server for RSA prediction, are available via http://protein.ict.ac.cn/ACRF/.
DB conceived the study, and MZ and DB designed the work. HG and HZ implemented the ACRF approach. HG, HZ, CW, SS, and JZ analyzed the results. HG and DB wrote the manuscript. All authors discussed the results and commented on the manuscript. All authors read and approved the final manuscript.
The authors declare that they have no competing interests.
Consent for publication
Ethics approval and consent to participate
Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License(http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver(http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.
