FISim: A new similarity measure between transcription factor binding sites based on the fuzzy integral



Regulatory motifs describe sets of related transcription factor binding sites (TFBSs) and can be represented as position frequency matrices (PFMs). De novo identification of TFBSs is a crucial problem in computational biology which includes the issue of comparing putative motifs with one another and with motifs that are already known. The relative importance of each nucleotide within a given position in the PFMs should be considered in order to compute PFM similarities. Furthermore, biological data are inherently noisy and imprecise. Fuzzy set theory is particularly suitable for modeling imprecise data, whereas fuzzy integrals are highly appropriate for representing the interaction among different information sources.


We propose FISim, a new similarity measure between PFMs, based on the fuzzy integral of the distance of the nucleotides with respect to the information content of the positions. Unlike existing methods, FISim is designed to consider the higher contribution of better conserved positions to the binding affinity. FISim provides excellent results when dealing with sets of randomly generated motifs, and outperforms the remaining methods when handling real datasets of related motifs. Furthermore, we propose a new cluster methodology based on kernel theory together with FISim to obtain groups of related motifs potentially bound by the same TFs, providing more robust results than existing approaches.


FISim corrects a design flaw of the most popular methods, whose measures favour similarity of low information content positions. We use our measure to successfully identify motifs that describe binding sites for the same TF and to solve real-life problems. In this study the reliability of fuzzy technology for motif comparison tasks is proven.


One of the main goals in computational biology is to understand how expression of genes is controlled, and to unravel gene regulatory networks. Cells control the abundance and activity of proteins by means of diverse factors in which transcription regulation plays a central role. Multiple events are involved in the initiation of transcription of a gene. One of the most important ones is the binding of several proteins, called transcription factors (TFs), to DNA near the gene, called transcription factor binding sites (TFBSs). TFBSs are usually located close to the transcription start site (TSS) of the gene and upstream from it. Additionally, in some cases TFBSs can be found downstream the TSS or, in rare instances, even within exons [1]. These interactions between DNA and proteins play a crucial role in controlling the expression of the genes by activating or inhibiting the transcriptional machinery.

The identification of binding sites bound by transcription factors is therefore a key problem in predicting transcription regulation. Sometimes a given TF can bind to only one TFBS, but usually the same TF can bind to different DNA sequences and its binding preferences are represented by means regulatory motifs. The recognition of de novo TFBSs usually includes the issue of comparing putative motifs with one another and with motifs that are already known. Many studies discuss the advantages of different regulatory motifs representations [2]. Regulatory motifs are usually presented as matrices representing the binding affinity of the TFs, derived from a multiple alignment of confirmed binding sites for a given transcription factor. Most existing approaches for computing motif similarity represent the motifs by means of position frequency matrices (PFMs) that record the position-dependent frequency of each nucleotide, or position weights matrices (PWMs) of score values that give a weighted match to any given substring of fixed length. With the emergence of high-throughput technologies (e.g. ChIP-chip assays, DNA microarrays, etc.) numerous algorithms for finding motifs have appeared (for a review see [3]). These algorithms usually filter their outputs in order to improve their significance, e.g. merging similar motifs. However, the outcome of these tools, particularly when dealing with large datasets, is usually presented as a large list of motifs that require further post-processing in order to make it meaningful. Methods for comparing motifs are usually applied to give biological significance to the outputs of these programs. This is usually done by comparing the putative motifs provided by these algorithms against known motifs reported in motif databases such as JASPAR or TRANSFAC [4, 5]. Unveiling these relationships might be crucial for the design of appropriate biological experiments.

The existing motif discovery algorithms make use of different strategies to overcome drawbacks of other approaches, usually implying new or different limitations. One common approach involves using several of these algorithms and compounding their outputs [6]. In this case, motifs found by different algorithms can either correspond to the same TFBSs or to different ones, making the compounded result very noisy and imprecise. This suggests a need for comparison methods for finding similar motifs to be either removed or merged into a new motif.

The most common strategy relies on the assumption that the columns of the matrices are probability distributions. Thus, most measures between motifs are based on statistical techniques that test whether the different columns belong to the same distribution. Pietrokovski [7] used a straightforward algorithm based on the Pearson correlation coefficient (PCC). Wang and Stormo [8] proposed the average log-likelihood ratio (ALLR) to compare between motif columns. Schones et al. [9] made the comparison by means of a Pearson χ2 test (PCST). They also proposed the Fisher-Irwin exact test (FIET) which provided poorer results. In addition, the Kullback-Leibler divergence (KLD) was used to compare motifs [10]. Rather than comparing distributions, Choi et al. [11] used the euclidean distance (ED) between columns, obtaining promising results. In addition, Gupta et al. [12] developed an algorithm (Tomtom) that allows any column-to-column measure. They compute p-values of the match scores for the columns of the query motif aligned with a given target motif. They obtained best results when using euclidean distance. More recently, Pape et al. [13] introduced the concept of a natural measure between motifs. They proposed that two motifs should be considered to be similar if they yield a high number of overlapping hits on a random sequence. They considered the number of hits as a random variable and described a method based on covariance to measure the correlation between the random variables of two PFMs.

In recent years, it has been seen that the inherent uncertainty and noise that characterize biological data cannot always be modeled sufficiently well by probabilistic approaches and that, consequently, alternative models for gathering this uncertainty may be required. Furthermore, in the context of motif comparisons, the utilization of PFMs as a representation of the binding preferences of the TFs inherently includes imprecision. In addition to the usual missing values and noisy data associated with biological data, there exist some hidden factors apart from the DNA sequence itself that affect the binding preferences of TFs, e.g. cooperative binding and chromatin structure [14]. Moreover, an arbitrary threshold must usually be chosen in the construction of a PFM itself.

Although existing methods have been shown to work well, there is still room for improvement. Several properties are desirable for a motif similarity measure:

  • Greater importance should be given to the similarity of high information content positions of the motifs than to the similarity of low information content positions.

  • Methods should be designed to deal with the inherent uncertainty associated with motif comparison tasks.

  • The use of parameters should be minimized.

Existing methods fail to follow one or more of these considerations. In general their approaches are not designed to deal with imprecise scenarios. In addition, these methods are not designed to consider the higher contribution of better conserved positions to the binding affinity. Some methods intrinsically tend to give greater importance to better conserved positions (e.g. ED). However, this can be improved. There is therefore a need for similarity measures for motifs that deal with these kinds of problems. In this paper we present FISim (Fuzzy Integral Similarity), a novel similarity measure for comparing two motifs with one another based on the fuzzy integral with respect to a fuzzy measure.

Zadeh [15] proposed fuzzy set theory to mathematically model the imprecision inherent to some concepts. Briefly, fuzzy set theory allows an object to partially belong to a set with a membership degree between 0 and 1. Classical set theory is a special case of its fuzzy counterpart in which membership and certainty degrees are restricted to either 0 or 1. Fuzzy theory is especially suitable for dealing with imprecise, noisy and uncertain environments. It has been successfully applied to many different areas, including control, pattern recognition, and data mining, e.g. classification and clustering [16]. In recent years, some works have appeared that integrate fuzzy solutions to solve biological problems like microarray analysis, protein location, etc., showing promising results [1, 17].

One of the most popular tools for information aggregation is the weighted average method. It is simple, intuitive and easy to implement. This method assumes that the different information sources are non-interactive/independent and, hence, their weighted effects are viewed as additive. Due to some inherent interaction/inter-dependencies among diverse information sources, the weighted average method does not work well in many real problems. In our case, the affinity of a TF to a specific TFBS is typically correlated with how well the site matches the consensus sequence of the corresponding motif. However not all mismatches at a given position have the same effect and some interactions between positions have been observed [18]. In this paper we propose the use of the fuzzy integral to formally incorporate the different degrees of importance of the positions according to their infomation content level. Fuzzy integrals are a type of non-linear function dependent on fuzzy measures, and have been shown to be very useful for multiple information source fusion [19, 20]. The combination of multiple information sources is very valuable with regard to overcoming the inherent ambiguities present in single information sources. Fuzzy integrals are capable of representing the interaction among the information sources (e.g. motif columns) and of combining them to make the result more significant than just the sum of the individual comparisons, enabling the individual importance of each source to be considered in the final result (e.g. information content level).

FISim is intended to meet these requirements. First, greater importance is given to the similarity of higher information content positions via the fuzzy integral, according with the biological binding properties of TFs to TFBSs (more details in Methods section). Second, it is based on fuzzy technology and is intended to deal with the intrinsic uncertainty involved in motif comparison tasks. Third, FISim does not require the user to have any previous knowledge, as it does not need any user-provided parameter. In what follows, we use the term conservation to refer to the information content level of the motif positions.

As explained above, one of the main applications of a similarity measure for motifs is as the basis for clustering procedures for grouping related motifs together. Previous studies either make use of hierarchical clustering methods [21] or define modifications of the PAM algorithm to obtain the grouping [13]. In this research, we present a novel clustering methodology termed kcmeans (kernel c-means) based on kernel methods and the c-means algorithm combined with our FISim measure. Familial Binding Profiles (FBPs) are generalized binding profiles that can be used as the representatives of their respective group of motifs [22]. In our proposed methodology, we automatically compute FBPs for the clusters from a multiple alignment of the motifs within each cluster. We use kcmeans to cluster motifs obtained from the JASPAR database [4], and we compare our results with those from existing approaches.


Distinguishing randomized motifs

Random motifs

We tested the performance of FISim in measuring the differences between sets of random motifs. We considered 20 randomly generated seed motifs of a fixed length of 6 nucleotides. Following the JASPAR motif properties, the information content was uniformly ranged from 1.5 to 10.5 (for some JASPAR motif statistics see additional file 1: "JASPAR motif statistics"). For each one of the 20 seed motifs, a true dataset was generated containing 10000 motifs. In order to match with the properties of real motifs [23], each motif in the true datasets was obtained as follows:

A random motif of a random length between 6 and 14 was generated. The information content of this random motif is controlled to be low in order to create a non-conserved flanking region for the motif. The corresponding seed motif was sampled from a Dirichlet distribution with a random sample size between 25 and 35 [9], which generated a sample motif of length 6. Finally, starting in a random position, the columns in the random motif are replaced by the sample motif.

Similarly, a false dataset was generated. The process is the same as for the true datasets but we omitted the insertion of samples from seed motifs and the information content is not controlled. Figure 1 shows the power (selectivity) of the methods in recognizing motifs generated from the seed motifs when the FDR is 0.01. FISim shows a very good performance in a random dataset.

Figure 1
figure 1

Random Motifs. Power of the methods to recognize random PFMs generated by the same distribution.

Distinguishing conserved and non-conserved motifs

Case study

We wanted to demonstrate the ability of the measures in discriminating the importance of non-conserved positions and well-conserved positions. In Figure 2 we show three motifs. We used the middle one as a reference. It has well-conserved positions in the odd locations (permutations of the column vector [10, 2, 2, 2]), and non-conserved positions in the even locations (from column vector [4, 4, 4, 4]). This reference motif was compared with the other two motifs to check how each measure performs:

Figure 2
figure 2

Case study. Ratio of distances. In order to facilitate the visual comparison of the non-conserved positions, fraction-based logos are used. We do not show results for the measures proposed by Pape et al. [13] nor Gupta et al. [12] since they need a background dataset to work properly.

  • Motif A is composed of non-conserved columns. It therefore matches perfectly with the even positions of the reference motif. However, the similarity between odd positions (well-conserved) is expected to be low.

  • Motif B is made up of two kind of columns: a) well-conserved positions in the odd locations that match perfectly with the corresponding positions of the reference motif, and b) medium-conserved positions (derived from permutations of the vector [7, 7, 1, 1]) in the odd locations that differ from the odd positions of the reference motif.

Note that both motifs A and B perfectly match half of the positions of the reference motif, while they differ in the other half of the positions. These differences are controlled for balance, in the sense that the raw distance of the different positions is the same, e.g. raw distance between [10, 2, 2, 2] and [4, 4, 4, 4] (reference motif and motif A differences) equals to the raw distance between [4, 4, 4, 4] and [7, 7, 1, 1] (reference motif and motif B differences). We call raw distance to the sum of the absolute value of the four differences between the counts of the nucleotides of the two columns.

We then considered two cases for each of the measures: case 1 : distance between motif A and the reference motif, and case 2 : distance between motif B and the reference motif. As has been explained above, it would be desirable that the distance for case 2 be lower than the distance case 1, as, unlike motif A, motif B and the reference motif share the similarities in the most conserved positions of the motifs. In Figure 2 we show the ratio of the distances for case 1 against case 2. Results for the measures proposed by Gupta et al. and Pape et al. [12, 13] are not shown since they require a background dataset to function correctly. Three of the measures (χ2, KLD and ALLR) failed to capture the expected differences, and provided a lower distance for case 1. On the other hand, our measure obtained a more realistic distance between the motifs, providing a much lower distance for case 2,

Related motifs

We extended the last experiment to check the performance of the methods in datasets of related motifs. We generated a reference motif of length 8 comprising four well-conserved positions and four non-conserved positions used as a reference (see previous section for more details). We then obtained a pair of seed motifs comprising one close motif and one distant motif with respect to the reference one. Each of these motifs present three positions dissimilar to the reference motif. The close motif present the dissimilarities in the non-conserved positions, while the distant motif present the dissimilarities in the conserved positions (Figure 3). We generated a true dataset for the close motif and a true dataset for the distant motif following the procedure of above experiments. For each motif in the datasets we computed its distance to the reference motif. We determined a correct classification when a smaller distance is assigned to the close motif, and determined an incorrect classification otherwise. We arranged the motifs according to their distances, and from this arranged set of motifs we computed an ROC (Receiver Operating Characteristic) curve [24]. ROC curves plot the percentage of correct classifications as a function of incorrect classifications. In Figure 4 we show the ROC curves obtained from the different approaches. It can be seen that our FISim method proposed outperforms the other methods. Similar results are obtained when varying the number of dissimilar positions of the seed motifs. The area under the curves (AUC) scores and the logos for the motifs can be found in the additional file 2: "Related motifs experiment".

Figure 3
figure 3

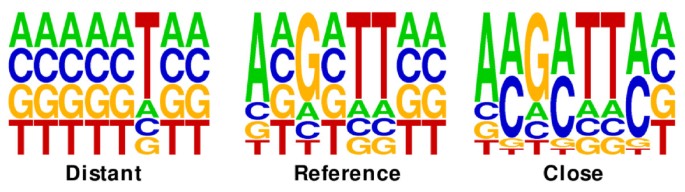

Related motifs. Three dissimilar positions are observed between the reference motif and both close and distant motif. Again, fraction-based logos are used to ease the visual comparison of the non-conserved positions.

Figure 4
figure 4

ROC curves. ROC curves for the case of three different columns. FISim provides a more consistent classification than the rest of the methods.

Clustering real data

In order to check the performance of kcmeans in separating related motifs, we used the freely accessible JASPAR [4] database for our experiments. JASPAR contains 71 nonzinc-finger motifs divided into 11 classes according to the structural properties of the transcription factors. The distribution of the families of the JASPAR motifs can be found in Table 1. For each motif we computed the core region, following the suggestions of Schones et al. [9]. In order to obtain a symmetric matrix, comparisons between two motifs were made by averaging the similarity between the core region of the first motif and the second motif, and the similarity between the first motif and the core region of the second motif. Once we obtained the similarity matrix, we applied the kcmeans clustering method as described in the Methods section. For each cluster, the FBP is automatically obtained from a multiple alignment of its corresponding motifs.

Table 1 JASPAR family distribution

To obtain the optimal number of clusters (k) we used the Silhouette coefficient [25]. The optimal clustering of the 11 motifs classes was found for k = 15. The 15 clusters and the logos of the motifs within each cluster can be found in additional file 3: "JASPAR clustering". To ensure the quality of the clustering, we compared our results with those provided by Pape et al. [13].

Two identical clusters are obtained: NUCLEAR and bZIP CREB. The same MADS and HOMEO groups are provided but we yielded a MADS motif (MEF2A) within the HOMEO group. MADSs motifs present the consensus CCA*A, while HOMEO motifs present the consensus ATTA. MEF2A motif contains the consensus ATT showing that the FISim measure certainly gives greater importance to better conserved positions (for sequence logos see additional file 3: "JASPAR clustering"). We presented the REL family in two clusters, while in Pape et al. [13], this appears together in the same cluster. We obtained the same two TRPs clusters, but added one extra TRP motif (MYB.ph3) to one cluster which Pape et al. [13] considered as an outlier. The MYB.ph3 motif shares the consensus AAC*G with the motifs in its cluster. The same bZIP cEBP group is provided, although we added six out of the seven ETSs motifs. Here, the common high degree of conservation of the consensus TTCC forces them to belong to the same cluster. We yielded the same two bHLH clusters, but added one bHLH motif (Arnt-Ahr), considered as an outlier in Pape et al. [13], as well as the remaining ETS motif to one of the clusters. Pape et al. [13] presented the FORKHEAD and HMG groups in one single cluster in comparison with three homogeneous clusters obtained. Finally, the heterogeneous cluster that we produced comprises one extra FORKHEAD motif Foxd3 that does not contain the consensus GTTTA present in the FORKHEAD group.

In short, we obtained 15 clusters (eleven homogeneous) and found eight outliers (i.e. motifs not clustered), compared to 14 clusters (ten homogeneous) and twelve outliers in Pape et al. [13]. Hence, we found more motifs in the final clustering, reducing the number of non-classified motifs, and maintaining a homogeneous structure. Figure 5 shows the sequence logos of one REL group as well as its corresponding FBP.

Figure 5
figure 5

REL group retrieved by kcmeans. The FBP is computed from the multiple alignment of the TFs Dorsal_1 and RELA.

Motif identification in co-regulated genes

As discussed in previous sections, one of the most common applications of a motif similarity measure is its use for comparing putative motifs of co-regulated genes obtained from motif discovery algorithms to those reported in motif databases such as JASPAR or TRANSFAC. In this section we present the results of applying FISim to this workflow with the data studied in [26].

The aim of this study was to classify breast carcinomas based on their gene expression profiling derived from 85 microarray experiments and to correlate tumor characteristics to clinical outcome. The authors classified the tumor samples into two main branches, each of these separated into three subgroups. For this experiment, we selected the "Luminal Subtype A" subgroup, which contains 15 clones (13 genes) clearly involved in pathological processes of breast cancer. This cluster includes genes implicated in transcription, development and differentiation such as ESR1, GATA3, LIV1, and XBP1 (see additional file 4: "Motif discovery data" for a whole list of genes).

We applied the motif discovery tool WebMOTIFS [27] to further investigate regulation of the predicted cluster of genes. We used WebMOTIFS to find putative motifs in the promoter regions of these 15 clones, setting the options to default, i.e. selecting AlignACE, MDscan, MEME and Weeder methods [2831] and no Bayesian information. For each method, we selected the most significant motifs and compared these to the publicly available JASPAR motifs using FISim. Some of the most similar motifs found in JASPAR include ESR1, CREB1, TAL1-TCF3, TP53, NFKB1 and PAX5. For a complete list of motifs, as well as their similarities with JASPAR motifs, see the additional file 4: "Motif discovery data".

As expected, the link between these motifs is the estrogen receptor alpha (ESR1) gene. Estrogens play an important role in both female and male reproductive function, as well as in female cancers, and they have multiple effects on the nervous, skeletal, and cardiovascular systems. ESR1 is over-expressed in the "Luminal Subtype A" subgroup together with, among others, the GATA-3, LIV-1 and XBP1 genes. Previous studies described how these genes are coordinately expressed with ESR1 in breast cancers [32, 33]. A wide variety of non-DNA binding molecules, called coactivators, have been identified that are able to enhance ligand-induced activity of steroid receptors, including ESR1, through direct or indirect binding to these receptors [34]. Among them, CREB-binding protein is critical for ligand-induced, nuclear receptor-mediated transcription activation [35]. In addition, there is evidence that estrogen and progesterone together with TGF-β signaling are necessary for maintenance of p53 activity in the mammary epithelium [36], and for an ESR-mediated inhibition of the NFKB signaling pathway. NFKB target genes are significantly elevated in ESR-negative versus ESR-positive breast tumors, which indicates a potential crosstalk between NFKB and ESR [37].


We have introduced a new measure of similarity for regulatory motifs called FISim. The uncertainty associated with motif comparison tasks makes fuzzy concepts particularly suitable for handling this kind of data. FISim is based on the fuzzy integral and takes advantage of the fuzzy concepts to overcome some of the known difficulties that arise in measuring motifs tasks. There are three main differences from other approaches: i) it considers not only the distance between the PFMs columns, but also the relative importance of each occurrence within each column, ii) it enables the inherent uncertainty of the PFMs to be handled, and iii) it does not make use of any user-provided parameter.

A simple experiment shows how other measures fail in capturing realistic differences, while FISim provides good results (Figure 2). These results are confirmed on extending the experiment to long datasets (Figure 4). Furthermore, it is noteworthy how the naive euclidean distance [11] inherently appears to assign greater importance to better conserved positions (see Figure 2). This might explain why [12] and [21] found the best performance of their methods when using the euclidean distance to compare the motifs.

As explained above, FISim is based on the fuzzy integral theory. Fuzzy integrals have been proven to be very suitable for information fusion. The combination of the evidence supplied by the information sources (nucleotide frequencies) and the importance of each subset of information sources (nucleotide conservation level) is very interesting in motif recognition tasks. When dealing with long random datasets, we show that FISim provides excellent results in terms of motif recognition, similar to those obtained applying existing methods. This was expected, since the probability of overlapping within random motifs is low, which facilitates the discrimination of the origins of the motifs. Some methods perform poorly when the information contents are low (e.g. ALLR and PCC), however, FISim also provides good results under these circumstances.

This task gets more complicated when motifs are interrelated. In this case, it is noteworthy that the Tomtom algorithm provides very good results for higher information content values. However, FISim provides better results, especially when the information content of the motifs is lower, i.e. when it is more difficult to recognize the motifs. This makes FISim particularly interesting when dealing with real problems. For example, as motif discovery algorithms become more and more powerful, motifs with lower information content will be produced as putative motifs and these will need to be tested.

Another advantage of our method is that it does not require any additional parameter. This makes FISim a more robust and fully automated method, thus avoiding the need to select parameters via expert knowledge or trial-and-error approaches.

We used FISim to investigate the motifs found by popular motif discovery algorithms in a well-known set of co-regulated genes corresponding to the subgroup "Luminal Subtype A" of breast carcinomas.

Comparison of the obtained motifs with those reported in JASPAR suggested that the ESR1 gene plays a crucial role in this kind pathology. Furthermore, ESR1 interacts with other motifs also present among the most significant motifs obtained. These findings confirm previous studies and show the reliability of FISim in real-life problems.

Our proposed cluster methodology (kcmeans) makes use of FISim and the kernel theory to avoid problems found when applying other classical methods (i.e. definition of a medoid, data order dependence, etc.). The study of the performance of kcmeans in real data shows promising results in terms of accuracy and cluster compactness. Comparison of our results with those from similar experiments shows a better global behavior and a more accurate grouping of the motifs.


In the present study, we introduce FISim, a new similarity measure for motifs and a novel clustering methodology, based on the fuzzy integral and on kernel technology respectively. Our main objectives were to favour the influence of the better conserved positions of the motifs and to exploit the tolerance for imprecision and uncertainty of fuzzy technology. Our measure takes into account the relative importance of each nucleotide within a given position. We show that FISim outperforms other approaches in motif recognition tasks, and prove how it can be successfully applied to day-to-day research problems. As fuzzy technology is especially suitable for problems that involving imprecise concepts, we are currently working on a fuzzy algorithm that applies the proposed methodology for finding de novo motifs in large sets of DNA sequences.


In this section we present our similarity measure and the proposed cluster methodology, and we introduce the concepts used for their definition. A review of the alternative approaches for measuring motif similarities can be found in the additional file 5: "Methodological background".

Fuzzy Measures

Let X = {x1, x2...,x n } be a finite set, let A, B X, and let (X) the power set of X. A fuzzy measure, μ, is a real valued function μ : (X) → [0, 1], satisfying the following properties:

The reader should note that the additivity condition of probability theory is relaxed in property 2 to the condition of monotonicity.

For a fuzzy measure μ, let μ({x i }) = μi. The mapping x i μiis known as fuzzy density function. The fuzzy density of a single element x i X, μi, can be interpreted as the importance of x i in determining the set X.

Due to the nature of the definition of a fuzzy measure μ, the measure of the union of two disjoints subsets cannot be directly computed from the component measures. In other words, the fuzzy measure value of a subset is not just the sum of the measures of its elements. Therefore, in order to define a fuzzy measure one needs to know not only the individual fuzzy densities of the elements of the measured set, but also the measure for each combination thereof. This information can be supplied by an expert or extracted from the problem definition. However, when dealing with sets of numerous elements this task might become noisy, tedious or even unfeasible. A possible solution for this problem is the use of λ-fuzzy measures

λ-Fuzzy Measures

λ-fuzzy measures [19] satisfy the properties of fuzzy measures plus the following additional property: for all A, B X and AB = ,


Furthermore it can be proved that λ can be obtained by solving:


Therefore, applying equation (1) and (2) one will only need to know the individual fuzzy densities of the elements, μi, (i = 1,...,n), in order to construct the fuzzy measure.

Fuzzy Integral

Let X = {x1,...,x n } be a finite set representing a set of n information sources. Let h : X → [0, 1] represent a function that matches each element of X to its evidence. Let's suppose that h(x1) ≥ h(x2) ≥ h(x n ), if it is not the case for any element, then reorder X so that the relation holds, and let μ : (X) → [0, 1] be a fuzzy measure. Then the fuzzy integral of h with respect to fuzzy measure μ is


where A i = {x1,...,x i }. The reader should note that if μ is a λ-fuzzy measure, then μ(A i ) can be obtained applying equation (1).

The fuzzy integral considers the evidence supplied by each element of a given set and the worth of each subset of elements (by means of a fuzzy measure) in its decision making process. This combination of the importance of the sources and the information provided makes the fuzzy integral appropriate for information fusion. Due to its ability to deal with uncertainties associated with the data extracting and processing procedures, it has been widely applied in pattern recognition and classification [19, 20].


Using PFMs for the representation of the motifs, we propose a novel column-to-column motif similarity measure called FISim (Fuzzy Integral Similarity). FISim is based on the fuzzy integral of the distances of the nucleotide frequencies with respect to the level of conservation of the positions. In our case, the binding preferences of each position (column) are taken as the fuzzy membership degrees to sets of the four DNA nucleotides (A, C, G, T). The reader should note that uniform background distribution is assumed. When dealing with a biased background, PFMs should be modified as stated in [18].

Let and be the two columns to be compared. Let be the set of information sources. To simplify the notation we label the pairs with a single letter so that X = {A, C, G, T}.

As was stated above, fuzzy integrals need of a function to be integrated (the so-called h function). h can be defined as , where i = {A, C, G, T}, i.e. the similarity of the nucleotide i in the two columns C1 and C2.

In addition, a fuzzy measure is needed to determine the relative importance of the subset of elements being considered. Taking advantage of the properties explained above, we can define a λ-fuzzy measure μ, constructed from the fuzzy densities of the individual elements μi. In our case, , where i {A, C, G, T}, i.e. the maximum level of conservation of the two nucleotides, which favors the importance of better conserved positions. At this point, we can just apply equation (2) to obtain λ, and equation (1) to finally obtain the fuzzy measure μ. It can be easily proven that μ fulfils properties 1 and 2 of the fuzzy measures. Once we have h and μ, it is a straightforward task to obtain the fuzzy integral applying equation (3).

Similarity between two PFMs comprising multiple columns needs to be constructed from the aggregation of the column-wise similarities. We proceed by averaging the similarities of the columns considering the best of all possible alignments between the PFMs as well as their reversed complementary sequences. This technique has been shown to work well in previous approaches [9, 10]. The algorithm pseudocode can be found in Figure 6. The source code can obtained from We then provide an example of the computation.

Figure 6
figure 6

FISim pseudocode. This figure shows the pseudocode of the algorithm followed to compute FISim.

FISim example

Let C1 = (0, 0.9, 0.1, 0), C2 = (0.1, 0.05, 0.05, 0.8) the columns from the PFMs. FISim(C1, C2) is obtained as follows: First, we need to compute h. Following the formula explained above . Thus, h(A) = 1 - |0 - 0.1| = 0.9, h(C) = 1 - |0.9 - 0.05| = 0.15, h(G) = 1 - |0.1 - 0.05| = 0.95, h(T) = 1 - |0 - 0.8| = 0.2. Next, h is arranged in a decreasing order: {G, A, T, C}. From here, the sets A i = {x1,...,x i } can be obtained: A1 = {G}, A2 = {G, A}, A3 = {G, A, T}, and A4 = {G, A, T, C}.

For the second part of the fuzzy integrals, a fuzzy measure μ, is needed. Since we have defined a λ-fuzzy measure, we can obtain μ from the individual importances μ({x i }) = μi. As we explained above . Hence μA= 0.1, μC= 0.9, μG= 0.1, and μT= 0.8. Next, we need to obtain the value for the parameter λ. This can be done by solving equation (2), for example by applying Newton's method.

In our case λ = -0.979. Now, it is easy to compute μ(A i ) by applying equation (1).

μ(A1) = μ({G}) = μG= 0.1, μ(A2) = μ({G, A}) = μ({G}) + μ({A}) + λμ({G})μ({A}) = 0.1 + 0.1 - 0.979·0.1·0.1 = 0.190. Similarly, we obtain μ(A3) = 0.841, and μ(A4) = 1.

Now, we are ready to compute the value of the fuzzy integral by solving equation (3). In our case it reduces to FISim(C1, C2) = max(0.1, 0.190, 0.2, 0.15) = 0.2. Table 2 shows a summary of the computation.

Table 2 FISim example

The reader should note that FISim will assign a high similarity between two columns when their similar values also correspond to well-conserved nucleotides. If a well-conserved position in one column (say 0.9) clearly differs from its corresponding position in the other column (say 0.2), the high value for the importance between these positions (0.9) is ignored. On the contrary, the similarity (0.3) will be the value chosen to proceed with the fuzzy integral computation explained in the previous section.

The reader might ask what are the advantages of FISim over the weighted sum: . Apart from benefits such as the combination of multiple information sources discussed in previous sections, FISim captures much more effectively the concept of similarity in this context, as can be seen in the example.

Computing the weighted sum results: WA(C1, C2) = 0.9·0.1 + 0.15·0.9 + 0.95·0.1 + 0.2·0.8 = 0.48. This score gives the wrong impression that C1 and C2 present medium similarity. On the other hand, the result provided by FISim (0.2) is much more realistic, as the similarity between C1 and C2 is expected to be low.

Kernel C-Means

One of the main applications of motif measures is that they can be incorporated into clustering procedures for grouping related motifs. There exist two previously proposed approaches: application of hierarchical clustering methods [21]; or adaptation of the PAM (Partition Around Medoids) algorithm [13].

Hierarchical methods present problems when dealing with noisy data. They also suffer from a lack of robustness and solutions may be dependent on the data order. Moreover, PAM implementations have the drawbacks that they can converge to local optima and cannot identify clusters that are non-linearly separated in the input space. We propose a novel clustering methodology called kcmeans (kernel c-means) based on the well-known c-means algorithm, kernel methods, and our FISim measure.

The c-means algorithm uses the distances between the objects to group them into clusters. As FISim is a similarity measure, we first need to convert the similarities into distances. If the similarity (S) is an inner product, we can compute the distance (D) between objects i and j as D ij = S ii + S jj - 2 * S ij .

Furthermore, if we want a similarity S to be an inner product, we have to force it into a kernel. According to the kernel theory, we can obtain a kernel matrix S' preserving the positive eigenvalues and corresponding eigenvectors of S. The reader should note that this transformation implies losing some information, however it is expected to be the least significative. The clustering methodology we propose works as follows: we obtain a symmetric matrix of motifs similarities S using FISim, we eliminate negative eigenvalues to produce a kernel S', which is an inner product. Finally, we compute the distance matrix D ij = S ii + S jj - 2 * S ij and then apply c-means to cluster. A review of kernel methods and of the c-means algorithm can be found in the additional file 5: "Methodological background".


  1. Pan Y: Advances in the Discovery of cis-Regulatory Elements. Current Bioinformatics 2006, 1: 321–336. 10.2174/157489306777828026

    Article  CAS  Google Scholar

  2. Osada R, Zaslavsky E, Singh M: Comparative analysis of methods for representing and searching for transcription factor binding sites. Bioinformatics 2004, 20: 3516–3525. 10.1093/bioinformatics/bth438

    Article  CAS  PubMed  Google Scholar

  3. Das MK, H D: A survey of DNA motifs finding algorithms. BMC Bioinformatics 2007., 8(Suppl 7):

    Google Scholar

  4. Sandelin A, Alkema W, Engstrom P, Wasserman WW, Lenhard B: JASPAR: An open-access database for eukaryotic transcription factor binding profiles. Nucleic Acids Res 2004, 32: D91-D94. 10.1093/nar/gkh012

    Article  PubMed Central  CAS  PubMed  Google Scholar

  5. Matys V, Kel-Margoulis OV, Fricke E, Liebich I, Land S, Barre-Dirrie A, Reuter I, Chekmenev D, Krull M, Hornischer K, Voss N, Stegmaier P, Lewicki-Potapov B, Saxel H, E KA, Wingender E: TRANSFAC®and its module TRANSCompel®: transcriptional gene regulation in eukaryotes. Nucleic Acids Research 2006, (34 Database):D108-D110. 10.1093/nar/gkj143

    Google Scholar

  6. Tompa M, Li N, Bailey TL, Church GM, De Moor B, Eskin E, Favorov A, Frith MC, Fu Y, Kent WJ, Makeev V, Mironov A, Noble W, Pavesi G, Pesole G, Régnier M, Simonis N, Sinha S, Thijs G, van Helden J, Vandenbogaert M, Weng A, Workman C, Ye ZC, Zhu : Assessing Computational Tools for the Discovery of Transcription Factor Binding Sites. Nature Biotechnology 2005, 23: 137–144. 10.1038/nbt1053

    Article  CAS  PubMed  Google Scholar

  7. Pietrokovski S: Searching databases of conserved sequence regions by aligning protein multiple-alignments. Nucleic Acids Res 1996, 24: 3836–3845. 10.1093/nar/24.19.3836

    Article  PubMed Central  CAS  PubMed  Google Scholar

  8. Wang T, Stormo GD: Combining phylogenetic data with co-regulated genes to to identify regulatory motifs. Bioinformatics 2003, 19: 2369–2380. 10.1093/bioinformatics/btg329

    Article  CAS  PubMed  Google Scholar

  9. Schones DE, Sumazin P, Zhang MQ: Similarity of position frequency matrices for transcription factor binding sites. Bioinformatics 2005, 21: 307–313. 10.1093/bioinformatics/bth480

    Article  CAS  PubMed  Google Scholar

  10. Roepcke S, Grossmann S, Rahmann S, Vingron M: T-Reg Comparator: an analysis tool for the comparison of position weight matrices. Nucleic Acids Res 2005, 33: 438–441. 10.1093/nar/gki590

    Article  Google Scholar

  11. Choi IG, Kwon J, Kim SH: Local feature frequency profile: A method to measure structural similarity in proteins. PNAS 2004, 101: 3797–2892. 10.1073/pnas.0308656100

    Article  PubMed Central  CAS  PubMed  Google Scholar

  12. Gupta S, Stamatoyannopoulos JA, Bailey TL, Noble WS: Quantifying similarity between motifs. Genome Biol 2007, 8: R24. 10.1186/gb-2007-8-2-r24

    Article  PubMed Central  PubMed  Google Scholar

  13. Pape UJ, Rahmann S, Vingron M: Natural similarity measures between position frequency matrices with an application to clustering. Bioinformatics 2008, 24: 350–357. 10.1093/bioinformatics/btm610

    Article  CAS  PubMed  Google Scholar

  14. Lam FH, Steger DJ, Shea EO: Chromatin decouples promoter threshold from dynamic range. Nature 2008., 453(7192):

  15. Zadeh L: Fuzzy Sets. Information and Control 1965, 8(3):338–353. 10.1016/S0019-9958(65)90241-X

    Article  Google Scholar

  16. Zimmerman HJ: Fuzzy sets theory and its applications. Norwell: Kluwer Academic Publishers; 2001.

    Book  Google Scholar

  17. Huang Y, Li Y: Prediction of protein subcellular locations using fuzzy k-NN method. Bioinformatics 2004, 20: 21–28. 10.1093/bioinformatics/btg366

    Article  CAS  PubMed  Google Scholar

  18. D'haeseleer P: What are DNA sequence motifs? Nat Biotechnol. 2006, 24(4):423–425. 10.1038/nbt0406-423

    Article  PubMed  Google Scholar

  19. Sugeno M: Fuzzy measures and fuzzy integrals: A survey. In Fuzzy Automata and Decision Processes. Amsterdam: North Holland; 1977:89–102.

    Google Scholar

  20. Keller J, Gader P, Hocauglu A: Fuzzy Integrals in Image Processing and Recognition. In Fuzzy Measures and Integrals: Theory and Applications. Berlin: Springer; 2000:435–466.

    Google Scholar

  21. Mahony S, Auron PE, Benos PV, Stormo G: DNA Familial Binding Profiles Made Easy: Comparison of Various Motif Alignment and Clustering Strategies. PLoS Comput Biol 2007, 3: 578–591. 10.1371/journal.pcbi.0030061

    Article  CAS  Google Scholar

  22. Sandelin A, Wasserman WW: Constrained binding site diversity within families of transcription factors enhances pattern discovery bioinformatics. J Mol Biol 2004, 338: 207–215. 10.1016/j.jmb.2004.02.048

    Article  CAS  PubMed  Google Scholar

  23. Fogel GB, Weekes DG, Varga G, Dow ER, Craven AM, Harlow HB, Su EW, Onyia JE, Su C: A statistical analysis of the TRANSFAC data. Biosystem 2005., 81(2):

  24. Hanley JA, McNeil BJ: The meaning and use of the area under a receiver operating characteristic (ROC) curve. Radiology 1982, 143: 29–36.

    Article  CAS  PubMed  Google Scholar

  25. Kaufman L, Rousseew P: Finding Groups in Data: An Introduction to Cluster Analysis. New York: John Wiley and Son; 1990.

    Book  Google Scholar

  26. Sørlie T, Peroua CM, Tibshirani R, Aas T, Geisler S, Johnsen H, Hastie T, Eisen MB, Rijn M, Jeffrey SS, Thorsen T, Quist H, Matesec JC, Brown PO, Botstein D, Lønning PE, Børresen-Dale A: Gene expression patterns of breast carcinomas distinguish tumor subclasses with clinical implications. PNAS 2001, 98(19):10869–10874. 10.1073/pnas.191367098

    Article  PubMed Central  PubMed  Google Scholar

  27. Romer KA, Kayombya GR, E F: WebMOTIFS: automated discovery, filtering and scoring of DNA sequence motifs using multiple programs and Bayesian approaches. Nucleic Acids Research 2007, (35 Web server):W217-W220. 10.1093/nar/gkm376

  28. Hughes JD, Estep JW, Tavazoie S, Church GM: Computational identification of cis-regulatory elements associated with groups of functionally related genes in Saccharomyces cerevisiae. Journal of Molecular Biology 2000, 296(5):1205–1214. 10.1006/jmbi.2000.3519

    Article  CAS  PubMed  Google Scholar

  29. Liu XS, Brutlag DL, Liu JS: An algorithm for finding protein-DNA binding sites with applications to chromatin-immunoprecipitation microarray experiments. Nature Biotechnology 2002, 20(9):835–839.

    Article  CAS  PubMed  Google Scholar

  30. Bailey TL, Elkan C: Fitting a mixture model by expectation maximization to discover motifs in biopolymers. Proceedings of the Second International Conference on Intelligent Systems for Molecular Biology 1994, 28–36.

    Google Scholar

  31. Pavesi G, Mereghetti P, Zambelli F, Stefani M, Mauri G, Pesole G: MoD Tools: regulatory motif discovery in nucleotide sequences from co-regulated or homologous genes. Nucleic Acids Research 2006, (34 Web server):W566-W570. 10.1093/nar/gkl285

    Google Scholar

  32. Wilson BJ, Giguere V: Meta-analysis of human cancer microarrays reveals GATA3 is integral to the estrogen receptor alpha pathway. Mol Cancer 2008., 7(49):

    Google Scholar

  33. Gomez BP, Riggins RB, Shajahan AN, Klimach U, Wang A, Crawford AC, Zhu Y, Zwart A, Wang M, Clarke R: Human X-box binding protein-1 confers both estrogen independence and antiestrogen resistance in breast cancer cell lines. FASEB J 2007, 21(14):4013–4027. 10.1096/fj.06-7990com

    Article  CAS  PubMed  Google Scholar

  34. Dutertre M, Smith CL: Ligand-Independent Interactions of p160/Steroid Receptor Coactivators and CREB-Binding Protein (CBP) with Estrogen Receptor- α : Regulation by Phosphorylation Sites in the A/B Region Depends on Other Receptor Domains. Molecular Endocrinology 2003, 17(7):1296–1314. 10.1210/me.2001-0316

    Article  CAS  PubMed  Google Scholar

  35. Torchia J, Rose DW, Inostroza J, Kamei Y, Westin S, Glass CK, Rosenfeld MG: The transcriptional co-activator p/CIP binds CBP and mediates nuclear-receptor function. Nature 1997, 387: 677–684. 10.1038/42652

    Article  CAS  PubMed  Google Scholar

  36. Becker KA, Lu S, Dickinson ES, Dunphy KA, Mathews L, Schneider SS, Jerry DJ: Estrogen and progesterone regulate radiation-induced p53 activity in mammary epithelium through TGF-beta-dependent pathways. Oncogene 2005, 24(42):6345–6353.

    CAS  PubMed  Google Scholar

  37. Van Laere SJ, Van Auwera I, Van Eynden GG, Elst HJ, Weyler J, Harris AL, Van Dam P, Van Marck EA, Vermeulen PB, Dirix LY: Nuclear factor- κ B signature of inflammatory breast cancer by cDNA microarray validated by quantitative real-time reverse transcription-PCR, immunohistochemistry, and nuclear factor- κ B DNA-binding. Clinical Cancer Research 2006, 12: 3249–3256. 10.1158/1078-0432.CCR-05-2800

    Article  CAS  PubMed  Google Scholar

Download references


We would like to thank the three anonymous reviewers for their helpful comments which significantly improved the quality of the paper. This work has been carried out as part of projects P08-TIC-4299 of J. A., Sevilla and TIN2006-13177 of DGICT, Madrid.

Author information

Authors and Affiliations


Corresponding author

Correspondence to Fernando Garcia.

Additional information

Authors' contributions

FG designed the study, designed and implemented the fuzzy integral similarity, performed the experiments, helped with the analysis of the results and drafted the paper. AB assisted with the design of the study and helped to draft the paper. FJL provided help with the analysis of the results and assisted in drafting the paper. CC implemented the kcmeans clustering methodology, obtained the clustering results and helped to draft the paper. All authors read and approved the final manuscript.

Electronic supplementary material


Additional file 1: JASPAR motifs statistics. This file contains some statistics obtained from the motifs of the JASPAR database. (PDF 40 KB)


Additional file 2: Related motifs experiment. This file contains the logos of the related motifs experiments as well as the AUC scores. (PDF 286 KB)


Additional file 3: JASPAR clustering. This file contains the description of the clustering obtained by kcmeans and the logos of the motifs for each of the clusters. (PDF 1 MB)


Additional file 4: Motif discovery data. This file contains the supplementary information of the motif identification experiment. (PDF 104 KB)


Additional file 5: Methodological background. This file contains a review of the alternative motif measures, and an introduction to the c-means algorithm and kernel theory. (PDF 88 KB)
