ProbPS: A new model for peak selection based on quantifying the dependence of the existence of derivative peaks on primary ion intensity
© Zhang et al; licensee BioMed Central Ltd. 2011
- Received: 18 April 2011
- Accepted: 17 August 2011
- Published: 17 August 2011
The analysis of mass spectra suggests that the existence of derivative peaks is strongly dependent on the intensity of the primary peaks. Peak selection from tandem mass spectrum is used to filter out noise and contaminant peaks. It is widely accepted that a valid primary peak tends to have high intensity and is accompanied by derivative peaks, including isotopic peaks, neutral loss peaks, and complementary peaks. Existing models for peak selection ignore the dependence between the existence of the derivative peaks and the intensity of the primary peaks. Simple models for peak selection assume that these two attributes are independent; however, this assumption is contrary to real data and prone to error.
In this paper, we present a statistical model to quantitatively measure the dependence of the derivative peak's existence on the primary peak's intensity. Here, we propose a statistical model, named ProbPS, to capture the dependence in a quantitative manner and describe a statistical model for peak selection. Our results show that the quantitative understanding can successfully guide the peak selection process. By comparing ProbPS with AuDeNS we demonstrate the advantages of our method in both filtering out noise peaks and in improving de novo identification. In addition, we present a tag identification approach based on our peak selection method. Our results, using a test data set, suggest that our tag identification method (876 correct tags in 1000 spectra) outperforms PepNovoTag (790 correct tags in 1000 spectra).
We have shown that ProbPS improves the accuracy of peak selection which further enhances the performance of de novo sequencing and tag identification. Thus, our model saves valuable computation time and improving the accuracy of the results.
- Neutral Loss
- Isotopic Shift
- Tandem Mass Spectrum
- Primary Peak
- Noise Peak
Mass spectrometry is a popular method for protein identification [1–6]. In a typical protein identification experiment using mass spectrometry, proteins are first digested into peptides by an enzyme, say trypsin. Tandem mass spectra of the peptides are generated using a tandem mass spectrometer (MS/MS). Traditionally, two approaches for peptide identification from MS/MS spectra have been used: database searches [3–8] and de novo sequencing [9–31].
Typical database searches first identify a set of candidate peptides from a protein sequence database, and then construct a theoretical spectrum for each peptide. Finally, the similarity between the theoretical spectrum and the MS/MS experimental spectrum is calculated and the most similar peptides are reported as predictions. There are several popular tandem mass spectrometry data analysis programs of this type: SEQUEST , Mascot , X!Tandem , SCOPE , and ProbID , are some examples of these. Before comparing a theoretical spectrum against an experimental spectrum, noise peaks in the experimental spectrum should be filtered out. Noise peaks in the spectrum can cause significant differences between the experimental and theoretical spectra and, as a result, correct solutions may be missed.
De novo sequencing, on the other hand, is database-independent because it exclusively uses the information contained in the MS/MS spectrum. Thus, the de novo technique has the potential to identify peptides that are not included in protein sequence databases. Widely-used de novo packages include PEAKS [9, 10], PepNovo [11, 12], et al. [13–31] Recently, variants of de novo sequencing, the tag-based methods [32–38], have been developed to identify a segment of a peptide rather than a full-length peptide. After inferring the tags from a MS/MS spectrum, the candidate peptides that do not match any of the tags are filtered out. Therefore, an effective tag identification method can improve identification accuracy and reduce the running time for database searches by reducing the number of candidate peptides. Both de novo methods and tag-based methods usually require high-quality spectra, and do not perform well on spectra with noise peaks. Thus, peak selection is important for the effective use of de novo methods.
Generally speaking, there are three types of peaks in a tandem mass spectrum: i) the primary peak that is highly likely to be accompanied by a set of derivative peaks caused by the loss of ammonia, the loss of water, or isotopic shift; ii) noise peaks from signals from mass spectrometry and other unknown reasons; and iii) peaks generated from contaminants. Although isotopic shifts and neutral losses are often observed for peaks generated from contaminants, complementary peaks are seldom observed. This provides a way to distinguish valid peaks from noise and contaminant peaks. In this study, the latter two peaks are called noise peaks.
Before attempting to identify a peptide from a MS/MS spectrum, it is useful to perform a pre-processing step (called peak selection) to filter out noise and contaminant peaks. A widely accepted peak selection rule utilizes two peak attributes, peak intensity and the existence of derivative peaks. Briefly, a peak accompanied by derivative peaks and an associated complementary peak is likely to be valid; peaks without these features are likely to be noise. Our observations suggest that the existence of derivative peaks and complementary peaks is strongly depending on the primary peak intensity. Existing methods for peak selection adopt simple models that assume that these two attributes are independent. This assumption contradicts to real data and is error prone. In this study we proposed a statistical model, named ProbPS, to capture the interdependence of peak intensity and the existence of derivative peaks in a quantitative manner. Our experimental results demonstrate that our model can improve both peak selection and tag identification.
For a peak p in a tandem mass spectrum,
V = 1 if the peak is a valid primary peak; otherwise V = 0.
I is the peak intensity;
ISO indicates the existence of isotopic shift;
NH3 indicates the existence of a peak that corresponds to the neutral loss of an ammonia;
H2O indicates the existence of a peak that corresponds to the neutral loss of a water;
COMP indicates the existence of a peak that corresponds to a complementary ion;
2.2 The model for peak selection
2.2.1 Quantifying the dependency of derivative ions on primary peak intensity
To investigate the dependency of derivative ions on primary peak intensity we used spectra from the Swed-CAD database , a collection of high quality MS/MS spectra of tryptic peptides. Using SEQUEST, we identified 15,897 unique, annotated peptide-spectrum matches (PSM) to use as a training set.

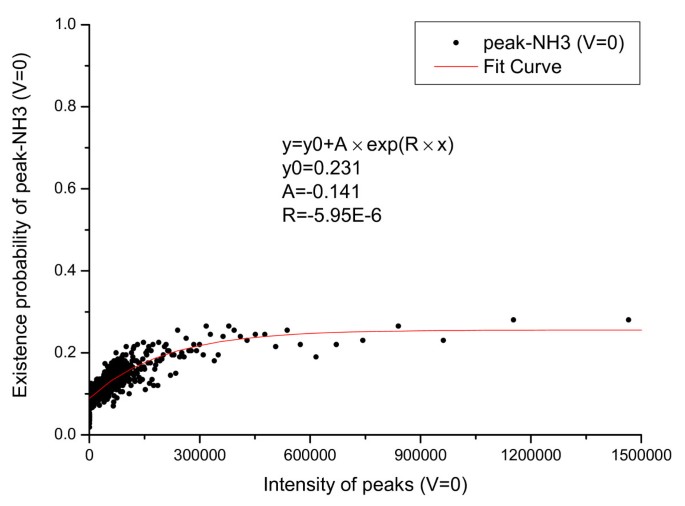

In Figure 1 an evident nonlinear relationship between primary peak intensity and the existence of isotopic peaks can be observed. The nonlinear relationship can be explained by supposing that, for a primary ion, its isotopic derivative is observed with probability p. Then, for a total of I primary ions, an isotopic derivative would be observed with probability . Therefore, it is reasonable to approximate this relationship using an exponential function. Like P(ISO|I, V = 1), P(ISO|I, V = 0) also approximates 1 as the peak intensity goes to infinity. The reason for the slight differences in Figure 1 and 2 is that a contaminant ion might generate an isotopic shift similar to the shift generated by a primary ion. A significantly different pattern between P(COMP|I, V = 1) and P(COMP|I, V = 0) is observed (Figure 3 and 4) because for contaminant ions, complementary peaks are seldom generated.
2.2.2 Bayesian framework for peak selection
where p(V = 1)= P(I, D|V = 1)P(V = 1) and p(V = 0)= P(I, D|V = 0)P(V = 0).
3.1 Peak selection based on probPS
We also compared probPS against the relevance value used in AuDeNS . AuDeNS uses a framework for de novo sequencing of peptides. It first cleans the input spectrum with a number of data cleaning algorithms ("grass mowers"), followed by a sequencing algorithm. It applies the mowers to the input data, assigning to each input peak i a relevance value r(i), with the default being r(i) = 1. Hereby, each mower M uses a relevance factor Rel M (which can be set as a parameter of AuDeNS), and the relevance value of peak i is then given by , where M (i) is the value assigned to peak i by mower M. The relevance of a solution is then the sum of the relevances of the peaks matched by this solution. Precisely, AuDeNS produces a ranked list of sequence suggestions for a spectrum.
3.2 Improving de novo identification using probPS
de novo peptide identification results after peak selection based on probPS and relevance.
Cross-validation of the performance of probPS and AuDeNS in improving de novo peptide identification.
#Correctly identified peptides a
3.3 Identifying tags based on probPS
Ordinary tagging methods directly identify tags on a given mass spectrum. For example, PepNovoTag  extracts all substrings of the desired length from the PepNovo reconstruction process, and uses a logistic regression model to evaluate these tags. This strategy suffers from noise peaks in the spectrum. Our method only uses the peaks with high probPS values to generate tags. Specifically, our tag identification method (called probTag) starts with the top peaks with high probPS along with their complementary peaks to find the most reliable neighbor peaks.
Comparison of probTag and PepNovoTag (version 3
Tag Identification Performance
It should be noticed both PepNovoTag and ProbTag are combinations of peak selection and tagging techniques. This is only an implicit and indirect evidence of the peak selection performance.
In this study, we described the dependence between derivate peaks and primary ion intensity in a quantitative manner. The experimental results demonstrate that this quantitative description can help improve the accuracy of peak selection which further improves the performance of de novo sequencing and tag identification.
In addition to the peak attributes used in the study, other attributes like, for example, consecutive ions may prove to further improve peak selection. In general, valid peaks are more likely to have a consecutive ion than invalid peaks. In future work, we aim to incorporate this attribute into our peak selection method.
This study was funded by the Beijing Municipal Natural Science Foundation (grant 5102029) and the National Natural Science Foundation of China (grant 30800189). We thank Prof. Jonas Grossmann for providing the LCQ spectra data. We also thank to our reviewers for their constructive comments and suggestions.
