ASPDock: protein-protein docking algorithm using atomic solvation parameters model
© Li et al; licensee BioMed Central Ltd. 2011
Received: 22 July 2010
Accepted: 27 January 2011
Published: 27 January 2011
Atomic Solvation Parameters (ASP) model has been proven to be a very successful method of calculating the binding free energy of protein complexes. This suggests that incorporating it into docking algorithms should improve the accuracy of prediction. In this paper we propose an FFT-based algorithm to calculate ASP scores of protein complexes and develop an ASP-based protein-protein docking method (ASPDock).
The ASPDock is first tested on the 21 complexes whose binding free energies have been determined experimentally. The results show that the calculated ASP scores have stronger correlation (r ≈ 0.69) with the binding free energies than the pure shape complementarity scores (r ≈ 0.48). The ASPDock is further tested on a large dataset, the benchmark 3.0, which contain 124 complexes and also shows better performance than pure shape complementarity method in docking prediction. Comparisons with other state-of-the-art docking algorithms showed that ASP score indeed gives higher success rate than the pure shape complementarity score of FTDock but lower success rate than Zdock3.0. We also developed a softly restricting method to add the information of predicted binding sites into our docking algorithm. The ASP-based docking method performed well in CAPRI rounds 18 and 19.
ASP may be more accurate and physical than the pure shape complementarity in describing the feature of protein docking.
Most proteins interact with other proteins to perform their biological functions in the form of protein complexes. During the past several decades, many docking programs have been developed to predict protein-protein complexes. Among them, the docking algorithms based on Fast Fourier Transform (FFT) are widely used and have made great success because they can search 6D space in a very fast way. These programs include MolFit, 3D-Dock[3–5], GRAMM, ZDock[7, 8], DOT, BiGGER and HEX. The base of the original FFT-based docking method is shape complementarity between receptor and ligand. It is usually used as the first step of docking procedure and then other methods are used to refine or re-rank the docked structures [3, 12, 13]. Besides the FFT-based algorithms, there are other well-known docking algorithms that also consider flexibility of proteins during docking procedure, like RosettaDock, ICM-DISC, AutoDock, or HADDOCK. Since the original FFT docking algorithm only used shape complementarity feature to solve bound docking problem, different scoring functions based on other physical features have been integrated into the original FFT-based docking method to improve the prediction ability. For examples, the 3D-DOCK added electrostatic energy into the FFT-based docking method. ZDOCK used atomic contact energy to calculate solvation energy. The hydrophobic docking method  combined hydrophobic complementarity with shape complementarity . GRAMM used a long-distance potential to calculate atom-atom van der Waals energy which has proved effective in detecting binding funnels.
Reliable scoring function is crucial to enhance success rate of prediction of protein-protein docking. Cheng and co-workers  analyzed the performance of different energy components in protein-protein interactions. They showed that the sum of solvation and electrostatic energies contributes more than 70% to the total binding free energy, while van der Waals energy only contributes less than 10%. Fernandez-Recio's work also showed that rather than electrostatic, van der Waals and hydrogen-bond energies, solvation energy is the most important component in the total binding energy. Zhou et al.  found that the correlation coefficient between solvation energy and experimental binding energy is 0.83 with a root mean square deviation (RMSD) of 2.3 kcal/mol, and the most important is that the slope is close to 1 ( slope = 0.93 ).
ASP (Atomic solvation parameters) model is one of the best methods to calculate solvation energy. Due to its fast and efficient feature, ASP model [25–27] has made great success in free energy calculation[28, 29], structure prediction[30, 31], and scoring functions[22, 32]. This suggests that if we integrate ASP into the sampling stage of docking algorithms, it may enhance the success rates of docking. Up to now, several groups have constructed different ASP sets [25–27]. Among them, Zhou's set is the most suitable one for calculating the solvation energy of protein complexes. This ASP set was extracted from 1023 mutation experiments and yielded an accurate prediction of free binding energy of complexes. In this paper, the ASP set from Zhou's work is used to develop an ASP-based protein-protein docking algorithm (ASPDock).
During a prediction procedure, correct auxiliary information (e.g., predicted binding sites) usually can increase the success rate significantly [33–36], but incorrect auxiliary information may mislead predictors and lead to worse predictions. However, we hardly distinguish whether the information is correct or not before the complex structure is experimentally solved. In this work, we present a softly restricting method of using biological information in which we constrain receptor and ligand partially within the predicted binding sites. Using our ASPDock algorithm with softly restricting method, we participated in two rounds of Critical Assessment of PRediction of Interactions (CAPRI). There are 3 targets (T40, T41, and T42) in rounds 18 and 19. We got high-quality hits for T40 and T41 and the best LRMSD were 2.35 Å and 1.41 Å, respectively.
Results and Discussion
Free Energy Calculation
The ASP used here is from Zhou and co-workers , which contain only six atom types. It proved to be successful in predicting binding free energy of complexes. ASP model assumes that the solvation energy of an atom or an atom-group is proportional to its solvent accessible surface area (ASA). Accurate calculation of ASA, which depends on the conformation of proteins or complexes, is a time consuming job. In order to meet the speed of the FFT-based docking method, we propose an approximate FFT method to calculate the ASA and so ASP values (see the section "Methods").
We first test our method on the 21 protein complexes, whose binding free energies have been measured experimentally. For each complex, we perform a bound docking and select the best structure close to the native state. Usually the LRMSD between the best structure and native structure is less than 0.5Å, and so we consider the ASP score of the best structure as that of the native structure. Using similar method we can calculate the shape complementarity score for each of the 21 complexes. Obviously, if we set all ASP values equal to one, what we calculated in our method is the shape complementarity score.
As in other docking methods, the prediction of enzyme-inhibitor complexes has a higher success rate than antibody-antigen complexes and other complexes. That is mainly because enzyme-inhibitor complexes usually have better interface features than other types of complexes . Success rate of antibody-antigen complexes is not as high as in some other methods [5, 7, 40]. However, complementarity determining regions (CDR) of antibodies can be predicted by sequence. If we utilize this (CDR) information, success rate of antibody-antigen complexes should be enhanced dramatically. In general, ASP method can enhance the success rate significantly.
We also compared our results with the popular docking algorithms FTDock  and ZDock [7, 8] using the Benchmark 3.0 (Figure 2B and also Additional file 1). The former can be used to compare the performance of ASPDock relative to a pure shape complementarity method and the later can be used to judge the performance of a single ASP score relative to the best docking method integrating many important factors of protein interactions. The results show that the ASP score indeed gives higher success rate than the pure shape complementarity score of FTDock but lower success rate than ZDock. The former shows that "ASP complementarity" is more reasonable for describing the interface character of protein-protein interaction than pure shape complementarity. The later is expected because ASPDock is only to search a more physical model of pure shape complementarity for protein docking and needs integrating more important factors of protein interactions to get a higher success rate of prediction.
CAPRI Rounds 18-19
T41 is the DNase domain of colicin E9 (G95C mutant) in complex with the Im2 immunity protein (C23A/E31C mutant). The unbound coordinates provided are: E9 DNase domain (1FSJ) and Im2 from the NMR ensemble (2NO8). We got one high quality hit and eight acceptable hits in our ten submitted structures. The best LRMSD is 1.41 Å (Figure 3).
T42 is a symmetric homodimer and designed based on Lynn Regan's idealized TPR (1NA3). Residues 1-4 and 108-125 are disordered. We didn't get any acceptable hits of this target (in fact there were only few hits in all predictions from the groups that participated in this CAPRI round).
We proposed an easy way to incorporate ASP model into FFT protein-protein docking method, which can calculate the solvation energy approximately but quickly. This ASPDock method is reduced the FFT docking method of pure shape complementarity when the ASP values of all atoms are set to be 1. The scores of ASPDock reflect solvation energy, which has proved to be the most significant energy among all kinds of energies in binding free energy. On the contrast, pure shape complementarity has no clear physical meaning. Our results indicate that the ASPDock method can enhance the prediction accuracy significantly in comparison with the pure shape complementarity method.
A softly restricting method was also proposed to incorporate the predicted binding sites into the ASPDock method. This method is more reasonable than the strictly restricting method, which will definitely miss the correct complex structure when the information is incorrect.
ΔG Calculation using ASP
where Ai is the solvent-accessible surface area (ASA) of atom i and σ i is the ASP value of atom i, which can be determined experimentally. Although both analytical [42–45] and numerical [46–48] methods have been developed, accurate calculation of the ASA, which depends on the conformations of proteins or complexes, is still a time consuming job. In this work we propose alternative approach to estimate the ASA quickly and approximately in order to meet the speed of the FFT-based docking method.
Obviously represents not an absolute but a relative value of ΔG, and the accuracy could be controlled by the grid size. Smaller grid size leads to a higher accuracy. Using this approximation, we can quickly evaluate ΔG of proteins.
ΔΔG calculation using ASP
where ΔGReceptor, ΔGLigand and ΔGComplex are the solvation energy of receptor, ligand and complex, respectively.

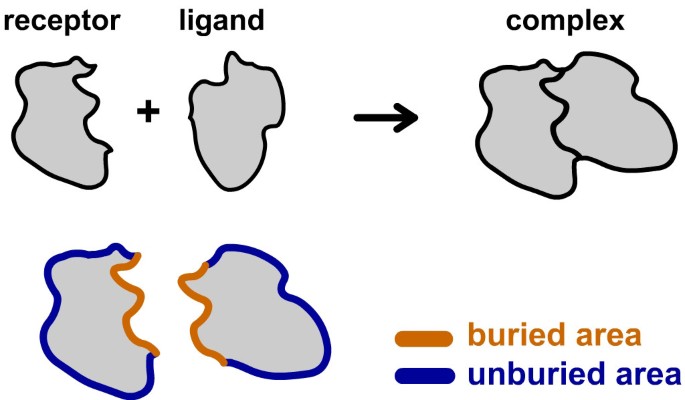

Here TS, BS and US denote the total surface, buried surface and unburied surface, respectively. In this work, we use FFT method to calculate . It is noted that describes the pure shape complementarity if σ i is set to be 1 for all atoms.
Fast Fourier Transform
In FFT docking method, receptor and ligand are mapped to three dimensional grids of N × N × N nodes, respectively. The grids occupied by receptor surface, inside receptor, and outside receptor are set as a value of 1, -15, and 0, respectively. The grids occupied by ligand and outside ligand are set as 1 and 0, respectively.
where (l,m,n) is the grid node coordinates. ASP value used is from Zhou's work, which is simple and effective. The value of ρ is a penalty for protein overlap, setting from -20 to -40 that doesn't change the results significantly. is the imaginary unit.
where Im [ ] denotes the imaginary part of a complex function. α, β, γ are the numbers of grid steps by which ligand L is shifted with respect to receptor R in each dimension. SASP is positive, zero or negative depending on if there is contact, no contact or overlap between the receptor and ligand after shift. The tolerance of overlap is controlled by the penalty factor ρ.
Here the Discrete Fourier Transform (DFT) and Inverse Fourier Transform (IFT) can be calculated rapidly by using fftw library. Before translational scan, the ligand should be rotated in 360 × 180 × 360 degree. Here we use Lattman's method to delete the redundant angles[5, 49], which enhances the efficiency significantly.
After the total scan of transition and rotation, we rank the complexes by their ASP scores in two steps. Firstly, we rank the complexes in each orientation and pick the top N out. Secondly, we rank all the top N complexes together. N could be set from 1 to 10. If N is larger than 10, there will be many similar complexes, which may have no benefit in enhancing success rate of prediction and sometimes even make correct complexes rank worse.
DECK (Distance and environment-dependent coarse-grained) Scoring Function
Based on Dockground (http://dockground.bioinformatics.ku.edu/), Liu and Vakser developed a low-resolution scoring function for protein-protein docking (Shiyong Liu and Ilya Vakser, submitted). Each residue is represented as one pseudo-atom, the "centroid"of the side chain. The optimal reference state was selected according to the success rate of testing on a public available decoy set (http://dockground.bioinformatics.ku.edu/UNBOUND/decoy/decoy.php).
Softly Restricting Method
Predicted binding sites can be used to restrict the range of docking sampling and enhance success rate of prediction. This has been done in two ways, using as a post scan filter[3, 18, 50–52] and integrating into the scanning stage[33, 53]. However, the predicted binding sites may be incorrect. This will make the docking prediction completely wrong and much worse than without using the predicted information.
If α is set as infinity, the docking sampling will be completely restricted to the range of the predicted binding sites. However, if the value of α is finite, the sampling is still allowed around the whole surface of the molecules. Thus, even if the predicted binding sites are wrong, we still have the chance to find the correct docking conformations and the success rate will not decrease significantly.
