Slim-Filter: an interactive windows-based application for illumina genome analyzer data assessment and manipulation
BMC Bioinformatics volume 13, Article number: 166 (2012)
The emergence of Next Generation Sequencing technologies has made it possible for individual investigators to generate gigabases of sequencing data per week. Effective analysis and manipulation of these data is limited due to large file sizes, so even simple tasks such as data filtration and quality assessment have to be performed in several steps. This requires (potentially problematic) interaction between the investigator and a bioinformatics/computational service provider. Furthermore, such services are often performed using specialized computational facilities.
We present a Windows-based application, Slim-Filter designed to interactively examine the statistical properties of sequencing reads produced by Illumina Genome Analyzer and to perform a broad spectrum of data manipulation tasks including: filtration of low quality and low complexity reads; filtration of reads containing undesired subsequences (such as parts of adapters and PCR primers used during the sample and sequencing libraries preparation steps); excluding duplicated reads (while keeping each read’s copy number information in a specialized data format); and sorting reads by copy numbers allowing for easy access and manual editing of the resulting files. Slim-Filter is organized as a sequence of windows summarizing the statistical properties of the reads. Each data manipulation step has roll-back abilities, allowing for return to previous steps of the data analysis process. Slim-Filter is written in C++ and is compatible with fasta, fastq, and specialized AS file formats presented in this manuscript. Setup files and a user’s manual are available for download at the supplementary web site (https://www.bioinfo.uh.edu/Slim_Filter/).
The presented Windows-based application has been developed with the goal of providing individual investigators with integrated sequencing reads analysis, curation, and manipulation capabilities.

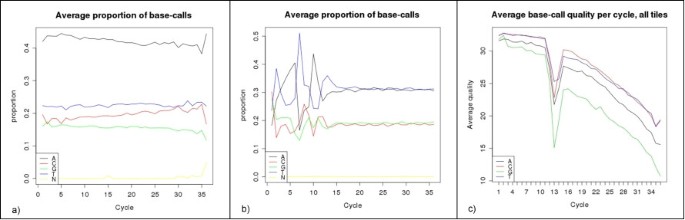

Next Generation Sequencing instruments such as the Illumina Genome Analyzer (Illumina Inc.), SOLiD (Life Technologies), 454 (Life Sciences), and Ion PGM™ and Ion Proton™ (Life Technologies) are able to produce dozens of gigabases of sequencing data per week. The Illumina Genome Analyzer and SOLiD platforms produce large data files containing relatively short subsequences (reads) of equal size, usually 30–120 bases long. Each step in the sequencing process, such as sample preparation, library generation and base calling, can introduce significant biases and sequencing errors. For example: scanner calibration errors can cause one or more specific nucleotides to appear at deviated frequencies in the sequencing dataset (Figure 1a). A high concentration of adapters or PCR primers presented during sample preparation can cause biases at the beginning of the reads (Figure 1b). Additionally, physical disturbances (such as vibration of the instrument) during the sequencing process can lead to a drop in the quality of one or more sequencing cycles (Figure 1c).
A variety of platform-independent, as well as instrument-specific, applications have been developed to identify such biases and errors in the sequencing data [1–4]. Reads manipulation tools have also been developed to perform tasks such as sorting, trimming, filtering, eliminating duplications, and reads curation [5–9].
A major inconvenience however, is that each phase in the data manipulation process and in the recalculation of the statistical characteristics of the datasets requires separate applications and must be performed as a series of disconnected steps. The presented interactive Windows-based application (Slim-Filter) performs a variety of data manipulation tasks while simultaneously monitoring the statistical properties of the dataset and allowing users to save and/or undo (roll-back) each step of the analysis. Also available is a Linux version that has better performance, but is lacking the interactive and visual capabilities of the Windows-based version. Slim-Filter is compatible with standard Illumina Genome Analyzer file formats (such as fasta and fastq), as well as a presented new AS (Array Subsequences) format designed to store only unique reads and their copy numbers in descending order (by copy number).
Slim-Filter for Windows is implemented in VC++ and supports all Windows 64 bit operating systems. Plots and diagrams that represent statistical properties exploit the .Net library and require a Microsoft.NET Framework 3.5 (or a more recent version). The Linux version of Slim-Filter provides similar functionality, but is implemented as a one-step command line application. Setup files, example data, file format descriptions, and the user manual are available on the supplementary website (http://www.bioinfo.uh.edu/Slim_Filter).
Slim-Filter for Windows is organized as a chain of data manipulation steps which can contain several tasks. The resulting new set of reads can be saved in fasta, fastq, or AS formats. Corresponding windows summarize statistical properties of the resulting reads (Figure 2). The sequential windows containing statistical summaries for each data manipulation step can remain open, allowing for a before and after comparison of the datasets. Slim-Filter allows the user to return (roll-back) to any of the previous steps of the analysis and proceed with a different set of tasks and/or task parameters. The log of the step-by-step statistical analysis and the history of data manipulation is stored in a report text file.
Slim-Filter can perform eleven different data manipulation tasks. If the input data is available in the fastq file format, the user can (1) exclude reads with a quality score below a user-defined threshold, or (2) replace each low quality nucleotide with the “unknown nucleotide” symbol N. The other nine tasks do not require nucleotide quality information and can be performed on data in the fastq, fasta and AS formats. Each read that contains a single unknown nucleotide can be (3) replaced by four alternative reads where the N symbol is replaced by each of the four possible nucleotides (A, C, T, G). This tactic allows for the “recovery” of data from damaged sequencing runs such as the one shown in Figure 1c, where a single low quality cycle resulted in the presence of an unknown or low quality nucleotide in the middle of each read. After “recovery”, resulting reads can still be used by most de-novo assembly and SNP detection programs.
A sharp decline in the quality of the last nucleotides or the presence of undesirable prefixes may require the user to (4) trim the prefixes and/or suffixes of all the reads in the dataset. This option is available at any step of the data analysis. Slim-Filter’s filtration capabilities include: (5) the elimination of all reads containing odd or unknown characters; (6) the removal of low complexity reads (such as reads where a single nucleotide exhibits a proportion above a user defined threshold); (7) the exclusion of reads containing template subsequences; and (8) the interactive deletion of the most abundant reads in the dataset. Additional data manipulation features include: (9) the removal of duplicated and (10) reverse complementary reads (while maintaining their copy numbers), and (11) the sorting and storing of reads by order of ascending copy number and in the AS data format, which allows the user to easily view or edit the sequencing data files.
Statistical assessment of reads
Following each step, Slim-Filter recalculates and visualizes the statistical characteristics of the altered dataset in a new window (Figure 2a-g). The graphical output includes: the (a) GC content and (b) entropy distributions for all reads in the dataset, as well as only the unique reads (when the copy number is not considered). It also includes (c) the average position-by-position quality and (d) proportion of each nucleotide, (e) the copy number distribution of the reads, and (f) a list of the 50 most frequent reads. These graphical outputs have been chosen to visually detect the most frequent sequencing instrument errors such as scanner calibration, quality drops due to mechanical disturbances, and sample and library preparation errors. The entropy of each individual read is calculated using the formula , where p i is the proportion of each of the four considered nucleotides (A, T, C, G, and N for unknown characters) in each given read. A short execution trace (g) is available for each window and contains a summary of the previously applied step. The pop-up filter option (Figure 2h) opens a list of tasks that can be performed at each given step of the analysis. The “Exclude Reads Containing Subsequences” option opens a new window, allowing the user to define subsequences to be used in the filtration process. At any point during the session, the user can save a detailed step-by-step report containing all data, which can be used to re-construct the presented graphs using third-party software such as Excel, Matlab, R, etc.
Results and Discussion
Linux and windows versions
The core code of Slim-Filter is written in standard C++ and is available in both Windows and Linux versions. The .Net chart controls are used to display statistical properties. In case of very large input datasets and the limited amount of main memory for Windows desktop computers, performance will depend on the frequency of garbage collection performed by the Windows operating system. An estimate of the required memory for different reads’ file sizes can be found on the supplementary website.
The Linux version lacks a graphical user interface and represents a single-step execution command line application. The Linux version also requires a full set of parameters to be present in the command line.
We see Slim-Filter as part of a line of Windows-based applications focused on moving basic (quality assessment, search, mapping, and de-novo assembly) Next Generation Sequencing data analysis tasks from specialized computational facilities to the investigator’s desktop computer. Future versions of Slim-Filter will support paired-end reads as well as reads of flexible sizes generated by the 454 Life Sciences GS FLX and the Ion PGM™ and Ion Proton™ (Life Technologies) Sequencing instruments.
Slim-Filter has been developed with the goal of providing individual investigators with integrated sequencing reads analysis, curation, and manipulation capabilities. It allows the user to assess quality, collect statistics, and perform basic data manipulation tasks on a set of short reads of equal sizes. Multiple error types such as biases at the beginning of the reads, damaged sequencing cycles, sequencing of adapters, and a drop in quality scores at any position in the reads can be treated or trimmed under both Windows and Linux versions of the program. Slim-Filter supports the fasta, fastq, and AS file formats. Setup files for Windows 64-bit operating systems and binary files for the Linux operating system are available at http://www.bioinfo.uh.edu/Slim_Filter.
Availability and requirements
Project name: Slim-Filter
Project home page: http://www.bioinfo.uh.edu/Slim_Filter
Operating system(s): Windows 64 bit, Linux
Programming language: VC++/C++
Other requirements: Microsoft.NET Framework 3.5 or higher
Martínez-Alcántara A, et al: PIQA: pipeline for Illumina G1 genome analyzer data quality assessment. Bioinformatics. 2009, 25: 2438-2439. 10.1093/bioinformatics/btp429.
Morgan M, et al: ShortRead: a bioconductor package for input, quality assessment and exploration of high-throughput sequence data. Bioinformatics. 2009, 25: 2607-2608. 10.1093/bioinformatics/btp450.
Whiteford N, et al: Swift: primary data analysis for the Illumina Solexa sequencing platform. Bioinformatics. 2009, 25: 2194-2199. 10.1093/bioinformatics/btp383.
Ewing B, Green P: Base-calling of automated sequencer traces using Phred. II Error probabilities. Genome Res. 1994, 8: 186-194.
Lassmann T, et al: TagDust - a program to eliminate artifacts from next generation sequencing data. Bioinformatics. 2009, 25: 2839-2840. 10.1093/bioinformatics/btp527.
Schröder J, et al: SHREC: a short-read error correction method. Bioinformatics. 2009, 25: 2157-2163. 10.1093/bioinformatics/btp379.
Wong T, et al: Correct short reads with high error rates for improved sequencing result. Int J Bioinforma Res Appl. 2009, 5: 224-237. 10.1504/IJBRA.2009.024039.
Francis YL, Chin , et al: Finding optimal threshold for correction error reads in DNA Assembling. BMC Bioinforma. 2009, 10 (Suppl 1): S15-10.1186/1471-2105-10-S1-S15.
Zhao X, et al: EDAR: An Efficient Error Detection and Removal Algorithm for Next Generation Sequencing Data. J Comput Biol. 2010, 17 (11): 1549-1560. 10.1089/cmb.2010.0127.
Slim-Filter was developed with the support of the Center for BioMedical and Environmental Genomics. Additional funding includes: Department of Homeland Security Science and Technology Directorate (awards HSHQDC-08-C-00183 and NBCHC070054 to Y.F) and Biomedical Informatics Research Training Grant (NLM Grant 5 T15 LM07093-18 to M.R.).
The authors’ declare that they have no competing interests.
GG has implemented the Windows and Linux versions of Slim-Filter and constructed the first draft of the paper. AM-A and WW analyzed various types of sequencing biases/errors and helped identify appropriate ranges for the statistical parameters to be monitored as well as the data manipulation tasks to be implemented. JJH, EB, KK, SG, and MR participated in the design, development and testing of Slim-Filter. YF developed the core C++ classes used in Slim-Filter and supervised the project. All authors have read and approved the final manuscript.
