Evaluation of geneexpression clustering via mutual information distance measure
BMC Bioinformatics volumeÂ 8, ArticleÂ number:Â 111 (2007)
Abstract
Background
The definition of a distance measure plays a key role in the evaluation of different clustering solutions of gene expression profiles. In this empirical study we compare different clustering solutions when using the Mutual Information (MI) measure versus the use of the well known Euclidean distance and Pearson correlation coefficient.
Results
Relying on several public gene expression datasets, we evaluate the homogeneity and separation scores of different clustering solutions. It was found that the use of the MI measure yields a more significant differentiation among erroneous clustering solutions. The proposed measure was also used to analyze the performance of several known clustering algorithms. A comparative study of these algorithms reveals that their "best solutions" are ranked almost oppositely when using different distance measures, despite the found correspondence between these measures when analysing the averaged scores of groups of solutions.
Conclusion
In view of the results, further attention should be paid to the selection of a proper distance measure for analyzing the clustering of gene expression data.
Background
In recent years, DNA microarray technology has become a vital scientific tool for global analysis of genes and their networks. The new technology allows simultaneous profiling of the expression levels of thousands of genes in a single experiment. At the same time, the successful implementation of microarray technology has required new methods for analyzing such large scale datasets. Clustering is a central analysis method of geneexpressions that has been implemented extensively in various works and applications [1â€“5]. The primary goal is to cluster together genes or tissues that manifest similar expression patterns [1]. The underlying assumption is that coexpressed genes or tissues with correlated pathways may share common functional tasks and regulatory mechanisms. Similar expression patterns might offer insights into various transcriptional and biological processes [6â€“8].
Many clustering algorithms depend heavily on 'similarity' or 'distance' measures (although not necessarily a distance function that satisfy all mathematical conditions of a metric) that quantify the degree of association between expression profiles. The definition of the distance measure is a key factor for a successful identification of the relationships between genes and networks [6]. Different similarity measures are likely to result in different clustering, although based on the same expression data.
Despite the crucial influence of the similarity measure upon the clustering results, there are fewer publications on this subject in the bioinformatics literature. Many publications focus on the efforts to optimize and justify the implemented biological processes and the clustering algorithms, while the similarity measures are often selected by default [6, 8, 16, 37â€“39]. As indicated in [16]: "Clustering coexpressed genes usually requires the definition of 'distance' or 'similarity' between measured datasets, the most common choices being Pearson correlation or Euclidean distance... it is widely recognized that the choice of the distance may be as crucial as the choice of the clustering algorithm itself (D'haeseleer et al., 2000). However, as pointed out by Brazma and Vilo (2000), the appropriateness of similarity measures has not been systematically explored and these measures are used on an adhoc basis." Many publications use traditional clustering algorithms (e.g., Kmeans, Self Organizing Maps and Artificial Neural networks) that have roots in conventional dataextensive research fields, such as signal or image processing. In these fields, the similarity measures rely on the unique characteristics of the specific data structure. For example, in signal processing it is commonly assumed that identical codeword vectors are distorted by white noise components during transmission. Under such an assumption, it is reasonable to use a vectorquantizer encoder which is based on the Euclidean distance [9]. We claim that the same reasoning is not necessarily applicable to the analysis of gene expression profiles. Thus, further attention should be paid to the selection of a proper distance measure for analyzing the clustering of gene expression data.
In addition to the Euclidean distance, another widely used measure for analyzing and clustering gene expression data is the Pearson correlation coefficient [1, 10â€“14]. It is used despite its underlying assumption on the linear relationships between genes' expressions. As opposed to these measures, it is well known that mutual information (MI) provides a general measurement for dependencies in the data, in particular positive, negative and nonlinear correlations (e.g., [15, 16]). This property is important to identify genes that share inputs to which they respond differently [17].
Within the large body of research on gene expression clustering, there are few publications that systematically explore the appropriateness of chosen similarity measures. Herzel and Grosse (1995) [15] analyze the relationships between various correlation functions and the MI. They emphasize that the MI can detect any kind of dependence between patterns. Michaels et al. (1998) [17] present a strategy for the analysis of largescale quantitative gene expression data from time course experiments. They consider two distance measures: the well established Euclidean distance and a normalized MI. The authors present their approach mainly to demonstrate the essence of the MI measure, and state that further study is required to assure robustness. This paper follows their suggestion and uses known datasets to measure the robustness of clustering solutions based on the Euclidean distance, the Pearson correlation and a normalized MI measure. Steuer et al. (2002) [16] and Daub et al. (2004) [18] investigate the use of MI as a distance measure for gene expression data. They also focus on the comparison between the MI and the Pearson correlation measures.
Most of the above papers, with the exception of Daub et al (2004) [18], mention the similarity between the MI measure and the conventional ones. In particular, Michaels et al. (1998) [17] indicate that the Euclidean distance and the MI measure have a high degree of correspondence. Steuer et al. (2002) [16] conclude that within the investigated dataset there seems to be almost a onetoone correspondence between the MI and the Pearson correlation measures. A similar observation is supported in this study by finding a high correspondence level in the behaviour (e.g., trends) of average scores that are based on different distance measures. Nevertheless, this study shows that within the analyzed datasets, the MIbased scores better differentiate among clustering solutions of different quality when compared to the other distance measures.
This paper proposes a procedure to evaluate the MI between gene expression patterns. Consequently, by using several public gene expression datasets, it compares the MI measure with respect to both the Euclidean distance and the Pearson correlation. The comparison includes a consistency examination upon clustering solutions of different quality in terms of the number of errors. The clustering is carried out by using normalized homogeneity and separation functions that provide a uniform scale for the examination. The results of the first experiment clearly show that the MI outperforms the conventional measures by yielding a more significant differentiation among clustering solutions. Next, the paper employs the MI measure to evaluate the solutions of four recognized clustering algorithms over a yeast cellcycle database [19]. This known database has been traditionally used to examine various algorithms and techniques for gene expression analysis [5, 20, 21]. The results show that the sIB algorithm [32, 33], which is originally based on a mutualinformation criterion, obtains better MIbased homogeneity and separation scores than those provided by the Kmeans, the CLICK and the SOM algorithms [5, 21]. These results totally change when evaluating the same solutions by the Pearson correlation based homogeneity and separation scores.
The remainder of paper is organized as follows. The Results section describes two experiments: the first experiment compares the robustness of the distance measures and the second experiment evaluates the solutions of known clustering algorithms by both the MI based scores and the Pearson correlation based scores. The Discussion and Conclusion sections follow the Results section. The Methods section addresses the compared distance measures and their implementation to clustering; the assessment of the quality of the clustering solutions, and the compared clustering algorithms.
Results
Experiment 1: Robustness of compared distance measures
The underlying idea in this experiment was to evaluate the performance of the three distance measures based on clustering solutions with a known number of clustering errors. Given a dataset with true twoclusters solution, we generated several erroneous solutions having a different number of errors. Clustering errors were generated by transferring samples from their true cluster to the erroneous one. Given a dataset with N samples correctly clustered into two groups, the maximum number of errors is generated by misclassifying N/2 samples (misclassifying l samples is equivalent to misclassifying the remaining Nl samples). Since the number of different solutions with l errors out of N samples grows exponentially with the number of errors (up to l = N/2), the solutions with more than a single error were generated randomly (without repetition) to obtain 50â€“60 different solutions depending on the size of the dataset.
In the next stage, the generated clustering solutions were grouped by their quality level, i.e., by the number of errors with respect to the true solution. The average homogeneity and separation scores were calculated for each group based on each of the three similarity measures. Finally, the "robustness" of each similarity measure was defined and evaluated according to the conformation with the following two criteria.

A monotonic relationship between the obtained scores and the quality of clustering solutions. The smaller is the number of errors in a solution, the better should be its homogeneity and separation scores and vice versa.

Statisticallysignificant differentiation between clustering solutions of different quality level. The average homogeneity and separation scores for each similarity measure and for each group were evaluated empirically from the experiments. Accordingly, it is expected that scores of groups of different quality will significantly differ from each other. Such a differentiation assures that the scores of highquality clustering solutions will not get "mixed up" with the scores of lowquality clustering solutions, hence, our use of the term "robustness".
The first criterion is mainly affected by the trend of the averaged scores of clustering solutions as their quality changes. The second criterion is more rigorous in a sense, and tries to establish a statisticallysignificant differentiation between groups of clustering solutions based on the scores' mean values and the scores' standard deviations. In fact, a similarity measure that complies with the second criterion guarantees a high power of a statistical test. In our case, this criterion decreases the Type II statistical error, thus the probability to reject a false null hypothesis that two different clustering solutions belong to the same quality group.
Datasets
In this part of the experiment we used four public geneexpression datasets that are listed in Table 1. Each dataset contains two types of samples with a clear biological distinction, leading to a 'true' biclustering solution. For this reason, we focused here on sample (tissue) clustering rather than gene clustering, whose 'true' solution is less evident. Each of the first three datasets is composed of two types of tumorous samples, originally taken from Su et al. (2002) [22]. These datasets were processed on the Human genome U95 Affymetrix microarrays. The gene pool was obtained by selecting the most upregulated genes for each sample. We used the data, which is available at [23], as it was used by Monti et al. (2003) [24]. The fourth dataset is composed of healthy and tumorous samples of colon tissue, known as the "Colon cancer dataset" from Alon et al. (1999) [3]. Of the ~6000 genes represented in the experiment, 2000 genes were selected based on the confidence in the measured expression levels. This dataset is available at [25].
Experimental results
The average homogeneity and separation scores for each group were normalized to provide a uniform scale for the comparison of the three similarity measures. The normalization of the average scores were calculated with respect to the mean and the variance values of the group of singleerror solutions. Thus, the obtained Zscores reflect the difference in the average values in terms of the number of standard deviations of the singleerror group of solutions. Note that the homogeneity and separation scores of the singleerror groups of solutions were approximately normally distributed for almost all the distance measures and all the datasets. For example, in Figure 1 the frequencies of the MIbased separation scores of the singleerror group of solutions from dataset 1 are depicted.
In the first experimentation stage we found that all three similarity measures fully meet our first criterion of "robustness". Namely, for all the distance measurements and for all the datasets the scores demonstrated a consistent capability to evaluate the quality of the clustering solutions. The results in Figures 2, 3, 4 and 5 clearly show that homogeneity and separation scores worsen as the number of errors increases. Moreover, similar scores were obtained for clustering solutions with an equivalent number of errors, resulting in a symmetric score function with respect to the number of errors.

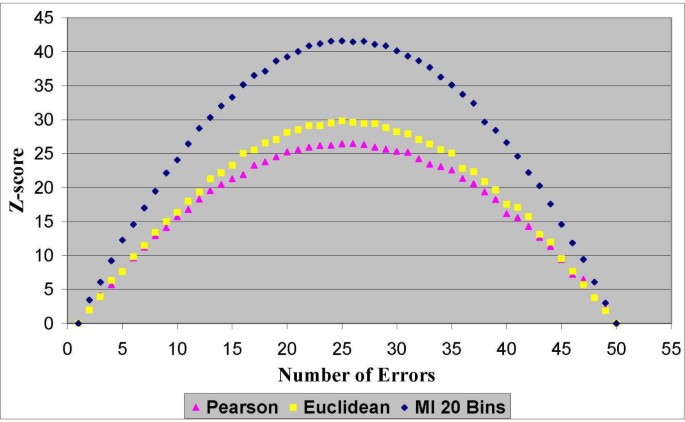

In terms of the second criterion, the results from all four datasets (two datasets are depicted in Figures 2, 3, 4 and 5 and the other two are depicted in the additional appendix file [56]) clearly show that the MIbased scores outperform the Pearson correlation and the Euclidean distance. The MIbased homogeneity and separation yields a more significant differentiation among clustering solutions of different quality in terms of their errors. For example, in clustering solutions of dataset 1 the average ratio between the MI normalized homogeneity score and the Pearson/Euclidean normalized homogeneity score is 1.5. To give a sense of this ratio in terms of the normal probability distribution which is supported in Figure 1, let us consider the difference between singleerror solutions and doubleerror solutions. In such a case the normalized homogeneity score based on Pearson/Euclidean measures stands on 2 standard deviations (with a corresponding p value of 0.023), while the normalized homogeneity score based on the MI measure stands on 3.45 standard deviations (with a corresponding p value of 0.0003). We find that for any number of clustering errors higher than one, the obtained MIbased scores are statistically more significant than the Pearsonbased or Euclideanbased scores. Therefore, the use of MIbased scores results in a smaller typeII error (or a higher power of test) in comparison to the other distance measures when used to evaluate the quality of a clustering solution. For example, Figures 2 and 3 present respectively the homogeneity and separation scores based on the three compared distance measures for dataset 1. Figures 4 and 5 present the same scores for dataset 2 (figures for the other datasets can be found in the additional appendix file [56]). The fourth (fifth) column in Table 1 presents the minimum ratio between the MI homogeneity (separation) score and the Pearson/Euclidean homogeneity (separation) score for solutions with 10 errors.
Despite the intrinsic tradeoff between the homogeneity and the separation scores, the MIbased scores clearly dominate the other distance measures for all the number of errors. Similar results were obtained for all datasets (See additional file 1, Section 1: The full results of the robustness comparison of the Mutual Information measure to the Euclidean distance and to the Pearson correlation coefficient). Possible explanations for the domination of the MIbased scores on these datasets are given in the Discussion section. From the results it was impossible to distinguish between the Pearson correlation and the Euclidean distance, as expected from functionallyrelated scores. It is to be noted that the MIbased scores depicted in the above figures were generated by using histograms with 20 bins to estimate the pairwise MI between expression patterns. Nonetheless, the same conclusions regarding the superiority of the MIbased measures were obtained for a large range of different numbers of bins (between 10 to 30 bins) that comply with the heuristic rules mentioned in the Methods section.
Experiment 2: Comparison of known clustering algorithms by the MI measure
In the above experiment we compared the robustness of the MI measure to that of the Pearson correlation and the Euclidean distance. Within the examined datasets, it was found that the MI measure is statistically superior to the conventional measures in the detection of clustering errors. Note that the comparison has been performed with respect to known final clustering solution independently of the compared clustering algorithms. In this experiment, we take one step ahead and compare the effectiveness of several known clustering algorithms. In particular, we grade the best solutions of the clustering algorithms by the MIbased homogeneity and separation scores and then compare it to the Pearsonbased scores.
Evidently, the use of different clustering algorithms often results in different solutions. There is a large body of research that compares the performance of different clustering algorithms with respect to geneexpression levels (e.g., [11, 26â€“28]). Nevertheless, these papers do not analyze the solutions by the MIbased measures, as we do here.
This experiment compares four clustering algorithms that have been widely applied to geneexpression patterns (referred to as the elements to be clustered). For the purpose of comparison, we selected several algorithms that are based on distant methodological concepts that are, except for one (the sIB), unrelated directly to information theory. Potentially, the MI measure could be integrated into each of the algorithms by some procedural modifications, leading to clustering solutions that better conform with the MI metric. Nevertheless, we prefer to use and analyze the conventional algorithmic forms as being used universally. To this end, our comparison of these algorithms does not indicate which one is better, but rather which one of them produces clustering solutions that are more confirmative with the MIbased measures. This purpose is particularly important in view of previous publications that concluded that there is a high degree of conformity between the three distance measures [16, 17]. Apparently, despite this conformity, the implementation of these distance measures in different algorithms lead to diverse clustering solutions.
The four compared algorithms are the Kmeans [29], the SOM [30], the Click [31] and the sIB [32, 33]. A comparison of part of these algorithms can be found in GatViks et al. (2003) [21] and Shamir and Sharan (2002) [5].
The Yeast cellcycle dataset
The study of the algorithms is based on their clustering solutions over the known dataset of yeast cell cycle [19], available at [34]. The dataset presents 72 experimental conditions of regulated yeast's genes whose transcript levels vary periodically within the cell cycle. The authors used yeast cultures that were synchronized by four independent methods: a factor arrest, elutriation, arrest of a cdc15 temperaturesensitive mutant, and arrest of a cdc28 temperature sensitive mutant (an additional 90 min data point in the cdc15 experiment was not used, as in Cho et al., 1998 [35]).
Using periodicity and correlation algorithms (e.g., Pearson correlation), the authors identified 800 genes as being periodically regulated. Note that although the yeast cellcycle dataset has been extensively analyzed previously, its "correct" clustering is unknown. Spellman et al. (1998) [19] assumed that the expression patterns can be correlated to (somewhat arbitrary) five different profiles, representing genes known to be expressed in G1, S, G2, M, and the M/G1 stages, as indicated in the literature. Tamayo et al. (1999) [20], on the other hand, divided the genes into 30 clusters along with the identification of the correlations between genes that belong to different clusters. Shamir and Sharan (2002) [5] compared different clustering solutions with the same dataset based on 5, 6 and 7 clusters, as we do here.
The preparation of the dataset was performed in a similar manner to GatViks et al. (2003) [21]. We used the expression profiles of genes which have up to three missing entries over the 72 conditions. The missing entries in each gene were completed with the average of its present entries. The use of rowaverage was implemented since it is the most commonly used method to treat missing data, despite the fact that other methods, such as KNNimpute and SVDimpute, were found to be more robust to missing value estimation [36].
Experimental results
The compared algorithms were tested with respect to the yeast cellcycle dataset to obtain their best clustering solutions with 5, 6 and 7 clusters. The comparison between the algorithms was performed between solutions with the same number of clusters. Clustering solutions were graded by the MIbased homogeneity and separation scores (see Methods section). This grading method is conventionally used to determine the quality of a clustering solution when the true solution is unknown [5]. The MI measure was computed by using 6, 8 and 10 bins, in accordance with the proposed heuristics to define the number of bins for 72 conditions. It was found that the number of bins did not change the results of the comparison; hence, in the following we refer only to the results based on 8 bins.

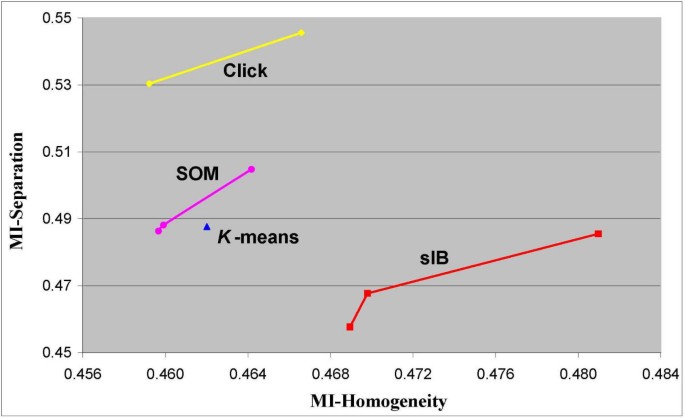

The comparison results for 5 and 7 clusters are given in Figure 6 and Figure 7 respectively (similar results are obtained for 6 clusters â€“ see section 2 in the additional appendix file). The axes indicate the MIbased homogeneity and separation scores. A clustering solution is considered better as the homogeneity score increases, while the separation score decreases. The figures present the best clustering. Thus, for each algorithm, the figures present only those solutions that are not dominated by any other solution of the same algorithm. In the case where there are several nondominated clustering solutions per algorithm, these solutions form an efficiency frontier on the MIbased homogeneityseparation plane. This manner of evaluation of clustering solutions is accepted when the "true" clustering is unknown (e.g., [5]).
In general, we found that the sIB algorithm obtained the best solutions with respect to the MIbased homogeneityseparation scores for all the number of selected clusters: five clusters as shown in Figure 6; six clusters (presented in the additional appendix file); and 7 clusters as shown in Figure 7. All figures present at least one clustering solution of the sIB that dominates the best solutions that were obtained by the Kmeans, the SOM and the Click algorithms. The MIbased homogeneity scores of the sIB solutions in the efficiency frontier are significantly higher than those obtained by the other algorithms. In most cases, the same observation is also true with respect to the MIbased separation scores.
When considering all the clustering solutions (that are not necessarily part of the efficient frontier, and therefore are not necessarily presented in the figures) we found the following results (see Table 2). Eighty percent of the sIB solutions with 5 clusters have higher MIbased homogeneity scores with respect to the solutions obtained by the other algorithms. One hundred percent of the sIB solutions with 6 and 7 clusters have higher MIbased homogeneity scores with respect to the solutions obtained by the other algorithms. Thirty percent of the sIB solutions with 5, 6 clusters have lower MIbased separation scores with respect to the solutions obtained by the other algorithms. Forty eight percent of the sIB solutions with 7 clusters have lower MIbased separation scores with respect to the solutions obtained by the other algorithms. When analyzing all the obtained solutions with respect to both scores simultaneously, we found that 30% of the sIB solutions with 5 and 6 clusters have higher MIbased homogeneity and separation scores than those obtained by the other algorithms. Finally, for 5, 6 and 7 clusters' solutions there exists at least one sIB solution that has better MIbased homogeneity and separation (combined) scores with respect to all the solutions obtained by the other algorithms. Two of these solutions are the lowerleft solutions in the sIB efficiency frontiers shown in Figure 6 and Figure 7.
Note that when scoring the different algorithms with respect to the Euclidean or the Pearson measures, the (relative) ranking can be totally different. For example, Figure 8 and Figure 9 present respectively the efficiency frontier on the Pearsonbased homogeneityseparation plane for solutions with 5 and 7 clusters that are obtained by the same four compared algorithms. Note that once the solutions are evaluated by a different distance measure, the ranking obtained is almost the opposite of the MIbased ranking. In this case, the sIB algorithm obtains the worst results relative to all the other algorithms. For 7clusters solutions the Kmeans algorithm obtains the best solution. For 5clusters solutions there is no clear dominate solution. However the Click solutions, which have the highest Homogeneity scores, obtain Separation scores that are very competitive to the solutions of the SOM and the Kmeans. These results emphasize once again that despite the conformity between the compared distance measures, as informed in the literature [16, 17], further attention should be paid to the selection of a distance measure for analyzing the clustering of gene expression data.
Discussion
This paper presents two related experiments. In the first experiment, which is based on known clustering solutions, we show the statistical superiority of the average MIbased measure independently of the selected clustering algorithm. In the second experiment, we show that the use of different distance measures can yield very different results when evaluating the solutions of known clustering algorithms. This is particularly true when looking at the score of the "best clustering solution" rather than the averaged score of a group of solutions, as we did in Experiment 1. This important fact is often overlooked in the literature. The essential question "which distance measure to use?" remains without a definitive answer, yet, in view of the first experiment, we propose to further investigate it by integrating the MIbased distance measure into known clustering algorithms.
The statistical superiority of the MIbased score in the first experiment can be attributed to several appealing properties of this measure, as elaborated in the Methods section. The first property is the use of MI as a generalized measure of correlation between variables, a property which seems valuable for gene expression data [15â€“17]. The second property is the robustness of the MI measure with respect to missing expression values [46]. Finally, our use of equalprobability bins to estimate the MI score provides considerable protection against outlier, since the contributions of all expression values within a bin to this estimation are identical, regardless of their actual values.
We can indicate two possible reasons why the sIB algorithm outperforms the other clustering algorithms with respect to the MIbased homogeneity and separation scores. The first reason is the nature of the stochastic transition matrix (STM) which is used by the sIB as an input. Although the STM is generated from a conventional pairwise similarity matrix, once it is formed it represents the (dis)similarity relations between all the patterns in the dataset. Based on the STM, the sIB associates an expression profile to a cluster by using the joint probability distribution of all the expression patterns in the data. This is a possible explanation as to why the sIB generates solutions with higher MIbased homogeneity score than those obtained by the other algorithms that rely only on the pairwise distances, or only on the patterns in the particular associated cluster. Moreover, the construction of a joint probability distribution that reflects the associations between all the patterns in the dataset provides an additional normalization procedure that naturalizes external effects, such as measuring and experimental errors.
The second possible reason for the superiority of the sIB is evidently the use of MI in its objective function. The sIB aims at minimizing the loss of information on the geneexpression profiles during the clustering process. The algorithm objective is to find a clustering solution that (locally) maximizes the mutual information between clusters and a relevance variable which is associated with the gene patterns [32]. Note, however, that the use of MI in the sIB objective function is considerably different than the use of MI when computing the homogeneity and separation scores. The former is based on the joint distribution of all gene patterns, while the latter is based on the joint distribution between each gene and its associated cluster. Moreover, our way to derive the joint distribution of patterns and clusters (by a twodimensional histogram of empirically expression levels) is very different than the exponential transformation used by the sIB to obtain the joint distribution of patterns. Nevertheless, it seems that although these definitions and calculations are different, they are sufficiently associated such that the sIB produces a clustering solution with high MIbased scores.
Conclusion
In this work we analyze the performance of the Mutual Information (MI) distance measure for clustering of geneexpression data. In comparison to the Pearson correlation and the Euclidean distance, the MI measure is known to have some advantages: it is a generalized measure of statistical dependence in the data, and it is reasonably immune against missing data and outliers. In this work we show that the average MI measure also yields a higher power of test among different clustering solutions, thus, this measure is potentially more robust for differentiating erroneous clustering solutions. A comparative study of known clustering algorithms reveals that their best solutions are ranked almost oppositely when using different distance measures. In view of these results, further attention should be paid to the selection of a proper distance measure for the evaluation of clustering of gene expression data. One future direction is the integration of the MImeasure in known clustering algorithms. Another potential research is to implement Daub et al. (2004) [18] methods in the robustness analysis.
Methods
Similarity measures
This section discusses three similarity measures and their properties: the Euclidean distance and the Pearson correlation that are commonly used measures in gene expression clustering [6, 37â€“39] and the proposed mutual information (MI) measure. These measures quantify a pairwise distance between expression profiles over n conditions that are represented by the two vectors x = (x_{1},..., x_{ n }) and y = (y_{1},..., y_{ n }).
Euclidean Distance and Pearson Correlation
The Euclidean distance between two expression profiles is given by
It measures similarity according to positive linear correlation between expression profiles, which may identify similar or identical regulation [6]. The measure is highly influenced by the magnitude of changes in the measured expression profiles. Therefore, it should be used mainly for expression data that are suitably normalized. When such normalization is used, the Euclidean distance and the Pearson correlation are monotonically related, as indicated below.
Numerous biological researches (e.g., [17, 28, 40, 41]) implemented the Euclidean distance as a similarity measure for gene expression analysis. Most of these publications analyzed similar expression trends, i.e., simultaneous upregulated or downregulated expression levels. From a biological viewpoint, a relative up/downregulation of gene expressions is often considered more important than the amplitude absolute changes [28].
The Pearson correlation coefficient between two expression patterns (e.g., [1, 10â€“14]) is defined as
where \stackrel{\xc2\xaf}{x}, \stackrel{\xc2\xaf}{y} denote the average patterns level.
The Pearson correlation reflects the degree of linear relationship between two patterns. It ranges between 1 to +1, reflecting respectively a perfect negative (positive) linear relationship between the patterns. A zero correlation value implies that there is no linear relationship between the two patterns, yet it gives no indication regarding nonlinear relationships that might exist between the patterns.
The correlation coefficient is invariant under any scalar transformation of the data. Accordingly, two expression profiles that have "identical" shapes with different magnitudes will obtain a correlation value of 1. The ability to measure (dis)similarities according to positive and negative correlations can help to identify control processes that antagonistically regulate downstream pathways [6]. Nonetheless, the majority of the publications utilize only the positive correlation range, while others map the entire range of the correlation coefficient to obtain values between 0 and 1.
Gene expression measurements, like other empirical measurements, suffer from noise effects. Variations in the measurements might come from many sources: intrachip defects, variation within a single lot of chips, variation within an experiment, and biological variation for a particular gene [42]. Both the Pearson correlation and the Euclidean distance are sensitive to noise effects and outliers. A single outlier could transform the Euclidean distance to an unbounded value, while transforming the Pearson correlation to any value between 1 and 1 [43]. Both measures are easily distorted when the expression levels are not uniformly distributed across the expression pattern. For example, two expression patterns with one high measured value at the same cellular condition will obtain a high correlation coefficient score, regardless of the expression values of the other cellular conditions [44]. Similarly, a large difference in a single expression level at the same cellular condition will lead to a high Euclidean distance, regardless of the other expression levels. In this way, outlying points can bias the Correlation coefficient and the Euclidean distance.
Both the Pearson correlation and the Euclidean distance require complete gene expression profiles as input. However, geneexpression microarray experiments often generate datasets with missing expression values. Therefore, another source of uncertainty when implementing these measures is the need to use methods for estimating missing data, such as row average or singular value decomposition [26, 36].
Mutual Information
The Mutual information (MI) provides a general measure for dependencies in the data, in particular, positive, negative and nonlinear correlations. It is a well known measure in information theory [45] that has been used to analyze geneexpression data [6, 16, 17, 44, 46]. The used MI measure requires the expression patterns to be represented by discrete random variables. Given two random variables X, Y with respective ranges x_{ i }âˆˆ A_{ x }, y_{ j }âˆˆ A_{ j }and probability distributions functions P(X = x_{ i }) â‰¡ p_{ i }, P(Y = y_{ j }) â‰¡ p_{ j }, the Mutual information between two expression patterns, represented by random variables X and Y, is given by
The MI is always nonnegative. It equals zero if and only if X and Y are statistically independent, meaning that X contains no information about Y and vice versa. A zero MI indicates that the patterns do not follow any kind of dependence, an indication which is impossible to obtain from the Pearson correlation or the Euclidean distance [15]. This property makes the MI a generalized measure of correlation, which is advantageous in gene expression analysis. For example, if one gene acts as a transcription factor only when it is expressed at a midrange level, then the scatter plot between this transcription factor and the other genes might closely resemble a normal distribution rather than a linear model. The Pearson correlation coefficient under this scenario will obtain a low score, while the MI measure can obtain a high score [44].
Another important feature of the MI is its robustness with respect to missing expression values. In fact the MI can be estimated from datasets of different sizes. This is advantageous in analyzing expression datasets that contain a certain amount (up to 25%) of missing values [46].
The MI between a pair of expression patterns is upper bounded by their marginal entropies. Accordingly, the MI measure exhibits a low value if the marginal entropies are low, even if the patterns are completely correlated. Therefore, there is a need to normalize the MI measure, giving a high score for highly correlated sequences, independent of their marginal entropies. There are several ways to carry out such normalization. Michaels et al. (1998) [17] normalize the MI measure by dividing it by the maximal marginal entropy of the considered sequence. Steuer et al. (2002) [16] suggest a rankordering procedure. We use a partitioning method for equalprobability bins, where each bin contains approximately the same number of data points. The width of each bin is determined by the local density of the measured expression levels. Besides the obtained normalization, the proposed method is advantageous also in terms of outlier protection. The MI treats each expression level equally, regardless of the actual value, and thus is less biased by outliers.
As noted above, the use of the discrete form of the MI measure requires the discretization of the continuous expression values. The most straightforward and commonly used discretization technique is to use a histogrambased procedure [16, 18, 44]. We use a twodimensional histogram to approximate the joint probability density function of two expression patterns. We use the same number of bins for all expression patterns. However, the bins in each expression pattern are determined independently according to the density of the expression values. The joint probabilities are then estimated by the corresponding relative frequencies of expression values in each bin in the twodimensional histogram. This estimation requires the sorting of expression values with a computational complexity of O(n logn), where n is the number of expression values. Such sorting is not required when calculating the Pearson coefficient or the Euclidean distance measure. The number of bins should be moderate enough to allow good estimates of the probability function. If this number is too small or too large, then all bins will contain approximately the same number of expression values. In such a case the joint distributions of all pairs of expression patterns will be similar and will lead to the same MI value. There is no optimal solution to choose the number of bins, since it depends on data normalization and on the particular biological application [18]. Consequently, the number of bins is often obtained heuristically. We follow Sturges (1926) [47] and Law and Kelton (1991) [48] and use the following simple lower/upper bounds on the number of bins:
M_{ l }= âŒŠ1 + log_{2}nâŒ‹ and M_{ u }= \sqrt{n}. In the Results section we show that within this range for the number of bins, the MI measure outperforms the other distance measures.
Assessment of clustering quality
The homogeneity and the separation functions are often used to determine the quality of a clustering solution when the true solution is unknown [5]. When considering similarity measures like the MI and the Pearson correlation, high homogeneity implies that elements in the same cluster are very similar to each other; while low separation implies that elements from different clusters are very dissimilar to each other. The two criteria are widely used in gene expression analysis, as well as in other fields [12, 21, 28, 31, 39, 49].
Consider a set of N elements (genes or samples represented by expression patterns or profiles) X â‰¡ {X_{1}, X_{2}, ..., X_{ N }} divided into k clusters. Denote by X_{ i }and C(X_{ i }) the expression pattern of element i and the expression pattern of its cluster respectively, then the homogeneity is given by
where D(Â·) represents a given similarity measure, i.e., the Euclidean distance, the Pearson correlation or the Mutual Information. The solution separation score is evaluated by the weighted average similarity between cluster expression patterns: denote the expression patterns of clusters t_{1},...,t_{ k }, by C_{ t1 },...,C_{ tk }, then, the average separation is given by
where N_{ i }, N_{ j }are the number of elements in cluster t_{ i }, t_{ j }respectively. The homogeneity and the separation are typically conflicting functions â€“ usually the better is the homogeneity of a solution, the worse is its separation, and vice versa.
Known Clustering Algorithms
The underlying concepts and the parameters of each of the clustering algorithms are given in an additional file 1, section 2. The Kmeans was implemented by Matlab procedures. The SOM algorithm was implemented by GeneCluster 2.0 [20, 49]. The Click was implemented by Expander [50, 51]. The sIB was implemented by IBA_1.0 [52]. Further information regarding common unsupervised clustering and learning methods can also be found in [53â€“55].
References
Eisen MB, Spellman PT, Brown PO, Botstein D: Cluster analysis and display of genome wide expression patterns. Proceedings of the National Academy of Sciences USA 1998, 95: 14863â€“14868. 10.1073/pnas.95.25.14863
BenDor A, Shamir R, Yakhini Z: Clustering gene expression patterns. Journal of Computational Biology 1999, 6: 281â€“297. 10.1089/106652799318274
Alon U, Barkai N, Notterman D, Gish K, Ybarra S, Mack D, Levine AJ: Broad patterns of gene expression revealed by clustering analysis of tumor and normal colon tissues probed by oligonucleotide arrays. Proceedings of the National Academy of Sciences USA 1999, 96: 6745â€“6750. 10.1073/pnas.96.12.6745
Tavazoie S, Hughes JD, Campbell MJ, Cho RJ, Church GM: Systematic determination of genetic network architecture. Nature genetics 1999, 22: 281â€“285. 10.1038/10343
Shamir R, Sharan R: Algorithmic approaches to clustering gene expression data. In Current Topics in Computational Biology. Edited by: Tao J, Ying X, Michael QZ. MIT Press; 2002.
D'haeseleer P, Liang S, Somogyi R: Genetic network inference: from coexpression clustering to reverse engineering. Bioinformatics 2000, 16: 707â€“726. 10.1093/bioinformatics/16.8.707
Ge H, Liu Z, Church G, Vidal M: Correlation between transcriptome and interactome mapping data from saccharomyces cerevisiae. Nature Genetics 2001, 29: 482â€“486. 10.1038/ng776
Brazma A, Vilo J: Gene expression data analysis. FEBS Letters 2002, 480: 17â€“24. 10.1016/S00145793(00)017725
Gersho A, Gray RM: Vector Quantization and Signal Processing. Boston: Kluwer Academic Publisher; 1992.
Alizadeh AA, Eisen MB, Davis RE, Ma C, Lossos IS, Rosenwald A, Boldrick JC, Sabet H, Tran T, Yu X, Powell JI, Yang L, Marti GE, Moore T, Hudson J, Lu L, Lewis DB, Tibshirani R, Sherlock G, Chan WC, Greiner TC, Weisenburger DD, Armitage JO, Warnke R, Staudt LM: Distinct types of diffuse large Bcell lymphoma identified by gene expression profiling. Nature 2000, 403: 503â€“511. 10.1038/35000501
BenDor A, Bruhn L, Friedman N, Nachman I, Schummer M, Yakhini Z: Tissue classification with gene expression profiles. Journal of Computational Biology 2000, 7: 559â€“583. 10.1089/106652700750050943
Xing EP, Karp RM: CLIFF: clustering of highdimensional microarray data via iterative feature filtering using normalized cuts. Bioinformatics 2001, 17: 306â€“315. 10.1093/bioinformatics/17.8.744
Chen X, Cheng ST, So SK, Fang ST, Barry C, Higgins J, Lai K, Ji J, Dudoit S, Ng I, Vanderijn M, Botstein D, Brown PO: Gene expression patterns in human liver cancers. Molecular Biology of Cell 2002, 13: 1929â€“1939. 10.1091/mbc.02020023.
Van Delft JH, Van Agen E, Van Breda SG, Herwijnen MH, Staal YC, Kleinjans JC: Discrimination of genotoxic from nongenotoxic carcinogens by gene expression profiling. Carcinogenesis 2004, 25: 1265â€“1276. 10.1093/carcin/bgh108
Herzel H, Grosse I: Measuring correlations in symbols sequences. Physica A 1995, 216: 518â€“542. 10.1016/03784371(95)00104F
Steuer R, Kurths J, Daub CO, Weise J, Selbig J: The mutual information: Detecting and evaluating dependencies between variables. Bioinformatics 2002, 18: 231â€“240.
Michaels G, Carr D, Askenazi M, Fuhrman S, Wen X, Somogyi R: Cluster analysis and data visualization of largescale gene expression data. Pacific Symposium on Biocomputing 1998, 3: 42â€“53.
Daub CO, Steuer R, Selbig J, Kloska S: Estimating mutual information using Bspline functions â€“ an improved similarity measure for analysing gene expression data. BMC Bioinformatics 2004, 5: 118. 10.1186/147121055118
Spellman PT, Sherlock G, Zhang MQ, Iyer VR, Anders K, Eisen MB, Brown PO, Botstein D, Futcher B: Comprehensive identification of cell cycleregulated genes of the yeast saccharomyces cerevisiae by microarray hybridization. Molecular Biology of the Cell 1998, 9: 3273â€“3297.
Tamayo P, Slonim D, Mesirov J, Zhu Q, Kitareewan S, Dmitrovsky E, Lander ES, Golub TR: Interpreting patterns of gene expression with selforganizing maps: Methods and application to hematopoietic differentiation. Proceedings of the National Academy of Sciences USA 1999, 96: 2907â€“2912. 10.1073/pnas.96.6.2907
GatViks I, Sharan R, Shamir R: Scoring clustering solutions by their biological relevance. Bioinformatics 2003, 19: 2381â€“2389. 10.1093/bioinformatics/btg330
Su AI, Cooke MP, Ching KA, Hakak Y, Walker JR, Wiltshire T, Orth AP, Vega RG, Sapinoso LM, Moqrich A, Patapoutian A, Hampton GM, Schultz PG, Hogenesch JB: Largescale analysis of the human and mouse transcriptomes. Proceedings of the National Academy of Sciences USA 2002, 99: 4447â€“4465.
Broad Institute, Cancer Program Data Sets[http://www.broad.mit.edu/cgibin/cancer/datasets.cgi]
Monti S, Tamayo P, Mesirov JP, Golub T: Consensus clustering: A resamplingbased method for class discovery and visualization of geneexpression microarray data. Machine Learning 2003, 52: 91â€“118. 10.1023/A:1023949509487
Princeton University Gene Expression Project[http://microarray.princeton.edu/oncology]
Dudoit S, Fridlyand J, Speed TP: Comparison of discrimination methods for the classification of tumors using gene expression data. Journal of the American statistical association 2001, 97: 77â€“87. 10.1198/016214502753479248
Granzow M, Berrar D, Dubitzky W, Schuster A, Azuaje FJ, Eils R: Tumor classification by gene expression profiling: Comparison and validation of five clustering methods. ACM SIGBIO Newsletter 2001, 21: 16â€“22. 10.1145/381371.381384
Chen G, Jaradat SA, Banerjee N, Tanaka TS, Ko MSH, Zhang MQ: Evaluation and comparison of clustering algorithms in analyzing ES cell gene expression data. Statistica Sinica 2002, 12: 241â€“262.
MacQueen J: Some methods for classification and analysis of multivariate observations. In Proc. of the 5th Berkeley Symposium on Mathematical Statistics and Probability: June 21July 18 1965 Edited by: Lucien LC, Jerzy N. 1965, 281â€“297.
Kohonen T: SelfOrganizing Maps. Berlin: Springer; 1997.
Sharan R, Shamir R: CLICK: a clustering algorithm with applications to gene expression analysis. Proceedings of the 8th International Conference on Intelligent Systems for Molecular Biology 307â€“316. August 19â€“23 2000 August 19â€“23 2000
Tishby N, Slonim N: Data clustering by markovian relaxation and the information bottleneck method. In Advances in Neural Information Processing Systems 13: 2000; Denver Edited by: Todd KL, Thomas GD, Volker T. 2001, 640â€“646.
Slonim N: The information bottleneck: Theory and applications. In Ph.D Thesis. TelAviv University, Computer Science Department; 2002.
Yeast cell cycle analysis[http://genomewww.stanford.edu/cellcycle]
Cho RJ, Campbell MJ, Winzeler EA, Steinmetz L, Conway A, Wodicka L, Wolfsberg TG, Gabrielian AE, Landsman D, Lockhart DJ, Davis RW: A genomewide transcirptional analysis of the mitotic cell cycle. Molecular Biology of the Cell 1998, 2: 65â€“73.
Troyanskaya O, Cantor M, Sherlock G, Brown P, Hastie T, Tibshirani R, Botstein D, Altman RB: Missing value estimation methods for DNA microarrays. Bioinformatics 2001, 17: 520â€“525. 10.1093/bioinformatics/17.6.520
Lin SM, Johnson KF: Methods of microarray data analysis 2. Massachusetts USA: Kluwer Academic Publishers; 2002.
Speed T: Statistical analysis of gene expression microarray data. In Interdisciplinary Statistics. Florida: Chapman&Hall/CRC; 2003.
Jiang D, Tang C, Zhang A: Cluster analysis for gene expression data: A survey. IEEE Transactions on Knowledge and Data Engineering 2004, 16: 1370â€“1386. 10.1109/TKDE.2004.68
Genga W, Cosmana P, Baekb JH, Berryc CC, Schaferd WR: Quantitative Classification and Natural Clustering of Caenorhabditis elegans Behavioral Phenotypes. Genetics 2003, 165: 1117â€“1126.
Reich M, Ohm K, Angelo M, Tamayo P, Mesirov JP: GeneCluster 2.0: an advanced toolset for bioarray analysis. Bioinformatics 2004, 20(11):1797â€“1798. 10.1093/bioinformatics/bth138
Glonek GFV, Solomon PJ: Factorial and time course designs for cDNA microarray experiments. Biostatistics 2004, 5: 89â€“111. 10.1093/biostatistics/5.1.89
Hubert PJ: Robust statistics. New York: Wiley; 1981.
Butte A, Kohane IS: Mutual information relevance networks: Functional genomic clustering using pairwise entropy measurements. Pac Symp Biocomput 2000, 5: 415â€“426.
Shannon CE: A mathematical theory of communication. Bell Systems Technical Journal 1948, 27: 623â€“658.
Herwig R, Poustka AJ, Meuller C, Lehrach H, O'Brien J: Largescale clustering of cDNAfingerprinting data. Genome Research 1999, 9: 1093â€“1105. 10.1101/gr.9.11.1093
Sturges HA: The choice of a class interval. Journal of the American Statistical Association 1926, 21: 65â€“66.
Law AM, Kelton WD: Simulation modeling & analysis. NewYork: McGrawHill Co; 1991.
GeneCluster2[http://www.broad.mit.edu/cancer/software/genecluster2/gc2.html]
Sharan R, MaronKatz A, Shamir R: CLICK and EXPANDER: a system for clustering and visualizing gene expression data. Bioinformatics 2003, 19(14):1787â€“1799. 10.1093/bioinformatics/btg232
Expander[http://www.cs.tau.ac.il/~rshamir/expander/expander.html]
Slonim N: Software: IBA_1.0: Matlab Code for Information Bottleneck Clustering Algorithms.2005. [http://www.princeton.edu/~nslonim/]
Everitt B: Cluster analysis. London: Edward Arnold; 1993.
Mirkin B: Mathematical classification and clustering. Boston: Kluwer Academic Publishers; 1996.
Hansen P, Jaumard B: Cluster analysis and mathematical programming. Mathematical Programming 1997, 79: 191â€“215. 10.1016/S00255610(97)000592
Additional Material[http://www.eng.tau.ac.il/~bengal/Gene_appendix.pdf]
