Bluejay 1.0: genome browsing and comparison with rich customization provision and dynamic resource linking
© Soh et al; licensee BioMed Central Ltd. 2008
- Received: 20 February 2008
- Accepted: 22 October 2008
- Published: 22 October 2008
The Bluejay genome browser has been developed over several years to address the challenges posed by the ever increasing number of data types as well as the increasing volume of data in genome research. Beginning with a browser capable of rendering views of XML-based genomic information and providing scalable vector graphics output, we have now completed version 1.0 of the system with many additional features. Our development efforts were guided by our observation that biologists who use both gene expression profiling and comparative genomics gain functional insights above and beyond those provided by traditional per-gene analyses.
Bluejay 1.0 is a genome viewer integrating genome annotation with: (i) gene expression information; and (ii) comparative analysis with an unlimited number of other genomes in the same view. This allows the biologist to see a gene not just in the context of its genome, but also its regulation and its evolution. Bluejay now has rich provision for personalization by users: (i) numerous display customization features; (ii) the availability of waypoints for marking multiple points of interest on a genome and subsequently utilizing them; and (iii) the ability to take user relevance feedback of annotated genes or textual items to offer personalized recommendations. Bluejay 1.0 also embeds the Seahawk browser for the Moby protocol, enabling users to seamlessly invoke hundreds of Web Services on genomic data of interest without any hard-coding.
Bluejay offers a unique set of customizable genome-browsing features, with the goal of allowing biologists to quickly focus on, analyze, compare, and retrieve related information on the parts of the genomic data they are most interested in. We expect these capabilities of Bluejay to benefit the many biologists who want to answer complex questions using the information available from completely sequenced genomes.
- Gene Ontology
- Recommender System
- Genome Browser
- User Profile
- UCSC Genome Browser
The features of Bluejay (Browser for Linear Units in Java) prior to the release of version 1.0 were described in [1, 2]. We briefly summarize them as background information, which is necessary to put the new features of Bluejay 1.0, which have not been described elsewhere, into context.
Bluejay supports Moby , a protocol consisting of a common XML object ontology for biological entities and a standardized request/response mechanism for automating Web-based analysis. This allows the user to seamlessly link from the visualized data, internally represented as a Document Object Model (DOM) , to Moby-compliant Web services by embedding the Seahawk Moby client . The TIGR MultiExperiment Viewer (MeV)  is integrated into Bluejay such that it functions as a fully embedded module (see Additional file 1). Through this integration, Bluejay can show gene expression values in a genomic context, enabling biologists to draw additional inferences from gene expression analyses (e.g., operon structures). Bluejay loads URL-based data via a proxy Web Service. If an XML file with a large amount of data is requested, the proxy performs data skeletonization on-the-fly, using an eXtensible Stylesheet Language Transformation (XSLT) , which allows Bluejay to run on a memory-limited computing environment (and as an applet).
Novel features of Bluejay 1.0
Bluejay is a unique genome browser that offers numerous features not available in other genome browsers. Bluejay 1.0 adds comparative genomics and enriched customization/personalization capabilities in order to provide the biologist with an elegant way to simultaneously view genes in multiple contexts (genomic, comparative and expression). The new features include: (i) visual comparison of multiple genomes on a single canvas; (ii) genomic information recommendation reflecting user preference; and (iii) flagging elements of a genome and utilizing the flags for navigation and comparison.
Bluejay is available from the project home page  as an applet, Java Web Start, or a standalone application. Bluejay is implemented in Java 1.5 and uses a number of open source libraries from the Apache Foundation . The details on how the libraries are integrated into Bluejay are described in . Here we focus on how a biologist can use Bluejay's genomic, comparative and expression contexts to enhance their understanding of a gene or set of genes of interest.
AGAVE: Architecture for Genomic Annotation, Visualization and Exchange. http://bluejay.ucalgary.ca/dtds/agave.dtd
TIGR: The format in which TIGR (The Institute for Genomic Research) annotations are distributed. http://bluejay.ucalgary.ca/dtds/tigrxml.dtd
Bioseq-set: The output format for XML option in readseq, a popular sequence format conversion program. http://bluejay.ucalgary.ca/dtds/Bioseq.dtd
NCBI_GBSeq: NCBI GenBank's XML sequence data format. http://www.ncbi.nlm.nih.gov/dtd
The XLink standard  is used to hyperlink visual representations of genomic features to external data. For example, MAGPIE gene annotation pages (if available) can be launched by clicking on a gene. Custom XML documents created by users can include XLinks to any Web page. XLinks are inserted before the annotated sequence is internally represented as a DOM tree. The graphics engine uses Scalable Vector Graphics (SVG)  to render the DOM tree. This supports almost unlimited semantic zooming and publication-quality image output. Through the browser GUI, users can customize their viewing preferences, set waypoints for easier navigation, and invoke the search engine for personalized information retrieval. The comparison module is automatically entered and exited depending on the number of genome sequences loaded.
Two standalone software applications are currently embedded in Bluejay for linking to external resources accessible through the browser GUI: Seahawk for accessing Moby-compliant Web Services and TIGR MeV for gene expression analysis. Currently, Seahawk is incorporated into Bluejay as a single Java Archive (JAR) file. No specially designed application programming interface (API) is required to use the functionality of Seahawk from within Bluejay . This approach also makes it easier to update Seahawk when a new release becomes available, avoiding the need to change the Bluejay source code. TIGR MeV has been integrated at the source level, because we needed to extend its functionality to display gene expression values within the context of the corresponding genomes.
Whole genome comparison
Bluejay is capable of visualizing multiple genomes in a single display for intuitive comparison. The comparison mode is automatically activated if the user loads more than one genome, and exited when only one genome remains loaded. A central feature for genome comparison is the display of lines that link common genes based on their gene classification. This helps the user to instantly estimate how functionally similar the compared genomes are. For example, Bluejay comes with a bookmark that lets the user access genome data annotated using the MAGPIE system, which uses Gene Ontology (GO)  as the gene classification system. As GO allows standardized multi-level hierarchical classification of a gene, each gene is linked only to the physically closest gene in another genome with the same classification at the most detailed GO level, if such a gene exists. However, it should be noted that GO is not the only gene classification system that can be used in Bluejay to compare genes. As the textual gene descriptions are compared to match genes, any kind of gene classification system that the user wants to use can be accommodated in Bluejay.
In the comparison mode of Bluejay, all genome displays are scaled with respect to the length of the first genome for ease of visual comparison. This means that all circular genomes are displayed as a complete circle and the all linear genome displays are normalized to the length of the first genome. Thus, for circular representation, the distance between two genes used for finding the nearest genes is in units of the angle difference between the two gene locations.
An enhanced feature related to gene linking is the automatic gene-level alignment of circular genomes to minimize the sum of the angular distances for all linked pairs of genes. This amounts to minimization of linking distances to find the best global alignment of closely related genes. When this feature is enabled, the outer sequence is automatically rotated to the best-aligned position. The user can then see the functional similarity of the genes in the two sequences, with the effect of base position differences minimized.
Bluejay supports the manual operation on genomes loaded for comparison, mainly because there may be a need to compare specific genes that are not proximate in the automatic global genome alignment. All loaded circular sequences may be rotated together or individually. The lines linking common genes are dynamically repositioned when the user rotates or unloads a sequence. Finding out the correct rotation angle for a sequence to align genes used to be a trial-and-error process. We have now automated the rotation operation to align a set of genes by taking advantage of the waypoints capability (described later in detail).
Personalized search via a hybrid recommender system
When viewing a large amount of annotated information at once in a genome browser, the user is easily overwhelmed by the quantity of data. Even if the user is familiar with the data itself, thousands of genes, oligonucleotides, gene expression values, and their annotations may be displayed simultaneously, making it difficult to locate the desired information. This problem is compounded when multiple genomes are being viewed simultaneously. Even a search engine may not be flexible enough, because a single gene or function may be listed under several synonyms. A recommender system that helps users to locate specific, relevant, personalized information in complex and heterogeneous genomic datasets was therefore implemented.
Because of the brevity of genomic annotations in comparison to typical documents in text mining, the TF-IDF algorithm alone is not sufficient to determine the ranking of search results. The content-based component uses a previously learned user profile to reflect the user preference of documents. A user creates a personal profile by rating matched items on a 5-point Likert scale , with 1 being "not useful" and 5 being "very useful". As an item is rated, the relevance values of all keywords that comprise it (i.e., "terms" in a "document") are continuously updated in the user's profile, using Rocchio's algorithm . The user profile consists of the average vectors of each "usefulness" class, corresponding to the Likert scale. Once the user profile is created, it can help to classify new matched items. The distances between the learned user preference vectors and the new item are calculated using the cosine similarity measure, which determines the class (1 to 5). The TF-IDF score (0 to 1) is added to refine the order of items within a class, resulting in a relevance score represented as a percentage.
The recommender system is invoked via the "Search Results" window. Updated in response to user interactions, the window displays a sorted table of search results that are deemed most relevant to the user's needs. Users may change their usefulness rating of any matched item by choosing one of five predefined Likert scores from the pull-down menu in the "Feature Rating" column. Figure 4 illustrates how the recommendation order based on TF-IDF alone is altered after the user rates the items.
Waypoints for customized navigation and comparison

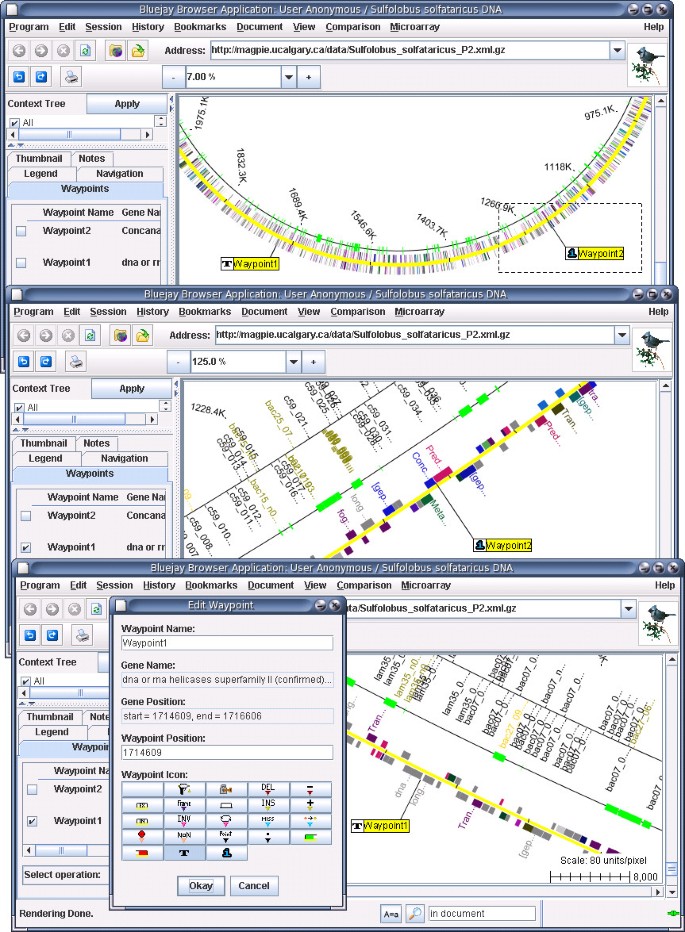

Biologists are often interested in viewing only a small portion of a genome. Navigating within a large genome usually entails scrolling until the desired part is in view or typing in a base number to see the view around it. Using these methods, the user has to spend considerable time to focus on the desired part of the genome.
Viewing a genome at the nucleotide text level is possible in Bluejay. In a text mode, a waypoint can be set not only with respect to a whole gene but also at a base position, helping the user to investigate bases as well as whole genes. For example, in the "horizontal sequential" text mode, a genome is displayed as an elongated string of characters (for an example of setting multiple waypoints in the text mode, see Additional file 3).
The usage of waypoints in combination with genome rotation for the comparison of circular genomes adds to the utility of waypoints. There is often the need to align multiple circular genomes at specific genes to investigate how similar they are around those genes. Without waypoints, the user would try rotating the genomes by some angles until the genes of interest align more or less. Waypoints in Bluejay provide the user with the ability to flag multiple genes with the same name and align them at those flags, without estimating how much rotation might be necessary for the exact alignment (for an example of aligning multiple genomes at a gene of interest, see Additional file 4).
Bluejay offers the ability to display multiple genomes in the same visual display for direct comparison, along with lines linking genes of the same classification, which immediately shows the degree of similarity of the genomes. Automatic alignment of genes based on linking distance minimization and user-directed waypoint-based alignments of genes are novel features for genome comparison. For example, the UCSC Genome Browser  can display multiple genomes in different tracks to show base-level alignment and allows the user to sort genes based on several different gene information categories. However, it does not let the user visually align genomes at user-specified genes. However, there is no provision for the user to tag specific genes and use them as anchors for visually aligning genomes. The Ensembl Genome Browser  provides a set of comparative genomics tools based on multiple sequence alignment, but visually comparing the sequences at the gene level is not possible.
The gene-level comparison of genomes in Bluejay adds to the existing capability of sequence match-based comparison approaches such as the Blast programs , which are widely used for searching protein and nucleotide databases to identify sequence similarities. MUMmer  is a fast comparison tool to align two large nucleotide sequences. These tools are essentially search or alignment tools that do not provide the user with the information on the similarity of gene functions. A more recent genome comparison tool called M-GCAT  can generate lines to link maximal unique matches occurring in multiple sequences. This tool displays sequence match results to reveal similarities of genomes at the sequence level, whereas Bluejay visualizes annotated functional descriptions of genes which allows users to compare genomes at the gene level.
Any gene classification system can be adopted for genome comparison in Bluejay. For example, in particular analysis projects, we have successfully replaced GO terms with Ensembl  paralog family labels for classification of genes in the source XML files. As GO provides a standardized classification scheme that allows multiple levels of classification for a single gene, adopting GO classifications of genes allows users to compare genomes based on gene functions. However, the current approach is clearly limited in detecting genome rearrangements, for which other comparison approaches that depend on sequence search and alignment are better suited. For example, four genomes within the bacteria Neisseria genus were compared using Blastn  which identified four different types of genome polymorphisms including a genome-wide inversion . Since any object displayed in Bluejay, including the genes, act as hyperlinks to additional gene-specific information through the MAGPIE annotation pages  or BioMoby-compatible Web services [3, 5], using these additional sources of data for comparing genomes would be a useful future addition to the current comparison functionality of Bluejay.
While Bluejay is primarily intended for comparing complete genomes, it is possible to display incomplete genomes or ESTs, but this requires a reference genome onto which sequence fragments are placed in order to create a pseudogenome. In this mode, the locations of sequence fragments must be verified by performing sequence alignment ahead of time, as otherwise displaying fragments along an imaginary backbone could be misleading.
Customization for exploring genomic information
Bluejay is the first genome browser we know of with a rich set of waypoint management functions that enables the user to easily navigate within a genome. We have found that in order to visualize the region of interest in a genome, a method of marking positions of a sequence and performing operations on the user-defined markers is far more intuitive than scrolling around or typing in base numbers. An innovative, additional use of waypoints for user-directed gene alignment for comparison adds to the usability of waypoints. To our knowledge this conceptually simple but functionally powerful feature has not been exploited for genome exploration in any other system.
Bluejay's recommender system helps bridge the gap between the vastness of genomic data and the specificity of users' needs. Especially in genomes with large numbers of annotations, targeting search results using semantic knowledge about the user's preferences can help the user to be productive. To our knowledge, no other genome browser has provided a recommender system yet. GBrowse  and the UCSC Genome Browser  have search engines and the capability for user profiles, but neither recommends information based on learned user preferences. The Ensembl genome annotation source  performs some data mining by searching multiple databases, but it does not record the user's interests.
Dynamic resource discovery and linking
Bluejay provides interoperability and extensibility by dynamically finding and linking external data and biological Web services via standard protocols. Most popular genome browsers other than Bluejay have limited capabilities of external data and services linking. The UCSC Genome Browser does not provide the user with the option of directly linking out to external biological resources . Ensembl can link the distributed annotation system (DAS) resource  and contains hardcoded hyperlinks that link to external services. The NCBI Map Viewer  provides a "LinkOut" link to access information about a gene. Most of the links in the other browsers are hardcoded, which creates maintenance issues for the tool creators.
The visualization of gene expression levels in the context of a whole genome in Bluejay enables biologists to gain valuable insights on gene functions. For smaller genomes, individual genes and their expression values can be investigated without any special visualization methods. However, larger genomes with thousands of genes (e.g., the Sulfolobus solfataricus genome with almost 3000 genes) require viewing the genome and expression values as a whole. Bluejay has been successfully used by biologists for a number of microarray studies [30, 31], which demonstrates its usability. To date, no other genome browser we know of provides this integrative visualization functionality. We expect Bluejay to be useful to many researchers who can take advantage of the combined genomic, transcriptional and comparative contexts to more easily answer biological questions.
Bluejay version 1.0 is one of the more comprehensive visual environments for exploring genomes and related biological data. In addition to visualizing the data for a single genome, Bluejay can now visualize multiple whole genomes and provides the user with a set of operations useful for genome comparison. The user can use waypoints for navigating within a genome and for comparing genomes. The hybrid information recommender system coupled with the search engine provides personalized genomic information. Dynamic discovery and linking of Moby Web Services from Bluejay enables the user to seamlessly connect to diverse biological resources while keeping the application itself relatively lightweight. Bluejay also provides access to a comprehensive package (TIGR MeV) for the analysis of microarray data, with the additional capability of graphical display of gene expression values together with genomic data. We believe that these unique capabilities represent an essential collection of visually oriented tools for bioinformatics analysis in general, and genome/transcriptome analysis in particular.
Project name: Bluejay
Project home page: http://bluejay.ucalgary.ca
Operating systems: Platform independent
Programming language: Java 1.5 or higher
License: GNU Lesser General Public License (LGPL)
Any restrictions to use by non-academics: None
