Clustering cancer gene expression data: a comparative study
BMC Bioinformatics volume 9, Article number: 497 (2008)
Abstract
Background
The use of clustering methods for the discovery of cancer subtypes has drawn a great deal of attention in the scientific community. While bioinformaticians have proposed new clustering methods that take advantage of characteristics of the gene expression data, the medical community has a preference for using "classic" clustering methods. There have been no studies thus far performing a largescale evaluation of different clustering methods in this context.
Results/Conclusion
We present the first largescale analysis of seven different clustering methods and four proximity measures for the analysis of 35 cancer gene expression data sets. Our results reveal that the finite mixture of Gaussians, followed closely by kmeans, exhibited the best performance in terms of recovering the true structure of the data sets. These methods also exhibited, on average, the smallest difference between the actual number of classes in the data sets and the best number of clusters as indicated by our validation criteria. Furthermore, hierarchical methods, which have been widely used by the medical community, exhibited a poorer recovery performance than that of the other methods evaluated. Moreover, as a stable basis for the assessment and comparison of different clustering methods for cancer gene expression data, this study provides a common group of data sets (benchmark data sets) to be shared among researchers and used for comparisons with new methods. The data sets analyzed in this study are available at http://algorithmics.molgen.mpg.de/Supplements/CompCancer/.
Background
Microarray technologies enable the measurement of molecular signatures of cancer cells. These data allow different types of analyses, such as (1) the identification of differentially expressed genes [1], which could indicate possible gene targets for more detailed molecular studies or drug treatments and (2) the building of classifiers, with machine learning techniques, which could be used to improve the diagnosis of patients with cancer [2]. Another common and more exploratory analysis is to perform a clustering of the cancer/patient samples (tissues). The aim is to find groups of samples sharing similar expression patterns, which can lead to the discovery of new cancer subtypes. This kind of analysis was first employed in [3] and [4]. Since then, clustering methods have drawn a great deal of attention in the scientific community [5]. Bioinformaticians have been proposing novel clustering methods that take intrinsic characteristics of gene expression data into account, such as noise and highdimensionality, to improve the clusters [6–8]. Such researchers often perform an evaluation of their methods using available public data previously published in clinical studies. However, despite the relevant contributions provided by the bioinformatics community to the cluster analysis of microarray data, in order to aid the investigation of their data, researchers of clinical cancer studies still rely mostly on classic clustering methods, such as hierarchical clustering. Indeed, in studies using cluster analysis, the data of which are employed in this paper, around 95% are based on hierarchical clustering and Pearson's correlation as similarity metrics (e.g., [3, 4, 9–20]). The main reasons for such popularity of hierarchical clustering include (1) ease of use, as they require the setting of few parameters; and (2) the availability of implementations, as these methods are part of many standard microarray data analysis software programs, such as those in [21] and [22]. Hierarchical clustering is also available in standard gene expression databases, such as the Gene Expression Omnibus [23]. In contrast, common limitations of new methods proposed by bioinformaticians include the requirement of using particular programming environments and the specification of a number of different parameters (e.g., [6–8]), which makes their implementation difficult for nonexpert users.
Motivated by these problems, we present the first largescale analysis of different clustering methods and proximity measures for clustering cancer tissues (samples). The data employed were generated from gene expression measurement technologies. The aim is to provide some guidelines for the biological/medical/clinical community for the choice of specific methods. The study is based on 35 data sets from either Affymetrix or cDNA chip platforms. We evaluate the use of classic clustering methods, such as hierarchical clustering with single, complete and average linkage [24], kmeans [25] and mixture of multivariate Gaussians [26]; as well as more recent methods, such as spectral clustering [27] and a nearest neighborbased method [28]. Furthermore, in terms of proximity measures, we evaluate the choice of Pearson's correlation coefficient, cosine, Spearman's correlation coefficient and Euclidean distance [24]. For the case of Euclidean distance, we employ three procedures for preprocessing the expression profiles: standardization, scaling and ranking [29, 30].
Before putting our analysis into perspective with respect to some of the related works, in order to prevent misleading interpretations, it is important to draw the attention to the fact that the problem of clustering cancer gene expression data (tissues) is very different from that of clustering genes. In the former, one has only tens or hundreds of items (tissues) to be clustered. Each of these data items is described by thousands of genes [2]. In contrast, in the task of clustering genes there are a large number of data items (genes), described by a small number of different conditions [5]. Thus, clustering few high dimensional items (tissues) is not the same as clustering several low dimensional ones (genes).
In either case, there are a small number of analyses in the literature evaluating the performance of different clustering methods applied to gene expression data [31–37]. In [37] the authors present basically a literature review of existing results on the use of several clustering algorithms in the context gene expression data. In terms of works that do develop an experimental analysis, [31–34, 36] investigate the problem of clustering genes, differently from our study that has as a main concern the clustering of tissues. In fact, the most closely related work to ours is the one in [35]. There, among other things, the authors approach the problem of clustering cancer gene expression data sets. They perform their study in the context of four clustering methods (kmeans, mixture of Gaussians, densitybased clustering and farthest first traversal algorithm) applied to eight binary class data sets. Based on their experimental results obtained with the clustering methods, the authors do not suggest or indicate the suitability/preference of any of these methods with respect to the others. In contrast to the work in [35], as previously pointed out, our paper presents a first large scale analysis of seven different clustering methods and four proximity measures for the analysis of 35 cancer gene expression data sets. Furthermore, our data sets are not restricted to have only two classes.
Besides the largescale comparison of clustering methods and proximity measures for cancer gene expression data, a major contribution of this paper is to provide a common group of data sets (benchmark data sets) to be shared among researchers as a stable basis for the evaluation and comparison of different machine learning methods for clustering or classification of cancer gene expression data – available in the supplementary material [38].
Results and discussion
Experimental Design
Thirty five publicly available microarray data sets are included in our analysis (Table 1). These data sets were obtained using two microarrays technologies: singlechannel Affymetrix chips (21 sets) and doublechannel cDNA (14 sets). We compare seven different types of clustering algorithms: single linkage (SL), complete linkage (CL), average linkage (AL), kmeans (KM), mixture of multivariate Gaussians (FMG), spectral clustering (SPC) and shared nearest neighborbased clustering (SNN). When applicable, we use four proximity measures together with these methods: Pearson's Correlation coefficient (P), Cosine (C), Spearman's correlation coefficient (SP) and Euclidean Distance (E). Regarding Euclidean distance, we employ the data in four different versions: original (Z_{0}), standardized (Z_{1}), scaled (Z_{2}) and ranked (Z_{3}) versions. See the Methods Section for further details on the algorithms, proximity measures and data transformation procedures.
We perform experiments for each algorithm, varying the number of clusters in [k, ⌈$\sqrt{n}$⌉], where k represents the actual number of classes in a given data set with n samples. The recovery of the cluster structure is measured using the corrected Rand (cR) index by comparing the actual classes of the tissues samples (e.g., cancer types/subtypes) with the cluster assignments of the tissue samples. For each combination of clustering method, proximity measure and data transformation procedure, we calculate the mean of the cR over all data sets in two different contexts: (1) taking into account only the partition with the number of clusters equal to the number of actual classes in the respective data set; and (2) considering the partition that presents the best cR for each data set, regardless of its number of clusters. The results of these experiments are illustrated in Figure 1 (Affymetrix data sets) and Figure 2 (cDNA data sets). We also investigate the influence of reduced coverage on the algorithms [29]. The idea is to identify the methods that often generate their best partition, as calculated by the cR, with more clusters than the actual number of classes in the corresponding data set. In order to do so, for a given algorithm, we measure the difference between the number of clusters of the partition with best cR and the actual number of classes for each data set. The mean of the difference of these values for Affymetrix and cDNAs data sets are displayed in Figures 3 and 4, respectively.
Finally, we perform paired ttests, adjusted for multiple comparisons with the Benjamini and Hochberg procedure [39], to determine whether differences in the cR between distinct methods (as displayed in Figure 1 and Figure 2) are statistically significant. More specifically, given that we are mainly interested in comparing the clustering methods, we select only the results with the proximity measure that displays the largest mean of cR for each method. As some data sets are harder to cluster than others, the cR values exhibited a large variance for a given clustering method and proximity measure (Figures 1 and Figure 2). Nonetheless, as all methods are applied to the same data sets, we can use the paired ttest, which measures the difference in the cR value between two methods for each data set. In this case, the null hypothesis is that the difference in the mean between paired observations is zero. We can therefore assess whether the difference in the performance of one method and another is statistically significant. More detailed results are found out in our supplementary material [38].
Recovery of Cancer Types by Clustering Method
Based on Figures 1 and 2, our results show that, among the 35 data sets investigated, the FMG exhibited the best performance – best corrected Rand (cR) , followed closely by KM, in terms of the recovery of the actual structure of the data sets, regardless of the proximity measure used.
For Affymetrix data sets, the paired ttest (pvalue < 0.05) indicated that FMG achieved a larger cR than SL, AL and CL; and KM a larger cR than SL and AL, when the number of cluster is set to the actual number of classes. Considering the partition that presents the best cR for each data set, regardless of its number of clusters, KM and FMG achieved a larger cR than SL, AL and CL (pvalue < 0.05).
In the case of cDNA data sets, the paired ttest (pvalue < 0.05) also indicated that KM and FMG achieved a larger cR than SL, AL, CL and SNN for both contexts investigated. Also, KM achieved a larger cR than SPC (pvalue < 0.05). This holds for both contexts: the number of cluster sets to the actual number of classes and for the best cR, regardless of the number of clusters.
Furthermore, KM and FMG achieved, on average, the smallest difference between the actual number of classes in the data sets and the number of clusters in the partition solutions with the best cR (Figures 3 and 4). Likewise, SNN exhibited consistent behavior in terms of the values of cR in the different types of proximity measures, although with smaller cR values than those obtained with FMG and KM. In fact, this method, on average, returned cR values compatible to those achieved by the SPC.
Note that a good coverage alone (Figure 3 and Figure 4) do not imply accuracy in classes recovery (Figures 1 and 2). For example, according to Figure 3, SPC with ${\text{E}}_{{Z}_{0}}$ and KM with C respectively present a mean of the difference between the actual number of classes and number of clusters found in the partitions with best cR of 0.71 and 0.76 clusters. However, the latter led to a cR of 0.50, while the former achieved a cR of only 0.12.
Our results show that the class of hierarchical methods, on average, exhibited a poorer recovery performance than that of the other methods evaluated. Moreover, as expected, within this class of algorithms, the single linkage achieved the worst results. The paired ttest (pvalue < 0.05) indicated that it led to the smallest cR, when compared to those of the other methods. Regarding the use of proximity measures with hierarchical methods, Pearson's correlation and cosine yielded best results. This is also in agreement with the overall common knowledge from clinical/biological studies [22]. In order to present cR values compatible to those obtained with KM and FMG, such a class of methods generally required a much more reduced coverage: a larger number of clusters than that in the underlying data. For example, according to Figure 1, the AL with P, achieves a cR of 0.27 for the actual number of classes. In contrast, if one considers partition solutions with a larger number of clusters, the cR increases to 0.38. Such an increase was achieved with partitions that had, on average, 1.48 more clusters than in the underlying structure. One surprising result is the good performance achieved with Z_{3}, mainly with the hierarchical clustering methods. In this context, the use of such a data transformation, together with the Euclidean distance, led to results very close to those obtained with P, C and SP, especially for the Affymetrix data sets. One reason for this behavior is the presence of outliers in the data sets, as Z_{3} reduces their impact [29]. Thus, this is further evidence that such a class of algorithms is more susceptible to outliers than the other methods investigated.
Spectral clustering, in turn, is quite sensitive to the proximity measure employed. For example, the partitions generated with this method achieved large cR values (e.g., cR > 0.40) only for the cases of C, SP and P, but smaller cR values (e.g., cR ≤ 0.15) otherwise. It is well known in the literature that spectral clustering is susceptible to the similarity matrix used [40]. Moreover, there is as yet no rule to assist in making such a selection.
In another kind of analysis, we investigated the impact of reduced coverage on the performance of the algorithms. As previously mentioned, this impact was more significant for the case of the hierarchical clustering methods. As there are many data sets with an extremely unbalanced distribution of samples within the classes, this behavior also occurred with the KM, although to a smaller degree. In fact, all methods, even the ones that are supposed to deal well with clusters with an unbalanced number of samples, profited from a reduced coverage.
Comparison of Hierarchical Clustering and kmeans
To better illustrate the issues discussed in the previous section, we analyzed the results obtained with kmeans and hierarchical clustering for a single data set. More specifically, we employed a version of the data set in [4] (AlizadethV2), which has samples from three cancer types: 42 diffuse large Bcell lymphoma (DLBCL), 9 follicular lymphoma (FL) and 11 chronic lymphocytic leukemia (CLL). In the case of hierarchical clustering, we used the same algorithm as in [4], which is hierarchical clustering with average linkage and Pearson's correlation. In order to improve visualization of the red and green plot [22], the leaves of the resulting tree were rearranged according to a standard technique [41].

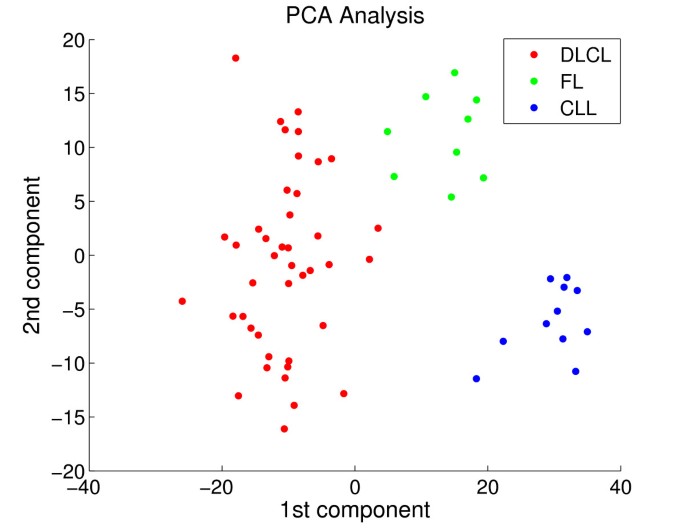

The partitions with three clusters for hierarchical clustering and kmeans are illustrated in Figure 5(a) and Figure 5(b), respectively. The kmeans yielded a partition very close to the underlying structure in the data. With the exception of a single DLBCL sample that was wrongly assigned to Cluster 1 (all other samples in this cluster are FL), the other clusters in the partition have samples of only the given class. In the case of hierarchical clustering, cutting the tree at level three (three subtrees or clusters), one can observe the following: the red subtree contains only DLBCL samples and the blue subtree presents a combination of FL and CLL samples. The same DLBCL sample wrongly assigned in the case of kmeans appeared in the blue subtree rather than the red subtree. The third subtree (black) is formed by a single sample from DLBCL (top). Indeed, in the tree generated, the FL and CLL samples are only separated if we cut the tree at level 25, which yields 25 subtrees (clusters). Note that, although our tree differs slightly from the one in [4], as their analysis included additional noncancer tissue samples; in that paper the FL and CLL samples would also only be in separate subtrees when the tree is cut at a lower level.
One of the reasons for this kind of problem is that hierarchical clustering is based on local decisions, merging the most "compact" cluster available at each step [24]. The compactness criterion (or how close together objects are) is defined by the linkage criteria and proximity measure used. On the other hand, kmeans maximizes a criterion, which is a combination of cluster compactness and cluster separation. The problem can be illustrated in a twodimensional representation of the AlizadethV2 data set, after selecting the twolargest components using principal component analysis (PCA) – Figure 6. Based on this figure, we can see that samples from distinct classes form natural clusters. More specifically, although the cluster with DLBCL samples (red dots) is wellseparated from the other two clusters, it lies within a noncompacted region. Thus, as hierarchical clustering has a bias towards compacted clusters, if we simply follow the hierarchical tree, it would first suggest the subdivision of the cluster with DLBCL samples before subdividing the groups with FL and CLL samples. In a hypothetical scenario where there is no a priori knowledge on the distinction between FL and CLL samples, the use of hierarchical clustering alone would not indicate the existence of these two classes. In contrast, this would be detected with kmeans or clearly visualized with a simple PCA analysis.
Conclusion
We have provided the first largescale datadriven comparative study of seven clustering algorithms and four proximity measures applied to 35 cancer gene expression data sets. In the following, we summarize some of the general trends (guidelines for clustering cancer gene expression data) that emerged from our comparative study.

1.
Overall, among the 35 data sets investigated, the FMG exhibited the best performance, followed closely by KM, in terms of the recovery of the actual structure of the data sets, regardless of the proximity measure used.

2.
For most algorithms, there is a clear interaction between reduced coverage and an increase in the ability of the algorithm to group the samples correctly – larger corrected Rand.

3.
The shortcomings of hierarchical methods is noticeable, as it has been the case in the analyses developed in the context of clustering genes [31, 32]. One of the reasons for this is the sensitivity of hierarchical clustering to noise in the data [5, 24, 29].

4.
Within this class of hierarchical clustering algorithms, the single linkage presented the worst results.

5.
With respect to the use of proximity measures with hierarchical clustering methods, Pearson's correlation and cosine often led to the best results.

6.
To present cR values compatible to those obtained with KM and FMG, the class of hierarchical clustering methods usually required a much more reduced coverage.

7.
Spectral clustering showed to be quite sensitive to the proximity measure employed.
With respect to the statement in Item 1, it is important to point out that, although, on average, our experimental work demonstrates that FMG and KM exhibited a better performance in terms of the corrected Rand than the other methods investigated, this does not imply that these algorithms would always be the best choice. Indeed, as one can see in the table in the supplemental material describing the individual performance of the algorithms, for certain data sets, such as PomeroyV2, the SNN with P achieved a much larger cR than all the other methods [38].
A principled way to tackle this problem of predicting which methods would work better for a certain data set with particular data properties (i.e., number of samples, sample dimensionality, array type, etc.) is the use of metalearning approaches [42]. For example, in a smaller scale study, [43] shows that a metalearning approach taking into consideration only a set of descriptive statistics of a given data as input, yields a ranking with the best clustering methods to be used with the data set.
Another contribution of this paper was that we provided a common group of data sets (benchmark data sets) that can be used as a stable basis for the evaluation and comparison of different machine learning methods. Recently, studies proposing benchmarking frameworks have been introduced in the machine learning and bioinformatics literature [44, 45]. For instance, [44] has proposed a webbased system for the storage of results from classification methods for several benchmark data sets used in the machine learning community. Furthermore, their database allows other researchers to submit results obtained by new classification methods. In fact, as future work, we aim to build a central repository for the evaluation of clustering methods in the context of cancer gene expression data. In this repository, any novel clustering algorithm could be evaluated with the available data sets, its results stored and made available in our web database.
Methods
Clustering Methods and Recovery Measure
Seven clustering algorithms are used to generate partition solutions and form a single factor in the overall experiment design: single linkage, complete linkage, average linkage, kmeans, mixture of multivariate Gaussians, spectral clustering and shared nearest neighborbased clustering (SNN). These algorithms have been chosen to provide a wide range of recovery effectiveness, as well as to give some generality to the results. In our analysis, when applicable, methods are implemented with Pearson's Correlation, cosine and Euclidean distance. We also use single linkage, complete linkage, average linkage and spectral clustering with the Spearman's correlation coefficient – the implementation that we used for kmeans (Matlab) and SNN [28] do not support such a proximity measure.
Hierarchical clustering methods, more specifically the agglomerative ones, are procedures for transforming a distance matrix into a dendrogram [24]. Such algorithms start with each sample representing a cluster. The methods then gradually merge these clusters into larger ones; they start with trivial clustering in which each sample is in a unique cluster, ending with trivial clustering in which all samples are in the same cluster. There are three more widely used variations of hierarchical clustering, which are used in this paper: complete linkage (CL), average linkage (AL) and single linkage (SL). These variations differ in the way the distance between two clusters is calculated. For SL, the distance between two clusters is determined by the two closest samples in different clusters. In contrast, CL employs the farthest distance of a pair of samples to define the intercluster distance. In AL, the distance between two clusters is calculated by the average distance between the samples in one group and the samples in the other group. This method has been used extensively in the literature on gene expression analysis [31, 32, 46, 47], although experimental results have shown that, in many cases, the complete linkage outperforms it [5]. Another widely used method for gene expression data analysis is kmeans [46, 47]. kmeans (KM) is a partitional iterative algorithm that optimizes the best fitting between clusters and their representation using a predefined number of clusters [24, 25]. Starting with prototype values from randomly selected samples, the method works in two alternate steps: (1) an allocation step, where all samples are allocated to the cluster containing the prototype with the lowest dissimilarity; and (2) a representation step, where a prototype is constructed for each cluster. One problem with such an algorithm is its sensitivity to the selection of the initial partition. This could lead the algorithm to converge to a local minimum [24]. In order to prevent the local minimum problem, a number of runs with different initializations is often performed. The best run based on some cohesion measure is then taken as the result. Another characteristic of this method is its robustness to noisy data.
Finite mixture of Gaussians (FMG) is a convex summation of k multivariate Gaussian density functions or Gaussian components [26]. In mixture modelbased clustering, each component in the mixture is assumed to model a group of samples. In order to obtain the probabilities of a sample belonging to each cluster (group), density functions can be used and mixing coefficients can be defined for the mixture. For a given number k, mixture models can be efficiently computed with the ExpectationMaximation (EM) algorithm. The EM works interactively by calculating the probability of each sample for the components and then recomputing the parameters of the individual Gaussian densities until convergence is reached. A mixture model has a number of advantages: it returns the uncertainty of a given cluster assignment and the models estimated can be seen as descriptors of the clusters found. In practice, kmeans can be regarded as an oversimplification of a mixture of Gaussians, where every sample is assigned to a single cluster. In this simplified context, clusters tend to have the same size and lie within spherical regions of the Euclidean space. With the mixture of Gaussians using unit covariance matrices employed in this paper, clusters will also lie within spherical regions, but can have any arbitrary size.
Spectral clustering (SPC) is a general class of algorithms characterized by employing the spectrum of similarity matrices to reduce the dimensionality of a data set and then applying a basic clustering algorithm, such as kmeans or graph cutbased methods, on this lower dimension data [27]. For example, assume that we have a graph, where nodes are the samples and edges are weighed by the similarity between two nodes. Spectral clustering methods can be interpreted as performing a random walk in this graph, finding clusters by ignoring edges that are rarely transversed in the walk. More specifically, in this paper, for a given similarity matrix S obtained with a Gaussian similarity function, we (1) calculate its normalized Laplacian matrix and (2) perform an eigenvalue decomposition of this matrix. We then select the k eigenvectors related to the k lowest eigenvalues and use them to perform kmean clustering. Among other interesting characteristics, a spectral clustering method makes no assumptions on the data distribution at hand. It is also able to find clusters that are not in convex regions of the space.
The shared nearestneighbor algorithm (SNN) is a recent technique. We have added it to our analysis because this method can robustly deal with high dimensionality, noise and outliers [28]. SNN searches for the nearest neighbors of each sample and uses the number of neighbors that two points share as the proximity index between them. With this index, SNN employs a densitybased approach to find representative samples and build clusters around them. Along with the number of nearest neighbors (NN), two other kinds of parameters are considered: those regarding the weights of the shared nearest neighbor graph (strong, merge and label) and others related to the number of strong links (topic and noise). These parameters are thresholds on which each step of the algorithm is based.
Regarding the index for measuring the success of the algorithm in recovering the true partition of the data sets, as in [29], we use the corrected Rand [24, 29]. The corrected Rand index takes values from 1 to 1, with 1 indicating a perfect agreement between the partitions and values near 0 or negatives corresponding to cluster agreement found by chance. Unlike the majority of other indices, the corrected Rand is not biased towards a given algorithm or number of clusters in the partition [24, 48].
Formally, let U = {u_{1},...,u_{ r },...,u_{ R }} be the partition given by the clustering solution and V = {v_{1},...,v_{ c },...,v_{ C }} be the partition formed by a priori information independent from partition U (thegold standard). The corrected Rand is defined as:
where (1) n_{ ij }represents the number of objects in clusters u_{ i }and v_{ j }; (2) n_{i.}indicates the number of objects in cluster u_{ i }; (3) n._{ j }indicates the number of objects in cluster v_{ j }; (4) n is the total number of objects; and(5) $\left(\begin{array}{c}a\\ b\end{array}\right)$ is the binomial coefficient $\frac{a!}{b!(ab)!}$.
Data Transformation
In many practical situations, a data set could present samples the attribute or feature values of which (in our case, genes) lie within different dynamic ranges [24, 29]. In this case, for proximity measures such as Euclidean distance, features with large values will have a greater influence than those with small values. However, this will not necessarily reflect their importance in defining the clusters. Such a problem is often addressed by transforming the feature values so that they lie within similar ranges. There are several ways to perform transformations of attribute values [24, 29]. As the data sets used in our studies have no categorical features, we consider only the case involving numeric values. More precisely, for the Euclidean distance, we analyze three different forms of feature (gene) transformation.
The first two have been widely used in clustering applications [24, 29]: one is based on the zscore formula (standardization) and the other scales the gene values to [0, 1] or [1, 1]. The third procedure transforms the values of the attributes into a ranking. This type of transformation is more robust to outliers than the first two procedures [29]. A largescale study on the impact of these procedures for cancer gene expression data has been recently presented in [30].
The transformation that uses the zscore formula translates and scales the axes so that transformed feature (gene) will have zero mean and unit variance. Hereafter, for short, we will refer to this transformation as Z_{1}. The second procedure involves the use of the maximum and minimum values on the gene. Assuming nonnegative values, a gene transformed with this procedure is bounded by 0.0 and 1.0, with at least one observed value at each of these end points [29]. For short, we will refer to this procedure as Z_{2}. If there are negative values, a gene transformed with Z_{2} is bounded by 1.0 and 1.0. Unlike Z_{1}, the transformed mean and variance resulting from Z_{2} will not be constant across all features.
The above procedures could be adversely affected by the presence of outliers in the genes. This is especially true for Z_{2}, which depends on the minimum and maximum values. A different approach, which is more robust to outliers, converts the values of the genes to rankings. Given a data set with n samples, this procedure yields a transformed gene value with mean of (n + 1)/2, range n  1 and variance (n + 1) [((2n + 1)/6)  ((n + 1)/4)] for all genes [29]. For short, hereafter, we will refer to this procedure as Z_{3}.
Experimental Design
Data sets
Thirty five microarray data sets are included in our analysis (Table 1). These data sets present different values for features such as type of microarray chip (second column), tissue type (third column), number of samples (fourth column), number of classes (fifth column), distribution of samples within the classes (sixth column), dimensionality (seventh column) and dimensionality after feature selection (last column).
In terms of the data sets, it is important to point out that microarray technology is generally available in two different types of platforms, singlechannel microarrays (e.g., Affymetrix) or doublechannel microarrays (e.g., cDNA) [46, 47, 49]. Note that other microarrays technologies are also based on either single and double channels methods. As the data sets analyzed here are restricted to those collected with cDNA and Affymetrix microarrays, we employ the terms cDNA and Affymetrix to denote double or singlechannel arrays, respectively. Measurements of Affymetrix arrays are estimates on the number of RNA copies found in the cell sample, whereas cDNA microarrays values are ratios of the number of copies in relation to a control cell sample. With Affymetrix microarray data, following other works, all genes with expression level below 10 are set to a minimum threshold of 10. The maximum threshold is set at 16,000. Values below or above these thresholds are often unreliable [49–51]. Thus, our analysis is performed on the scaled data to which the ceiling and threshold values have been applied.
Moreover, for the case of Affymetrix data, we apply the following procedure to remove uninformative genes: for each gene j (attribute), we compute the mean m_{ j }among the samples. However, in order to get rid of extreme values, we first discard the 10% largest and smallest values. Based on this mean, we transform every value ${x}_{ij}^{\ast}$ of gene i and sample j as follows:
For further analysis, we then select genes with expression levels differing by at least lfold in at least c samples from their mean expression level across the samples. With few exceptions, the parameters l and c were chosen so as to produce a filtered data set with at least 10% of the original number of genes (features). It is important to point out that the data transformed with the previous equation is only used in the filtering step.
A similar filter procedure was applied for the case of cDNA microarray, but without the need to transform the data. In the case of cDNA microarray data sets, attributes (genes) of which could present missing values, we discard those with more than 10% of missing values. The attributes that remain and still present missing values have the values replaced by the respective mean value of the attribute.
Empirical Study
The experiments compare seven different types of clustering algorithms: SL, AL, CL, KM, FMG, SPC and SNN. Each of these algorithms (with the exception of FMG, which already has the computation of the similarity as a builtin characteristic) was implemented with versions of four proximity measures: Pearson's Correlation coefficient (P), Cosine (C), Spearman's correlation coefficient (SP) and Euclidean Distance (E). As the implementation of the KM and SNN used in this work does not support Spearman's correlation coefficient, these algorithms were only tested with P, C and E. Furthermore, regarding the Euclidean distance version, experiments are performed with the samples in four forms, namely, original (Z_{0}), standardized (Z_{1}), normalized (Z_{2}) and ranked (Z_{3}). We also applied the data with these transformations for the case of FMG.
We run the algorithms for the configurations described in the previous paragraph. Recovery of cluster structure was measured via the corrected Rand index with regard to the actual number of classes known to exist in the data. That is, the number of clusters is set to be equal to the true number of the classes in the data. The known class labels were not used in any way during the clustering. As performed by [29], in order to explore the effects of reduced coverage, recovery was also measured on different levels preceding the correct solution partition. Reduced coverage implies that more clusters are present in the partition obtained than actually exist in the underlying structure. For example, if k represents the number of classes in a data set with n samples, we then developed experiments varying the number of clusters in [k, ⌈$\sqrt{n}$⌉]. In order to build the partition from hierarchical methods, recovery was measured based on the hierarchical solution that corresponds to each value in the range [k, ⌈$\sqrt{n}$⌉]. As KM is nondeterministic, we run the algorithm 30 times for each configuration pair (data set, proximity measure) and select the one with lowest interclass error. For further analysis, we then choose the partition with the best corrected Rand (cR). This procedure is also used for SPC and FMG. We use default parameters in both cases, with the exception of the values for the number of clusters.
For SNN, we execute the algorithm with several values for its parameters (2%, 5%, 10%, 20%, 30% and 40% for NN), topic (0, 0.2, 0.4, 0.6, 0.8 and 1) and merge (0, 0.2, 0.4, 0.6, 0.8 and 1). Preliminary experiments reveal that variations in the other parameters did not produce very different results. Thus, the default values were used for the parameter strong and the value 0 was used for the parameters noise and label (in order to have all points assigned to a cluster). From the partitions created with such parameters values, we choose the partition with best cR and with k in the interval of interest for further analysis.
References
 1.
Tusher VG, Tibshirani R, Chu G: Significance analysis of microarrays applied to the ionizing radiation response. Proc Natl Acad Sci U S A 2001, 98(9):5116–5121.
 2.
Spang R: Diagnostic signatures from microarrays: a bioinformatics concept for personalized medicine. BIOSILICO 2003, 1(2):64–68. [http://www.sciencedirect.com/science/article/B75GS4BRJ67WJ%/2/2fa50a82fa348085a698a1b42db4f6a0]
 3.
Golub TR, Slonim DK, Tamayo P, Huard C, Gaasenbeek M, Mesirov JP, Coller H, Loh ML, Downing JR, Caligiuri MA, Bloomfield CD, Lander ES: Molecular classification of cancer: class discovery and class prediction by gene expression monitoring. Science 1999, 286(5439):531–537.
 4.
Alizadeh AA, Eisen MB, Davis RE, Ma C, Lossos IS, Rosenwald A, Boldrick JC, Sabet H, Tran T, Yu X, Powell JI, Yang L, Marti GE, Moore T, Hudson J, Lu L, Lewis DB, Tibshirani R, Sherlock G, Chan WC, Greiner TC, Weisenburger DD, Armitage JO, Warnke R, Levy R, Wilson W, Grever MR, Byrd JC, Botstein D, Brown PO, Staudt LM: Distinct types of diffuse large Bcell lymphoma identified by gene expression profiling. Nature 2000, 403: 503–511.
 5.
D'haeseleer P: How does gene expression clustering work? Nat Biotech 2005, 23(12):1499–1501.
 6.
Brunet JP, Tamayo P, Golub TR, Mesirov JP: Metagenes and molecular pattern discovery using matrix factorization. Proceedings of the National Academy of Sciences of the United States of America 2004, 101(12):4164–4169.
 7.
Liu L, Hawkins DM, Ghosh S, Young SS: Robust singular value decomposition analysis of microarray data. Proc Natl Acad Sci USA 2003, 100(23):13167–13172.
 8.
McLachlan GJ, Bean RW, Peel D: A mixture modelbased approach to the clustering of microarray expression data. Bioinformatics 2002, 18(3):413–422.
 9.
Bhattacharjee A, Richards WG, Staunton J, Li C, Monti S, Vasa P, Ladd C, Beheshti J, Bueno R, Gillette M, Loda M, Weber G, Mark EJ, Lander ES, Wong W, Johnson BE, Golub TR, Sugarbaker DJ, Meyerson M: Classification of human lung carcinomas by mRNA expression profiling reveals distinct adenocarcinoma subclasses. Proc Natl Acad Sci USA 2001, 98(24):13790–13795.
 10.
Bittner M, Meltzer P, Chen Y, Jiang Y, Seftor E, Hendrix M, Radmacher M, Simon R, Yakhini Z, BenDor A, Sampas N, Dougherty E, Wang E, Marincola F, Gooden C, Lueders J, Glatfelter A, Pollock P, Carpten J, Gillanders E, Leja D, Dietrich K, Beaudry C, Berens M, Alberts D, Sondak V: Molecular classification of cutaneous malignant melanoma by gene expression profiling. Nature 2000, 406(6795):536–540.
 11.
Bredel M, Bredel C, Juric D, Harsh GR, Vogel H, Recht LD, Sikic BI: Functional network analysis reveals extended gliomagenesis pathway maps and three novel MYCinteracting genes in human gliomas. Cancer Res 2005, 65(19):8679–8689.
 12.
Chen X, Cheung ST, So S, Fan ST, Barry C, Higgins J, Lai KM, Ji J, Dudoit S, Ng IO, Rijn M, Botstein D, Brown PO: Gene Expression Patterns in Human Liver Cancers. Mol Biol Cell 2002, 13(6):1929–1939.
 13.
Chowdary D, Lathrop J, Skelton J, Curtin K, Briggs T, Zhang Y, Yu J, Wang Y, Mazumder A: Prognostic gene expression signatures can be measured in tissues collected in RNAlater preservative. J Mol Diagn 2006, 8: 31–39.
 14.
Dyrskjot L, Thykjaer T, Kruh0ffer M, Jensen JL, Marcussen N, HamiltonDutoit S, Wolf H, Orntoft TF: Identifying distinct classes of bladder carcinoma using microarrays. Nat Genet 2003, 33: 90–96.
 15.
Laiho P, Kokko A, Vanharanta S, Salovaara R, Sammalkorpi H, Jarvinen H, Mecklin JP, Karttunen TJ, Tuppurainen K, Davalos V, Schwartz S, Arango D, Makinen MJ, Aaltonen LA: Serrated carcinomas form a subclass of colorectal cancer with distinct molecular basis. Oncogene 2007, 26(2):312–320.
 16.
Lapointe J, Li C, Higgins JP, Rijn M, Bair E, Montgomery K, Ferrari M, Egevad L, Rayford W, Bergerheim U, Ekman P, DeMarzo AM, Tibshirani R, Botstein D, Brown PO, Brooks JD, Pollack JR: Gene expression profiling identifies clinically relevant subtypes of prostate cancer. Proc Natl Acad Sci USA 2004, 101(3):811–816.
 17.
Liang Y, Diehn M, Watson N, Bollen AW, Aldape KD, Nicholas MK, Lamborn KR, Berger MS, Botstein D, Brown PO, Israel MA: Gene expression profiling reveals molecularly and clinically distinct subtypes of glioblastoma multiforme. Proc Natl Acad Sci USA 2005, 102(16):5814–5819.
 18.
Risinger JI, Maxwell GL, Chandramouli GVR, Jazaeri A, Aprelikova O, Patterson T, Berchuck A, Barrett JC: Microarray analysis reveals distinct gene expression profiles among different histologic types of endometrial cancer. Cancer Res 2003, 63: 6–11.
 19.
Singh D, Febbo PG, Ross K, Jackson DG, Manola J, Ladd C, Tamayo P, Renshaw AA, D'Amico AV, Richie JP, Lander ES, Loda M, Kantoff PW, Golub TR, Sellers WR: Gene expression correlates of clinical prostate cancer behavior. Cancer Cell 2002, 1(2):203–209.
 20.
Yeoh EJ, Ross ME, Shurtle3 SA, Williams WK, Patel D, Mahfouz R, Behm FG, Raimondi SC, Relling MV, Patel A, Cheng C, Campana D, Wilkins D, Zhou X, Li J, Liu H, Pui CH, Evans WE, Naeve C, Wong L, Downing JR: Classification, subtype discovery, and prediction of outcome in pediatric acute lymphoblastic leukemia by gene expression profiling. Cancer Cell 2002, 1(2):133–143.
 21.
de Hoon MJL, Imoto S, Nolan J, Miyano S: Open source clustering software. Bioinformatics 2004, 20(9):1453–1454.
 22.
Eisen M, Spellman P, Brown P, Botstein D: Cluster analysis and display of genomewide expression patterns. Proc Natl Acad Sci USA 1998, 95: 14863–8.
 23.
Barrett T, Troup DB, Wilhite SE, Ledoux P, Rudnev D, Evangelista C, Kim IF, Soboleva A, Tomashevsky M, Edgar R: NCBI GEO: mining tens of millions of expression profilesdatabase and tools update. Nucleic Acids Res 2007, 35 (Database issue):D760D765.
 24.
Jain AK, Dubes RC: Algorithms for clustering data. Prentice Hall; 1988.
 25.
McQueen J: Some methods of classification and analysis of multivariate observations. 5th Berkeley Symposium in Mathematics, Statistics and Probability 1967, 281–297.
 26.
McLachlan GJ, Peel D: Finite Mixture Models. Wiley Series in Probability and Statistics., Wiley, New York; 2000.
 27.
Ng AY, Jordan MI, Weiss Y: On spectral clustering: Analysis and an algorithm. In Advances in Neural Information Processing Systems (NIPS) 14. Dietterich T, Becker S, Ghahramani Z; 2001.
 28.
Ertoz L, Steinbach M, Kumar V: A new shared nearest neighbor clustering algorithm and its applications. Workshop on Clustering High Dimensional Data and its Applications 2002, 105–115.
 29.
Milligan GW, Cooper MC: A study of standardization of variables in cluster analysis. Journal of Classification 1988, 5: 181–204.
 30.
de Souto MCP, de Araujo DSA, Costa IG, Soares RGF, Ludermir TB, Schliep A: Comparative Study on Normalization Procedures for Cluster Analysis of Gene Expression Datasets. In Proc. of IEEE International Joint Conference on Neural Networks. IEEE Computer Society; 2008:2793–2799.
 31.
Costa IG, Carvalho FAD, Souto MCPD: Comparative Analysis of Clustering Methods for Gene Expression Time Course Data. Genetics and Molecular Biology 2004, 27(4):623–631. [http://www.scielo.br/pdf/gmb/v27n4/22434.pdf]
 32.
Datta S, Datta S: Comparisons and validation of statistical clustering techniques for microarray gene expression data. Bioinformatics 2003, 19: 459–466.
 33.
Datta S, Datta S: Evaluation of clustering algorithms for gene expression data. BMC Bioinformatics 2006, 7(Suppl 4):S17.
 34.
Datta S, Datta S: Methods for evaluating clustering algorithms for gene expression data using a reference set of functional classes. BMC Bioinformatics 2006, 7: 397.
 35.
Pirooznia M, Yang JY, Yang MQ, Deng Y: A comparative study of different machine learning methods on microarray gene expression data. BMC Genomics 2008, 9(Suppl 1):S13.
 36.
Loganantharaj R, Cheepala S, Clifford J: Metric for Measuring the Effectiveness of Clustering of DNA Microarray Expression. BMC Bioinformatics 2006, 7(Suppl 2):S5.
 37.
Kerr G, Ruskin HJ, Crane M, Doolan P: Techniques for clustering gene expression data. Comput Biol Med 2008, 38(3):283–293.
 38.
de Souto MCP, Costa IG, de Araujo DSA, Ludermir TB, Schliep A: Supplemental Material: Clustering of Cancer Gene Expression Data: a Comparative Study. 2008.
 39.
Benjamini Y, Yekutieli D: The Control of the False Discovery Rate in Multiple Testing under Dependency. The Annals of Statistics 2001, 29(4):1165–1188.
 40.
von Luxburg U: A tutorial on spectral clustering. Tech rep Max Plank Institute for Biological Cybernetics; 2006. [http://www.kyb.mpg.de/publication.html?publ=4139]
 41.
BarJoseph Z, Gifford DK, Jaakkola TS: Fast optimal leaf ordering for hierarchical clustering. Bioinformatics 2001, 17 Suppl 1: S22S29.
 42.
GiraudCarrier C, Vilalta R, Brazdil P: Introduction to the special issue on metalearning. Machine Learning 2004, 54(3):187–193.
 43.
de Souto MCP, R RBCP, Soares RGF, de Araujo DSA, Costa IG, Ludermir TB, Schliep A: Ranking and Selecting Clustering Algorithms Using a MetaLearning Approach. In Proc. of IEEE International Joint Conference on Neural Networks. IEEE Computer Society; 2008:3728–3734.
 44.
Blockeel H, Vanschoren J: Experiment Databases: Towards an Improved Experimental Methodology in Machine Learning. Knowledge Discovery in Databases: PKDD 2007, 6–17.
 45.
Statnikov A, Aliferis CF, Tsamardinos I, Hardin D, Levy S: A comprehensive evaluation of multicategory classification methods for microarray gene expression cancer diagnosis. Bioinformatics 2005, 21(5):631–643.
 46.
Quackenbush J: Computational analysis of cDNA microarray data. Nature Reviews 2001, 6(2):418–428.
 47.
Slonim D: From patterns to pathways: gene expression data analysis comes of age. Nature Genetics 2002, 32: 502–508.
 48.
Milligan GW, Cooper MC: A study of the comparability of external criteria for hierarchical cluster analysis. Multivariate Behavorial Research 1986, 21: 441–458.
 49.
Monti S, Tamayo P, Mesirov J, Golub T: Consensus clustering: a resamplingbased method for class discovery and visualization of gene expression microarray data. Machine Learning 2003, 52: 91–118.
 50.
Ramaswamy S, Tamayo P, Rifkin R, Mukherjee S, Yeang CH, Angelo M, Ladd C, Reich M, Latulippe E, Mesirov JP, Poggio T, Gerald W, Loda M, Lander ES, Golub TR: Multiclass cancer diagnosis using tumor gene expression signatures. Proc Natl Acad Sci USA 2001, 98(26):15149–15154.
 51.
Stegmaier K, Ross KN, Colavito SA, OMalley S, Stockwell BR, Golub TR: Gene expressionbased highthroughput screening(GEHTS) and application to leukemia differentiation. Nature Genetics 2004, 36(3):257–263.
 52.
Armstrong SA, Staunton JE, Silverman LB, Pieters R, den Boer ML, Minden MD, Sallan SE, Lander ES, Golub TR, Korsmeyer SJ: MLL translocations specify a distinct gene expression profile that distinguishes a unique leukemia. Nat Genet 2002, 30: 41–47.
 53.
Gordon GJ, Jensen RV, Hsiao LL, Gullans SR, Blumenstock JE, Ramaswamy S, Richards WG, Sugarbaker DJ, Bueno R: Translation of microarray data into clinically relevant cancer diagnostic tests using gene expression ratios in lung cancer and mesothelioma. Cancer Res 2002, 62(17):4963–4967.
 54.
Nutt CL, Mani DR, Betensky RA, Tamayo P, Cairncross JG, Ladd C, Pohl U, Hartmann C, McLaughlin ME, Batchelor TT, Black PM, von Deimling A, Pomeroy SL, Golub TR, Louis DN: Gene expressionbased classification of malignant gliomas correlates better with survival than histological classification. Cancer Res 2003, 63(7):1602–1607.
 55.
Pomeroy SL, Tamayo P, Gaasenbeek M, Sturla LM, Angelo M, McLaughlin ME, Kim JYH, Goumnerova LC, Black PM, Lau C, Allen JC, Zagzag D, Olson JM, Curran T, Wetmore C, Biegel JA, Poggio T, Mukherjee S, Rifkin R, Califano A, Stolovitzky G, Louis DN, Mesirov JP, Lander ES, Golub TR: Prediction of central nervous system embryonal tumour outcome based on gene expression. Nature 2002, 415(6870):436–442.
 56.
Shipp MA, Ross KN, Tamayo P, Weng AP, Kutok JL, Aguiar RCT, Gaasenbeek M, Angelo M, Reich M, Pinkus GS, Ray TS, Koval MA, Last KW, Norton A, Lister TA, Mesirov J, Neuberg DS, Lander ES, Aster JC, Golub TR: Diffuse large Bcell lymphoma outcome prediction by geneexpression profiling and supervised machine learning. Nat Med 2002, 8: 68–74.
 57.
Su AI, Welsh JB, Sapinoso LM, Kern SG, Dimitrov P, Lapp H, Schultz PG, Powell SM, Moskaluk CA, Frierson HF, Hampton GM: Molecular classification of human carcinomas by use of gene expression signatures. Cancer Res 2001, 61(20):7388–7393.
 58.
West M, Blanchette C, Dressman H, Huang E, Ishida S, Spang R, Zuzan H, Olson JA, Marks JR, Nevins JR: Predicting the clinical status of human breast cancer by using gene expression profiles. Proc Natl Acad Sci USA 2001, 98(20):11462–11467.
 59.
Garber ME, Troyanskaya OG, Schluens K, Petersen S, Thaesler Z, PacynaGengelbach M, Rijn M, Rosen GD, Perou CM, Whyte RI, Altman RB, Brown PO, Botstein D, Petersen I: Diversity of gene expression in adenocarcinoma of the lung. Proc Natl Acad Sci USA 2001, 98(24):13784–13789.
 60.
Khan J, Wei JS, Ringner M, Saal LH, Ladanyi M, Westermann F, Berthold F, Schwab M, Antonescu CR, Peterson C, Meltzer PS: Classification and diagnostic prediction of cancers using gene expression profiling and artificial neural networks. Nat Med 2001, 7(6):673–679.
 61.
Tomlins SA, Mehra R, Rhodes DR, Cao X, Wang L, Dhanasekaran SM, KalyanaSundaram S, Wei JT, Rubin MA, Pienta KJ, Shah RB, Chinnaiyan AM: Integrative molecular concept modeling of prostate cancer progression. Nat Genet 2007, 39: 41–51.
