Can molecular dynamics simulations help in discriminating correct from erroneous protein 3D models?
- Jean-François Taly^{1},
- Antoine Marin^{1} and
- Jean-François Gibrat^{1}Email author
https://doi.org/10.1186/1471-2105-9-6
© Taly et al; licensee BioMed Central Ltd. 2008
- Received: 18 July 2007
- Accepted: 07 January 2008
- Published: 07 January 2008
Abstract
Background
Recent approaches for predicting the three-dimensional (3D) structure of proteins such as de novo or fold recognition methods mostly rely on simplified energy potential functions and a reduced representation of the polypeptide chain. These simplifications facilitate the exploration of the protein conformational space but do not permit to capture entirely the subtle relationship that exists between the amino acid sequence and its native structure. It has been proposed that physics-based energy functions together with techniques for sampling the conformational space, e.g., Monte Carlo or molecular dynamics (MD) simulations, are better suited to the task of modelling proteins at higher resolutions than those of models obtained with the former type of methods. In this study we monitor different protein structural properties along MD trajectories to discriminate correct from erroneous models. These models are based on the sequence-structure alignments provided by our fold recognition method, FROST. We define correct models as being built from alignments of sequences with structures similar to their native structures and erroneous models from alignments of sequences with structures unrelated to their native structures.
Results
For three test sequences whose native structures belong to the all-α, all-β and αβ classes we built a set of models intended to cover the whole spectrum: from a perfect model, i.e., the native structure, to a very poor model, i.e., a random alignment of the test sequence with a structure belonging to another structural class, including several intermediate models based on fold recognition alignments. We submitted these models to 11 ns of MD simulations at three different temperatures. We monitored along the corresponding trajectories the mean of the Root-Mean-Square deviations (RMSd) with respect to the initial conformation, the RMSd fluctuations, the number of conformation clusters, the evolution of secondary structures and the surface area of residues. None of these criteria alone is 100% efficient in discriminating correct from erroneous models. The mean RMSd, RMSd fluctuations, secondary structure and clustering of conformations show some false positives whereas the residue surface area criterion shows false negatives. However if we consider these criteria in combination it is straightforward to discriminate the two types of models.
Conclusion
The ability of discriminating correct from erroneous models allows us to improve the specificity and sensitivity of our fold recognition method for a number of ambiguous cases.
Keywords
- Template Structure
- Molecular Dynamic Trajectory
- Gibbs Free Energy
- Polar Atom
- Fold Recognition
Background
The last 10 years have witnessed steady progress in the prediction of the three-dimensional (3D) structure of proteins from their amino acid sequence [1]. Most current approaches, ranging from de novo to fold recognition (threading) techniques, are based on simplified "energy" potentials (with a few exceptions such as the UNRES force field [2]). These empirical potentials, often more appropriately referred to as score functions, are derived from statistical analyses of structural features observed in known 3D structures: residue-wise interactions, secondary structure propensities, residue surface, etc. They are used with a reduced representation of the polypeptide chain (for instance, in many threading methods residues are represented by a single site, the Cβ or the Cα atom). Such coarse-grained potentials cannot capture wholly the subtle relationship that exists between the amino acid sequence and the 3D structure of proteins. However their simplicity is an asset for exploring the conformational space, they permit to filter out improbable or unrealistic structures and, hopefully, to propose structures that are close to the native structure. De novo techniques, such as those developed by the Baker's group [3], generate hundreds of structures some close to the native structure but also many far from it. Threading methods are more constrained since they only consider known 3D structures and seek whether a particular query sequence might be compatible with some of these structures. Typically, they provide a list of template structures that are ranked by scores. All these methods have developed their own means to judge whether a de novo structure is close to the native structure or whether a particular template structure is compatible with a given sequence. However, in some cases this judgement is not clear-cut and it has been suggested that these techniques could benefit from the use of an atomic representation of the polypeptide chain together with detailed energy functions based on chemical-physical principles [4]. One would thus adopt a hierarchical approach, simplified potentials would permit to focus on a limited number of plausible candidates and detailed potentials would help in discriminating between native and misfolded structures. Since the pioneering work of Novotny et al.[5] a number of groups have sought to analyse whether usual molecular mechanics force fields, such as those employed for molecular dynamics (MD) simulations complemented with different ways of computing solvation effects, could indeed discriminate the native structure from misfolded conformations [6–13]. All these works, except [7] that uses a limited sampling, are based on minimised conformations, hence the need to introduce different terms to represent solvation free energy. It appears that such empirical free energy calculations are able to make a distinction, in many cases, between native structures and decoys. These works also analysed the role of the different terms involved in the free energy computation: internal, van der Waals and electrostatic energies, solvation contributions, etc. arriving at somewhat different conclusions as to which terms were preponderant for the discrimination.
Other groups [14–16] tackled a related question: can physics-based potentials together with an extensive sampling of the protein conformational space using MD simulations refine, i.e., bring closer to the native structure, an initial model resulting from a previous stage employing coarse-grained potentials?
In this work we wish to answer a very pragmatic question. We have developed a fold recognition method called FROST [17]. In this method we perform a statistical analysis of the scores to decide whether a sequence is compatible with a template structure. This permits us to recover 60% of the related sequence-structure pairs while keeping an error rate of 1%. Unfortunately 40% of the pairs do not satisfy this statistical criterion although, for an important fraction of them, a compatible template structure can be found amongst the top templates of the list ordered by normalised scores. Hereafter, we will refer to the zone where scores are not statistically significant as the "twilight zone" of the method. The question we would like to answer is thus the following: can physics-based potentials and MD simulations help us in discriminating "correct" from "erroneous" templates in such borderline cases. Our motivation is similar to the one of Kinjo and colleagues [11] although, as described below, we employ a different approach.
We define a correct template as a structure that is similar to the query sequence native structure and an erroneous template as any other structure of the database. Let us note that these erroneous templates, because they appear in the top of the list, constitute difficult cases compared to what has been done by Novotny et al.[5]. They just swapped the sequences between an all-α protein and an all-β protein without paying attention whether this procedure buried charged residues or exposed non polar residues. The threading method will find the best location for the query residues in the 3D structure according to its empirical score function (the current version of the method insures that the best alignment score between the query sequence and the template structures is found). Therefore many of the top erroneous templates are likely to exhibit some common features with the correct templates making them difficult to distinguish.
To answer the above question, for the borderline cases, we build 3D models based on the sequence-structure alignments provided by our fold recognition method and we submit them to MD simulations. We monitor different structural features: RMSd, radius of gyration, secondary structures, side chain surface, etc. along the trajectories to discriminate correct from erroneous models. There are many ways in which a 3D model can be erroneous. In this study, to be consistent with the question we want to answer, an erroneous model is defined as a model for which the sequence has been aligned with a template structure that has no relationship with its native structure.
Notice that, in real cases, one cannot use approaches similar to those described in [6–13] since they require the knowledge of the native structure. In these studies, the value of the free energy for the native structure is usually smaller than the value of the free energy for the decoys but the difference is often quite small relative to the magnitude of the figures involved (a few percents at best). Free energy values are very different according to the protein studied and there is no absolute scale on which one could rely. Therefore instead of trying to compute the free energy of the models we choose to rely on the analysis of the behaviour of different structural features along the MD trajectories.
Results
Summary of the characteristics of the 6 models built for each query structure
Model | Characteristics | ||
---|---|---|---|
Template | Alignment | % seq. Id. | |
NS0 | Native struct. | Exact | 100 |
ST1 | Similar | Good | 20 – 30 |
ST2 | Similar | Fair | 0 – 20 |
ST3 | Similar | Poor | 0 – 15 |
DT1 | Different | - | 0 – 15 |
DT2 | Different | - | 0 – 15 |
Let us emphasise that all models, as far as the backbone is concerned, are based on known 3D structures. Structural features such as the network of hydrogen bonds, the Ramachandran zones for the φ and ψ angles, etc. are realistic (with the possible exception of regions corresponding to the loops built by Modeller). The only unrealistic structural feature concerns the location and interactions of side chains in some of the models.
In the following, we try, by monitoring various structural characteristics along MD trajectories at different temperatures, to answer two questions. First, is it possible to distinguish, quantitatively or qualitatively, models for which the query sequence has been aligned with a template structure similar to its native structure from models for which the query sequence has been aligned with template structures without relation with its native structure? If the query sequence has been aligned with the correct template structure but with a poor alignment can we pinpoint parts of the model that correspond to misaligned regions?
Analysis of the models
All-α models

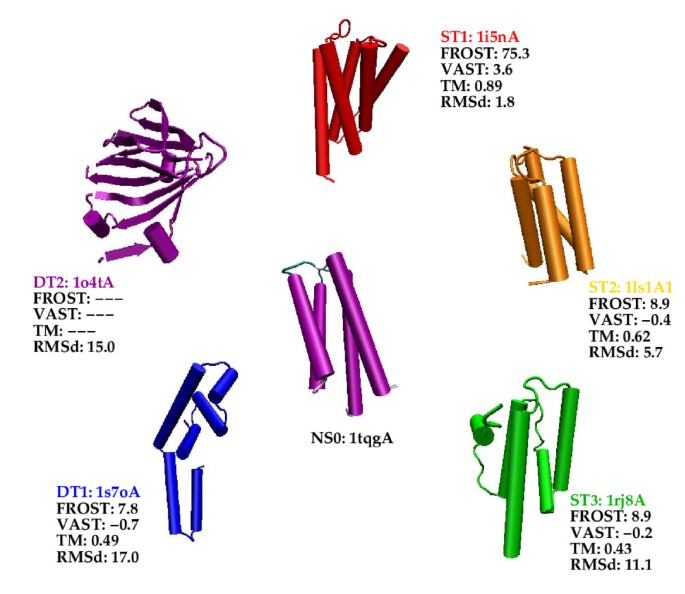

Fig. 2 shows the FROST score (the twilight zone lies below S_{ sig }= 15), the VAST score (a score above 2 is indicative of a clear structural relationship between the proteins), the TM-score (a score larger than 0.4 implies a structural relationship between the proteins) and the RMSd of the model with respect to the query native structure.
The FROST score is very high for model ST1 since this model is in the range of homology modelling. Scores for other models are in the FROST twilight zone with a small difference between scores for ST2, ST3 and DT1. This is precisely to help us resolving such ambiguous situations that we would like to employ MD simulations.
All indicators show that ST1 is related to the query native structure. For ST2 the VAST score is negative but the TM-score is significant. ST3 and DT1 appear to have about the same weak similarity with the query structure. The TM-score is slightly above the significant threshold of 0.4. In fact, according to SCOP, ST3 belongs to the same fold as the query protein (4-helical up-and-down bundle) whereas DT1 belongs to a different fold (DNA/RNA-binding 3-helical bundle). These two folds obviously share a common helical motif that confuses the fold recognition program.
Model ST2 is marginally similar to the query native structure with an RMSd of 5.7 Å
All-β models
Notice that the all-β query structure, 1o4tA, has been used as template to build the DT2 model for the all-α class. Conversely, the all-α query, 1tqgA, is used to build the DT2 model for the all-β class.
For this class it was difficult to find templates for the whole range of models. For instance we could not find a template for model ST1. Therefore we decided that the template for ST2 would also be used as template for ST1. The two models just differ by the type of alignment that is used: ST1 is based on the structural alignment whereas ST2 is based on the fold recognition alignment. We could not find either a template for the ST3 model. Instead we built two DT1 models, named DT1a and DT1b. The templates used for DT1a and DT1b belongs to the same SCOP fold (Immunoglobulin-like β sandwich) but to different super-families.
The template used for models ST1 and ST2 is clearly similar to the query structure. Both this template and the query structure belong to the same SCOP family of the double-stranded β helix SCOP fold. The query protein, 1o4tA, whose length is 115 residues, is a homodimer in the PDB file. At its N-terminus there exists a small strand that pairs with its counterpart in the other monomer. When using only the monomer this strand is floating in the solvent. We thus decided to remove this portion of the sequence (9 residues) from the NS0 model to obtain a more compact 3D structure. However alignments with template structures where performed with the complete sequence. This explains why the DT1b model is 112 residues long.
αβ models

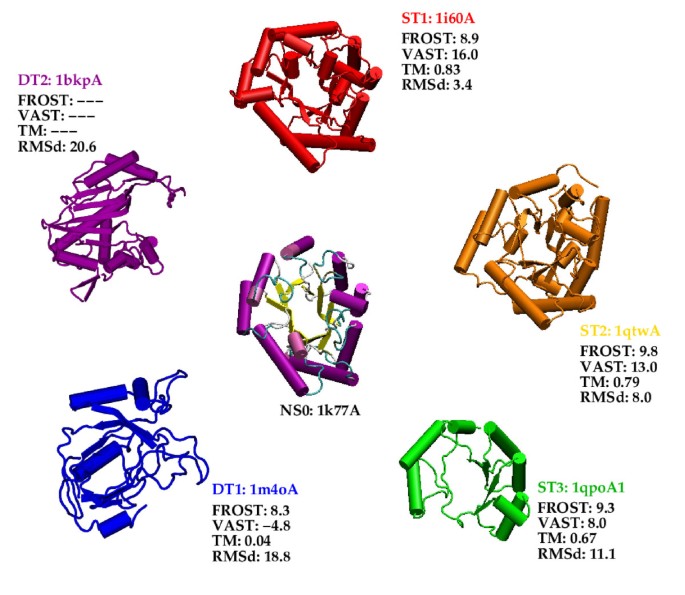

For the αβ class it was easier to find template structures that span the whole range of models. Structural indicators reveal that the ST models are clearly related to the query structure. FROST scores are in the twilight zone and it is difficult to differentiate ST and DT template structures. Overall the percentage of sequence identity between the template proteins and the query protein is weak (at most 18% for the ST1 template structure). Accordingly the FROST score for ST1 is within the twilight zone. ST3 template structure, 1qpoA1, corresponds to a domain of a larger protein. This domain corresponds to three-quarter of a regular TIM-barrel: the inner β barrel has only 6 strands and is not closed; there are 6 external α helices.
The ST1 model is close to the query structure whereas the ST2 model is relatively far from it (RMSd = 8.0Å). DT models are far from the query structure. ST3 model is intermediate between DT and the two other ST models.
The template structure that is used to build the DT2 model, 1bkpA, belongs to the SCOP α + β class.
Conformational space sampling efficiency
We have carried out a principal component analysis as described in the Method section. This analysis is usually employed to study collective motions of the system that are described by the first few principal modes. Here we use it, primarily, to check whether the sampling of the conformational space we performed is sufficient, through the computation of the cosine content of the first 3 principal components.
It has been shown that the principal components of random diffusion are cosines with the number of periods equal to half the principal component index [20, 21]. When the cosine content of the first few principal components is close to 1, the largest fluctuations are not connected with the potential but with random diffusion. In other words, the corresponding simulation was not long enough for the system to sample the "walls" of the potential energy function.
The maximum cosine content observed for all the models is 0.65 (data not shown). Only αβ models consistently exhibit values close to 0.65 for one of the first 3 modes, other models have lower cosine content. From these results one can conclude that the sampling was sufficient to explore the local minimum region for all-α and all-β models. For αβ models, the length of the simulation might possibly be a bit too short, although it is difficult to interpret this value of 0.65 with certainty. Two dimensional plots showing the projection of the trajectories along pairs of modes confirm globally these conclusions (data not shown). Let us emphasise that a low cosine content is not a proof that the system has exhaustively explored all the conformational space available to it at a given temperature. In our experience, with other systems, the cosine content can be low for the first 4 ns, say, then can rise suddenly when we compute it for the first 6 ns. The interpretation of this phenomenon is that the system got trapped inside a region of the conformational space during the first 4 ns then managed to overcome a barrier of potential after 4 ns to reach a new region. After 6 ns the system has not had time, yet, to sample the boundaries of this new region. Therefore if the cosine content computed for a given trajectory is close to 1 we know that the corresponding simulation was not long enough to explore the local conformation space completely. On the other hand, if the cosine content is low, we know that the system has had enough time to explore the local potential valley but we cannot be sure that, had we continued the simulation further, the system would not have reached, eventually, another valley.
Root Mean Square deviation analysis
To analyse the behaviour of the different models along the molecular dynamics trajectories we monitored the root-mean-square deviation (RMSd) between the initial conformation of the production phase (t = 0) and conformations taken every 10 ps. For this criterion, as well as for the other criteria we consider below, we seek i) whether there exists a correlation between the spectrum of models and the criterion values and ii) whether we can find a value of the criterion that allows us to clearly discriminate ST models from DT models.
Root Mean Square deviations
300 K | 350 K | 400 K | |||||
---|---|---|---|---|---|---|---|
Class | Models | Mean | sd | Mean | sd | Mean | sd |
all-α | NS0 | 1.3 | 0.21 | 1.8 | 0.38 | 2.3 | 0.43 |
ST1 | 2.2 | 0.31 | 2.2 | 0.31 | 3.0 | 0.56 | |
ST2 | 2.8 | 0.32 | 3.4 | 0.46 | 4.6 | 0.65 | |
ST3 | 3.6 | 0.48 | 3.9 | 0.55 | 5.3 | 1.17 | |
DT1 | 5.8 | 0.80 | 6.2 | 1.19 | 9.8 | 2.17 | |
DT2 | 2.7 | 0.45 | 3.5 | 0.55 | 4.8 | 0.92 | |
all-β | NS0 | 1.9 | 0.19 | 2.2 | 0.26 | 2.2 | 0.25 |
ST1 | 2.4 | 0.29 | 2.2 | 0.29 | 2.9 | 0.30 | |
ST2 | 2.3 | 0.27 | 2.7 | 0.53 | 3.6 | 0.52 | |
DT1b | 2.9 | 0.28 | 3.5 | 0.42 | 4.4 | 0.45 | |
DT1a | 3.7 | 0.50 | 4.0 | 0.49 | 5.5 | 0.97 | |
DT2 | 2.8 | 0.41 | 4.1 | 0.89 | 6.5 | 1.22 | |
αβ | NS0 | 1.6 | 0.22 | 2.2 | 0.25 | 2.9 | 0.37 |
ST1 | 2.6 | 0.26 | 3.3 | 0.38 | 3.6 | 0.36 | |
ST2 | 3.3 | 0.33 | 4.2 | 0.40 | 5.2 | 0.60 | |
ST3 | 3.4 | 0.31 | 5.0 | 0.48 | 5.0 | 0.52 | |
DT1 | 4.4 | 0.68 | 6.2 | 0.61 | 7.7 | 0.79 | |
DT2 | 3.6 | 0.50 | 4.3 | 0.52 | 5.9 | 0.70 |
Before analysing Table 2, we must first determine whether the average and standard deviation values listed in these tables are significantly different. For this we performed an analysis using Student t- and F-tests. These tests compute the probability (p-value) that two distributions have the same means and variances. These computations critically depend on the number of data points. It is also assumed that these points are independent. For molecular simulations trajectories the latter property can be questioned. To evaluate the effect of correlations between conformations along the trajectory we computed the same p-values with only one tenth of the points, that is, conformations separated by 100 ps corresponding to 50,000 molecular dynamics steps. Results of these computations are given in Additional file 1, Fig. S7. According to this analysis the observed differences in the means are always significant. For the variances the differences are most of the time significant except for the all-α model pairs ST1-ST2 and DT2-ST3, the all-β model pairs DT1b-ST1 and DT1b-ST2, and the αβ model pair ST2-ST3.
Inspection of Table 2 for trajectories at 300 K reveals a rough correlation between the model accuracy along the spectrum of models and the RMSd mean or the standard deviation (that measures the fluctuations of the molecule along the trajectory). With the notable exception of DT2 models, the mean and standard deviation steadily increase when one goes from NS0 to DT1 models.
DT2 models do not behave as expected. Their RMSd mean is close to the values of the ST1-2 models. However their standard deviation is in the range observed for DT1 models, clearly above the standard deviations of ST1-2 models. We will see that, for other criteria too, DT2 models display an anomalous behaviour. We will delay until the end of the Result section the analysis of DT2 models to explain this unexpected behaviour.
Performing simulations at different temperatures does not help in discriminating the different types of models. The RMSd mean and standard deviation increase with the temperature but approximately in the same proportion for all the models. Only the all-β DT2 model exhibits the behaviour we were expecting. Its RMSd mean increases by a factor of more than 2 and its standard deviation by a factor of 3 between 300 K and 400 K. These figures are clearly larger than those observed for other models.
Analysis of conformation clusters
Number of clusters as a function of the simulation temperature
Class | Model | 300 K | 350 K | 400 K |
---|---|---|---|---|
all-α | NS0 | 1 | 1 | 70 |
ST1 | 2 | 16 | 192 | |
ST2 | 4 | 193 | 711 | |
ST3 | 54 | 377 | 879 | |
DT1 | 1045 | 1059 | 1091 | |
DT2 | 98 | 931 | 1060 | |
all-β | NS0 | 1 | 1 | 1 |
ST1 | 1 | 1 | 5 | |
ST2 | 1 | 1 | 7 | |
DT1b | 2 | 23 | 152 | |
DT1a | 109 | 34 | 298 | |
DT2 | 1 | 18 | 41 | |
αβ | NS0 | 1 | 1 | 1 |
ST1 | 2 | 2 | 2 | |
ST2 | 9 | 29 | 29 | |
ST3 | 10 | 41 | 199 | |
DT1 | 495 | 198 | 383 | |
DT2 | 55 | 65 | 225 |
Results shown in Table 3 allow a better discrimination between the different types of models than results presented in Table 2.
We observe the same general correlation between the spectrum of models and the number of clusters. DT2 models still behave as outliers but there exists a better contrast with respect to ST1-2 models than previously (except for the all-β class). At 300 K NS0 and ST1-2 models for classes all-α and αβ explore at most 10 clusters whereas DT2 models explore several tens. Increasing the temperature, in particular in the all-β case, does improve the discrimination between the model types. For all-β DT1b and DT2 models, that are indistinguishable from NS0 and ST1-2 models at 300 K, the number of explored clusters increases steadily with the temperature whilst it remains small for NS0 and ST1-2 models. As previously, ST3 models are intermediate between ST1-2 and DT models although the all-α ST3 model seems closer to DT models and the αβ ST3 model to ST1-2 models.
Evolution of the secondary structure content along the trajectories
Percentage of secondary structures
Class | Model | 300 K | 350 K | 400 K |
---|---|---|---|---|
all-α | NS0 | 96 | 90 | 81 |
ST1 | 87 | 85 | 74 | |
ST2 | 90 | 61 | 45 | |
ST3 | 71 | 50 | 24 | |
DT1 | 54 | 47 | 13 | |
DT2 | 38 | 13 | 10 | |
all-β | NS0 | 69 | 61 | 55 |
ST1 | 55 | 58 | 47 | |
ST2 | 41 | 40 | 34 | |
DT1b | 59 | 52 | 26 | |
DT1a | 11 | 20 | 9 | |
DT2 | 87 | 67 | 38 | |
αβ | NS0 | 80 | 73 | 65 |
ST1 | 68 | 51 | 48 | |
ST2 | 52 | 33 | 16 | |
ST3 | 52 | 43 | 37 | |
DT1 | 41 | 27 | 0 | |
DT2 | 44 | 31 | 8 |
The first point to stress is that α helices and β strands do not display the same stability [23]. Considering NS0 models for the different classes, it appears that α helices are more persistent than β strands.
This property seems to have an impact on the relevance of the secondary structure as a criterion for discriminating the different types of models. For all-α models there is a good correlation between the percentage of secondary structures kept along the trajectory and the different types of models, even for the DT2 model that behaved as an outlier for the RMSd criteria we examined above. This is true for all temperatures. The secondary structure criterion allows a good distinction between DT and ST models, including the ST3 model that showed a tendency to behave as DT models with RMSd criteria.
For αβ models there is still a correlation between the percentage of conserved secondary structures and the type of models although this correlation becomes less regular when the temperature increases. It is more difficult to discriminate DT and ST models.
For the all-β class, DT1b and DT2 models perturb the correlation. The case of the DT2 model appears surprising at first sight since it exhibits a higher fraction of conserved secondary structures than the native structure itself at 300 K. In this model the native sequence has been aligned with the all-α query structure. This confirms our previous observation that α helices appear to be more stable than β strands. Let us note, however, that the NS0 model looses few secondary structures when the temperature increases unlike the DT2 model whose fraction of secondary structures is halved when the temperature is raised from 300 K to 400 K. For this class the secondary structure criterion is ineffective in discriminating the different types of models.
Statistical score based on residue surface areas
The accessible surface area of the residues is an important parameter to characterise protein 3D structures. To quantify this parameter we defined an empirical score function based on the residue surface areas. This score function takes into consideration the so-called "polar satisfaction" of the polar residues and the "hydrophobic satisfaction" of hydrophobic residues. These two criteria are intended to account for the observed tendency of hydrophobic residues to be buried and polar residues to be in contact with the solvent or other polar residues. The method section briefly describes how this score function is calculated. We compute 2 types of scores. The first one is a global score for the whole protein, the second is a window score that is the mean of the scores in an 11-residue window centred on a residue of interest (each residue in the sequence is thus characterised by a particular window score).
Global score based on residue surface areas
Class | Model | S _{t = 0} | $\overline{S}$ 300 K | $\overline{S}$ 350 K | $\overline{S}$ 400 K |
---|---|---|---|---|---|
all-α | NS0 | -0.96 | -0.87 | -0.87 | -0.91 |
ST1 | -1.12 | -0.86 | -0.89 | -0.92 | |
ST2 | -1.42 | -1.16 | -1.27 | -1.23 | |
ST3 | -1.70 | -1.49 | -1.52 | -1.44 | |
DT1 | -1.73 | -1.48 | -1.34 | -1.37 | |
DT2 | -1.88 | -1.68 | -1.66 | -1.67 | |
all-β | NS0 | -1.17 | -1.04 | -1.07 | -1.07 |
ST1 | -1.29 | -1.13 | -1.13 | -1.12 | |
ST2 | -1.47 | -1.22 | -1.19 | -1.23 | |
DT1b | -1.77 | -1.66 | -1.54 | -1.41 | |
DT1a | -1.92 | -1.68 | -1.66 | -1.61 | |
DT2 | -1.87 | -1.65 | -1.63 | -1.55 | |
αβ | NS0 | -1.11 | -1.00 | -1.03 | -1.06 |
ST1 | -1.25 | -1.14 | -1.13 | -1.10 | |
ST2 | -1.60 | -1.47 | -1.45 | -1.44 | |
ST3 | -1.73 | -1.47 | -1.39 | -1.43 | |
DT1 | -1.75 | -1.49 | -1.42 | -1.44 | |
DT2 | -1.68 | -1.58 | -1.45 | -1.50 |
It is interesting to notice that MD simulations, although the physics-based function they employ does not take into account the residue surface areas, systematically improve the global score for all the models with respect to the static models at t = 0. In particular this allows the all-α and all-β ST2 models and the αβ ST1 model, that appear significantly different from a true structure when only the static initial conformation at t = 0 is considered, to be brought within the range of scores characteristic of real 3D structures. The improvement for NS0 models is, in general, less than the improvement observed for other models. The worst models show a tendency to exhibit the largest score improvements, although this is not systematic.
The global score allows the discrimination of the ST1-2 models (except for the αβ class). ST3 models behave as the DT models with this criterion. The scores of DT models are usually far below the 1% confidence threshold value (several standard deviations). DT models are thus easy to detect.
Window score based on residue surface areas
Sequence | E57 | F58 | E59 | I60 | Y61 | Y62 | I63 | L64 | L65 | G66 | E67 | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
t = 0 | Win. score | -2.61 | -2.38 | -2.15 | -2.48 | -2.36 | -2.84 | -2.74 | -2.53 | -2.45 | -2.57 | -2.50 | |
Ind. score | -1.88 | -3.06 | -3.23 | -1.36 | -2.81 | -4.72 | -0.97 | -2.34 | -4.19 | -0.69 | -5.99 | ||
t = 280 | Win. score | -1.23 | -1.18 | -1.18 | -1.26 | -1.21 | -1.28 | -1.25 | -1.21 | -1.37 | -1.44 | -1.33 | |
Ind. score | -0.95 | -1.61 | -0.67 | -1.03 | -1.38 | -0.09 | -0.93 | -2.76 | -2.52 | -0.69 | -1.37 | ||
Query | Win. score | -1.47 | -1.34 | -1.36 | -1.48 | -1.48 | -1.50 | -1.46 | -1.50 | -1.00 | -0.99 | -1.20 | |
Ind. score | -1.09 | -1.10 | -5.99 | -0.82 | -0.18 | -1.18 | -0.58 | -1.07 | -2.92 | -0.69 | -0.87 |
Other criteria
We tried other criteria such as the fraction of side-chain contacts that are conserved along the trajectory or the radius of gyration of the molecules. These criteria proved to be not very efficient in discriminating between the different types of models (data not shown).
Gibbs free energies
For the sake of comparison with published works we computed the Gibbs free energy (since our simulations were performed at constant pressure and temperature) for the different models along the trajectories at 300 K. It is important to notice that we only computed the free energy of the macromolecule. The Gibbs free energy is given by:G = U - TS + PV
where U is the internal energy, T is the temperature, S is the entropy, P is the pressure and V is the volume. In the calculation of the Gibbs free energy we omit terms whose contribution is the same for the different models. For instance, the internal energy includes the kinetic energy but since the temperature is fixed and models, for a given query sequence, have the same number of degrees of freedom the corresponding value is identical for all models. In a similar way, we assume that the PV term is very similar for all comparable models since there is no large change of volume involved, as this would be the case in a reaction producing gaseous compounds. We are, thus, only interested in terms that allow us to rank the different models of a given query sequence (to remind this we add a '*' to the Gibbs free energy: G*.
The internal energy therefore consists of 2 terms: the intramolecular energy and the energy of interaction of the molecule with the solvent. Both terms are computed as the corresponding mean energies of the conformations along the MD trajectory.
The entropy is computed as described in the Method section, taking advantage of the calculation and diagonalizing of the covariance matrix already performed.
Gibbs free energies
Energy of the protein | Energy protein-solvent | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Class | Model | Nres | E _{0} | $\overline{E}$ | σ _{ E } | E _{0} | $\overline{E}$ | σ _{ E } | TS | G* | ${G}_{0}^{\ast}$ |
all-α | NS0 | 105 | -5 739 | -5 316 | 345 | -18 266 | -17 123 | 672 | 1 157 | -23 596 | -24 019 |
ST1 | 105 | -4 002 | -4 536 | 424 | -20 587 | -18 616 | 827 | 1 245 | -24 397 | -23 863 | |
ST2 | 91 | -4 719 | -4 892 | 335 | -15 330 | -15 354 | 636 | 1 119 | - | - | |
ST3 | 104 | -3 041 | -4 745 | 543 | -21 442 | -17 646 | 1 026 | 1 325 | -23 716 | -22 012 | |
DT1 | 105 | -2 379 | -4 627 | 400 | -23 278 | -17 894 | 798 | 1 483 | -24 004 | -21 756 | |
DT2 | 105 | -5 018 | -5 755 | 289 | -16 742 | -15 625 | 509 | 1 337 | -22 717 | -21 980 | |
all-β | NS0 | 106 | -6 018 | -5 159 | 383 | -15 237 | -15 023 | 757 | 1 193 | -21 375 | -22 448 |
ST1 | 106 | -3 932 | -4 836 | 333 | -18 562 | -15 585 | 657 | 1 274 | -21 695 | -23 768 | |
ST2 | 104 | -2 828 | -3 651 | 404 | -18 910 | -16 835 | 779 | 1 315 | -21 801 | -23 053 | |
DT1b | 98 | -3 068 | -3 621 | 355 | -17 127 | -15 244 | 681 | 1 368 | - | - | |
DT1a | 112 | -3 301 | -5 385 | 468 | -19 417 | -15 484 | 843 | 1 304 | - | - | |
DT2 | 106 | -3 483 | -4 426 | 374 | -18 988 | -16 233 | 704 | 1 185 | -21 844 | -23 656 | |
αβ | NS0 | 260 | -16 963 | -13 912 | 452 | -28 307 | -30 284 | 826 | 2 339 | -46 535 | -49 586 |
ST1 | 260 | -11 223 | -11 888 | 503 | -36 671 | -33 328 | 991 | 2 534 | -47 750 | -47 085 | |
ST2 | 260 | -6 735 | -9 817 | 911 | -42 134 | -36 954 | 1 625 | 2 731 | -49 502 | -46 420 | |
ST3 | 200 | -6 774 | -8 629 | 445 | -28 844 | -25 728 | 790 | 2 104 | - | - | |
DT1 | 196 | -2 578 | -5 515 | 907 | -40 953 | -34 756 | 1 653 | 2 382 | - | - | |
DT2 | 260 | -8 369 | -10 391 | 655 | -40 331 | -35 703 | 1 145 | 2 716 | -48 810 | -46 788 |
For the intramolecular energy term, NS0 models are the only models to have an initial energy lower than the mean energy at 300 K. NS0 models are close to the native structure and thus they are supposed to have many favourable interactions. When we consider the energy of conformations along the trajectory we expect less favourable interactions to be generated due to the thermal fluctuations, thus leading to an energy value that is higher on average. However, other models show an opposite behaviour, the initial conformation has an energy higher than the mean energy. The initial conformation for these models is thus clearly not optimal in terms of the physics-based potential. NS0 models do not always have the lowest intramolecular energy, for instance the DT2 model for the all-α class and the DT1a model for the all-β class have a lower intramolecular energy.
On the other hand, for the solvent – protein interaction energy, all models, except the NS0 model of the αβ class, exhibit a lower energy for the initial conformation than for the mean energy along the trajectory, as expected. It must be noted that this term strongly favours the ST2 and DT models over the NS0 model for the αβ class. For other classes this trend exists but is less pronounced. Dominy and Brooks [12] using the CHARMM force field and a generalized Born implicit solvation term found that misfolded states were favoured by the solvation term. They attributed this fact to the mispairing of favourable intramolecular ionic contacts.
The entropic term is proportional to the number of conformational states available to the system at a given temperature. We thus expect NS0 models to exhibit a smaller value for this term than DT2 models. We observe a reasonable correlation between the entropic term values and the range of models (except for the all-β DT2 models which has the smallest entropic value).
We computed two values of the Gibbs free energy: G* forz which we use the mean intramolecular energy ($\overline{E}$) along the trajectory and ${G}_{0}^{\ast}$ for which we use the initial value of the intramolecular energy E_{0}. Considering these two terms, we obtain very different pictures. For ${G}_{0}^{\ast}$, there is a perfect correlation between the model spectrum and the free energy values for the all-α class and a reasonable correlation for the two other classes (once again the DT2 models depart from the expected behaviour, they have a slightly lower free energy value than the corresponding ST2 models). On the contrary, for G* there is an anti-correlation for the all-β class, and to a lesser extent for the αβ class and no clear correlation for the all-α class. We note that G* provides a better approximation of the true free energy value than ${G}_{0}^{\ast}$ since the intramolecular energy, and thus the internal energy, U, is much better estimated by the mean intramolecular potential energy along the trajectory than by a single minimised conformation. The good correlation observed between ${G}_{0}^{\ast}$ and the spectrum of models for the three classes is accidental. It is essentially due to the fact that the initial conformation for the models, as described above, contains many constraints compared to the native structure. These constraints are relaxed during the MD simulation. Therefore the Gibbs free energy, G*, computed for the macromolecule alone, does not appear to be an efficient criterion to discriminate the different types of models. Since, in this calculation, we omit a very important term, the entropic contribution of the solvent, this is not very surprising (see Discussion below).
Analysis of the DT2 models
The unexpected behaviour of DT2 models that were supposed to act as controls at one extremity of the model spectrum (the opposite extremity being the NS0 models) prompted us to analyse in detail these models for the all-α and all-β classes.
DT2 models are supposed to be worst than DT1 models because we just swapped the sequences without paying attention to the burial of charged residues or the exposure of non polar residues to the solvent. DT1 models, on the other hand, correspond to the first false positive in the ranked list of scores. The fold recognition algorithm provides the best score it can find and thus tends to avoid, as much as possible, such very unfavourable side-chain assignment. However, DT2 models unlike DT1 and ST models, were aligned with 100% of the selected template structure. We did not need to model loop conformations with Modeller. To analyse whether this point was crucial we built new DT2 models for the all-α and all-β classes with the same template structure except that, this time, the coverage was 86% (slightly above the lowest coverage used for models of these classes, 83% for the all-α ST2 model, see Additional file 1, Table S1). In practice we randomly chose 15 residues in the template structure loops and we left to Modeller the task of building the conformation of these residues. These new models were then submitted to MD simulations at different temperatures as previously described.
Root Mean Square deviations
300 K | 350 K | 400 K | ||||
---|---|---|---|---|---|---|
New DT2 models | mean | sd | Mean | sd | Mean | sd |
all-α | 4.7 | 1.29 | 3.8 | 0.98 | 5.8 | 0.83 |
all-β | 4.2 | 0.70 | 5.0 | 0.70 | 6.6 | 1.10 |
For the all-β models the case is less striking. We let Modeller generate the conformation of 5 residues in each of the 3 inner loops, i.e., the loops between 2 helices. The conformation of the modelled loops appears to be more floppy than the one of the real loops. This is confirmed during the MD simulation since the modelled loops undergo large motions that lead, for one of the helices, to a tendency to unfold at both extremities (only the central part remains helical throughout the whole trajectory). Nevertheless, the helices, even though their local 3D structure is perturbed, remain docked together.
This experiment demonstrates that, although the fraction of the model backbone built by Modeller is low, these zones constitute weak points in the structure. It also shows that favourable interactions, even scattered in the 3D structure, can be sufficient to stabilise the model conformation, at least for a while.
Discussion
In this work we performed MD simulations for different models and we monitored a number of structural properties along the corresponding trajectories to discriminate between correct and erroneous models. Before starting this work we had in mind the following picture about the probable behaviour of the different models during the MD simulations.
At one end of the model spectrum, for NS0 models, all side chains should pack nicely and, in general, most interactions should be favourable. Observing the energy hyper-surface at low resolution, this corresponds to a relatively deep minimum that we call hereafter the basin of attraction of the native structure. At higher resolution, this basin of attraction contains many local minima that are sampled at a given temperature. At 300 K we expect the system to remain within this basin during the whole simulation. In terms of structural properties this implies that the global organisation of the structure is left unmodified. This has for consequences that the RMSd fluctuations are relatively small, no large perturbation of the secondary structures is observed and very few residues are found in an unfavourable environment, as measured by their residue surface area. In addition, since only the portion of the conformational space corresponding to the basin of attraction of the native structure is available to the system, all the conformations that are sampled during the simulations should cluster in a limited number of groups. As described in the Result section, we can choose the clustering procedure such that only one group is obtained at 300 K.
At the other end, for DT models, since the sequences have been aligned with incorrect 3D structures, the packing of the side-chains should be far from optimal and a number of side-chains should be found in an unfavourable environment. We assume that the energy hyper-surface of such models is riddled with relatively shallow and broad minima that allow large fluctuations of the molecule. In the most favourable cases, we expect such models to hop from minimum to minimum and to gradually unfold during the simulations. Therefore we anticipate that the RMSd values with respect to the initial conformations will exhibit large drifts. A noticeable fraction of the initial secondary structures should be lost. Many residues should display low values of the empirical score based on the residue surface area. The number of conformation clusters should also be significantly larger, in agreement with the presence of many potential energy valleys easily reachable by the system.
Between these two extremes, other models should exhibit intermediate behaviours, depending on their proximity to NS0 or DT2 models.
We performed the simulations at several temperatures. We ignore the height of the energy barriers that separate the different valleys. In particular, large rearrangements of the polypeptide chain might correspond to relatively high energy barriers. Crossing such barriers is an event with a low probability of being observed in 11 ns. Raising the temperature amplifies the fluctuations. In this way, we hoped, for DT models, to be able to overcome energy barriers and start unfolding parts of the models.
Results presented above show that our view of the model behaviour was essentially correct.
As expected, the RMSd mean and standard deviation gradually increase from the NS0 models to the DT1 models (DT2 models act as outliers for the reasons we described above). However it is difficult to draw a clear line between the behaviour of DT and ST models. ST3 models tend to behave more like other ST models than DT models.
The number of clusters at 300 K would provide an excellent mean of discriminating ST from DT models but for the all-β DT1a and DT2 models that exhibit an anomalous behaviour. Raising the temperature at 350 K or 400 K solves this problem. This is one of the few cases where increasing the temperature is useful in these analyses. At 300 K ST1-2 models have less than 10 clusters, DT models several tens or hundreds. ST3 models are more difficult to classify, the all-α class ST3 model behaving like a DT model and the one of the αβ class rather like a ST model.
The usefulness of the secondary structure criterion to discriminate the models depends on the type of secondary structure. For models containing α helices there is a good correlation between the mean content in secondary structure and the spectrum of models. This is less clear for models containing β strands, in particular those of the all-β class. For this class the DT1a model and, once again, the DT2 model depart from the expected behaviour. Here also, performing the simulations at 350 or 400 K clarifies the situation. The surface area of hydrophobic/hydrophilic residues, implemented as a satisfaction score, provides the most quantitative criterion for the discrimination of the models. Using the threshold for the 1% confidence interval we are able to clearly distinguish ST1-2 models (except the ST2 model of the αβ class but as shown on Fig. 4 this model is far from the native structure with an RMSd of 8 Å) from DT models. With this criterion ST3 models behave like DT models.
Criteria used to discriminate the models at 300 K
Class | Model | RMSd mean | RMSd fluct. | Clusters | SSEs | Satisfaction score |
---|---|---|---|---|---|---|
all-α | NS0 | + | + | ++ | ++ | +++ |
ST1 | + | + | ++ | ++ | +++ | |
ST2 | + | + | ++ | ++ | +++ | |
ST3 | + | + | - | + | - - | |
DT1 | + | ++ | ++ | ++ | +++ | |
DT2 | - - | - | ++ | ++ | +++ | |
all-β | NS0 | + | + | ++ | + | +++ |
ST1 | + | + | ++ | + | +++ | |
ST2 | + | + | ++ | - | +++ | |
DT1b | - | - | - - | - - | +++ | |
DT1a | + | + | ++ | + | +++ | |
DT2 | - | + | - - | - - | +++ | |
αβ | NS0 | + | + | ++ | ++ | +++ |
ST1 | + | + | ++ | ++ | +++ | |
ST2 | + | + | + | + | - - | |
ST3 | + | + | + | + | - - | |
DT1 | + | + | ++ | - | +++ | |
DT2 | - - | + | + | - | +++ |
Running simulations at different temperatures did not prove very helpful, except possibly for the models of the all-β class for which, in a couple of occasions concerning the clustering and secondary structure criteria, it contributed to a better discrimination of the DT and ST models. Moreover, it is likely that 400 K is too high a temperature for running meaningful MD simulations.
Although the simulations were able to improve the surface area of hydrophobic/hydrophilic residues, making the side chains more native-like, we did not observe any improvement of the ST1-2 model backbones in terms of RMSd values, that is, the model main chains did not become any closer to the native structure main chains. MD simulations in explicit solvent using Rosetta decoys as models [15] showed that such improvements can sometimes be observed on a 10–100 ns time scale. In this study the simulation time corresponds to the lower end of this interval which might explain, in part, why we do not witness any backbone improvement. Other works, using Monte Carlo simulations [24] or just simple minimisations [25], did succeed in improving the ranking of good models and, sometimes, in refining the conformation of "low" resolution 3D structures [24, 26]. In our case our "good" models are relatively far from the native structures (the ST2 model for the all-α class is 5.7 Å and the ST2 model for the αβ class is 8 Å from the corresponding native structures). It is likely that this sort of "low" resolution models need more than 11 ns to be significantly ameliorated.
Computations of the Gibbs free energy did not help us in discriminating correct from erroneous models. Other studies arrived at a different conclusion, based on the analysis of a single minimized conformation using molecular mechanics energy functions complemented with different ways of computing solvation terms.
As observed in Table 7, there is a large, favourable, intramolecular energy gap between the initial conformation of the NS0 models and all other models for the three classes. This is, no doubt, due to the fact that, even though the initial conformations have been minimized using the physics-based energy potential, there remains many constraints in the models that were not built from the native structure. This is the reason why, as described in the Result section, the mean intramolecular energy for NS0 models is higher than the initial conformation energy whereas the opposite is true for all other models. However, during the MD simulations, the systems have enough time to relax and to improve their conformations. As a result, the gap between the mean intramolecular energies for the NS0 models and other models narrows, blurring the different between the different models. This point is clearly highlighted by our computation of the free energy (${G}_{0}^{\ast}$) using the initial intramolecular potential energy, E_{0}, instead of the more correct mean intramolecular potential energy, $\overline{E}$, along the MD trajectory. Considering ${G}_{0}^{\ast}$ instead of G* we have quite a good correlation, albeit fortuitous, between the free energy values and the model spectra.
In addition, the protein-solvent energy shows a tendency to favour the misfolded states. This fact has already been pointed out by Dominy and Brooks [12]. In this study, this is particularly pronounced for models of the αβ class. The contribution of this energy term to the Gibbs free energy is important since, on average, it is about three times larger than the corresponding intramolecular energy term.
As expected, the entropic energy term favours, to a large extent, DT models but the difference between these models and NS0 models is small, since all models correspond to folded, compact, conformations. Therefore this leads us to the apparently paradoxical situation where the more correctly computed Gibbs free energy G* appears to be anti-correlated with the range of models for the all-β and αβ classes, and not correlated for the all-α class. This problem is mostly due to the protein-solvent interaction.
In fact we know that the whole system, protein plus solvent, should be taken into account in the free energy calculations. In particular, as described in the Result section, it appears crucial to include the solvent entropic contribution to obtain consistent Gibbs free energy values. However computing this term, when an explicit solvent is employed, is difficult since we cannot use the methodology we adopted for the protein (i.e., computing the vibrational entropy in a quasi-harmonic approximation of the molecular motion). Using an implicit solvent model and computing the corresponding solvation free energy might be a solution. However, we would like to draw attention to the fact that, in order to compute the intramolecular energy of the protein one should not consider only the initial conformation obtained with a modelling program but should use the mean of this energy along the MD trajectory.
Conclusion
The principal question we wanted to answer with this work was: can we discriminate correct from erroneous models by monitoring the behaviour of structural properties along the MD trajectories? This constitutes more than a rhetorical question for us since we wish to apply this technique to a number of models built from the alignments we obtain with our fold recognition method, FROST. For some of these alignments whose score lies in the FROST twilight zone we cannot be sure whether we have aligned the sequence with the correct template structure or not. Results obtained in this study show that, although no single criterion is 100% efficient in this task, considering them in combination, as shown in Table 9, allows us to readily discriminate the two types of models. Another question we had, concerning the possibility of detecting zones of the model corresponding to local misalignments of the sequence onto a correct template, mostly received a negative answer. When the alignment contains severe errors the resulting model cannot be distinguished from plain erroneous models. We were surprised to observe that the difference of behaviour during the simulations between the ST and DT models was more gradual than we expected. Before undertaking this study we thought that it would be easier to witness the unfolding of DT models on a 10 ns time scale than it proved to be.
We must stress that, although we did our best to analyse several types of proteins with various secondary structure contents, e.g., all-α, all-β and αβ domains, the conclusions we draw from this study are based on a limited set of examples. Further work is needed to confirm the trends we identified here. Another important point to underline is the fact that these conclusions are dependent on the modelling program and, to a lesser extent, the MD simulation protocol used. We employed Modeller to build the models. This program provides good models with reasonable native-like structural features except, maybe, for some of the loop conformations. Using another, less efficient, modelling program might have changed the conclusions. This fact must be kept in mind when one is comparing different studies about the stability, or the energy, of models.
Our aim, when performing these simulations on models, is not so much to verify that the models are reasonable in terms of structural properties as to check whether our fold recognition method has been able to identify correctly the template structure. We are interested in microbial genome annotation [27]. Homology search methods constitute the cornerstone of the annotation process. Unfortunately, methods based on sequence comparison are no longer efficient when the similarity is below 20% sequence identity, leaving between 25 to 50% "orphan" coding sequences (CDSs), depending on the organism analysed. Fold recognition techniques can detect remote homologs, having less than 20% sequence identity, allowing us to obtain a crucial piece of information about these orphan CDSs. Therefore the MD simulations we described in this study are a means for us to improve the sensitivity and specificity of our fold recognition method for ambiguous cases, i.e., when the corresponding scores are within the twilight zone.
To conclude with a practical consideration, we give an order of magnitude of the amount of time required for testing one model. For an all-α model, the system, protein plus solvent, is made of about 15,000 atoms. We have available a cluster of 10 bi-processors dual core x86 64 at 2.33 GHz (10 blades). Using the 4 CPUs of a blade in parallel we are able to simulate 8 ns a day (2.6 ns a day per CPU). Although not exactly a routine calculation, this allows us, to run an 11 ns MD simulation for a model of this size, overnight, employing 3 blades. The analysis of the trajectories, due to the minimisation of the conformations, requires about the same amount of time. A way of speeding up the simulations would be to use an implicit representation of the solvent instead of the explicit representation we used in this study. This would have the additional merit of allowing us to compute the solvation free energy.
Methods
Selection of query and template structures
For the selection of the query domains we started with two folds belonging to three SCOP classes : DNA/RNA binding 3 helical bundle (81 families) and 4 helical up and down bundle (12 families) for the α class; immunoglobulin-like beta sandwich (49 families) and double stranded β helix (29 families) for the β class; TIM barrel (84 families) and NADP binding Rossmann (29 families) for the αβ class.
Representatives of the different families of these folds were selected with the help of the AEROSPACIE score computed for the ASTRAL database [28]. As far as possible, we disregarded domains with prosthetic groups, disulfide bridges, co-factors and those belonging to oligomers.
A cross-comparison of all these representatives was carried out using the 3D structure comparison method VAST [29, 30] to measure their degree of structural relatedness and to obtain 3D structural alignments. To complement the results provided by VAST we also employed another structural measure: the TM-score [31].
We then used the fold recognition program FROST [17] to obtain, for each representative domain, a list of template structures ranked by score. Representative domains were tagged as potential queries if we could find, in the top of the corresponding lists, three structures similar to the representative domain fold and with the following properties. The first similar structure (called Similar Template 1, ST1) had to be close to the representative domain with a high percentage of identical residues (for fold recognition techniques this corresponds to a range of 20–30% sequence identity) and an alignment close to the structural alignment found by VAST between the pair of structures. The second similar structure (ST2) had the same characteristics as ST1 except for the percentage of sequence identity that had to be low (typically less than 20% identity). Finally for the third similar structure (ST3) the alignment provided by FROST had to contain errors with respect to the structural alignment found by VAST.
For each of the three query structures selected in such a way (one for each class of secondary structure: α, β, αβ) we built six models (as described in the next section). The first one corresponded to the native structure (called NS0), the next three to the similar structures (ST1, ST2, ST3). The fifth one corresponded to the first false positive in the list of template (see Fig. 1), i.e., a structure having no relation with the query structure (called Different Template 1, DT1). The last one (called DT2), used as a control, was similar to the experiment of Novotny et al.[5]: we just aligned, without insertion/deletion, the query domain sequence with a fold having a similar size and belonging to a different secondary structure class. Table 1 summarises the characteristics of the different models that were built.
3D structure modelling
Three-dimensional models were built with Modeller 6v1 [32] starting from the alignments provided by the fold recognition method FROST (except for DT2 models and the ST1 models as discussed in the Result section). For each type of model, five models were generated using Modeller default parameters and the one having the best objective function was kept. For the query sequence we did not use the PDB structure directly. We created a 3D model using the same modelling protocol starting from a (perfect) alignment of the sequence with itself. For DT2 models we aligned the query sequence with the sequence of the template structure without insertion/deletion since both sequences have approximately the same number of residues. For ST1 models, to be sure to obtain good alignments, we used the more accurate VAST structural alignment instead of the FROST alignment.
Molecular dynamics simulations
All simulations were performed in explicit water using the version 3.3.1 of the Gromacs package [33] in conjunction with the Gromos96 43a1 force field for condensed phase. The Simple Point Charge (SPC) model was used to represent water. The protonation state of ionizable groups in the proteins was chosen appropriate for pH 7.0. Counterions were added to neutralise the system. Molecular dynamics simulations were performed at constant temperature and pressure in a periodic rhombic dodecahedron box. The minimum distance between an atom of the protein and a box wall was 0.8 nm. Simulations at 300, 350 and 400 K were carried out. During these simulations a pressure of 1 bar was maintained. Temperature and pressure were kept constant by coupling to an external heat bath (Berensen thermostat) and an isotropic pressure bath (Berensen barostat). Corresponding relaxation times were set to 0.5 ps (separately for the protein, the solvent and the counterions) and 1.0 ps. Electrostatic interactions were calculated with the fast Particle-Mesh Ewald method (PME) and a distance cut-off of 0.9 nm. When using PME, other relevant parameters such as FFT grid spacing, interpolation order, geometry of the Ewald summations, etc. were left to their default values. Van der Waals (VdW) interactions were evaluated using twin range cut-offs of 1.4 nm for VdW cut-off and 0.9 nm for the short-range neighbour list. Non-bonded interactions were evaluated with a grid using periodic boundary conditions in all directions. Neighbour pair list was updated every 10 steps. Covalent bonds with H-atoms were constrained using the LINCS algorithm. An integration step of 2 fs was used. To generate the starting conformation the following protocol was employed. First an energy minimisation was performed using steepest descent followed by a quasi-newton method (Broyden-Fletcher-Goldfarb-Shanno algorithm). This phase was followed by 200 ps of equilibration with position restraints of the protein using a simulated annealing procedure that, starting at a temperature of 250 K, raised it to 300 K in 10 ps and maintained it to this value for the 190 remaining ps, allowing the system to relax. Production phase data were obtained by first carrying out a 1 ns simulation run then performing ten 1 ns simulation runs branching off this first trajectory every 100 ps. This procedure was used to improve the sampling of the conformational space [34]. The total length of the production phase trajectory was thus 11 ns.
Principal component analysis
Principal component analysis, or covariance analysis, consists in calculating the mass-weighted covariance matrix of the atomic coordinates along the MD trajectory then diagonalising it. The eigenvectors are the essential modes that describe collective motions in the protein. The corresponding eigenvalues are the mean square fluctuations along these modes. The main advantage of this technique is that only a very limited number of modes (at most a dozen) are required to describe most of the protein dynamics. Using these data different analyses can be carried out: projection of the trajectory along the different modes, atomic mean square fluctuations along the modes, subspace overlap, etc. A very useful analysis is the calculation of the cosine content of the first principal components that gives an indication of the efficiency of the conformational space sampling. To perform the analysis described in the text we used the relevant Gromacs tools, in particular g_covar to calculate and diagonalise the covariance matrix and g_anaeig to analyses eigenvectors and eigenvalues.
Computation of the vibrational entropy
k_{ B }is the Boltzmann's constant, h the Planck's constant, T the temperature and N_{ A }the Avogadro's number.
Clustering of conformations
Conformations every 10 ps along the trajectories were minimised in vacuum. The resulting minimum conformations were clustered using the Gromacs tool g cluster that provides several clustering methods. Here we build clusters with a single linkage method using, for each class, a cut-off value corresponding to the RMSd mean value at 300 K for NS0 models: 1.2 Å, 1.86 Å and 1.98 Å for the all-α, all-β and αβ classes respectively. The RMSd mean values used are those obtained with the minimised conformations. In a real situation, since we do not know the native structure of the query sequence, we would use RMSd cut-off values of 1.5 Å for all-α proteins and 2.0 Å for all-β and αβ proteins.
Statistical score based on the residue surface area
To analyse the quality of models we developed an all-atom statistical score based on the residue surface area (unpublished work), inspired by the work of Eisenberg and colleagues in [36]. Here, for completeness, we give a brief description of this statistical score.
For each type of residue we compute the fraction of the polar atom surface in contact with other polar atoms, dubbed "polar satisfaction" and the fraction of non polar atom surface in contact with non polar atoms, called "hydrophobic satisfaction". We consider oxygen and nitrogen as polar and all other atoms as non polar. Hydrogen atoms are ignored in this analysis. These two terms measure the tendency of non polar atoms to form a hydrophobic core and of polar atoms to avoid being buried among non polar atoms. We compiled these fractions for residues belonging to three sets of proteins (all-α, all-β and αβ) as shown in Table S4 in Additional file 1. The mean environment for residues in a protein depends on the size of the protein thus we only selected proteins whose length was ± 30 residue long with respect to the length of the three query proteins. The proteins are surrounded by water molecules, i.e., polar atoms.
In Additional file 1, Fig. S8 shows the calculated density and cumulative probabilities for the tryptophan hydrophobic satisfaction in proteins belonging to the all-α class. Let us assume that, for a tryptophan in a model, we measure a hydrophobic satisfaction value of 0.706 as shown on Fig. 8. The corresponding score is the logarithm of the cumulative probability for the hydrophobic satisfaction (HS) up to the measured value, i.e., S = ln(p(HS < 0.706)) = ln(0.57) = -0.56. With this definition, if a hydrophobic residue is completely buried among hydrophobic atoms, its hydrophobic satisfaction is 1 and hence its score is maximum (zero). The lower the hydrophobic satisfaction is the lower the score. The same score definition, only based on the polar satisfaction, apply for polar residues. In our analysis we considered {A, V, C, I, L, F, M, Y, W, P} as hydrophobic residues and {S, T, H, K, D, N, Q, E, R} as polar residues. Notice that polar residues consist of polar and non polar atoms. In this analysis we did not take into consideration non polar atoms of polar residues. Tryptophan and tyrosine, in spite of having one polar atom, are considered as hydrophobic due to the large number of non polar atoms that compose their side chain.
For proteins of the three sets we computed the distributions of scores for the whole protein (global score) as well as the distributions of scores for windows of width 11 residues along the sequence. The latter is intended to pinpoint zones in the model for which residues significantly depart from the behaviour observed in protein 3D structures. In Additional file 1, Table S3 shows the mean, standard deviation and the value corresponding to 1% confidence threshold for the global score and window score. The Shapiro-Wilk statistical test computes the p-value that the distribution is normal (null hypothesis). For the all-α and αβ protein global score distributions one cannot reject the null hypothesis at a confidence threshold of 10%. This is not true for the all-β proteins. For them we computed empirically the 1% confidence interval. For the window score distributions, there is a strong correlation between overlapping windows and it is likely that the Shapiro-Wilk test is meaningless in such a case. We also computed empirically the corresponding 1% confidence level. It is interesting to notice that the means are all very similar for the global or the window scores. The window score distributions have all the same standard deviations. For the global score distributions the standard deviations decrease from the all-α class to the αβ class. This is due to the number of proteins involved in the computation that goes from 79 to 167 and also to the size of the proteins that varies from 106 to 230 residues. In Additional file 1, Table S3 indicates that residues, on average, have similar environments whatever the structural class considered.
Declarations
Acknowledgements
We are grateful to the INRA MIGALE bioinformatics platform for providing computational resources. Part of this research was supported by a grant from the Agence Nationale de la Recherche (ANR-06-CIS6-008). JFT is grateful to the Ministère de l'Education Nationale, de l'Enseignement Supérieur et de la Recherche for the award of a doctoral fellowship.
Authors’ Affiliations
References
- Kryshtafovych A, Venclovas C, Fidelis K, Moult J: Progress over the first decade of CASP experiments. Proteins 2005, 61(Suppl 7):225–36. 10.1002/prot.20740View ArticlePubMedGoogle Scholar
- Oldziej S, Czaplewski C, Liwo A, Chinchio M, Nanias M, Vila JA, Khalili M, Arnautova YA, Jagielska A, Makowski M, Schafroth HD, Kazmierkiewicz R, Ripoll DR, Pillardy J, Saunders JA, Kang YK, Gibson KD, Scheraga HA: Physics-based protein-structure prediction using a hierarchical protocol based on the UNRES force field: assessment in two blind tests. Proc Natl Acad Sci USA 2005, 102: 7547–52. 10.1073/pnas.0502655102PubMed CentralView ArticlePubMedGoogle Scholar
- Schueler-Furman O, Wang C, Bradley P, Misura K, Baker D: Progress in modeling of protein structures and interactions. Science 2005, 310: 638–42. 10.1126/science.1112160View ArticlePubMedGoogle Scholar
- Lazaridis T, Karplus M: Effective energy functions for protein structure prediction. Curr Opin Struct Biol 2000, 10: 139–45. 10.1016/S0959-440X(00)00063-4View ArticlePubMedGoogle Scholar
- Novotny J, Bruccoleri R, Karplus M: An analysis of incorrectly folded protein models. Implications for structure predictions. J Mol Biol 1984, 177: 787–818. 10.1016/0022-2836(84)90049-4View ArticlePubMedGoogle Scholar
- Novotny J, Rashin AA, Bruccoleri RE: Criteria that discriminate between native proteins and incorrectly folded models. Proteins 1988, 4: 19–30. 10.1002/prot.340040105View ArticlePubMedGoogle Scholar
- Vorobjev YN, Almagro JC, Hermans J: Discrimination between native and intentionally misfolded conformations of proteins: ES/IS, a new method for calculating conformational free energy that uses both dynamics simulations with an explicit solvent and an implicit solvent continuum model. Proteins 1998, 32: 399–413. 10.1002/(SICI)1097-0134(19980901)32:4<399::AID-PROT1>3.0.CO;2-CView ArticlePubMedGoogle Scholar
- Janardhan A, Vajda S: Selecting near-native conformations in homology modeling: the role of molecular mechanics and solvation terms. Protein Sci 1998, 7: 1772–80.PubMed CentralView ArticlePubMedGoogle Scholar
- Lazaridis T, Karplus M: Discrimination of the native from misfolded protein models with an energy function including implicit solvation. J Mol Biol 1999, 288: 477–87. 10.1006/jmbi.1999.2685View ArticlePubMedGoogle Scholar
- Gatchell DW, Dennis S, Vajda S: Discrimination of near-native protein structures from misfolded models by empirical free energy functions. Proteins 2000, 41: 518–34. 10.1002/1097-0134(20001201)41:4<518::AID-PROT90>3.0.CO;2-6View ArticlePubMedGoogle Scholar
- Kinjo AR, Kidera A, Nakamura H, Nishikawa K: Physicochemical evaluation of protein folds predicted by threading. Eur Biophys J 2001, 30: 1–10. 10.1007/s002490000111View ArticlePubMedGoogle Scholar
- Dominy BN, Brooks CL III: Identifying native-like protein structures using physics-based potentials. J Comput Chem 2002, 23: 147–60. 10.1002/jcc.10018View ArticlePubMedGoogle Scholar
- Felts AK, Gallicchio E, Wallqvist A, Levy RM: Distinguishing native conformations of proteins from decoys with an effective free energy estimator based on the OPLS all-atom force field and the Surface Generalized Born solvent model. Proteins 2002, 48: 404–22. 10.1002/prot.10171View ArticlePubMedGoogle Scholar
- Lee MR, Tsai J, Baker D, Kollman PA: Molecular dynamics in the endgame of protein structure prediction. J Mol Biol 2001, 313: 417–30. 10.1006/jmbi.2001.5032View ArticlePubMedGoogle Scholar
- Fan H, Mark AE: Refinement of homology-based protein structures by molecular dynamics simulation techniques. Protein Sci 2004, 13: 211–20. 10.1110/ps.03381404PubMed CentralView ArticlePubMedGoogle Scholar
- Chen J, Brooks CL 3rd: Can molecular dynamics simulations provide high-resolution refinement of protein structure? Proteins 2007, 67(4):922–930. 10.1002/prot.21345View ArticlePubMedGoogle Scholar
- Marin A, Pothier J, Zimmermann K, Gibrat JF: FROST: a filter-based fold recognition method. Proteins 2002, 49: 493–509. 10.1002/prot.10231View ArticlePubMedGoogle Scholar
- Andreeva A, Howorth D, Brenner SE, Hubbard TJ, Chothia C, Murzin AG: SCOP database in 2004: refinements integrate structure and sequence family data. Nucleic Acids Res 2004, 32: D226–9. 10.1093/nar/gkh039PubMed CentralView ArticlePubMedGoogle Scholar
- Melo F, Sanchez R, Sali A: Statistical potentials for fold assessment. Protein Sci 2002, 11: 430–48. 10.1110/ps.25502PubMed CentralView ArticlePubMedGoogle Scholar
- Hess B: Similarities between principal components of protein dynamics and random diffusion. Phys Rev E 2000, 62: 8438–48. 10.1103/PhysRevE.62.8438View ArticleGoogle Scholar
- Hess B: Convergence of sampling in protein simulations. Phys Rev E 2002, 65: 031910,1–031910,10. 10.1103/PhysRevE.65.031910View ArticleGoogle Scholar
- Kabsch W, Sander C: Dictionary of protein secondary structure: pattern recognition of hydrogen-bonded and geometrical features. Biopolymers 1983, 22(12):2577–637. 10.1002/bip.360221211View ArticlePubMedGoogle Scholar
- Gilquin B, Guilbert C, Perahia D: Unfolding of hen egg lysozyme by molecular dynamics simulations at 300 K: insight into the role of the interdomain interface. Proteins 2000, 41: 58–74. 10.1002/1097-0134(20001001)41:1<58::AID-PROT90>3.0.CO;2-3View ArticlePubMedGoogle Scholar
- Bradley P, Misura KM, Baker D: Toward high-resolution de novo structure prediction for small proteins. Science 2005, 309: 1868–71. 10.1126/science.1113801View ArticlePubMedGoogle Scholar
- Kmiecik S, Gront D, Kolinski A: Towards the high-resolution protein structure prediction. Fast refinement of reduced models with all-atom force field. BMC Struct Biol 2007, 7: 43. 10.1186/1472-6807-7-43PubMed CentralView ArticlePubMedGoogle Scholar
- Simmerling C, Lee MR, Ortiz AR, Kolinski A, Skolnick J, Kollman PA: Combining MONSSTER and LES/PME to predict protein structure from amino acid sequence: application to the small protein CMTI-1. J Am Chem Soc 2000, 122: 8392–8402. 10.1021/ja993119kView ArticleGoogle Scholar
- Bryson K, Loux V, Bossy R, Nicolas P, Chaillou S, van de Guchte M, Penaud S, Maguin E, Hoebeke M, Bessieres P, Gibrat JF: AGMIAL: implementing an annotation strategy for prokaryote genomes as a distributed system. Nucleic Acids Res 2006, 34: 3533–45. 10.1093/nar/gkl471PubMed CentralView ArticlePubMedGoogle Scholar
- Chandonia JM, Walker NS, Lo Conte L, Koehl P, Levitt M, Brenner SE: ASTRAL compendium enhancements. Nucleic Acids Res 2002, 30: 260–3. 10.1093/nar/30.1.260PubMed CentralView ArticlePubMedGoogle Scholar
- Madej T, Gibrat JF, Bryant SH: Threading a database of protein cores. Proteins 1995, 23: 356–69. 10.1002/prot.340230309View ArticlePubMedGoogle Scholar
- Gibrat JF, Madej T, Bryant SH: Surprising similarities in structure comparison. Curr Opin Struct Biol 1996, 6: 377–85. 10.1016/S0959-440X(96)80058-3View ArticlePubMedGoogle Scholar
- Zhang Y, Skolnick J: Scoring function for automated assessment of protein structure template quality. Proteins 2004, 57: 702–10. 10.1002/prot.20264View ArticlePubMedGoogle Scholar
- Sali A, Blundell TL: Comparative protein modelling by satisfaction of spatial restraints. J Mol Biol 1993, 234: 779–815. 10.1006/jmbi.1993.1626View ArticlePubMedGoogle Scholar
- Van Der Spoel D, Lindahl E, Hess B, Groenhof G, Mark AE, Berendsen HJ: GROMACS: fast, flexible, and free. J Comput Chem 2005, 26: 1701–18. 10.1002/jcc.20291View ArticlePubMedGoogle Scholar
- Caves L, Evanseck J, Karplus M: Locally accessible conformations of proteins: multiple molecular dynamics simulations of crambin. Protein Sci 1998, 7: 649–66.PubMed CentralView ArticlePubMedGoogle Scholar
- McQuarrie DA: Statistical Mechanics. New-York: HarperCollins; 1976.Google Scholar
- Eisenberg D, Luthy R, Bowie JU: VERIFY3D: assessment of protein models with three-dimensional profiles. Methods Enzymol 1997, 277: 396–404.View ArticlePubMedGoogle Scholar
- Humphrey W, Dalke A, Schulten K: VMD – Visual Molecular Dynamics. J Molec Graphics 1996, 14: 33–38. 10.1016/0263-7855(96)00018-5View ArticleGoogle Scholar
Copyright
This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
