ITIS, a bioinformatics tool for accurate identification of transposon insertion sites using next-generation sequencing data



Transposable elements constitute an important part of the genome and are essential in adaptive mechanisms. Transposition events associated with phenotypic changes occur naturally or are induced in insertional mutant populations. Transposon mutagenesis results in multiple random insertions and recovery of most/all the insertions is critical for forward genetics study. Using genome next-generation sequencing data and appropriate bioinformatics tool, it is plausible to accurately identify transposon insertion sites, which could provide candidate causal mutations for desired phenotypes for further functional validation.


We developed a novel bioinformatics tool, ITIS (Identification of Transposon Insertion Sites), for localizing transposon insertion sites within a genome. It takes next-generation genome re-sequencing data (NGS data), transposon sequence, and reference genome sequence as input, and generates a list of highly reliable candidate insertion sites as well as zygosity information of each insertion. Using a simulated dataset and a case study based on an insertional mutant line from Medicago truncatula, we showed that ITIS performed better in terms of sensitivity and specificity than other similar algorithms such as RelocaTE, RetroSeq, TEMP and TIF. With the case study data, we demonstrated the efficiency of ITIS by validating the presence and zygosity of predicted insertion sites of the Tnt1 transposon within a complex plant system, M. truncatula.


This study showed that ITIS is a robust and powerful tool for forward genetic studies in identifying transposable element insertions causing phenotypes. ITIS is suitable in various systems such as cell culture, bacteria, yeast, insect, mammal and plant.


In the last decade, genome sequencing projects of economically or biologically important species have been a major driving force for biological research. After a genome is sequenced and annotated, functional characterization of genes that are important for development, cellular processes, or stress response becomes a major effort in the scientific community. Classically, gene function is determined using two opposite but complementary approaches: reverse genetics, which consists of deciphering the function of a gene by analyzing phenotypic effects of up- and down-regulations of the gene (i.e. from genotype to phenotype); and forward genetics, which consists of analyzing a phenotype (or trait) of a modified organism to identify gene(s) responsible for this particular phenotype (i.e. from phenotype to genotype).

Transposable elements (TEs) are mobile DNA sequences found in both prokaryote and eukaryote genomes. They usually represent a large proportion of the genome and under particular circumstances such as various stresses, some TEs become active and transpose themselves to other locations of the genome [1]. TEs are classified into two categories: Class I retrotransposons move following a “copy and paste” manner and class II DNA transposons following a “cut and paste” manner. Due to their mobility and depending on the location of their insertions, they may impact gene expression and gene function. Therefore, transposons are considered as a driving force of evolution and key players in adaptive mechanisms. In addition to specific endogenous transposons, exogenous transposable elements have been frequently used to develop numerous insertional mutant populations such as in mouse [1,2], yeast [3], nematode [4], fruit fly [5] and plants [6,7]. The development of insertional mutant populations in combination with forward genetic approaches have been widely used in functional genomics studies.

Medicago truncatula is a model plant to study legume biology and has been studied in different research areas such as seed biology [8,9], leaf development [10,11], symbiotic nitrogen fixation [12,13], secondary metabolite accumulation [14], response to stresses [15], and plant pathogens [16]. With the recent completion of a draft genome and its annotation [17,18], more than 60,000 gene loci have been identified and need to be functionally characterized. Large-scale mutant populations have been developed, including a Tnt1 insertional mutant population [7], in order to accelerate functional genomics studies. The Tnt1 mutant population was generated by transforming M. truncatula R108 with a well-studied Tobacco retrotransposon, called Tnt1 [19]. Tnt1 is a retrotransposon with a long open reading frame (ORF) in the center encoding enzymes that function in replication and transposition. The center region is flanked by 610 bp long terminal repeats (LTRs) in the same orientation (Additional file 1). During its transposition, Tnt1 usually introduces a 5-bp target-site duplication (TSD) sequence on the two sides of the insertion site [20] (Additional file 1). The high efficiency of transposition of Tnt1 during tissue culture enabled generation of a nearly saturated mutant population of M. truncatula genome [21], which has been widely used in reverse genetics approaches. In order to enhance the use of the Tnt1 mutant population as a tool for forward genetics studies, efforts to identify flanking sequence tags (FST) of the Tnt1 inserts have been made to ultimately identify the disrupted genes in different lines. High-throughput identification of FST sequences have been initiated using Thermal Asymmetric Interlaced (TAIL)-PCR-based approaches but technical limitations resulted in partial identification of Tnt1 inserts.

Recent improvement of the throughput and decrease in experiment cost of next-generation sequencing (NGS) technologies permit the use of NGS to identify TE locations, FST sequences and ultimately disrupted genes at the genome-wide scale. Although several algorithms have been developed to identify TE insertion sites using whole genome re-sequencing data, most of them are not making full use of the information from short reads [22]. Whereas some of these algorithms detect insertions only by searching for cross reads pairs, where one read is aligned to the genome and its mate aligned to the inserted TE sequence [23-26], other algorithms only use clipped read pairs, in which a single read containing the TE sequence along with flanking reference sequence [27,28].

In this study, we present a newly developed bioinformatics pipeline, called ITIS (Identification of Transposon Insertion Sites), which was designed to identify flanking sequences of inserted transposable elements and ultimately genes disrupted from paired-end NGS data. Based on simulated and case study datasets, we demonstrated equal or superior sensitivity and specificity of our pipeline in comparison to other methods. By applying ITIS to a NGS dataset from a M. truncatula mutant line containing Tnt1 insertions, we validated our method in a plant system by identifying and confirming TE insertion sites in the genome.

Results and discussion

Design and implementation of ITIS

ITIS requires three sequence files as input: (i) reference genome sequence, (ii) transposable element (TE) sequence, and (iii) paired-end (PE) short reads generated from the re-sequenced genome that contains novel TE insertions. The overall design of ITIS is illustrated in Figure 1. The first step of the ITIS pipeline is to map PE reads to the reference genome sequences and the transposable element sequence using short read alignment program BWA [29].

Figure 1
figure 1

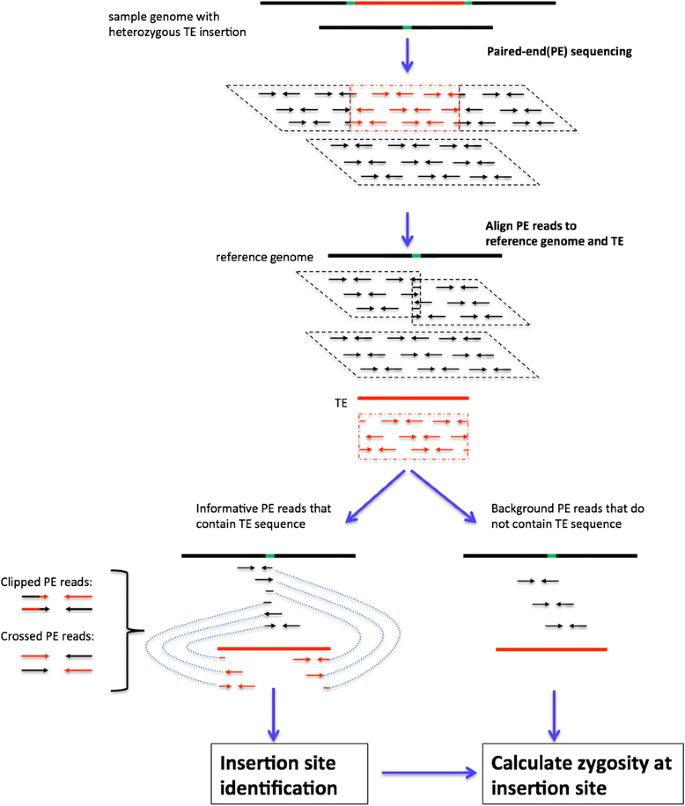

Overall design and workflow of ITIS. Black lines represent genome sequences, red lines represent TE sequences and green lines represent target site duplication sequences. Paired-end reads are denoted by arrow lines. The reads from the same genome region are framed by parallelograms.

As second step, ITIS processes the alignment file and classifies PE reads into two categories. If both PE reads are mapped to the reference genome, but not the TE, they are regarded as background PE reads. Background PE reads do not provide information to determine insertion sites, but their numbers at the insertion loci are used to determine whether the insertion loci are heterozygous or homozygous. If at least one of the PE reads overlaps at least 20 bp with the insertion TE sequence, the PE reads are regarded as informative PE reads (Figure 1). Based on how the insertion junction is covered, the informative PE reads can be further classified into two types (Figure 1). The first type is cross PE reads, in which one end is completely mapped to the reference genome and the other end mapped to the insertion TE. The second type is clipped PE reads, in which at least one end covers both the reference genome and the insertion TE sequence. Clipped PE reads are used to determine the exact nucleotide position where the TE is inserted.

As third step, ITIS uses the genome coordinates of the informative PE reads to locate the cluster of informative reads. Each cluster indicates a candidate TE insertion site. In order to generate a list of insertion sites that are most likely genuine, ITIS uses a series of filters to discard possible false candidates by requiring that the average mapping quality of informative PE reads being at least 1 (to ensure that the insertion is not in repetitive regions), the average sequencing depth around the insertion being between 2 and 300, the number of supporting PE reads being at least 3, and both ends of the insertion must be supported by at least one read pair. Clipped PE reads are then used to determine the exact genomic location of the insertion.

Finally, for each detected insertion of TE, ITIS determines the likelihood of the insertion site being heterozygous or homozygous by using the number of informative PE reads (from the allele that does have the insertion) and the number of background PE reads (from the allele that does not have the insertion). ITIS was implemented in Perl and is freely available at ITIS is a standalone software that runs in a Linux/Unix system from the command line.

Evaluation of ITIS with a simulated dataset

To evaluate the effectiveness and accuracy of the ITIS pipeline, we created a simulated benchmark dataset. An artificial transposon insertion mutant genome was created by in silico simulation with 965 Tnt1 transposons (on average one insertion per 400 kb of genomic sequence) being randomly inserted into the M. truncatula A17 genome (version 4.0, [18]). Assuming that all insertion sites are heterozygous, equal amount of 100 bp PE reads were randomly extracted using the pIRS program [30] from the mutant genome and the reference genome to reach different coverages from 3X (around 12 millions reads), 5X (around 19 M reads), 10X (around 39 M reads), 15X (around 56 M reads), 20X (around 77 M reads) to 25X (around 96 M reads). These simulated reads were used as input to ITIS and the candidate insertion sites identified by the algorithm were compared to the known locations of the 965 insertions. By requiring that both ends of a TE were covered by at least one cross read pair or clipped read pair, we observed that at 3X genome coverage, 716 (74%) insertions could be correctly identified, among which 670 were assigned to the exact insertion positions, and 45 were located within 100 bp from the insertion sites (Figure 2). At 10X coverage, ITIS identified 921 (96%) insertions. However, the rate of identified insertions appeared to have reached plateau at 10X coverage and no additional insertion was recovered with higher genome coverage. After close examination, we found that the remaining undiscovered TE sites were inserted in repetitive sequence regions and, thus, could not be identified by ITIS with high confidence. These results demonstrated the high sensitivity of ITIS, which performed well with relatively low genome coverage (i.e. 5X) by identifying more than 90% of heterozygous insertions.

Figure 2
figure 2

Performance evaluation of ITIS and four other algorithms at different genome coverage using a simulated dataset. The recovery rates of known insertions were compared among ITIS, RelocaTE, RetroSeq, TEMP and TIF. Identified insertions are considered false positive if their distance from the known insertion site exceeds 500 bp.

We also compared the performance of ITIS to four other similar algorithms: RelocaTE [24], RetroSeq [25], TEMP [26] and TIF [28] using the same simulated dataset as input. As shown in Figure 2, ITIS outperformed the other four algorithms in terms of sensitivity and specificity. ITIS was particularly effective when the genome coverage was relatively low (e.g. 3X and 5X) by accurately identifying the highest number of insertions. When the coverage was higher (e.g. >15X), TEMP and RetroSeq correctly identified similar number of insertions. However, RetroSeq and TEMP only allowed approximate locations of insertions within 100 or 500 bp to the insertion sites, whereas ITIS identified the exact insertion sites, showing better specificity. Even though TIF was able to correctly determine the exact insertion positions of the majority of the TE insertions, it was not as sensitive as ITIS at low coverage and displayed the highest rate of false positive insertions (Figure 2).

Identification of Tnt1 insertions from a M. truncatula mutant line

To further validate the effectiveness of ITIS, we applied ITIS to a M. truncatula mutant line from the Tnt1 insertion mutant population. This mutant population is ideal for testing ITIS performance because of the two main challenges present in most of biological systems: (i) the presence of multiple Tnt1 inserts within the genome at the homozygous and heterozygous states and (ii) this mutant population originated from a slightly different genotype (R108) than the reference genome A17, which was used by ITIS in our study. We selected mutant line, NF54, as case study, based on its interesting phenotypes to be studied further. We extracted DNA from leaf tissues and about 412 million clean PE reads were obtained, corresponding to 108X coverage over the 380 MB M. truncatula genome. We used ITIS to detect TE insertions in the genome and predict their zygosity based on allele frequencies (AFs). A total of 65 Tnt1 insertions were identified in mutant line NF54 (Additional file 2). Among them, a total of 42 insertions (65%) were identified into genic regions, including 33 in exons and 9 in introns (Figure 3). The preference for insertions in genic regions was statistically significant, comparing to 10,000 simulated runs of random TE insertions (Fisher’s exact test; p-value < 4e-5, Figure 3). This result is consistent with previous reports in M. truncatula, potato and soybean [19,31,32], which showed that Tnt1 insertion events preferentially occur in genic regions. 61 out of 65 insertions could be assigned to exact chromosomal positions. We further determined whether these insertion sites were in heterozygous or homozygous state. If a Tnt1 insertion is in heterozygous state, the ratio of supportive PE reads (which cover two ends of the insertion) to background PE reads is 2:1 in theory. By the binomial test, we found that 16 out of 63 insertions were most likely homozygous (p-value < 0.05).

Figure 3
figure 3

Localization within the genome of Tnt1 insertions in M. truncatula NF54.

In order to evaluate how genome coverage affected the effectiveness of different programs, we randomly sampled PE reads from the sequence dataset generated from NF54 into subsamples representing 3X, 5X, 10X, 15X, 20X, 30X, 40X, … and 100X genome coverages and we examined the number of insertions that were identified using the four previously mentioned algorithms and ITIS. As shown in Figure 4, ITIS was the most effective at low genome coverage. Most of the insertions could be identified with 25X genome coverage, where the number of insertions reached a plateau. TIF, RetroSeq and RelocaTE recovered less insertions than ITIS at all coverage levels. TEMP identified more insertions than ITIS at high coverage (>50X). However, the number of identified insertions continued increasing until 100X coverage and was not consistent with other algorithm results, suggesting that additional identified insertion sites identified by TEMP might be false positives. To validate our hypothesis, we selected three out of the 70 additional inserts uniquely identified by TEMP, for PCR validation. None of the three putative insertions were confirmed by PCR amplification, which suggests that most, if not all, of these additional insertions identified by TEMP were false positive insertions (Additional file 3). To explain TEMP results, we inspected the 70 additional inserts uniquely identified by TEMP and found that all of them were located in repetitive regions, which might cause the unreliable TEMP identifications.

Figure 4
figure 4

Performance comparison of ITIS and four other algorithms at different genome coverage using NGS data from M. truncatula NF54.

Comparing to the simulated dataset, ITIS required higher coverage to identify most of the insertions. It is most likely due to the fact that in the simulated dataset, reads were sampled from the reference genome (M. truncatula A17), but in the NF54 dataset, reads were generated from a closely related genotype (M. truncatula R108). Even considering the difficulty of read alignment between the reference genome (A17) and the PE reads from R108 due to genetic variations, ITIS showed better sensitivity and specificity than other algorithms.

Validation of transposon insertions using database search and PCR-based approaches

To confirm ITIS identification in the mutant line NF54, we first compared ITIS results with the Tnt1 insertions identified and stored in the M. truncatula mutant database. In parallel, we confirmed the presence of Tnt1 inserts identified by ITIS using a PCR-based approach.

A few years ago, a large effort has been initiated to identify the FST sequences present in the Tnt1 insertional mutant population [7]. To date, a tremendous work has allowed the identification of more than 157,000 high confidence (and more than 200,000 low confidence) FST sequences from the 22,000 Tnt1 mutant lines using TAIL-PCR method. Positions and sequences of these FST sequences have been stored in the M. truncatula mutant database [33]. This web server represents a powerful tool in reverse genetics to identify mutant lines for specific candidate genes. However, its potential is limited for forward genetics study because of partial recovery of FST sequences present in the database due to the large size of the population (i.e. 22,000 lines) and limitations of the high-throughput TAIL-PCR method used. In the M. truncatula mutant database, 25 Tnt1 flanking sequences were identified in NF54, however only 11 insertion sites were mapped in the genome. Out of these 11 putative insert positions identified by TAIL-PCR, ten were also identified by ITIS (Additional file 2). In order to validate insertions that were identified by ITIS, but not in the M. truncatula mutant database, we performed PCR-based validation of the presence and orientation of ten randomly selected putative insertions. We designed primers flanking the Tnt1 insertion sites in order to test its presence or absence and primers on both sides of the Tnt1 sequences (i.e. 5′ or 3′ side) to determine its orientation (5′ to 3′ or 3′ to 5′). Based on PCR results, both the presence and the orientation of all the different inserts tested were consistent with ITIS results (Additional files 2 and 4). Thus, in conclusion, the PCR-based approach validated ITIS results in term of presence, localization and orientation of inserts. In order to consolidate our experience, we sequenced a second M. truncatula Tnt1 mutant line, NF200, at around 40X genome coverage (ie 165 M reads). Using these short read data, ITIS predicted the presence, location, orientation and zygosity of six Tnt1 insertions in NF200 (Additional file 5). We performed PCR-based validation of five of them, and the presence, location, orientation and zygosity of all the inserts tested were consistent with ITIS results (Additional file 5).


ITIS is a powerful bioinformatics tool suitable for identification of transposable elements for forward genetics. It may also serve as a valuable tool to identify phenotypic changes resulting from transposition events occurred at the species or sub-species level in evolutionary studies. It is suitable from low to high complexity genomes and performed well even using sequence dataset from genotypes that are closely related to the reference genome. By comparing with other similar algorithms, ITIS showed its superior or equal specificity, sensitivity and accuracy in a complex system. In conclusion, ITIS is a robust tool for identification of transposable elements in wide-ranging systems from cell to complex organisms such plant or mammal.


Deep sequencing data and reference sequences

Paired-end reads from genome of M. truncatula NF54 and NF200 were trimmed to discard low quality regions using SolexaQA (Q < 17) [34], and adapter sequences using cutadpt (v1.3) [35]. For NF54, 412 M clean reads were used to detect Tnt1 insertion sites by ITIS and other algorithms. For NF200, 165 M clean reads were used to detect Tnt1 insertion sites by ITIS. The draft genome sequence of M. truncatula was downloaded from the M. truncatula Genome Project V4.0 [18]. Tnt1 sequence was downloaded from the NCBI database [GenBank: X13777]. Clean reads were mapped to reference genome with the parameter “–T 20” to ensure that at least 20 bp sequence of each read was properly mapped.

For simulation analysis, we randomly inserted 965 Tnt1 sequences at different locations in the M. truncatula reference genome using an in-house Perl script. pIRS (v1.1.0) [30] was used with parameters “–l 100, -m 500 –v 50 –e 0.001 –a 0 –g 0” to generate simulated PE reads to obtain different genome coverages from 3X to 100X.

Use of other algorithms to identify insertion sites

All other algorithms were set using default parameters, except for TEMP algorithm (insertions were filtered to be “1p1” and number of reads covering both 5′ and 3′ends of the TE was selected to be greater than 0).

DNA extraction and whole genome sequencing

Plants of M. truncatula (R108) were grown in sterile soil under controlled conditions at 22°C with a 16 h photoperiod at 200 mmol.m−2.s−1 and 40% of relative humidity. Nuclear DNA was extracted and purified using Qiagen Plant DNeasy mini kit following manufacturer’s instructions and quantified using a NanoDrop 2000C spectrophotometer (Thermo Scientific). Two micrograms of DNA were used to create libraries using the standard Illumina TruSeq DNA sample preparation protocol. Whole genome sequencing was performed on an Illumina HiSeq2500 analyzer to generate paired-end reads of 100 bases (PE100).

PCR-based validation

Presence or absence of inserts was checked by polymerase chain reaction (PCR) amplifications using the 2X Power Taq PCR mix (Bioteke Corp.) according to manufacturer’s instructions and using primers designed within the Tnt1 sequence (5′ and 3′ sides of the Tnt1 sequences) and on the flanking regions of the insertion sites. The complete list of primers is provided in the Additional file 6.





Transposable element


Long terminal repeats


Open reading frame


Allele frequency


Next generation sequencing


Polymerase chain reaction


Flanking sequence tag


  1. Slotkin RK, Martienssen R. Transposable elements and the epigenetic regulation of the genome. Nat Rev Genet. 2007;8(4):272–85.

    Article  CAS  PubMed  Google Scholar

  2. Carlson CM, Dupuy AJ, Fritz S, Roberg-Perez KJ, Fletcher CF, Largaespada DA. Transposon mutagenesis of the mouse germline. Genetics. 2003;165(1):243–56.

    CAS  PubMed  PubMed Central  Google Scholar

  3. Ross-Macdonald P, Coelho PS, Roemer T, Agarwal S, Kumar A, Jansen R, et al. Large-scale analysis of the yeast genome by transposon tagging and gene disruption. Nature. 1999;402(6760):413–8.

    Article  CAS  PubMed  Google Scholar

  4. Bazopoulou D, Tavernarakis N. The NemaGENETAG initiative: large scale transposon insertion gene-tagging in Caenorhabditis elegans. Genetica. 2009;137(1):39–46.

    Article  CAS  PubMed  Google Scholar

  5. Thibault ST, Singer MA, Miyazaki WY, Milash B, Dompe NA, Singh CM, et al. A complementary transposon tool kit for Drosophila melanogaster using P and piggyBac. Nat Genet. 2004;36(3):283–7.

    Article  CAS  PubMed  Google Scholar

  6. Rosso MG, Li Y, Strizhov N, Reiss B, Dekker K, Weisshaar B. An Arabidopsis thaliana T-DNA mutagenized population (GABI-Kat) for flanking sequence tag-based reverse genetics. Plant Mol Biol. 2003;53(1–2):247–59.

    Article  CAS  PubMed  Google Scholar

  7. Tadege M, Wen J, He J, Tu H, Kwak Y, Eschstruth A, et al. Large-scale insertional mutagenesis using the Tnt1 retrotransposon in the model legume Medicago truncatula. Plant J. 2008;54(2):335–47.

    Article  CAS  PubMed  Google Scholar

  8. Verdier J, Kakar K, Gallardo K, Le Signor C, Aubert G, Schlereth A, et al. Gene expression profiling of M. truncatula transcription factors identifies putative regulators of grain legume seed filling. Plant Mol Biol. 2008;67(6):567–80.

    Article  CAS  PubMed  Google Scholar

  9. Verdier J, Lalanne D, Pelletier S, Torres-Jerez I, Righetti K, Bandyopadhyay K, et al. A regulatory network-based approach dissects late maturation processes related to the acquisition of desiccation tolerance and longevity of Medicago truncatula seeds. Plant Physiol. 2013;163(2):757–74.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  10. Zhang F, Wang YW, Li GF, Tang YH, Kramer EM, Tadege M. STENOFOLIA Recruits TOPLESS to Repress ASYMMETRIC LEAVES2 at the Leaf Margin and Promote Leaf Blade Outgrowth in Medicago truncatula. Plant Cell. 2014;26(2):650–64.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  11. Ge L, Peng J, Berbel A, Madueno F, Chen R. Regulation of compound leaf development by PHANTASTICA in Medicago truncatula. Plant Physiol. 2014;164(1):216–28.

    Article  CAS  PubMed  Google Scholar

  12. Murray JD, Muni RRD, Torres-Jerez I, Tang Y, Allen S, Andriankaja M, et al. Vapyrin, a gene essential for intracellular progression of arbuscular mycorrhizal symbiosis, is also essential for infection by rhizobia in the nodule symbiosis of Medicago truncatula. Plant J. 2011;65(2):244–52.

    Article  CAS  PubMed  Google Scholar

  13. Sinharoy S, Torres-Jerez I, Bandyopadhyay K, Kereszt A, Pislariu CI, Nakashima J, et al. The C2H2 transcription factor regulator of symbiosome differentiation represses transcription of the secretory pathway gene VAMP721a and promotes symbiosome development in Medicago truncatula. Plant Cell. 2013;25(9):3584–601.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  14. Verdier J, Zhao J, Torres-Jerez I, Ge SJ, Liu CG, He XZ, et al. MtPAR MYB transcription factor acts as an on switch for proanthocyanidin biosynthesis in Medicago truncatula. Proc Natl Acad Sci U S A. 2012;109(5):1766–71.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  15. Zhang JY, Cruz DECMH, Torres-Jerez I, Kang Y, Allen SN, Huhman DV, et al. Global reprogramming of transcription and metabolism in Medicago truncatula during progressive drought and after rewatering. Plant Cell Environ. 2014;37(11):2553–76.

    Article  PubMed  PubMed Central  Google Scholar

  16. Uppalapati SR, Ishiga Y, Doraiswamy V, Bedair M, Mittal S, Chen J, et al. Loss of abaxial leaf epicuticular wax in Medicago truncatula irg1/palm1 mutants results in reduced spore differentiation of anthracnose and nonhost rust pathogens. Plant Cell. 2012;24(1):353–70.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  17. Young ND, Debelle F, Oldroyd GED, Geurts R, Cannon SB, Udvardi MK, et al. The Medicago genome provides insight into the evolution of rhizobial symbioses. Nature. 2011;480(7378):520–4.

    CAS  PubMed  PubMed Central  Google Scholar

  18. Tang H, Krishnakumar V, Bidwell S, Rosen B, Chan A, Zhou S, et al. An improved genome release (version Mt4.0) for the model legume Medicago truncatula. BMC Genomics. 2014;15:312.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  19. d’Erfurth I, Cosson V, Eschstruth A, Lucas H, Kondorosi A, Ratet P. Efficient transposition of the Tnt1 tobacco retrotransposon in the model legume Medicago truncatula. Plant J. 2003;34(1):95–106.

    Article  PubMed  Google Scholar

  20. Lucas H, Feuerbach F, Kunert K, Grandbastien M, Caboche M. RNA-mediated transposition of the tobacco retrotransposon Tntl in Arabidopsis thaliana. EMBO J. 1995;14:2364–73.

    CAS  PubMed  PubMed Central  Google Scholar

  21. Cheng X, Wang M, Lee HK, Tadege M, Ratet P, Udvardi M, et al. An efficient reverse genetics platform in the model legume Medicago truncatula. New Phytol. 2014;201(3):1065–76.

    Article  CAS  PubMed  Google Scholar

  22. Nelson M, Bergman C. A review of methods for detecting non-reference transposable element insertions from high throughput genome resequencing data. In: Cold Spring Harbor Laboratory Regional Meeting on Mobile Genetic Elements. 2013.

    Google Scholar

  23. Kofler R, Betancourt AJ, Schlotterer C. Sequencing of pooled DNA samples (Pool-Seq) uncovers complex dynamics of transposable element insertions in Drosophila melanogaster. PLoS Genet. 2012;8(1):e1002487.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  24. Platzer A, Nizhynska V, Long Q. TE-Locate: A Tool to Locate and Group Transposable Element Occurrences Using Paired-End Next-Generation Sequencing Data. Biology. 2012;1(2):395–410.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  25. Keane TM, Wong K, Adams DJ. RetroSeq: transposable element discovery from next-generation sequencing data. Bioinformatics. 2013;29(3):389–90.

    Article  CAS  PubMed  Google Scholar

  26. Zhuang J, Wang J, Theurkauf W, Weng Z. TEMP: a computational method for analyzing transposable element polymorphism in populations. Nucleic Acids Res. 2014;42(11):6826–38.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  27. Robb SM, Lu L, Valencia E, Burnette 3rd JM, Okumoto Y, Wessler SR, et al. The use of RelocaTE and unassembled short reads to produce high-resolution snapshots of transposable element generated diversity in rice. G3. 2013;3(6):949–57.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  28. Nakagome M, Solovieva E, Takahashi A, Yasue H, Hirochika H, Miyao A. Transposon Insertion Finder (TIF): a novel program for detection of de novo transpositions of transposable elements. BMC Bioinformatics. 2014;15:71.

    Article  PubMed  PubMed Central  Google Scholar

  29. Li H. Aligning sequence reads, clone sequences and assembly contigs with BWA-MEM. ArXiv:q-bio.GN/1303.3997. 2013.

  30. Hu X, Yuan J, Shi Y, Lu J, Liu B, Li Z, et al. pIRS: Profile-based Illumina pair-end reads simulator. Bioinformatics. 2012;28(11):1533–5.

    Article  CAS  PubMed  Google Scholar

  31. Cui Y, Barampuram S, Stacey MG, Hancock CN, Findley SD, Mathieu M, et al. Tnt1 Retrotransposon Mutagenesis: A Tool for Soybean [Glycine max (L.) Merr.] Functional Genomics. Plant Physiol. 2012;161:36–47.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  32. Duangpan S, Zhang W, Wu Y, Jansky SH, Jiang J. Insertional Mutagenesis Using Tnt1 Retrotransposon in Potato. Plant Physiol. 2013;163(1):21–9.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  33. Medicago truncatula Mutant Database []

  34. Cox MP, Peterson DA, Biggs PJ, Solexa QA. At-a-glance quality assessment of Illumina second-generation sequencing data. BMC Bioinformatics. 2010;11(1):485.

    Article  PubMed  PubMed Central  Google Scholar

  35. Martin M: Cutadapt removes adapter sequences from high-throughput sequencing reads. EMBO J 2011, 17:10-12. Medicago Truncatula Genome Project []

Download references


This work was supported by the Oklahoma Center for the Advancement of Sciences and Technology (OCAST) grant PS12-009 to JV and funds from the Chinese Academy of Sciences to JV and RL.

Author information

Authors and Affiliations


Corresponding authors

Correspondence to Renyi Liu or Jerome Verdier.

Additional information

Competing interests

The authors declare that they have no competing interests.

Authors’ contributions

CC, ZH and JV performed laboratory experiments. CJ and RL performed the computational work. RL and JV supervised and designed the study. RL, CJ, and JV wrote the manuscript. All authors read and approved the final manuscript.

Chuan Jiang and Chao Chen contributed equally to this work.

Additional files

Additional file 1:

Schematic diagram of a Tnt1 insertion and the alignments of NGS reads.

Additional file 2:

List of the Tnt1 insertional sites identified by ITIS in the M. truncatula mutant line NF54. Table contains exact position, annotation of disrupted gene or intergenic region, gene ID, and zygosity. The middle column contains the PCR validation of the presence, location and the orientation of the insert. The right column contains the list of insertions identified in NF54 mutants using TAIL-PCR and available in the Medicago mutant database.

Additional file 3:

Results of PCR amplifications to verify the presence of Tnt1 insertions uniquely identified by TEMP algorithm. Reverse and forward primers were designed on the flanking sequences of the putative insertion sites. In combination with primers designed on both sides of the Tnt1 sequences (5' and 3'), we did not observe any amplification, which suggest that these putative insertions identified by TEMP are false positives. Flanking sequences identified by TEMP are also provided.

Additional file 4:

Results of PCR amplifications to check presence and orientation of Tnt1 insertions identified using ITIS algorithm and not present in the M. truncatula mutant database. Reverse and forward primers were designed on the genomic sequences flanking the putative insertions. In combination with primers designed on both sides of the Tnt1 sequences (5' and 3'), we validated the presence of all tested insertions. According to the combination of primers, we confirmed the orientation of the insertions revealed by ITIS.

Additional file 5:

List of the Tnt1 insertional sites identified by ITIS in the M. truncatula mutant line 200. Table contains exact position, annotation of disrupted gene or intergenic region, gene ID, and zygosity. The middle column contains the PCR validation of the presence, location, orientation and zygosity of the insert. Results of PCR amplifications to check presence, orientation and zygozity are also provided.

Additional file 6:

List of primers used for PCR validation of different insertion sites.
