# Optimization of sequence alignments according to the number of sequences vs. number of sites trade-off

- Julien Y Dutheil
^{1, 2}Email author and - Emeric Figuet
^{2}

**16**:190

https://doi.org/10.1186/s12859-015-0619-8

© Dutheil and Figuet; licensee BioMed Central. 2015

**Received:**13 December 2014**Accepted:**18 May 2015**Published:**9 June 2015

## Abstract

### Background

Comparative analysis of homologous sequences enables the understanding of evolutionary patterns at the molecular level, unraveling the functional constraints that shaped the underlying genes. Bioinformatic pipelines for comparative sequence analysis typically include procedures for (i) alignment quality assessment and (ii) control of sequence redundancy. An additional, underassessed step is the control of the amount and distribution of missing data in sequence alignments. While the number of sequences available for a given gene typically increases with time, the site-specific coverage of each alignment position remains highly variable because of differences in sequencing and annotation quality, or simply because of biological variation. For any given alignment-based analysis, the selection of sequences thus defines a trade-off between the species representation and the quantity of sites with sufficient coverage to be included in the subsequent analyses.

### Results

We introduce an algorithm for the optimization of sequence alignments according to the number of sequences vs. number of sites trade-off. The algorithm uses a guide tree to compute scores for each bipartition of the alignment, allowing the recursive selection of sequence subsets with optimal combinations of sequence and site numbers. By applying our methods to two large data sets of several thousands of gene families, we show that significant site-specific coverage increases can be achieved while controlling for the species representation.

### Conclusions

The algorithm introduced in this work allows the control of the distribution of missing data in any sequence alignment by removing sequences to increase the number of sites with a defined minimum coverage. We advocate that our missing data optimization procedure in an important step which should be considered in comparative analysis pipelines, together with alignment quality assessment and control of sampled diversity. An open source C++ implementation is available at http://bioweb.me/physamp.

## Keywords

- Sequence alignment
- Comparative analysis prediction
- Phylogeny
- Sampling
- Trade-off

## Background

By acting on the fate of mutations, natural selection shapes sequence variation at a given genomic locus. The analysis of sequence diversity therefore provides information on the underlying evolutionary forces, which in turn pinpoint the function of the encoded genes. For any gene of interest, obtaining and aligning homologous sequences from other individuals or species shed light on the evolutionary processes that generated the observed sequences. Sequence alignments are therefore the common entry point for many comparative methods, such as prediction of structure [1, 2], functional sites [3, 4], epistatic interactions [5, 6] and sites under positive selection [7].

The selection of homologous sequences is a critical initial step in comparative sequence analysis. For a given gene of interest, the number of available homologous sequences depends on the taxonomic distribution of the gene, which is itself a function of the age of the gene: ancient genes are shared by many taxonomic units, while recently evolved genes are more specific to a species or subset of species. To this *natural* distribution of homologues, one must add the actual sampling of species, which typically induces a bias toward model species and their relatives. This variability of gene representation in homologous sequence databases is also found at the intra-genic level. For a given family of homologous sequences, some positions are highly represented in the collection of sequences and present in most species. Other positions are found in only one or a few species. In the resulting sequence alignment, such positions would include gaps (‘-’) or unresolved characters (e.g., ‘N’, ‘X’ or ‘?’) depending on the cause of their absence. This variability of site-specific sequence coverage (further simply referred to as *coverage*) is a typical missing data problem. Depending on the downstream analyses, sites with insufficient coverage are not analyzable, or lead to inaccurate estimates.

Many homologous sequences are typically available as more and more organisms are sequenced. As a result, the number of sites with sufficient coverage, rather than the number of available sequences, is the limiting factor in comparative analysis applications. It is therefore beneficial for such applications to exclude sequences, provided that doing so increases the number of sites with sufficient data to be included in the analysis. While a few methods are available to filter badly aligned sequences [8] or redundant sequences [9], dedicated methods are needed to optimize sequence alignments for a given application based on site-specific coverage. We propose here a new algorithm whose specific task is to increase site coverage by sampling sequences from the alignment, here assumed to be correct. The algorithm uses a guide tree to compute scores for all partitions of the sequence data set and iteratively removes sequences responsible for low site-coverage, which allows optimization of the alignment size according to the number of sequences vs. number of sites trade-off.

## Methods

The method aims to increase the number of sites available for the subsequent analyses by sequentially removing the most costly sequences in terms of gaps or unresolved characters. It takes as an input a sequence alignment and a corresponding sequence clustering tree. The alignment optimization procedure is iterative, removing at each step the minimal group of sequences that adds the largest number of sites. The key component of the method is the computation of the putative gains of sites for all partitions (as defined by the input tree) as well as the corresponding costs in terms of sequences to be removed. Here we demonstrate that these computations can be efficiently achieved using dynamic programming and a two-traversal recursion on the tree.

### Computation of gains in sites for each group of sequences

*N*, the neighbor node defining the subtree containing the root node is referred to as the ‘father’ node

*F*, and all other neighbors (typically 2) are referred to as ‘son’ nodes

*N*

^{ k }(typically

*N*

^{1}and

*N*

^{2}, see Fig. 1). For any node

*N*, the branch connecting

*N*to its father

*F*partitions the sequences into two sets. We arbitrarily designate the

*up*set of sequences as the one whose corresponding subtree contains the root of the tree and all others as the

*down*set of sequences. For each node

*N*, we store two score arrays

*U*(

*N*) and

*D*(

*N*), one for each set

*up*and

*down*, respectively. Each position in the array corresponds to one column in the alignment and specifies whether the column contains at least one gap in the corresponding sequence set. We proceed recursively to fill first the

*D*(

*N*) arrays, using Algorithm 1. For leaf nodes, the

*D*(

*N*)[

*i*] array takes 0 if the underlying sequence has a gap in the alignment at column

*i*; it takes 1 otherwise. The

*D*(

*N*) array of an inner node takes 1 if all son nodes have 1 at the corresponding position. All

*D*(

*N*) arrays at all nodes in the tree can then be computed recursively using a post-order tree traversal (Fig. 2a).

Once all *down* arrays have been filled, *up* arrays can be computed using another tree traversal. This second traversal computes scores for subtrees containing the root of the tree (Algorithm 2). For every node *N* with a father node *F*, the *U*(*N*) array is defined as the conjunction of the *U*(*F*) array and the *D*(*N*) arrays of all ‘brother nodes’, that is, all son nodes of *F* except node *N*. As *U*(*F*) needs to be computed before *U*(*N*), this second pass is a pre-order tree traversal (Fig. 2b).

After all *D*(*N*) and *U*(*N*) arrays have been computed, it is straightforward to compute for each node the number of sites for each corresponding partition, by summing all ‘1’ entries in each *up* and *down* array. The numbers of sequences for each partition can also easily be computed by recursion.

**Extension 1:**This method can be generalized to accommodate for sites with a given number of gaps or unresolved characters, defining a minimum coverage. In this extension, both

*up*and

*down*arrays contain a number of non-gap (or resolved) characters. During recursion (Algorithms 1 and 2), arrays are combined with a sum instead of the logical conjunction operator. The numbers of sites in each set of sequences is then computed by comparing for each site the proportion of gaps to the given threshold

*t*∈[0,1]:

where \(\sum _{i}\) is the sum over all columns in the alignment, [] are the Iverson brackets taking 1 if the enclosed condition is true and 0 otherwise, and *n*
_{
seq
}(*N*) is the number of sequences in the *down* subtree. Similar calculations apply for the *up* partitions. Such an extended algorithm requires more memory as counts typically require more space than boolean values. (In C++, the vector<bool> type uses less memory than the vector<int> type).

**Extension 2:**For some applications, one or several sequences in the input alignment are of particular interest, for instance because of availability of extra data (annotation, protein structure,

*etc*.). It is therefore important (i) not to remove these sequences during the optimization process and (ii) to optimize the site coverage of these particular sequences. To accommodate for a set of reference sequences, the previous recursion can be applied on a guide tree where the reference sequences have been removed, with the extended equation 1:

where *R*[*i*] is the number of characters at column *i* in the subalignment of reference sequences and *n*
_{
seq
}(*R*) is the number of reference sequences.

### Sorting partitions

- 1.
discard all sets of sequences where the number of sites is lower or equal to the current data set;

- 2.
sort remaining sets of sequences by increasing number of sequences removed;

- 3.
in case of a tie, sort the sets of sequences according to decreasing number of sites added;

- 4.
in case of a tie, sort the sets of sequences according to decreasing total number of characters in the data matrix.

The decision regarding which set of sequences to keep (the current one or one of the proposed ones) is made either by the user or by a predefined criterion. In case a new partition of the data is selected, scores need to be recomputed.

### Update of partition scores

After one partition of the data set has been selected and the corresponding sequences removed, scores on the remaining tree have to be re-evaluated. Two cases have to be distinguished. In the first case, a *down* set of sequences is chosen and the tree is then restricted to the corresponding subtree matching the selected partition. All *down* scores are unchanged, but all *up* scores have to be recomputed using Algorithm 2. In the second case, an *up* set of sequences is favored and the subtree matching the complementary *down* set of sequences has to be removed from the current tree. All remaining subtrees need to have their *up* arrays updated using Algorithm 2. In addition, the *down* arrays for all nodes between the node defining the selected partition and the root have to be recomputed. The corresponding procedure is summarized as Algorithm 3.

### Termination

Several partitions can be selected sequentially to gradually increase the number of sites available by removing more sequences. The decision regarding when to stop the reduction loop can be left to the user (using an interactive implementation) or can be automated. A convenient automatic criterion is the maximum number of sequences to be removed. When a minimum final number of sequences is provided, the algorithm then finds the best combination of sequences to be removed that maximizes the number of sites. The program outputs the corresponding sampled alignment and tree.

### Sequence clustering tree

*a priori*hierarchical clustering of sequences, represented as a tree, can be used as an input to the method. The phylogeny of the underlying sequences, if known or inferable, is a natural choice. Yet for the purpose of optimizing the number of alignment columns without gaps, it is efficient to cluster the sequences according to their overlap in the alignment. For that purpose, we define the overlap distance between two sequences

*S*

^{1}and

*S*

^{2}from a multiple alignment with

*n*columns as

The sum represents the number of positions in the pairwise alignment for which both sequences do not have missing data (gap or generic character). All pairwise distances from the sequence alignment are computed using the overlap distance. The resulting pairwise distance matrix is then used as an input to standard hierarchical clustering procedures. Briefly, the clustering algorithm starts by defining as many clusters as there are sequences in the alignment, with one sequence each. It then proceeds iteratively, by grouping at each step the two clusters with the shortest distance in the matrix. The distance matrix is then reduced by one row and one column, and distances between the newly formed cluster and all other clusters in the matrix are recomputed. The method for updating distances between clusters of potentially more than one sequence defines the linkage type of the clustering procedure. In this work, we tested the following linkage type: complete, single, average, median, centroid and Ward [10]. Such clustering techniques, however, are not applicable for very large alignments as their complexity is typically *O*(*n*
^{3}), where *n* is the number of sequences. For such large data sets (typically with more than 10,000 sequences), methods such as fasttree [11] are required to generate a guide tree.

### Example data sets

#### ORTHOMAM database

We used the ORTHOMAM database [12] version 8 [13], which gathers mammalian orthologous coding sequences based on ENSEMBL annotations. Nucleotide sequences for aligned orthologous gene coding sequences were retrieved with no filtering. Only alignments having at least 30 mammalian species out of the 40 available were kept, resulting in a total of 11,305 gene families. The phylogeny of the 40 species was downloaded from the ORTHOMAM website, and the corresponding phylogeny for each family was extracted by removing missing species. In addition, approximate maximum likelihood trees were inferred for each family using the Fasttree program [11]. For comparison, we applied our method on a random guide tree generated for each gene family using the rtree command from the R package *ape* [14]. Each species was searched in Pubmed to retrieve the number of publications with a title including its name (Additional file 1). This number of publications reflects the extent to which the species is studied and is typically high for model species such as *Homo sapiens* and *Mus musculus*. Correlation of the number of species with the frequency of sequence removal was performed using a Kendall correlation test as implemented in the R software. To correct for ties, input values were randomized 10 times using the jitter function. We report the minimum correlation value as well as the maximum p-value obtained over these 10 randomizations.

#### PFAM database

We retrieved all PFAM families with a number of sequences between 1,000 and 5,000 [15]. This selection comprises 2,785 protein families and includes species from bacteria, archaea and eukaryotes. The original PFAM alignments were used in all subsequent analyses. An approximate maximum likelihood phylogenetic tree was reconstructed for each family using the Fasttree program [11] as well as a random tree using the rtree command from the R package *ape* [14]. As opposed to the ORTHOMAM benchmark data set, families in the PFAM benchmark might contain paralogous sequences.

### Software availability

The algorithm and its extensions described in this work were implemented in C++ using the Bio++ libraries version 2.2.0 [16]. The resulting program called *bppalnoptim* is available under the General Public License version 3.0 (GPL3) at http://bioweb.me/physamp.

## Results

We applied the new optimization algorithm to two contrasting data sets to cover a wide range of potential applications. First, we analyzed 11,305 mammalian gene families from the ORTHOMAM database [13]. Each family contained one orthologous sequence for at least 30 species of mammals. Second, we studied 2,785 protein families, each having between 1,000 and 5,000 sequences, from the PFAM database. In both cases, we aimed to maximize the number of sites with a given minimum coverage: we allowed a maximum of 5 % and 30 % sequence gaps and unresolved characters for ORTHOMAM and PFAM, respectively. The two data sets have contrasting dimensions: the ORTHOMAM data set contains a large number of sites but few sequences, while the PFAM families contain a large number of sequences but typically very few sites.

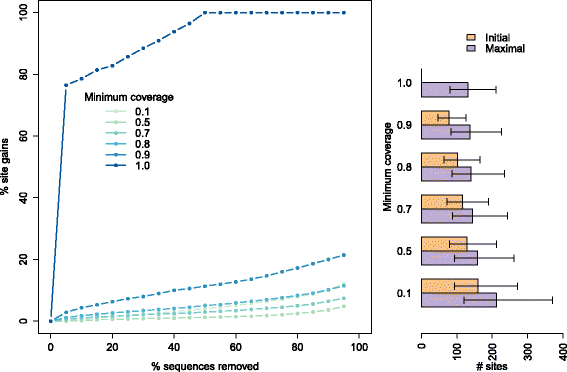

### Visualizing the number of sequences vs. number of sites trade-off

*de novo*and homology-based predictions.

## Discussion

### Applications of the optimization algorithm

For many gene families, the number of sequences available for comparative analysis pipelines (e.g. evolutionary rate estimation [17], positive selection detection [7] and coevolution analysis [6]) is typically large. While extraneous sequences will only marginally contribute to the extracted signal, they will significantly impair most methods by increasing the execution time and memory usage. It is therefore common practice to discard some sequences at early preprocessing stages, and it is relevant to do so in a way that will minimize the proportion of missing data. Our method is therefore useful when (i) the size of the data set must be reduced for computational efficiency and/or (ii) missing data are expected to introduce noise or bias in downstream analyses.

Missing data are present in sequence alignments as unresolved characters (‘N’, ‘X’ or ‘?’), and it is also common practice for some applications to recode gaps (‘-’) as missing data. The units of alignment-based analysis are sites (i.e. alignment columns), and sites with insufficient coverage (that is, with too much missing data) are usually discarded in downstream analyses as they may lead to unreliable estimates or introduce noise. As the desired minimum site-specific coverage depends on the particular downstream analysis, it is an input parameter of our method. We have proposed an algorithm that increases the number of sites matching the required threshold by selectively removing sequences with missing data. For example, coevolution detection methods typically work better with no missing data because two sites with an unresolved character or a gap in the same species will show an artificially high correlation. For such methods, the desired input threshold is therefore typically conservative, allowing little or no missing data at analyzed positions. Conversely, rate estimation methods are more robust in the presence of unresolved characters, and a more permissive threshold can be used.

### Importance of guide tree

We have shown that for relatively similar sequences, the order in which sequences are compared, as specified by the guiding tree, has virtually no impact on the resulting selection. For more dissimilar sequences, however, better results are achieved when sequences are clustered according to their respective overlap, as measured by the overlap distance introduced in this work. As such, a clustering procedure can be computationally expensive; an optimal approach consists of using a fast phylogenetic tree reconstruction method such as Fasttree to generate a guide tree without compromising the quality of the results.

### Termination criterion

The algorithm introduced in this work proposes a criterion to recursively remove sequences that are costly in terms of site coverage. Distinct cases should be distinguished when establishing the criterion for preventing the removal of additional sequences. A straightforward case is when no more improvement can be achieved, either because all sites match the requested minimal coverage or because the removal of any additional (group of) sequence(s) will not lead to any improvement. Such a situation arises when missing data are uniformly distributed among sites: removing a sequence might gain new sites but will also lead to the loss of others so that the net site gain is null. In some other cases, as illustrated by our ORTHOMAM example data set, the site gain reaches a plateau, meaning that an increasing number of sequences have to be removed to gain additional sites (Fig. 3). Such curves resemble rarefaction curves [18]. In such cases, it is possible to define a cost parameter as a maximum number of sequences to be removed per additional site gained. The optimization of the data set will then proceed until the cost of obtaining additional sites exceeds the given threshold. Other data sets, however, display a linear trade-off curve (PFAM example data set, Fig. 5). For such data sets, a fixed cost parameter will lead to the removal of all or no sequences, if the slope of the curve is lower or higher, respectively, than the given parameter. In such a case, the stopping condition of the algorithm is based on the desired number of sites or sequences in the filtered data set. Our implementation of the algorithm allows these two stopping conditions, which can be combined. We have also implemented a diagnostic mode, which allows drawing the trade-off curve of the data, as in Figs. 3 and 5. Plotting the trade-off curve is helpful to visualize the distribution of missing data in a given data set, to decide which criteria to use for its subsequent optimization.

### Alignment optimization vs. alignment quality assessment

Errors in sequence alignment reconstruction have been the subject of several studies [19-22]. Such errors propagate at downstream stages of the analysis, inflating the false discovery rate. Several approaches have therefore been proposed to specifically address this issue [8, 23, 24]. These methods compute a quality score for each alignment position and discard the positions that are considered too uncertain. While site-filtering procedures are necessary to increase prediction accuracy, they come at the cost of a loss of statistical power due to the shrinkage of sites available for further analysis. This removal of ambiguously aligned sites further reduces the number of sites available for downstream analyses. The most advanced alignment filtering procedures such as TrimAl [8] and Guidance [24] also permit filtering the alignment sequence-wise, which increases the global quality of the alignment by removing dubiously aligned sequences, therefore increasing site-specific quality scores. Such methods are designed for increasing alignment quality and should therefore be used to complement the optimization algorithm described in this work. An interesting application is the recursive use of our optimization algorithm and alignment methods. By removing sequences that are costly in terms of missing data, the alignment of the remaining sequences could potentially be improved.

## Conclusions

Typical bioinformatics pipelines include upstream processing steps to filter alignment errors and control for sequence redundancy. We have proposed here an additional step to optimize data sets based on their missing data content and have introduced an efficient algorithm for that purpose. Such optimization is achieved by removing costly sequences from the alignment to increase the number of alignment columns with minimal sequence coverage. The proposed algorithm uses a guide tree, which can be constructed from the input alignment using clustering techniques or provided by the user, for instance, as a phylogenetic tree. Using two complementary benchmark data sets of several thousands alignments each, we have demonstrated the potential broad usage of this new algorithm. We posit that as families of homologous sequences further increase in size, optimal sampling of sequence alignments will become a necessary complement to alignment quality check procedures to maximize the power and accuracy of comparative analysis-based predictions.
