Pathogen metadata platform: software for accessing and analyzing pathogen strain information

  • Wenling E. Chang1,
  • Matthew W. Peterson2,
  • Christopher D. Garay2 and
  • Tonia Korves2Email author
BMC BioinformaticsBMC series – open, inclusive and trusted201617:379

https://doi.org/10.1186/s12859-016-1231-2

Received: 16 September 2015

Accepted: 26 August 2016

Published: 15 September 2016

Abstract

Background

Pathogen metadata includes information about where and when a pathogen was collected and the type of environment it came from. Along with genomic nucleotide sequence data, this metadata is growing rapidly and becoming a valuable resource not only for research but for biosurveillance and public health. However, current freely available tools for analyzing this data are geared towards bioinformaticians and/or do not provide summaries and visualizations needed to readily interpret results.

Results

We designed a platform to easily access and summarize data about pathogen samples. The software includes a PostgreSQL database that captures metadata useful for disease outbreak investigations, and scripts for downloading and parsing data from NCBI BioSample and BioProject into the database. The software provides a user interface to query metadata and obtain standardized results in an exportable, tab-delimited format. To visually summarize results, the user interface provides a 2D histogram for user-selected metadata types and mapping of geolocated entries. The software is built on the LabKey data platform, an open-source data management platform, which enables developers to add functionalities. We demonstrate the use of the software in querying for a pathogen serovar and for genome sequence identifiers.

Conclusions

This software enables users to create a local database for pathogen metadata, populate it with data from NCBI, easily query the data, and obtain visual summaries. Some of the components, such as the database, are modular and can be incorporated into other data platforms. The source code is freely available for download at https://github.com/wchangmitre/bioattribution.

Keywords

PathogenMetadataBioSampleLabKeyBiosurveillanceGeocodingPostgreSQLJava

Background

With advances in DNA sequencing technology, whole genome sequencing of pathogen strains from disease outbreaks is becoming routine. These advances are resulting in enormous growth in the amount of publicly available pathogen nucleotide sequence data. One critical component of this data is high-quality metadata about biological samples. This metadata includes information about where the sample originated and the sample’s phenotypic properties. These types of features include, but are not limited to, geolocation data, isolation source, collection date, the organization performing collection, sample and strain names, and drug or vaccine resistance information. Pathogen sample metadata presents new opportunities for diagnostic and treatment discovery, biosurveillance, and public health investigations. In order for many of these opportunities to be realized, pathogen metadata needs to be made easily accessible to those beyond the bioinformatics community.

There has been significant growth in the capture and sharing of pathogen metadata. The Genomic Standards Consortium (GSC) has developed a set of “Minimal Information about any Sequence” (MIxS) checklists for genomes (MIGS), including checklists specifically for pathogen samples [1, 2]. Recently, a consortium of pathogen-sequencing institutions created a new metadata standard for pathogens, called the GSCID/BRC (Genome Sequencing Centers for Infectious Diseases and Bioinformatics Resource Centers) Project and Sample Application Standard [3]. Repositories for pathogen metadata have also been created. The National Center for Biotechnology Information (NCBI) maintains the BioSample and BioProject databases [4], which contain metadata about biological samples and projects, respectively. This data is typically submitted by investigators in concert with submission of nucleotide sequence data. BioSample and BioProject databases exchange data with their European and Japanese counterparts [5]. The Pathosystems Resource Integration Center (PATRIC) and the Virus Pathogen Database and Analysis Resource (ViPR) also provide standardized metadata for some pathogenic bacterial and viral genomes, respectively [6, 7]. The Genomes Online Database (GOLD) [8], developed at the Department of Energy Joint Genomes Institute, is a manually curated warehouse of metadata about sequencing experiments following the MIxS standards. There have also been a number of tools developed to query and retrieve this metadata. The Entrez system at the NCBI [9] provides an interface for searching and filtering query results, and tools such as BioPython [10], BioPerl [11], and BioJava [11] provide functionality for interfacing with these web services. SRAdb enables access to the Sequence Read Archive metadata using R [12].

For biosurveillance and public health endeavors, there are advantages to hosting an independent data platform incorporating publicly available pathogen metadata. In particular, this allows institutions to integrate other data critical for the mission and analyze it in concert with NCBI sample data. For biosurveillance and public health, the joint analysis of pathogen metadata and epidemiological data will be particularly important. Institutions may also have additional pathogen sample data not associated with genomes, or sample data an institution does not want to make public to be analyzed in concert with publicly available data. Furthermore, a separate database allows institutions to customize the database by further standardizing data or adding data fields and tables.

This manuscript describes a web server application designed to make pathogen metadata readily accessible to biologists, biosurveillance analysts, and public health investigators without requiring computer programming. The software includes a database for the capture of pathogen metadata, scripts to populate the database with metadata from NCBI BioSample and BioProject and a user interface to query, obtain standardized metadata, and visually summarize results.

Implementation

The sample metadata database schema

The sample metadata database is a PostgreSQL database designed to store information about pathogen samples. The schema captures information types that occur in BioSample and BioProject pathogen submissions, and uses many terms from MIxS. The tables in the database are summarized in Table 1. Additional file 1: Figure S1 shows the relationships between these tables, and the database is documented in detail in the BioAttDB_Documentation.pdf file provided with the software.
Table 1

Overview of the tables in the sample metadata database

Database table

Content

Sample

Identity of a sample, including strain name, serovar, and submission date

Collection

Where, when and what type of environment the sample was collected from

Human_Host

Information about the human host for clinical samples, such as age and gender

Non_Human_Host

Information about non-human hosts for environmental samples

Study_Method

Methods used for obtaining and identifying a sample

Project

Information about the project associated with the strain

Project_Sample

Links projects to samples

Owner

Information about the organization that submitted the information about a strain

Collection_Owner

Information about the organization that collected the strain

Project_Publication

Links a sample to publications by PubMed Identifier

Cross_Reference

Stores source and id pairs for documents and databases that reference a sample

Scripts to import, parse, and standardize metadata from NCBI

The import of NCBI metadata into the metadata database is handled in four steps. In the first step, performed by the DataDownload.sh script, the BioProject and BioSample XML files are downloaded from the NCBI FTP server. Next, the DataSplit.sh script splits the single XML file provided by NCBI into multiple files containing a subset of the nodes relevant to the database schema for more efficient parsing. Parsing is performed by a Java program, which uses a document object model (DOM) parser to map the XML files to Java classes, create tables, and load the data into the database. When the BioProject and BioSample XML schemas are changed by NCBI, the parser code will need to be updated to reflect the changes. The DataMapping.sh script calls the parser and pre-parses the XML files to create a mapping between BioProject and BioSample files. Finally, the DataUpdate.sh calls the parser twice – once to create the database, and once to load the data into the database.

LabKey module for database query and visualization

LabKey Server [13] is a data management platform designed for biological data. It is a modular, web-based Java application allowing users to create database schemas, queries, forms, and visualizations in support of research. Rather than requiring the user to load the data into LabKey’s schema, we have chosen to interface with the Metadata Database. This allows investigators who may be using another system to interface with the database without having to use LabKey. For those using LabKey, the module provides a simple interface to query the metadata database, and make the data available via the LabKey APIs. The interface and query logic is written in HTML and JavaScript, and is easily extendable by the end user. Once a query is performed, results are displayed in a table and can be filtered, visualized, and exported using the capabilities built into LabKey.

In addition to the built-in table and graph views from LabKey, the module adds the ability to summarize the results of a query in the form of a 2D histogram. The visualization, which is built using D3.js [14], creates a two-dimensional histogram using two variables selected by the user. The visualization is interactive, allowing the user to mouse over to see the exact count for any given combination.

In addition to the 2D histogram view, the software provides functionality to geocode based on any column in a List (LabKey’s user-created database tables) and display the results on a map. In this distribution, the geocoding and mapping is performed using a Google Maps API (https://developers.google.com/maps/), though this could be changed by the end user to use a geospatial analysis package of their choice.

Results and discussion

In this section, we highlight two examples showing how the Pathogen Metadata Platform can be used in the investigation of disease outbreaks. In these examples, the database has been populated with data from NCBI on October 27, 2014. Time to populate the database will depend on the current size of BioSample and BioProject, connection speed, parameters used for splitting, and processor speed. On our system, upload time for the database in May 2016, with size 4.7 GB, was less than 16 h.

Identifying and Summarizing Strain Data for a Pathogen Species

In this example, there is a new disease outbreak and an investigator wants to determine whether there have been recent outbreaks that may be related. The investigator performs a search on the pathogen name using the basic query interface. Figure 1a shows a search for samples containing data from Listeria monocytogenes. The results are returned in the form of a LabKey table view, which contains information about the samples, including relevant metadata such as strain name, isolation source, collection date, serovar, as well as a reference to the accession number in the NCBI Sequence Read Archive (SRA). This table is then filtered to include only samples collected within the past three years, as shown in Fig. 1b. The table can be exported for use in a bioinformatics analysis pipeline in order to, for example, identify which strains are most closely related to the outbreak strain. Finally, the filtered data is summarized via the 2D histogram view. Figure 1c-d shows the creation of a 2D histogram showing the number of samples collected across years and isolation sources for insight into potential types of sources of the outbreak.
Fig. 1

Obtaining information about Listeria strains using the Pathogen Metadata Platform. a Querying for a pathogen name. b Filtering query results. c Selecting metadata types for a 2D histogram. d 2D histogram of counts for two metadata types

Obtaining and visualizing information about closely related pathogen strains

In this example, investigators have sequenced a pathogen sample from a patient and performed phylogenetic analyses using RAxML [15], phylogenetic software that uses a maximum likelihood approach. This identified 22 Salmonella enterica serovar Typhimurium genomes from NCBI that are closely related to the patient’s strain. The investigator wants to know where and what type of environments these closely related strains came from.

Information about these strains can be obtained by using the SRA Search form within the LabKey module. SRA identifiers are entered as a comma-separated list (Fig. 2a) and are returned as a LabKey table (Fig. 2c). This table is then filtered and a 2D histogram summarizing isolation sources and collection years is created as in the previous example (Fig. 2b).

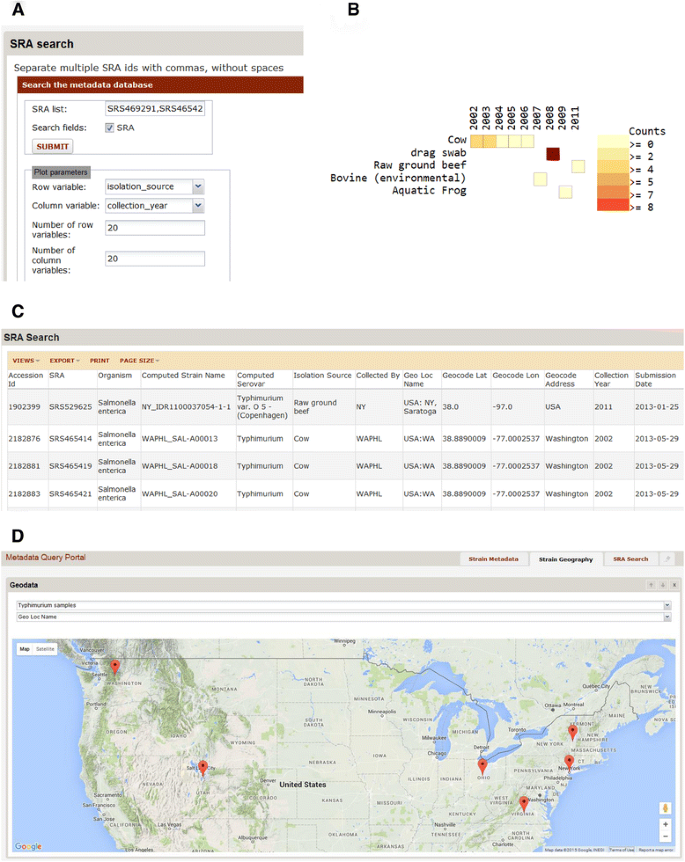

Fig. 2

Obtaining and visualizing metadata for Salmonella strains. a Querying for a set of sequence read archive ids. b 2D histogram of counts for isolation source and year. c Table of query results. d Map of collection locations of the strains

The collection locations of these strains are then mapped. To do this, the table of results is exported as a LabKey list. The “Strain Geography” tab within the LabKey Module allows the user to select this list, along with the column containing the location information to be passed to the geocoder. A map is then presented, with each strain with a location returned by the geocoder displayed as a point on the map (Fig. 2d). Here, we see that the majority of the closely-related strains found within the United States are located in the northeast.

Relationship to other resources

The Pathogen Metadata Platform offers a few advantages relative to other currently available resources. First, once installed, the platform provides an easy way to query and obtain tables of standardized metadata. In this respect is it similar to capabilities offered in ViPR for some virus genomes [6], and in PATRIC for assembled bacterial genomes [7], but provides access to all sample entries in BioSample including for the growing number associated with unassembled genomic data. Second, the platform integrates mapping of geographical locations for genomes from a large database. Available software for mapping geolocations of pathogen genomes includes Supramap, which superimposes phylogenies onto a map [16], and GoMap, which is currently implemented to map HIV strains with drug resistance mutation information [17]. Unlike these, the Pathogen Metadata Platform links mapping with all samples from BioSample, though without a DNA analysis component. In addition, the platform provides interactive 2D histograms to show the variables most strongly associated with the queried pathogen, such as types of environments the pathogen is frequently collected from. Interactive summary figures for pathogen genome metadata have not been incorporated into other webserver applications yet, but provide a way to understand pathogen context quickly, especially when there are large numbers of genomes per species.

Conclusions

The Pathogen Metadata Platform provides functionalities for parsing and loading metadata from NCBI into a relational schema, as well as query and visualization capabilities. This open-source software is modular, such that some components can be individually incorporated into other platforms and modified for specific purposes. For example, the metadata database could be used with other software, and data from sources other than NCBI can be added to it. In addition, the software is extensible, and the LabKey platform provides the opportunity to develop modules for additional analyses. We believe this software will be particularly useful as a complement to DNA analyses, as it has been in our own research. The platform could be paired with easy-to-use DNA analysis software that assesses the relatedness of pathogen strains to enable biosurveillance and public health investigations.

Availability and requirements

Project Name: Pathogen Metadata Platform

Project Home Page: https://github.com/wchangmitre/bioattribution

Operating system: Linux

Programming Environment: Java, SQL

Requirements: A working installation of LabKey Server and PostgreSQL database server

License: Apache License

Abbreviations

DOM:

Document object model

GoMap:

Geogenomic mutational atlas of pathogens

GSC:

Genomic standards consortium

MIGS:

Minimum information about a genome sequence

MIMARKS:

Minimum information about a marker gene sequence

MIMS:

Minimum information about a metagenome sequence

MIxS:

Minimum information about any sequence

NCBI:

National center for biotechnology information

SRA:

Sequence read archive

UI:

User interface

ViPR:

Virus pathogen database and analysis resource

Declarations

Acknowledgements

We would like to thank Marc Colosimo for review of the platform, Marcia Lazo for testing the software installation, and Lynette Hirschman for helpful advice on this work. Approved for Public Release; Distribution Unlimited. Case Number 15- 3669 ©2015 The MITRE Corporation. ALL RIGHTS RESERVED.

Funding

This work was supported by the MITRE Innovation Program.

Availability of data and material

The software for the Pathogen Metadata Platform is freely available at https://github.com/wchangmitre/bioattribution.

Authors’ contributions

WC built the database, implemented data import and data standardization, built the queries, contributed to the LabKey user interfaces, geocoding utility, system design, and co-wrote the manuscript. MP conceived of the initial system, contributed to the system design, and co-wrote the manuscript. CG built the 2D histogram component, and contributed to the queries, LabKey user interfaces and geocoding utility. TK selected metadata types for the database, contributed to system design, tested the software, and co-wrote the manuscript. All authors read and approved the final manuscript.

Competing interests

The authors declare no competing interests.

Consent for publication

Not applicable.

Ethics approval and consent to participate

Not Applicable.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
Data Analytics Department, The MITRE Corporation
(2)
Data Analytics Department, The MITRE Corporation

References

  1. Yilmaz P, Kottmann R, Field D, Knight R, Cole JR, Amaral-Zettler L, et al. Minimum information about a marker gene sequence (MIMARKS) and minimum information about any (x) sequence (MIxS) specifications. Nat Biotech. 2011;29:415–20.View ArticleGoogle Scholar
  2. Field D, Garrity G, Gray T, Morrison N, Selengut J, Sterk P, et al. The minimum information about a genome sequence (MIGS) specification. Nat Biotechnol. 2008;26:541–7.View ArticlePubMedPubMed CentralGoogle Scholar
  3. Dugan VG, Emrich SJ, Giraldo-Calderón GI, Harb OS, Newman RM, Pickett BE, et al. Standardized Metadata for Human Pathogen/Vector Genomic Sequences. PLoS One. 2014;9:e99979.View ArticlePubMedPubMed CentralGoogle Scholar
  4. Barrett T, Clark K, Gevorgyan R, Gorelenkov V, Gribov E, Karsch-Mizrachi I, et al. BioProject and BioSample databases at NCBI: facilitating capture and organization of metadata. Nucleic Acids Res. 2012;40:D57–63.View ArticlePubMedGoogle Scholar
  5. Gostev M, Faulconbridge A, Brandizi M, Fernandez-Banet J, Sarkans U, Brazma A, et al. The BioSample Database (BioSD) at the European Bioinformatics Institute. Nucleic Acids Res. 2012;40:D64–70.View ArticlePubMedGoogle Scholar
  6. Pickett BE, Sadat EL, Zhang Y, Noronha JM, Squires RB, Hunt V, et al. ViPR: an open bioinformatics database and analysis resource for virology research. Nucleic Acids Res. 2012;40:D593–8.View ArticlePubMedGoogle Scholar
  7. Wattam AR, Abraham D, Dalay O, Disz TL, Driscoll T, Gabbard JL, et al. PATRIC, the bacterial bioinformatics database and analysis resource. Nucleic Acids Res. 2014;42:D581–91.View ArticlePubMedGoogle Scholar
  8. Reddy TBK, Thomas AD, Stamatis D, Bertsch J, Isbandi M, Jansson J, et al. The Genomes OnLine Database (GOLD) v. 5: a metadata management system based on a four level (meta) genome project classification. Nucleic Acids Res. 2015;43(Database issue):D1099–1106.View ArticlePubMedGoogle Scholar
  9. NCBI Resource Coordinators. Database resources of the National Center for Biotechnology Information. Nucleic Acids Res. 2015;43(Database issue):D6–D17.View ArticleGoogle Scholar
  10. Cock PJA, Antao T, Chang JT, Chapman BA, Cox CJ, Dalke A, et al. Biopython: freely available Python tools for computational molecular biology and bioinformatics. Bioinforma Oxf Engl. 2009;25:1422–3.View ArticleGoogle Scholar
  11. Prlić A, Yates A, Bliven SE, Rose PW, Jacobsen J, Troshin PV, et al. BioJava: an open-source framework for bioinformatics in 2012. Bioinforma Oxf Engl. 2012;28:2693–5.View ArticleGoogle Scholar
  12. Zhu Y, Stephens RM, Meltzer PS, Davis SR. SRAdb: query and use public next-generation sequencing data from within R. BMC Bioinformatics. 2013;14:19.View ArticlePubMedPubMed CentralGoogle Scholar
  13. Nelson EK, Piehler B, Eckels J, Rauch A, Bellew M, Hussey P, et al. LabKey Server: an open source platform for scientific data integration, analysis and collaboration. BMC Bioinformatics. 2011;12:71.View ArticlePubMedPubMed CentralGoogle Scholar
  14. Bostock M, Ogievetsky V, Heer J. D3 Data-Driven Documents. IEEE Trans Vis Comput Graph. 2011;17:2301–9.View ArticlePubMedGoogle Scholar
  15. Stamatakis A. RAxML version 8: a tool for phylogenetic analysis and post-analysis of large phylogenies. Bioinformatics. 2014;30:1312–3.View ArticlePubMedPubMed CentralGoogle Scholar
  16. Janies DA, Treseder T, Alexandrov B, Habib F, Chen JJ, Ferreira R, et al. The Supramap project: linking pathogen genomes with geography to fight emergent infectious diseases. Cladistics. 2011;27:61–6.View ArticleGoogle Scholar
  17. Sargeant DP, Hedden MW, Deverasetty S, Strong CL, Alaniz IJ, Bartlett AN, et al. The Geogenomic Mutational Atlas of Pathogens (GoMAP) web system. PloS One. 2014;9:e92877.View ArticlePubMedPubMed CentralGoogle Scholar
