Effective norm emergence in cell systems under limited communication

Abstract

Background

The cooperation of cells in biological systems is similar to that of agents in cooperative multi-agent systems. Research findings in multi-agent systems literature can provide valuable inspirations to biological research. The well-coordinated states in cell systems can be viewed as desirable social norms in cooperative multi-agent systems. One important research question is how a norm can rapidly emerge with limited communication resources.

Results

In this work, we propose a learning approach which can trade off the agents’ performance of coordinating on a consistent norm and the communication cost involved. During the learning process, the agents can dynamically adjust their coordination set according to their own observations and pick out the most crucial agents to coordinate with. In this way, our method significantly reduces the coordination dependence among agents.

Conclusion

The experiment results show that our method can efficiently facilitate the social norm emergence among agents, and also scale well to large-scale populations.

Background

All living systems live in dynamical environments. The biological system behaviors [19] result from the interactions among millions of cells and their environments. For example, The human immune system is designed to protect us from infection by many different kinds of organisms, including bacteria, fungi and parasites. The immune process is the interaction and cooperation of different immune cells. Different cells have different functions, and the cooperation of the different cells makes up life. Similarly, a cooperative multi-agent system (MAS) [10, 11] is composed of a set of autonomous agents that interact with each other within their communication capacity to reach a common goal or to optimize the global performance. For example, in the sensor network shown in Fig. 1, to reach the accuracy, two sensors are needed to observe the same place. If location 1, location 2 and location 3 always have targets with resulting reward +30, +50, +40 respectively, then by using the independent policy sensor 2 and sensor 3 prefer to observe the location 2 for a higher reward +50. However, the optimal policy is sensor 1 and sensor 2 always observing location 1 and sensor 3 and sensor 4 always observing location 3 which results in the highest global reward +70.

Fig. 1
figure 1

Sensor network with 4 sensors

In the research of the cooperative MAS, social norms play an important role in regulating agents’ behaviors to ensure coordination among the agents. For example, in our life, we should drive on the left (or right) according to the traffic rules. When it comes to biological systems, this corresponds to coordinating on the well-coordinated states for better survival. In biology, different cells are designed for different functions and cells should coordinate their functions to ensure that the overall biological system functions correctly.

Many researches have investigated biological systems which are composed of cells and environments via modeling and simulation [1, 12]. If we regard cells in biological system as agents in multi-agent system, the well-coordinated states among cells can be viewed as social norms in multi-agent systems. Thus, investigating how social norms can emerge efficiently among the agents in multi-agent systems would provide valuable insights for better understanding how cells can interact to achieve well-coordinated states. One commonly adopted description of a norm is that a norm serves as a consistent equilibrium that all agents follow during interactions where multiple equivalent equilibriums may exist. Until now, significant efforts have been devoted to studying norm emergence problem [1320]. However, most of the existing approaches require significant communications and intensive computations.

Considering the fact that the communications between the cells are limited in biological systems (by sending electrical or chemical signals), we develop a learning approach based on the individually learning methods and the DCOP algorithm under limited communication bandwidth to facilitate the norm emergence in agent societies. In many practical applications, although the agents may interact with many others over time to make a better decision, they usually only need to coordinate with very few agents which strongly affect their performance. Based on previous research [21, 22], we first define a criteria to measure the importance of different subgroup of neighbors by estimating the maximum potential utility each subgroup can bring. Based on this, each agent can estimate the utility loss due to the lack of coordination with any subgroup of agents. Furthermore, each agent dynamically selects the best subset of neighbors to coordinate with for minimizing the utility loss. At last, each agent trades off learning performance and communication cost by limiting the maximum of the miscoordination cost. Experiments results indicate that (1) with the limited communication bandwidth and in different networks (e.g., regular network, random network, small-world network, scale-free network) our method can efficiently facilitate the emergence of norms compared with the existing approaches. (2) Our method allows agents to trade off the norm emergence performance and the communication cost by adjusting the parameters. (3) Compared with the previous methods, our method can significantly reduce the communication cost among agents and result in efficient and robust norm emergence.

The remainder of this paper is organized as follows. “Methods” section first discusses the basic domain knowledge, and then formally gives the definition of the single state coordination problem and the symbolic representation, and at last presents the architecture and the details of our method. “Results and discussion” section presents experimental evaluation results. Finally, we conclude in “Conclusion” section.

Methods

Game theory and Nash equilibrium

Game theory

Game theory is a mathematical theory concerned with the optimum choice of strategy in situations involving a conflict or cooperation of interest (Also called theory of games). To be fully defined, a game must specify the following elements.

  • players, the players of the game.

  • actions, the actions available to each player at each decision point.

  • payoffs, the feedback of making a decision and taking the selected action.

  • strategies, also called policy, is a high level plan to achieve the goal under conditions of uncertainty.

Normal form games

The normal (or strategic form) game is usually represented by a matrix which shows the players, strategies, and payoffs (see Fig. 2 for an example). More generally it can be represented by any function that associates a payoff for each player with every possible combination of actions. Usually, the normal form game can be represented as a tuple (n,A1,…,n,R1,…,n),

  • 1,…,n, n players of the game.

    Fig. 2
    figure 2

    Payoff matrix of a 2-player, 2-action normal form game

  • A i , a finite of actions for each player i.

  • A, A=A1×…×A n is the set of joint actions, where × is the Cartesian product operator.

  • R i , A1×…×A n R, the reward received by agent i with a join action \(\vec a \in A\).

  • π i , A i →[ 0,1], the probability of player i to select each action in A i .

  • pure strategy, π(a k )=1 for action a k ,and for other actions π(aj,jk)=0.

  • mixed strategy, the probability of selecting an action is under some distribution. And the pure strategy is a special case of the mixed strategy.

Nash equilibrium

Use a two-player normal form game with pure strategy to describe the definition.

  • Best Response:

    when player 1 selects an action a1, the best response of player 2 is that player 2 select an action which maximizes its reward, that means a2=argmax a 2A2R2.

  • Nash Equilibrium:

    If each player has chosen a strategy and no player can benefit by changing strategies while the other players keep theirs unchanged, that means the chosen action for each player is the best response to the other player’s choice, then the current set of strategy choices and the corresponding payoffs constitutes a Nash equilibrium.

Reinforcement learning

Markov decision process

A basic Markov Decision Process (MDP) can be represented as a tuple (S,A,T,R),

  • S, a finite set of states representing the state space.

  • A, a finite set of actions for the agent.

  • T, a state transition probability function, T:S×A×S→[ 0,1], which specifies the probability of transition from state sS to sS when action aA is taken by the agent. Hence, T(s,a,s)=Pr(s|s,a).

  • R, a reward function \(R:S \times A \times S \rightarrow \mathbb {R}\), the immediate reward for being in state sS and taking the action aA and then transfer to state sS.

When the state, action, transition function and the reward function are all known, we can use some searching methods (e.g., Monte Carlo Tree Search) to solve the problem. And this is one of the classes of reinforcement learning, saying model-based methods. And the other one is model-free, which means the model is unknown.

Introduction of reinforcement learning

In simple terms, reinforcement learning (RL) is a class of methods that the agent continuously interacts with the environment and according to the feedback reward, dynamically adjusts its policy to maximize the expectation of the long-term feedback reward. Explore the environment through trial and error, the methods will gradually improve its performance and finally converge to an optimal policy. Trail and error and the delayed reward is important characteristics of the RL. RL methods always include the 4 basic elements: (1) agent: subject of learning and the object interacting with the environment. (2) environment: the environment that the agents reside in (static and dynamic). (3) action space: the actions available for an agent at certain states (discrete or continuous). (4) feedback reward: a method to measure the utility of an action at certain states.

Q-learning

Q-Learning is an important milestone of RL study which is a kind of model-free methods. It’s the alias of the TD(0). The core equation of Q-Learning can be described as:

$$ {\begin{aligned} Q(s_{t},a_{t})&=Q\left(s_{t},a_{t}\right)\\ & \quad +\alpha \left[r_{t}+\gamma \max_{a_{t+1}}Q\left(s_{t+1},a_{t+1}\right)-Q\left(s_{t},a_{t}\right)\right] \end{aligned}} $$
(1)

where α [0,1] is the learning rate, r t is the immediate reward of doing a t at state s t , γ[ 0,1] is the discount factor, which is usually set to 1 for a finite horizon. Q(s t ,a t ) is the state-action value function, which represents the expectation of the long-term accumulated feedback reward when in state s t and selects action a t . An typical procedure of Q-Learning is described as Algorithm 1.

Topology of networks

Regular network

Regular network is built upon ring network, in which each node (n nodes in total) connect with the nearest m nodes. And when m=n−1, it’s a fully-connected network. See Fig. 3 for an example.

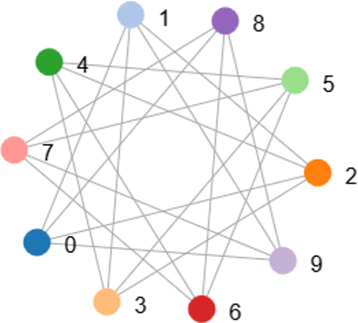

Fig. 3
figure 3

Regular network

Random network

Random graphs may be described simply by a probability distribution, or by a random process which generates them. A typical model is the ER-model in which each edge has a fixed probability of being present or absent, independently of the other edges. See Fig. 4 for an example.

Fig. 4
figure 4

Random network

Small world network

Small-world network is proposed to describe the interpersonal relationship in which each person is a node, and the relationship (e.g., familiar or not) between two persons is an edge. A certain category of small-world was developed by Duncan Watts and Steven Strogatz. See Fig. 5 for an example.

Fig. 5
figure 5

Small world network

Scale free network

The nodes in scale-free network do not connected randomly. Only a few of nodes serve as the center of the graph which have higher degree and the others connect with fewer nodes. See Fig. 6 for an example.

Fig. 6
figure 6

Scale free network

Coordination problem

In cooperative multi-agent systems, agents share common interests. The agent will make its choice according to the neighbors’ actions. Each agent in the environment makes a choice and selects an action a i at each time step, then the join action is \(\vec a=(a_{1},\ldots,a_{n})\), and afterwards, the whole receives a join reward \(R(\vec a)\). The target of the coordination problem is to find the best \(\vec {a^{*}}\) which maximizes the total reward \(R(\vec a)\ \left (\vec {a^{*}}={\text {argmax}}_{\vec a}R(\vec a)\right)\). For the sake of exposition, we define a cooperative multi-agent problem with only one state for each agent. Each of the two adjacent agents play a two-agent n-action normal form game. In a two-player, two-action, general-sum normal-form game, the payoff for each player can be specified by a matrix as show in Fig. 2. The agents have the same action space. When the adjacent agent i,j select the same action, they will both receive a reward of r(a i ,a j )=+1, otherwise r(a i ,a j )=−1. We assume that agent i can observe each neighbor’s action selection during the interaction and so that can get some statistical information of each neighbor. The symbols used in the following sections are described bellow.

  • n, number of agents.

  • A i , the action space of each agent i.

  • S i , the state space of each agent i, each agent only have one state here, that means no state transition.

  • r i , the immediate reward of agent i.

  • π i , the policy of agent i, π i a i .

  • \(\vec A\), \(\vec A=A_{1} \times... \times A_{n}\), the joint action space of all agents.

  • \(\vec S\), the joint state space of all agents.

  • Q i (s,a), the local expectation of the discounted reward for agent i selecting action a in state s.

  • \(Q(\vec s,\vec a)\), the global expected reward of selecting joint action \(\vec A\) in joint state \(\vec S\).

  • τ(i), all neighbors of agent i.

  • CS(i), the coordination set of agent i, and agent i should coordinate its action selection with the agents in CS(i), CS(i)τ(i).

  • NC(i), the neighbors of agent i that are not in CS(i), NC(i)=τ(i)CS(i).

  • CG, coordination graph which is composed of the CS of all agents.

Coordinated learning with controlled interaction

Coordination graph

To solve the coordination problem, one straightforward way is to loop through all the possible \(\vec A\) and select \(\vec A\) which maximizes the total reward. However this is practically intractable, due to the huge search space exponential to the number of agents (which is |A1×…×A n |) and the agents might not have access to the needed information (e.g., all other agents’ actions and rewards). Luckily, in practice, each agent’s choice only depends on a small set of relevant agents. The coordination graphs (CGs) described by Guestrin et al. [23] is a typical solution for this policy dependency problem. In a coordination graph G=(V,E) as shown in Fig. 7, each node represents an agent, and each agent i’s reward only depend on the adjacent agents. Each edge (i, j)E represents that the relevant agents i, j have to coordinate their actions, and the related value r(a i ,a j ) is the reward agent i, j will receive when selecting action a i ,a j respectively. The total reward \(R(\vec {a})\) is the sum of the individual reward r(a i ,a j ), as shown in Eq. (2).

$$ R(\vec{a})=\sum_{(i,j)\in E}^{n}r(a_{i},a_{j}) $$
(2)
Fig. 7
figure 7

Coordination graph

Cooperative Q-learning

We use Q-learning to estimate the expectation of the long-term feedback reward of the adjacent agents i,j choosing action a i ,a j , the bounded reward value in the edge of the coordination graph ((i,j)E) is represented by Q(a i ,a j ). An example of the modified coordination graph is shown in Fig. 8. Our purpose is to find a policy that maximizes the overall expected utility \(Q(\vec a)\left (\pi ={\text {argmax}}_{\vec a \in A} Q(\vec a)\right)\). The global Q-learning update rule is shown in Eq. (3).

$$ {\begin{aligned} Q(\vec s_{t},\vec a_{t})&=Q\left(\vec s_{t},\vec a_{t}\right)\\ & \quad +\alpha \left[r_{t}+ \gamma \max_{\vec a_{t+1}}Q\left(\vec s_{t+1},\vec a_{t+1}\right)-Q\left(\vec s_{t},\vec a_{t}\right)\right] \end{aligned}} $$
(3)
Fig. 8
figure 8

Coordination graph with Q

Although the global join learning approach leads to an optimal policy, it is practically intractable. In practice, it’s possible to approximate the global utility \(Q(\vec a)\) by the sum of the individual utility. Then, \(Q(\vec a)\) can be represented as:

$$ Q(\vec s_{t},\vec a_{t})=\sum_{(i,j)\in E} Q_{ij}\left(s_{i,j}^{t},a_{i}^{t},a_{j}^{t}\right) $$
(4)

The global Q-Leaning update rule shown in Eq. (3) can be rewritten as:

$$ \begin{aligned} \sum_{(i,j)\in E} Q_{ij}\left(s_{i,j}^{t},a_{i}^{t},a_{j}^{t}\right) &=(1-\alpha)\sum_{(i,j)\in E} Q_{ij}\left(s_{i,j}^{t},a_{i}^{t},a_{j}^{t}\right)\\ & \quad + \alpha \left[\sum_{(i,j)\in E} r_{a_{i},a_{j}}^{t}+\gamma \max{\vec a_{t+1}}Q\left(\vec s_{t+1},\vec a_{t+1}\right)\right] \end{aligned} $$
(5)

where \(r_{a_{i},a_{j}}^{t}\) is the reward the adjacent agents i,j receive when selecting the actions \(a_{i}^{t},a_{j}^{t}\) respectively. Note that the \(\max {\vec a_{t+1}}Q(\vec s_{t+1},\vec a_{t+1})\) cannot be directly decomposed into the sum of the local discounted future rewards, for it depends on the global joint action \(\vec A\) which maximizes the global utility \(Q\left (\vec s_{t+1},\vec a_{t+1}\right)\). We should find the optimal joint action \(\vec {a}^{*}\) where \(\vec {a}^{*} = (\text {argmax})_{\vec a}Q\left (s_{t+1},\vec a\right)\). For \(\vec {a}^{*}\) is a vector and can be represented by \(\left (a_{1}^{*},\ldots,a_{n}^{*}\right)\), \(\max _{\vec a_{t+1}}Q\left (s_{t+1},\vec a_{t+1}\right) = Q\left (s_{t+1},\vec {a}^{*}\right)=\sum _{(i,j)\in E} Q_{ij}\left (s_{i,j}^{t+1},a_{i}^{*},a_{j}^{*}\right)\). So, for each pair of agents, we have

$$ {\begin{aligned} Q_{ij}\left(s_{i,j}^{t},a_{i}^{t},a_{j}^{t}\right)&=(1-\alpha)Q_{ij}\left(s_{i,j}^{t},a_{i}^{t},a_{j}^{t}\right)\\ & \quad + \alpha \left[r_{a_{i},a_{j}}^{t}+\gamma Q_{ij}\left(s_{i,j}^{t+1},a_{i}^{*},a_{j}^{*}\right)\right] \end{aligned}} $$
(6)

What’s remaining unknown in Eq. (6) is the optimal action \(a_{i}^{*}\) for each agent i. Since enumerate all the combinations of the \(\vec a^{*}\) is intractable, we use the message-passing DCOP algorithm to find the optimal action \(a_{i}^{*}\) for each agent i in next section.

Coordinated action selection

We use the Max-Plus algorithm proposed by J. R. Kok and N. Vlassis. [21] to find \(a_{i}^{*}\) for each agent i. To compute the optimal \(\vec a^{*}\) for the whole, each agent sends a message to each of its neighbors. The definition of the message from agent i to agent j is defined as follows.

$$ \mu_{ij}(a_{j})=\max_{a_{i}}\left\{Q_{ij}(a_{i},a_{j}) + \sum_{k \in CS(i)\backslash j} \mu_{ki}(a_{i}) \right\} + c_{ij} $$
(7)

where CS(i)j is the coordinated neighbors of agent i except j, μ ki (a i ) is the messages from agent i’s neighbors (except j) to i and the parameter ci,j is a standardization item to prevent the value of the message being overflow. Notice that for a given message μ ij (a j ), the value only depends on the target agent j’s action a j . Given an action a j , the sender i can make a best response to maximize the value of μ ij (a j ). Each agent i in the CG will continuously send an message μ ij (a j ) to each of its neighbor j at every decision point until the value of the message converges to a stable value or the available time slots are used up or the agent receives some termination signal. When the messages over the whole network all become stable, each message will contain the Q ij (a i ,a j ) value bounded in every edges (i,j)E. Therefore, maximizing the sum of the current messages received from neighbors is to maximize the global \(Q(\vec a)\) for each agent. Figure 9 gives an example of the message passing over a 4-agent coordination graph. So for each agent i, the best action \(a_{i}^{*}\) to maximize the global utility is

$$ a_{i}^{*}=(\text{argmax})_{a_{i}}\sum_{k \in CS (i)} \mu_{ki}(a_{i}) $$
(8)

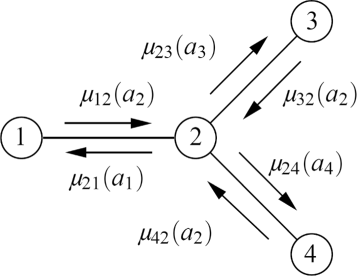

Fig. 9
figure 9

Message passing over a 4-agent graph

Above all, the algorithm for each agent i to get the optimal action \(a_{i}^{*}\) is described in Algorithm 2. For more details on max-plus, refer to J. R. Kok and N. Vlassis’s paper [21].

Coordination set selection: random

For large problems, the messages passed in the network are directly proportional to the number of edges of the CG but the communication is limited. To reduce the communication times and frequency, we need to eliminate some non-critical edges of the CG without significantly affecting the system performance. In this subsection, we define 2 different methods to minimize the communication cost.

In this subsection, we use some random methods to reduce the communication frequency.

  • Random agents: For each agent i, during the learning process, only δ percent of its neighbors τ(i) are selected as the CS(i).

In addition to the Random methods, we add some decay here.

  • Random agents with decay: We first initialize an δ=δ0. During the learning process, we randomly select δ percent of the neighbors τ(i) as the CS(i) for each agent i at each decision point. And then we decrease the δ with some small decay (e.g., δ=δ−0.01). With time going by, the δ will be smaller and smaller until to the minimum value specified (e.g., 0).

Coordination set selection: loss rate

To reduce the communication without significantly affecting the system performance, we need to find out the difference of communicating with an agent or not. For this purpose, we divide the neighbors τ(i) of each agent i into two groups: CS(i) and NC(i) as mentioned before. Each agent i only has to communicate with the agents in CS(i) to coordinate their actions.

For agents in CS(i), we assume that they have coordinated their actions well with agent i, and each of them will try their best to maximize the total reward of the group. And for agents in NC(i), each agent i will calculate the expectation of the reward when a i is selected. \(Q_{i}(a_{i})=\sum _{k\in NC(i)} \sum _{a_{k} \in A_{k}}P_{k}(a_{k}|a_{i})Q_{ik}(a_{i},a_{k})\), where P k (a k |a i ) is the probability of neighbor k selecting action a k when agent i selects a i . For a selected CS(i), the potential expected utility of selecting action a i PV(a i ,CS(i)) is divided into two parts: agents in CS(i) and agents in NC(i).

$$ \begin{aligned} PV_{i}(a_{i},CS(i))& =\sum_{j\in CS(i)}\max_{a_{j}}Q_{ij}(a_{i},a_{j}) \\ & \quad +\sum_{k\in NC(i)} \sum_{a_{k} \in A_{k}}P_{k}(a_{k}|a_{i})Q_{ik}(a_{i},a_{k}) \end{aligned} $$
(9)

Obviously, if CS1(i)CS2(i)τ(i), then for an action a i , PV i (a i ,CS1(i))≤PV i (a i ,CS2(i)).

Based on the potential expected utility, we define the potential loss in lack of coordination with NC(i) (PL i (NC(i)) for each agent i. It’s the difference of the potential expected utility when agent i coordinates with all of its neighbors τ(i) from that of agent i when it only coordinates with CS(i).

$$ \begin{aligned} PL_{i}(NC(i))&=\max_{a_{i},a_{i} \in A_{i}}PV_{i}(a_{i},\tau(i)) \\ &\quad - \max_{a_{i},a_{i} \in A_{i}}PV_{i}(a_{i},CS(i)) \end{aligned} $$
(10)

Easily, we can find that (1) if NC1(i)NC2(i)τ(i), then PL i (NC1(i))≤PL i (NC2(i)). (2) PL i ()=0. (3) for each NC(i)τ(i),0≤PL i (NC(i))≤PL i (τ(i)).

Above all, each agent i will select the best coordination set CS(i) according to the PL(τ(i)CS(i)) to minimize the loss of utility. The algorithm is described in Algorithm 3. δ is the predefined loss rate. When δ=0, each agent i will coordinate with all neighbors and when δ=1, each agent i will not coordinate with any agent at all.

Learning processes with emergent coordination

Combining cooperative Q-learning, coordinated action selection, and the coordination set selection, the cooperative learning process is described in Algorithm 4.

Results and discussion

In this section, we evaluate the performance of our algorithm on a large single-state problem. Firstly, we give the common settings of the large single-state problem. Then, we compare the norm emergence performance of our algorithm with some existing approaches. At last, we explore the effect of some important parameters and the performance of different coordination set selection methods proposed in “Coordination set selection: random” and “Coordination set selection: loss rate” sections.

Large scale single-state problems

There is only one state for each agent, and the reward function is defined in “Coordination problem” section (See Fig. 2 for an example). The goal of the agents is to learn and select a joint action which maximizes the global reward. In the following subsections, without additional explanation, we consider 100 agents playing a 10-action coordination game in which 10 norms exist. And the agents distribute in a small-world network. The average connection degree of the graph is set to 6.

Norm Emergence Performance

In this subsection, we compare the norm emergence performance of our methods with two of the existing approaches. For it’s difficult for the other two approaches to reach the convergence, the number of agents used here is 50 and the action number used is 2. The other parameter settings are shown in Table 1.

  • Independent Learners (IL): Each agent i uses the independent Q-learning and adjusts its policy only depend on its own action and reward. The Q-function is updated according to Eq. (11).

    $$ {\begin{aligned} Q_{i}(s,a_{i})&=Q_{i}(s,a_{i})\\ & \quad +\alpha\left[r\left(s,a,s^{\prime}\right)+ \gamma \max_{a_{i}^{\prime}}Q_{i}\left(s^{\prime}, a_{i}^{\prime}\right)-Q_{i}\left(s^{\prime},a_{i}^{\prime}\right)\right] \end{aligned}} $$
    (11)
    Table 1 Parameter settings for “Norm Emergence Performance” section
  • Distributed Value Functions (DVF): Each agent i records a local Q-function based on its own action and reward, and updates it incorporating with the neighbors’ Q-function following equation 12. f(i,j) is the contribution rate of agent j to agent i, and here is 1/|τ(i)|. For the stateless problem, we make an adjustment that each agent select its action considering the neighbors’ Q-function, that is \(a_{i}^{*}={\text {argmax}}_{a\in A_{i}}\sum _{j\in \{(i) \cup \tau (i)\}}f(i,j) \max _{a_{j}^{\prime }}Q_{j}\left (s^{\prime }, a_{j}^{\prime }\right)\).

    $$ {\begin{aligned} Q_{i}(s,a_{i})&=Q_{i}(s,a_{i})\\ &\quad +\alpha \!\left[\!r\left(s,a,s^{\prime}\right)\,+\, \gamma \!\sum_{j\in \{(i) \cup \tau(i)\}}f(i,j) \max_{a_{j}^{\prime}}Q_{j}\left(s^{\prime}, a_{j}^{\prime}\right)\,-\,Q_{i}\left(s^{\prime},a_{i}^{\prime}\right)\!\right] \end{aligned}} $$
    (12)

The norm emergence performance and the corresponding communication times are shown in Fig. 10. The learning processes are shown in the left parts and the corresponding message passing times over all agents are shown in the right parts. Our methods show better learning performance over all networks. We find that only in random network, all the methods lead to quick norm emergency as shown in Fig. 10c. In regular network, small-world network and scale-free network, only our methods converge to a global optimal in a few steps as shown in Fig. 10a, e and g. The communication cost of our method is much smaller than that of DVF (For IL, communication is not needed).

Fig. 10
figure 10

Norm emergence performance under different network topologies. Figure 10a Learning process (regular network); Fig. 10b Communication times (regular network); Fig. 10c Learning process (random network); Fig. 10d Communication times (random network); Fig.10e Learning process (small-world network); Fig. 10f Communication times (small-world network); Fig. 10g Learning process (scale-free network); Fig. 10h Communication times (scale-free network)

Influence of key parameters

In this section, we investigate the influence of some key parameters to the performance of norm emergence and message passing times. The parameters of the compared algorithm are the same other than the comparison one.

The influence of random parameter δ

In this subsection, we evaluate the influence of random parameter δ introduced in “Coordination set selection: random” section. The parameter settings are shown in Table 2. Figure 11 show the learning process of the agents using different random coordination set selection methods. In Fig. 11a, we observe that all methods enable the agents to reach a global optimal policy with an average reward of 1. With the decrease of the random rate, more rounds are needed to reach a global optimal. And from Fig. 11b, we can see the corresponding communication times over the whole network are reduced. Figure 12 show the learning process of the agents using decayed random methods. The 4 methods are initialized with different δ0 and different decay rate (see Table 2 for detail). Figure 12a shows that with the decay of the initialization of δ0, more rounds are needed. And when decay is added to the random methods, the corresponding communication times are significantly decreased without infecting the convergence performance as shown in Fig. 12b. But when the initialized δ0 is too small (δ0=0.001), the added decay makes little difference to the communication but leads to more learning rounds.

Fig. 11
figure 11

Selecting the coordination sets with different randomness. Figure 11a dynamics of the average payoffs using 4 different random parameters; Fig. 11b corresponding communication times

Fig. 12
figure 12

Selecting the coordination sets with different decayed randomness. Figure 12a dynamics of the average payoffs using 5 different initialized random parameters; Fig. 12b corresponding communication times

Fig. 13
figure 13

Selecting the coordination sets with different loss rate δ. Figure 13a dynamics of the average payoffs using different loss rates; Fig. 13b corresponding message passing times

Table 2 Parameter settings for “The influence of random parameter δ” section

The influence of loss rate δ

In this subsection, we investigate the influence of the loss rate δ defined in “Coordination set selection: loss rate” section. The parameter settings are shown in Table 3. We use the loss rate to identify the coordination set for each agent. The size of the coordination set decreases with the increase of the loss rate δ. The norm emergence performance with different loss rate δ and the corresponding communication times are shown in Fig. 13. From Fig. 13a, we see that the norm emergence efficiency is reduced as the increase of the loss rate δ. Given the other parameters unchanged, we see that when δ<=0.7, our method can significantly reduce the communication without influencing the learning performance. When δ>0.7, more time is needed for the agent to reach a global optimal. When δ>0.9, our method may fail to converge in a few steps with the same parameters and more exploration is needed. The corresponding message passing times over all agents are shown in Fig. 13b.

Fig. 14
figure 14

Influence of population size. Figure 14a dynamics of the average payoffs(random); Fig. 14b corresponding message passing times(random); Fig. 14c dynamics of the average payoffs(loss rate); Fig. 14d corresponding message passing times (loss rate);

Table 3 Parameter settings for “The influence of loss rate δ” section

The influence of population size n

The influence of the population size is shown in Fig. 14. We evaluate our methods in a group of agents range from 100 to 1000. The parameter settings are shown in Table 4. We can clearly observe the norm emergence efficiency is not influenced obviously as the increase of the population size. Through the passing of messages, the agents coordinate their actions in a few steps. And the results show that our method scales well in large systems. Figure 14a and b show the results using random methods and Fig. 14c and d show the results using loss rate controlled methods. The random rate and the loss rate here are set to 0.5. And we can clearly observe the message passing times over all agents are proportional to the number of agents from Fig. 14b and d.

Table 4 Parameter settings for “The influence of population size n” section

Conclusion

In this paper, we develop a framework based on the max-plus algorithm to accelerate the norm emergence of large cooperative MASs. With the limited communication bandwidth, we propose two kinds of approaches to minimize the communication cost: random and deterministic. Random methods select the coordination set stochastically, while the deterministic methods identify the best coordination set for each agent by limiting the utility loss due to the lock of coordination. Both approaches significantly reduce links of the coordination graph and result in less communication without deteriorating the learning performance. Experiment results show that our methods lead to better norm emergence performance under all kinds of networks compared with the existing methods and scale well in large populations. Thus, our methods can efficiently accelerate the social norm emergence under limited communication.

As future work, we will further investigate the performance of our methods in more complicated games such as Prisoner’s dilemma, to better reflecting the interaction dynamics in cell systems. And we will evaluate our algorithm on a simulated cell communication environment.

References

  1. Kang S, Kahan S, Mcdermott J, Flann N, Shmulevich I. Biocellion: accelerating computer simulation of multicellular biological system models. Bioinformatics. 2014; 30(21):3101–8.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  2. Cheng L, Jiang Y, Wang Z, Shi H, Sun J, Yang H, Zhang S, Hu Y, Zhou M. Dissim: an online system for exploring significant similar diseases and exhibiting potential therapeutic drugs. Sci Rep. 2016; 6:30024.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  3. Cheng L, Sun J, Xu W, Dong L, Hu Y, Zhou M. OAHG: an integrated resource for annotating human genes with multi-level ontologies. Sci Rep. 2016; 6:34820.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  4. Hu Y, Zhao L, Liu Z, Ju H, Shi H, Xu P, Wang Y, Cheng L. Dissetsim: an online system for calculating similarity between disease sets. J Biomed Semant. 2017; 8(1):28.

    Article  Google Scholar

  5. Hu Y, Zhou M, Shi H, Ju H, Jiang Q, Cheng L. Measuring disease similarity and predicting disease-related ncrnas by a novel method. BMC Med Genet. 2017; 10(5):71.

    Google Scholar

  6. Peng J, Lu J, Shang X, Chen J. Identifying consistent disease subnetworks using dnet. Methods. 2017; 131:104–10.

    Article  CAS  PubMed  Google Scholar

  7. Peng J, Wang H, Lu J, Hui W, Wang Y, Shang X. Identifying term relations cross different gene ontology categories. BMC Bioinformatics. 2017; 18(16):573.

    Article  PubMed  PubMed Central  Google Scholar

  8. Peng J, Xue H, Shao Y, Shang X, Wang Y, Chen J. A novel method to measure the semantic similarity of hpo terms. Int J Data Min Bioinforma. 2017; 17(2):173–88.

    Article  Google Scholar

  9. Peng J, Zhang X, Hui W, Lu J, Li Q, Shang X. Improving the measurement of semantic similarity by combining gene ontology and co-functional network: a random walk based approach. BMC Syst Biol. 2018;12(Suppl2).

  10. Sycara K. P. Multiagent systems. AI Mag. 1998; 19(2):79.

    Google Scholar

  11. Wooldridge M. An Introduction to Multiagent Systems.Chichester: Wiley; 2009.

    Google Scholar

  12. Torii M, Wagholikar K, Liu H. Detecting concept mentions in biomedical text using hidden markov model: multiple concept types at once or one at a time?J Biomed Semant. 2014; 5(1):3.

    Article  Google Scholar

  13. Sen S. Emergence of norms through social learning. In: International Joint Conference on Artifical Intelligence: 2007. p. 1507–12.

  14. Airiau S, Sen S, Villatoro D. Emergence of conventions through social learning. Auton Agent Multi-Agent Syst. 2014; 28(5):779–804.

    Article  Google Scholar

  15. Yu C, Lv H, Ren F, Bao H, Hao J. Hierarchical learning for emergence of social norms in networked multiagent systems. In: Australasian Joint Conference on Artificial Intelligence. Springer: 2015. p. 630–43.

  16. Jianye H, Sun J, Huang D, Cai Y, Yu C. Heuristic collective learning for efficient and robust emergence of social norms. In: Proceedings of the 2015 International Conference on Autonomous Agents and Multiagent Systems: 2015. p. 1647–8. International Foundation for Autonomous Agents and Multiagent Systems.

  17. Hao J, Leung H. -F, Ming Z. Multiagent reinforcement social learning toward coordination in cooperative multiagent systems. ACM Trans Auton Adapt Syst (TAAS). 2015; 9(4):20.

    Google Scholar

  18. Yang T, Meng Z, Hao J, Sen S, Yu C. Accelerating norm emergence through hierarchical heuristic learning. In: European Conference on Artificial Intelligence: 2016.

  19. Hao J, Huang D, Cai Y, Leung Hf. The dynamics of reinforcement social learning in networked cooperative multiagent systems. Eng Appl Artif Intell. 2017; 58:111–22.

    Article  Google Scholar

  20. Hao J, Sun J, Chen G, Wang Z, Yu C, Ming Z. Efficient and robust emergence of norms through heuristic collective learning. ACM Trans Auton Adapt Syst (TAAS). 2017; 12(4):23.

    Google Scholar

  21. Kok J. R, Vlassis N. Collaborative multiagent reinforcement learning by payoff propagation. J Mach Learn Res. 2006; 7(1):1789–828.

    Google Scholar

  22. Li J, Qiu M, Ming Z, Quan G, Qin X, Gu Z. Online optimization for scheduling preemptable tasks on iaas cloud systems. J Parallel Distrib Comput. 2012; 72(5):666–77.

    Article  Google Scholar

  23. Guestrin C, Lagoudakis MG, Parr R. Coordinated reinforcement learning. In: Nineteenth International Conference on Machine Learning.2002. p. 227–34.

Download references

Acknowledgements

We thank the reviewers’ valuable comments for improving the quality of this work. We would also like to acknowledge Shuai Zhao (zhaoshuai@catarc.ac.cn, China Automotive Technology and Research Center, Tianjin, China) as an additional corresponding author of this article, who contributed to the overall design of the algorithmic framework and co-supervised the work.

Funding

The publication costs of this article was funded by Tianjin Research Program of Application Foundation and Advanced Technology (No.: 16JCQNJC00100), Special Program of Talents Development for High Level Innovation and Entrepreneurship Team in Tianjin and Comprehensive standardization of intelligent manufacturing project of Ministry of Industry and Information Technology (No.: 2016ZXFB01001) and Special Program of Artificial Intelligence of Tianjin Municipal Science and Technology Commission (No.: 17ZXRGGX00150).

Availability of data and materials

All data generated or analysed during this study are included in this published article.

About this supplement

This article has been published as part of BMC Bioinformatics Volume 19 Supplement 5, 2018: Selected articles from the Biological Ontologies and Knowledge bases workshop 2017. The full contents of the supplement are available online at https://bmcbioinformatics.biomedcentral.com/articles/supplements/volume-19-supplement-5.

Author information

Authors and Affiliations

Authors

Contributions

XH contributed to the algorithm design and theoretical analysis. JH, LW and HH contributed equally to the the quality control and document reviewing. All authors read and approved the final manuscript.

Corresponding authors

Correspondence to Li Wang or Hanxu Hou.

Ethics declarations

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver(http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Hao, X., Hao, J., Wang, L. et al. Effective norm emergence in cell systems under limited communication. BMC Bioinformatics 19 (Suppl 5), 119 (2018). https://doi.org/10.1186/s12859-018-2097-2

Download citation

  • Published:

  • DOI: https://doi.org/10.1186/s12859-018-2097-2

Keywords
