Comparison of metaheuristics to measure gene effects on phylogenetic supports and topologies

  • 1,
  • 1Email author,
  • 1,
  • 1,
  • 1, 3 and
  • 2
BMC Bioinformatics201819 (Suppl 7) :218

https://doi.org/10.1186/s12859-018-2172-8

  • Published:

Abstract

Background

A huge and continuous increase in the number of completely sequenced chloroplast genomes, available for evolutionary and functional studies in plants, has been observed during the past years. Consequently, it appears possible to build large-scale phylogenetic trees of plant species. However, building such a tree that is well-supported can be a difficult task, even when a subset of close plant species is considered. Usually, the difficulty raises from a few core genes disturbing the phylogenetic information, due for example from problems of homoplasy. Fortunately, a reliable phylogenetic tree can be obtained once these problematic genes are identified and removed from the analysis.Therefore, in this paper we address the problem of finding the largest subset of core genomes which allows to build the best supported tree.

Results

As an exhaustive study of all core genes combination is untractable in practice, since the combinatorics of the situation made it computationally infeasible, we investigate three well-known metaheuristics to solve this optimization problem. More precisely, we design and compare distributed approaches using genetic algorithm, particle swarm optimization, and simulated annealing. The latter approach is a new contribution and therefore is described in details, whereas the two former ones have been already studied in previous works. They have been designed de novo in a new platform, and new experiments have been achieved on a larger set of chloroplasts, to compare together these three metaheuristics.

Conclusions

The ways genes affect both tree topology and supports are assessed using statistical tools like Lasso or dummy logistic regression, in an hybrid approach of the genetic algorithm. By doing so, we are able to provide the most supported trees based on the largest subsets of core genes.

Keywords

  • Chloroplasts
  • Phylogeny
  • Metaheuristics
  • Genetic algorithms
  • Lasso test
  • Binary particle swarm optimization
  • Simulated annealing

Background

These last years the investigation of the evolutionary relationship between different plants has benefited from the multiplication of the available chloroplast sequences. Indeed, thanks to various tools it is possible to process these sequences in order to build a phylogenetic tree that accurately characterizes the evolutionary lineages among the chloroplasts. Efficient coding sequence prediction and annotation tools have been developed to deal specifically with chloroplasts, for example DOGMA [1], and there is also a great choice for the alignment of sequences. Moreover, given a set of sequences or characters, many well-established bioinformatics programs based on Bayesian inference or maximum likelihood, like BEAST or RAxML [2], can be used to reconstruct a phylogenetic tree. The objective is usually to obtain a reliable phylogeny on which biological investigations can be applied. For instance, in, a comparative analysis of expressed rice gene homologues in 48 other diverse eukaryotic species has been performed, and a phylogenetic tree of life based on 98 of these genes conserved across the species has been computed using such software. It has been used to estimate more accurately the divergence time among a large number of species pairs. However, the genome of rice plant has approximately 40,000 genes, and their tree has been computed using less than 1% of such genes.

Several methods can be used to estimate the robustness of the produced tree, the most widely used are the bootstrap and the decay (or Bremer) analyses [3, 4]. Obviously, a first condition to be able to build a phylogenetic tree for a given set of close plant species is to identify as precisely as possible the corresponding core genome [5] (the set of genes in common). However, even if the core genome is large and accurate, the resulting phylogeny is not necessarily well-supported [6]. In fact, the core genome genes are not constrained through evolution in a similar way. On the one hand some evolve under strong evolutionary constraints and thus reflect the story of the species while, on the other hand, other genes evolve more freely due to a lower role in the survival and adaptability of a species. The latter tell their own history and thus disturb the phylogenetic information. Furthermore, the way the robustness and accuracy of the obtained phylogenetic tree are altered by the amount of used data for the reconstruction process is not completed understood. Nevertheless, if we consider a set of species reduced to lists of gene sequences, an obvious dependence between the chosen subset of sequences and the obtained tree (topology, branch length, and/or robustness) can be observed. This dependence is usually regarded by the mean of gene trees merged in a phylogenetic network. In fact, phylogenetic networks are necessary to represent events like horizontal gene transfers, but statistical methods to infer such networks are still limited and under development.

In this article, we consider the situation from a dual point of view, that consists in starting with the complete core genome and then to remove the genes responsible for inconsistent phylogenetic signal. In other words, the objective is to find the largest part of the core genome that produces a phylogenetic tree as supported as possible, and which therefore gives the fairest view of the relationships between most of the sequences under consideration. Searching the problematic genes by exhaustively testing the combinations of core genome genes is nonsense due their huge number. Therefore, to speed up the finding of a satisfactory combination we rather consider metaheuristics. The first one, introduced in a previous work [7], is an ad hoc Genetic Algorithm (GA) which in some cases is not able to converge towards a suitable solution. Next, a Binary Particle Swarm Optimization (PSO) approach has been published in the the CIBB proceedings book [8]. Finally, in this article, which extends and improves the two former ones, we study the relevance of the Simulated Annealing (SA) algorithm to fulfill the optimization task. Also notice that the different metaheuristics have been executed in a distributed manner using supercomputing facilities. To sum up, the contribution of this article is threefold: first, it proposes a new simulated annealing approach, second a new version of the PSO, and third a comparison of the three metaheuristics on a large number of new groups of species. Compared to usual articles studying the tree of life like, our approach is diametrically opposed: instead of using existing phylogenetic software on a small collection of core genes, in order to provide new discoveries on some aspects of the Evolution, we propose a pipeline of 3 metaheuristics, to find the largest subset of core genes leading to the most supported tree.

Methods

Problem description

Let us introduce the problem of determining a phylogeny (evolution tree) for a given set of species by considering a set of chloroplast genomes that have been annotated using DOGMA [1] (the approach we applied is detailed in “Results” section). To start we need to pick one or several genes on which the phylogeny will be based. Therefore we use the restricted core genome [9, 10], which consists of conserved genes present everywhere, whose size is larger than one hundred genes when the species are close enough. Then multiple sequence alignments are performed using muscle [11] and finally a phylogenetic tree is inferred thanks to the maximum-likelihood tree builder RAxML [2].

The relevance of the obtained tree is then assessed by its bootstrap values: if these ones are all above 95 the tree is well-supported, in which case we can reasonably estimate that the phylogeny of these species is solved. Bootstrapping is a random sampling technique commonly used to estimate the significance of branches of a phylogenetic tree. It consists to randomly select columns in the aligned DNA core sequences to be neglected during the tree building process and to check whether the same nodes are recovered. A large number of bootstrap repetitions, usually between 50 and 1000, are used to assess the tree reliability. As an illustration, a node which appears 95 times out of 100 by dropping a column means that the node is well-supported. Conversely, a low support value claims that a reduced part of the alignment supports the node, since by removing columns the node is reconstructed in different ways.

When such a well-supported tree is not built, but rather a tree having some branches exhibiting low supports, some genes of the core genome can be responsible of this lack of support. The objective is then to identify the most supported tree using the largest subset of core genes, a typical optimization problem. Obviously, the optimization problem we face cannot be solved by a brute force approach checking all possible combination of genes, due to the resulting combinatorial explosion. Indeed, for a core genome of n genes there would be 2n trees to infer and that is clearly intractable in practice. To overcome such a combinatorial situation, a typical choice is to use a metaheuristic method.

In [7], we have first investigated the mixing of a genetic algorithm with Lasso tests to find problematic genes. Unfortunately, thorough and careful experimental investigations have led to results, recalled in Table 1, showing that this proposal is not able to predict the phylogeny of some particular plant orders. As can be seen, the lowest bootstrap value (or bootstrap score) obtained for 15 group of species is below 95 (column b in the table). The relevance of binary particle swarm optimization to find the largest subset of core genes has been studied in [8], producing slightly better bootstrap scores than GA with Lasso. In this paper we introduce a third well-known metaheuristic method, namely simulated annealing, and we compare the three approaches considering new sets of species. Like the two former ones, the computations with SA algorithm will be done in a distributed manner. Multiple algorithm instances will be launched using a same cooling schedule and at the end of each Markov chain, for a same temperature, a centralized communication scheme will take place.
Table 1

Results of genetic algorithm approach on various families

Group

occ

c

# taxa

b

Terminus

Likelihood

Outgroup

Gossypium_group_0

85

84

12

26

1

-84187.03

Theo_cacao

Ericales

674

84

9

67

3

-86819.86

Dauc_carota

Eucalyptus_group_1

83

82

12

48

1

-62898.18

Cory_gummifera

Caryophyllales

75

74

10

52

1

-145296.95

Goss_capitis-viridis

Brassicaceae_group_0

78

77

13

64

1

-101056.76

Cari_papaya

Orobanchaceae

26

25

7

69

1

-19365.69

Olea_maroccana

Eucalyptus_group_2

87

86

11

71

1

-72840.23

Stoc_quadrifida

Malpighiales

422

78

10

96

3

-91014.86

Mill_pinnata

Pinaceae_group_0

76

75

6

80

1

-76813.22

Juni_virginiana

Pinus

80

79

11

80

1

-69688.94

Pice_sitchensis

Bambusoideae

83

81

11

80

3

-60431.89

Oryz_nivara

Chlorophyta_group_0

231

24

8

81

3

-22983.83

Olea_europaea

Marchantiophyta

65

64

5

82

1

-117881.12

Pice_abies

Lamiales_group_0

78

77

8

83

1

-109528.47

Caps_annuum

Rosales

81

80

10

88

1

-108449.4

Glyc_soja

Eucalyptus_group_0

2254

85

11

90

3

-57607.06

Allo_ternata

Prasinophyceae

39

43

4

97

1

-66458.26

Oltm_viridis

Asparagales

32

73

11

98

1

-88067.37

Acor_americanus

Magnoliidae_group_0

326

79

4

98

3

-85319.31

Sacc_SP80-3280

Gossypium_group_1

66

83

11

98

1

-81027.85

Theo_cacao

Triticeae

40

80

10

98

1

-72822.71

Loli_perenne

Corymbia

90

85

5

98

2

-65712.51

Euca_salmonophloia

Moniliformopses

60

59

13

100

1

-187044.23

Prax_clematidea

Magnoliophyta_group_0

31

81

7

100

1

-136306.99

Taxu_mairei

Liliopsida_group_0

31

73

7

100

1

-119953.04

Drim_granadensis

basal_Magnoliophyta

31

83

5

100

1

-117094.87

Ascl_nivea

Araucariales

31

89

5

100

1

-112285.58

Taxu_mairei

Araceae

31

75

6

100

1

-110245.74

Arun_gigantea

Embryophyta_group_0

31

77

4

100

1

-106803.89

Stau_punctulatum

Cupressales

87

78

11

100

2

-101871.03

Podo_totara

Ranunculales

31

71

5

100

1

-100882.34

Cruc_wallichii

Saxifragales

31

84

4

100

1

-100376.12

Aral_undulata

Spermatophyta_group_0

31

79

4

100

1

-94718.95

Mars_crenata

Proteales

31

85

4

100

1

-92357.77

Trig_doichangensis

Poaceae_group_0

31

74

5

100

1

-89665.65

Typh_latifolia

Oleaceae

36

82

6

100

1

-84357.82

Boea_hygrometrica

Arecaceae

31

79

4

100

1

-81649.52

Aegi_geniculata

PACMAD_clade

31

79

9

100

1

-80549.79

Bamb_emeiensis

eudicotyledons_group_0

31

73

4

100

1

-80237.7

Eryc_pusilla

Poeae

31

80

4

100

1

-78164.34

Trit_aestivum

Trebouxiophyceae

31

41

7

100

1

-77826.4

Ostr_tauri

Myrtaceae_group_0

31

80

5

100

1

-76080.59

Oeno_glazioviana

Onagraceae

31

81

5

100

1

-75131.08

Euca_cloeziana

Geraniales

31

33

6

100

1

-73472.77

Ango_floribunda

Ehrhartoideae

31

81

5

100

1

-72192.88

Phyl_henonis

Picea

31

85

4

100

1

-68947.4

Pinu_massoniana

Streptophyta_group_0

31

35

7

100

1

-68373.57

Oedo_cardiacum

Gnetidae

31

53

5

100

1

-61403.83

Cusc_exaltata

Euglenozoa

29

26

4

100

3

-8889.56

Lath_sativus

Occ provides the number of genomes within the group while taxa is for the number of species. c and b respectively correspond to the percentage of core genes and the lowest bootstrap of the solution produced by the GA, while Likelihood is the likelihood of the best tree. Finally, Terminus specifies at which stage the GA stopped, while Outgroup is the considered outgroup

To sum up, Fig. 1 gives an overview of the proposed pipeline to obtain the ancestral history of a set of species.
Fig. 1
Fig. 1

Overview of the proposed pipeline

Phylogenetic predictions using metaheuristics

Genetic algorithm approach

To make this article self-contained, we summarize hereafter the main steps of the genetic algorithm combined with Lasso test proposed in [7] aiming at finding problematic genes in core genome.

The n core genes are sorted alphabetically, and at each subset we associate a binary word of length n: its i-th character is 1 if and only if the i-th core gene is in the considered subset. In the proposed GA, a first stage to initialize the GA population (1) computes the set of n-length binary words containing the word having only 1’s (the whole core genome which is composed of n genes), (2) all words having exactly one 0 (all but 1 gene) further denoted as systematic mode, and (3) 200 words having between 2 and 10 0’s randomly located. Each of these words is associated with the score \(\frac {b+p}{2}\) where b is the lowest bootstrap of the reconstructed phylogenetic tree and p is the percentage of considered core genes.

More precisely, the population is initialized with the 50 best words. Then, the GA iterates until discovering a word whose score is larger than 95, or at most for 200 iterations. Each iteration, which produces a new population, consists of the following steps:
  1. 1.

    Repeat 5 times a random pickup of a pair (w1,w2) of words and mix them using a crossover approach. In this step, indexes {1,…,n} are partitioned into k, \(k \le \frac {n}{2}\), subsets I1,…Ik. A new word w is then defined by \(w_{i} = w_{i}^{1}\) if i belongs to some Ij where j is odd; otherwise \(w_{i} = w_{i}^{2}\). The obtained words are added to the population P, resulting in population Pc.


  2. 2.

    Mutate 5 words of the population Pc. More precisely, for each of these words, k randomly selected binary values of w are switched leading to a new word. The mutated words are added to Pc leading to population Pm.


  3. 3.

    Produce population Pr by adding 5 new random binary words having less than 10% of 0’s to Pm.


  4. 4.

    Select the 50 best words in population Pr to form the new population P.



The aforementioned GA may not produce well-supported trees. Nevertheless, the whole set of produced words with their associated scores contains valuable information about which gene breaks supports. The idea is to focus on each topology having a frequency of occurrence larger than 10%. Then for each best word of these best topologies, and for each problematic bootstrap in its associated tree, we apply a Lasso test [12], which is recalled hereafter.

Let W be a m×n matrix where each line Wi=(Xi1,…,Xij,…,Xin), 1≤im, is a word. For each Wi, let Yi be the real positive support value for each problematic bootstrap b per topology and per gene. The Lasso test β=(β1,…,βi,…,βn) is thus defined by:
$$ {}\beta = \text{argmin} \left\{ \sum_{i=1}^{m} \left(Y_{i} - \sum\limits_{j=1}^{n} \beta_{j} X_{ij} \right)^{2} + \lambda\sum\limits_{j=1}^{n} | \beta_{j} | \right\}. $$
(1)

It is not hard to see that the sign of βj is positive (resp. negative) if the bootstrap support increases (resp. decreases) with respect to j.

This test allows thus to remove problematic genes, i.e., genes j, 1≤jn, such that βj is negative. Finally, a last genetic algorithm phase is launched on the updated population, in order to mix these promising words.

Binary particle swarm optimization approach

Particle Swarm Optimization [13] is a stochastic metaheuristic which has been successfully applied on artificial neural network training, fuzzy system control…In this scheme, an emergent behavior enables individual swarm members, particles, to take advantage from neighboring particles, which are closer numerically to the optimal solution. In the case of the standard Binary PSO (BPSO) model [14], each particle position is a n-length vector of binary values. A score function associates a real number to such kind of vector w.r.t. the optimization problem. BPSO aims at moving the particles in the n dimensions in order to obtain the optimal position with respect to this function.

More precisely, each particle i is represented by a n-length vector Xi of binary values, which has the same meaning than binary words in GA, indicating the gene contents of the associated core subset. Again, the j-th coordinate of Xi is 1 if and only if the associated j-th parameter is selected. A swarm of L particles is a list of position vectors (X1,X2,…,XL) together with their associated velocities (V1,V2,...,VL). Each Vi is a n-length vector of real numbers between 0 and 1. Each velocity vector Vi is updated as follows:
$$ {}V_{i}(t+1)= w V_{i}(t)+\phi_{1}\left(P_{i}^{\text{best}}-X_{i}\right)+\phi_{2}\left(P_{g}^{\text{best}}-X_{i}\right), $$
(2)

where w, ϕ1, and ϕ2 are weighted parameters setting the level of each three trends for the particle, which are respectively to continue with the same inertia, to follow the direction of its own best neighbouring position \(P_{i}^{\text {best}}\), or to follow the one of the global best known solution \(P_{g}^{\text {best}}\).

Each position Xij of the particle i is updated as follows:
$$\begin{array}{@{}rcl@{}} X_{ij}(t+1)= \left\{\begin{array}{ll} 1 & \text{if}\ {\tiny r}_{ij}\leq \frac{1}{1+e^{-V_{ij}(t+1)}}, \\ 0 & \text{otherwise}, \end{array}\right. \end{array} $$
(3)

where the scalar rij depends on both the particle i and the parameter j. It is not hard to recognize a choice guided by a threshold rij and a sigmoid [14] function. Let us now recall how this BPSO optimization scheme has been parameterized to solve our phylogeny problem [8].

Each vector xi{0,1}n corresponds to a subset of core genes. It is associated with the deduced following data: the percentage p of considered core genes, the lowest bootstrap b of its induced phylogenetic tree, and, finally, the score \(\frac {b+p}{2}\). The approach was to construct phylogenies based on neighbouring core genes: this leads to trees with similar topologies and with close bootstrap values with a high probability. During BPSO initialization, the L particles are randomly distributed among subsets of core genes (binary words) with a high percentage of 1’s. Further iterations move these particles in such a way that they will converge to an optimal node.

As in [15], at each iteration, the particle velocity is updated as in Eq. (2) where ϕ1 and ϕ2 are random numbers belonging to [0.1,0.5], and w linearly decreases between the first iteration and the last one from wmax=0.9 to wmin=0.4, as suggested in [16]. A large inertia weight indeed facilitates a global search, while a small inertia weight tends more to a local investigation.

A distributed version of BPSO algorithm has been proposed to minimize the execution time: each particle is executed in a worker core in order to compute its fitness value and obtained results are centralized by a supervisor master core. More precisely, the master initializes the particles of the swarm, distributes them to the workers, and waits until all of them have finished their task. It determines then the position of the particle that has the best fitness value as the global best position, and sends this information to the workers that update their respective particle velocity and position. This mechanism is repeated until a particle achieves a fitness value larger than or equal to 95 with a large set of included genes. In the following, two distributed versions of the BPSO are considered.

The former, further denoted as PSO version I, updates the velocity as follows:
$$ {}V_{i}(t+1)= x \cdot [V_{i}(t)+C_{1}(P_{i}^{best}-X_{i})+C_{2}(P_{g}^{best}-X_{i})] $$
(4)
where x, C1, and C2 are weighted parameters setting the level of each three trends for the particle. The default values of these parameters are C1=C2=2.05, while x, which represents the constriction coefficient, is computed according to formula [17, 18]:
$$\begin{array}{@{}rcl@{}} x=\frac{2 \times k}{|2-C-(\sqrt{C \times (C-4)})|}, \end{array} $$
(5)

where k is a random value in [0,1] and C=C1+C2, C≥4. According to Clerc [18], using a constriction coefficient results in particle convergence over time. This latter, denoted as PSO version II, updates the velocity as formalized in Eq. (2).

A simulated annealing approach

General presentation

The original Simulated Annealing (SA) method is a local search based threshold class algorithm. Basically, a threshold algorithm is a loop in which a move is either done or not, according to a given criterion and until reaching a freeze [19]. Specifically, after an initialization step, this loop is composed by (a) a move in the neighborhood of the current solution, (b) an evaluation of this new position by a real-valued scoring function, then (c) a test, given a well chosen criterion, to store this position as the new best one. Various criteria can be considered. For instance, if a position is evaluated as a better solution than the best existing one, it becomes the reference solution for next iterations when the acceptation criterion is “only if best cost (score)” algorithm, which is a variant of a classical greedy local search [20]. The “all is accepted” algorithm produces, for its part, a random walk. Finally, between these two extremes situations, an acceptation criterion allows to store sometimes too positions with poorer scores than the best solution, which is an upward move via a stochastic component to avoid local minima. Such a stochastic approach facilitates theoretical analysis of asymptotic convergence. As such algorithms can be successfully used for a broad range of optimization problems, SA has been largely covered in the literature during the last decades [20, 21], for both empirical [22, 23] – typically on NP-hard problems – and theoretical perspectives [20, 24].

In simulated annealing, the criterion is inspired by the Metropolis-Hastings statistical (Markov chain Monte Carlo) thermodynamics algorithm [20]. SA simulates the cooling of a material in a heat bath until a steady (frozen or thermodynamic equilibrium) state. When the solid material is heated over its melting point, its solidification rate induces its structural properties. Two major antagonistic strategies are commonly used. On the one hand, after a fast cooling (quenching), the steady state is constituted by different thermodynamic free level areas. This corresponds to a local minimum for a local search, when considering energy as a score. On the other hand, after a slow cooling (annealing), almost one sole thermostatic level is expected, which corresponds to a global minimum. As feasible solutions of SA are system states, the structural proximity of the latter leads to the concept of solution neighborhood.

Thermodynamic laws show that at temperature t, the probability to increase in energy of the value δE is given by p(δE)= exp(−δE/kt) with k equal to the Boltzmann’s constant. Metropolis simulations [25] consist in the generation of a state perturbation, in the evaluation of energy modification, and finally in the decision to reject or not the new state according to the probability p(δE). That is, the probability to keep a better (lower) level of energy is 1, while the one to keep an infinitely worst level of energy is equal to 0. Or, in other words, the likelihood to save a given state decreases as the energy level increases. A criterion to increase the probability to reach convergence is the so-called logarithmic fading of control parameter (i.e., temperature). The simplest choice is tn+1=C·tn, where C[0,1] is a constant. A best global solution is reached by searching series of equilibria. Each equilibrium is obtained by series of Metropolis thresholds. The stop condition is typically an arbitrary duration or a number of loop iterations. Then the temperature is decreased and the last obtained equilibrium becomes the starting state for a new series of thresholds. The final stop is triggered if no improvement has been found since an arbitrary number of equilibria. Let us finally notice that, as a large set of temperature cooling schedules (decreasing function [26, 27]), of moving functions, of criteria, of strategies regarding initial values, of improvements on score function, of stop criteria, and even of theoretical modeling [20, 2830] have been proposed in the literature [29, 31, 32], simulated annealing should be regarded more as a large family of algorithms than as a single one. Some members of the family including Basin Hopping [33] are themselves described as frameworks for ad-hoc global optimization algorithms.

A general overview of our proposal can be found in Fig. 2, while algorithm details are provided hereafter.
Fig. 2
Fig. 2

Simulated annealing as a threshold class algorithm. a Generic threshold class algorithm. b Metropolis algorithm. c Simulated annealing algorithm

Designing SA for phylogenetic studies
The objective is now to apply the simulated annealing method to find the largest subset of core genes that leads to the most supported phylogenetic tree. Intermediate computations of subsets will help to understand, using regressions, the effects of given genes on both topology and supports. However, SA is complex to set up in practice, and finding new optima in finite time cannot be guaranteed, as reported by Aarts, Korst, and van Laarhoven [19]. To enlarge the probability of success, we targeted the following requirements during our experiments:
  • a cooling schedule fitting with complexity, time, convergence, and precision considerations (cf. the temperature scheduling paragraph below);

  • a concise representation for the problem under consideration (detailed in “About a relevant configuration of SA according to the state space”);

  • a moving function adapted to the state solution space (same paragraph as above);

  • and, similarly, an acceptation function adapted to the state space (see the “Proposed SA optimization”).

These four requirements are discussed hereafter.

Temperature scheduling.
A criterion to increase the probability to reach convergence is the so-called logarithmic fading of control parameter (i.e., temperature). The most simple choice is \(t_{n+1}= C\dot t_{n}\), where C[0,1] is a constant. However, according to our experiments, such a solution is not able to produce relevant results in the phylogenetic problem under consideration. This is why the control parameter has been updated following a tiered approach, leading to an inhomogeneous Markov model: the temperature decreases only after the end of its associated Markov chain. Additionally, near an equilibrium, the Markov chain length must increase when the control parameter decreases. But, as above, at low temperature the computation time may become prohibitive without any synchronisation between the control parameter and the Markov chain characteristics. To solve such an issue, various schedule solutions proposed in the literature link these two parameters. After having tested classical benchmarking functions like the well known three-hump camel, Levi, and Booth, we finally have chosen:
$$t_{n+1}=\left(\frac{t_{f}}{{t_{i}^{\frac{1}{n_{m}-1}}}}\right)\times t_{n}$$
where t is the control parameter, ti and tf are respectively the maximum (initial) and minimum (final) of allowed control parameter values for the SA computation, while nm is the maximal number of Markov chains (equal to the temperature steps) allowed during computation.
About a relevant configuration of SA according to the state space.

As in the other methods, the state space is constituted by Boolean vectors Xi of the form (Xi1,…,Xin), where n is the number of core genes. Xij is equal to 1 if and only if gene number j in alphabetic order is in the alignment provided to the phylogenetic tool. We thus navigate again on the n-cube on which each node (that is, each state) corresponds to a subset of core genes and has additionally a labeled value provided by the subset scoring function which is again the average between the lowest bootstrap and the number of selected core genes. We can easily define a distance between two points inside this cube, like an Hamming distance between Boolean vectors, and the node score can be considered as the altitude of the current position.

To sum up, there is a topology on the state space, with neighborhood notion between two states, while the altitude (the score of a subset of genes, which is related to the SA energy) is varying between two locations. Both the density and the form of energy peaks are varying through the landscape. Neighborhoods and moves, acceptation probability, temperature scheduling functions, and their related initial values are dependant on the characteristics, or the topology, of this state space. Obviously, there is no general way to set up the parameters of the simulated annealing in this situation, as usually with such heuristics. Even choosing close configurations of closely related problems like similar chloroplasts is not a guarantee of success.

Having these considerations in mind, we have stated some hypotheses at the basis of the neighboring notion. First of all, we assume that a solution is better if it is closer to the whole core genome, so improving the number of 1’s in the Boolean vector is a desired trend. Secondly, we assume no correlation between genes, and so removing (or adding) one gene cannot modify so much the scoring function. As a consequence, the next investigated state should be near the previous one, in terms of Hamming distance, and most likely with a similar or larger number of active genes. In particular, moves in the state space cannot be randomized as what occurs in the original SA algorithm. Furthermore, the starting state must be the Boolean vector constituted by 1’s (that is, the whole core genome), while the scoring function must preferably tend to add genes in the considered subset (if possible). With such requirements, the neighborhood function has been designed as follows:
  • A number between 1 and move_distancemax (a parameter to set) is randomly chosen, following a Gaussian law. It corresponds to the number of coordinates that may possibly change.

  • A subset of distinct coordinates are chosen accordingly, defining this move.

  • For each Boolean coordinate, if the associated gene is inactive (0), it is activated (1). Otherwise, the gene is inactivated with a probability equal to \(\frac {nz}{nc} \times \alpha \), where nz is the number of inactivated genes in the best current solution, nc is the total number of core genes in the problem, and α is a user-defined parameter.

Proposed SA optimization.

Scores in this proposal are obtained using RAxML [3]. As an inference of a bootstrapped and rooted phylogenetic tree may take times, and as we need to compute several trees, each calculated state is tagged so that it is never recomputed without an explicit user demand. Associated and detailed results are buffered on disk. Then a simple, reliable, and not really space-characteristics dependent solution is the synchronization of some SAs after the end of a Markov chain [34]. In order to do so, a batch of SAs is launched with the same configuration. After a chain, each running SA shares its own best known solution to a server. Then, it demands to this server if a better state has been found before starting the next chain. Finally, each SA halts after n local non optimizing chains. So a stopped SA is not restarted, even if a better solution is found elsewhere (i.e., the proposed SA stops as soon as possible).

Acceptance function is also selected to take advantage of previous moves, to allow some (not too large) jumps. This is an adaptation of the so-called Tsallis acceptance probabilities [31] with a control parameter normalization:
$$\left(1 -\frac{(1-q)*\Delta}{\bar{\Delta}*t}\right)^{\frac{1}{1-q}},$$
where Δ is the score difference between the previous and current states, \(\bar {\Delta }\) their mean, t is a control parameter, and q is a user-defined factor.
How to stop the SA.

To fix a predefined control (temperature) value needs to know some state space characteristics, so we choose an end criterion related to the absence of progression in scores. In other words, the proposed simulated annealing algorithm stops after n consecutive Markov chains without any score improvement. As SA is very slow on low temperatures, the choice has been to choose a small value for n. Then, a greedy local search can be launched on SA best states.

Results

Data generation

Genomes recovery and annotations

Seven hundred eighty complete genomes of chloroplasts have been downloaded from the NCBI, constituting the set of all available complete chloroplastic genomes at the date of the beginning of our study [8]. Various gene prediction methods have been previously tested, in order to translate these complete genomes in lists of annotated coding sequences. These methods encompass the single use of NCBI annotated genomes, the use of automatic annotation tools specific to organelles like DOGMA [1], and the mix of both.

Indeed, annotations from NCBI website are of very variable quality: humanly well-curated genomes go together with genomes having a lot of annotation errors, concerning either the gene names (classification or spelling errors) or DNA sequences (start and stop position, length). As the number of well annotated genomes was not enough to constitute a testing set for our experiments, we are then left to find an acceptable way to annotate the whole 780 complete genomes. As stated above, we tested various ways to annotate the genomes, and we evaluated them by checking their ability to recover the annotations (sequence positions and gene names) of the subset of humanly, well-curated genomes.

According to our experiments, there was no way to improve enough the quality of NCBI annotations [35]. Neither by cross-validating them using automatic annotation tools, nor by trying to correct errors in gene names and positions with these tools and some edit distances [36, 37]. Furthermore, to cluster the whole NCBI DNA sequences fail in separating well annotated genes in well separated clusters, due to junk DNA in the NCBI sequences. The large number of obvious errors in the NCBI annotated complete chloroplastic genomes can be explained by the large variety of annotation tools used during sequence submission, most of them being not specific to this kind of genomes (unlike DOGMA), to a misuse of these tools, or due to errors in manual annotations. The absence of a clear norm in the gene naming process adds difficulties, so that the sole method to provide accurate annotations to these 780 complete genomes was to constitute a basis of knowledge, with a subset of well curated genomes that represent well the plant diversity. And, to blast each genome against the basis, which is indeed what is done by DOGMA.

We finally have written a script that automatically send requests to the DOGMA web service, and recovers the annotated genomes. Due to this automatic process, the gene name spelling issue is resolved, and we can recover the clusters of homologous coding sequences by simply considering gene names. By applying the same tool for coding sequence prediction and naming process, we have resolved the problem of quality variability in annotations. And as DOGMA has been specifically designed for chloroplasts, errors in sequence positions have been reduced as possible. At this stage, and using our script on DOGMA web service, we have then a collection of 780 complete and “well” annotated chloroplastic genomes, from which gene names can be used to recover core and pan genomes of any subset of genomes.

Extracting subsets of genomes for simulations

To test the ability, for the three proposed metaheuristics methods, to find the largest subset of core genes that leads to the most supported trees, we needed to extract, from the set of annotated genomes, various distinct subsets that are such that:
  • Using the whole core genome in the alignment, we cannot obtain a well supported tree.

  • The time to compute this tree is reasonable, as we want to compute a lot of trees using a lot of subsets of core genes. For a given subset of core genes, this computation time encompasses:
    1. 1.

      the multi-alignment of each core gene using Muscle [11],


    2. 2.

      the concatenation of each aligned sequence to reconstruct the “sub” genome of each considered species (i.e., the part corresponding to the considered subset of core genes),


    3. 3.

      the computation of the best phylogenetic tree corresponding to this alignment (with RAxML [3]),


    4. 4.

      the addition of bootstrap supports to this best tree using RAxML again,


    5. 5.

      and finally the verification that one of these supports is lower than 95 at least. If so, this tree is considered as not well supported.



Given a subset of genomes, the multi-alignment of each core gene can be computed only once, prior to the research of the best subset of core genes leading to the most supported tree. So we do not have to consider the alignment stage when searching subsets of genomes with: (a) problematic phylogenies and (b) a time to infer their tree as low as possible. We stopped the process above before Stage 4 and we randomly pick another subset of species if the time to find their best phylogenetic trees using their whole core genome (i.e., Stage 3) exceeds 10 seconds. If this computation time is below this threshold, we then compute 50 bootstraps and we check if the best bootstrapped tree has a problem of supports. If so, we have found a convenient subset of annotated genomes, on which we can test the three metaheuristics.

A simple comparison in small dimensions

After having executed the three metaheuristics previously described, we have validated them on test examples. We have first performed a 1D/2D comparison of the three proposals, to obtain an easy-to-understand representation of the convergence of the optimization algorithms. Figure 3 represents the output evolution of the simulated annealing, with the consecutive ends of the Markov chains and the evolution of acceptation density. From the results, we can deduce that the desired convergence behavior is well obtained, and that the comparison seems fair: no algorithm seems to underperform the other ones, and the general evolution of the energy seems to be comparable for the three algorithms. Such results allow us to further investigate simulated annealing, particle swarm optimization, and genetic algorithm for their ability to find the largest subset of core genes that leads to the most supported tree.

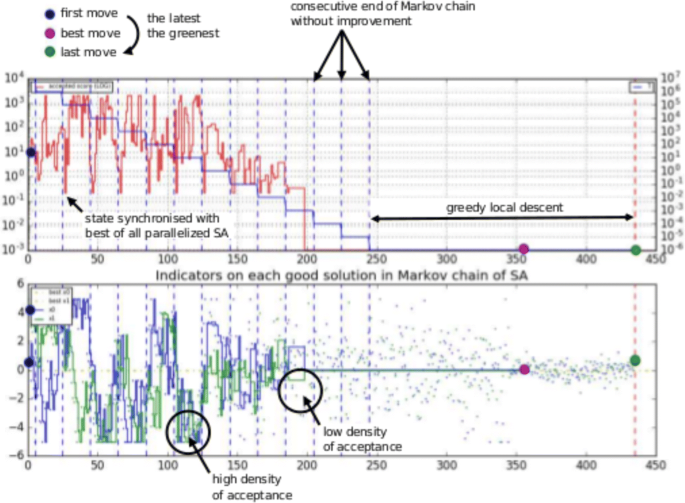

Fig. 3
Fig. 3

Illustration of output provided by simulated annealing approach: three-hump camel function, one instance of paralleled SA with final greedy local descent (iteration time on the abscissa)

Experimenting the heuristics on small collections of genomes

We first focus on small sets of species with unresolved phylogenies, for computational reasons and because small trees are easier to compare. Even in such small sets, as the core genome contains more than 100 genes, the number of combinations to test is far from what is tractable using a brute force approach. We will see that it is easy to obtain various opposed but very well supported trees using large subsets of core genes, leading to the necessity to optimize both parameters.

A first family of algae

We have first considered the family listed in Table 2. The detailed taxonomy information is provided hereafter.
  • Cylindrotheca closterium. Stramenopiles; Bacillariophyta; Bacillariophyceae; Bacillariophycidae; Bacillariales; Bacillariaceae.
    Table 2

    Family number 1 (Pelargonium cotyledonis as outgroup)

    Accession Nb

    Name

    Nb. of genes

    Length (nuc.)

    GenBank:[NC_024082.1]

    Cylindrotheca closterium

    257

    165,809

    GenBank:[NC_014808.1]

    Thalassiosira oceanica CCMP1005

    138

    141,790

    GenBank:[NC_025313.1]

    Cerataulina daemon

    195

    120,144

    GenBank:[NC_028052.1]

    Pelargonium cotyledonis

    271

    166,111

    GenBank:[NC_015403.1]

    Fistulifera solaris

    192

    134,918

    GenBank:[NC_024084.1]

    Leptocylindrus danicus

    155

    125,213

  • Thalassiosira oceanica CCMP1005. Stramenopiles; Bacillariophyta; Coscinodiscophyceae; Thalassiosirophycidae; Thalassiosirales; Thalassiosiraceae.

  • Cerataulina daemon. Stramenopiles; Bacillariophyta; Mediophyceae; Biddulphiophycidae; Hemiaulales; Hemiaulaceae.

  • Pelargonium cotyledonis. Viridiplantae; Streptophyta; Embryophyta; Tracheophyta; Spermatophyta; Magnoliophyta; Eudicotyledons; Gunneridae; Pentapetalae; Rosids; Malvids; Geraniales; Geraniaceae.

  • Fistulifera solaris. Stramenopiles; Bacillariophyta; Bacillariophyceae; Bacillariophycidae; Naviculales; Naviculaceae.

  • Leptocylindrus danicus. Stramenopiles; Bacillariophyta; Coscinodiscophyceae; Chaetocerotophycidae; Leptocylindrales; Leptocylindraceae.

This family is constituted by 6 genomes, of length ranging from 120,144 to 166,111 nucleotides. The number of detected genes, for its part, ranges from 138 to 271, with a core genome of 122. The phylogeny with the alignment of these core genes leads to a small weakness in one branch (bootstrap of 94), as depicted in Fig. 4. Indeed, inside this bacillariophyta phylum (eukaryotic algae), C.closterium, and F.solaris are naturally in the same clade, being both in the same class of bacillariophyceae, while the three other species are in three different classes inside this phylum.
Fig. 4
Fig. 4

Phylogeny of family Number 1 with the whole core genome

To wonder whether some genes may be responsible of such weak uncertainty, we have firstly launched the genetic algorithm: its systematic mode (in population initialization stage) indeed first tries to remove each core gene separately. This GA has stopped after 29 iterations, in systematic mode, leading to 2 topologies:
  • Topology 0, depicted in Fig. 5a, has occurred 27 times. The best obtained tree has a lowest bootstrap of 96, while in average the lowest bootstrap is equal to 86.
    Fig. 5
    Fig. 5

    Obtained topologies with the first family. a Topology 0. b Topology 1. c Topology 2

  • Topology 1, for its part (see Fig. 5b), has occurred twice, with a non supported branch of 64 in its best tree.

As during these experiments, we have not leaved the initialization phase, it is useless to detail here the parameters set to configure the GA. The PSO, for its part, has been configured as follows: 3 particles, a fitness lower than 0.05 to freeze the runs, and all constants that define the velocity equal to 1. This heuristics has rapidly found a first well supported phylogenetic tree in a third different topology, and with all supports equal to 100, see Fig. 5c. However, the PSO has used only 47.5% of the core genes to reach such a tree. According to our stop criterion, this tree has not been returned by the algorithm. Indeed, this example illustrates the ability of the particle swarm optimization algorithm to more globally visit the whole space at the beginning, in order to discover regions of interest.

If we compare for instance the behavior of the PSO during the same time than the one required to finish the GA (29 iterations), we discovered 5 topologies, two of them having all their supports equal to 100 (Topologies 0 and 2 in Fig. 5, occurring respectively 17 and 7 times). They however used only between 44.26% and 48.36% at this starting point in the PSO. Bit by bit, over iterations, the percentage of core genes is enlarging, and the swarms tend to prefer the Topology 0. Finally, after 350 computed trees (which was the stopping condition), this topology has been obtained in 53.42% of the cases, and its best tree has a lowest bootstrap of 100 using 66.39% of core genes. The number of occurrences of the other topologies has growth more slowly and, even if all the bootstraps of their best representatives exceed the value of 98, the latter fails in the attempt to significantly increase the number of considered core genes in these representatives (always lower than 55.8%).

The simulated annealing, for its part, raised 3 topologies, exactly the ones depicted in Fig. 5. It has been launched with an initial temperature equal to 100, a final one of 1e-10, and an optimal exponential temperature function. Acceptation function was the Tsallis normalized one, with a q factor of 0.25, and initial (resp. final) acceptance of 0.7 (resp. 1e-05). A remarkable element is that these 3 topologies have the whole bootstraps equal to 100. Furthermore, Topology 2 appears as the best one according to the produced result (it was Topology 0 according to the GA, while PSO has not succeeded in separating these two topologies). With details, the SA has stopped after 364 computed trees with 6 occurrences of Topology 0, 43 of Topo. 1, and 315 for the Topology 2. Similarly, the percentage of core genes leading to the best representative in each topology is respectively of 56.56% (Topo. 0), 74.59% (Topo. 1), and 94.98% (Topo. 2), which thus outperforms the other ones according to these simulations.

Obviously, both PSO and SA have converged to local minima that are not global ones if we consider that both minimum bootstraps and proportion of core genes must be maximized. Launching them again with other initial values and parameters may select other optimal positions in the cube. The genetic algorithm with this family is emblematic, as during its initial population generation it has returned Topology 0 that is totally supported with 99.18% of the core genome. This topology seems to be an acceptable representation of the phylogenetic relationship between these chloroplasts. But it is remarkable that, using the same large proportion of core gene, we can break in the sister relationship between L.danicus and C.daemon. Indeed, this behavior has been obtained frequently with various collections of data, which will be illustrated below.

Up to now, we only have considered one problematic bootstrap, which may be easy to resolve when removing genes. New difficulties are added when there are at least two problems in the list of bootstraps, as improving the first one may lead to a decrease in the second value. We have investigated this point in the second tested family.

A second family with two problematic bootstraps

The second small set of genomes is constituted by 4 Bacillariophyta plus an Alveolata as outgroup, as listed in Table 3. Taxonomic details are provided hereafter, while the phylogenetic tree based on the alignment of the core genome is provided in Fig. 6.
  • Cylindrotheca closterium. Stramenopiles; Bacillariophyta; Bacillariophyceae; Bacillariophycidae; Bacillariales; Bacillariaceae.
    Fig. 6
    Fig. 6

    Obtained topologies with the second family. a Topology 0 with the whole core genome. b Topology 1 obtained by GA

    Table 3

    Family number 2 (Chromera velia as outgroup)

    Accession Nb

    Name

    Nb. of genes

    Length (nuc.)

    GenBank:[NC_024082.1]

    Cylindrotheca closterium

    257

    165,809

    GenBank:[NC_014808.1]

    Thalassiosira oceanica CCMP1005

    138

    141,790

    GenBank:[NC_027721.1]

    Pseudo-nitzschia multiseries

    267

    111,539

    GenBank:[NC_024084.1]

    Leptocylindrus danicus

    155

    125,213

    GenBank:[NC_014340.2]

    Chromera velia

    265

    120,426

  • Thalassiosira oceanica CCMP1005. Stramenopiles; Bacillariophyta; Coscinodiscophyceae; Thalassiosirophycidae; Thalassiosirales; Thalassiosiraceae.

  • Pseudo-nitzschia multiseries. Stramenopiles; Bacillariophyta; Bacillariophyceae; Bacillariophycidae; Bacillariales; Bacillariaceae.

  • Leptocylindrus danicus. Stramenopiles; Bacillariophyta; Coscinodiscophyceae; Chaetocerotophycidae; Leptocylindrales; Leptocylindraceae.

  • Chromera velia. Alveolata; Chromerida

The phylogenetic tree is not well-supported, having two bootstrap values of 86. Furthermore, T.oceanica and L.danicus are not sisters in this tree, while they belong in the Coscinodiscophyceae class of diatom. More seriously, the two other species belong to the Bacillariaceae family, which is in contradiction with this tree. It is not a necessity to recover exactly the known taxonomy, as we focus on chloroplasts, but this tree is at least suspicious if we consider both supports and taxonomy. This example illustrates the fact that to use the largest common subset of sequences is not sufficient enough to guarantee a well conducted phylogenetic study. Conversely, and obviously, to have good supports is not enough, as all best trees in the different topologies of the previous family are well supported in the SA case: the largest number of core genes must be thus coupled with the research of the best supports.

Once again, the genetic algorithm has stopped rapidly, in the systematic mode. The 22 first genes have been tested (i.e., removed) before finding Topology 0 of Fig. 6a with a lowest bootstrap equal to 96 (and 99.18% of the genes), thus stopping the GA, while a new topology (Topology 1, see Fig. 6b) has occurred three times (best tree having twice 94 as bootstraps). Compared with the first family, the genetic algorithm stops here before succeeding to reinforce the confidence put in Topology 0, which justifies to test the two other approaches.

PSO heuristics produces the same two topologies after 1165 computed trees, with all supports equal to 100, and approximately the same number of trees (632 for Topo. 0 and 533 for Topo. 1) and of genes (70.49% versus 74.59%). We stopped the swarm manually, as these two scores have not been improved during the last 500 iterations. Obviously, the 3 particles have been blocked in two local extrema, and the way we configured their velocity (0.9 and 0.8 for ϕ1 and ϕ2) does not allow them to leave these optima. So we still cannot choose definitively the topology number 0.

Finally, the simulated annealing has produced 400 trees before convergence. They all belong to the two topologies detailed above. However, produced results show that Topology number 1 must be preferred, according to the SA, and this latter is neither the one obtained with the whole core genome, nor the best one according to GA. Indeed, after convergence, all bootstraps here are equal to 100 in the best tree found inside each topology. But topology of Fig. 6b has been obtained in 88.5% of the cases. More significantly, best tree in Topology 1 is obtained using 96.72% of the core genome, while for Topology 0, the best tree uses 90.98% of it. Remark that using the nine-tenths of the core genome, you can obtain a first topology with all supports equal to 100, while using more than 96% you can find a different topology with again all supports equal to 100. And, if we consider the average between the lowest bootstrap and the proportion of core genes as a score, the best topology according to GA has a score of 97.59/100, while it is of 98.36 for Topology 1 found by the SA.

Discussion

We will now further investigate the simulated annealing convergence process, before studying more deeply the two other algorithms in a next section.

Early analysis on SA computed problem: an illustration

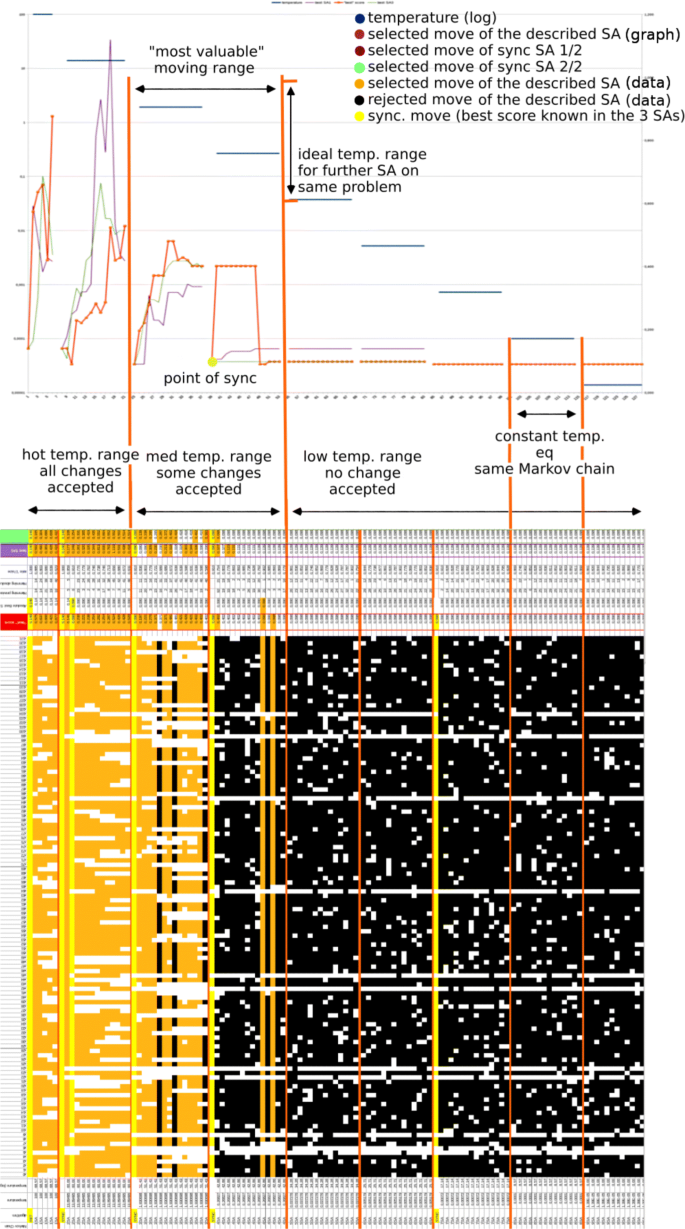

An example of a SA batch run (three clients on the first family described previously) is depicted in Fig. 7. For easy understanding, only some outputs have been reported in the figure.
Fig. 7
Fig. 7

Illustration of clade analysis with a 3-parallelized SA

On the lower part, all moves of the simulated annealing are reported with their nature : synchronized move in yellow (i.e., copy, from a shared memory, of the best known solution found in the three SAs), move with an accepted status in orange, and rejected moves in black. Active genes are filled squares and not selected ones are white squares. Other important data for analysis are reported, such as: temperature, accepted score of other SAs (green and purple), and Hamming distance between two consecutive positions (moving behavior indicator).

On the upper part, a graph of accepted scores from the three SAs is provided, with the temperature variations due to move iterations (a lower score is a better one). As we represented the first run on a new collection of genomes, no previous configurations were available to set up the parameters. Consequently, a broad range of temperatures has been considered. The Markov chains are short, in order to reduce the computation time. From this beginning of an experiment, it can be deduced that:
  • the temperature ranges well, allowing further experiments on the same set of data;

  • even with a poor configuration, SAs have found a score “not so bad”, which is associated to a topology that other heuristics have considered as a good one.

Another SA evolution is provided in Fig. 8, in which the three main curves do not represent moves, but “moves of locally selected moves”, which are stabilized over time.
Fig. 8
Fig. 8

Illustration of convergence on 3-parallelized SA

A further comparison of the distributed versions of GA and BPSO performance

During the experiments of the previous section, it was impossible to evaluate in practice the behavior of the genetic algorithm, as this latter found an optimum during the initialization stage. Similarly, BPSO has underperformed the two other algorithms, while SA always produced interesting results. This is why we decided, after having studied the SA evolution on the first family, to further investigate both BPSO (with its two velocity versions) and GA in large collections of experiments, distributed in a supercomputer facilities. To do so, 12 groups of plant genomes have been extracted from our set of annotated genomes. They have been applied on our two swarm versions, and results have been compared to the genetic algorithm ones.

Comparisons are provided in Tables 4 and 5. In these tables, Topo. column stands for the number of topologies, NbTrees is the total number of obtained trees using 10 swarms, b is the minimum bootstrap value of selected w, 100−p is the number of missing genes in w and Occ. is the number of occurrences of the best obtained topology from 10 swarms. As can be seen in these tables, the two versions of BPSO did not provide the same kind of results:
  • In the case of Chlorophyta, Pinus, and Bambusoideae, the second version of the BPSO has outperformed the first one, as the minimum bootstrap b of the best tree is finally larger for at least one swarm.
    Table 4

    Groups from BPSO version I

    Group

    Topo.

    NbTrees

    b

    |c|

    100−p

    Occ.

    Swarms

    Particles

    Pinus

    3

    508

    98

    79

    32

    462

    1,2,3,4,5,6,7,8,9,10

    10

    Pinus

    3

    530

    94

    79

    11

    129

    1,2,3,4,5,6,7,8,9,10

    15

    Picea

    1

    100

    100

    85

    42

    100

    1,2,3,4,5,6,7,8,9,10

    10

    Picea

    1

    428

    100

    85

    13

    428

    1,2,3,4,5,6,7,8,9,10

    15

    Magnoliidae

    3

    750

    100

    79

    20

    613

    1,2,3,4,5,6,7,8,9,10

    10

    Magnoliidae

    3

    845

    100

    79

    19

    707

    1,2,3,4,5,6,7,8,9,10

    15

    Ericales

    30

    344

    53

    84

    26

    185

    1,2,3,4,5,6,7,8,9,10

    10

    Ericales

    34

    555

    54

    84

    5

    363

    1,2,3,4,5,6,7,8,9,10

    15

    Bambusoideae

    8

    496

    72

    94

    37

    456

    1,2,3,4,5,6,7,8,9,10

    10

    Bambusoideae

    11

    694

    69

    94

    18

    621

    1,2,3,4,5,6,7,8,9,10

    15

    Eucalyptus

    16

    828

    86

    83

    7

    632

    1,2,3,4,5,6,7,8,9,10

    10

    Eucalyptus

    20

    1073

    86

    80

    4

    845

    1,2,3,4,5,6,7,8,9,10

    15

    Malpighiales

    34

    327

    65

    78

    35

    233

    1,2,3,4,5,6,7,8,9,10

    10

    Malpighiales

    38

    483

    69

    78

    40

    326

    1,2,3,4,5,6,7,8,9,10

    15

    Chlorophyta

    25

    191

    70

    24

    11

    109

    1,2,3,4,5,6,7,8,9,10

    10

    Chlorophyta

    29

    94

    68

    24

    11

    1

    1,2,3,4,5,6,7,8,9,10

    15

    Euglenozoa

    3

    450

    100

    26

    7

    292

    1,2,3,4,5,6,7,8,9,10

    10

    Euglenozoa

    3

    520

    100

    26

    4

    491

    1,2,3,4,5,6,7,8,9,10

    15

    Ehrhartoideae

    2

    23

    100

    81

    0

    23

    1,2,3,4,5,6,7,8,9,10

    10

    Ehrhartoideae

    3

    455

    100

    81

    0

    451

    1,2,3,4,5,6,7,8,9,10

    15

    Trebouxiophyceae

    3

    409

    100

    41

    2

    405

    1,2,3,4,5,6,7,8,9,10

    10

    Trebouxiophyceae

    3

    415

    100

    41

    8

    354

    1,2,3,4,5,6,7,8,9,10

    15

    Poeae

    1

    971

    100

    80

    9

    971

    1,2,3,4,5,6,7,8,9,10

    10

    Poeae

    1

    1399

    100

    80

    20

    1399

    1,2,3,4,5,6,7,8,9,10

    15

    Table 5

    Groups from PSO version II

    Group

    Topo.

    NbTrees

    b

    |c|

    100−p

    Occ.

    Swarms

    Particles

    Pinus

    3

    615

    98

    79

    14

    275

    1,2,3,4,5,6,7,8,9,10

    10

    Pinus

    3

    628

    100

    79

    12

    558

    1,2,3,4,5,6,7,8,9,10

    15

    Picea

    1

    635

    100

    85

    14

    635

    1,2,3,4,5,6,7,8,9,10

    10

    Picea

    1

    821

    100

    85

    15

    821

    1,2,3,4,5,6,7,8,9,10

    15

    Magnoliidae

    3

    494

    100

    79

    16

    73

    1,2,3,4,5,6,7,8,9,10

    10

    Magnoliidae

    3

    535

    100

    79

    42

    384

    1,2,3,4,5,6,7,8,9,10

    10

    Bambusoideae

    6

    952

    84

    81

    23

    94

    1,2,3,4,5,6,7,8,9,10

    10

    Bambusoideae

    9

    1450

    82

    81

    18

    113

    1,2,3,4,5,6,7,8,9,10

    15

    Eucalyptus

    17

    972

    88

    80

    18

    618

    1,2,3,4,5,6,7,8,9,10

    10

    Eucalyptus

    23

    1439

    92

    80

    10

    843

    1,2,3,4,5,6,7,8,9,10

    15

    Chlorophyta

    25

    529

    71

    24

    6

    397

    1,2,3,4,5,6,7,8,9,10

    10

    Chlorophyta

    46

    1500

    82

    24

    11

    397

    1,2,3,4,5,6,7,8,9,10

    10

    Ericales

    30

    97

    51

    84

    11

    56

    1,2,3,4,5,6,7,8,9,10

    10

    Ericales

    34

    1257

    52

    84

    7

    800

    1,2,3,4,5,6,7,8,9,10

    15

    Malpighiales

    35

    725

    72

    79

    25

    445

    1,2,3,4,5,6,7,8,9,10

    10

    Malpighiales

    86

    1464

    84

    79

    45

    359

    1,2,3,4,5,6,7,8,9,10

    15

    Euglenozoa

    3

    197

    100

    26

    1

    165

    1,2,3,4,5,6,7,8,9,10

    10

    Euglenozoa

    3

    450

    100

    26

    10

    393

    1,2,3,4,5,6,7,8,9,10

    15

    Ehrhartoideae

    1

    24

    100

    81

    10

    24

    1,2,3,4,5,6,7,8,9,10

    10

    Ehrhartoideae

    1

    20

    100

    81

    9

    20

    1,2,3,4,5,6,7,8,9,10

    15

    Trebouxiophyceae

    3

    319

    100

    41

    1

    313

    1,2,3,4,5,6,7,8,9,10

    10

    Trebouxiophyceae

    3

    818

    100

    41

    2

    81

    1,2,3,4,5,6,7,8,9,10

    15

    Poeae

    1

    991

    100

    80

    22

    991

    1,2,3,4,5,6,7,8,9,10

    15

    Poeae

    1

    1490

    100

    80

    26

    1490

    1,2,3,4,5,6,7,8,9,10

    15

  • In the Ericales case, the first version has produced the best result.

We can also remark that Malpighiales has better b in GA than the two versions of BPSO. Pinus data set has got maximum bootstrap b larger than what has been obtained using the genetic algorithm, while Picea and Trebouxiophyceae have got the same values of b than with genetic algorithm. Further comparison results between GA and both versions of BPSOs are provided in Fig. 9.
Fig. 9
Fig. 9

BPSO with 10 and 15 particles vs. GA. a BPSO with 15 particles vs. GA. b BPSO with 10 particles vs. GA

According to this figure, we can conclude that the two approaches lead to quite equivalent bootstrap values in most data sets, while on particular subgroups obtained results are complementary. In particular, BPSO often produces better bootstraps than GA (see Magnoliidae or on Bambusoideae), but with a larger number of removed genes. Finally, using 15 particles instead of 10 does not improve so much the obtained results (see Fig. 9 and Table 6).
Table 6

Comparison between the two versions of binary particule swarm optimization (with 10 or 15 particles) and the genetic algorithm



BPSO version I

BPSO version II

GA

Group of species

10

15

10

15



Ericales

53

54

51

52

67

Bambusoideae

72

69

84

82

80

Pinus

98

94

98

100

80

Chlorophyta

70

68

71

82

81

Eucalyptus

86

86

88

92

90

Malpighiales

65

69

72

84

96

Magnoliidae

100

100

100

100

98

Ehrhartoideae

100

100

100

100

100

Euglenozoa

100

100

100

100

100

Picea

94

100

100

100

100

Poeae

80

80

100

100

100

Trebouxiophyceae

100

100

100

100

100

Conclusion

This article has presented three metaheuristics to produce a well supported phylogenetic tree based on the largest possible subset of core genes. These methods are, namely, genetic algorithm, binary particle swarm optimization, and simulated annealing. They have been evaluated on various sets of chloroplast species and deployed on a supercomputer facilities. Given the average between the percentage of core genes and the lowest bootstrap as scoring function, we have shown on simple examples that, given a set of species, various global optima with contradictory topologies can be reached. These first experiments emphasize that sometimes the phylogeny of chloroplasts cannot perfectly be resolved using a tree: a phylogenetic network may be more close to the reality, branches within this network being as strong as the associated tree topology is frequent.

Phylogenetic networks can be obtained by merging gene trees. In future work, we will propose a way to obtain such networks with large subsets of random core genes, and will show that such ways reinforce the stability and the confidence of the network. We intend to provide too criteria to decide if either a tree or a network is preferable for a given set of DNA sequences. We will measure the impact of this choice and of the coexistence of different well-supported topologies on works like ancestral genome reconstruction. Finally, the various ways to set up the metaheuristics proposed here will be systematically investigated, to find the best manner to configure these ones when targeting the largest subset of core genes leading to the most supported tree or network.

Abbreviations

BPSO:

Binary particle swarm optimization

GA:

Genetic algorithm

PSO:

Particle swarm optimization

SA:

Simulated annealing

Declarations

Acknowledgements

All computations have been performed on the Mésocentre de calculs supercomputer facilities of the University of Bourgogne Franche-Comté.

Funding

The publication costs of this article was funded by the University of Bourgogne Franche-Comté.

Availability of data and materials

The datasets supporting the conclusions of this article (780 complete genomics of chloroplasts) have been downloaded from the NCBI website https://www.ncbi.nlm.nih.gov. Scripts to download them automatically are available on demand.

About this supplement

This article has been published as part of BMC Bioinformatics Volume 19 Supplement 7, 2018: 12th and 13th International Meeting on Computational Intelligence Methods for Bioinformatics and Biostatistics (CIBB 2015/16). The full contents of the supplement are available online at https://bmcbioinformatics.biomedcentral.com/articles/supplements/volume-19-supplement-7.

Authors’ contributions

The paper was conceived by CG, RG, BA-N, BA, J-FC and MS. The new simulated annealing model has been designed by CG and RG, while the PSO and GA model have been created in common by all the authors. All authors read and approved the final manuscript.

Ethics approval and consent to participate

No human, animal or plant experiments were performed in this study, and ethics committee approval was therefore not required.

Consent for publication

Informed consent has been obtained from all participants included in the analyzed studies, and the studies are being conducted in accordance with the declaration of Helsinki.

Competing interests

The authors declare no competing financial interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
FEMTO-ST Institute, UMR 6174 CNRS, DISC Computer Science Department, Univ. Bourgogne Franche-Comté (UBFC), 16 Route de Gray, Besançon, 25000, France
(2)
Department of Computer Science, Mustansiriyah University, Baghdad, 10052, Iraq
(3)
Department of Computer Science, Diyala University, Diyala, 32001, Iraq

References

  1. Wyman SK, Jansen RK, Boore JL. Automatic annotation of organellar genomes with dogma. Bioinformatics Oxford Press. 2004; 20(172004):3252–3255.View ArticleGoogle Scholar
  2. Stamatakis A. Raxml version 8: A tool for phylogenetic analysis and post-analysis of large phylogenies. Bioinformatics. 2014. https://doi.org/10.1093/bioinformatics/btu033. http://bioinformatics.oxfordjournals.org/content/early/2014/01/21/bioinformatics.btu033.full.pdf+html.
  3. Stamatakis A, Ludwig T, Meier H. Raxml-iii: a fast program for maximum likelihood-based inference of large phylogenetic trees. Bioinformatics. 2005; 21(4):456–63.View ArticlePubMedGoogle Scholar
  4. Ronquist F, Huelsenbeck JP. Mrbayes 3: Bayesian phylogenetic inference under mixed models. Bioinformatics. 2003; 19(12):1572–4.View ArticlePubMedGoogle Scholar
  5. Huson DH, Rupp R, Scornavacca C. Phylogenetic Networks: Concepts, Algorithms and Applications: Cambridge University Press; 2010.Google Scholar
  6. Garnier R, Guyeux C, Chrétien S. Finding optimal finite biological sequences over finite alphabets: the optifin toolbox. In: CIBCB 2017, IEEE International Conference on Computational Intelligence in Bioinformatics and Computational Biology. Manchester: IEEE: 2017.Google Scholar
  7. AlKindy B, Guyeux C, Couchot JF, Salomon M, Parisod C, Bahi JM. Hybrid genetic algorithm and lasso test approach for inferring well supported phylogenetic trees based on subsets of chloroplastic core genes. In: Dediu AH, Hernández-Quiroz F, Martín-Vide C, Rosenblueth D, editors. Algorithms for Computational Biology. AlCoB 2015. Lecture Notes in Computer Science, vol. 9199. Cham: Springer: 2015. p. 1–15.Google Scholar
  8. Alsrraj R, Alkindy B, Guyeux C, Philippe L, Couchot J-F. Well-supported phylogenies using largest subsets of core-genes by discrete particle swarm optimization. In: CIBB 2015, 12th Int. Meeting on Computational Intelligence Methods for Bioinformatics and Biostatistics. Naples: Department of Informatics, University of Salerno and IAC-CNR: 2015.Google Scholar
  9. Alkindy B, Couchot J-F, Guyeux C, Mouly A, Salomon M, Bahi J. Finding the core-genes of chloroplasts. J Biosci Biochemistery Bioinforma. 2014; 4(5):357–364.Google Scholar
  10. Alkindy B, Guyeux C, Couchot J-F, Salomon M, Bahi J. Gene similarity-based approaches for determining core-genes of chloroplasts. In: Bioinformatics and Biomedicine (BIBM), 2014 IEEE International Conference On. Belfast: IEEE: 2014. p. 71–74. Short paper.Google Scholar
  11. Edgar RC. Muscle: multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Res. 2004; 32(5):1792–1797.View ArticlePubMedPubMed CentralGoogle Scholar
  12. Tibshirani R. Regression shrinkage and selection via the lasso. J R Stat Soc (Ser B). 1996; 58:267–288.Google Scholar
  13. Kennedy J, Eberhart RC. Particle swarm optimization. In: Neural Networks, 1995. Proceedings, IEEE International Conference on, vol. Perth: IEEE: 1995. p. 1942–1948.Google Scholar
  14. Khanesar MA, Teshnehlab M, Shoorehdeli MA. A novel binary particle swarm optimization. In: Control & Automation, 2007. MED’07. Mediterranean Conference On. IEEE: 2007. p. 1–6.Google Scholar
  15. Premalatha K, Natarajan A. Hybrid pso and ga for global maximization. Int J Open Probl Compt Math. 2009; 2(4):597–608.Google Scholar
  16. Eberhart RC, Shi Y. Particle swarm optimization: developments, applications and resources. In: Evolutionary Computation, 2001. Proceedings of the 2001 Congress On, vol. 1. IEEE: 2001. p. 81–86.Google Scholar
  17. Sedighizadeh D, Masehian E. Particle swarm optimization methods, taxonomy and applications. Int J Comput Theory Eng. 2009; 1(5):486–502.View ArticleGoogle Scholar
  18. Clerc M. The swarm and the queen: towards a deterministic and adaptive particle swarm optimization. In: Evolutionary Computation, 1999. CEC 99. Proceedings of the 1999 Congress On. vol. 3. IEEE: 1999.Google Scholar
  19. In: Aarts E, Lenstra JK, (eds).Local Search in Combinatorial Optimization. 1st edn.New York: Wiley; 1997.Google Scholar
  20. Reeves CR. Simulated Annealing. Chap. 2. New York: Wiley; 1993.Google Scholar
  21. Collins N, Eglese R, Golden B. Simulated annealing–an annotated bibliography. Am J Math Manag Sci. 1988; 8(3-4):209–307.Google Scholar
  22. Johnson DS, Aragon CR, McGeoch LA, Schevon C. Optimization by simulated annealing: an experimental evaluation; part i, graph partitioning. Oper Res. 1989; 37(6):865–892.View ArticleGoogle Scholar
  23. Johnson DS, Aragon CR, McGeoch LA, Schevon C. Optimization by simulated annealing: an experimental evaluation; part ii, graph coloring and number partitioning. Oper Res. 1991; 39(3):378–406.View ArticleGoogle Scholar
  24. Romeo F, Sangiovanni-Vincentelli A. A theoretical framework for simulated annealing. Algorithmica. 1991; 6(1-6):302–345.View ArticleGoogle Scholar
  25. Metropolis N, Rosenbluth AW, Rosenbluth MN, Teller AH, Teller E. Equation of state calculations by fast computing machines. J Chem Phys. 1953; 21(6):1087–1092.View ArticleGoogle Scholar
  26. Hajek B. Cooling schedules for optimal annealing. Math Oper Res. 1988; 13(2):311–329.View ArticleGoogle Scholar
  27. Cohn H, Fielding M. Simulated annealing: searching for an optimal temperature schedule. SIAM J Optim. 1999; 9(3):779–802.View ArticleGoogle Scholar
  28. Granville V, Krivanek M, Rasson J-P. Simulated annealing: a proof of convergence. IEEE Trans Pattern Anal Mach Intell. 1994; 16(6):652–656. https://doi.org/10.1109/34.295910.View ArticleGoogle Scholar
  29. Mitra D, Romeo F, Sangiovanni-Vincentelli A. Convergence and finite-time behavior of simulated annealing. In: Decision and Control, 1985 24th IEEE Conference On. IEEE: 1985. p. 761–767.Google Scholar
  30. Lundy M, Mees A. Convergence of an annealing algorithm. Math Program. 1986; 34(1):111–124.View ArticleGoogle Scholar
  31. Salamon P, Sibani P, Frost R. Facts, Conjectures, and Improvements for Simulated Annealing, SIAM e-books. vol. 7. Soc Ind Appl Math (SIAM). 2002. http://epubs.siam.org/doi/abs/10.1137/1.9780898718300.
  32. In: Siarry P, (ed).Métaheuristiques. 1st edn. Algorithmes: Eyrolles; 2014.Google Scholar
  33. Olson B, Hashmi I, Molloy K, Shehu A. Basin hopping as a general and versatile optimization framework for the characterization of biological macromolecules. Adv Artif Intell. 2012; 2012:3.View ArticleGoogle Scholar
  34. Azencott R. Simulated Annealing: Parallelization Techniques. vol. 27: Wiley-Interscience; 1992.Google Scholar
  35. Alkindy B, Couchot J-F, Guyeux C, Mouly A, Salomon M, Bahi J. Finding the core-genes of chloroplasts. Int J Biosci Biochemistry Bioinforma. 2014; 4(5):361–369.Google Scholar
  36. Alkindy B, Guyeux C, Couchot J-F, Salomon M, Bahi J. Gene similarity-based approaches for determining core-genes of chloroplasts. In: BIBM14, IEEE Int. Conf. on Bioinformatics and Biomedicine. Belfast: IEEE: 2014.Google Scholar
  37. AlKindy B, Al-Nayyef H, Guyeux C, Couchot JM, Salomon M, Bahi JM. Improved core genes prediction for constructing well-supported phylogenetic trees in large sets of plant species In: Ortuño F, Rojas I, editors. Bioinformatics and Biomedical Engineering. IWBBIO 2015. Lecture Notes in Computer Science, vol 9043. Cham: Springer: 2015. p. 379–390.Google Scholar

Copyright

© The Author(s) 2018

Advertisement
