TOPAZ: asymmetric suffix array neighbourhood search for massive protein databases
BMC Bioinformatics volume 19, Article number: 278 (2018)
Protein homology search is an important, yet time-consuming, step in everything from protein annotation to metagenomics. Its application, however, has become increasingly challenging, due to the exponential growth of protein databases. In order to perform homology search at the required scale, many methods have been proposed as alternatives to BLAST that make an explicit trade-off between sensitivity and speed. One such method, SANSparallel, uses a parallel implementation of the suffix array neighbourhood search (SANS) technique to achieve high speed and provides several modes to allow for greater sensitivity at the expense of performance.
We present a new approach called asymmetric SANS together with scored seeds and an alternative suffix array ordering scheme called optimal substitution ordering. These techniques dramatically improve both the sensitivity and speed of the SANS approach. Our implementation, TOPAZ, is one of the top performing methods in terms of speed, sensitivity and scalability. In our benchmark, searching UniProtKB for homologous proteins to the Dickeya solani proteome, TOPAZ took less than 3 minutes to achieve a sensitivity of 0.84 compared to BLAST.
Despite the trade-off homology search methods have to make between sensitivity and speed, TOPAZ stands out as one of the most sensitive and highest performance methods currently available.
Protein homology search is the most common analysis task performed in bioinformatics. Unfortunately, the exponential growth of protein databases and the rising demands of high-throughput experiments are creating a computational bottleneck for what was previously a routine task. This is a problem because homology search is a crucial step in many data-intensive applications, such as functional annotation , metagenomics , comparative genomics  and evolutionary analysis . In addition to high-throughput experiments, time-sensitive applications in clinical settings are dependent on the performance of homology search. For example, with sequence-based diagnostics for identifying bacterial infections, including pathogen outbreaks and antibiotic resistance , a late diagnosis could result in death.
The gold standard for homology search is BLAST . BLAST uses a seed-and-extend approach to perform database search. In brief, BLAST uses heuristics based on amino acid substitution rates to identify initial matches, or seeds, between query and database sequences. These matches are then extended into local alignments to avoid the computational overhead of full dynamic programming. While BLAST is highly sensitive, its runtime scales linearly with the size of the database. BLAST’s performance can be improved with parallelism, but further speedups are only possible at the expense of sensitivity.
With this trade-off in mind, there are numerous BLAST alternatives for fast homology search. Many of the fastest methods use either an uncompressed suffix array  or FM-index , a compressed full-text index based on the Burrows-Wheeler transform . SANSparallel, for example, uses the concept of a suffix array neighbourhood (described in methods) to identify proteins which would be more frequently co-located in the suffix array with the query sequence. These proteins are ranked and the top hits aligned [10, 11]. LAST uses an uncompressed suffix array to find adaptive seeds, which are initial sequence matches that are variable length and defined by their multiplicity . LAST additionally uses a reduced amino acid alphabet to improve sensitivity . Lambda uses a reduced alphabet, double indexing (indexing seeds from both query and database sequences) and multiple backtracking of fixed length seeds to achieve high speed . Finally, DIAMOND uses a reduced alphabet, double indexing and spaced seeds  to achieve higher sensitivity . While these methods all use similar techniques, their performance differs considerably.
In this article we present TOPAZ, a fast and sensitive homology search method. TOPAZ is based on an extension of the suffix array neighbourhood search (SANS) concept used by SANSparallel, called asymmetric SANS. Asymmetric SANS uses scored seeds and a suffix array ordering called optimal substitution ordering to improve the speed and sensitivity of SANS. In our evaluation, we focus on three metrics: speed, sensitivity and scalability. TOPAZ is one of the best performing methods for each evaluation metric, despite the inherent trade-offs involved.
Protein homology search methods tend to follow the same basic template. Protein sequences are held in a database that is queried with a set of query sequences using the following procedure for each query:
Find initial sequence matches (seeds)
Perform local alignment on a subset of those matches
Output the top hits meeting some user-defined criteria
These user-defined criteria include variables such as statistical significance and maximum number of hits per query. We will first describe how suffix array neighbourhood search (SANS) carries out this procedure, then the components of asymmetric SANS and how it is implemented in TOPAZ.
Suffix array neighbourhood search (SANS)
The SANS method uses an uncompressed suffix array to hold a set of proteins, P. A suffix array, SA, is defined as an array SA[1..n] in which SA[j]=i iff T[i..n] is the jth suffix of T in lexicographical order. In our case, T is the concatenation of the set of proteins, P, separated by a delimiter character.
Each query sequence, Q, is split into suffixes, Q[i..n], and k is the position in the suffix array where Q[i..n] would be inserted. As SA is in lexicographical order, the position of Q[i..n] can be found in O(log|T|) time using binary search. Proteins in the database accumulate votes if they contain a suffix that falls into a fixed-length window, W, surrounding position k (see Fig. 1, left). For each suffix contained in W, the originating protein gets 1 vote. The top N proteins in descending order of vote count are aligned and, of these, the top H proteins by alignment score are output.
SANS is highly efficient, but can be suboptimal in boundary cases where the position k is directly before or after a contiguous block of database suffixes that have low identity to the query suffix (Fig. 1). More generally, if we consider that we have a static number of votes, V, where V=|Q|·W, then we do not necessarily want to treat each suffix equally as SANS does. Ideally, we want to weight the importance of each query suffix by the degree of similarity with the surrounding suffixes in SA.
Figure 1 (right) shows how an asymmetric window would work, using the boundary case as an example. The window originally centred around position k is now defined by kupper and klower that are greedily expanded based on the sequence similarity between the query suffix and the database suffix at the edge of the window. Asymmetric SANS applies the total number of votes, V, across all suffix windows, allowing it to focus on the most “promising” areas of the suffix array. Indeed, some suffixes may not contribute to the final result at all if they are only surrounded by dissimilar sequences.
Algorithm 1 describes the asymmetric SANS algorithm. For priority queues, we use red-black trees because they are self-balancing, making the worst-case lookup time O(logn) . The functions push(), pop_lowest() and pop_highest() are functions that push items on to the queue, pop the item with the lowest and highest priority. align() performs a pair-wise local alignment using a substitution matrix specified by the user. increment() increments the position if it is an upper bound or decrements the position if it is a lower bound of a window. get_protein() retrieves the protein associated with the suffix at a given position in the suffix array.
In Algorithm 1 we did not define the function score(), which is used to greedily increase the extents of the windows in the suffix array. The frontier of each window is given a score equal to the maximum gapless alignment score between query suffix and the suffix found at the current position in the suffix array:
where Q is the query suffix, n=1..|Q|, k is the current position in the suffix array, SA, and M is an amino acid substitution matrix. In the current implementation, the same substitution matrix is used for scoring and alignment. Sequences are repeat masked with SEG  during scoring.
We note that using a gapless alignment score in this manner is similar to a spaced seed, where a bitmask of 1s and 0s defines match and “don’t-care” positions, respectively . By maximising the gapless alignment score, we are effectively using a spaced seed that is variable length and the bit pattern is not defined a priori. We refer to these as scored seeds.
Optimal substitution ordering
Suffix arrays are usually sorted into lexicographical order. However, for protein sequences this is clearly suboptimal, for example, Cysteine (C) and Aspartic acid (D) are lexicographically consecutive, but have a substitution score of -3 in BLOSUM62.
In order to find the optimal ordering of amino acids, i.e. the ordering that minimises the summation of substitution scores between consecutive letters (and between the first and last letter), we cast the problem as the traveling salesman problem (TSP). Instead of cities we have amino acids and instead of distances between cities we have substitution scores. We used substitution scores from BLOSUM62 and converted them to quasi-distances by negating the score and adding 5. Distances between an amino acid and itself were set to 0.
We used the Concorde TSP solver (http://www.math.uwaterloo.ca/tsp/concorde/) on the NEOS server  to find the optimal substitution ordering of amino acids. The optimal solution was found to be: ACMLJIVTSKRQZEDBNHYFWXP*G however, we note that there are many equally good solutions.
We provide an implementation of asymmetric SANS called TOPAZ. TOPAZ is written in C and uses libdivsufsort (https://github.com/y-256/libdivsufsort) for suffix array construction and the SSW library for local alignment .
We compare the performance of TOPAZ with BLAST (ver. 2.5.0+) , DIAMOND (ver. 0.8.37.99) , Lambda (ver. 1.9.2) , LAST (ver. 801)  and SANSparallel (ver. 2.2) . While there are many other methods for protein homology search, we focused on methods that have demonstrated good performance in previous benchmarks (see ).
We used the complete UniProtKB database (downloaded March 2017) containing 78 million protein sequences. For query sequences we used the Dickeya solani proteome (4174 sequences), unless otherwise stated. While these sequences are themselves contained in UniProtKB, they contain a mixture of “easy” queries, where there are many similar sequences in the database and “harder” queries where BLAST finds very few significant hits.
Where possible, each method was run to output 1000 hits per query sequence with an E-value less than or equal to 1. As some methods output more than 1000 search results per query, we only kept the top 1000 hits by bitscore. Each program was run using 1, 2, 4, 8, 16, 32 and 64 threads to assess scalability. Timing measurements were taken by running the program twice and using the measurement from the second run to ensure disk access times were not a factor. These parameter values were chosen to emphasise the importance of sensitivity, however, we additionally ran all methods with an E-value threshold 10−9, outputting 100 and 1000 hits (see Additional file 1). For BLAST, DIAMOND and TOPAZ these parameter differences do not affect the runtime. We note, however, that reducing the maxmimum number of hits increased the speed of Lambda and SANSparallel, and a more stringent E-value threshold increased the runtime of LAST.
To make this a fair test, we additionally ran each method in different modes to trade-off speed and sensitivity. While we have attempted to fairly represent the performance of each method, we make no claim that these are the best results possible with each program. SANSparallel has several protocols: verifast, fast, slow and verislow. The verifast mode does not calculate E-values and was therefore omitted. We ran Lambda for faster, lower sensitivity protein searches (using options -so 5 -sh on) and slower, higher sensitivity (-so 5). While we additionally ran Lambda with default options, it was both slower and less sensitive than fast mode, so the results were omitted. The Lambda database was constructed using the Murphy10 alphabet and an FM-index. DIAMOND was run with default parameters, in sensitive mode (--sensitive) and more sensitive mode (--more-sensitive). For LAST, the maximum number of hits to output cannot be specified. It does, however, allow us to specify the maximum number of initial matches per query suffix (using option -m). After some experimentation, we decided to run m= 100, 1000 and 10,000 as these values gave similar sensitivity results to other methods. TOPAZ was run with default parameters (--seeds 300000 --alignments 5000) and with alternate parameters to emphasise speed over sensitivity (--seeds 100000 --alignments 1500). BLAST was run with default parameters. The results presented in Table 1 show the overall sensitivity, runtimes using different numbers of threads and the peak memory usage of each method.
Figure 2 shows boxplots of sensitivity values for each protein in the query set ordered by mean sensitivity. As we did not have the ground truth for the entire data set, we instead calculated the sensitivity of each method by comparing with BLAST results. For each query, we removed BLAST results with bitscores equal to the bitscore of the 1000th hit, if it exists (i.e. if there are at least 1000 hits). This removes the potential for rank ambiguity if, for example, a search method were to return what would be the 1001st BLAST result with the same bitscore as the 1000th result. This procedure resulted in the removal of 0.9% of BLAST results.
The results show a wide range of sensitivity values for all methods. The faster run modes (LAST (m=100), Lambda (fast), SANSparallel (fast)) have the lowest average sensitivity. TOPAZ (default) has the 4th highest average sensitivity, with only LAST (m=10,000) and both of DIAMOND’s non-default modes being higher.
With more stringent E-value thresholds, while the ranking stayed broadly the same, the gap in average sensitivity narrowed (see Additional file 1: Figures S1 and S3). For example, the average sensitivity for DIAMOND (more sensitive) was 0.11 higher than TOPAZ (default) with E-value threshold 1, but decreased to 0.07 with an E-value threshold of 10−9. When outputting only 100 hits with an E-value threshold of 10−9, the difference further decreased to 0.03.

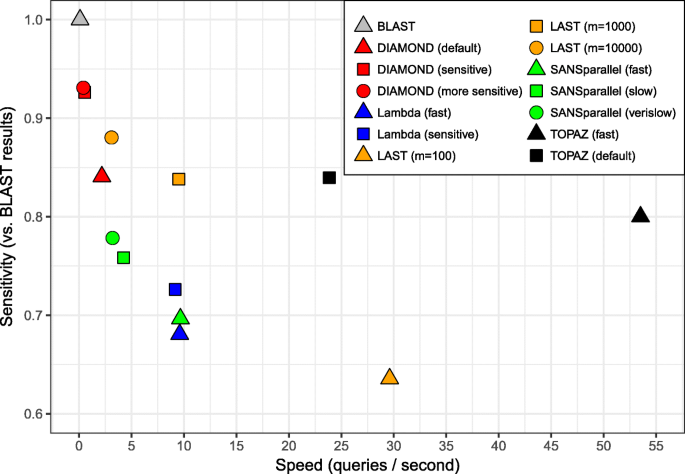

While sensitivity is important, all methods make a trade-off between sensitivity and speed. We show this trade-off in Fig. 3. Sensitivity was calculated over all search queries, again using the BLAST results as the ground truth. Runtime was the fastest time using any number of threads (see Table 1). For all methods, the fastest runtime was obtained with 64 threads, with the exception of SANSparallel (all run modes), where 32 threads was fastest (this was likely due to communication overhead in MPI). The perfect method would be in the top-right corner of the figure, with perfect sensitivity and high speed.
As Fig. 3 shows, faster methods tend to be less sensitive. However, TOPAZ has high speed while sacrificing less sensitivity. The only method faster than TOPAZ (default) is LAST (m=100) which has the lowest sensitivity of all methods (Fig. 2). TOPAZ (fast) is the fastest method overall, while being more sensitive than SANSparallel and Lambda (all modes).
The four methods with higher sensitivity than TOPAZ (default) (LAST (m=10000), DIAMOND (sensitive), DIAMOND (more sensitive) and BLAST) have far longer runtimes: 7.7 ×, 44.1 ×, 58.1 × and 249.4 ×, respectively. Even methods with similar sensitivity had longer runtimes: LAST (m=1000) took 2.5 × longer and DIAMOND (default) took 11.0 × longer to run. The same trend is observed at more stringent E-value thresholds (Additional file 1: Figure S2) and for fewer hits (Additional file 1: Figure S4).
Figure 4 shows the speedup using different numbers of threads concurrently. Speedup is r1/rn, where n is the number of threads and rn is the runtime using n threads. With zero overhead, the speedup would be equal to the number of threads.
At higher numbers of threads (16-64), BLAST was consistently the most efficient, followed by TOPAZ. For example, at 64 threads BLAST and TOPAZ had speedups of 41.3 × and 34.1 ×, respectively. BLAST, however, is doing much more work per query and, therefore, has less communication overhead allowing it to be highly parallel. At lower numbers of threads (2–4), both DIAMOND (all modes) and SANSparallel (all modes) had the highest efficiency.
Input size scalability

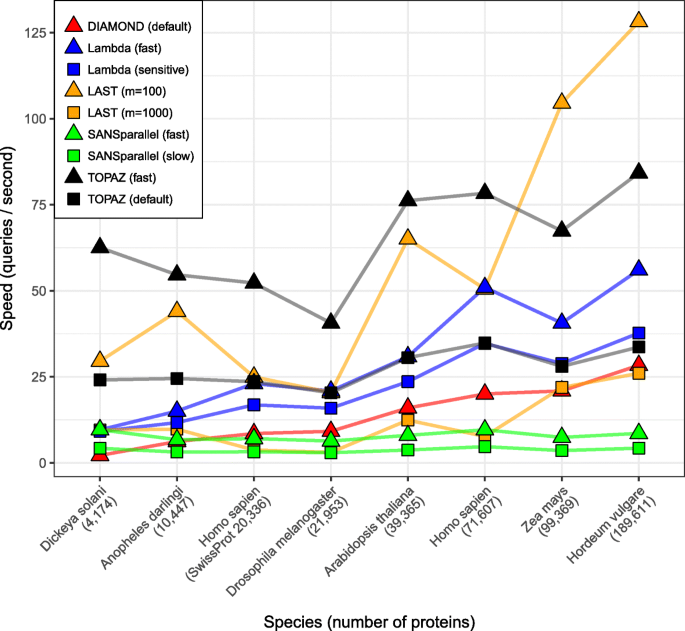

To understand how each method scales with query set size, we tested the fastest methods on increasingly large proteomes. We used the following proteomes as query sets: Dickeya solani (4174 sequences), Anopheles darlingi (10,447), Homo sapien (SwissProt only, 20,336), Drosophila melanogaster (21,953), Arabidopsis thaliana (39,365), Homo sapien (71,607), Zea mays (99,369) and Hordeum vulgare (189,611). We ran all methods with the exception of BLAST and the most sensitive modes for DIAMOND and SANSparallel due to long runtimes. We did not run LAST (m=10000) due to the size of the output files. For Lambda we needed to remove the longest queries from the Homo sapiens proteome as these sequences caused the program to crash. We ran all methods with an E-value threshold of 1 and to output a maximum of 1000 hits. All methods were run with 64 threads, with the exception of SANSparallel which was run with 32. The results are shown in Fig. 5.
For 6 of the 8 proteomes, TOPAZ (fast) was the fastest method. The second fastest method, LAST (m=100), was previously shown to be the least sensitive for these parameter settings. In general, the fastest methods tended to be those shown previously as having lower sensitivity (Lambda (both modes) and LAST (m=100)), with the exception of TOPAZ (both modes). We had expected DIAMOND to be faster as the cost of online indexing should be amortised over large query sets, but it appears to scale similarly to methods that process queries individually. It is possible that this efficiency is only realised with query sets larger than the H. vulgare proteome. Unlike other methods, SANSparallel has constant speed, irrespective of query set. This is detrimental in lesser studied organisms where there are simply fewer significant alignments to be found.
Optimal substitution versus lexicographical ordering
Using optimal substitution ordering for building the suffix array in TOPAZ (default) resulted in higher sensitivities for 1395/4174 Dickeya solani proteins (average difference = 21.8 extra hits per protein) and lower sensitivities for 548 proteins (average difference = 2.0 less hits per protein) compared with lexicographical ordering. Across all proteins, optimal substitution ordering gave 7.1 more hits per protein on average than lexicographical ordering. While we acknowledge this is a modest improvement, as we are simply redefining the ordering of amino acids, there is no performance penalty.
Discussion and conclusions
We presented TOPAZ, a protein homology search method based on asymmetric suffix array neighbourhood search, scored seeds and optimal substitution ordering. All BLAST alternatives trade-off sensitivity in exchange for speed. In doing so, database search can be used in high-throughput and time-sensitive applications that would have otherwise taken a prohibitively long time. This trade-off was considered at all points in TOPAZ’s development, where our design goals were speed, sensitivity and the efficient use of parallelism.
We have demonstrated that TOPAZ is one of the most sensitive and fastest homology search methods. TOPAZ had one of the highest average sensitivity scores (Fig. 2), whereas more sensitive methods had 8–250 × longer runtimes (Fig. 3). Similarly, the only method that was faster than TOPAZ had the worst average sensitivity (Fig. 2). TOPAZ’s speed comes from how efficiently it uses the processing power available to it (Fig. 4). TOPAZ was the second most efficient method using 16–64 threads with only BLAST scaling better. Across a range of query set sizes TOPAZ (fast) was the fastest method in a majority of cases and TOPAZ (default) was consistently faster than methods which had previously shown similar sensitivity (Fig. 5).
The fastest methods tended to have the highest peak memory usages (Table 1). From one perspective high memory usage is not a problem because servers are increasingly well provisioned for data-intensive applications. However, the exponential growth of protein databases suggests that this might become a problem in the future. TOPAZ makes extensive use of memory-mapped IO to ensure that the operating system can move parts of the database in and out of memory as the workload changes. Other techniques could be used to mitigate this issue, for example, LAST builds multiple suffix arrays using 32 bit integers. While this limits the maximum size of the database to 4GB, it is overcome by splitting the database into multiple partitions. Despite the added complexity of moving from 64 to 32 bits, it has the added benefit of halving total memory requirements.
While all methods in this study make use of process-level, and possibly instruction-level, parallelism, none make use of alternative architectures such as general purpose GPUs that are increasingly common in computer clusters and desktop computers. While GPU-enabled versions of, for example, BLAST exist , the speedups are underwhelming compared with those achieved in other areas of bioinformatics (e.g. ). We note, however, that homology search is more data-intensive than applications which have achieved massive performance improvements, making memory size and bandwidth the main impediments to adoption.
Finally, in studies such as this, there is a focus on comparing results with BLAST, which is widely considered the gold standard for homology search. However, to our knowledge, there is no analysis of the downstream effects of different sensitivity scores in different application domains. For example, transfer of functional annotation is only performed at higher similarities and, therefore, does not require highly sensitive search results. We would like to see more analysis on requirements for different domains, enabling research in homology search to have a more application-specific focus.
Availability and requirements
Project name: TOPAZ
Project home page: https://github.com/ajm/topaz
Operating system(s): Linux
Programming language: ANSI C
Other requirements: TCMalloc
License: GNU GPL version 3
Any restrictions to use by non-academics: none
