Adaptively capturing the heterogeneity of expression for cancer biomarker identification
BMC Bioinformatics volume 19, Article number: 401 (2018)
Abstract
Background
Identifying cancer biomarkers from transcriptomics data is of importance to cancer research. However, transcriptomics data are often complex and heterogeneous, which complicates the identification of cancer biomarkers in practice. Currently, the heterogeneity still remains a challenge for detecting subtle but consistent changes of gene expression in cancer cells.
Results
In this paper, we propose to adaptively capture the heterogeneity of expression across samples in a gene regulation space instead of in a gene expression space. Specifically, we transform gene expression profiles into gene regulation profiles and mathematically formulate gene regulation probabilities (GRPs)based statistics for characterizing differential expression of genes between tumor and normal tissues. Finally, an unbiased estimator (aGRP) of GRPs is devised that can interrogate and adaptively capture the heterogeneity of gene expression. We also derived an asymptotical significance analysis procedure for the new statistic. Since no parameter needs to be preset, aGRP is easy and friendly to use for researchers without computer programming background. We evaluated the proposed method on both simulated data and realworld data and compared with previous methods. Experimental results demonstrated the superior performance of the proposed method in exploring the heterogeneity of expression for capturing subtle but consistent alterations of gene expression in cancer.
Conclusions
Expression heterogeneity largely influences the performance of cancer biomarker identification from transcriptomics data. Models are needed that efficiently deal with the expression heterogeneity. The proposed method can be a standalone tool due to its capacity of adaptively capturing the sample heterogeneity and the simplicity in use.
Software availability
The source code of aGRP can be downloaded from https://github.com/hqwang126/aGRP.
Background
Cancer is generally thought of to be driven by a series of genetic mutations of gene markers induced by selection pressures of carcinogenesis inside or outside cells [1, 2]. Such biomarkers, including onco and tumor suppressor genes, often overexpress or underexpress in cancer cells as differentially expressed genes (DEGs), and are associated with uncontrollable proliferation or immorality of cancer cells [3]. With help of high throughput technology, one can screen out cancer biomarkers from transcriptomics data as DEGs between normal and cancer cells. However, transcriptomics data are typical of small sample, very noisy and inherently highly heterogeneous, rendering differential expression elusive. The heterogeneity of transcriptomics data remains a challenge for identifying cancer biomarkers [4, 5].
Over past decades, a large number of computational methods or tools have been developed for transcriptomics data analysis [6, 7]. Earliest is foldchange (FC) criterion, which, though simple and intuitive, ignores the heterogeneity and often outputs statistically and biologically unexplained results. Many sophisticated statistical tests have been developed for efficient identifications of DEGs, e.g. tstatistic and its various variants [8], Rankprod [9], cuffdiff [10], DESeq [11], DEGSeq [12] and edgeR [13]. Generally, these methods are categorized into two groups: parametric or nonparametric. The former often use a variant of tstatistic, e.g. SAM [14] and Limma [8], or negative binomial distribution, e.g., cuffdiff and DESeq, to model the differential expression of a gene. However, these methods made distribution assumptions that are often violated due to the complexity and heterogeneity of data in practice, and when applied to real data, they tend to produce similar overall results. Compared with the parametric methods, nonparametric methods generally do not make assumptions about data distribution but measure the difference of expression using a comparisonbased quantity, e.g., ranks. The use of ranks relieves the harm from the expression heterogeneity to some extent. Among the nonparametric methods, commonly used is Rankprod proposed by Breitling et al. [9], which works well in many cases [15]. However, the performance of Rankprod depends on the proportion of differentially expressed genes and those in different directions, and it is computationintensive due to the large numbers of sample comparisons involved, even computationally prohibited when sample size is very large. Recently, Nabavi et al. [16] introduced the Earth’s mover distance (EMD), a measure of distances commonly used in image processing, and developed a differential expression statistic named EMDomics. EMDomics relies on comparing the overall difference of the normalized distributions between two classes. EMDomics works well with data of moderate or larger sample size but can not tell about the direction or pattern of differential expression for a DEG. In summary, most of existing methods seldom consider or ignore the heterogeneity inherent in transcriptomic data and thus miss subtle but consistent expression changes [17, 18].
Although the difference in the average of expression between two sample classes are often employed in many transcriptomics analyses, such difference is not the only way that a gene can be expressed differentially [18]. Biologically, there exist a number of regulators or mediators in cells, e.g., transcriptional factors or miRNA, which, though work independently, regulate a target gene in a collective way and accordingly shape a complex and heterogeneous expression pattern across inter or intraclasses for the target gene. Such regulatory mechanisms may account for the high biological variability where, for example, samples in one condition show a bimodal pattern of expression versus the other condition which show a unimodal pattern of expression across samples [16].
Relative to continuous gene expression space, gene regulation space is discrete and can simply consist of three discrete statues, i.e., upregulated, downregulated or nonregulated, and thus provides an alternative reduced representation for gene activity [19]. Generally, the heterogeneity of transcriptomics data comes from biological variability and nonspecific technical noise, which can corrupt and contaminate differential expression signals of interest [20]. We here aim to address the problem of heterogeneity from a regulatory perspective by introducing regulation events, e.g., upregulation and downregulation. The frequency of the regulation events occurring in samples not only reflects how genes are differentially expressed between two conditions but also contains information on how noise or contamination corrupts the data. Based on an unbiased estimator of the likelihoods of the regulation events, we developed a new differential expression statistic (aGRP), which can adaptively capture the heterogeneity of expression and makes it possible to flexibly detect cancer biomarkers with subtle but consistent changes. Because of no parameter preadjusted, the proposed method is also userfriendly and simple to use in practice. Experimental results on simulated data and realworld gene expression data demonstrated the superior performance of the proposed method in identifying cancer biomarkers over previous methods.
Methods
For a given gene g, two regulation events can be defined between tumor and normal tissues: upregulation, denoted by U, and downregulation, denoted by D. If upregulation U happens, it means that the gene has higher expression values in tumor than in normal tissues, while if downregulation D happens, it means that the gene has lower expression values in tumor than in normal tissues. Let P(U) and P(D) represent the probabilities that events U and D occur between tumor and normal tissues, respectively. Considering the mutual exclusiveness between U and D, we formulate a regulationbased statistic, gene regulation probability (GRP), as the probability difference between the two events, namely
The statistic T∈[− 1,1] reflects how likely the gene is differently regulated between the two conditions: The larger the absolute value of T the higher the likelihood of differential expression, and positive Ts mean that an upregulation event possibly occur in cancer while negative Ts mean that a downregulation event possibly occur in cancer. Biologically, genes with a positive T would be oncogenelike while those with a negative T would be tumor suppressorlike. Note that T reflects an absolute quantity of regulation probability and can be completely rewritten as T = (P(U)P(N))(P(D)P(N)) if considering the probability of nonsignificant regulation event (P(N)). We can estimate the two probabilities, P(U) and P(D), in a regulatory space in what follows.
A simple estimator of T in a tristate regulation space
For simplicity, consider a regulation space consisting of three statuses, i.e., upregulated (1), downregulated (− 1), and nonregulated (0). Assume n tumor samples and m normal samples. Let a_{1i} denote the expression level of gene g in the ith tumor, i = 1, 2, …, n, and a_{2j} the expression level in the jth normal sample, the expression profile of gene g can be denoted as y = [a_{11}, a_{12}, …, a_{1n}, a_{21}, a_{22}, …, a_{2m}]. We map the expression profile y into a tristate regulation space as follows:
For the ith tumor sample with expression level a_{1i}, the regulation status can be calculated as
where \( {l}_i=\sum \limits_{k=1}^mI\left({a}_{1i}\ge {a}_{2k}\right)/m \) represents the proportion of normal samples that have an expression value not lower than a_{1i} in the total m normal samples, I(·) is an indicator whose value is 1 if the condition is true and 0 else, and the parameter τ, 0.5 ≤ τ ≤ 1, can be referred to as regulation confidence cutoff. Different values of τ can be preset to capture the varying heterogeneity of gene expression in practice.
Similarly, for the ith normal sample with expression level a_{2i}, the regulation status can be calculated as.
where \( {k}_i=\sum \limits_{k=1}^nI\left({a}_{2i}\le {a}_{1k}\right)/n \) represents the proportion of tumor samples that have an expression value not lower than a_{2i} in the total n tumor samples. As a result, a regulation profile of gene g across all the samples can be represented as
Based on the resulting regulation profile in Eq.(4), one can directly estimate the regulation probabilities, P(U) and P(D), using the total probability theorem. Take P(U) as example. Let Y_{1} and Y_{2} represent the sample spaces of tumor and normal classes respectively, we have
where P(Y_{1}) and P(Y_{2}) are the prior probabilities of tumor and normal classes respectively, and the two conditional probabilities, P(UY_{1}) and P(UY_{2}), can be estimated based on the regulation profile in Eq.(4) as
Then, we have
where \( {s}_u=\sum \limits_{i=1}^nI\left({r}_{1i}==1\right)+\sum \limits_{i=1}^mI\left({r}_{2i}==1\right) \). Similarly, we have
where \( {s}_d=\sum \limits_{i=1}^nI\left({r}_{1i}==1\right)+\sum \limits_{i=1}^mI\left({r}_{2i}==1\right) \). As a result, a simple estimator of the regulationbased statistic T in the tristate regulation space can be formulated as
which can be referred to as GRP model. It can be noticed that the summation of P(U) and P(D), denoted by S, depends on the hard regulation confidence cutoff τ, i.e., S = 1 at τ = 0.5 but S < 1 at 0.5 < τ ≤ 1, and drops as τ increases.
An unbiased estimator of T in regulation probability space
The simple GRP estimator in Eq.(9) uses a hard cutoff parameter to fit varying heterogeneities of gene expression in practice. However, no guidelines are immediately available for choosing the parameter in practice due to little or no knowledge on the heterogeneity of a given data set. To overcome the problem, we consider estimating T in a regulation probability space as follows. For calculating P(U), by removing the hard cutoff, we rewrite the conditional probabilities in Eq.(6) as
Compared with Eq.(6), Eq.(10) skips the empirical determination of regulation status in a sample and makes the conditional probabilities independent on an ad hoc hard cutoff. Essentially, this implies that regulation confidence cutoff is forcedly set to zero and that P(N) ≡ 0. As a result, an unbiased estimator of the occurring probability of the upregulation event can be obtained, i.e.,
and similarly, an unbiased estimator for the occurring probability of the downregulation event is calculated as
which is 1 minus P(U) as expected. Finally, according to Eq.(1), an unbiased estimator of T can be obtained:
with P(U) + P(D) ≡ 1. The statistic in Eq.(13) can be referred to as an adaptive GRP model (aGRP), which explores more details on regulation information and can capture the intraclass or interclass heterogeneity of expression in an adaptive way.
Asymptotical significance analysis of aGRP
For simplicity, we consider the case of normal distribution data to provide an asymptotical significance analysis for the statistic aGRP. Supposing that the two groups of samples come from two normal distributions, i.e.,\( {Y}_1\sim N\left({\mu}_1,{\sigma}_1^2\right) \) and \( {Y}_2\sim N\left({\mu}_2,{\sigma}_2^2\right) \), respectively, the follow probability distribution holds:
where \( \varphi (x)={\int}_{\infty}^x\frac{1}{\sqrt{2\pi }}{e}^{\frac{t^2}{2}} dt \). Accordingly, the two regulation probabilities, P(U) and P(D), and the aGRP statistic all follow a normal distribution (see Additional file 1 for the detailed proof). Let \( q=\varphi \left(\frac{\mu_1{\mu}_2}{\sqrt{\sigma_1^2+{\sigma}_2^2}}\right) \), the unbiased estimator of aGRP in Eq.(13) follows a normal distribution, i.e.,
Under the null hypothesis H_{0}:μ_{1} = μ_{2}, aGRP obeys the following normal distribution:
which can be used to asymptotically estimate the significance for an observed aGRP in practice.
Results
Simple simulation data
We first evaluated the proposed method on simple simulation data. The simulation data contain two groups of genes:Group I consists of G = 1000 nondifferentially expressed genes between two classes of samples while group II consists of G = 1000 differentially expressed genes. For group I, the expression values of genes in all samples were randomly sampled from standard normal distribution, while for group II, the expression values of genes in the two classes follow two normal distributions with different means (zero or 0.15) and the same deviation (0.1). Considering the influence of sample size, we varied the sample size of each class n = 6, 10, 20, 50, and in each scenario, twenty data sets were randomly generated and used for avoiding randomness on algorithm evaluation.
We compared the simple GRP and aGRP models on the simulation data. To investigate the property of P(U) and P(D), we plotted P(U) against P(D) for each gene on the simulation data. Results (Additional file 1: Figure S1) show that the GRP model had a complex joint distribution of P(U) and P(D): P(U) + P(D) =1 at τ = 0.5 but P(U) + P(D) < 1 at 1 ≥ τ > 0.5, and drops as τ increases, and in contrast aGRP favored a line P(U) + P(D) =1 as expected, suggesting the more favorable performance of aGRP. To examine the asymptotical significance analysis procedure of aGRP, we then compared the resulting pvalues with those empirically estimated by permutation tests with randomly shuffled sample labels. Note that we considered B = 10, 50, 100, 1000 permutations of sample labels in the permutation tests respectively to gradually approximate the null distribution. It was revealed that the permutated pvalues become closer to the asymptotic estimator as B increases (See Additional file 1: Figure S2), suggesting the justification of the derived significance analysis procedure.
We then investigated the typeI errors and power of the aGRP and GRP models based on the two groups of genes, respectively. Figure 1a barplots the average typeI errors at an ad hoc pvalue cutoff of 0.05 by aGRP and GRP over 20 random data sets in each scenario of sample size. From a statistical perspective, the typeI error at an ad hoc pvalue cutoff of 0.05 is expected to be 0.05. From this figure, it can be seen that aGRP had typeI errors closer to 0.05 than those by any of the GRP models in all the data scenarios. Figure 1b compared the powers of aGRP and GRP in identifying the G = 1000 differentially expressed genes at an ad hoc pvalue cutoff of 0.05, showing that aGRP is more powerful than the GRP models, especially when sample size is small (n = 6 and 10).
Simulated gene expression data
To evaluate the performance of aGRP on complex data, we next simulated gene expression data by revising the procedure in the reference [21]. The simulation data mimic real gene expression by forcedly adding hidden dependence structures, i.e., correlation background. We assumed totally G = 10,000 simulation genes and divided them into 6000 nondifferentially expressed genes between “tumor” and “normal tissue” and 4000 differentially expressed genes, of which one half upregulated in tumor and the other half downregulated. Let n be the sample size of each class, we generated a correlation background X [G × 2n] as follows: 1) randomly forming gene clumps of size m∈{1, 2, 3, ⋯, 100} and clumpwise correlation ρ from U(0.5, 1). 2) generating noise vectors e._{j} of dimension m × 1 from N(0_{m},(1ρ)I_{m} + ρ1_{m}1’_{m}) for sample j, j = 1,2, …,2n, and obtaining the background values of the m genes in the clump x._{j=}μ + diag(ω)e._{j}, where μ and ω are an m × 1 vector of elements μ_{g}\( \sim 1000{\chi}_5^2 \) and of elements ω_{g} = e^{β0/2}μ_{g}^{β1/2} respectively. The correlation background increases the variability of data and makes the expression patterns heterogeneous. In the experiment, we set the parameters β_{0} = − 5, β_{1} = 2, and rendered the true expression ratios of DEGs to vary among \( 1+{2}^{1/2}{e}^{\beta_0/2}{\delta}_g\sim U\left(1.29,1.58\right) \),δ_{g}~U(1,2). To investigate the effect of sample size, we considered the four sample sizes n = 6, 10, 20 and 50, and as a result, four simulation data scenarios were obtained. In each scenario, 20 random data sets were generated and their average results were used for algorithm evaluation to overcome randomness.
We calculated the sensitivities, specificities, areas under the ROC curve (AUCs) and accuracies of aGRP at an ad hoc pvalue cutoff of 0.05 in different scenarios of the simulated gene expression data. For comparison, we also applied previous methods, GRP models, Limma [8], SAM [14] and another popular nonparametric method, Rankprod [22], to analyze the simulation data. The previous methods, Limma, SAM and Rankprod, were implemented using the R packages Limma, siggenes, RankProd from Bioconductor, respectively. Note that for Limma, the proportional parameter was set as default. Table 1 lists the average performances of aGRP and the previous methods over 20 random data sets in each simulation scenario. From this table, we can clearly see that aGRP achieved higher accuracies than all the previous methods and comparable sensitivities and AUCs with Limma in almost all the simulation scenarios, showing the best overall performances of aGRP. Especially, aGRP is more advantageous for data scenarios of small (n = 6) or large (n = 50) sample size, and the higher sensitivities suggest the superior power of detecting subtle but consistent expression changes. For the GRP model, different settings of the regulation confidence cutoff led to similar results lying between those by aGRP and another nonparameter method, RankProd, as expected. Taken together, these results demonstrate the ability of aGRP in dealing with complex expression patterns for cancer biomarker identification.
Application to three real microarray data sets of lung cancer
Lung cancer is one of the most malignant tumors worldwide. We then applied the proposed method to identify gene signatures for lung adenocarcinoma (LUAD) based on three realworld lung cancer microarray datasets collected from GEO (http://www.ncbi.nlm.nih.gov/geo/): Selamat’s data (GSE32863), Landi’s data (GSE10072) and Su’s data (GSE7670). When generated, Selamat’s data used the HGU133A Affymetrix chips for hybridization with 25,441 probes, Landi’s data the Illumina Human WG6 v3.0 Expression BeadChips with 13,267 probes and Su’s data the Affymetrix Human Genome U133A array with 13,212 probes. All samples in the three datasets were divided into two classes, LUAD and normal tissue of lung (NTL). For the Selamat’s data, there are totally 117 samples, 58 of which are LUAD and 59 NTL samples; for the Landi’s data, there are totally 107 samples, 58 of which are LUAD and 49 are NTL samples; for the Su’s data, there are totally 54 paired LUAD/NTL samples. To preprocess the three datasets, we mapped probes into Entrez IDs and averaged the intensities of multiple probes matching a same Entrez ID to be the expression values of the gene, and adopted the coefficient of variation (CV) criterion with a CV cutoff of 0.05 to remove nonspecific or noise genes.
We separately analyzed the three lung cancer data sets for identifying LUAD biomarkers in the experiment. To control false positive rates, the resulting pvalues for each gene were corrected using the BenjaminiHochberg (BH) procedure [21]. The previous methods, GRP, Rankprod [9], Limma [8] and SAM [14], were also applied to reanalyze these data sets for comparison. Figure 2a shows the numbers of DEGs called by these methods on each data set and the number of common DEGs across the three data sets at an ad hoc BHadjusted pvalue cutoff of 0.01. From this figure, we can clearly see that aGRP called more DEGs than those by the previous methods on almost all the three data sets and especially, most common DEGs across these data sets. This is consistent with the higher sensitivity on the simulation gene expression data (Table 1). For the GRP model, τ = 0.7 led to more DEGs than those of τ = 0.5 and 0.9 for two data sets, Landi’s and Su’s, while τ = 0.9 led to more DEGs than those of τ = 0.5 and 0.7 for Selamat’s data, implying the necessity of choosing proper τs for different data applications for the GRP model. In contrast, aGRP adaptively captured the heterogeneity of data sets to automatically reach the optimal performance.

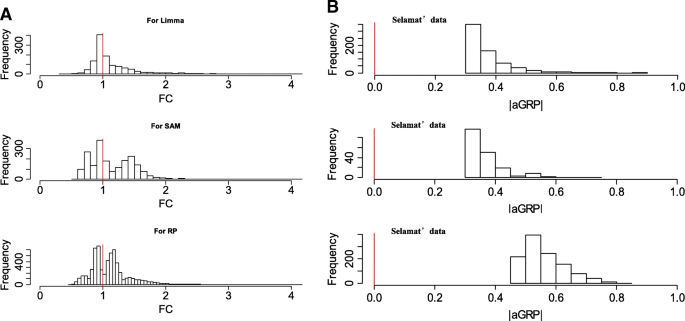

We further investigated the DEGs more called by aGRP than the previous methods, Limma, SAM and RankProd. Figure 3a shows the histograms of fold changes (FCs) of the DEGs for each of the three methods on the lung cancer data sets. For comparison, the aGRP statistics of these DEGs calculated on the three data sets were shown in Fig. 3b. It can be clearly seen that while the FCs are small with a distribution around one, the corresponding aGRP statistics are generally large, e.g., > 0.3, reflecting the high likelihoods of being regulated between tumor and normal tissues. We then looked into the biology of these DEGs by literature survey and found that many of them are associated with cancer. For example, gene PPP1R1A with a small FC of 0.97 but a large aGRP of 0.39 on the Selamat’s data is a tumor promoter, whose depletion can significantly suppress oncogenic transformation and cell migration. Differential expression of PPP1R1A was often observed in nonsmall cell lung cancers and colorectal cancers [23]. Luo et al.. [24] revealed that PPP1R1Amediated tumorigenesis and metastasis relies on PKA phosphorylationactivating PPP1R1A at Thr35 in ewing’s sarcoma. Another gene CP110 with FC = 0.95 and aGRP = − 0.32 on Landi’s data was previously reported to be involved in lung cancers [25]. The inhibition of CP110 by MiR1293p are associated with docetaxel resistance of breast cancer cells [26] and centrosome number in metastatic prostate cancer cells [27]. Gene LRRC42 with FC = 1.45 and aGRP = 0.50 on Su’s data was extensively observed to be significantly upregulated in the majority of lung cancers [28]. Taken together, these results demonstrate the special power of aGRP in capturing subtle but consistent changes of gene expression for cancer biomarker identification.
As described above, aGRP is featured with the ability of discerning DEGs regulated in different directions by the sign of the statistic aGRP. Totally, aGRP called 2023 common LUAD markers across the three data sets at an ad hoc BHadjusted pvalue cutoff of 0.01. We then divided the common DEGs into two categories: 1104 (Additional file 2: Table S1) with negative aGRP and 869 (Additional file 3: Table S2) with positive aGRP. According to the definition of aGRP, the former are likely downregulated in LUAD relative to normal lung tissues as potential tumor suppressors. Take as an example TCF21 whose aGRPs are − 0.99, − 0.90 and − 0.99 on Landi’s, Selamat’s and Su’s data set respectively. Biologically, the gene encodes a transcription factor of the basic helixloophelix family, and has been previously reported to be a tumor suppressor in many human malignancies including lung cancer [29]. Recently, Wang et al.... [30] have reported that the underrepresentation of TCF21 is likely derived from its hypermethylation in LUAD. The coordinated pattern of hypermethylation and underexpression has been observed to be tumorspecific and very frequent in all types of NSCLCs, even in earlystage disease [31]. Smith et al. [29] used restriction landmark genomic scanning to check the DNA sequence of TCF21, consolidating the epigenetic inactivation in lung and head and neck cancers. Shivapurkar et al. [32] employed DNA sequencing technique to zoom in the sequence of TCF21, revealing a short CpGrich segment (eight specific CpG sites in the CpG island within exon 1) that is predominantly methylated in lung cancer cell lines but unmethylated in normal epithelial cells of lung. We reason that the short CpGrich segment narrowed down may be responsible for the abnormal downregulation of TCF21 in LUAD.
On the other hand, the 869 markers with positive aGRP may be potential oncogenes for LUAD. Take as an example COL11A1 (aGRP = 0.92, 0.75 and 0.99 on Landi’s, Selamat’s and Su’s data set respectively). Biologically, the gene is a minor fibrillar collagen involved in proliferation and migration of cells and plays roles in the tumorigenesis of human malignancies. Recently, many studies observed that COL11A1 is frequently abnormally highly expressed both in NSCLC and in recurrent NSCLC tissues and suggested it to be a clinical biomarker for diagnosing NSCLC. Using NSCLC cell lines, Shen et al [33] witnessed the functional promotion of the gene COL11A1 in cell proliferation, migration and invasion of cancer cells, where the outcome of abnormal high expression of COL11A1 can be interceded by Smad signaling [33]. In addition, COL11A1 was also observed to overexpress in ovarian and pancreatic cancer and to be an indicator of poor clinical outcome of cancer treatment [34]. Another markers worthy of noticing is HMGA1 with aGRP = 0.93, 0.80 and 0.98 on Landi’s, Selamat’s and Su’s data set respectively. Biologically, the protein encoded by the gene is chromatinassociated and plays roles in the regulation of gene transcription. HMGA1 was previously reported to frequently overexpress in NSCLC tissues and to be associated with the metastatic progression of cancer cells. Using immunohistochemistry, Zhang et al [35] experimentally observed that high levels of HMGA1 protein are positively correlated with the status of clinical stage and differentiation degree in NSCLC, and suggested that HMGA1 may act as a convictive biomarker for the prognostic prediction of NSCLC.
To further assess the lung cancer markers identified by aGRP, pathway analysis was done based on functional annotation clustering analysis using DAVID, which is available at http://david.abcc.ncifcrf.gov/home.jsp. As a result, DAVID reported 38 KEGG pathways (Additional file 4: Table S3) that are significantly enriched in the list of total 2023 DEGs at an ad hoc qvalue cutoff of 0.1. Literature survey showed that many of these KEGG pathways are related to cancer, e.g. cell cycle (Rank 1, pvalue = 1.9 × 10^{− 5}), extracellular matrix (ECM)receptor interaction (Rank 2, pvalue = 1.6 × 10^{− 4}), and Pathways in cancer (Rank 11, pvalue = 0.006). Of them, cell cycle comprises of a series of events that take place in a cell leading to the division and duplication of DNA. The pathway, Complement and coagulation cascades (pvalue = 5.1 × 10^{− 4}), has been recently reported to dysfunction in lung cancer [36]. The analysis also reported another two lung cancerrelated pathways, PI3KAkt signaling pathway (pvalue = 0.009) and small cell lung cancer (pvalue = 0.017). Biologically, the former regulates many fundamental cellular functions including proliferation and growth. There exist many types of cellular stimuli or toxic insults which can activate the signaling pathway. When activated, the pathway first employs PI3K to catalyze the production of PIP3 and then PIP3 as a second messenger to activate Akt. An active Akt can phosphorylate substrates that are involved in many vital cellular processes such as apoptosis, cell cycle, and metabolism, which play important roles in tumorigenesis of cells. Accumulated evidences indicate that the PI3KAKT signaling pathway plays an essential role in lung cancer development. For example, Tang et al. [37] experimentally observed that Phosphorylated Akt overexpression and loss of PTEN expression in nonsmall cell lung cancer and concluded that the activity of the pathway confers poor prognosis. Recently, many clinical strategies have been suggested to target PI3KAKT signaling pathway for clinical treatment of lung cancer [38], including the novel anticancer reagent sulforaphene [39]. In addition, Wang et al. [40] reported the role of PI3K/AKT signaling pathway in the regulation of nonsmall cell lung cancer radiosensitivity after hypofractionated radiation therapy.

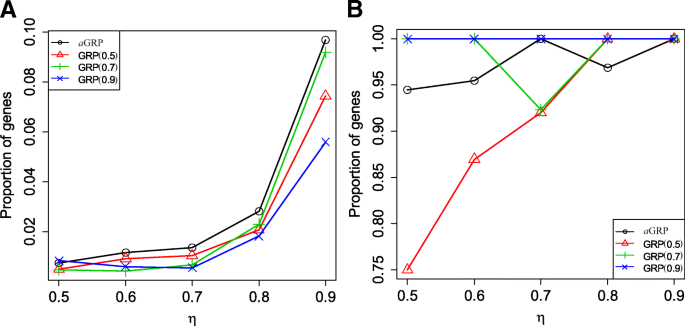

Comparison of consistency between aGRP and GRP
Both aGRP and GRP are a regulationbased statistic for cancer biomarker identification, whose absolute values and signs indicate the strength and direction of regulation respectively. In the LUAD application, each marker were identified with three values of aGRP (or GRP) derived from the three data sets. Consider the same LUAD topic of the three data sets, the consistency or similarity among the results can be used to evaluate the reasonability and reproducibility of these regulationbased statistics. For this purpose, we divided the range [0.5,1] into five intervals, [η, η + 0.1], η = 0.5,0.6,0.7,0.8,0.9, and determined the genes whose absolute aGRP/GRP fall within each interval. Figure 4a compares the proportions of common genes in the union across the three data sets in each interval between aGRP and GRPs with τ = 0.5, 0.7, 0.9. From this figure, we can clearly see that both aGRP and GRP had a tendency of the proportion of common genes gradually increasing with η, showing the reasonability of regulationbased statistics. Compared with GRP, aGRP led to the higher proportions, irrespective of interval used, suggesting the better consistency of results by aGRP. We further compared the proportions of genes with a same regulation direction in the common genes across the three data sets between aGRP and GRPs in each interval, as shown in Fig. 4b. From Fig. 4b, it can be clearly seen that aGRP achieved the proportions larger than 94.44% (at η = 0.01) on all the intervals, confirming the consistency of the results by aGRP. Although the GRP model with τ= 0.9 had all the proportions of one, the proportions of common genes obtained by it were far lower than those by aGRP in all the intervals (Fig. 4a). Taken together, these results demonstrated the robustness and reliability of aGRP in cancer biomarker identification. The advantage of aGRP should be related to the ability of adaptively capturing the heterogeneity of expression across data sets.
Application to RNAseq expression data
We also evaluated the proposed method on RNAseq expression data. Hepatocellular carcinoma (HCC) is the third leading cause of cancerrelated deaths. We downloaded a HCC RNAseq data set from the GEO database: Yang’s data (GSE77509) [41], which were measured using Illumina Hiseq 2000. All the samples in the data set consist of 17,501gene expression profiles of 40 matched HCC patients and adjacent normal tissues. For quality control, we preprocessed the dataset by averaging the raw counts with a same Entrez ID as the expression levels of the corresponding gene. For comparison, we also applied three previous countbased method, DEGSeq [12], DESeq2 [42] and edgeR [13], besides the GRP model and Rankprod as above, to analyze the RNAseq data in the experiment.
We first examined the similarity between the statistics of aGRP and DEGSeq on the RNAseq data. As a result, the Spearman correlation of the aGRP statistic and log2 fold change from DEGSeq and the Spearman correlation of pvalues derived from aGRP and pvalues derived using DESeq are 0.86 and 0.617, respectively. Both of the correlations are not equal to zero at a significance level of < 2.2e16 (ttest), respectively. Then, we compared the numbers of DEGs called by aGRP and the previous methods at an ad hoc BHadjusted pvalue cutoff of 0.01, as shown in Fig. 2b. From this figure, we can see that aGRP still called more DEGs than those by previous methods, GRP (0.9), Rankprod, DEGSeq, DESeq2 and edgeR, on the RNASeq data, consistent with the results on the simulation gene expression and the three lung cancer microarray data, confirming the especial power of aGRP in identifying subtle but consistent expression changes. Among the 7234 DEGs identified by aGRP, there are totally 3548 (Additional file 5: Table S4) and 3686 (Additional file 6: Table S5) with positive aGRP statistics and negative aGRP statistics, respectively. Literature survey shows that many of these genes are associated with HCC or other types of cancer. Among the 3548 positive aGRP DEGs, for example, MMS19 (aGRP = 0.69) is a DNA repair gene playing important role in Nucleotide Excision Repair (NER) pathway, whose single nucleotide polymorphism, rs3740526 has been reported to significantly distinguish adenocarcinoma with squamous cell carcinoma and whose expression levels are clinically related with ACT benefit of resected nonsmall cell lung cancer patients [43, 44]. TRIB1 (aGRP = 0.66) has been previously evidenced to be associated with tumorigeneses of various types of cancer, e.g., leukemia and colorectal cancer [45, 46]. Especially, Gendelman et al... [47] computationally inferred that TRIB1 is potentially a regulator of cellcycle progression and survival in cancer cells and experimentally observed that the expression of TRIB1 is predictive of clinical outcome of breast cancer. DDX59 (aGRP = 0.645) has been extensively observed to be highly expressed in lung adenocarcinoma and promote DNA replication in lung cancer development [48, 49]. In addition, among the 3686 negative aGRP DEGs, hormone receptor PGRMC2 (aGRP = − 0.635) was previously reported to be a tumor suppressor and an inhibitor of migration of cancer cell [50]. Recently, Causey et al [51] also observed that the expression level of PGRMC2 is informative in clinically staging breast cancer and is potentially useful to distinguish low stage tumors from higher stages.
Discussion
Currently, the expression heterogeneity remains challenging in transcriptomics data analysis. Ignoring the heterogeneity often leads to inconsistent and nonreproducible identification of cancer biomarkers across studies. To our knowledge, there do not exist computational models that are dedicated to address the problem of expression heterogeneity. Compared with previous methods, aGRP operates in a regulation space but not in the expression space. This makes it possible to interrogate and adaptively capture the inter or intraclass heterogeneity of expression for biologically meaningful identification of cancer biomarkers, as demonstrated in experiments on two types of simulation data (Fig. 1 and Table 1). The advantage endows aGRP with the power of detecting more subtle but consistent DEGs across the three realworld lung cancer data sets (Figs. 2 and 3). We hope that this work can encourage researchers to take advantage of prior knowledge on gene regulation in transcriptional data analysis.
Conclusions
In this paper, we have presented a novel computational method, aGRP, for cancer biomarker identification. It aims to deal with the problem of expression heterogeneity that complicates the identification of cancer biomarkers. Specifically, two regulation events were defined between tumor and normal tissues, whose occurring probabilities were estimated in an unbiased way, and were used to transform the expression profiles of samples to a regulation profile. With the regulation profiles, a new GRPbased statistic were finally formulated for characterizing different expression of genes along with an asymptotic estimator of significance. aGRP automatically interrogates and adaptively captures the heterogeneity of gene expression so that subtle but consistent expression changes can be detected in a flexible and robust way. aGRP is also simple and easy to use in practice. Comparison experiments with current stateoftheart methods on two simulation data sets and three realworld lung cancer expression data sets and one RNAseq HCC data set demonstrated the effectiveness and efficiency of aGRP in identifying cancer biomarkers from transcriptomics data. Future work will be extending the proposed method to assessment of the heterogeneity of gene sets and metaanalysis of multiple transcriptomics data sets for cancer biomarker identification.
Abbreviations
 aGRP:

Adaptive GRP model
 DEGs:

Differentially expressed genes
 FC:

Foldchange
 GRPs:

Gene regulation probabilities
 HCC:

Hepatocellular carcinoma
 LUAD:

Lung adenocarcinoma
 NSCLC:

Nonsmall cell lung cancer (NSCLC)
 NTL:

Normal tissue of lung
 ROC:

The receiver operating characteristic curve
