Rapid analysis of metagenomic data using signature-based clustering

Abstract

Background

Sequencing highly-variable 16S regions is a common and often effective approach to the study of microbial communities, and next-generation sequencing (NGS) technologies provide abundant quantities of data for analysis. However, the speed of existing analysis pipelines may limit our ability to work with these quantities of data. Furthermore, the limited coverage of existing 16S databases may hamper our ability to characterise these communities, particularly in the context of complex or poorly studied environments.

Results

In this article we present the SigClust algorithm, a novel clustering method involving the transformation of sequence reads into binary signatures. When compared to other published methods, SigClust yields superior cluster coherence and separation of metagenomic read data, while operating within substantially reduced timeframes. We demonstrate its utility on published Illumina datasets and on a large collection of labelled wound reads sourced from patients in a wound clinic. The temporal analysis is based on tracking the dominant clusters of wound samples over time. The analysis can identify markers of both healing and non-healing wounds in response to treatment. Prominent clusters are found, corresponding to bacterial species known to be associated with unfavourable healing outcomes, including a number of strains of Staphylococcus aureus.

Conclusions

SigClust identifies clusters rapidly and supports an improved understanding of the wound microbiome without reliance on a reference database. The results indicate a promising use for a SigClust-based pipeline in wound analysis and prediction, and a possible novel method for wound management and treatment.

Background

Chronic wounds pose a significant risk to the patient, especially if the patient is elderly. Treatment and ongoing care are labour-intensive and costly, draining billions of dollars from public health budgets across the world. The impact of chronic wounds is expected to increase markedly as the population ages and as the incidence of type II diabetes increases in line with increased incidence of obesity. It is now well-established that bacterial populations in the wound may heavily influence the healing process [1]. The standard approach to partial characterisation of the wound microbiome is based on targeted sequencing of wound samples, followed by a lookup in a reference collection. This approach is hampered by the limitations of existing algorithms, by incomplete bacterial reference collections – with only a small fraction of species captured in curated and annotated databases – and by variability in the composition of bacterial communities. The increasing prevalence of sequencing in a clinical context will only exacerbate these concerns. Taxonomic classification of bacterial samples through Next-Generation Sequencing (NGS) remains challenging, with a relatively recent study noting that only a small fraction (<5%) of reads could be identified at the species level [2]. This is problematic for the clinician, as pathogenicity is usually species-specific – for example, a given Escherichia or Bacillus species may be a very dangerous pathogen, or completely harmless. New methods are needed to characterise microbiota without relying on existing sequence collections.

Massive reductions in sequencing costs mean that challenges now lie in the downstream computational analysis of genomic data at scale [3]. Routine collection and sequencing of wound samples will generate abundant data, and may lead to breakthroughs in our understanding of their biology and treatment. However, it will not be possible to deliver on this promise without methods capable of handling these large-scale datasets and rapidly identifying markers of healing or stagnation. Ideally, such algorithms will also be able to predict the progression of wound conditions over time.

This paper details a new method that relies on encoding the sequence reads as binary signatures to make clustering feasible at scale. Binary signatures are obtained from the k-mers contained within the reads. We show how the method can be used to characterise wound samples, and also demonstrate its general utility on previously published datasets. We evaluate the clusters obtained via the coherence of the entities in each cluster and the separation between individual clusters, and show that our approach generates clusters superior to a range of alternative approaches. We also consider the speed at which these clusters are produced.

To demonstrate the utility of our method, we analyse labelled patient data sampled over several weeks and show that tracking dominant clusters identifies markers of wounds refractory to treatment and markers of wounds that successfully heal. In this specific dataset, it is possible to identify with confidence those species likely to be responsible for the observed effect, but the method is more widely applicable. The cluster itself may be used as a proxy for bacterial species identification: proximity to a well defined cluster may support expectations of a similar clinical outcome. In such occurrences, the measured coherence of the cluster further reinforces our confidence in the prediction. It is important to note that such an approach differs significantly from the more common methods using database look-up for identification.

Methods

Sample preparation and Sequencing

Over a period of 12 weeks in 2011, 364 wound samples were collected (using the Z-technique [4]) from 56 patients undergoing treatment for a total of 66 chronic wounds at the Queensland University of Technology (QUT) wound clinic. These samples were collected by specialist wound care clinicians following a defined protocol for collection of Z-swabs and preserved at -80 ∘ C until DNA extraction was undertaken.

These wounds included mixed ulcers, arterial ulcers, venous ulcers, pressure ulcers, as well as amputation surgery, and were located at different areas of the lower extremities. All patients received standard wound care at the clinic, including silver, hydro-fibre, hydrogel and zinc paste dressings. Prior to swab collection, wounds were washed with water. It is acknowledged that the use of antimicrobial dressings is likely to have influenced the microbial flora. Wounds that did not heal after a period of 24 weeks from initial presentation at the clinic were considered non-healing.

DNA was extracted from swab samples according to the protocol described by Price et al. [5], followed by physical and enzymatic lysis. Polymerase chain reaction (PCR) methods were then used to amplify the segments, using fusion primers derived from the universal 16S rRNA (prokaryotic small subunit ribosomal RNA). The samples were then sequenced using the Ion Torrent PGM platform [6], obtaining a total of 57,864,417 reads with an average length l=337. These reads were filtered by removing the barcode and primer, and reads with l<32 were discarded, reducing the read count to 46,313,157. Duplicate reads were also removed, further reducing the count to 24,892,382.

Signature-based clustering

Use of SigClust allows us to identify tight groupings of structurally similar reads, which we can then use as a proxy for the original reads in the analysis of large datasets. We demonstrate the efficacy of our approach by verifying the method on previously published datasets of Illumina reads. Having shown that the clusters found are plausible, we then apply the method to the wound sample reads discussed above. We conjecture that the clusters so obtained will be linked to clinical outcomes for the patients who provided samples during the study. This potentially allows similarity-based inference to be conducted as new samples are obtained, without reference to an external database. In this section we describe the SigClust method and the experiments we used to verify its effectiveness.

SigClust makes use of a well-known clustering algorithm called k-means [7]. The approach involves starting with a random set of initial centroids, then progressively refining the centroids by moving them to the mean of the clusters they define, each time redistributing the points into the clusters to which they are closest. The approach is guaranteed to converge, usually to a local optimum, within a finite number of iterations; however, as the greatest gain to cluster coherency occurs in the earliest iterations [8], it is not usually necessary to iterate the method until it converges.

To calculate k-means, the underlying dataset must be represented as a set of vectors within a metric space; the distribution of points into clusters requires that the triangle inequality hold true, while the calculation of the centroids requires that an arithmetic mean be well-defined. An appropriate binary signature embedding is obtained through random indexing [9]. The resulting signatures support the properties required if we are to use k-means: distances between points can be calculated using a high speed bitwise (Hamming) distance calculation, and the mean of the cluster members can be computed with standard vector arithmetic. In addition, converting sequences into binary signatures provides a significant performance advantage for computing pairwise similarity scores: expensive alignment-based methods can be replaced by relatively inexpensive Hamming distance calculations, markedly reducing execution time for clustering methods that require a large number of comparisons.

The binary signatures created through random indexing function as a vector space representation of the underlying reads. These representations are fixed-length binary strings irrespective of the size of the reads, with the result that the number of cycles required to compare two signatures is identical for all signatures. This comparison is also very fast, as modern processors have dedicated instructions for both exclusive or and population count, which can be combined to compute efficiently the Hamming distance between these sequences.

The approach we use to generate signatures from text data is described in detail by Geva [10]. The main adjustment to this approach we have made here is that, rather than dividing the input document up into terms on whitespace boundaries as is common in text processing, we instead slide a k-mer window of length 5 over the input sequence. Upon reading each k-mer, we hash it to create a vector of pseudo-random values in the range [−1,+1]. This results in a total of l−4 vectors generated for each sequence of length l. These vectors are summed together and the resulting vector is quantised to create a binary signature. The quantisation process involves mapping negative values to 0-bits and non-negative values to 1-bits. Hence, a vector of length w will map to a signature consisting of w bits. The signature size is a configurable parameter for this approach: long signatures have the advantage of greater representational capacity, while shorter sequences trade this capacity for greater storage and processing efficiency. Informal experiments have shown that for datasets similar to the wound read set, a signature size of 256 bits offers a compact representation with only a modest decline in representation quality. Modern 64-bit processors support exclusive or and population count instructions, so the Hamming distance between two 256-bit signatures can be computed using only eight machine instructions.

One feature of the standard k-means algorithm is that the number of clusters k must be known a priori; the algorithm involves starting with an initial set of randomly chosen cluster centroids, then iteratively refining them. There is no provision for the number of clusters to change during this process. As a result, there is the possibility that a poor selection of k may result in a cluster arrangement that does not reflect the underlying dataset. In the absence of pre-existing knowledge of the structure of the dataset, the standard approach is to choose k through experimentation or heuristics. For the purposes of this study, we precisely choose the number of clusters we will receive as output in order to facilitate fair comparison with existing methods. Many of these alternatives do not allow the number of clusters to be specified a priori, but instead determine the number of clusters from a cluster similarity threshold supplied by the user. When comparing against multiple methods, we supply a value of k that ensures a fair comparison to other methods.

We summarise the full SigClust algorithm in Algorithm 1.

Previously published datasets

SigClust was initially tested with two sizeable published datasets in order to demonstrate the general utility of the approach, and to allow for a direct comparison with methods proposed by other authors. The first collection, the Oral Metagenome – Human MGP41 dataset, was introduced in [11]. This dataset consists of some 1237319 primer-targeted reads of the V5 region obtained by Illumina sequencing, with an average length of 59. A second, much larger collection, the PRJEB4688 Evaluation Set, was assembled for the analyses reported in [12]. Here we confine ourselves to the Illumina data, comprising 5497442 reads with an average sequence length of 253. Note that we examine these data sets purely from a computational perspective, and do not consider the biological significance of the clusters obtained, which lies outside the scope of this paper.

Other clustering approaches

Our approach was compared to two alternative methods to benchmark its computational performance and the quality of the clusters obtained. UClust [13] employs a greedy heuristic based on similarity scores obtained via USearch. For each new sequence, USearch finds the closest existing centroid. If the identity score between this sequence and the centroid exceeds a certain threshold, the sequence is added to the cluster. Otherwise a new cluster is formed with this sequence as the centroid. USearch is a well known heuristic search method which rapidly identifies high-identity matches by counting the number of unique k-mers shared by the two sequences. Sequences with the highest counts are then examined in more detail, with identities now calculated using global alignments. This search process is terminated when a good enough match is found or when several rejections have occurred.

Our second baseline method relied on BLAST [14] to cluster the dataset against the NCBI complete 16S rRNA reference set [15]. Clusters were constructed by using BLAST to search for each wound read sequence in the 16S database using default BLAST settings, subsequently placing each sequence into a cluster associated with the matching 16S microbial strain, species or genus. This resulted in three different cluster sets at different levels of granuality; 9354 strain clusters, 8375 species clusters and 2221 genus clusters. Approximately 1 million (∼2%) of these searches could not be matched against any sequences in 16S and were excluded from the analysis. For the majority of searches the E value reported by BLAST was conclusive enough to show that the read did in fact belong to the corresponding strain; however, in other cases, only species or genus-level classification could be achieved.

As discussed in more detail below, we performed all computational experiments on a Linux workstation with 36 hyperthreaded Xeon cores running at 2.3GHz with 512GB RAM.

Community analysis

Clusters obtained from the wound read collection were subsequently viewed as representative of the underlying microbial communities for each sample. As there may be changes in coverage when comparing across samples, we focused on the relative contribution of each of these clusters within the sample.

To analyse each wound, we tracked how these relative contributions changed dynamically over the sequencing period, and aimed to identify patterns in community structure that could be aligned with healing outcomes. This was achieved by focusing on the changes in community similarity over time. This time-decay method [16] was adapted from similar work on the decay of community similarity through spatial variation, or distance-decay [17, 18].

A quantitative measure of these variations in bacterial community structures was calculated with the Bray-Curtis (BC) dissimilarity score [19], using the vegan R package [20]. In our context, the BC dissimilarity is based on the cluster relative counts between different observations. For two distinct observation time points i and j, and clusters xk, it is defined as:

$${BC}_{ij} = \frac{{\sum\nolimits}_{k} \left|x_{ki}-x_{kj}\right|} {{\sum\nolimits}_{k} \left(x_{ki} + x_{kj}\right)} \in [0,1] $$

where each of the sums are indexed over the clusters. Note that the BC dissimilarity is not a proper metric: it does not satisfy the triangle inequality, and transitive relationships do not hold. This was not needed in our context: we just used evidence from the time-decay analysis and the relative cluster abundance to identify specific clusters and patterns of interest.

The overall process from sample to community analysis is summarised in Fig. 1.

Fig. 1
figure 1

Clustering and analysis pipeline

Results

Clustering results

To ensure a fair comparison between different clustering approaches, a metric that does not disproportionately favour one approach over another was required. In particular, metrics based on the Hamming distance between signatures may disproportionately favour SigClust, which works directly with these signatures, over methods which instead work directly with reads. Hence we make use of cluster quality metrics based on alignment scores between the original reads, adopting a sampling approach so that these metrics can be computed efficiently.

The process used for this comparative evaluation is based on global pairwise alignment with the Needleman-Wunsch [21] and local pairwise alignment with the Smith-Waterman [22] algorithms. Each method computes an alignment score for a pair of reads, though their resolution differs. To determine the overall level of cluster purity for a given arrangement, we sampled a large number of read pairs, pairs that share the same cluster (intracluster pairs) and pairs from different clusters (intercluster pairs). We were then able to compare the distributions of distances of the different categories of pairs, allowing us to compare the respective cluster purities for each clustering approach.

Comparisons between SigClust, UClust and the BLAST-16S based method are considered below. Distributions of pairwise Needleman-Wunsch scores are depicted in Fig. 2, showing a clear advantage for SigClust. Separation between the distributions is more pronounced for SigClust than for the baseline methods, notwithstanding the smaller number of clusters generated by our approach; due to the nature of the calculation, arrangements involving a larger number of clusters have an advantage when it comes to cluster purity. Table 1 shows the mean alignment scores for each approach, along with the execution time required, demonstrating that SigClust offers substantial performance advantages over the other methods.

Fig. 2
figure 2

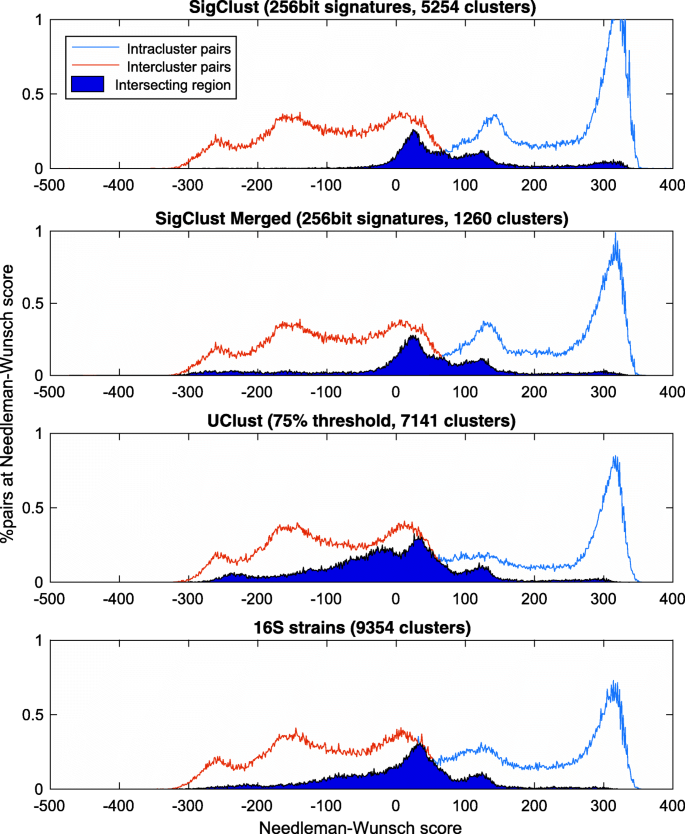

Needleman-Wunch global alignment cluster analysis. Histogram of Needleman-Wunch scores between random pairs of reads in the same cluster (intracluster pairs) and pairs of reads from different clusters (intercluster pairs)

Table 1 Comparison of clustering methods based on Needleman-Wunsch alignment scores

The same evaluation was repeated with Smith-Waterman scores with the outcomes shown in Fig. 3, where the advantages are less clear. As is shown in Table 2, SigClust provides the greatest distance between the average intracluster and intercluster scores, yet the degree of overlap in the histograms remains large, suggesting the clusters are not as well separated.

Fig. 3
figure 3

Smith-Waterman global alignment cluster analysis. Histogram of Smith-Waterman scores between random pairs of reads in the same cluster (intracluster pairs) and pairs of reads from different clusters (intercluster pairs)

Table 2 Comparison of clustering methods based on Smith-Waterman alignment scores

The discrepancy here can partially be explained by observing that the current approach of generating a single binary signature for each read is ultimately global, and unable to reward perfect matching of highly similar subsets in the same way as local alignment methods such as BLAST. As a result, while we can present the SigClust algorithm as a highly capable global clustering tool, if local clustering is more desirable for a particular application and local sensitivity is of the utmost importance, there may be more suitable tools available.

The same experiment was repeated using two published datasets of reads sequenced with Illumina technology: the Oral Metagenome - Human (mgp41) [11] study and PRJEB4688 [12]. The Needleman-Wunsch results for these datasets are included in Table 1, while the Smith-Waterman results are included in Table 2. To ensure a fair comparison, we compared SigClust against UClust directly, using the same number of clusters reported by UClust as input into SigClust. The results show SigClust continues to be competitive with UClust while taking a fraction of the time to run. The difference in cluster purity between the two methods is more marginal with the Oral Metagenome dataset, potentially due to the shorter reads reducing the advantages of SigClust’s fixed-length encoding. For the larger PRJEB4688 dataset, SigClust’s advantages are further emphasised, with the approach offering very significant performance improvements along with a clear gap in the distributions between intracluster and intercluster pairs. This shows that at least some of SigClust’s advantages are portable to widely varying datasets across different sequencing technologies.

Biological significance

In this section we undertake community analysis of the clusters obtained via SigClust, using the approach described above. As the value of k selected for algorithm evaluation (obtained empirically from UClust) is relatively large, proximal clusters were merged. This process is equivalent to choosing a lower value of k when executing SigClust, and reduces the reliance on the exact value for k.

The choice of merge proximity threshold is data-specific, and a natural intra-cluster distance may be inferred through experiment. For the wound reads, a Hamming distance of 35 provides a suitable threshold for cluster merging, corresponding to a similarity score of approximately 95%−97%, although this varies somewhat by read (or corresponding species or strain). This threshold distance choice for clusters is grounded in the properties of the wound reads and their respective species and strains.

Armed with a threshold value, cluster merging proceeds as follows: We create a binary matrix M recording cluster pairs identified as potential merge candidates based on the Hamming distance between them. Here M[ i][ j]=1 if clusters i and j are candidates for a merge; otherwise M[ i][ j]=0. Clusters are sorted in decreasing order of their number of potential partners. For each cluster, we extract potential partners to form a submatrix M′, which is then processed to select merges which favour cluster coherence. We go through all potential partners and reject the one that has the fewest shared partners (i.e. the row with the lowest sum). We repeat this process until all rows only contain 1s (in which case the remaining clusters are merged together) or alternatively, all partners have been rejected and no merge operation is performed. If a merged cluster is created, the individual member clusters are not considered as potential partners for the following clusters.

The clusters obtained reveal patterns that are associated with wound healing outcomes. We have identified a set of clusters present at high levels in a sample time-series – multiple wound samples collected from patients over a 12 week period. Of all the clusters identified by SigClust, five are present in 20 of the 24 non-healing wounds. These clusters, and their dominant species, are listed as follows: 0,34,50 (Staphylococcus aureus), 28 (Enterococcus faecalis), and 80 (Bacteroides fragilis). Wound #4059, which is a typical non-healing representative (Fig. 4), shows dominance of clusters 28 (E. faecalis) and 0 (S. aureus) over the entire sampling period. Their persistence in the wound is apparent when looking at the BC dissimilarity (Fig. 5).

Fig. 4
figure 4

Relative Cluster Abundance for wound #4059

Fig. 5
figure 5

Bray Curtis dissimilarity analysis for wound #4059. Each series shows the variation in BC dissimilarity for each time point relative to the observation immediately before, commencing with the time point following the label. So, label W4 shows observations for W5 – relative to W4, for W6 – relative to W5, and so on. For W11, we see only the single observation at W12, relative to W11

Abundant species of this nature may be identified readily using our methods or through a variety of well-established alternatives such as Mothur/QIIME. In earlier sections of this paper we observed that SigClust rapidly yields clusters notable for their strong internal coherence and clear inter-cluster separation. SigClust may thus offer significant advantages over existing clustering approaches when characterising diverse communities, especially those comprising taxons exhibiting low abundance. If clusters are more coherent and distinct, then we may have greater confidence in their utility as operational units, and in subsequent identifications made through sampling of their constituent members.

The five clusters listed above for non-healing wounds are also present in most of the wounds that took at least 12 weeks to heal (some 18 out of 20 such wounds). Wound #4032 (Fig. 6) is a good representative example of such wounds. Note that the time points are measured relative to the first clinic visit, rather than as an absolute time since the wound first occurred. As a result we only have a lower bound of the total healing time for these wounds. In the earlier study that produced this dataset, wound sampling was limited in all cases to a maximum of 12 weeks after the first visit. Subsequent time points are not available, but a possible interpretation of the eventual outcome is that the wounds healed once these clusters were no longer present. The BC dissimilarity results for wound #4032 (Fig. 7) support this hypothesis. Over the entire sampling period the community structures seem less stable. By week 12, only clusters characterised as S. aureus) remain (clusters 0,34,50 and 58). This is consistent with the interpretation that the wound was unable to heal at this stage and required future clearing of these clusters.

Fig. 6
figure 6

Relative Cluster Abundance for wound #4032

Fig. 7
figure 7

Bray Curtis dissimilarity analysis for wound #4032. Each series shows the variation in BC dissimilarity for each time point relative to the observation immediately before, commencing with the time point following the label. See the caption for Fig. 5 for a more detailed explanation

This interpretation is further supported by other wounds such as #4068 (Fig. 8). For this wound, clusters 0 and 28 have a significantly reduced contribution to the overall population by week 9, and the wound was observed to heal by week 12. These clusters are identified as S. aureus and E. faecalis, respectively.

Fig. 8
figure 8

Relative Cluster Abundance for wound #4068

On the other hand, wounds that healed rapidly (requiring four weeks or less) generally contained different clusters that were not present at significant levels in non-healing wounds. For instance, cluster 233 is present in wound #4046 (Fig. 9), but did not appear elsewhere. One wound healed in just four weeks despite still showing a peak in cluster 0 (S. aureus) in week 3. However, that wound exhibits a very high BC dissimilarity, which suggests that the microbial population was unstable. This therefore remains consistent with our earlier interpretation.

Fig. 9
figure 9

Relative Cluster Abundance for wound #4046

Taken together, these results demonstrate that our method can track fluctuations in the wound microbiome over the sampling period and detect the presence of pathogenic bacteria in some of the wounds and samples. They also show that it is possible to link specific clusters with healing or non-healing outcomes for these wounds.

Computational performance

Table 1 shows the execution times (in minutes) for SigClust and the baseline methods UClust and BLAST over the wound reads dataset, the Oral Metagenome - Human (mgp41) [11] Illumina dataset and the PRJEB4688 [12] Illumina dataset. These experiments were run on an Intel Xeon EE5-2699 v3 with 36 hyper-threaded cores clocked at 2.30GHz, for a total of 72 hardware threads. Both the signature generation code and the clustering code were multi-threaded with OpenMP and configured to consume all available threads. The time of 16 min for the standard SigClust approach on the wound dataset includes both signature generation time and clustering time. Generating 256-bit signatures for each of the 24,892,382 reads that remained after removing short sequences and duplicates took 4 min and 28 s of elapsed wall time. Each iteration of k-means required an average of 2 min and 51 s, and we ran a total of four iterations, yielding a clustering time of 11 min and 24 s. The Merged SigClust approach used the same process, but also included an additional two minutes to generate the mutual distance graph between the clusters and to find close clusters to be merged.

UClust was run on the same hardware; however, it was not able to make full use of all the hardware threads and so did not exhibit a similar speed-up. The difference between UClust and SigClust comes close to a 10× performance increase, depending on the size of the dataset, with larger datasets showing the greatest difference. We see this on both the wound dataset, some 16 min vs. 156 min, as well as on the published Illumina datasets, with 0.2 min vs. 1.7 min on the Oral Metagenome study and 1.62 min vs. 9 min on PRJEB4688.

The BLAST runs were also executed on the same hardware, but multi-threading here provided only limited advantages due to the nature of the algorithm, with BLAST unable to take full advantage of the set of threads available. BLAST was not able to offer performance competitive with the other approaches.

Discussion

Ongoing technological advances and consequent reductions in the cost of DNA sequencing may potentially revolutionise clinical microbiology, but sample processing and analysis is not yet straightforward, and may still require significant specialist bioinformatic expertise [23–25]. Millions of prokaryotic species exist in nature [26, 27] and less than 0.2% of them have been identified, significantly limiting our understanding of the role of bacteria in human health and disease. Despite enormous progress in the study of bacterial organisms over the past decade or more, there remains no comprehensive database listing all bacterial species associated with humans [28]. Such a database would provide crucial advantages in healthcare, allowing clinicians to link the pathological changes observed in their patients with potentially causative bacterial species.

Bacteria colonize all wounds whether they are chronic or acute. Currently, there is an increased interest in investigating whether there is a correlation between different bacterial communities in wounds and the ultimate repair of the wound, i.e. whether bacteria contribute to the maintenance of a wound in a chronic state. Chronic wounds are defined as lasting more than three months and occur most commonly in diabetic, elderly and immunocompromised people [29–31]. Given the economic burden and more importantly, the significant morbidity caused by slow healing wounds, a “personalised medicine" approach for examining and treating these chronic wounds could result in a better way forward for wound management and patient prognosis [31].

Yet there remain a number of computational and analytical challenges to be overcome before this vision is realised. For example, identification of bacterial determinants of wound healing and its absence can be compromised by selection bias in the experimental protocol. The 16S rRNA gene sequence analysis pipeline typically consists of three main components: pre-processing of sequences, constructing Operational Taxonomic Units (OTUs) that are similar to bacterial taxa or species, followed by annotation of the OTU tables. Pre-processing the 16S rRNA is used to remove low-quality sequences prior to the construction of the OTU table and chimeric sequences (generated during the PCR amplification process) are identified and removed from the dataset [32]. In this step, significant proportions of 16S rRNA sequences are eliminated and hence can lead to selection bias of bacterial species representation in the sample. Importantly, the appropriate analysis methods and parameters used for 16S rRNA sequence analysis are dependent on the method used for sequencing as well as the region of the 16S rRNA gene targeted for sequencing [33].

Clustering – the main focus of this paper – is an essential step in existing workflows. After pre-processing, the OTU table is constructed by clustering similar sequences based on a defined similarity threshold. Several approaches are commonly used for this purpose [34], and each may have a marked effect on the resulting analysis. The choice of reference clusters and the similarity thresholds employed are both known to affect the outcome significantly [35–37]. Issues resulting from variations in sequencing depth can be addressed through normalisation and rarefaction [38]. However, most approaches rely on a specific database collection, with annotation of the OTU table based on representative taxonomic and phylogenetic relatedness [39, 40]. Moreover, a number of alternative approaches are used to classify 16S rRNA gene sequences, including BLAST, RDP (a k-mer based method) and phylogenetic placement [41], where phylogenetic trees are generated and used for diversity metrics (eg. UniFrac) or for data visualization.

The underlying approach described in this paper aims to handle the common situation where a complete sequence reference list is unavailable. Instead, we rely on read clusters to act as the operational units. In some cases, clusters may be resolved to known references using traditional methods. While this is not a necessary condition for our approach, it does increase our confidence in its utility and practicality in identifying relevant clusters. We therefore looked to verify clusters of interest by determining the dominant bacterial strain in the NCBI 16S rRNA reference sequence set. We used the NCBI BLAST tool for this purpose. Each query consisted of 100 randomly-selected reads from a given cluster. The most commonly selected strain among this read sample was then associated with the cluster, together with the fraction of reads that returned that strain. This fraction was used to approximate the prevalence of the strain within the cluster.

Based on this approach, clusters 0,34 and 50 were associated with Staphylococcus aureus (subsp. anaerobius strain MVF-7). It is widely known that Staphylococcal biofilms may limit wound healing [42], and this is identifiably associated with the healing outcomes observed. Enterococcus faecalis (strain NBRC 100480; cluster 28) also impairs wound healing [43]. Equally interesting is the appearance of Bacteroides fragilis (strain NCTC 9343) in cluster 80. Bacteroides species are normally commensal gut organisms but they may also be responsible for certain types of infection, and B. fragilis is unique in inducing abscess formation as the sole infectious agent [44, 45], with injection of capsules proving sufficient [46]. Compromised wound healing is thus to be expected.

These findings are supported by an earlier study using standard methods [47], providing clear evidence that SigClust can produce biologically relevant clusters and contribute to our understanding and treatment of chronic wounds. Rapid assessment of microbial diversity allows for tailored antimicrobial therapy to be administered in a timely fashion. Targeted approaches of this nature limit overuse of broad-spectrum antimicrobials and reduce the likelihood that antimicrobial resistance may develop.

While we have successfully employed 16S reference sequences to validate our methods, we should emphasise that the utility of our approach does not rely on this reference. The prevalence of healthcare-related bacterial studies means that most wound-related bacteria may be found in the NCBI 16S database, but our method is more general and may be applied when database coverage is poor or non-existent. Analysis here is not dependent on the existence of a reference database, but requires only that some ground truth be available from the domain of interest, allowing us to associate information with each cluster, supporting its application across a wide range of scientific and clinical contexts. The utility of our methods is further enhanced by their inherent parallelism and the reduced memory footprint and extremely rapid pairwise comparisons that come with the signature-based representation. The use of binary signatures allows the approach to scale to very large collections beyond the scope of competing methods.

Tables 1 and 2 report the application of SigClust to previously published Illumina datasets. While we have not performed community analysis on the clusters obtained, these results showcase the general utility of the method, the quality of the clusters produced and the consistent performance advantages of the algorithm over UClust, a tool widely known for its computational efficiency.

Conclusions

In this paper we have introduced SigClust, a novel, high-speed clustering approach which allows the accurate analysis of read collections at scale, potentially supporting the timely processing of clinical wound samples as part of an integrated pipeline. We have further demonstrated the utility of the approach through community analysis, highlighting the correlation of certain cluster types with wounds that heal successfully and of others with wounds refractory to treatment. These findings have been further validated through 16S reference lookup and their alignment with the outcomes of an earlier, independent study of the same dataset. We note further that the performance advantages that underpin our success continue to hold even when the method is applied to large-scale datasets with markedly different characteristics based on very different sequencing technologies.

The superior clustering performance offered by these methods, along with their computational efficiency, will allow more rapid progress in our understanding of wound microbiota and in the development of better diagnostic and therapeutic approaches for non-healing wounds. As the method may operate in the absence of an external reference database, there is wide potential for its application across a range of metagenomic domains, and its suitability for very large scale collections will make it a natural candidate for these analyses as the availability of metagenomic datasets continues to grow rapidly.

References

  1. Scales BS, Huffnagle GB. The microbiome in wound repair and tissue fibrosis. J Pathol. 2013; 229(2):323–31. https://doi.org/10.1002/path.4118.

    Article  CAS  Google Scholar

  2. Gibson J, Shokralla S, Porter TM, King I, van Konynenburg S, Janzen DH, Hallwachs W, Hajibabaei M. Simultaneous assessment of the macrobiome and microbiome in a bulk sample of tropical arthropods through dna metasystematics. Proc Natl Acad Sci. 2014; 111(22):8007–12. https://doi.org/10.1073/pnas.1406468111.

    Article  CAS  Google Scholar

  3. Fricke WF, Rasko DA. Bacterial genome sequencing in the clinic: bioinformatic challenges and solutions. Nat Rev Genet. 2014; 15(1):49.

    Article  CAS  Google Scholar

  4. Angel DE, Lloyd P, Carville K, Santamaria N. The clinical efficacy of two semi-quantitative wound-swabbing techniques in identifying the causative organism(s) in infected cutaneous wounds. Int Wound J. 2011; 8(2):176–85. https://doi.org/10.1111/j.1742-481X.2010.00765.x.

    Article  Google Scholar

  5. Price LB, Liu CM, Frankel YM, Melendez JH, Aziz M, Buchhagen J, Contente-Cuomo T, Engelthaler DM, Keim PS, Ravel J, Lazarus GS, Zenilman JM. Macroscale spatial variation in chronic wound microbiota: A cross-sectional study. Wound Repair Regen. 2011; 19(1):80–8. https://doi.org/10.1111/j.1524-475X.2010.00628.x.

    Article  Google Scholar

  6. Whiteley AS, Jenkins S, Waite I, Kresoje N, Payne H, Mullan B, Allcock R, O’Donnell A. Microbial 16s rrna ion tag and community metagenome sequencing using the ion torrent (pgm) platform. J Microbiol Meth. 2012; 91(1):80–8. https://doi.org/10.1016/j.mimet.2012.07.008.

    Article  CAS  Google Scholar

  7. MacQueen J. Some methods for classification and analysis of multivariate observations. In: Proceedings of the Fifth Berkeley Symposium on Mathematical Statistics and Probability. Oakland: University of California Press: 1967. p. 281–97.

    Google Scholar

  8. Arthur D, Vassilvitskii S. How slow is the k-means method? In: Proceedings of the Twenty-second Annual Symposium on Computational Geometry. SCG ’06. New York: ACM: 2006. p. 144–53. https://doi.org/10.1145/1137856.1137880.

    Google Scholar

  9. Sahlgren M. An introduction to random indexing. In: Methods of Applications of Semantic Indexing Workshop at the 7th International Conference on Terminology and Knowledge Engineering. Copenhagen: GTW: 2005.

    Google Scholar

  10. Geva S, De Vries CM. Topsig: topology preserving document signatures. In: Proceedings of the 20th ACM International Conference on Information and Knowledge Management. New York: ACM: 2011. p. 333–8.

    Google Scholar

  11. Lazarevic V, Whiteson K, Huse S, Hernandez D, Farinelli L, Østerås M, Schrenzel J, François P. Metagenomic study of the oral microbiota by illumina high-throughput sequencing. J Microbiol Meth. 2009; 79(3):266–71.

    Article  CAS  Google Scholar

  12. Nelson MC, Morrison HG, Benjamino J, Grim SL, Graf J. Analysis, optimization and verification of illumina-generated 16s rrna gene amplicon surveys. PloS ONE. 2014; 9(4):94249.

    Article  Google Scholar

  13. Edgar RC. Search and clustering orders of magnitude faster than blast. Bioinformatics. 2010; 26(19):2460–1. https://doi.org/10.1093/bioinformatics/btq461.

    Article  CAS  Google Scholar

  14. Altschul SF, Gish W, Miller W, Myers EW, Lipman DJ. Basic local alignment search tool. J Mol Biol. 1990; 215(3):403–10.

    Article  CAS  Google Scholar

  15. Bacterial and Archaeal 16S rRNA Sequences from BioProjects 33175 and 33117. ftp://ftp.ncbi.nlm.nih.gov/blast/db/16SMicrobial.tar.gz. Accessed 1 Mar 2017.

  16. Shade A, Gregory Caporaso J, Handelsman J, Knight R, Fierer N. A meta-analysis of changes in bacterial and archaeal communities with time. ISME J. 2013; 7(8):1493–506. https://doi.org/10.1038/ismej.2013.54.

    Article  Google Scholar

  17. Nekola JC, White PS. The distance decay of similarity in biogeography and ecology. Journal of Biogeography. 1999; 26(4):867–78. https://doi.org/10.1046/j.1365-2699.1999.00305.x.

    Article  Google Scholar

  18. Soininen J, McDonald R, Hillebrand H. The distance decay of similarity in ecological communities. Ecography. 2007; 30(1):3–12. https://doi.org/10.1111/j.0906-7590.2007.04817.x.

    Article  Google Scholar

  19. Bray JR, Curtis JT. An ordination of the upland forest communities of southern Wisconsin. Ecol Monogr. 1957; 27(4):325–49. https://doi.org/10.2307/1942268.

    Article  Google Scholar

  20. Oksanen J, Blanchet FG, Friendly M, Kindt R, Legendre P, McGlinn D, Minchin PR, O’Hara RB, Simpson GL, Solymos P, Stevens MHH, Szoecs E, Wagner H. Vegan: Community Ecology Package. 2016. R package version 2.4-1. https://CRAN.R-project.org/package=vegan. Accessed 20 Apr 2017.

  21. Needleman SB, Wunsch CD. A general method applicable to the search for similarities in the amino acid sequence of two proteins. J Mol Biol. 1970; 48(3):443–53.

    Article  CAS  Google Scholar

  22. Smith TF, Waterman MS. Identification of common molecular subsequences. JJ Mol Biol. 1981; 147(1):195–7.

    Article  CAS  Google Scholar

  23. Koser CU, Ellington MJ, Cartwright EJP, Gillespie SH, Brown NM, Farrington M, Holden MTG, Dougan G, Bentley SD, Parkhill J, Peacock SJ. Routine use of microbial whole genome sequencing in diagnostic and public health microbiology. PLoS Pathog. 2012; 8(8):1–9. https://doi.org/10.1371/journal.ppat.1002824.

    Article  Google Scholar

  24. Harris SR, Cartwright EJ, Torok ME, Holden MT, Brown NM, Ogilvy-Stuart AL, Ellington MJ, Quail MA, Bentley SD, Parkhill J, Peacock SJ. Whole-genome sequencing for analysis of an outbreak of meticillin-resistant staphylococcus aureus: a descriptive study. Lancet Infect Dis. 2013; 13(2):130–6. https://doi.org/10.1016/S1473-3099(12)70268-2.

    Article  CAS  Google Scholar

  25. Torok ME, Peacock SJ. Rapid whole-genome sequencing of bacterial pathogens in the clinical microbiology laboratory–pipe dream or reality?J Antimicrob Chemother. 2012; 67(10):2307–8.

    Article  CAS  Google Scholar

  26. Whitman WB, Coleman DC, Wiebe WJ. Prokaryotes: the unseen majority. Proceedings of the National Academy of Sciences. 1998; 95(12):6578–83.

    Article  CAS  Google Scholar

  27. Youle M, Haynes M, Rohwer F. In: Witzany G, (ed).Scratching the Surface of Biology’s Dark Matter. Dordrecht: Springer; 2012, pp. 61–81.

    Google Scholar

  28. Lagier J-C, Hugon P, Khelaifia S, Fournier P-E, La Scola B, Raoult D. The rebirth of culture in microbiology through the example of culturomics to study human gut microbiota. Clin Microbiol Rev. 2015; 28(1):237–64.

    Article  CAS  Google Scholar

  29. Price LB, Liu CM, Melendez JH, Frankel YM, Engelthaler D, Aziz M, Bowers J, Rattray R, Ravel J, Kingsley C, Keim PS, Lazarus GS, Zenilman JM. Community analysis of chronic wound bacteria using 16s rrna gene-based pyrosequencing: Impact of diabetes and antibiotics on chronic wound microbiota. Plos ONE. 2009; 4(7):1–10. https://doi.org/10.1371/journal.pone.0006462.

    Article  Google Scholar

  30. Gontcharova V, Youn E, Sun Y, Wolcott RD, Dowd SE. A comparison of bacterial composition in diabetic ulcers and contralateral intact skin. Open Microbiol J. 2010; 4:8.

    Article  Google Scholar

  31. Wolcott RD, Gontcharova V, Sun Y, Dowd SE. Evaluation of the bacterial diversity among and within individual venous leg ulcers using bacterial tag-encoded flx and titanium amplicon pyrosequencing and metagenomic approaches. BMC Microbiology. 2009; 9(1):226.

    Article  Google Scholar

  32. Haas BJ, Gevers D, Earl AM, Feldgarden M, Ward DV, Giannoukos G, Ciulla D, Tabbaa D, Highlander SK, Sodergren E, et al. Chimeric 16s rrna sequence formation and detection in sanger and 454-pyrosequenced pcr amplicons. Genome Res. 2011; 21(3):494–504.

    Article  CAS  Google Scholar

  33. D’Amore R, Ijaz UZ, Schirmer M, Kenny JG, Gregory R, Darby AC, Shakya M, Podar M, Quince C, Hall N. A comprehensive benchmarking study of protocols and sequencing platforms for 16s rrna community profiling. BMC Genomics. 2016; 17(1):55.

    Article  Google Scholar

  34. Chen W, Zhang CK, Cheng Y, Zhang S, Zhao H. A comparison of methods for clustering 16s rrna sequences into otus. PLOS ONE. 2013; 8(8):70837.

    Article  Google Scholar

  35. He Y, Caporaso JG, Jiang X-T, Sheng H-F, Huse SM, Rideout JR, Edgar RC, Kopylova E, Walters WA, Knight R, et al. Stability of operational taxonomic units: an important but neglected property for analyzing microbial diversity. Microbiome. 2015; 3(1):20.

    Article  Google Scholar

  36. Kopylova E, Navas-Molina JA, Mercier C, Xu ZZ, Mahé F, He Y, Zhou H-W, Rognes T, Caporaso JG, Knight R. Open-source sequence clustering methods improve the state of the art. mSystems. 2016; 1(1). https://doi.org/10.1128/mSystems.00003-15.

  37. Schloss PD. Application of a database-independent approach to assess the quality of operational taxonomic unit picking methods. mSystems. 2016; 1(2). https://doi.org/10.1128/mSystems.00027-16.

  38. McMurdie PJ, Holmes S. Waste not, want not: why rarefying microbiome data is inadmissible. PLoS Comput Biol. 2014; 10(4):1003531.

    Article  Google Scholar

  39. Conlan S, Kong HH, Segre JA. Species-level analysis of dna sequence data from the nih human microbiome project. PLoS ONE. 2012; 7(10):47075.

    Article  Google Scholar

  40. Schloss PD. The effects of alignment quality, distance calculation method, sequence filtering, and region on the analysis of 16s rrna gene-based studies. PLoS Comput Biol. 2010; 6(7):1000844.

    Article  Google Scholar

  41. Nguyen N-P, Warnow T, Pop M, White B. A perspective on 16s rrna operational taxonomic unit clustering using sequence similarity. NPJ Biofilms and Microbiomes. 2016; 2:16004.

    Article  Google Scholar

  42. Schierle CF, De la Garza M, Mustoe TA, Galiano RD. Staphylococcal biofilms impair wound healing by delaying reepithelialization in a murine cutaneous wound model. Wound Repair Regen. 2009; 17(3):354–9. https://doi.org/10.1111/j.1524-475X.2009.00489.x.

    Article  Google Scholar

  43. Chong KKL, Tay WH, Janela B, Yong MHA, Liew TH, Madden L, Keogh D, Barkham T, Ginhoux F, Becker DL, Kline KA. Enterococcus faecalis modulates immune activation and slows healing during wound infection. bioRxiv. 2017. https://doi.org/10.1101/125252.

  44. Wexler HM. Bacteroides: the good, the bad, and the nitty-gritty. Clin Microbiol Rev. 2007; 20(4):593–621. https://doi.org/10.1128/CMR.00008-07.

    Article  CAS  Google Scholar

  45. Tzianabos AO, Onderdonk AB, Rosner B, Cisneros RL, Kasper DL. Structural features of polysaccharides that induce intra-abdominal abscesses. Science. 1993; 262(5132):416–9. https://doi.org/10.1126/science.8211161.

    Article  CAS  Google Scholar

  46. Coyne MJ, Kalka-Moll W, Tzianabos AO, Kasper DL, Comstock LE. Bacteroides fragilis nctc9343 produces at least three distinct capsular polysaccharides: Cloning, characterization, and reassignment of polysaccharide b and c biosynthesis loci. Infect Immun. 2007; 68(11):6176–81. https://doi.org/10.1128/IAI.68.11.6176-6181.2000.

    Article  Google Scholar

  47. Hussain MA, Rathnayake IU, Huygens F. The importance of anaerobic bacteria in non-healing wounds. Wound Pract Res J Aust Wound Manag Assoc. 2016; 24(4):218–23.

    Google Scholar

Download references

Funding

Funding was provided by the Wound Management Innovation Co-operative Research Centre. Publication costs are covered by QUT institutional funds.

Availability of data and materials

SigClust is available online at https://github.com/tchappell/SigClust
