Parameter estimation in models of biological oscillators: an automated regularised estimation approach

BMC Bioinformatics201920:82

https://doi.org/10.1186/s12859-019-2630-y

  • Received: 18 September 2018
  • Accepted: 14 January 2019
  • Published:

Abstract

Background

Dynamic modelling is a core element in the systems biology approach to understanding complex biosystems. Here, we consider the problem of parameter estimation in models of biological oscillators described by deterministic nonlinear differential equations. These problems can be extremely challenging due to several common pitfalls: (i) a lack of prior knowledge about parameters (i.e. massive search spaces), (ii) convergence to local optima (due to multimodality of the cost function), (iii) overfitting (fitting the noise instead of the signal) and (iv) a lack of identifiability. As a consequence, the use of standard estimation methods (such as gradient-based local ones) will often result in wrong solutions. Overfitting can be particularly problematic, since it produces very good calibrations, giving the impression of an excellent result. However, overfitted models exhibit poor predictive power.

Here, we present a novel automated approach to overcome these pitfalls. Its workflow makes use of two sequential optimisation steps incorporating three key algorithms: (1) sampling strategies to systematically tighten the parameter bounds reducing the search space, (2) efficient global optimisation to avoid convergence to local solutions, (3) an advanced regularisation technique to fight overfitting. In addition, this workflow incorporates tests for structural and practical identifiability.

Results

We successfully evaluate this novel approach considering four difficult case studies regarding the calibration of well-known biological oscillators (Goodwin, FitzHugh–Nagumo, Repressilator and a metabolic oscillator). In contrast, we show how local gradient-based approaches, even if used in multi-start fashion, are unable to avoid the above-mentioned pitfalls.

Conclusions

Our approach results in more efficient estimations (thanks to the bounding strategy) which are able to escape convergence to local optima (thanks to the global optimisation approach). Further, the use of regularisation allows us to avoid overfitting, resulting in more generalisable calibrated models (i.e. models with greater predictive power).

Keywords

  • Parameter estimation
  • Global optimisation
  • Regularisation
  • Parameter bounding
  • Dynamic modelling

Background

Oscillations and sustained rhythms are pervasive in biological systems and have been deeply studied in areas such as metabolism [15], the cell cycle [69], and Circadian rhythms [1016], to name but a few. In recent years, many research efforts have been devoted to the development of synthetic oscillators [1720], including tunable ones [2124].

Mathematical and computational approaches have been widely used to explore and analyse these complex dynamics [2532]. Model-based approaches have also allowed for the identification of design principles underlying circadian clocks [12, 33] and different types of biochemical [34] and genetic oscillators [3539]. Similarly, the study of the behaviour of populations of coupled oscillators has also greatly benefited from mathematical analysis and computer simulations [4047].

A number of approaches can be used to build mathematical models of these biological oscillators [4852]. This process is sometimes called reverse engineering, inverse problem solving or dynamic model identification [5355]. Model calibration (i.e. parameter estimation or data fitting) is a particularly important and challenging sub-problem in the identification process [5664]. Different strategies have been specially developed and applied to calibrate models of oscillators [32, 50, 6571] and to characterise and explore their parameter space [31, 7276].

In this study, we consider parameter estimation in mechanistic dynamic models of biological oscillators. From all the issues that plague model calibration [77], we pay special attention to three that are particularly problematic in oscillatory models: huge search spaces, multimodality and overfitting. We also discuss how to handle lack of identifiability.

Methods

Models of biological oscillators

Here, we consider mechanistic models of oscillatory biological systems given by deterministic nonlinear ordinary differential (ODEs). The general model structure is:
$$\begin{array}{*{20}l} \frac{d\mathbf{x}(t, \boldsymbol{\theta})}{dt} &= \mathbf{f}\left(t, \mathbf{u}(t),\mathbf{x}\left(t,\boldsymbol{\theta}\right), \boldsymbol{\theta}\right), \text{ for } \mathbf{x}(t, \boldsymbol{\theta}) \in \mathbf{\Psi}_{O} \end{array} $$
(1)
$$\begin{array}{*{20}l} \mathbf{y}\left(\mathbf{x},\boldsymbol{\theta}\right) &= \mathbf{g}\left(\mathbf{x}\left(\boldsymbol{\theta}, t\right), t, \boldsymbol{\theta}\right) \end{array} $$
(2)
$$\begin{array}{*{20}l} \mathbf{x}\left(t_{0}, \boldsymbol{\theta}\right) &= \mathbf{x}_{0} \end{array} $$
(3)

where \(\mathbf {x} \in \mathbb {R}^{N_{\mathbf {x}}}\) represents the states of the system as time-dependent variables, under the initial conditions x0, \(\boldsymbol {\theta } \in \mathbb {R}^{N_{\boldsymbol {\theta }}}\) is the parameter vector, u(t) represents any time-dependent input (e.g. stimuli) affecting the system and \(t \in \left [t_{0}, t_{end}\right ] \subset \mathbb {R}\) is the time variable. ΨO represents the set of all possible oscillatory dynamics. The observation function \(g : \mathbb {R}^{N_{\mathbf {x}}\times N_{\boldsymbol {\theta }}}\mapsto \mathbb {R}^{N_{\mathbf {y}}}\) maps the states to a vector of observables \(\mathbf {y}\in \mathbb {R}^{N_{\mathbf {y}}}\), i.e. the state variables that can be measured. While the methodology here is developed for and tested on oscillatory models, it is not strictly restricted to models that exhibit such behaviour.

Formulation of the parameter estimation problem

We now consider the parameter estimation problem considering dynamic models described by the above Eqs. (13). We formulate this estimation problem as a maximisation of the likelihood function given by:
$$ L\left(\tilde{\mathbf{y}}|\boldsymbol{\theta}\right) = \prod_{k = 1}^{N_{e}}\prod_{j = 1}^{N_{y, k}}\prod_{i=1}^{N_{t, k, j}}\frac{1}{\sqrt[]{2\pi\sigma_{kji}^{2}}}e^{\left(\frac{-\left(y_{kji}\left(\mathbf{x}\left(t_{i}, \boldsymbol{\theta}\right), \boldsymbol{\theta}\right) - \tilde{y}_{kji}\right)^{2}}{2\sigma_{kji}^{2}}\right)} $$
(4)
where Ne is the number of experiments, Ny,k the number of observables in those experiments, Nt,k,j is the number of time points for each observable, \(\tilde {y}_{kji}\) represents the measured value for the ith time point of the jth observable in the kth experiment, and σkji represents its corresponding standard deviation. Under specific conditions [78], the maximisation of the likelihood formulation is equivalent to the minimisation of the weighted least squares cost given by:
$$\begin{array}{*{20}l} Q_{NLS}(\boldsymbol{\theta}) \,=\, \sum_{k = 1}^{N_{e}}\sum_{j = 1}^{N_{y, k}}\sum_{i = 1}^{N_{t, k, j}}\left(\frac{y_{kji}\left(\mathbf{x}\left(t_{i}, \boldsymbol{\theta}\right), \boldsymbol{\theta}\right) - \tilde{y}_{kji}}{\sigma_{kji}}\right)^{2} \,=\, \mathbf{r}(\boldsymbol{\theta})^{T}\mathbf{r}(\boldsymbol{\theta}) \end{array} $$
(5)
Using the above cost, the estimation problem can be formulated as the following minimisation problem:
$$ \min_{\boldsymbol{\theta}}\left(Q_{NLS}(\boldsymbol{\theta})\right) = \min_{\boldsymbol{\theta}}\left(\mathbf{r}(\boldsymbol{\theta})^{T}\mathbf{r}(\boldsymbol{\theta})\right) $$
(6)
subject to the dynamic system described by Eqs. (13), and also subject to the parameter bounds:
$$ \theta_{i}^{min} \leq \theta_{i} \leq \theta_{i}^{max} \: \forall\: \theta_{i} \in \boldsymbol{\theta} $$
(7)

We denote the solution to this minimisation problem as \(\widehat {\boldsymbol {\theta }}\). In principle, this problem could be solved by standard local optimisation methods such as Gauss-Newton or Levenberg-Marquardt. However, as described next, there are many pitfalls and issues that complicate the application of these methods to many real problems.

Pitfalls and perils in the parameter estimation problem

Numerical data fitting in nonlinear dynamic models is a hard problem with a long list of possible pitfalls, including [77]: a lack of identifiability, local solutions, badly scaled data and parameters, oscillating dynamics, inconsistent constraints, non-differentiable model functions, slow convergence and errors in experimental data. It should be noted that several of these difficulties are interrelated, e.g. a lack of practical identifiability can be due to noisy and non-informative data and will result in slow convergence and/or finding local solutions.

In the case of oscillators, the above issues apply, particularly multimodality and lack of identifiability. However, there are at least two additional important difficulties that must be also considered: overfitting (i.e. fitting the noise rather than the signal) and very large search spaces (which creates convergence difficulties and also makes it more likely the existence of additional local optima). Although these four issues are all sources of difficulties for proper parameter estimation, the last two have been less studied.

Lack of identifiability

The objective of identifiability analysis is to find out whether it is possible to uniquely estimate the values of the unknown model parameters [79]. It is useful to distinguish between two types of identifiability: structural and practical. Structural identifiability [80, 81] studies if the model parameters can be uniquely determined assuming ideal conditions for the measurements and therefore only considering the model dynamics and the input-output mapping (i.e. what is perturbed and what is observed). Structural identifiability is sometimes called a priori identifiability. Despite recent advances [8284], structural identifiability analysis remains difficult to apply to large dynamic models with arbitrary nonlinearities.

It is important to note that, even if structural identifiability holds, unique determination of parameter values is not guaranteed since it is a necessary condition but not a sufficient one. Practical identifiability analysis [8587] considers experimental limitations, i.e. it aims to find if parameter values can be determined with sufficient precision taking into account the limitations in the measurements (i.e. the amount and quality of information in the observed data). Practical (sometimes called a posteriori) identifiability analysis will typically compute confidence intervals of the parameter values. Importantly, it can also be taken into account as an objective in optimal experimental design [86].

Multimodality

Schittkowski [77] puts emphasis on the extremely difficult nature of data fitting problems when oscillatory dynamics are present: the cost function to be minimised will have a large number of local solutions and an irregular structure. If local optimisation methods are used, they will likely converge to one of these local solutions (typically the one with the basin of attraction that includes the initial guess). Several researchers have studied the landscape of the cost functions being minimised, describing them as very rugged and with multiple local minima [77, 88, 89]. Thus, this class of problems clearly needs to be solved with some sort of global optimisation scheme as illustrated in a number of studies during the last two decades [57, 86, 9093].

The simplest global optimisation approach (and widely used in parameter estimation) is the so-called multi-start method, i.e. a (potentially large) number of repeated local searchers initialised from usually random initial points inside the feasible space of parameters. Although a number of studies have illustrated the power of this approach [9496], others have found that it can be inefficient [92, 9799]. This is especially the case when there is a large number of local solutions: in such situations, the same local optima will be repeatedly found by many local searches, degrading efficiency.

Thus, several methods have tried to improve the performance of the plain multi-start method by incorporating mechanisms to avoid repeated convergence to already found local solutions. This is the case of hybrid metaheuristics, where a global search phase is performed via diversification mechanisms and combined with local searches (intensification mechanisms). In this context, the enhanced scatter search (eSS) method has shown excellent performance [64, 97, 99, 100]. Here we will use an extension of the eSS method distributed in the MEIGO toolbox [101] as the central element of our automated multi-step approach. We have modified the MEIGO implementation of eSS in several ways, as detailed in Additional file 1. In order to illustrate the performance and robustness of eSS with respect to several state-of-the-art local and global solvers, we provide a critical comparison in Additional file 2.

Huge search spaces

In this study, we consider the common case scenario where little prior information about (some or all of the) parameters is available and therefore we need to consider ample bounds in the parameter estimation. These huge parameter bounds complicate convergence from arbitrary initial points, increase computation time and make it more likely that we will have a large number of local solutions in the search space. Although deterministic methods, which could be used to systematically reduce these bounds exist [102104], currently they do not scale up well with problem size. Such techniques therefore can not be applied to problems of realistic size. Some analytical approaches have also been used for the analysis of biological oscillators [26, 31]. Alternatively, non-deterministic sampling techniques have been used to explore the parameter space and identify promising regions consistent with pre-specified dynamics [105]. Inspired by these results, we will re-use the sampling performed during an initial optimisation phase to reduce the parameter bounds.

Overfitting

Overfitting describes the problem associated with fitting the noise in the data, rather than the signal. Overfitted models can be misleading as they present a low-cost function value, giving the false impression that they are well-calibrated models that can be useful for making predictions. However, overfitted models have poor predictive power, i.e. they do not generalise well and can result in major prediction artefacts [106]. In order to fight overfitting, a number of regularisation techniques have been presented. Regularisation methods originated in the area of inverse problem theory [107]. Most regularisation schemes are based on adding a penalty term to the cost function, based on some prior knowledge of the parameters. This penalty makes the problem more regular, in the sense of reducing ill-conditioning and by penalising wild behaviour. Regularisation also can be used to minimise model complexity.

However, regularisation methods for nonlinear dynamics models remain an open question [99]. Further, these methods require some prior knowledge about the parameters and a tuning process which can be cumbersome and computationally demanding. Here, we will present a workflow that aims to automate this process.

Small illustrative example

In order to graphically illustrate several of the above issues, let us consider the ENSO problem, a small yet challenging example taken from the National Institute of Standards (NIST) nonlinear least squares (NLLS) test suite [108].

To visualise the multimodality of this problem, we can use contour plots of the cost function for pairs of parameters, as shown in Fig. 1. In this figure we also show the convergence paths followed by a multi-start of a local optimisation method (NL2SOL [109]), illustrating how most of the runs converge to local solutions or saddle points close to the initial point. We can also see how different runs converge to the same local solutions, explaining the low efficiency of multi-start for problems with many local optima. We also provide additional figures for this problem in Additional file 1.

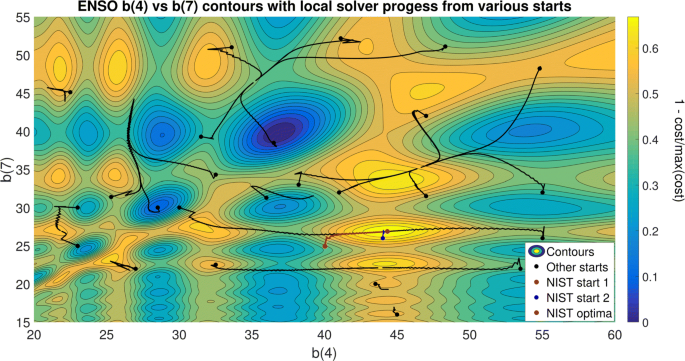

Fig. 1
Fig. 1

ENSO problem NL2SOL contours: contours of the cost function (nonlinear least squares) for parameters b4 and b7, and trajectories of a multi-start of the NL2SOL local solver

In contrast, we plot the convergence paths of the enhanced scatter search (eSS) method in Fig. 2, showing how the more efficient handling of the local minima allows this strategy to successfully and consistently find the global solution even from initial guesses that are far from the solution. It should be noted that while NIST lists this ENSO problem as being of “average” difficulty, this is largely due to the excellent starting point considered in their test suite, which are extremely close to the solution. Indeed, we can see in the aforementioned figures that the choice of parameter bounds and initial guess can dramatically change the difficulty of the problem.
Fig. 2
Fig. 2

ENSO problem eSS contours: contours of the cost function (nonlinear least squares) for parameters b4 and b7, and trajectories of the enhanced scatter search (eSS) global optimisation solver initialized from various starting points

An automated regularised estimation approach

Here we present a novel methodology, GEARS (Global parameter Estimation with Automated Regularisation via Sampling), that aims to surmount the pitfalls described above. Our method combines three main strategies: i) global optimisation, (ii) reduction of the search space and (iii) regularised parameter estimation. In addition to these strategies, the method also incorporates identifiability analysis, both structural and practical. All these strategies are combined in a hands-off procedure, requiring no user supervision after the initial information is provided.

An overview of the entire procedure can be seen in Fig. 3. The initial information required by the method includes the dynamic model to be fitted (as a set of ODEs), the input-output mapping (including the observation function) and a data set for the fitting (dataset I). A second data set is also needed for the purposes of cross-validation and evaluation of overfitting (dataset II). Additionally, users can include (although it is not mandatory) any prior information about the parameters and their bounds. If the latter is not available, users can just declare very ample bounds, since the method is prepared for this worst-case scenario.
Fig. 3
Fig. 3

Workflow of procedure: a schematic diagram of the GEARS method

The method first performs two pre-processing steps. The first is a structural identifiability analysis test. A second pre-processing step involves symbolic manipulation to generate the components needed for the efficient computation of parametric sensitivities. After the pre-processing steps, the method performs a first global optimisation run using eSS and a non-regularised cost function. This step is used to obtain useful sampling information about the cost function landscape, which is then used to perform parameter bounding and regularisation tuning. This new information is then fed into a second global optimisation run, again using eSS but now with a regularised cost function and the new (reduced) parameter bounds. The outcome of this second optimisation is the regularised estimate, which is then subject to several post-fit analysis, including practical identifiability and cross-validation (using dataset II). Details regarding each of these steps are given below.

Structural identifiability analysis

The structural identifiability analysis step allows us to ensure that based on the model input-output (observation) mapping we are considering, we should in principle be able to uniquely identify the parameter values of the model (note that it is a necessary but not sufficient condition). If the problem is found to be structurally non-identifiable, users should take appropriate actions, like model reformulation, model reduction or by changing the input-output mapping if possible.

In our workflow, we analyse the structural identifiability of the model using the STRIKE-GOLDD package [82], which tests identifiability based on the rank of the symbolic Lie derivatives of the observation function. It can then detect each structurally non-identifiable parameter based on rank deficiency.

Symbolic processing for efficient numerics

In GEARS we use a single-shooting approach, i.e. the initial value problem (IVP) is solved for each valuation of the cost function inside the iterative optimisation loop. It is well known that gradient-based local methods, such as those used in eSS, require high-quality gradient information.

Solving the IVP (original, or extended for sensitivities) is the most computationally expensive part of the optimisation, so it is important to use efficient IVP solvers. In GEARS we use AMICI [110], a high level wrapper for the CVODES solver [111], currently regarded as the state of the art. In order to obtain the necessary elements for the IVP solution, the model is first processed symbolically by AMICI, including the calculation of the Jacobian. It should be noted that an additional advantage of using AMICI is that allows the integration of models with discontinuities (including events and logical operations).

Global optimisation phase 1

The objective of this step is to perform an efficient sampling (storing all the points tested during the optimisation) of the parameter space. This sampling will then be used to perform (i) reduction of parameter bounds, and (ii) tuning of the regularisation term to be used in the second optimisation phase.

The cost function used is a weighted least-squares criterion as given by Eqs. (57). The estimation problem is solved using the enhanced scatter search solver (eSS, [112]), implemented in the MEIGO toolbox [101]. Within the eSS method, we use the gradient-based local solver NL2SOL [109]. In order to maximise its efficiency, we directly provide the solver with sensitivities calculated using AMICI. After convergence, eSS finds the optimal parameters vector for the fitting data \(\widehat {\boldsymbol {\theta }}^{I}\). While this solution might fit the dataset I very well, it is rather likely that it will not have the highest predictive power (as overfitting may have occurred). During the optimization, we store each for function evaluation the parameter vector \(\boldsymbol {\theta }^{S}_{i}\) and its cost value \(Q_{NLS}\left (\boldsymbol {\theta }^{S}_{i}\right) = \zeta _{i}\), building the sampling:
$$\begin{array}{*{20}l} \boldsymbol{\Theta} &= \left[\boldsymbol{\theta}^{S}_{1}, \dots, \boldsymbol{\theta}^{S}_{N_{S}}\right]\in \mathbb{R}^{N_{\boldsymbol{\theta}}}\times\mathbb{R}^{N_{S}} \end{array} $$
(8)
$$\begin{array}{*{20}l} \boldsymbol{\zeta} &\,=\, \left[{Q}_{NLS}\left(\boldsymbol{\theta}^{S}_{1}\right), \dots, {Q}_{NLS}\left(\boldsymbol{\theta}^{S}_{N_{S}}\right)\right] \,=\, \left[\zeta_{1} \dots \zeta_{N_{S}}\right]\!\in\! \mathbb{R}^{N_{S}} \end{array} $$
(9)

where NS is the number of function evaluations, Nθ is the number of parameters and each \(Q_{NLS}\left (\boldsymbol {\theta }^{S}_{i}\right)\) is a parameter vector selected by eSS.

Parameter bounding

The sampling obtained in the global optimisation phase 1 is now used to reduce the bounds of the parameters, making the subsequent global optimisation phase 2 more efficient and less prone to the issues detailed above. We first compute calculate a cost cut-off value for each parameter using Algorithm 1. This algorithm is used to determine reasonable costs, whereby costs deemed to be far from the global optimum are rejected. We calculate one cost cut off for each parameter, as different parameters have different relationships to the cost function. Once these cut-off values have been calculated for each parameter, we apply Algorithm 2 to obtain the reduced bounds.

Regularised cost function

The next step builds an extended cost function using a Tikhonov-based regularisation term. This is a two norm regularisation term given by:
$$\begin{array}{*{20}l} \Gamma(\boldsymbol{\theta})&= \left(\boldsymbol{\theta} - \boldsymbol{\theta}^{ref} \right)^{T}\mathbf{W}^{T}\mathbf{W}\left(\boldsymbol{\theta} - \boldsymbol{\theta}^{ref} \right) \end{array} $$
(10)
$$\begin{array}{*{20}l} \mathbf{W} &= \left[ \begin{array}{ccccc} \frac{1}{\theta^{ref}_{1}} & 0 & \cdots & \cdots & 0 \\ 0 & \frac{1}{\theta^{ref}_{2}} & 0 & \cdots & 0 \\ \vdots & 0 & \ddots & \ddots & \vdots \\ \vdots & \vdots & \ddots & \ddots & 0 \\ 0 & 0 & \cdots & 0 & \frac{1}{\theta^{ref}_{N_{\theta}}} \end{array}\right] \end{array} $$
(11)
where W normalises the regularisation term with respect to θref, to avoid bias due to the scaling of the reference parameter. The extended cost function is as follows:
$$ Q_{R}(\boldsymbol{\theta}) = Q_{NLS}(\boldsymbol{\theta}) + \alpha\Gamma(\boldsymbol{\theta}) $$
(12)

where α is a weighting parameter regulating the influence of the regularisation term.

Once the regularised cost function is built, we need to tune the regularisation parameters. Once again, we start from the cost cut off values calculated in Algorithm 2. We also use the reduced parameter bounds to ensure that our regularisation parameters and reduced parameter bounds do not conflict each other. The procedure for calculating the values for the regularisation parameters α and θref can be found in Algorithm 3.

Global optimisation phase 2

Once we have calculated both the values of the regularisation parameters and the reduced parameter bounds, we are now able to perform the final regularised optimisation. We use the same set up for the global optimisation solver (eSS with NL2SOL as the local solver, and AMICI as the IVP solver). We then solve the regularised parameter estimation problem given by:
$$ \min_{\boldsymbol{\theta}} Q_{R}(\boldsymbol{\theta}) = \min_{\boldsymbol{\theta}}\left(Q_{NLS}(\boldsymbol{\theta}) + \alpha\Gamma(\boldsymbol{\theta})\right) $$
(13)
Subject to the system described in Eqs. 13, and the reduced parameter bounds given by:
$$ {\theta}_{i}^{R^{min}} \leq \theta_{i} \leq {\theta}_{i}^{R^{max}} \: \forall\: \theta_{i} \in \boldsymbol{\theta} $$
(14)

We denote the solution to this regularised estimation problem as \(\widehat {\boldsymbol {\theta }}^{R}\).

Practical identifiability analysis

The next step is to analyse the practical identifiability of the regularised solution. This is done using an improved version of the VisId toolbox [87]. The VisId toolbox accesses practical identifiability based on testing collinearity between parameters. A lack of practical identifiability is typically due to a lack of information in the available fitting data, and in principle can be surmounted by a more suitable experimental design [86].

Cross-validation and post-fit analysis

Next, we assess the level of overfitting using cross-validation. This is typically done by comparing the fitted model predictions with experimental data obtained under conditions (e.g. initial conditions) different from the ones used in the fitting dataset. In other words, cross-validation tests how generalisable the model is. Here, we perform cross-validation on both the non-regularised \(\widehat {\boldsymbol {\theta }}^{I}\) and regularised solution \(\widehat {\boldsymbol {\theta }}^{R}\). This allows us to assess the reduction of overfitting due to the regularised estimation.

In addition to cross-validation, several post-fit statistical metrics are also computed: normalised root mean square error (NRMSE), R2 and χ2 tests [113], parameter uncertainty (confidence intervals computed using the Fisher information matrix, FIM), and parameter correlation matrix (also computed using the FIM). The normalised root mean square error is a convenient metric for the quality of fit, given by:
$$\begin{array}{*{20}l} NRMSE\left(\boldsymbol{\theta}\right) &= \sqrt[]{\frac{\sum\limits_{k = 1}^{N_{e}}\sum\limits_{j = 1}^{N_{y, k}}\sum\limits_{i = 1}^{N_{t, k, j}}\left(\frac{y_{kji} - \tilde{y}_{kji}}{\max{\left(\tilde{\mathbf{y}}_{kj}\right)} - \min{\left(\tilde{\mathbf{y}}_{kj}\right)}}\right)^{2}}{n}} \end{array} $$
(15)

We use the NRMSE measure to assess both the quality of fit and quality of prediction. One important caveat to note here is that some of these post-fit analyses are based on the Fisher information matrix (FIM) for their calculation. This is a first order approximation and can be inaccurate for highly nonlinear models [114]. In those instances, bootstrapping techniques are better alternatives, although they are computationally expensive.

Implementation: The GEARS Matlab toolbox

The methodology proposed here has been implemented in a Matlab toolbox, “GEARS: Global parameter Estimation with Automated Regularisation via Sampling”. GEARS is a software package that can be downloaded from https://japitt.github.io/GEARS/, made freely available under the terms of the GNU general public license version 3. GEARS runs on Matlab R2015b or later and is multi-platform (tested on both Windows and Linux). The Optimisation and Symbolic Math Matlab toolboxes are required to run GEARS. In addition to this, GEARS requires the freely available AMICI package (http://icb-dcm.github.io/AMICI/) to solve the initial value problem. Optionally, it also requires the Ghostscript software (https://www.ghostscript.com) for improved exportation of results. For more details please see the documentation within the GEARS toolbox. It should be noted that for the structural and practical identifiability analysis steps, users need to install the VisId [87] and STRIKE-GOLDD [82] packages respectively. These packages are freely available at https://github.com/gabora/visid and https://sites.google.com/site/strikegolddtoolbox/ respectively.

Case studies

Next, we consider four case studies of parameter estimation in dynamic models of biological oscillators. The general characteristics of these problems are given in Table 1. While these problems are small in terms the number of parameters, they exhibit most of the difficult issues discussed above, such as overfitting and multimodality, making them rather challenging. For each case study, synthetic datasets (i.e. pseudo-experimental data generated by simulation from a set of nominal parameters) were generated. For each case study, 10 fitting datasets with equivalent initial conditions were produced, plus a set of 10 additional cross-validation data sets (where the initial conditions were changed randomly within a reasonable range). All these data sets were generated using a standard deviation of 10.0% of the nominal signal value and a detection threshold of 0.1.
Table 1

Summary of case studies considered



FitzHugh-Nagumo

Goodwin Oscillator

Repressilator

Enzymatic Oscillator

Abbreviation

FHN

GO

RP

EO

Main Reference

[117]

[25]

[69]

[116]

Number of parameters

3

8

4

7

Number of estimated parameters

3

8

4

7

Number of states

2

3

6

3

Number of observables

1

2

1

2

Number of data points per experiment

6

20

20

14

FitzHugh-Nagumo (FHN) problem

This problem considers the calibration of a FitzHugh-Nagumo model, which is a simplified version of the Hodgkin-Huxley model [115], describing the activation and deactivation dynamics of a spiking neuron. We consider the FHN model as described by Eqs. 1621:
$$\begin{array}{*{20}l} \frac{dV}{dt} &= g\left(V - \frac{V^{3}}{3} + R\right) \end{array} $$
(16)
$$\begin{array}{*{20}l} \frac{dR}{dt} &= -\frac{1}{g}\left(V - a + b\cdot R\right) \end{array} $$
(17)
$$\begin{array}{*{20}l} V(t_{0},\boldsymbol{\theta}) &= V_{0} \end{array} $$
(18)
$$\begin{array}{*{20}l} R(t_{0},\boldsymbol{\theta}) &= R_{0} \end{array} $$
(19)
$$\begin{array}{*{20}l} y(t_{i}) &= V(t_{i}) \end{array} $$
(20)
$$\begin{array}{*{20}l} \boldsymbol{\theta} &= \{a, b, g\} \in \left[10^{-5}, 10^{5}\right] \end{array} $$
(21)

where y is the observation function considered in the example. The flexibility of the model dynamics makes this model prone to overfitting. Synthetic data was generated taking nominal parameter values {a,b,g}={0.2,0.2,3}. The fitting data was generated with initial conditions of V0=−1,R0=1.

Goodwin (GO) oscillator problem

The Goodwin oscillator model describes control of enzyme synthesis by feedback repression. The GO model is capable of oscillatory behaviour in particular areas of the parameter space. Griffith [26] showed that limit-cycle oscillations can be obtained only for values of the Hill coefficient n≥8 (note that this information could be used to bound this parameter but here we will not use it, assuming a worst case scenario with little prior information available). The GO model suffers from some identifiability issues as well as tendency to overfitting. The dynamics are given by Eqs. 2228:
$$\begin{array}{*{20}l} \frac{{dx}_{1}}{dt} &= \frac{k_{1} \cdot K_{i}^{n}}{K_{i}^{n} + x_{3}^{n}} - k_{2} \cdot x_{1} \end{array} $$
(22)
$$\begin{array}{*{20}l} \frac{{dx}_{2}}{dt} &= k_{3}\cdot x_{1} - k_{4} \cdot x_{2} \end{array} $$
(23)
$$\begin{array}{*{20}l} \frac{{dx}_{3}}{dt} &= k_{5}\cdot x_{2} - k_{6}\cdot x_{3} \end{array} $$
(24)
$$\begin{array}{*{20}l} x_{1-3}(t_{0},\boldsymbol{\theta}) &= x_{1-3, 0} \end{array} $$
(25)
$$\begin{array}{*{20}l} \mathbf{y}_{F}(t_{i}) &= \left[x_{1}(t_{i}), x_{3}(t_{i})\right] \end{array} $$
(26)
$$\begin{array}{*{20}l} \mathbf{y}_{V}(t_{i}) &= \left[x_{1}(t_{i}), x_{2}(t_{i}), x_{3}(t_{i})\right] \end{array} $$
(27)
$$\begin{array}{*{20}l} \boldsymbol{\theta} &\,=\, \{k_{1-6}, K_{i}, n\} \!\text{ where } \{k_{1-6}, K_{i}\} \\ &\quad\!\in\! \left[10^{-3}, 10^{3}\right] \!\text{ and }\!n\! \in \left[1, 12\right] \end{array} $$
(28)

where variables {x1,x2,x3} represent concentrations of gene mRNA, the corresponding protein, and a transcriptional inhibitor, respectively; yF is the observation function for the estimation problem, and yV is the observation function for the cross-validation procedure. Synthetic data was generated considering nominal parameter values {k1−6,Ki,n}={1,0.1,1,0.1,1,0.1,1,10}. The fitting datasets were generated for the initial conditions x1−3,0= [ 0.1,0.2,2.5]. It is important to note that we have considered an additional observable for cross-validation, which makes the problem much more challenging (i.e. it exacerbates the prediction problems due to overfitting).

Repressilator (RP) problem

The Repressilator is a well-known synthetic gene regulatory network [17]. We consider the particular parameter estimation formulation studied by [69] with dynamics given by Eqs. 2937:
$$\begin{array}{*{20}l} \frac{{dp}_{1}}{dt} &= \beta(m_{1} - p_{1}) \end{array} $$
(29)
$$\begin{array}{*{20}l} \frac{{dp}_{2}}{dt} &= \beta(m_{2} - p_{2}) \end{array} $$
(30)
$$\begin{array}{*{20}l} \frac{{dp}_{3}}{dt} &= \beta(m_{3} - p_{3}) \end{array} $$
(31)
$$\begin{array}{*{20}l} \frac{{dm}_{1}}{dt} &= \alpha_{0} + \frac{\alpha}{\left(1+p_{3}^{n}\right)} - m_{1} \end{array} $$
(32)
$$\begin{array}{*{20}l} \frac{{dm}_{2}}{dt} &= \alpha_{0} + \frac{\alpha}{\left(1+p_{1}^{n}\right)} - m_{2} \end{array} $$
(33)
$$\begin{array}{*{20}l} \frac{{dm}_{3}}{dt} &= \alpha_{0} + \frac{\alpha}{\left(1+p_{2}^{n}\right)} - m_{3} \end{array} $$
(34)
$$\begin{array}{*{20}l} p_{1-3}(t_{0}) &= p_{1-3, 0}, m_{1-3}(t_{0}) = m_{1-3, 0} \end{array} $$
(35)
$$\begin{array}{*{20}l} \boldmath{y}_{F}(t_{i}) &= m_{3}(t_{i}) \text{ and} \boldmath{V}(t_{i}) = \left[p_{3}(t_{i}), m_{3}(t_{i})\right] \end{array} $$
(36)
$$\begin{array}{*{20}l} \boldsymbol{\theta} &\,=\, \{\alpha_{0}, \alpha, \beta, n\} \text{ where } \{\alpha_{0}, \alpha, \beta\}\\ &\quad\in \left[10^{-3}, 500\right] \text{ and } n \in \left[1, 10\right] \end{array} $$
(37)

where yF is the observation function for the fitting procedure and yV is the observation function for the cross-validation procedure (i.e. an additional observable for cross-validation). Synthetic data was generated considering nominal parameter values {k1−6,Ki,n}= [ 0.05,298,8.5,0.3]. The fitting data was generated for the initial conditions given by [p1−3,0,m1−3,0]= [ 10,0.01,1,1,0.01,10].

Enzymatic oscillator (EO) problem

The enzymatic oscillator is a small biochemical system model that illustrates the effect of coupling between two instability-generating mechanisms [116]. Parameter estimation in this system is particularly challenging due to the existence of a variety of modes of dynamic behaviour, from simple periodic oscillations to birhythmicity and chaotic behaviour. The chaotic behaviour is restricted to a particular region of the parameter space as discussed in [116]. Its dynamics are difficult even for regions with simple periodic behaviour: the existence of extremely steep oscillations causes small shifts in the period of oscillations to have a large impact on the estimation cost function. We consider the dynamics described by Eqs. 3843:
$$\begin{array}{*{20}l} \frac{d\alpha}{dt} &= v_{Km1_{r1}} - \frac{\alpha\cdot\sigma_{r2}(\alpha + 1)(\beta + 1)^{2}}{10^{6}L1_{r2} + (\alpha + 1)^{2}(\beta + 1)^{2}} \end{array} $$
(38)
$$\begin{array}{*{20}l} \frac{d\beta}{dt} &= \frac{50\alpha\cdot\sigma_{r2}(\alpha + 1)(\beta + 1)^{2}}{\left(10^{6}L1_{r2} + (\alpha + 1)^{2}\left(\beta + 1\right)^{2}\right)}\\ &\quad- \frac{\sigma_{2_{r3}}(\gamma + 1)^{2}\left(d_{r3}\frac{\beta}{100} + 1\right)\beta}{\left(L2_{r3} + (\gamma + 1)^{2}\left(d_{r3}\frac{\beta}{100} + 1\right)^{2}\right)} \end{array} $$
(39)
$$\begin{array}{*{20}l} \frac{d\gamma}{dt} &= \frac{\left(\!\sigma_{2_{r3}}(\gamma + 1)^{2}\left(d_{r3}\frac{\beta}{100} + 1\right)\!\beta\!\right)}{\left(\!50\left(L2_{r3} + (\!\gamma + 1)^{2}\left(d_{r3}\frac{\beta}{100} \!+ \!1\!\right)^{2}\!\right)\!\right)} \,-\, {ks}_{r4}\!\cdot\!\gamma \end{array} $$
(40)
$$\begin{array}{*{20}l} \alpha(t_{0}) &= \alpha_{0}, \beta(t_{0}) = \beta_{0}, \gamma(t_{0}) = \gamma_{0} \end{array} $$
(41)
$$\begin{array}{*{20}l} \mathbf{y}(t_{i}) &= \left[\alpha(t_{i}), \beta(t_{i})\right] \end{array} $$
(42)
$$\begin{array}{*{20}l} \boldsymbol{\theta} &= \left\{\!v_{Km1_{r1}} L1_{r2},\sigma_{r2},\! L2_{r3},d_{r3},\!\sigma_{2_{r3}}, \!{ks}_{r4}\!\right\}\!\in\! \left[\!10^{-3}\!, \!10^{3}\right] \end{array} $$
(43)

where y is the observation function. Synthetic data was generated considering nominal parameter values θ= [ 0.4,500,10,10,0.07,7,2.5]. An important point to note here is that these parameter values were chosen to be in the vicinity of, but not inside, the region with chaotic behaviour. For the fitting datasets the initial conditions [α0,β0,γ0]= [ 29.1999,188.8,0.3367] were used.

Results

All the problems were solved with GEARS using 10 different datasets for fitting and 10 additional datasets for cross-validation. For the RP and GO models an extra observable was considered in the case of the cross-validation. To illustrate the results obtained during the different steps, we will focus on the FHN problem. Detailed results for all the other case studies are given in Additional files 1 and 3. The GEARS software distribution includes all the scripts implementing these case studies.

First, the structural identifiability of these problems was analysed using STRIKE-GOLDD [82], concluding that all of them are identifiable a priori. This analysis also revealed that for the GO case study the initial conditions for the unobserved state x2 must also be known, otherwise two parameters are structurally unidentifiable.

Next, the GEARS workflow proceeded performing an initial estimation. The samples obtained were analysed by applying a cut off to each parameter as seen in Fig. 4 for the FHN problem. The cost cut-off values were then used to significantly reduce the parameter bounds, as shown in Table 2 and Fig. 5. Next, GEARS performed the regularised estimation step (Table 3). We are successful able to avoid the multiple local solutions that are frequently found using local optimisers (see Fig. 6). As expected, this second estimation reduced the quality of the calibration to the fitting data, as shown in Table 4, Figs. 7a and 8. However, it increased the generalisability of the model, as can be seen in Fig. 7 and Table 4. Finally, GEARS confirmed a satisfactory practical identifiability for the resulting calibrated FHN, as indicated by the rather small confidence intervals for the estimated parameters.
Fig. 4
Fig. 4

FHN case study: parameter samples. Parameter samples, showing the cost cut off values and the reduced bounds for each parameter

Fig. 5
Fig. 5

FHN case study: reduction of parameters bounds. Original and reduced parameter bounds, also showing the parameter confidence levels for the first fitting data set

Fig. 6
Fig. 6

FHN case study: distribution of local solutions. Histogram of the local solutions found with a multi-start local solver; the arrows indicate examples of underfitting and overfitting

Fig. 7
Fig. 7

FHN problem: effect of regularisation on fitting and cross-validation. An example of how regularisation affects the calibration of the FHN model: reduction of the quality of the fitting (subplot (a)), but improvement on the quality of the cross-validation (subplot (b)); the corresponding numerical results are given in Table 4

Fig. 8
Fig. 8

FHN problem fit with uncertainty: final regularised fit with uncertainty intervals coonsidering the first fitting data set

Table 2

FHN case study: bounds reduction. A table showing the bounds reduction performed on the FHN model for the first fitting data set

Parameter

Original bounds

Reduced bounds

a

[10−5,105]

[10−5,1]

b

[10−5,105]

[10−5,1000]

g

[10−5,105]

[10−5,100]

Table 3

FHN case study: summary of the regularised results. A summary of the final results of the procedure applied to the FHN model for the first fitting data set

Parameter names

Parameter value

Confidence (95%)

Coefficient of variation (%)

Bounds status

a

0.1069

0.0129

6.1732

Bounds not active

b

0.6230

0.0551

4.5130

Bounds not active

g

2.8490

0.1528

2.7370

Bounds not active

Table 4

FHN case study: summary of NRMSE results. A table of the NRMSE for the FHN case study. The fitting is to one particular experiment, while the cross-validation covers ten experiments for the fit to the first fitting data set

Experiments

Regularised

Non-regularised

Fitting

0.2647

0.1095

Cross-validation

1.4054

1.4487

More detailed results for FHN and all the other case studies can be found in Additional files 1 and 3. Regarding practical identifiability, using the VisId toolbox we found that both the FHN and RP problems are fully identifiable in practice indicating that our dataset contains enough information. In the case of the EO and GO models we found that there are a number of collinear parameters sets indicating that, at least to some degree, these parameters are compensating one another due to a lack of information in the data.

Considering now all the case studies, it is important to assess the consistency of the effect of regularisation on their generalisability. In Fig. 9 we show how the regularised estimation always decreases the quality of calibration to the initial fitting data, as expected. However, the regularised estimations lead to better cross-validation results, i.e. these calibrated models have better predictive power because we have avoided overfitting. It should be noted, however, that there are a few cases where the procedure is unable to significantly improve the generalisability of the model. The explanation is that no real overfit was present in the initial calibrations.
Fig. 9
Fig. 9

Effect of regularisation for all the case studies. Violin plots illustrating the effect of regularisation on the fitting and cross-validation errors (given as normalized root mean square error, NRMSE) for each model and over all the data sets considered. It is shown how regularisation increases the NRMSE for the fitting, but with the benefit of generally improving the predictive power, i.e. reducing the NRMSE in the cross-validations

In summary, using GEARS we have been able to successfully calibrate these challenging oscillators models, avoiding the typical pitfalls, including convergence to local optima and overfitting, in an automated manner.

Conclusions

Parameter estimation in nonlinear dynamic models of biosystems is a very challenging problem. Models of biological oscillators are particularly difficult. In this study, we present a novel automated approach to overcome the most common pitfalls. Its workflow makes use of identifiability analysis and two sequential optimisation steps incorporating three key algorithms: (1) sampling strategies to systematically tighten the parameter bounds reducing the search space, (2) efficient global optimisation to avoid convergence to local solutions, (3) an advanced regularisation technique to fight overfitting.

We evaluate this novel approach considering four difficult case studies regarding the calibration of well known biological oscillators (Goodwin, FitzHugh–Nagumo, Repressilator and a metabolic oscillator). We show how our approach results in more efficient estimations which are able to escape convergence to local optima. Further, the use of regularisation allows us to avoid overfitting, resulting in more generalisable calibrated models (i.e. models with greater predictive power).

Abbreviations

EO:

Enzymatic Oscillator model

eSS:

Enhanced scatter search

FNH:

FiztHugh-Nagumo model

GO:

Goodwin Oscillator model

IVP:

Initial value problem

NIST:

National institute of standards

NLLS:

Nonlinear least squares

RP:

Repressilator model

Declarations

Acknowledgements

Some preliminary results, regarding this study, were presented at the 6th IFAC Conference on Foundations of Systems Biology in Engineering (FOSBE 2016) in Magdeburg, Germany.

Funding

This research has received funding from the European Union’s Horizon 2020 research and innovation program under grant agreement No 675585 (MSCA ITN “SyMBioSys”) and from the Spanish MINECO/FEDER project SYNBIOCONTROL (DPI2017-82896-C2-2-R). Jake Alan Pitt is a Marie Skłodowska-Curie Early Stage Researcher at IIM-CSIC (Vigo, Spain) under the supervision of Prof Julio R. Banga. The funding bodies played no role in the design of the study, the collection and analysis of the data or in the writing of the manuscript.

Authors’ contributions

JRB and JAP conceived of the study. JRB planned and coordinated the study. JAP implemented the methods and carried out all the computations. JAP and JRB analysed the results. JRB and JAP drafted the manuscript. All authors read and approved the final manuscript.

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License(http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver(http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
(Bio)Process Engineering Group, IIM-CSIC, Eduardo Cabello 6, Vigo, 36208, Spain
(2)
RWTH Aachen University, Faculty of Medicine, Joint Research Centre for Computational Biomedicine (JRC-COMBINE), Aachen, Germany

References

  1. Goldbeter A, Lefever R. Dissipative structures for an allosteric model: Application to glycolytic oscillations. Biophys J. 1972; 12(10):1302–15. https://doi.org/10.1016/S0006-3495(72)86164-2.PubMedPubMed CentralView ArticleGoogle Scholar
  2. Bier M, Bakker BM, Westerhoff HV. How yeast cells synchronize their glycolytic oscillations: A perturbation analytic treatment. Biophys J. 2000; 78(3):1087–93. https://doi.org/10.1016/S0006-3495(00)76667-7.PubMedPubMed CentralView ArticleGoogle Scholar
  3. Danø S, Sørensen PG, Hynne F. Sustained oscillations in living cells. Nature. 1999; 402(6759):320–2. https://doi.org/10.1038/46329.PubMedView ArticleGoogle Scholar
  4. Olsen LF, Kummer U, Kindzelskii AL, Petty HR. A model of the oscillatory metabolism of activated neutrophils. Biophys J. 2003; 84(1):69–81. https://doi.org/10.1016/S0006-3495(03)74833-4.PubMedPubMed CentralView ArticleGoogle Scholar
  5. Papagiannakis A, Niebel B, Wit EC, Heinemann M. Autonomous metabolic oscillations robustly gate the early and late cell cycle. Mol Cell. 2017; 65(2):285–95. https://doi.org/10.1016/j.molcel.2016.11.018.PubMedView ArticleGoogle Scholar
  6. Tyson JJ, Csikasz-Nagy A, Novak B. The dynamics of cell cycle regulation. BioEssays. 2002; 24(12):1095–109. https://doi.org/10.1002/bies.10191.PubMedView ArticleGoogle Scholar
  7. Ingolia NT, Murray AW. The ups and downs of modeling the cell cycle. Curr Biol. 2004; 14(18):771–7. https://doi.org/10.1016/j.cub.2004.09.018.View ArticleGoogle Scholar
  8. Alfieri R, Merelli I, Mosca E, Milanesi L. A data integration approach for cell cycle analysis oriented to model simulation in systems biology. BMC Syst Biol. 2007;1. https://doi.org/10.1186/1752-0509-1-35.
  9. Csikász-Nagy A. Computational systems biology of the cell cycle. Brief Bioinform. 2009; 10(4):424–34. https://doi.org/10.1093/bib/bbp005.PubMedView ArticleGoogle Scholar
  10. Barkai N, Leibler S. Circadian clocks limited by noise. Nature. 2000; 403(6767):267–8.PubMedView ArticleGoogle Scholar
  11. Hastings MH. Circadian clockwork: Two loops are better than one. Nat Rev Neurosci. 2000; 1(2):143–6. https://doi.org/10.1038/35039080.PubMedView ArticleGoogle Scholar
  12. Rand DA, Shulgin BV, Salazar D, Millar AJ. Design principles underlying circadian clocks. J R Soc Interface. 2004; 1(1):119–30. https://doi.org/10.1098/rsif.2004.0014.PubMedPubMed CentralView ArticleGoogle Scholar
  13. Leloup J-C, Goldbeter A. Toward a detailed computational model for the mammalian circadian clock. Proc Natl Acad Sci USA. 2003; 100(12):7051–6. https://doi.org/10.1073/pnas.1132112100.PubMedView ArticleGoogle Scholar
  14. Forger DB, Peskin CS. A detailed predictive model of the mammalian circadian clock. Proc Natl Acad Sci USA. 2003; 100(25):14806–11. https://doi.org/10.1073/pnas.2036281100.PubMedView ArticleGoogle Scholar
  15. Locke JCW, Millar AJ, Turner MS. Modelling genetic networks with noisy and varied experimental data: The circadian clock in arabidopsis thaliana. J Theor Biol. 2005; 234(3):383–93. https://doi.org/10.1016/j.jtbi.2004.11.038.PubMedView ArticleGoogle Scholar
  16. Ullner E, Buceta J, Díez-Noguera A, García-Ojalvo J. Noise-induced coherence in multicellular circadian clocks. Biophys J. 2009; 96(9):3573–81. https://doi.org/10.1016/j.bpj.2009.02.031.PubMedPubMed CentralView ArticleGoogle Scholar
  17. Elowitz MB, Leibier S. A synthetic oscillatory network of transcriptional regulators. Nature. 2000; 403(6767):335–8. https://doi.org/10.1038/35002125.View ArticleGoogle Scholar
  18. Purcell O, Savery NJ, Grierson CS, Di Bernardo M. A comparative analysis of synthetic genetic oscillators. J R Soc Interface. 2010; 7(52):1503–24. https://doi.org/10.1098/rsif.2010.0183.PubMedPubMed CentralView ArticleGoogle Scholar
  19. Kim J, Winfree E. Synthetic in vitro transcriptional oscillators. Mol Syst Biol. 2011;7. https://doi.org/10.1038/msb.2010.119.
  20. Lu TK, Khalil AS, Collins JJ. Next-generation synthetic gene networks. Nat Biotechnol. 2009; 27(12):1139–50. https://doi.org/10.1038/nbt.1591.PubMedPubMed CentralView ArticleGoogle Scholar
  21. El Samad H, Del Vecchio D, Khammash M. Repressilators and promotilators: Loop dynamics in synthetic gene networks. Proceedings of the American Control. 2005; 6:4405–4410.Google Scholar
  22. Tsai TY-C, Yoon SC, Ma W, Pomerening JR, Tang C, Ferrell Jr. JE. Robust, tunable biological oscillations from interlinked positive and negative feedback loops. Science. 2008; 321(5885):126–39. https://doi.org/10.1126/science.1156951.PubMedPubMed CentralView ArticleGoogle Scholar
  23. Tigges M, Marquez-Lago TT, Stelling J, Fussenegger M. A tunable synthetic mammalian oscillator. Nature. 2009; 457(7227):309–12. https://doi.org/10.1038/nature07616.PubMedView ArticlePubMed CentralGoogle Scholar
  24. Stricker J, Cookson S, Bennett MR, Mather WH, Tsimring LS, Hasty J. A fast, robust and tunable synthetic gene oscillator. Nature. 2008; 456(7221):516–9. https://doi.org/10.1038/nature07389.PubMedView ArticleGoogle Scholar
  25. Goodwin BC. Oscillatory behavior in enzymatic control processes. Adv Enzym Regul. 1965; 3(C):425–4281242943036431437.View ArticleGoogle Scholar
  26. Griffith JS. Mathematics of cellular control processes i. negative feedback to one gene. J Theor Biol. 1968; 20(2):202–8. https://doi.org/10.1016/0022-5193(68)90189-6.PubMedView ArticleGoogle Scholar
  27. Pavlidis T. Biological Oscillators: Their Mathematical Analysis. New Jersey: Elsevier; 2012. https://doi.org/10.1016/B978-0-12-547350-7.X5001-9.Google Scholar
  28. Strogatz SH. Exploring complex networks. Nature. 2001; 410(6825):268–76. https://doi.org/10.1038/35065725.PubMedView ArticleGoogle Scholar
  29. Goldbeter A. Computational approaches to cellular rhythms. Nature. 2002; 420(6912):238–45. https://doi.org/10.1038/nature01259.PubMedView ArticleGoogle Scholar
  30. Garcia-Ojalvo J, Elowitz MB, Strogatz SH. Modeling a synthetic multicellular clock: Repressilators coupled by quorum sensing. Proc Natl Acad Sci USA. 2004; 101(30):10955–60. https://doi.org/10.1073/pnas.0307095101.PubMedView ArticleGoogle Scholar
  31. Vasylchenkova A, Mraz M, Zimic N, Moskon M. Classical mechanics approach applied to analysis of genetic oscillators. IEEE/ACM Trans Comput Biol Bioinforma. 2017; 14(3):721–7. https://doi.org/10.1109/TCBB.2016.2550456. cited By 0.View ArticleGoogle Scholar
  32. Stražar M, Mraz M, Zimic N, Moškon M. An adaptive genetic algorithm for parameter estimation of biological oscillator models to achieve target quantitative system response. Nat Comput. 2014; 13(1):119–27. https://doi.org/10.1007/s11047-013-9383-8. cited By 0.View ArticleGoogle Scholar
  33. Rand DA, Shulgin BV, Salazar JD, Millar AJ. Uncovering the design principles of circadian clocks: Mathematical analysis of flexibility and evolutionary goals. J Theor Biol. 2006; 238(3):616–35. https://doi.org/10.1016/j.jtbi.2005.06.026.PubMedView ArticleGoogle Scholar
  34. Novák B, Tyson JJ. Design principles of biochemical oscillators. Nat Rev Mol Cell Biol. 2008; 9(12):981–91. https://doi.org/10.1038/nrm2530.PubMedPubMed CentralView ArticleGoogle Scholar
  35. Guantes R, Poyatos JF. Dynamical principles of two-component genetic oscillators. PLoS Comput Biol. 2006; 2(3):188–97. https://doi.org/10.1371/journal.pcbi.0020030.View ArticleGoogle Scholar
  36. Woods ML, Leon M, Perez-Carrasco R, Barnes CP. A statistical approach reveals designs for the most robust stochastic gene oscillators. ACS Synth Biol. 2016; 5(6):459–70. https://doi.org/10.1021/acssynbio.5b00179.PubMedPubMed CentralView ArticleGoogle Scholar
  37. Otero-Muras I, Banga JR. Design principles of biological oscillators through optimization: Forward and reverse analysis. PLoS ONE. 2016; 11(12). https://doi.org/10.1371/journal.pone.0166867.
  38. Kang JH, Cho K-H. A novel interaction perturbation analysis reveals a comprehensive regulatory principle underlying various biochemical oscillators. BMC Syst Biol. 2017; 11(1):95.PubMedPubMed CentralView ArticleGoogle Scholar
  39. Perez-Carrasco R, Barnes CP, Schaerli Y, Isalan M, Briscoe J, Page KM. Combining a toggle switch and a repressilator within the ac-dc circuit generates distinct dynamical behaviors. Cell Syst. 2018; 6(4):521–30.PubMedPubMed CentralView ArticleGoogle Scholar
  40. Strogatz SH, Stewart I. Coupled oscillators and biological synchronization. Sci Am. 1993; 269(6):102–1095.PubMedView ArticleGoogle Scholar
  41. Henson MA. Modeling the synchronization of yeast respiratory oscillations. J Theor Biol. 2004; 231(3):443–58. https://doi.org/10.1016/j.jtbi.2004.07.009.PubMedView ArticleGoogle Scholar
  42. Henson MA, Vol. 50. Multicellular models of intercellular synchronization in circadian neural networks. Massachusetts: Elsevier; 2013, pp. 48–64. https://doi.org/10.1016/j.bpj.2011.04.051.View ArticleGoogle Scholar
  43. Bold KA, Zou Y, Kevrekidis IG, Henson MA. An equation-free approach to analyzing heterogeneous cell population dynamics. J Math Biol. 2007; 55(3):331–52.PubMedView ArticleGoogle Scholar
  44. Papachristodoulou A, Jadbabaie A, Munz U. Effects of delay in multi-agent consensus and oscillator synchronization. IEEE Trans Autom Control. 2010; 55(6):1471–7. https://doi.org/10.1109/TAC.2010.2044274.View ArticleGoogle Scholar
  45. Bagheri N, Taylor SR, Meeker K, Petzold LR, Doyle III FJ. Synchrony and entrainment properties of robust circadian oscillators. J R Soc Interface. 2008; 5(SUPPL. 1):17–28. https://doi.org/10.1098/rsif.2008.0045.focus.Google Scholar
  46. Gupta A, Hepp B, Khammash M. Noise induces the population-level entrainment of incoherent, uncoupled intracellular oscillators. Cell Syst. 2016; 3(6):521–53113. https://doi.org/10.1016/j.cels.2016.10.006.PubMedView ArticleGoogle Scholar
  47. Abel JH, Chakrabarty A, Doyle FJ. Controlling biological time: Nonlinear model predictive control for populations of circadian oscillators. In: Lecture Notes in Control and Information Sciences - Proceedings. Cham: Springer: 2018. p. 123–138. https://doi.org/10.1007/978-3-319-67068-3_9. https://doi.org/10.1007/978-3-319-67068-3_9.Google Scholar
  48. Sible JC, Tyson JJ. Mathematical modeling as a tool for investigating cell cycle control networks. Methods. 2007; 41(2):238–47. https://doi.org/10.1016/j.ymeth.2006.08.003.PubMedPubMed CentralView ArticleGoogle Scholar
  49. Garcia-Ojalvo J. Physical approaches to the dynamics of genetic circuits: A tutorial. Contemp Phys. 2011; 52(5):439–64. https://doi.org/10.1080/00107514.2011.588432.View ArticleGoogle Scholar
  50. Silk D, Kirk PDW, Barnes CP, Toni T, Rose A, Moon S, Dallman MJ, Stumpf MPH. Designing attractive models via automated identification of chaotic and oscillatory dynamical regimes. Nat Commun. 2011; 2(1). https://doi.org/10.1038/ncomms1496.
  51. Dunlop MJ, Franco E, Murray RM. A multi-model approach to identification of biosynthetic pathways. Proceedings of the American Control Conference. 2007:1600–5. https://doi.org/10.1109/ACC.2007.4282720.
  52. Podkolodnaya OA, Tverdokhleb NN, Podkolodnyy NL. Computational modeling of the cell-autonomous mammalian circadian oscillator. BMC Syst Biol. 2017; 11(1):27.PubMed CentralView ArticlePubMedGoogle Scholar
  53. Zak DE, Gonye GE, Schwaber JS, Doyle FJ. Importance of input perturbations and stochastic gene expression in the reverse engineering of genetic regulatory networks: insights from an identifiability analysis of an in silico network. Genome Res. 2003; 13(11):2396–405.PubMedPubMed CentralView ArticleGoogle Scholar
  54. Villaverde AF, Banga JR. Reverse engineering and identification in systems biology: Strategies, perspectives and challenges. J R Soc Interface. 2014; 11(91). https://doi.org/10.1098/rsif.2013.0505.
  55. Clermont G, Zenker S. The inverse problem in mathematical biology. Math Biosci. 2015; 260:11–15.PubMedView ArticleGoogle Scholar
  56. Gadkar KG, Gunawan R, Doyle III FJ. Iterative approach to model identification of biological networks. BMC Bioinformatics. 2005;6. https://doi.org/10.1186/1471-2105-6-155.
  57. Ashyraliyev M, Fomekong-Nanfack Y, Kaandorp JA, Blom JG. Systems biology: Parameter estimation for biochemical models. FEBS J. 2009; 276(4):886–902. https://doi.org/10.1111/j.1742-4658.2008.06844.x.PubMedView ArticleGoogle Scholar
  58. van Riel NAW. Dynamic modelling and analysis of biochemical networks: Mechanism-based models and model-based experiments. Brief Bioinform. 2006; 7(4):364–74. https://doi.org/10.1093/bib/bbl040.PubMedView ArticleGoogle Scholar
  59. Balsa-Canto E, Alonso AA, Banga JR. An iterative identification procedure for dynamic modeling of biochemical networks. BMC Syst Biol. 2010;4. https://doi.org/10.1186/1752-0509-4-11.
  60. Jaqaman K, Danuser G. Linking data to models: Data regression. Nat Rev Mol Cell Biol. 2006; 7(11):813–9. https://doi.org/10.1038/nrm2030.PubMedView ArticlePubMed CentralGoogle Scholar
  61. Chou I-C, Voit EO. Recent developments in parameter estimation and structure identification of biochemical and genomic systems. Math Biosci. 2009; 219(2):57–83. https://doi.org/10.1016/j.mbs.2009.03.002.PubMedPubMed CentralView ArticleGoogle Scholar
  62. Cedersund G, Samuelsson O, Ball G, Tegnér J, Gomez-Cabrero D. In: Geris L, Gomez-Cabrero D, (eds).Optimization in Biology Parameter Estimation and the Associated Optimization Problem. Cham: Springer; 2016, pp. 177–197. https://doi.org/10.1007/978-3-319-21296-8_7.Google Scholar
  63. Heinemann T, Raue A. Model calibration and uncertainty analysis in signaling networks. Curr Opin Biotechnol. 2016; 39:143–9.PubMedView ArticlePubMed CentralGoogle Scholar
  64. Fan M, Kuwahara H, Wang X, Wang S, Gao X. Parameter estimation methods for gene circuit modeling from time-series mrna data: a comparative study. Brief Bioinform. 2015; 16(6):987–99.PubMedView ArticlePubMed CentralGoogle Scholar
  65. Mhaskar P, Hjortsø MA, Henson MA. Cell population modeling and parameter estimation for continuous cultures of saccharomyces cerevisiae. Biotechnol Prog. 2002; 18(5):1010–26. https://doi.org/10.1021/bp020083i.PubMedView ArticlePubMed CentralGoogle Scholar
  66. Zwolak JW, Tyson JJ, Watson LT. Parameter estimation for a mathematical model of the cell cycle in frog eggs. J Comput Biol. 2005; 12(1):48–63. https://doi.org/10.1089/cmb.2005.12.48.PubMedView ArticlePubMed CentralGoogle Scholar
  67. Balsa-Canto E, Peifer M, Banga JR, Timmer J, Fleck C. Hybrid optimization method with general switching strategy for parameter estimation. BMC Syst Biol. 2008;2. https://doi.org/10.1186/1752-0509-2-26.
  68. Panning TD, Watson LT, Allen NA, Chen KC, Shaffer CA, Tyson JJ. Deterministic parallel global parameter estimation for a model of the budding yeast cell cycle. J Glob Optim. 2008; 40(4):719–38. https://doi.org/10.1007/s10898-007-9273-7.View ArticleGoogle Scholar
  69. Lillacci G, Khammash M. Parameter estimation and model selection in computational biology. PLoS Comput Biol. 2010; 6(3). https://doi.org/10.1371/journal.pcbi.1000696.
  70. Toni T, Welch D, Strelkowa N, Ipsen A, Stumpf MPH. Approximate bayesian computation scheme for parameter inference and model selection in dynamical systems. J R Soc Interface. 2009; 6(31):187–202. https://doi.org/10.1098/rsif.2008.0172.PubMedView ArticleGoogle Scholar
  71. Wang B, Enright W. Parameter estimation for odes using a cross-entropy approach. SIAM J Sci Comput. 2013; 35(6):2718–37. https://doi.org/10.1137/120889733.View ArticleGoogle Scholar
  72. Vanier MC, Bower JM. A comparative survey of automated parameter-search methods for compartmental neural models. J Comput Neurosci. 1999; 7(2):149–71. https://doi.org/10.1023/A:1008972005316.PubMedView ArticleGoogle Scholar
  73. Zak DE, Stelling J, Doyle III FJ. Sensitivity analysis of oscillatory (bio)chemical systems. Comput Chem Eng. 2005; 29(3):663–73. https://doi.org/10.1016/j.compchemeng.2004.08.021.View ArticleGoogle Scholar
  74. Radde N. The impact of time delays on the robustness of biological oscillators and the effect of bifurcations on the inverse problem. EURASIP J Bioinforma Syst Biol. 2009;2009. https://doi.org/10.1155/2009/327503.
  75. Hafner M, Koeppl H, Hasler M, Wagner A. ’glocal’ robustness analysis and model discrimination for circadian oscillators. PLoS Comput Biol. 2009; 5(10). https://doi.org/10.1371/journal.pcbi.1000534.
  76. Hasenauer J, Breindl C, Waldherr S, Allgöwer F. Approximative classification of regions in parameter spaces of nonlinear odes yielding different qualitative behavior. Proceedings of the IEEE Conference on Decision and Control. 2010;:4114–9. https://doi.org/10.1109/CDC.2010.5718044.
  77. Schittkowski K. Numerical Data Fitting in Dynamical Systems: a Practical Introduction with Applications and Software vol. 77. Bayreuth: Springer; 2013.Google Scholar
  78. Seber GAF, Wild CJ. Nonlinear Regression. Wiley Series in Probability and Statistics. Auckland: Wiley; 2003. https://books.google.es/books?id=YBYlCpBNo_cC.Google Scholar
  79. Walter E, Pronzato L. Identification of Parametric Models from Experimental Data. London: Springer; 1997.Google Scholar
  80. Chis O-T, Banga JR, Balsa-Canto E. Structural identifiability of systems biology models: a critical comparison of methods. PLoS ONE. 2011; 6(11):27755.View ArticleGoogle Scholar
  81. Miao H, Xia X, Perelson AS, Wu H. On identifiability of nonlinear ode models and applications in viral dynamics. SIAM Rev. 2011; 53(1):3–39.View ArticleGoogle Scholar
  82. Villaverde AF, Barreiro A, Papachristodoulou A. Structural identifiability of dynamic systems biology models. PLoS Comput Biol. 2016; 12(10). https://doi.org/10.1371/journal.pcbi.1005153.
  83. Ligon TS, Fröhlich F, Chiş OT, Banga JR, Balsa-Canto E, Hasenauer J. Genssi 2.0: multi-experiment structural identifiability analysis of sbml models. Bioinformatics. 2017; 34(8):1421–3.PubMed CentralView ArticlePubMedGoogle Scholar
  84. Hong H, Ovchinnikov A, Pogudin G, Yap C. Global identifiability of differential models. arXiv preprint arXiv:1801.08112. 2018.Google Scholar
  85. Brun R, Reichert P, Künsch HR. Practical identifiability analysis of large environmental simulation models. Water Resour Res. 2001; 37(4):1015–30.View ArticleGoogle Scholar
  86. Banga JR, Balsa-Canto E. Parameter estimation and optimal experimental design. Essays Biochem. 2008; 45:195–209. https://doi.org/10.1042/BSE0450195.PubMedView ArticleGoogle Scholar
  87. Gábor A, Villaverde AF, Banga JR. Parameter identifiability analysis and visualization in large-scale kinetic models of biosystems. BMC Syst Biol. 2017; 11(1). https://doi.org/10.1186/s12918-017-0428-y.
  88. Ljung L, Chen T. Convexity Issues in System Identification.2013. p. 1–9. https://doi.org/10.1109/ICCA.2013.6565206.
  89. Chen WW, Niepel M, Sorger PK. Classic and contemporary approaches to modeling biochemical reactions. Gene Dev. 2010; 24(17):1861–75.PubMedView ArticleGoogle Scholar
  90. Mendes P, Kell DB. Non-linear optimization of biochemical pathways: Applications to metabolic engineering and parameter estimation. Bioinformatics. 1998; 14(10):869–83. https://doi.org/10.1093/bioinformatics/14.10.869.PubMedView ArticleGoogle Scholar
  91. Esposito WR, Floudas CA. Global optimization for the parameter estimation of differential- algebraic systems. Ind Eng Chem Res. 2000; 39(5):1291–310. https://doi.org/10.1021/ie990486w.View ArticleGoogle Scholar
  92. Moles CG, Mendes P, Banga JR. Parameter estimation in biochemical pathways: A comparison of global optimization methods. Genome Res. 2003; 13(11):2467–74. https://doi.org/10.1101/gr.1262503.PubMedPubMed CentralView ArticleGoogle Scholar
  93. Polisetty PK, Voit EO, Gatzke EP. Identification of metabolic system parameters using global optimization methods. Theor Biol Med Model. 2006;3. https://doi.org/10.1186/1742-4682-3-4.
  94. Geier F, Fengos G, Felizzi F, Iber D. Analyzing and constraining signaling networks: parameter estimation for the user. In: Computational Modeling of Signaling Networks. New Jersey: Springer: 2012. p. 23–39.Google Scholar
  95. Raue A, Schilling M, Bachmann J, Matteson A, Schelke M, Kaschek D, Hug S, Kreutz C, Harms BD, Theis FJ, Klingmüller U, Timmer J. Lessons learned from quantitative dynamical modeling in systems biology. PLoS ONE. 2013; 8(9):74335. https://doi.org/10.1371/journal.pone.0074335.View ArticleGoogle Scholar
  96. Fröhlich F, Kaltenbacher B, Theis FJ, Hasenauer J. Scalable parameter estimation for genome-scale biochemical reaction networks. PLoS Comput Biol. 2017; 13(1):1005331.View ArticleGoogle Scholar
  97. Rodriguez-Fernandez M, Egea JA, Banga JR. Novel metaheuristic for parameter estimation in nonlinear dynamic biological systems. BMC Bioinformatics. 2006;7. https://doi.org/10.1186/1471-2105-7-483.
  98. Kim KA, Spencer SL, Albeck JG, Burke JM, Sorger PK, Gaudet S, et al. Systematic calibration of a cell signaling network model. BMC Bioinformatics. 2010; 11(1):202.PubMedPubMed CentralView ArticleGoogle Scholar
  99. Gábor A, Banga JR. Robust and efficient parameter estimation in dynamic models of biological systems. BMC Syst Biol. 2015; 9:74. https://doi.org/10.1186/s12918-015-0219-2.PubMedPubMed CentralView ArticleGoogle Scholar
  100. Villaverde AF, Froehlich F, Weindl D, Hasenauer J, Banga JR. Benchmarking optimization methods for parameter estimation in large kinetic models. Bioinformatics. 2018;:bty736. https://doi.org/10.1093/bioinformatics/bty736.
  101. Egea JA, Henriques D, Cokelaer T, Villaverde AF, MacNamara A, Danciu D-P, Banga JR, Saez-Rodriguez J. Meigo: An open-source software suite based on metaheuristics for global optimization in systems biology and bioinformatics. BMC Bioinformatics. 2014; 15(1). https://doi.org/10.1186/1471-2105-15-136.
  102. Jaulin L, Walter E. Set inversion via interval analysis for nonlinear bounded-error estimation. Automatica. 1993; 29(4):1053–64. https://doi.org/10.1016/0005-1098(93)90106-4.View ArticleGoogle Scholar
  103. Chachuat B, Houska B, Paulen R, Perić N, Rajyaguru J, Villanueva ME. Set-theoretic approaches in analysis, estimation and control of nonlinear systems. IFAC-PapersOnLine. 2015; 28(8):981–95. https://doi.org/10.1016/j.ifacol.2015.09.097.View ArticleGoogle Scholar
  104. Herrero P, Georgiou P, Toumazou C, Delaunay B, Jaulin L. An efficient implementation of the sivia algorithm in a high-level numerical programming language. Reliab Comput. 2012; 16:239–51.Google Scholar
  105. Zamora-Sillero E, Hafner M, Ibig A, Stelling J, Wagner A. Efficient characterization of high-dimensional parameter spaces for systems biology. BMC Syst Biol. 2011;5. https://doi.org/10.1186/1752-0509-5-142.
  106. Silver N. The Signal and the Noise: Why so Many Predictions Fail–but Some Don’t. New York: Penguin; 2012.Google Scholar
  107. Engl HW, Hanke M, Neubauer A. Regularization of Inverse Problems vol. 375. London: Springer; 1996.View ArticleGoogle Scholar
  108. Rogers J, Filliben J, Gill L, Guthrie W, Lagergren E, Vangel M. Strd: Statistical reference datasets for testing the numerical accuracy of statistical software. Technical report, National Institute of Standards and Technology, Washington, D.C. Number 1396. 1998.Google Scholar
  109. Dennis JE, Gay DM, Walsh RE. An adaptive nonlinear least-squares algorithm. ACM Trans Math Softw (TOMS). 1981; 7(3):348–68. https://doi.org/10.1145/355958.355965.View ArticleGoogle Scholar
  110. Fröhlich F, Theis FJ, Rädler JO, Hasenauer J. Parameter estimation for dynamical systems with discrete events and logical operations. Bioinformatics. 2017; 33(7):1049–56. https://doi.org/10.1093/bioinformatics/btw764.PubMedGoogle Scholar
  111. Serban R, Hindmash AC. Cvodes, the sensitivity-enabled ode solver in sundials. Proceedings of the ASME International Design Engineering Technical Conferences and Computers and Information in Engineering Conference - DETC2005 6 A. 2005;:257–269.Google Scholar
  112. Egea JA, Martí R, Banga JR. An evolutionary method for complex-process optimization. Comput Oper Res. 2010; 37(2):315–24. https://doi.org/10.1016/j.cor.2009.05.003.View ArticleGoogle Scholar
  113. Press WH, Teukolsky SA, Flannery BP, Vetterling WT. Numerical Recipes with Source Code CD-ROM 3rd Edition: The Art of Scientific Computing. New York: Cambridge University Press; 2007.Google Scholar
  114. Joshi M, Seidel-Morgenstern A, Kremling A. Exploiting the bootstrap method for quantifying parameter confidence intervals in dynamical systems. Metab Eng. 2006; 8(5):447–55.PubMedView ArticleGoogle Scholar
  115. Hodgkin AL, Huxley AF. A quantitative description of membrane current and its application to conduction and excitation in nerve. J Physiol. 1952; 117(4):500–44. https://doi.org/10.1113/jphysiol.1952.sp004764.PubMedPubMed CentralView ArticleGoogle Scholar
  116. Decroly O, Goldbeter A. Proc Natl Acad Sci USA. 1982; 79(22 I):6917–21. https://doi.org/10.1073/pnas.79.22.6917.
  117. FitzHugh R. Impulses and physiological states in theoretical models of nerve membrane. Biophys J. 1961; 1(6):445–66. https://doi.org/10.1016/S0006-3495(61)86902-6.PubMedPubMed CentralView ArticleGoogle Scholar

Copyright

© The Author(s) 2019

Advertisement
