  • Research article
  • Open Access

DeepACLSTM: deep asymmetric convolutional long short-term memory neural models for protein secondary structure prediction

BMC Bioinformatics201920:341

https://doi.org/10.1186/s12859-019-2940-0

  • Received: 4 September 2018
  • Accepted: 7 June 2019
  • Published:

Abstract

Background

Protein secondary structure (PSS) is critical to further predict the tertiary structure, understand protein function and design drugs. However, experimental techniques of PSS are time consuming and expensive, and thus it’s very urgent to develop efficient computational approaches for predicting PSS based on sequence information alone. Moreover, the feature matrix of a protein contains two dimensions: the amino-acid residue dimension and the feature vector dimension. Existing deep learning based methods have achieved remarkable performances of PSS prediction, but the methods often utilize the features from the amino-acid dimension. Thus, there is still room to improve computational methods of PSS prediction.

Results

We propose a novel deep neural network method, called DeepACLSTM, to predict 8-category PSS from protein sequence features and profile features. Our method efficiently applies asymmetric convolutional neural networks (ACNNs) combined with bidirectional long short-term memory (BLSTM) neural networks to predict PSS, leveraging the feature vector dimension of the protein feature matrix. In DeepACLSTM, the ACNNs extract the complex local contexts of amino-acids; the BLSTM neural networks capture the long-distance interdependencies between amino-acids. Furthermore, the prediction module predicts the category of each amino-acid residue based on both local contexts and long-distance interdependencies. To evaluate performances of DeepACLSTM, we conduct experiments on three publicly available datasets: CB513, CASP10 and CASP12. Results indicate that the performance of our method is superior to the state-of-the-art baselines on three publicly datasets.

Conclusions

Experiments demonstrate that DeepACLSTM is an efficient predication method for predicting 8-category PSS and has the ability to extract more complex sequence-structure relationships between amino-acid residues. Moreover, experiments also indicate the feature vector dimension contains the useful information for improving PSS prediction.

Keywords

  • Protein secondary structure
  • Deep learning
  • Asymmetric convolutional neural network
  • Long short-term memory

Background

Protein secondary structure (PSS) is the 3-dimensional form of local segments in protein sequences [1, 2], and secondary structure elements unaffectedly form as an intermediate before the protein sequence folds into its tertiary structure. The prediction of PSS is a vital intermediate step in tertiary structure prediction and is also regarded as the bridge between the protein sequence and tertiary structure [3, 4]. The accurate identification of PSS cannot only enable us to understand the complex dependency relationships between protein sequences and tertiary structures, and also promote the analysis of protein function and drug design [3, 57]. The experimental identification of PSS is expensive and time consuming, and thus it becomes urgent to develop efficient computational approaches for predicting PSS based on sequence information alone. However, accurately predicting PSS from sequence information and understanding dependency relationships between sequences and structures are a very challenging task in computational biology [3, 4, 8].

PSS often is classified into 3 categories: H (helices), E (strands) and C (coils); in addition, according to the DSSP program [9], PSS is also classified into 8 categories: G (3-turn helix), H (4-turn helix), I (5-turn helix), T (hydrogen bonded turn), E (extended strand in parallel and/or anti-parallel β-sheet conformation), B (residue in isolated β-bridge), S (bend) and C (coil). Of course, the methods of PSS prediction [3, 4] are also commonly classified into 3-category prediction and 8-category prediction. Compared to 3-category prediction, the prediction of 8-category secondary structure can reveal more detail structure information of proteins and the task is also more complex and challenging. Thus, this paper only focuses on 8-category PSS prediction based on protein sequences.

PSS prediction has been extensively studied [6]. Many computational methods have also been proposed to identify secondary structures, such as statistical methods [10], SVM [11], CRF [12], and the methods have achieved remarkable performances. Statistical methods [10] were used to identify the secondary structures by analyzing the probability of the specific amino acid, but their performances are far from the application due to the inadequate features extracted. Subsequently researchers [11, 13] also proposed secondary structure prediction methods based on SVM or SVM variation. Although the methods have been used successfully, both statistical models and traditional machine learning methods have their own limitations. In brief, traditional methods heavily rely on handcrafted features and easily ignore the long-distance dependencies of protein sequences.

Inspired by the remarkable success in computer vision [14], speech recognition [15] and sentiment classification [16], deep learning based methods are now being intensively used in many biological research fields, such as protein contact map [17], drug-target binding affinity [18, 19], chromatin accessibility [20] and protein function [21, 22]. The main advantages of deep learning methods are that they can automatically represent the raw sequence and learn the hidden patterns by non-linear transformations. Moreover, these convolutional neural networks (CNNs) and recurrent neural networks (RNNs) models have already been applied to the PSS prediction [3, 4, 8, 23, 24].

It’s well known that the dependencies between amino-acid residues usually contain local contexts and long-distance interdependencies [3, 4, 24] in protein sequences. Consequently, according to the dependencies between amino-acid residues, deep learning based methods can be classified into three categories: local context based methods, long-distance dependency based methods, local context and long-distance dependency based methods. Firstly, local context based methods indicated that the methods usually identified the secondary structure of each amino acid based on the local contexts or statistical features in protein sequences. Pollastri et al. [25] proposed a prediction method, called SSpro8, based on PSI-BLAST-derived profiles by bidirectional recurrent neural networks (BRNNs). Wang et al. proposed a conditional neural field (CNF) prediction method. Secondly, long-distance dependency based methods indicated that the methods mainly focused on the long-distance dependency of between amino-acid residues. Sønderby et al. [26] utilized bidirectional long short-term memory (BLSTM) to capture the long-distance dependency of between amino-acid residues for PSS prediction. Finally, local context and long-distance dependency based methods indicated that the methods exploited both local contexts and long-distance dependencies to predict PSS. Zhou et al. [6] presented a new supervised generative stochastic network (GSN) prediction method. Guo et al. presented a hybrid deep learning framework integrating two-dimensional CNNs with bidirectional recurrent neural networks. Zhou et al. [8] proposed an end-to-end deep network method, which was called a deep convolutional and recurrent neural network (DCRNN) leveraging cascaded convolutional and recurrent neural networks. Zhang et al. [4] presented a novel deep learning architecture, called convolutional residual recurrent neural networks (CRRNNs), leveraging convolutional neural networks, residual networks, and bidirectional recurrent neural networks. Zhou et al. [3] presented a novel deep learning model, called CNNH, by utilizing multiple CNNs with the highway network.

Compared to traditional machine learning methods, deep learning based methods can automatically extract amino acid features and hidden patterns in protein sequences. The feature representation of each amino-acid sequence usually forms the matrix, and it’s obvious that the matrix contains two dimensions (rows correspond to amino acid dimensions, and columns correspond to feature vector dimensions). CNNs based secondary structure prediction methods [3, 4] have achieved remarkable results. However, the methods only capture features along the amino-acid residue dimension. Thus, the methods may ignore some important features, which are hidden in the feature vector dimension of protein sequences and likely to be useful for predicting the secondary structures.

Inspired by the success of asymmetric convolutional neural networks (ACNNs) [27] and ultra-deep neural networks [17] in protein contact map prediction, we propose a novel method, called DeepACLSTM, to predict 8-category PSS. DeepACLSTM efficiently applies ACNNs combined with BLSTM neural networks to predict PSS, leveraging the feature vector dimension of the protein feature matrix. The main contributions of this work include: (1) the asymmetric convolutional operation is used to extract complex local contexts between amino-acid residues in protein sequences. Moreover, two stacked BLSTM neural networks are used for further extracting the long-distance interdependencies between amino-acid residues. (2) To verify the efficacy of our DeepACLSTM, we carry out 8-category PSS prediction experiments on three public test datasets respectively: CB513, CASP10 and CASP11. Experiments demonstrate that our proposed method consistently outperforms other benchmark methods. In addition, experiments also indicate that the feature vector dimension contains the useful information for improving 8-category PSS prediction.

Results

Overview of DeepACLSTM

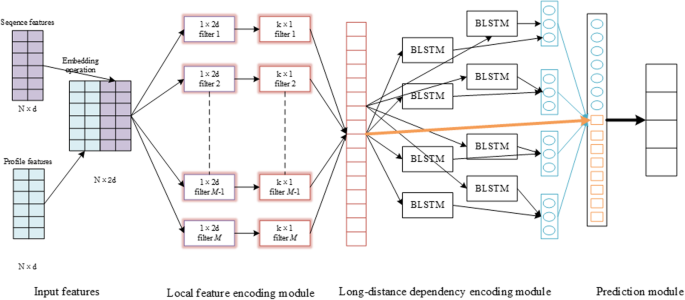

As illustrated in Fig. 1, our proposed deep asymmetric convolutional long short-term memory neural model, called DeepACLSTM, comprises of three modules: Local feature encoding module, Long-distance encoding module and Prediction module.
Fig. 1
Fig. 1

Overview of DeepACLSTM structure

In DeepACLSTM, sequence features and profile features are first concatenated into the matrix representation of proteins. The local feature encoding module maps the matrix into the local dependency feature of amino-acid residues by asymmetric convolution filters that include two convolutional filters: 1 × 2d convolutional filters and k × 1 convolutional filters. Asymmetric convolutional filters first scan along the input for capturing the low level feature patterns of protein sequences by 1 × 2d convolutional operations with M filters; and then subsequent k × 1 convolutional operations with M filters further project the low level feature patterns from 1 × 2d convolutional filters to high level local dependency patterns by k × 1 convolutional filters. The long-distance dependency encoding module captures long-distance dependencies from the representation extracted by the local feature encoding module using two stacked BLSTM neural networks.

The prediction module takes the representation generated by the local feature encoding module and the long-distance dependency encoding module as input, and then predicts 8-category secondary structure of each amino-acid residue through the softmax function. In our model, the fully connected layer with a rectified linear unit (ReLU) reduces input features to a low dimension, for the purpose of alleviating computational burden and meanwhile facilitating the extraction of high level features. Moreover, input features are also discarded at random by the dropout operation [28].

Implementation of DeepACLSTM

A distinguishing characteristic of our model is the use of asymmetric convolutional operations and BLSTM. Asymmetric convolution operations contain two types of filters, as showed in Fig. 1. Benefitting from the rapid development of deep learning toolbox, we can easily use the high level neural network API tool (Keras, https://github.com/fchollet/keras) to design an abstract model, and the backend of Keras is Tensorflow.

Firstly, we develop our proposed DeepACLSTM by Keras API. For example, 1 × 2d convolutional filters are implemented by the Convolution1D layer and k × 1 convolutional filters are implemented by the convolution2D layer from Keras. The stacked BLSTM is implemented by the LSTM layer from Keras.

Secondly, we train the model and update the parameters in DeepACLSTM using the adaptive moment estimation (Adam) algorithm [29]. The datasets and the codes of our method can be accessed online at https://github.com/GYBTA/DALSTM/. Finally, Table 1 shows our proposed deep learning based methods typically have various parameters. In Table 1, FC represents the fully connected layer and NP represents the number of parameters.
Table 1

The main structures and parameters of DeepACLSTM

Layer Type

Size

NP

embedding

21

441

Convolution1D

1 × 42

1806

Convolution2D

3 × 1

168

Dropout1

0.5

0

FC 1

400

706,000

\({LSTM}_f^1\)

300

841,200

\({LSTM}_b^1\)

300

841,200

\({LSTM}_f^2\)

300

721,200

\({LSTM}_b^2\)

300

721,200

Dropout2

0.4

0

FC 2

600

600,600

Softmax

8

4808

Evaluation metrics

The Q8 accuracy is the main evaluation metric in 8-category secondary structure prediction [3, 8]. This paper only focuses on 8-category PSS prediction, so the performance of our model is also evaluated by Q8 accuracy, which is the percentage of the amino-acid residues predicted correctly. A bigger value indicates a better performance of PSS prediction.

Experimental settings

As shown in Fig. 1, the input of DeepACLSTM is a N × d matrix, where N is the length of the input sequence and d is the dimension of vectors. In our work, in order to deal with sequences and compare performance with other baseline methods conveniently [3, 6], all the protein sequences are normalized to N (N = 700) amino acids in the training, validation and test dataset. In other words, for all the datasets, protein sequences shorter than 700 amino acids are padded with zero vectors. Sequences longer than 700 amino acids are truncated for the training and validation dataset. For protein sequences longer than 700 amino acids in the test dataset, we split them to two overlapping sequences.

To prevent our method from overfitting, L2 regularization, Dropout [28] techniques and early-stopping methods are exploited during training our DeepACLSTM. The dropout is first applied between the local feature encoding module and the long-distance dependency module. Then the dropout is applied between the prediction module and the long-distance dependency module. We also adopt the early-stopping method with the maximum number of iterations, and it would stop training the model after 5 times of the unimproved loss value on the validation set. The DeepACLSTM is trained on a single NVIDIA GeForce GTX 1060 GPU with 6GB.

The choice of input features

In the section, we analyze whether both the sequence features and profile features are necessary to predict PSS. Thus, we conduct three experiments on CB513 dataset. The parameters of DeepACLSTM are shown in Table 1. The first experiment evaluates DeepACLSTM with sequence features and the Q8 accuracy is 57.1%; the second experiment evaluates DeepACLSTM with profile features and the Q8 accuracy is 69.6%; moreover, the third experiment evaluates DeepACLSTM with sequence and profile features and the Q8 accuracy is 70.5%.

The results in Fig. 2 show that DeepACLSTM can obtain the best performance when both sequence and profile features are used as the input features. Thus, we regard sequence and profile features as the input features of our method.
Fig. 2
Fig. 2

The performance of DeepACLSTM on different input features

Results of DeepACLSTM

We mainly exploit four protein datasets, which consist one training dataset called CB5534 and three publicly available test datasets: CB513, CASP10 and CASP11. Their details are described in section “Methods”. For validation datasets, we randomly divide CB5534 into the training set and the validation set. We train our model on the CB5534 and compare the Q8 accuracy of our method with the baseline methods on three public test datasets: CB513, CASP10 and CASP11.

Experimental results of DeepACLSTM are summarized in Table 2 and Table 3 on the test datasets in detail. Table 2 shows the performance of DeepACLSTM with different LSTM output dimensions ranging from 50 to 500. Table 3 shows the performance of DeepACLSTM with different filter sizes from 3 to 21. From Table 2, we can see that our method obtains the best Q8 accuracy when the output dimension of LSTM is 300. When the output dimension of LSTM is increased to 300, the Q8 accuracy is increased obviously, and then the accuracy starts to decrease. The main reason may be that our method could capture the most long-distance dependency information when the output dimension is increased to 300 in LSTM. While the output dimension of LSTM is bigger or smaller than 300, our method cannot capture more information of residues in protein sequences. Thus, the LSTM output dimension of our method is 300 in our model.
Table 2

The Q8 accuracy (%) of DeepACLSTM with different LSTM units and the best values are marked in bold

LSTM output dimension

CASP10

CASP11

50

71.8

70.2

100

72.4

70.5

150

74.2

72.1

200

74.1

72.2

250

74.5

72.3

300

75.0

73.0

350

73.7

71.8

400

73.8

71.6

450

74.8

71.8

500

72.1

70.1

Table 3

The Q8 accuracy (%) of DeepACLSTM with different filter size and the best values are marked in bold

Filter Size

CASP10

CASP11

3

75.0

73.0

5

73.9

72.1

7

74.2

72.1

9

74.7

72.4

11

74.4

72.3

13

71.3

70.0

15

69.6

68.6

17

74.3

72.3

19

73.5

71.6

21

74.0

71.7

From Table 3, we can find that our method can get the best Q8 accuracy when the filter size is 3. The Q8 accuracy decreases gradually with the increase of the filter size. When the filter size is increased, the local feature encoding model can extract local correlations between more remote amino-acid residues, but the Q8 accuracy of DeepACLSTM is decreased. The reason is possible that the bigger convolutional filter size integrated with BLSTM neural networks cannot extract more amino-acid features. Thus, the filter size of the local feature encoding module is 3 in our model.

Comparison with baseline methods

PSS is critical for analyzing protein function and drug design [3, 30]. Many computational methods have been proposed for improving the performance of PSS prediction. In this paper, we compare our method with the following approaches:

† SSpro8: Pollastri et al. [25] used ensembles of bidirectional recurrent neural network architectures and PSI-BLAST-derived profiles to improve the prediction of 8-category PSS.

† CNF: Wang et al. presented a new probabilistic method for 8-category secondary structure prediction using a conditional neural field (CNF). The CNF prediction method not only models the complex relationship between sequence features and secondary structures, but also exploits the interdependencies among secondary structure types of adjacent residues.

† DeepCNF: Wang et al. [31] proposed an extension method of CNF (DeepCNF) based on deep learning techniques, which was an integration method between CNF and shallow convolutional neural networks. DeepCNF could extract both complex sequence structure relationships and interdependencies between adjacent secondary structures.

† GSN: Zhou et al. [6] presented a new supervised generative stochastic network (GSN) based method to predict local secondary structure with deep hierarchical representation, which learned a Markov chain to sample from a conditional distribution.

† DCRNN: Li et al. [8] proposed an end-to-end deep network that predicted 8-category PSS from integrated local and global features between amino-acid residues. The deep architecture utilized CNNs with different filter sizes to capture multi-scale local features and three staked gate recurrent units to capture global contextual features.

† CNNH: Zhou et al. [3] presented a novel deep learning based prediction method for PSS, called CNNH, by using multi-scale CNNs with the highway network. Their deep architecture has a highway between two neighbor convolutional layers to deliver information from the current layer to next layer to capture contexts between amino-acid residues.

† CBRNN: Guo et al. [32] presented a hybrid deep learning framework integrating two-dimensional CNNs with bidirectional recurrent neural networks for improving the accuracy of 8-category secondary structure prediction.

In Table 4, the Q8 accuracies of SSpro8, CNF and DeepCNF are reported by Wang et al. [23] (2016) and Guo et al. reported the Q8 accuracy of CBRNN [32] (2018).
Table 4

The Q8 accuracy (%) of our method and baseline methods and the best performance are marked in bold

Methods

CB513

CASP10

CASP11

SSpro8

63.5

64.9

65.6

CNF

64.9

64.8

65.1

DeepCNF

68.3

71.8

72.3

CBRNN

70.2

74.5

72.5

DeepACLSTM

70.5

75.0

73.0

We first compare our method with the SSpro8, CNF, and DeepCNF. The methods mainly extract local contexts between amino-acid residues. Their results are shown in Table 4. From the Table 4, we can see that the Q8 accuracy of our method obviously outperforms the baseline methods on three public datasets; moreover, we can also find that the Q8 accuracy of DeepACLSTM increases by 2.2, 3.2 and 0.7% respectively than DeepCNF on CB513, CASP10 and CASP11 datasets. The outperformance indicates that DeepACLSTM can extract more long-distance interdependencies for improving the performance of 8-category secondary structure prediction. Compared to CBRNN, the performance of DeepACLSTM increases by 0.3, 0.5 and 0.5% on CB513, CASP10 and CASP11 respectively, which indicates that more local structural information can be captured by the asymmetric convolution.

In addition, we also compare DeepACLSTM to the baseline methods on CB513 and CB6133 datasets, including GSN, DCRNN and CNNH. The baseline methods cannot only extract the local contexts, and also capture long-distance dependency in protein sequences. Their results are shown in Table 5. From Table 5, the Q8 accuracy of our method increases by 0.2 and 0.2% than CNNH on CB513 and CB6133 datasets respectively. The outperformance indicates that asymmetric convolution can extract more local contexts between amino-acid residues and BLSTM neural networks integrated with asymmetric convolutions can extract more long-distance dependency information than CNNs with the highway.
Table 5

The Q8 accuracy (%) of our method and baseline methods and the best performance are marked in bold

Methods

CB6133

CB513

GSN

72.1

66.4

DCRNN

73.2

69.4

CNNH

74.0

70.3

DeepACLSTM

74.2

70.5

In Table 5, the Q8 accuracy of GSN is reported by Zhou et al. [6] (2014), the Q8 accuracy of DCRNN is reported by Li et al. [8] (2016) and the Q8 accuracy of CNNH is reported by Zhou et al. [3] (2018).

Influence of the dropout settings

In the section, we explore that how different dropout rates and dropout settings impact on learning robust and effective features in protein sequences. Specially, our model contains two types of dropout settings: dropout1 (D1) and dropout2 (D2).

In order to obtain the optimal dropout rate, we first conduct two sets of experiments on CB513 based on the parameter settings in Table 1; and each dropout rate refers to a variable ranging from 0.1 to 0.9. Experimental results on CB513 dataset are listed in Fig. 3 and Fig. 4.
Fig. 3
Fig. 3

The performance of DeepACLSTM with different D1 rates

Fig. 4
Fig. 4

The performance of DeepACLSTM with different D2 rates

From Fig. 3, we can see that DeepACLSTM with the D1 rate (P = 0.5) obtains the best Q8 accuracy. When the dropout rate P is bigger than 0.5, then the Q8 accuracy is decreased obviously. The main reason is possible that DeepACLSTM with the D1 rate (P = 0.5) can learn more robust and effective features between the local feature encoding module and the long-distance dependency module.

From Fig. 4, it’s obvious that DeepACLSTM with the D2 rate (P = 0.4) obtains the best Q8 accuracy between the prediction module and the long-distance dependency module. When the dropout rate is bigger than 0.4, then the Q8 accuracy is decreased obviously. The main reason is possible that DeepACLSTM with our model with D2 rate (P = 0.4) can learn more robust and effective features on the protein feature matrix.

Thus the D1 rate and the D2 rate are 0.5 and 0.4 in DeepACLSTM respectively. Moreover, in order to explore the influence of the dropout settings on DeepACLSTM with the parameter settings in Table 1, we conduct four experiments to get the appropriate dropout setting on test dataset CB513, CASP10 and CASP11. The four settings are YD1-YD2, YD1-ND2, ND1-YD2 and ND1-ND2, respectively. YD indicates the model adopts the dropout and ND indicates the model doesn’t adopt the dropout. Specially, YD1-YD2 shows that our method uses D1 and D2. YD1-ND2 shows that our method uses D1 and doesn’t use D2. ND1-YD2 shows that our method doesn’t use D1 and only uses D2. ND1-ND2 shows that our method doesn’t use D1 and D2.

The experimental results are shown in Table 6. As shown in Table 6, DeepACLSTM with YD1-YD2 achieves the best performance 70.5, 75.0 and 73.0% respectively on CB513, CASP10 and CASP11 dataset. From Table 6, we can see that the Q8 accuracy of our method with YD1-YD2 outperforms other settings on three public test datasets. Thus, we adopt the dropout setting to avoid overfitting and achieve the best performance in DeepACLSTM.
Table 6

The Q8 accuracy (%) of our method on different dropout settings

Dropout Setting

CB513

CASP10

CASP11

YD1-YD2

70.5

75.0

73.0

YD1-ND2

68.5

72.3

70.3

ND1-YD2

69.1

73.3

71.1

ND1-ND2

69.2

73.7

71.0

Discussion

Compared to the baseline methods, DeepACLSTM utilizes ACNNs to learn the local contexts from the protein feature matrix during training the model. As shown in Fig. 1, the protein feature matrix is first delivered to the local feature encoding module, which is an asymmetric convolution containing 1-dimensional and 2-dimensional convolutional filters. The convolutional filters with 1 × 2d extract information from the feature vector dimension on each amnion-acid residue; and then features from convolutional filters with 1 × 2d are fed into the convolutional filters with k × 1 hat capture the adjacent k amino-acid residues of each position in protein sequences. As shown in Table 3, we also conduct 10 experiments of DeepACLSTM with different filter sizes ranging from 3 to 21 and it’s obvious that DeepACLSTM can achieve the best performance when the filter size is 3 in asymmetric convolutional operations. That’s to say, the asymmetric convolutional operation with adjacent 3 amino-acid residues can extract more local complex features in protein sequences. Secondly, the output of the local feature encoding module is organized as the local feature of protein sequences and then is fed into the long-distance dependency encoding module, which contains two stacked BLSTM neural networks. As shown in Table 2, we conduct 10 experiments of DeepACLSTM with different LSTM output dimension ranging from 50 to 500 and find DeepACLSTM can achieve the best performance when the LSTM output dimension is 300. In other words, the long-distance dependency encoding module with 300 LSTM output dimension has ability to learn more long-distance dependency based on the local features captured by the local feature encoding module.

Based on the above discussion, we can find that DeepACLSTM with different convolutional filter sizes and LSTM output dimensions can get different performances of predicting PSS based on sequence information, and the appropriate parameter adjustment can further improve the performance of the model.

Conclusion

Understanding the complex dependency relations is a very important task in computational biology between sequences and structures. In order to predict 8-category PSS accurately, we have proposed a novel deep learning method for predicting PSS based on sequence information, called DeepACLSTM. Compared to the state-of-art methods, the performance of our method is superior to their performances on three public test datasets: CB513, CASP10 and CASP11. Experiments demonstrate that DeepACLSTM is an efficient method for predicting 8-category secondary structure. Moreover, experiments also indicate the feature vector dimension contains useful information for improving PSS prediction. Moreover, the asymmetric convolution integrated with BLSTM neural networks can extract more local contexts and more long-distance interdependencies between amino-acid residues in protein sequences, which are important to improve 8-category PSS prediction.

Residual neural networks achieved remarkable performance in PSS [4] prediction and protein contact map prediction [17]. Moreover, Zhang et al. [4] also utilized four types of input features, including a position-specific scoring matrix (PSSM), protein coding features, conservation scores, and physical properties, to characterize each residue in protein sequences. Inspired by Zhang et al. [4] and Wang et al. [17], in the future, we would improve our method from the following two aspects: (1) adding other additional properties in input features of proteins, such as physical properties, (2) extending the prediction model using residual networks.

Methods

Firstly, we introduce four publicly available datasets that the models are trained and tested on. Then, we describe in detail the initial representation of amino-acid residues with the embedding technique, which aims to encode the discrete sequence feature into the continuous sequence feature. Moreover, we also describe asymmetric convolutional operations, containing two types of convolutional filters in detail, which is the components of the local context encoding module. The local context encoding module takes the amino-acid vector matrix as input and produces higher-level presentation of amino-acid residues in protein sequences; and then we introduce the stacked BLSTM neural networks which are used to incorporate local contexts on both sides of every amino-acid position to get the long-distance interdependencies in the input. Finally, two types of features are concatenated and fed into the prediction module.

Data sources

We evaluate our method on three public test datasets: CB513, CASP10 and CASP11, which were previously used as the test datasets for PSS prediction [3, 4, 8]. The details of datasets are as follows.

CB6133 dataset

The CB6133 [33] dataset was produced by PISCES CullPDB [34] and was a non-homologous dataset with known secondary structures. CB6133 contains 6128 protein sequences. When the dataset is used to test the model, 5600 proteins are regarded as the training dataset, and 256 proteins are regarded as the validation dataset and 272 proteins are regarded as the test dataset.

CB513 dataset

The CB513 [33] dataset contains 514 protein sequences and is widely regarded as a test dataset [3, 8] for PSS prediction.

CASP10 and CASP11 dataset

The CASP10 and CASP11 [3, 8] datasets contain 123 and 105 protein sequences, respectively. They are often regarded as the test datasets.

Since there exists some redundancy between CB6133 and CB513 datasets, the CB513 dataset cannot be used to evaluate the models directly. Therefore, sequences over 25% similarity need to be filtered in CB6133 between CB6133 and CB513; finally, the new dataset achieved is named as CB5534 dataset and it contains 5534 protein sequences. When the performance of DeepACLSTM is evaluated on test datasets: CB513, CASP10 and CASP11, 5278 proteins of the CB5534 are randomly chosen as the training dataset, and other proteins are regarded as the validation dataset, which aims at optimizing the parameters of the model during training the model.

Input features

DeepACLSTM takes the feature sequence of a given protein as input, and predicts the corresponding secondary structure labels of amino acids. For each amino acid in a protein sequence, its input feature is a 2d (d = 21) dimensional vector, which concatenates the sequence feature and profile feature [3, 8, 33]. As shown in Fig. 1, the sequence feature is a d-dimensional vector encoding the type of the amino acid in a protein, and the profile feature is also a d-dimensional vector, called the position special scoring matrix (PSSM). In DeepACLSTM, the profile feature was generated by the PSI-BLAST [35] and rescaled by a logistic function [36].

In addition, the sequence feature vector is a sparse one-hot vector, while the profile feature vector is a dense vector. In order to avoid the influence of feature inconsistency, we also transform the sparse sequence features to the dense sequence features by an embedding operation from Keras (https://github.com/fchollet/keras). As shown in Fig. 1, after the embedding operation and concatenating operation, we obtain the sequence features with size of N × 2d.

Local feature encoding module

Convolutional neural networks (CNNs) often contain three convolutional operations: 1-dimensional convolutional operations, 2-dimensioanl convolutional operations and 3-dimensional convolutional operations. 1-dimensional convolutional operations are usually used for dealing with sequence data, such as sentiment analysis and sequence structure prediction [16, 23, 27]; Moreover 2-dimensional and 3-dimensional convolutional operations are often used to capture spatiotemporal feature in image recognition and video classification [3739]. CNN based methods [35] have been applied in PSS prediction and achieve remarkable successes. Nevertheless, the methods often ignore features from the feature vector dimension, which may be useful for improving the performance of PSS prediction.

In our method, the local feature encoding module exploits the asymmetric convolution to extract the local hidden patterns and features of adjacent amino-acid residues from the input matrix. This module contains 1-dimesnional convolutional operations and 2-dimensional convolutional operations, as shown in Fig. 1.

Instead of exploiting k × 2d convolutional operations described in Kim [40], we factorize k × 2d convolution operations into 1 × 2d convolution operations followed by the k × 1 convolution operations, as utilized by Liang et al. [27] and Wang et al. [17].

Let x: x1x2x3xN − 2xN − 1xN denotes the protein sequence with N amino-acid residues. Generally, let xj : j + i refer to the concatenation of amino acids xj, xj + 1, , xj + i − 1, xj + i. As shown in Fig. 1, the convolutional operation corresponding to the 1 × 2d convolutional operation with the filter W11 × 2d is applied to each amino acid xj in protein sequences and generates a corresponding feature \({c}_j^1\):
$${c}_j^1=f\left({W}^1\otimes {x}_j+{B}^1\right)$$
(1)
where is element-wise multiplication, B is a bias term and f is a non-linear function such as the sigmoid, hyperbolic tangent and rectified linear unit. In this paper, we chooses rectified linear unit (ReLU) [41] as the nonlinear function; Then we can get the feature map c1:
$${c}^1=\left[{c}_1^1,{c}_2^1,{c}_3^1,\cdots, {c}_{N- 2}^1,{c}_{N- 1}^1,{c}_N^1\right]$$
(2)
As shown in Fig. 1, after the 1 × 2d convolution, the second convolutional operation corresponding to the k × 1 convolution with the filter W2k × 1 is exploited to the window of k features in the feature map c1 to produce the new feature \({c}_j^2\) and the feature map c2:
$${c}_j^2=f\left({W}^2\otimes {c}_{j:j+k-1}^1+{B}^2\right)$$
(3)
$${c}^2=\left[{c}_1^2,{c}_2^2,{c}_3^2,\cdots, {c}_{N- 2}^2,{c}_{N- 1}^2,{c}_N^2\right]$$
(4)

where , B and W are the same as described above.

DeepACLSTM first applies the asymmetric convolution including two types of convolution operations to the representation matrix of proteins. Each type of convolutional operations have M filters. Thus the output of the convolution operation has M feature maps.

In order to generate the input of the stacked BLSTM neural networks, for each output of the second convolutional operation in the local context encoding module, we apply the fully connected (FC) layer with the ReLu activation function to get the input feature of BLSTM in protein sequences:
$$m={FC}^1\left({W}^m{c}^2+{B}^m\right)$$
(5)

Finally, the amino-acid sequence is represented as m: m1, m2, , mN − 1, mN.

In summary, CNNs [27] have the ability of capturing local relationships of spatial or temporal structures, but it only performs excellently in extracting n-gram features of amino acids at different positions of protein sequences through convolutional filters. In addition, long-distance interdependencies [3, 8, 24] of amino-acid residues are also critical for predicting PSS; therefore, the local complex features generated by asymmetric convolutions are fed into the stacked BLSTM to further extract long-distance interdependencies between amino-acid residues.

Long-distance dependency encoding module

The long-distance dependency encoding module includes two stacked BLSTM neural networks; this section describes the LSTM unit and explains how BLSTM neural networks can generate a fixed-length feature vector of each amino acid. Recurrent neural networks (RNNs) have achieved remarkable results in sequence modeling, but the gradient vector possible grows or degrades exponentially over long sequences during training [42]. Thus LSTM neural networks are designed to avoid the problems by introducing gate structures. LSTM [42, 43] neural networks are able to handle input sequences with arbitrary length via a transition function on a hidden vector ht, as the formula (10). Figure 5 represents the internal structure of a LSTM unit. At the time step t, the hidden vector ht is computed by current input mt received and its previous hidden vector ht − 1 at time t. LSTM utilizes three gates (input gate it, forget gate ft and output gate ot) and a memory cell ct to control information processing of each amino acid at time step t.
Fig. 5
Fig. 5

Internal architecture of the LSTM cell

Formally, the information of a LSTM unit can be computed by the following formulas:
$${f}_t= sigmoid\left({W}_f{m}_t+{W}_f{h}_{t-1}+{B}_f\right)$$
(6)
$${i}_t= sigmoid\left({W}_i{m}_t+{W}_i{h}_{t-1}+{B}_i\right)$$
(7)
$${c}_t={f}_t\otimes {c}_{t-1}+{i}_t\otimes \tanh \left({W}_c{m}_t+{W}_c{h}_{t-1}+{B}_c\right)$$
(8)
$${o}_t= sigmoid\left({W}_o{m}_t+{W}_o{h}_{t-1}+{B}_o\right)$$
(9)
$${h}_t={o}_t\otimes \tanh \left({c}_t\right)$$
(10)

Where ft, it, ot and ct are the activation values of the forget gate, input gate, output gate and internal memory cell, respectively. Moreover, W, B and respectively represent the weight matrix, bias term and element-wise multiplication.

In our work, a BLSTM neural network consists of two LSTM neural networks in parallel, as showed in Fig. 6; one runs on the input sequence and the other runs on the reverse of the input sequence. We exploit two stacked BLSTM neural networks to capture more long-distance interdependencies of amino-acid residues. The first BLSTM neural network is exploited to protein sequences (m1, m2, , mN − 1, mN) at each time step to obtain a left-to-right sequence of hidden states \(\overrightarrow{h^1}\) (\(\overset{\rightharpoonup }{h_1^1},\overset{\rightharpoonup }{h_2^1},\cdots, \overset{\rightharpoonup }{h_{N-1}^1},\overset{\rightharpoonup }{h_N^1}\)) and a right-to-left sequence of hidden states \(\overleftarrow{h^1}\) (\(\overleftarrow{h_1^1},\overleftarrow{h_2^1},\cdots, \overleftarrow{h_{N-1}^1},\overleftarrow{h_N^1}\)); and then the second BLSTM neural network is exploited directly to obtain the same hidden states: \(\overrightarrow{h^2}\) (\(\overset{\rightharpoonup }{h_1^2},\overset{\rightharpoonup }{h_2^2},\cdots, \overset{\rightharpoonup }{h_{N-1}^2},\overset{\rightharpoonup }{h_N^2}\)) and \(\overleftarrow{h^2}\) (\(\overleftarrow{h_1^2},\overleftarrow{h_2^2},\cdots, \overleftarrow{h_{N-1}^2},\overleftarrow{h_N^2}\)) based on the previous hidden state vectors (\(\overset{\rightharpoonup }{h_1^1},\overset{\rightharpoonup }{h_2^1},\cdots, \overset{\rightharpoonup }{h_{N-1}^1},\overset{\rightharpoonup }{h_N^1}\)) and (\(\overleftarrow{h_1^1},\overleftarrow{h_2^1},\cdots, \overleftarrow{h_{N-1}^1},\overleftarrow{h_N^1}\)).
Fig. 6
Fig. 6

Architecture of stacked BLSTM neural networks

Finally, we concatenate the outputs of the second BLSTM neural network to obtain the final feature representation containing both the forward and backward information of each amino acid. The feature vectors of each residue at time step t by the second BLSTM neural network are:
$${h}_t= concat\left(\overrightarrow{h_t^2},\overleftarrow{h_t^2}\right)$$
(11)

Prediction module

DeepACLSTM has two fully connected hidden layers in the prediction module. Moreover, in order to get the whole features of protein sequences, we concatenate local features m from the first fully connected layer and long-distance features \(\overrightarrow{h^2},\overleftarrow{h^2}\) from long-distance dependency encoding module by the following formula:
$$h= concat\left(\overrightarrow{h^2},\overleftarrow{h^2},m\right)$$
(12)
The features of a protein sequence are finally recorded as \(h=\left[{h}_1,{h}_1,{h}_1,\cdots, {h}_{N^{\prime }-2},{h}_{N^{\prime }-1},{h}_{N^{\prime }}\right]\), and then are fed into the first fully connected (FC) layer with the ReLU activation function to obtain the feature representation hf, by the following formula:
$${h}^f={FC}^2\left({\mathrm{W}}^hh+{B}^h\right)$$
(13)
Moreover, the feature representation hf is fed into the second fully connected layer with the softmax activation function and performs 8-category secondary structure prediction by the formula:
$$y= softmax\left({\mathrm{W}}^s{h}^f+{B}^s\right)$$
(14)

The objective function of our method is to minimize the cross-entropy loss function.

Abbreviations

ACLSTM:

asymmetric convolutional long short-term memory

ACNNs:

asymmetric convolutional neural networks

BLSTM:

bidirectional long short-term memory

BRNNs:

bidirectional recurrent neural networks

CNNs:

convolutional neural networks

CRF:

conditional random field

LSTM:

Long short-term memory

PSS:

protein secondary structure

PSSM:

Position Specific Score Matrix

RNNs:

recurrent neural networks

Declarations

Acknowledgments

We sincerely thank the editors and the anonymous reviewers for their valuable comments. Moreover, we also thank Li et al. [8] and Zhou et al. [6] for the data generation very much.

Funding

This work was supported by Personnel Training Program of Academic and Technical Leaders of Yunnan Province (NO.2018HB096), the Project of Innovative Research Team of Yunnan Province (NO.2018HC019), National Science Foundation of China (NO. 61762090), Key projects of National Science Foundation of Yunnan Province (NO.2016FA026) and Science Foundation of Educational Department of Yunnan Province. The funding body did not play any role in the design of the study and collection, analysis, and interpretation of data and writing the manuscript.

Authors’ contributions

YG initiated, designed the study and made substantial contributions to acquisition of data, analysis and interpretation of data. WL and YG drafted the manuscript. WL and BW involved in drafting the manuscript or revising it. WL and BW provided valuable insights on biomolecular interactions and systems biology modeling. HL participated in result interpretation and manuscript preparation. WL and DZ provided some valuable suggestions and revised the paper critically. All authors read and approved the final manuscript.

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no conflicting interests.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
School of Information Science and Engineering, Yunnan University, Kunming, 650091, China
(2)
Research Institute of Resource Insects, Chinese Academy of Forestry, Kunming, 650224, China

References

  1. Nguyen MN, Zurada JM, Rajapakse JC. Toward better understanding of protein secondary structure: extracting prediction rules. IEEE/ACM Transactions on Computational Biology & Bioinformatics. 2011;8(3):858–64.Google Scholar
  2. Fang C, Shang Y, Xu D. Prediction of protein backbone torsion angles using deep residual inception neural networks. IEEE/ACM Trans Comput Biol Bioinform. 2018.Google Scholar
  3. Zhou J, Wang H, Zhao Z, Xu R, Lu Q. CNNH_PSS: protein 8-class secondary structure prediction by convolutional neural network with highway. BMC Bioinformatics. 2018;19(Suppl 4:60.PubMedPubMed CentralGoogle Scholar
  4. Zhang B, Li J, Lü Q. Prediction of 8-state protein secondary structures by a novel deep learning architecture. BMC Bioinformatics. 2018;19(1):293.PubMedPubMed CentralGoogle Scholar
  5. Fang C, Shang Y, Xu D. MUFOLD-SS: new deep inception-inside-inception networks for protein secondary structure prediction. Proteins. 2018;86(5):592–8.PubMedPubMed CentralGoogle Scholar
  6. Zhou J, Troyanskaya O: Deep Supervised and Convolutional Generative Stochastic Network for Protein Secondary Structure Prediction. In: Proceedings of the 31st International Conference on Machine Learning; Proceedings of Machine Learning Research: Edited by Eric PX, Tony J. PMLR 2014: 745--753.Google Scholar
  7. Yang Y, Gao J, Wang J, Heffernan R, Hanson J, Paliwal K, Zhou Y. Sixty-five years of the long march in protein secondary structure prediction: the final stretch? Brief Bioinform. 2018;19(3):482–94.PubMedGoogle Scholar
  8. LI Z, Yu Y. Protein secondary structure prediction using cascaded convolutional and recurrent neural networks. In: International joint conference on artificial intelligence (IJCAI). p. 2016.Google Scholar
  9. Wakamura K, Hirokawa K, Orita K. Dictionary of protein secondary structure: pattern recognition of hydrogen-bonded and geometrical features. Biopolymers. 2010;22(12):2577–637.Google Scholar
  10. Chou PY, Fasman GD. Prediction of protein conformation. Biochemistry. 1974;13(2):222–45.PubMedGoogle Scholar
  11. Hua S, Sun Z. A novel method of protein secondary structure prediction with high segment overlap measure: support vector machine approach. J Mol Biol. 2001;308(2):397–407.PubMedGoogle Scholar
  12. Wang Z, Zhao F, Peng J, Xu J. Protein 8-class secondary structure prediction using conditional neural fields. Proteomics. 2011;11(19):3786–92.PubMedPubMed CentralGoogle Scholar
  13. Kim H, Park H. Protein secondary structure prediction based on an improved support vector machines approach. Protein Eng. 2003;16(8):553.PubMedGoogle Scholar
  14. He K, Zhang X, Ren S, Sun J. Deep residual learning for image recognition. Proc IEEE Conf Comput Vis Pattern Recognit. 2016:770–8.Google Scholar
  15. Hinton G, Deng L, Yu D, Dahl GE, Mohamed A-r, Jaitly N, Senior A, Vanhoucke V, Nguyen P, Sainath TN. Deep neural networks for acoustic modeling in speech recognition: the shared views of four research groups. IEEE Signal Process Mag. 2012;29(6):82–97.Google Scholar
  16. dos Santos C, Gatti M: Deep convolutional neural networks for sentiment analysis of short texts. In: Proceedings of COLING 2014, the 25th International Conference on Computational Linguistics: Technical Papers: 2014. 69–78.Google Scholar
  17. Wang S, Sun S, Li Z, Zhang R, Xu J. Accurate De novo prediction of protein contact map by ultra-deep learning model. PLoS Comput Biol. 2017;13(1):e1005324.PubMedPubMed CentralGoogle Scholar
  18. Öztürk H, Özgür A, Ozkirimli E. DeepDTA: deep drug–target binding affinity prediction. Bioinformatics. 2018;34(17):i821–9.PubMedPubMed CentralGoogle Scholar
  19. Lee I, Nam H. Identification of drug-target interaction by a random walk with restart method on an interactome network. BMC Bioinformatics. 2018;19(8):208.PubMedPubMed CentralGoogle Scholar
  20. Min X, Zeng W, Chen N, Chen T, Jiang R. Chromatin accessibility prediction via convolutional long short-term memory networks with k-mer embedding. Bioinformatics. 2017;33(14):i92–i101.PubMedPubMed CentralGoogle Scholar
  21. Gligorijević V, Barot M, Bonneau R. deepNF: deep network fusion for protein function prediction. Bioinformatics. 2018;34(22):3873–81.PubMedPubMed CentralGoogle Scholar
  22. Sun T, Zhou B, Lai L, Pei J. Sequence-based prediction of protein protein interaction using a deep-learning algorithm. BMC Bioinformatics. 2017;18(1):277.PubMedPubMed CentralGoogle Scholar
  23. Wang S, Peng J, Ma J, Xu J. Protein secondary structure prediction using deep convolutional neural fields. Sci Rep. 2016;6:18962.PubMedPubMed CentralGoogle Scholar
  24. Heffernan R, Yang Y, Paliwal K, Zhou Y. Capturing non-local interactions by long short-term memory bidirectional recurrent neural networks for improving prediction of protein secondary structure, backbone angles, contact numbers and solvent accessibility. Bioinformatics. 2017;33(18):2842–9.PubMedGoogle Scholar
  25. Pollastri G, Przybylski D, Rost B, Baldi P. Improving the prediction of protein secondary structure in three and eight classes using recurrent neural networks and profiles. Proteins: Structure, Function, and Bioinformatics. 2002;47(2):228–35.Google Scholar
  26. Sønderby SK, Winther O. Protein secondary structure prediction with long short term memory networks. In: arXiv preprint arXiv:14127828; 2014.Google Scholar
  27. Liang D, Zhang Y. AC-BLSTM: asymmetric convolutional bidirectional LSTM networks for text classification. In: arXiv preprint arXiv:161101884; 2016.Google Scholar
  28. Srivastava N, Hinton G, Krizhevsky A, Sutskever I, Salakhutdinov R. Dropout: a simple way to prevent neural networks from overfitting. J Mach Learn Res. 2014;15(1):1929–58.Google Scholar
  29. Kingma DP, Ba L: J. ADAM: a method for stochastic optimization. In: International Conference on Learning Representations: 2015.Google Scholar
  30. Kc DB. Recent advances in sequence-based protein structure prediction. Brief Bioinform. 2017;18(6):1021–32.PubMedGoogle Scholar
  31. Wang S, Peng J, Ma J, Xu J. Protein secondary structure prediction using deep convolutional neural fields. Sci Rep. 2016;6.Google Scholar
  32. Guo Y, Wang B, Li W, Yang B. Protein secondary structure prediction improved by recurrent neural networks integrated with two-dimensional convolutional neural networks. J Bioinforma Comput Biol. 2018;16(05):1850021.Google Scholar
  33. Zhou J, Troyanskaya O. Deep supervised and convolutional generative stochastic network for protein secondary structure prediction. In: International conference on machine learning; 2014. p. 745–53.Google Scholar
  34. Wang G, Jr DR: PISCES: a protein sequence culling server. Bioinformatics 2003, 19(12):1589–1591.PubMedGoogle Scholar
  35. Altschul SF, Madden TL, Schäffer AA, Zhang J, Zhang Z, Miller W, Lipman DJ, Gapped BLAST. PSI-BLAST: a new generation of protein database search programs. Nucleic Acids Res. 1997;25(17):3389–402.PubMedPubMed CentralGoogle Scholar
  36. Jones DT. Protein secondary structure prediction based on position-specific scoring matrices. J Mol Biol. 1999;292(2):195–202.PubMedGoogle Scholar
  37. Tran D, Bourdev L, Fergus R, Torresani L, Paluri M. Learning spatiotemporal features with 3d convolutional networks. Proceedings of the IEEE international conference on computer vision. 2015:4489–97.Google Scholar
  38. Karpathy A, Toderici G, Shetty S, Leung T, Sukthankar R, Fei-Fei L. Large-scale video classification with convolutional neural networks. Proc IEEE Conf Comput Vis Pattern Recognit. 2014:1725–32.Google Scholar
  39. Li Y, Su H, Qi CR, Fish N, Cohen-Or D, Guibas LJ. Joint embeddings of shapes and images via CNN image purification. ACM Trans Graph. 2015;34(6):234.Google Scholar
  40. Kim Y. Convolutional neural networks for sentence classification. empirical methods in natural language processing. 2014:1746–51.Google Scholar
  41. Nair V, Hinton GE. Rectified linear units improve restricted Boltzmann machines. In: International conference on international conference on machine learning; 2010. p. 807–14.Google Scholar
  42. Hochreiter S. LSTM can solve hard long term lag problems. Neural Information Processing Systems Nips, vol. 9; 1997.Google Scholar
  43. Hochreiter S, Schmidhuber J. Long short-term memory. Neural Comput. 1997;9(8):1735–80.PubMedGoogle Scholar

Copyright

© The Author(s). 2019

Advertisement
