Censcyt: censored covariates in differential abundance analysis in cytometry
BMC Bioinformatics volume 22, Article number: 235 (2021)
Abstract
Background
Innovations in single cell technologies have lead to a flurry of datasets and computational tools to process and interpret them, including analyses of cell composition changes and transition in cell states. The diffcyt workflow for differential discovery in cytometry data consist of several steps, including preprocessing, cell population identification and differential testing for an association with a binary or continuous covariate. However, the commonly measured quantity of survival time in clinical studies often results in a censored covariate where classical differential testing is inapplicable.
Results
To overcome this limitation, multiple methods to directly include censored covariates in differential abundance analysis were examined with the use of simulation studies and a case study. Results show that multiple imputation based methods offer onpar performance with the Cox proportional hazards model in terms of sensitivity and error control, while offering flexibility to account for covariates. The tested methods are implemented in the R package censcyt as an extension of diffcyt and are available at https://bioconductor.org/packages/censcyt.
Conclusion
Methods for the direct inclusion of a censored variable as a predictor in GLMMs are a valid alternative to classical survival analysis methods, such as the Cox proportional hazard model, while allowing for more flexibility in the differential analysis.
Background
Flow and mass cytometry are techniques to measure the presence of fluorochromes or isotopes conjugated to antibodies that are bound to specific cellular components at single cell resolution. Although cytometry can be considered an established method, recent developments enable the measurement of ever more markers simultaneously, resulting in a highdimensional view for each cell [1, 2]. Although the number of measured features per cell is still much lower than in other single cell methods, such as singlecell RNA sequencing (scRNAseq), the throughput is typically much higher with thousands of cells per second [1, 2]. An additional benefit of cytometry compared to scRNAseq is the measurement at the protein level instead at the RNA level (since correlations between protein and mRNA expression can be low [3, 4]), although new cytometrybyseq approaches (e.g. Citeseq [5] and REAPseq [6]) allow the simultaneous measurement of transcript and protein expression. The antibodies used in cytometry experiments are often chosen to discriminate several cell types by leveraging the biological knowledge about their protein expression (e.g. Tcells can be distinguished from other lymphocytes by the amount of CD3 they express). After obtaining the raw marker intensities per cell and preprocessing (including some or all of: Compensation, Quality assessment, Normalization, DeBarcoding, Filtering, Transformation [7, 8]), the first step is to discern cell populations. Many approaches exist, ranging from manual gating (with its known shortcomings [9, 10]) to modern methods such as automatic gating (e.g. with flowDensity [11]), by clustering cells using techniques such as FlowSOM (using a self organizing map) [12], flowMeans (kmeans with cluster merging) [13] or PhenoGraph (based on a nearest neighbor graph) [14], or by using an annotated reference dataset (e.g. linear discriminant analysis [15]).
After clustering or cell type assignment, the processed data contains a subpopulation label for each cell. The two classical analyses that can be performed are differential abundance (DA) and differential state analysis (DS) [16]. In DA, the (perhaps normalized) relative proportion of cells in a subpopulation per sample is tested for an association with additional information about the sample (e.g. control vs. treatment). The input data consists of a \(\textit{cluster} \times \textit{sample}\) matrix of cell population abundances. In contrast, DS analyses organize the single cell data into \(\textit{(clustermarker)} \times \textit{sample}\) matrices, typically summarizing each subpopulation per sample with median marker expression; afterward, the summary is modeled against samplewise annnotations for the association testing.
The R [17] package diffcyt [18] provides a framework for DA and DS for flow and mass cytometry. After preprocessing of the raw data, FlowSOM is (by default) used to cluster cells into many small clusters representing potential rare cell populations [18]. DA can then be performed with wellknown countbased methods voom [19], edgeR [20] or Generalized Linear Mixed Models (GLMM). Alternatives for differential discovery include, among others, citrus (overclustering, building of hierarchy, model selection and regularizations to get associations) [21], cydar (differential abundance on hypersphere counts, testing with Generalized Linear Models) [22], CellCnn (convolutional neural networks) [23] and MASC (Mixedeffects modeling of Associations of Single Cells) [24]. An important distinction is that, with citrus and CellCnn on one side and diffcyt and MASC (and cydar) on the other, the association testing is “reversed”: for diffcyt, the cell population (relative) abundances are represented in the statistical model as the response, whereas in citrus and CellCnn, the abundances are treated as a covariate. The reversed approach allows for more flexibility in the experimental setup since it allows to include additional covariates, such as batch or age, to be directly adjusted for [16], and diffcyt was shown to compare favourably in terms of sensitivity and specificity across several test cases [18].
Cytometry samples from clinical studies often contain additional patient data, such as treatment group (e.g. control vs. treated), age or survival time. DA with a binary variable (e.g. control vs. treated) can be seen as the “classical” case in cytometry. Of particular interest is whether a cell subpopulation is more abundant in one experimental condition compared to the other, which could be indicative of the effectiveness of a treatment. If an association with a continuous variable (e.g. age) is of interest, the modeling and testing are similar to the binary case and often the same methods can be used, since linear models underpin the statistical framework. If a timetoevent variable (e.g. time to an event, such as death or recurrence of disease) is considered, there is a need to use different methods altogether. The problem with timetoevent variables is a purely practical one caused by events that are “censored”, i.e., they are not fully observed but only a minimum (or maximum) is known.
An example of cytometry data of a clinical study can be found in the FlowCAP IV (Flow Cytometry: Critical Assessment of Population Identification Methods) challenge [25]. 13 marker intensities of PBMC samples of 383 patients linked to time to progression to AIDS from HIV+ were measured with flow cytometry, with the objective to find cellular correlates that predict survival [25]. At the time, the two best performing methods, (FloReMi [26] and flowDensity/flowType/RchyOptimyx), both relied on classical survival analysis methods in the association testing step, such as the Cox proportional hazard model [27], where the censored variable is modeled as the response and the subpopulation abundance as the predictor.
Meanwhile, the performant frameworks for cytometry analysis that have been shown to perform well with completely observed data (e.g. diffcyt [18]) cannot directly handle censored data; in particular, a censored predictor should not be treated as fully observed, since it can lead to a bias [28]. Removing incomplete samples can be a workaround, but is inefficient for high censoring rates and might lead to a bias as well [29]. Thus, the goal of this work is to investigate how to best directly include a censored predictor in the modeling framework, which itself is an underresearched area compared to survival response models. The following are noteworthy: Rigobon et al. described basic issues that arise from censored covariates [28]; Tsimikas et al. developed a method based on estimating functions for generalized linear models [30]; Taylor et al. described two methods based on multiple imputation [31]; Qian et al. developed a threshold regression approach [32]; Atem et al. developed methods based on multiple imputation in a bootstrapping setup [33].
In the following, we describe an extension to the linear model approach to DA in diffcyt that allows to directly include random right censored timetoevent variables as a covariate using methods based on multiple imputation. More specifically, risk set (rs) imputation (constructs the risk set and then draws a random value from this set) and Kaplan–Meier (km) imputation (similar to risk set imputation, but the values in the risk set are weighted according to the survival function of the risk set) from Taylor et al. [31] and the conditional multiple (mrl) imputation (the censored value is replaced with the mean residual life, i.e. the expected remaining survival time) from Atem et al. [33] are included. Furthermore, complete case analysis (cc) (deleting samples with incomplete data) and predictive mean matching (pmm) (treating censored values as missing and imputation by replacing with a random draw from similar samples) were included for comparison, as well as an extension to km, Kaplan–Meier imputation with an exponential tail (kme) (modelling of the tail of the survival function as an exponential distribution). A simulation framework was developed to evaluate basic properties of the model as well as differential discovery performance in the context of cytometry. The dataset from the FlowCAP IV challenge, representing an optimal use case as it is a public dataset with a large number of samples that has already been analyzed using a variety of methods, was reanalysed according to the diffcyt workflow with the censoringspecific methods to highlight real world applicability.
Results
In order to test the performance of the included methods that handle censored covariates, two simulation studies were performed. The first models a single cluster to test basic statistical validity of the underlying multiple imputation methods, and the second models multiple clusters representing a single cell dataset to test the performance of distinguishing between DA clusters and nonDA clusters.
Basic simulations
In the basic simulation, counts (\(Y_j\)) for a sample j were modeled as binomially distributed with a GLMM association with two covariates, one censored (\(T_j\)) and the other binary (\(Z_j\)), via a logit link function with regression coefficients \(\beta\):
where \(R_j\) represents an observationlevel random effect to model overdispersion and \(n_j\) is the total number of cells in a sample. For further details, see the “Methods” section.
Results of the basic simulations are shown in Fig. 1 for three different censoring rates (30%, 50%, 70%) for a sample size of 100 with 100 repetitions per condition. Four different evaluation criteria are considered: raw bias (\({\text {RB}} = E({\hat{\beta }}_1)  \beta _1\)), coverage rate (CR, proportion of confidence intervals that contain the true value), confidence interval (CI) width and root mean squared error (\({\text {RMSE}}=\sqrt{E(({\hat{\beta }}_{1} \beta _1)^2)}\)). For a multiple imputation method to be considered “randomizationvalid”, it should have no bias and a CR close to the specified proportion (in this case, 0.95) [34]. If a method is randomizationvalid, the average width of the CI is another important criterion that represents statistical efficiency. On the other hand, the RMSE is an indicator of the precision of the estimation as it combines the variance and the bias (\({\text {RMSE}} = {\text {Var}}({\hat{\beta }}_{1}) +{\text {Bias}}({\hat{\beta }}_{1})^2\)). For increasing censoring rates, the RB (top row in Fig. 1) for methods km, kme, rs and pmm increases slightly, while for the other methods, it remains constant despite an increase in the RMSE. In particular, the RB for those four methods is positive under all conditions, indicating overestimation. This observed bias is quite consistent across different simulation conditions (see Additional file 1: Figs. S1–S4) although only for a low regression coefficient of the censored covariate does it become pronounced (Additional file 1: Fig. S2). The CR (second row in Fig. 1) is for all methods close to the expected value of 0.95 and taken together with the RB (in general close to zero) confirms the randomizationvalidness of the methods under most of the tested simulation conditions. The CI width (third row in Fig. 1) for km, kme and rs has a nearly equal spread across all conditions while for the remaining methods, it increases with increasing censoring rate. Since the RMSE (bottom row in Fig. 1) is a combination of the variance and the bias of an estimate it summarizes row 1 and 3 of Fig. 1. So even though the estimates from km, kme and rs are slightly biased, their RMSE is lower compared to the other methods since their variance is lower.
The distribution of p values under the null simulation is for a low censoring rate uniform for all methods except mrl whose distribution is shifted towards 1 (Fig. 2). For increasing sample sizes, the p value distributions of all methods (except cc) shift towards 1, suggesting they become more conservative. The distribution for cc on the other hand shifts slightly towards 0.
Taken together, these results show that no tested methods stand out as being uniformly underperforming, but none is remarkably outperforming compared to its competing methods.
Simulations modeled from real data
Figure 3 depicts a schematic of the simulation procedure for the multiple cell population scenario. Based on a real dataset clustered into cell populations (e.g. data from FlowCAP IV clustered with FlowSOM; Fig. 3a), a Dirichletmultinomial (DM) distribution is fit to the \(\textit{cluster}\times \textit{sample}\) matrix of abundances (Fig. 3b). To insert a known association, the obtained concentration parameters \({\varvec{\alpha }}=(\alpha _1 \ldots \alpha _K)\in {\mathbb {R}}_{+}^K\) are then adjusted to include an association with a continuous (and later, censored) and a binary variable (Fig. 3c, Eq. 3). The sizes (second parameter of DM) are kept the same. For subpopulation \(i\in \{1\ldots K\}\) and sample \(j\in \{1\ldots N\}\) the counts of a sample \({\varvec{Y}}_{j}\in {\mathbb {N}}^K\) with size \({\varvec{n}}_j\in {\mathbb {N}}\) are distributed according to
with the matrix of concentration parameters \({\varvec{A}} = ({\varvec{\alpha }}_1^T\ldots {\varvec{\alpha }}_N^T) \in {\mathbb {R}}_{+}^{K\times N}\) dependent among others on the continuous covariate \(T_j\) and the binary covariate \(Z_j\):
where the \(\beta\) parameters are the regression coefficients. A new dataset is then simulated with the adjusted parameters (Fig. 3d). For further details, see the “Methods” section.
When two covariates are present, one option is to test for an association of the cell population abundance with the censored covariate (i.e. by testing if the regression coefficient of the censored covariate \(\beta _1=0\) in Eq. 3) while also accounting for the binary covariate. In Fig. 4 the TPRFDR (true positive rate versus achieved false discovery rate) curves for the detection of true association between cell population abundance and survival time are shown for three different censoring rates and four different sample sizes. The method GLMM is the generalized linear mixed model method from diffcyt using the true (but unobserved) survival times and is included as a control, since it represents the maximum performance that could be achieved if the data were fully observed. It is not dependent on the censoring rate, so it can also be seen as a qualitative comparison of the simulation variability for a given sample size. pmm, on the other hand, can be considered to be a quasinegative control, since it treats censored values as missing (leading to increased uncertainty about the data); thus, it highlights the gain in information from including censored values versus treating them as missing. In contrast, cc only keeps the “best” samples (the ones that are observed), which leads to more certainty about the data (at the cost of less data and potentially biased estimates).

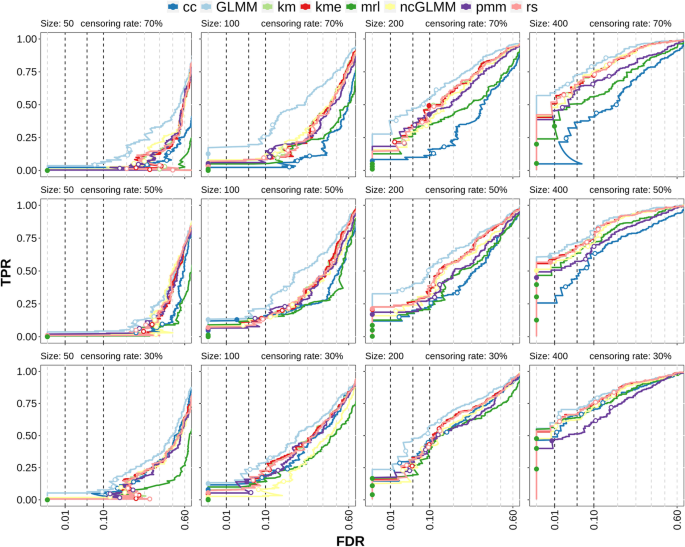

Not surprisingly, lower sample sizes and increased censoring rates result in lower sensitivity. For a censoring rate of 30%, the differences in performance between the methods are minimal, independent of the sample size. For high censoring rates (70%), the differences between the methods are more prominent but decrease again for large sample sizes (400). pmm has overall the lowest sensitivity and poor error control; this is especially pronounced at high censoring rates leading to TPRFDR curves with high FDR at low TPR. On the other hand, cc shows moderate sensitivity but the error control is poor for both high censoring rates and small sample sizes. rs, km, kme have in general a moderate sensitivity and good error control while mrl has good sensitivity and decent error control. Especially for high censoring rates, mrl outperforms other methods in terms of TPR.
To summarize: The censoringspecific methods have in general good error control, but especially for high censoring rates, result in lower sensitivity at a given p value threshold (e.g. 0.05) than cc (which has poor error control).
The second option is to test for the association between the binary covariate and the cell population abundance (i.e. by testing if the regression coefficient of the binary covariate \(\beta _2=0\) in Eq. 3), in the presence of a censored covariate. The TPRFDR curves in this scenario (Fig. 5) show clear differences compared to the testing for the association with the censored variable. GLMM is again the unrealistic control while ncGLMM is based on GLMM, but excludes the censored covariate in differential testing. It could therefore be seen as the adhoc solution when a censored covariate is present but not of interest and one decides to neglect the possible effect of the second covariate on the response. Two main differences compared to the association testing of the censored covariate is that cc and mrl have low sensitivity, even lower than pmm in many cases. The best performing methods are km, kme and rs, which often have similar sensitivity and error control. In many cases, they have a higher sensitivity than ncGLMM indicating that there is a benefit of accounting for the censored covariate instead of discarding it. Comparing the error control between Figs. 4 and 5 shows that in the binary covariate association testing, the error control of the censoringspecific methods is often closer to its expected values than in the censored covariate association testing.
An alternative simulation scenario with only one censored covariate was modeled as well to compare censoredcovariate methods with the Cox proportional hazard model [27] (by maintaining the simulated associations, but switching the response and the covariate in the statistical model). The results indicate similar performance in terms of specificity and error control for the Cox proportional hazards model and the censored covariate regression models (Additional file 1: Fig. S5).
Case study
To illustrate the use of models with censored covariates in differential discovery analysis, the FlowCAP IV dataset was reanalysed. A total of 766 flow cytometry PBMC samples linked to time to progression to AIDS from HIV+ of 383 patients (two per patient, one stimulated, one unstimulated) were available. For each sample, 13 marker intensities (IFN\(_\gamma\), TNF\(_\alpha\), CD4, CD27, CD107A, CD154, CD3, CCR7, IL2, CD8, CD57, CD45RO and VAmine/CD14) together with channels FSCA, FSCH and SSCA were measured. Of the 383 available survival times, 79 were observed, resulting in a censoring rate of \(79\%\) [25].
Preprocessing was performed according to the FloReMi pipeline (See Methods) followed by clustering with FlowSOM using all marker intensities except FSCC, FSCH and SSCA. The number of clusters in the first step of FlowSOM was set to 400. Additionally, metaclustering on the initial clusters was performed to obtain three resolutions: 20, 50, and 100 clusters; differential testing was then performed on all four sets separately. The covariates were the survival time and the condition (stimulated or unstimulated) of the sample. Two random effects were modeled, one on a per sample level and the other on a per patient level. The three main methods (rs, km, mrl; number of imputations equal to 200) plus the complete case analysis were applied. An illustration of how the association between the survival time and the abundance for a cell population looks like is shown in Fig. 6. At the top is a cluster with small adjusted p value while the cluster in the bottom has a high adjusted p value (as evaluated by mrl). No immediate association is visible, which could have various explanations, including high censoring rate, overdispersion, weak association.
Although no ground truth is established (i.e. which cell belongs to which cell population and which (if any) cell population is DA), a comparison to results from other methods (i.e. the original FlowCAP IV submissions) still gives insights into differential discovery performance. For the differential testing, the proportion of significant clusters for multiple cut offs differed substantially (Table 1). In general, the proportion of significant clusters is higher for a lower number of total clusters. While rs and km did not detect any DA clusters, cc found a large proportion of clusters to be significant and mrl has intermediate detection rates.
Based on the proportion of detected clusters (Table 1), a level of 100 clusters was deemed to have a good balance between precision (cell population sizes) and sensitivity (proportion of detected clusters). A closer look at the (unadjusted) p values of those clusters (at a level of 100 clusters) revealed similarities between the methods: 6 clusters were found in the 10 clusters with lowest (unadjusted) p value for at least 3 methods. The adjusted p values for rs and km are much higher than any reasonable significance level, however, cc and mrl have clusters that are differentially abundant. For cc, the proportion of significant clusters seems to be rather high (\(\sim \,50\%\)), which is not unexpected given the poor error control observed in the simulations.
Comparing the marker expressions of those “top” 6 clusters (Additional file 1: Fig. S6) with the discovered subpopulations in the FlowCAP IV challenge reveals some similarities. For example, Cluster 9 matches the described population of CD3+ CD4\({}\) CD14/VIVID+ CD57\({}\) cells [25]) and cluster 38 is similar to the CD4 CD27\({}\) CD107a\({}\) CD154\({}\) CD45RO\({}\) population described in FloReMi [26].
Discussion
In differential abundance analysis with a variable subject to censoring, existing methods make use of classical survival analysis methods, such as the Cox proportional hazard model. In particular, this would model the observed cell population abundances as predictors, which is a valid choice if no additional covariates are present. The use of a reversed approach (cell population abundance as response), however, has the benefit to directly include confounders such as batch or age. The problem is that this reversed approach leads to a censored predictor, which renders standard differential abundance analysis inapplicable. A workaround to this issue is the use of multiple imputation, where the imputation step is specifically designed to handle censored values. Simulation studies indicate that in general, there is a gain by including the censored data instead of discarding samples (complete case analysis; cc) or treating censored values as missing (predictive mean matching; pmm).
More specifically, the basic simulations revealed consistent but slightly biased parameter estimation for the related methods rs, km and kme, and the simulations modeled from real data showed similar or increased performance in terms of sensitivity compared to cc but with better error control. Parameter estimation with mrl on the other hand was unbiased in the basic simulation, but the coverage rate was higher than expected, which typically leads to conservative performance. In the simulations modeled from real data, the conservative performance of mrl was apparent for low FDR, while the TPR was often (especially for higher censoring rates) higher than for other methods. In the case study (no ground truth), only mrl and cc were able to detect differentially abundant cell (sub) populations although especially for cc, the number of detected clusters was high, which could indicate many false positives. But since for mrl the FDR was in the simulations in general very low, this could mean that indeed many clusters are differentially abundant or alternatively, the real data is substantially different in structure compared to the simulations. For example, the simulations assumed a missing data mechanism that is missingcompletelyatrandom (MCAR), which might not be given in this case. Especially for cc, a missing data mechanism different from MCAR could be a problem since it is known to be biased under this condition. On the other hand, mrl (and rs and km) should be able to handle certain missingatrandom (MAR) cases [33], although this was not directly confirmed here.
Furthermore, the comparison in the scenario with only one (censored) covariate shows that the Cox proportional hazard model performs well. In general, if no additional covariates need to be taken into account, classical survival analysis methods can be a reasonable option with a potential benefit in runtime.
The methods considered for direct inclusion of a censored covariate all rely on multiple imputation, which has the advantage of high interpretability since the underlying statistical models are classical GLMMs. A disadvantage are high computing costs caused by the need for repeated imputations (e.g. for high censoring rates, runtimes of 1 h instead of 1 min); runtimes can be nonetheless reduced through parallelization. The resolution at which to analyze is another issue, since a high number of clusters may reduce the statistical power imposed by multiple hypothesis correction, while associations with rare cell populations might be overlooked for a low total number of clusters. If a hierarchical structure of the cell populations is available (e.g. via metaclustering in FlowSOM), treebased aggregated hypothesis testing methods (e.g. treeclimbR [35]) could increase differential discovery performance. Additional improvements of the differential discovery performance could be achieved by the use of a different analysis method such as edgeR or voom, which were shown to have increased performance compared to GLMM [18].
A related issue is the assumption that the clustering method produces stable, meaningful cell populations, which is in practice not always easy to achieve. Clustering is furthermore often complicated by the stochastic nature and/or the need to manually choose a threshold (e.g. number of clusters). One possible workaround could be to iterate the clustering step (similar to VoPo [36]) and differential abundance analysis, whose results can then be combined to obtain regions in marker space of high probability of an association with the corresponding covariate.
A further issue is of general nature: testing the association with a continuous (censored) covariate requires larger sample sizes compared to the testing with a binary covariate, although this nonetheless also depends on the dispersion and the strength of the association.
Conclusion
Statistical modeling with a high proportion of censored data is always challenging, but even more so in DA settings with often overdispersed data and the need for multiple hypothesis testing correction. Nonetheless, we showed that including censored variables as a predictor in GLMMs results in high error control and decent sensitivity for a subset of the tested methods. Compared to classical survival analysis methods, such as the Cox proportional hazard model, higher flexibility in testing is provided, reflecting the need in typical experimental and clinical setups.
The tested methods were implemented in R and are available on Bioconductor (https://bioconductor.org/packages/censcyt). Scripts for reproducing results and figures can be found on https://github.com/retogerber/censcyt_paper_scripts.
Methods
Censoring
The data mechanism for simulating censored data is based on the one described in Atem et al. [33]. The variable X to be censored is drawn from a Weibull distribution with scale \(\lambda _x\) and shape \(\kappa _x\) with the following parameterization:
with the scale parameter \(\lambda >0\), the shape parameter \(\kappa >0\) and \(x\ge 0\). A second variable C that corresponds to the censoring time is also drawn from a Weibull distribution, but with different shape and scale parameters. The observed value T is then the minimum of X and C. In summary:
The parameters of the Weibull distributions are derived from the FlowCAP IV dataset [25]. More precisely \(\lambda _x\) and \(\kappa _x\) are obtained by fitting a Weibull distribution on the full dataset (taking into account censoring), while \(\lambda _{c}\) is from fitting only on the censored samples. \(\kappa _{c}\) is then calculated by first defining the desired censoring rate and then solving for \(\kappa _c\) (by calculating the probability \(P(C<X) = \int _0^\infty \int _0^{x}f(c)f(x)dcdx\), which can be seen as the expected censoring rate, for different values of \(\kappa _{c}\)).
Single cluster simulation
For the basic simulations with only a single cluster, the counts \(Y_j\) (number of cells) with \(j\in {1\ldots N}\) was sampled from a generalized linear mixed model with a logit link function where the response (the number of cells) followed a binomial distribution (Eq. 1) where \(T_j\) follows a Weibull distribution with parameter as described above estimated from the FlowCAP IV dataset [25], the regression coefficients were set to \(b_0 = \,2\), \(b_1 = \,0.0001\) and \(b_2=1\), \(Z_j \in \{0,1\}\) is a binary covariate with balanced groups, \(R_j\) is an observation level random effect to model overdispersion distributed according to a standard normal distribution (\(\sigma ^2=1\)) and \(n_j\) is the sample size distributed according to a uniform distribution with a minimum limit of 10,000 and a maximum limit of 100,000.
Multiple cluster simulation
The matrix of counts \({\varvec{Y}} \in {\mathbb {R}}^{K\times N}\) for K clusters (cell populations) and N samples follows a DirichletMultinomial (DM) distribution (Eq. 2) for \(j\in \{1\ldots N\}\) where \({\varvec{n}}_j\) is the total number of cells in sample j and \({\varvec{A}} = ({\varvec{\alpha }}_1^T\ldots {\varvec{\alpha }}_N^T\} \in {\mathbb {R}}^{K\times N}\) with \({\varvec{A}}_{ij} > 0\) for \(i\in \{1\ldots N\}\) are the concentration parameters dependent on covariates \(T_j\) and \(Z_j\). Additionally \({\varvec{Y}}_j = ({\varvec{Y}}_{1j} \ldots {\varvec{Y}}_{kj})\), \(T_j\sim Weibull(\lambda , \kappa )\) and \(Z_j\in \{0,1\}\) is a binary variable with balanced groups. The proportions of cells in cluster i in sample j is simply
An association for cluster i is then assumed to be the following:
with an intercept \(\beta _{0i}\), a slope \(\beta _{1i}\) for \(T_j\) and a slope \(\beta _{2i}\) for \(Z_j\). The \(\beta\)’s are therefore fixed for a cluster but are different between clusters. The covariates \(T_j\) and \(Z_j\) are specific for a sample but not a cluster. The proportions \(\pi _j\) for sample j follow a Dirichlet distribution, meaning the \(\pi _{ij}\) themselves follow a Beta distribution with mean
This allows to combine Eqs. 4 and 5 leading to Eq. 6 (which is the same as Eq. 3):
with the sum of the concentration parameters for a sample \({\varvec{A}}_{\bullet j} = \sum _{l=1}^K{\varvec{A}}_{lj}\). This means that \({\varvec{A}}_{ij}T_j,Z_j\) is dependent on six values: the intercept \(\beta _{0i}\), the first slope \(\beta _{1i}\), the continuous covariate \(T_j\), the second slope \(\beta _{2i}\), the binary covariate \(Z_j\) and \({\varvec{A}}_{\bullet j}\). Since the sum \({\varvec{A}}_{\bullet j}\) depends on all \({\varvec{A}}_{ij}\) for a given sample j, this means that in order to keep this sum equal across samples, for every \({\varvec{A}}_{ij}\) that is increased with increasing \(T_j\) there has to be an \({\varvec{A}}_{ij}\) that decreases the same amount. Because of the nonlinearity of the logit function this could lead to a very weak association of the second \({\varvec{A}}_{ij}\) (which would not strictly follow the logit relationship). The strategy is therefore to allow small discrepancies of the sum \({\varvec{A}}_{\bullet j}\) in order to get the specified associations. To decrease the variation of the sum \({\varvec{A}}_{\bullet j}\) two clusters of similar proportion are chosen. To obtain \(\beta _0\) and \(\beta _1\), the desired minimum/maximum mean proportion \(\pi _{ij}\) for \(max(T_j)\) is determined and then \(Z_j\) is set to zero to solve for \(\beta _0\) and \(\beta _1\). This will result in a sum \({\varvec{A}}_{\bullet j}\) that is exactly the same at \(T_j = 0\) and \(T_j = max(T_j)\). All sums \({\varvec{A}}_{\bullet j}\) in between will slightly deviate but this deviation is too small to detect under the simulation conditions considered here. To obtain \(\beta _{2i}\), a difference of the mean abundance at \(T_j=0\) is specified, which then allows to calculate \(\beta _{2i}\). In short, the \(\beta\)’s are calculated by specifying border constraints, consisting of maximum differences in the mean abundance dependent on the covariates. Because it was observed that the spread of the simulated data was higher than in the real dataset, the concentration parameters were multiplied by a factor of five (keeping the expected counts per cluster the same) to reduce the variance of counts.
Multiple imputation
The goal of multiple imputation is not to replace the missing or censored values by estimates but rather to find a parameter estimate of the statistical model being tested that is unbiased and confidence valid [34].
Multiple imputation consists of three main steps [34]: Imputation, Analysis, Pooling. In the first step, multiple complete datasets are generated by replacing the incomplete values with a random draw from a set of possible true values. This can, for example, be the assumed or empirical distribution of the incomplete value. In the second step, each completed dataset is individually analysed, e.g. by fitting a regression model. In the third step, the results from the second step are combined using Rubin’s rules [37] that consider the additional variances in the analysis. A slight variation is the use of Resampling in the first step. Before imputation, a bootstrap sample is drawn, which is then the new incomplete dataset where the missing values get replaced. One of the advantages of this approach: the incomplete value can be replaced by a deterministic quantity of the data (e.g. the mean), which would not work in classical multiple imputation (each imputed dataset would be the same). A drawback is that Resampling techniques are based on largesample theory and might not work properly for small samples [29].
DA
The presented DA methods are based on the GLMM approach in diffcyt which consists of fitting a generalized linear mixed model with a logit link function for each cell population, testing and multiple hypothesis testing correction. When a censored covariate is present, multiple imputation is used to handle the additional uncertainties of the parameters caused by incomplete data. The imputation methods are described in the following.
In complete case analysis (cc, also known as listwise deletion [34]), only the observed values (\({{\varvec{T}}}_j{{\varvec{T}}}_j<{{\varvec{C}}}_j\) for \(j\in \{1\ldots N\}\)) are used by discarding all incomplete samples.
The risk set imputation (rs) [31] first constructs the risk set \(R({{\varvec{T}}}_{l}) = \{{{\varvec{T}}}_j  {{\varvec{T}}}_{j} > {{\varvec{T}}}_{l}\}\) for \(j\in \{1\ldots N\}\) for all \({{\varvec{T}}}_{l}{{\varvec{T}}}_{l}<{{\varvec{X}}}_{l}\) with \(l\in \{1\ldots N\}\) and second, randomly draws one of those as the imputed value. If censoring depends on a covariate, the risk set is calculated as described in (Hsu et al.) [38], incorporating the idea of predictive mean matching.
The Kaplan–Meier imputation (km) [31] is similar to risk set imputation. It first constructs the risk set \(R({{\varvec{T}}}_{l})\) for all \({{\varvec{T}}}_{l}{{\varvec{T}}}_{l}<{{\varvec{X}}}_{l}\) and then estimates the survival function with the Kaplan–Meier estimator for each of those sets. A random event time according to the survival curve is drawn and replaces the censored value.
Conditional multiple imputation [33] (labeled here as mean residual life imputation (mrl)) is based on the mean residual life, which is the expected remaining survival time until an event happens
with the random variable X representing the true (unobserved) survival time and S(t) the survival function. It can be used to get an estimate of how long it will take until an event happens given that the event did not happen yet. Conditional single imputation [33] (Conditional multiple imputation with only one imputation) imputes censored values by adding the corresponding mean residual life. First a survival curve \(S({{\varvec{T}}})\) (using the Kaplan–Meier estimator) is fitted and then the mean residual life is added to the censored value [33]. If censoring depends on a covariate, \(S({{\varvec{T}}})\) can be fitted using the Coxproportional hazards model [27]. Mean residual life imputation (Conditional multiple imputation) can not be used in the normal multiple imputation set up since all imputed datasets would be the same. Instead Resampling is applied to first generate incomplete datasets before imputation.
The estimation of \(S({{\varvec{T}}})\) is done without any distributional assumptions resulting in a high data dependency. If the sample size is small and/or many values are censored the estimation can be drastically different from the true (unobserved) survival function. Especially towards the tails, as data gets even sparser, estimation is difficult. If the highest measured value is censored, \(S({{\varvec{T}}})\) does not reach its theoretical minimum (zero). The usual way to deal with this problem is to treat the maximum value as if it was observed. Another possibility is to make a distributional assumption for the tail of the survival function. This was explored for the method Kaplan–Meier imputation by assuming an exponential tail, which is referred to here as kme (based on [39]).
Unfortunately, there is no clear rule as to how many imputations are needed [34]. In general, this depends on (among other things) the censoring rate; higher censoring requires more imputations. Two methods to estimate the number of imputations are based on a linear rule [40] and a quadratic rule [41]. Only minor changes in the results after around 50 imputations could be seen in our case leading to the use of 50 imputations as the default.
Case study
Following are some clarifications of the description in the main text. The raw flow cytometry data is available under http://flowrepository.org/id/FRFCMZZ99. The data set consists of 766 PBMC samples linked to time to progression to AIDS from HIV+ of 383 patients. For each patient, two samples (measured at the same time) are available: one untreated and one treated with HIVGag proteins.
Preprocessing was performed according to the FloReMi pipeline [26]: First, quality control by removing cells within a certain time sampling interval where the median FSCA value differed dramatically from tolerable limits. Then, removal of margin events by removing cells that have a minimum and maximum value for some channel. Next, the selection of single cells by removing cells whose FSCA to FSCH ratio was larger than the median ratio plus two times the standard deviation of the ratios. Next, compensation with the given spillover matrices (from the .fcs files) was applied, data was logicle transformed and alive Tcells were gated (using flowDensity) using channels VAmine/CD14 and CD3 and selection of VAmine/CD14CD3+ population.
In the differential testing a transformed survival time, according to \(s_{trans} = log_e(s+11)\) (the \(+11\) is to obtain only positive values since the lowest survival time is \(10\)), was used.
Availability of data and materials
The tested methods were implemented in R and are submitted to Bioconductor. The source code is also available on GitHub https://github.com/retogerber/censcyt. Scripts for reproducing results and figures together with instructions to download the Singularity container (containing the used software packages) in which the analysis were run can be found on https://github.com/retogerber/censcyt_paper_scripts. R version 4.0.0 was used, and ggplot2 version 3.3.2 for plotting.
Abbreviations
 scRNAseq:

Singlecell RNA sequencing
 DA:

Differential abundance
 DS:

Differential state
 GLMM:

Generalized linear mixed model
 RB:

Raw bias
 CR:

Coverage rate
 CI:

Confidence interval
 RMSE:

Root mean squared error
 km:

Kaplan–Meier imputation
 kme:

Kaplan–Meier imputation with an exponential survival function tail
 rs:

Risk set imputation
 mrl:

Mean residual life imputation
 pmm:

Predictive mean matching
 cc:

complete case analysis
 DM:

Dirichletmultinomial distribution
 TPR:

True positive rate
 FDR:

False discovery rate
References
 1.
Saeys Y, Van Gassen S, Lambrecht BN. Computational flow cytometry: helping to make sense of highdimensional immunology data. Nat Rev Immunol. 2016;16(7):449–62. https://doi.org/10.1038/nri.2016.56.
 2.
Di Palma S, Bodenmiller B. Unraveling cell populations in tumors by singlecell mass cytometry. Curr Opin Biotechnol. 2015;31:122–9. https://doi.org/10.1016/j.copbio.2014.07.004.
 3.
Greenbaum D, Colangelo C, Williams K, Gerstein M. Comparing protein abundance and mRNA expression levels on a genomic scale. 2003. https://doi.org/10.1186/gb200349117.
 4.
Gry M, Rimini R, Strömberg S, Asplund A, Pontén F, Uhlén M, Nilsson P. Correlations between RNA and protein expression profiles in 23 human cell lines. BMC Genomics. 2009. https://doi.org/10.1186/1471216410365.
 5.
Stoeckius M, Hafemeister C, Stephenson W, HouckLoomis B, Chattopadhyay PK, Swerdlow H, Satija R, Smibert P. Simultaneous epitope and transcriptome measurement in single cells. Nat Methods. 2017. https://doi.org/10.1038/nmeth.4380.
 6.
Peterson VM, Zhang KX, Kumar N, Wong J, Li L, Wilson DC, Moore R, Mcclanahan TK, Sadekova S, Klappenbach JA. Multiplexed quantification of proteins and transcripts in single cells. Nat Biotechnol. 2017. https://doi.org/10.1038/nbt.3973.
 7.
Montante S, Brinkman RR. Flow cytometry data analysis: recent tools and algorithms. Int J Lab Hematol. 2019. https://doi.org/10.1111/ijlh.13016.
 8.
Crowell HL, Chevrier S, Jacobs A, Sivapatham S, Bodenmiller B, Robinson MD. An Rbased reproducible and userfriendly preprocessing pipeline for CyTOF data. F1000Research 2020.
 9.
Aghaeepour N, Finak G, Hoos H, Mosmann TR, Brinkman R, Gottardo R, Scheuermann RH. Critical assessment of automated flow cytometry data analysis techniques. Nat Methods. 2013;10(3):228–38. https://doi.org/10.1038/nmeth.2365.
 10.
Brinkman RR. Improving the rigor and reproducibility of flow cytometrybased clinical research and trials through automated data. Analysis. 2020. https://doi.org/10.1002/cyto.a.23883.
 11.
Malek M, Taghiyar MJ, Chong L, Finak G, Gottardo R, Brinkman RR. flowDensity: reproducing manual gating of flow cytometry data by automated densitybased cell population identification. Bioinformatics. 2015;31(4):606–7. https://doi.org/10.1093/bioinformatics/btu677.
 12.
Van Gassen S, Callebaut B, Van Helden MJ, Lambrecht BN, Demeester P, Dhaene T, Saeys Y. FlowSOM: Using selforganizing maps for visualization and interpretation of cytometry data. Cytometry Part A. 2015;87(7):636–45. https://doi.org/10.1002/cyto.a.22625.
 13.
Aghaeepour N, Nikolic R, Hoos HH, Brinkman RR. Rapid cell population identification in flow cytometry data. Cytom Part A. 2011. https://doi.org/10.1002/cyto.a.21007.
 14.
Levine JH, Simonds EF, Bendall SC, Davis KL, Amir EAD, Tadmor MD, Litvin O, Fienberg HG, Jager A, Zunder ER, Finck R, Gedman AL, Radtke I, Downing JR, Pe’er D, Nolan GP. Datadriven phenotypic dissection of AML reveals progenitorlike cells that correlate with prognosis. Cell. 2015. https://doi.org/10.1016/j.cell.2015.05.047.
 15.
Abdelaal T, van Unen V, Höllt T, Koning F, Reinders MJT, Mahfouz A. Predicting cell populations in single cell mass cytometry data. Cytom Part A. 2019. https://doi.org/10.1002/cyto.a.23738.
 16.
Nowicka M, Krieg C, Crowell HL, Weber LM, Hartmann FJ, Guglietta S, Becher B, Levesque MP, Robinson MD. CyTOF workflow: differential discovery in highthroughput highdimensional cytometry datasets. F1000Research. 2019. https://doi.org/10.12688/f1000research.11622.4.
 17.
R Development Core Team R. R: a language and environment for statistical computing; 2011. https://doi.org/10.1007/9783540746867
 18.
Weber LM, Nowicka M, Soneson C, Robinson MD. diffcyt: differential discovery in highdimensional cytometry via highresolution clustering. Commun Biol. 2019;2(1):183. https://doi.org/10.1038/s4200301904155.
 19.
Law CW, Chen Y, Shi W, Smyth GK. Voom: precision weights unlock linear model analysis tools for RNAseq read counts. Genome Biol. 2014. https://doi.org/10.1186/gb2014152r29.
 20.
Robinson MD, McCarthy DJ, Smyth GK. edgeR: a bioconductor package for differential expression analysis of digital gene expression data. Bioinformatics. 2009. https://doi.org/10.1093/bioinformatics/btp616.
 21.
Bruggner RV, Bodenmiller B, Dill DL, Tibshirani RJ, Nolan GP. Automated identification of stratifying signatures in cellular subpopulations. Proc Natl Acad Sci USA. 2014. https://doi.org/10.1073/pnas.1408792111.
 22.
Lun ATL, Richard AC, Marioni JC. Testing for differential abundance in mass cytometry data. Nat Methods. 2017. https://doi.org/10.1038/nmeth.4295.
 23.
Arvaniti E, Claassen M. Sensitive detection of rare diseaseassociated cell subsets via representation learning. Nat Commun. 2017. https://doi.org/10.1038/ncomms14825.
 24.
Fonseka CY, Rao DA, Teslovich NC, Korsunsky I, Hannes SK, Slowikowski K, Gurish MF, Donlin LT, Lederer JA, Weinblatt ME, Massarotti EM, Coblyn JS, Helfgott SM, Todd DJ, Bykerk VP, Karlson EW, Ermann J, Lee YC, Brenner MB, Raychaudhuri S. Mixedeffects association of single cells identifies an expanded effector CD4+ T cell subset in rheumatoid arthritis. Sci Transl Med. 2018. https://doi.org/10.1126/scitranslmed.aaq0305.
 25.
Aghaeepour N, Chattopadhyay P, Chikina M, Dhaene T, Van Gassen S, Kursa M, Lambrecht BN, Malek M, Mclachlan GJ, Qian Y, Qiu P, Saeys Y, Stanton R, Tong D, Vens C, Walkowiak S, Wang K, Finak G, Gottardo R, Mosmann T, Nolan GP, Scheuermann RH, Brinkman RR. A benchmark for evaluation of algorithms for identification of cellular correlates of clinical outcomes. Cytom Part A. 2016. https://doi.org/10.1002/cyto.a.22732.
 26.
Van Gassen S, Vens C, Dhaene T, Lambrecht BN, Saeys Y. FloReMi: flow density survival regression using minimal feature redundancy. 2016. https://doi.org/10.1002/cyto.a.22734
 27.
Cox DR. JSTOR J R Stat Soc Ser B (Methodol). 1972;34(2):187–220.
 28.
Rigobon R, Stoker TM. Estimation with censored regressors: basic issues. Int Econ Rev. 2007. https://doi.org/10.1111/j.14682354.2007.00470.x.
 29.
Little RJA, Rubin DB. Statistical analysis with missing data. 2002. https://doi.org/10.1002/9781119013563
 30.
Tsimikas JV, Bantis LE, Georgiou SD. Inference in generalized linear regression models with a censored covariate. Comput Stat Data Anal. 2012. https://doi.org/10.1016/j.csda.2011.11.010.
 31.
Taylor JMG, Cooper KL, Wei JT, Sarma AV, Raghunathan TE, Heeringa SG. Use of multiple imputation to correct for nonresponse bias in a survey of urologic symptoms among AfricanAmerican men. Am J Epidemiol. 2002. https://doi.org/10.1093/aje/kwf110.
 32.
Qian J, Chiou SH, Maye JE, Atem F, Johnson KA, Betensky RA. Threshold regression to accommodate a censored covariate. Biometrics. 2018. https://doi.org/10.1111/biom.12922.
 33.
Atem FD. Linear regression model with a randomly censored predictor: estimation procedures. Biostat Biomet Open Access J. 2017. https://doi.org/10.19080/bboaj.2017.01.555556.
 34.
van Buuren S. Flexible imputation of missing data, 2nd edn. 2018. https://doi.org/10.1201/9780429492259
 35.
Huang R, Soneson C, Germain PL, Schmidt TSB, Von Mering C, Robinson MD. treeclimbR pinpoints the datadependent resolution of hierarchical hypotheses. bioRxiv. 2020. https://doi.org/10.1101/2020.06.08.140608
 36.
Stanley N, Stelzer IA, Tsai AS, Fallahzadeh R, Ganio E, Becker M, Phongpreecha T, Nassar H, Ghaemi S, Maric I, Culos A, Chang AL, Xenochristou M, Han X, Espinosa C, Rumer K, Peterson L, Verdonk F, Gaudilliere D, Tsai E, Feyaerts D, Einhaus J, Ando K, Wong RJ, Obermoser G, Shaw GM, Stevenson DK, Angst MS, Gaudilliere B, Aghaeepour N. VoPo leverages cellular heterogeneity for predictive modeling of singlecell data. Nat Commun. 2020. https://doi.org/10.1038/s41467020175698.
 37.
Rubin DB. An overview of multiple imputation. In: Proceedings of the survey research methods section of the American statistical association. 1988.
 38.
Hsu CH, Taylor JMG, Murray S, Commenges D. Survival analysis using auxiliary variables via nonparametric multiple imputation. Stat Med. 2006;25(20):3503–17. https://doi.org/10.1002/sim.2452.
 39.
Moeschberger ML, Klein JP. A comparison of several methods of estimating the survival function when there is extreme right censoring. Biometrics. 1985;41(1):253. https://doi.org/10.2307/2530660.
 40.
Bodner TE. What improves with increased missing data imputations? Struct Equ Model. 2008. https://doi.org/10.1080/10705510802339072.
 41.
von Hippel PT. How many imputations do you need? A twostage calculation using a quadratic rule. Sociol Methods Res. 2018. https://doi.org/10.1177/0049124117747303.
Acknowledgements
The authors thank Lukas M. Weber for help with the implementation and authorization for reusage of code, and Stephanie Leemann for help designing Fig. 3.
Funding
MDR acknowledges support from the University Research Priority Program Evolution in Action at the University of Zurich. The funder played no role in the design of this study or in its execution.
Author information
Affiliations
Contributions
RG and MDR developed methods, designed analyses, and wrote the manuscript. RG implemented methods and performed analyses. All authors read and approved the final manuscript.
Corresponding author
Ethics declarations
Ethics approval and consent to participate
Not applicable.
Consent for publication
Not applicable.
Competing interests
The authors declare that they have no competing interests.
Additional information
Publisher's Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Supplementary Information
Additional file 1.
Supplementary figures.
Rights and permissions
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated in a credit line to the data.
About this article
Cite this article
Gerber, R., Robinson, M.D. Censcyt: censored covariates in differential abundance analysis in cytometry. BMC Bioinformatics 22, 235 (2021). https://doi.org/10.1186/s12859021041254
Received:
Accepted:
Published:
DOI: https://doi.org/10.1186/s12859021041254
Keywords
 Censored covariate
 Differential abundance analysis
 Single cell cytometry
