Single cell lineage reconstruction using distancebased algorithms and the R package, DCLEAR
BMC Bioinformatics volumeÂ 23, ArticleÂ number:Â 103 (2022)
Abstract
Background
DCLEAR is an R package used for single cell lineage reconstruction. The advances of CRISPRbased gene editing technologies have enabled the prediction of cell lineage trees based on observed edited barcodes from each cell. However, the performance of existing reconstruction methods of cell lineage trees was not accessed until recently. In response to this problem, the Allen Institute hosted the Cell Lineage Reconstruction Dream Challenge in 2020 to crowdsource relevant knowledge from across the world. Our team won subchallenges 2 and 3 in the challenge competition.
Results
The DCLEAR package contained the R codes, which was submitted in response to subchallenges 2 and 3. Our method consists of two steps: (1) distance matrix estimation and (2) the tree reconstruction from the distance matrix. We proposed two novel methods for distance matrix estimation as outlined in the DCLEAR package. Using our method, we find that two of the more sophisticated distance methods display a substantially improved level of performance compared to the traditional Hamming distance method. DCLEAR is open source and freely available from R CRAN and from under the GNU General Public License, version 3.
Conclusions
DCLEAR is a powerful resource for single cell lineage reconstruction.
Background
A multicellular organism or animal develops from one to two to four to an exponential number of cells. One of the challenges is the ability to predict the lineage tree representing the cell differentiation process starting from the single parental cell, based on cells extracted from the adult body. McKenna et al. [1] used gene editing technology and the immune system (CRISPRCAS9) as the basis for proposing a methodology called GESTALT for estimating a celllevel lineage tree using the data generated using CRISPRCAS9 barcode edits from each cell. Subsequently, Raj et al. [2] proposed scGESTALT, which further considers cell type identification as an extension of GESTALT. Researchers have developed a number of additional CRISPR recorderbased technologies [3,4,5].
This field lacked experimentation or analyses regarding the effectiveness of these proposed algorithms for comprehensive evaluation. To improve the evaluation process, the Allen Institute established The Cell Lineage Reconstruction DREAM Challenge [6]. The Allen Institute proposed three different subchallenges to benchmark reconstruction algorithms of cell lineage trees: (1) the reconstruction of in vitro cell lineages of 76 trees with fewer than 100 cells; (2) the reconstruction of an in silico cell lineage tree of 1000 cells; (3) the reconstruction of an in silico cell lineage tree of 10,000 cells. Our proposed DCLEAR method won subchallenges 2 and 3 of this challenge competition.
We outline and define the problem setting addressed in cell lineage reconstruction in the next section. We then present two core methods for distance matrix construction and outline how DCLEAR software may be applied to a simulated dataset.
Implementation
Problem setup
Assume we have n number of training data pairs. Each data pair consists of a set of cell sequences and a true cell lineage tree. One example of such a pair is illustrated in Fig. 1.
For the ith data pair, let \(m_i\) be the number of cell sequences in the ith data pair and let t be the sequence length. Let the sequence information in data pair i be written as \(C^i\), an \(m_i\times t\) matrix. The matrix element \(C^i_{jk}\) describes the jth sequence and the kth letter of the ith training data pair. Furthermore, we represent \(L_i\), the cell lineage tree structure, in the form of a Newick format string.
For example, if Fig. 1 represents ith data pair, (a) shows the sequence information. It has \(m_i=4\) cell sequences, each sequence length has a length (t) of 10, and the first letter of the 3rd sequence is \(C^i_{3,1}=\text {E}\). The cell lineage tree is shown in Fig. 1b. In Newick format, \(L_i = ((1:0.5,2:0.5):2,(3:1.2,4:1):2)\).
We built our model (\(m(C;{\hat{\theta }})\)) with n training pairs. The input matrix, C is an \(m_i\times t\) sequence information matrix. The output is the Newick format string representing the tree structure while \(\theta\) represents the parameter set related to model \(m(C;\theta )\), and \({\hat{\theta }}\) represents the estimated parameter with n training data pairs.
To evaluate the model, we have l number of unused data. The loss is indicated as \(L(m(C^i;{\hat{\theta }}), L_i)\). The loss increases when the predicted tree structure (\(m(C;{\hat{\theta }})\)) differs from the true tree structure (\(L_i\)). We use the averaged loss metric (AL) defined below to evaluate the model \(m(C;{\hat{\theta }})\).
Next, we need to define the quantity \(L(L_1, L_2)\) that represents the dissimilarity between the two lineage trees, \(L_1\) and \(L_2\). The two widely used measures of this dissimilarity are the Robinsonâ€“Foulds (RF) distance [7] and the Triplet distance [8].
Figure 2 represents two lineage trees, \(L_1\) and \(L_2\). The possible separations for tree 1 are \(\{1,2\}, \{3,4,5\}\) and \(\{1,2,5\}, \{3,4\}\), and the possible separations for tree 2 are \(\{1,2\}, \{3,4,5\}\) and \(\{1,2,3\}, \{4,5\}\). Among the four possible separations, \(\{1,2\}, \{3,4,5\}\) in tree 1 and tree 2 are concordant separations. The RF distance is defined as the total number of concordant separations divided by the total number of separations. As an example: the RF score for Figure 2 is 2/4 = 0.5.
For triplet distance calculations, we sample three items among all items in the tree. We determine \(_5C_3=10\) possible cases. We check whether the tree structure of the three items in tree 1 and tree 2 are the same. For example, the five cases of \(\{1,2,3\}, \{1,2,4\}, \{1,2,5\}, \{1,4,5\}\) and \(\{2,4,5\}\) have the same tree structure in both tree 1 and tree 2. The triplet score is defined as the number of cases with the same tree structure divided by the number of possible cases. Accordingly, the triplet score for our example is 5/10 = 0.5.
We will use \(AL_{RF}\) to denote the RF distance and \(AL_{TP}\) to denote the triplet distance.
Overview of the modeling architecture
The two main issues that need to be answered in the lineage reconstruction problem are (1) how should the model \(m(C;\theta )\) be built and (2) how should \({\hat{\theta }}\) be estimated? Our modeling architecture for \(m(C;\theta )\) is described in Fig. 3. We divide the model into two parts: (1) estimating the distance between cells and (2) constructing a tree using a distance matrix. Let D(C) be a function for estimating the distance matrix for an \(m \times t\) input sequence matrix, C, and let t(D) be a function for predicting the lineage tree for an \(m \times m\) distance matrix, D. Note that a knowledge of the triangular components in D is sufficient for defining the distance matrix. Subsequently, the challenge becomes how \(D(\cdot )\) and \(t(\cdot )\) should be defined.
Choice of distance
One notion for calculating the distance is to define the distance function for the two sequences. Let \(d(C_{i\cdot }, C_{j\cdot }; \theta )=d_{ij}\) be the calculated distance between the ith cell and the jth cell obtained from the given cell information matrix C. The quantities \(C_{i\cdot }, i = 1,\cdots ,m\) represent the ith cell vector taken from C. The quantity \(d_{ij}\) is the (i,Â j)th element of the cell distance matrix D. The next challenge becomes how \(d(\cdot , \cdot )\) should be defined.
Hamming distance method
One naive approach to modeling \(d(\cdot , \cdot )\) is to compute the Hamming distance expressed in equation (2):
where \(1{(\text {condition})}\) is an indicator function with a value of 1 if the given condition is true and 0 otherwise. Note that the Hamming distance \(d_H(C_{i\cdot }, C_{j\cdot })\) simply counts unit differences between the two sequences \(C_{i\cdot }\) and \(C_{j\cdot }\).
The simple calculation of the Hamming distance does not meet the challenges of the present study. Consider the cell differentiation process illustrated in Fig. 4. Let the 2nd and the 3rd leaf cells (dotted) have \(C_{2\cdot } = \text {0AB0}\) and \(C_{3\cdot }= \text {00CB0}\). The corresponding Hamming distance is \(d_H(C_{2\cdot }, C_{3\cdot }) = 3\). However, it is not reasonable to assign equal weights to each target position. This deficiency is addressed by the weighted Hamming approach described in the following subsubsection.
The code for using the Hamming distance method is available from the phangorn package [9] using the dist.hamming function.
Weighted Hamming distance (WHD) method
An example of the cell diffusion process is illustrated in Fig. 4. Consider the objective of reconstructing the lineage tree based on information about the leaf nodes. What would be an appropriate measure for calculating the distance between 0AB0 and 00CB0 (see the dotted circles in Fig. 4)? The character difference between â€˜Aâ€™ and â€˜0â€™ would be less than the character difference between â€˜Bâ€™ and â€˜Câ€™ as the initial state â€˜0â€™ can be differentiated to â€˜Aâ€™ or to any other outcome states, whereas states â€˜Bâ€™ and â€˜Câ€™ cannot be differentiated to other outcome states. In addition, the missing state â€™â€™ maybe any other state. Seeking a mathematical formula to accommodate these nuances, we propose the weighted Hamming distance (WHD) method:
where, \(C_{il}\) is the lth character in the ith cell sequence, and \(w_{C_{il}}\) is a weight associated with the character \(C_{il}\). The code for calculating the WHD method is available as the dist_weighted_hamming function in the DCLEAR package. For the estimation of weight parameters, we used Bayesian hyperparameter optimization using the BayesianOptimization function in the rBayesianOptimization package [10].
kmer replacement distance (KRD) method
The algorithm used to compute the kmer replacement distance (KRD) method first uses the prominence of mutations in the character arrays to estimate the summary statistics used for the generation of the tree to be reconstructed. These statistics include the mutation rate, the mutation probability for each character in the array, the number of targets, and the number of cells. These estimated parameters were combined with predefined parameters, such as the number of cell divisions, to simulate multiple lineage trees starting from the nonmutated root. To generate trees with sizes and mutation distributions similar to the target tree, we generated 1000 lineage trees, each with 16 cell divisions of 216 leaves, a mutation rate of 0.1, arrays of 200 characters, 200 cells, and 30 states (â€˜Aâ€™â€˜Zâ€™ to â€˜aâ€™â€˜câ€™, with an outcome probability following a Gamma distribution with a shape of 0.1 and a rate of 2). Different possibilities for the kmer distance method were then estimated from the simulated lineage trees and used to compute the distances between the input sequences in the character arrays of internal nodes and tips. The KRD method is available from the DCLEAR package using the dist_replacement function.
Tree construction
We use existing methods such as NeighborJoining (NJ), UPGMA, and FastMe [11,12,13] for tree construction from the estimated distance matrix, D. The NJ method is implemented as the nj function in the Analysis of Phylogenetics and Evolution (ape) package, UPGMA is implemented as the upgma function in the phangorn package, and FastMe is implemented as fastme.bal, and fastme.ols in the ape package.
Results
This section reports the experimental results of applying the Hamming distance, WHD, and KRD methods using existing tree construction methods (NJ, UPGMA, and FastMe). For the use of NJ, UPGMA, and FastMe, the nj function in the ape package [14] was used for the NJ method, the upgma function in the phangorn package [9] was used for the UPGMA method, the fastme.ols function in the ape was used for the FastMe method, and the fastme.bal function in the ape was used for FastMe with tree rearrangement.
Datasets
Simulation dataset
The simulation dataset was generated from our simulation code. Parameter settings for the simulation were as follows:

1.
Number of targets: 50, 100, and 200

2.
Mutation probability: 0.02, 0.04, 0.06, 0.08, and 0.1

3.
Number of cells: 100

4.
Dropout probability: 0, 0.05, and 0.1

5.
Number of cell division: 16

6.
Existance of point deletion: True, False
We iterated all 90 combinations (\(3 \times 5 \times 3 \times 2\)) of the parameter 5 times, result in 450 simulation datasets. For each iteration, We generated five training sets and one evaluation set. The averaged performance of the 450 evaluation sets was reported.
Subchallenge 2 and 3 datasets
The subchallenge 2 and 3 datasets can be downloaded from the competition website of the Allen Institute Cell Lineage Reconstruction Challenge at https://www.synapse.org/#!Synapse:syn20692755 (accessed on 17 September 2021). The subchallenge 2 dataset (the dataset for C.elegans cells) contained a 1000 cell tree from the 200 mutated/nonmutated targets in each cell induced by simulation, and the subchallenge 3 dataset (the dataset for mouse cells) had a 10,000 cell tree from the 1000 mutated/nonmutated targets in each cell induced by simulation. The different simulation models were used for subchallenges 2 and 3. Both datasets had 100 trees. We randomly divided the subchallenge dataset into 75 trees for training and 25 trees for evaluation.
Experimental results

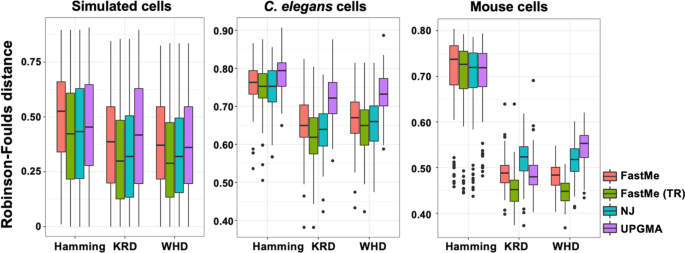

We outlined our experimental results in Fig. 5. The yaxis represented the RF distance, and the xaxis accommodated the different models. The Hamming distance, the KRD, and the WHD methods were used for distance calculation. NJ, UPGMA, and FastMe were methods for tree construction. For all three datasets, the KRD and the WHD methods displayed improved performance compared to the Hamming distance method. The performance achieved with the KRD was similar to that achieved with WHD. Among the tree construction methods, FastMe with tree rearrangement displayed improved performance compared to the other tree construction methods.
Discussion
In these experiments, we only compared the Hamming distance, the WHD, and the KRD methods using the three datasets. Gong et al. [6] presented the comparison of the WHD and the KRD with the other methods that participated in the Cell Lineage Reconstruction Dream Challenge (2020). Our proposed WHD method was used for subchallenge 3, and the KRD method was used for subchallenge 2. DCLEAR won both subchallenges 2 and 3 but did not participate in subchallenge 1. The subchallenge 1 dataset has only ten target positions with two outcome states. The WHD and KRD methods were more powerful techniques with more complex settings, such as the existence of a dropout interval, the existence of missing target positions, and a larger number of outcome states. With the small target positions and the small outcome states of subchallenge 1, the gain achieved by using the WHD and the KRD methods was not high. We were not able to show a comparison for subchallenge 1 as DCLEAR did not participate in that subchallenge. Thus, the future work of DCLEAR will contain an extension of the WHD and the KRD methods with small target and small outcome settings. Furthermore, for the WHD method, the hyperparameter tuning was performed using BayesianOptimization because the loss was not differentiable with respect to weight parameters. We could utilize the surrogate loss to address this nondifferentiable loss [15].
Conclusions
DCLEAR is a powerful resource for single cell lineage reconstruction.
Availability of data and materials
DCLEAR is available from R cran at https://cran.rproject.org/web/packages/DCLEAR/index.html, and Github at https://github.com/ikwak2/DCLEAR Datasets are downlaodable from the challenge website, https://www.synapse.org/#!Synapse:syn20692755/wiki/. after agreeing the terms and conditions. The R/DCLEAR package is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License, version 3.
Abbreviations
 DCLEAR:

Distance based Cell LinEAge Reconstruction
 CRISPR:

Clustered regularly interspaced short palindromic repeats
 R:

Statistical Language R
 CRAN:

Comprehensive R archive network
 GESTALT:

Genome editing of synthetic target arrays for lineage tracing
 scGESTALT:

An extended version of GESTALT considering singlecell RNA sequencing data
 AL:

Averaged loss metric
 RF:

Robinsonâ€“Foulds distance
 WHD:

Weighted Hamming distance
 KRD:

kmer replacement distance
 NJ:

Neighborjoining
 UPGMA:

Unweighted pair group method with arithmetic mean
 FastMe:

Fast distancebased phylogeny inference program
References
McKenna A, Findlay GM, Gagnon JA, Horwitz MS, Schier AF, Shendure J. Wholeorganism lineage tracing by combinatorial and cumulative genome editing. Science. 2016;353:6298. https://doi.org/10.1126/science.aaf7907.
Raj B, Wagner DE, McKenna A, Pandey S, Klein AM, Shendure J, Gagnon JA, Schier AF. Simultaneous singlecell profiling of lineages and cell types in the vertebrate brain. Nat Biotechnol. 2018;36(5):442â€“50. https://doi.org/10.1038/nbt.4103.
Frieda KL, Linton JM, Hormoz S, Choi J, Chow KHK, Singer ZS, Budde MW, Elowitz MB, Cai L. Synthetic recording and in situ readout of lineage information in single cells. Nature. 2017;541:107â€“11. https://doi.org/10.1038/nature20777.
Alemany A, Florescu M, Baron CS, PetersonMaduro J, van Oudenaarden A. Wholeorganism clone tracing using singlecell sequencing. Nature. 2018;556:108â€“12. https://doi.org/10.1038/nature25969.
Jones MG, Khodaverdian A, Quinn JJ, Chan MM, Hussmann JA, Wang R, Xu C, Weissman JS, Yosef N. Inference of singlecell phylogenies from lineage tracing data using cassiopeia. Genome Biol. 2020;21(1):92. https://doi.org/10.1186/s13059020020008.
Gong W, Granados AA, Hu J, Jones MG, Raz O, SalvadorMartÃnez I, Zhang H, Chow KHK, Kwak IY, Retkute R, Prusokas A, Prusokas A, Khodaverdian A, Zhang R, Rao S, Wang R, Rennert P, Saipradeep VG, Sivadasan N, Rao A, Joseph T, Srinivasan R, Peng J, Han L, Shang X, Garry DJ, Yu T, Chung V, Mason M, Liu Z, Guan Y, Yosef N, Shendure J, Telford MJ, Shapiro E, Elowitz MB, Meyer P. Benchmarked approaches for reconstruction of in vitro cell lineages and in silico models of c. elegans and m. musculus developmental trees. Cell Syst. 2021. https://doi.org/10.1016/j.cels.2021.05.008
Robinson DF, Foulds LR. Comparison of phylogenetic trees. Math Biosci. 1981;53(1):131â€“47. https://doi.org/10.1016/00255564(81)900432.
Dobson AJ. Comparing the shapes of trees. In: Street AP, Wallis WD, editors. Combinatorial mathematics III. Berlin: Springer; 1975. p. 95â€“100.
Schliep K, Paradis E, Martins LdO, Potts A, White TW, Stachniss C, Kendall M, Halabi K, Bilderbeek R, Winchell K, Revell L, Gilchrist M, Beaulieu J, Oâ€™Meara B, Jackman LQ. Phangorn: Phylogenetic Reconstruction and Analysis. 2015. R package version 2.5.5. https://CRAN.Rproject.org/package=phangorn
Yan Y. rBayesianOptimization: Bayesian Optimization of Hyperparameters. 2016. R package version 1.1.0. https://CRAN.Rproject.org/package=rBayesianOptimization
Saitou N, Nei M. The neighborjoining method: a new method for reconstructing phylogenetic trees. Mol Biol Evol. 1987;4(4):406â€“25. https://doi.org/10.1093/oxfordjournals.molbev.a040454.
Sokal RR, Michener CD. A statistical method for evaluating systematic relationships. Univ Kansas Sci Bull. 1958;38:1409â€“38.
Desper R, Gascuel O. Fast and accurate phylogeny reconstruction algorithms based on the minimumevolution principle. J Comput Biol. 2002;9:687â€“705.
Paradis E, Claude J, Strimmer K. ape: Analyses of phylogenetics and evolution in R language. Bioinformatics. 2004;20(2):289â€“90. https://doi.org/10.1093/bioinformatics/btg412.
Grabocka J, Scholz R, SchmidtThieme L. Learning surrogate losses (2019). CoRR abs/1905.10108. arXiv:1905.10108
Team RC. R: a language and environment for statistical computing. R Foundation for Statistical Computing, Vienna, 2017. R Foundation for Statistical Computing. https://www.Rproject.org/
Funding
This work was supported by the National Research Foundation of Korea (NRF) grant funded by the Korea government (MSIP) (No. NRF2020R1C1C1A01013020).
Author information
Authors and Affiliations
Contributions
IYK and WG participated in the design of the tool, implemented and tested the software, drafted the manuscript. HJK and DJG provided expert feedback in the design of the tool, the evaluation of the results and on the writing of the paper. All authors read and approved the final manuscript.
Corresponding author
Ethics declarations
Ethics approval and consent to participate
Not applicable.
Competing interests
The authors declare that they have no competing interests.
Consent for publication
Not applicable.
Additional information
Publisher's Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Appendix
Appendix
Simulating trees with barcodes
For a simple illustration of lineage reconstruction, we simulated data using the sim_seqdata function in the DCLEAR package coded using the R [16] language. The sim_n parameter represented the number of cell samples. The prob_state parameter represented the cell state probability. The parameter m represented the number of targets. The parameter n_s represented the number of outcome states which equals the length quantified by prob_state. The parameter mu_d represented the mutation probability for each target position on every cell division. The parameter d represented the number of cell divisions. Finally, the parameter p_d represented the dropout probability of each target position for every cell division. The code is outlined below:

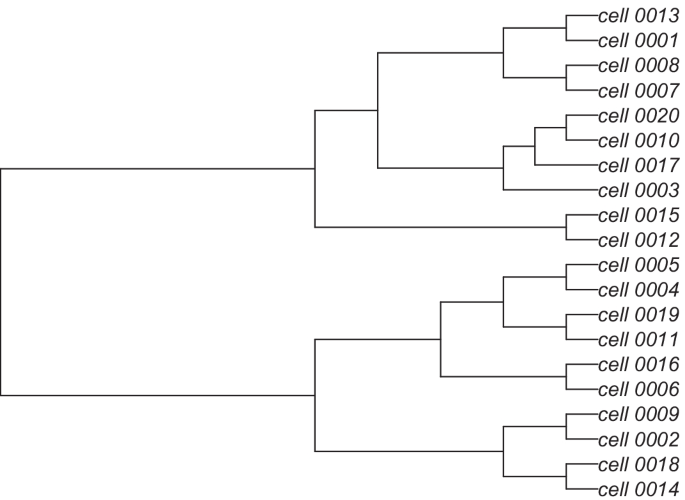

With this code, we generate a lineage tree of 20 leaf barcodes with 10 target positions. The sD$seqs contains the sequence information, and the sD$tree has the true tree structure:
We can also print character information of the simulated barcodes.
The initial cell state is â€˜0000000000â€™. There are \(d=12\) number of cell divisions resulting in \(2^{12}\) leaf nodes. Every target position changes to a different outcome state for each cell division with a probability \(mu\_d = 0.03\). The mutational positions randomly change to different outcomes, which follows a multinomial distribution with a probability \(p=out\_prob\). Every target position of leaf nodes randomly changes to a missing state (â€™â€™) with a probability \(p_d = 0.005\). Finally, \(simn = 20\) cells are randomly sampled. The true lineage tree structure of 20 cells (\(simn = 20\)) is recorded in sD$tree. The tree structure corresponding to \(simn = 20\) cells is illustrated in Fig.Â 6.
Subsequently, we prepared five lineage trees as a training dataset. Each lineage tree has 10 leaves with 40 barcode target positions:
SDs is a list of 5 lineage trees. Each item of the SDs list is generated using sim_seqdata function:
The ten barcodes of the first training data are shown below.
We observed interval missing (dropout) events by marking them with a sequence of hyphens. Weight parameters for the WHD method were trained using the WH_train function. We specified the weight for the initial state and the weight for the dropout state.
We printed out the state characters as indicated below:
Since the initial state (â€˜0â€™) is in the first position and the dropout state (â€˜â€™) is in the second position, we specify loc0=1 and locDroputout = 2:
We simulated one evaluation datum and compared the ground truth tree with three generated trees using the Hamming, WHD, and KRD distances with the FastMe algorithm for tree construction:
First, we calculated the distance matrix using the Hamming distance, the WHD, and the KRD methods:
Second, we constructed the tree using the FastMe algorithm with the tree rearrangement using fastme.bal function. The ground truth tree and the three generated trees were demonstrated in Fig. 7. As an alternative to fastme.bal function, we could use different tree construction algorithms using nj, upgma, and fastme.ols functions.
As outlined in Fig. 7, it is challenging to compare and determine which generation is the optimal one. One useful metric for making a determination is the RF distance. We calculated and compared the RF distances for the various generations. The RF distances were calculated and compared as indicated below:
The lower the value of the RF distance between the ground truth tree and the generated tree, the greater the similarity between the ground truth tree and the generated tree. Thus, for the given example data, the KRD method produced optimal results.
