Bayesian kinetic modeling for tracerbased metabolomic data
BMC Bioinformatics volume 24, Article number: 108 (2023)
Abstract
Background
Stable Isotope Resolved Metabolomics (SIRM) is a new biological approach that uses stable isotope tracers such as uniformly \(^{13}C\)enriched glucose (\(^{13}C_6\)Glc) to trace metabolic pathways or networks at the atomic level in complex biological systems. Nonsteadystate kinetic modeling based on SIRM data uses sets of simultaneous ordinary differential equations (ODEs) to quantitatively characterize the dynamic behavior of metabolic networks. It has been increasingly used to understand the regulation of normal metabolism and dysregulation in the development of diseases. However, fitting a kinetic model is challenging because there are usually multiple sets of parameter values that fit the data equally well, especially for largescale kinetic models. In addition, there is a lack of statistically rigorous methods to compare kinetic model parameters between different experimental groups.
Results
We propose a new Bayesian statistical framework to enhance parameter estimation and hypothesis testing for nonsteadystate kinetic modeling of SIRM data. For estimating kinetic model parameters, we leverage the prior distribution not only to allow incorporation of experts’ knowledge but also to provide robust parameter estimation. We also introduce a shrinkage approach for borrowing information across the ensemble of metabolites to stably estimate the variance of an individual isotopomer. In addition, we use a componentwise adaptive Metropolis algorithm with delayed rejection to perform efficient Monte Carlo sampling of the posterior distribution over highdimensional parameter space. For comparing kinetic model parameters between experimental groups, we propose a new reparameterization method that converts the complex hypothesis testing problem into a more tractable parameter estimation problem. We also propose an inference procedure based on credible interval and credible value. Our method is freely available for academic use at https://github.com/xuzhang0131/MCMCFlux.
Conclusions
Our new Bayesian framework provides robust estimation of kinetic model parameters and enables rigorous comparison of model parameters between experimental groups. Simulation studies and application to a lung cancer study demonstrate that our framework performs well for nonsteadystate kinetic modeling of SIRM data.
Background
The metabolome comprises the full set of compounds and the biochemical reactions that represent the functional phenotypes of living organisms. It changes in response to either internal environments (such as mutations or alterations in gene/protein expression) or external perturbations (such as altered nutrient supply) which occur during disease progression. Unraveling the dynamics of changes in the metabolome is a key to elucidating molecular regulations at both gene and protein levels that underlie macroscopic phenotypes such as individual variations in disease development or drug susceptibility. In recent years, a powerful approach, Stable Isotope Resolved Metabolomics (SIRM) [1,2,3,4,5,6,7,8,9,10,11] has been developed to decipher metabolic networks and changes in disease states, which can be linked to altered regulation at gene and protein expression levels. Based on mass spectrometry and nuclear magnetic resonance techniques, SIRM uses stable isotope tracers such as uniformly \(^{13}\text {C}\)enriched glucose (\(^{13}\text {C}_\text {6}\text {Glc}\)) to trace metabolic pathways or networks at the atomic level [1, 7, 9, 11,12,13,14,15,16] in cells, tissues, living organisms, or even human patients, that respond to disease development or drug treatment. By determining the atomic position (isotopomers) of stable isotope incorporation into relevant metabolites, the enzymes that are involved in the altered biochemical conversion of parent tracers into these metabolites can be systematically identified along with their possible allosteric regulator(s). In cancer research, for example, SIRM studies have uncovered key reprogrammed metabolic events and regulations in cancer cells and tissues [14, 17,18,19,20,21,22,23].
Kinetic modeling analysis is a commonly used approach to quantitatively model metabolic pathway dynamics based on total metabolite profiles and/or tracer data. Many kinetic modeling analyses [24,25,26] focus on the case that the system has achieved both metabolic and isotopic steady state. Several statistical and machine learning algorithms have been developed to characterize kinetic models and estimate model parameters for such models, see Saa and Nielsen [27] and CuperlovicCulf [28] for reviews. However, the steady state is difficult to achieve in complex biological systems such as mammalian cells, tissues, or in whole bodies [29]. An important development is the extension of kinetic modeling analysis to nonmetabolic and nonisotopic steady flux analysis based on ordinary differential equations (ODEs) that represent the kinetics of individual or groups of enzymecatalyzed reactions within the proposed metabolic networks [30,31,32,33,34,35]. Nonsteadystate kinetic models are more realistic and have been increasingly used to understand the regulation of normal metabolism, the development of disease, and to predict metabolic reactions upon genetic and environmental perturbation [36,37,38,39]. Such characterization is then necessary for the development of novel therapeutic strategies.
For statistical analyses of nonsteadystate kinetic modeling, current methods [31, 40, 41] are weighted least squaresbased, which seek an optimal set of parameters to minimize the difference between model and the observed data. However, due to the complexity of the model and limited number of replicates, there are usually multiple sets of parameter values that fit the data equally well [40]. Without imposing additional constraints, it is difficult to unambiguously determine all model parameters. In addition, quantifying the uncertainty in parameter estimation is also challenging because the Hessian matrix, which is required to calculate the standard error of parameter estimator, is often illconditioned. Further, without an accurate characterization of the standard error of parameter estimator, it is difficult to statistically rigorously compare kinetic model parameters as well as metabolic flux between different experimental groups, e.g. treatment versus control. Consequently, Fan et al. [41] only compared the point estimate of a parameter between groups without providing a quantification of statistical significance such as a pvalue.
Here we describe a new Bayesian statistical framework for nonsteadystate kinetic modeling of SIRM data to provide accurate and robust estimation of model parameters and to allow rigorous comparison of model parameters between experimental groups. For estimation of kinetic model parameters, our Bayesian method incorporates experts’ knowledge about the most likely region of model parameters by a prior distribution, which yields robust estimates of parameters and avoids retrieving scientifically unrealistic parameter values. In addition, we propose a Bayesian shrinkage prior for the variances of the isotopomer abundances to stabilize their estimation, and thus more reliably quantify the uncertainty in kinetic model parameter estimation for limited sample sizes. Further, we introduce advanced Markov chain Monte Carlo (MCMC) methods including adaptive Metropolis [42,43,44] and delayed rejection [45, 46] to improve the efficiency of posterior sampling under the highdimensional situation. For comparison of kinetic parameters between experimental groups, we propose a novel reparameterization method that converts the complex hypothesis testing problem, which involves highdimensional integrals, into a more tractable parameter estimation problem. Based on the posterior sample of that parameter, a credible interval can be easily constructed to assess the null hypothesis. We further propose a credible value to quantify the likelihood for the null hypothesis to hold. Simulation studies were conducted to evaluate the accuracy of the proposed method in estimating kinetic model parameters and detecting differentiated parameters between experimental groups. By applying our method, we characterized the dysregulation of purine synthesis in lung squamous cell carcinoma tissues.
Methods
In this section, we introduce a kinetic model to characterize the dynamics of biochemical processes. Based on this model, we propose a Bayesian framework to estimate the model parameters and conduct hypothesis tests comparing parameter values between experimental groups.
A Bayesian kinetic model
Biochemical processes can be described by systems of biochemical reactions, showing how the reactants are transformed and related to the products. The most common approach to model the evolution of such a system over time is dynamical system modeling via ODEs. These ODEs characterize the functional relationship between reactants at a specific time point t, where the time derivatives quantify the biochemical reaction rates between reactants. Specifically, let \(\varvec{y}_{tj} = (y_{tj1}, \ldots , y_{tjn})'\) be a vector of observed concentrations of n isotopomers at time t in independent repeated sample j, \(j=1,\ldots ,m\), and \(\varvec{\mu }_{t}\) be a vector of mean concentrations of isotopomers at time t. We consider the following model
where \(\varvec{f}\) is the formula of a set of prespecified nonlinear ODEs with respect to \(\varvec{\mu }_t\) for different isotopomers, \(\varvec{\beta }\) is a vector of unknown ODE model parameters on the logarithmic scale, and \(\varvec{\delta }_{tj}\) is a vector of independent random error terms. The ODE model parameters represent the rate constants of the biochemical reactions which are determined by the enzyme parameters, such as the \(K_m\) (the MichaelisMenten constant) and \(k_{cat}\) (the turnover number, the number of times each enzyme site converts substrate to product per unit time), which are our main parameters of interest. Note that because ODE parameters are always positive, we consider \(\varvec{\beta }\), the natural logarithm of ODE parameters, for the convenience of prior specification and posterior sampling. The error term \(\varvec{\delta }_{tj}\) describes the technical and biological variations. It has been suggested that a normally distributed additive error term on the logarithm of the data is appropriate when modeling biochemical reactions [47]. Therefore, we assume \(\varvec{\delta }_{tj} \sim N(0,\Sigma _\delta )\), where \(\Sigma _\delta\) is a diagonal matrix with the ith diagonal element being \(\sigma _i^2\). Let \(\varvec{\sigma }^2\) be a vector of the \(\sigma _i^2\)’s.
Although our interest lies in \(\varvec{\beta }\), the inference relies heavily on a stable estimate of \(\varvec{\sigma }^2\). When we assume discrete T time points are observed, the likelihood function of the model, \(L(\varvec{\beta }, \varvec{\sigma }^2)\), is
where \(\varvec{\mu }_t\) is a function of \(\varvec{\beta }\) and t defined in Eq. (1), and \(\Sigma _\delta\) contains \(\varvec{\sigma }^2\). This model is highly nonlinear and the parameters are embedded within the ODEs. It is challenging to use the maximum likelihood method directly to obtain model parameter estimations since taking derivatives with respect to the parameters within ODEs is not trivial, though it can be done numerically, or explicitly for known function forms such as Hill equation or the MichaelisMenten equation). Bayesian methods are valuable alternatives to obtain posterior samples of parameters without the need to take derivatives. They also provide a natural and principled way to combine the observed data with experts’ prior knowledge and information about the parameters, which is the key to achieve robust parameter estimation for a complex system with a limited sample size. Let \(p(\varvec{\beta })\) and \(p(\varvec{\sigma }^2)\) be priors of \(\varvec{\beta }\) and \(\varvec{\sigma }^2\), respectively, and assume that they are independent with each other, the joint posterior distribution of \(\varvec{\beta }\) and \(\varvec{\sigma }^2\) is
where \(\varvec{y} = (\varvec{y}_{tj})\) is the observed data across time point \(t=1,\ldots , T\) and replicate \(j=1,\ldots , m\).
Prior specification
We assume that the prior distribution of \(\varvec{\beta }\) is a truncated multivariate normal distribution. Specifically, we first consider a multivariate normal distribution with mean \(\varvec{\xi }\) and covariance matrix \(\Lambda\), where values of \(\varvec{\xi }\) and \(\Lambda\) are specified based on experts’ knowledge and using literature data and databases such as BRENDA [48]. We then further constrain the distribution within a reasonable value range between \(\varvec{\zeta }_l\) and \(\varvec{\zeta }_u\), which are also specified by experimentalists, to rule out some extreme values that are not biologically possible, and thus enhances the robustness of our method under the highdimensional situation. Note that we do not require the experts to specify very narrow ranges. The ranges are determined by the amount of information available about each enzyme. If there is extensive information about an enzyme under different conditions, a relatively narrow range will be specified, whereas for less well characterized enzymes, a wider range will be used.
When only a limited number of replicates are collected for an individual isotopomer, it is unlikely to provide a stable estimate of \(\sigma _i^2\) without any regulation. We consider a Bayesian shrinkage approach that assumes a common prior for all \(\sigma _i^2\)’s, which regulates the variance estimate by borrowing information from the ensemble of isotopomers. This approach has been shown to provide a more stable estimate of the variance in transcriptomics studies [49]. Importantly, a stable estimate of the variance can also enhance the estimation of \(\varvec{\beta }\). Specifically, we assume the common prior is an inverse gamma distribution with shape parameter \(\alpha _*\) and scale parameter \(\kappa _*\). The hyperparameters \(\alpha _*\) and \(\kappa _*\) are empirically determined based on the sample variances of all isotopomers, i.e.
where \(s_{it}^2 = \{\sum _{j=1}^{m}(\log y_{tji}\sum _{j=1}^{m} \log y_{tji}/m)^2\}/(m1)\) denotes the sample variance over m replicates for each isotopomer i at time point t, \(\bar{s^2} = (\sum _{t=1}^T\sum _{i=1}^{n}s_{it}^2)/(nT)\) stands for the average of all sample variances across time and isotopomer.
To demonstrate how the priors impact parameter estimation, consider the logarithm of the posterior
The above formula is a penalized loglikelihood function from a frequentist point of view, where a penalty term \((\varvec{\beta }\varvec{\xi })^{'}\Lambda ^{1}(\varvec{\beta }\varvec{\xi })\) is introduced to penalize \(\varvec{\beta }\) value that is far away from its prior mean \(\varvec{\xi }\). Likewise, a penalty term \((\alpha _*1)\log \sigma _i^2\kappa _* / \sigma _i^2\) is to penalize \(\sigma _i^2\) values far away from the overall empirical mean. Therefore, by using the prior distribution to regularize the parameter estimation, our method reduces the chances of getting extreme or implausible estimated values for those parameters.
Inferring posterior distribution
Point estimates and credible intervals for model parameters are obtained from the posterior distribution using MCMC methods. We use the Gibbs sampling [50] to iteratively sample each element of \(\varvec{\beta }\) and \(\varvec{\sigma }^2\) from its conditional posterior distribution given all other parameters. In the next two subsections, we describe methods to sample from those conditional posterior distributions.
Posterior sampling for kinetic parameters
The conditional posterior sample of a kinetic parameter is obtained by using MCMC because that posterior has no analytic expression due to the complexity of the ODEs. Since the dimension of parameters is high, the standard MetropolisHastings algorithm is inefficient and may yield low rates of acceptance and poor mixing of the chain [44]. To improve efficiency, we opted to implement advanced MCMC methods including componentwise adaptive Metropolis [42,43,44] and delayed rejection [45, 46].
The adaptive Metropolis [43] tunes the covariance matrix of the proposal distribution in the MetropolisHastings algorithm based on the past sample path of the chain and automatically adapts the proposal distribution towards the target distribution. Based on the adaptive Metropolis algorithm, our proposal distribution for the ith element of the parameter vector, \(\beta _i\), at the \((l+1)^{th}\) iteration is
where the variance of the proposal distribution is
where \(C_{ii}^l\) is the (i, i) element of \(C^l\), \(C_{i,i}^l\) is the \(i^{th}\) row of \(C^l\) after removing the \(i^{th}\) column, \(C_{i,i}^l\) is the \(i^{th}\) column of \(C^l\) after removing the \(i^{th}\) row, and \(C_{ii}^l\) is the submatrix of \(C^l\) leaving out the \(i^{th}\) row and the \(i^{th}\) column with
The matrix \(C^l\) is fixed at \(C_0\) for the first \(l_0\) iterations and adaptive to the covariance of the past sample \(\varvec{\beta }^1,\ldots ,\varvec{\beta }^l\) afterwards. The specifications of \(C_0\), \(s_d\) and \(\epsilon\) are provided in Additional file 1.
The delayed rejection [45, 46] modifies the standard MetropolisHastings algorithm by delaying the rejection of proposed moves to improve MCMC efficiency in the Peskun sense [51]. When a candidate generated from the proposal distribution is rejected in MetropolisHastings, instead of advancing time and retaining the same position, a second candidate move is proposed with the acceptance probability adjusted to preserve the reversibility of the Markov chain relative to the target distribution. Specifically, when the proposed \(\beta _i^*\) is rejected, we will do a further Metropolis step with scaled covariance, i.e.
where \(\gamma\) is the scale parameter for delayed rejection. A detailed description of the componentwise adaptive Metropolis algorithm with delayed rejection is provided in Additional file 1.
Posterior sampling for error variances
The prior of \(\sigma _i^2\), an inverse gamma distribution with shape parameter \(\alpha _*\) and scale parameter \(\kappa _*\), is a conjugate prior based on model (1). In Additional file 1, we show that the conditional posterior distribution of \(\sigma _i^2\) given \(\varvec{\beta }\) is an inverse gamma distribution with shape parameter \(\alpha _*+ mT/2\) and scale parameter \(\kappa _* +\sum _{t=1}^T\sum _{j=1}^{m}(\log y_{tji}  \log \mu _{ti})^2/2\), where \(\mu _{ti}\) is the underlying concentration corresponding to the ODE in model (1) given the current value of \(\varvec{\beta }\). The posterior sample of \(\sigma _i^2\) is directly obtained from this distribution.
Comparison of kinetic model parameters between experimental groups
A primary goal of many metabolomic studies is to identify metabolic alterations in response to disease development or drug treatment by comparing kinetic model parameters between two experimental groups, e.g. cancer vs. normal or drugtreated vs. control. Let \(\varvec{\beta }^{(1)}\) and \(\varvec{\beta }^{(2)}\) be kinetic parameters in two experimental groups, respectively. We focus on the situation of assessing whether the value of a specific kinetic model parameter, e.g. the \(k^{th}\) parameter, is equal between experimental groups. Our hypothesis testing problem is:
A standard Bayesian hypothesis testing requires calculation of the following Bayes factor,
where \(\varvec{\beta }_{k}^{(1)}\) and \(\varvec{\beta }_{k}^{(2)}\) are vectors of parameters in \(\varvec{\beta }^{(1)}\) and \(\varvec{\beta }^{(2)}\) excluding \(\beta _{k}^{(1)}\) and \(\beta _{k}^{(2)}\), respectively, and \(\beta _k^*\) denotes the common value of \(\beta _k^{(1)}\) and \(\beta _k^{(2)}\) under \(H_0\). The Bayes factor involves intimidatingly high dimensional integrals that are very difficult to compute with a reasonable accuracy. To address the hypothesis testing problem while circumventing the highdimensional integration, we propose the following reparameterization:
The hypothesis testing problem then becomes
Importantly, this hypothesis testing can be converted into a parameter estimation problem, where we first estimate \(\eta _k\) by obtaining its posterior distribution, and then check the likelihood of \(\eta _k = 0\) by constructing a credible interval and further calculating the tail probability under its posterior distribution.
Specifically, we jointly model data from the two experimental groups with the reparameterization in effect:
where variables/parameters are defined similarly as before with an additional superscript to indicate the experimental group. We assume that \(\varvec{\delta }_{tj}^{(1)}\) and \(\varvec{\delta }_{tj}^{(2)}\) are independent and their ith elements follow normal distributions with mean 0 and variance \(\sigma ^{2}_{i,(1)}\) and \(\sigma ^2_{i,(2)}\), respectively.
The prior of \(\varvec{\beta }^{(1)}\) and \(\varvec{\beta }_{k}^{(2)}\) are specified based on the expert’s knowledge and the prior of each \(\sigma ^2_{i,(1)}\), \(\sigma ^2_{i,(2)}\) is specified by an inverse gamma distribution using the shrinkage approach. The prior of \(\eta _k\) is specified as a normal distribution with mean zero and variance equal to the variance of \(\beta _k^{(1)}\). With some simple modification of the MCMC algorithm proposed in the last subsection, we obtain posterior samples of parameters \((\varvec{\beta }_{k}^{(1)}, \varvec{\beta }_{k}^{(2)}, \beta _k^{(1)},\eta _k, \varvec{\sigma }^{2}_{(1)}, \varvec{\sigma }^{2}_{(2)})\) with an additional sampling step for \(\eta _k\). We then perform the hypothesis testing based on the posterior credible interval of \(\eta _k\), where the two specific kinetic model parameters are considered as different if the 95% credible interval of \(\eta _k\) does not cover 0. To further quantify the level of evidence supporting the null hypothesis, we investigate the highest level of credible interval that does not cover 0 and define a credible value
where \(HDI_{\alpha }\) denotes the highest density interval of level \(\alpha\) under the posterior distribution of \(\eta _k\). This credible value reflects how extreme the null value is with respect to our posterior belief about \(\eta _k\). In other words, it can be used as an empirical rule regarding how likely the null hypothesis value is correct. A similar idea has recently been investigated in simpler models in clinical trial studies [52]. As we will show in the simulation studies subsection, the distribution of the above credible values is concentrated around zero when the true values for \(\beta _k^{(1)}\) and \(\beta _k^{(2)}\) are different, while it is much more scattered between zero and one when the true values for \(\beta _k^{(1)}\) and \(\beta _k^{(2)}\) are the same. Thus, the credible value has a similar behavior as the frequentist’s pvalue. We consider a credible value \(<0.05\) as statistically significant. As the credible value is calculated based on \(HDI_{\alpha }\) that can reflect deviation of \(\eta _k\) from zero in either positive or negative direction, our test is a twosided test.
The proposed algorithm could be applied in other scenarios (e.g. whether there is a difference in metabolic flux between groups) when the object of interest concerns the comparison of multiple kinetic parameters, more details are given in the Discussion section.
Results
Real data analysis
We validated our proposed Bayesian framework by using published data in [41]. Fan et al. [41] employed multiplexed SIRM (i.e. multiple labeled substrates in the same experiment) to track the metabolism of \(^{13}C_6\)Glc, \(D_2\)glycine, \(^{13}C_2\)glycine, and \(D_3\)serine into purine nucleotides in thin slices of cancerous and matched noncancerous lung tissues freshly resected from a patient with lung squamous cell carcinoma. The data include abundances of isotopologues of serine and glycine and purine nucleotides in cancer and noncancer tissue slices of that patient with three replicates, in both the tissue and the medium. Kinetic models were constructed and a weighted least squarebased method was used to estimate model parameters. Fan et al. [41] considered a model with three distinct pools of cytoplasmic Ser/Gly (Fig. 1), where one pool is derived from \(^{13}C_6\)Glc, the second is from exogenous \(D_3\)Ser or \(D_2\)Gly, and the third is from unlabeled sources. However, no statistical confidence interval or pvalue was available due to the limitation of the weighted least squaresbased method used in that paper. In this subsection, we use our proposed methods to reanalyze the data and provide more rigorous statistical inference. Initial ranges of kinetic parameters (Additional File 2: Table S1) were taken from literature sources for the appropriate human isoforms [48, 53].
Kinetic parameter estimation
Following our proposed method, we obtained the posterior samples for all the \(\beta\) parameters in model (1) based on 5500 MCMC iterations after 7500 burnin iterations. The convergence of the MCMC chains was examined by the Geweke test (Additional File 2: Table S2). By inserting the \(\beta\) values into model (1), we estimated the 24hour concentrations of isotopologues. Fig. 2 compares those estimated log concentrations ± posterior standard deviations with mean log concentration ± standard deviation in the observed data for cancer and noncancer groups, respectively. The estimated concentrations were very close to the observed ones for most isotopologues except for some low abundance ones. Likewise, the variations under the proposed model were also comparable to those presented by the observed data for most isotopologues except for some low abundance ones. These results indicate that our estimators perform well.

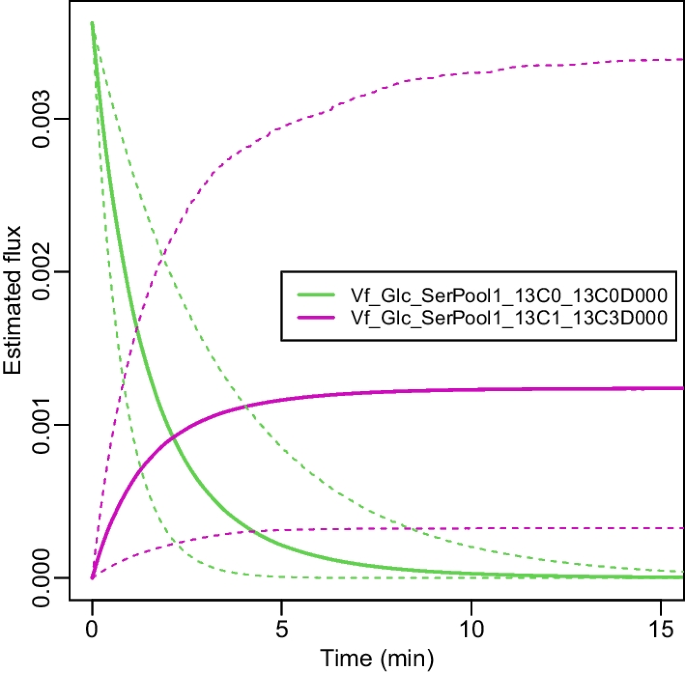

We next investigated the posterior mean and standard deviation over time for two fluxes, \(Vf_{GlcSerPool113C013C0D000}\) and \(Vf_{GlcSerPool113C113C3D000}\), from the cancer group, as shown in Fig. 3. Based on Fig. 1, we had a nonzero concentration for labeled Glc in medium and unlabeled Glc in the cytoplasm at time zero. On the one hand, the labeled Glc concentration in the cytoplasm increased with time, and the forward flux from labeled Glc to labeled Ser in cytoplasm also tended to increase. On the other hand, the unlabeled Glc’s concentration decreased owing to the activity of forward reactions to other metabolites; similarly the forward flux from unlabeled Glc to unlabeled Ser in cytoplasm tended to decrease too, as expected for actively metabolizing cells.
Group comparison
We compared each kinetic model parameter between cancer and noncancer tissues based on our proposed hypothesis testing procedure. Specifically, we calculated the 95% credible interval for the difference in parameter value between cancer and noncancer tissues and checked whether it covered zero. A credible value was further calculated to quantify the significance level of the test. We obtained the posterior samples based on 2000 MCMC iterations after 5500 burnin iterations. The convergence of the MCMC chains was examined by the Geweke test (Additional File 2: Table S3). Results are shown in Fig. 4. We found that the forward flux from glucose to serine in pool 1 (\(K_{fGLCSerPool1}\)) is significantly higher in cancer than noncancer tissues (credible value<0.001). This result is consistent with the result reported in [41], providing evidence for the validity of our method. Further, compared to [41], our method is able to infer the difference in kinetic model parameters in a statistically rigorous way.
Simulation studies
We conducted simulation studies to evaluate the performance of our method. Data were simulated based on Model (1) with parameters specified according to the real data from [41]. Specifically, we considered the threepool model, which contains 608 ODEs and 52 parameters, from [41] and borrowed the kinetic parameter estimates from [41] and accordingly set the true values of \(\varvec{\beta }\) in our simulations. As to the variances of the assumed normally distributed data errors, we borrowed the variation information in the real data with three replicates in [41] and randomly generated the \(\varvec{\sigma }^2\) values from an inverse Gamma distribution which took the shrinkage mean and variance of the real data replicates’ variation as the mean and variance. These randomly generated values were taken as the true values of the data error variances in our simulation studies. Then our simulated concentration data were generated accordingly based on the assumed normal distributed errors.
Parameter estimation
Our first set of simulations evaluated the performance of our proposed parameter estimation method. We simulated data with 3 replicates based on the cancer data from [41]. We applied our method to generate posterior samples from 15,000 MCMC iterations, where the adaptive sampling started after 3000 burnin iterations and the delayed rejection started after another 1000 iterations. The simulations were repeated 30 times, i.e. 30 seperate datasets were generated. We examined the difference between the estimated parameter value (posterior mean) and true value. Figure 5 plots the averaged difference across 30 simulation runs ± 2 se, indicated by a gray box, for each of the 52 kinetic parameters, where se is the standard error of the difference between estimated and true parameter values across 30 simulation runs. Almost all of the boxes (51 out of 52) covered zero, indicating that the true parameter value was within 2 se of the estimated values. The one exception was \(\beta _{27}\), where the true value was outside 2 se. But it was still within 2.5 se of the averaged estimated value. In summary, our estimated values were close to true values relative to the standard errors of the estimated values. Therefore, the simulation results demonstrate that the performance of our estimation method was satisfying.
Group comparison
Our second set of simulations assessed the performance of the hypothesis testing method. Data were simulated following the same procedure as the first set of cancer simulations (superscripted by (1)), except that a second noncancer experimental group (superscripted by (2)) was added. We tested the hypothesis of \(\beta _{10}^{(1)} = \beta _{10}^{(2)}\) and considered the following three scenarios: \(\beta _{10}^{(1)} = \beta _{10}^{(2)}\), \(\beta _{10}^{(2)} = \beta _{10}^{(1)}  0.2\), and \(\beta _{10}^{(2)} = \beta _{10}^{(1)}  0.35\).
We applied our proposed testing method, which converts the testing problem into one problem of estimating \(\eta _{10} = \beta _{10}^{(1)}  \beta _{10}^{(2)}\) and rejects the null hypothesis if the 95% credible interval of \(\eta _{10}\) does not cover zero, or equivalently, the credible value is smaller than 0.05. For every simulation, we used 3000 burnin steps before heading into adaptive phase, and after further 1000 steps, we added delayed rejection. The simulations were repeated 20 times (i.e. 20 datasets were generated) for each scenario and the posterior samples contained 10,000 steps in total. Under the first scenario where the null hypothesis held (Fig. 6A and B), the 95% credible interval covered 0 and thus did not reject the null hypothesis in most of the 20 simulations. The distribution of credible value over 20 simulations was dispersed with many of them having large values, also suggesting the null hypothesis was likely to hold. Under the second scenario where there was a moderate difference between \(\beta _{10}^{(1)}\) and \(\beta _{10}^{(2)}\) (Fig. 6C and D), the 95% credible interval did not cover 0 in most simulations and the distribution of credible value was very concentrated around small values, both suggesting the null hypothesis was unlikely to hold. Under the third scenario where the true difference was larger (Fig. 6E and F), the 95% credible interval did not cover 0 in almost all simulations and the distribution of credible values all approached to zero value, both strongly suggesting that the null hypothesis should be rejected. In summary, our proposed reparameterization method for hypothesis testing tended to not rejecting the null hypothesis under the scenario that the null hypothesis held, and rejecting the null hypothesis under the scenarios that the null hypothesis did not held. Therefore, these simulation results indicate that our hypothesis testing method was well performed.
Discussion
Our method has close points of contact with [54], where the authors developed a novel Bayesian approach for the inference of ODEs for characterizing transcription factor activities based on gene expression data. Our method extends this Bayesian idea in multiple ways. First, we propose a new reparameterization method and credible valuebased procedure that enables Bayesian hypothesis testing for comparing kinetic parameters between experimental groups. Second, we introduce componentwise adaptive Metropolis and delayed rejection methods to improve the MCMC efficiency for complex ODE model systems with highdimensional parameters. Third, we propose a Bayesian shrinkage prior to stablize variance parameter estimation under limited sample size.
Our hypothesis testing method for comparing kinetic model parameters can be extended to identify the betweengroup difference in metabolic flux, which is the net rate of flow of atoms or metabolic subunits through a metabolic pathway or network segment. Based on the kinetic model, the flux can be expressed as a function of t and \(\varvec{\beta }_k\), where \(\varvec{\beta }_k\) is a subvector of \(\varvec{\beta }\) that are related to the isotopic flow through the \(k^{th}\) metabolite. To determine whether the flux stays the same between experimental groups, it is sufficient to evaluate whether \(\varvec{\beta }_k^{(1)}\) and \(\varvec{\beta }_k^{(2)}\) are equal, where \(\varvec{\beta }_k^{(1)}\) and \(\varvec{\beta }_k^{(2)}\) are values of \(\varvec{\beta }_k\) in the two groups, respectively. Consider the reparameterization that \(\varvec{\eta }_k=\varvec{\beta }_k^{(2)} \varvec{\beta }_k^{(1)}\), the aforementioned hypothesis testing problem becomes \(H_0: \varvec{\eta }_k=0 \text { vs. } H_1: \varvec{\eta }_k \ne 0\). We can jointly model data from the two experimental groups and obtain posterior samples of \(\varvec{\eta }_k\). The 95% highest density credible region of \(\varvec{\eta }_k\) can then be constructed to assess whether the null hypothesis holds. A credible value can also be defined to quantify the level of evidence supporting the null hypothesis. Given the straightforward extension to comparing a vector of parameters, technical difficulties remain in constructing multidimensional credible regions. Some successes have been found in the bivariate case [55] or logconcave posterior distributions [56]. However, these algorithms cannot be used in our case since neither the explicit form nor the logconcavity property of the posterior distribution is known. In addition, our current testing strategy is biologically informative because each kinetic parameter in the ODEs is biologically meaningful. The pathway flux can be controlled mainly by one or several enzymes in the pathway, and the ranking of the enzymes by the significance level of their corresponding \(\beta\)’s helps determine the relative importance of each enzyme in the pathway for flux control (e.g. [40, 57]). This also allows testing of a specific hypothesis that a particular enzyme contributes most to flux control, which would then be a potential therapeutic target.
The credible value approach is easy to implement and practically valid based on simulation studies and real data analysis. Its theoretical performance needs further investigation. We refer to [58] and postulate that the credible value has an asymptotically uniform distribution when the null hypothesis is true, that is, the parameters are identical between cancer and noncancer group. Further, Xie and Singh [58] demonstrated the asymptotic equivalence of posterior distribution with confidence distribution, which supports our approach of doing hypothesis testing through evaluating the “significance” of null hypothesis under any confidence distribution, and thus through credible value.
An alternative MCMC algorithm, the geometric based sampling methods (mMALA and RMHMC included) [59, 60] may be considered for our model. Those methods, shown to be more efficient than the standard MetropolisHastings algorithm and can effectively handle highly correlated samples [59, 60], could be more suitable for applications when the dynamic system presents partially unidentifiable structures commonly seen in biochemical networks [61]. Implementating these methods relies on a fast and accurate solver for the auxiliary sensitivity equations (Eq. (2.1) in [61]) at each sampling iteration, which remains to be explored given the large number of ODE equations and dimension of parameters in our application. This will be our interest as a future research.
Conclusions
In this paper, we have developed a Bayesian framework for nonsteadystate kinetic modeling analysis of SIRM data. By using prior distributions to incorporate biological knowledge and integrate information across metabolites, our method provides robust estimation of model parameters. By introducing a new reparameterization and credible valuebased inference procedure, our method allows comparison of kinetic model parameters between experimental groups in a statistically rigorous way. Real data analysis and simulation studies demonstrate that our framework performs well in practical situations.
Availability of data and materials
Our method is freely available for academic use at https://github.com/xuzhang0131/MCMCFlux.
Change history
10 January 2024
A Correction to this paper has been published: https://doi.org/10.1186/s12859024056357
Abbreviations
 SIRM:

Stable isotope resolved metabolomics
 ODEs:

Ordinary differential equations
 MCMC:

Markov chain Monte Carlo
 psd:

Posterior standard deviation
 sd:

Standard deviation
 se:

Standard error
 \(\mathbf {^{13}C_6}\)Glc:

\(^{13}C\)enriched glucose.
