A modelbased clustering via mixture of hierarchical models with covariate adjustment for detecting differentially expressed genes from paired design
BMC Bioinformatics volume 24, Article number: 423 (2023)
Abstract
The causes of many complex human diseases are still largely unknown. Genetics plays an important role in uncovering the molecular mechanisms of complex human diseases. A key step to characterize the genetics of a complex human disease is to unbiasedly identify diseaseassociated gene transcripts on a wholegenome scale. Confounding factors could cause false positives. Paired design, such as measuring gene expression before and after treatment for the same subject, can reduce the effect of known confounding factors. However, not all known confounding factors can be controlled in a paired/match design. Modelbased clustering, such as mixtures of hierarchical models, has been proposed to detect gene transcripts differentially expressed between paired samples. To the best of our knowledge, no modelbased gene clustering methods have the capacity to adjust for the effects of covariates yet. In this article, we proposed a novel mixture of hierarchical models with covariate adjustment in identifying differentially expressed transcripts using highthroughput wholegenome data from paired design. Both simulation study and real data analysis show the good performance of the proposed method.
Introduction
Genomewide differential gene expression analysis is widely used for the elucidation of the molecular mechanisms of complex human diseases. One popular and powerful approach to detect differentially expressed genes is the probewise linear regression analysis combined with the control of multiple testing, such as limma [1]. That is, we first perform linear regression for each probe and then adjust pvalues for controlling multiple testing. One advantage of this approach is its capacity to adjust for potential confounding factors.
Another approach for detecting differentially expressed genes is the modelbased clustering via mixture of Bayesian hierarchical models (MBHM) [2,3,4,5,6,7], which can borrow information across genes to cluster genes. Probe clustering based on MBHMs treats gene transcripts as “samples” and samples as “variables”. Therefore, transcript clustering based on MBHMs has large number of “samples” and relatively small number of “variables”, hence does not have the curseof dimensionality problem. In addition, unlike transcriptspecific tests that have several parameters per transcript, transcript clustering based on MBHMs has only a few hyperparameters per cluster to be estimated and could borrow information across transcripts to estimate model hyperparameters. These approaches generally assume that samples under two groups are obtained independently. [8] proposed a constrained MBHM to identify genetic outcomes measured from paired/matched designs.
Paired design is commonly used in study design for its homogeneous external environment for comparing measurements under different conditions. However, not all known confounding factors can be controlled in a paired/match design. Hence, we might still need to adjust the effects of confounding factors for data from a paired/matched design.
Mixture of regressions or mixture of experts model [9,10,11] have been proposed in literature to do clustering with capacity to adjust for covariates. To best of our knowledge, this approach does not have constraints on positive, negative, and constant means and has not been applied to detect differentially expressed genes.
In this article, we proposed a novel mixture of hierarchical models with covariate adjustment in identifying differentially expressed transcripts using highthroughput whole genome data from paired design.
Method
We assumed that gene transcripts can be roughly classified into 3 clusters based on their expression levels in subjects after treatment (denoted as condition 1) relative to those before treatment (denoted as condition 2):

1
Transcripts after treatment have higher expression levels than those before treatment, i.e., overexpressed (OE) in condition 1;

2
Transcripts after treatment have lower expression levels than those before treatment, i.e., underexpressed (UE) in condition 1;

3
Transcripts after treatment have same expression levels than those before treatment, i.e., nondifferentially expressed (NE) between condition 1 and matched condition 2.
We followed [8] to directly model the marginal distributions of gene transcripts in the 3 clusters. In [8], they proposed a mixture of threecomponent hierarchical distributions to characterize the withinpair difference of gene expression. We extended their model by incorporating potential confounding factors (such as Age and Sex) in the mixture of hierarchical models, which might affect the response of gene expression to drug treatment.
Note that this extension is nontrivial, just like multiple linear regression is not just a simple extension to simple linear regression.
We assumed that data have been processed so that the distributions of mRNA expression levels are close to normal distributions. For RNAseq data, we can apply VOOM transformation [12] or countTransformers [13] before applying eLNNpairedCov.
A mixture of hierarchical models
For the \(g^{th}\) gene transcript, let \(x_{gl}\) and \(y_{gl}\) denote the expression levels of the \(l^{th}\) subject under two different conditions, e.g., before and after treatment, \(g=1, \ldots , G\), \(l=1, \ldots , n\), where G is the number of transcripts and n is the number of subjects (i.e., the number of pairs). Let \(d_{gl} = \log _2(y_{gl})  \log _2(x_{gl})\) be the log2 difference for the \(g^{th}\) gene transcript of \(l^{th}\) subject. Denote \({{\textbf {d}}}_{g}=\left( d_{g1}, \ldots , d_{gn}\right) ^T\). We assumed that \({\textbf {d}}_{g}\) is conditionally normally distributed given mean vector and covariance matrix. Let \({\varvec{W}}^{T}\) be the \(n\times (p+1)\) design matrix, where p is the number of covariates. The first column of \({\varvec{W}}^T\) is the vector of ones, indicating intercept. Let \({\varvec{\eta }}\) be the \((p+1)\times 1\) vector of coefficients for the intercept and covariate effects. We assume following mixture of threecomponent hierarchical models:
For gene transcripts overexpressed (OE) in posttreatment samples, we expect that the mean log2 differences are positive. Hence, we assume
where \(k_1>0, \alpha _1>0\) and \(\beta _1>0\). \(\Gamma \left( \alpha _1, \beta _1\right)\) denotes the Gamma distribution with shape parameter \(\alpha _1\) and rate parameter \(\beta _1\). That is, we assume that (1) the mean vectors \({\varvec{\mu }}_g\), \(g=1\), \(\ldots\), G, given the variance \(\tau _g^{1}\) follow a multivariate normal distribution with mean vector \(\exp \left[ {\varvec{W}}^T{\varvec{\eta }}_1\right]\) and covariance matrix \(k_1 \tau _g^{1} {\varvec{I}}_n\); and (2) the variances \(\tau _g^{1}\), \(g=1\), \(\ldots\), G, follow a Gamma distribution with shape parameter \(\alpha _1\) and rate parameter \(\beta _1\).
Note that the exponential of the intercept \(\exp (\eta _{10})\) indicates the mean of log2 difference is positive.
For gene transcripts underexpressed (UE) in posttreatment samples, we expect that the mean log2 differences are negative. Hence, we assume
where \(k_2>0, \alpha _2>0\), \(\beta _2>0\), and \({\varvec{W}}^T\) is the design matrix.
Note that the negative exponential of the intercept \(\exp (\eta _{20})\) indicates the mean of log2 difference is negative.
For gene transcripts nondifferentially expressed (NE) between pre and posttreatment samples, we expect the mean log2 differences are zero. Hence, we assume
where \(k_3>0, \alpha _3>0\) and \(\beta _3>0\). \({\varvec{U}}^T\) is the design matrix without intercept column. That is, the intercepts are zero. Note that the intercepts indicate mean log2 differences. Hence, \({\varvec{\eta }}_3\) is a \(p\times 1\) vector of coefficients for the covariates.
Note that \({\varvec{\theta }}_g\) measure effects of confounding factors for NE genes. The true effect of NE genes are zero (i.e., the intercept of \({\varvec{U}}^T {\varvec{\theta }}_g\) is zero in the above model).
The hyperparameters \(\alpha _c\) and \(\beta _c\) are shape and rate parameters for the Gamma distribution, respectively, \(c = 1,2,3\). As for \(k_1, k_2\) and \(k_3\), the variation of the mean vector \({\varvec{\mu }}_g\) should be smaller than that of the observations \({\textbf {d}}_g\). So we expect \(0< k_c < 1, c=1,2,3\).
Note that the marginal distribution for each component of the mixture is a multivariate t distribution [14, Section 3.7.6]. However, to model differentially expressed genes, the multivariate t distributions derived from our models have special structure of mean vector and covariance matrix.
For continuous covariates, we require that they are standardized so that they have mean zero and variance one. Standardizing continuous covariates would make \(\exp \left( {\varvec{W}}^T{\varvec{\eta }}_1\right)\) and \(\exp \left( {\varvec{W}}^T{\varvec{\eta }}_2\right)\) be numerically finite.
Ideally, we should require \({\varvec{\mu }}_g > 0\) \(( {\varvec{\mu }}_g < 0)\) for all transcripts in cluster 1 (cluster 2). To do so, we can assume a log normal prior distribution for \({\varvec{\mu }}_g\) in cluster 1, for instance. However, a log normal distribution could not be a conjugate prior for the mean of a normal distribution. It would increase the computational burden if nonconjugate priors were used. Other alternative models can also be used, such as assuming \({\varvec{\mu }}_g  \eta _{10}= \exp (\eta _{10}) + {\varvec{W}}^T{\varvec{\eta }}_1\) and \(\eta _{10}\) follows a normal distribution. However, these models do not have closedform marginal densities. Hence, they would substantially increase computational burden. Besides, the empirical distribution of the mean log2 difference \({\textbf {d}}_{g}\) of the differentially expressed gene probes has shown a rightskewed pattern, while that of nondifferentially expressed genes demonstrates an approximate bell shape (see in Additional file 1: Figures A2A4). Hence, we require the mean \(E({\varvec{\mu }}_g)>0\) (\(E({\varvec{\mu }}_g)<0\)) for cluster 1 (cluster 2) by assuming \(E({\varvec{\mu }}_g)\) for cluster 1 (cluster 2) to be \(\exp [{\varvec{W}}^T{\varvec{\eta }}_1]\) (\(\exp [{\varvec{W}}^T{\varvec{\eta }}_2]\)).
The proposed mixture models have meaningful biological interpretations for mean structures. In particular, for the OE cluster, the intercept \(\exp (\eta _{10})\) can be interpreted as the expected average log2 difference of gene transcripts when the value of all the p covariates are zero; the coefficient \(\eta _{1i}\) of covariate i can be interpreted as there exists \(\exp (\eta _{1i})\) foldchange associated with the one unit increase in covariate i while the values of the remaining \(( p1 )\) covariates are fixed; for the UE cluster, the intercept \(\exp (\eta _{20})\) can be interpreted as the expected average log2 difference of gene transcripts when the value of all the p covariates are zero; the coefficient \(\eta _{2i}\) of covariate i can be interpreted as there exists \(\exp (\eta _{2i})\) foldchange associated with the one unit increase in covariate i while the values of the remaining \((p1)\) covariates are fixed; while for the NE cluster, the coefficient \(\eta _{3i}\) of covariate i can be interpreted as \(\eta _{3i}\) unit increase of expected log2 difference of gene transcripts associated with the one unit increase in covariate i while the values of the remaining \((p1)\) covariates are fixed. They also are convenient to get closedform marginal densities so that we can use ExpectationMaximization (EM) algorithm to estimate hyperparameters, instead of using computationalintensive algorithms, such as Markov chain Monte Carlo (MCMC).
Marginal density functions
Let \(f_1(\textbf{d}_g{\psi })\), \(f_2(\textbf{d}_g{\psi })\), \(f_3(\textbf{d}_g{\psi })\) be the marginal densities of the 3 hierarchical models, and \(\varvec{\pi }\) \(=\) \((\pi _1,\pi _2,\pi _3)\) be the vector of cluster mixture proportions, where \({\psi }=\left( \alpha _1, \beta _1, k_1, {\varvec{\eta }}_1^T, \alpha _2, \beta _2, k_2, {\varvec{\eta }}_2^T, \alpha _3, \beta _3, k_3, {\varvec{\eta }}_3^T\right) ^T\). Then the marginal density of \({\textbf {d}}_g\) is:
Determining transcript cluster membership
The transcriptcluster membership is determined based on the posterior probabilities, \(\zeta _{gc}\) \(=\) \(Pr(g^{th}\) gene transcript in cluster c \({\varvec{d}}_g)\). We can get
We determine a transcript’s cluster membership as follows: If the maximum value among \(\zeta _{gi}, i=1,2,3\) is \(\zeta _{gc}\), then the transcript g belongs to cluster c.
The true values of \(\pi _1\), \(\pi _2\), \(\pi _3\), and \({\psi }\) are unknown. We use estimated values to determine transcripts’ cluster membership.
Parameter estimation via EM algorithm
We used expectationmaximization (EM) algorithm [15] to estimate the model parameters \({\varvec{\pi }}=\left( \pi _1, \pi _2, \pi _3\right) ^T\) and \({\psi }\).
Let \({\varvec{z}}_g = (z_{g1}, z_{g2}, z_{g3})\) to be the indicator vector indicating if gene transcript g belongs to a cluster or not. To stablize the estimate of \({\varvec{\pi }}\) when \(\pi _c\) is very small, we assume that the cluster mixture proportions \(\varvec{\pi }\) follows a symmetric Dirichlet \(D(\textbf{b})\) distribution, i.e.,\(f(\varvec{\pi })=\frac{\Gamma (\sum _{c=1}^{3}b_c)}{\prod _{c=1}^{3}\Gamma (b_c)}\prod _{c=1}^{3}\pi _c^{b_c1}\). Therefore, the likelihood function for the complete data \((\textbf{d}, \varvec{z}, \varvec{\pi })\) is
Then the log completedata likelihood function is:
The EM algorithm is used to estimate parameters \({\varvec{\pi }}\) and \({\psi }\). Since \({\varvec{z}}\) is unknown random vector, we integrate it out from the log completedata likelhood function. Here, \(\varvec{z}_g=(z_{g1},z_{g2},z_{g3})\).
Estep. Denote \(Q^{(t)}\left( \varvec{\pi }, {\psi }  {\textbf {d}}, {\varvec{z}}^{(t)}, \varvec{\pi }^{(t)}\right)\) as the expected log completedata likelihood function at tth iteration of the EM algorithm, we have
where
Mstep. Maximize \(Q^{(t)}\left( \varvec{\pi }, {\psi }  {\textbf {d}}, {\varvec{z}}^{(t)}, \varvec{\pi }^{(t)}\right)\) to find the optimal values of \({\varvec{\pi }}\) and \({\psi }\), and use these optimal values as estimates for the parameters \({\varvec{\pi }}\) and \({\psi }\).
To maximize \(Q^{(t)}\left( \varvec{\pi }, {\psi }  \textbf{d}, {\varvec{z}}^{(t)}, \varvec{\pi }^{(t)}\right)\), we use the “LBFGSB” method developed by Byrd et al. (1995) [16], which utilizes the first partial derivatives of \(Q^{(t)}\left( \varvec{\pi }, {\psi }  {\textbf {d}}, {\varvec{z}}^{(t)}, \varvec{\pi }^{(t)}\right)\) and allows box constraints, that is each variable can be given a lower and/or upper bound.
Simulated annealing modification
EM algorithm may be trapped in a local maximum since it is strictly ascending. As introduced by Celeux and Govaert (1992) [17], simulated annealing (SA) is widely used to help EM algorithm escape from local maximum by adding randomness with a stochastic step. Specifically, the conditional expectation in (2) is modified in a SA algorithm as follows
where m is the temperature used to control the randomness. Usually, the temperature m starts with a relatively high value since larger m leads to larger randomness. At iteration t, the temperature is updated by \(m^{(t+1)} = r\times m^{(t)}\) with the cooling rate r controls the speed of reduction. As suggested in [18, 19], we use \(m^{(0)}=2\) and \(r= 0.9\).
We denoted eLNNpairedCov as the proposed method using the traditional EM algorithm to obtain parameter estimates and denoted eLNNpairedCov.SEM as the proposed method using the EM with SAmodification to obtain parameter estimates.
We stop the expectationmaximization iterations based on a proportional change, i.e. if the maximum of the absolute value of the differences of model parameter estimates between current iteration and previous iteration over the absolute value of the previous iteration estimates is smaller than a small constant (e.g. \(1.0\times 10^{3}\)).
More details about the EM algorithm are shown in Supplementary Document [see Additional file 1].
A real data study
We used the dataset GSE24742 [20], which can be downloaded from the Gene Expression Omnibus [https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE24742], to evaluate the performance of the proposed modelbased clustering methods (denoted as eLNNpairedCov and eLNNpairedCov.SEM ).
The dataset is from a study that investigated the gene expression before and after administrating rituximab, a drug for treating antiTNF resistant rheumatoid arthritis (RA). There are 12 subjects, each having 2 samples (one sample is before treatment and the other is after treatment). Age and sex are also available. Expression levels of 54,675 gene probes were measured for each of the 24 samples by using Affymetrix HUman Genome U133 Plus 2.0 array. The dataset has been preprocessed by the dataset contributor. We further kept only 43,505 gene probes in the autosomal chromosomes (i.e., chromosomes 1 to 22). We then performed log2 transformation for gene expression levels. We next obtained the withinsubject difference of the log2 transformed expression levels (log2 expression aftertreatment minus log2 expression beforetreatment). By examining the histogram (Figure A1) [see Additional file 1] of the estimated standard deviations of log2 differences of withinsubject gene expression for the 43,505 gene probes, we found a bimodal distribution. Based on Figure A1 [see Additional file 1], where the histogram of estimated standard deviations exhibits two modes, we choose to exclude gene probes with standard deviation \(<1\) corresponding to the first mode. It is a common practice to remove genes with low variation [21,22,23]. Finally, 23,948 gene probes kept in the downstream analysis.
A simulation study
We performed a simulation study to compare the performance of the proposed methods eLNNpairedCov, eLNNpairedCov.SEM with transcriptwise test limma and Li et al.’s [8] method (denoted as eLNNpaired). eLNNpairedCov, eLNNpairedCov.SEM and limma adjust covariate effects, while eLNNpaired does not. For eLNNpaired, we first regress out covariates effect for each gene to make a fair comparison between eLNNpaired and other methods.
The limma approach first performs an empiricalBayesbased linear regression for each transcript. In this linear regression, the withinsubject log2 difference of transcript expression is the outcome and intercept indicating if the transcript is overexpressed (intercept>0), underexpressed (intercept<0), or nondifferentially expressed (intercept = 0), adjusting for potential confounding factors. A transcript is claimed as OE if its intercept estimate is positive and corresponding FDRadjusted pvalue \(<0.05\), where FDR stands for false discovery rate. A transcript is claimed as UE if its intercept estimate is negative and corresponding FDRadjusted pvalue \(<0.05\). Other transcripts are claimed as NE.
The parameter values (\({\varvec{\pi }}\), \({\psi }\), and proportion of women) in the simulation study are based on the estimates via eLNNpairedCov.SEM from the analysis of the preprocessed real dataset GSE24742 described in Subsection “A real data study”.
In this simulation study, we considered two sets with different covariate coefficients for differentially expressed genes clusters. In the first set (Set 1), parameter values are the estimates of parameters based on the eLNNpairedCov.SEM method from real dataset. That is, \(\pi _1=0.00246\), \(\pi _2 = 0.01470\), \(\pi _3 = 0.98284\), \(\alpha _1 = 3.53\), \(\beta _1=3.45\), \(k_1=0.26\), \(\eta _{10}=0.18\), \(\eta _{11} = 0.00\), \(\eta _{12} = 1.05\), \(\alpha _2 = 3.53\), \(\beta _2 = 3.45\), \(k_2=0.26\), \(\eta _{20} = 0.18\), \(\eta _{21} = 0.00\), \(\eta _{22} = 1.05\), \(\alpha _3 = 2.86\), \(\beta _3=2.20\), \(k_3 = 0.72\), \(\eta _{31} = 0.01\), \(\eta _{32} = 0.00\). In the second set (Set 2), we set \(\eta _{10}\)=\(\eta _{20}\)=0.08 instead of 0.18. For each set, we considered two scenarios. In the first scenario (Scenario1), the number of subjects is equal to 30. In the second scenario (Scenario2), the number of subjects is equal to 100.
For each scenario, we generated 100 datasets. Each simulated dataset contains \(G=20,000\) gene transcripts. There are two covariates: standardized age (denoted as Age.s) and Sex. Age.s follows normal distribution with mean 0 and standard deviation 1. Seventy five percent (75%) of subjects are women.
Evaluation criteria
Two agreement indices and two error rates are used to compare the predicted cluster membership and true cluster membership of all genes. The two agreement indices are accuracy (i.e., proportion of predicted cluster membership equal to the true cluster membership) and Jaccard index [24]. For perfect agreement, these indices have a value of one. If an index takes a value close to zero, then the agreement between the true transcript cluster membership and the estimated transcript cluster membership is likely due to chance. The two error rates are false positive rate (FPR) and false negative rate (FNR). FPR is the percentage of detected DE transcripts among truly NE transcripts. FNR is the percentage of detected NE transcripts among truly DE transcripts. We also examined the user time and number of EM iterations for running each simulated dataset.
Results
Results of the real data analysis
For the real dataset, we adjusted standardized age and sex for eLNNpairedCov, eLNNpairedCov.SEM, and limma. We standardized age so that it has mean zero and variance one. For each transcript, we also scaled its expression across subjects so that its variance is equal one. For eLNNpaired, we first regressed out the effect of standardized age and sex for each transcript.
The estimates of parameters in our model are listed in Table 1. Note that the proposed eLNNpairedCov and eLNNpairedCov.SEM have the same estimates for the parameters in these three clusters, except for the proportions of three clusters. The proportions of OE and UE estimated by eLNNpairedCov method are 0.0376% and 0.346%, respectively. The proportions of OE and UE estimated by eLNNpairedCov.SEM method are 0.246% and 1.47%, respectively.
For the OE cluster, \(\exp (\eta _{10})=\exp (0.176007)=1.192\) can be interpreted as the expected log2 difference for a male subject (\(sex=0\)) whose age is equal to mean age (\(age=0\) is the meancentered age); \(\eta _{11}=0.000609\) indicates that oneunit increase in age leads to \(\exp (0.000609)=0.999\) foldchanges in expected log2 difference, while \(\eta _{12}=1.051257\) indicates that there is \(\exp (1.051257)=0.349\) foldchanges between male subjects and female subjects in expected log2 difference if they are at the same age. For the UE cluster, \(\eta _{20}=0.176007\) can be interpreted as the expected log2 difference for a male subject (\(sex=0\)) whose age is equal to mean age (\(age=0\) is the meancentered age) is \(\exp (0.176007)=1.192\); \(\eta _{21}=0.000609\) indicates that oneunit increase in age leads to \(\exp (0.000609)=0.999\) foldchanges in expected log2 difference, while \(\eta _{22}=1.051257\) indicates that there is \(\exp (1.051257)=0.349\) foldchanges between male subjects and female subjects in expected log2 difference if they are at the same age. For the NE cluster, \(\eta _{31}=0.013796\) indicates that oneunit increase in age leads to 0.01379 decreases in expected log2 difference, and \(\eta _{32}=0.000017\) indicates that there is 0.000017 decrease from female subjects to male subjects in the expected log2 difference if they are at the same age.
The number of differentially expressed genes detected by each method is listed in Table 2.

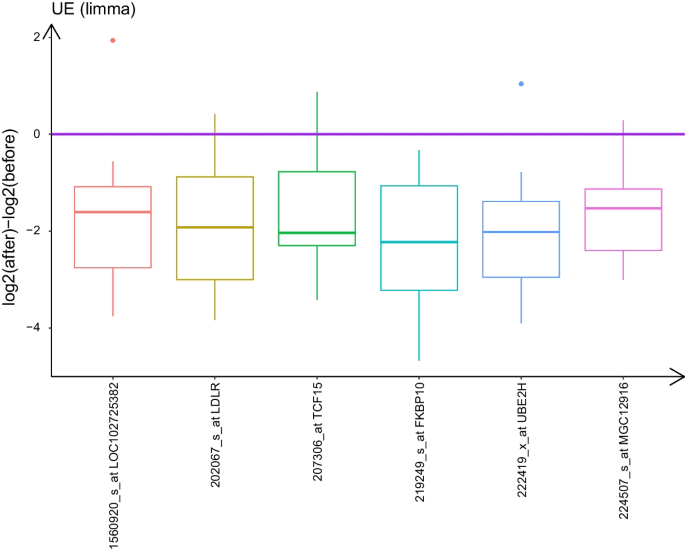

The limma method detected 6 underexpressed gene transcripts (Figure 1 and Table S1), while eLNNpaired did not find any positive signals (i.e., \({\hat{\pi }}_3 = 1\)). The proposed methods eLNNpairedCov and eLNNpairedCov.SEM detected 55 OE transcripts (Table S2) and 59 OE transcripts (Table S3), respectively (Upper two panels of Fig. 2) and 355 UE transcripts (Table S4) and 352 UE transcripts (Table S5), respectively (Lower two panels of Figure 2). The 6 UE transcripts detected by limma is also selected as UE transcripts by eLNNpairedCov and eLNNpairedCov.SEM. Note that the 55 OE genes detected by eLNNpairedCov are also detected by eLNNpariedCov.SEM. The 352 UE genes detected by eLNNpairedCov.SEM are also detected by eLNNpariedCov.
It is assuring that several genes corresponding to the DE transcripts identified by eLNNpairedCov and eLNNpairedCov.SEM have been associated to rheumatoid arthritis (RA) in literature. For example, Humby et al. (2019) [25] reported that genes ZNF365 (OE), IL36RN (OE), MRVI1AS1 (OE), WFDC6 (UE), UBE2H (UE), are associated with RA.
We performed pathway enrichment analysis through the use of IPA (QIAGEN Inc., https://www.qiagenbioinformatics.com/products/ingenuitypathwayanalysis) for 352 UE and 55 OE genes identified by eLNNpairedCov.SEM. The top enriched canonical pathways are shown in Tables 3 and 4. Evidence in literature shows that these pathways are relevant to RA. S100 protein family plays an important role in rheumatoid arthritis ( [26]). Literature shows consistent crucial role of the PD1/PDL pathway in the pathogenesis of rheumatic diseases ( [27, 28]). It has been shown that RA can lead to lung tissue damage, resulting in pulmonary fibrosis ( [29]). Macrophage is a key player in the pathogenesis of autoimmune diseases, such as RA ( [30]). RA and osteoarthritis (OA) are two common arthritis with different pathogenesis ( [31]). It is interesting to see Osteoarthritis pathway is a significantly enriched pathway for UE genes. It is consistent with literature that similar focal and systemic alterations exist in RA and OA [32].
Ribonucleotide Reductase (RNR) is the enzyme providing the precursors needed for both synthesis and repair of DNA, which could be a potential drug for RA ( [33, 34]). Leukocyte extravasation through the endothelial barrier is important in the pathogenesis of RA ( [35]). It has been shown that the limb bud and heart development (LBH) gene is a key dysregulated gene in RA and other autoimmune diseases and there are some evidence showing LBH could modulate the cell cycle [36]. Osteoblasts, osteoclasts and chondrocytes play importan roles in Rheumatoid Arthritis ( [37,38,39]). We did not find literature linking Tetrahydrofolate Salvage from 5,10 methenyltetrahydrofolate to RA yet, indicating this enrichment might be novel.
Results of the simulation study

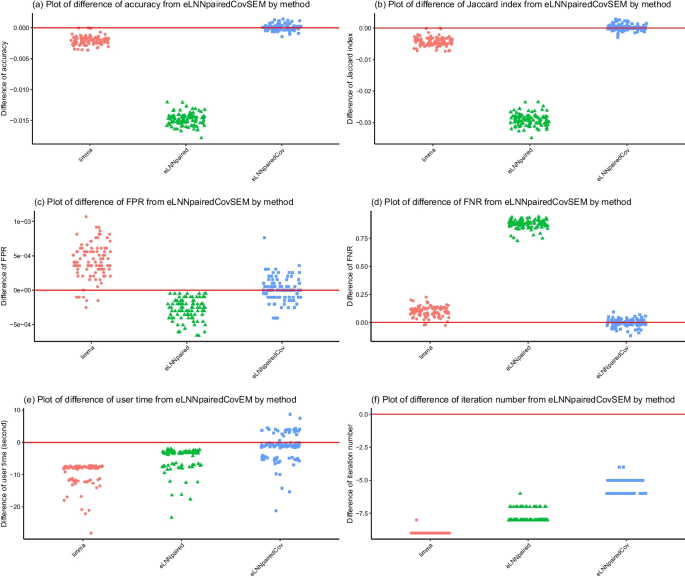

For Scenario 1 (\(n=30\)), the jittered scatter plots of the performance indices versus methods are shown in Fig. 3 (Set 1) and Fig. 5 (Set 2) and the jittered scatter plots of the difference of the performance indices versus methods are shown in Fig. 4 (Set 1) and Figure 6 (Set 2).
The differences of performance indices are between eLNNpairedCov.SEM and the other three methods (limma, eLNNpaired and eLNNpairedCov). A positive difference indicates that the performance indices of the other method is larger than that of eLNNpairedCov.SEM. A negative difference indicates that the performance indices of the other method is smaller than that of eLNNpairedCov.SEM.
The upper panel of Figs. 3, 4, 5 and 6 show that both the eLNNpairedCov and eLNNpairedCov.SEM have higher agreement indices (Jaccard and accuracy) than limma, which in turn have higher agreement indices than eLNNpaired.
The middle panel of Figures 36 show that the proposed eLNNpairedCov and eLNNpairedCov.SEM methods have similar performance, They have lower FPR than limma, while eLNNpaired has an exceedingly low FPR (close to 0). The middle panel also show that eLNNpairedCov, eLNNpairedCov.SEM have smaller FNR than limma, while eLNNpaired has an exceedingly high FNR (close to 1). The extreme values in FPR and FNR of eLNNpaired can be attributed to the fact that it did not detect any differentially expressed genes in this case.
Additionally, Figs. 3, 4, 5 and 6 also show that compared with the performances of these methods in Set 1 (\({\eta _{10}}_1\) \(={\eta }_{20} =\) 0.18), those in Set 2 (\({\eta _{10}}_1\) \(={\eta }_{20} =\) 0.08) have lower agreement indices and higher error rates except for eLNNpaired, which fails to detect any differentially expressed genes in both Set 1 and Set 2.
The bottom panel of Figs. 3 and 5 show that limma runs very fast, while eLNNpaired, eLNNpairedCov and eLNNpairedCov.SEM run in reasonable time (i.e., less than 30 s per dataset that has \(G=20,000\) genes and \(n=30\) subjects). On average eLNNpairedCov and eLNNpairedCov.SEM spend a little more time than eLNNpaired. The bottom panel of Fig. 3 and 5 also show that eLNNpaired uses less than 5 EM iterations, while eLNNpairedCov and eLNNpairedCov.SEM tend to use more EM iterations. In particular, eLNNpairedCov.SEM uses 10 EM iterations, which is the maximum number of iterations we set to save computing time. Note that the EM iteration number for limma is set to be one, which does not use EM algorithm to obtain parameter estimates.
The simulation results for Scenario 2 (\(n=100\)) are shown in Figures A5A8 [see Additional file 1], which have similar patterns to those for Scenario 1 (\(n=30\)), except that both eLNNpairedCov and eLNNpairedCov.SEM have smaller FPR which are close to 0. Note that eLNNpairedCov,eLNNpairedCov.SEM and limma have small FNR (close to 0), while eLNNpaired still has huge FNR (close to 1).
Discussion and conclusion
In this article, we proposed a novel modelbased clustering approach to detect differential expressed transcripts between samples before treatment and samples after treatment, with the capacity to adjust for potential confounding factors. This is novel in that to the best of our knowledge, all existing modelbased gene clustering methods do not yet have the capacity to adjust for covariates.
The proposed approach is different from transcriptwise test followed by multiplicity adjustment in that it does not involve hypothesis testing. Hence, no multiplicity adjustment is needed. The simulation study showed that if the difference of gene expression between samples before treatment and samples after treatment follows the mixture of hierarchical models in Subsection “A mixture of hierarchical models”, then the proposed method can outperform limma, which is a fast and powerful transcriptwise test method. The real data analysis also showed the proposed method eLNNpairedCov can detect more differentially expressed gene transcripts, which include the transcripts detected by limma.
Although we classify genes to three distinct clusters, the transitions between these clusters could be smooth. This would be reflected by a gene’s posterior probability that might be large in two of three clusters, e.g., 0.49 for cluster 1, 0.01 for cluster 2, and 0.5 for cluster 3. On the other hand, expression changes could be split up into more than 3 clusters, e.g., groups behaving differently. In this article, we are only interested in identifying three clusters of genes: overexpressed in condition 1, underexpressed in condition 1, and nondifferentially expressed.
There are other modelbased clustering methods in literature, such as [40]. However, they were not designed to detect differentially expressed genes. For example, we can set the number K of clusters as 3 for their model. However, there is no constraints that the intercepts for the three clusters have to be positive, negative, and zero. That is, the three clusters identified might not correspond to overexpressed, underexpressed, and nondifferentially expressed genes.
It is wellknown in literature that EM algorithm might stuck at local optimal solution. In this article, we used EM with SAmodification to help escape from local optimal solutions. In future, we plan to try the hybrid algorithm of the DPSO (Discrete Particle Swarm Optimization) and the EM approach to improve the global search performance [41].
In our models, the three gene groups allow to have different coefficients of covariates. In future, we could test if these coefficients are same or not. If no significant difference, we could use a model assuming equal coefficients.
RNAseq and singlecell RNAseq data are cuttingedge tools to investigate molecular mechanisms of complex human diseases. However, it is quite challenging to analyze these count data with inflated zero counts. In future, we will evaluate if eLNNpairedCov can be used to analyze singlecell RNAseq data by first transforming counts to continuous scale (e.g., via VOOM [12] or countTransformers [13]) and then to apply eLNNpairedCov to the transformed data.
We implemented the proposed methods to an R package eLNNpairedCov, which will be freely available to researchers.
Availability of data material
The real dataset analyzed during the current study are available in the Gene Expression Omnibus (GEO) repository, [https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE24742].
References
Smyth GK. Linear models and empirical Bayes methods for assessing differential expression in microarray experiments. Statistical Applications in Genetics and Molecular Biology 2004;3(1)
Newton MA, Kendziorski CM, Richmond CS, Blattner FR, Tsui KW. On differential variability of expression ratios: improving statistical inference about gene expression changes from microarray data. Journal of Computational Biology. 2001;8(1):37–52.
Baldi P, Long AD. A Bayesian framework for the analysis of microarray expression data: regularized ttest and statistical inferences of gene changes. Bioinformatics. 2001;17(6):509–19.
Kendziorski C, Newton M, Lan H, Gould M. On parametric empirical Bayes methods for comparing multiple groups using replicated gene expression profiles. Statistics in Medicine. 2003;22(24):3899–914.
Gottardo R, Pannucci JA, Kuske CR, Brettin T. Statistical analysis of microarray data: a Bayesian approach. Biostatistics. 2003;4(4):597–620.
Lo K, Gottardo R. Flexible empirical Bayes models for differential gene expression. Bioinformatics. 2007;23(3):328–35.
Zuyderduyn SD. Statistical analysis and significance testing of serial analysis of gene expression data using a Poisson mixture model. BMC Bioinformatics 2007;8 . Article number: 283
Li Y, Morrow J, Raby B, Tantisira K, Weiss ST, Huang W, Qiu W. Detecting diseaseassociated genomic outcomes using constrained mixture of Bayesian hierarchical models for paired data. Plos One. 2017;12(3):0174602.
Jacobs RA, Jordan MI, Nowlan SJ, Hinton GE. Adaptive mixtures of local experts. Neural Computation. 1991;3(1):79–87.
Gormley IC, FrühwirthSchnatter S. Mixture of experts models. In: Handbook of Mixture Analysis, pp. 271–307. Chapman and Hall/CRC, Boca Raton, FL, USA 2019.
Courbariaux M, De Santiago K, Dalmasso C, Danjou F, Bekadar S, Corvol JC, Martinez M, Szafranski M, Ambroise C. A sparse mixtureofexperts model with screening of genetic associations to guide disease subtyping. Frontiers in Genetics. 2022;13: 859462.
Law CW, Chen Y, Shi W, Smyth GK. voom: precision weights unlock linear model analysis tools for RNAseq read counts. Genome Biology. 2014;15(2):1–17.
Zhang Z, Yu D, Seo M, Hersh CP, Weiss ST, Qiu W. Novel data transformations for RNAseq differential expression analysis. Scientific Reports. 2019;9(1):4820.
Lenk P. Bayesian inference and Markov chain Monte Carlo. https://webuser.bus.umich.edu/plenk/Bam2%20Short.pdf 2001.
Dempster AP, Laird NM, Rubin DB. Maximum likelihood from incomplete data via the EM algorithm. Journal of the Royal Statistical Society: series B (methodological). 1977;39(1):1–22.
Byrd RH, Lu P, Nocedal J, Zhu C. A limited memory algorithm for bound constrained optimization. SIAM Journal on Scientific Computing. 1995;16(5):1190–208.
Celeux G, Govaert G. A classification EM algorithm for clustering and two stochastic versions. Computational statistics & Data analysis. 1992;14(3):315–32.
Van Laarhoven PJ, Aarts EH. Simulated annealing. Simulated Annealing: Theory and Applications, pp. 7–15. Springer, Dordrecht, Ho11and 1987.
Qiao Z, Barnes E, Tringe S, Schachtman DP, Liu P. Poisson hurdle modelbased method for clustering microbiome features. Bioinformatics. 2023;39(1):782.
GutierrezRoelens I LB. Effects of Rituximab on global gene expression profiles in the RA synovium. NCBIhttps://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE24742 2010.
Calza S, Raffelsberger W, Ploner A, Sahel J, Leveillard T, Pawitan Y. Filtering genes to improve sensitivity in oligonucleotide microarray data analysis. Nucleic Acids Research. 2007;35(16): e102.
Hackstadt AJ, Hess AM. Filtering for increased power for microarray data analysis. BMC Bioinformatics 2009;10(1)
Bourgon R, Gentleman R, Huber W. Independent filtering increases detection power for highthroughput experiments. Proceedings of the National Academy of Sciences. 2010;107(21):9546–51.
Milligan GW, Cooper MC. A study of the comparability of external criteria for hierarchical cluster analysis. Multivariate Behavioral Research. 1986;21(4):441–58.
Humby F, Lewis M, Ramamoorthi N, Hackney JA, Barnes MR, Bombardieri M, Setiadi AF, Kelly S, Bene F, DiCicco M, et al. Synovial cellular and molecular signatures stratify clinical response to csDMARD therapy and predict radiographic progression in early rheumatoid arthritis patients. Annals of the Rheumatic Diseases. 2019;78(6):761–72.
Wu YY, Li XF, Wu S, Niu XN, Yin SQ, Huang C, Li J: Role of the S100 protein family in rheumatoid arthritis. Arthritis Research & Therapy 2022;24 . Article number: 35
Zhang S, Wang L, Li M, Zhang F, Zeng X. The PD1/PDL pathway in rheumatic diseases. Journal of the Formosan Medical Association 120(1, Part 1), 2021;48–59
Canavan M, Floudas A, Veale DJ, Fearon U. The PD1: PDL1 axis in inflammatory arthritis. BMC Rheumatology. 2021;5(1):1–10.
Lee H, Lee SI, Kim HO. Recent advances in basic and clinical aspects of rheumatoid arthritisassociated interstitial lung diseases. Journal of Rheumatic Diseases. 2022;29(2):61–70.
Yang S, Zhao M, Jia S. Macrophage: key player in the pathogenesis of autoimmune diseases. Frontiers in Immunology. 2023;14:1080310.
Huang H, Dong X, Mao K, Pan W, Nie B, Jiang L. Identification of key candidate genes and pathways in rheumatoid arthritis and osteoarthritis by integrated bioinformatical analysis. Frontiers in Genetics. 2023;14:1083615.
Malemud CJ, Schulte ME. Is there a final common pathway for arthritis? International Journal of Clinical Rheumatology. 2008;3(3):253–68.
Wang X, Wang X, Sun J, Fu S. An enhanced RRM2 siRNA delivery to rheumatoid arthritis fibroblastlike synoviocytes through a liposomeprotamineDNAsiRNA complex with cell permeable peptides. International Journal of Molecular Medicine. 2018;42(5):2393–402.
Huang JB, Chen ZR, Yang SL, Hong FF. Nitric oxide synthases in rheumatoid arthritis. Molecules. 2023;28(11):4414.
Szekanecz Z, Koch AE. Endothelial cells and immune cell migration. Arthritis Research & Therapy 2000;2 . Article number: 368
Matsuda S, Hammaker D, Topolewski K, Briegel KJ, Boyle DL, Dowdy S, Wang W, Firestein GS. Regulation of the cell cycle and inflammatory arthritis by the transcription cofactor LBH gene. The Journal of Immunology. 2017;199(7):2316–22.
Berardi S, Corrado A, Maruotti N, Cici D, Cantatore F. Osteoblast role in the pathogenesis of rheumatoid arthritis. Molecular Biology Reports. 2021;48(3):2843–52.
Jeong WJ, Kim HJ. Osteoclasts: crucial in rheumatoid arthritis. Journal of Rheumatic Diseases. 2016;23(3):141–7.
Tseng CC, Chen YJ, Chang WA, Tsai WC, Ou TT, Wu CC, Sung WY, Yen JH, Kuo PL. Dual role of chondrocytes in rheumatoid arthritis: the chicken and the egg. International Journal of Molecular Sciences. 2020;21(3):1071.
Grün B, Leisch F. Fitting finite mixtures of generalized linear regressions in R. Computational Statistics & Data Analysis. 2007;51(11):5247–52.
Guan JH, Liu DY, Liu SP. Discrete particle swarm optimization and EM hybrid approach for naive Bayes clustering. In: International Conference on Neural Information Processing, 2006;pp. 1164–1173 . Springer
