Integrating transformers and manyobjective optimization for drug design
BMC Bioinformatics volume 25, Article number: 208 (2024)
Abstract
Background
Drug design is a challenging and important task that requires the generation of novel and effective molecules that can bind to specific protein targets. Artificial intelligence algorithms have recently showed promising potential to expedite the drug design process. However, existing methods adopt multiobjective approaches which limits the number of objectives.
Results
In this paper, we expand this thread of research from the manyobjective perspective, by proposing a novel framework that integrates a latent Transformerbased model for molecular generation, with a drug design system that incorporates absorption, distribution, metabolism, excretion, and toxicity prediction, molecular docking, and manyobjective metaheuristics. We compared the performance of two latent Transformer models (ReLSO and FragNet) on a molecular generation task and show that ReLSO outperforms FragNet in terms of reconstruction and latent space organization. We then explored six different manyobjective metaheuristics based on evolutionary algorithms and particle swarm optimization on a drug design task involving potential drug candidates to human lysophosphatidic acid receptor 1, a cancerrelated protein target.
Conclusion
We show that multiobjective evolutionary algorithm based on dominance and decomposition performs the best in terms of finding molecules that satisfy many objectives, such as high binding affinity and low toxicity, and high druglikeness. Our framework demonstrates the potential of combining Transformers and manyobjective computational intelligence for drug design.
Introduction
Humans are constantly under the threat of pain and disease, and a method for treatment of both is the administration of drugs. However, the drug development process is lengthy and monetarily expensive, with estimated development period of 10–15 years and cost between $90 million to $2.6 billion [1]. Furthermore, since the later stages of drug development rely on the success of earlier ones, failures may result in a repetition of earlier stages, thereby prolonging the duration of development and increasing costs. Artificial Intelligence (AI), and particularly deep learning [2], have provided promising approaches that address some limitations of the current drug development pipeline, and provided an efficient method of traversing through the large chemical space of estimated \(10^{60}\) molecules [3]. Contemporary deep learning architectures and strategies such as Transformers, geometric learning, and reinforcement learning, have all been applied to drugrelated tasks such as molecular property prediction, molecular generation, and drug design [4,5,6].
However, most of the existing works focus on effective modelling of molecular representation and search in the chemical space, but did not fully consider the requirements and factors of failures in the process of drug discovery and development. As reviewed in [7], most of the existing works in drug design adopt a multiobjective approach, which optimizes two or three objectives at a time, or scalarize the objectives by use of an aggregation function. However, this fails to capture the full outlook of the drug design problem, which involves many conflicting and interrelated objectives. In [8, 9], the authors introduce a system named molecule swarm optimization (MSO) for drug design using a latent neural translation model for molecular generation and molecular optimization with particle swarm optimization (PSO) and a scalarized objective via a weighted linear combination of multiple objectives. It has been shown in the work of deep evolutionary learning (DEL) [10], the Pareto treatment of multiple objectives, including quantitative estimate of druglikeness (QED), log octanolwater partition coefficient (logP), and synthetic accessibility score (SAS), outperforms the scalarization treatment in molecular generation. From our perspective, drug design can be naturally modelled as a manyobjective optimization problem, because a good drug candidate needs to satisfy many physiochemistry properties to make sure that it is druglike, less toxic, and more effective. Consistent with [7], manyobjective optimization in our research deals with more than three objectives.
To enhance the earlier stages of drug discovery and development, this work reformulates the drug design problem as molecular generation and manyobjective optimization tasks, via combining of Transformer (the stateoftheart sequence modelling and generation technique) and manyobjective metaheuristics based on evolutionary algorithms and particle swarm optimization (for effective metaheuristic search within the vast chemical space). Our framework improves upon existing works by utilizing a Transformerbased latent model for molecular generation, ADMET (absorption, distribution, metabolism, excretion, and toxicity) objectives, molecular docking, and manyobjective metaheuristic algorithms. As popularized in literature, Transformers [11] have surpassed the performance of recurrent neural networks (RNNs) for many natural language processing tasks. However, the vanilla Transformer has no explicit latent space, such as those found in RNN autoencoders, as used in [8]. There exist works in literature that construct a Transformerbased autoencoder, such as FragNet (a contrastive learningbased Transformer model) [12] and ReLSO (Regularized Latent Space Optimization) [13]. However, these architectures employ differing approaches, such as contrastive learning in FragNet, and property prediction, along with three regularization penalty terms in ReLSO. Therefore, to understand the performance of latent Transformerbased models in molecular generation and employ the superior for molecular optimization, we performed a fair comparative analysis between these two models.
Furthermore, to the best of the authors’ knowledge, the performance of manyobjective optimization approaches in the drug design domain had been unknown before this work. Thus, we performed a comparative analysis among manyobjective metaheuristics applied to a drug design problem. To address the limitations of single or multiobjective approaches, this study employs a Paretobased manyobjective optimization approach, which handles more than three objectives and generates a set of highquality drug candidates that represent tradeoffs among the objectives. As well, we include binding affinity, and ADMET properties as objectives, noting that 40–50% of drug candidates fail due to poor efficacy and 10–15% of candidates fail from inadequate druglike properties [14]. During the writing of this paper, we became aware of a recent work that applies a metaheuritic algorithm within the latent space of a Transformerbased autoencoder model for drug design [15], however the authors use a multiobjective, rather than a manyobjective, problem, and do not include ADMET objectives or molecular docking.
We outline the contributions of this paper as follows:

1.
We necessarily evaluated the performance between two latent Transformer models, ReLSO and FragNet, for molecular generation.

2.
To the best of our knowledge, this is the first study to comprehensively evaluate the performance of manyobjective computational intelligence algorithms for drug design problem.

3.
We propose a system which integrates a predictive Transformer and a generative latent Transformer with manyobjective computational intelligence algorithms and molecular docking.

4.
To the best of our knowledge, we are the first to incorporate manyobjective computational intelligence algorithms in the latent space of a generative Transformer, while also using ADMETrelated objectives and binding affinity as objectives.
The rest of this paper is organized as follows: "Related work" section describe works closely related to the experiments performed in this study. Afterwards, background information on the implemented methods are discussed in "Methods" section. Following is "Experiments" section, where we outline the evaluation methods used for assessing our experiments, and provide both results and discussion. Lastly, in "Conclusion" section, we explain limitations to our studies and list future avenues of work.
Related work
The Simplified MolecularInput LineEntry System (SMILES) [16] and SELFReferencing Embedded Strings (SELFIES) [17] are two prevalent line notations for chemical language modelling. SMILES, which is more widely used, has a nonunique but unambiguous representation of molecules, implying that a single molecule can have multiple corresponding strings, but each string can only denote one molecule. SELFIES is derived from applying contextfree grammar rules to encode a SMILES string, and it ensures the validity of the generated molecule. This is an advantage over SMILES notation in molecular generation, which often produces invalid molecules due to its rigid syntactic rules. A valid SMILES molecule can be obtained from decoding any sequence of SELFIES symbols, and a unique SELFIES string can be generated from encoding any SMILES molecule. In this study, we use SMILES for ADMET prediction to match our selected base model implementation, and SELFIES for molecular generation to guarantee validity of generated molecules. Table 1 shows an example of a SELFIES and SMILES string for carbinoxamine.
Transformers have been widely applied for molecular representation learning. However, many works either do not construct a readily available latent space for optimization, as in UniMol [18], or construct a latent space, but do not implement a decoder for generating a molecule, as in KPGT [19], MMDeacon [20], and GeoT [21]. We require a latent space, along with a decoder, to construct a decision space for optimization, along with the ability to generate a molecule from the vectorized latent representation. Some models that fit this criteria include SMILES Transformer [22], FragNet [12], and MolMIM [15]. For our experimentation, we employ the FragNet architecture over SMILES Transformer, as it uses learnable compression methods and contrastive learning for latent space regularization. Additionally, we make use of ReLSO (regularized latent space optimization) [13], an architecture constructed for protein sequence generation and optimization, which we deem a problem similar to the experiments performed in this study.
In addition to molecular representation learning, ADMET prediction, and molecular generation, we developed a drug design system and executed a comparative analysis with various manyobjective metaheuristics. Metaheuristic optimization has been widely used for drug design, either by building molecules fragmentbyfragment or atombyatom [23,24,25,26,27]. Furthermore, with recent advances, metaheuristic algorithms have been combined with deep learning models to explore novel chemical spaces. Some examples of studies that incorporate a latent space are MSO [9] and the DEL framework [10, 28, 29]. A distinctive feature of the DEL framework is that it actively trains the generative model with the molecules generated by the metaheuristic algorithm, which regularizes the latent space to facilitate the optimization process. We note that these studies use a multiobjective approach and do not employ a Transformerbased backbone. In the case of DEL, these works do not incorporate ADMET properties as objectives, while in MSO, the scalarization approach is used. We take a Paretobased manyobjective approach, recognizing the importance of tradeoff solutions in conflicting objective functions, and incorporate ADMET properties and molecular docking in our drug design system.
Methods
In this section we describe the methods used in our proposed drug design framework, which is illustrated in Fig. 1. This includes the Transformerbased models for molecular generation in "Contrastive transformers for molecular generation" section, and manyobjective metaheuristics, along with remaining modules such as ADMET prediction and docking algorithm, in "Manyobjective drug design from the latent space" section.
Contrastive transformers for molecular generation
Contrastive learning is a selfsupervised technique used to learn meaningful representations of data by comparing latent vectors against positive and negative samples [30]. Since SMILES is a nonunique representation, a given molecule may be enumerated by many SMILES strings, which facilitates the generation of positive and negative pairs. Equations (1) and (2) illustrate the normalized temperaturescaled cross entropy (NTXent) loss, where positive latent samples \(z_i\) and \(z_j\) have their cosine similarity maximized by contrasting with remaining samples in a minibatch of length N, which is repeated for all pairs of positive samples, with a temperature parameter \(\tau\). We note that in Eq. (1) and (2), 2N is used as only two positive samples are considered for each SMILES string.

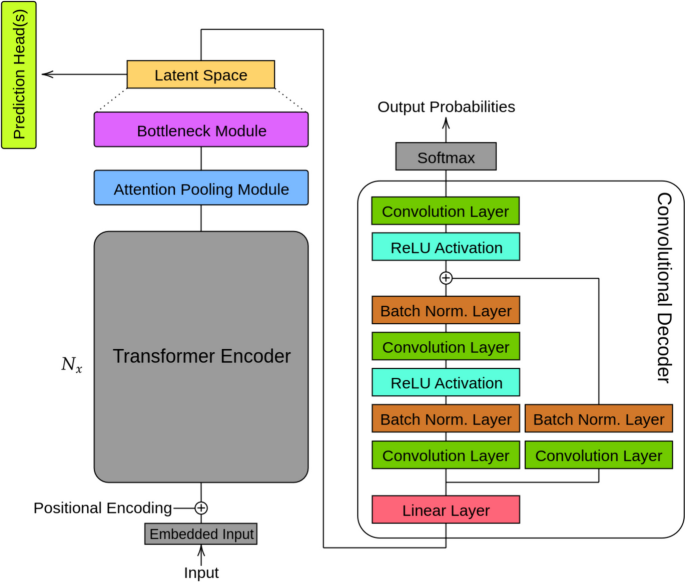

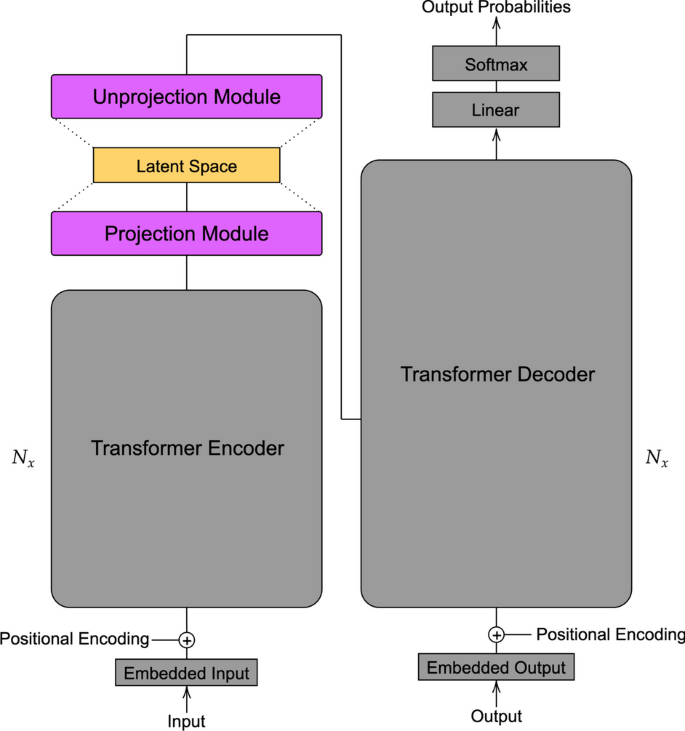

Using contrastive learning, we apply two latent Transformers for molecular generation, FragNet [12] and ReLSO [13], and determine the best model for latent molecular representation. Figures 2 and 3 illustrate the architectures of FragNet and ReLSO. After our experiments, the leading latent Transformer model was applied on a manyobjective drug design task. FragNet adapts the standard Transformer architecture by inserting projection and unprojection modules inbetween the encoder and decoder. These modules allow the model to transform the encoder output into a latent representation vector, and vice versa. Structurally, the projection and unprojection modules consist of four linear layers with the ReLU activation function. We further alter the FragNet model to include prediction heads from the latent space and a latent vector \(l_2\) norm penalty, as seen in the ReLSO work. This allows for fair comparison between the two architectures, and also regularizes the latent space by molecular properties, which is important for downstream optimization.
ReLSO was originally proposed for protein sequence generation and optimization, and consists of a Transformer encoder, projection module, convolutional decoder, with prediction heads and three penalty terms in the loss function for regularization [13]. In this study, we repurpose ReLSO for small molecule modelling by modifying its latent space regularization, and also constructing both a contrastive learning and noncontrastive learning variant to investigate changes in performance. Firstly, we replace the interpolative sampling and negative sampling penalty with contrastive learning. We do this as contrastive learning regularizes the latent space by distancing molecules that are different while keeping similar molecules closer together, similar to interpolative sampling. We do not employ negative sampling penalty, as in our drug design system we calculate the objective values such as ADMET properties external to the molecular generation model. As a result, the latent vector \(l_2\) norm penalty remains from the original ReLSO study. Similar to our FragNet implementation, we perform a jointtraining task for sequence modelling, property prediction, contrastive learning, and with the latent \(l_2\) norm penalty.
Manyobjective drug design from the latent space
To explore the potential of manyobjective metaheuristic algorithms for drug design, we performed a comparative study by applying six wellknown and robust manyobjective metaheuristic algorithms for a drug design task. As part of the evolutionary multiobjective optimization platform (PlatEMO) [31], we employed manyobjective metaheuristics that cover four of the five manyobjective optimization approaches discussed in [32], and leveraged the latent space of the best molecular generation model from our experiments. We list our selected metaheuritics with a brief description, as follows:

Gridbased Evolutionary Algorithm (GrEA) [33]: An evolutionary algorithm that partitions the objective space into a grid structure and maintains a representative solution for each grid cell.

Hypervolume Estimation (HypE) [34]: An evolutionary algorithm that utilizes a Monte Carlo estimation of the hypervolume indicator to select and rank solutions.

Knee Pointdriven Evolutionary Algorithm (KnEA) [35]: An evolutionary algorithm that incorporates kneepoint information into the mating and environmental selection mechanisms to guide the search towards the most preferred solutions.

Multiobjective Evolutionary Algorithm Based on Dominance and Decomposition (MOEA/DD) [36]: A decompositionbased evolutionary algorithm that employs weight vectors, Paretodominance, and density measures to order solutions.

Adaptive NonDominated Sorting Genetic Algorithm III (ANSGAIII) [37]: An evolutionary algorithm that adapts the number and location of reference points according to the distribution and convergence of solutions, and applies a niche preservation strategy to maintain diversity.

Novel Multiobjective Particle Swarm Optimizer (NMPSO) [38]: A particle swarm optimization algorithm that adopts a balanceable fitness estimation method to balance the convergence and diversity of the swarm, and applies a mutation operator to escape from local optima.
For each of these algorithms, an initial population is generated by randomly sampling the molecules from the dataset used for constructing the molecular generation models, and transforming them into latent vectors through the encoder.
As illustrated in Fig. 1, after an optimization step is performed, the corresponding vector is transformed into a molecule through the decoder, where objective values are then obtained by applying the molecule to an ADMET model and docking algorithm. After decoding the latent vector, we also encode the corresponding molecule to repair its positioning in the latent space, as is performed in [9]. Thus, our drug design framework heavily relies on a Transformerbased autoencoder, with a supporting ADMET model and docking algorithm for objective prediction.
During the optimization process we use binding affinity, synthetic accessibility score (SAS), bioavailability, solubility, acute toxicity LD50, and ClinTox toxicity prediction as objectives. SAS is a scaled measure from 1 to 10, with lower values corresponding to ease of synthesizability. We use the method by Ertl and Schuffenhauer [39] to obtain SAS values, as implemented in RDKit [40]. Binding affinity is predicted using a GPUaccelerated QuickVina2 implementation, with lower values signalling higher ligandprotein affinity [41]. For the remaining objectives, we trained and used multitask learning BERT (MTLBERT) which is a stateoftheart ADMET prediction model [42] based on Bidirectional Encoder Representations from Transformers (BERT) [43]. In this case, MTLBERT was pretrained using SMILES strings of 4 million molecules (from ZINC250K [44], ChEMBL [45], and MOSES [46]) and then finetuned by adding 29 heads corresponding to 29 ADMET tasks using data from [47]. The selected ADMET objectives satisfied our criterion of having their respective area under the receiver operating characteristic curve (AUC) or coefficient of determination (\(R^2\)) performance measures higher than a value of 0.8, where bioavailability and solubility are to be maximized, with minimization for all remaining ADMET objectives.
Experiments
In "Data and hyperparameters" section we outline our experimental setup, including parameters for training the molecular generation models and metaheuristic parameters for optimization. Moreover, we specify the data used for training our molecular generation models and ADMET prediction model. Afterwards, in subsequent "Comparing transformers for latent space generation" and "Comparing computational intelligence methods for molecular optimization" sections, we indicate our methods of evaluation, and provide corresponding results to our experiments. We conclude by presenting a case study for our drug design system in "Case study" section.
Data and hyperparameters
Tables 2 and 3 illustrate the parameters used for docking via QuickVina 2GPU [41] and molecular generation models. Molecular docking was performed on lysophosphatidic acid receptor 1 (LPA1), a protein that is implicated in a diverse array of cellular activities that promote cancer cell migration, and invasion [48,49,50]. The PDB file of LPA1 was downloaded from the AlphaFold Protein Structure Database (AlphaFold Entry: Q92633), and then processed using AutodockTools [51] to obtain the PDBQT file as one of the input files for QuickVina 2GPU docking. LPA1 is one of six GPCRs in the LPA receptor family (LPA16), and is activated by the bioactive phospholipid, lysophosphatidic acid (LPA). LPA acts like a growth factor that stimulates a wide range of cellular responses, such as calcium mobilization, cell proliferation, cell migration, and chemotaxis [52, 53]. Activation of LPA1 by LPA is implicated in a diverse array of cellular activities that regulate cell proliferation, migration, and invasion [48, 53]. It has been reported that the mRNA expression of LPA1 is elevated in advanced stages of breast cancer compared with early stage [54]. In several breast cancer cell lines including Triple Negative Breast Cancer (TNBC), the expression of LPA1 is significantly higher compared with nontumorigenic cell line and activation of LPA1 by LPA stimulated cell migration and invasion in breast cancer cell lines in vitro, while LPA antagonists inhibited the effects of LPAinduced proliferation and migration [55, 56]. In mouse models of breast cancer, the overexpression of LPA1 was found to enhance tumor growth and promote metastasis to the bone [57]. Conversely, silencing or pharmacological inhibition of LPA1 led to a substantial reduction in tumor size and blocked metastases [56, 57]. Recent studies have revealed that an LPA1 antagonist effectively suppressed cell survival, migration, and invasion in the TNBC cell line, without triggering apoptosis in the TNBC cells. Additionally, it exhibited no cytotoxic effects, highlighting the promising potential of LPA1 as a migrastatic target for TNBC [58].
For molecular generation, we selected low loss weights for property prediction (auxiliary) modules and latent \(l_2\) penalty, as they serve to regularize the latent space and are not deemed as significant as reconstructive loss or contrastive learning. Five executions for each molecular generation model were performed, with the random seeds displayed in Table 3. Since we included both the base ReLSO and a contrastive learning ReLSO variant, this consists of 15 total executions. For our molecular generation experiments we employ the SELFIES notation [17], as preliminary experiments show poor molecular validity for downstream optimization with SMILES.
To train our latent Transformer molecular generation models, we used the dataset with 4 million unique canonicalized molecules from ZINC250K [44], ChEMBL [45], and MOSES [46] datasets. We applied two filters for preprocessing: (1) exclude molecules with a tokenization length greater than 198, and (2) retain only molecules that have at least two unique augmentations within 10 attempts. After preprocessing, three molecular properties were calculated using RDKit [40] for property prediction and regularization of the latent space: SAS, logP, and QED [59]. QED is a weighted sum of properties that evaluate the druglikeness of a molecule, scaled between 0 and 1, and logP is a measure of lipophilicity. The preprocessed dataset was afterwards divided into a 70% training, 10% validation, and 20% test split. During experimentation, we used cross entropy loss for reconstruction, mean squared error loss for property prediction, which are all regression tasks, and NTXent loss for contrastive learning. We opted to train our models until validation loss increases after four consecutive epochs, and perform a validation epoch every 20% of training epoch steps.
Table 4 outlines the parameters used for the six metaheuristic algorithms employed during our drug design experiments. All metaheuristics use simulated binary crossover (SBX) [60] and polynomial mutation [61], with the evolutionary algorithms using binary tournament selection. As well, crossover probabilities \(p_c = 1\), mutation probabilities \(p_m = 1/D\), where D is the number of decision variables, and both operator distribution indices \(n_c = n_m = 20\). We note that ANSGAIII is not included in Table 4 as all its hyperparameter values are described.
During our drug design experiments, we pretrained and finetuned the MTLBERT model [42] for ADMET prediction using the hyperparameters (see Table 5) expressed in their medium set. To construct the model, we used the same 4 million pretraining dataset as the molecular generation models, however used a 8020 traintest split and SMILES notation instead of SELFIES. In addition, we did not perform SMILES enumeration for training MTLBERT. During finetuning of MTLBERT using data (see Table 6) from [47], we used fivefold cross validation, and selected the fold with the best performance on downstream tasks for our drug design system. Following a similar strategy to molecular generation, we terminated training after two test epochs with a consecutive increase in loss value. During pretraining, we performed a test epoch every 5000 training steps, while during finetuning, a test epoch was executed after each training epoch.
Comparing transformers for latent space generation
To evaluate the performance of the molecular generation models, we used loss values among all the joint training tasks as metrics. For molecular reconstruction, we also included accuracy of token prediction. Furthermore, we provided visualizations of the latent space on the validation and test set. To achieve this, we applied principal component analysis (PCA) to reduce dimensionality to 50, and tdistributed stochastic neighbor embedding (tSNE) [62] for reduction to two dimensions, as was done in [63]. Similarly, Uniform Manifold Approximation and Projection (UMAP) [64] was applied for reduction to three dimensions after PCA. This allows us to view the organization of the latent space by each of the molecular properties predicted in the auxiliary networks.
Table 7 presents the mean performance of each molecular generation model on the test set. Property prediction losses are low, with FragNet achieving the lowest values for SAS and QED, and Contrastive ReLSO for logP. As well, both ReLSO models surpass FragNet in terms of reconstruction loss and accuracy, a crucial metric shared by all three models. Figure 4 illustrates the mean validation set performance during training, and shows similar outcomes between FragNet and ReLSO models. The architectural differences, especially in the decoder and projection modules, likely account for the differing molecular reconstruction abilities. ReLSO employs a convolutional decoder directly from the latent space, whereas FragNet uses an unprojection module, followed by a Transformer decoder. Moreover, ReLSO applies pooling to the output of the Transformer encoder before projecting to the latent space, while FragNet projects directly after the encoder. These modifications in the ReLSO model likely enhance its reconstruction capability. On latent \(l_2\) regularization loss, another metric shared by all experiments, FragNet performs the best. Regarding the contrastive loss, which is not applicable to the base ReLSO as it does not consider the task, FragNet slightly outperforms the contrastive ReLSO model. Upon comparison of ReLSO and its contrastive variant, we view that contrastive learning slightly reduces reconstruction capabilities, with an increase in loss and decrease in accuracy, likely in favour of organization within the latent space. Since reconstruction is the most crucial task for a latent Transformer model, the ReLSO models offer better overall performance. Additionally, ReLSO performs well on the contrastive learning objective, as evidenced by the values in Table 7.
Figure 4, which illustrates the mean and standard deviation by a shaded colour, indicates a higher variability among the FragNet experiments, particularly in the contrastive loss. It is important to mention that the experiments are terminated when overfitting occurs on the validation set, rather than after a fixed number of epochs. Therefore, the shaded regions may vanish or shrink as the number of training steps increases. According to the plots, FragNet achieves the lowest contrastive, SAS, QED, and \(l_2\) regularization losses, but it exhibits poor reconstruction performance, as shown in Table 7. The reconstruction loss curve for FragNet reaches a plateau much earlier than the ReLSO models, possibly due to a local minima. The original FragNet study used a much smaller training dataset and trained for only one epoch, which differs from the current experiments. Even with the same learning rate as the original study, the FragNet experiments in this work have a significantly higher reconstruction loss. However, the contrastive losses are comparable between this study and the original. Similar to the test set, we see that the ReLSO models outperform FragNet in the crucial task for molecular generation, which is reconstruction, while being competitive in contrastive learning.

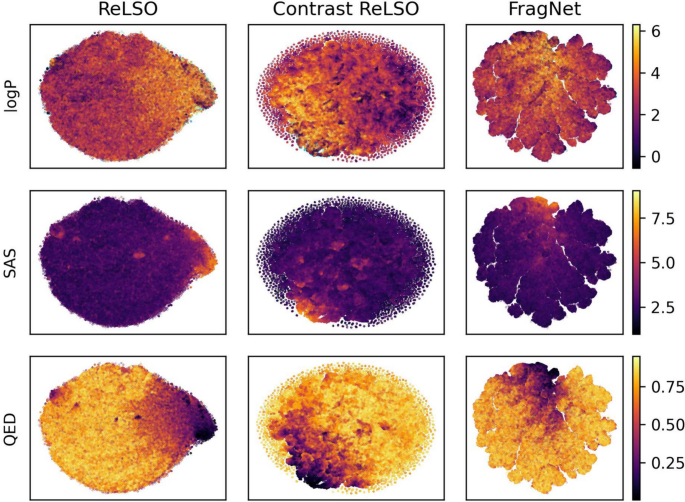

Figures 5 and 6 illustrate latent space organization by molecular property values on the validation and test sets using tSNE [62] and UMAP [64], respectively. From both, we observe clear trends among all three models for SAS and QED organization. A negative correlation exists between the QED and SAS values in similar areas of the latent space, which demonstrates a tendency where molecules with low druglikeness have probable difficulties in synthesis. LogP is not as well organized as QED and SAS. There are regions of distinct high and low logP values from all models, but they are not as efficiently organized as QED and SAS. Contrastive ReLSO has the best attempt at clustering low logP values, compared to ReLSO and FragNet, with unambiguous areas of low and high values. In addition, we use cyan to denote the logP values that are considered outliers on a boxplot analysis. Outlier points are mainly located near high logP and low QED regions. This is reasonable, since highly lipophilic molecules have been found to be poor drug candidates [65], and should be related to a lower druglike score. From the 3D visualization in Fig. 6, FragNet shows two clusters, indicating that the latent variable distribution may have multiple components, which may cause extra difficulty for search algorithms in the latent space. In summary, all three models have a good organization of the latent space with respect to property values. ReLSO and FragNet have smoother transitions over a larger area, while Contrastive ReLSO has sharper boundaries that separate the patterns. Furthermore, FragNet shows disconnected components.
Comparing computational intelligence methods for molecular optimization
To assess the quality of solutions obtained by the metaheuristic algorithms, we employ latent space coverage visualizations, generational distance (GD), inverted generational distance (IGD), uniqueness, novelty, Wasserstein distance, and density plots of objective values. Uniqueness is defined as the portion of unique molecules among a population of generated molecules. Novelty gives the portion of novel (not in training set) molecules among a population of generated molecules. GD and IGD measure how well the approximated front matches the true Pareto front, where lower values are better. Since the real Pareto front is unknown, we take the nondominated solutions among all metaheuristic experimentation, and use this as an approximation. Uniqueness and novelty measure the amount of unique molecules in each population and the proportion of molecules not in the molecular generation dataset, respectively. For both of these measures, higher is typically better. Wasserstein distance is a metric that captures the distance between probability distributions, which we display alongside density plots that illustrate the distributions of objective values.

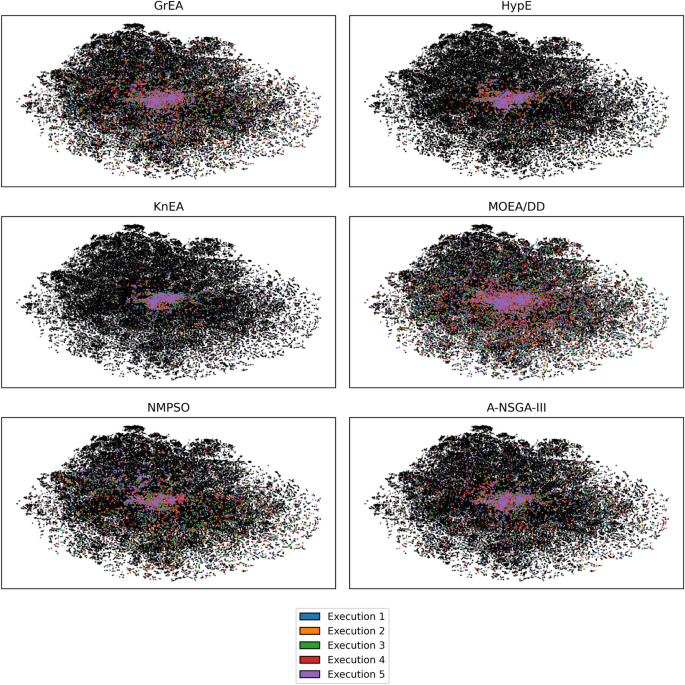

An examination of Fig. 7 reveals the latent space coverage across the final populations in five separate executions, corresponding to each metaheuristic algorithm. First, the illustration serves to highlight the impact of varying initial populations on the performance of each algorithm. For each algorithm, all results of the five runs concentrates at the same area of the chemical space with moderate variations. Second, among the six algorithms, different levels of coverage can be observed. It is evident that MOEA/DD, ANSGAIII, NMPSO, and GrEA exhibit larger latent space coverage, whereas HypE and KnEA demonstrate concentrated coverage at the common area. This disparity reflects that certain metaheuristic algorithms have greater exploration ability in the search space, while others focus more on exploitation. Remarkably, MOEA/DD stands out with the most extensive latent space coverage, as indicated by the numerous points dispersed throughout the search space. Additionally, there is a notable concentration of points around the central region for all algorithms utilized, suggesting the need for further trials with alternative metaheuristic algorithms to identify those capably of more effectively probing the extremeties of the search space.

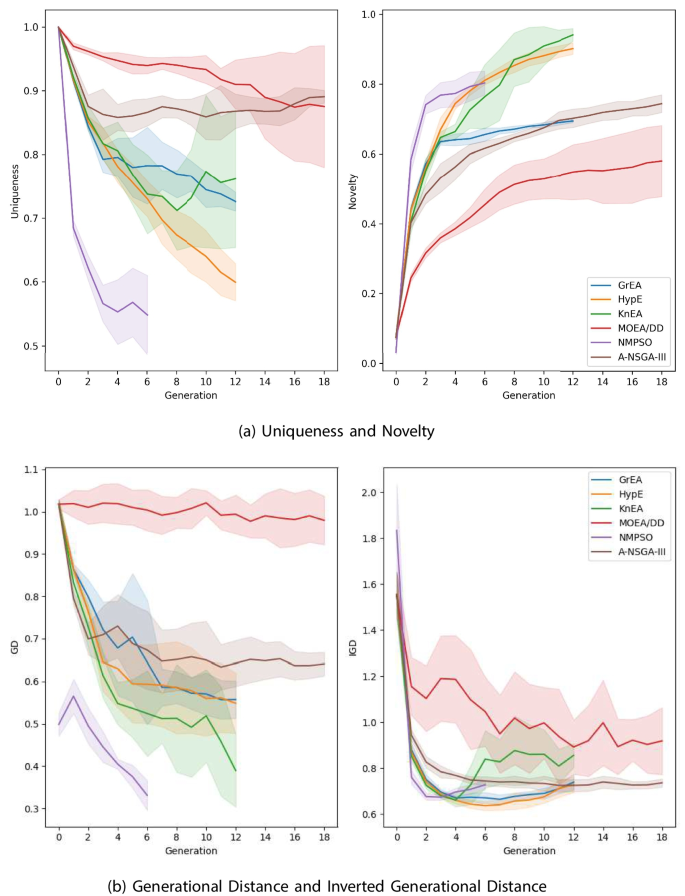

Figure 8 illustrates the generational performance of each metaheuristic over (a) average uniqueness and novelty, and (b) average GD and IGD metrics. We observe that uniqueness of the solutions decrease for all algorithms during the optimization process, indicating that similar molecules are generated and retained throughout generations. However, some algorithms, such as ANSGAIII and KnEA, show a slight increase in uniqueness after an initial decline, maintaining a high level of diversity among the solutions. As anticipated, the novelty of solutions increase from the initial population, which consists of randomly sampled molecules from the molecular generation dataset that are not likely to be novel, suggesting that the algorithms are exploring new regions of the search space. After the optimization process starts, populations are quickly filled with higher amounts of unseen molecules, with NMPSO, KnEA, and HypE, those with the most novel, nearing or surpassing rates of 80%. Furthermore, in Fig. 8, shaded regions express the standard deviation of generational performance. We can see that MOEA/DD and KnEA show relatively larger variations, while the other four algorithms are more stable.
Regarding GD and IGD, all algorithms on average improve from their initial population, but MOEA/DD exhibits a notably poor approximation of the Pareto front throughout all generations, as evidenced by its high GD values. This observation is less extreme in the IGD metric, however MOEA/DD still performs the worst among remaining algorithms, even with its high coverage of the search space. The remaining algorithms have similar Paretoapproximation performance measures, but NMPSO and KnEA clearly outperform the others on GD, followed by HypE, GrEA, and ANSGAIII. For IGD, the final result is less clear. It is noted that for all algorithms, Pareto approximation improves significantly within the first two generations, marked by a slight deterioration afterwards. This coincides with the generation where the uniqueness of the solutions declines. It is possible that a change in parameters, along with additional functional evaluations, could enhance exploration of the search space before exploiting the optima. Nevertheless, NMPSO, GrEA, and HypE perform best on the IGD metric, ending with similar values.
When comparing convergence of the algorithms, both GD and IGD provide conflicting information. For NMPSO and KnEA, there is room for additional improvement on GD, however this is not the case with IGD. The other algorithms, such as ANSGAIII, GrEA, and HypE, appear close to converging on GD, but degrade on IGD. It is likely that increasing the functional evaluations would improve the approximated Pareto front, however due to the long computational time required for these experiments, such as expressed in Table 8, this is left for future work.

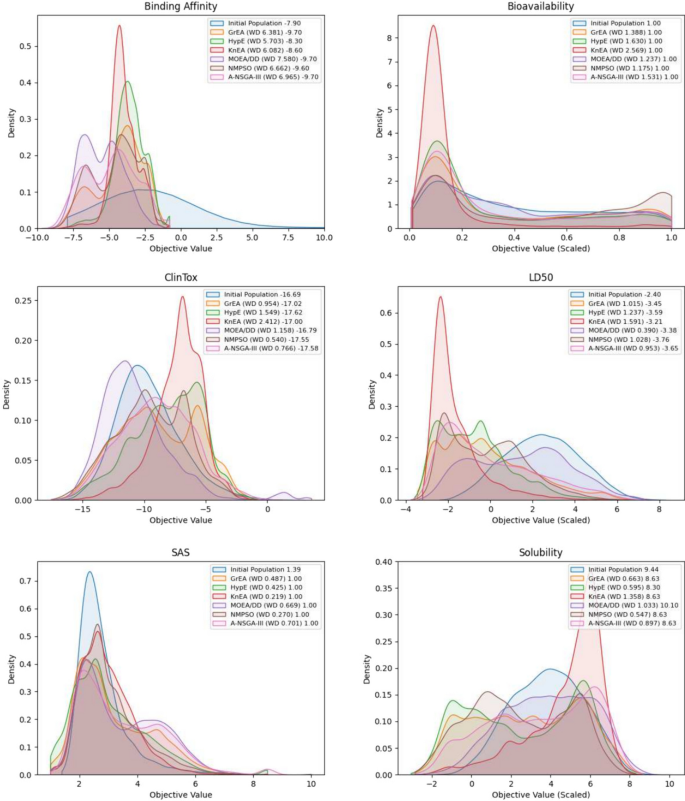

Figure 9 illustrates kernel density plots, best value of the final and initial populations, and 1Wasserstein distance values between the combined final population distributions and initial distribution, per each objective. For a description of which objectives are maximization or minimization, we refer the reader to "Manyobjective drug design from the latent space" section. For all objectives except solubility, the final populations contain solutions that are equal to or better than the initial population. On the solubility objective, MOEA/DD is the only metaheuristic that obtains a value higher than the initial best. Moreover, the Wasserstein distance between the initial and final populations increases significantly, indicating that the metaheuristics have explored various regions of the search space to obtain a large spread of solutions. This is likely due to the use of a Paretodominance relation to guide the search, and return a diverse set of tradeoff solutions. It is noteworthy that MOEA/DD, despite having the worst performance in terms of GD and IGD Pareto approximation metrics, is able to obtain a comparable best value for many of the drug design objectives, such as bioavailability, SAS, binding affinity, LD50, and solubility.
Binding affinity, a critical measure that incorporates ligandtarget information, is substantially improved between the initial and final populations, with the best values achieved by ANSGAIII, GrEA, MOEA/DD, and NMPSO. Interestingly, on the acute toxicity LD50 objective, many of the metaheuristics have distributions that are concentrated in the negative values, indicating low toxicity. This contrasts with the results on the ClinTox objective, where the resulting metaheuristic distributions are still negative, but concentrated in higher values than the initial population. Due to the use of the Paretodominance relation, the objective values of the final populations tend to have a larger spread than the initial population, which is also reflected with higher Wasserstein distance values. It is observed that, except for SAS, metaheuristics are able to find more solutions with poor objective values than with adequate ones. For instance, in bioavailability, where higher values are preferable, many algorithms have values concentrated closer to zero. This reflects the complexity of drug design, where the chemical space is large, and although the metaheuristic algorithms find novel molecules, many of them have poor ADMET properties. Among all algorithms, which employ different approaches to manyobjective optimization, NMPSO and ANSGAIII consistently find solutions with the best values for each individual objective.
Case study
Upon obtaining the final populations, we apply a filtering process to remove molecules with poor lipophilicity, as measured by logP, poor SAS score, and poor binding affinity. For this, we employ the Ghose filter (\(\,0.4 \le {\text {logP}} \le 5.6\)) [66], binding affinity filter (\(\le\) \(\) 7.1), and SAS filter (\(\le 3\)). The threshold \(\) 7.1 for LPA1 was obtained by the docking scores of known LPA1 inhibitors and then taking the largest docking score among them. Using the binding filter for a virtual screening on the ZINC leadlike data, we found that 25% of molecules may bind to the LPA1 protein. After application of these filters, 1718 molecules remain, with 20.8%, 2.4%, 3.0%, 44.4%, 12.2%, and 17.1% from GrEA, HypE, KnEA, MOEA/DD, NMPSO, and ANSGAIII, respectively. Interestingly, a large proportion of the filtered molecules come from MOEA/DD. As previously discussed, MOEA/DD did not obtain a good Paretofront approximation as measured by GD and IGD, however had relatively strong performance on each individual drug design objective and high latent space coverage within its final populations. After filtering molecules, they are organized using a normalized sum of ranks scheme on their corresponding objective vectors. The unique, 25 highest performing molecules are displayed in Fig. 10. As well, we include an image of the best performing molecule (first molecule from Fig. 10), obtained from ANSGAIII, in complex with the LPA1 protein in Fig. 11, along with highlighting interactions with protein residues.
Conclusion
In this paper, we propose a comprehensive system for drug design, based on two experimental studies. The first study compares three latent Transformer models for molecular generation: a contrastive learning and a noncontrastive learning variants of ReLSO, and FragNet. Two of these models, contrastive ReLSO and FragNet, exploit the nonuniqueness property of SMILES representations and employ contrastive learning as a latent space regularizer. Using noncontrastive ReLSO as a baseline model, we examine the impact of contrastive learning on molecular representation learning. The second study compares several manyobjective metaheuristic algorithms for drug design. We integrate an ADMET prediction model, a molecular generation model, a molecular docking algorithm, and a metaheuristic algorithm to form a complete system for drug design. Our experimental results show that ReLSO outperforms FragNet as a molecular generation model, and that MOEA/DD shows promising results as a manyobjective metaheuristic algorithm for drug design. MOEA/DD achieves among the highest objective values and the highest percentage of molecules that pass our three filters, despite not obtaining good Paretofront approximations. We suggest that future work should conduct a comparative study other recent molecular generation models, and analyze the scalability of drug design objectives and metaheuristics. We also hypothesize that the performance of our system can be enhanced by adopting the DEL framework and evolutionary dynamic optimization algorithms.
