Maptcha: an efficient parallel workflow for hybrid genome scaffolding
BMC Bioinformatics volume 25, Article number: 263 (2024)
Abstract
Background
Genome assembly, which involves reconstructing a target genome, relies on scaffolding methods to organize and link partially assembled fragments. The rapid evolution of long read sequencing technologies toward more accurate long reads, coupled with the continued use of short read technologies, has created a unique need for hybrid assembly workflows. The construction of accurate genomic scaffolds in hybrid workflows is complicated due to scale, sequencing technology diversity (e.g., short vs. long reads, contigs or partial assemblies), and repetitive regions within a target genome.
Results
In this paper, we present a new parallel workflow for hybrid genome scaffolding that would allow combining preconstructed partial assemblies with newly sequenced long reads toward an improved assembly. More specifically, the workflow, called Maptcha, is aimed at generating long scaffolds of a target genome, from two sets of input sequences—an already constructed partial assembly of contigs, and a set of newly sequenced long reads. Our scaffolding approach internally uses an alignmentfree mapping step to build a \(\langle \)contig,contig\(\rangle \) graph using long reads as linking information. Subsequently, this graph is used to generate scaffolds. We present and evaluate a graphtheoretic “wiring” heuristic to perform this scaffolding step. To enable efficient workload management in a parallel setting, we use a batching technique that partitions the scaffolding tasks so that the more expensive alignmentbased assembly step at the end can be efficiently parallelized. This step also allows the use of any standalone assembler for generating the final scaffolds.
Conclusions
Our experiments with Maptcha on a variety of input genomes, and comparison against two stateoftheart hybrid scaffolders demonstrate that Maptcha is able to generate longer and more accurate scaffolds substantially faster. In almost all cases, the scaffolds produced by Maptcha are at least an order of magnitude longer (in some cases two orders) than the scaffolds produced by stateoftheart tools. Maptcha runs significantly faster too, reducing timetosolution from hours to minutes for most input cases. We also performed a coverage experiment by varying the sequencing coverage depth for long reads, which demonstrated the potential of Maptcha to generate significantly longer scaffolds in low coverage settings (\(1\times \)–\(10\times \)).
Background
Advancements in sequencing technologies, and in particular, the ongoing evolution from high throughput short read to long read technologies, have revolutionized biological sequence analysis. The first generation of long read technologies such as PacBio SMRT [40] and Oxford Nanopore Technologies (ONT) [16] sequencing platforms, were able to break the 10 Kbp barrier for read lengths. However, these technologies also carry a higher cost per base than short read (e.g., Illumina) platforms, and they also have much higher perbase error rate (5–15%) [19, 29, 32, 33, 60]. Recent long read technologies such as PacBio HiFi (High Fidelity) [24, 57, 60] have significantly improved accuracy (99.9%).
Genome assembly, irrespective of the sequencing approach employed, strives to accomplish three fundamental objectives. Firstly, it aims to reconstruct an entire target genome in as few pieces or “contigs” (i.e., contiguous sequences) as possible. Secondly, the goal is to ensure the highest accuracy at the base level. Lastly, the process seeks to minimize the utilization of computational resources. Short read assemblers effectively address the second and third objectives [10, 28, 59], while long read assemblers excel in achieving the first goal [12, 31].
An important aspect of genome assembly is to to maintain correctness in genome reconstruction [3, 53], including composition, continuity, and contiguity. Compositional correctness refers to the correctness of the sequence captured in the output contigs, and is typically measured by the number of misassemblies. Continuity is primarily assessed using metrics such as the N50 value and related measures that show to the extent long stretches of the genome are captured in the contigs correctly, or alternatively how fragmented is an output assembly. In addition to continuity, contiguity across contigs (i.e., the order and orientation of contigs along the unknown genome) is also an important factor, particularly for scaffolding methods.
In the realm of contemporary genome assembly, long read assemblers have adopted the OverlappingLayoutConsensus (OLC) paradigm [12, 30, 31, 48, 52, 56] and de Bruijn graph approaches [39, 54, 61]. These assemblers utilize advanced algorithms that greatly accelerate the comparison of allversusall reads. Many long read assembly tools also perform error correction by representing long reads through condensed and specialized kmers, such as minimizers [47] and minhashes [52]. This refined representation expedites the identification of overlaps exceeding 2 kb. The most recent long read assemblers are now progressing toward reducing computational resources [8, 9, 41]. However, the assembly of uncorrected long reads introduces challenges, necessitating additional efforts in the form of consensus polishing [11, 36, 58]. Genome assembly polishing is a process aimed at enhancing the base accuracy of assembled contig sequences. Typically, long read assemblers undergo a singular round of long read polishing, followed by multiple rounds of polishing involving both long and short reads using thirdparty tools [31, 35, 58].
The rapid progress in sequencing technologies is providing extensive quantities of raw genomic data. However, the reconstruction of a complete and accurate genome from these fragmented sequences remains a challenge due to inherent complexities, repetitive regions, and limitations of individual sequencing techniques. Genome assembly heavily relies on scaffolding methods to arrange and link these fragments. In other words, as the conventional assembly step focuses on generating contigs that represent contiguous stretches of the target genome, scaffolding focuses on ordering and orienting those contigs, as well as filling the gaps between adjacent contigs using any information that is contained in the raw reads. Relying on a single sequencing technology for scaffolding could still result in incomplete or fragmented assemblies [2].
This limitation necessitates hybrid scaffolding approaches that are capable of integrating sequences from multiple sources—sequencing technologies and/or prior constructed draft assemblies.
Hybrid scaffolding: The integration of contigs and long read information for scaffolding purposes can be a promising approach to improve existing genome assemblies [38]. Assemblies generated from short reads are known for their high accuracy, but are often limited by shorter contig lengths, as measured by N50 or NG50. On the other hand, long read sequencing technologies can span larger sections of the genome but are often hindered by higher costs which limit their sequencing coverage depths (to typically under 20\(\times \) vs. \(100\times \) for short reads), and higher error rates compared to short read sequencing complicating de novo assembly. Hybrid scaffolding workflows can overcome these limitations by integrating the fragmented assemblies of contigs obtained from short reads and utilizing the long reads to order and orient contigs into longer scaffolds.
In this paper, we visit the hybrid scaffolding problem. Given an input set of contigs (\(\mathcal {C}\)) generated from short reads, and a set of long reads (\(\mathcal {L}\)), hybrid scaffolders aim to order and orient the contigs in \(\mathcal {C}\) using linking information inferred from the long reads \(\mathcal {L}\). Such an approach has the advantage of reusing and building on existing assemblies to create improved versions of assemblies incrementally, as more and more long read sequencing data sets are available for a target genome. This workflow can also be easily adapted to scenarios where short reads are available (in place of contigs). In such cases, the short reads can be assembled into contigs prior to the application of our hybrid scaffolder.
Related work: While the treatment of the hybrid scaffolding problem is more recent, there are several tools that incorporate long read information for extending contigs into scaffolds. The concept of genome scaffolding initially emerged in the realm of classical de novo genome assembly, as introduced by Huson et al. [27]. This pioneering work aimed to arrange and align contigs utilizing pairedend read information alongside inferred distance constraints. Of the two steps in scaffolding, the alignment step is not only computationally expensive, but it can also lead to loss in recall using traditional mapping techniques. On the other hand, the second step of detecting the true linking information between contig pairs can be prone to false merges, impacting precision—particularly for repetitive genomes.
Over subsequent years, a suite of tools emerged within this classical framework, each striving to refine scaffolding methodologies [2, 15, 18, 20, 37, 43, 49, 50]. For an exhaustive exploration of these methods, refer to the comprehensive review by Luo et al. [38]. Most of these tools utilize alignments of long reads to the contigs of a draft assembly to infer joins between the contig sequences. The alignment information is subsequently used to link pairs of contigs that form successive regions of a scaffold. SSPACELongRead produces final scaffolds in a single iteration and has shown to be faster than some of the other scaffolders for small eukaryaotic genomes; but it takes very long runtimes on larger genomes. For instance, SSPACELongRead takes more than 475 h to assemble Z.mays and for the Human CHR1, it takes more than a month. OPERALG [21] provides an exact algorithm for large and repeatrich genomes. It requires significant matepair information to constrain the scaffold graph and yield an optimised result. OPERALG is not directly designed for the PacBio and ONT data. To construct scaffold edges and link contigs into scaffolds, OPERALG needs to simulate and group matepair relationship information from long reads.
LRScaf [44] is one of the most recent long read scaffolding tools which utilizes alignment tools like BLASR [6] or Minimap2 [34] to align the long reads against the contigs, and generates alignment information. These alignments form the basis for establishing links between contigs. Subsequently, a scaffold graph is constructed, wherein vertices represent contig ends, and edges signify connections between these ends and associated long reads. This graph also encapsulates information regarding contig orientation and long read identifiers. To mitigate errors and complexities arising from repeated regions and high error rates, LRScaf meticulously refines the scaffold graph. This refinement process involves retaining edges associated with a minimal number of long reads and ensuring the exclusion of edges connecting nodes already present within the graph. The subsequent stage involves navigating linear stretches of the scaffold graph. LRScaf traverses the graph, systematically identifying linear paths until encountering a divergent node, signifying a branching point. At this juncture, the traversal direction is reversed, ensuring exhaustive exploration of unvisited and distinct nodes within the graph. This iterative process continues until all unique nodes are visited, resulting in a complete set of scaffolds from the linear paths within the graph. As can be expected, this rigorous process can be timeconsuming, taking hours of compute time even on medium sized genomes (as shown later in the Results).
Another recent tool, ntLink [14] utilizes mapping information from draft assemblies (i.e., contigs) and long reads for scaffolding. This tool employs a minimizerbased approach to first identify the mapped pairs of long reads and contigs, and then uses the mapping information to bridge contigs. However, in their minimizer selection method, nonunique minimizers are discarded. This is done so that repetitive portions within the contigs do not cause false merges in scaffolds. This scheme however limits the lengths of the scaffolds that could be generated by this method (as will be shown in our comparisons).
Contributions
We present a new scalable algorithmic workflow, Maptcha, for hybrid scaffolding on parallel machines using contigs (\(\mathcal {C}\)) and highfidelity long reads (\(\mathcal {L}\)). Figure 1 illustrates the major phases of the Maptcha workflow. Our graphtheoretic approach constructs a contig graph from the mapping information between long reads and contigs, then uses this graph to generate scaffolds. The key ideas of the approach include: a) a sketchingbased, alignmentfree mapping step to build and refine the graph; b) a vertexcentric heuristic called wiring to generate ordered walks of contigs as partial scaffolds and c) a final linking step to bridge the partial scaffolds and create the final set of scaffolds.
To enhance scalability, we implemented a parallel batching technique for scaffold generation, enabling any standalone assembler to run in a distributed parallel manner while generating highquality scaffolds. We use Hifiasm [8] as the standalone assembler and JEMmapper [45, 46] for the mapping step.
Our experiments show that Maptcha generates longer and more accurate scaffolds than the stateoftheart hybrid scaffolders LRScaf and ntLink, while substantially reducing time to solution. For example, the scaffolds produced on the test input Human chr 7, the NGA50 of Maptcha is around \(18\times \) and \(330\times \) larger compared to that of LRScaf and ntLink respectively. Maptcha is also significantly faster, reducing timetosolution from hours to minutes in most cases. Furthermore, comparing Maptcha with a standalone long read assembler highlights the benefits of integrating contigs with long reads, resulting in longer scaffolds, fewer misassemblies, and faster runtimes. Coverage experiments (done by varying the sequencing coverage depth for long reads) demonstrated the potential of Maptcha to generate considerably longer scaffolds even in low coverage settings (1\(\times \) to 10\(\times \)).
The Maptcha software is available as open source for download and testing at https://github.com/Oieswarya/Maptcha.git.
Methods
In this section, we describe in detail all the steps of our Maptcha algorithmic framework for hybrid scaffolding. Let \(\mathcal {C}=\{c_1,c_2,\ldots c_n\}\) denote a set of n input contigs (from prior assemblies). Let \(\mathcal {L}=\{r_1,r_2,\ldots r_m\}\) denote a set of m input long reads. Let s denote length of any string s. We use \(N=\Sigma _{i=1}^n c_i\) and \(M=\Sigma _{i=1}^m r_i\). Furthermore, for contig c, let \({\bar{c}}\) denote its reverse complement.
Problem statement: Given \(\mathcal {C}\) and \(\mathcal {L}\), the goal of our hybrid scaffolding problem is to generate a set of scaffolds \(\mathcal {S}\) such that a) each scaffold \(S\in \mathcal {S}\) represents a subset of \(\mathcal {C}\) such that no two subsets intersect (i.e., \(S_i\cap S_j=\emptyset \)); and b) each scaffold \(S\in \mathcal {S}\) is an ordered sequence of contigs \([c_1,c_2,\ldots ]\), with each contig participating in either its direct form c or its reverse complemented form \({\bar{c}}\). Here, each successive pair of contigs in a scaffold is expected to be linked by one or more long reads \(r\in \mathcal {L}\). Intuitively, there are two objectives: i) maximize recall—i.e., to generate as few scaffolds as possible, and ii) maximize precision—i.e.,the relative ordering and orientation of the contigs within each scaffold matches the true (but unknown) ordering and orientation of those contigs along the target genome.

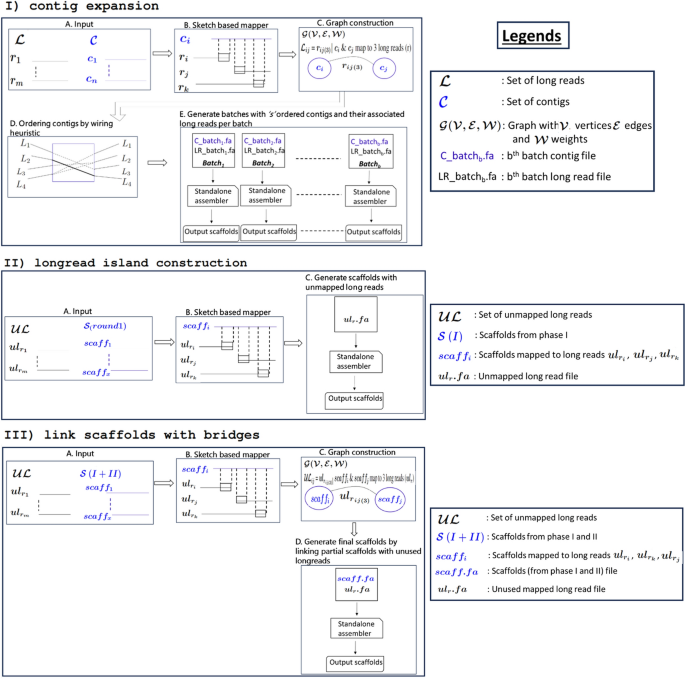

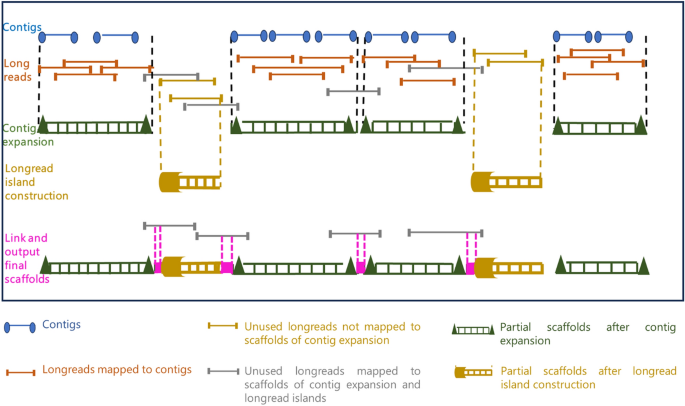

Algorithm: The design of the Maptcha scaffolding algorithmic framework is broken down into three major phases.

contig expansion: In the first phase, using the contigs as seeds, we aim to extend them on either end using long reads that align with those contigs. This extension step is also designed to detect and connect successive pairs of contigs with direct long read links. This yields the first generation of our partial scaffolds.

longread island construction: Note that not all long reads may have contributed to these partial scaffolds, in particular those long reads which fall in the gap regions of the target genome between successive scaffolds. Therefore, in the next phase, we detect the long reads that do not map to any of the first generation partial scaffolds, and use them to build partial scaffolds corresponding to these long read island regions. This new set of partial scaffolds corresponds to the second generation of partial scaffolds.

link scaffolds with bridges: Finally, in the last phase, we aim to link the first and second generation scaffolds using long reads that serve as bridges between them. This step outputs the final set of scaffolds.
This three phase approach has the following advantages. First, it provides a systematic way to progressively combine the sequence information available from the input contigs (which typically tend to be more accurate albeit fragmented, if generated from short reads) to the input long reads (which may be significantly larger in number), in an incremental fashion. Next, this incremental approach also could reduce the main computational workload within each phase that is required for mapping long reads. More specifically, we choose to align long reads either to the contigs or to the generated partial scaffolds wherever possible, and in the process restrict the more time consuming long read to long read alignments only to the gap regions not covered by any of the contigs or partial scaffolds. In this paper, we use the JEMmapper, which is a recently developed fast (parallel) and accurate sketchbased alignmentfree long read mapping tool suited for hybrid settings [43, 45]. Finally, by decoupling the contig ordering and orientation step (which is a graphtheoretic problem) from the scaffold generation step (which is an assembly problem), we are able to efficiently parallelize the scaffold generation step. This is achieved through a batching step that splits the input sequences into separate batches to allow the use of any existing standalone long read assembler to generate the final sequence scaffolds. Our framework is capable of leveraging any offtheshelf long read mapping tool. In this paper, we use Hifiasm [8], which is one of the most widely used stateoftheart long read assembly tool, as our standalone assembler.
In what follows, we describe the details of our algorithm for each of the three major phases of our approach. Figure 2 provides an illustration of all the main steps within each of these three phases.
Phase: contig expansionThe goal of this phase is to enhance contigs by incorporating long reads that have been aligned with them. This process allows for the extension of contigs by connecting multiple ones into a scaffold using the long reads aligned to them, thereby increasing the overall length of the contigs. This is achieved by first mapping the long reads to contigs to detect those long reads that map to contigs, and then use that information to link contigs and extend them into our first generation of partial scaffolds (panel I in Fig. 2).
We use the following definition of a partial scaffold in our algorithm: A partial scaffold corresponds to an ordered and oriented sequence of an arbitrary number of contigs \([c_i,c_j,c_k,\ldots ]\) such that every consecutive pair of contigs along the sequence are linked by one or more long reads.
Step: Mapping long reads to contigs: For mapping, we use an alignmentfree, distributed memory parallel mapping tool, JEMmapper because it is both fast and accurate [45, 46]. JEMmapper employs a sketchbased alignmentfree approach that computes a minimizerbased Jaccard estimator (JEM) sketch between a subject sequence and a query sequence. More specifically, in a preprocessing step, the algorithm generates a list of minimizing kmers [47, 51] from each subject (i.e., each contig) and then from that list computes minhash sketches [4] over T random trials (we use \(T=30\) for our experiments). Subsequently, JEM sketches are generated from query long reads. Based on these sketches, for each query the tool reports the subject to whom it is most similar. For further details on the methodology, refer to the original paper by Rahman et al. [45].
One challenge of using a mapping tool is that the subject (contigs) and query (long reads) sequences may be of variable lengths, thereby resulting possibly in vastly different sized ground sets of minimizers from which to draw the sketches. However, it is the minimizers from the aligning region between the subject and query that should be ideally considered for mapping purposes. To circumvent this challenge, in our implementation we generate sketches only from the two ends of a long read. In other words, our mapping step maps each long read to at most two contigs, one corresponding to each end of that long read. Note that this implies a contig may potentially appear in the mapped set for multiple long reads (depending on the sequencing coverage depth). In our implementation, we used a length of \(\ell \) base pairs (\(\ell =2Kbp\) used in our experiments) from either end of a long read for this purpose. The intuitive rationale is that since we are interested in a scaffolding application, this approach of involving the ends of long reads (and their respective alignment with contigs) provides a way to link two distantly located contigs (along the genome) through long read bridges.
Using this approach in our preliminary experiments, we compared JEMmapper with Minimap2 and found that JEMmapper yielded better quality results for our test inputs (results summarized in the supplementary section Figure S2).
Step: Graph construction: Let \(\mathcal {M}\) denote the mapping output, which can be expressed as the set of 2tuples of the form \(\langle c,r\rangle \)—where long read r maps to a contig c—output by the mapper. We use \(L_c\subseteq \mathcal {L}\) to denote the set of all long reads that map to contig c, i.e., \(L_c=\{r \;\; \langle c,r\rangle \in \mathcal {M}\}\). Informally, we refer to \(L_c\) as the long read set corresponding to contig c.
Using the information in \(\mathcal {M}\), and in \(L_c\) for all \(c\in \mathcal {C}\), we construct an undirected graph G(V, E), where:

V is the vertex set such that there is one vertex for every contig \(c\in \mathcal {C}\); and

E is the set of all edges of the form \((c_i,c_j)\), such that there exists at least one long read r that maps to both contigs \(c_i\) and \(c_j\) (i.e., \(L_{c_i}\cap L_{c_j}\ne \emptyset \)).
Intuitively, each edge is the result of two contigs sharing one or more long reads in their mapping sets. In our implementation, we store the set of long read IDs corresponding to each edge. More specifically, along an edge \((c_i,c_j)\in E\), we also store its long read set \(L_{i,j}\) given by the set \(L_{c_i}\cap L_{c_j}\). The cardinality of set \(L_{i,j}\) is referred to as the “support value” for the edge between these two contigs. Since the vertices of G correspond to contigs, we refer to G as a contig graph.
Next, the graph G along with all of its auxiliary edge information as described above, are used to generate partial scaffolds. We perform this in two steps: a) first enumerate paths in the contig graph that are likely to correspond to different partial scaffolds (this is achieved by our wiring algorithm that is described next); and b) subsequently, generate contiguous assembled sequences for each partial scaffold by traversing the paths from the previous step (this is achieved by using a batch assembly step described subsequently).
Step: Wiring heuristic: Recall that our goal is to enumerate partial scaffolds, where each partial scaffold is a maximal sequence of contiguously placed (nonoverlapping) contigs along the target genome. In order to enumerate this set of partial scaffolds, we make the following observation about paths generated from the contig graph G(V, E). A partial scaffold \([c_i, c_{i+1}, \ldots , c_{j}]\) can be expected to be represented in the form of a path in G(V, E). However, it is important to note that not all graph paths may correspond to a partial scaffold. For instance, consider a branching scenario where a path has to go through a branching node where there are more than one viable path out of that node (contig). If a wrong decision is taken to form paths out of branching nodes, the resulting paths could end up having chimeric merges (where contigs from unrelated parts of the genome are collapsed into one scaffold). While there is no way to check during assembly for such correctness, we present a technique we call wiring, as described below, to compute partial scaffolds that reduce the chance of false merges.
The wiring algorithm’s objective is one of enumerating maximal acyclic paths in G—i.e., maximality to ensure longest possible extension of the output scaffolds, and acyclic to reduce the chance of generating chimeric errors due to repetitive regions in the genome (as illustrated in Fig. 5). This problem is trivial if each vertex in V has at most two neighbors in G, as it becomes akin to a linked list of contigs, each with one predecessor contig and one successor contig. However, in practice, we expect several branching vertices that have a degree of more than two (indicating potential presence of repeats). Therefore, finding a successor and/or a predecessor vertex becomes one of a nontrivial path enumeration problem that carefully resolves around branching nodes.

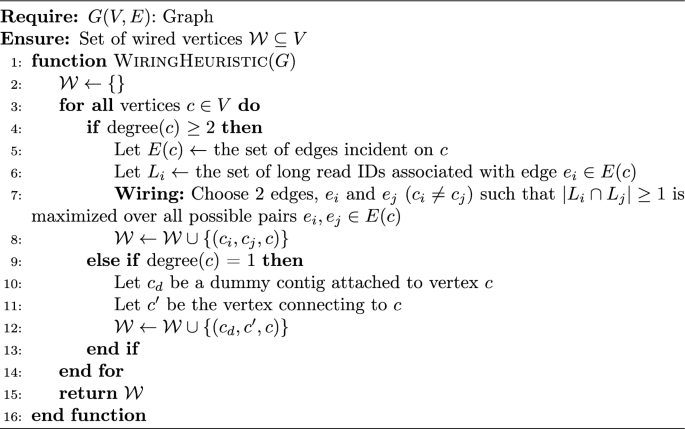

Algorithm: Our wiring algorithm is a linear time algorithm that first computes a “wiring” internal to each vertex, between edges incident on each vertex, and then uses that wired information to generate paths. First, we describe the wiring heuristic.
Step 1: Wiring of vertices: For each vertex \(c\in V\) that has at least degree two, the algorithm selects a subset of two edges incident on that vertex to be “wired”, i.e., to be connected to form a path through that vertex, as shown in Fig. 3. The two edges so wired determine the vertices adjacent on either side of the current vertex c.

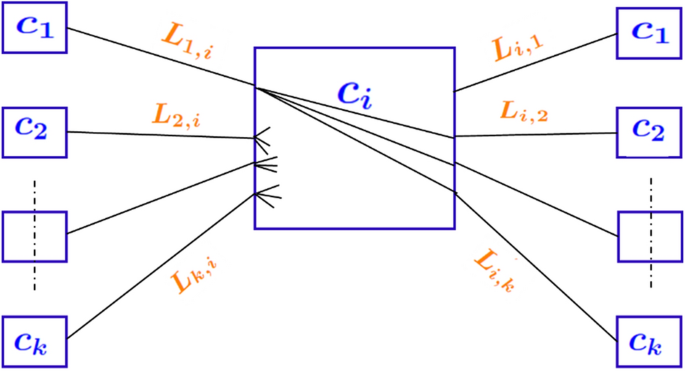

To determine which pair of edges to connect, we use the following heuristic. Let \(L_i\) denote the set of long read IDs associated with edge \(e_i\). We then (hard) wire two distinct edges \(e_i\) and \(e_j\) incident on a vertex c, if \(L_i\cap L_j\ne \phi \) and it is maximized over all possible pairs of edges incident on c, i.e., \(\arg \max _{e_i,e_j\in \mathcal {E}(c)} L_i\cap L_j\), where \(\mathcal {E}(c)\) denotes all edges incident on c.
The simple intuition is to look for a pair of edges that allows maximum long readbased connectivity in the path flowing through that vertex (contig). This path has the largest support by the long read set and is therefore most likely to stay true to the connectivity between contigs along the target genome. All other possible paths through that vertex are ignored. The resulting wired pair of edges \(\langle e_i,e_j\rangle \) generated from each vertex c is added in the form of wired edge 3tuple \(\langle c_i, c_j, c \rangle \). We denote the resulting set as \(\mathcal {W}\).
There are two special cases to consider here. First, if no pair of edges incident on a vertex c have long reads in common (i.e., \(L_i\cap L_j=\phi \) for all pairs of edges incident), then there is no evidence of a link between any pair of edges on that contig. Therefore, our algorithm would not wire any pair of edges for that contig. In other words, if a walk (step 2) should reach this vertex (contig), such a walk would terminate at this contig.
As another special case, if a vertex c has degree one, then the wiring task is trivial as there exists only one choice to extend a path out of that contig, \(c_e\), along the edge e attached to that vertex. We treat this as a special case of wiring by introducing a dummy contig \(c_{d}\) to each such vertex with degree one, and adding the tuple \(\langle c_d, c_e, c \rangle \) to \(\mathcal {W}\).
Note that by this procedure, each vertex c has at most one entry in \(\mathcal {W}\). To implement this wiring algorithm, note that all we need is to store the set of long read IDs along each edge. A further advantage of this approach is that this is an independent decision made at each vertex, and therefore this step easily parallelizes into a distributed algorithm that works with a partitioning of the input graph.
Step 2: Path enumeration: In the next step, we enumerate edgedisjoint acyclic paths using all the wired information from \(\mathcal {W}\). The rationale behind the edgedisjoint property is to reduce the chance of genomic duplication in the output scaffolds. The rationale for avoiding cycles in paths is twofold—both to reduce genomic duplication due to repetitive contigs, as well as to reduce the chance of creating chimeric scaffolds.

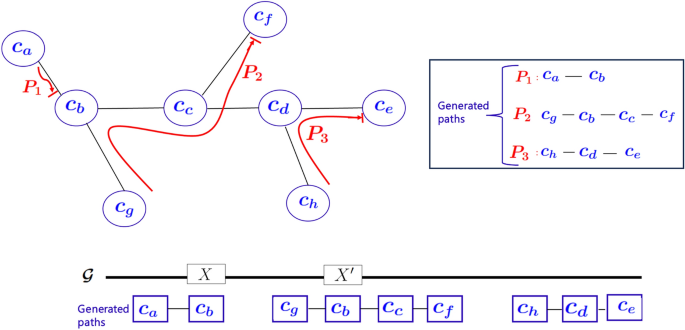

The path enumeration algorithm (illustrated through an example in Fig. 4) works as follows.

(i)
Initialize a visit flag at all vertices and set them to unvisited.

(ii)
Initialize a work queue Q of all vertices with degree one (e.g., \(c_a\), \(c_e\), \(c_f\), \(c_g\) and \(c_h\) in Fig. 4).

(iii)
For each vertex \(c\in Q\), if c is still unvisited, dequeue c, start a new path at c (denoted by \(P_c\)), and grow the path as follows. The edge e incident on c connects c to another vertex, say \(c_1\). Then \(c_1\) is said to be the successor of c in the path and is appended to \(P_c\). We now mark the vertex c as visited. Subsequently, the algorithm iteratively extends the path by simply following the wired pairing of edges at each vertex visited along the way—marking each such vertex as visited and stitching together the path—until we arrive at one of the following termination conditions:

Case a)
Arrive at a vertex which has chosen a different predecessor vertex: See for example path \(P_1\) truncated at \(c_b\) because the wiring at \(c_b\) has chosen a different pair of neighbors other than \(c_a\) based on long read support, i.e., \(\mathcal {W}\) contains \(\langle c_g, c_c, c_b\rangle \). In this case, we add the vertex \(c_b\) at the end of the current path \(P_1\) and terminate that path.

Case b)
Arrive at a vertex that is already visited: This again implies that no extension beyond this vertex is possible without causing duplication between paths, and so the case is handled the same way as Case a by adding the visited vertex as the last vertex in the path and the path terminated.

Case c)
Arrive at a degree one vertex: This implies that the path has reached its end at the corresponding degree one contig and the path is terminated at this contig.
More examples of paths are shown in Fig. 4.

Case a)
Provable properties of the algorithm
The above wiring and path enumeration algorithms have several key properties.

Prop1
Edge disjoint paths: No two paths enumerated by the wiring algorithm can intersect in edges.
Proof
This is guaranteed by the wiring algorithm (step 1), where each vertex chooses only two of its incident edges to be wired to build a path. More formally, by contradiction let us assume there exists an edge e that is covered by two distinct paths \(P_1\) and \(P_2\). Then this would imply that both paths have to pass through at least one branching vertex c such that there exist \(\langle e_1, e, c\rangle \in \mathcal {W}\) and \(\langle e_2, e, c\rangle \in \mathcal {W}\) (for some \(e_1\ne e_2\ne e\) all incident on c). However, by construction of the wiring algorithm (step 1) this is not possible. \(\square \)

Prop2
Acyclic paths: There can be no cycles in any of the paths enumerated.
Proof
This is guaranteed by the path enumeration algorithm described above (step 2). More specifically, the termination conditions represented by the Cases (a) and (b) clip any path before it forms a cycle. By not allowing for cycles, our algorithm prevents including the same contig more than once along a scaffold. This is done so as to prevent chimeric misassemblies of a repetitive contig (for example, repetitive regions X and \(X^\prime \) illustrated in Fig. 4. \(\square \)

Prop3
Deterministic routing: The path enumeration algorithm is deterministic and generates the same output set of paths for a given \(\mathcal {W}\) regardless of the order in which paths are generated.
Proof
This result follows from the fact that the wiring heuristic at each vertex is itself deterministic as well as by the conditions represented by Cases (a) and (b) to terminate a path in the path enumeration algorithm. More specifically, note that each vertex contributes at most one hardwired edge pair into \(\mathcal {W}\) and none of the other edge pair combinations incident on that vertex could lead to paths. Given this, consider the example shown in Fig. 4, of two paths \(P_1\) and \(P_2\) converging onto vertex \(c_b\). Note that in this example, \(\langle c_g, c_c, c_b\rangle \in \mathcal {W}\). The question here is if it matters whether we start enumerating \(P_1\) first or \(P_2\) first. The answer is no. In particular, if \(P_1\) is the first to get enumerated, then termination condition Case (a) would apply to terminate the path to end at \(c_b\). Therefore, when \(P_2\) starts, it will still be able to go through \(c_b\). On the other hand, if \(P_2\) is the first path to get enumerated, then \(c_b\) will get visited and therefore termination condition Case (b) would apply to terminate \(P_1\) at \(c_b\) again. So either way, the output paths are the same. A more detailed example for this order agnostic behavior is shown in S3. This order agnostic property allows us to parallelize the path enumeration process without having to synchronize among paths. \(\square \)
As a corollary to Prop1 (on edge disjoint paths) and Prop2 (on acyclic paths), we now show an important property about the contigs from repetitive regions of the genome and how the wiring algorithm handles those contigs carefully so as to reduce the chances of generating chimeric scaffolds.
Corollary 1
Let \(c_x\) be a contig that is completely contained within a repetitive region. Then this contig can appear as a nonterminal vertex^{Footnote 1} in at most one path output by the wiring algorithm.
Proof

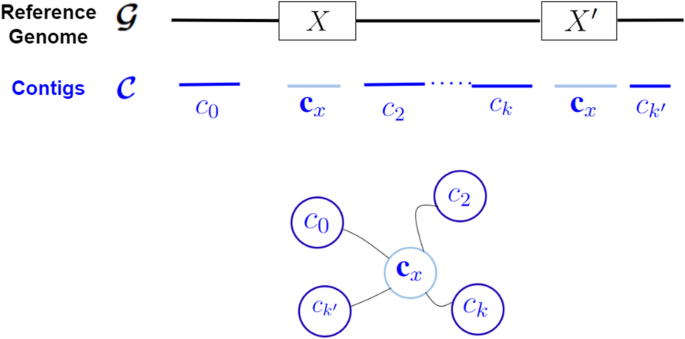

Consider the illustrative example in Fig. 5, which shows a contig \(c_x\) that maps to a repeat X and its copy \(X^\prime \). In particular, if there is a trail of long reads linking the two repeat copies (from \([c_x, c_2, \ldots c_{k}, c_x]\)), then it could generate a cycle in the graph G. However, based on Prop2, the cycle is broken by the path enumeration algorithm and therefore \(c_x\) is allowed to appear as a nonterminal vertex only in at most one of the paths that goes through it. Even if there is no trail of long reads connecting the two repeat regions, the same result holds because of the edge disjoint property of Prop1. \(\square \)
An important implication of this corollary is that our algorithm is careful in using contigs that fall inside repetitive regions. In other words, if a contig appears as a nonterminal vertex along a path, then its predecessor and successor contigs are those to which this contig exhibits maximum support in terms of its long read based links. While it is not possible to guarantee full correctness, the wiring algorithm uses long read information in order to reduce the chances of repetitive regions causing chimeric scaffolds.
Step: Parallelized contig batch assembly:
As the next step to wiring and path enumeration, we use the paths enumerated to build the output sequence (partial) scaffolds from this phase. To implement this step in a scalable manner, we make a simple observation that the paths enumerated all represent a disjoint set of partial scaffolds. Therefore, we use a partitioning strategy to partition the set of paths into fixed size batches (each containing s contigs), so that these independent batches can be fed in a parallel way, into a standalone assembler that can use both the contigs and long reads of a batch to build the sequences corresponding to the partial scaffolds. We refer to this parallel distributed approach as contig batch assembly.
The assembly of each batch is performed in parallel using any standalone assembler of choice. We used Hifiasm [8] for all our experiments. By executing contiglong read pairs in parallel batches, this methodology yields one or more scaffolds per batch, contributing to enhanced scalability in assembly processes. Furthermore, the selective utilization of long reads mapped to specific contig batches significantly reduces memory overhead, mitigating the risk of misassemblies that might arise from using the entire long read set which is evident in the results.
This strategy not only reduces memory utilization but also minimizes the potential for misassembly errors that could occur when unrelated sequences are combined.
Phase: longread island construction
The first phase of contig expansion, only focuses on expanding contigs using long reads that map on either side. This can be thought of a seedandextend strategy, where contigs are seeds and extensions happen with the long reads. However, there could be regions of the genome that are not covered by this contig expansion step. Therefore, in this phase, we focus on constructing “longread islands” to cover these gap regions. See Fig. 1 for an ilustration of these long read islands. This is achieved in two steps:

9a)
First we detect all long reads that do not map to any of the first generation partial scaffolds (generated from the contig expansion step). More specifically, we give as input to JEMmapper the set of all unused long reads (i.e., unused in the partial scaffolds) and the set of partial scaffolds output by the contig expansion phase. Any long read that maps to previous partial scaffolds are not considered for this phase. Only those that remain unmapped correspond to long reads that fall in the gap regions between the partial scaffolds.

(b)
Next, we use the resulting set of unmapped long reads to build partial scaffolds. This is achieved by inputing the unmapped long reads to Hifiasm. The output of this phase represent the second generation of partial scaffolds, each corresponding to a long read island.
Phase: link scaffolds with bridges
In the last phase, we now link the first and second generations of partial scaffolds using any long reads that have been left unused so far. The objective is to bridge these two generations into longer scaffolds if there is sufficient information in the long reads to link them. Note that from an implementation standpoint this is same as for contig expansion, where the union of first and generation partial scaffolds serve as the “contigs” and the rest of the unused long reads serve as the long read set.
Complexity analysis
Recall that m denotes the number of input long reads in \(\mathcal {L}\), and n is the number of input contigs in \(\mathcal {C}\). Let p denote the number of processes used by our parallel program.
Out of the three major phases of Maptcha, the contig expansion phase is the one that works on the entire input sets (\(\mathcal {L}\) and \(\mathcal {C}\)). The other two phases work on a reduced subset of long reads (unused by the partial scaffolds of the prior scaffolds) and the set of partial scaffolds (which represents a smaller size compared to \(\mathcal {C}\)). For this reason, we focus our complexity analysis on the contig expansion phase.
In the contig expansion phase we have the following steps:

(i)
Mapping long reads to contigs: JEMmapper [45] is an alignmentfree distributed memory parallel implementation and hence processes load the long reads and contigs in a distributed manner. The dominant step is sketching the input sequences (long reads or contigs). Given that the number of long reads is expected to be more than the number of contigs (due to sequencing depth), the complexity can be expressed as \(O( \frac{{m \ell _l T}}{{p}} )\), where \(\ell _l\) is average long read length and \( T \) denotes the number of random trials used within its minhash sketch computation.

(ii)
Graph construction: Let the list of mapped tuples \(\langle c, r \rangle \) from the previous step contain \(\mathcal {T}\) tuples. These \(\mathcal {T}\) tuples are used to generate the contig graph by first sorting all the tuples by their long read IDs to aggregate all contigs that map to the same ID. This can be achieved using an integer sort that scans the list of tuples linearly and inserts into a lookup table for all long read IDs—providing a runtime of \(O(m+\mathcal {T})\) time. Next, this lookup table is scanned one long read ID at a time, and all contigs in its list are paired with one another to create all the edges corresponding to that long read. The runtime of this step is proportional to the output graph size (G(V, E)), which contains n vertices (one for each contig), and E is the number of edges corresponding to all contig pairs detected. Our implementation performs this graph construction in a multithreaded mode.

(iii)
Wiring heuristic: For the wiring step, each node detects a pair of edges incident on it that has the maximum intersection in the number of long read IDs. This can be achieved in time proportional to \(O(d^2)\) where d is the average degree of a vertex. The subsequent step of path enumeration traverses each edge at most once. Since both these steps are parallelized, the wiring heuristic can be completed in \(O(\frac{nd^2+E}{p})\) time.

(iv)
Contig batch assembly: The last step is the contig batch assembly, where each of the set of enumerated paths are partitioned into b batches, and each batch is individually assembled (using Hifiasm). As this step is trivially parallelizable, this step takes \( O\left( \frac{b \times a}{p}\right) \) time, where \( a \) is the average time taken for assembling any batch.
In our results, we show that the contig expansion phase dominates the overall runtime of execution (shown later in Fig. 6).
The space complexity of Maptcha is dominated by the size to store the input sequences and the size of the contig graph—i.e., \(O(N+M+n+E)\).
Results
Experimental setup
Test inputs: For all our experiments, we used a set of input genomes (from various families) downloaded from the NCBI GenBank [1]. These genome data sets are summarized for their key statistics in Table 1. Using the reference for each genome, we generated a set of contigs and a set of long reads as follows. The set of test input contigs (\(\mathcal {C}\)) were generated by first generating and then assembling a set of Illumina short reads using the ART Illumina simulator [26], with 100\(\times \) coverage and 100bp read length. The reads generated for our experiments do not have pairedend information. For short read assembly, we used the Minia [10] assembler. As for the set of test long reads (\(\mathcal {L}\)), we used the Simit PacBio HiFi simulator [17], with a 10\(\times \) coverage and long read median length 10Kbp. Furthermore, note the length divergences in both \(\mathcal {C}\) and \(\mathcal {L}\).
As a realworld dataset, we used a draft assembly of contigs and a set of realworld long reads available for Hesperophylax magnus (H. magnus)—a caddisfly genome [42]. The corresponding data was downloaded from NCBI GenBank, as reported in Olsen et al. [42]. All GenBank accession IDs are shown in supplementary Table S2. Since the original reads used in this assembly were not available, we simulated the short reads from this assembly and assembled them into contigs using Minia. For long reads, we used the real HiFi long reads provided by Hotaling et al. [25]. This HiFi dataset consists of a median read length of 11.4 Kbp with a 22.8\(\times \) coverage. The long reads were generated using the PacBio Sequel II system with SMRTcell.
Qualitative evaluation: To evaluate the quality of of the scaffold outputs produced by Maptcha, we used Quast [23] which internally maps the scaffolds against the target reference genome and obtains key qualitative metrics consistent with literature, such as NG50 and NGA50 lengths, largest alignment length, number of misassemblies, and genome fraction (the percentage of genome recovered by the scaffolded assembly) (Table 3). For a comparative evaluation against a stateoftheart hybrid scaffolder, we compared the quality as well as runtime performance of Maptcha against that of LRScaf [44] and ntLink [13, 14].
Qualitative evaluation
Scaffold quality
First, we report on the qualitative evaluation for Maptcha, for its hybrid assembly quality. Table 2 shows the quality by the various assembly metrics alongside the quality values for LRScaf and ntLink—for all the inputs tested. The same inputs were provided into all the tools. Note that the assembly quality for Maptcha shown are for the final output set of scaffolds produced by the framework (i.e, after its link scaffolds with bridges phase).
We observe from Table 2 that Maptcha is able to produce a high quality scaffolded assembly, reaching nearly 99% genome coverage with high NG50, NGA50 and largest alignment lengths, low misassembly rate, and a nearperfect (1.0) duplication ratio, for all the test inputs. These results are substantially better than the output quality produced by the two stateoftheart tools LRScaf and ntLink. For smaller genomes such as E. coli and P. aeruginosa, both LRScaf and ntLink yield competitive results with Maptcha. However, as the genome sizes increase, the assemblies produced by ntLink and LRScaf become more fragmented. For instance, on T. crassiceps, the NGA50 value for Maptcha is about \(21\times \) and \(5.6\times \) larger compared to that of the value for LRScaf and ntLink respectively. Whereas for Human chr 7, the NGA50 of Maptcha is around \(18\times \) and \(330\times \) larger compared to that of LRScaf and ntLink respectively.
In terms of misassemblies, all three tools produce misassemblies, however to varying degrees, with Maptcha in general producing the fewest number of misassemblies over nearly all the inputs. Misassembly rates are influenced by multiple factors, including the genomic repeat complexity, baseline contiguity, genome fraction, and duplication ratio. In particular, repetitive sequences can significantly impact assembly accuracy and increase misassemblies [5, 7, 22, 55]. While the number of misassemblies produced by ntLink and Maptcha are comparable for inputs such as P. aeruginosa and T. crassiceps, as the genome size and complexity increase, there is a notable rise in the number of misassemblies with ntLink. As for duplication ratio as well, Maptcha produces scaffolds which have almost no duplication (i.e., ratio is close to 1) in nearly all inputs, while the other tools show varying degrees of duplication. Maptcha also shows the best performance when it comes to genome fraction, capturing almost 99% or more fraction for all the inputs. In general, these results clearly show that Maptcha is able to outperform both LRScaf and ntLink in all the quality metrics reported.
We further examined the growth of contigs and incremental improvement in assembly quality through the different scaffolding phases of Maptcha. Table 4 shows these results, using NG50 lengths output from these different phases as the basis for this improvement assessment. Supplementary Figure S4 shows the increase across all three phases in logscale.
As can be seen from Table 4, the initial set of Miniaassembled contigs for larger genomes have NG50 measurements ranging from 1 to 3 Kbp. After the contig expansion phase of Maptcha, a substantial increase in NG50 is observed, often exceeding 200fold. For instance, inputs such as C. septempunctata, M. florea, and H. aestivaria show a notable increase in NG50 values from around 2 Kbp for the initial contigs to over 400 Kbp postcontig expansion phase. This substantial increase is attributed to the long reads acting as connectors between the shorter contigs, resulting in longer partial scaffolds.
In the subsequent longread island construction phase, there is a modest increase in NG50. However, the primary contribution of this phase is to provide more comprehensive genome coverage in regions not covered by contigs. This phase ensures that gaps left by contigs are filled, thereby enhancing the overall assembly.
The final phase of linking partial scaffolds with remaining long reads in Maptcha results in a noteworthy surge in NG50, up to 1,000\(\times \) for larger genomes. This phase, similar to the contig expansion phase, shows the greatest increase in NG50 among all phases. The average length of these partial scaffolds is considerably longer, which contributes to this dramatic improvement.
Performance evaluation
Next, we report on the runtime and memory performance of Maptcha and compare that with LRScaf and ntLink. Table 3 shows these comparative results for all inputs tested. All runs with Maptcha were obtained by running it on the distributed memory cluster using \(p=64\) processes—more specifically on 4 compute nodes, each running 16 processes. For both LRScaf and ntLink, we ran them in their multithreaded mode on 64 threads on a single node of the cluster. Note that in parallel computing, distributed memory systems support larger aggregate memory but at the expense of incurring communication (network) overheads, which do not appear in multithreaded systems running on a single node. However to enable a fair comparison on equivalent number of resources, we tested both on the same number (p) of processes, with Maptcha running in distributed memory mode while LRScaf and ntLink running on shared memory. For all runs reported for the performance evaluation, we ran Maptcha with a batch size of 8,192 in the batch assembly step.
The results in Table 3 demonstrate that Maptcha outperforms both LRScaf and ntLink in terms of runtime performance. For instance, on mediumsized inputs such as C. elegans, Maptcha completes nearly \(70\times \) faster than LRScaf, reducing the time to solution from over 2 h (LRScaf) to 1.8 min (Maptcha), whereas ntLink takes 2.42 min. For larger genomes like N. polychloros and M. florea, Maptcha is still the fastest. Even though ntLink runs in comparable times for some of the inputs, the quality of the scaffolds generated by Maptcha is considerably better than that of ntLink (as shown in Table 2). For the five largest inputs (out of the 11 simulated test inputs), we could not obtain performance results for LRScaf as those runs did not complete within the allotted 6hour limit of the cluster.
Table 3 also shows the memory used by the three tools for all the inputs. For Maptcha, recall that the memory is primarily dictated by the memory needed to produce the batch assemblies (which are partitioned into batches). Due to batching, even though the input genome size is increased, the number of contigs that anchor a batch is kept about the same, ensuring a way to control the memory needed to run large assemblies in a scalable fashion. This is the reason why despite growing input sizes, the peak memory used by Maptcha stays approximately steady (under 20 GB).
For the realworld long read dataset used in case of the caddisfly genome input, H. magnus, the quality of the scaffolds generated by Maptcha surpasses both stateoftheart tools, as shown in Table 5. LRScaf was unable to complete its run within 6 h, and thus its results are not included. Maptcha outperforms ntLink by producing scaffolds that are 119 times larger in N50 and 29 times longer in the largest contig metric compared to ntLink. Additionally, Maptcha generated scaffolds with no gaps, whereas ntLink had more than 56k gaps per 100 kbp. Although ntLink finished faster, with a runtime of approximately 52 min compared to Maptcha’s 61 min, the difference in runtime is marginal when considering the substantial improvement in scaffold quality.
We also compared our scaffolding results with the scaffolds reported in Olsen et al. [42]. We note that the underlying raw reads used in these two studies were different, as the raw reads used in [42] were not available in public as of this writing. In their original work, they report an N50 of 768 Kbp for performing a hybrid assembly using their Illumina (49\(\times \)) and Nanopore (26\(\times \)) data. In comparison, our Maptcha scaffolder produces a scaffold set with an N50 of 10 Mbp. This represents a significant improvement in scaffolding length—showing promise that when applied to realworld data our Maptcha scaffolder is likely to yield longer scaffolds. However further study is needed to validate and compare assembly quality, and also perhaps experimenting with different choices of HiFi long read assemblers.

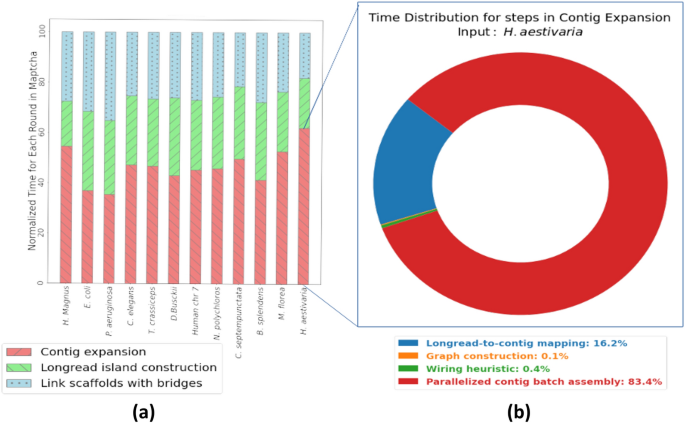

We also studied the runtime breakdown of Maptcha across its different phases. This breakdown is shown normalized for each input in Fig. 6a (left), all running on \(p=64\) processes. It can be observed that the contig expansion phase is generally the most time consuming phase, occupying anywhere between 40% to 60% of the runtime, with the other two phases roughly evenly sharing the remainder of the runtime. Figure 6b (right) further shows how the runtime is distributed within the contig expansion phase. As can be noted, more than 80% of the time is spent in the batch assembly step, while the remainder of the runtime is spent mostly on mapping.

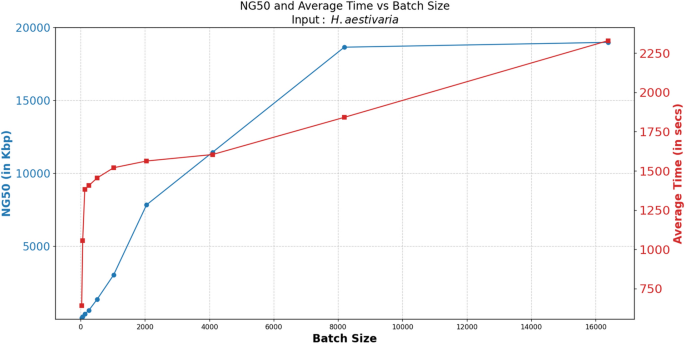

Effect of batch size on NG50 and runtime: Fig. 7 shows the impact of varying batch sizes on NG50 and processing time, using the H. aestivaria genome as an example. Recall that the batch size is the number of contigs that are used to anchor each batch along with their respective long reads that map to those contigs. Subsequently, each batch is provided to a standalone assembly (using Hifiasm) to produce the assemblies for the final scaffolds. We experimented with a wide range of batch size, starting from 32, and until 16K. As anticipated, smaller batch sizes exhibit reduced processing times due to the smaller assembly workload per batch. However, if a batch is too small then the resulting assembly quality is highly fragmented (resulting in small NG50 values) as can be observed. Conversely, larger batch sizes necessitate longer processing times (e.g., batch size 32 requiring approximately 280 s, while 8K batch size requires 1,841 s). But the NG50 metric substantially improves—e.g., NG50 size improvement from 93Kbp to 1.8Mbp from a batch size of 32 to 8K.
We found that increasing the batch size from 8K to 16K resulted in a slight increase in NG50 (1.86Mbp to 1.89Mbp), but also a substantial increase in processing time (1,841 s to 2,329 s). Since the increase in NG50 was not significant enough to justify the longer processing time, we decided to use the batch size of 8K for all our tests.
Coverage experiment with Maptcha (hybrid) and Hifiasm (onlyLR)
One of the main features of a hybrid scaffolding workflow is that it has the potential to build incrementally on prior constructed assemblies using newly sequenced long reads. This raises two questions: a) how does the quality of a hybrid workflow compare to a standalone long readonly workflow? b) can the information in contigs (or prior constructed assemblies) be used to offset for lower coverage sequencing depth in long reads?
To answer these two questions, we compared the Maptcha scaffolds to an assembly produced directly by running a standalone long read assembler but just using the long reads. For the latter, we used Hifiasm and denote the corresponding runs with the label Hifiasm (onlyLR) (to distinguish it from the hybrid configuration in Maptcha). Analysis was performed using different coverages (1x, 2x, 3x, 4x, 8x, and 10x) for the long read data set, for the H. aestivaria input, and focusing on performance metrics of NG50, execution time, and peak memory utilization.
The results shown in Table 6 for this experiment, revealed that at lower coverages (1x and 2x), Hifiasm (onlyLR) and Maptcha demonstrated relatively comparable performance. However, as the long read coverage increased, Maptcha exhibited better NG50 quality over Hifiasm (onlyLR), demonstrating the value of adding the contigs in growing the scaffold length. For instance, at 4x coverage, Maptcha yielded a considerably longer NG50 (tenfold increase). The assembly quality becomes comparable for higher coverage settings. These results demonstrate that the addition of prior constructed assemblies can increase the scaffold length compared to long readonly assemblies. However, this value in growing the scaffold length tends to diminish for higher coverage settings—showing that the addition of contigs can be used to offset reduced coverage settings.
Table 6 also shows that a runtime and memory advantage of Maptcha over Hifiasm (onlyLR). For instance, Maptcha was generally between two and four times faster than Hifiasm (onlyLR) (e.g., on the 10x input, Maptcha takes 30 min compared to 81 min taken by Hifiasm (onlyLR)). Note that internally, Maptcha also is using the standalone version of Hifiasm to compute its final assembly product. These results show that the Maptcha approach of enumerating paths to generate partial scaffolds and distributing those into batches, reduces the overall assembly workload for the final assembly step, without compromising on the quality.
Conclusions
Genome assembly remains a challenging task, particularly in resolving repetitive regions, given its inherently timeintensive nature. In this study, we present Maptcha, a novel hybrid scaffolding pipeline designed to combine previously constructed assemblies with newly sequenced high fidelity long reads. As demonstrated, the Maptcha framework is able to increase the scaffold lengths substantially, with the NG50 lengths growing by more than four orders of magnitude relative to the initial input contigs. This represents a substantial improvement in genomic reconstruction that comes without any compromise in the accuracy of the genome. Furthermore, our method is able to highlight the value added by prior constructed genome assemblies toward potentially reducing the required coverage depth for downstream long read sequencing. In terms of performance, the Maptcha software is a parallel implementation that is able to take advantage of distributed memory machines to reduce timetosolution of scaffolding. The software is available as open source for testing and application at https://github.com/Oieswarya/Maptcha.git.
Availibility of data and materials
All inputs were downloaded from NCBI GenBank [1]. All accession numbers are provided in the supplementary table Table S2. Our software is available as open source for testing and application at https://github.com/Oieswarya/Maptcha.git.
Notes
A vertex is said to be nonterminal along a path if it appears neither at the start nor the end of that path.
