# GCphase: an SNP phasing method using a graph partition and error correction algorithm

*BMC Bioinformatics*
**volumeÂ 25**, ArticleÂ number:Â 267 (2024)

## Abstract

### Background

The utilization of long reads for single nucleotide polymorphism (SNP) phasing has become popular, providing substantial support for research on human diseases and genetic studies in animals and plants. However, due to the complexity of the linkage relationships between SNP loci and sequencing errors in the reads, the recent methods still cannot yield satisfactory results.

### Results

In this study, we present a graph-based algorithm, GCphase, which utilizes the minimum cut algorithm to perform phasing. First, based on alignment between long reads and the reference genome, GCphase filters out ambiguous SNP sites and useless read information. Second, GCphase constructs a graph in which a vertex represents alleles of an SNP locus and each edge represents the presence of read support; moreover, GCphase adopts a graph minimum-cut algorithm to phase the SNPs. Next, GCpahse uses two error correction steps to refine the phasing results obtained from the previous step, effectively reducing the error rate. Finally, GCphase obtains the phase block. GCphase was compared to three other methods, WhatsHap, HapCUT2, and LongPhase, on the Nanopore and PacBio long-read datasets. The code is available from https://github.com/baimawjy/GCphase.

### Conclusions

Experimental results show that GCphase under different sequencing depths of different data has the least number of switch errors and the highest accuracy compared with other methods.

## Background

For diploid organisms such as humans, all autosomes (nonsex chromosomes) have their corresponding homologous chromosomes. The variation between homologous chromosomes are minimal (approximately 99% of the base pairs being identical). These variant sites across the genome contribute to the genetic diversity among human individuals. Single nucleotide polymorphisms (SNPs) refer to the variation of a single nucleotide in the genome, and they are the most common form of genetic variation. SNPs can occur at any position in the genome and are widely present in the human genome. Haplotype, short for haploid genotype, refers to a specific set of genotypes composed of alleles from multiple SNP loci located on the same chromosome. The process of reconstructing the two alleles of an SNP to their respective haplotype is called phasing. The acquisition of haplotypes helps in studying the correlation of human genetic variations and in assessing the risk of genetic diseases [1, 2]. By analysing the distribution, frequency and the length of haplotypes, the genetic structure and the evolutionary history of human populations can be revealed. Established initiatives such as the 1000 Genomes Project aim to unravel variations and diversity in the human genome [3], including SNPs and structural variations. Additionally, there are reference genomes generated for different populations, which can be utilized for downstream data analysis purposes [4].

Due to the limitations of current sequencing technologies, genome sequencing generally does not distinguish between haplotypes. For example, in Nanopore sequencing technology [5], all DNA is directly processed, such as through specific enzymatic cleavage, to obtain DNA molecules suitable for Nanopore sequencing. These DNA fragments are then sequenced by using a Nanopore sequencer, resulting in sequencing data that contain a mixture of DNA sequences from all homologous chromosomes.

Therefore, to obtain phased results of target haplotypes with lower financial and time costs, the method based on alignment for obtaining haplotypes has become mainstream. The accurate assignment of the two alleles of SNP loci to their corresponding haplotypes in polynomial time is currently a major challenge.

For current long read sequencing technologies, such as Nanopore and PacBio sequencing, in the generated sequencing data, the bases within the same read can be determined to originate from the same chromosome [6,7,8,9]. Therefore, the alleles of SNP loci contained within that read can be assigned to the same haplotype. Therefore, in an ideal scenario, despite the limited number of SNP loci contained in each read and the limited phase information between obtained SNP loci, it is still possible to link all the alleles together rapidly and effectively by extending the overlaps between different reads. However, in actual sequencing processes, not all bases in each read are accurate. Due to the limitations of sequencing technologies, there are still significant sequencing errors present in the reads. The sequencing error rate for short reads usually are approximately 0.1% [10]. The sequencing error rate of Nanopore Long reads and Pacbio Long reads are approximately 10â€“25% [11, 12]. However, the sequencing error rate of Pacbio HiFi read is approximately 1% [12]. These sequencing errors make the process of obtaining SNP phasing an NP-hard problem [13]. Therefore, addressing the impact of sequencing errors on the phasing process has become a primary challenge that must be resolved.

Current read-based SNP phasing methods can be broadly classified into three categories [14]. First is the method based on minimum error correction (MEC). MEC is a commonly used objective function optimization method that selects the optimal SNP phasing results by minimizing the number of error corrections. Representative methods include SCGDhap [15], Poly-Harsh [16], HapTree [17], GTIHR [18], and SDhaP [19]. This method is effective in handling polyploid genome phasing problems, but it heavily relies on read quality, and in genomes with low heterozygosity, the limited phase information due to a small number of SNP loci leads to a significant decrease in predictive accuracy. Second is the method based on group division. This method represents the two alleles of reads or SNP loci as vertices in a graph, where edges represent the similarity between two vertices. The graph is then partitioned into k subsets based on genome ploidy. Representative methods, such as WhatsHap [20], Hap10 [21] and ComHapDet [22], are known for their fast speed and high accuracy. HapCUT2 [23] is a SNP phasing tool based on the maximum likelihood method. It has good adaptability to different sequencing technologies or protocols, making it a powerful tool for studying complex genomic variations and disease associations. However, due to the requirement of reads containing more SNP information, these methods are mostly applicable when using long reads for phasing. Third is the method based on clustering. These methods generally cluster reads or SNPs, which are adjacent in genomic location, together into sets using various algorithms. They calculate the consensus for each set and then perform clustering again, forming consensus based on the genome ploidy. For example, H-Pop represents reads as a matrix and partitions the matrix to form haplotypes [24]. Phasebook selects reads with the most overlaps as seed reads and assigns similar reads to the same cluster [25]. This process is repeated iteratively by using the consensus of the final partitioned set as the output. LongPhase extends phase information between adjacent SNP loci to the entire haplotype level [26]. These methods effectively utilize various clustering approaches to generate haplotype outputs. Unlike graph partitioning methods, they do not construct a graph but perform clustering by iteratively increasing the size of the sets. Despite the existence of numerous phasing methods, the accuracy of phasing results remains limited by the constraints of sequencing technologies. Short-read sequencing offers high accuracy but suffers from limited read length and coverage of SNP information. Long read sequencing provides longer reads at a lower cost but with higher error rates. PacBio HiFi sequencing combines the advantages of both short reads and long reads. However, its high cost limits its application. The primary goal in current SNP phasing methods remains achieving low-cost, high-quality, and widely applicable phasing solutions.

If the impact of a high long-read error rate can be overcome, this goal can be achieved. The group division algorithm with high fault tolerance can effectively address this issue, as the neighbouring vertices of each vertex can serve as a basis for phasing that vertex, allowing individual point errors to be accommodated by the remaining vertices. However, the group division algorithm has the drawback of local optima. Therefore, after using the group division algorithm for phasing, additional error correction steps are still needed to improve accuracy.

In this paper, we present a method called GCphase that can phase SNPs more accurately. In the experiments, GCphase achieves the lowest error rate compared to that of other methods at different sequencing depths. It can control the error rate to approximately 0.015% and can even achieve an error rate of 0 on certain chromosomes.

## Methods

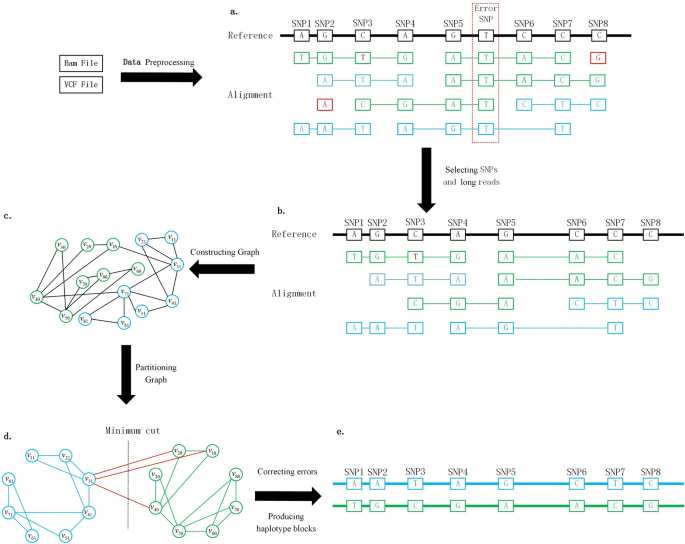

The algorithm flow of GCphase can be roughly divided into six steps (Fig. 1): (i) Data Preprocessing. GCphase preprocesses the input VCF and BAM files to transform them into a format suitable for the algorithm, facilitating subsequent computations. (ii) Selecting SNPs and long reads. GCphase filters the obtained SNPs and reads, removing ambiguous SNPs and reads that do not cover any SNP site. (iii) Constructing the graph. The alleles of SNP loci are represented as vertices of an undirected graph, and the reads supporting two alleles are constructed as edges. (iv) Partitioning Graph. GCphase divides the graph into two sets as disjoint as possible by utilizing the minimum-cut algorithm on the graph. (v) Correcting Errors. GCphase employs two error correction steps to improve the accuracy of phasing results. (vi) Producing haplotype blocks. GCphase outputs each maximal connected component in the undirected graph as a haplotype block. Now, let us delve into the specific phasing process.

### Data preprocessing

GCphase (version 1.0) utilizes minimap2 to align long reads to the reference genome. The resulting alignment in SAM format was then converted to BAM format by using samtools [27, 28]. The sorted and indexed BAM file serves as the input of GCphase and uses pysam to extract information from bam files [29]. The SNP location and its corresponding allele are provided as input in the form of a variant call format (VCF) file, which is a standard format for storing genetic variations.

The long reads with optimal alignment are retained, and others are filtered. For a given long read, GCphase first identifies all the SNP loci it contains. The *i-th* SNP in the long read is represented as a two-tuple *m*_{i}â€‰=â€‰(*v*_{i}*, k*). vi is the SNP identity, *k* is a binary value, and when *k*â€‰=â€‰0, it means that the base in the long read is the same as the major allele; when *k*â€‰=â€‰1, it means that the base is the same as the minor allele. Finally, the long read can be transformed into a vector (*m*_{1}*, m*_{2}*â€¦ m*_{n}). Ultimately, a single read can be simplified into a representation of SNPs along with the alleles supported by the read at those loci, convenient for subsequent processing.

### Selecting SNPs and long reads

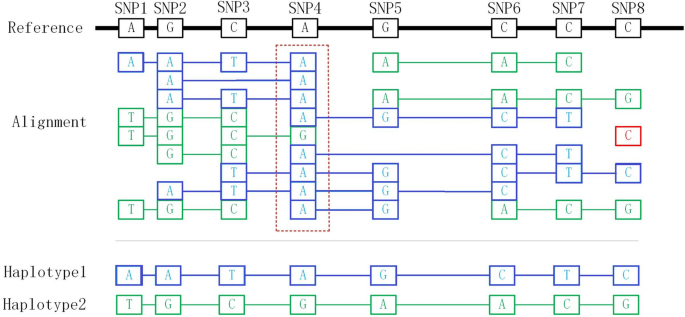

After GCphase obtains the information of SNPs and reads, not all the information can be utilized in the phasing process. For each SNP locus to be phased, if the proportion of the allele with the highest read support is greater than or equal to 85% of the total read support for both alleles, this SNP locus is removed. Let vi0 and vi1 represent the two alleles of SNP *v*_{i}. Let *n*_{1} and *n*_{2} denote the counts of reads supporting *v*_{i0} and *v*_{i1}, respectively. If max(*n*_{1},*n*_{2})/(*n*_{1}â€‰+â€‰*n*_{2})â€‰â‰¥â€‰0.85, that is, if the proportion of one allele is excessively high, it is considered a fuzzy locus for SNP *v*_{i}, indicating unclear allele expression. Phasing at this locus is not feasible, and there is a higher likelihood of introducing errors. Therefore, the locus is removed. After iterating through all the SNP loci to be phased and removing all the SNP with imbalanced heterozygosity, it is also necessary to update the read information by removing these fuzzy loci from the previously obtained reads.

Since the core algorithm of phasing relies on the extension and expansion of the relative positions between SNP loci, only the relative positions between multiple (greater than or equal to 2) SNP loci can provide effective phase information for the phasing process. For each long reads, if a read ultimately provides less than two SNPs, it cannot provide effective information for phasing and is considered an invalid read. Therefore, all information from that read was deleted (Fig. 2).

### Constructing the graph

Let *G(V,E)* be an undirected graph, where each allele of the SNP loci to be phased is represented as a vertex in graph *G*. For the *i-th* SNP loci *p*_{i,} we construct two vertices *v*_{i0} and *v*_{i1} in *G*, which represent the major and minor alleles of *p*_{i}, respectively. If there is an edge *e*(*v*_{i0},*v*_{j1}) between *v*_{i0} and *v*_{j1}, it indicates the reads simultaneously supporting the major allele of SNP locus *p*_{i} and the minor allele of SNP locus *p*_{j}. The weight *w*(*v*_{i0},*v*_{j1}) of edge *e*(*v*_{i0},*v*_{j1}) represents the count of reads that support both alleles simultaneously. After processing all the reads iteratively, an undirected graph can be constructed.

After constructing the undirected graph *G*, it is necessary to perform a filtering process on the edges of the graph. For any two SNP loci *p*_{i} and *p*_{j}, there are four vertices: *v*_{i0}, *v*_{i1}, *v*_{j0}, and *v*_{j1} in the graph. There can be up to four edges: *e*(*v*_{i0},*v*_{j0}), *e*(*v*_{i0},*v*_{j1}), *e*(*v*_{i1},*v*_{j0}), and *e*(*v*_{i1},*v*_{j1}) between them. Due to the mutually exclusive nature of the two alleles at the same SNP locus, if allele (*v*_{i0},*v*_{j0}) is present in one haplotype, the corresponding (*v*_{i1},*v*_{j1}) should be present in the other haplotype. Similarly, if allele (*v*_{i0}*,v*_{j1}) is present in one haplotype, the corresponding (*v*_{i1}*,v*_{j0}) should be present in the other haplotype. Therefore, the four edges can be classified into two sets: *N*_{1}â€‰=â€‰{*e*(*v*_{i0},*v*_{j0}), *e*(*v*_{i1},*v*_{j1})} and *N*_{2}â€‰=â€‰{*e*(*v*_{i0},*v*_{j1}), *e*(*v*_{i1},*v*_{j0})}, where the weight of each set is the sum of the weights of the edges it contains. The phase relationship between the alleles of the two SNP loci is determined by the weight bias between these two sets. If the weight *w*(*N*_{1}) is greater than the weight *w*(*N*_{2}), the set *N*_{1} is correct, and vice versa. If max(*w*(*N*_{1}),*w*(*N*_{2}))-min(*w*(*N*_{1}),*w*(*N*_{2}))â€‰â‰¤â€‰1, it indicates that the possibilities of *N*_{1} and *N*_{2} are converging, suggesting an ambiguous phase between SNP loci *p*_{i} and *p*_{j}. Phasing these two SNP loci cannot be effectively performed based on the edges between them, and there is a higher likelihood of introducing errors in the phasing process. In that case, all edges between the alleles about *p*_{i} and *p*_{j} are removed.

### Partitioning graph

The minimum cut of a graph refers to dividing the vertices of the graph into two parts in such a way that the sum of the weights of the edges between the two parts is minimized. For the two alleles of an SNP locus, since they belong to two different haplotypes, the weight between alleles within the same haplotype is maximum, while the weight between alleles from different haplotypes is minimum. Therefore, applying the minimum-cut algorithm on the graph involves partitioning the vertices into two subsets that are as disjoint as possible, such that the sum of the edge weights within each subset is maximized, and the sum of the edge weights between the subsets is minimized. For the graph *G(V, E)* constructed previously, *V*â€‰=â€‰{*v*_{00}*, v*_{01}*, v*_{10}*, v*_{11}*â€¦v*_{i0}*, v*_{i1}*â€¦,v*_{m0}*, v*_{m1}}, there are m SNP loci and 2â€‰Ã—â€‰*m* vertices. By using the minimum-cut algorithm, *V* is partitioned into two sets, *V*_{0} and *V*_{1}. For SNP locus p_{i}, if *vi0* belongs to *V*_{0}, *v*_{i1} should belong to *V*_{1}. The optimization objective is shown below.

where *k* and *k*^{â€™}â€‰âˆŠâ€‰{0, 1}, *k*â€‰â‰ â€‰*k*^{â€™}, and *v*_{ik}â€‰âˆŠâ€‰*V*_{0} and *v*_{ikâ€™}â€‰âˆŠâ€‰*V*_{1}.

The Fiduccia-Mattheyses (FM) algorithm is a minimum-cut algorithm for graphs, primarily used to divide a graph into two equally sized parts with the minimum cut value between them [30] (Fig. 3). GCphase revised FM for partitioning *V* into *V*_{0} and *V*_{1}. The specific implementation process is shown as follows.

Step 1: Initialization. Due to the mutually exclusive nature of the two alleles at SNP loci, both alleles cannot be assigned to the same set. During initialization, GCphase selects the major allele of all the SNP loci into *V*_{0}, while the minor allele is inevitably assigned to *V*_{1}. Therefore, only the partitioning of the major alleles needs to be saved.

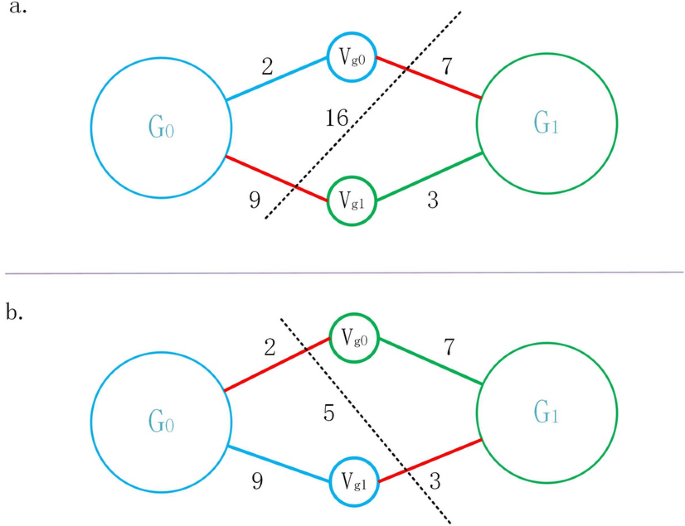

Step 2: We calculate the cut value of vertices and determine whether to perform allele grouping exchanges. For an SNP locus *p*_{t} with two alleles *v*_{g0} and *v*_{g1}, first, we assume that *v*_{g0} belongs to *G*_{0} and *v*_{g1} belongs to *G*_{1}.

The cut value of *v*_{g0} is calculated by the following formula.

where *v*_{jp} belongs to *G*_{1} and* p*â€‰âˆŠâ€‰{0,1}.

The cut value of *v*_{g1} is calculated by the following formula.

where *v*_{jq} belongs to *G*_{0} and* q*â€‰âˆŠâ€‰{0,1}. Then, we can obtain the weights *cut*_{01}(*v*_{g0},*v*_{g1})â€‰=â€‰*cut* (*v*_{g0})â€‰+â€‰*cut*(*v*_{g1}).

Next, we exchange *v*_{g0} and *v*_{g1}, which means *v*_{g0} belongs to *G*_{1} and *v*_{g1} belongs to *G*_{0}. We recalculate the cut values of *v*_{g0} and *v*_{g1} and obtain a new value *cut*_{10}(*v*_{g0},*v*_{g1}).

If *cut*_{01}(*v*_{g0},*v*_{g1})â€‰>â€‰*cut*_{10}(*v*_{g0},*v*_{g1}), we assign *v*_{g0} to *G*_{1} and *v*_{g1} to *G*_{0}.

Step 3: All the SNP loci are processed iteratively by Step 2 until no SNP locus undergoes an allele exchange operation.

After these steps, preliminary grouping results are obtained.

### Correcting errors

The initial phasing results obtained from the revised FM algorithm may still contain a few errors. As the revised FM algorithm is a heuristic algorithm, it can produce good partitioning results but does not guarantee finding the global optimum. Therefore, GCphase applies two error correction steps to refine the initial phasing results and to obtain final results. In the error correction step, first, each SNP is sorted in ascending order based on its position in the reference sequence, and then, it is corrected based on the information from its connected vertices.

Step 1 of error correction: We determine the presence of switch errors between adjacent SNPs.

For the four alleles (*v*_{i0},*v*_{i1},*v*_{j0},*v*_{j1}) of two SNP loci *v*_{i} and *v*_{j}, there are two phasing results for these four alleles: *set1*(*v*_{i}, *v*_{j})â€‰=â€‰{(*v*_{i0},*v*_{j0})â€‰âˆˆâ€‰*V*_{0};(*v*_{i1},*v*_{j1})â€‰âˆˆâ€‰*V*_{1}} and *set2*(*v*_{i}, *v*_{j})â€‰=â€‰{(*v*_{i0},*v*_{j1})â€‰âˆˆâ€‰*V*_{0};(*v*_{i1},*v*_{j0})â€‰âˆˆâ€‰*V*_{1}}. The weight of *set1*(*v*_{i}, *v*_{j}) is *w*(*v*_{i0},*v*_{j0})â€‰+â€‰*w*(*v*_{i1}, *v*_{j1}), and the weight of *set2*(*v*_{i}, *v*_{j}) is *w*(*v*_{i0},*v*_{j1})â€‰+â€‰*w*(*v*_{i1}, *v*_{j0}).

When [*w*(*v*_{i0},*v*_{j0})â€‰+â€‰*w*(*v*_{i1}, *v*_{j1})]â€”[*w*(*v*_{i0},*v*_{j1})â€‰+â€‰*w*(*v*_{i1}, *v*_{j0})]â€‰â‰¥â€‰2, GCphase selects *set1* as the final phasing result. When [*w*(*v*_{i0},*v*_{j1})â€‰+â€‰*w*(*v*_{i1}, *v*_{j0})]â€”[*w*(*v*_{i0},*v*_{j0})â€‰+â€‰*w*(*v*_{i1}, *v*_{j1})]â€‰â‰¥â€‰2, GCphase selects *set2* as the final phasing result. The final phasing results about (*v*_{i0},*v*_{i1},*v*_{j0},*v*_{j1}) are represented as *OptimizedSet*(*v*_{i0},*v*_{i1},*v*_{j0},*v*_{j1});

For *v*_{i} and its adjacent *v*_{i+1}, if edges exist between their alleles, the phasing result about their alleles obtained by the revised FM algorithm (Sect. 2.4) is assumed to be *FM*(*v*_{i0},*v*_{i1},*v*_{(i+1)0},*v*_{(i+1)1}). When *FM*(*v*_{i0},*v*_{i1},*v*_{(i+1)0},*v*_{(i+1)1})â€‰â‰ â€‰*OptimizedSet*(*v*_{i0},*v*_{i1},*v*_{(i+1)0},*v*_{(i+1)1}), there is a switch error at SNP *v*_{i+1}. If there is no edge connecting the alleles *v*_{i} and *v*_{i+1}, GCphase skips *v*_{i+1} and considers the next locus *v*_{i+2}. If *FM*(*v*_{i0},*v*_{i1},*v*_{(i+2)0},*v*_{(i+2)1})â€‰â‰ â€‰*OptimizedSet* (*v*_{i0},*v*_{i1},*v*_{(i+2)0},*v*_{(i+2)1}), there exists the following calculation for all SNP loci *v*_{k} that are connected to *v*_{i+2}:

when (*v*_{k0},*v*_{(i+2)0})â€‰âˆˆâ€‰*V*_{0} and (*v*_{k1},*v*_{(i+2)1})â€‰âˆˆâ€‰*V*_{1};

when (*v*_{k0},*v*_{(i+2)1})â€‰âˆˆâ€‰*V*_{0} and (*v*_{k1},*v*_{(i+2)0})â€‰âˆˆâ€‰*V*_{1};

*Fs*(*v*_{k0},*v*_{k1},*v*_{(i+2)0},*v*_{(i+2)1}) is the support degree of *v*_{k} for *v*_{i+2}. If \(\sum\limits_{k}^{{}} {Fs(v_{k} ,v_{i + 2} )} \le 0\), it indicates that the support for locus *v*_{i+2} from the upstream loci is less than the support from the downstream loci. In this case, it is also considered to have a switch error at locus *v*_{i+1}, and locus *v*_{i+1} is labelled as an error locus.

Following the given procedure, error detection is performed for each SNP locus to be phased. For the error loci, we consider a high probability of switch errors at those loci. Therefore, GCphase partitions the entire set of SNP loci into consecutive reversal blocks, with the error loci as the first loci in each reversal block. The reversal blocks are numbered from 0 in the order of their positions in the reference sequence. We reverse the alleles of SNP loci within the reversal blocks with odd numbers, which means exchanging the grouping of the two alleles.

Step 2 of error correction: We determine the support level for each SNP.

For a SNP locus *v*_{i} and a locus *v*_{k} located before it, there exist edges for the four alleles (*v*_{i0}, *v*_{i1}, *v*_{k0}, *v*_{k1}). We calculate the sum of the weights *Fn*(*v*_{k}, *v*_{i}) of edges between alleles assigned to the same set, that is:

*Fn*(*v*_{k}, *v*_{i})â€‰=â€‰*w*(*v*_{k0}, *v*_{i0})â€‰+â€‰*w*(*v*_{k1}, *v*_{i1}); when (*v*_{k0}, *v*_{i0})â€‰âˆˆâ€‰*V*_{0} and (*v*_{k1}, *v*_{i1})â€‰âˆˆâ€‰*V*_{1};

*Fn*(*v*_{k}, *v*_{i})â€‰=â€‰*w*(*v*_{k0}, *v*_{i1})â€‰+â€‰*w*(*v*_{k1}, *v*_{i0}); when (*v*_{k0}, *v*_{i1})â€‰âˆˆâ€‰*V*_{0} and (*v*_{k1}, *v*_{i0})â€‰âˆˆâ€‰*V*_{1;}

If \(\sum\limits_{k}^{{}} {Fn(v_{k} ,v_{i} )} = 0\), it is considered that the posterior support of SNP *v*_{i} is greater than the anterior support, and it is considered to have a switch error at locus *v*_{i}.

With these two error correction steps, the switch error and Hamming distance of the initial phasing results can be reduced.

### Producing haplotype blocks

Since GCphase utilizes a graph-based approach for phasing SNPs, each maximum connected subgraph in the graph represents a haplotype block. This means that there are no edges connecting the two haplotype blocks. By performing a breadth-first search to traverse the entire undirected graph, all the maximum connected subgraphs can be obtained. Sorting the SNP loci within each subgraph in ascending order based on their positions on the reference genome, GCphase can obtain all the haplotype blocks.

## Results

GCphase utilizes Python as the programming language and performs phasing of the entire human genome on a 24-core (Intel) CPU. However, the runtime of the program may vary depending on the length of the reads and changes in coverage depth. We compared the sequencing depths (20â€‰Ã—â€‰, 30â€‰Ã—â€‰, 50â€‰Ã—â€‰) of PacBio and Nanopore sequencing data on the human public genome HG002 by using three SNP phasing software [31], namely, LongPhase, WhatsHap, and HapCUT2, all focusing solely on SNP phasing. To compare the performance of GCphase on data with different sequencing accuracies, we conducted tests on the high-accuracy PacBio HiFi dataset (27x).

### Data availability and command lines

First, the PacBio data were obtained by downloading the PacBio (CCS 15 kb_20 kb Chemistry2) dataset from the Genome in a Bottle (GIAB) consortium. The Nanopore data were downloaded from the NCBI official website, specifically the SRR23215364 and SRR23447694 datasets. Subsequently, sequencing data with coverage depths of 50â€‰Ã—â€‰, 30â€‰Ã—â€‰, and 20â€‰Ã—â€‰were generated through downsampling. The PacBio HiFi data were downloaded from NCBI as the human HG002 whole-genome sequencing data (SRR19020573). The SNP loci information was provided by the HG002 standard set from the Genome in a Bottle (GIAB) consortium.

The compare command line of WhatsHap is: WhatsHap compareâ€“names truth, WhatsHapâ€“tsv-pairwise eval_mine.tsv SNP.vcf. The command line of LongPhase is: longphase phase -s SNP.vcf -b sort.bam -t 1â€“pbâ€‰=â€‰o phasedprefix. The command line of HapCUT2 is: extractHAIRSâ€“bam sort.bamâ€“VCF SNP.vcfâ€“out fragment_file HapCUT2â€“fragments fragment_fileâ€“VCF SNP.vcfâ€“output haplotype_output_file. The command line of WhatsHap is: WhatsHap phaseâ€“ignore-read-groupsâ€“referenceâ€‰=â€‰hg38.fa -o phased-WhatsHap.vcf SNP.vcf sort.bam.

### Evaluation of SNP phasing by GCphase in Nanopore and PacBio sequencing data

In Nanopore sequencing, GCphase was compared with WhatsHap, HapCUT2, and LongPhase by using the whole-genome sequencing data of the human HG002 sample downloaded from NCBI at coverage depths of 20x, 30x, and 50x. The evaluation software employed the "compare" method of WhatsHap. The VCF files containing phasing information generated by GCphase and the other three methods were compared against the standard set of the human HG002 sample provided by GIAB, resulting in the final evaluation results (Table 1). In the Nanopore data at the three coverage depths, GCphase has little differences in the number of SNPs identified compared to those of the other three methods. For example, in Nanopore Long reads 50â€‰Ã—â€‰sequencing data, the percentage of SNP sites in GCphase phasing is 96.71%, the percentage of SNP sites in HapCUT2 phasing is 95.70%, the percentage of SNP sites in LongPhase phasing is 96.64%, and the percentage of SNP sites in WhatsHap phasing is 96.01%. In terms of Hamming distance, the performance of the four methods is similar to the number of SNPs phased, with comparable Hamming distances observed. Only in the case of 30â€‰Ã—â€‰coverage is there an approximately twofold difference between the maximum Hamming distance of LongPhase (10,175) and the minimum Hamming distance of WhatsHap (5187). As shown in Tables 1 and 2, in the number of blocks, there is little difference between the four methods, but we see that the performance of GCPhase on high coverage data is better than that of low coverage data. In terms of accuracy, GCphase exhibits significantly fewer switch errors than the other three methods. Across all three coverage depths, GCphase consistently has the lowest switch error rate. Additionally, the switch error rate of GCphase at 20â€‰Ã—â€‰is not significantly different from that at 50x.

In PacBio sequencing, GCphase was compared with WhatsHap, HapCUT2, and LongPhase by using the whole-genome sequencing data of the human HG002 sample provided by GIAB (PacBio CCS 15 kb_20 kb chemistry2) at coverage depths of 20x, 30x, and 50x. Similar to the Nanopore experiments, the evaluation was conducted by using the "compare" method of WhatsHap. The VCF files containing phasing information obtained from GCphase and the other three methods were compared against the standard set of the human HG002 sample provided by GIAB. This comparison resulted in the final evaluation results (Table 2). In terms of the number of phased SNPs, there was still no significant difference among the four methods. In the number of blocks, there is little difference among the four methods, but GCphase has the smallest number of blocks among the three depths (50â€‰Ã—â€‰, 30â€‰Ã—â€‰, 20â€‰Ã—â€‰). In terms of the Hamming distance, no significant difference is observed among the four methods. However, GCphase consistently outperforms the other methods in two coverage depths (30x, 20x) and ranks in the second position in the 50â€‰Ã—â€‰coverage depth. In terms of accuracy, due to the higher accuracy of PacBio sequencing data compared to that of the Nanopore sequencing data, the switch error performance of each program is better in PacBio sequencing data than that in Nanopore sequencing data. However, similar to the Nanopore sequencing data, GCphase still outperforms the other methods in all three coverage depths, with switch error rates of approximately 0.15%.

### The performance of GCphase on high-accuracy PacBio HiFi data

In this study, experiments were conducted on high-accuracy PacBio HiFi data (27â€‰Ã—â€‰coverage) to compare the evaluation indicators (Block num, Switch error, SNP num, and so on) of these four methods (Table 3). Due to the high accuracy of PacBio HiFi data, all four methods exhibit low error rates. In terms of switch error, GCphase has a significantly lower count (153) compared to that of the other methods. In the number of blocks, GCphase has the smallest number of blocks. In terms of the Hamming distance, GCphase does not perform well here. Regarding the number of phased SNPs, all four methods had similar counts with no significant differences.

From the above experiments, we observe that all four methods, whether in PacBio or Nanopore sequencing data, demonstrate similar performance in terms of Hamming distance and the number of phased SNPs. In terms of accuracy, GCphase exhibits the lowest number of switch errors, making it more reliable in SNP phasing. Consequently, GCphase can provide more accurate and effective data support for related experiments.

In this experiment, the running time of GCphase is 100 min and the memory usage is 8 GB. The running time of LongPhased is 35 min and the memory usage is 10.2 GB. The running time of HapCUT2 is 44 min and the memory usage is 6 GB. The running time of WhatsHap is 693 min and the memory usage is 2.7 GB.

## Discussion

In this paper, GCphase first constructs a graph to represent the linkage among alleles of SNPs, and utilizes the minimum cut algorithm to perform phasing. Through some experiments, the evaluation indicators shows some advantage compared with other methods, which also demonstrate graph theory can be utilized for phasing. However, due to the limitations of the graph min-cut algorithm, when dealing with highly heterozygous genomes, the performance of GCphase such as accuracy and running time will decrease significantly, because the construction of the graph will be too complex.

## Conclusion

In this article, we propose a new SNP phasing program called GCphase. GCphase utilizes the minimum-cut algorithm on a graph to perform initial phasing of SNP loci and then applies two additional correction steps to refine the phasing at each locus, ensuring more accurate phasing results. By comparing GCphase with three SNP phasing software programs, WhatsHap, HapCUT2, and LongPhase, on different datasets, GCphase achieves the lowest switch error rates. Furthermore, through comparison on the high-accuracy PacBio HiFi dataset, GCphase outperforms the other four methods in terms of switch error rates. These results demonstrate that GCphase exhibits high applicability across various datasets while maintaining accuracy.

## Availability of data and materials

The download links for the Nanopore sequencing data are as follows: https://www.ncbi.nlm.nih.gov/sra/?termâ€‰=â€‰SRR23215364 https://www.ncbi.nlm.nih.gov/sra/?termâ€‰=â€‰SRR23447694 The download links for the Pacbio sequencing data are as follows: https://sra-pub-src-2.s3.amazonaws.com/SRR10382245/m64011_190830_220126.fastq.1https://sra-pub-src-2.s3.amazonaws.com/SRR10382244/m64011_190901_095311.fastq.1https://sra-pub-src-2.s3.amazonaws.com/SRR10382249/m64012_190920_173625.fastq.1https://sra-pub-src-2.s3.amazonaws.com/SRR10382248/m64012_190921_234837.fastq.1https://sra-pub-src-2.s3.amazonaws.com/SRR10382247/m64015_190920_185703.fastq.1https://sra-pub-src-2.s3.amazonaws.com/SRR10382246/m64015_190922_010918.fastq.1 The download links for the Pacbio HiFi sequencing data are as follows: https://www.ncbi.nlm.nih.gov/sra/?termâ€‰=â€‰SRR8858432 The source code is available from GitHub at https://github.com/baimawjy/GCphase.
