Computational prediction of novel non-coding RNAs in Arabidopsis thaliana



Non-coding RNA (ncRNA) genes do not encode proteins but produce functional RNA molecules that play crucial roles in many key biological processes. Recent genome-wide transcriptional profiling studies using tiling arrays in organisms such as human and Arabidopsis have revealed a great number of transcripts, a large portion of which have little or no capability to encode proteins. This unexpected finding suggests that the currently known repertoire of ncRNAs may only represent a small fraction of ncRNAs of the organisms. Thus, efficient and effective prediction of ncRNAs has become an important task in bioinformatics in recent years. Among the available computational methods, the comparative genomic approach seems to be the most powerful to detect ncRNAs. The recent completion of the sequencing of several major plant genomes has made the approach possible for plants.


We have developed a pipeline to predict novel ncRNAs in the Arabidopsis (Arabidopsis thaliana) genome. It starts by comparing the expressed intergenic regions of Arabidopsis as provided in two whole-genome high-density oligo-probe arrays from the literature with the intergenic nucleotide sequences of all completely sequenced plant genomes including rice (Oryza sativa), poplar (Populus trichocarpa), grape (Vitis vinifera), and papaya (Carica papaya). By using multiple sequence alignment, a popular ncRNA prediction program (RNAz), wet-bench experimental validation, protein-coding potential analysis, and stringent screening against various ncRNA databases, the pipeline resulted in 16 families of novel ncRNAs (with a total of 21 ncRNAs).


In this paper, we undertake a genome-wide search for novel ncRNAs in the genome of Arabidopsis by a comparative genomics approach. The identified novel ncRNAs are evolutionarily conserved between Arabidopsis and other recently sequenced plants, and may conduct interesting novel biological functions.


Since the genome of Arabidopsis thaliana has been sequenced, a wide range of plant-specific genes as well as genes with homologs in non-plant species have been identified. The annotated genes encode either proteins or non-coding RNAs (ncRNAs), i.e., RNAs that function by means other than directing the production of proteins. Besides the known gene regions, there are still large areas in the Arabidopsis genome that remain unannotated. Within the unannotated regions may reside as yet undiscovered ncRNAs.

ncRNAs are known to play crucial roles in many key biological processes as structural components of ribonucleoprotein complexes, as sequence-specific guides, or as enzymes. Classic examples of ncRNAs include the RNA component of the signal recognition particle (SRP_RNA) that directs subcellular protein transport, small nuclear RNAs (snRNAs) that act in splicing, tRNAs and rRNAs that function in translation, small nucleolar RNAs (snoRNAs) that direct RNA modifications, the telomerase RNA that acts in telomere maintenance, and the RNA component in PTEFb involved in transcription elongation. In recent years, small RNAs consisting of 21 to 30 nucleotides have been uncovered in plants and animals and found to serve as sequence-specific guides in transcriptional and post-transcriptional control of gene expression.

While the above-mentioned ncRNAs are found in diverse organisms such as plants and animals, some lineage-specific ncRNAs with key biological functions have also been uncovered. One example is the Xist RNA that is crucial in the silencing of the inactive X chromosome in mammals. Xist is involved in recruiting the polycomb group proteins (PcG), which lead to trimethylation of histone H3 lysine 27 (H3K27) to result in heterochromatin formation [1]. Long ncRNAs mediating epigenetic chromatin modifications may be a general theme in metazoans. A recent study identified numerous ncRNAs from the HOX loci in humans and showed that an ncRNA named HOTAIR represses the transcription of the target HOXD locus in trans through H3K27 trimethylation [2].

Recent genome-wide transcriptional profiling studies with tiling arrays in human and in Arabidopsis revealed that an unexpectedly large portion of the genome gives rise to transcripts [35]. Although not all transcripts may prove to be functional, this unexpected finding suggests that the currently known repertoire of ncRNAs may only represent a small fraction of ncRNAs of the organisms. In fact, it is not surprising that our knowledge of ncRNAs is quite limited. The lack of well-defined sequence characteristics of ncRNAs (as opposed to those of protein-coding mRNAs) makes it hard to infer ncRNAs directly from genomic sequences. As a result, the annotation of ncRNA genes has lagged behind that of protein-coding genes. Moreover, the lack of homology between ncRNAs from plants and those from other types of organisms prevents homology-based ncRNA discovery. Studies on plant ncRNAs have mainly been focused on microRNAs (miRNAs) and several kinds of structural RNAs. Little is known about ncRNAs other than miRNAs and the ones with homologs in animals or yeast. A study in 2001 examined expressed sequence tags (ESTs) from Arabidopsis for the lack of long opening reading frames and identified 19 potential ncRNAs [6]. None of them have homologs in animals, suggesting that plants have their own complement of ncRNAs in addition to the ones that are conserved in all eukaryotes [6, 7].

The identification of ncRNAs has been pursued extensively in the bioinformatics community in recent years. A number of ncRNA databases have been created, such as Rfam [8] that contains a large number of ncRNA families, miRBase [9] for microRNAs, and the plant snoRNA database [10]. Since many ncRNAs have conserved secondary structures, most of the computational methods for predicting ncRNAs make use of secondary structure information. Covariance model [11] and context-sensitive HMMs [12] are two popular methods for ncRNA identification. But, they search for ncRNAs based on pre-defined models of known ncRNA families and are thus not designed to find novel ncRNAs. There are other methods for detecting ncRNAs within a single genome that could potentially find novel ncRNAs. Will et al. inferred ncRNA families by means of genome-scale structure-based clustering in the Ciona intestinalis genome [13]. They found some clusters that could represent candidates of novel ncRNA classes. Adai et al. predicted miRNAs using a target-based method that can find specific miRNAs unique in Arabidopsis [14]. Compared with the methods based on a single genome, homology-based prediction of ncRNAs using multiple genomes is more widely used, because many important ncRNAs are expected to be conserved in certain genomes. The comparative genomics approach has been successfully applied to identify novel ncRNAs in several groups of organisms including animals [5, 15], yeast [16], and bacteria [1719]. However, the approach has not been applied to plants on a genome scale before because the number of completely sequenced plant genomes was limited.

In addition to Arabidopsis and rice (Oryza sativa), three other plant genomes have been completely sequenced recently including poplar (Populus trichocarpa), grape (Vitis vinifera), and papaya (Carica papaya). This new rapid increase of information makes it possible to conduct a genome-wide search for plant ncRNAs using the comparative genomics approach. In this paper, we develop a computational pipeline to predict novel ncRNAs in Arabidopsis following the comparative genomics approach. We combine a number of information sources including tiling array expression data, sequence homology between Arabidopsis and other recently sequenced plant genomes, and RNA secondary structure stability and conservation (as used in RNAz, which is a popular ncRNA prediction program). The putative ncRNAs are then validated using wet-bench experiments (for expression), compared with the known ncRNAs in various ncRNA databases (for novelty), and examined for their protein-coding potentials. The analysis resulted in a total of 16 families of novel ncRNAs (consisting of 21 ncRNAs). These ncRNAs may possess novel functions and play roles in some important biological processes in plants.


Prediction of ncRNAs in Arabidopsis

At the time when the project was initiated, only the complete genomes of Arabidopsis, rice and poplar were available. Our initial analysis was thus based on this triplet of genomes, abbreviated as ARP. Later on, the complete grape genome became available, and we decided to analyze the triplet Arabidopsis, grape and poplar (AGP) and then took the intersection of its result with that of ARP. An advantage of this approach (as opposed to combining all four genomes together) is that it allows us to also identify ncRNAs that are conserved in a triplet but not in all four genomes. During the preparation of this manuscript, the papaya genome was completed. Since poplar is common to both triplets ARP and AGP, we analyzed another triplet Arabidopsis, papaya and poplar (APP) and used its result to double check those of ARP and AGP. Note that, since papaya is the closest to Arabidopsis evolutionarily among the four genomes (followed by grape and poplar, with rice being the farthest), the putative ncRNAs from ARP and AGP are likely to be also in the result of APP.

Each above triplet of plant genomes is analyzed by our computational pipeline independently as follows. The transcribed non-coding regions (TNRs) of Arabidopsis are collected from tiling array experiments and their counterparts in the intergenic regions of each of the other two plant genomes in the triplet are searched for separately using BLASTN. The search results in many local pairwise alignments (high scoring pairs, or HSPs). Two HSPs overlap on the Arabidopsis genome are combined and extended to make a multiple sequence alignment, which is then refined using ClustalW. Finally, the multiple alignments are fed to RNAz to predict candidate ncRNAs. The details of the pipeline will be given in the Materials and Methods section.

We conducted two predictions, based on two different sources of tiling array data. The result of the first prediction, called group I ncRNAs, was obtained using the whole genome tiling array data reported in Yamada et al. [3] and the result of the second prediction, called group II ncRNAs, was obtained using the supplementary tiling array data when certain subunits of the exosome were depleted [20]. The numbers of predicted ncRNAs in groups I and II are listed in Tables 1 and 2, respectively.

Table 1 Group I result. ARGP stands for the intersection of ARP and AGP.
Table 2 Group II result. The three filtration steps are the same as in Table 1.

In group I, a total of 297 Arabidopsis ncRNAs were predicted for ARP and 1157 ncRNAs were predicted for AGP. The intersection of these two results yields 179 putative ncRNAs, which are more likely to be true ncRNAs than those predicted from each individual triplet. The distribution of these numbers in the five chromosomes of Arabidopsis is shown in Table 1. In the tiling array experiment used in group II, three exosome subunits, RRP4, RRP41 and CSL42, were depleted independently, which gave rise to three different ncRNA predictions. We list them separately in Table 2. Since the prediction results of the three depletion experiments overlap, we also list the total numbers of distinct putative ncRNAs from all three depletion experiments.

Screening against known genes and ncRNAs

This part of analysis aims to filter out the predicted ncRNA candidates that match annotated genes in TAIR8 (the most up-to-date annotation of Arabidopsis), as well as known ncRNAs contained in public databases such as miRBase and EMBL. The remaining predictions are then classified using the INFERNAL software with Rfam models to see if they belong to any known ncRNA families.

Matching the predictions to TAIR8 annotations

The tiling array experiments used in group I and group II results were based on the genomic sequence and annotations of TAIR3 and TAIR6, respectively. However, the Arabidopsis genome has been updated and re-annotated since then. Thus, our predicted ncRNAs were matched to the latest version of the Arabidopsis genome annotation (TAIR8 [21]) to confirm their existence on the genome and exclude the genes that been annotated since the old versions.

For group I, 165 among the 179 predicted ncRNAs were found to exist (exactly) in the new version of the genome, among which 37 are still located in intergenic regions. The predictions that overlap with annotated genes were checked in detail. 60 sequences located on the same strand as their matching annotations include 11 tRNAs, 2 rRNAs, 1 ncRNA, 4 misc_RNAs, 1 CDS, 1 mRNA (the predicted sequence overlaps after the last CDS segment), and 40 misc_features (including 35 transposable element genes and 5 pseudogenes). Since the predicted sequence that overlaps with a known CDS only overlaps at its end positions, it was not excluded here but analyzed later on in the wet-bench experiments (named SEQ5a). Thus, a total of 38 putative ncRNAs are kept and passed on to the next filtration step.

For group II, among the 100 predicted segments, 25 were found to overlap with current annotations in TAIR8, in which 13 are located on the same strand including 6 tRNAs and 7 misc_features (more specifically, transposable elements). These sequences were thus eliminated.

Matching the predictions to known ncRNA databases

Two public databases of ncRNAs were used to exclude known ncRNAs from our predictions. One is miRBase, which contains published miRNA sequences and annotations [22, 23]. Its ath.gff file containing chromosomal coordinates of Arabidopsis microRNAs with version 11.0 and update date of April 11, 2008 was downloaded and applied. The other ncRNA database was obtained from EMBL [25]. After downloading its Rel. 83, Version 37 of the Arabidopsis genome annotation, all tRNAs annotated by tRNAScan-SE-1.23 and ncRNAs annotated by were extracted. Our prediction results were screened against these known ncRNAs. Among the 38 remaining candidates in group I, 4 were found in the EMBL database, including 3 snRNAs and 1 SRP_RNA. Among the 75 candidates in group II, 7 were found in the EMBL database, including 5 snRNAs and 2 SRP_RNAs. None of our predictions were found in miRBase. The 4+7 sequences are deemed as known ncRNAs and removed from further consideration. In addition, we have also compared our result against the recently found mRNA-like non-coding RNAs (mlncRNAs) in Arabidopsis [26]. None of our predictions match the mlncRNAs.

Classifying the putative ncRNAs using Rfam

For the predicted ncRNAs that survived in the last two steps of filtration, the INFERNAL software package [27] (version 0.72) was used to classify them into families according to the Rfam database [8]. All the 607 families in version 8.1 of Rfam were applied to set up the models.

Among the 34 remaining sequences in group I, INFERNAL predicted 4 5s-rRNAs, 3 microRNAs, 2 snRNAs (more specifically, spliceosomal RNAs), and 2 Group II catalytic introns. As we are interested in novel ncRNAs, the 23 predictions that were not classified by INFERNAL into any Rfam families were kept. However, it should also be noted that these classification results do not have wet-bench experimental support and may thus be erroneous. Therefore, we analyzed the classified predictions in detail and selected 4 more sequences that unlikely belong to known ncRNA families (2 Group II catalytic introns and 2 microRNAs) for further analysis. This resulted in a total of 27 candidates for novel ncRNAs.

For group II, a total of 46 predictions were classified into known Rfam families. Including 33 rRNAs, 11 spliceosomal snRNAs, 1 CD-box snoRNA, and 1 SRP_RNA, leaving us with 22 candidates for novel ncRNAs for further analysis.

The above novel ncRNA candidates are listed in Tables 3 and 4. In the tables, the sequences are named with suffixes a/b if they have sequence similarity at least 90%, or suffixes W/C if they are located on the opposite strands of the same locus.

Table 3 Detailed information of the novel ncRNA candidates in group I.
Table 4 Detailed information of the novel ncRNA candidates in group II. The legends have the same meaning of those in Table 3.

Experimental validation

To confirm that the loci containing the above candidate novel ncRNAs in group I are actually transcribed into polyadenylated RNAs, we detected RNAs from these loci by reverse-transcription PCR. Total RNA was isolated from inflorescence tissue and subjected to reverse transcription (RT) using oligo dT primers. PCR was carried out on the RT or control reactions using gene specific primers corresponding to the 19 loci in Table 3 that were predicted to be transcribed in only one direction. Indeed, RNA was detected at each of the loci. (See Fig. 1A). Notice that, some of the sequences (i.e., SEQ5a and SEQ5b; SEQ6a and SEQ6b; SEQ7a and SEQ7b; SEQ8a and SEQ8b; SEQ18a and SEQ18b) are so similar that they cannot be distinguished in the experiment. Additionally, there are sequences (SEQ5(a,b) with SEQ6(a,b)) that located in the same intergenic region with short gaps, the PCR experiments are also conducted on their combined sequences. Four other loci were predicted to generate RNAs in both directions. We tested for RNAs from both directions by using strand-specific primers in the RT reactions followed by PCR. One of the four loci (SEQ10W/C) gave rise to RNAs from both strands while the other three produced RNAs only from one strand (Fig. 1B, also marked in Table 3). Thus, the transcription of 24 of the above novel ncRNA candidates are experimentally verified. However, as our RT-PCR experiments were only based on the inflorescence tissue, the 3 RNAs that were not expressed in the experiments still have the possibility to be expressed in other tissues.

Figure 1
figure 1

RT-PCR analysis of the novel ncRNA candidates in group I. (A) ncRNAs predicted to be transcribed in only one direction. Reverse transcription was performed using Oligo dT primers. 1: SEQ1; 2: SEQ2; 3: SEQ3; 4: SEQ4; 5: SEQ13; 6: SEQ5a or SEQ5b; 7: SEQ6a or SEQ6b; 8: SEQ7a or SEQ7b; 9: SEQ8a or SEQ8b; 10: SEQ5a combined with SEQ6a or SEQ5b combined with SEQ6b; 11: SEQ14; 12: SEQ15; 13: SEQ16; 14: SEQ17; 15: SEQ18a or SEQ18b. (B) ncRNAs predicted to be transcribed in both directions. Reverse transcription was performed using primers complement to the predicted ncRNAs. Here, -RT denotes negative control.

For the novel ncRNA candidates from group II, we were unable to experimentally verify their expression since we do not have the means to deplete exosomes.

Comparison with the prediction result from APP

After the genome of Papaya was published, the same computational pipeline was applied on the triplet APP. In group I, 940 ncRNAs were predicted by our pipeline. Among the 179 ncRNAs predicted for both ARP and AGP, 153 (85.47%) can be found in the APP result. Moreover, 26 of the 27 novel ncRNAs in Table 3 (96.30%) were found in the APP result, except for SEQ13. In group II, 706 RNAs were predicted by our pipeline for APP. Among the 100 ncRNAs predicted for both ARP and AGP, 89 (89.00%) can be found in the APP result. Similarly, 21 (95.45%) of the 22 novel ncRNA candidates in Table 4 were found in the the APP result, except for SEQ22C. This high level of containment is consistent with the fact that papaya is evolutionarily the closest to Arabidopsis among the four plant genomes, and our candidates for novel ncRNAs are conserved in all five plant genomes.

Further analysis

After experimentally verifying the expression of the novel ncRNA candidates (in group I), we studied the possibility that some of these genes actually code for proteins. We also checked if these genes contain small RNAs or are repeats or transposons.

Protein coding potential

To make sure that our predicted novel ncRNAs do not code for proteins, we analyzed the protein-coding potential for each of the novel ncRNA candidates.

First, the novel ncRNA candidates were screened by NCBI ORF Finder [28] to detect possible ORFs. Some candidates were predicted to contain one or more ORFs. The ORFs whose lengths are less than 100 nt were ignored. Then all the ORFs were searched for homologs using BLASTP against the non-redundant protein sequence database (nr) at NCBI. We also examined how the nucleotide substitution rate varies among the positions within a codon in the ORFs. This information could be used to discriminate protein coding and non-coding sequences. For our purpose, the null hypothesis is that conservation of a nucleotide in an ncRNA is independent of the reading frame, i.e., the substitution rate has a uniform distribution across all positions within a codon.

The above analysis classified the candidates into three types. Type I sequences have no ORFs, and are thus most likely non-coding. Type II sequences have ORFs and match some known proteins with e-value less than 10-6. For this type, we further looked at the results of BLASTP and checked whether their matches to known proteins are exact or partial. Type III sequences have ORFs, but they have no homologs in the protein database nr, or have only homologs with unknown or hypothetical proteins. For each sequence of the last type, we determined its protein coding potential by checking the nucleotide substitution rate at each of the three positions within a codon as follows. First, we search for the sequence in the other four plant genomes using TBLASTX. The e-value cutoff was set as 10-6. Then the ORFs conserved in at least 3 other plants were retrieved and a multiple alignment was constructed. To estimate the significance of deviation from the above null hypothesis, we calculated the G-statistics [16, 29] of the three sets of columns of the aligned ORFs (corresponding to the three positions within a codon).

Among the 27 novel ncRNA candidates in group I, 11 belong to Type I, 3 belong to Type II, and the other 13 belong to Type III. For the three Type II candidates, an ORF of SEQ7(a,b) was found to match a transcription factor in Brugia malayi nearly over its entire length with e-value 10-22, but the protein has not been verified by experiments. An ORF of SEQ9C was found to match the protein Ycf1 in Cercidiphyllum japonicum with e-value 10-20, which makes SEQ9C most likely a protein-coding gene. These three sequences will be excluded from our final candidate set. The G-statistic scores of the 13 Type III candidates are all below 5.99. Since scores greater than 5.99 indicate significant deviation from the null hypothesis at the 0.05 confidence level with 2 degrees of freedom, we have not observed significant variation of nucleotide substitution rate across the three positions within a codon. Therefore, except for 3 candidates, 24 candidates in group I are likely non-coding.

Similar analysis was performed on the 22 group II candidates. Only one sequence was predicted to have an ORF. But, as this ORF is not conserved in other plant genomes, all the 22 ncRNAs are considered as non-coding.

Containment of small RNAs

As the first attempt to explore the functionality of our predicted ncRNAs, we also examined the presence of known small RNAs matching to the predicted sequences. The file smallRNA_sequences. fasta from the ASRP database [30] containing all the small RNA sequences (totally 206077 small RNAs) was downloaded and used as the reference database. The occurrence numbers of the exact nucleotide sequences of the small RNAs in our predicted ncRNA segments were recorded.

For group I, among the novel ncRNA candidates listed in Table 3, four contain no known small RNAs at all (SEQ1, SEQ9W, SEQ9C, and SEQ14). On the other hand, eight candidates contain hundreds of small RNAs (i.e. SEQ(5–8)(a,b)). The numbers of small RNAs contained in the other 15 candidates vary between 1 and 46. For group II, two candidates (i.e., SEQ20(a,b)) listed in Table 4 contain 784 small RNAs on both strands. The other 20 candidates contain small RNAs between 33 to 134 each.

Identification of repeats and transposons

We also checked whether the novel ncRNA candidates could represent repeats in the Arabidopsis genome. A gene is defined to have repeats if it has more than 5 homologous segments including itself on the genome with sequence identities more than 70%. Among the 27 candidates in group I, 6 have repeats (SEQ3, SEQ13, SEQ16, SEQ17, and SEQ18(a,b)). 18 of the group II candidates have repeats (except for SEQ20(a,b), SEQ25(a,b)).

RepeatMasker is used to check if our novel ncRNA candidates could be transposons. The parameters used are: WUBlast search engine, default Speed/Sensitivity, with Arabidopsis DNA source. For group I, 3 of the 27 candidates were found to match Retroelements (LTR elements) and another was found to match a DNA transposon. Moreover, the sequences of SEQ(5–8)(a,b) were found to be rRNAs by RepeatMasker. Recall that the same sequences were also found to contain many small RNAs in the previous step. Among the 22 novel ncRNA candidates in group II, 12 matched LTR elements. The 2 sequences (i.e. SEQ20(a,b)) that are rich in small RNAs also matched rRNAs. The above matched sequences are marked in Tables 3 and 4. These marked sequences are excluded from the final prediction result.


A few of the predicted novel ncRNA loci were found to contain numerous small RNAs. It is very likely that the candidate novel ncRNAs at these loci are precursors to endogenous small RNAs. The small RNAs are most likely endogenous siRNAs as opposed to microRNAs since there are multiple small RNAs located on both strands of the loci. Endogenous siRNAs are known to cause local transcriptional gene silencing through DNA or histone methylation, Therefore, one role of these ncRNA loci could be to define local heterochromatin to affect nearby gene expression or to prevent transcriptional read-through from nearby genes.

There are a number of predicted novel ncRNA loci that are unlikely to be transposable elements or to generate small RNAs. These loci likely contain ncRNAs with novel biological functions, and will be further studied in the future. Known ncRNAs have been shown to act in numerous cellular processes, such as chromatin modifications, transcription, RNA processing, RNA modifications, translation, and regulation of gene expression at the posttranscriptional levels. Therefore, the predicted ncRNAs can potentially act in any of these or other processes. The temporal and spatial expression patterns of these genes and the analysis of T-DNA insertion mutants in them may provide hints to their biological functions.


We have conducted a de novo computational prediction of novel ncRNAs in the whole genome of Arabidopsis. The prediction results were validated and refined using wet-bench experiments and various public databases and analysis tools with stringent criteria. Finally, for group I data, 13 novel ncRNAs were identified, which can be divided into 12 clusters where each cluster contains sequences with similarity of more than 90% and can be viewed as a gene family. Similarly, for group II data, 8 novel ncRNAs were identified that form 4 gene clusters. That is, a total of 21 loci were predicted to contain 16 families of novel ncRNA genes.

Materials and methods

Data sources

To obtain reliable ncRNA predictions, we used two high-resolution genome tiling arrays on Arabidopsis and four other completely sequenced plant genomes. The data sources are described below.

Expressed intergenic regions of Arabidopsis

Yamada et al. [3] produced high-density oligonucleotide arrays for the entire genome of Arabidopsis. According to their Gene Expression Omnibus analysis, two categories of data were adopted in our research, namely Expression of Integenic Clusters and Expression in Intergenic Regions. Intergenic clusters are novel (unannotated) genes detected by aligning Arabidopsis cDNAs/ESTs to the Arabidopsis genome. Intergenic regions are regions containing neither annotated genes nor intergenic clusters. Considering that the intergenic clusters may also contain RNA genes, we took both kinds of expression regions into consideration.

In addition to this tiling array data, we also adopted another high-resolution genome tiling array data published recently by Chekanova et al. [20]. Many new transcripts of Arabidopsis were revealed by depleting the subunits of exosome substrates, RRP4, RRP41 and CSL4, respectively. Thus, numerous mRNAs, miRNAs and other types of ncRNAs were implicated. The paper provides a list of regions where novel ncRNAs may reside. Many regions are quite short, and some of them are located near each other.

We extracted these candidate ncRNA regions and concatenated those that are located in the same intergenic region to form the second tiling array data.

Intergenic regions of the other plant genomes

  • Rice The International Rice Genome Sequencing Project was completed in 2002 [31]. The intergenic region sequences were downloaded from annotation version 5.0 [32], including all the 12 chromosomes.

  • Poplar The draft genome of poplar was reported in 2006 [33]. The poplar genome consists 19 chromosomes, which is four times larger than the genome of Arabidopsis. We eliminated the annotated gene regions from the poplar genome release 1.1 and used the remaining regions of the genome for homology search.

  • Grape A high-quality draft of the genome sequence of grape was released in 2007 [34]. According to the annotation v1, we extracted intergenic sequences by exluding the regions annotated as genes, mRNAs, CDSs or UTRs from the whole genome.

  • Papaya Recently, Ming et al. published a draft genome of the transgenic tropical fruit tree papaya [35]. We got the genome data from the authors, including the scaffolds and predicted gene positions for all nine pairs of chromosomes. Similarly, we obtained intergenic regions by removing annotated gene sequences. For the scaffolds that have no annotation, we simply used their entire sequences.

RT-PCR methods

Total RNA was extracted with Tri-reagent (Molecular research center) from inflorescences followed by DNase I (Promega) treatment. Reverse transcription was performed with Superscript II reverse transcriptase (Invitrogen) using oligo dT primer or primers complementary to the predicted ncRNAs. After reverse transcription, PCR reactions were performed using ncRNA specific primers, and PCR products were separated on a 3.2% agarose gel and visualized by ethidium bromide staining.

Computational prediction pipeline

As mentioned in the Results section, the five plant genomes were grouped into three triplets, ARP, AGP and APP. Each triplet consists of expressed intergenic sequences of Arabidopsis and intergenic sequences of two other genomes. Fig. 2 shows a flowchart of the computational prediction procedure for a triplet. The key steps of the pipeline are explained below.

Figure 2
figure 2

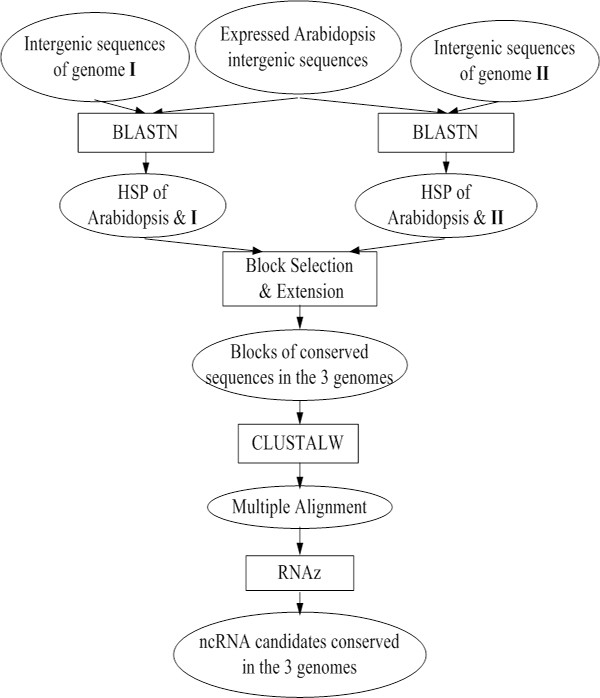

Flowchart of the computational prediction pipeline. In the flowchart, a rectangle represents an action and an oval represents a dataset.

Construction of conserved blocks

The pipeline starts from the transcribed non-coding regions of Arabidopsis as given in the tiling array data, and attempts to find their counterparts in each of the other two genomes by using BLASTN. The e-value cutoff is set to 0.01. This cutoff is not stringent. The reason we set a relatively low criterion on sequence conservation is based on the consideration that ncRNAs are not very well conserved in sequence although they tend to be more conserved in secondary structure. Moreover, Zhang et al. conducted some controlled experiments on human and mouse and concluded that the e-value cutoff of 0.01 is optimal for identifying homologs since it provides the greatest separation between real homologs and negative controls [5].

Two sets of HSPs are obtained from the BLASTN search, namely HSPs of Arabidopsis & genome I and HSPs of Arabidopsis & genome II. These HSPs are combined to form blocks as follows. If an HSP from Arabidopsis & genome I overlaps with another HSP of Arabidopsis & genome II on the Arabidopsis genome, they are combined into a 3-sequence alignment in a straightforward way. The resultant 3-sequence alignment is called a block.

Obviously, the lengths of the three sequences may be very different if the two original HSPs overlap by a small fraction. Since the Arabidopsis sequence in such a 3-sequence alignment is usually the longest, we extend the other two sequences to the length of the Arabidopsis sequence. Moreover, some of the HSPs could be very short. Blocks constructed from these HSPs might not provide any signals since they are too short to predict an entire RNA secondary structure. Therefore, we perform a second step of extension. Basically, each sequence in a block could be extended on both sides by up to 50 nucleotides according to our statistics on the average length of ncRNAs in Rfam. It should be noted that, not every sequence can be extended as long as we wish because the extension may get into known genes or reach the end of a chromosome or scaffold. To ensure high-quality blocks that contain sequences with approximately equal lengths, we calculate the minimum number of nucleotides on each side of the block by which every sequences could be extended, and do the extension accordingly. Therefore, the involved Arabidopsis sequence could actually be truncated rather than extended in this case.

Both original and extended blocks are considered in the subsequent steps of our pipeline. If a consistent classification is obtained by RNAz on both the original and extended blocks (the extended one contains the original one), we use the extended one for further analysis.

Because the input multiple alignment is crucial to the performance of RNAz, the multiple alignment of the three sequences in a block is refined by ClustalW [36] before it is fed to RNAz.

ncRNA prediction

RNAz [37] detects evolutionary conserved and thermodynamically stable RNA secondary structures in the input multiple alignment, and uses a support vector machine to determine whether or not the input multiple alignment could represent a RNA. It has been demonstrated as a very efficient tool for identifying candidate ncRNAs with high sensitivity and specificity [7, 38, 39].

Because RNAz requires the input alignment to be at most 400 columns, and most of our extended blocks exceed this threshold, we divide a long alignment of the extended blocks into overlapping windows of 400 columns each, with a step size of 50 columns. If a the block contains no more than 400 columns, the whole block is fed to RNAz. The perl programs RNAzwindow and RNAzCluster in the RNAz package are used to process the sliding window approach.

Using P > 0.5 as the threshold of confidence, RNAz predicted many ncRNAs in the Arabidopsis genome. When these predictions overlap, they are combined into one ncRNA.

Computational assessment of the performance


In order to evaluate the sensitivity of our pipeline, the known ncRNAs of Arabidopsis contained in miRBase and EMBL were used to compose the test dataset. The dataset contains a total of 1385 ncRNAs, including 184 microRNAs from miRBase and 638 tRNAs and 563 ncRNAs from the EMBL annotation. The sensitivity was estimated for each step of the pipeline. Among the 1385 ncRNAs, 311 are located in the expressed segments of the tiling array experiments of Group I. By using BLASTN search against the intergenic regions of rice, poplar and grape with the e-value cutoff 10-5, 48, 67 and 52 of the 311 ncRNAs have HSPs, respectively. Here, the e-value cutoff is purposely set more stringently than what is used in the pipeline. This is because an e-value is proportional to the length of the query sequence and the known ncRNA sequences used here are much shorter than the intergenic sequences used in the prediction pipeline. There are 41 ncRNAs conserved in ARP and 44 ncRNAs conserved in AGP. Among these ncRNAs, 30 and 29 were predicted as ncRNAs by our pipeline for ARP and AGP, respectively. There are 34 ncRNAs conserved in all four species of ARGP. Among them, 29 are contained in the intersection of the prediction results for ARP and AGP, giving rise to a sensitivity of 85.29%.


To estimate the specificity of our predictions, we adopted the approach used in similar works on Plasmodium falciparum [39] and human [7]. Our estimation was based on the triplet APP, which involved the largest number of blocks (multiple alignments). The negative samples were constructed by randomly shuffling the columns in the multiple alignments that were predicted as ncRNAs by RNAz. In the shuffling method, two shuffled columns are required to have strictly the same degree of conservation. That is, the mean pairwise identity (MPI) of each column is calculated and only columns of the same MPI value are swaped [39]. Using the cutoff P > 0.5, these randomly shuffled data gave rise a false discovery rate of 42.39%. This rate is a bit high partially because of the stringent requirement on conversation in the shuffled columns and also (perhaps more importantly) the fact that many different blocks may cover a same locus on Arabidopsis. Observe that the above false positive rate does not take into account of the many further analysis steps that we performed after RNAz prediction. Thus, the false positive rate in our final prediction result of novel ncRNAs is likely to be much lower.
