Analysis and consensus of currently available intrinsic protein disorder annotation sources in the MobiDB database
© Di Domenico et al.; licensee BioMed Central Ltd. 2013
- Published: 22 April 2013
Intrinsic protein disorder is becoming an increasingly important topic in protein science. During the last few years, intrinsically disordered proteins (IDPs) have been shown to play a role in many important biological processes, e.g. protein signalling and regulation. This has sparked a need to better understand and characterize different types of IDPs, their functions and roles. Our recently published database, MobiDB, provides a centralized resource for accessing and analysing intrinsic protein disorder annotations.
Here, we present a thorough description and analysis of the data made available by MobiDB, providing descriptive statistics on the various available annotation sources. Version 1.2.1 of the database contains annotations for ca. 4,500,000 UniProt sequences, covering all eukaryotic proteomes. In addition, we describe a novel consensus annotation calculation and its related weighting scheme. The comparison between disorder information sources highlights how the MobiDB consensus captures the main features of intrinsic disorder and correlates well with manually curated datasets. Finally, we demonstrate the annotation of 13 eukaryotic model organisms through MobiDB's datasets, and of an example protein through the interactive user interface.
MobiDB is a central resource for intrinsic disorder research, containing both experimental data and predictions. In the future it will be expanded to include additional information for all known proteins.
- Reference Sequence
- Protein Data Bank
- Intrinsic Disorder
- Annotation Source
- Complete Proteomes
Intrinsic protein disorder is becoming an increasingly important topic in protein science [1–3]. Protein function has been traditionally thought to be determined by tertiary structure. Over the last decade, intrinsically disordered proteins (IDPs) have been found to be important in many important biological processes [4–6]. IDPs are widespread in natural proteins, especially in eukaryotic organisms [7, 8], and are frequently associated with molecular recognition [9, 10]. They have been observed to be common among hub proteins, i.e. those with many interaction partners  and also to play a key role in human disease . In addition, protein disorder is important for experimental protein characterization since difficulties often arise when long disordered regions are present, which frequently happens at the N and C termini . IDPs represent a heterogeneous concept with many different and elusive definitions  which can be traced back to different indirect experimental methods.
Sources of disorder information
Currently available sources for intrinsic disorder annotations can be divided in two main groups. The first group includes annotations inferred from experiment, with evidence in publications. The second group includes annotations automatically extracted by computational tools. The latter can be further subdivided into automatic annotations derived from experimental sources, and automatic annotations obtained from software predictors.
There are currently two available sources of intrinsic protein disorder information with evidence in publications. The DisProt  database, a manually curated repository, features disorder and structure annotations for 667 proteins (version 6.00). The IDEAL  database, also manually curated, contains information on 209 proteins. The Protein Data Bank (PDB)  constitutes the main source of available experimentally-based disorder annotations with over 70,000 different structures. It is widely accepted that missing residues from X-ray structures have a good correlation with intrinsically disordered residues . These missing regions can easily be extracted from structure files deposited in the PDB. Some 6,000 structures solved by NMR experiments are generally deposited as structural ensembles in a single file. These can be used to detect residue mobility  which, in a way that is analogous to the missing X-ray regions, are a good indicator of intrinsic disorder. NMR structures were only recently considered in disorder prediction , demonstrating the long held belief of different flavours of disorder [1, 3, 21].
A great number of intrinsic disorder predictors have been developed over the last few years , with two main scenarios emerging for their application. The first is represented by predictions of disorder on a relatively small number of proteins with maximum accuracy, such as in the CASP experiment . Most existing prediction methods, such as Disopred , VSL1  and CSpritz , have been trained for this scenario. A more practical scenario is however represented by the genome-scale analysis of disorder [1, 8], where some performance is sacrificed to achieve results in a reasonable time frame. This usually entails using a method that does not require a multiple-sequence alignment, thereby speeding up computation by several orders of magnitude . DisEMBL , IUPred  and, more recently, ESpritz  have been all developed with this scenario in mind.
In the following, we will describe the construction of the MobiDB database of experimental and predicted disorder annotations in proteins . In particular, we will compare the different annotation sources and how they are integrated. A coherent consensus disorder definition will be derived and used to annotate the proteomes of a set of representative model organisms.
Data loading is performed as a three-step process. In the first step, annotations are extracted from each annotation source and stored as two Fasta files. One of these files contains the annotating sequences, and the other the annotations extracted from those. An extra comma-separated file is generated which links the annotating sequences to their corresponding reference sequences. In the second step, a script takes the first step output files and generates tab-separated files compatible with the database engine's batch-loading mechanism. During this step, if an annotating sequence covers only part of its corresponding reference sequence, an alignment between the two is performed. The potential resulting gaps introduced in the annotating sequence are also transferred to the extracted annotation. The third and final step consists simply of loading the data in batch to the database. To maximize the loading performance, the affected database indices are dropped before the insertion begins. The resulting database constitutes the backend of the application, which will then be accessed by the user interface.
Disorder data and resources in MobiDB
All of the aforementioned disorder sources are integrated into the MobiDB database. XML files from the DisProt and IDEAL databases are parsed for annotations. Information on the corresponding UniProt entries to be linked to those sources is included in also included in the XML files. Annotating sequences from PDB files are extracted by means of custom scripts (X-ray) and the MOBI server (NMR). These annotations are then linked to their corresponding UniProt protein sequences by means of the SIFTS database . In order to capture different flavours of disorder, seven in silico disorder predictors are run against all the reference sequences: Three Espritz  flavours (X-ray, NMR, DisProt) and two flavours each for IUpred  (short, long) and DisEMBL  (remark465 and hot loops).
Overview of the databases used in ModiDB 1.2.1. The databases used and relevant references are listed with the description of extracted information and the version or download date included in MobiDB.
Disorder and structure
Disorder and structure
Disorder and structure
Functional domain annotations

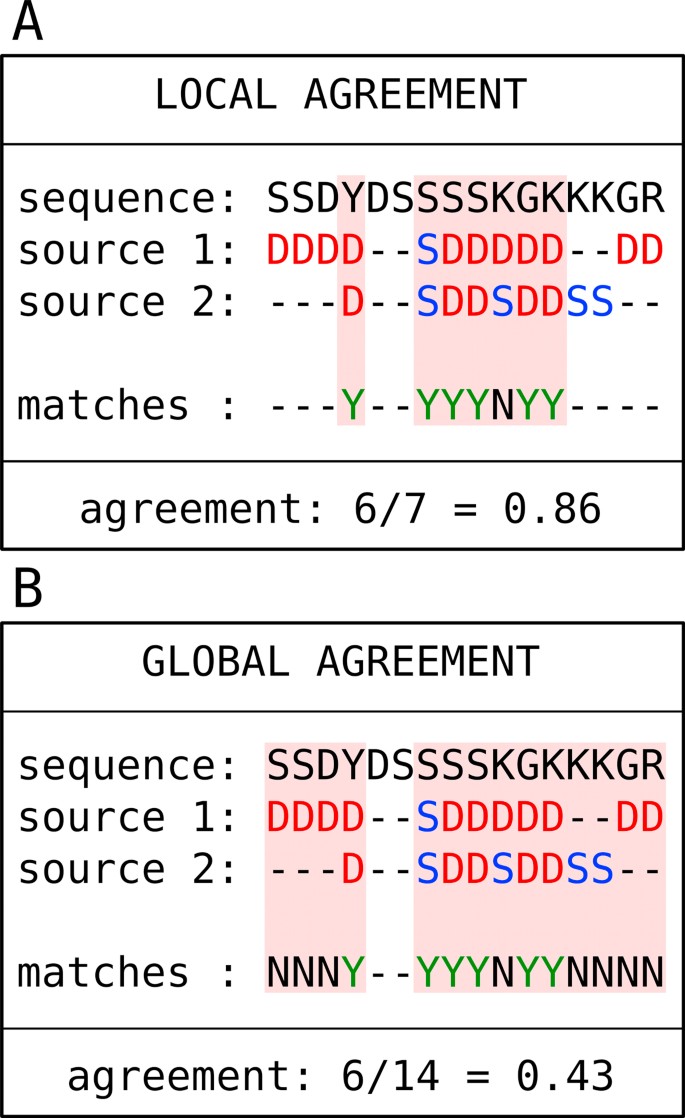

Disorder consensus and weighting
where is the sum of weights of annotations considering the region disordered, and is the sum of weights of annotations considering the region structured. The annotation score evidences the strength of a given consensus annotation. It is the sum of the weights of every annotation that agrees with the final consensus for a certain region. Its objective is to allow the classification of regions according to the amount of data backing up the resulting annotation. This amount is also dependent on the relative weight of each annotation. In all cases, the sums are calculated over all the annotations corresponding to a certain position of the reference sequence. This may be visualized as the columns in an alignment between the reference sequence and its corresponding annotating sequences. In the case where an annotating sequence has no annotation for a certain reference sequence position, its contribution to the sum is zero. In all cases the minimum value of the sums is zero, and the maximum will depend on the number of annotations available, and the weight assigned to each of them.
where r is the resolution of the experiment, and rT is a user-defined maximum resolution threshold. This threshold allows the user to set a baseline in the form of a minimum resolution required for a structure to provide a significant annotation. In the case where the resulting weight is smaller than 0.2, a fixed value of 0.2 is assigned. PDB NMR structures are assigned a fixed weight of 0.2 each, to reflect the usually higher uncertainty in coordinates obtained by NMR experiments when compared to their X-ray counterparts. Finally, predictor-generated annotations are given a weight of 0.05, which allows experimentally obtained data to prevail whenever it is available.
Sequence conservation and disorder classification
In order to provide information regarding the sequence conservation of disorder, MobiDB  also annotates sequence conservation on groups of orthologous protein sequences. For each reference sequence in the database, a search is performed in the OMA Browser database  to look for a corresponding group of orthologs. If such a group is found and contains at least 10 members, a multiple sequence alignment is constructed with CLUSTALW . A position in the alignment is considered conserved if the same residue is present in at least 50% of the sequences. Whenever such sequence conservation annotations are available, disordered regions in reference sequences are classified in a way analogous to the definitions introduced by Bellay and co-workers . If the region is disordered and its sequence conserved, it is defined as "constrained disorder". If, on the other hand, the region is disordered but the sequence not conserved, it is termed "flexible disorder".
In order to assess the available information on disorder, it was first necessary to create a new database. MobiDB was thus designed with three main goals in mind: performance, scalability and usability. The database had to maintain good performance both when loading, so it can be updated frequently, and querying, so as to be useful for the public by providing fast response times. It had to be scalable, meaning that performance levels can be maintained when expanding with further information. Last but not least, it had to provide high levels of usability, giving the user a centralized, flexible and useful way to access intrinsic disorder information in an intuitive way. Updates for MobiDB are carried out through a three-step loading process integrated into a single, automated pipeline (see Methods). This allows for the easy regeneration of the entire database with up-to-date information in less than a week's time. Enabled by this fact, and based on the update frequencies of the different sources integrated into MobiDB, we have set a quarterly update interval. Every three months MobiDB will be updated to keep up with recent additions to its information sources.
Use cases for MobiDB
There are two main use cases for MobiDB. The first one is the analysis of a single protein by means of the user interface. The second one is the generation of a custom dataset for offline analysis. Both actions are available after performing a database search, or after accessing one of the browse options. MobiDB supports the UniProt complex search syntax, through a web service call to the UniProt server. This allows to build sophisticated queries with various filters, e.g. organisms and subcellular localizations. All proteins matching the search parameters will be listed along with relevant information for each entry in the Search results page.
From the search results, the user can click on a protein name and be directed to the Protein analysis page. This page features four interactive widgets, each containing different pieces of information regarding the selected protein. The Reference sequence information widget contains general information related to the chosen reference protein, extracted from the UniProt database. The Annotation sources widget contains the different annotated regions from each annotating sequence that has been linked to the reference sequence. The Annotations plot widget provides a graphical representation of the available annotations associated to the reference sequence. This contains general annotations such as Pfam annotations and disorder consensus, as well as all available disorder annotations sources.
Instead of analysing a single protein via the graphical interface, the user can opt to download a dataset containing multiple entries. This can be done by pressing the download button in the top left of the search results page. The exported dataset will is composed of two fasta files. One of them containing all relevant reference and annotating sequences and the other one containing all the corresponding annotations. Pre-computed datasets are available in the download section of the MobiDB website for the different experimental data sources, as well as for each of the 297 complete proteomes.
Comparison between disorder data sources. The different disorder data sources are compared in terms of available sequence entries and distribution of ordered and disordered residues. The distribution of disordered regions is also shown in terms of the lowest (1st) and highest (3rd) quartiles, median and mean.
Disordered region lengths
Overview of the disorder definitions used. The labels used for disorder data sources throughout the paper are defined. The type column lists whether the source contains experimental information (Exp), predictions (Pred) or consensus (Cons).
DisProt database annotations
IDEAL database annotations
PDB NMR annotations
PDB Xray annotations, resolution threshold of 2,5 Å
PDB Xray annotations, resolution threshold of 5 Å
PDB-xray and PDB-nmr annotations, resolution threshold of 2,5 Å
PDB-xray and PDB-nmr annotations, resolution threshold of 5 Å
DisEmbl remark 465 predictions
DisEmbl hot loops predictions
ESpritz DisProt predictions
Espritz NMR predictions
Espritz XRay predictions
IUPred long predictions
IUPred short predictions
Full MobiDB consensus without DisProt
Cons, Exp, Pred
Full MobiDB consensus without IDEAL
Cons, Exp, Pred
Full MobiDB consensus without manually curated data (DisProt and IDEAL)
Cons, Exp, Pred
Full MobiDB consensus (all sources)
Cons, Exp, Pred
Single protein analysis
We have presented a detailed description of MobiDB, a database of experimental and predicted disorder in proteins, and its main features, disorder consensus and weighting. The database is highly modular and extensible, allowing inclusion of a growing amount of information. A comparison between different disorder data sources highlights how the MobiDB consensus captures the main features of intrinsic disorder and correlates well with the manually curated datasets from DisProt and IDEAL. In more detail, the DisProt curation is best approximated with a combination of disorder predictors, allowing a robust estimation of the presence of disorder in eukaryotic genomes, roughly confirming the higher incidence of disorder in higher organisms. In the future we plan to expand MobiDB to include additional information for all known proteins, both from experimental sources and new predictors, with the goal of making it an increasingly useful, centralized source of data for intrinsic disorder research.
The authors are grateful to members of the BioComputing UP lab for useful discussions.
This project was supported by funding from the University of Padova (CPDA098382, CPDR097328), FIRB Futuro in Ricerca (RBFR08ZSXY) and Cariplo (2017/0724) to S.T.
This article has been published as part of BMC Bioinformatics Volume 14 Supplement 7, 2013: Italian Society of Bioinformatics (BITS): Annual Meeting 2012. The full contents of the supplement are available online at http://www.biomedcentral.com/bmcbioinformatics/supplements/14/S7
