Domain fusion analysis by applying relational algebra to protein sequence and domain databases
© Truong and Ikura; licensee BioMed Central Ltd. 2003
- Received: 25 February 2003
- Accepted: 6 May 2003
- Published: 6 May 2003
Domain fusion analysis is a useful method to predict functionally linked proteins that may be involved in direct protein-protein interactions or in the same metabolic or signaling pathway. As separate domain databases like BLOCKS, PROSITE, Pfam, SMART, PRINTS-S, ProDom, TIGRFAMs, and amalgamated domain databases like InterPro continue to grow in size and quality, a computational method to perform domain fusion analysis that leverages on these efforts will become increasingly powerful.
This paper proposes a computational method employing relational algebra to find domain fusions in protein sequence databases. The feasibility of this method was illustrated on the SWISS-PROT+TrEMBL sequence database using domain predictions from the Pfam HMM (hidden Markov model) database. We identified 235 and 189 putative functionally linked protein partners in H. sapiens and S. cerevisiae, respectively. From scientific literature, we were able to confirm many of these functional linkages, while the remainder offer testable experimental hypothesis. Results can be viewed at http://calcium.uhnres.utoronto.ca/pi.
As the analysis can be computed quickly on any relational database that supports standard SQL (structured query language), it can be dynamically updated along with the sequence and domain databases, thereby improving the quality of predictions over time.
- Functional Linkage
- Relational Algebra
- Domain Fusion
- Protein Interaction Database
- Query Genome
The complex metabolic and signaling pathways within the cell are controlled by highly coordinated and intricate protein-protein interactions. Information regarding such protein-protein interactions can be obtained from biochemical and biophysical methods like co-immunoprecipitation , yeast two-hybrid  and mass spectrometry [3, 4]. To complement these often time-consuming experimental methods, computational methods for predicting functional linkages have been developed. Some methods use protein surface interfaces [5, 6]; some use the ordering and/or proximity of genes in genomes [7–9]; while others use the co-occurrences of genes in genomes [10, 11].
Recently, computational methods that exploit domain-domain relationships have been introduced and proven to be useful for the prediction of functional linkages in genomic research [12–15]. In particular, domain fusion analysis exploits the fact that certain proteins in a given genome consist of fused domains that correspond to single, full-length proteins in other genomes [13–15]. The proteins with fused domains in a given genome are likely to directly interact or be involved in the same metabolic and signaling pathways. In their analysis of the M. genitalium genome, Huynen et al. showed that the occurrence of a domain fusion event was highly correlated with function .
The query genome is defined as the genome where functional linkages are predicted, while the reference genome is the amalgamation of all other genomes excluding the query. Domain fusion events found in the reference genome predict functional linkages between proteins in the query. To date, most domain fusion analysis have compared complete genomes of relatively small sizes and rely on a BLAST comparison  between every protein of the query genome to every protein of the reference [13, 14, 16, 18–20]. The analysis has not been applied to larger non-redundant sequence databases such as SWISS-PROT, although the analysis becomes a more powerful prediction tool when more reference genomes are included. One reason for this limitation is that the computation time becomes "prohibitively expensive" .
Other groups have already appreciated the use of relational databases for domain fusion analysis [21, 22]. To complement their work, we present a fast computational method that enables domain fusion analysis on partial or complete genomes in a non-redundant sequence database using simple relational algebra operations. Instead of using BLAST comparisons, we leveraged on existing efforts to predict protein domains by Pfam's HMM domain database . Beginning with Pfam's domain layout prediction of each protein in the SWISS-PROT+TrEMBL protein sequence database, we applied successive relational algebra operations using SQL to identify putative functional linkages, especially in H. sapiens and S. cerevisiae. These results are compared with experimentally demonstrated cases and published protein interaction databases. Finally, we discuss various factors that can generate false positives.
The majority of protein sequence and domain databases are built on the relational database architecture. Typically, data is acquired from a database of this type by relational algebra operations in the form of SQL queries. Therefore, a method that can be performed directly using these operations will save unnecessary conversion of data and leverage on the scalability and efficiency of commercial RDBMS software (relational database management systems). Our method for finding domain fusions can be performed entirely using relational algebra operations.
The method is described using relational algebra notation with the following conventions: bold text refers to a table; A.attribute refers to an attribute or column of A; σ(predicate)(A) is the selection operation with the predicate in parenthesis, which selects rows in A that satisfy the predicate; A × B is the cartesian product operation, which creates a permutation of information between A and B; π(A.attribute1, A.attribute2,...)(A) is the projection operation, which extracts specified attributes from A.
Let F query and F ref be the table of all possible domain fusion templates (DFTs) in the query and reference genomes, respectively. The idea of DFTs is conceptually similar to Rosetta stone  and composite proteins . For example, if a gene has four different domains ABCD, there are six different DFTs: AB, AC, AD, BC, BD, and CD.
Let D q1 and D q2 be copies of D query and let D r1 and D r2 be copies of D ref . F query and F ref can be found by performing a projection and selection operation following a cartesian product between the corresponding domain tables. This operation will enumerate all permutations of DFTs. For example, if gene has three different domains ABC, then there are nine possible permutations of DFTs: AA, AB, AC, BA, BB, BC, CA, CB, and CC. The desired DFTs do not have the same domains (i.e., AA, BB, and CC) and order does not matter (i.e., AB is the same as BA). To remove same domain DFTs, the following clauses are added to the selection predicates: (D q1 .dom≠D q2 .dom) for F query and (D r1 .dom≠D r2 .dom) for F ref . At this stage, it is not necessary to consider the removal of one of the two alternatively ordered DFTs.
Let F put be the table of valid DFTs that can be used in the prediction of functionally linked proteins in the query genome. Therefore, F put can be found by the difference between F ref and F query .
F put = F ref - F query (7)
Finally, let P put be the table of putative functional linkages in the query genome. P put can be obtained by performing a projection and selection operation following a cartesian product between D q1 , D q2 and F put . This operation will, for each DFT in F put , enumerate all permutations of proteins that contain the first domain in the DFT to proteins that contain the second domain in the DFT. Note that this operation can be more efficiently performed if F put includes only domains found in the query genome.
Remember the alternatively ordered DFTs have not been removed. Therefore, if there is a putative functional linkage between protein A and protein B, there will also be a functional linkage between protein B and protein A in P put . To remove these redundant putative functional linkages, it is easiest to re-insert the all rows in P put into a new table with a database trigger enabled that restricts the row insertion of protein A and protein B, if the row of protein B and protein A exists.
Domain fusion analysis of H. sapiens and S. cerevisiae
Analysis of the S. cerevisiae and H. sapiens sequences in SWISS-PROT+TrEMBL
Valid DFTs involving domains found in the query sequences
Putative functional linkages
Filtered functional linkages
Functional linkages supported by the scientific literature
Types of functional linkages from the scientific literature
Top ten sources of DFTs in H. sapiens
Total sequences in SWISS-PROT+TrEMBL
Sequences per DFT
Top ten sources of DFTs in S. cerevisiae
Total sequences in SWISS-PROT+TrEMBL
Sequences per DFT
Effect of our distinct definition of a fusion event
Previous methods for domain fusion analysis [13, 14, 20] are essentially identical to our method, except that our method specifically finds individual "domain" fusions, whereas the previous methods used full-length proteins from one organism, which correspond to a fused full-length protein in another organism. We chose our approach as many proteins consist of multiple domains. For example, consider a fusion protein in the reference organism consisting of domains ABCD, which corresponds to two separate proteins in the query organism, consisting of domains AB and CD. Using our method, the list of reference DFTs would be AB, AC, AD, BC, BD and CD; the list of query DFTs would be AB and CD. Therefore, the valid DFTs that can be used for predicting functional linkages are AC, AD, BC and BD. All four DFTs would predict the same functional linkage between the two query organism proteins. In contrast, previous methods would have only a single fusion event that predicts this functional linkage. Therefore, an additional advantage of our approach is that the number of different DFTs predicting a functional linkage could be used to rank our prediction confidence.
Consideration of splice variants
Splice variants are treated intermediately as separate genes in our method since each variant may interact with different proteins. For example, consider a query gene with two variants: one variant consisting of domains ABC while another consisting of domains AC. If it is found that BD is a valid DFT for functional linkage prediction, then the first splice variant could be involved in a putative functional linkage that the second is not. Finally, the putative functional linkages of the gene would be the union of functional linkages of the splice variants.
Consideration of false positives

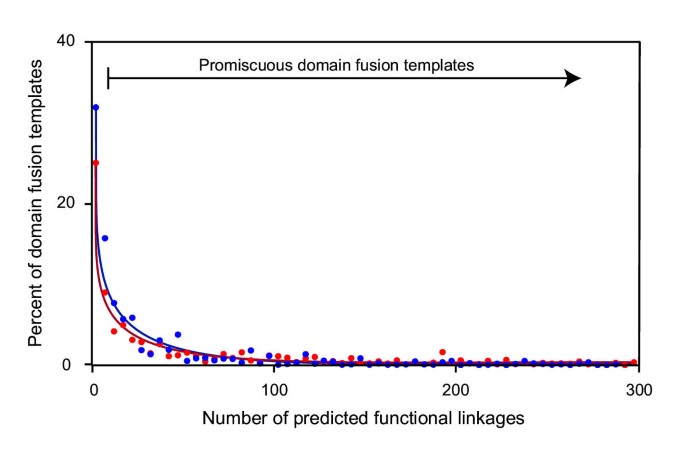

Any prediction method could produce false positive results. Here, we consider several sources of false positives, which may be generated by the present method. A false positive can occur when a functional linkage is predicted between two proteins where none exists. One possible source of false positives in domain fusion analysis is the promiscuity or paralogy in domains (for example, BTB, PDZ, SH2 and SH3 domains), which occur at a high frequency in many different protein sequences that do not share similar functions [13, 14, 20]. The removal of promiscuous domains reduces false positives, but the criterion for classifying them is a difficult problem. One criterion relies on finding domains with a Z-score greater than 10 [13, 20], while another on domains that are involved in domain fusions events with more than 25 other domains .
Another possible source of false positives is the inability to list all the DFTs in the query genome. For example, consider two query genes: one consisting of a domain A while another consisting of a domain B. If it is found that AB is a valid DFT for functional linkage prediction, then the two query genes are perhaps functionally linked. However, if the query genome's DFT list is incomplete, AB may potentially exist and therefore, the two query genes may be falsely predicted as functionally linked. A number of factors can cause this problem including the use of an incomplete query genome, absent or inaccurate profile HMM domains and the erroneous prediction of intron and exon sites.
The domain fusion analysis using relational algebra presented here relies on the prediction of domains from profile HMMs. In contrast, previous approaches to domain fusion analysis often employed heuristic local pairwise sequence alignment (PSA) algorithms such as BLAST . Such algorithms emphasize finding long high scoring local alignments, however, the most strongly conserved residues are commonly distributed across the domain. Therefore, the key drawback of a heuristic PSA-based approach in domain fusion analysis is its relative insensitivity for finding remote homologs and, consequently, domain fusions. Within the last decade, however, the sensitivity of sequence searching techniques has been improved by profile- or motif-based analysis, like the profile HMM, which uses information derived from multiple sequence alignments to construct and search for sequence domains and patterns [35–37]. Unlike the heuristic PSA algorithms, a profile or motif can exploit additional information, such as the position and identity of residues that are conserved throughout the domain, as well as variable insertion and deletion probabilities. Therefore, the advantage of the profile HMM is the sensitivity and accurate delineation of domains, however, the key drawback is its reliance on the accurate construction of a profile HMM for all domains. If the profile HMM of a domain is not constructed or carelessly done, it will not find all putative domains and, consequently, domain fusions. Thus, as the quality and quantity of separate domain databases increases such as BLOCKS , PROSITE , Pfam , SMART , PRINTS-S , ProDom , TIGRFAMs  and amalgamated domain databases such as InterPro , our approach to domain fusion analysis will also become increasingly powerful.
The relational algebra method presented here offers an alternative approach to performing domain fusion analysis that leverages on existing efforts to improve the size and quality of domain and motif databases. We have illustrated the efficacy of the method by identifying many possible functional linkages in H. sapiens and S. cerevisiae sequences in the SWISS-PROT+TrEMBL database. Interestingly, the genomic distribution of the sources of DFTs suggests that DFTs are not likely found either in closely or remotely related organisms, but rather there is a balance between the two extremes that is tilted toward closely related organisms. Finally, future work could expand the method presented here to other genomes of interest.
The analysis was performed on the Oracle RDBMS (version 8) installed on a computer with a dual 750 MHz UltraSPARC-III processor and 4 G of RAM running SunOS 5.8. Sequence information from SWISS-PROT (Release 39) + TrEMBL (Release 17) and domain architecture information from Pfam was migrated to the sequence table and domain layout table of the database, respectively, by Perl and Oracle SQL*loader scripts. To perform the analysis, relational algebra expressions were converted to SQL statements and executed by an Oracle SQL*Plus client connected to the database server. The total computation time for H. sapiens and S. cerevisiae were approximately 4 and 3 hours, respectively.
We would like to thank Amanda Mayo for her assistance in verifying functional linkages from protein interaction databases and scientific literature. This work was supported by a Canadian Institutes of Health Research (CIHR) fellowship to KT and a National Cancer Institute of Canada grant to MI. MI is a CIHR Investigator.
- Martzen MR, McCraith SM, Spinelli SL, Torres FM, Fields S, Grayhack EJ, Phizicky EM: A biochemical genomics approach for identifying genes by the activity of their products. Science 1999, 286: 1153–5. 10.1126/science.286.5442.1153View ArticlePubMedGoogle Scholar
- Fields S, Song O: A novel genetic system to detect protein-protein interactions. Nature 1989, 340: 245–6. 10.1038/340245a0View ArticlePubMedGoogle Scholar
- Ho Y, Gruhler A, Heilbut A, Bader GD, Moore L, Adams SL, Millar A, Taylor P, Bennett K, Boutilier K, et al.: Systematic identification of protein complexes in Saccharomyces cerevisiae by mass spectrometry. Nature 2002, 415: 180–3. 10.1038/415180aView ArticlePubMedGoogle Scholar
- Gavin AC, Bosche M, Krause R, Grandi P, Marzioch M, Bauer A, Schultz J, Rick JM, Michon AM, Cruciat CM, et al.: Functional organization of the yeast proteome by systematic analysis of protein complexes. Nature 2002, 415: 141–7. 10.1038/415141aView ArticlePubMedGoogle Scholar
- Jones S, Thornton JM: Principles of protein-protein interactions. Proc Natl Acad Sci U S A 1996, 93: 13–20. 10.1073/pnas.93.1.13PubMed CentralView ArticlePubMedGoogle Scholar
- Larsen TA, Olson AJ, Goodsell DS: Morphology of protein-protein interfaces. Structure 1998, 6: 421–7.View ArticlePubMedGoogle Scholar
- Overbeek R, Fonstein M, D'Souza M, Pusch GD, Maltsev N: The use of gene clusters to infer functional coupling. Proc Natl Acad Sci U S A 1999, 96: 2896–901. 10.1073/pnas.96.6.2896PubMed CentralView ArticlePubMedGoogle Scholar
- Dandekar T, Snel B, Huynen M, Bork P: Conservation of gene order: a fingerprint of proteins that physically interact. Trends Biochem Sci 1998, 23: 324–8. 10.1016/S0968-0004(98)01274-2View ArticlePubMedGoogle Scholar
- Tamames J, Casari G, Ouzounis C, Valencia A: Conserved clusters of functionally related genes in two bacterial genomes. J Mol Evol 1997, 44: 66–73.View ArticlePubMedGoogle Scholar
- Pellegrini M, Marcotte EM, Thompson MJ, D Eisenbertg, Yeates TO: Assigning protein functions by comparative genome analysis: protein phylogenetic profiles. Proc Natl Acad Sci U S A 1999, 96: 4285–8. 10.1073/pnas.96.8.4285PubMed CentralView ArticlePubMedGoogle Scholar
- Marcotte EM, Xenarios I, van Der Bliek AM, Eisenberg D: Localizing proteins in the cell from their phylogenetic profiles. Proc Natl Acad Sci U S A 2000, 97: 12115–20. 10.1073/pnas.220399497PubMed CentralView ArticlePubMedGoogle Scholar
- Deng M, Mehta S, Sun F, Chen T: Inferring domain-domain interactions from protein-protein interactions. Genome Res 2002, 12: 1540–8. 10.1101/gr.153002PubMed CentralView ArticlePubMedGoogle Scholar
- Enright AJ, Iliopoulos I, Kyrpides NC, Ouzounis CA: Protein interaction maps for complete genomes based on gene fusion events. Nature 1999, 402: 86–90. 10.1038/47056View ArticlePubMedGoogle Scholar
- Marcotte EM, Pellegrini M, Ng HL, Rice DW, Yeates TO, Eisenberg D: Detecting protein function and protein-protein interactions from genome sequences. Science 1999, 285: 751–3. 10.1126/science.285.5428.751View ArticlePubMedGoogle Scholar
- Eisenberg D, Marcotte EM, Xenarios I, Yeates TO: Protein function in the post-genomic era. Nature 2000, 405: 823–6. 10.1038/35015694View ArticlePubMedGoogle Scholar
- Huynen M, Snel B, Lathe W 3rd, Bork P: Predicting protein function by genomic context: quantitative evaluation and qualitative inferences. Genome Res 2000, 10: 1204–10. 10.1101/gr.10.8.1204PubMed CentralView ArticlePubMedGoogle Scholar
- Altschul SF, Madden TL, Schaffer AA, Zhang J, Zhang Z, Miller W, Lipman DJ: Gapped BLAST and PSI-BLAST: a new generation of protein database search programs. Nucleic Acids Res 1997, 25: 3389–402. 10.1093/nar/25.17.3389PubMed CentralView ArticlePubMedGoogle Scholar
- Tsoka S, Ouzounis CA: Prediction of protein interactions: metabolic enzymes are frequently involved in gene fusion. Nat Genet 2000, 26: 141–2. 10.1038/79847View ArticlePubMedGoogle Scholar
- Marcotte EM, Pellegrini M, Thompson MJ, Yeates TO, Eisenberg D: A combined algorithm for genome-wide prediction of protein function. Nature 1999, 402: 83–6. 10.1038/47048View ArticlePubMedGoogle Scholar
- Enright AJ, Ouzounis CA: Functional associations of proteins in entire genomes by means of exhaustive detection of gene fusions. Genome Biol 2001, 2: Research 0034. 10.1186/gb-2001-2-9-research0034View ArticleGoogle Scholar
- Kriventseva EV, Biswas M, Apweiler R: Clustering and analysis of protein families. Curr Opin Struct Biol 2001, 11: 334–9. 10.1016/S0959-440X(00)00211-6View ArticlePubMedGoogle Scholar
- Apweiler R, Attwood TK, Bairoch A, Bateman A, Birney E, Biswas M, Bucher P, Cerutti L, Corpet F, Croning MD, et al.: InterPro – an integrated documentation resource for protein families, domains and functional sites. Bioinformatics 2000, 16: 1145–50. 10.1093/bioinformatics/16.12.1145View ArticlePubMedGoogle Scholar
- Bateman A, Birney E, Durbin R, Eddy SR, Howe KL, Sonnhammer EL: The Pfam protein families database. Nucleic Acids Res 2000, 28: 263–6. 10.1093/nar/28.1.263PubMed CentralView ArticlePubMedGoogle Scholar
- Bader GD, Donaldson I, Wolting C, Ouellette BF, Pawson T, Hogue CW: BIND – The Biomolecular Interaction Network Database. Nucleic Acids Res 2001, 29: 242–5. 10.1093/nar/29.1.242PubMed CentralView ArticlePubMedGoogle Scholar
- Xenarios I, Salwinski L, Duan XJ, Higney P, Kim SM, Eisenberg D: DIP, the Database of Interacting Proteins: a research tool for studying cellular networks of protein interactions. Nucleic Acids Res 2002, 30: 303–5. 10.1093/nar/30.1.303PubMed CentralView ArticlePubMedGoogle Scholar
- Kanehisa M, Goto S, Kawashima S, Nakaya A: The KEGG databases at GenomeNet. Nucleic Acids Res 2002, 30: 42–6. 10.1093/nar/30.1.42PubMed CentralView ArticlePubMedGoogle Scholar
- Liu F, Thatcher JD, Barral JM, Epstein HF: Bifunctional glyoxylate cycle protein of Caenorhabditis elegans: a developmentally regulated protein of intestine and muscle. Dev Biol 1995, 169: 399–414. 10.1006/dbio.1995.1156View ArticlePubMedGoogle Scholar
- Lorenz MC, Fink GR: The glyoxylate cycle is required for fungal virulence. Nature 2001, 412: 83–6. 10.1038/35083594View ArticlePubMedGoogle Scholar
- Barros MH, Nobrega FG, Tzagoloff A: Mitochondrial ferredoxin is required for heme A synthesis in Saccharomyces cerevisiae. J Biol Chem 2002, 277: 9997–10002. 10.1074/jbc.M112025200View ArticlePubMedGoogle Scholar
- Pekarsky Y, Campiglio M, Siprashvili Z, Druck T, Sedkov Y, Tillib S, Draganescu A, Wermuth P, Rothman JH, Huebner K, et al.: Nitrilase and Fhit homologs are encoded as fusion proteins in Drosophila melanogaster and Caenorhabditis elegans. Proc Natl Acad Sci U S A 1998, 95: 8744–9. 10.1073/pnas.95.15.8744PubMed CentralView ArticlePubMedGoogle Scholar
- Uetz P, Giot L, Cagney G, Mansfield TA, Judson RS, Knight JR, Lockshon D, Narayan V, Srinivasan M, Pochart P, et al.: A comprehensive analysis of protein-protein interactions in Saccharomyces cerevisiae. Nature 2000, 403: 623–7. 10.1038/35001009View ArticlePubMedGoogle Scholar
- Ito T, Tashiro K, Muta S, Ozawa R, Chiba T, Nishizawa M, Yamamoto K, Kuhara S, Sakaki Y: Toward a protein-protein interaction map of the budding yeast: A comprehensive system to examine two-hybrid interactions in all possible combinations between the yeast proteins. Proc Natl Acad Sci U S A 2000, 97: 1143–7. 10.1073/pnas.97.3.1143PubMed CentralView ArticlePubMedGoogle Scholar
- Lashkari DA, DeRisi JL, McCusker JH, Namath AF, Gentile C, Hwang SY, Brown PO, Davis RW: Yeast microarrays for genome wide parallel genetic and gene expression analysis. Proc Natl Acad Sci U S A 1997, 94: 13057–62. 10.1073/pnas.94.24.13057PubMed CentralView ArticlePubMedGoogle Scholar
- Eisen MB, Spellman PT, Brown PO, Botstein D: Cluster analysis and display of genome-wide expression patterns. Proc Natl Acad Sci U S A 1998, 95: 14863–8. 10.1073/pnas.95.25.14863PubMed CentralView ArticlePubMedGoogle Scholar
- Hofmann K, Bucher P, Falquet L, Bairoch A: The PROSITE database, its status in 1999. Nucleic Acids Res 1999, 27: 215–9. 10.1093/nar/27.1.215PubMed CentralView ArticlePubMedGoogle Scholar
- Henikoff S, Henikoff JG, Pietrokovski S: Blocks+: a non-redundant database of protein alignment blocks derived from multiple compilations. Bioinformatics 1999, 15: 471–9. 10.1093/bioinformatics/15.6.471View ArticlePubMedGoogle Scholar
- Eddy SR: Profile hidden Markov models. Bioinformatics 1998, 14: 755–63. 10.1093/bioinformatics/14.9.755View ArticlePubMedGoogle Scholar
- Schultz J, Milpetz F, Bork P, Ponting CP: SMART, a simple modular architecture research tool: identification of signaling domains. Proc Natl Acad Sci U S A 1998, 95: 5857–64. 10.1073/pnas.95.11.5857PubMed CentralView ArticlePubMedGoogle Scholar
- Attwood TK, Croning MD, Flower DR, Lewis AP, Mabey JE, Scordis P, Selley JN, Wright W: PRINTS-S: the database formerly known as PRINTS. Nucleic Acids Res 2000, 28: 225–7. 10.1093/nar/28.1.225PubMed CentralView ArticlePubMedGoogle Scholar
- Corpet F, Servant F, Gouzy J, Kahn D: ProDom and ProDom-CG: tools for protein domain analysis and whole genome comparisons. Nucleic Acids Res 2000, 28: 267–9. 10.1093/nar/28.1.267PubMed CentralView ArticlePubMedGoogle Scholar
- Haft DH, Selengut JD, White O: The TIGRFAMs database of protein families. Nucleic Acids Res 2003, 31: 371–3. 10.1093/nar/gkg128PubMed CentralView ArticlePubMedGoogle Scholar
