Content-rich biological network constructed by mining PubMed abstracts



The integration of the rapidly expanding corpus of information about the genome, transcriptome, and proteome, engendered by powerful technological advances, such as microarrays, and the availability of genomic sequence from multiple species, challenges the grasp and comprehension of the scientific community. Despite the existence of text-mining methods that identify biological relationships based on the textual co-occurrence of gene/protein terms or similarities in abstract texts, knowledge of the underlying molecular connections on a large scale, which is prerequisite to understanding novel biological processes, lags far behind the accumulation of data. While computationally efficient, the co-occurrence-based approaches fail to characterize (e.g., inhibition or stimulation, directionality) biological interactions. Programs with natural language processing (NLP) capability have been created to address these limitations, however, they are in general not readily accessible to the public.


We present a NLP-based text-mining approach, Chilibot, which constructs content-rich relationship networks among biological concepts, genes, proteins, or drugs. Amongst its features, suggestions for new hypotheses can be generated. Lastly, we provide evidence that the connectivity of molecular networks extracted from the biological literature follows the power-law distribution, indicating scale-free topologies consistent with the results of previous experimental analyses.


Chilibot distills scientific relationships from knowledge available throughout a wide range of biological domains and presents these in a content-rich graphical format, thus integrating general biomedical knowledge with the specialized knowledge and interests of the user. Chilibot can be accessed free of charge to academic users.


A comprehensive understanding of the rapidly expanding corpus of information about the genome, transcriptome, and proteome at large scale requires extensive integration with existing knowledge that often pertains to a number of biological disciplines. Despite the existence of specialized databases (e.g. [1, 2]), most of this knowledge is still stored in the form of unstructured free-texts. Different approaches have been developed that automatically retrieve information on molecular interactions from the biomedical literature. Some assume that the co-occurrence of gene/protein names in texts corresponds to a biological relationship [3, 4]. Others assign relationships based on similarities in the texts of abstracts [57]. While computationally efficient, these methods do not characterize each interaction (e.g., inhibition versus stimulation, directionality). Furthermore, relationships are supported by minimal documentation, other than PubMed IDs. Natural language processing (NLP) has also been used as the basis of programs designed to retrieve more detailed information about molecular relationships ([811], reviewed in [12, 13]). However, many of these programs were built for testing purposes and are not available to the scientific community at large [14].

Herein, we present a text mining approach, Chilibot (ch ip li terature robot), which constructs content-rich relationship networks between genes, proteins, drugs and biological concepts (figure 1) based on linguistic analysis of relevant records stored in the PubMed literature database. The nature of each relationship (e.g. inhibitory versus stimulative) is encoded in the network map. The network map is also annotated by sentences describing the relationships (content of the network). For example, there are an average of 24 sentences describing each relationship and 11 sentences describing each query term when a maximum of 30 abstracts are analyzed for each relationship. Thus, Chilibot provides a flexible tool for integrating the rapidly expanding body of biomedical knowledge with the highly specialized knowledge of the individual user.

Figure 1
figure 1

The network map of a biological network constructed by Chilibot. Chilibot queried the entire PubMed abstract database to identify a network of relationships amongst a set of genes reported to be regulated by cocaine [44], a biological concept ("plasticity"), and a drug ("cocaine"). Lines connecting rectangular nodes indicate relationships between the genes shown, and each icon in the middle of a line represents the character of the relationship. Interactive relationships (circles) are neutral (gray), stimulatory (green), inhibitory (red) or both stimulatory/inhibitory (yellow). The number within each icon indicates the quantity of abstracts retrieved for documenting that relationship. Icons containing the plus sign ("+") represent "parallel relationships". Gray rhomboidal icons indicate that only co-occurrence was detected. All arrowheads indicate the direction of the interaction, and some are bi-directional. The green or pink colors of rectangular nodes represent up- or down-regulation of the genes identified therein, respectively, based on experimental data provided by the user. More saturated colors are associated with larger changes. Nodes with no expression values (e.g., "cocaine") are in cyan. The terms and icons are linked to documentation when viewed in a web-browser. See supplementary information for subnetwork maps generated by Chilibot.

Recent analyses of several types of biological networks (e.g. metabolic [15], proteomic [16], and transcriptomic [17] networks) have found that their connectivities followed the power-law distribution, specifying that the probability of any node connecting to "k" other nodes is proportional to 1/kn. These networks are classified as scale-free networks and are in direct contrast to the bell-shaped distributions seen in random networks [15]. Since most nodes in a scale-free network have very few connections, yet a few nodes (i.e., hubs) have a large number of connections, scale-free networks are robust, resisting the random failure of nodes, but vulnerable if hubs fail. To facilitate comparisons to the structure of other biological networks, the connectivity of networks constructed by Chilibot were analyzed and found to follow the power-law distribution characteristic of scale-free topologies.

Results and discussion

Design and implementation

The overall goal of Chilibot is to generate graphical representations of the relationships among user provided terms (e.g. molecules, concepts, etc). This is achieved by automatically querying the PubMed literature database and extracting information using natural language processing (NLP) techniques.

Chilibot is an Internet-based application [18]. The system has been tested on FreeBSD and Red Hat Linux operating systems. Users interact with the Chilibot server from web-browsers (e.g. Mozilla Firefox, Netscape, or Microsoft Internet Explorer). Batch queries can also be conducted, but only from the server side.

Terms that can be queried include gene symbols, UniGene identifications (including human, rat and mouse) and/or free-form keywords (e.g. "ischemia", "apoptosis", "methylation"). Chilibot retrieves the synonyms of the queried terms from an internal database. The synonym table is compiled from 6 genomic or proteomic databases (see table 1). A total of 113,503 unique symbols were collected; amongst these, 62,178 (54.8%) contained at least one alias (figure. 2). The synonyms can be edited by users if necessary. Pair-wise queries incorporating the synonyms then are sent to PubMed using the Esearch utility, followed by retrieving relevant records using the Efetch utility. By default, a maximum of 30 abstracts per query are retrieved for analysis, however options are available to retrieve 20–50 abstracts. Both utilities are available from the National Center for Biotechnology Information (NCBI).

Table 1 Chilibot dictionary of gene/protein synonyms.
Figure 2
figure 2

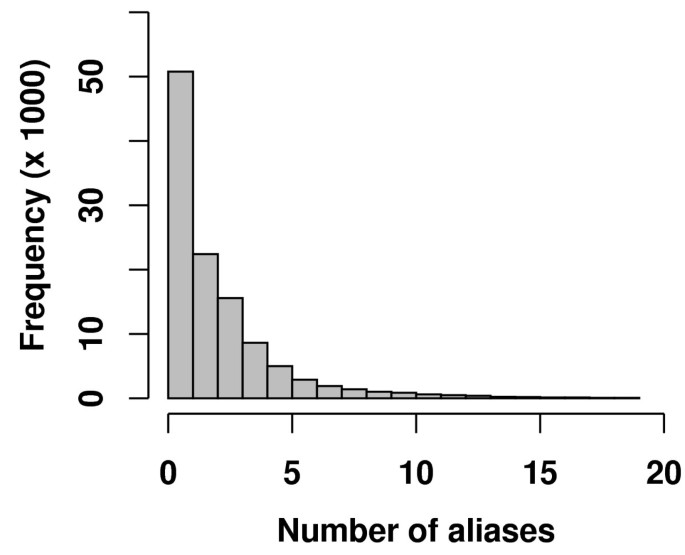

Distribution of the number of synonyms. A synonym dictionary of gene symbols was compiled from 6 databases with a total of 113,503 unique symbols. Analysis of the number of synonyms for each symbol shows that 62,178 (54.8%) had more than one.

The texts (including each title and abstract) are then parsed into units of one sentence, which has been shown to yield higher performance levels than paragraphs or phrases in the identification of relationships from MEDLINE abstracts [19]. Sentences containing both query terms or their synonyms are subjected to part-of-speech (POS) tagging using the TnT tagger [20], which is followed by shallow parsing using CASS [21]. A set of rules (see Methods) is followed to classify these sentences into one of five categories: stimulatory (interactive), inhibitory (interactive), neutral (interactive), parallel (non-interactive) and abstract co-occurrence only. The overall relationship between each pair of query terms is then specified based on the relationships found in the sentences (see Methods).

Retrieved relationships are visualized using AiSee (AbsInt, Angewandte Informatik GmbH, Germany). Nodes (boxes) are used to represent query terms and lines for relationships. Icons with different shapes and colors are added to the middle of each line to indicate the nature of the relationship, with arrows indicating directionality. Color coding of individual nodes can be used to report the magnitude of change in experimental data, when provided by the user; different shades of green or red represent up- or down-regulation, respectively, and more saturated colors are associated with larger changes. The weight of an interactive relationship, reflecting the number of abstracts obtained from PubMed, is displayed within the icon (figure. 1). The co-ordinates of the graphical elements are used to link the documentation of the relationships and the query terms to the map. Typically, querying a list of 10 terms takes 3–4 minutes, allowing 3 seconds between PubMed connections as requested by NCBI.

Performance evaluation

We used a set of 770 known relationships (see Methods) specified in the Database of Interacting Proteins (DIP) [2] to measure the performance of Chilibot in finding relationships. DIP was chosen for this purpose because it contains a large number of protein interaction relationships that are manually curated. We defined recall as the fraction of relevant relationships retrieved. The effect of the number of documents analyzed on recall is first evaluated by analyzing a maximum of 5, 10, 20, 30, 40, and 50 of the most recent abstracts for each pair of proteins. Figure 3a shows that analyzing 5 or 50 abstracts achieved recalls of 90.1% and 91.2%, respectively. Thus, increasing the number of documents analyzed does not yield an increase in recall. However, analyzing more abstracts increased the average number of statements demonstrating the relationships (figure. 3a), resulting in a steady increase in stimulatory or inhibitory relationships and a decrease in "parallel relationships" (figure. 3b). In addition, we also evaluated the effect of the total number of abstracts available in PubMed on recall. Of the 770 queries conducted by Chilibot, 66 had no reference in PubMed and no relationship was detected. Chilibot also failed to detect a relationship from two queries where each had 1 reference available. Relationships were detected among the 702 remaining queries; the number of references in PubMed ranged from less than 10 (206 queries), between 10 to 99 (299), to more than 100 (197). Thus, the ability of Chilibot to detect relationships depends on the existence of PubMed records, but is not sensitive to the number of references. Chilibot's recall proficiency may be attributable to a large dictionary of synonyms (currently from 6 databases), optimized PubMed query structure and non-alphanumeric character processing method (see Methods), and to the use of both sentences and abstracts as units of analysis. However, we were not able to directly compare the performance of Chilibot with other NLP-based PubMed-mining software because none of these are available to the public [14]. A potential approach to facilitate such performance comparisons would entail coding software according to published algorithms. However, this is not likely to replicate all details of the original software; thus, the comparisons obtained via such an approach would not be valid.

Figure 3
figure 3

Effects of the number of abstracts obtained on retrieval, recall, and content of relationships. To measure Chilibot's level of recall, a total of 770 known relationships specified in the Database of Interacting Proteins (DIP) was used as a reference set. A. Distribution of the number of sentences describing relationships when a maximum of 5–50 abstracts were selected for retrieval. For each group, the average number of sentences documenting a relationship is reported. Of the 770 known relationships, the histograms show that an increasing number of relationships are documented by a larger number of sentences when a greater number of abstracts are specified for retrieval. B. Increasing the specified number of abstracts for retrieval from 5 to 50 had no affect on the recall of total relationships, although there were changes within relationship categories (e.g., stimulatory/inhibitory).

Amongst the 68 DIP relationships that Chilibot did not detect (table 2), the largest number represented a failure to recognize abstracts containing generalized protein names (e.g. PKA in PubMed abstract vs. type II-alpha form of PKA in DIP), a limitation also reported for FlyBase [22]. Recall was also limited by synonym coverage and by the presence of information in the main text, but not in the abstract. Since many of the DIP relationships were originally based on the main text of a single reference [2], the high recall of Chilibot depends on the redundancy of information in the literature.

Table 2 Failure to detect known DIP relationships

To estimate precision, defined as the fraction of retrieved relationships that are relevant, we randomly selected 100 relationships from the 702 relationships recovered by Chilibot (86 interactive, 11 parallel, and 3 abstract co-occurrence). We manually confirmed that the documentation retrieved by Chilibot contained information about 96 of the targeted relationships, and the remaining four shared symbols with other genes. In the interactive category, directionality was correctly identified in 79.1% and inhibitory/stimulatory properties in 74.4%. The original data used to perform these analyses are available [see additional file 1 and 2].

User interface features

One of the key features of Chilibot is its capacity to link the relationships represented in the network map directly to their supporting documentation, usually as sentences containing both of the query terms. In addition, each node is linked to its synonym list and to a set of statements demonstrating the use of the term; these statements are selected from abstract texts by an algorithm favoring conclusive statements (see Methods). By providing the literature in a condensed and highlighted form, Chilibot facilitates the rapid comprehension of the relationships by the user.

Chilibot provides several options for customizing the query process and for viewing the identified relationships. Context specific searches restrict the analysis of relationships to a specific subject area, as defined by the user. Internet searches can also be customized (e.g. searching only documents in PDF format) by using Google WebAPI. Specific subsets of relationships contained in an overall relationship map can be reconfigured. For example, the user can customize the relationship map by requesting only those relationships with direct linkage to a specific node, or those that have a requisite number of supporting publications [see additional file 3 and 4 for examples].

Chilibot also identifies key index terms common to the relationship network. To do so, Chilibot uses Medical Subject Headings (MESH) [23], a controlled vocabulary that indexes the subjects of the documents developed by the National Library of Medicine. Chilibot ranks MESH keywords indexed in the literature that supports the relationship network. The ranking is determined by the frequencies of the keywords, as well as whether the keyword is a major or minor topic of the paper (see Methods). The top ranked keywords, reflecting the subject area(s) shared by the query terms, can serve as a guide for further reading and suggest new Chilibot queries.

Chilibot also has the capability of suggesting new hypotheses based on the retrieved network of relationships. Such hypotheses, originally described by Swanson et al. as "undiscovered public knowledge" [24], referred to the inference of an interaction between two items A and C, based on knowledge that A affects B and B affects C. This involves software that generates a large list of "B" terms from titles returned by PubMed queries. The user filters these terms, aided by the titles and abstracts. Variations of this method have been designed and tested by others [25, 26]. Taking a similar approach, Chilibot scans the network of retrieved relationships to find pairs of nodes that have no documented relationship, but have connections to a common tertiary node(s). These pairs of nodes are classified as having a "hypothetical relationship". The networks that contain these "hypothetical relationships", including the tertiary node(s), are then provided to the user in graphical format, with links to their documentation.

To test the value of these "hypothetical relationships" in predicting the results of future research, we queried 22 genes known to be involved in long-term potentiation (LTP), an electrophysiological phenomenon closely associated with memory formation. Chilibot identified a direct relationship between LTP and all 22 genes, along with 194 inter relationships amongst the 22 genes. We then performed retrospective studies by limiting the search to literature published before the years 2000, 1995 and 1990 [additional file 5 contains all the original search results]. The LTP-related "hypothetical relationships" identified by Chilibot, using these date-limited reference sets, are listed in table 3. As an example, by 1990, the involvement of calcium calmodulin kinase type II (CaMKII) in the induction of LTP had been established [27]. It was also known that CaMKII phosphorylates synapsin I [28, 29]. Based on these and similar relationships (see table 3) that were documented in the literature available by 1990, Chilibot predicted the involvement of synapsin I in LTP, which was subsequently demonstrated empirically by 1995 [30]. Retrospective analyses like these depend on the progression of specific knowledge in scientific fields during a particular time period. Thus, if we were to test a different set of search terms, we would not expect to obtain the same number of suggested hypotheses, nor would we expect the same proportion of such hypotheses to be validated by the current literature.

Table 3 Retrospective study of the predictive capability of the "hypothetical relationships" generated by Chilibot

Based on the literature that is currently available, Chilibot identified new hypothetical relationships, such as those between synaptophysin/CREB and synaptotagmin/CREB. Currently no direct empirical evidence for these relationships is available. However, scanning the 5' untranslated region of the synaptophysin and synaptotagmin genes did show multiple CREB binding sites, providing bioinformatics-based evidence supporting the plausibility of these potential interactions. Although these examples are promising, they are hypothetical relationships. Further review of the scientific literature, such as the sentences provided by Chilibot, is required to clarify the rationale for these hypotheses.

Network topology of relationships retrieved from the literature

Recent large-scale studies of metabolic [15], transcriptomic [17] and proteomic [16, 31] networks, based on analyses of experimental data, have found that their topologies belong within the class of scale-free networks.

For comparison to the preceding biological networks, we studied the connectivity of the literature-based networks obtained by applying Chilibot to three groups of randomly selected genes (300 genes per group). The resulting networks contain 224, 116, and 138 nodes and 3018, 962, and 1912 relationships, respectively. Visualization of the network structure of one of the groups is provided [see additional file 6]. The connectivity of the 3 groups was averaged and plotted in figure. 4, showing a power-law distribution. The relatively low value of n = 1.21 (n is approximately 2 in many of these networks [15, 32, 33]) may reflect the fact that many relationships are yet to be documented. In addition, we also found a positive correlation between the number of abstracts available per node and the number of connections to that node (R2 = 0.76, p < 0.001). This suggests that the discovery of biological relationships attributable to specific nodes might be influenced both by the amount of scientific effort deliberately devoted to understanding that node and the intrinsic connectivity of that node. Although the commitment of greater resources by the scientific community to certain nodes may bias the topology of the scientific literature to some extent, this is likely to be regulated and limited by the strength of the findings, which would be directly related to the intrinsic connectivity of a particular node. Thus, it is reasonable to postulate that the topology of the biomedical literature on gene/protein interactions may reflect that of the interactions per se.

Figure 4
figure 4

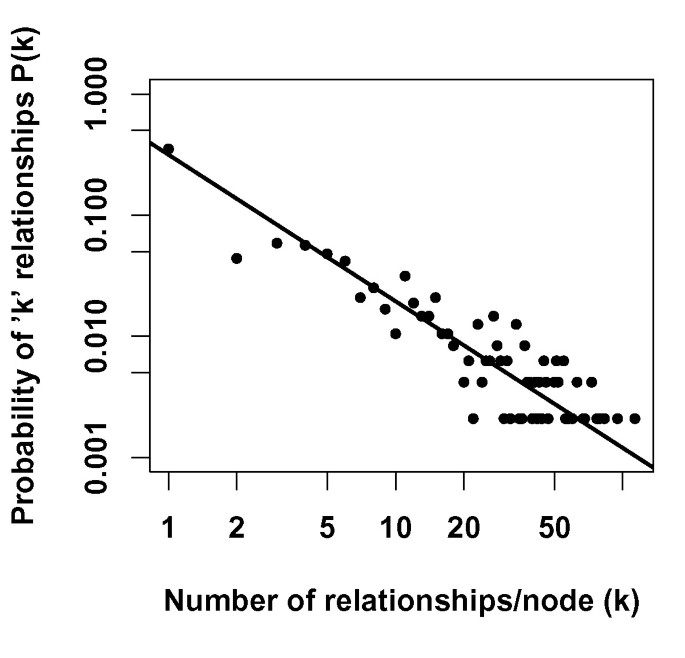

Scale-free topology of a relationship network derived from the biological literature. Chilibot was used to retrieve the relationships within 3 sets of randomly selected genes (300 genes per group). The resulting networks contain 224, 116, and 138 nodes and 3018, 962, and 1912 relationships, respectively. The distribution of the average connectivity of the 3 groups follows the power-law (P(k) ~k-n, n = 1.21).

The scale-free topology of gene/protein relationships provides another dimension for comparing and prioritizing research targets after large-scale experiments. Currently, genes or proteins with large-fold changes are generally favored for further study [34]. However, by itself, a large-fold change may be insufficient to predict whether such molecules are pivotal in the regulation of important biological processes. For example, in many biological signaling pathways, a small increase in up-stream events (such as the binding of a peptide or hormone to its receptor(s)) is usually associated with a hundred to thousand-fold increase in down-stream events [35, 36] (e.g., activation of mitogen-activated protein kinases or the production of cAMP). Therefore, knowledge of a network's critical nodes (i.e. hubs), which may be predicted by network connectivity [32], is likely to increase the power and efficiency of identifying potential experimental targets capable of modifying network function.


Chilibot graphically summarizes the relationships amongst a large set of user provided terms by analyzing abstracts retrieved from the PubMed literature database. We have found in our benchmark tests that these retrieved relationships are reliable. We believe that the scientific community will benefit from this literature mining capability along with the many features that Chilibot provides, especially in an era of science when insight can be submerged in an overwhelming sea of data and modularized knowledge.


Constructing the nomenclature dictionary

Flat text file versions of the six databases (HUGO, LocusLink, OMIM, GDB, SwissProt, and SGD) were downloaded from their corresponding ftp sites. Symbol-name pairs were extracted from the corresponding fields using Perl scripts. Names were curated to remove words that are unlikely to be used in texts, such as "partial cDNA", "fragment", etc. In addition, non-alphanumerical characters were converted into spaces. Entries with the same symbol from the six databases were then combined in a case insensitive manner. The final dictionary is stored in the Postgresql relational database.

Optimization of PubMed querying method

The NCBI Eutilies, in particular Esearch and Efetch, are used in conjunction with the Perl LWP module to interact with the server. Optimization was necessary because phrase or adjacency searches are not supported by PubMed. Thus, when searching for names with multiple words, it is possible to retrieve abstracts that contain all the relevant words, however the words are used in different places of the abstract. Further, PubMed has an automatic term mapping feature that converts user input according to the MESH translation table. For our purposes, we considered this an undesirable feature. After small scale testing, the query structure we selected places a title and abstract restriction tag ([tiab]) after the name of the query term. This disables the term translation feature and also treats the term as a phrase when possible, according to PubMed documentation. To test the effectiveness of this strategy, we sampled 510 names with lengths ranging from 1 to 11 words. A total of 4584 abstracts were retrieved. We were able to find the query name from 4487 (97.9%) of the abstracts. We thus constructed the pair-wise PubMed query in the following format:

(Term 1 synonym 1 [tiab] OR Term 1 synonym 2 [tiab] OR ...) AND (Term 2 synonym 1 [tiab] OR Term 2 synonym 2 [tiab] OR ...)

Acronym disambiguity

Many methods [e.g. [3740]] have been developed to translate acronyms unambiguously into their full length terminology, since acronyms may have multiple meanings and become a source of false positives [3, 41]. Chilibot provides an option to verify the meaning of acronyms when they are used as the query term. When a relevant acronym first appears, Chilibot retains a phrase immediately preceding the acronym that contains the same number of words as the number of characters in the acronym. The phrase then is compared to all synonyms of the acronym, which are retrieved from the nomenclature database of Chilibot. The abstract is excluded from analysis if less than 30% of the words in the phrase are found in the synonym list.

Context sensitive search

All the context keywords provided by the user are combined with an "OR" operation. This string is then combined with the pair-wise PubMed queries, using an "AND" operation. The context keywords are not used in subsequent analyses.

Synopsis generation

A synopsis is a collection of sentences used to annotate the query terms. It is generated from the first 100 sentences that contain the specific query term or its synonyms. These sentences are sorted by a weighting mechanism that favors short, conclusive sentences. Words suggesting a conclusion, such as "suggest", "found", "show", "data" etc weights as +9 points. Starting the sentence with the query term and a verb weights as +5 points. The presence of words suggesting a negative result such as "not", "lack", "fail", "without" is weighted as -3 points. Having more than 30 words also reduces the weight by 3 points. Lastly, having keywords specified by the user adds 5 points to the weight. The 15 sentences with the highest weights are displayed.

Natural language processing

Title and abstract texts retrieved via the Efetch utility are first parsed into individual sentences using a Perl script. Only sentences containing both of the query terms or their synonyms are subjected to NLP analysis, which includes POS tagging by the TnT software [20] and shallow parsing by the CASS software [21]. Testing TnT on a small corpus of 10 PubMed abstracts (2646 words), using the supplied WSJ language model, showed 537 (20.29%) unknown words. Manual inspection identified 150 errors in the assigned POS tags. We then trained the TnT software with the GENIA corpus [42] (a collection of 2000 PubMed abstracts annotated with POS and other information). Re-analyzing the same 2646 words, using the customized language model, resulted in only 289 (10.92%) unknown words. Manual inspection identified 31 errors. Thus, the language model based on the GENIA corpus was used for all subsequent analyses. CASS software was used without further adjustment.

Classification of relationships

All sentences containing two query terms (or their synonyms) are classified into one of six categories: stimulatory (interactive), inhibitory (interactive), both stimulatory and inhibitory (interactive), neutral (interactive), parallel (non-interactive) and abstract co-occurrence only. Sentences are classified into interactive or non-interactive relationships based on the presence or absence of a verb phrase between the two query terms. The following exceptions apply: sentences are classified as parallel when the query terms are present in two separate clauses; sentences without a verb phrase between the query terms, but with specific terms indicating interactions such as "interaction", "bind", etc., are classified as interactive; interactive relationships are converted into parallel relationship when there is a negation (such as "not") within the same clause of the verb phrase. The interactive relationship is further classified into stimulatory, inhibitory, or neutral subtypes based on the presence or absence of words describing such relationships, including "activate", "facilitate", "increase", "induce", "stimulate", "enhance", "elevate", "inactivate", "abolish", "attenuate", "block", "decrease", "eliminate", "inhibit", "reduce", "suppress". For interactive relationships, the direction is defined as from the left query term to the right term and is reversed when passive voice is detected. To avoid the influence by spurious mistakes, the overall relationship between two terms is defined as interactive only when more than 20% of the sentences are detected as either stimulatory or inhibitory. Lastly, the co-occurrence type is assigned when the two query terms are located in the same abstract but not the same sentence. We ranked the informativeness of the relationships in the following order: both stimulatory and inhibitory, either stimulatory or inhibitory, neutral interactive, parallel, abstract co-occurrence. The overall relationship between two query terms is classified as the most informative type of relationship.

Visualization of the networks

Network layout is generated using the aiSee software. Each pair of query terms identified as having relationships is specified by nodes and represented by square boxes. The relationships are represented by solid lines. A special node with unique identification (an icon) is inserted into the middle of each line. The icon is either circular or rhomboidal depending on the relationship it represents (see legend of Figure 1). The network map as well as the links from the map to the descriptions of the relationships are obtained by calling the command line interface of aiSee.

"Hypothetical relationship" generation and testing

After the query session is finished, the user can request Chilibot to suggest hypothetical relationships for any node that is within the retrieved network. For each node requested (NR) by the user, Chilibot scans the retrieved network to find those nodes that are not directly linked to NR, but have connections to the same tertiary nodes as NR. Chilibot then produces a new network map for each of these "hypothetical relationships", while maintaining the links to the supporting documentation. To test the usefulness of these "hypothetical relationships" in predicting future research, a total of 22 terms (ACTIN, ACTININ, AMPA, ARC, ATF, CAMKII, CAMKIV, CREB, ERK, KV4.2, NMDA, PI-3K, PKA, PKC, PLC, SYNAPSIN I, SYNAPTOPHYSIN, SYNAPTOTAGMIN, TAU, TRKA, TRKB, AND ZIF268) were queried together with LTP (long-term potentiation). Retrospective studies were performed by querying these terms again while adding the PubMed date limiting tag "&mindate=1960&maxdate=$maxdate", where the $maxdate equals to 1990, 1995, 2000, respectively.

MESH themes

The MESH Keywords of the abstracts represented by the graph are collected and sorted by their weighted percentage. When the keyword is the major topic of the publication, it is weighted as 3. Otherwise, it is weighted as 1. The weights are then divided by the number of abstracts to obtain the weighted percentage.

Web search and content filtering

Google WebAPI is accessed through Perl scripts. Due to the limitation of the WebAPI, the query terms are searched directly without the expanded synonyms. The URIs of the top 10 hits were retrieved from Google and then the content of these pages was obtained from their individual servers. These pages are then converted into texts, and sentences containing either one of the query terms are presented to the user. Sentences containing both of the query terms are highlighted. Links are also provided to restrict the web search to educational institutions or to files in the portable document format (PDF). Google is a trademark of Google Technology, Inc.

Selection of relationships from the Database of Interacting Proteins (DIP)

DIP [2] is a curated protein interaction database. The version of DIP database released on April 18th, 2003 contains 18494 interactions between 7141 proteins. Relationships that originated from large scale genomic or proteomic studies were excluded, reflecting poor reliability of the data [43] and the low probability that such interactions would be described in textual forms. Proteins with no SwissProt annotation or of yeast origin were also excluded to further reduce the number of relationships to a manageable subset. This selection procedure resulted in a total of 770 relationships.


All none-graphic files are archived with tar and compressed with bzip2 to reduce file size.


  1. Bader GD, Betel D, Hogue CW: BIND: the Biomolecular Interaction Network Database. Nucleic Acids Res 2003, 31: 248–250. 10.1093/nar/gkg056

    Article  PubMed Central  CAS  PubMed  Google Scholar

  2. Xenarios I, Rice DW, Salwinski L, Baron MK, Marcotte EM, Eisenberg D: DIP: the database of interacting proteins. Nucleic Acids Res 2000, 28: 289–291. 10.1093/nar/28.1.289

    Article  PubMed Central  CAS  PubMed  Google Scholar

  3. Jenssen TK, Laegreid A, Komorowski J, Hovig E: A literature network of human genes for high-throughput analysis of gene expression. Nat Genet 2001, 28: 21–28. 10.1038/88213

    CAS  PubMed  Google Scholar

  4. Stapley BJ, Benoit G: Biobibliometrics: information retrieval and visualization from co-occurrences of gene names in Medline abstracts. Pac Symp Biocomput 2000, 529–540.

    Google Scholar

  5. Donaldson I, Martin J, de Bruijn B, Wolting C, Lay V, Tuekam B, Zhang S, Baskin B, Bader GD, Michalickova K: PreBIND and Textomy – mining the biomedical literature for protein-protein interactions using a support vector machine. BMC Bioinformatics 2003, 4: 11. 10.1186/1471-2105-4-11

    Article  PubMed Central  PubMed  Google Scholar

  6. Glenisson P, Antal P, Mathys J, Moreau Y, De Moor B: Evaluation of the vector space representation in text-based gene clustering. Pac Symp Biocomput 2003, 391–402.

    Google Scholar

  7. Shatkay H, Edwards S, Wilbur WJ, Boguski M: Genes, themes and microarrays: using information retrieval for large-scale gene analysis. Proc Int Conf Intell Syst Mol Biol 2000, 8: 317–328.

    CAS  PubMed  Google Scholar

  8. Friedman C, Kra P, Yu H, Krauthammer M, Rzhetsky A: GENIES: a natural-language processing system for the extraction of molecular pathways from journal articles. Bioinformatics 2001, 17(Suppl 1):S74–82.

    Article  PubMed  Google Scholar

  9. Park JC, Kim HS, Kim JJ: Bidirectional incremental parsing for automatic pathway identification with combinatory categorial grammar. Pac Symp Biocomput 2001, 396–407.

    Google Scholar

  10. Pustejovsky J, Castano J, Zhang J, Kotecki M, Cochran B: Robust relational parsing over biomedical literature: extracting inhibit relations. Pac Symp Biocomput 2002, 362–73.

    Google Scholar

  11. Novichkova S, Egorov S, Daraselia N: MedScan, a natural language processing engine for MEDLINE abstracts. Bioinformatics 2003, 19: 1699–706. 10.1093/bioinformatics/btg207

    Article  CAS  PubMed  Google Scholar

  12. de Bruijn B, Martin J: Getting to the (c)ore of knowledge: mining biomedical literature. Int J Med Inf 2002, 67: 7–18. 10.1016/S1386-5056(02)00050-3

    Article  Google Scholar

  13. Yandell MD, Majoros WH: Genomics and natural language processing. Nat Rev Genet 2002, 3: 601–610.

    CAS  PubMed  Google Scholar

  14. Gieger C, Deneke H, Fluck D, Fluck J: The future of text mining in genome-based clinical research. Biosilico 2003, 1: 97–102.

    Article  CAS  Google Scholar

  15. Jeong H, Tombor B, Albert R, Oltvai ZN, Barabasi AL: The large-scale organization of metabolic networks. Nature 2000, 407: 651–654. 10.1038/35036627

    Article  CAS  PubMed  Google Scholar

  16. Jeong H, Mason SP, Barabasi AL, Oltvai ZN: Lethality and centrality in protein networks. Nature 2001, 411: 41–42. 10.1038/35075138

    Article  CAS  PubMed  Google Scholar

  17. del Rio G, Bartley TF, del Rio H, Rao R, Jin KL, Greenberg DA, Eshoo M, Bredesen DE: Mining DNA microarray data using a novel approach based on graph theory. FEBS Lett 2001, 509: 230–234. 10.1016/S0014-5793(01)03165-9

    Article  CAS  PubMed  Google Scholar

  18. Chilibot[]

  19. Ding J, Berleant D, Nettleton D, Wurtele E: Mining MEDLINE: abstracts, sentences, or phrases? Pac Symp Biocomput 2002, 326–337.

    Google Scholar

  20. Brants T: TnT – A Statistical Part-of-Speech Tagger. In Proceedings of the 6th Applied Natural Language Processing Conference. Seattle, Washington, USA; 2000.

    Google Scholar

  21. CASS software[]

  22. Yeh AS, Hirschman L, Morgan AA: Evaluation of text data mining for database curation: lessons learned from the KDD Challenge Cup. Bioinformatics 2003, 19(Suppl 1):I331-I339. 10.1093/bioinformatics/btg1046

    Article  PubMed  Google Scholar

  23. MESH[]

  24. Swanson DR: Undiscovered public knowledge. Libr Q 1986, 56: 103–118.

    Article  Google Scholar

  25. Wren JD, Bekeredjian R, Stewart JA, Shohet RV, Garner HR: Knowledge discovery by automated identification and ranking of implicit relationships. Bioinformatics 2004, 20: 389–98. 10.1093/bioinformatics/btg421

    Article  CAS  PubMed  Google Scholar

  26. Hristovski D, Stare J, Peterlin B, Dzeroski S: Supporting discovery in medicine by association rule mining in Medline and UMLS. Medinfo 2001, 10: 1344–8.

    Google Scholar

  27. Malinow R, Schulman H, Tsien RW: Inhibition of postsynaptic PKC or CaMKII blocks induction but not expression of LTP. Science 1989, 245: 862–866.

    Article  CAS  PubMed  Google Scholar

  28. Llinas R, McGuinness TL, Leonard CS, Sugimori M, Greengard P: Intraterminal injection of synapsin I or calcium/calmodulin-dependent protein kinase II alters neurotransmitter release at the squid giant synapse. Proc Natl Acad Sci U S A 1985, 82: 3035–3039.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  29. Chiebler W, Jahn R, Doucet JP, Rothlein J, Greengard P: Characterization of synapsin I binding to small synaptic vesicles. J Biol Chem 1986, 261: 8383–8390.

    Google Scholar

  30. Fukunaga K, Muller D, Miyamoto E: Increased phosphorylation of Ca2+/calmodulin-dependent protein kinase II and its endogenous substrates in the induction of long-term potentiation. J Biol Chem 1995, 270: 6119–24. 10.1074/jbc.270.11.6119

    Article  CAS  PubMed  Google Scholar

  31. Rzhetsky A, Gomez SM: Birth of scale-free molecular networks and the number of distinct DNA and protein domains per genome. Bioinformatics 2001, 17: 988–96. 10.1093/bioinformatics/17.10.988

    Article  CAS  PubMed  Google Scholar

  32. Goh KI, Oh E, Jeong H, Kahng B, Kim D: Classification of scale-free networks. Proc Natl Acad Sci U S A 2002, 99: 12583–12588. 10.1073/pnas.202301299

    Article  PubMed Central  CAS  PubMed  Google Scholar

  33. Wagner A, Fell DA: The small world inside large metabolic networks. Proc R Soc Lond B Biol Sci 2001, 268: 1803–1810. 10.1098/rspb.2001.1711

    Article  CAS  Google Scholar

  34. Chuaqui RF, Bonner RF, Best CJ, Gillespie JW, Flaig MJ, Hewitt SM, Phillips JL, Krizman DB, Tangrea MA, Ahram M: Post-analysis follow-up and validation of microarray experiments. Nat Genet 2002, 32(Suppl):509–514. 10.1038/ng1034

    Article  CAS  PubMed  Google Scholar

  35. Stork PJ, Schmitt JM: Crosstalk between cAMP and MAP kinase signaling in the regulation of cell proliferation. Trends Cell Biol 2002, 12: 258–66. 10.1016/S0962-8924(02)02294-8

    Article  CAS  PubMed  Google Scholar

  36. Chen G, Goeddel DV: TNF-R1 signaling: a beautiful pathway. Science 2002, 296: 1634–5. 10.1126/science.1071924

    Article  CAS  PubMed  Google Scholar

  37. Wren JD, Garner HR: Heuristics for identification of acronym-definition patterns within text: towards an automated construction of comprehensive acronym-definition dictionaries. Methods Inf Med 2002, 41: 426–34.

    CAS  PubMed  Google Scholar

  38. Chang JT, Schutze H, Altman RB: Creating an online dictionary of abbreviations from MEDLINE. J Am Med Inform Assoc 2002, 9: 612–20. 10.1197/jamia.M1139

    Article  PubMed Central  PubMed  Google Scholar

  39. Pustejovsky J, Castano J, Cochran B, Kotecki M, Morrell M: Automatic extraction of acronym-meaning pairs from MEDLINE databases. Medinfo 2001, 10: 371–5.

    Google Scholar

  40. Schwartz AS, Hearst MA: A simple algorithm for identifying abbreviation definitions in biomedical text. Pac Symp Biocomput 2003, 451–62.

    Google Scholar

  41. Pearson H: Biology's name game. Nature 2001, 411: 631–2. 10.1038/35079694

    Article  CAS  PubMed  Google Scholar

  42. Kim JD, Ohta T, Tateisi Y, Tsujii J: GENIA corpus-a semantically annotated corpus for bio-textmining. Bioinformatics 2003, 19(Suppl 1):I180-I182. 10.1093/bioinformatics/btg1023

    Article  PubMed  Google Scholar

  43. Deane CM, Salwinski L, Xenarios I, Eisenberg D: Protein interactions: two methods for assessment of the reliability of high throughput observations. Mol Cell Proteomics 2002, 1: 349–356. 10.1074/mcp.M100037-MCP200

    Article  CAS  PubMed  Google Scholar

  44. Yuferov V, Kroslak T, Laforge KS, Zhou Y, Ho A, Kreek MJ: Differential gene expression in the rat caudate putamen after "binge" cocaine administration: advantage of triplicate microarray analysis. Synapse 2003, 48: 157–169. 10.1002/syn.10198

    Article  CAS  PubMed  Google Scholar

Download references


This research was supported by PHS DA-03977 (BMS) and by the University of Tennessee Center for the Neurobiology of Brain Disease.

Author information

Authors and Affiliations


Corresponding authors

Correspondence to Hao Chen or Burt M Sharp.

Additional information

Authors' contributions

HC conceived of the project (together with BMS), coded the Chilibot program, performed the evaluations and drafted the manuscript. BMS conceived of the project (together with HC), participated in its design, coordination and analysis, and edited and revised the manuscript.

Electronic supplementary material


Additional File 1: A total of 770 known relationships were used to test the recall and precision of Chilibot. A maximum of 5, 10, 20, 30, 40, or 50 most recent PubMed records for each relationship was specified for analysis. The relationships identified by Chilibot are summarized and provided in Microsoft Excel and OpenOffice format. (BZ2 51 KB)


Additional File 2: The original results of the above study (non-essential files are deleted to keep the file size under the limit set by BMC bioinformatics). (BZ2 7 MB)


Additional File 3: Sub-network graph obtained by filtering figure 1 using the number of supporting publications as a threshold criterion. (JPEG 26 KB)


Additional File 4: Sub-network graph obtained by filtering figure 1 to selectively display a node of interest (i.e. "cocaine") and other nodes that directly connected to it. (PNG 4 KB)


Additional File 5: The original Chilibot query results of the term "long-term potentiation (LTP)" and 22 other terms, limiting the latest references analyzed to the years 1990, 1995, 2000, and 2004. (BZ2 2 MB)


Additional File 6: A graph demonstrating the scale-free topology of relationship networks derived from the biological literature. The network contains 138 nodes and 1912 relationships. A small fraction of the nodes (10 nodes colored in black) accounted for more than 45% of the relationships (solid lines), a characteristic of scale-free topology. (PNG 128 KB)
