Gene selection with multiple ordering criteria



A microarray study may select different differentially expressed gene sets because of different selection criteria. For example, the fold-change and p-value are two commonly known criteria to select differentially expressed genes under two experimental conditions. These two selection criteria often result in incompatible selected gene sets. Also, in a two-factor, say, treatment by time experiment, the investigator may be interested in one gene list that responds to both treatment and time effects.


We propose three layer ranking algorithms, point-admissible, line-admissible (convex), and Pareto, to provide a preference gene list from multiple gene lists generated by different ranking criteria. Using the public colon data as an example, the layer ranking algorithms are applied to the three univariate ranking criteria, fold-change, p-value, and frequency of selections by the SVM-RFE classifier. A simulation experiment shows that for experiments with small or moderate sample sizes (less than 20 per group) and detecting a 4-fold change or less, the two-dimensional (p-value and fold-change) convex layer ranking selects differentially expressed genes with generally lower FDR and higher power than the standard p-value ranking. Three applications are presented. The first application illustrates a use of the layer rankings to potentially improve predictive accuracy. The second application illustrates an application to a two-factor experiment involving two dose levels and two time points. The layer rankings are applied to selecting differentially expressed genes relating to the dose and time effects. In the third application, the layer rankings are applied to a benchmark data set consisting of three dilution concentrations to provide a ranking system from a long list of differentially expressed genes generated from the three dilution concentrations.


The layer ranking algorithms are useful to help investigators in selecting the most promising genes from multiple gene lists generated by different filter, normalization, or analysis methods for various objectives.


Recent advances in DNA microarray technology provide exciting tools for studying the expression levels of thousands of distinct genes simultaneously. A common data analysis approach is to identify a subset of key genes from the original gene set that express differentially under different experimental conditions with a goal to determine the underlying relationship between samples and genes or gene clusters. The relationship is used to identify biological functions or to predict specific biological or therapeutic outcomes from the subset of key genes. Selection of differentially expressed genes can be separated into two steps. The first step is to calculate a discriminatory score that will rank the genes in order of evidence of differential expressions. The second step is to determine a cutoff (threshold) from the ranked scores to divide the genes into two lists: the differentially expressed and the non-differentially expressed genes. The genes above the threshold are selected as differential expressions. Criteria for determining the threshold cutoff should depend on the objective of the experiment. For instance, if the objective is to identify a small number of truly differentially expressed genes for further study, then a stringent criterion such as controlling either the familywise or the false discovery error rate may be appropriate. However, if the purpose is to determine functional relationships among genes that have been affected by treatments or to develop a genomic biomarker classifier, criteria that do not eliminate as many genes may be more appropriate since the omission of informative genes would have a much more serious consequence than the inclusion of non-informative genes. In all applications, the first step of gene ranking is the more important of the two. Fold-change and p-value are two common approaches to selecting differentially expressed genes when the experiment consists of two conditions (normal versus tumor). In the fold-change approach, a gene is said to be differentially expressed if the ratio in absolute value of the expression levels between the two classes exceeds a certain threshold, e.g., a 2-fold or 3-fold change. These genes are selected as differential expressions. This approach is deficient in some aspects as it does not account for the variability of the expression levels among genes. For example, genes with larger variances have a good chance of exhibiting larger fold-changes even if they are not differentially expressed. The p-value ranking is an alternative approach for gene ranking. The p-value is the probability outcome from a statistical testing procedure that there is no difference between two conditions for an individual gene. A small p-value is evidence of differential expressions. One common problem encountered in the use of the p-value ranking is that a gene with small fold change can have a very small p-value (below the p-value threshold) because of a very small standard deviation. These two ranking criteria often result in selecting different lists of differentially expressed genes.

One important application in microarray experiments is to develop a prediction model to discriminate different biologic phenotypes or to predict the diagnostic category or prognostic stage of a patient. Because thousands of gene are involved, many genes are often noisy in nature and many are irrelevant for prediction; the use of all predictors can suppress or reduce the performance of a classification algorithm. The prediction model is often based on a selected gene set from a p-value ranking criterion (e.g., [1]). Alternatively, genes can be ranked according to its predictive accuracy (discriminatory ability) by performing gene-by-gene prediction. The wrapper approach is an alternative gene selection method; the wrapper approach finds a subset of genes and evaluates its relevance while building the prediction model. For example, the classification tree (CTree) constructs a binary hierarchical classifier [2] through recursively partitioning parent nodes into two child nodes. In each node, CTree searches all possible predictors and selects the predictors that minimize overall true impurity. Guyon et al. [3] proposed a recursive feature elimination (RFE) procedure for the support vector machine (SVM) classification algorithm. The SVM-RFE method uses the magnitude as a ranking criterion to select feature predictors. A strategy of applying the wrapper approach to gene ranking is to examine the frequency of selections in the cross validation [4, 5]. The most frequently selected genes are presumed to be most relevant to the sample distinction. The gene ranking criteria described above for prediction purposes would result in different lists; also, these ranking criteria are different from either the fold-change or p-value ranking criterion. As discussed, there are two general objectives in gene selection. One objective is to develop a classifier or predictive model for class prediction, and the other is to identify differentially expressed genes for a follow-up study. These two objectives are not mutually exclusive. For example, the set of differentially expressed genes identified presumably for the second objective can be used to develop a classifier (e.g., [1, 6]) for the first objective. Different gene selection procedures often result in different rankings, even for the same objective such as the p-value and fold-change criteria to identify differentially expressed genes. Because of thousands of genes involved and difficulty in the validation, a gene ranking procedure that strikes a balance among several ordering criteria will be useful for microarray data analysis. Furthermore, many microarray experiments have involved two or more factors and/or more than two experimental conditions. In the Applications section below, we consider a two-factor microarray study to identify biological effects of radiation exposure on gene expression. The experiment consists a control and dose groups. The RNA samples are extracted from the control and exposed cells at 4 hours and 24 hours. Statistical analysis would consist of a comparison between control and dose groups to investigate the radiation effect on gene expression, and a comparison between the two time points to investigate the time effect. Each comparison will result in one gene list according to the p-values from the respective statistical test. A gene list that accounts for both ranking criterions will be useful for investigating the most important genes that respond to the treatment effect as well as time effect.

Given the wide uses of microarray technology, selection of differential expressed genes is one of the most important objectives in microarray data analysis. In a simple experiment with two experimental conditions, different experimental objectives or different analysis methods can generate different lists of differentially expressed genes. For experiments with more than two experimental conditions, the analysis will generate different gene lists from different test hypotheses.

This paper proposes three layer ranking algorithms for gene ranking with multiple ranking criteria, where each individual criterion constitutes its ordering of preference for selection. The presentation is limited to two and three univariate ranking criteria.



The colon cancer data set [7] consists of 2000 human genes with highest minimal intensity across 40 tumor and 22 normal colon tissue samples. A goal of a data analysis is to select a set of genes that express differently between the normal samples and cancer samples. We consider three criteria to select the set of marker genes: fold-change, p-value, and frequency of selections by the SVM-RFE classifier. The fold-change and p-value were computed for each gene. The p-values were computed based on 100,000 permutations using the t-statistic with unequal variances. When a tie occurs, the t-statistic is used to break the tie. The SVM-RFE method was used to rank the discriminatory power of a gene using a 10-fold cross-validation method. Briefly, the entire data set was divided into 10 subsets (6 or 7 samples per subset) of roughly equal size. The SVM-RFE was trained with a selection of 'eight' optimal genes on the 9 (= 10-1) subsets (either 56 or 55 samples) together and then applied to the remaining subset as the test data set.

The classification rule is iterated 10 times to complete an analysis of entire data set. The entire process was repeated 250 times each time the 62 samples were randomly partitioned into 10 subsets. The frequency of selections for the 2000 genes over the 2500 replicates were calculated as the 3rd selection criterion.

The colon data set has been analyzed extensively by many researchers using various gene selection and/or classification procedures (e.g., [5, 6, 8, 9]). The classification accuracy rates reported from various V-fold cross-validations, where V = 2, 3, 5, 10, and 62, are between 70% to 89%. The average accuracy rate in our 250 10-fold cross-validations by the SVM-RFE is 84.6% for selecting 8 genes. The accuracy rates are 85.3% and 87.6% for selecting 16 and 32 genes, respectively. These accuracy rates are comparable or better than most of reported results in the literature.

Table 1 shows the p-values (P-val), fold-change (FC), frequency (FQ) and their univariate rankings for the top 50 p-value ranked genes. Note that the frequency ranking only has 47 categories; 1926 genes have never been selected. It can be seen that the three ranking criteria give very different gene lists. Among those top 50 p-value ranked genes, 29 and 21 are in the top 50 lists ranked by the fold-change and frequency, respectively. The fold-change and p-value rankings have a better agreement because they both measure the fold-change except that p-value ranking adjusts for the variability of the fold-change across arrays.

Table 1 One-Dimensional Ranks for Colon Data set

Two-Dimensional Layer Ranking: Fold-change and p-value

The volcano plot (e.g., [10]) has been used to summarize the two ranking schemes. The volcano plot is a plot of the p-value (-log10p) versus fold-change (FC). The genes on the upper left or upper right corners represent small p-vales with large fold changes (Figure 1). On the other hand, the genes on the upper middle have small fold-changes, but, having small p-values, these genes will not be on the top list by the fold-change ranking. Similarly, the gene on the lower left or lower right have large fold-changes, but, with larger p-values, these genes will not be on the top list by the p-value ranking. The layer-ranking algorithms take all these genes into account.

Figure 1

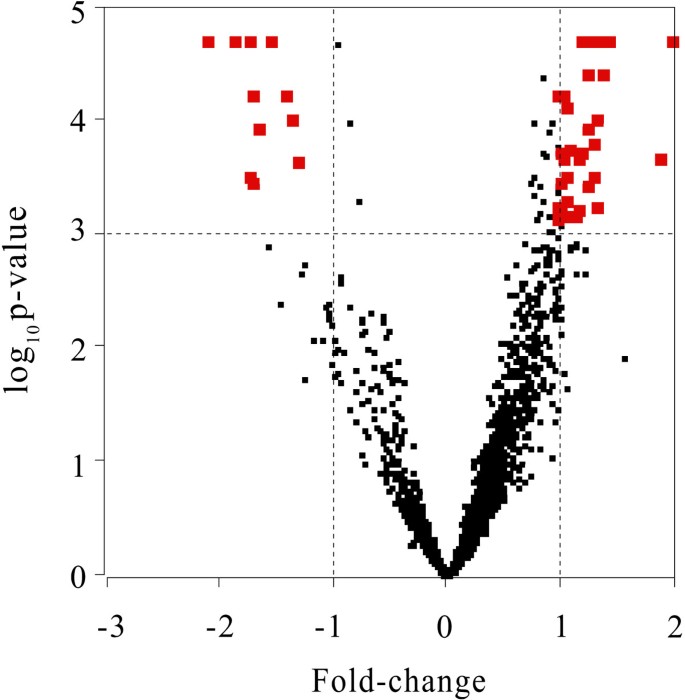

Volcano Plot for Colon Data set. Volcano plot for the 2000 genes from the colon cancer data. The x-axis is the fold-change value and y axis is - log10 p-value, based on 50,000 permutations. Using the absolute 2-fold change and p-value 0.001 as the threshold cutoff, forty five genes in the upper left and upper right are selected.
