Kismeth: Analyzer of plant methylation states through bisulfite sequencing
BMC Bioinformatics volume 9, Article number: 371 (2008)
There is great interest in probing the temporal and spatial patterns of cytosine methylation states in genomes of a variety of organisms. It is hoped that this will shed light on the biological roles of DNA methylation in the epigenetic control of gene expression. Bisulfite sequencing refers to the treatment of isolated DNA with sodium bisulfite to convert unmethylated cytosine to uracil, with PCR converting the uracil to thymidine followed by sequencing of the resultant DNA to detect DNA methylation. For the study of DNA methylation, plants provide an excellent model system, since they can tolerate major changes in their DNA methylation patterns and have long been studied for the effects of DNA methylation on transposons and epimutations. However, in contrast to the situation in animals, there aren't many tools that analyze bisulfite data in plants, which can exhibit methylation of cytosines in a variety of sequence contexts (CG, CHG, and CHH).
Kismeth http://katahdin.mssm.edu/kismeth is a web-based tool for bisulfite sequencing analysis. Kismeth was designed to be used with plants, since it considers potential cytosine methylation in any sequence context (CG, CHG, and CHH). It provides a tool for the design of bisulfite primers as well as several tools for the analysis of the bisulfite sequencing results. Kismeth is not limited to data from plants, as it can be used with data from any species.
Kismeth simplifies bisulfite sequencing analysis. It is the only publicly available tool for the design of bisulfite primers for plants, and one of the few tools for the analysis of methylation patterns in plants. It facilitates analysis at both global and local scales, demonstrated in the examples cited in the text, allowing dissection of the genetic pathways involved in DNA methylation. Kismeth can also be used to study methylation states in different tissues and disease cells compared to a reference sequence.
DNA methylation involves the conversion of cytosine to 5-methylcytosine, which results from the action of DNA methyltransferases (DNMTs) . DNA methylation occurs in different sequence contexts in different organisms. In H. sapiens and other mammals, it is believed that DNA methylation occurs mainly in the cytosines of CG dinucleotides .
In plants, DNA methylation is critical for parental imprinting, the regulation of embryogenesis, transposon silencing and for seed viability [3–5]. It has been shown that different pathways are involved in the methylation of cytosines in three different contexts; CG, CHG (C followed by a non-G followed by a G) and CHH (C followed by two non-Gs) . Plants share some of the key elements of the DNA methylation machinery with mammals, but additionally contain plant-specific pathways as well. Plants can tolerate mutations in the DNA methylation pathways, that are embryonic lethal in mammals (e.g. DNMT1), and therefore provide a powerful model system for the study of methylation.
The ability to measure DNA methylation efficiently and accurately is essential for understanding the mechanisms of the processes that lead to DNA methylation. Various techniques have been developed to detect and quantify DNA methylation. Bisulfite sequencing is becoming the gold standard in methylation studies, since it provides both high resolution in sequence and a quantitative measure of DNA methylation at specific loci [6, 7].
Bisulfite sequencing involves bisulfite treatment of single stranded DNA that converts unmethylated cytosines (C's) into uracil while methylated C's remain unconverted. After treatment, the region of interest is PCR amplified, and the PCR product is cloned and sequenced. The PCR amplification of the converted C (to uracil) will result in the replacement of uracil with thymine. By comparing the sequence of the bisulfite-treated DNA with that of untreated DNA, the methylation profile is determined: conversion of a C to T indicates non-methylated C's; in contrast, the absence of C to T conversion indicates protection by the methyl moiety of the C and hence methylation. In a standard bisulfite treatment, thus, several sequencing runs/clones are sampled per sequence. This makes the analysis of the data complex.
Most of the extant web-based tools are designed specifically for mammals, and are, therefore, unable to detect methylation outside the CG context. Currently, the only available tool for the analysis of bisulfite converted DNA in plants is CyMATE . Although this tool provides ample analyses, Kismeth provides additional useful features such as the ability to design primers for PCR amplification of bisulfite-treated DNA, analysis of individual sequenced reads and facilitates the bulk analysis of the many sequences associated with bisulfite-treated methylation detection.
Results and discussion
The C at any particular position may not be completely methylated in any given tissue, which is a measure of the intrinsic variability. In addition, bisulfite treatment can lead to incomplete conversion, which is the extrinsic noise introduced by the act of measurement. Thus, in order to get a measure of the DNA methylation level, a large number of individual clones of PCR products from multiple biological replicates need to be analyzed. Kismeth is one of a few web-based programs that can perform such an analysis, especially for plants.
In this section, we describe Kismeth, then its use in two pilot studies and conclude with a comparison to other tools that can be used to analyze bisulfite sequencing.
We describe here the two tools included in Kismeth, the analyser of bisulfite sequencing data and the designer of bisulfite sequencing primers.
Bisulfite sequencing analyzer
Kismeth requires two fasta-format files, one file containing the reference sequence and the other containing the results of bisulfite sequencing. The reference sequence should be the minimal sequence (not including the PCR primers) between the flanking PCR primers. There are no restrictions on the lengths of sequences other that the limits placed by the sequencing technologies, the software works well for hundreds of sequences, but very large numbers can lead to the website stalling [6, 7].

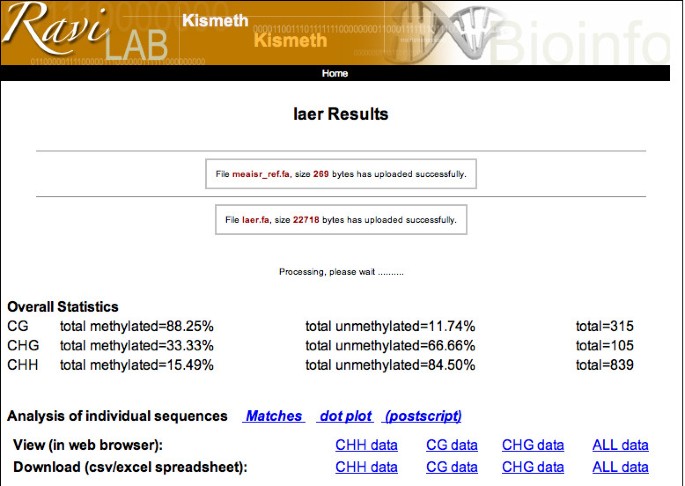

Both files are uploaded on the front page shown in figure 1. Example files from the pilot study described in the application section are available through a link on the front page of Kismeth. The question mark on the front page provides a manual (or answers to questions) for the tool. Kismeth will perform the analysis and return a synopsis table and graph, shown in figures 2 and 3, summarizing the statistics for the sequence as a whole. The graph shows the fraction of methylation at each cytosine position along the reference sequence, allowing a quick estimate of the rates of methylation in different regions (Figure 3). The data underlying the graph, the methylation states of various kinds of cytosines in the sequence, is also available either for browsing on the web (the View links) or as downloadable comma separated value (csv) files (the download links) which can be imported into spreadsheet programs.

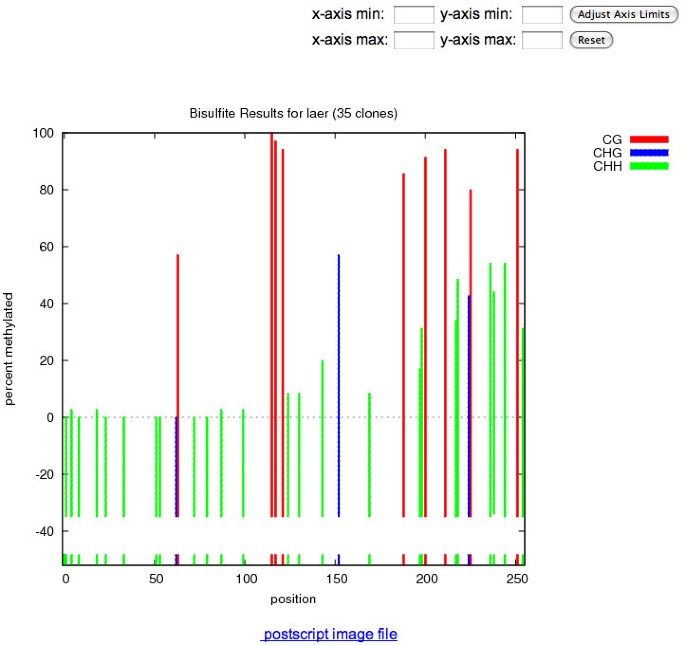

In addition, two kinds of detailed reports, on a sequence-by-sequence basis, are accessible through the Matches and dot plot links on the synopsis page (shown in figure 2). The detailed matches view highlights the various kinds of cytosines in the sequence and the result of the bisulfite treatment (figure 4) allowing the user to study individual alignments to estimate the quality of the sequencing effort that can lead to mismatches (besides the C to T conversions). The dot plot shows only the cytosines as circles, colored according to the type of cytosine (red for CG, blue for CHG and green for CHH), with filled circles representing methylated cytosines and empty circles representing un-methylated cytosines (figure 5). The program parameters, described in the algorithm section, can be changed on the front page of Kismeth. Kismeth also generates postscript files for various figures, which can be downloaded for use in publications.
Bisulfite Primer Design
Kismeth also provides the option to design primers for methylation analysis of a particular region. The link for the primer design program on the front page (Figure 1) leads to the primer design front page (Figure 6). Here, the user can upload a reference sequence file, specify the length of the PCR product and the desired Tm (approximate), and Kismeth will provide a list of optional primers based on their predicted efficiency. The user can also choose to design primers for the reverse complement of the input sequence, and thus interrogate both DNA strands. The results are presented as a table (figure 7).
Application of Kismeth
We used Kismeth to analyze data from two experiments in Arabidopsis thaliana. The first study demonstrates the loss of DNA methylation of an AtMu1 transposon in a mutant background, leading to epigenetic reactivation . The second study is of the global effect of ARGONAUTE-4, which is necessary for CHG DNA methylation in A. thaliana . Our aim in these pilot studies is to demonstrate Kismeth's ability to analyze such data in meaningful ways. The biology relevant to these pilot studies is described more extensively in other publications.
DNA methylation of an AtMu1 transposable element
Our first pilot study was the use of Kismeth to study methylation data for an AtMu1 locus of A. thaliana (At4g08680). This transposon is epigenetically silenced by DNA methylation . A decrease in DNA methylation1 (ddm1) mutant background induces a genome-wide decrease in DNA methylation . The AtMu1 locus shows a decrease of DNA methylation in the ddm1 mutant background .
We generated bisulfite data from wild type A. thaliana plants (Columbia-0, Col-0), and the ddm1 mutant for the AtMu1 5' terminal inverted repeat using PCR primers generated by the primer design tool in Kismeth. As can be seen in Figure 8, changes are apparent in the overall methylation between cytosines of all sequence contexts in the ddm1 mutant.
Using the Matches link we can see that even though some of our clones had one or two mismatches, the overall quality was satisfactory. As can be seen in Figure 9, the dot plot shows that although there is an overall reduction of methylation in the ddm1 mutant, there are two clones in the ddm1 background that show wt-like levels of DNA methylation.
The overall decrease in methylation that is evident in Figure 8 can be the result of either a general reduction in methylation levels in each plant or cell, or a complete loss of methylation in some plants/cells and retention of WT levels in others. Figure 9 clearly shows that the latter is correct.
To asses our background non-conversion level we used At2g20610, a gene that is known to be unmethylated in WT. We have provided the data in the example data sets that can be downloaded from the website, it does show that the effect we are seeing is not an experimental artefact.
Role of Argonaute-4 in DNA methylation
As a second pilot study, to study global effects of the DNA methylation pathway, we prepared genomic DNA from A. thaliana wild type (Landsberg erecta, La-er) and an RNAi mutant ago4-1. Treated DNA was then used for PCR amplification of MEA-ISR, a repetitive element .
In our experiment, La-er and ago4-1 had 35 and 36 clones sequenced, respectively. These two sets of sequences were then analyzed using Kismeth. The analysis generated by Kismeth was in full agreement with what has been shown previously .
In the wild type plant, high levels of methylated Cs in CG, CHG, and CHH contexts were observed (the example datasets called Laer that can be downloaded from the Kismeth website); whereas those in ago4-1 (example dataset available on the Kismeth website, labeled ago4-1) have a decrease in CHG and CHH methylation, with CG methylation unchanged (Figure 10). The dot plots shown in Figure 11 agree with the observations from Figure 10, that there is a reduction in CHG and CHH methylation by comparing the graphs for the two datasets. Thus, Kismeth allows for a quick evaluation of biologically-relevant, global methylation changes.
Advantages of Kismeth
There are several programs designed to analyze bisulfite sequencing data, CyMATE  is the web-based program that comes closest to Kismeth in terms of functionality and applicability to plant data. We list a few user-friendly features in which Kismeth differs from CyMATE.
Preparation of Input sequences. Kismeth does not require pre-alignments and the reference sequence must be uploaded separately from the clone sequences. CyMATE takes as input the alignment from ClustalW of the vector-trimmed sequences, with the reference sequence always being the first one.
Interactive use of the browser. Kismeth presents the results on the browser and alerts users to problems, while CyMATE sends the results via email, some errors, such as incorrect data formats, are indicated via the website.
Organization of reports and graphs. Kismeth provides graphical output for various aggregate measures as well as raw data files in the form of downloadable, spreadsheet-compatible files whereas CyMATE provides only the dot plot and leaves some of the tables in log files.
Analysis of individual reads. Kismeth provides a custom viewer (through the Matches function) for the study of alignments of the clones against the reference sequence, finding non C/T mismatches and scoring the quality of each read separately, no such facility exists in CyMATE.
Design of primers. Kismeth is the only tool for bisulfite primer design for plants.
In animals, DNA methylation is involved in various developmental processes and its dysregulation can cause developmental abnormality and diseases including cancer . In plants, it is critical for parental imprinting, the regulation of embryogenesis, transposon silencing and for seed viability . Detection and measurement of DNA methylation has become an essential component for studying the biology of these processes. Kismeth is a convenient tool for processing data from bisulfite sequencing, the most commonly used method to examine DNA methylation. In all cases, appropriate controls that are not methylated need to also be studied to ensure that there are no systematic biases in the experiments.
Though high-throughput techniques are being developed for the detection of DNA methylation, their validation, for the most part, still relies on traditional bisulfite sequencing . Therefore, tools like Kismeth are still essential for the study of DNA methylation.
We describe here the software underlying Kismeth, as well as the algorithms. We also provide details on the experimental methods used in our pilot studies. The use of the tool is described in the Results and Discussion section.
Kismeth Algorithms and software
The central analysis in Kismeth is the alignment of the bisulfite-treated reads against the reference sequence. This requires that C's in the reference sequence be allowed to align against T's in the bisulfite-treated reads, without a penalty. If a standard, BLASTn-type alignment were used, then regions with a large number of unmethylated C's would not align with the reference sequence, since they would be converted to T's under bisulfite treatment.
One possiblity is to use protein alignment programs, with a custom scoring matrix. We used a banded smith-waterman based alignment program, cross_match , by modifying the scoring matrix, so that it allows alignment of C's from the reference sequence against T's from the treated sequences.
The sequenced read, as well as its reverse complement, is aligned against the reference sequence, only one of them will align properly, unless the read is of poor quality. Poor alignments, either in terms of the length of match (lengths less than 50 percent of the reference sequence length), or quality of match (less than 80% positive match in the alignment) are not considered for the analysis. These parameters (called min. fraction of length and min. fraction of positive matches) can be modified on the Kismeth website.
The portion of reference sequence used for analysis can be modified using the start of match and end of match variables. Sequence ends might have poorer sampling, since the quality of the reads at the ends is usually lower than in the middle, thus care must be taken in inferring position-dependent methylation. The program first identifies the various kinds of C's on the reference sequence (CG, CHG, and CHH). The output of cross_match is parsed by the program and a report is generated, that holds a synopsis for each alignment that is accepted, the alignments, as well as the identities of the various C's in the alignment. This is the central report file that is used to generate various reports and graphs.
The first reports are the gross analysis for the three types of C's in the sequence, which is compiled from the central report file and is shown on the results page. This allows a quick appraisal to see if there is any particular bias in the kinds of C's that get methylated.
A special display program, using the central report file, generates a browseable view of the individual matches. This is available through the Matches link on the results page. Various kinds of C's are highlighted using appropriate colors, and the number of mismatches is listed at the top to indicate the overall quality of the match. The start and end of the match on the reference sequence is also shown. This allows access to individual alignments.

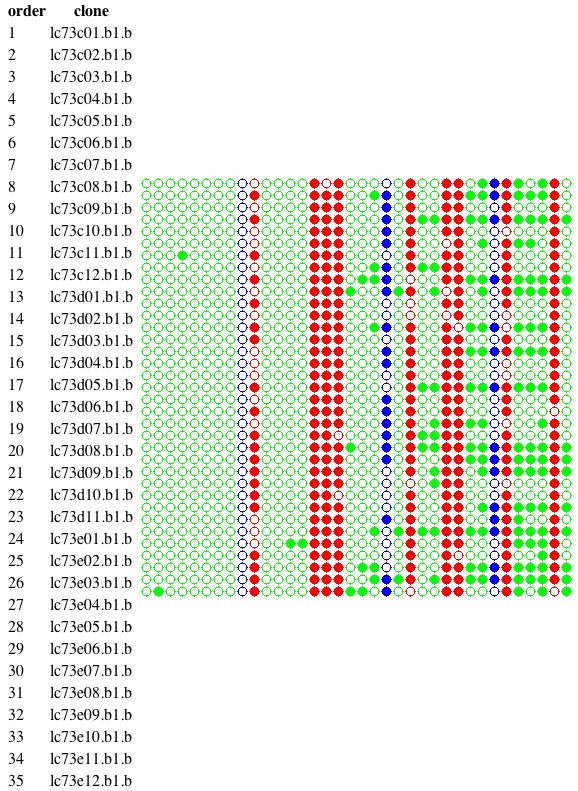

Another special display program, again using the central report file, generates a dot plot. The dot plot shows only the C's in the reference sequence using appropriately colored circles. Each row represents a read. Open circles are used to represent unmethylated C's while filled circles represent methylated C's. The central report file is also used to generate data files that are used for the plot shown in the figure. The plot is generated using gnuplot, an open source program http://www.gnuplot.info. We have devised a program that allows zooming into the graph to study details that might not be apparent in the large-scale view of the graph. Separate programs use the same files to generate the table and excel view for the detailed reports on a site-by-site basis.
Bisulfite Primer Design
The melting temperature (Tm) of the primers is calculated using a crude approximation,Tm = 64.9 + 41 * (number of G's and C's - 16.4)/N
where N is the length of the primer.
The primers are designed using bisulfite limitations. The software minimizes the C's in the forward primer and the G's in the reverse primer, and does not allow any C in the five bases at the 3' end of the forward primer (or G's in the five bases at the 3' end of the reverse primer).
The forward primers are ranked by the number of C's, with the highest ranking primer being the one with the least number of C's. In addition, the number of C's has to be less than three and not occur in the five bases at the 3' end. If two primers have the same number of C's then the one with the higher Tm is ranked higher. For the reverse primers, the number of G's are limited and they are ranked in a similar manner to the forward primers. The C's in the forward primers are replaced with Y (C/T) and the G's in the reverse primers are replace with R (A/G). Pairs of primers are then chosen by picking one from each set, such that they lie within the product length ranges entered by the user.
For the pilot study on the AtMu1 transposable element, the QIAGEN EpiTech bisulfite kit was used according to manufacturer directions. The primer sequences were designed using Kismeth; the forward read primer pair is AATTTTATGGAATGAAGTTATATG and TTCTCATACARTRRCTTCAATTT, while for the other strand, the primer pair is ATAYAGTGGYTTYAATTTGGGTT and RAAAAATATTTRAAAATAACAAAATAAT. The amplified sequences were cloned into a vector using the TOPO TA cloning kit from Invitrogen.
For the pilot study on the effect of Argonaute-4 on DNA methylation, the EZ DNA Methylation-Gold kit was used for bisulfite treatment of genomic DNA according to the manufacturer's instructions (ZYMO Research). We used published primer sequences for MEA-ISR, JP1026 AAAGTGGTTGTAGTTTATGAAAGGTTTTAT and JP1027 CTTAAAAAATTTTCAACTCATTTTTTTTAAAAAA . The PCR products were cloned into pGEM-T easy vector (Promega).
The primers for the control gene (At2g20610) used in the AtMu1 study are GTTGYTGATTATATGAAYYGAGATYTT (forward) and TTAATTACAACCATARCCACARTRTTCTC (reverse).
Availability and requirements
Chan SW, Henderson IR, Jacobsen SE: Gardening the genome: DNA methylation in Arabidopsis thaliana. Nat Rev Genet 2005, 5: 351–60. 10.1038/nrg1601
Bird A: DNA methylation patterns and epigenetic memory. Genes Dev 2002, 16(1):6–21. 10.1101/gad.947102
Jullien P, Kinoshita T, Ohad N, Berger F: Maintenance of DNA methylation during the Arabidopsis life cycle is essential for parental imprinting. Plant Cell 2006, 18: 1360–1372. 10.1105/tpc.106.041178
Xiao W, Custard K, Brown RC, Lemmon BE, Harada JJ, Goldberg RB, Fischer RL: DNA methylation is critical for Arabidopsis embryogenesis and seed viability. Plant Cell 2006, 18: 805–814. 10.1105/tpc.105.038836
Miura A, Yonebayashi S, Watanabe K, Toyama T, Shimada H, Kakutani T: Mobilization of transposons by a mutation abolishing full DNA methylation in Arabidopsis. Nature 2001, 411(6834):212–4. 10.1038/35075612
Frommer M, McDonald L, Millar D, Collis C, Watt F, Grigg G, Molloy P, Paul C: A genomic sequencing protocol that yields a positive display of 5-methylcytosine residues in individual DNA strands. Proc Natl Acad Sci USA 1992, 89: 1827–1831. 10.1073/pnas.89.5.1827
Clark S, Harrison J, Paul C, Frommer M: High sensitivity mapping of methylated cytosines. Nucleic Acids Res 1994, 22: 2990–2997. 10.1093/nar/22.15.2990
Hetzl J, Foerster AM, Raidl G, Mittelsten SO: CyMATE: a new tool for methylation analysis of plant genomic DNA after bisulphite sequencing. Plant J 2007, 51(3):526–36. 10.1111/j.1365-313X.2007.03152.x
Singer T, Yordan C, Martienssen RA: Robertson's Mutator transposons in A. thaliana are regulated by the chromatin-remodeling gene Decrease in DNA Methylation (DDM1). Genes Dev 2001, 15(5):591–602. 10.1101/gad.193701
Zilberman D, Cao X, Jacobsen SE: ARGONAUTE4 control of locus-specific siRNA accumulation and DNA and histone methylation. Science 2003, 299: 716–719. 10.1126/science.1079695
Lippman Z, Gendrel AV, Vaughn MBM, Dedhia N, McCombie WR, Lavine K, Mittal V, May B, Kasschau KD, Carrington JC, Doerge RW, Colot V, Martienssen R: Role of transposable elements in heterochromatin and epigenetic control. Nature 2004, 430(6998):471–6. 10.1038/nature02651
Cao X, Jacobsen SE: Locus-specific control of asymmetric and CpNpG methylation by the DRM and CMT3 methyltransferase genes. Proc Natl Acad Sci USA 2002, 99: 16491–16498. 10.1073/pnas.162371599
Jones PA, Baylin SB: The fundamental role of epigenetic events in cancer. Nature Reviews Genetics 2002, 3: 415–428. 10.1038/nrg962
Bender J: DNA methylation and epigenetics. Annu Rev Plant Biol 2004, 55: 41–68. 10.1146/annurev.arplant.55.031903.141641
Taylor KH, Kramer RS, Davis JW, Guo J, Duff DJ, Xu D, Caldwell CW, Shi H: Ultradeep Bisulfite Sequencing Analysis of DNA Methylation Patterns in Multiple Gene Promoters by 454 Sequencing. Cancer Research 2007, 67: 8511–8518. 10.1158/0008-5472.CAN-07-1016
Ewing B, Hillier L, Wendl M, Green P: Basecalling of automated sequencer traces using phred. I. Accuracy assessment. Genome Research 1998, 8: 175–185.
Milos Tanurdzic, Vladimir Grubor, Julius Brennecke and Rob Lucito helped improve the paper in a variety of ways. The anonymous reviewers helped improve the tool and the paper substantially.
YQ suggested the need for a plant-specific tool and helped with the initial design, ago4-1 data, testing and writing. EG suggested the need for a dot plot, helped fixed many problems, improved the tool and the writing substantially. RKS edited the manuscript, suggested the primer design program as well as several improvements to the tool in addition to sequencing the AtMu1 5' TIR in ddm1 and WT. RAM helped with the manuscript and gave the initial impetus for a bisulfite analysis tool. TR designed several aspects of the website. RS designed the tool, created the software and wrote the manuscript. All authors read and approved the final manuscript.
Eyal Gruntman, Yijun Qi, R Keith Slotkin contributed equally to this work.
