A discriminative method for protein remote homology detection and fold recognition combining Top-n-grams and latent semantic analysis
BMC Bioinformatics volume 9, Article number: 510 (2008)
Protein remote homology detection and fold recognition are central problems in bioinformatics. Currently, discriminative methods based on support vector machine (SVM) are the most effective and accurate methods for solving these problems. A key step to improve the performance of the SVM-based methods is to find a suitable representation of protein sequences.
In this paper, a novel building block of proteins called Top-n-grams is presented, which contains the evolutionary information extracted from the protein sequence frequency profiles. The protein sequence frequency profiles are calculated from the multiple sequence alignments outputted by PSI-BLAST and converted into Top-n-grams. The protein sequences are transformed into fixed-dimension feature vectors by the occurrence times of each Top-n-gram. The training vectors are evaluated by SVM to train classifiers which are then used to classify the test protein sequences. We demonstrate that the prediction performance of remote homology detection and fold recognition can be improved by combining Top-n-grams and latent semantic analysis (LSA), which is an efficient feature extraction technique from natural language processing. When tested on superfamily and fold benchmarks, the method combining Top-n-grams and LSA gives significantly better results compared to related methods.
The method based on Top-n-grams significantly outperforms the methods based on many other building blocks including N-grams, patterns, motifs and binary profiles. Therefore, Top-n-gram is a good building block of the protein sequences and can be widely used in many tasks of the computational biology, such as the sequence alignment, the prediction of domain boundary, the designation of knowledge-based potentials and the prediction of protein binding sites.
Protein homology detection is one of the most intensively researched problems in bioinformatics. Researchers are increasingly depending on computational techniques to classify proteins into functional or structural classes by means of homologies. Most methods can detect homologies at high levels of sequence similarity, while accurately detecting homologies at low levels of sequence similarity (remote homology detection) is still a challenging problem.
Many powerful methods and algorithms have been proposed to address the remote homology detection and fold recognition problems. Some methods are based on the pairwise similarities between protein sequences. Smith-Waterman dynamic programming algorithm  finds an optimal score for similarity according to a predefined objective function. RANKPROP  relies upon a precomputed network of pairwise protein similarities. Some heuristic algorithms, such as BLAST  and FASTA  trade reduced accuracy for improved efficiency. These methods do not perform well for remote homology detection, because the alignment score falls into a twilight zone when the protein sequences similarity is below 35% at the amino acid level . Later methods challenge this problem by incorporating the family information. These methods are based on a proper representation of protein families and can be split into two groups : generative models and discriminative algorithms. Generative models provide a probabilistic measure of association between a new sequence and a particular family. These methods such as profile hidden Markov model (HMM)  can be trained iteratively in a semi-supervised manner using both positively labeled and unlabeled samples of a particular family by pulling in close homology and adding them to the positive set . The discriminative algorithms such as Support Vector Machines (SVM)  provide state-of-the-art performance. In contrast to generative models, the discriminative algorithms focus on learning a combination of the features that discriminate between the families. These algorithms are trained in a supervised manner using both positive and negative samples to establish a discriminative model. The performance of SVM depends on the kernel function, which measures the similarity between any pair of samples. There are two approaches for deriving the kernel function. One approach is the direct kernel, which calculates an explicit sequence similarity measure. Another approach is the feature-space-based kernel, which chooses a proper feature space, represents each sequence as a vector in that space and then inner product (or a function derived from it) between these vector-space representations is taken as a kernel for the sequences .
LA kernel  is one of the direct kernel functions. This method measures the similarity between a pair of protein sequences by taking into account all the optimal local alignment scores with gaps between all possible subsequences. Another method is SW-PSSM  which is derived directly from explicit similarity measures and utilizes sequence profiles. The experiment results show that this kernel is superior to previously developed schemes.
SVM-Fisher  is one of the early attempts with the feature-space-based kernel, This method represents each protein sequence as a vector of Fisher scores extracted from a profile hidden Markov model (HMM) for a protein family. SVM-pairwise  is another successful method, in which each protein sequence is represented as a vector of pairwise similarities to all protein sequences in the training set. The SVM-I-sites method  compares sequence profiles to the I-sites library of local structural motifs for feature extraction. Later, this method is improved by using the order and relationships of the I-site motifs . SVM-BALSA  represents each protein sequence by a vector of Bayesian alignment scores associated with each training sample. The feature spaces in Spectrum kernel  consist of all short subsequence of length k ("k-mers"). SVM-n-peptide  improves Spectrum kernel by using reduced amino acid alphabets to reduce the dimensions of the feature vectors. Mismatch kernel  considers a k-mer to be present if a sequence contains a substring which differs with the k-mer at most a predefined number of mismatches. Profile kernel  considers a k-mer to be present if a sequence contains a substring whose PSSM-based ungapped alignment score with the k-mer is above a predefined threshold. Lingner and Meinicke  notice the distances between k-mers and introduce a feature vector based on the distances between the k-mers. The feature vector of eMOTIF kernel  is based on motifs extracted with the unsupervised eMOTIF method  from the eBLOCKS database . GPkernel  is another motif kernel based on discrete sequence motifs, which are evolved using genetic programming. SVM-HUSTLE  builds a SVM classifier for a query sequence by training on a collection of representative high-confidence training sets, recruits additional sequences and assigns a statistical measure of homology between a pair of sequences.
Multiple sequence alignments of protein sequences contain a lot of evolutionary information. This information can be obtained by analyzing the output of PSI-BLAST [26, 27]. Since the protein sequence frequency profile is a richer encoding of protein sequences than the individual sequence, it is of great significance to use such evolutionary information for protein remote homology detection and fold recognition. In our previous study, we introduced a feature vector of protein sequence based on binary profiles  which contain the evolutionary information of the protein sequence frequency profiles. The protein sequence frequency profiles are converted into binary profiles with a probability threshold. In detail, when the frequency of a given amino acid is higher than the threshold it is converted into an integral value 1, otherwise it is converted into 0. Binary profile can be viewed as a building block of proteins. It has been successfully applied in many computational biology tasks, such as the domain boundary prediction , the knowledge-based mean force potentials  and the protein binding sites prediction . Although the methods based on binary profiles give exciting results, binary profiles have several shortcomings. Firstly, the threshold which is used to convert the protein sequence frequency profiles into binary profiles is set by experience. Because there is no systematic method that could be used to optimize the threshold, there is no guarantee to find the best threshold. Secondly, binary profiles cannot discriminate the amino acids with different frequencies in the protein sequence frequency profiles. The amino acids whose frequencies are higher than the threshold are all converted into 1, which omits that these amino acids have different frequencies and different importance during evolutionary processes.
To overcome these shortcomings, in this study we present a novel building block of proteins called Top-n-grams to use the evolutionary information of the protein sequence frequency profiles and apply this novel building block to remote homology detection and fold recognition. The protein sequence frequency profiles calculated from the multiple sequence alignments outputted by PSI-BLAST  are converted into Top-n-grams by combining the n most frequent amino acids in each amino acid frequency profile. The protein sequences are transformed into fixed-dimension feature vectors by the occurrence times of each Top-n-gram and then the corresponding vectors are inputted to SVM. In our previous studies [28, 32], we applied LSA  to protein remote homology detection. Several basic building blocks have been investigated as the "words" of "protein sequence language", including N-grams , patterns , motifs  and binary profiles . Here, we also demonstrate that the use of LSA on Top-n-grams can improve the prediction performance of both remote homology detection and fold recognition.
Results and discussion
Comparative results of various methods
We compare our method with many other methods. Table 1 and Table 2 compare the performance of the method proposed in this paper against that achieved by a number of previously developed methods for remote homology detection and fold recognition. In the case of remote homology detection, the performance is compared against PSI-BLAST , pairwise , LA  and four building-block-based methods (N-gram , pattern , motif  and binary profiles ). For detailed setup procedures of these methods, please refer to our previous studies [28, 32]. We also include the results of two state-of-the-art methods, Profile  and SW-PSSM . In the case of fold recognition, we include results of LA , PSI-BLAST , pairwise , GPkernel , Mismatch , eMOTIF , binary profiles , Profile  and SW-PSSM .
The influence of n on remote homology and fold recognition
Top-n-grams are generated by combining the n most frequent amino acids in the amino acid frequency profiles (see method section for details). Here, we investigate the influence of n on the prediction performance. As shown in Table 1 and Table 2, in terms of the ROC50 scores, the rates indicate that our method performs well for n = 1 and n = 2 and with a slight decrease of the ROC50 score for n = 3. The third most frequent amino acids in the amino acid frequency profiles are less likely to occur in the specific sequence positions during evolutionary processes, which might be the reason for the decrease of the prediction performance for n = 3.

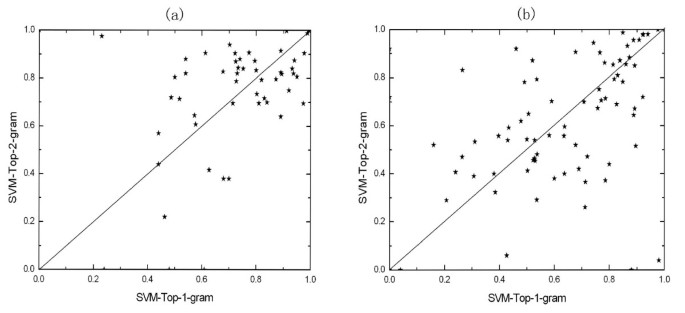

We plot Top-1-grams's ROC50 scores against Top-2-grams's ROC50 scores on all the test sets for the SCOP 1.53 superfamily benchmark and SCOP 1.67 fold benchmark (Figure 1). This figure show that the two building blocks are complementary, so they can be combined to create a new building block of proteins to solve remote homology detection and fold recognition problems. In detail, the protein sequences are transformed into fixed-dimension feature vectors by the occurrence times of each Top-n-gram in Top-1-grams and Top-2-grams. Therefore, these vectors are the combinations of the corresponding vectors of the method based on Top-1-grams and the ones of the method based on Top-2-grams. The dimension of the combined feature vector is 420 (20+400). Compared with the best ROC50 scores achieved by the method based on single building block, the ROC50 scores of the method based on the combined building block are 5 percent and 2.8 percent higher for remote homology detection and fold recognition, respectively.
LSA can improve the performance of building-block-based methods for both remote homology and fold recognition problems
The latent semantic analysis  is used on Top-n-grams to remove noise and compress data. Figure 2(a) shows the family-by-family comparison of the ROC scores between the method with LSA and without LSA when Top-n-grams are taken as the basic building blocks on SCOP 1.53 superfamily benchmark. Each point on the figure corresponds to one of the tested families. When the families are in the left-upper area, it means that the method labelled by y-axis outperforms the method labelled by x-axis on this family. Figure 2(b) shows the superfamiy-by-superfamily comparison of the ROC scores on SCOP 1.67 fold benchmark. Obviously, when Top-n-grams are taken as the building blocks, the method with LSA outperforms the method without LSA for both remote homology detection and fold recognition. As shown in Table 1, when LSA is applied, performance improvement is also observed for the methods using N-grams, patterns, motifs and binary profiles as the building blocks.
The method based on Top-n-gram significantly outperforms the other building-block-based methods and most existing methods
Our method significantly outperforms the other building-block-based methods and most existing methods, except Profile and SW-PSSM. Figure 3 shows the relative performance of the compared methods on the SCOP 1.53 superfamily benchmark. SVM-Top-n-gram-combine-LSA significantly outperforms the four building-block-based methods in terms of ROC scores (p-values of 3e-9, 2e-5, 1e-5 and 0.004 – Wilcoxon signed-rank test with Bonferroni correction – for SVM-Ngram-LSA, SVM-Pattern-LSA, SVM-Motif-LSA and SVM-Bprofile-LSA) and ROC50 scores (p-values of 4e-6, 0.0006, 4e-6 and 0.009). SVM-Top-n-gram-combine-LSA also has significantly higher ROC scores than PSI-BLAST and SVM-Pairwise (p = 2e-9 and 8e-5) and significantly higher ROC50 scores than PSI-BLAST, SVM-Pairwise and SVM-LA (p = 4e-8, 3e-8 and 0.02), but SVM-Top-n-gram-combine-LSA and SVM-LA's ROC scores are not significantly different (p = 0.9). In terms of ROC scores Profile is significantly better than SVM-Top-n-gram-combine-LSA (p = 7e-6), but Profile's ROC50 scores are not significantly better than those of SVM-Top-n-gram-combine-LSA (p = 0.4). SW-PSSM is the best method in terms of ROC scores (p = 3e-6) and ROC50 scores (p = 2e-5). By plotting SVM-Top-n-gram-combine-LSA's ROC50 scores against Profile's ROC50 scores on all test sets (Figure 4), we find that the two methods are complementary. This result is not surprising, because the two methods depend on distinct features. Maybe the two methods can be combined to create an improved method for protein remote homology detection by using the method that is recently proposed by Damoulas and Girolami .
Figure 5 shows the relative performance of the compared methods on the SCOP 1.67 fold benchmark. SVM-Top-n-gram-combine-LSA significantly outperforms PSI-BLAST, SVM-Pairwise, Mismatch, eMOTIF and SVM-Bprofile-LSA in terms of ROC scores (p = 2e-15, 3e-10, 0.0001, 1e-11 and 0.001) and ROC50 scores (p = 2e-15, 4e-13, 2e-11, 3e-14 and 0.01). SVM-Top-n-gram-combine-LSA also has significantly higher ROC50 scores than SVM-LA and Gpkernel (p = 8e-8 and 2e-10), but their ROC scores are not significantly different (p = 0.08 and 0.4). Because the SCOP 1.67 fold benchmark is a recently established benchmark, the results of Profile and SW-PSSM are not reported. Furthermore, both the two methods contain several parameters which need to be optimized for different dataset. For fair comparisons, we benchmark our method on Rangwala and Karypis's SCOP 1.53 fold benchmark [10, 36]. Table 3 summarizes SVM-Top-n-gram-LSA's average ROC score and ROC50 score on the 23 test sets and compares the averages to the averages of Profile, SW-PSSM and SVM-Bprofile-LSA. The results confirm SVM-Top-n-gram-LSA has better performance than SVM-Bprofile-LSA (p = 0.3 and p = 0.05 for ROC and ROC50). In terms of ROC scores (p = 5e-4) and ROC50 scores (p = 0.003), the differences between SVM-Top-n-gram-LSA and Profile are significant. SW-PSSM is the best method (p = 2e-4 and 0.04 for ROC and ROC50).
One important aspect of any homology detection method is its computational efficiency. In this regard, SVM-Top-n-gram-combine-LSA is comparable with Profile and more efficient than SVM-Bprofile-LSA, SVM-Pattern-LSA, SVM-Motif-LSA, SVM-pairwise, SVM-LA and SW-PSSM, but a little worse than SVM-Ngram-LSA, PSI-BLAST and the method without LSA.
Table 4 summarizes the time complexities of different SVM-based methods. Any SVM-based method includes a vectorization step and an optimization step . The time complexity of the vectorization step of building-block-based method is O (nml) , where n is the number of training samples, m is the total number of words and l is the length of the longest training sequence. The optimization step of building-block-based method is O (n2m). The time complexities of pre-processing steps for different building-block-based methods are different. For the method based on Top-n-grams, it roughly takes O (n2l) to generate protein sequence frequency profiles by running PSI-BLAST. This running time is also needed for the method based on binary profiles to generate binary profiles. For the method based on N-grams, the time complexity during pre-processing step is O (nl). Patterns are extracted by TEIRESIAS , which roughly takes O (nl lognl+n2l2m) . The running time of running MEME  to discover motifs is O (n2l2W) , where W is the width of the motif. In the current situation, when W = 10, the time complexity of the method based on motifs during pre-processing step is approximately equal to O (n2l2). For the LSA method, it has an additional SVD process, which roughly takes O (nmt) , where t is the minimum of n and m. The optimization step of LSA method is O (n2R), where R is the length of the latent semantic feature vector. Although N-grams have more words than Top-n-grams (Table 5), the time complexity of pre-processing step for SVM-Ngram-LSA is much lower than the time complexity of pre-processing step for SVM-Top-n-gram-combine-LSA (nl <<n2l). Therefore, the total running time of SVM-Ngram-LSA is lower than that of SVM-Top-n-gram-combine-LSA. Compared with the other three building-block-based methods, because Top-n-grams have the least words (Table 5), the method based on Top-n-grams has the lowest running time. The vectorization step of SVM-pairwise takes a running time of O (n2l2) and the optimization step is O (n3), which lead to a total time complexity of O (n2l2) + O (n3). LA-kernel and SVM-pairwise has the same time complexity , so the running time of SVM-Top-n-gram-combine-LSA is lower than SVM-pairwise and SVM-LA. The time complexity of pre-processing step for Profile is the same as the time complexity of pre-processing step for SVM-Top-n-gram-combine-LSA and the calculation of Profile kernel roughly takes O (n2kp+120pl) , where k is the length of short subsequence and p is the number of mismatches in the short subsequence. In the current situation, when k = 5, p = 1 the time complexity of calculation of Profile kernel is approximately equal to O (n2l). Thus, the running time of SVM-Top-n-gram-combine-LSA is comparable with Profile. The time complexity of the pre-processing step for SW-PSSM is the same as the time complexity of the pre-processing step for SVM-Top-n-gram-combine-LSA and the time complexity of calculation of SW-PSSM kernel is O (n2l2). In practice, since m <<nl, the running time ofSVM-Top-n-gram-combine-LSA is lower than SW-PSSM. PSI-BLAST has the lowest running time O (nN), where N is the size of the database. In the current situation, N is approximately equal to nl.
Correlations between Top-n-grams and protein families
One of the main advantages of our method is the possibility to analyze the correlations between Top-n-grams and protein families and reveal biologically relevant properties of the underlying protein families.
In document classification field, the chi-square algorithm is one of the most effective feature selection methods, which is able to select the most discriminative features by their average chi-square scores . According to the above results, Top-2-grams show highly discriminative power. Therefore, the chi-square algorithm is used to measure the correlations between Top-2-grams and protein families and can be compared to the chi-square distribution with one degree of freedom to judge extremeness (see method section for details). The average chi-square score of each Top-2-gram in all the tested families on SCOP 1.53 superfamily benchmark is shown in figure 6(a) and the average chi-square score of each Top-2-gram in all the tested superfamilies on SCOP 1.53 fold benchmark is shown in figure 6(b). According to the darkest spots in the figures, Top-2-gram "KR" has the highest score on superfamily benchmark and Top-2-grams "LI" has the highest score on fold benchmark. Therefore, these two Top-2-grams are selected for further analysis. Figure 7(a) shows the chi-square scores of "KR" in all the 54 tested families on SCOP 1.53 superfamily benchmark. As shown in this figure, "KR" is highly correlated with family 28 (SCOP ID: 184.108.40.206), correlated with family 23, 26 (SCOP ID: 220.127.116.11, 18.104.22.168) and also correlated with family 35, 36, 39, 40, 42 (SCOP ID: 22.214.171.124, 126.96.36.199, 188.8.131.52, 184.108.40.206, 220.127.116.11). The test statistics for "KR" with some other families are above the threshold for statistical significance (p = 0.05), but these scores are considerably lower than the ones listed above. The results indicate that "KR" is highly correlated with specific families and biologically relevant families tend to having similar chi-square scores, indicating "KR" is likely to contain important structural or functional information of the specific families. Similar results are also obtained for fold recognition. Figure 7(b) shows the chi-square scores of "LI" in all the 23 tested superfamilies on SCOP 1.53 fold benchmark. "LI" is highly correlated with superfamily 20 and 21 (SCOP ID: 7.3.1, 7.3.6) and also correlated with superfamily 8, 9 (SCOP ID: 2.32.2, 2.32.3), indicating the importance of "LI" for these biologically relevant superfamilies.
In this study, we present a novel representation of protein sequences based on Top-n-grams and apply the latent semantic analysis to improve the prediction performance of both protein remote homology detection and fold recognition. Top-n-grams make up of a novel building block of protein sequences and the analysis presented here is based on evolutionary information without using any structural information. Compared with other building-block-based methods, such as N-grams, patterns, motifs or binary profiles, additional evolutionary information is extracted from the protein sequence frequency profile. The experiment results show that this additional evolutionary information is relevant for discrimination.
Using standard classifier, the results show that the prediction performance of our method is highly competitive with state-of-the-art methods within the field of remote homology detection and fold recognition. Although Profile and SW-PSSM yield better results, it should be noted that both the two methods comprise several parameters. The performance of Profile depends on a smoothing parameter and the performance of SW-PSSM depends on three parameters: gap opening, gap extension and a continuous parameter zero-shift. The extensive use of parameters bares the risk of adapting the model to particular test set, which complicates a fair comparison of different methods and the application of the methods to different dataset, because new dataset is likely to require readjustment of these parameters . Furthermore, because the performance can decrease for non-optimal values of these parameters, a time-consuming model selection process would be necessary for these methods to achieve optimal results. In contrast, homogeneity of ROC scores for Top-1-grams and Top-2-grams indicates the good generalization performance of our method, which obviates the tuning of any parameter and therefore our method does not require a time consuming optimization and avoids the risk of fitting the data to the test set.
Another advantage of our approach arises from the explicit feature space representation: the possibility to measure the correlations between Top-n-grams and protein families. Compared with other building-block-based methods, Top-n-grams significantly improve the detection performance while preserving the favourable interpretability of the building-block-based methods by an explicit feature space representation. As shown in results and discussion section, our method allows the researchers to analyze the correlations between Top-n-grams and protein families and reveal biologically relevant properties of the underlying protein families. In contrast, direct-kernel-based methods without explicit feature spaces, such as SW-PSSM and SVM-LA, do not provide an intuitive insight into the associated feature space for further analysis of relevant sequence features. Therefore, these kernels do not offer additional utility for researchers who are interested in finding the characteristic features of protein families.
Top-n-grams make up of a novel building block of protein sequences, which contains the evolutionary information extracted from the protein sequence frequency profiles. The results show that this building block has significantly higher discriminative power than many other building blocks. Because this novel building block is able to flexibly represent the proteins at sequence-level and residue-level, it can be used to investigate the whole protein sequence and the individual residue. Many applications of Top-n-grams are conceivable: e.g. the sequence alignment, the prediction of domain boundary, the designation of knowledge-based potentials and the prediction of protein binding sites.
SCOP 1.53 superfamily benchmark
We use a common superfamily benchmark  to evaluate the performance of our method for protein remote homology detection, which is available at http://www.ccls.columbia.edu/compbio/svm-pairwise/. This benchmark has been used by many studies of remote homology detection methods [6, 11, 32], so it can provide good comparability with previous methods. The benchmark contains 54 families and 4352 proteins selected from SCOP version 1.53. These proteins are extracted from the Astral database  and include no pair with a sequence similarity higher than an E-value of 10-25. The proteins with lengths less than 30 are removed, because PSI-BLAST cannot generate profiles on short sequences. For each family, the proteins within the family are taken as positive test samples, and the proteins outside the family but within the same superfamily are taken as positive training samples. Negative samples are selected from outside of the superfamily and are separated into training and test sets.
SCOP 1.67 fold benchmark
A recently established fold benchmark  is used for protein fold recognition. The benchmark contains 3840 proteins and 86 superfamilies. The proteins extracted from SCOP version 1.67 are filtered with Astral database  and contain no pair with a sequence similarity more than 95%. The proteins with lengths less than 30 are removed. For each tested superfamily, there are at least 10 proteins in its positive training and test set. The proteins within one superfamily are taken as positive test samples, while the others in the same fold are taken as positive training samples. The negative test samples are selected from one random superfamily from each of the other folds and the negative training samples are selected from the remaining proteins. Because most of the proteins within a fold have a very low degree of similarity, this fold benchmark is considerably harder than the superfamily benchmark.
SCOP 1.53 fold benchmark
SCOP 1.53 fold benchmark [10, 36] is another fold benchmark used for protein fold recognition. The benchmark contains 23 superfamilies and 4352 proteins selected from SCOP version 1.53. These proteins are extracted from the Astral database  and include no pair with a sequence similarity higher than an E-value of 10-25. Proteins with lengths less than 30 are removed. Proteins within the same superfamily are considered as positive test samples, and proteins within the same fold but outside the superfamily are considered as positive training samples. For each tested superfamilies, there are at least 10 positive training and 5 positive test samples. Negative samples are chosen from outside of the positive sequences' fold and split equally into test and training sets.
Generation of protein sequence frequency profiles
In order to generate Top-n-grams, the protein sequence profiles are calculated in advance. A protein sequence frequency profile can be represented as a matrix M, the dimensions of M are L × N, where L is the length of the protein sequence and N is the number of all standard amino acids, which is a constant value of 20. Each element of M is the target frequency which indicates the probability of an amino acid in a specific position of a protein sequence during evolutionary processes. The rows of M are the amino acid frequency profiles. For each row the elements add up to one. Each column of M corresponds to one of the 20 standard amino acids. The protein sequence frequency profiles are calculated from the multiple sequence alignments outputted by PSI-BLAST . The parameter values of PSI-BLAST are set to default except that the number of iterations is set to 10. The database for PSI-BLAST to search against is nrdb90 database http://www.ebi.ac.uk/~holm/nrdb90 from EBI . A subset of multiple sequence alignments with sequence identity less than 98% is used to calculate the protein sequence frequency profiles. The sequence weight is assigned by the position-based sequence weight method . The calculation of the target frequency is similar to that implemented in PSI-BLAST. Formula (1) is used to calculate the pseudo-count for amino acid i(g i ).
where f i is the observed frequency of amino acid i, p j is the background frequency of amino acid j, q ij is the score of amino acid i being aligned to amino acid j in BLOSUM62 substitution matrix, which is the default score matrix of PSI-BLAST.
The target frequency is then calculated with the pseudo-count as:Q i = (αf i + βg i )/(α + β)
where β is a free parameter set to a constant value of 10 which is initially used by PSI-BLAST and α is the number of different amino acids in a given column minus one.
Converting protein sequence frequency profiles intoTop-n-grams
In order to use the evolutionary information of the protein sequence frequency profiles, the protein sequence frequency profiles are converted into Top-n-grams. For each amino acid frequency profile, the frequencies of the 20 standard amino acids describe the probabilities of the corresponding amino acids appearing in the specific sequence positions. The higher the frequency is, the more likely the corresponding amino acid occurs. It is reasonable to use the n most frequent amino acids to represent the amino acid frequency profiles, because these n amino acids are most likely to occur at a given sequence position during evolutionary processes. The following details how to convert protein sequence frequency profiles into Top-n-grams.
For each amino acid frequency profile, the frequencies of the 20 standard amino acids are sorted in descending order, and then the n most frequent amino acids are selected and combined according to their frequencies. We call this combination of the n amino acids a Top-n-gram. Each Top-n-gram differentiates the different frequencies of the n amino acids by their different positions in the Top-n-gram. The above process is iterated until all amino acid frequency profiles in the protein sequence frequency profile are converted into Top-n-grams. In other words, a protein sequence can be converted into k Top-n-grams, where k is the length of the protein sequence.
The process of generating and converting the protein sequence frequency profile into Top-n-grams is shown in Figure 8. An example of generating Top-n-gram (n = 3) "DPR" is shown in the left part of the figure. The 20 standard amino acids in the amino acid frequency profile are sorted in descending order by their frequencies and then the sorted amino acid frequency profile is converted into "DPR" by combing the 3 most frequent amino acids D, P and R. "DPR" differentiates the different frequencies of the 3 amino acids D, P and R by their different positions in "DPR". The most frequent amino acid D is in the first position of "DPR", the second most frequent amino acid P is in the second position and the third most frequent amino acid R is in the third position.
Construction of SVM classifiers and classification
The dimension of the feature vectors of Top-n-grams is 20n. In this paper, Top-1-grams, Top-2-grams and Top-3-grams are investigated, the dimensions of their feature vectors are 20 (201), 400 (202) and 8000 (203), respectively. The training proteins are transformed into fixed-dimension feature vectors by the occurrence times of each Top-n-gram, and then the vectors are inputted to SVM to construct the classifier for a specified class. The test proteins are vectorized in the same way as the training proteins and fed into the classifier constructed for a given class to make separation between the positive and negative samples. The SVM assigns each protein in the test set a discriminative score which indicates a predicted positive level of the protein. The proteins with discriminative scores higher than the threshold zero are classified as positive samples and the others as negative ones. The above process is iterated until each class is tested.
The focus of this study is to find a suitable representation of protein sequences. In order to exclude differences owing to particular realizations of the SVM-based learning algorithm and for best comparability with other methods, we employ the publicly available Gist SVM package version 2.1.1 http://svm.sdsc.edu. The SVM parameters are used by default of the Gist Package except that the kernel function is set as Radial Basis Function (RBF).
Latent Semantic Analysis
Latent Semantic Analysis (LSA) is a theory and method for extracting and representing the contextual-usage meaning of words by statistical computations applied to a large corpus of text . Recently, LSA was introduced in computational biology, such as protein secondary structure prediction  and protein remote homology detection . The process of LSA is as follows:
Firstly, a word-document matrix W of co-occurrences between words and documents is constructed. The elements of W indicate the number of times each word appears in each document. The dimensions of W are M × N, where M is the total number of words and N is the number of given documents. Each word count is normalized to compensate the differences in document lengths and overall counts of different words in the document collection .
Secondly, in order to recognize related or synonymous words and reduce the dimensions, singular value decomposition (SVD) is performed on the word-document matrix W. Let K be the rank of W. W is decomposed into three matrices by SVD:W = USVT
where U is left singular matrix with dimensions (M × K), S is diagonal matrix of singular values (s1≥ s2 ≥ ... s K > 0) with dimensions (K × K), and V is right singular matrix with dimensions (N × K).
Thirdly, the dimensions of the solution are reduced by detecting the smaller singular values in S and ignoring the corresponding columns of U(rows of V). Only the top R (R << Min (M, N) dimensions for which the singular values in S are higher than a threshold are selected for further processing. Therefore, the dimensions of U, S and V are reduced to M × R, R × R and N × R, leading to noise removal and data compression. Values of R ranging from 200 to 300 are typically used for information retrieval. In this study, the best results are achieved when R takes the value around 300. For a test document which is not in the training set, the unseen document is required to add to the original training set, so the latent semantic analysis model need to be recomputed. Because SVD is a computationally expensive process, it is not suitable to perform SVD every time for a new test document. The test document vector t can be approximated from the mathematical properties of the matrices U, S and V as follow:t = dU
where d is the original vector of the test document, which is similar to the columns of the matrix W.
Through performing SVD on the word-document matrix W, the column vectors of W are projected onto the orthonormal basis which is formed by the row column vectors of the left singular matrix U. The columns of SVTgive the coordinates of the vectors. Thus, the column vectors Sv j Tor equivalently the row vectors v j S characterize the position of document d j in the R dimensions space. Each of the vector v j S refers to a document vector which is uniquely associated with the document in the training set.
In this study, Top-n-grams are treated as the "words" and the protein sequences are viewed as the "documents". Through collecting the weight of each word in the documents, the word-document matrix is constructed and then the latent semantic analysis is performed on the matrix to produce the latent semantic representation vectors of protein sequences, leading to noise-removal and smart description of protein sequences. The latent semantic representation vectors are then inputted into SVM to give the final results.
Two methods are used to evaluate the quality of the methods: the Receiver Operating Characteristic (ROC) scores and the ROC50 scores . A ROC score is the normalized area under a curve that plots true positives against false positives for different classification thresholds. A score of 1 denotes perfect separation of positive samples from negative ones, whereas a score of 0 indicates that none of the sequences selected by the algorithm is positive. A ROC50 score is the area under the ROC curve up to the first 50 false positives.
To determine whether two methods have statistically different ROC or ROC50 scores on a particular benchmark, the Wilcoxon signed-rank test is used. The p-values are Bonferroni-corrected for multiple comparisons.
The chi-square algorithm is used to measure the correlation between a feature t and a protein family c and can be compared to the chi-square distribution with one degree of freedom to judge extremeness. The chi-square score of feature t relative to protein family c is defined to be:
where A is the number of times t and c co-occur, B is the number of times the t occurs without c, C is the number of times c occurs without t, D is the number of times neither c nor t occurs and N is the total number of protein sequences.
The chi-square statistic has a natural value of zero, if t and c are independent. The family-specific scores of each feature can be combined into an average chi-square score:
where P r (c i ) is the probability of protein family c i and m is the total number of protein families.
Smith TF, Waterman MS: Identification of Common Molecular Subsequences. J Mol Biol 1981, 147(1):195–197.
Noble WS, Kuang R, Leslie C, Weston J: Identifying remote protein homologs by network propagation. The FEBS journal 2005, 272(20):5119–5128.
Altschul SF, Gish W, Miller W, Myers EW, Lipman DJ: Basic Local Alignment Search Tool. J Mol Biol 1990, 215(3):403–410.
Pearson WR: Rapid and Sensitive Sequence Comparison with Fastp and Fasta. Methods Enzymol 1990, 183: 63–98.
Rost B: Twilight zone of protein sequence alignments. Protein Eng 1999, 12(2):85–94.
Lingner T, Meinicke P: Remote homology detection based on oligomer distances. Bioinformatics 2006, 22(18):2224–2231.
Karplus K, Barrett C, Hughey R: Hidden Markov Models for Detecting Remote Protein Homologies. Bioinformatics 1998, 14(10):846–856.
Qian B, Goldstein RA: Performance of an Iterated T-Hmm for Homology Detection. Bioinformatics 2004, 20(14):2175–2180.
Vapnik VN: Statistical Learning Theory. New York 1998.
Rangwala H, Karypis G: Profile-based direct kernels for remote homology detection and fold recognition. Bioinformatics 2005, 21(23):4239–4247.
Saigo H, Vert JP, Ueda N, Akutsu T: Protein Homology Detection Using String Alignment Kernels. Bioinformatics 2004, 20(11):1682–1689.
Jaakkola T, Diekhans M, Haussler D: A Discriminative Framework for Detecting Remote Protein Homologies. J Comput Biol 2000, 7(1–2):95–114.
Liao L, Noble WS: Combining Pairwise Sequence Similarity and Support Vector Machines for Detecting Remote Protein Evolutionary and Structural Relationships. J Comput Biol 2003, 10(6):857–868.
Hou Y, Hsu W, Lee ML, Bystroff C: Efficient Remote Homology Detection Using Local Structure. Bioinformatics 2003, 19(17):2294–2301.
Hou Y, Hsu W, Lee L, Bystroff C: Remote homolog detection using local sequence-structure correlations. Proteins 2004, 57: 518–530.
Webb-Robertson B-J, Oehmen C, Matzke M: SVM-BALSA: Remote homology detection based on Bayesian sequence alignment. Comput Biol Chem 2005, 29(6):440–443.
Leslie C, Eskin E, Noble WS: The Spectrum Kernel: A String Kernel for svm Protein Classification. Pac Symp Biocomput 2002, 564–575.
Ogul H, Mumcuoglu EU: A discriminative method for remote homology detection based on n-peptide compositions with reduced amino acid alphabets. BioSystems 2007, 87(1):75–81.
Leslie CS, Eskin E, Cohen A, Weston J, Noble WS: Mismatch String Kernels for Discriminative Protein Classification. Bioinformatics 2004, 20(4):467–476.
Kuang R, Ie E, Wang K, Wang K, Siddiqi M, Freund Y, Leslie C: Profile-based string kernels for remote homology detection and motif extraction. J Bioinform Comput Biol 2005, 3: 527–550.
Ben-Hur A, Brutlag D: Remote homology detection: A motif based approach. Bioinformatics 2003, 19(Suppl 1):i26-i33.
Nevill-Manning CG, Wu TD, Brutlag DL: Highly Specific Protein Sequence Motifs for Genome Analysis. Proc Natl Acad Sci USA 1998, 95(11):5865–5871.
Su QJ, Lu L, Saxonov S, Brutlag DL: eBLOCKS: enumerating conserved protein blocks to achieve maximal sensitivity and specificity. Nucleic Acids Res 2005, 33: D178-D182.
Håndstad T, Hestnes AJ, Sætrom P: Motif kernel generated by genetic programming improves remote homology and fold detection. BMC Bioinformatics 2007, 8: 23.
Shah AR, Oehmen CS, Webb-Robertson B-J: SVM-HUSTLE – an iterative semi-supervised machine learning approach for pairwise protein remote homology detection. Bioinformatics 2008, 24(6):783–790.
Altschul SF, Madden TL, Schaffer AA, Zhang J, Zhang Z, Miller W, Lipman DJ: Gapped Blast and Psi-Blast: A New Generation of Protein Database Search Programs. Nucleic Acids Res 1997, 25(17):3389–3402.
Dowd SE, Zaragoza J, Rodriguez JR, Oliver MJ, Payton PR: Windows.Net Network Distributed Basic Local Alignment Search Toolkit (W.Nd-Blast). BMC Bioinformatics 2005, 6: 93.
Dong Q, Lin L, Wang XL: Protein Remote Homology Detection Based on Binary Profiles. Proc 1st International Conference on Bioinformatics Research and Development (BIRD) Germany 2007, 212–223.
Dong Q, Wang X, Lin L, Xu Z: Domain boundary prediction based on profile domain linker propensity index. Comput Biol Chem 2006, 30(2):127–133.
Dong Q, Wang X, Lin L: Novel knowledge-based mean force potential at the profile level. BMC Bioinformatics 2006, 7: 324.
Dong Q, Wang X, Lin L, Guan Y: Exploiting residue-level and profile-level interface propensities for usage in binding sites prediction of proteins. BMC Bioinformatics 2007, 8: 147.
Dong QW, Wang XL, Lin L: Application of Latent Semantic Analysis to Protein Remote Homology Detection. Bioinformatics 2006, 22(3):285–290.
Bellegarda J: Exploiting Latent Semantic Information in Statistical Language Modeling. Proc IEEE 2000, 88(8):1279–1296.
Dong Q, Lin L, Wang XL, Li MH: A Pattern-Based svm for Protein Remote Homology Detection. 4th international conference on machine learning and cybernetics. GuangZhou, China 2005, 3363–3368.
Damoulas T, Girolami MA: Probabilistic multi-class multi-kernel learning: on protein fold recognition and remote homology detection. Bioinformatics 2008, 24(10):1264–1270.
Supplementary data for "Profile-based direct kernels for remote homology detection and fold recognition"[http://bioinfo.cs.umn.edu/supplements/remote-homology/]
Shawe-Taylor J, Cristianini N: Support Vector Machines and other kernel-based learning methods. Cambridge University Press; 2000.
Rigoutsos I, Floratos A: Combinatorial pattern discovery in biological sequences: the TEIRESIAS algorithm. Bioinformatics 1998, 14: 55–67.
Floratos A, Rigoutsos I: Research Report On the Time Complexity of the TEIRESIAS Algorithm. 98A000290 1998.
Bailey TL, Elkan C: Fitting a mixture model by expectation maximization to discover motifs in biopolymers. Proc Int Conf Intell Syst Mol Biol 1994, 2: 28–36.
Bailey TL, Elkan C: Fitting a Mixture Model by Expectation Maximization to Discover Motifs in Biopolymers. UCSD Technical Report CS94–351
Landauer TK, Foltz PW, Laham D: Introduction to Latent Semantic Analysis. Discourse Processes 1998, 25: 259–284.
Yang Y, Pedersen JA: A comparative study on feature selection in text categorization. In 14th international conference on machine learning. San Francisco, USA; 1997:412–420.
Brenner SE, Koehl P, Levitt M: The ASTRAL compendium for sequence and structure analysis. Nucleic Acids Res 2000, 28(1):254–256.
Holm L, Sander C: Removing near-neighbour redundancy from large protein sequence collections. Bioinformatics 1998, 14(5):423–429.
Henikoff S, Henikoff JG: Position-Based Sequence Weights. J Mol Biol 1994, 243(4):574–578.
Ganapathiraju M, Klein-Seetharaman J, Balakrishnan N, Reddy R: Characterization of protein secondary structure, Application of latent semantic analysis using different vocabularies. IEEE Signal Processing Magazine 2004, 21: 78–87.
Gribskov M, Robinson NL: Use of Receiver Operating Characteristic (Roc) Analysis to Evaluate Sequence Matching. Comput Chem 1996, 20(1):25–33.
The authors would like to acknowledge insightful discussions with Chengjie Sun, Deyuan Zhang and Minghui Li, and helpful suggestions by the anonymous reviewers. We also thank Pal Saetrom, Tony Handstad and Huzefa Rangwala for giving us the results of their work. Special thanks give to Yuanhang Meng for his comments on this work that significantly improve the presentation of the paper. Financial support is provided by the National Natural Science Foundation of China (60673019 and 60435020) and the National High Technology Development 863 Program of China (2006AA01Z197).
BL carried out remote homology detection and fold recognition studies, participated in coding and drafting the manuscript. LL, QD and XW participated in the design of the study and performed the statistical analysis. XLW conceived of the study, and participated in its design and coordination. All authors read and approved the final manuscript.
