Predicting drug target interactions using meta-path-based semantic network analysis

  • Gang Fu1Email author,
  • Ying Ding2, 3,
  • Abhik Seal2,
  • Bin Chen4,
  • Yizhou Sun5 and
  • Evan Bolton1
BMC BioinformaticsBMC series – open, inclusive and trusted201617:160

https://doi.org/10.1186/s12859-016-1005-x

Received: 30 April 2015

Accepted: 31 March 2016

Published: 12 April 2016

Abstract

Background

In the context of drug discovery, drug target interactions (DTIs) can be predicted based on observed topological features of a semantic network across the chemical and biological space. In a semantic network, the types of the nodes and links are different. In order to take into account the heterogeneity of the semantic network, meta-path-based topological patterns were investigated for link prediction.

Results

Supervised machine learning models were constructed based on meta-path topological features of an enriched semantic network, which was derived from Chem2Bio2RDF, and was expanded by adding compound and protein similarity neighboring links obtained from the PubChem databases. The additional semantic links significantly improved the predictive performance of the supervised learning models. The binary classification model built upon the enriched feature space using the Random Forest algorithm significantly outperformed an existing semantic link prediction algorithm, Semantic Link Association Prediction (SLAP), to predict unknown links between compounds and protein targets in an evolving network. In addition to link prediction, Random Forest also has an intrinsic feature ranking algorithm, which can be used to select the important topological features that contribute to link prediction.

Conclusions

The proposed framework has been demonstrated as a powerful alternative to SLAP in order to predict DTIs using the semantic network that integrates chemical, pharmacological, genomic, biological, functional, and biomedical information into a unified framework. It offers the flexibility to enrich the feature space by using different normalization processes on the topological features, and it can perform model construction and feature selection at the same time.

Keywords

Semantic network analysis Link prediction Meta-path topological feature Machine learning Random forest

Background

Chemogenomics [1, 2] and chemical systems biology [3, 4] aim to accelerate drug discovery inexpensively through in silico predictions, based on a network with enriched drug-target-disease relationships [5]. Integrated chemical and biological networks can be used to hypothesize new clinical indications for approved drugs with desired safety profiles, and to propose new combination therapy design [6, 7]. Drug-target interaction networks can also be utilized to interpret clinical side effects by revealing modes of drug actions [8]. Semantic standards and technologies facilitate seamless data integration across multiple domains, and enable the construction of a heterogeneous network consisting of various biological entities of different types, such as compounds, proteins, and genes [9]. Several semantically linked datasets, such as PubChemRDF [10], Chem2Bio2Rdf [11], Bio2RDF [12], Open PHACTS [13], and ChEMBL RDF [14], have been published to promote large-scale data mining in drug discovery. A statistical model, called Semantic Link Association Prediction (SLAP), has been applied to Chem2Bio2RDF to predict direct links between compounds and proteins based on their indirect links or paths with other biological objects, such as substructures, diseases, side effects, and pathways [15]. It has been demonstrated that SLAPas a novel and validated approach to predict drug-target interactions (DTIs) outperformed existing alternatives.

Predicting DTI is equivalent to link prediction, which is a fundamental problem and long-standing challenge in complex network analysis [16]. In social networks, topological proximity, measured based on observed network data, can be used to suggest future interactions between individuals [17]. In the context of drug discovery, biological networks can be similarly leveraged to identify potential associations between compounds and protein targets. Typical network-based DTI predictions are often based on similarity profiles calculated from common neighbors or direct connections, and are usually limited to bipartite networks [1821]. However, most similarity-based link prediction algorithms designed for homogeneous networks cannot take into account the heterogeneous types and relations defined in semantic networks; furthermore, it is fairly challenging to consider the long paths connecting two end nodes (indirect connections), which can significantly increase large volumes of randomness in the connectivity. Therefore, we incorporated meta-path topological features [22] for link prediction. A meta-path is a composite relation, denoting a sequence of adjacent links between any two objects in a heterogeneous network. Adjacent links are defined with distinct semantics, so different combinations of adjacent links in sequences contribute distinguishably for link prediction. It has been proven that meta-path-based similarity can improve the performance of information retrieval in heterogeneous information networks [23].

A meta-path defines a certain type of paths linking the starting and ending objects. The total number of paths belonging to a specific meta-path is animportant topological feature to evaluate the strength of associations between starting and ending objects, which is often called path count. For instance, a compound and a protein target can be connected through multiple paths of different types: (A) compound \( \overset{similar\ to}{\to } \) compound \( \overset{binds\ to}{\to } \) protein; (B) compound \( \overset{binds\ to}{\to } \) protein \( \overset{binds\ to}{\to } \) compound \( \overset{binds\ to}{\to } \) protein; and (C) compound \( \overset{has\ part}{\to } \) substructure \( \overset{part\ of}{\to } \) compound \( \overset{binds\ to}{\to } \) protein \( \overset{similar\ to}{\to } \) protein. Three meta-paths connect the starting compound to the ending protein: meta-path (A) indicates that the compound most likely binds to a protein to which another structurally similar compound binds; meta-path (B) shows that two compounds sharing an observed protein target may share another protein target as well; meta-path (C) specifies that two compounds sharing a common substructure may bind to two different protein targets that have similar protein sequences. SLAP employs a statistical model to evaluate the importance of each meta-path in link prediction, which is evaluated individually based on the distribution of its connectivity property over a set of randomly sampled drug-target pairs. Several meta-paths are selected according to their statistical significances, and the aggregated connectivity properties of the selected meta-paths are used to predict DTI.

The present work provides an alternative DTI approach to SLAP. Rather than using a statistical model to study the significance of meta-path topological features, we propose a framework to take advantage of machine learning algorithms, including Random Forest (RF) and Support Vector Machine (SVM), to construct binary classification models to predict DTI. A more complete drug-target connectivity map can be constructed using the predicted links. By using machine learning models, feature importance (i.e., the contributions of different meta-paths to the link prediction) can be calculated at the same time as the classification models are built. Additionally, SLAP only considers path counts as a topological feature; whereas our approach can apply different kinds of normalization processes to path counts, including random walk, normalized path count, and symmetric random walk [23] to further enrich the topological feature space. In order to compare our approach with SLAP, we have carried out link prediction experiments on a semantic network, called Chem2Bio2Rdf, which focuses on drug candidates and their biological annotations. Although the proposed approach was just used to construct a more complete drug-target connectivity map in the present study, it can be generalized as a framework to leverage machine learning algorithms to study the topological features of the heterogeneous network for link prediction. Structural similarity links between compounds and sequence similarity links between proteins were added to expand the semantic network. The usefulness of similarity neighboring links from PubChem resources [24] is examined in the context of semantic link prediction.

Methods

Semantic network

In the Chem2Bio2RDF semantic network, nine distinct semantic types are presented, including compounds, proteins, adverse side effects, Gene Ontology (GO) annotations, ChEBI types, substructures, tissues, biological pathways, and diseases; ten different semantic links are incorporated, including links from compounds to ChEBI types, from compounds to proteins, from compounds to substructures, from adverse side effects to compounds, from diseases to compounds, from proteins to proteins (referring to protein-protein interactions), from proteins to GO annotations, from diseases to proteins, from pathways to proteins, and from tissues to proteins. In order to enhance link prediction performance, we enriched the linked dataset by adding two more semantic links: compound neighboring links based on 2D structural similarity, and protein neighboring links, based on sequence similarity. The similarity neighboring links were obtained from PubChem databases [25, 26]. A total of twelve adjacency matrixes were computed based on the semantic links between any two objects. The elements of the adjacency matrixes have two values: ‘0,’ indicating unobserved links, and ‘1,’ indicating observed links. The semantics and statistics of adjacency matrixes were enumerated in Table 1; these were used to calculate the meta-path-based topological features. It is noteworthy that all the semantic links in the Chem2Bio2RDF dataset are reversible, and the adjacency matrix for the reverse semantic links can be obtained through a transpose of the original adjacency matrix.
Table 1

The semantics and statistics of adjacency matrixes

Index

Semantics

From

Number of Rows

To

Number of Colums

Count a

A1

has ChEBI type

compound

258030

ChEBI type

2777

14633

A2

binds to

compound

258030

protein

22056

528831

A3

has part

compound

258030

substructure

290

6127

A4

induced by

adverse side effect

1051

compound

258030

9004

A5

treated by

disease

1284

compound

258030

927

A6

interacts with

protein

22056

protein

22056

72773

A7

has GO annotation

protein

22056

GO annotation

9710

89688

A8

caused by

disease

1284

protein

22056

2676

A9

has participants

pathway

192

protein

22056

10796

A10

expresses

tissue

507

protein

22056

9905

A11

similar to

compound

258030

compound

258030

6184722

A12

similar to

protein

22056

protein

22056

261158

a The number of non-zero elements in adjacency matrix

Meta-path-based topological features

The meta-path topological features were encoded in commuting matrixes, calculated by multiplying several adjacency matrixes. To predict the links from compounds to proteins, we exhaustively enumerate all the possible meta-paths, yielding a total of 51 meta-paths. Each commuting matrix represents a certain type of meta-path of a given length. The length of the meta-paths equals the number of multiplied adjacency matrixes. Out of 51 commuting matrixes, 4 meta-paths are of length 2; 11 meta-paths are of length 3; and 36 meta-paths are of length 4. The meta-paths with length greater than 4 are considered to be too long to make a significant contribution to link prediction. The elements in the commuting matrix indicate the number of path instances linking compounds to proteins, and have non-negative integer values. The semantics and statistics of commuting matrixes were enumerated in Table 2. For instance, the commuting matrix C15 represents a meta-path: compound \( \overset{similar\ to}{\to } \) compound \( \overset{binds\ to}{\to } \) protein \( \overset{similar\ to}{\to } \) protein, which was calculated by multiplying three adjacency matrixes: A2, A11, and A12 (Fig. 1). All of the matrix multiplications were carried out using the Armadillo C++ linear algebra library [27], and all of the adjacency and commuting matrixes were encoded as sparse matrixes to reduce memory consumption.
Table 2

The semantics and statistics of commuting matrixes

Index

Semantics

Count a

Max b

C1

\( \mathrm{compound}\ \overset{similar\;to}{\to}\;\mathrm{compound}\overset{binds\;to}{\to}\mathrm{protein} \)

1995778

395

C2

\( \mathrm{compound}\ \overset{binds\;to}{\to}\;\mathrm{protein}\overset{interacts\; with}{\to}\mathrm{protein} \)

4878633

20

C3

\( \mathrm{compound}\ \overset{binds\;to}{\to}\;\mathrm{protein}\overset{similar\ to}{\to}\mathrm{protein} \)

30665527

84

C4

\( \mathrm{compound}\ \overset{treats}{\to}\;\mathrm{disease}\overset{caused\;by}{\to}\mathrm{protein} \)

6178

3

C5

\( \mathrm{compound}\ \overset{similar\;to}{\to}\;\mathrm{compound}\overset{binds\;to}{\to}\mathrm{protein}\overset{interacts\ with}{\to}\mathrm{protein} \)

15086309

934

C6

\( \mathrm{compound}\ \overset{similar\;to}{\to}\;\mathrm{compound}\overset{binds\;to}{\to}\mathrm{protein}\overset{similar\ to}{\to}\mathrm{protein} \)

49226573

1163

C7

\( \mathrm{compound}\ \overset{binds\;to}{\to}\;\mathrm{protein}\overset{binds\;to}{\to}\mathrm{compound}\overset{binds\ to}{\to}\mathrm{protein} \)

126339670

30400

C8

\( \mathrm{compound}\ \overset{has\; part}{\to}\;\mathrm{substructure}\overset{part\; of}{\to}\mathrm{compound}\overset{binds\ to}{\to}\mathrm{protein} \)

922056

202

C9

\( \mathrm{compound}\ \overset{has\; type}{\to}\;\mathrm{ChEBI}\ \mathrm{type}\overset{type\ of}{\to}\mathrm{compound}\overset{binds\ to}{\to}\mathrm{protein} \)

709802

324

C10

\( \mathrm{compound}\ \overset{induces}{\to}\;\mathrm{adverse}\ \mathrm{side}\ \mathrm{effect}\overset{induced\kern0.5em by}{\to}\mathrm{compound}\overset{binds\ to}{\to}\mathrm{protein} \)

420616

194

C11

\( \mathrm{compound}\ \overset{treats}{\to}\;\mathrm{disease}\overset{treated\;by}{\to}\mathrm{compound}\overset{binds\ to}{\to}\mathrm{protein} \)

68479

25

C12

\( \mathrm{compound}\ \overset{binds\;to}{\to}\;\mathrm{protein}\overset{has\; annotation}{\to}\mathrm{GO}\ \mathrm{annotation}\overset{annotation\ of}{\to}\mathrm{protein} \)

316095950

335

C13

\( \mathrm{compound}\ \overset{binds\;to}{\to}\;\mathrm{protein}\overset{participates\; in}{\to}\mathrm{pathway}\overset{has\ participants}{\to}\mathrm{protein} \)

82834409

328

C14

\( \mathrm{compound}\ \overset{binds\;to}{\to}\;\mathrm{protein}\overset{expressed\; in}{\to}\mathrm{tissue}\overset{expresses}{\to}\mathrm{protein} \)

53586080

76

C15

\( \mathrm{compound}\ \overset{binds\;to}{\to}\;\mathrm{protein}\overset{causes}{\to}\mathrm{disease}\overset{caused\ by}{\to}\mathrm{protein} \)

1360337

10

C16

\( \mathrm{compound}\ \overset{binds\;to}{\to}\;\mathrm{protein}\overset{binds\;to}{\to}\mathrm{compound}\overset{binds\ to}{\to}\mathrm{protein}\overset{interact\ with}{\to}\mathrm{protein} \)

522513250

142290

C17

\( \mathrm{compound}\ \overset{binds\;to}{\to}\;\mathrm{protein}\overset{binds\;to}{\to}\mathrm{compound}\overset{treats}{\to}\mathrm{disease}\overset{caused\ by}{\to}\mathrm{protein} \)

12963831

498

C18

\( \mathrm{compound}\ \overset{binds\;to}{\to}\mathrm{protein}\ \overset{binds\;to}{\to}\mathrm{compound}\ \overset{similar\;to}{\to}\mathrm{compound}\ \overset{binds\;to}{\to}\mathrm{protein} \)

201052081

777576

C19

\( \mathrm{compound}\ \overset{binds\;to}{\to}\mathrm{protein}\ \overset{binds\;to}{\to}\mathrm{compound}\ \overset{binds\;to}{\to}\mathrm{protein}\ \overset{similar\;to}{\to}\mathrm{protein} \)

356122463

445332

C20

\( \mathrm{compound}\ \overset{type\; of}{\to}\mathrm{ChEBI}\ \mathrm{type}\ \overset{type\; of}{\to}\mathrm{compound}\ \overset{binds\;to}{\to}\mathrm{protein}\overset{interacts\ with}{\to}\mathrm{protein} \)

2333739

2711

C21

\( \mathrm{compound}\ \overset{type\; of}{\to}\mathrm{ChEBI}\ \mathrm{type}\ \overset{type\; of}{\to}\mathrm{compound}\overset{treats}{\to }\ \mathrm{disease}\overset{caused\;by}{\to}\mathrm{protein} \)

190923

194

C22

\( \mathrm{compound}\overset{type\; of}{\to}\mathrm{ChEBI}\ \mathrm{type}\overset{type\; of}{\to}\mathrm{compound}\ \overset{binds\ to}{\to}\mathrm{protein}\ \overset{similar\;to}{\to}\mathrm{protein} \)

1463743

8639

C23

\( \mathrm{compound}\overset{type\; of}{\to}\mathrm{ChEBI}\ \mathrm{type}\overset{type\ of}{\to}\mathrm{compound}\overset{similar\ to}{\to}\mathrm{compound}\overset{binds\ to}{\to}\mathrm{protein} \)

922257

8402

C24

\( \mathrm{compound}\overset{treats}{\to}\mathrm{disease}\overset{treated\ by}{\to}\mathrm{compound}\overset{binds\;to}{\to}\mathrm{protein}\overset{interacts\ with}{\to}\mathrm{protein} \)

371971

162

C25

\( \mathrm{compound}\overset{treats}{\to}\mathrm{disease}\overset{treated\ by}{\to}\mathrm{compound}\overset{treats}{\to}\mathrm{disease}\overset{caused\ by}{\to}\mathrm{protein} \)

38708

91

C26

\( \mathrm{compound}\overset{treats}{\to}\mathrm{disease}\overset{treated\ by}{\to}\mathrm{compound}\overset{binds\;to}{\to}\mathrm{protein}\overset{similar\;to}{\to}\mathrm{protein} \)

493976

400

C27

\( \mathrm{compound}\overset{treats}{\to}\mathrm{disease}\overset{treated\ by}{\to}\mathrm{compound}\overset{similar\;to}{\to}\mathrm{compound}\overset{binds\;to}{\to}\mathrm{protein} \)

106013

710

C28

\( \mathrm{compound}\overset{induces}{\to}\mathrm{adverse}\ \mathrm{side}\ \mathrm{effect}\overset{induced\ by}{\to}\mathrm{compound}\overset{binds\;to}{\to}\mathrm{protein}\overset{interacts\ with}{\to}\mathrm{protein} \)

1766464

1622

C29

\( \mathrm{compound}\overset{induces}{\to}\mathrm{adverse}\ \mathrm{side}\ \mathrm{effect}\overset{induced\ by}{\to}\mathrm{compound}\ \overset{treats}{\to}\mathrm{disease}\overset{caused\ by}{\to}\mathrm{protein} \)

168841

106

C30

\( \mathrm{compound}\overset{induces}{\to}\mathrm{adverse}\ \mathrm{side}\ \mathrm{effect}\overset{induced\ by}{\to}\mathrm{compound}\overset{binds\;to}{\to}\mathrm{protein}\overset{similar\;to}{\to}\mathrm{protein} \)

1193429

5571

C31

\( \mathrm{compound}\overset{induces}{\to}\mathrm{adverse}\ \mathrm{side}\ \mathrm{effect}\overset{induced\ by}{\to}\mathrm{compound}\overset{similar\;to}{\to}\mathrm{compound}\overset{binds\;to}{\to}\mathrm{protein} \)

765725

2744

C32

\( \mathrm{compound}\overset{has\ part}{\to}\mathrm{substructure}\overset{part\ of}{\to}\mathrm{compound}\overset{binds\;to}{\to}\mathrm{protein}\overset{interacts\ with}{\to}\mathrm{protein} \)

3465967

902

C33

\( \mathrm{compound}\overset{has\ part}{\to}\mathrm{substructure}\overset{part\ of}{\to}\mathrm{compound}\overset{treats}{\to}\mathrm{disease}\overset{caused\ by}{\to}\mathrm{protein} \)

355993

96

C34

\( \mathrm{compound}\overset{has\ part}{\to}\mathrm{substructure}\overset{part\ of}{\to}\mathrm{compound}\overset{binds\;to}{\to}\mathrm{protein}\overset{similar\;to}{\to}\mathrm{protein} \)

2175094

2753

C35

\( \mathrm{compound}\overset{has\ part}{\to}\mathrm{substructure}\overset{part\ of}{\to}\mathrm{compound}\overset{similar\;to}{\to}\mathrm{compound}\overset{binds\;to}{\to}\mathrm{protein} \)

1206786

12048

C36

\( \mathrm{compound}\overset{binds\;to}{\to}\mathrm{protein}\overset{interacts\ with}{\to}\mathrm{protein}\ \overset{has\ annotation}{\to}\mathrm{GO}\ \mathrm{annotation}\overset{annotation\ of}{\to}\mathrm{protein} \)

1064451402

1929

C37

\( \mathrm{compound}\overset{treats}{\to}\mathrm{disease}\overset{caused\ by}{\to}\mathrm{protein}\overset{has\ annotation}{\to}\mathrm{GO}\ \mathrm{annotation}\overset{annotation\ of}{\to}\mathrm{protein} \)

2280505

136

C38

\( \mathrm{compound}\overset{binds\;to}{\to}\mathrm{protein}\overset{similar\;to}{\to}\mathrm{protein}\overset{has\ annotation}{\to}\mathrm{GO}\ \mathrm{annotation}\overset{annotation\ of}{\to}\mathrm{protein} \)

1480055439

50667

C39

\( \mathrm{compound}\overset{similar\ to}{\to}\mathrm{compound}\overset{binds\;to}{\to}\mathrm{protein}\overset{has\ annotation}{\to}\mathrm{GO}\ \mathrm{annotation}\overset{annotation\ of}{\to}\mathrm{protein} \)

582316693

7765

C40

\( \mathrm{compound}\overset{binds\;to}{\to}\mathrm{protein}\overset{interacts\ with}{\to}\mathrm{protein}\overset{participates\ in}{\to}\mathrm{pathway}\overset{has\kern0.5em participants}{\to}\mathrm{protein} \)

246398750

2989

C41

\( \mathrm{compound}\overset{treats}{\to}\mathrm{disease}\overset{caused\ by}{\to}\mathrm{protein}\overset{participates\ in}{\to}\mathrm{pathway}\overset{has\ participants}{\to}\mathrm{protein} \)

486267

183

C42

\( \mathrm{compound}\overset{binds\;to}{\to}\mathrm{protein}\overset{similar\;to}{\to}\mathrm{protein}\overset{\ participates\ in}{\to}\mathrm{pathway}\overset{\ has\kern0.5em participants}{\to}\mathrm{protein} \)

358346529

73327

C43

\( \mathrm{compound}\overset{similar\ to}{\to}\mathrm{compound}\overset{binds\;to}{\to}\mathrm{protein}\overset{\ participates\kern0.5em in}{\to}\mathrm{pathway}\overset{\ has\kern0.5em participants}{\to}\mathrm{protein} \)

149299008

7543

C44

\( \mathrm{compound}\overset{binds\;to}{\to}\mathrm{protein}\overset{interacts\ with}{\to}\mathrm{protein}\overset{causes}{\to}\mathrm{disease}\ \overset{caused\kern0.5em by}{\to}\mathrm{protein} \)

7603639

44

C45

\( \mathrm{compound}\overset{treats}{\to}\mathrm{disease}\overset{caused\ by}{\to}\mathrm{protein}\overset{causes}{\to}\mathrm{disease}\overset{caused\ by}{\to}\mathrm{protein} \)

27193

63

C46

\( \mathrm{compound}\overset{binds\;to}{\to}\mathrm{protein}\overset{similar\;to}{\to}\mathrm{protein}\overset{causes}{\to}\mathrm{disease}\overset{caused\ by}{\to}\mathrm{protein} \)

26747896

802

C47

\( \mathrm{compound}\overset{similar\;to}{\to}\mathrm{compound}\overset{binds\;to}{\to}\mathrm{protein}\overset{causes}{\to}\mathrm{disease}\overset{caused\ by}{\to}\mathrm{protein} \)

4159753

313

C48

\( \mathrm{compound}\overset{binds\;to}{\to}\mathrm{protein}\overset{interacts\ with}{\to}\mathrm{protein}\overset{expressed\ in}{\to}\mathrm{tissue}\overset{expresses}{\to}\mathrm{protein} \)

222288200

453

C49

\( \mathrm{compound}\overset{treats}{\to}\mathrm{disease}\overset{caused\;by}{\to}\mathrm{protein}\overset{expressed\ in}{\to}\mathrm{tissue}\overset{expresses}{\to}\mathrm{protein} \)

300620

27

C50

\( \mathrm{compound}\overset{binds\ to}{\to}\mathrm{protein}\overset{similar\;to}{\to}\mathrm{protein}\overset{expressed\ in}{\to}\mathrm{tissue}\overset{expresses}{\to}\mathrm{protein} \)

431134094

5974

C51

\( \mathrm{compound}\overset{similar\;to}{\to}\mathrm{compound}\overset{binds\;to}{\to}\mathrm{protein}\overset{expressed\ in}{\to}\mathrm{tissue}\overset{expresses}{\to}\mathrm{protein} \)

117576353

2031

a The number of non-zero elements in commuting matrix; b the max value of element in commuting matrix.

Fig. 1

Schematic representation of calculations of commuting matrix C15 through multiplying A2, A11, and A12

Two measures of topological features were calculated. Path count (PC i,j ) measures the number of path instances between nodes i and j, which corresponds to the value of element in the commuting matrix. We also applied Random Walk (RW) as a normalization process to the number of path instances, based on the overall connectivity of the network. RW was calculated as \( \raisebox{1ex}{$P{C}_{i,j}$}\!\left/ \!\raisebox{-1ex}{$P{C}_{i,\bullet }$}\right. \), where PC i,• are row-wise summations.

Machine learning dataset

In order to build supervised learning models, both positive and negative labels are required. We treated observed links between compounds and protein targets as positive labels. A total of 5,387 positively labeled links from Drugbank were collected, which were used to evaluate the predictive performance of the SLAP algorithm [15]. The unobserved links in the dataset can be either spurious links or potential future links. In order to obtain experimental evidence for the negative labels, we surveyed the PubChem BioAssay database [28]: if the experimental bioactivity value is greater than 10 μM, the link of a compound protein pair is negatively labeled. Accordingly, we obtained 26,682 negative labels out of over 5.6 billion unobserved links between compounds and proteins in the Chem2Bio2RDF semantic network. In order to assess predictive performance without prior knowledge, the positively labeled links were removed from Chem2Bio2RDF when the meta-path-based topological features were calculated. The positively and negatively labeled links were combined and randomly split into training and test sets by a ratio of 2:1. In the training set, there are 3,591 positively labeled links and 17,788 negatively labeled links. In the test set, there are 1,796 positively labeled links and 8,894 negatively labeled links.

The network evolves as new links are identified over time. In order to further examine the ability of the proposed framework to identify the evolution of network connectivity, a much larger set of DTIs were collected from the PubChem BioAssay database. PubChem BioAssay categorizes depositor-provided bioactivities between compounds and protein targets into active, inactive, and unspecified groups, according to assay descriptions and activity values. If the interactions between compounds and protein targets are categorized as active in PubChem BioAssay, and the active interaction pairs have reported activity values of less than 1 μM, the links are positively labeled; if the interactions between compounds and proteins are categorized as inactive in PubChem BioAssay, and there are reported activities for the interactions, the links are negatively labeled. A set of 145,622 positively labeled links contained in the current Chem2Bio2RDF semantic network, plus 600,000 negatively labeled links, constitute a training set; another set of 43,159 positively labeled links that are not contained in the current Chem2Bio2RDF semantic network, but are true positive DTIs, identified through bioassay experiments, plus195,000 negatively labeled links, comprise the test set. Since the positive DTIs in the test set were obtained after construction of the network, this independent test set is used to examine the ability to predict the links in the future network based on the topological features of the current network.

Binary classification models

In order to demonstrate how well the similarity neighboring links obtained from PubChem databases can improve link prediction performance, we have constructed different machine learning models, based on two sets of path count topological features. Feature set I does not include any meta-paths involving similarity neighboring links, so it only contains 29 path count topological features. Feature set II includes all of the path counts encoded in 51 commuting matrixes. We also examined the improvement of predictive performance using an enriched topological feature space. RW normalization was applied to 51 path count topological features, and by combining the path counts and random walks, we obtained feature set III, which contains 102 topological features.

Two popular machine learning algorithms were investigated. Random forest (RF) represents a collection of decision trees, which are grown from bootstrap samples of the training data without pruning, and make predictions based on majority votes of the ensemble trees [29]. RF takes advantage of Out-of-Bag (OOB) error as an unbiased estimate of generalized test error, so there is no need to run cross-validation. RF can calculate the importance of features as well. The values for a given feature are permuted across all of the compound-protein pairs. Either classification accuracies or node impurities (Gini indexes) are measured before and after permutations, and the difference in the measures is used to evaluate feature importance. A default value for the number of trees was used (ntree = 500) in the present study, which has been proven to be satisfactory in most cases [30]. The optimal value for tuning parameter mtry was identified by a grid search.

In contrast to the tree-based model, Support Vector Machine (SVM) is based on a statistical learning theory derived from the structural risk minimization principle and Vapnik-Chervonenkis (VC) dimension [31]. A soft margin SVM with radial basis function (RBF) kernel in the Gaussian form was used in the present study. The optimal values for tuning parameters (C and λ) were determined by a grid search using 10-fold cross-validation.

The classification performances were evaluated using the F1-score [32], which is the harmonic mean of precision and recall.
$$ {\mathrm{F}}_1\;\mathrm{score}:\;\frac{2TP}{2TP+FP+FN} $$
(1)

F1-score can be used for statistical hypothesis testing, in particular, for imbalanced datasets. Both RF and SVM can calculate the probabilities of classifications, and rankings can be derived from the probability calculations. The predictive performance on rankings was evaluated according to Receiver Operating Characteristic (ROC) and Precision Recall (PR) curves for all of the models. The area under the curve for ROC (AUCROC) and PR (AUCPR) were calculated using the natural spline interpolation encoded in the R package ‘Miscellaneous Esoteric Statistical Scripts’ (MESS). The early hit recognitions that are considered more important in virtual screening experiments were evaluated using Boltzmann-enhanced discrimination of ROC (BEDROC), which was calculated using the R package ‘enrichvs.’

Results and discussion

The optimal tuning parameters and the statistical results for all the binary classification models are summarized in Table 3. RF outperformed SVM across all three feature sets. Both RF and SVM yielded consistent rankings of the predictive performance for the different feature sets: feature set III > feature set II > feature set I. The similarity neighboring links improved the link prediction performance on test set by 5.5 % in RF models, and by around 4.4 % in SVM models. In combination with RW normalization, the predictive performance of RF models was improved by 2 %, and the predictive performance of SVM models were boosted by 3.5 %. The differences in predictive performance were consistently demonstrated by ROC and PR curves as well (see Fig. 2). The ROC space and PR space agreed on the rankings of different feature sets, in terms of predictive performance. We can see that feature set III dominated both ROC space and PR space for both RF and SVM models, and RF models slightly outperformed SVM models. Since we have imbalanced distributions for positive and negative labels, PR curves can provide better visual representations than ROC curves to identify the difference of predictive performance. As shown in Fig. 2, the ROC curves were closely clustered, and the PR curves for different models were separated to a larger extent. The differences among AUCPRs were larger than the differences among AUCROCs, as well (see Table 4). It is clear that similarity neighboring links are important for link prediction in the semantic network, and RW normalization can boost predictive performance by enriching feature space. It is noteworthy that all the machine learning models performed fairly well on both training and test sets without over-fitting. In addition, both feature set II and feature set III produced AUCROCs greater than 0.92, which was produced by SLAP [15]. Hence, meta-path-based topological features have been proven to be valuable for link prediction in complex semantic networks using machine learning models.
Table 3

Statistics of binary classification models built upon different feature sets and using different machine learning algorithms

topological feature

Dataset

Random Forest

Support Vector Machine

mtry

F1-score

C

λ

F1-score

Feature set I

Training

12

0.780

8

0.250

0.766

Test

0.735

0.719

Feature set II

Training

13

0.844

16

0.062

0.810

Test

0.790

0.763

Feature set III

Training

13

0.859

16

0.016

0.843

Test

0.810

0.798

Fig. 2

Receiver operating characteristic curves (a) and precision/recall curves (b) for the six models using two machine learning algorithms to build binary classification models upon three topological feature spaces. RF means Random Forest, SVM means support vector machine, FI means feature set I, FII means feature set II, and FIII means feature set III

Table 4

Area under ROC curve (AUCROC) and area under PR curve (AUCPR) of random forest and support vector machine classification models using different feature sets

topological feature

Random Forest

Support Vector Machine

AUCROC

AUCPR

AUCROC

AUCPR

Feature set I

0.891

0.772

0.871

0.729

Feature set II

0.927

0.826

0.905

0.768

Feature set III

0.938

0.857

0.922

0.795

In order to further compare the proposed approached with SLAP, we carried out link predictions using both methods on a large set of unknown links of an evolving semantic network. The labels of those unknown links were derived from experimental evidence deposited in PubChem BioAssay databases after the Chem2Bio2RDF network was constructed. Hence, these positive labels can be viewed as experimental validations when assessing link prediction performance. The proposed framework, using RF to build a binary classification model upon feature set III, yielded much better BEDROC and AUCROC than SLAP (Table 5). BEDROC is mainly used to compare ranking systems in terms of early recognition [33]. Our approach yielded much better AUC of BEDROC using a default coefficient parameter (α = 20.0) (Table 5). The difference can be seen in Fig. 3 as well.
Table 5

Comparing the proposed framework (random forest classification model applied on feature set III) with existing algorithm SLAP using Area under ROC curve (AUCROC) and area under PR curve (AUCPR)



AUCROC

BEDROC

Feature set III

0.845

0.929

SLAP

0.670

0.672

Fig. 3

ROC curves for the Random Forest model built upon feature set III and SLAP. RF means Random Forest and FIII means feature set III

By applying the intrinsic feature ranking algorithm of the RF on feature set II, we can tell which meta-paths are important for link prediction. Feature importance can be visualized as a dot plot (Fig. 4). Two measures evaluated before and after permutations were used for feature ranking: decrease of classification accuracy and decrease of Gini index. Although two measures do not always agree on which features are important, we still can identify some significantly important meta-paths according to two measures. The top four important meta-paths were C1, C19, C16, and C39, and the network nodes connected by these important meta-paths are compounds, proteins, and GO annotations. It is noteworthy that the top three important meta-paths only contain semantic links between compounds and proteins, and the top two important meta-paths contain similarity neighboring links. Therefore, semantic links between compounds and proteins, including similarity neighboring links and interaction links, played a major role in predicting CPIs.

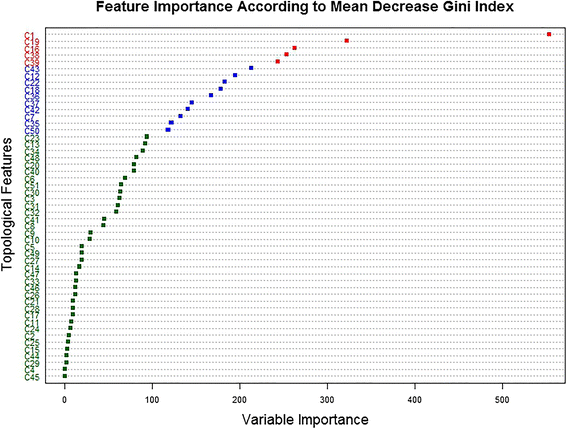

Fig. 4

Variable importance for Random Forest model built with feature set II. The color code for feature importance according to mean decrease accuracy: red (>70), blue (>45 and <70), green (<45); the color code for feature importance according to mean decrease Gini index: red (>240), blue (>240 and <100), green (<100)

In contrast to SLAP, that pre-calculates feature importance before making predictions, the proposed framework can evaluate feature importance and build predictive models at the same time. The importance of a given topological feature may vary to some extent when different sets of training data are considered, or when new links are added into the network as a function of time. We carried out an experiment to demonstrate that feature importance may vary significantly when different sets of data are used to build predictive models. We constructed 1,000 RF models using randomly selected training sets with feature set II. Each training set was compiled by 100 positively labeled links from the DrugBank set, and 100 negatively labeled links from the PubChem BioAssay set with experimental bioactivity value greater than 10 μM. The changes of feature importance in different models can be seen in Fig. 5. It is clearly that feature importance varied a lot in different models. Feature C4 has the smallest standard deviation (0.828) and feature C39 has the largest standard deviation (5.537). It is noteworthy that all of the top four importance features in the aforementioned models (C1, C16, C19, and C39) have very large standard deviations. Even though their importance varied a lot in different models, their mean values were well above the average of others; in particular, the mean values of C1 and C39 were much larger than those of other topological features. The predictive performances of those 1,000 RF models tested against a randomly selected set of 50 positive labels and 50 negative labels (not included in any of those 1,000 training sets) varied a lot as well. The highest F1-score is 0.937 and the lowest F1-score is 0.667. Hence, the selection of training set is also very important to build highly predictive machine learning models.
Fig. 5

Box plot for the variable importance varying in 1 000 Random Forest models

Conclusions

The semantic network integrating domain knowledge across chemical and biological space can be leveraged for large-scale data mining. Among the different kinds of semantic links, drug-target connectivity maps have drawn extensive attention, since they are beneficial for drug discovery and development, in particular, drug repositioning and polypharmacology research. In the present work, we have proposed a framework to construct state-of-the-art machine learning models using meta-path-based topological features for link prediction in complex semantic networks. Supervised classification models were shown to be powerful, based on their predictive performance in an independent test set containing links of an evolving network. In addition, the intrinsic feature ranking algorithm embedded in machine learning models can be used to select the most important topological features. Although the proposed framework was only applied to predict DTIs in the present work, it can definitely be used for other purposes, such as to predict associations between drugs and adverse side effects, as well as associations between proteins and diseases. In the future, we want to study how to select the most relevant training set for a given prediction task, and how much training set selection can improve predictive performance.

Availability of Data and Materials

The data sets supporting the results of this article are included within the article and its additional files (Additional files 1, 2, 3, 4 and 5).

Abbreviations

FN:

false negative

FP:

false positive

MCC:

Mathews correlation coefficient

PC:

path count

RF:

random forest

RW:

random walk

SLAP:

semantic link association prediction

TN:

true negative

TP:

true positive

Declarations

Acknowledgements

This research was supported [in part] by the Intramural Research Program of the National Library of Medicine, NIH. Many thanks to the PubChem team, who provided database API functions to retrieve data from Compound and BioAssay databases. Many thanks to Ming Hao in the discussion about R packages and calculations. Many thanks to Jeremy Yang in the discussion and help to maintain Chem2Bio2RDF web server.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
National Center for Biotechnology Information, National Library of Medicine, National Institutes of Health
(2)
School of Informatics & Computing, Indiana University
(3)
School of Information Management, Wuhan University, Wuchang
(4)
Department of Medicine, Stanford University
(5)
College of Computer and Information Science, Northeastern University

References

  1. Bredel M, Jacoby E. Chemogenomics: an emerging strategy for rapid target and drug discovery. Nat Rev Genet. 2004;5(4):262–75.View ArticlePubMedGoogle Scholar
  2. Yamanishi Y. Chemogenomic approaches to infer drug-target interaction networks. Methods Mol Biol. 2013;939:97–113.View ArticlePubMedGoogle Scholar
  3. Oprea TI, May EE, Leitao A, Tropsha A. Computational systems chemical biology. Methods Mol Biol. 2011;672:459–88.View ArticlePubMedPubMed CentralGoogle Scholar
  4. Oprea TI, Tropsha A, Faulon JL, Rintoul MD. Systems chemical biology. Nat Chem Biol. 2007;3(8):447–50.View ArticlePubMedPubMed CentralGoogle Scholar
  5. Lee S, Park K, Kim D. Building a drug-target network and its applications. Expert Opin Drug Discov. 2009;4(11):1177–89.View ArticlePubMedGoogle Scholar
  6. Kotelnikova E, Yuryev A, Mazo I, Daraselia N. Computational approaches for drug repositioning and combination therapy design. J Bioinform Comput Biol. 2010;8(3):593–606.View ArticlePubMedGoogle Scholar
  7. Li J, Zhu X, Chen JY. Building disease-specific drug-protein connectivity maps from molecular interaction networks and PubMed abstracts. PLoS Comput Biol. 2009;5(7):e1000450.View ArticlePubMedPubMed CentralGoogle Scholar
  8. Xie L, Li J, Bourne PE. Drug discovery using chemical systems biology: identification of the protein-ligand binding network to explain the side effects of CETP inhibitors. PLoS Comput Biol. 2009;5(5):e1000387.View ArticlePubMedPubMed CentralGoogle Scholar
  9. Wild DJ, Ding Y, Sheth AP, Harland L, Gifford EM, Lajiness MS. Systems chemical biology and the Semantic Web: what they mean for the future of drug discovery research. Drug Discov Today. 2012;17(9–10):469–74.View ArticlePubMedGoogle Scholar
  10. Fu G, Batchelor C, Dumontier M, Hastings J, Willighagen E, Bolton E. PubChemRDF: towards the semantic annotation of PubChem compound and substance databases. J Cheminform. 2015;7:34.View ArticlePubMedPubMed CentralGoogle Scholar
  11. Chen B, Dong X, Jiao D, Wang H, Zhu Q, Ding Y, Wild DJ. Chem2Bio2RDF: a semantic framework for linking and data mining chemogenomic and systems chemical biology data. BMC Bioinformatics. 2010;11:255.View ArticlePubMedPubMed CentralGoogle Scholar
  12. Callahan A, Cruz-Toledo J, Ansell P, Dumontier M. Bio2RDF Release 2: Improved Coverage, Interoperability and Provenance of Life Science Linked Data. In: Cimiano P, Corcho O, Presutti V, Hollink L, Rudolph S, editors. The Semantic Web: Semantics and Big Data vol. 7882. Berlin Heidelberg: Springer; 2013. p. 200–12.View ArticleGoogle Scholar
  13. Williams AJ, Harland L, Groth P, Pettifer S, Chichester C, Willighagen EL, Evelo CT, Blomberg N, Ecker G, Goble C, et al. Open PHACTS: semantic interoperability for drug discovery. Drug Discov Today. 2012;17(21–22):1188–98.View ArticlePubMedGoogle Scholar
  14. Willighagen EL, Waagmeester A, Spjuth O, Ansell P, Williams AJ, Tkachenko V, Hastings J, Chen B, Wild DJ. The ChEMBL database as linked open data. J Cheminform. 2013;5(1):23.View ArticlePubMedPubMed CentralGoogle Scholar
  15. Chen B, Ding Y, Wild DJ. Assessing drug target association using semantic linked data. PLoS Comput Biol. 2012;8(7):e1002574.View ArticlePubMedPubMed CentralGoogle Scholar
  16. Getoor L, Diehl CP. Link mining: a survey. SIGKDD Explor Newsl. 2005;7(2):3–12.View ArticleGoogle Scholar
  17. Liben-Nowell D, Kleinberg J. The link-prediction problem for social networks. J Am Soc Inf Sci Technol. 2007;58(7):1019–31.View ArticleGoogle Scholar
  18. Yamanishi Y, Kotera M, Kanehisa M, Goto S. Drug-target interaction prediction from chemical, genomic and pharmacological data in an integrated framework. Bioinformatics. 2010;26(12):i246–54.View ArticlePubMedPubMed CentralGoogle Scholar
  19. Cheng F, Liu C, Jiang J, Lu W, Li W, Liu G, Zhou W, Huang J, Tang Y. Prediction of drug-target interactions and drug repositioning via network-based inference. PLoS Comput Biol. 2012;8(5):e1002503.View ArticlePubMedPubMed CentralGoogle Scholar
  20. Cheng F, Zhou Y, Li W, Liu G, Tang Y. Prediction of chemical-protein interactions network with weighted network-based inference method. PLoS One. 2012;7(7):e41064.View ArticlePubMedPubMed CentralGoogle Scholar
  21. Cheng F, Li W, Wu Z, Wang X, Zhang C, Li J, Liu G, Tang Y. Prediction of polypharmacological profiles of drugs by the integration of chemical, side effect, and therapeutic space. J Chem Inf Model. 2013;53(4):753–62.View ArticlePubMedGoogle Scholar
  22. Sun Y, Han J, Aggarwal CC, Chawla NV: When will it happen?: relationship prediction in heterogeneous information networks. In: Proceedings of the fifth ACM international conference on Web search and data mining; Seattle, Washington, USA. 2124373: ACM 2012: 663–672.Google Scholar
  23. Sun Y, Han J, Yan X, Yu PS, Wu T. PathSim: Meta Path-Based Top-K Similarity Search in Heterogeneous Information Networks. PVLDB. 2011;4(11):992–1003.Google Scholar
  24. PubChem 2D similarity neighbor. https://pubchem.ncbi.nlm.nih.gov/score_matrix/score_matrix-help.html [https://pubchem.ncbi.nlm.nih.gov/score_matrix/score_matrix-help.html]. Accessed 4 Apr 2016.
  25. Kim S, Thiessen PA, Bolton EE, Chen J, Fu G, Gindulyte A, Han L, He J, He S, Shoemaker BA, Wang J, Yu B, Zhang J, Bryant SH. PubChem Substance and Compound databases. Nucleic Acids Res. 2016;44(D1):D1202-13. doi:10.1093/nar/gkv951.
  26. Wang Y, Xiao J, Suzek TO, Zhang J, Wang J, Bryant SH. PubChem: a public information system for analyzing bioactivities of small molecules. Nucleic Acids Res. 2009;37(Web Server issue):W623–633.View ArticlePubMedPubMed CentralGoogle Scholar
  27. Conrad SA: An Open Source C++ Linear Algebra Library for Fast Prototyping and Computationally Intensive Experiments. Technical Report, NICTA, 2010. http://arma.sourceforge.net/armadillo_nicta_2010.pdf.
  28. Wang Y, Xiao J, Suzek TO, Zhang J, Wang J, Zhou Z, Han L, Karapetyan K, Dracheva S, Shoemaker BA, et al. PubChem’s BioAssay Database. Nucleic Acids Res. 2012;40(Database issue):D400–412.View ArticlePubMedPubMed CentralGoogle Scholar
  29. Breiman L. Random forests. Mach Learn. 2001;45:5–32.View ArticleGoogle Scholar
  30. Fu G, Liu S, Nan X, Dale OR, Zhao Z, Chen Y, Wilkins DE, Manly SP, Cutler SJ, Doerksen RJ. Quantitative Structure-Activity Relationship Analysis and a Combined Ligand-Based/Structure-Based Virtual Screening Study for Glycogen Synthase Kinase-3. Mol Inform. 2014;33(9):627–40.View ArticleGoogle Scholar
  31. Cortes C, Vapnik V. SUPPORT-VECTOR NETWORKS. Mach Learn. 1995;20(3):273–97.Google Scholar
  32. Powers DMW: Evaluation: From Precision, Recall and F-Factor to ROC, Informedness, Markedness & Correlation. In. Adelaide: School of Informatics and Engineering, Flinders University of South Australia; Australia: 2007.Google Scholar
  33. Truchon JF, Bayly CI. Evaluating virtual screening methods: good and bad metrics for the “early recognition” problem. J Chem Inf Model. 2007;47(2):488–508.View ArticlePubMedGoogle Scholar

Copyright

© Fu et al. 2016

Advertisement
